- 1. Agenda • An Introductionto HP Blade Technology. • On board Administrator (OA). • Virtual Connect Flex-10. • Cisco Module. 1

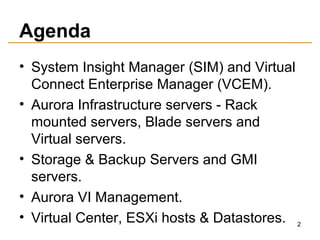

- 2. Agenda • System InsightManager (SIM) and Virtual Connect Enterprise Manager (VCEM). • Aurora Infrastructure servers - Rack mounted servers, Blade servers and Virtual servers. • Storage & Backup Servers and GMI servers. • Aurora VI Management. • Virtual Center, ESXi hosts & Datastores. 2
- 3. Agenda • NTP serverconfiguration. • Cluster configuration. • Heartbeat configuration. • Questions and Answers. 3
- 4. HP Blades &Chassis Introduction 4
- 5. Introduction –What willbe Covered ● What is HP Blade Chassis ● Aurora Types and Standards ● Chassis Hardware Overview ● OA Modules ● Flex -10 Module ● Demonstration 5
- 6. HP Blade SystemInfrastructure Enclosure Family An adaptive infrastructure in a box optimized for large data centers. • Up to 16 server and storage bays • 8 high-speed networking bays c7000 Versatile, hassle-free Blade System enclosure ideal for small spaces with big computing needs. c3000 Towerc3000 • Up to 8 server and storage bays • 4 high-speed networking bays 6
- 7. 10U Up to 16 blades c7000Enclosure Front View Server blades • 2x features, 2x the density Storage blades • A new paradigm for “bladed” storage solutions Integrated power • Simplified configuration and greater efficiency • Same flexibility, capacity and redundancy Onboard Administrator • HP Insight Display • Simple set-up delivered out of the box 7
- 8. c7000 Enclosure Interconnect bays •8 bays; up to 4 redundant I/O fabrics • Up to 94% reduction in cables • Ethernet, Fibre Channel, iSCSI, SAS, IB • Enclosure Mid-plane aggregate bandwidth capacity of 5Tbs Active Cool fans • Adaptive flow for maximum power efficiency, air movement & acoustics Onboard Administrator • Remote administration view • Robust, multi-enclosure control Power management • Choice of single-phase or three-phase enclosures • AC redundant mode or power supply redundant mode • Best performance per watt Rear View 8
- 9. HP Blade Systemc-Class Portfolio A Full Range of 2P and 4P Blades Interconnect choices for LAN, SAN, and Scale-Out Clusters Fibre Channel InfiniBand 4X DDR Workstation Blades Storage Blades Unified Management Services Assessment Implementation Support Enclosures SANLAN Ethernet NICsVirtual Connect Server Blades Choice of Power 9

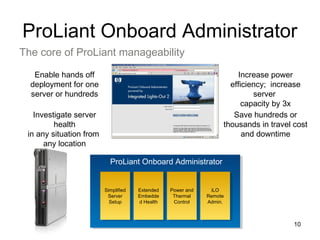

- 10. ProLiant Onboard Administrator Savehundreds or thousands in travel cost and downtime Increase power efficiency; increase server capacity by 3x Enable hands off deployment for one server or hundreds Investigate server health in any situation from any location ProLiant Onboard AdministratorProLiant Onboard Administrator Simplified Server Setup Simplified Server Setup Extended Embedde d Health Extended Embedde d Health Power and Thermal Control Power and Thermal Control iLO Remote Admin. iLO Remote Admin. The core of ProLiant manageability 10
- 11. Simplify and makeyour datacenter change-ready with Virtual Connect • Simplify networks − Reduce cables without adding switches to manage • Simplify server connections − Cleanly separate server enclosure from LAN and SAN • Change servers in minutes, not days − Add, move, and replace servers fast without affecting your LANs or SANs 11
- 12. Server-Edge Virtualization pools allservers as one Virtual Connect solves these & makes IT change-ready A B C Spare LAN SAN NICHBANICHBANICHBANICHBAHPVirtualConnectModules •Reduces cables w/o adding switches No new FC domains! •Maintains end-to-end connections of your favorite brands (Cisco, BNT, Brocade, McData, etc.) •Cleanly separates mgt of Server, LAN & SAN •Relieves LAN & SAN admins from server maintenance w/o affecting their authority (their work is done after deployment) •Servers are Change-Ready - add, move, replace, upgrade w/o affecting LAN or SAN •MAC & WWN are locally administered so LAN & SAN connections stay constant Servers Networks 12
- 13. • Manages hundredsof VC domains • Scales and simplifies deployment of new VC domains as infrastructure grows • Environments with plans for more than one rack of BL enclosures Managing Virtual Connect environments Options for large and small environments • Web console integrated into VC Ethernet module firmware • Manages individual VC domains • Environments with 4 enclosures and no plans to expand Virtual Connect Enterprise Manager Virtual Connect Manager 13
- 14. Flex-10 technology embeds VirtualConnect flexibility into the server blade Virtual Connect + Flex-10 technology Wire once, easily move applications and then add, replace, and recover servers on-the-fly Up to 8 NICs across 2 ports, plus the ability to fine-tune network bandwidth and connections at the server edge 14
- 15. Network connections today withtraditional server blades (BL460c G6) 1Gb LOM Dual NIC Quad NIC 8 connections require 8 interconnect modules (Speeds are fixed at 1Gb/s or 10Gb/s) 15

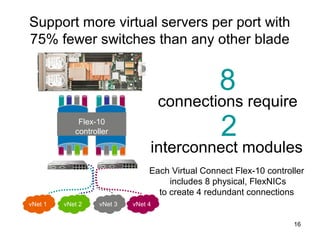

- 16. Support more virtualservers per port with 75% fewer switches than any other blade Flex-10 controller vNet 2 vNet 3 vNet 4vNet 1 8 connections require Each Virtual Connect Flex-10 controller includes 8 physical, FlexNICs to create 4 redundant connections 2 interconnect modules 16
- 17. Cisco MDS 9124eFabric Switch for HP c-Class BladeSystem• Superior performance Fibre Channel switch designed exclusively for HP’s most flexible computer architecture − 4 Gbps dedicated bandwidth per port − Up to 16 server ports − Up to eight SAN facing ports (4 included) − Up to 1:1 subscription ratio − Non-blocking architecture − VSANs (up to 16 per switch) − PortChannels (up to 8 ports in one logical bundle) • High availability features − Redundant and hot swappable − Up to six switches per enclosure − Support redundant, dual-port Fibre Channel mezzanine cards for HP BladeSystem c-Class − Non-disruptive software upgrades − Cisco Fabric Manager Server and Enterprise Packages for advanced infrastructure management features (optional) 17
- 18. G6 Bladesystem Servers& Chassis 19
- 19. HP BladeSystem c-Class serverpositioning DL180 DL36X DL38X DL58X rx2660 rx6600 BL2x220c BL280c BL46Xc BL49xc BL68Xc BL860c BL870c Traditional Rack-Mount Server Blade 20
- 20. BL460c G6 Processor •2x Quad Core Intel Xeon E5530 processors Memory • 12GB (6x2GB) DDR3 Unbuffered DIMMs • 12 DIMM Sockets (6 Available) • 192GB max (RDIMMs), 24GB Max (UDIMMs) Internal Storage • 2 x 146GB 10k rpm Hot Plug SFF SAS HDDs • Smart Array P410i SAS controller with RAID 0/1; 256 MB BBWC Networking • 2 integrated Multifunction 10Gb ports with Flex-10 support Mezzanine Slots • 2 PCIe x8 mezzanine expansion slots – Available* Additional Features • Internal USB 2.0 connector • Internal SD Card slot • TPM 1.2 module support Management • Intelligent Administrator/Integrated Lights Out 2 Standard Blade Edition • Power Meter, Power Regulator, Power Capping Density • 16 server blades in 10U enclosure • 8 server blades in 6U enclosure *Fibre Channel Version includes Emulex LPe1205- 8Gb FC HBA in Mezzanine Slot 1 BL460c G6 Small 21
- 21. HP ProLiant BL490cG6 Processor • 2x Quad Core Intel Xeon E5540 processors Memory • 72GB (18 x 4GB) Registered DIMMs • 18 DIMM Sockets (0 Available) • 192GB max (RDIMMs), 24GB Max (UDIMMs) Storage • Smart Array P712m • 2 x 32GB SATA Solid State Hard drives • SSD Hardware RAID Networking • Embedded Dual Port Flex-10 10 GbE Adapter Mezzanine slots • 2 additional mezzanine slots • Smart Array P712m installed in Slot 2 Management • ProLiant Onboard Administrator/Integrated Lights Out 2 Standard Blade Edition • Power Meter, Power Regulator, Power Capping Other • Internal USB and SD ports; Option for TPM BL490c G6 Virtualisation 22
- 22. c7000 Chassis Configuration 6X2400W High Efficiency Redundant Power Supplies, IEC C19 10X Active Cool Fans, Redundant 2X Onboard Administrator, Redundant 2X Virtual Connect Flex-10 Ethernet Modules 2X Cisco MDS 9124e FC Switch Modules Blanking Panels – 23

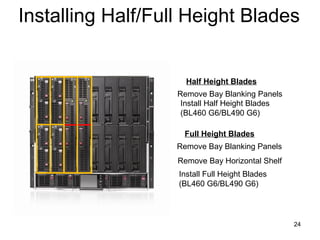

- 23. Installing Half/Full HeightBlades Remove Bay Blanking Panels Install Half Height Blades (BL460 G6/BL490 G6) Half Height Blades Full Height Blades Remove Bay Blanking Panels Remove Bay Horizontal Shelf Install Full Height Blades (BL460 G6/BL490 G6) 24
- 24. Management Module ● AdvancedManagement Module (AMM) ● Centralized Management of all Chassis Hardware ● Monitoring ●Temperature ● Load Balancing ● Controls Power ● Remote Control ● Firmware Versions ● Questions 25
