How to use Git Branch

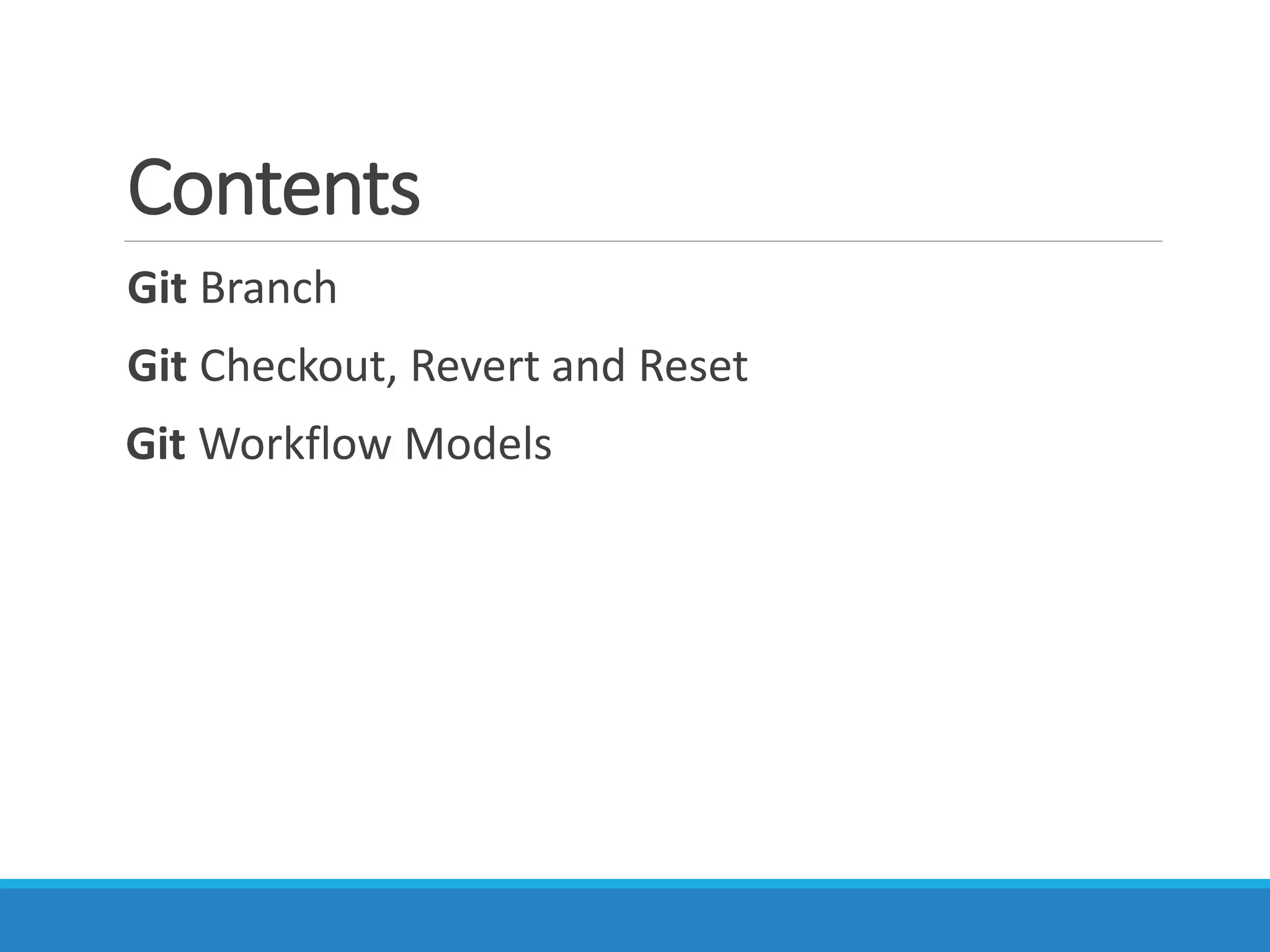

- 2. Contents Git Branch Git Checkout, Revert and Reset Git Workflow Models

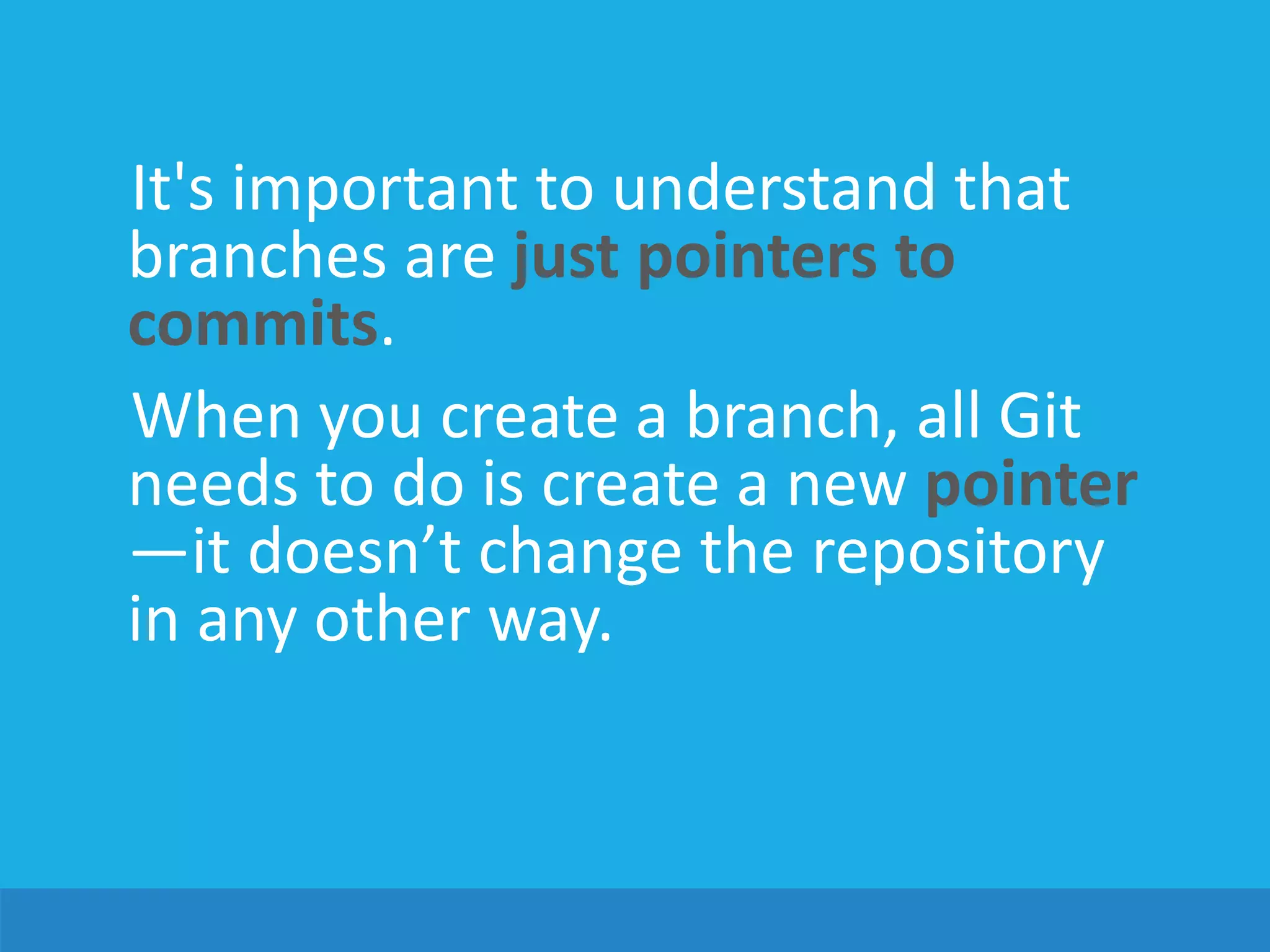

- 3. It's important to understand that branches are just pointers to commits. When you create a branch, all Git needs to do is create a new pointer —it doesn’t change the repository in any other way.

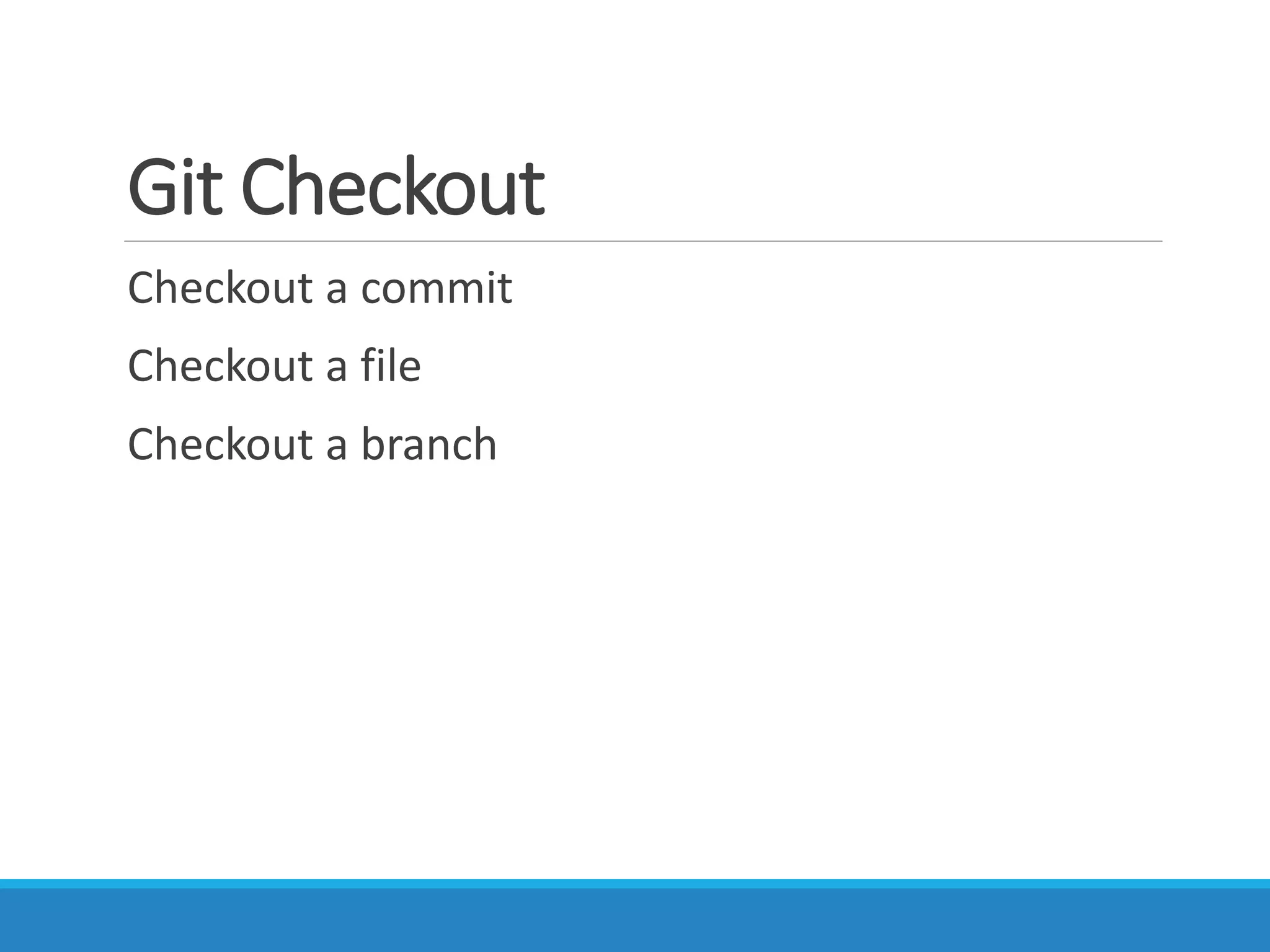

- 4. Git Checkout Checkout a commit Checkout a file Checkout a branch

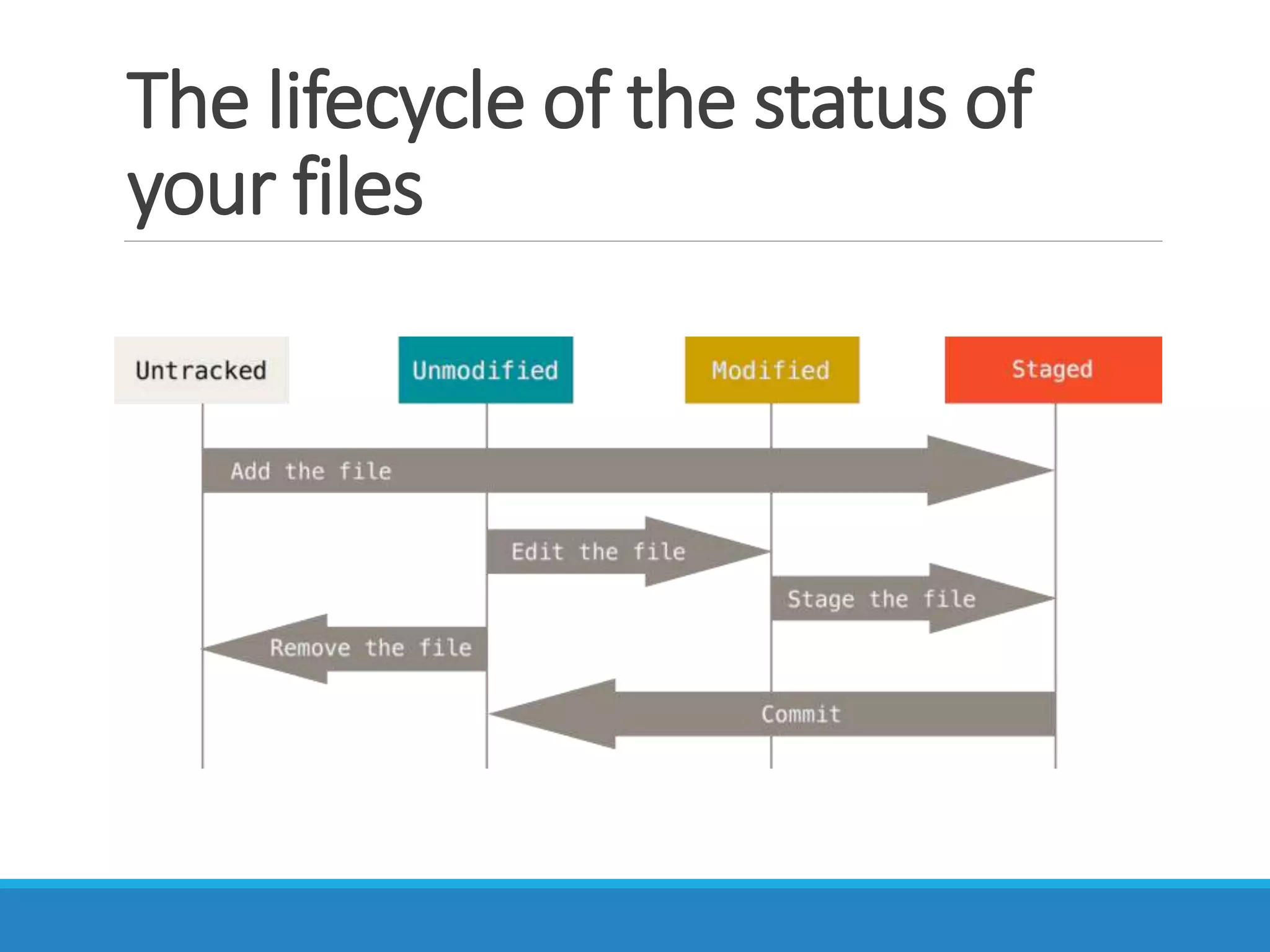

- 5. The lifecycle of the status of your files

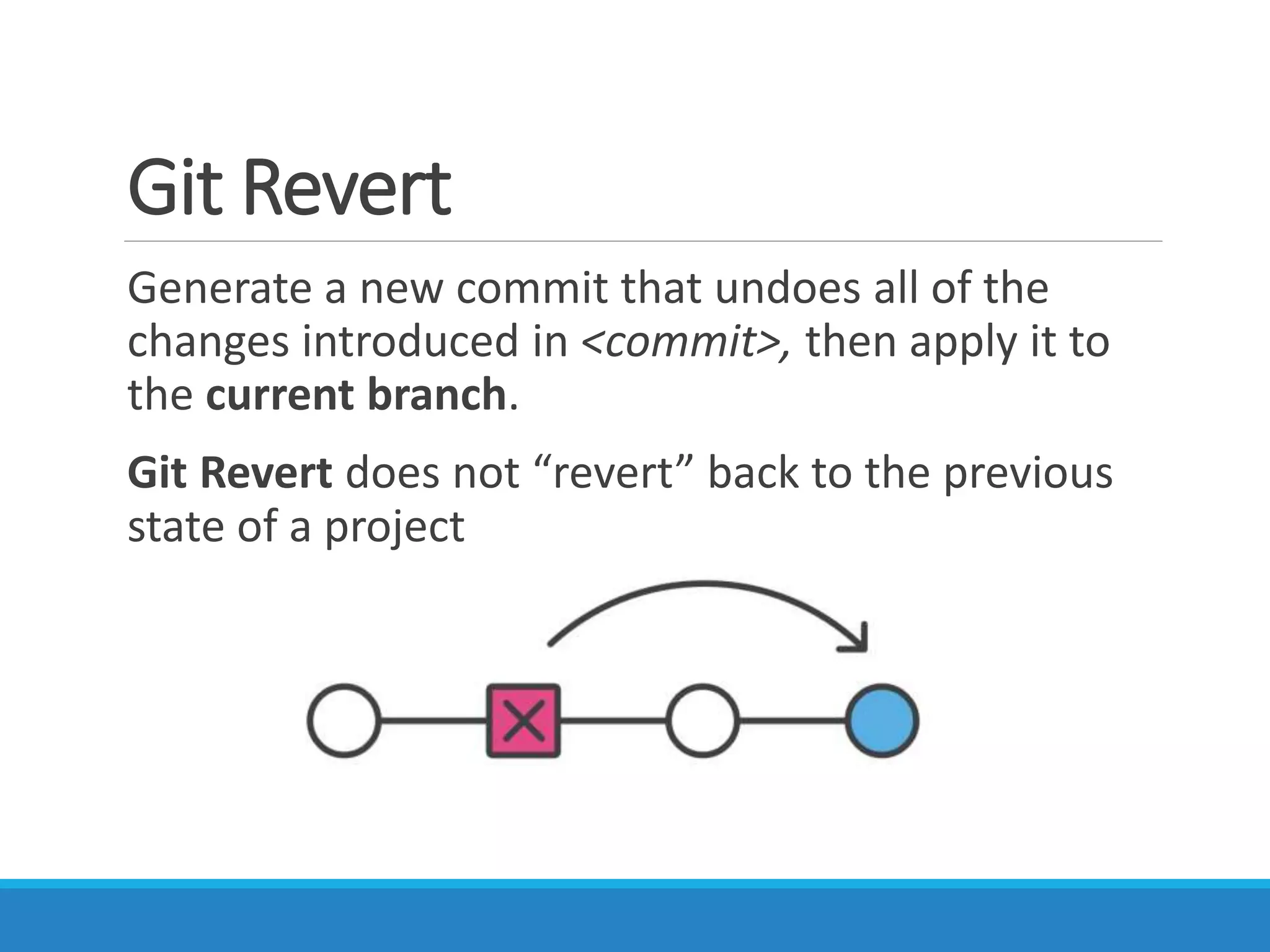

- 6. Git Revert Generate a new commit that undoes all of the changes introduced in <commit>, then apply it to the current branch. Git Revert does not “revert” back to the previous state of a project

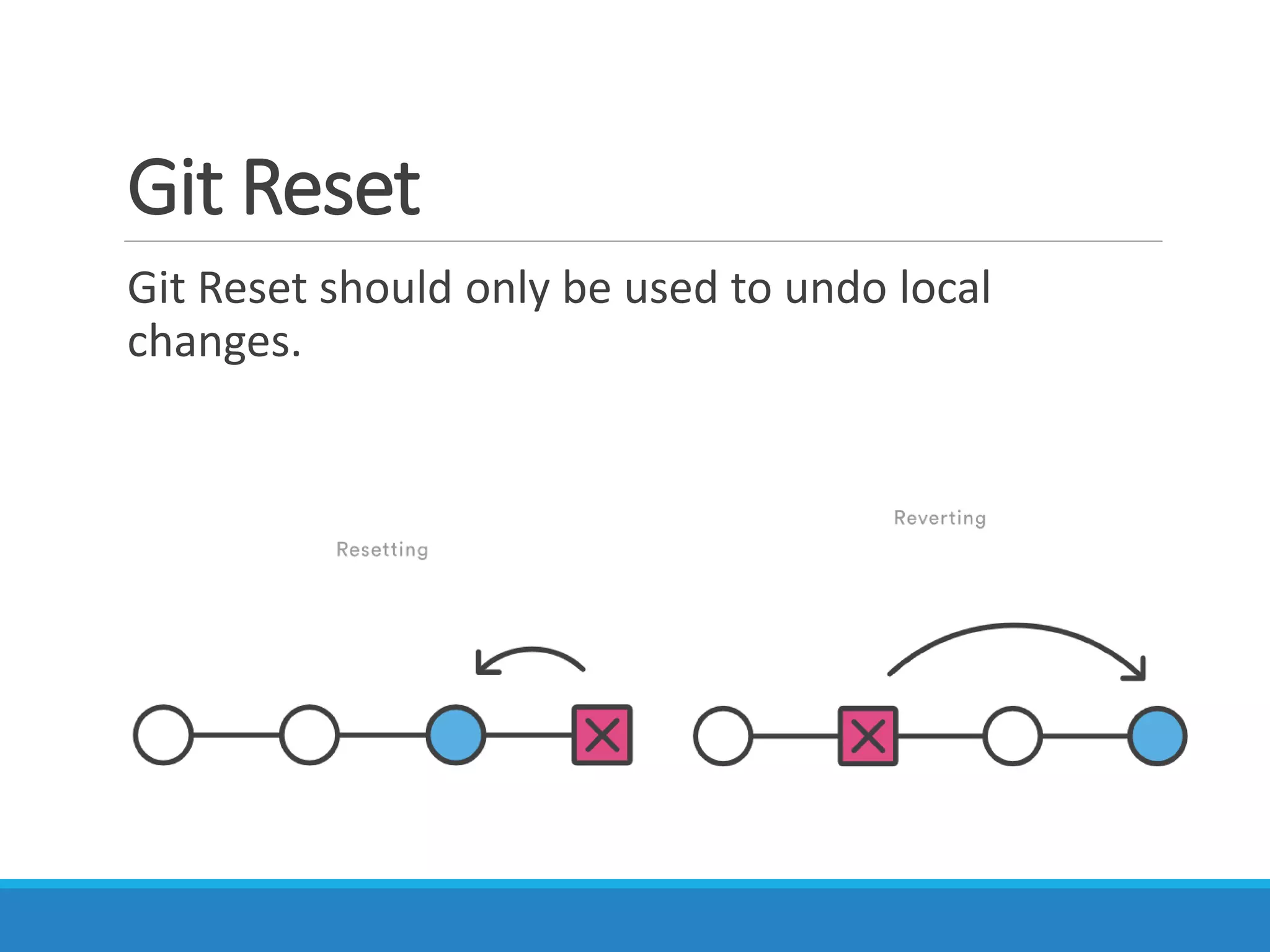

- 7. Git Reset Git Reset should only be used to undo local changes.

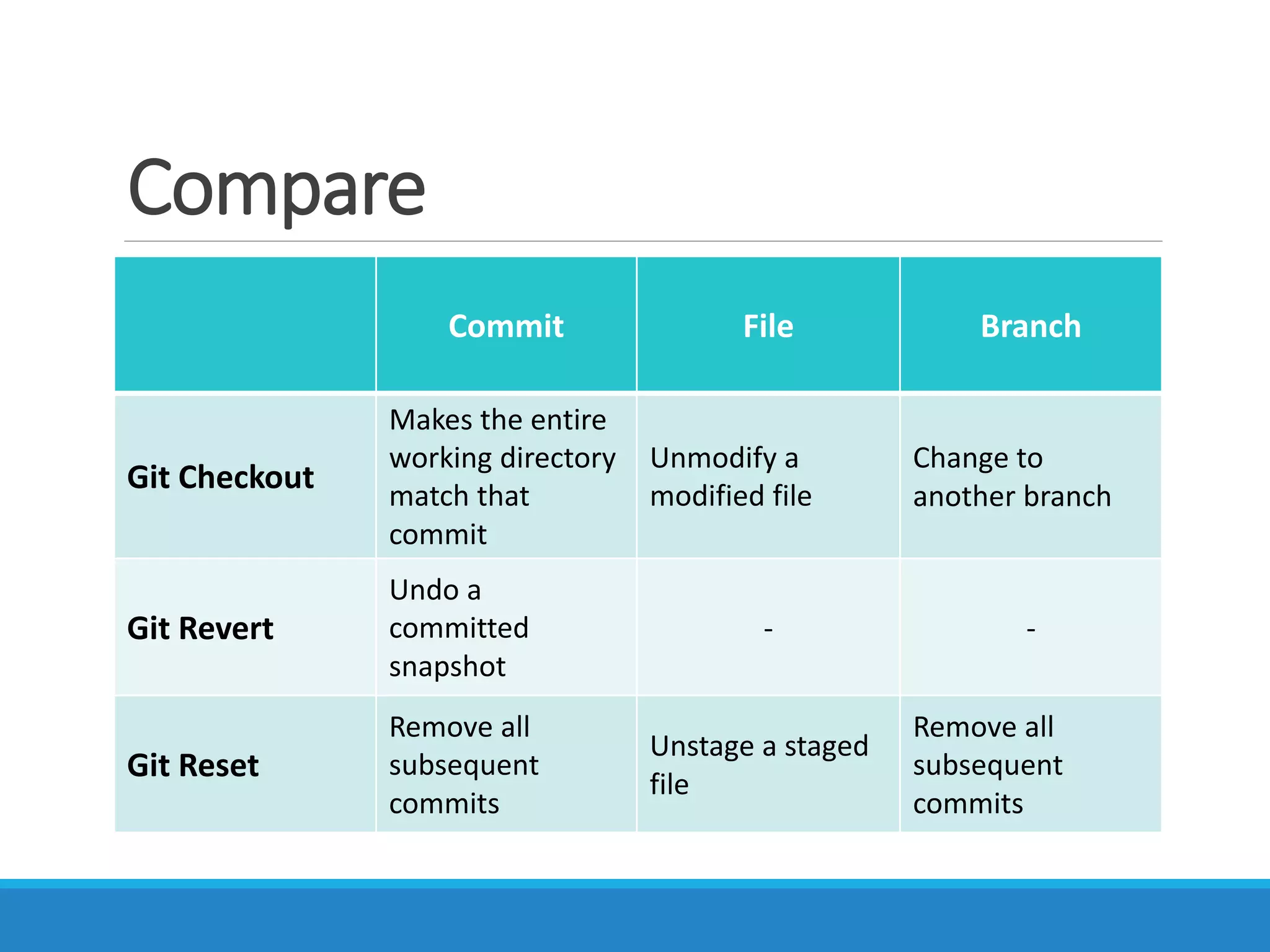

- 8. Compare Commit File Branch Git Checkout Makes the entire working directory match that commit Unmodify a modified file Change to another branch Git Revert Undo a committed snapshot - - Git Reset Remove all subsequent commits Unstage a staged file Remove all subsequent commits

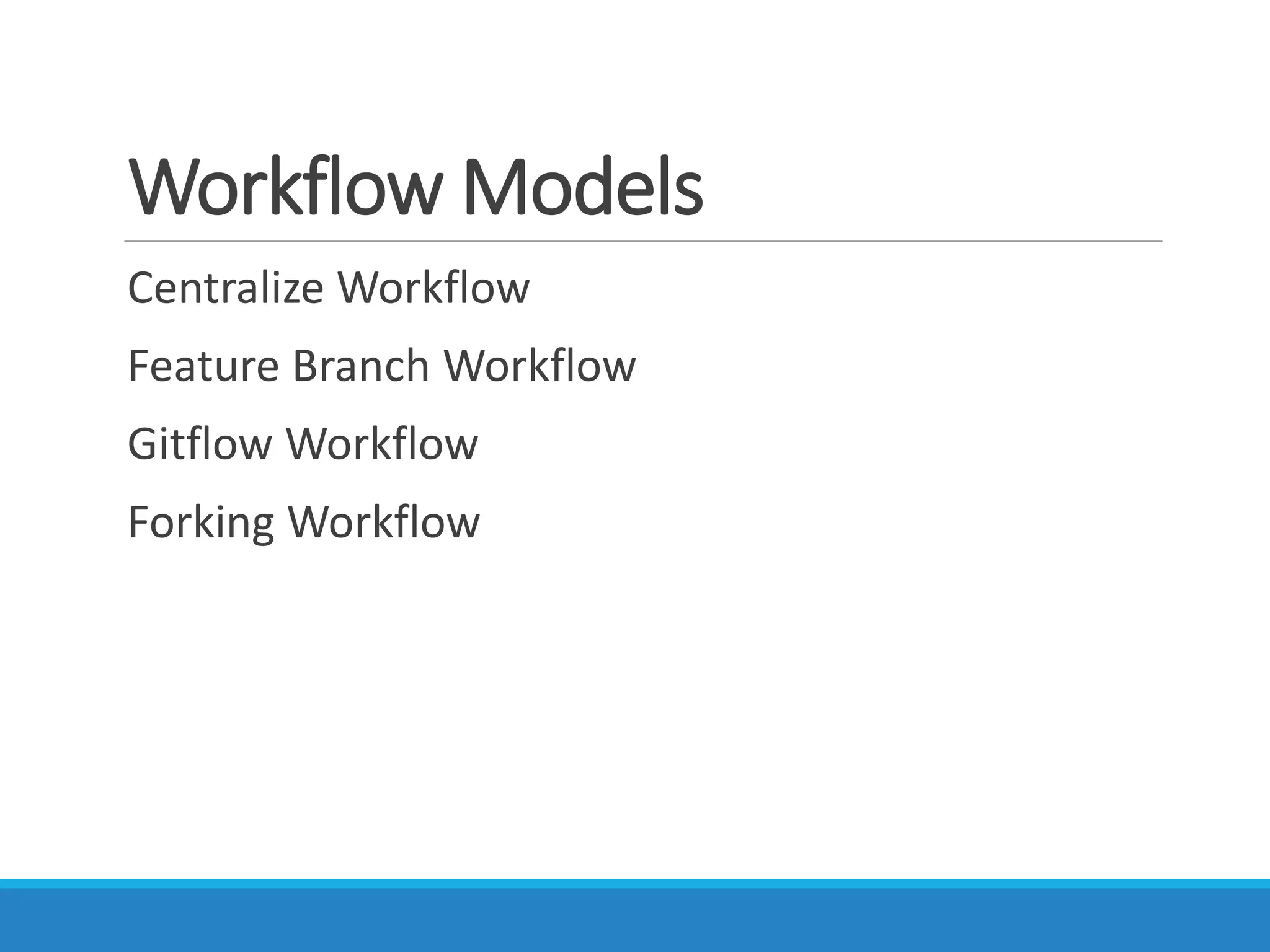

- 9. Workflow Models Centralize Workflow Feature Branch Workflow Gitflow Workflow Forking Workflow

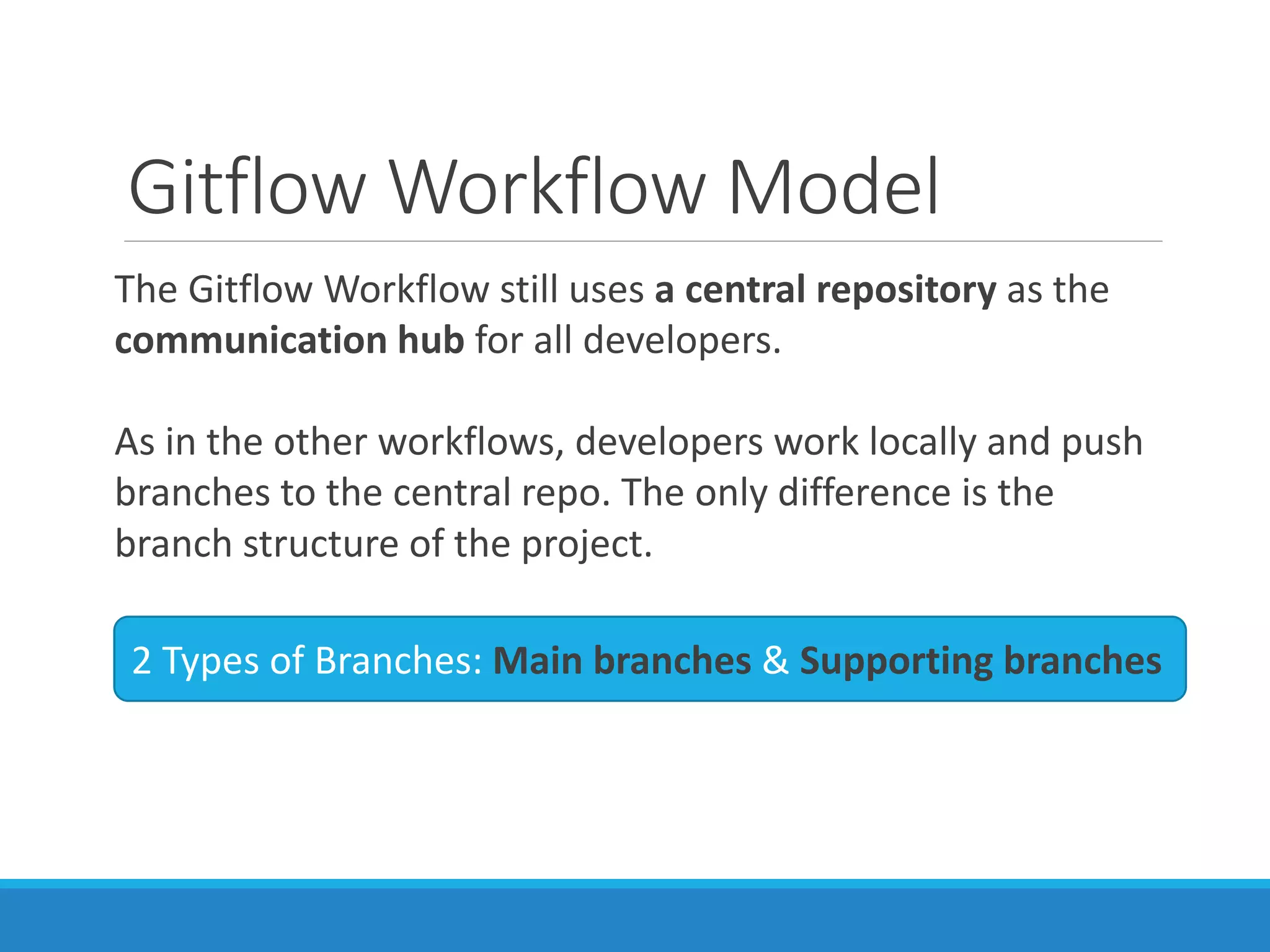

- 10. Gitflow Workflow Model The Gitflow Workflow still uses a central repository as the communication hub for all developers. As in the other workflows, developers work locally and push branches to the central repo. The only difference is the branch structure of the project. 2 Types of Branches: Main branches & Supporting branches

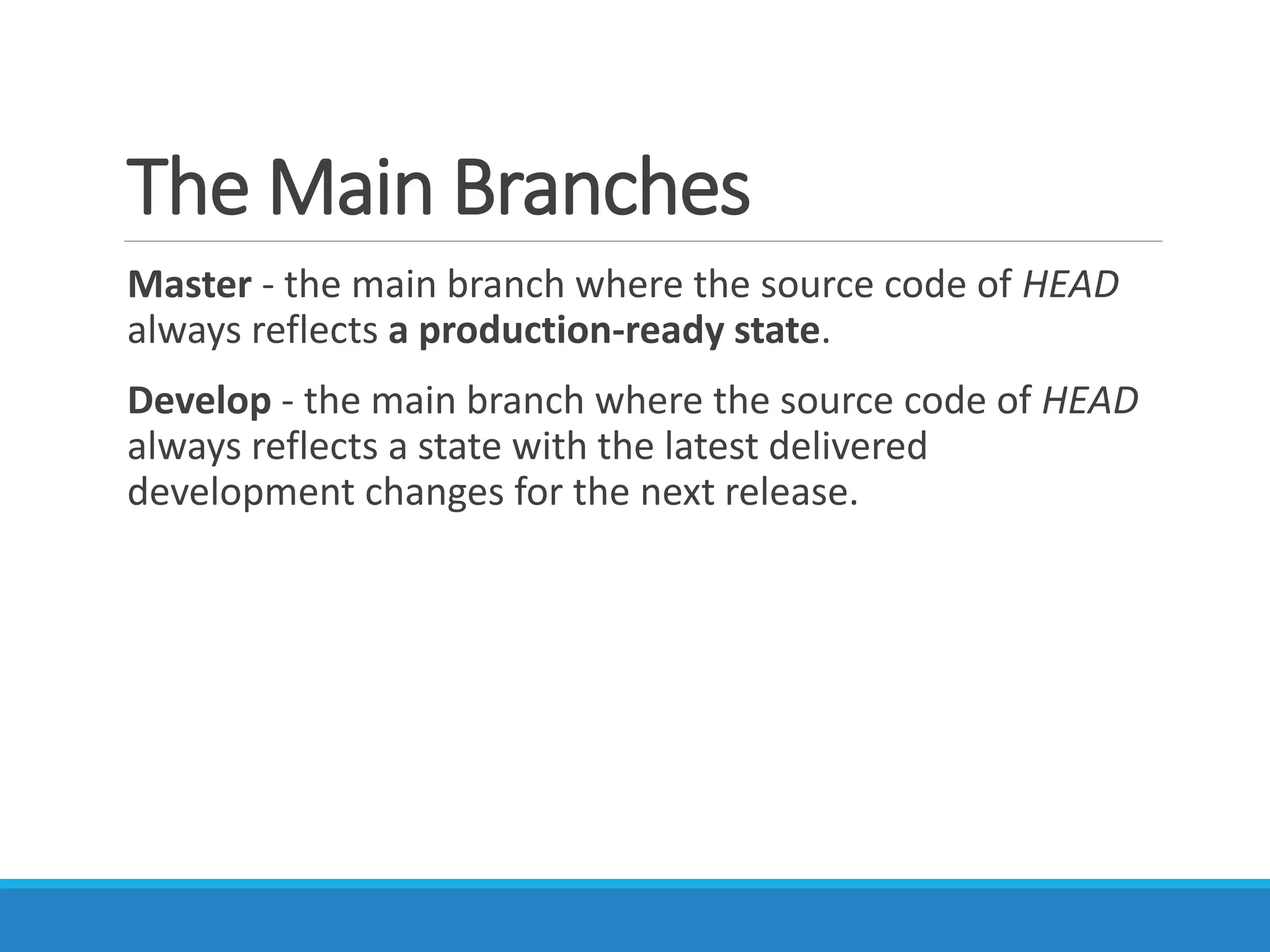

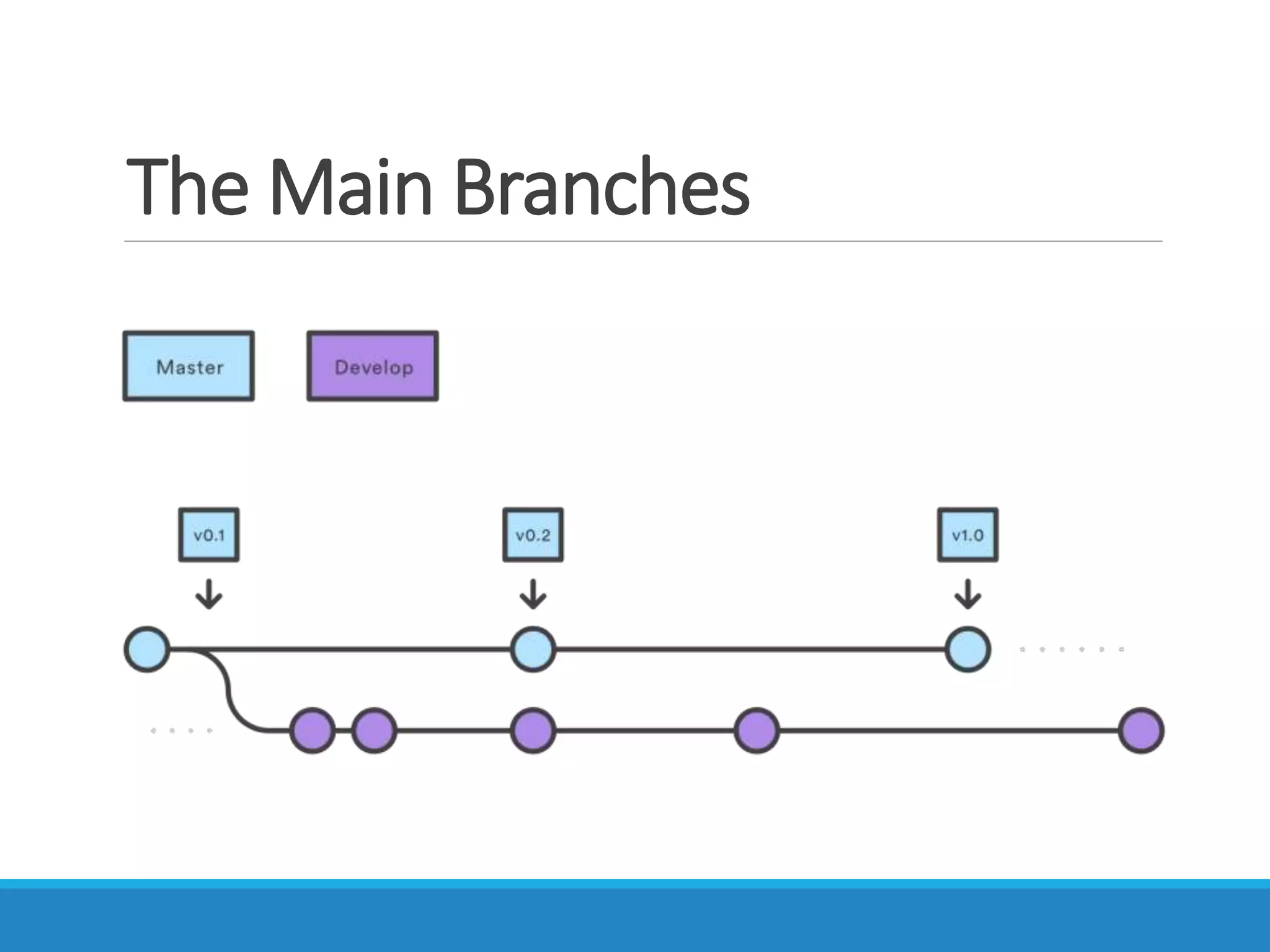

- 11. The Main Branches Master - the main branch where the source code of HEAD always reflects a production-ready state. Develop - the main branch where the source code of HEAD always reflects a state with the latest delivered development changes for the next release.

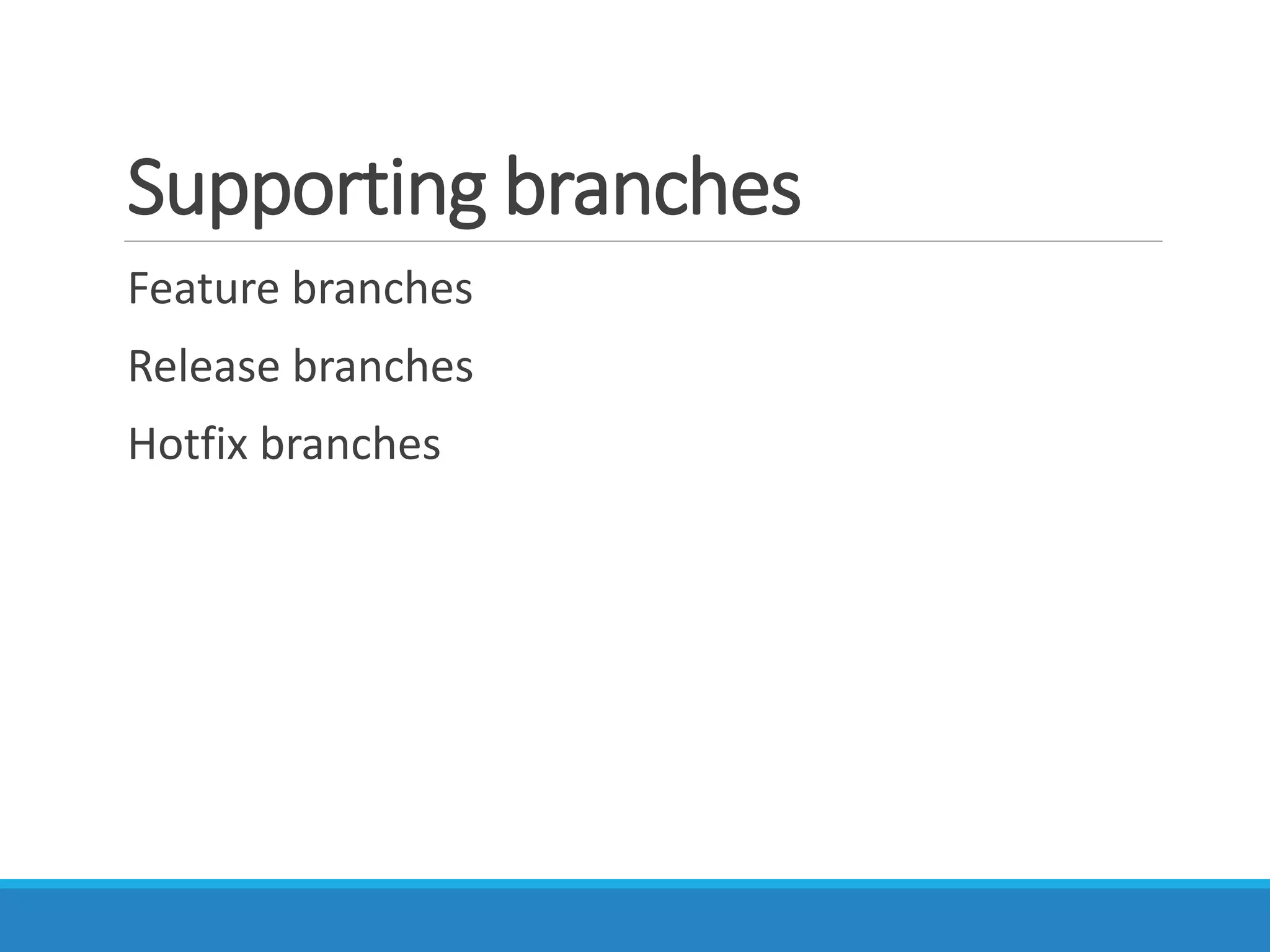

- 13. Supporting branches Feature branches Release branches Hotfix branches

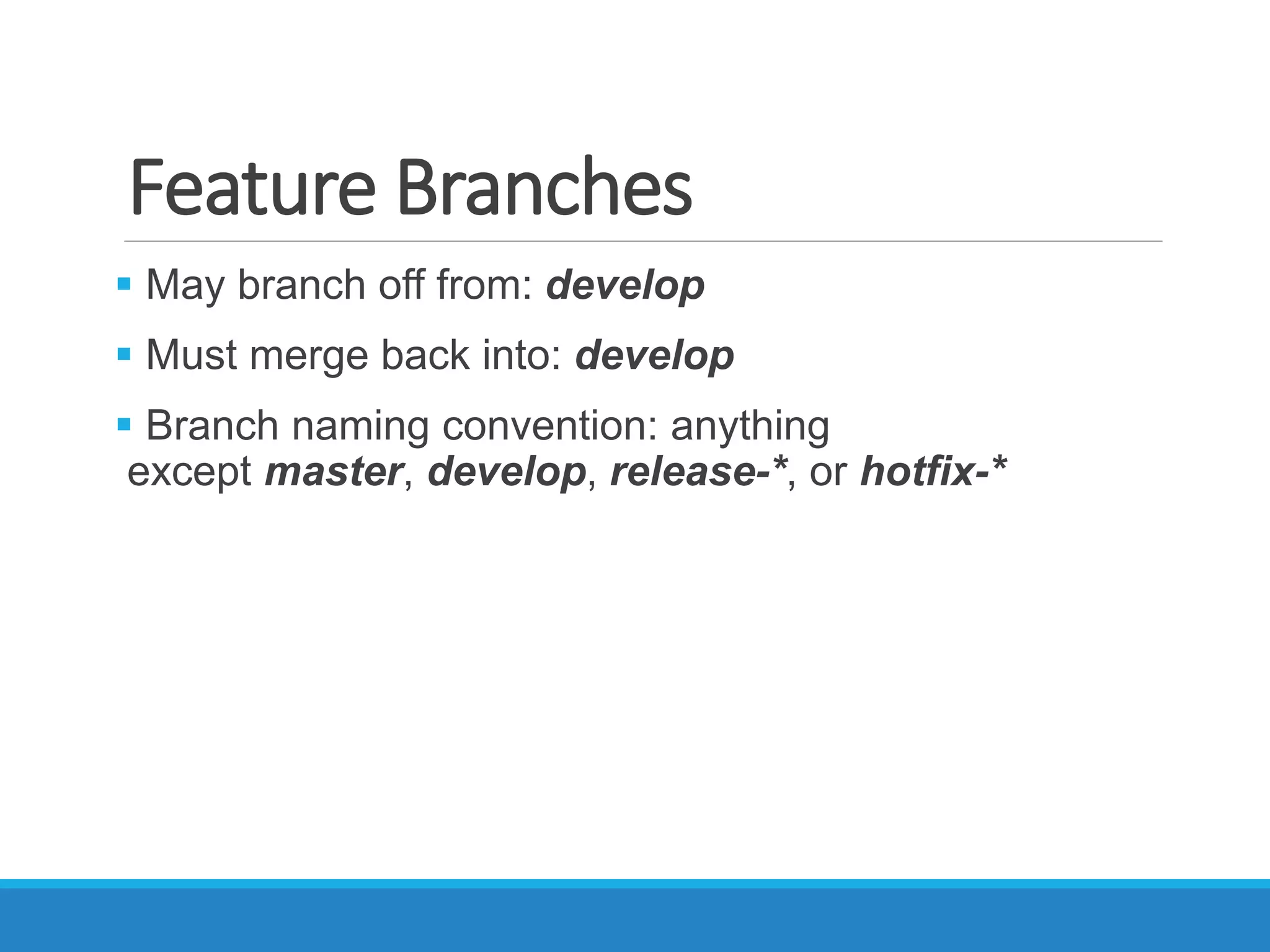

- 14. Feature Branches May branch off from: develop Must merge back into: develop Branch naming convention: anything except master, develop, release-*, or hotfix-*

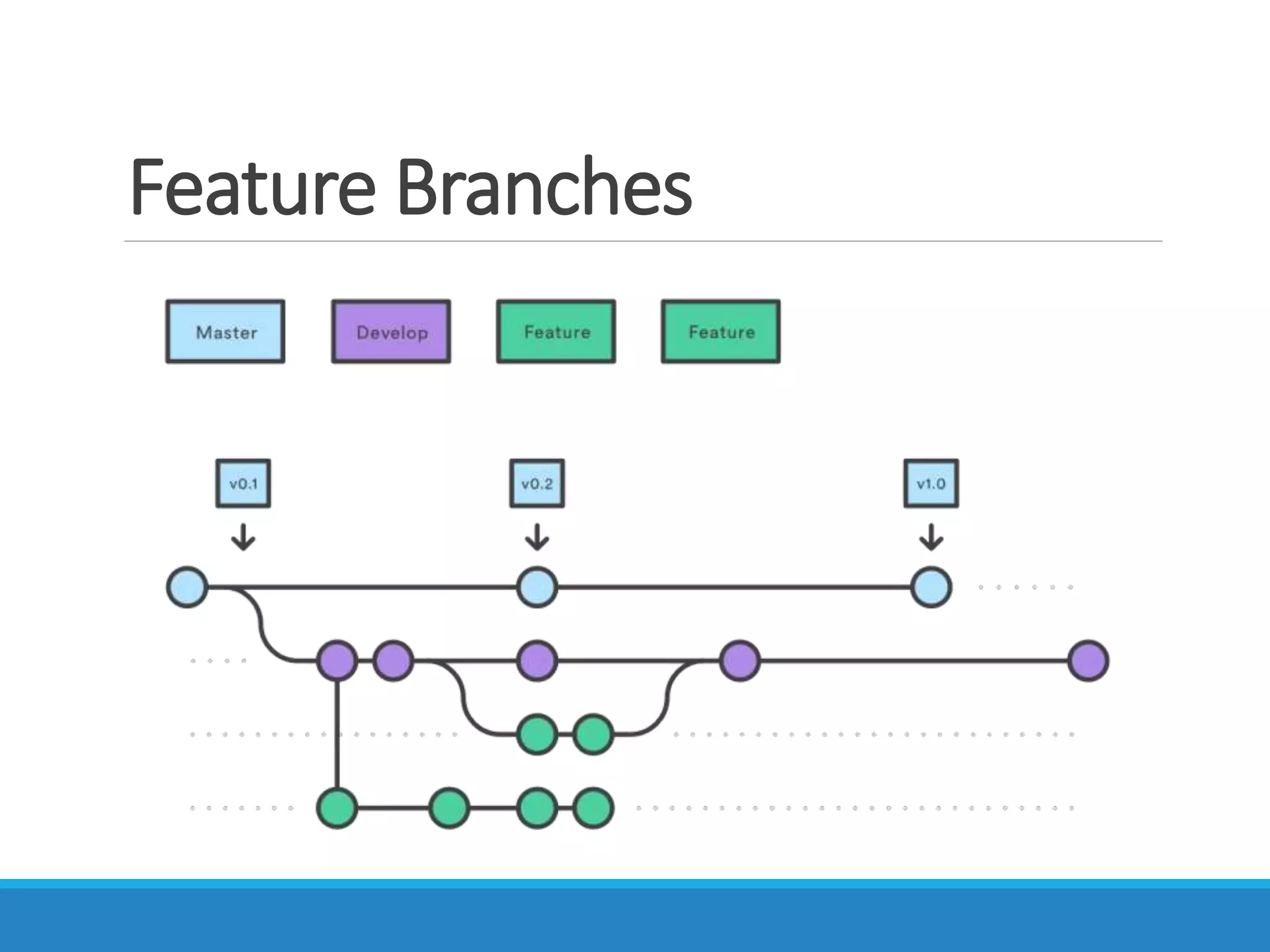

- 15. Feature Branches

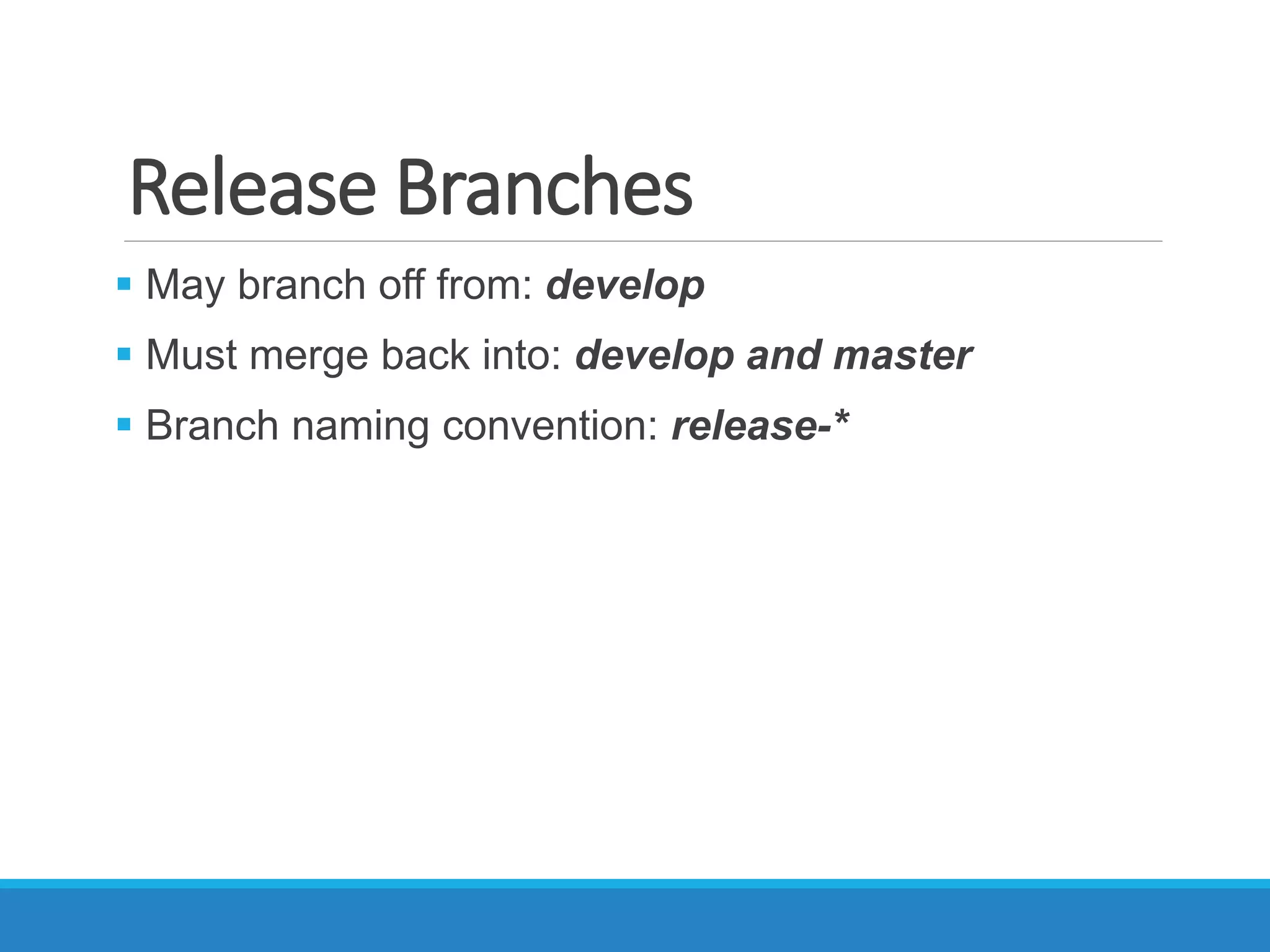

- 16. Release Branches May branch off from: develop Must merge back into: develop and master Branch naming convention: release-*

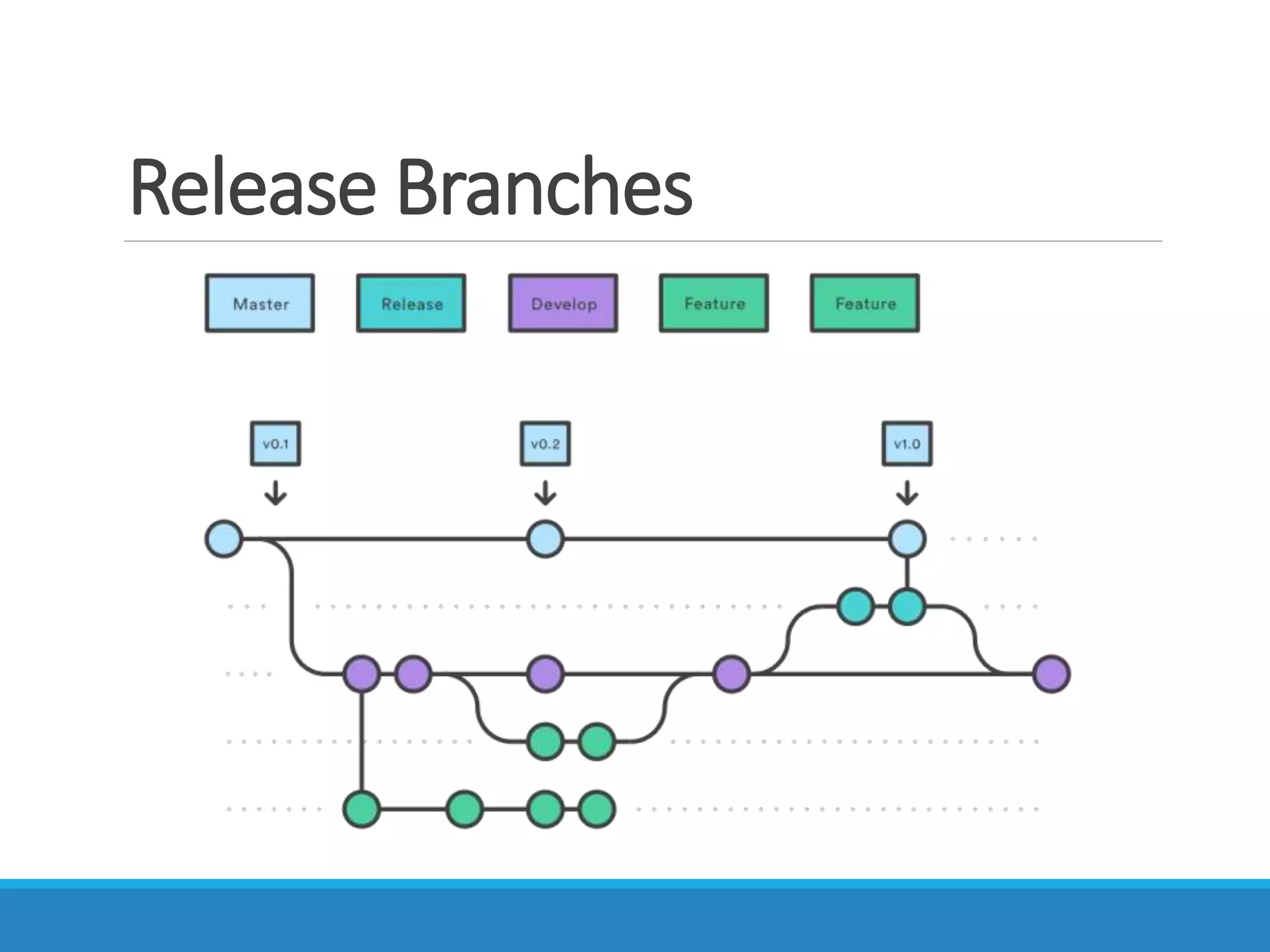

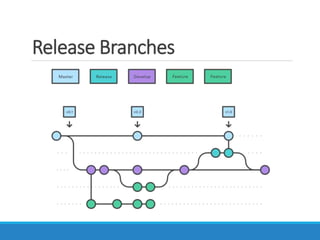

- 17. Release Branches

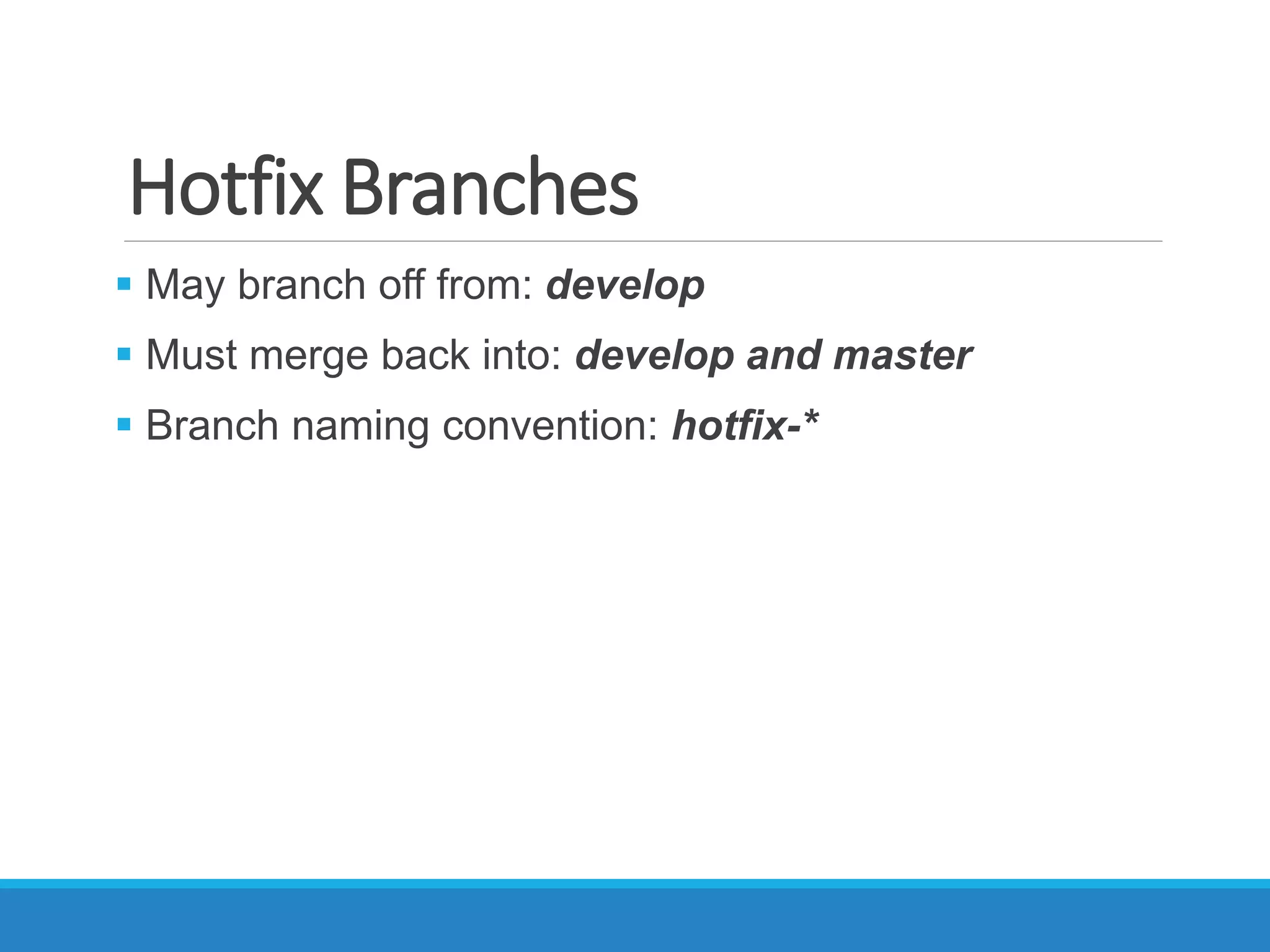

- 18. Hotfix Branches May branch off from: develop Must merge back into: develop and master Branch naming convention: hotfix-*

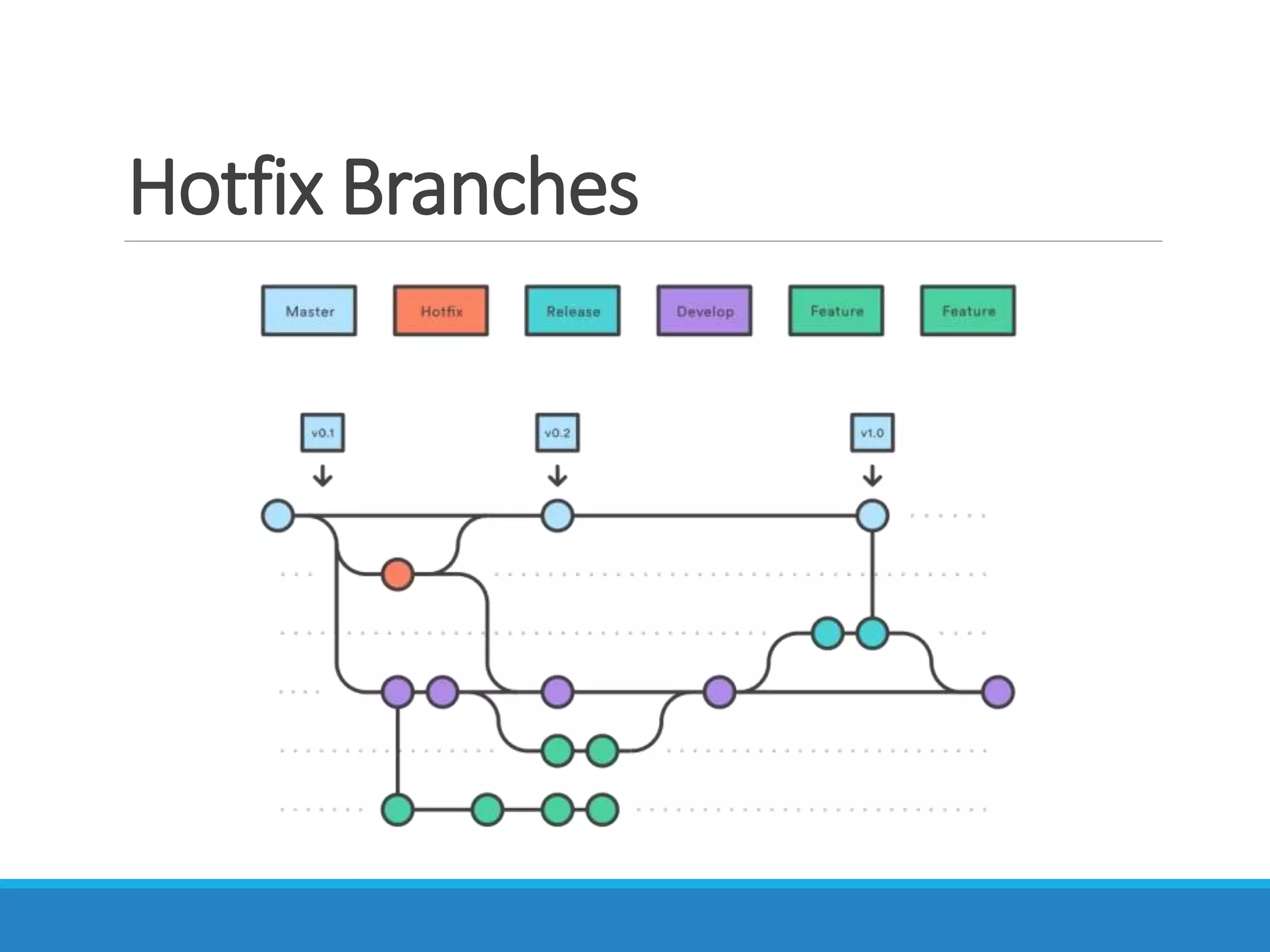

- 19. Hotfix Branches

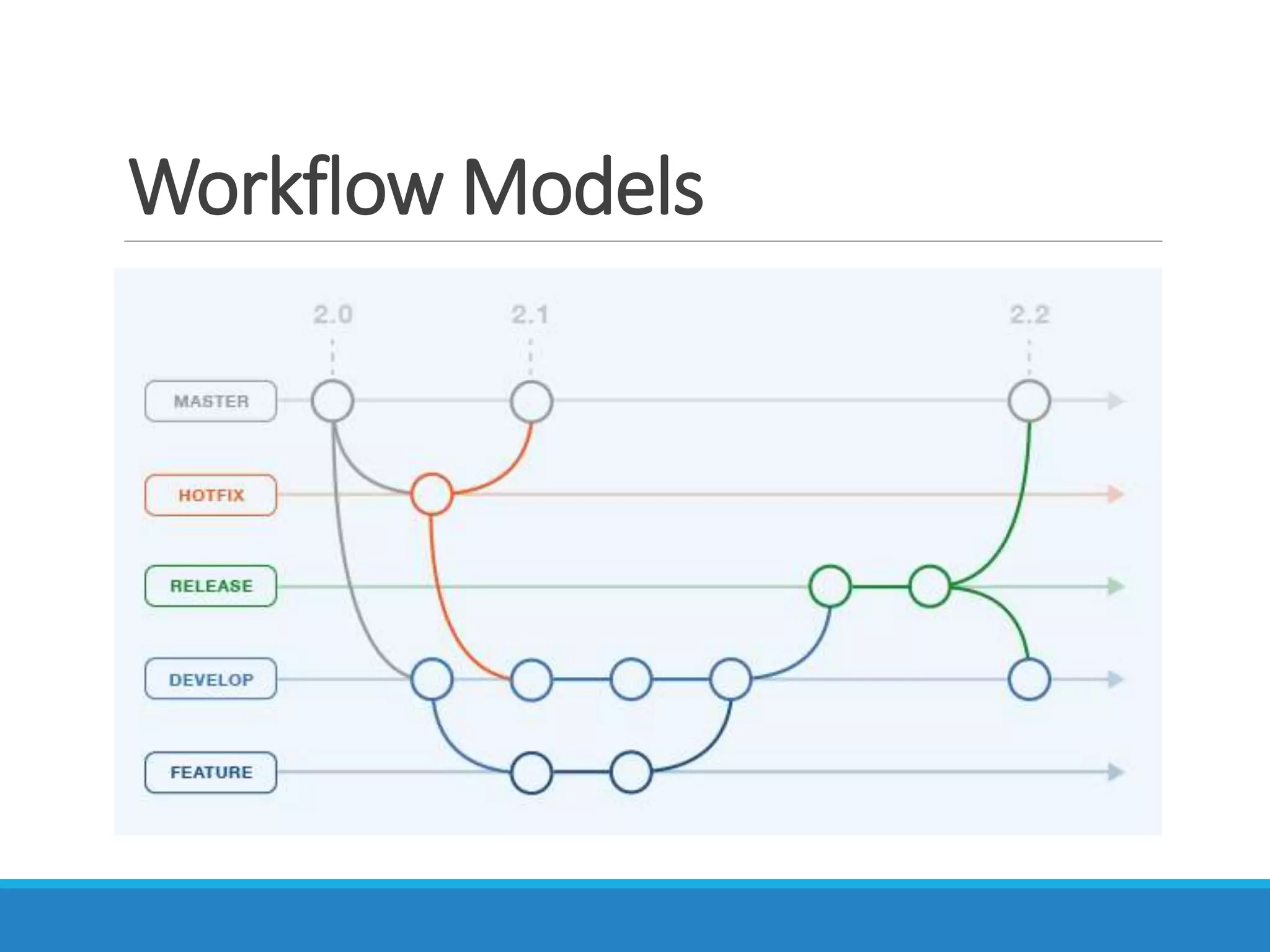

- 20. Workflow Models
- 21. THANK YOU!
Editor's Notes
- Git is a free and open source distributed version control system designed to handle everything from small to very large projects with speed and efficiency. The Git feature that really makes it stand apart from nearly every other SCM out there is its branching model. Git allows and encourages you to have multiple local branches that can be entirely independent of each other. The creation, merging, and deletion of those lines of development takes seconds.
- Checking out a commit makes the entire working directory match that commit. If you’re only interested in a single file, you can also use git checkout to fetch an old version of it.
- The git revert command undoes a committed snapshot. But, instead of removing the commit from the project history, it figures out how to undo the changes introduced by the commit and appends anew commit with the resulting content. This prevents Git from losing history, which is important for the integrity of your revision history and for reliable collaboration. Reverting should be used when you want to remove an entire commit from your project history. This can be useful, for example, if you’re tracking down a bug and find that it was introduced by a single commit. Instead of manually going in, fixing it, and committing a new snapshot, you can use git revert to automatically do all of this for you. Reverting vs. Resetting It's important to understand that git revert undoes a single commit—it does not “revert” back to the previous state of a project by removing all subsequent commits. In Git, this is actually called a reset, not a revert.
- The Gitflow Workflow still uses a central repository as the communication hub for all developers. And, as in the other workflows, developers work locally and push branches to the central repo. The only difference is the branch structure of the project.
- We consider origin/master to be the main branch where the source code of HEAD always reflects a production-ready state. We consider origin/develop to be the main branch where the source code of HEAD always reflects a state with the latest delivered development changes for the next release. Some would call this the “integration branch”. This is where any automatic nightly builds are built from. When the source code in the develop branch reaches a stable point and is ready to be released, all of the changes should be merged back into master somehow and then tagged with a release number. How this is done in detail will be discussed further on. Therefore, each time when changes are merged back into master, this is a new production release by definition. We tend to be very strict at this, so that theoretically, we could use a Git hook script to automatically build and roll-out our software to our production servers everytime there was a commit on master.
- Some would call this the “integration branch”. This is where any automatic nightly builds are built from. When the source code in the develop branch reaches a stable point and is ready to be released, all of the changes should be merged back into master somehow and then tagged with a release number. How this is done in detail will be discussed further on. Therefore, each time when changes are merged back into master, this is a new production release by definition. We tend to be very strict at this, so that theoretically, we could use a Git hook script to automatically build and roll-out our software to our production servers everytime there was a commit on master.
- Next to the main branches master and develop, our development model uses a variety of supporting branches to aid parallel development between team members, ease tracking of features, prepare for production releases and to assist in quickly fixing live production problems. Unlike the main branches, these branches always have a limited life time, since they will be removed eventually. Each of these branches have a specific purpose and are bound to strict rules as to which branches may be their originating branch and which branches must be their merge targets. By no means are these branches “special” from a technical perspective. The branch types are categorized by how we use them. They are of course plain old Git branches.
- Feature branches (or sometimes called topic branches) are used to develop new features for the upcoming or a distant future release. Feature branches typically exist in developer repos only, not in origin.
- Release branches support preparation of a new production release. When the state of the release branch is ready to become a real release, some actions need to be carried out. First, the release branch is merged into master (since every commit on master is a new release by definition, remember). Next, that commit on master must be tagged for easy future reference to this historical version. Finally, the changes made on the release branch need to be merged back into develop, so that future releases also contain these bug fixes.
- Hotfix branches are very much like release branches in that they are also meant to prepare for a new production release, albeit unplanned. When a critical bug in a production version must be resolved immediately, a hotfix branch may be branched off from the corresponding tag on the master branch that marks the production version.The essence is that work of team members (on the develop branch) can continue, while another person is preparing a quick production fix.
