This document provides an overview of high performance computing (HPC). It defines HPC as using supercomputers and computer clusters to solve advanced computation problems quickly and efficiently through parallel processing. The document discusses the building blocks of HPC systems including CPUs, memory, power consumption, and number of cores. It also outlines some common applications of HPC in fields like physics, engineering, and life sciences. Finally, it traces the evolution of HPC technologies over decades from early mainframes and supercomputers to today's clusters and parallel systems.

1. High Performance Computing
- Building blocks, Production & Perspective
Jason Shih
Feb, 2012

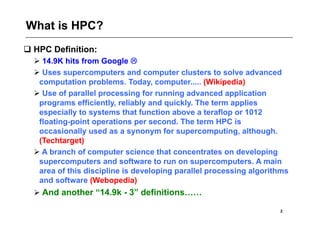

2. What is HPC?
 HPC Definition:
 14.9K hits from Google 
 Uses supercomputers and computer clusters to solve advanced
computation problems. Today, computer..... (Wikipedia)
 Use of parallel processing for running advanced application
programs efficiently, reliably and quickly. The term applies
especially to systems that function above a teraflop or 1012
floating-point operations per second. The term HPC is
occasionally used as a synonym for supercomputing, although.
(Techtarget)
 A branch of computer science that concentrates on developing
supercomputers and software to run on supercomputers. A main
area of this discipline is developing parallel processing algorithms
and software (Webopedia)
 And another “14.9k - 3” definitions……
2

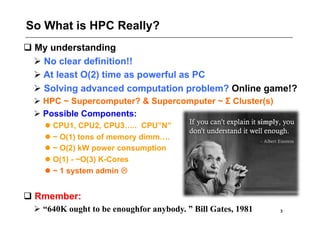

3. So What is HPC Really?
 My understanding
 No clear definition!!
 At least O(2) time as powerful as PC
 Solving advanced computation problem? Online game!?
 HPC ~ Supercomputer? & Supercomputer ~ Σ Cluster(s)
 Possible Components:
 CPU1, CPU2, CPU3….. CPU”N”
 ~ O(1) tons of memory dimm….
 ~ O(2) kW power consumption
 O(1) - ~O(3) K-Cores
 ~ 1 system admin 
 Rmember:
 “640K ought to be enoughfor anybody. ” Bill Gates, 1981 3

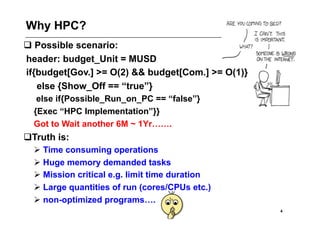

4. Why HPC?
 Possible scenario:
header: budget_Unit = MUSD
if{budget[Gov.] >= O(2) && budget[Com.] >= O(1)}
else {Show_Off == “true”}
else if{Possible_Run_on_PC == “false”}
{Exec “HPC Implementation”}}
Got to Wait another 6M ~ 1Yr…….
 ruth is:
T
 Time consuming operations
 Huge memory demanded tasks
 Mission critical e.g. limit time duration
 Large quantities of run (cores/CPUs etc.)
 non-optimized programs….
4

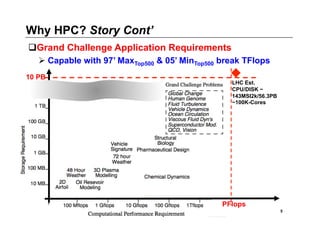

5. Why HPC? Story Cont’
 rand Challenge Application Requirements
G
 Capable with 97’ MaxTop500 & 05’ MinTop500 break TFlops
10 PB
LHC Est.
CPU/DISK ~
143MSI2k/56.3PB
~100K-Cores
PFlops
5

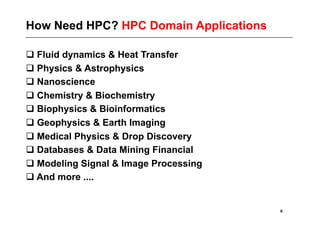

6. How Need HPC? HPC Domain Applications
 Fluid dynamics & Heat Transfer
 Physics & Astrophysics
 Nanoscience
 Chemistry & Biochemistry
 Biophysics & Bioinformatics
 Geophysics & Earth Imaging
 Medical Physics & Drop Discovery
 Databases & Data Mining Financial
 Modeling Signal & Image Processing
 And more ....
6

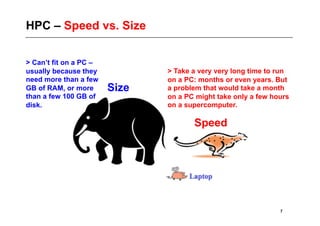

7. HPC – Speed vs. Size
> Can’t fit on a PC –
usually because they > Take a very very long time to run
need more than a few on a PC: months or even years. But
GB of RAM, or more Size a problem that would take a month
than a few 100 GB of on a PC might take only a few hours
disk. on a supercomputer.
Speed
7

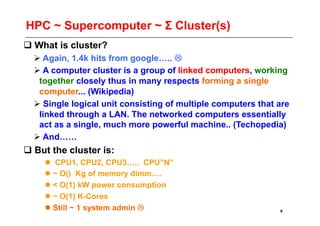

8. HPC ~ Supercomputer ~ Σ Cluster(s)
 What is cluster?
 Again, 1.4k hits from google….. 
 A computer cluster is a group of linked computers, working
together closely thus in many respects forming a single
computer... (Wikipedia)
 Single logical unit consisting of multiple computers that are
linked through a LAN. The networked computers essentially
act as a single, much more powerful machine.. (Techopedia)
 And……
 But the cluster is:
 CPU1, CPU2, CPU3….. CPU”N”
 ~ O() Kg of memory dimm….
 < O(1) kW power consumption
 ~ O(1) K-Cores
 Still ~ 1 system admin  8

9. HPC – Trend in Growth Potential & Easy of Use
10
1.0
GFlops per Processors
- 1995
- 2000
0.1 - 2005
- 2010
0.01
0.001
10 100 1000 10K 100K
Number of Processors (P)
9

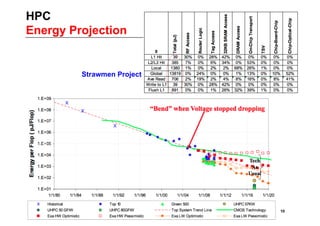

10. HPC
Energy Projection
Strawmen Project
10

11. HPC – Numbers Before 2000s

11

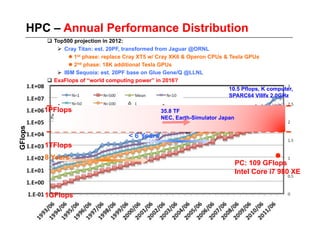

12. HPC – Annual Performance Distribution
 Top500 projection in 2012:
 Cray Titan: est. 20PF, transformed from Jaguar @ORNL
 1st phase: replace Cray XT5 w/ Cray XK6 & Operon CPUs & Tesla GPUs
 2nd phase: 18K additional Tesla GPUs
 IBM Sequoia: est. 20PF base on Glue Gene/Q @LLNL
 ExaFlops of “world computing power” in 2016?
10.5 Pflops, K computer,
SPARC64 VIIIfx 2.0GHz
1PFlops 35.8 TF
NEC, Earth-Simulator Japan
GFlops
< 6 Years
1TFlops
8 Years
PC: 109 GFlops
Intel Core i7 980 XE
1GFlops

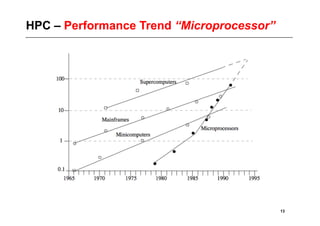

13. HPC – Performance Trend “Microprocessor”
13

14. Trend – Transistors per Processor Chip
14

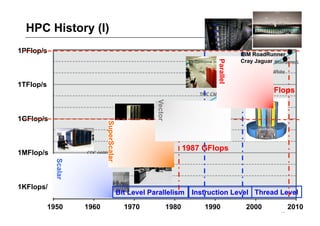

15. HPC History (I)
1PFlop/s IBM RoadRunner
Cray Jaguar
Parallel
1TFlop/s
2008 PFlops
Vector
1GFlop/s
SuperScalar
1987 GFlops
1MFlop/s
Scalar
1KFlops/
Bit Level Parallelism Instruction Level Thread Level
1950 1960 1970 1980 1990 2000 15
2010

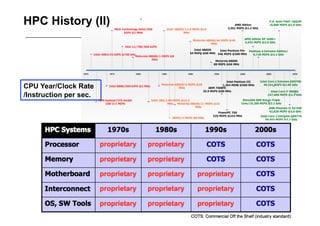

16. HPC History (II)
CPU Year/Clock Rate
/Instruction per sec.
16

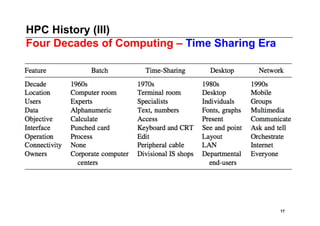

17. HPC History (III)
Four Decades of Computing – Time Sharing Era
17

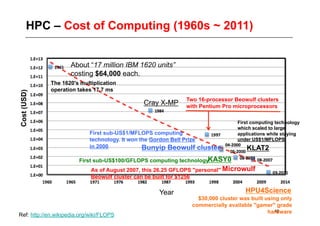

18. HPC – Cost of Computing (1960s ~ 2011)
About “17 million IBM 1620 units”
costing $64,000 each.
The 1620's multiplication
operation takes 17.7 ms
Cost (USD)
Two 16-processor Beowulf clusters
Cray X-MP with Pentium Pro microprocessors
First computing technology
which scaled to large
First sub-US$1/MFLOPS computing applications while staying
technology. It won the Gordon Bell Prize under US$1/MFLOPS
in 2000 Bunyip Beowulf cluster KLAT2
First sub-US$100/GFLOPS computing technologyKASY0
As of August 2007, this 26.25 GFLOPS "personal" Microwulf
Beowulf cluster can be built for $1256
Year HPU4Science
$30,000 cluster was built using only
commercially available "gamer" grade
hardware
18
Ref: http://en.wikipedia.org/wiki/FLOPS

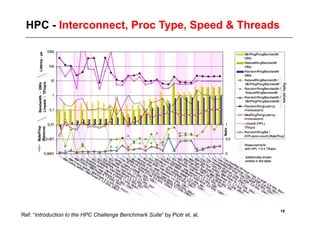

19. HPC - Interconnect, Proc Type, Speed & Threads
19
Ref: “Introduction to the HPC Challenge Benchmark Suite” by Piotr et. al.

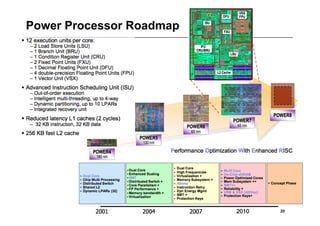

20. Power Processor Roadmap
20

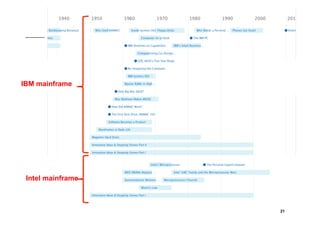

21. IBM mainframe
Intel mainframe
21

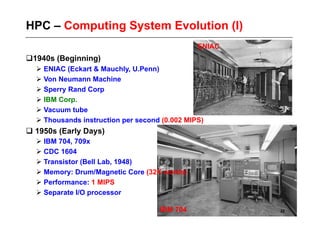

22. HPC – Computing System Evolution (I)
ENIAC
 940s (Beginning)
1
 ENIAC (Eckart & Mauchly, U.Penn)
 Von Neumann Machine
 Sperry Rand Corp
 IBM Corp.
 Vacuum tube
 Thousands instruction per second (0.002 MIPS)
 1950s (Early Days)
 IBM 704, 709x
 CDC 1604
 Transistor (Bell Lab, 1948)
 Memory: Drum/Magnetic Core (32K words)
 Performance: 1 MIPS
 Separate I/O processor
IBM 704 22

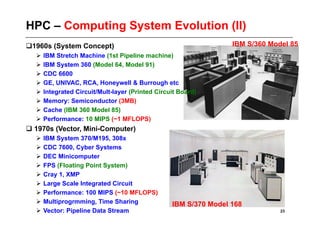

23. HPC – Computing System Evolution (II)
 960s (System Concept)
1 IBM S/360 Model 85
 IBM Stretch Machine (1st Pipeline machine)
 IBM System 360 (Model 64, Model 91)
 CDC 6600
 GE, UNIVAC, RCA, Honeywell & Burrough etc
 Integrated Circuit/Mult-layer (Printed Circuit Board)
 Memory: Semiconductor (3MB)
 Cache (IBM 360 Model 85)
 Performance: 10 MIPS (~1 MFLOPS)
 1970s (Vector, Mini-Computer)
 IBM System 370/M195, 308x
 CDC 7600, Cyber Systems
 DEC Minicomputer
 FPS (Floating Point System)
 Cray 1, XMP
 Large Scale Integrated Circuit
 Performance: 100 MIPS (~10 MFLOPS)
 Multiprogrmming, Time Sharing IBM S/370 Model 168
 Vector: Pipeline Data Stream 23

24. HPC – Computing System Evolution (III)
 980s (RISC, Micro-Processor)
1
 CDC Cyber 205
 Cray 2, YMP
 IBM 3090 VF
 Japan Inc. (Fujitsu’s VP, NEC’s SX)
 Thinking Machine: CM2 (1st Large Scale Parallel)
 RISC system (Appolo, Sun, SGI, etc)
 CONVAX Vector Machine (mini Cray)
 Microprocessor: PC (Apple, IBM)
 Memory: 100MB Connect Machine: CM-2
 RISC system:
 Pipeline Instruction Stream
 Multiple execution units in core
 Vector: Multiple vector pipelines
 Thinking Machine: kernel level parallelism
 Performance: 100 Mflops
IBM 3090 Processor Complex 24

25. HPC – Computing System Evolution (IV)
 990s (Cluster, Parallel Computing)
1
 IBM Power Series (1,2,3)
 SGI NUMA System
 Cray CMP, T3E, Cray 3
 CDC ETA
 DEC’s Alpha IBM Power5 Family
 SUN’s Internet Machine
 Intel Parogon
 Cluster of PC Power3 IBM Blue Gene
 Memory: 512MB per processor
 Performance: 1 Teraflops
 SMP node in Cluster System
 000s (Large Scale Parallel System)
2
 IBM Power Series (4,5), Blue Gene
 HP’s Superdome
 Cray SV system
 Intel’s Itanium, Xeon, Woodcrest, Westsmear processor
 emory: 1-8 GB per processor
M
 erformance: Reach 10 Teraflops
P 25

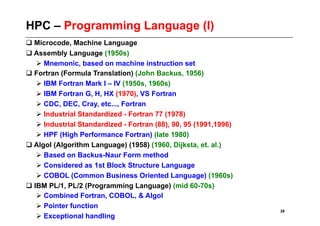

26. HPC – Programming Language (I)
 Microcode, Machine Language
 Assembly Language (1950s)
 Mnemonic, based on machine instruction set
 Fortran (Formula Translation) (John Backus, 1956)
 IBM Fortran Mark I – IV (1950s, 1960s)
 IBM Fortran G, H, HX (1970), VS Fortran
 CDC, DEC, Cray, etc..., Fortran
 Industrial Standardized - Fortran 77 (1978)
 Industrial Standardized - Fortran (88), 90, 95 (1991,1996)
 HPF (High Performance Fortran) (late 1980)
 Algol (Algorithm Language) (1958) (1960, Dijksta, et. al.)
 Based on Backus-Naur Form method
 Considered as 1st Block Structure Language
 COBOL (Common Business Oriented Language) (1960s)
 IBM PL/1, PL/2 (Programming Language) (mid 60-70s)
 Combined Fortran, COBOL, & Algol
 Pointer function
26
 Exceptional handling

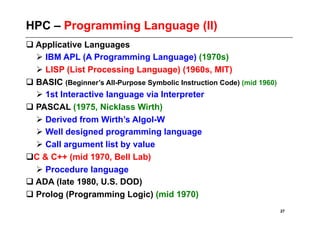

27. HPC – Programming Language (II)
 Applicative Languages
 IBM APL (A Programming Language) (1970s)
 LISP (List Processing Language) (1960s, MIT)
 BASIC (Beginner’s All-Purpose Symbolic Instruction Code) (mid 1960)
 1st Interactive language via Interpreter
 PASCAL (1975, Nicklass Wirth)
 Derived from Wirth’s Algol-W
 Well designed programming language
 Call argument list by value
 & C++ (mid 1970, Bell Lab)
C
 Procedure language
 ADA (late 1980, U.S. DOD)
 Prolog (Programming Logic) (mid 1970)
27

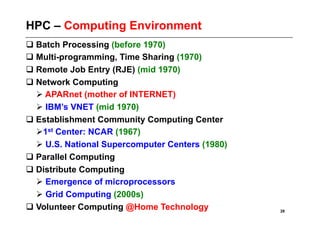

28. HPC – Computing Environment
 Batch Processing (before 1970)
 Multi-programming, Time Sharing (1970)
 Remote Job Entry (RJE) (mid 1970)
 Network Computing
 APARnet (mother of INTERNET)
 IBM’s VNET (mid 1970)
 Establishment Community Computing Center
 st Center: NCAR (1967)
1
 U.S. National Supercomputer Centers (1980)
 Parallel Computing
 Distribute Computing
 Emergence of microprocessors
 Grid Computing (2000s)
 Volunteer Computing @Home Technology 28

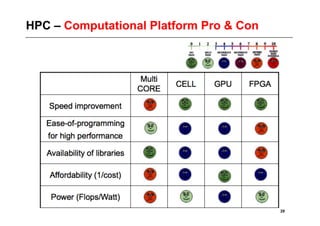

29. HPC – Computational Platform Pro & Con
29

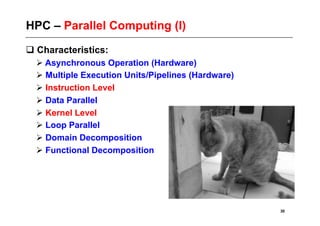

30. HPC – Parallel Computing (I)
 Characteristics:
 Asynchronous Operation (Hardware)
 Multiple Execution Units/Pipelines (Hardware)
 Instruction Level
 Data Parallel
 Kernel Level
 Loop Parallel
 Domain Decomposition
 Functional Decomposition
30

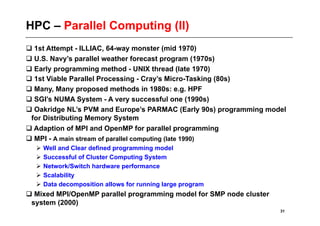

31. HPC – Parallel Computing (II)
 1st Attempt - ILLIAC, 64-way monster (mid 1970)
 U.S. Navy’s parallel weather forecast program (1970s)
 Early programming method - UNIX thread (late 1970)
 1st Viable Parallel Processing - Cray’s Micro-Tasking (80s)
 Many, Many proposed methods in 1980s: e.g. HPF
 SGI’s NUMA System - A very successful one (1990s)
 Oakridge NL’s PVM and Europe’s PARMAC (Early 90s) programming model
for Distributing Memory System
 Adaption of MPI and OpenMP for parallel programming
 MPI - A main stream of parallel computing (late 1990)
 Well and Clear defined programming model
 Successful of Cluster Computing System
 Network/Switch hardware performance
 Scalability
 Data decomposition allows for running large program
 Mixed MPI/OpenMP parallel programming model for SMP node cluster
system (2000)
31

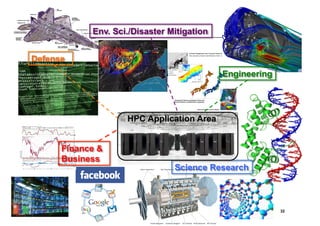

32. Env. Sci./Disaster Mitigation
Defense
Engineering
HPC Application Area
Finance &
Business
Science Research
32

33. HPC – Applications (I)
 Early Days
 Ballistic Table
 Signal Processing
 Cryptography
 Von Neumann’s Weather Simulation
 1950s-60s
 Operational Weather Forecasting
 Computational Fluid Dynamics (CFD, 2D problems)
 Seismic Processing and Oil Reservoir Simulation
 Particle Tracing
 Molecular Dynamics Simulation
 CAD/CAE, Circuit Analysis
 1970s (emergency of “package” program)
 Structural Analysis (FEM application)
 Spectral Weather Forecasting Model
 ab initio Chemistry Computation (Material modeling in quantum level)
 3D Computational Fluid 33

34. HPC – Applications (II)
 980s (Wide Spread of Commercial/Industrial Usage)
1
 Petroleum Industry: Western Geo, etc
 Computational Chemistry: Charmm, Amber, Gaussian,Gammes, Mopad,
Crystal etc
 Computational Fluid Dynamics: Fluent, Arc3D etc
 Structural Analysis: NASTRAN, Ansys, Abacus, Dyna3D
 Physics: QCD
 Emergence of Multi-Discipline Application Program
 1990s & 2000s
 Grand Challenge Problems
 Life Science
 Large Scale Parallel Program
 Coupling of Computational Models
 Data Intensive Analysis/Computation
34

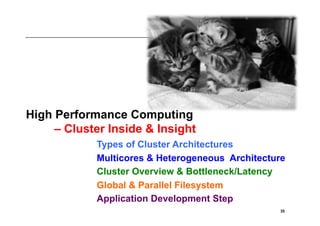

35. High Performance Computing
– Cluster Inside & Insight
Types of Cluster Architectures
Multicores & Heterogeneous Architecture
Cluster Overview & Bottleneck/Latency
Global & Parallel Filesystem
Application Development Step
35

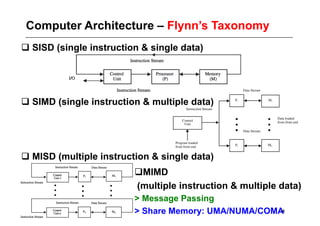

36. Computer Architecture – Flynn’s Taxonomy
 SISD (single instruction & single data)
 SIMD (single instruction & multiple data)
 MISD (multiple instruction & single data)
 IMD
M
(multiple instruction & multiple data)
> Message Passing
> Share Memory: UMA/NUMA/COMA
36

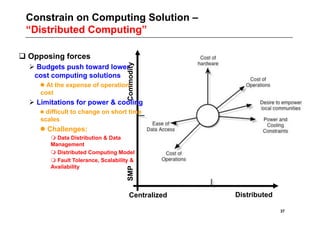

37. Constrain on Computing Solution –
“Distributed Computing”
 Opposing forces
Commodity
 Budgets push toward lower
cost computing solutions
 At the expense of operation
cost
 Limitations for power & cooling
 difficult to change on short time
scales
 Challenges:
 Data Distribution & Data
Management
 Distributed Computing Model
 Fault Tolerance, Scalability &
Availability
SMP
Centralized Distributed
37

38. Shared Memory Architecture
Hybrid Architecture
HPC Cluster
Architecture
Vector Architecture
38
Distributed Memory Architecture

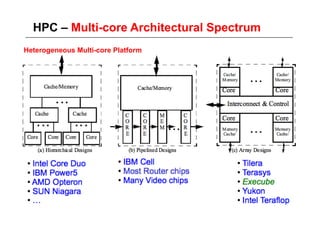

39. HPC – Multi-core Architectural Spectrum
Heterogeneous Multi-core Platform

40. NVIDIA Heterogeneous Architecture (GeForce)

41. Cluster – Commercial x86 Architecture
 Intel Core2 Quad, 2006
41

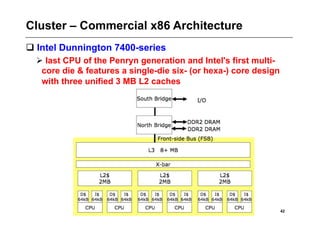

42. Cluster – Commercial x86 Architecture
 Intel Dunnington 7400-series
 last CPU of the Penryn generation and Intel's first multi-
core die & features a single-die six- (or hexa-) core design
with three unified 3 MB L2 caches
42

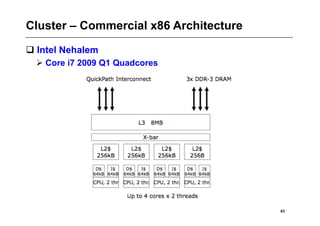

43. Cluster – Commercial x86 Architecture
 Intel Nehalem
 Core i7 2009 Q1 Quadcores
43

44. Cluster – Commercial x86 Architecture
 Intel: ”Nehalem-Ex” (i7)
44

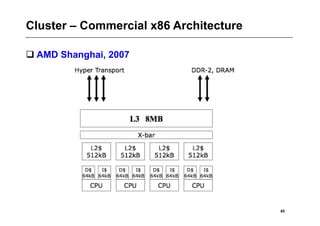

45. Cluster – Commercial x86 Architecture
 AMD Shanghai, 2007
45

46. Cluster Overview (I)
 System
 Security & Account Policy
 System Performance Optimization Parallel Computer Arch.
 Mission: HT vs. HP Abstraction Layers
 Benchmarking: Serial vs. Parallel
 NPB, HPL, BioPerf, HPCC & SPEC (2000 & 2006) etc.
 Memory/Cache: Stream, cachebench & BYTEMark etc.
 Data: iozone, iometer, xdd, dd & bonie++ etc.
 Network: NetPIPE, Netperf, Nettest, Netspec & iperf etc.
 load generator: cpuburn, dbench, stress & contest etc.
 Resource Mgmt: Scheduling
 Account policy & Mgmt.
 Hardware
 Regular maintenance: spare parts replacement
 Facility Relocation & Cabling
46

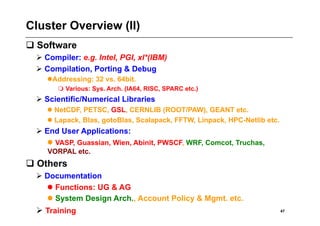

47. Cluster Overview (II)
 Software
 Compiler: e.g. Intel, PGI, xl*(IBM)
 Compilation, Porting & Debug
 ddressing: 32 vs. 64bit.
A
 Various: Sys. Arch. (IA64, RISC, SPARC etc.)
 Scientific/Numerical Libraries
 NetCDF, PETSC, GSL, CERNLIB (ROOT/PAW), GEANT etc.
 Lapack, Blas, gotoBlas, Scalapack, FFTW, Linpack, HPC-Netlib etc.
 End User Applications:
 VASP, Guassian, Wien, Abinit, PWSCF, WRF, Comcot, Truchas,
VORPAL etc.
 Others
 Documentation
 Functions: UG & AG
 System Design Arch., Account Policy & Mgmt. etc.
 Training 47

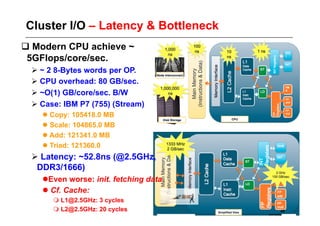

48. Cluster I/O – Latency & Bottleneck
 Modern CPU achieve ~
5GFlops/core/sec.
 ~ 2 8-Bytes words per OP.
 CPU overhead: 80 GB/sec.
 ~O(1) GB/core/sec. B/W
 Case: IBM P7 (755) (Stream)
 Copy: 105418.0 MB
 Scale: 104865.0 MB
 Add: 121341.0 MB
 Triad: 121360.0
 Latency: ~52.8ns (@2.5GHz,
DDR3/1666)
 ven worse: init. fetching data
E
 Cf. Cache:
 L1@2.5GHz: 3 cycles
 L2@2.5GHz: 20 cycles 48

49. Memory Access vs. Clock Cycles
Data Rate Performance
Memory vs. CPU
49

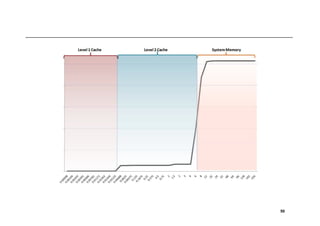

50. 50

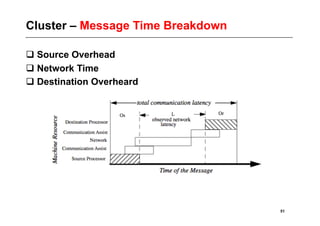

51. Cluster – Message Time Breakdown
 Source Overhead
 Network Time
 Destination Overheard
51

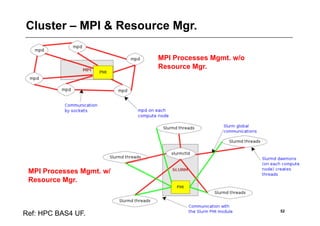

52. Cluster – MPI & Resource Mgr.
MPI Processes Mgmt. w/o
Resource Mgr.
MPI Processes Mgmt. w/
Resource Mgr.
52
Ref: HPC BAS4 UF.

53. Network Performance Throughput vs. Latency (I)
 Peak 10G 9.1Gbps ~ 877 usec (Msg Size: 1MB)
 IB QDR reach 31.1Gbps with same msg size
 Only 29% of 10G Latency (~256 usec)
 Peak IB QDR 34.8Gbps ~ 57 usec (Msg Size: 262KB)

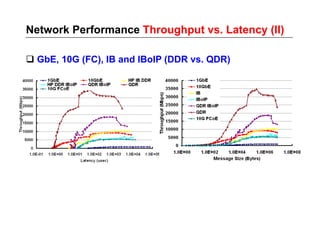

54. Network Performance Throughput vs. Latency (II)
 GbE, 10G (FC), IB and IBoIP (DDR vs. QDR)

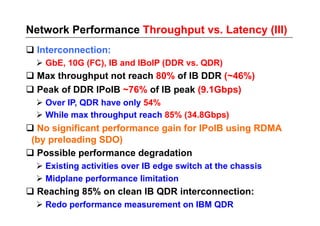

55. Network Performance Throughput vs. Latency (III)
 Interconnection:
 GbE, 10G (FC), IB and IBoIP (DDR vs. QDR)
 Max throughput not reach 80% of IB DDR (~46%)
 Peak of DDR IPoIB ~76% of IB peak (9.1Gbps)
 Over IP, QDR have only 54%
 While max throughput reach 85% (34.8Gbps)
 No significant performance gain for IPoIB using RDMA
(by preloading SDO)
 Possible performance degradation
 Existing activities over IB edge switch at the chassis
 Midplane performance limitation
 Reaching 85% on clean IB QDR interconnection:
 Redo performance measurement on IBM QDR

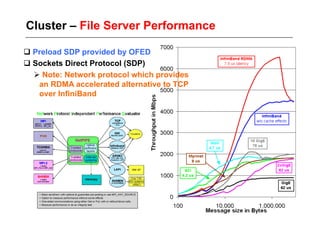

56. Cluster – File Server Performance
 Preload SDP provided by OFED
 Sockets Direct Protocol (SDP)
 Note: Network protocol which provides
an RDMA accelerated alternative to TCP
over InfiniBand

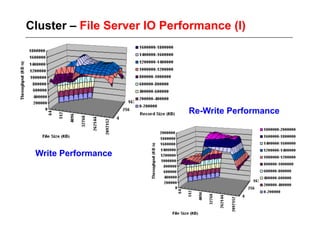

57. Cluster – File Server IO Performance (I)
Re-Write Performance
Write Performance

58. Cluster – File Server IO Performance (II)
Re-Read Performance
Read Performance

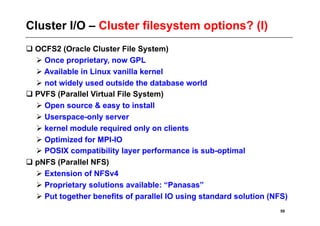

59. Cluster I/O – Cluster filesystem options? (I)
 OCFS2 (Oracle Cluster File System)
 Once proprietary, now GPL
 Available in Linux vanilla kernel
 not widely used outside the database world
 PVFS (Parallel Virtual File System)
 Open source & easy to install
 Userspace-only server
 kernel module required only on clients
 Optimized for MPI-IO
 POSIX compatibility layer performance is sub-optimal
 pNFS (Parallel NFS)
 Extension of NFSv4
 Proprietary solutions available: “Panasas”
 Put together benefits of parallel IO using standard solution (NFS)
59

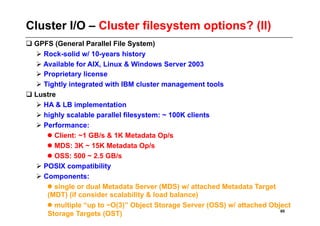

60. Cluster I/O – Cluster filesystem options? (II)
 GPFS (General Parallel File System)
 Rock-solid w/ 10-years history
 Available for AIX, Linux & Windows Server 2003
 Proprietary license
 Tightly integrated with IBM cluster management tools
 Lustre
 HA & LB implementation
 highly scalable parallel filesystem: ~ 100K clients
 Performance:
 Client: ~1 GB/s & 1K Metadata Op/s
 MDS: 3K ~ 15K Metadata Op/s
 OSS: 500 ~ 2.5 GB/s
 POSIX compatibility
 Components:
 single or dual Metadata Server (MDS) w/ attached Metadata Target
(MDT) (if consider scalability & load balance)
 multiple “up to ~O(3)” Object Storage Server (OSS) w/ attached Object
60
Storage Targets (OST)

61. Cluster I/O – Lustre Cluster Breakdown
InfiniBand Interconnect
Lustre Cluster
OSS1 Compute Compute Compute
OSS2 Compute Compute Compute
… … …
OSS nodes
(Load Balanced) Compute Compute Compute
Compute Compute Compute
MDS nodes
(High Availability) Compute Compute Admin
MDS(M) Compute Compute Admin
Compute Compute Login
MDS(S)
Compute Compute Login
Lustre
Quad-CPU Compute Nodes
Connectivity to all Connectivity to all Connectivity to all Connectivity to all
nodes nodes nodes nodes
GigE ethernet for boot and system control traffic
Connectivity to all Connectivity to all Connectivity to all Connectivity to all
nodes nodes nodes nodes
10/100 Ethernet out-of-band management (power on/off, etc)
61

62. Cluster I/O – Parallel Filesystem using Lustre
 ypical Setup
T
 MDS: ~ O(1) servers with good CPU and RAM, high seek rate
 OSS: ~ O(3) server req. good bus bandwidth, storage
62

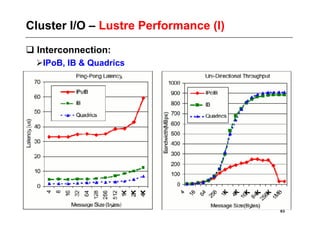

63. Cluster I/O – Lustre Performance (I)
 Interconnection:
 PoB, IB & Quadrics
I
63

64. Cluster I/O – Lustre Performance (II)
 Scalability
 Throughput/Transactions vs. Num of OSS
64

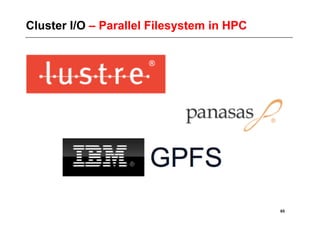

65. Cluster I/O – Parallel Filesystem in HPC
65

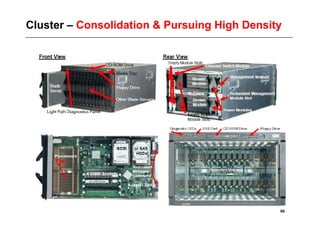

66. Cluster – Consolidation & Pursuing High Density
66

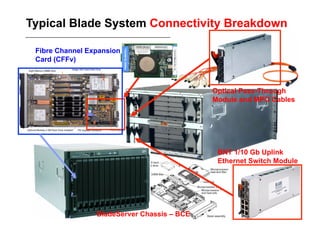

67. Typical Blade System Connectivity Breakdown
Fibre Channel Expansion
Card (CFFv)
Optical Pass-Through
Module and MPO Cables
BNT 1/10 Gb Uplink
Ethernet Switch Module
BladeServer Chassis – BCE

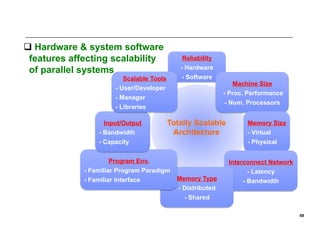

68.  Hardware & system software
features affecting scalability Reliability
- Hardware
of parallel systems
Scalable Tools - Software
Machine Size
- User/Developer
- Proc. Performance
- Manager
- Num. Processors
- Libraries
Input/Output Totally Scalable Memory Size
- Bandwidth Architecture - Virtual
- Capacity - Physical
Program Env. Interconnect Network
- Familiar Program Paradigm - Latency
- Familiar Interface Memory Type - Bandwidth
- Distributed
- Shared
68

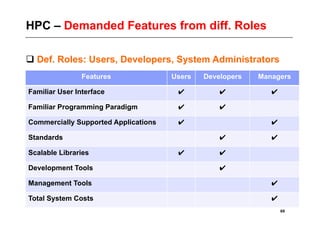

69. HPC – Demanded Features from diff. Roles
 Def. Roles: Users, Developers, System Administrators
Features Users Developers Managers
Familiar User Interface ✔ ✔ ✔
Familiar Programming Paradigm ✔ ✔
Commercially Supported Applications ✔ ✔
Standards ✔ ✔
Scalable Libraries ✔ ✔
Development Tools ✔
Management Tools ✔
Total System Costs ✔
69

70. HPC –
Application Development Steps
Prep
SA
SPEC
Run
SA
SPEC
Code
Code
Opt
Par
Mod
Opt
Prep
Run
Par
Mod 70

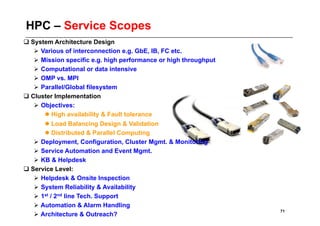

71. HPC – Service Scopes
 System Architecture Design
 Various of interconnection e.g. GbE, IB, FC etc.
 Mission specific e.g. high performance or high throughput
 Computational or data intensive
 OMP vs. MPI
 Parallel/Global filesystem
 Cluster Implementation
 Objectives:
 High availability & Fault tolerance
 Load Balancing Design & Validation
 Distributed & Parallel Computing
 Deployment, Configuration, Cluster Mgmt. & Monitoring
 Service Automation and Event Mgmt.
 KB & Helpdesk
 Service Level:
 Helpdesk & Onsite Inspection
 System Reliability & Availability
 1st / 2nd line Tech. Support
 Automation & Alarm Handling
71
 Architecture & Outreach?

72. High Performance Computing –
Performance Tuning & Optimization
Tuning Strategy Best Practices
Profile & Bottleneck drilldown
System Optimization
Filesystem Improvement & (re-)Design
72

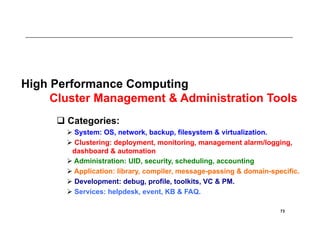

73. High Performance Computing
Cluster Management & Administration Tools
 Categories:
 System: OS, network, backup, filesystem & virtualization.
 Clustering: deployment, monitoring, management alarm/logging,
dashboard & automation
 Administration: UID, security, scheduling, accounting
 Application: library, compiler, message-passing & domain-specific.
 Development: debug, profile, toolkits, VC & PM.
 Services: helpdesk, event, KB & FAQ.
73

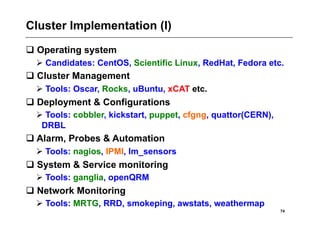

74. Cluster Implementation (I)
 Operating system
 Candidates: CentOS, Scientific Linux, RedHat, Fedora etc.
 Cluster Management
 Tools: Oscar, Rocks, uBuntu, xCAT etc.
 Deployment & Configurations
 Tools: cobbler, kickstart, puppet, cfgng, quattor(CERN),
DRBL
 Alarm, Probes & Automation
 Tools: nagios, IPMI, lm_sensors
 System & Service monitoring
 Tools: ganglia, openQRM
 Network Monitoring
 Tools: MRTG, RRD, smokeping, awstats, weathermap
74

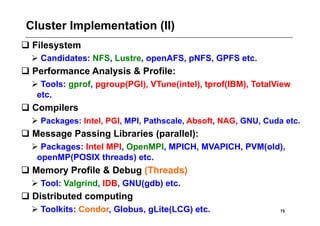

75. Cluster Implementation (II)
 Filesystem
 Candidates: NFS, Lustre, openAFS, pNFS, GPFS etc.
 Performance Analysis & Profile:
 Tools: gprof, pgroup(PGI), VTune(intel), tprof(IBM), TotalView
etc.
 Compilers
 Packages: Intel, PGI, MPI, Pathscale, Absoft, NAG, GNU, Cuda etc.
 Message Passing Libraries (parallel):
 Packages: Intel MPI, OpenMPI, MPICH, MVAPICH, PVM(old),
openMP(POSIX threads) etc.
 Memory Profile & Debug (Threads)
 Tool: Valgrind, IDB, GNU(gdb) etc.
 Distributed computing
 Toolkits: Condor, Globus, gLite(LCG) etc. 75

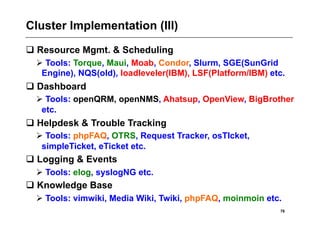

76. Cluster Implementation (III)
 Resource Mgmt. & Scheduling
 Tools: Torque, Maui, Moab, Condor, Slurm, SGE(SunGrid
Engine), NQS(old), loadleveler(IBM), LSF(Platform/IBM) etc.
 Dashboard
 Tools: openQRM, openNMS, Ahatsup, OpenView, BigBrother
etc.
 Helpdesk & Trouble Tracking
 Tools: phpFAQ, OTRS, Request Tracker, osTIcket,
simpleTicket, eTicket etc.
 Logging & Events
 Tools: elog, syslogNG etc.
 Knowledge Base
 Tools: vimwiki, Media Wiki, Twiki, phpFAQ, moinmoin etc.
76

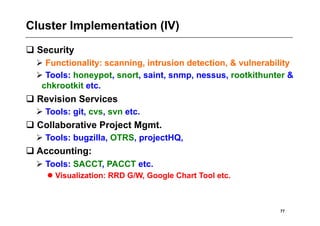

77. Cluster Implementation (IV)
 Security
 Functionality: scanning, intrusion detection, & vulnerability
 Tools: honeypot, snort, saint, snmp, nessus, rootkithunter &
chkrootkit etc.
 Revision Services
 Tools: git, cvs, svn etc.
 Collaborative Project Mgmt.
 Tools: bugzilla, OTRS, projectHQ,
 Accounting:
 Tools: SACCT, PACCT etc.
 Visualization: RRD G/W, Google Chart Tool etc.
77

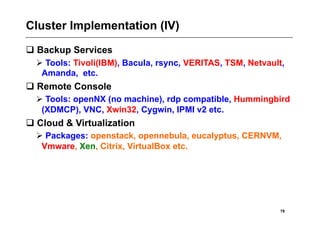

78. Cluster Implementation (IV)
 Backup Services
 Tools: Tivoli(IBM), Bacula, rsync, VERITAS, TSM, Netvault,
Amanda, etc.
 Remote Console
 Tools: openNX (no machine), rdp compatible, Hummingbird
(XDMCP), VNC, Xwin32, Cygwin, IPMI v2 etc.
 Cloud & Virtualization
 Packages: openstack, opennebula, eucalyptus, CERNVM,
Vmware, Xen, Citrix, VirtualBox etc.
78

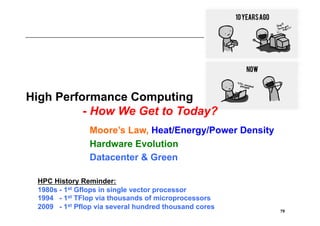

79. High Performance Computing
- How We Get to Today?
Moore’s Law, Heat/Energy/Power Density
Hardware Evolution
Datacenter & Green
HPC History Reminder:
1980s - 1st Gflops in single vector processor
1994 - 1st TFlop via thousands of microprocessors
2009 - 1st Pflop via several hundred thousand cores 79

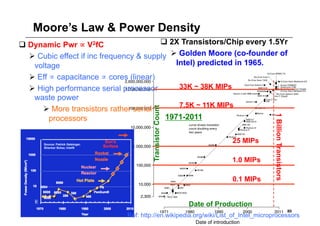

80. Moore’s Law & Power Density
 Dynamic Pwr ∝ V2fC  2X Transistors/Chip every 1.5Yr
 Cubic effect if inc frequency & supply  Golden Moore (co-founder of
voltage Intel) predicted in 1965.
 Eff ∝ capacitance ∝ cores (linear)
 High performance serial processor 33K ~ 38K MIPs
waste power
7.5K ~ 11K MIPs
 More transistors rather serial
Transistor Count
1971-2011
1 Billion Transistors
processors
25 MIPs
1.0 MIPs
0.1 MIPs
Date of Production
80
Ref: http://en.wikipedia.org/wiki/List_of_Intel_microprocessors

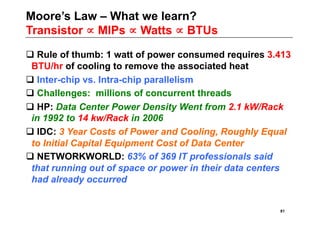

81. Moore’s Law – What we learn?
Transistor ∝ MIPs ∝ Watts ∝ BTUs
 Rule of thumb: 1 watt of power consumed requires 3.413
BTU/hr of cooling to remove the associated heat
 Inter-chip vs. Intra-chip parallelism
 Challenges: millions of concurrent threads
 HP: Data Center Power Density Went from 2.1 kW/Rack
in 1992 to 14 kw/Rack in 2006
 IDC: 3 Year Costs of Power and Cooling, Roughly Equal
to Initial Capital Equipment Cost of Data Center
 NETWORKWORLD: 63% of 369 IT professionals said
that running out of space or power in their data centers
had already occurred
81

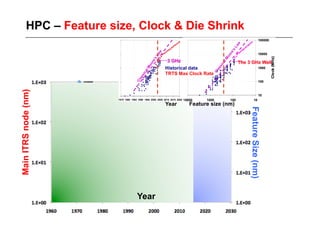

82. HPC – Feature size, Clock & Die Shrink
Historical data
TRTS Max Clock Rate
Main ITRS node (nm)
Year Feature size (nm)
Feature Size (nm)
Year

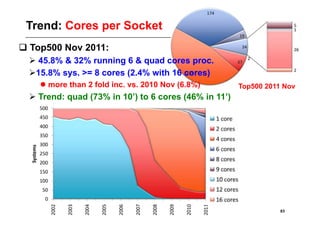

83. Trend: Cores per Socket
 Top500 Nov 2011:
 45.8% & 32% running 6 & quad cores proc.
 5.8% sys. >= 8 cores (2.4% with 16 cores)
1
 more than 2 fold inc. vs. 2010 Nov (6.8%) Top500 2011 Nov
 Trend: quad (73% in 10’) to 6 cores (46% in 11’)
83

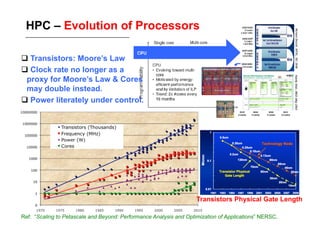

84. HPC – Evolution of Processors
 Transistors: Moore’s Law
 Clock rate no longer as a
proxy for Moore’s Law & Cores
may double instead.
 Power literately under control.
Transistors Physical Gate Length
Ref: “Scaling to Petascale and Beyond: Performance Analysis and Optimization of Applications” NERSC.

85. HPC – Comprehensive Approach
 CPU Chips
 Clock Frequency & Voltage Scaling
 75% power savings at idle and 40-70% power savings for
utilization in the 20-80% range
 Server
 Chassis: 20-50% Pwr reduction.
 Modular switches & routers
 Server consolidation & virtualization
 Storage Devices
 Max. TB/Watt & Disk Capacity
 Large Scale Tiered Storage
 Max. Pwr Eff by Min. Storage over-provisioning
 Cabling & Networking
 Stackable & backplane capacity (inc. Pwr Eff)
 Scaling & Density 85

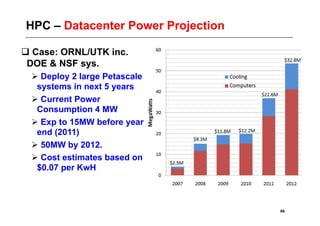

86. HPC – Datacenter Power Projection
 Case: ORNL/UTK inc.
DOE & NSF sys.
 Deploy 2 large Petascale
systems in next 5 years
 Current Power
Consumption 4 MW
 Exp to 15MW before year
end (2011)
 50MW by 2012.
 Cost estimates based on
$0.07 per KwH
86

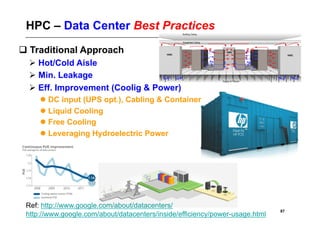

87. HPC – Data Center Best Practices
 Traditional Approach
 Hot/Cold Aisle
 Min. Leakage
 Eff. Improvement (Coolig & Power)
 DC input (UPS opt.), Cabling & Container
 Liquid Cooling
 Free Cooling
 Leveraging Hydroelectric Power
Ref: http://www.google.com/about/datacenters/
87
http://www.google.com/about/datacenters/inside/efficiency/power-usage.html

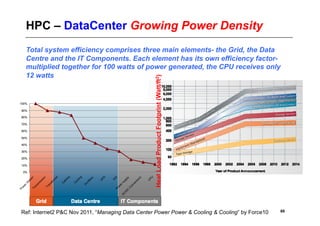

88. HPC – DataCenter Growing Power Density
Total system efficiency comprises three main elements- the Grid, the Data
Centre and the IT Components. Each element has its own efficiency factor-
multiplied together for 100 watts of power generated, the CPU receives only
12 watts
Heat Load Product Footprint (Watt/ft2)
Ref: Internet2 P&C Nov 2011, “Managing Data Center Power Power & Cooling & Cooling” by Force10 88

89. HPC - Performance Benchmarking
CPU Arch., Scalability, SMT & Perf/Watt
Case study: Intel vs. AMD
89

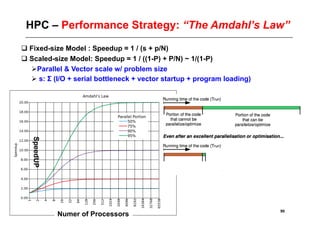

90. HPC – Performance Strategy: “The Amdahl’s Law”
 Fixed-size Model : Speedup = 1 / (s + p/N)
 Scaled-size Model: Speedup = 1 / ((1-P) + P/N) ~ 1/(1-P)
 arallel & Vector scale w/ problem size
P
 s: Σ (I/O + serial bottleneck + vector startup + program loading)
SpeedUP
90
Numer of Processors

91. Price-Performance for Transaction-Processing
 OLTP – One of the largest server markets is online
transaction processing
 TPC-C – std. industry benchmark for OLTP is
 Queries and updates rely on database system
 Significant factors of performance in TPC-C:
 Reasonable approx. to a real OLTP app.
 Predictive of real system performance:
 total system performance, inc. the hardware, the operating
system, the I/O system, and the database system.
 Complete instruction and timing info for benchmarking
 TPM (measure transactions per minute) & price-
performance in dollars per TPM.
91

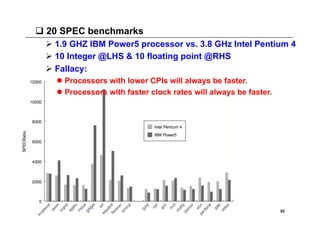

92.  20 SPEC benchmarks
 1.9 GHZ IBM Power5 processor vs. 3.8 GHz Intel Pentium 4
 10 Integer @LHS & 10 floating point @RHS
 Fallacy:
 Processors with lower CPIs will always be faster.
 Processors with faster clock rates will always be faster.
92

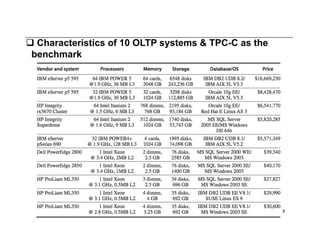

93.  Characteristics of 10 OLTP systems & TPC-C as the
benchmark
93

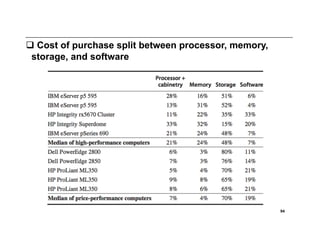

94.  Cost of purchase split between processor, memory,
storage, and software
94

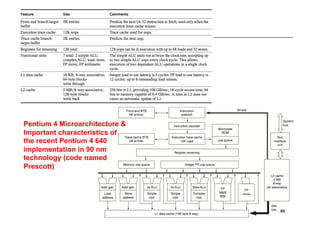

95. Pentium 4 Microarchitecture &
Important characteristics of
the recent Pentium 4 640
implementation in 90 nm
technology (code named
Prescott)
95

96. HPC – Performance Measurement (I)
 Objective:
 Baseline Performance
 Performance Optimization
 Confident & Verifiable
 Measurement:
 Open Std.: math kernel & application
 MIPS (million instruction per second) (MIPS Tech. Inc.)
 MFLOPS (million floating point operation per second)
 Characteristics:
 Peak vs. Sustained
 Speed-Up & Computing Efficiency (mainly for Parallel)
 CPU Time vs. Elapsed Time
 Program performance (HP) vs. System Throughput (HT)
 Performance per Watt
Ref: http://www-03.ibm.com/systems/power/hardware/benchmarks/hpc.html
http://icl.cs.utk.edu/hpcc/ 96

97. HPC – Performance Measurement (II)
 Public Benchmark Utilities:
 LINPACK (Jack Dongara, Oak Ridge N.L.)
 Single Precision/Double Precision
 n=100 TPP, n=1000 (Paper& Pencil benchmark)
 HPL, n=’undefined’ (mainly for paraell system)
 Synthetic: Drystone, Whetstone, Khornstone
 SPEC (Standard Performance Evaluation Corp.)
 SPECint (CINT2006), SPECfp(CFP2006), SPEComp●Not allow
for source code modification
 Livermore Loops (introduction of MFLOPS)
 Los Alamos Suite (Vector Computing)
 Stream (Memory Performance)
 NPB (NASA Ames): NPB 1 and NPB 2 (A, B, C)
 Application (Weather/Material/MD/Statistics etc.):
 MM5, NAMD, ANSYS, WRF, VASP etc. 97

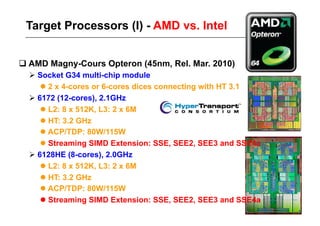

98. Target Processors (I) - AMD vs. Intel
 AMD Magny-Cours Opteron (45nm, Rel. Mar. 2010)
 Socket G34 multi-chip module
 2 x 4-cores or 6-cores dices connecting with HT 3.1
 6172 (12-cores), 2.1GHz
 L2: 8 x 512K, L3: 2 x 6M
 HT: 3.2 GHz
 ACP/TDP: 80W/115W
 Streaming SIMD Extension: SSE, SEE2, SEE3 and SSE4a
 6128HE (8-cores), 2.0GHz
 L2: 8 x 512K, L3: 2 x 6M
 HT: 3.2 GHz
 ACP/TDP: 80W/115W
 Streaming SIMD Extension: SSE, SEE2, SEE3 and SSE4a

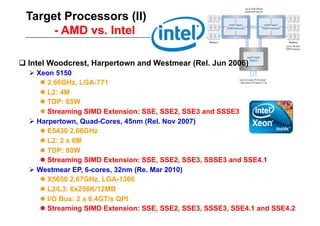

99. Target Processors (II)
- AMD vs. Intel
 Intel Woodcrest, Harpertown and Westmear (Rel. Jun 2006)
 Xeon 5150
 2.66GHz, LGA-771
 L2: 4M
 TDP: 65W
 Streaming SIMD Extension: SSE, SSE2, SSE3 and SSSE3
 Harpertown, Quad-Cores, 45nm (Rel. Nov 2007)
 E5430 2.66GHz
 L2: 2 x 6M
 TDP: 80W
 Streaming SIMD Extension: SSE, SSE2, SSE3, SSSE3 and SSE4.1
 Westmear EP, 6-cores, 32nm (Re. Mar 2010)
 X5650 2.67GHz, LGA-1366
 L2/L3: 6x256K/12MB
 I/O Bus: 2 x 6.4GT/s QPI
 Streaming SIMD Extension: SSE, SSE2, SSE3, SSSE3, SSE4.1 and SSE4.2

100. SPEC2006 Performance Comparison
- SMT Off Turbo-on
 8 Cores Nehalem-EP vs. 12 Cores Westmere-EP
 32% performance gain by increase 50% of CPU-Cores
 Scalability 12% below Ideal Performance
 SMT Advantage:
 Nehalem-EP 8 Cores to 16 Cores: “24.4%”
 Westmere-EP 12 Cores to 24 Cores: “23.7”
Ref: CERN Openlan Intel WEP Evaluation Report (2010)

101. Efficiency of Westmere-EP
- Performance per Watt
 Extrapolated from 12G to 24G
 2 Watt per additional GB of Memory
 Dual PSU (Upper) vs. Single PSU
(Lower)
 SMT offer 21% boost in turns of
efficiency
 Approx. 3% consume by SMT
comparing with absolute
performance (23.7%)
Ref: CERN Openlan Intel WEP Evaluation Report (2010)

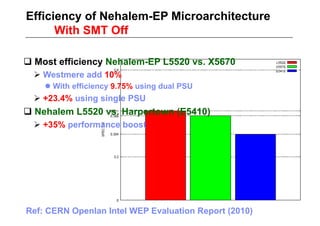

102. Efficiency of Nehalem-EP Microarchitecture
With SMT Off
 Most efficiency Nehalem-EP L5520 vs. X5670
 Westmere add 10%
 With efficiency 9.75% using dual PSU
 +23.4% using single PSU
 Nehalem L5520 vs. Harpertown (E5410)
 +35% performance boost
Ref: CERN Openlan Intel WEP Evaluation Report (2010)

103. Multi-Cores Performance Scaling

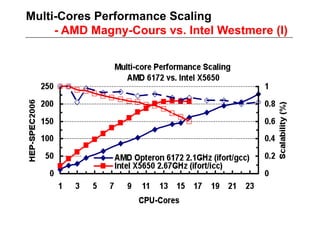

- AMD Magny-Cours vs. Intel Westmere (I)

104. Multi-Cores Performance Scaling
- AMD Magny-Cours vs. Intel Westmere (II)

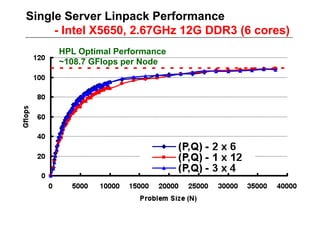

105. Single Server Linpack Performance
- Intel X5650, 2.67GHz 12G DDR3 (6 cores)
HPL Optimal Performance
~108.7 GFlops per Node

106. Lesson from Top500
Statistics, Analysis & Future Trend
Processor Tech. & Cores/socket
Cluster Interconnect
power consumption & Efficiency
Regional performance & Trend
106

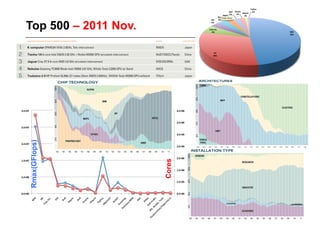

107. Top 500 – 2011 Nov.
Rmax(GFlops)
Cores

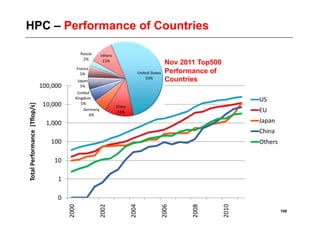

108. HPC – Performance of Countries
Nov 2011 Top500
Performance of
Countries
108

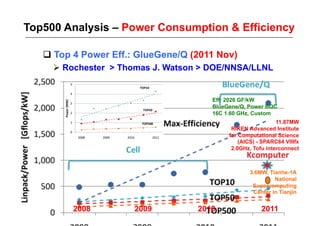

109. Top500 Analysis – Power Consumption & Efficiency
 Top 4 Power Eff.: GlueGene/Q (2011 Nov)
 Rochester > Thomas J. Watson > DOE/NNSA/LLNL
Eff: 2026 GF/kW
BlueGene/Q, Power BQC
16C 1.60 GHz, Custom
11.87MW
RIKEN Advanced Institute
for Computational Science
(AICS) - SPARC64 VIIIfx
2.0GHz, Tofu interconnect
3.6MW, Tianhe-1A
National
Supercomputing
Center in Tianjin
2008 2009 2010 2011 109

110. Top500 Analysis - Performance & Efficiency
 20% of Top-performed clusters
contribute 60% of Total Computing Power
(27.98PF)
 5 Clusters Eff. < 30

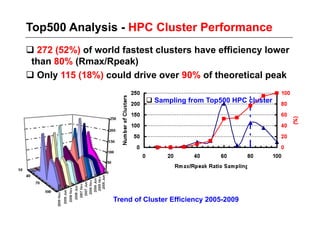

111. Top500 Analysis - HPC Cluster Performance
 272 (52%) of world fastest clusters have efficiency lower
than 80% (Rmax/Rpeak)
 Only 115 (18%) could drive over 90% of theoretical peak
 Sampling from Top500 HPC cluster
Trend of Cluster Efficiency 2005-2009

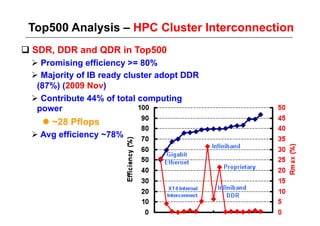

112. Top500 Analysis – HPC Cluster Interconnection
 SDR, DDR and QDR in Top500
 Promising efficiency >= 80%
 Majority of IB ready cluster adopt DDR
(87%) (2009 Nov)
 Contribute 44% of total computing
power
 ~28 Pflops
 Avg efficiency ~78%

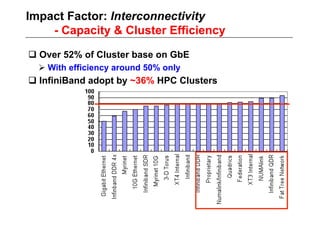

113. Impact Factor: Interconnectivity
- Capacity & Cluster Efficiency
 Over 52% of Cluster base on GbE
 With efficiency around 50% only
 InfiniBand adopt by ~36% HPC Clusters

114. Common Semantics
 Programmer productivity
 Easy of deployment
 HPC filesystem are more mature, wider feature set:
 High concurrent read and write
 In the comfort zone of programmers (vs cloudFS)
 Wide support, adoption, acceptance possible
 pNFS working to be equivalent
 Reuse standard data management tools
 Backup, disaster recovery and tiering

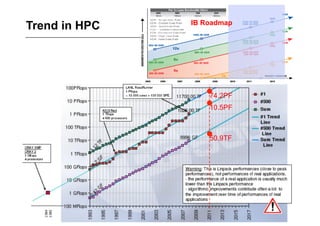

115. IB Roadmap
Trend in HPC
74.2PF
10.5PF
50.9TF

116. Observation & Perspectives (I)
 Performance pursuing another 1000X would be tough
 ~20PF Titan and Jaguar deliver in 2012
 ExaFlops project ~ 2016 (PF in 2008)
 Stil! IB & GbE are the most used interconnect solutions
 multi-cores continue Moore’s Law
 high level parallelism & software readiness
 reduce bus traffic & data locality
 Storage is fastest-growing product sector
 Storage consolidation intensifies competition
 Lustre roadmap stabilized for HPC
 Computing paradigm
 Complicated system vs. supplicated computing tools
 hybrid computing model
 Major concern: power efficiency
 energy in memory & interconnect inc. data search application
 exploit memory power efficiency: large cache?
 Scalability and Reliability
 Performance key factor: data communication
 consider: layout, management & reuse 116

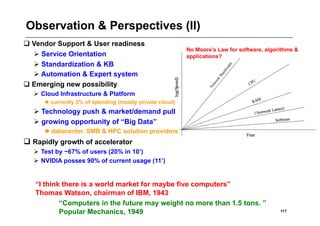

117. Observation & Perspectives (II)
 Vendor Support & User readiness
No Moore’s Law for software, algorithms &
 Service Orientation applications?
 Standardization & KB
 Automation & Expert system
 Emerging new possibility
 Cloud Infrastructure & Platform
 currently 3% of spending (mostly private cloud)
 Technology push & market/demand pull
 growing opportunity of “Big Data”
 datacenter, SMB & HPC solution providers
 Rapidly growth of accelerator
 Test by ~67% of users (20% in 10’)
 NVIDIA posses 90% of current usage (11’)
“I think there is a world market for maybe five computers”
Thomas Watson, chairman of IBM, 1943
“Computers in the future may weight no more than 1.5 tons. ”
Popular Mechanics, 1949 117

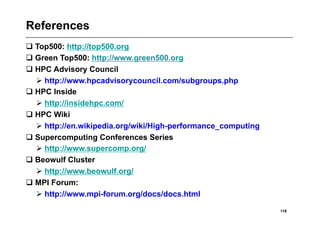

118. References
 Top500: http://top500.org
 Green Top500: http://www.green500.org
 HPC Advisory Council
 http://www.hpcadvisorycouncil.com/subgroups.php
 HPC Inside
 http://insidehpc.com/
 HPC Wiki
 http://en.wikipedia.org/wiki/High-performance_computing
 Supercomputing Conferences Series
 http://www.supercomp.org/
 Beowulf Cluster
 http://www.beowulf.org/
 MPI Forum:
 http://www.mpi-forum.org/docs/docs.html
118

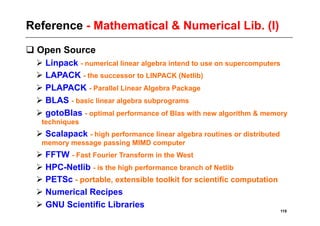

119. Reference - Mathematical & Numerical Lib. (I)
 Open Source
 Linpack - numerical linear algebra intend to use on supercomputers
 LAPACK - the successor to LINPACK (Netlib)
 PLAPACK - Parallel Linear Algebra Package
 BLAS - basic linear algebra subprograms
 gotoBlas - optimal performance of Blas with new algorithm & memory
techniques
 Scalapack - high performance linear algebra routines or distributed
memory message passing MIMD computer
 FFTW - Fast Fourier Transform in the West
 HPC-Netlib - is the high performance branch of Netlib
 PETSc - portable, extensible toolkit for scientific computation
 Numerical Recipes
 GNU Scientific Libraries
119

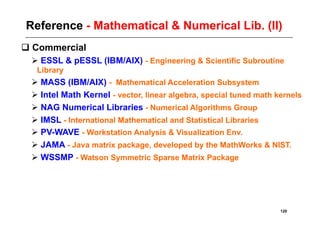

120. Reference - Mathematical & Numerical Lib. (II)
 Commercial
 ESSL & pESSL (IBM/AIX) - Engineering & Scientific Subroutine
Library
 MASS (IBM/AIX) - Mathematical Acceleration Subsystem
 Intel Math Kernel - vector, linear algebra, special tuned math kernels
 NAG Numerical Libraries - Numerical Algorithms Group
 IMSL - International Mathematical and Statistical Libraries
 PV-WAVE - Workstation Analysis & Visualization Env.
 JAMA - Java matrix package, developed by the MathWorks & NIST.
 WSSMP - Watson Symmetric Sparse Matrix Package
120

121. Reference - Message Passing
 PVM (Parallel Virtual Machine, ORNL/CSM)
 OpenMPI
 MVAPICH & MVAPICH2
 MPICH & MPICH2
 v1 channels:
 ch_p4 - based on older p4 project (Portable Programs for Parallel
Processors), tcp/ip
 ch_p4mpd - p4 with mpd daemons to starting and managing processes
 ch_shmem - shared memory only channel
 globus2 – Globus2
 v2 channels:
 Nemesis – Universal
 inter-node modules:
elan, GM, IB (infiniband), MX (myrinet express), NewMadeleine, tcp
intra-node variants of shared memory for large messages (LMT interface).
 ssm - Sockets and Shared Memory
 shm - SHared memory
 sock - tcp/ip sockets
 sctp - experimental channel over SCTP sockets 121

122. Reference - Performance, Benchmark & Tools
 High performance tools & technologies:
 https://computing.llnl.gov/tutorials/performance_tools/
HighPerformanceToolsTechnologiesLC.pdf
 Linux Benchmarking Suite:
 http://lbs.sourceforge.net
 Linux Test Tools Matrix:
 http://ltp.sourceforge.net/tooltable.php
 Network Performance
 http://compnetworking.about.com/od/networkperformance/
TCPIP_Network_Performance_Benchmarks_and_Tools.htm
 http://tldp.org/HOWTO/Benchmarking-HOWTO-3.html
 http://bulk.fefe.de/scalability/
 http://linuxperf.sourceforge.net
122

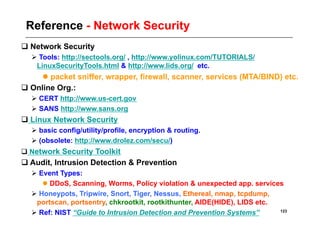

123. Reference - Network Security
 Network Security
 Tools: http://sectools.org/ , http://www.yolinux.com/TUTORIALS/
LinuxSecurityTools.html & http://www.lids.org/ etc.
 packet sniffer, wrapper, firewall, scanner, services (MTA/BIND) etc.
 Online Org.:
 CERT http://www.us-cert.gov
 SANS http://www.sans.org
 Linux Network Security
 basic config/utility/profile, encryption & routing.
 (obsolete: http://www.drolez.com/secu/)
 Network Security Toolkit
 Audit, Intrusion Detection & Prevention
 Event Types:
 DDoS, Scanning, Worms, Policy violation & unexpected app. services
 Honeypots, Tripwire, Snort, Tiger, Nessus, Ethereal, nmap, tcpdump,
portscan, portsentry, chkrootkit, rootkithunter, AIDE(HIDE), LIDS etc.
 Ref: NIST “Guide to Intrusion Detection and Prevention Systems” 123

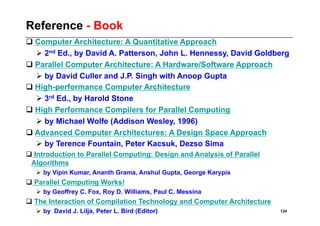

124. Reference - Book
 Computer Architecture: A Quantitative Approach
 2nd Ed., by David A. Patterson, John L. Hennessy, David Goldberg
 Parallel Computer Architecture: A Hardware/Software Approach
 by David Culler and J.P. Singh with Anoop Gupta
 High-performance Computer Architecture
 3rd Ed., by Harold Stone
 High Performance Compilers for Parallel Computing
 by Michael Wolfe (Addison Wesley, 1996)
 Advanced Computer Architectures: A Design Space Approach
 by Terence Fountain, Peter Kacsuk, Dezso Sima
 Introduction to Parallel Computing: Design and Analysis of Parallel
Algorithms
 by Vipin Kumar, Ananth Grama, Anshul Gupta, George Karypis
 Parallel Computing Works!
 by Geoffrey C. Fox, Roy D. Williams, Paul C. Messina
 The Interaction of Compilation Technology and Computer Architecture
 by David J. Lilja, Peter L. Bird (Editor) 124

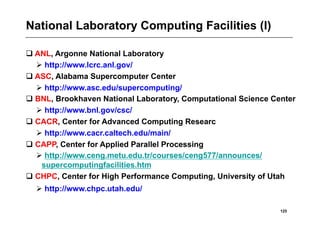

125. National Laboratory Computing Facilities (I)
 ANL, Argonne National Laboratory
 http://www.lcrc.anl.gov/
 ASC, Alabama Supercomputer Center
 http://www.asc.edu/supercomputing/
 BNL, Brookhaven National Laboratory, Computational Science Center
 http://www.bnl.gov/csc/
 CACR, Center for Advanced Computing Researc
 http://www.cacr.caltech.edu/main/
 CAPP, Center for Applied Parallel Processing
 http://www.ceng.metu.edu.tr/courses/ceng577/announces/
supercomputingfacilities.htm
 CHPC, Center for High Performance Computing, University of Utah
 http://www.chpc.utah.edu/
125

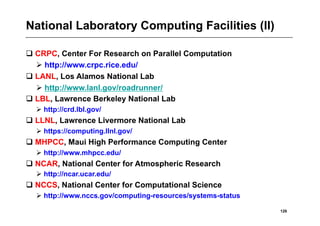

126. National Laboratory Computing Facilities (II)
 CRPC, Center For Research on Parallel Computation
 http://www.crpc.rice.edu/
 LANL, Los Alamos National Lab
 http://www.lanl.gov/roadrunner/
 LBL, Lawrence Berkeley National Lab
 http://crd.lbl.gov/
 LLNL, Lawrence Livermore National Lab
 https://computing.llnl.gov/
 MHPCC, Maui High Performance Computing Center
 http://www.mhpcc.edu/
 NCAR, National Center for Atmospheric Research
 http://ncar.ucar.edu/
 NCCS, National Center for Computational Science
 http://www.nccs.gov/computing-resources/systems-status
126

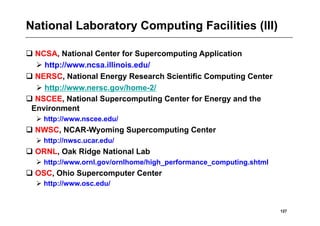

127. National Laboratory Computing Facilities (III)
 NCSA, National Center for Supercomputing Application
 http://www.ncsa.illinois.edu/
 NERSC, National Energy Research Scientific Computing Center
 http://www.nersc.gov/home-2/
 NSCEE, National Supercomputing Center for Energy and the
Environment
 http://www.nscee.edu/
 NWSC, NCAR-Wyoming Supercomputing Center
 http://nwsc.ucar.edu/
 ORNL, Oak Ridge National Lab
 http://www.ornl.gov/ornlhome/high_performance_computing.shtml
 OSC, Ohio Supercomputer Center
 http://www.osc.edu/
127

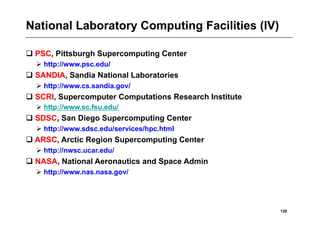

128. National Laboratory Computing Facilities (IV)
 PSC, Pittsburgh Supercomputing Center
 http://www.psc.edu/
 SANDIA, Sandia National Laboratories
 http://www.cs.sandia.gov/
 SCRI, Supercomputer Computations Research Institute
 http://www.sc.fsu.edu/
 SDSC, San Diego Supercomputing Center
 http://www.sdsc.edu/services/hpc.html
 ARSC, Arctic Region Supercomputing Center
 http://nwsc.ucar.edu/
 NASA, National Aeronautics and Space Admin
 http://www.nas.nasa.gov/
128
