3. Introduction
• Markov processes are first proposed by
Russian mathematician Andrei Markov
– He used these processes to investigate
Pushkin’s poem.
• Nowaday, Markov property and HMMs are
widely used in many domains:
– Natural Language Processing
– Speech Recognition
– Bioinformatics
– Image/video processing
– ...
08/12/2010 Hidden Markov Models 3

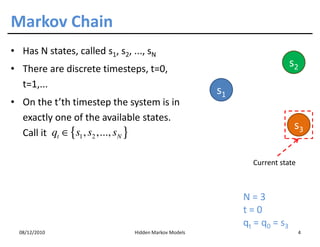

4. Markov Chain

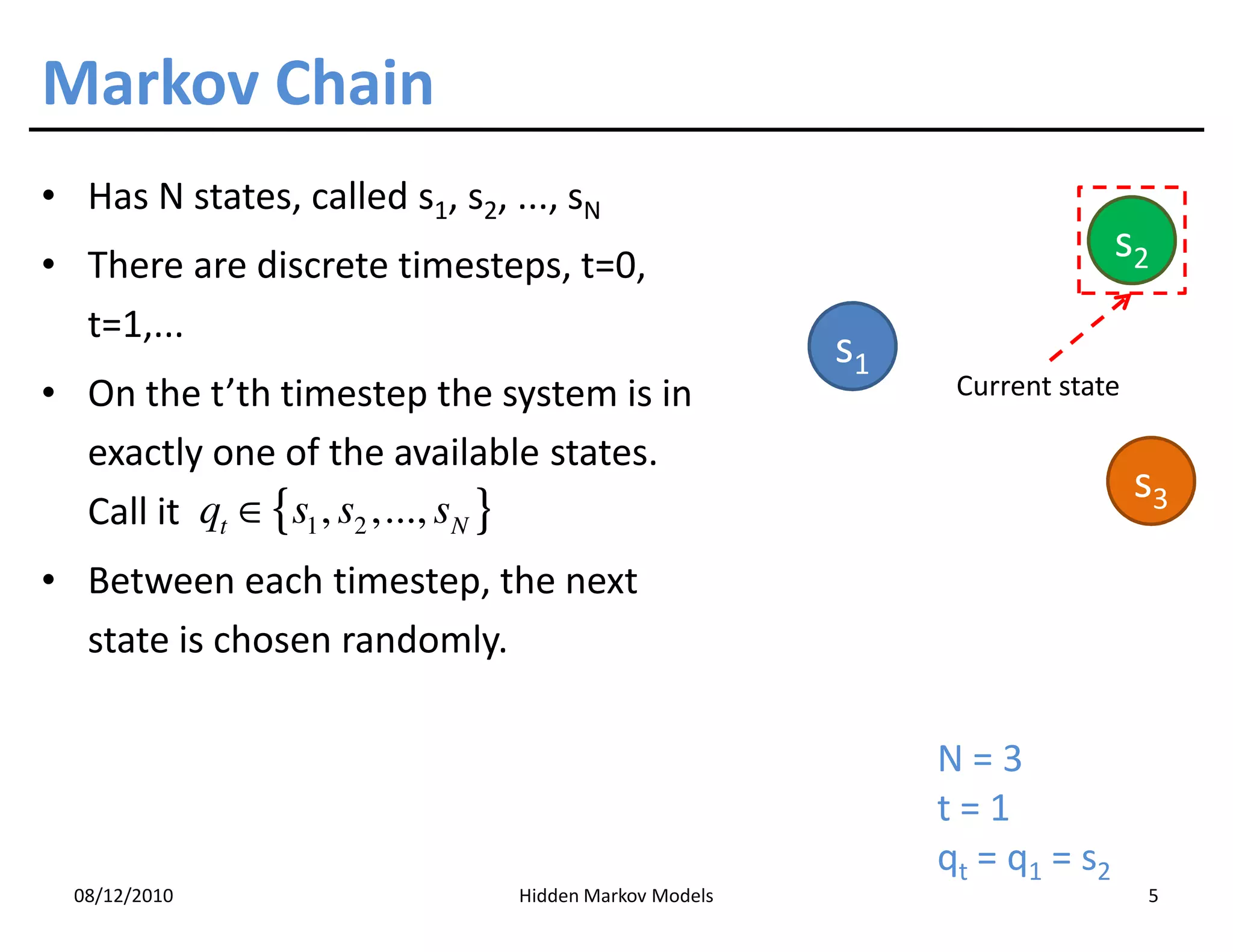

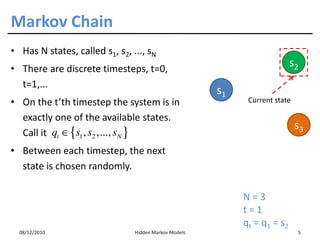

• Has N states, called s1, s2, ..., sN
• There are discrete timesteps, t=0,
s2
t=1,...
s1
• On the t’th timestep the system is in
exactly one of the available states.
s3
Call it qt ∈ {s1 , s2 ,..., sN }
Current state
N=3
t=0
q t = q 0 = s3
08/12/2010 Hidden Markov Models 4
5. Markov Chain
• Has N states, called s1, s2, ..., sN
• There are discrete timesteps, t=0,
s2
t=1,...
s1
• On the t’th timestep the system is in Current state
exactly one of the available states.
s3
Call it qt ∈ {s1 , s2 ,..., sN }
• Between each timestep, the next
state is chosen randomly.
N=3
t=1
q t = q 1 = s2
08/12/2010 Hidden Markov Models 5

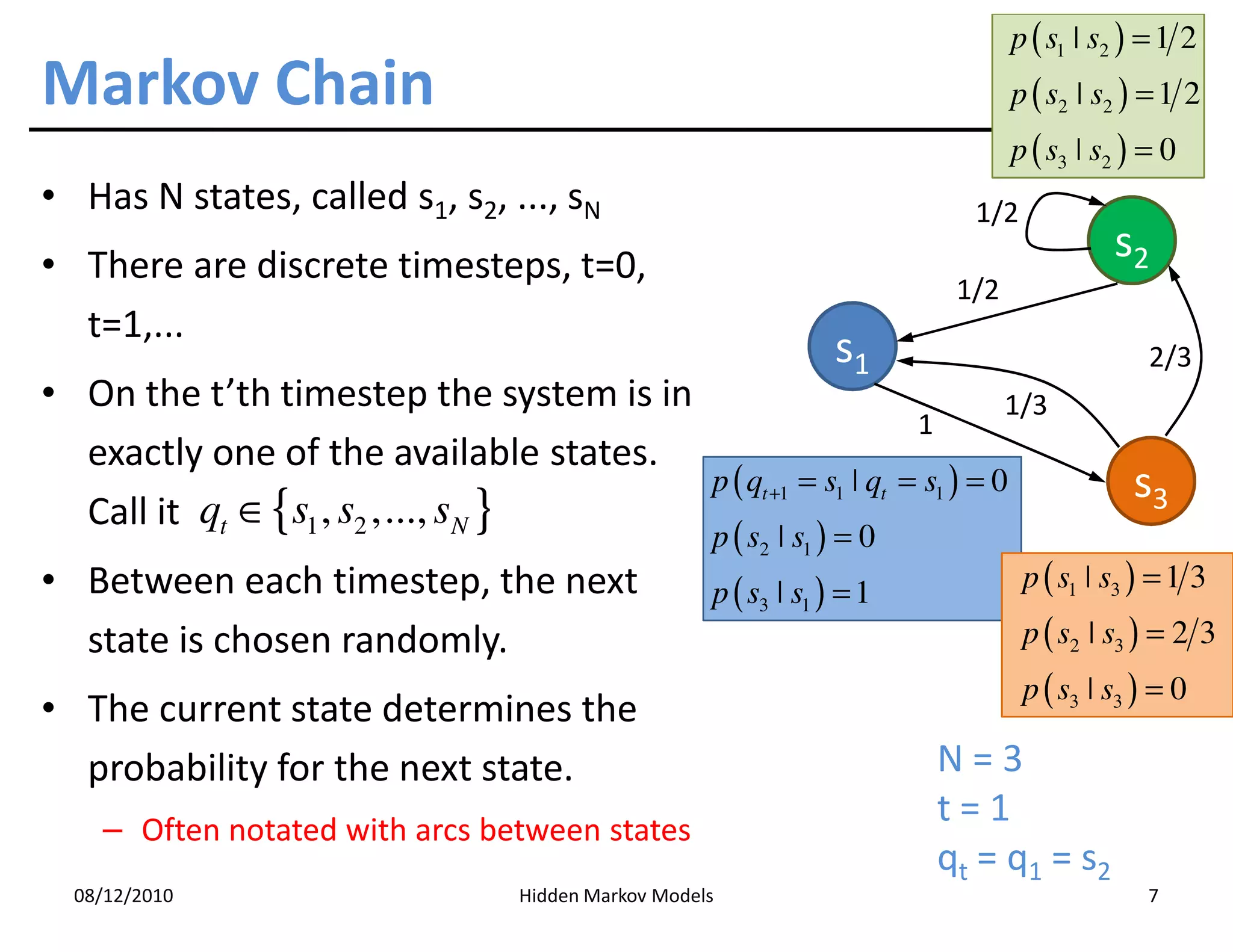

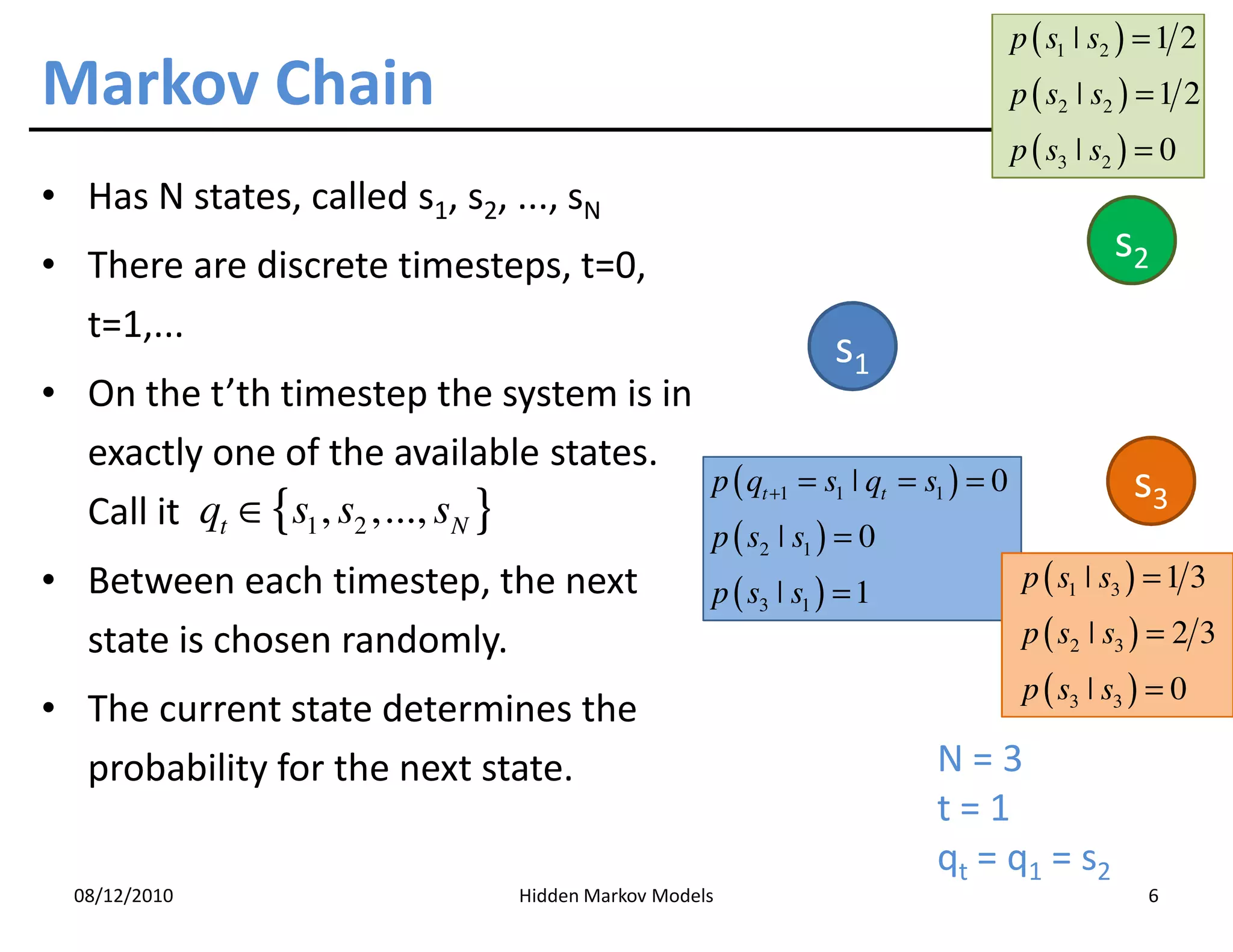

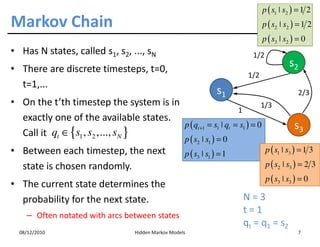

6. p ( s1 ˚ s2 ) = 1 2
Markov Chain p ( s2 ˚ s2 ) = 1 2
p ( s3 ˚ s2 ) = 0
• Has N states, called s1, s2, ..., sN
• There are discrete timesteps, t=0,
s2
t=1,...
s1
• On the t’th timestep the system is in
exactly one of the available states.
p ( qt +1 = s1 ˚ qt = s1 ) = 0 s3
Call it qt ∈ {s1 , s2 ,..., sN }
p ( s2 ˚ s1 ) = 0
• Between each timestep, the next p ( s3 ˚ s1 ) = 1 p ( s1 ˚ s3 ) = 1 3
state is chosen randomly. p ( s2 ˚ s3 ) = 2 3
p ( s3 ˚ s3 ) = 0
• The current state determines the
probability for the next state. N=3
t=1
q t = q 1 = s2
08/12/2010 Hidden Markov Models 6
7. p ( s1 ˚ s2 ) = 1 2
Markov Chain p ( s2 ˚ s2 ) = 1 2
p ( s3 ˚ s2 ) = 0
• Has N states, called s1, s2, ..., sN 1/2
• There are discrete timesteps, t=0,
s2
1/2
t=1,...
s1 2/3
• On the t’th timestep the system is in 1/3
1
exactly one of the available states.
p ( qt +1 = s1 ˚ qt = s1 ) = 0 s3
Call it qt ∈ {s1 , s2 ,..., sN }
p ( s2 ˚ s1 ) = 0
• Between each timestep, the next p ( s3 ˚ s1 ) = 1 p ( s1 ˚ s3 ) = 1 3
state is chosen randomly. p ( s2 ˚ s3 ) = 2 3
p ( s3 ˚ s3 ) = 0
• The current state determines the
probability for the next state. N=3
– Often notated with arcs between states
t=1
q t = q 1 = s2
08/12/2010 Hidden Markov Models 7

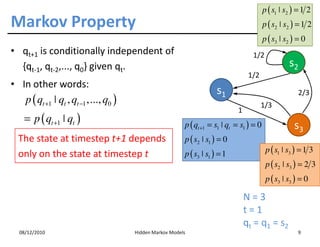

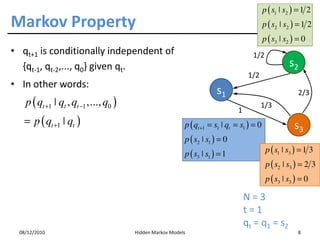

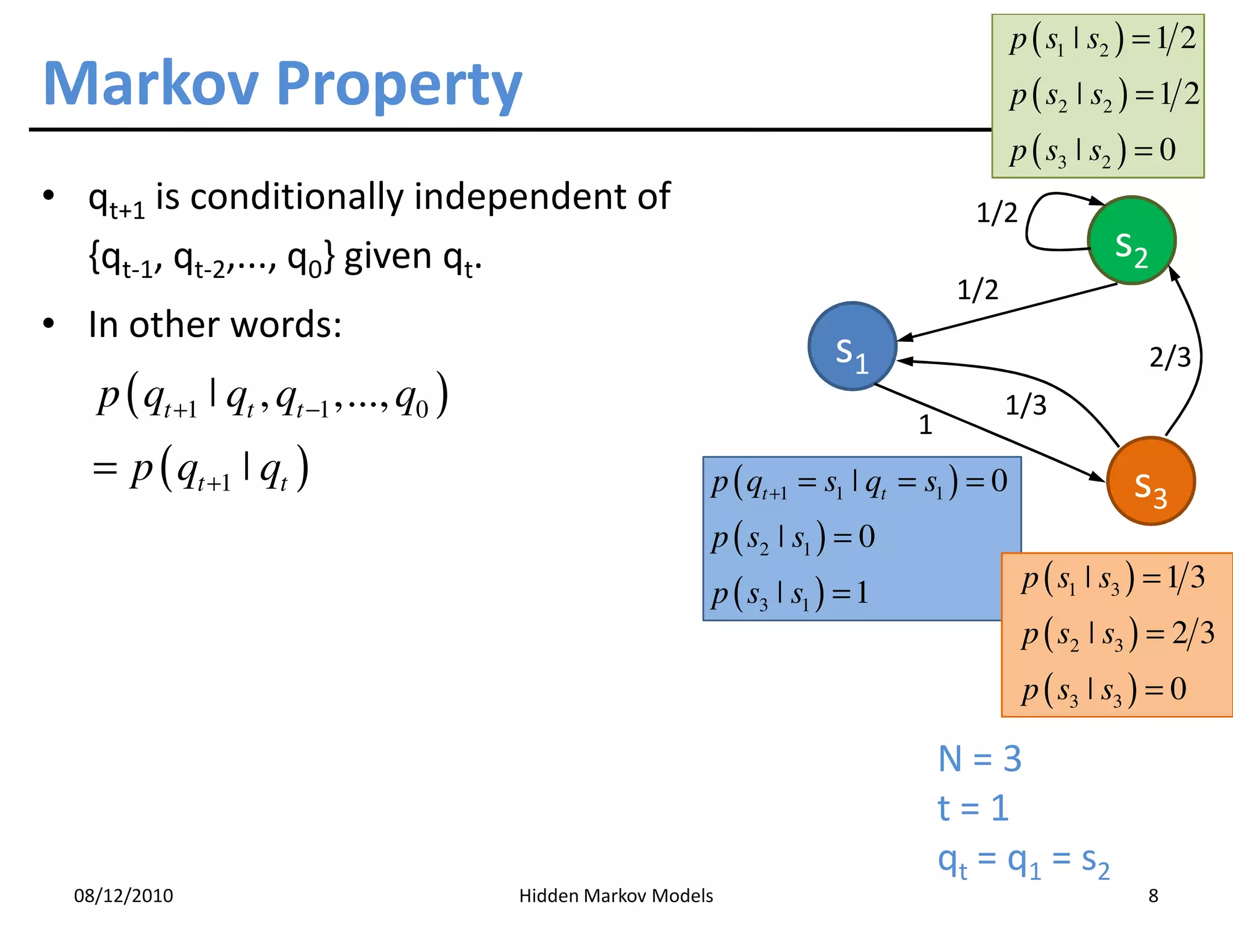

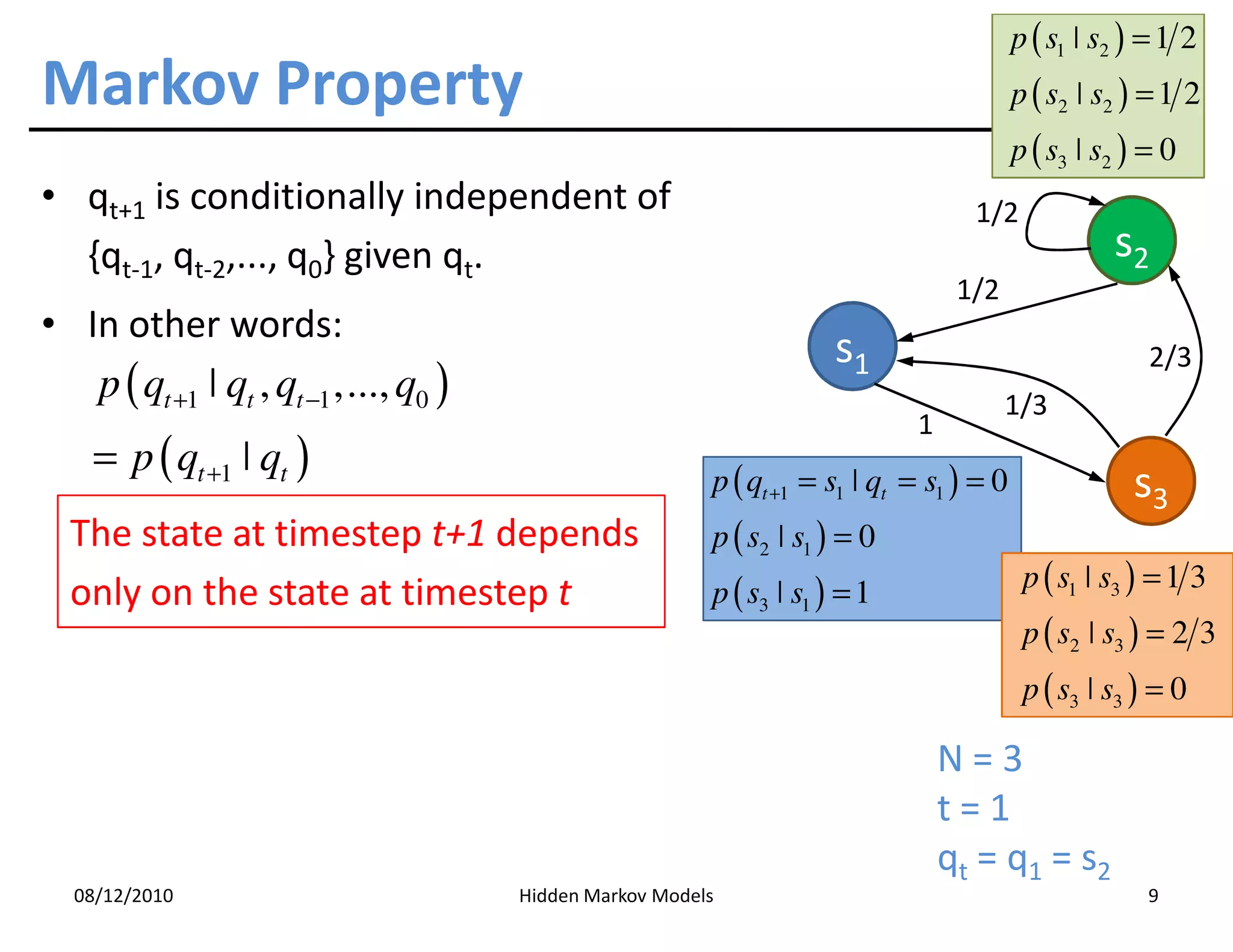

8. p ( s1 ˚ s2 ) = 1 2

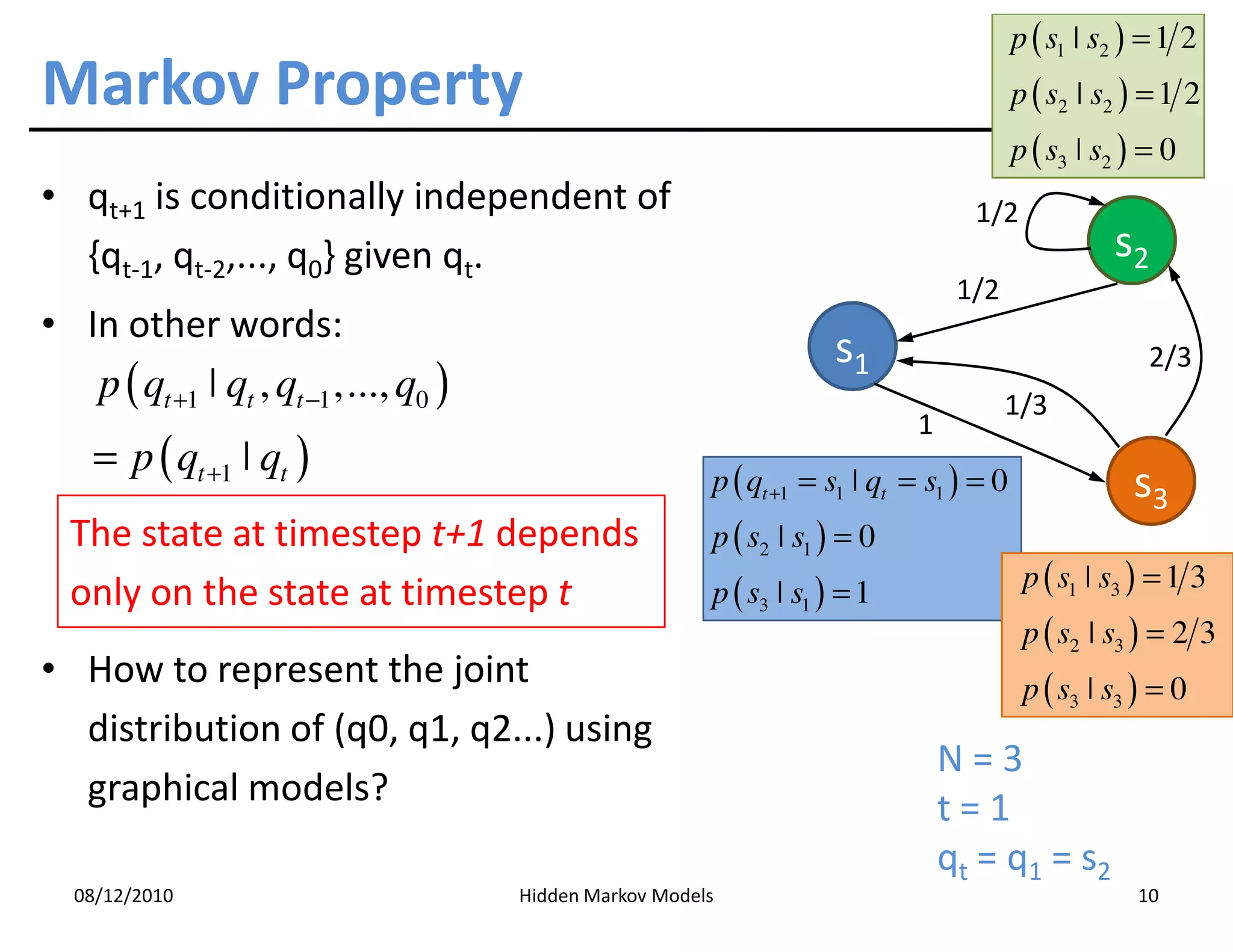

Markov Property p ( s2 ˚ s2 ) = 1 2
p ( s3 ˚ s2 ) = 0
• qt+1 is conditionally independent of 1/2
{qt-1, qt-2,..., q0} given qt. s2
1/2
• In other words:
s1 2/3
p ( qt +1 ˚ qt , qt −1 ,..., q0 ) 1/3
1
= p ( qt +1 ˚ qt ) p ( qt +1 = s1 ˚ qt = s1 ) = 0 s3
p ( s2 ˚ s1 ) = 0
p ( s3 ˚ s1 ) = 1 p ( s1 ˚ s3 ) = 1 3
p ( s2 ˚ s3 ) = 2 3
p ( s3 ˚ s3 ) = 0
N=3
t=1
q t = q 1 = s2
08/12/2010 Hidden Markov Models 8
9. p ( s1 ˚ s2 ) = 1 2
Markov Property p ( s2 ˚ s2 ) = 1 2
p ( s3 ˚ s2 ) = 0
• qt+1 is conditionally independent of 1/2
{qt-1, qt-2,..., q0} given qt. s2
1/2
• In other words:
s1 2/3
p ( qt +1 ˚ qt , qt −1 ,..., q0 ) 1/3
1
= p ( qt +1 ˚ qt ) p ( qt +1 = s1 ˚ qt = s1 ) = 0 s3
The state at timestep t+1 depends p ( s2 ˚ s1 ) = 0
p ( s3 ˚ s1 ) = 1 p ( s1 ˚ s3 ) = 1 3
only on the state at timestep t
p ( s2 ˚ s3 ) = 2 3
p ( s3 ˚ s3 ) = 0
N=3
t=1
q t = q 1 = s2
08/12/2010 Hidden Markov Models 9
10. p ( s1 ˚ s2 ) = 1 2
Markov Property p ( s2 ˚ s2 ) = 1 2
p ( s3 ˚ s2 ) = 0
• qt+1 is conditionally independent of 1/2
{qt-1, qt-2,..., q0} given qt. s2
1/2
• In other words:
s1 2/3
p ( qt +1 ˚ qt , qt −1 ,..., q0 ) 1/3
1
= p ( qt +1 ˚ qt ) p ( qt +1 = s1 ˚ qt = s1 ) = 0 s3
The state at timestep t+1 depends p ( s2 ˚ s1 ) = 0
p ( s3 ˚ s1 ) = 1 p ( s1 ˚ s3 ) = 1 3
only on the state at timestep t
p ( s2 ˚ s3 ) = 2 3
• How to represent the joint p ( s3 ˚ s3 ) = 0
distribution of (q0, q1, q2...) using
N=3
graphical models? t=1
q t = q 1 = s2
08/12/2010 Hidden Markov Models 10

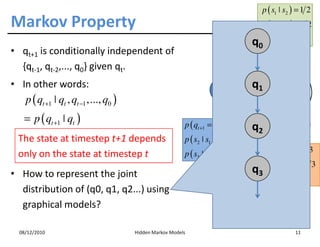

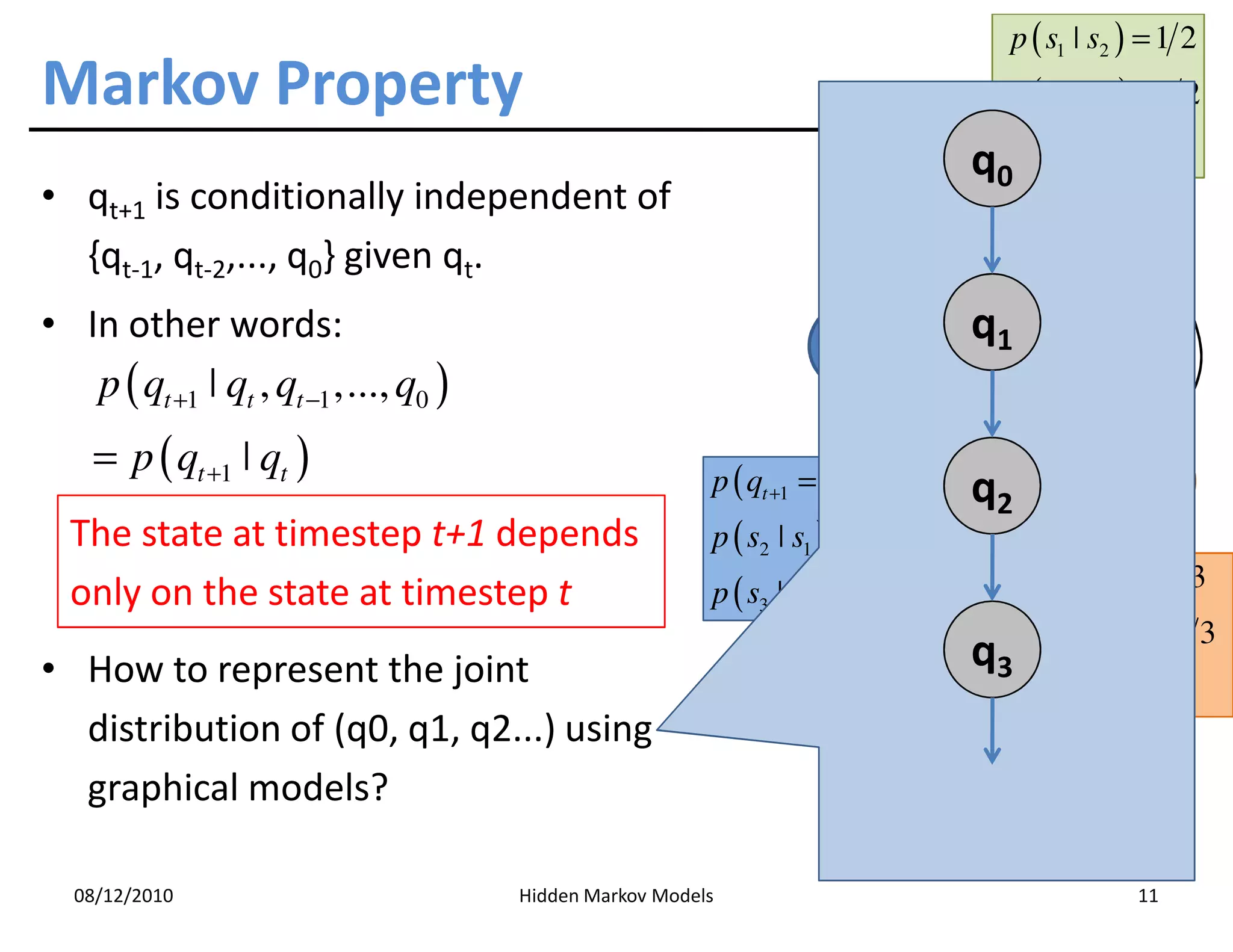

11. p ( s1 ˚ s2 ) = 1 2
Markov Property p ( s2 ˚ s2 ) = 1 2
q0p ( s 3 ˚ s2 ) = 0
• qt+1 is conditionally independent of 1/2
{qt-1, qt-2,..., q0} given qt. s2
1/2
• In other words: q1
s1 1/3
p ( qt +1 ˚ qt , qt −1 ,..., q0 ) 1/3
1
= p ( qt +1 ˚ qt ) p ( qt +1 = s1 ˚ qt = s1 ) = 0
q2 s3
The state at timestep t+1 depends p ( s2 ˚ s1 ) = 0
p ( s3 ˚ s1 ) = 1 p ( s1 ˚ s3 ) = 1 3
only on the state at timestep t
• How to represent the joint q3 p ( s 2 ˚ s3 ) = 2 3
p ( s3 ˚ s3 ) = 0
distribution of (q0, q1, q2...) using
N=3
graphical models? t=1
q t = q 1 = s2
08/12/2010 Hidden Markov Models 11

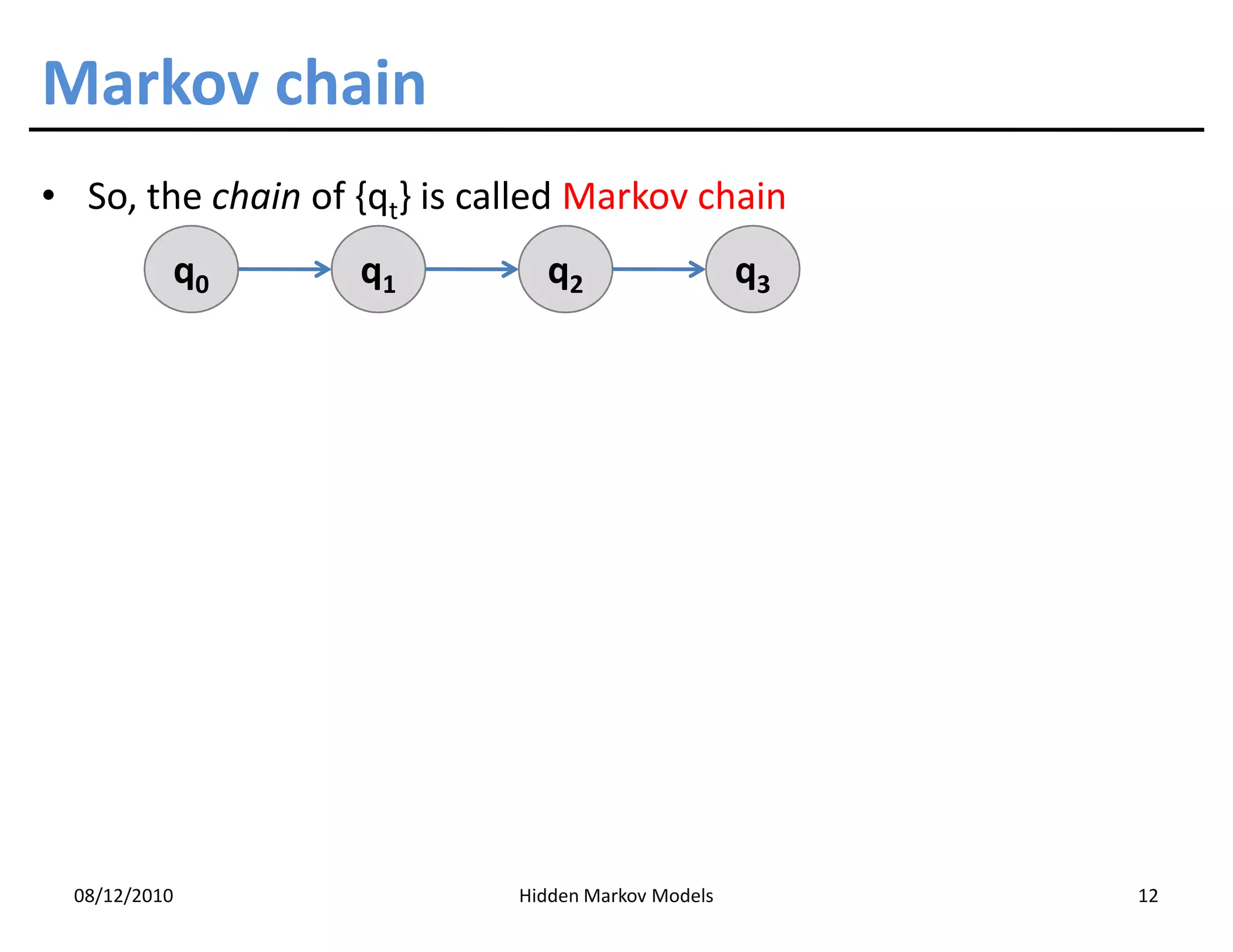

12. Markov chain

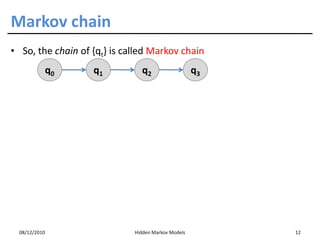

• So, the chain of {qt} is called Markov chain
q0 q1 q2 q3
08/12/2010 Hidden Markov Models 12

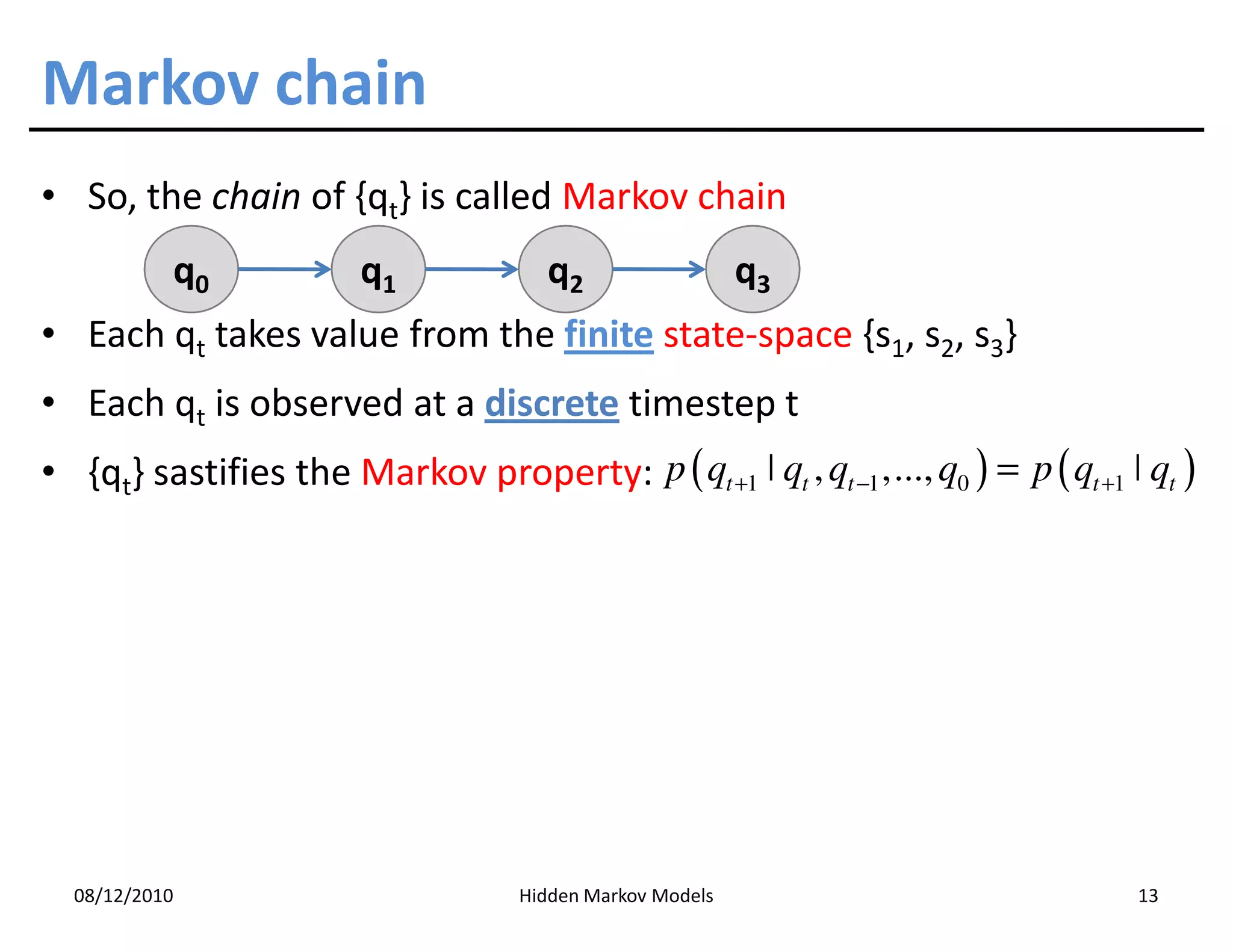

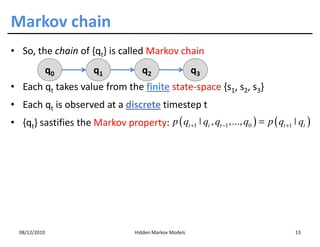

13. Markov chain
• So, the chain of {qt} is called Markov chain
q0 q1 q2 q3
• Each qt takes value from the finite state-space {s1, s2, s3}
• Each qt is observed at a discrete timestep t
• {qt} sastifies the Markov property: p ( qt +1 ˚ qt , qt −1 ,..., q0 ) = p ( qt +1 ˚ qt )
08/12/2010 Hidden Markov Models 13

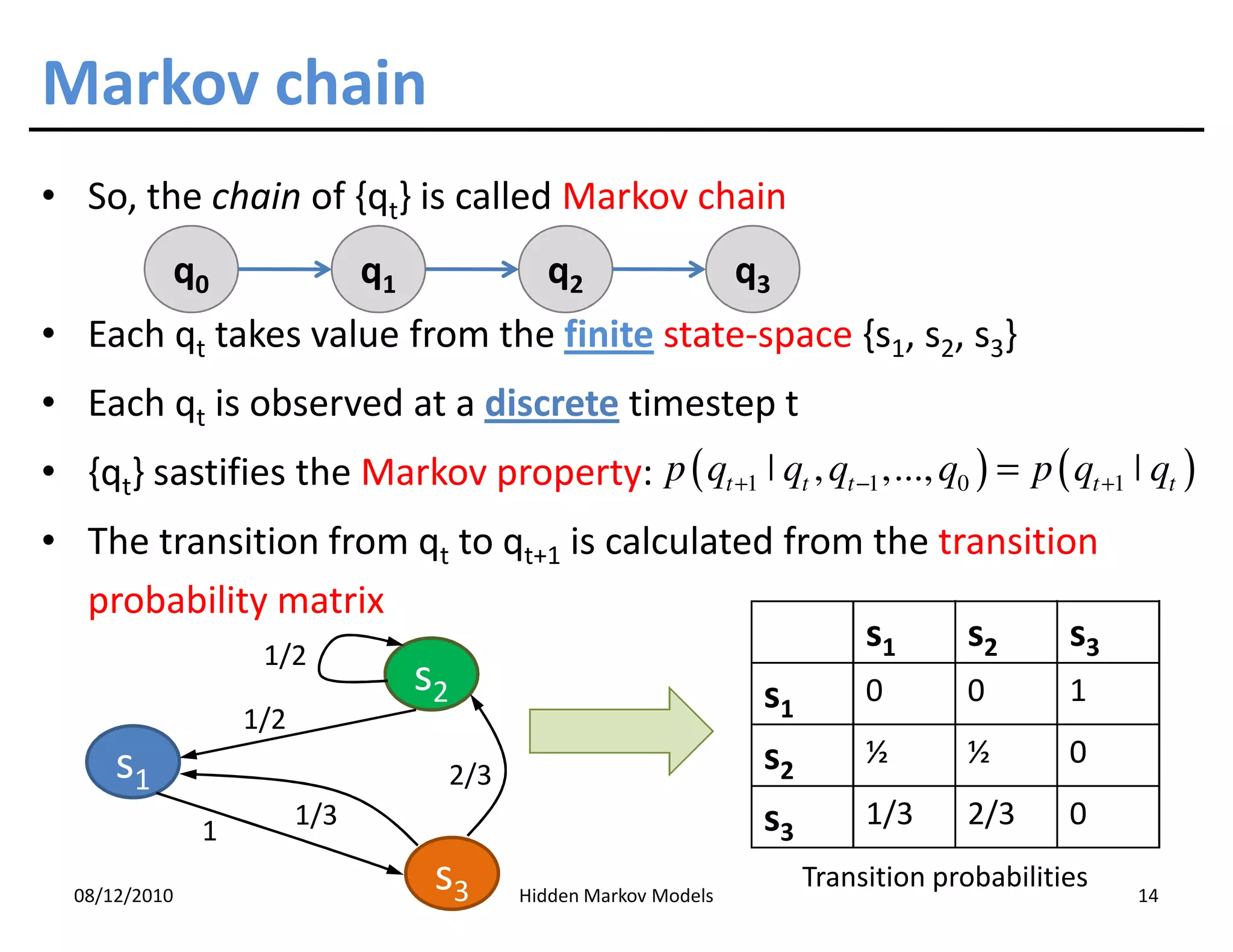

14. Markov chain
• So, the chain of {qt} is called Markov chain
q0 q1 q2 q3
• Each qt takes value from the finite state-space {s1, s2, s3}
• Each qt is observed at a discrete timestep t
• {qt} sastifies the Markov property: p ( qt +1 ˚ qt , qt −1 ,..., q0 ) = p ( qt +1 ˚ qt )
• The transition from qt to qt+1 is calculated from the transition
probability matrix
1/2
s1 s2 s3
s2 s1 0 0 1
1/2
s1 s2 ½ ½ 0
2/3
1
1/3 s3 1/3 2/3 0
08/12/2010
s3 Hidden Markov Models
Transition probabilities
14

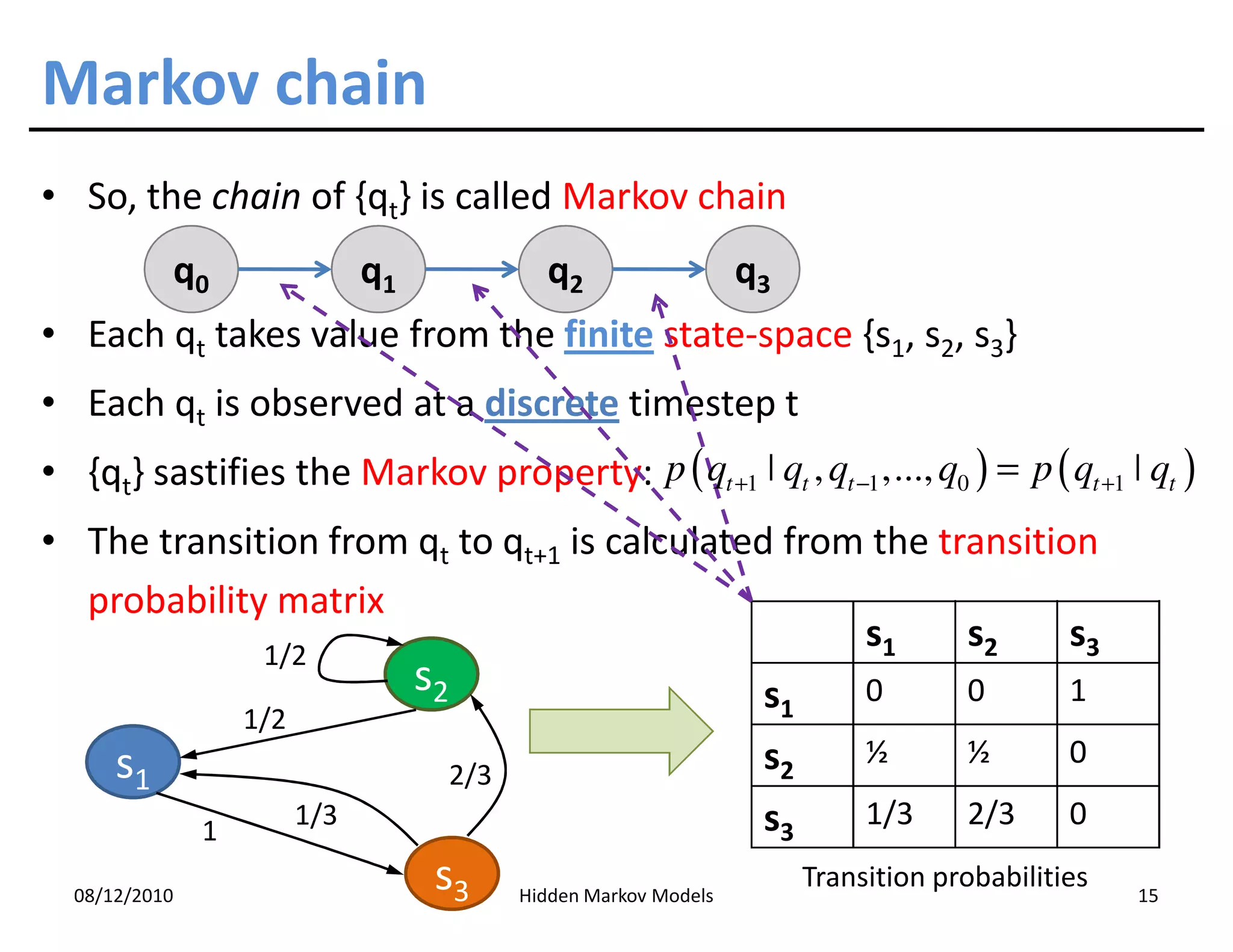

15. Markov chain
• So, the chain of {qt} is called Markov chain
q0 q1 q2 q3
• Each qt takes value from the finite state-space {s1, s2, s3}
• Each qt is observed at a discrete timestep t
• {qt} sastifies the Markov property: p ( qt +1 ˚ qt , qt −1 ,..., q0 ) = p ( qt +1 ˚ qt )
• The transition from qt to qt+1 is calculated from the transition
probability matrix
1/2
s1 s2 s3
s2 s1 0 0 1
1/2
s1 s2 ½ ½ 0
2/3
1
1/3 s3 1/3 2/3 0
08/12/2010
s3 Hidden Markov Models
Transition probabilities
15

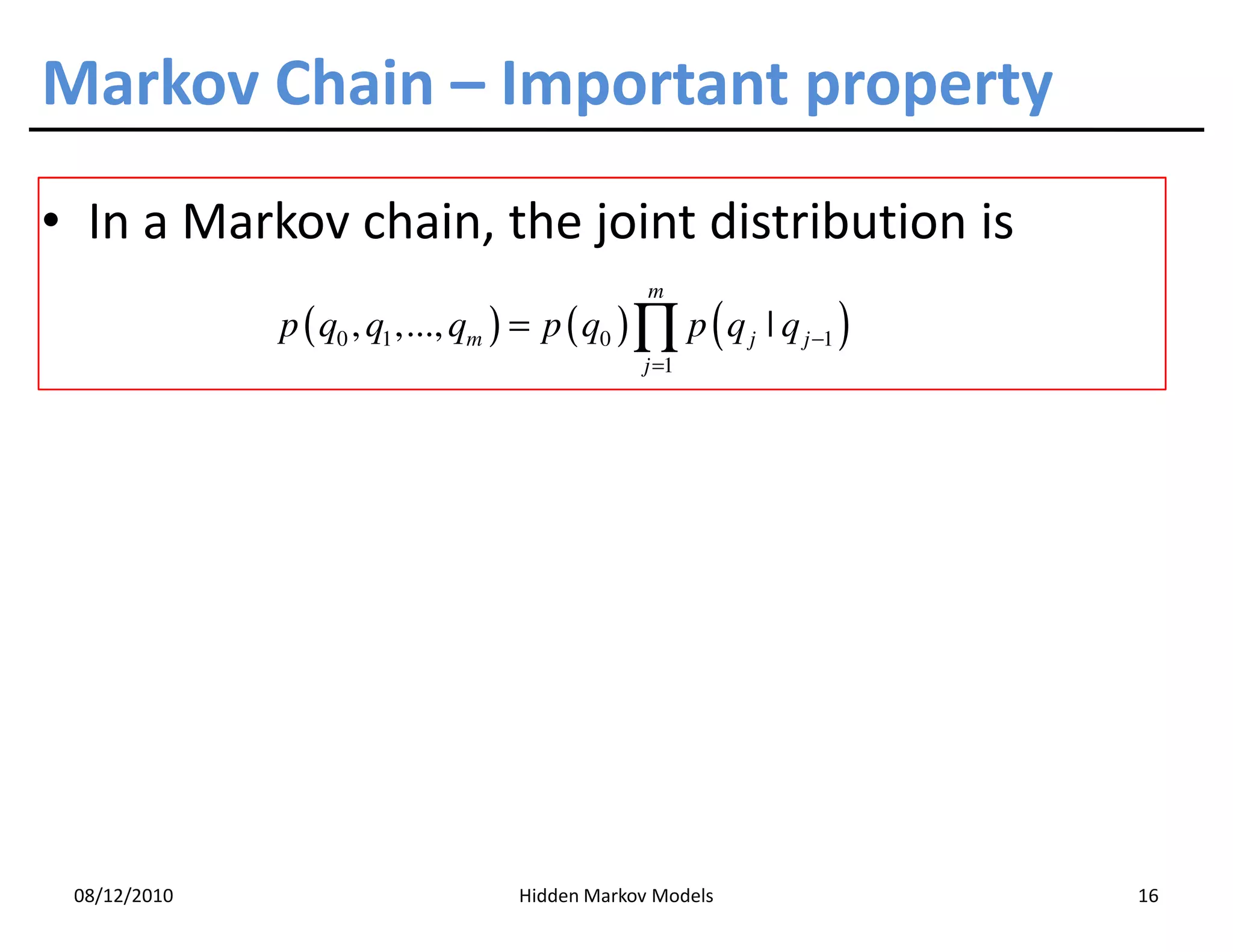

16. Markov Chain – Important property
• In a Markov chain, the joint distribution is
m
p ( q0 , q1 ,..., qm ) = p ( q0 ) ∏ p ( q j | q j −1 )
j =1
08/12/2010 Hidden Markov Models 16

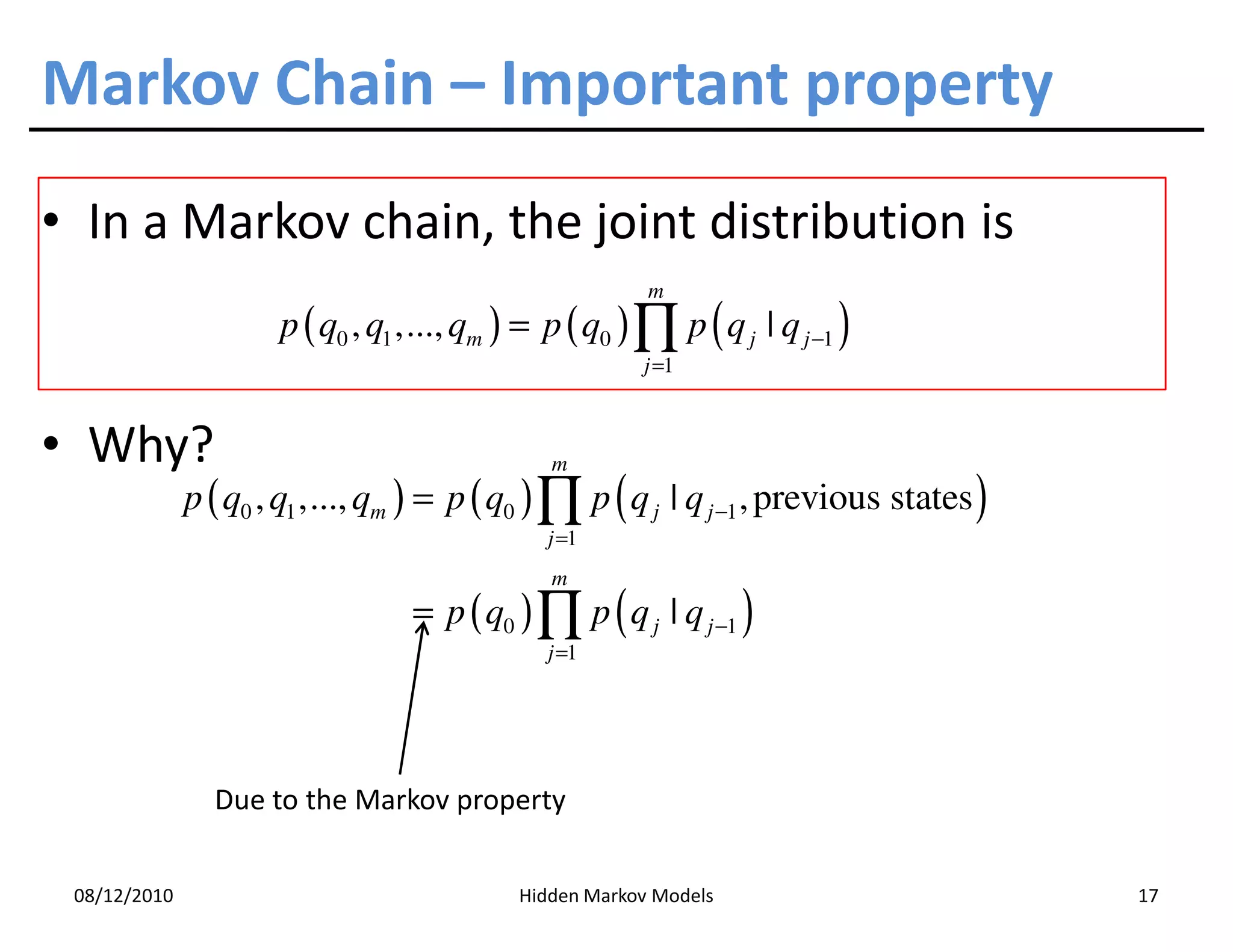

17. Markov Chain – Important property
• In a Markov chain, the joint distribution is
m
p ( q0 , q1 ,..., qm ) = p ( q0 ) ∏ p ( q j | q j −1 )
j =1
• Why? m
p ( q0 , q1 ,..., qm ) = p ( q0 ) ∏ p ( q j | q j −1 , previous states )
j =1
m
= p ( q0 ) ∏ p ( q j | q j −1 )
j =1
Due to the Markov property
08/12/2010 Hidden Markov Models 17

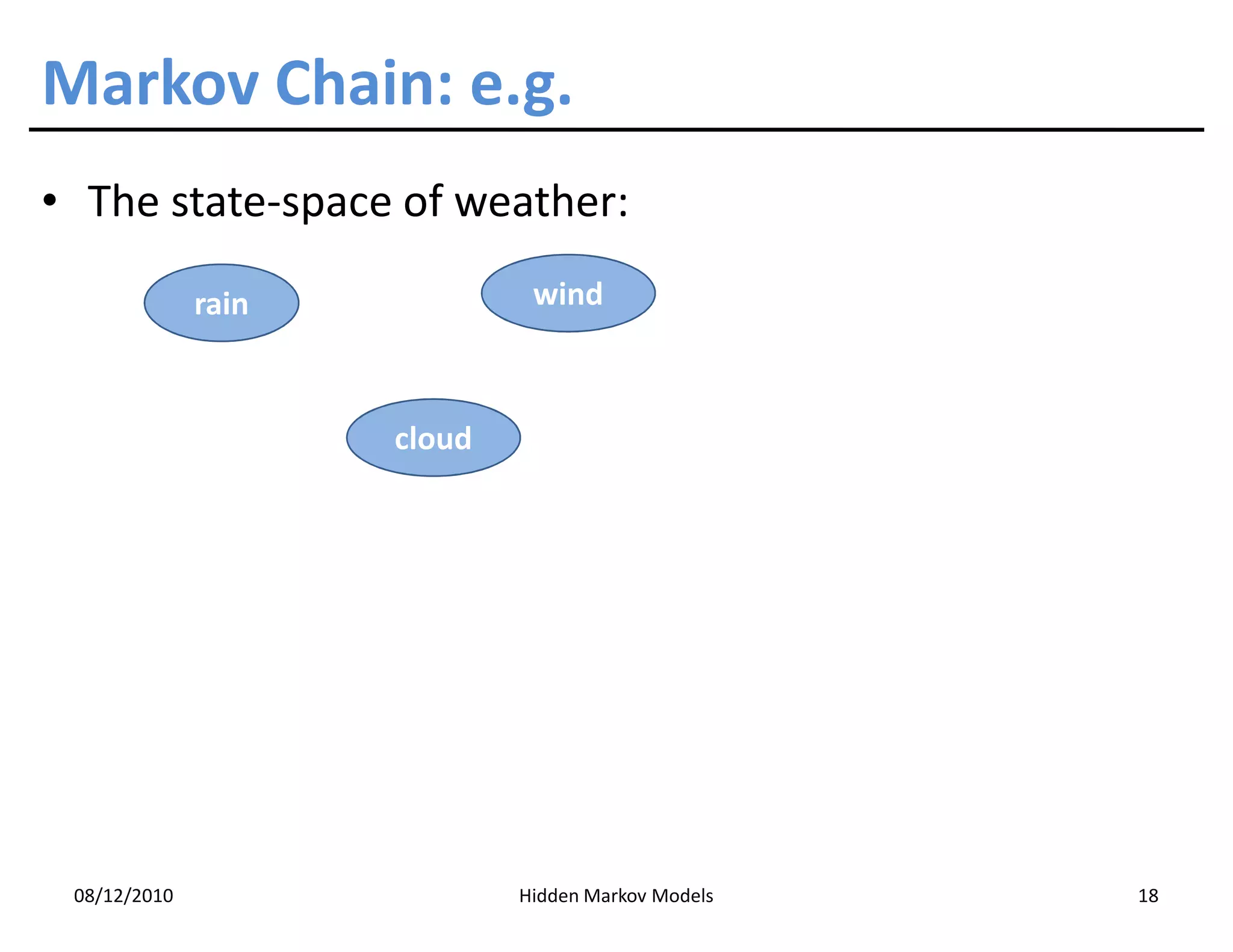

18. Markov Chain: e.g.

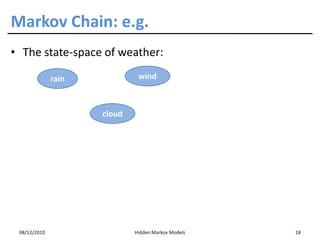

• The state-space of weather:
rain wind
cloud
08/12/2010 Hidden Markov Models 18

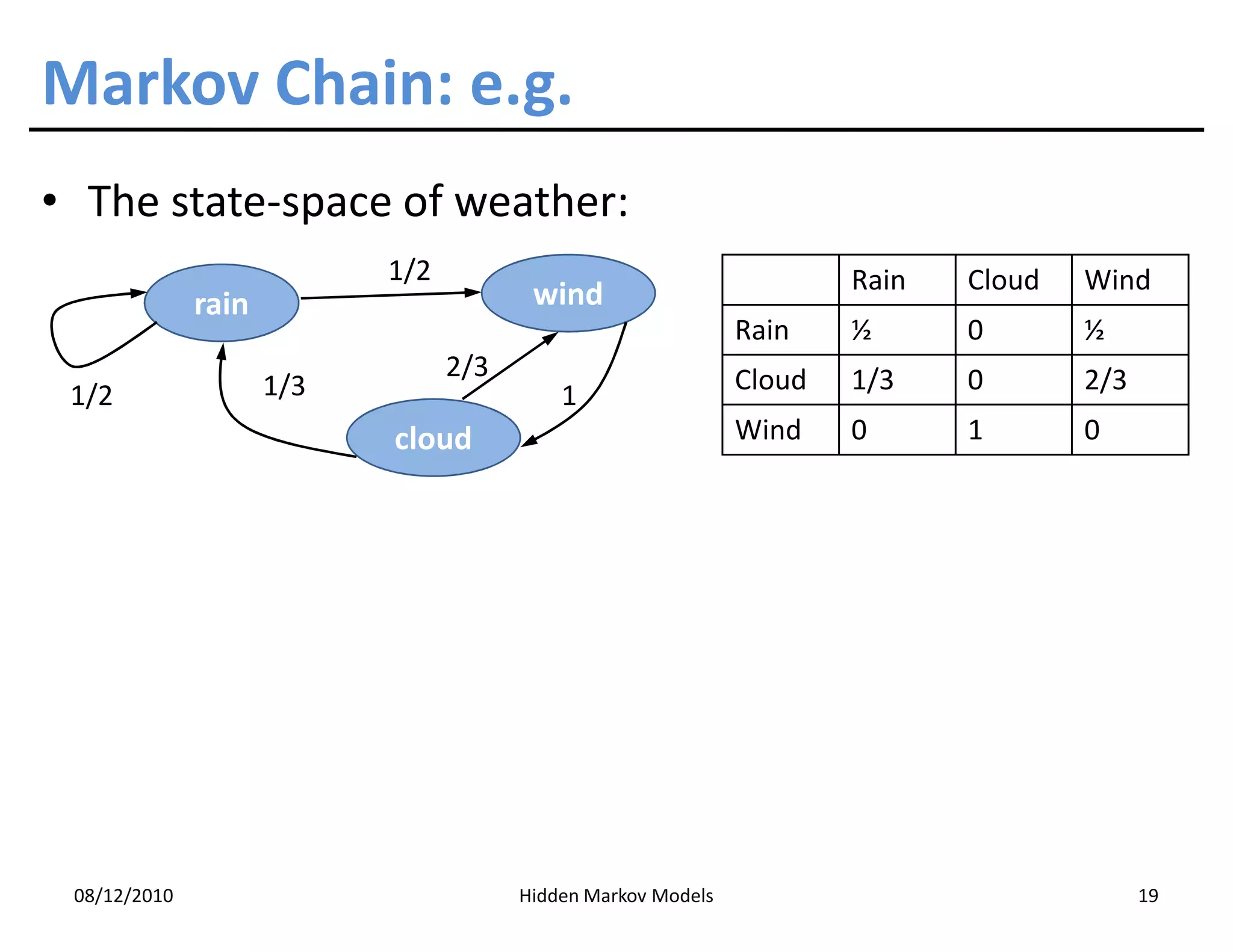

19. Markov Chain: e.g.

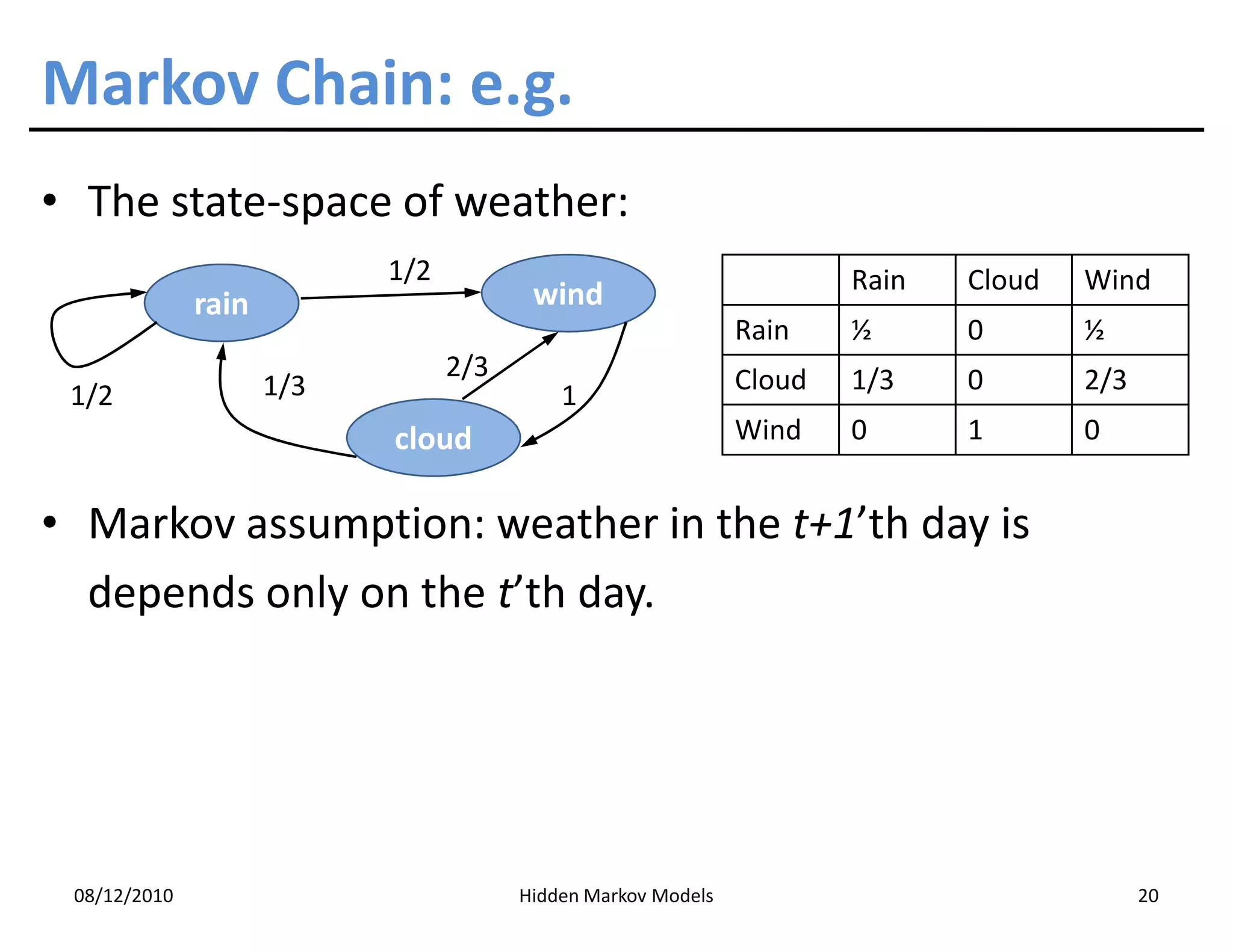

• The state-space of weather:
1/2 Rain Cloud Wind
rain wind
Rain ½ 0 ½
2/3 Cloud 1/3 0 2/3
1/2 1/3 1
cloud Wind 0 1 0
08/12/2010 Hidden Markov Models 19

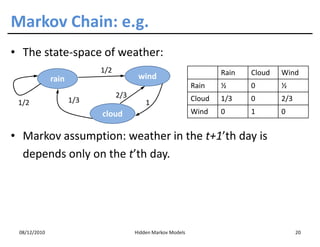

20. Markov Chain: e.g.
• The state-space of weather:
1/2 Rain Cloud Wind
rain wind
Rain ½ 0 ½
2/3 Cloud 1/3 0 2/3
1/2 1/3 1
cloud Wind 0 1 0
• Markov assumption: weather in the t+1’th day is
depends only on the t’th day.
08/12/2010 Hidden Markov Models 20

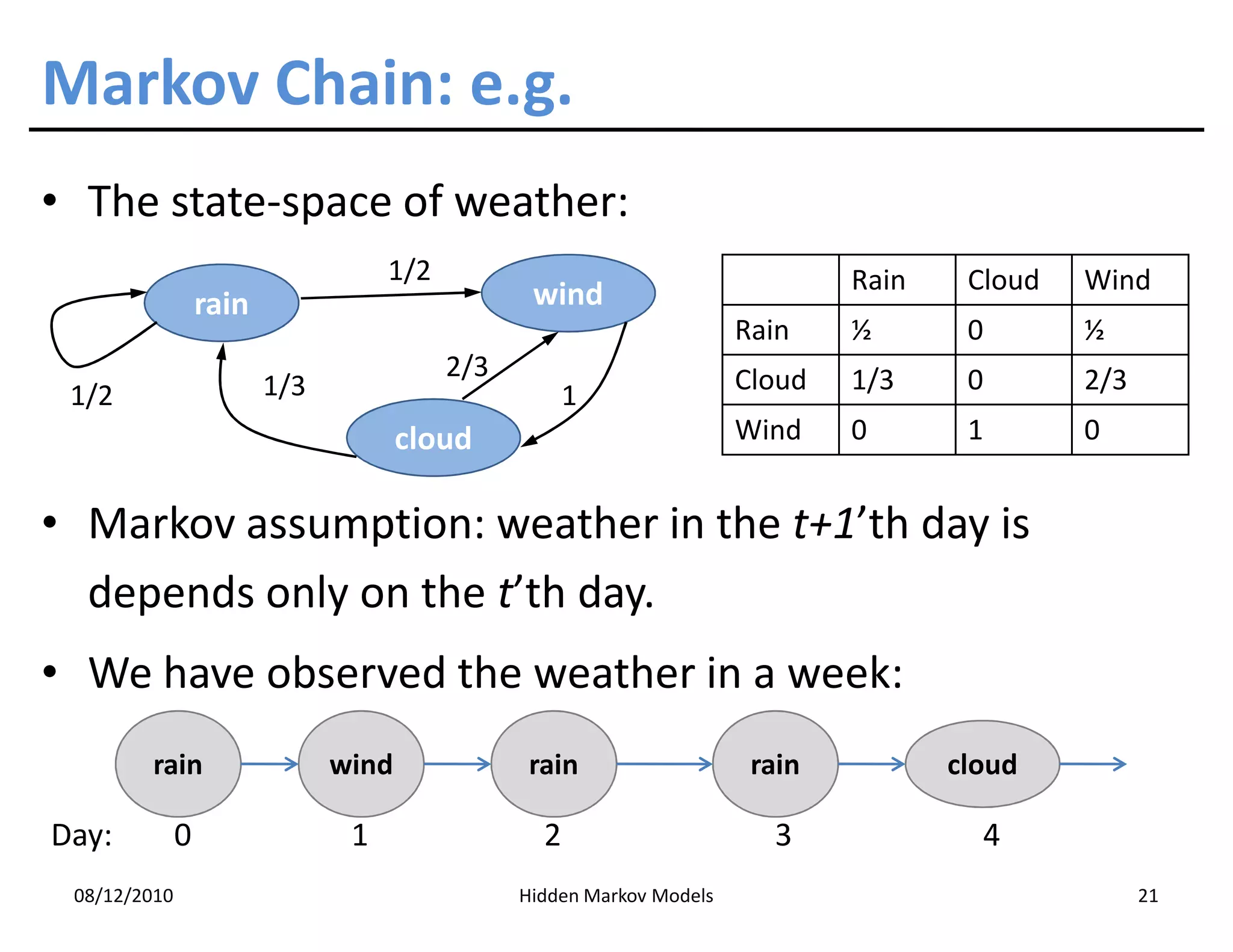

21. Markov Chain: e.g.
• The state-space of weather:
1/2 Rain Cloud Wind
rain wind
Rain ½ 0 ½
2/3 Cloud 1/3 0 2/3
1/2 1/3 1
cloud Wind 0 1 0
• Markov assumption: weather in the t+1’th day is
depends only on the t’th day.
• We have observed the weather in a week:
rain wind rain rain cloud
Day: 0 1 2 3 4
08/12/2010 Hidden Markov Models 21

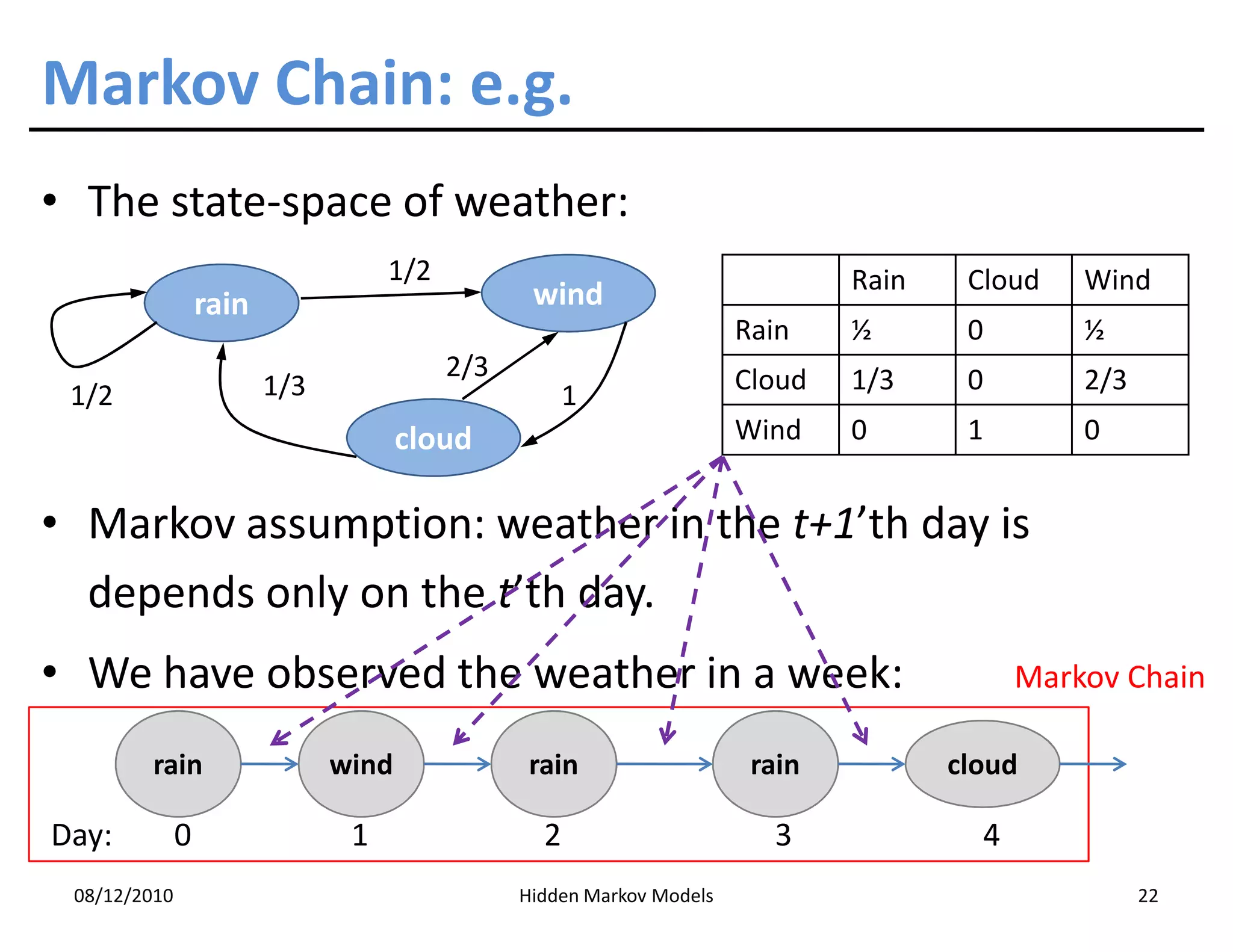

22. Markov Chain: e.g.
• The state-space of weather:
1/2 Rain Cloud Wind
rain wind
Rain ½ 0 ½
2/3 Cloud 1/3 0 2/3
1/2 1/3 1
cloud Wind 0 1 0
• Markov assumption: weather in the t+1’th day is
depends only on the t’th day.
• We have observed the weather in a week: Markov Chain
rain wind rain rain cloud
Day: 0 1 2 3 4
08/12/2010 Hidden Markov Models 22

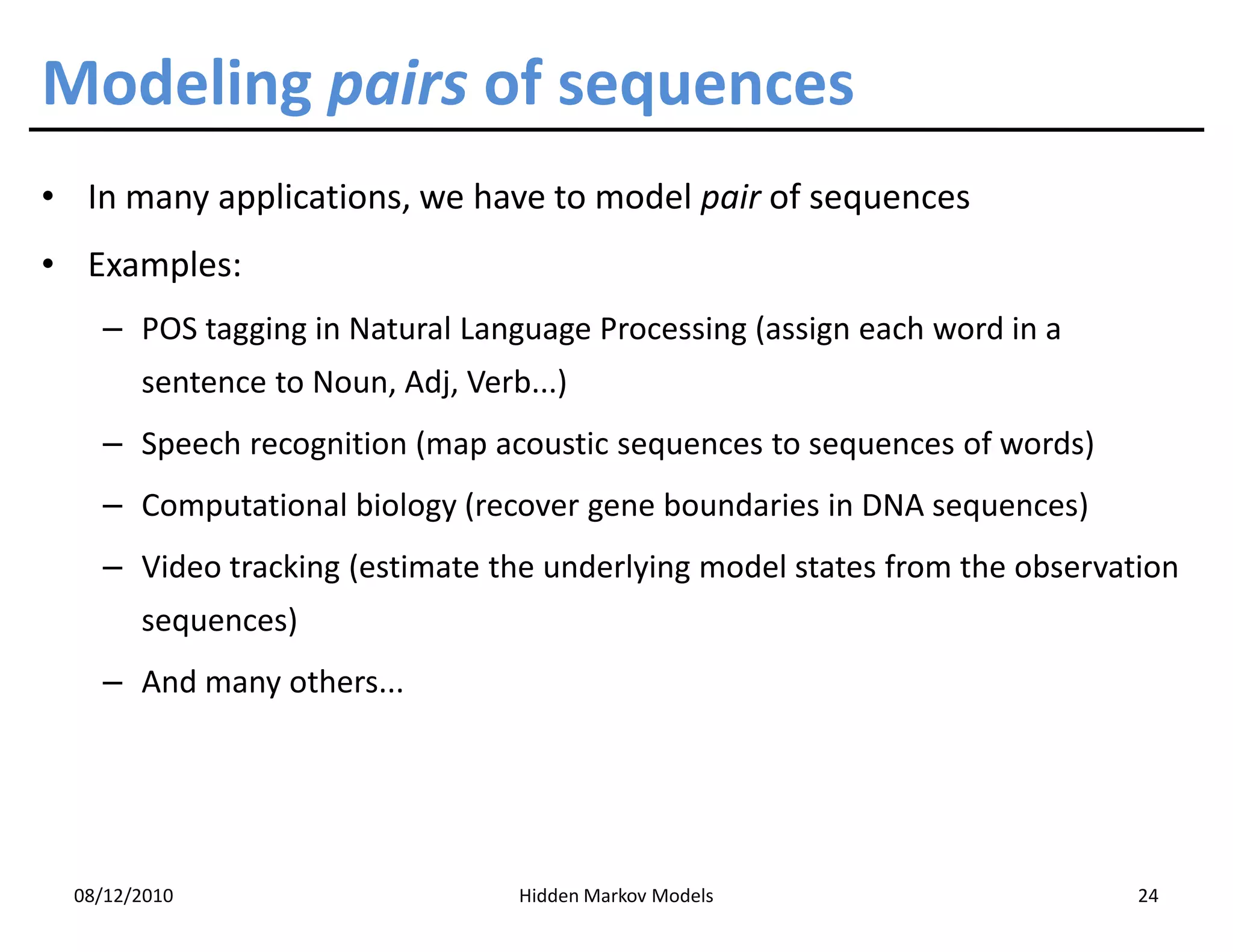

24. Modeling pairs of sequences
• In many applications, we have to model pair of sequences
• Examples:
– POS tagging in Natural Language Processing (assign each word in a
sentence to Noun, Adj, Verb...)
– Speech recognition (map acoustic sequences to sequences of words)
– Computational biology (recover gene boundaries in DNA sequences)
– Video tracking (estimate the underlying model states from the observation
sequences)
– And many others...
08/12/2010 Hidden Markov Models 24

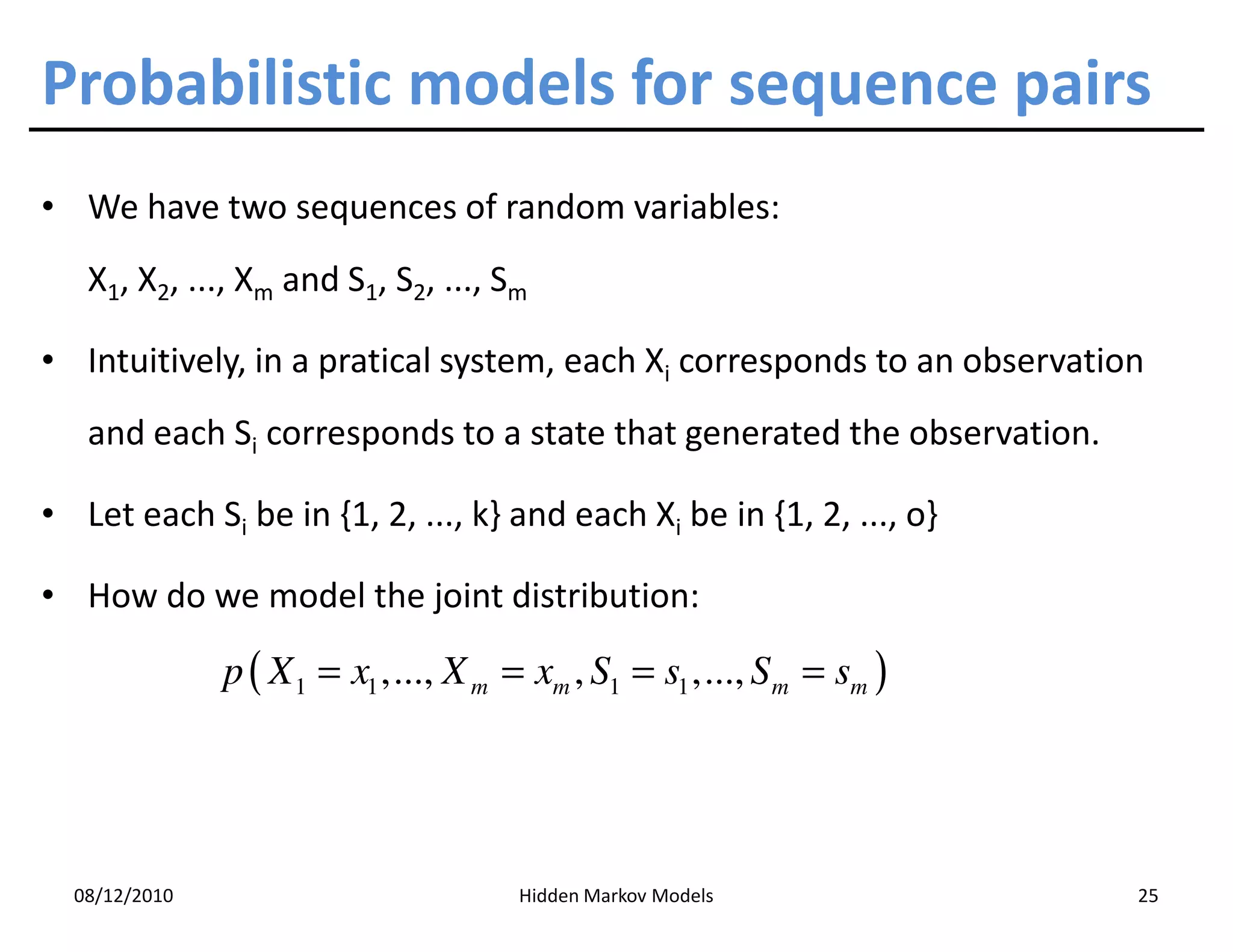

25. Probabilistic models for sequence pairs
• We have two sequences of random variables:
X1, X2, ..., Xm and S1, S2, ..., Sm
• Intuitively, in a pratical system, each Xi corresponds to an observation
and each Si corresponds to a state that generated the observation.
• Let each Si be in {1, 2, ..., k} and each Xi be in {1, 2, ..., o}
• How do we model the joint distribution:
p ( X 1 = x1 ,..., X m = xm , S1 = s1 ,..., S m = sm )
08/12/2010 Hidden Markov Models 25

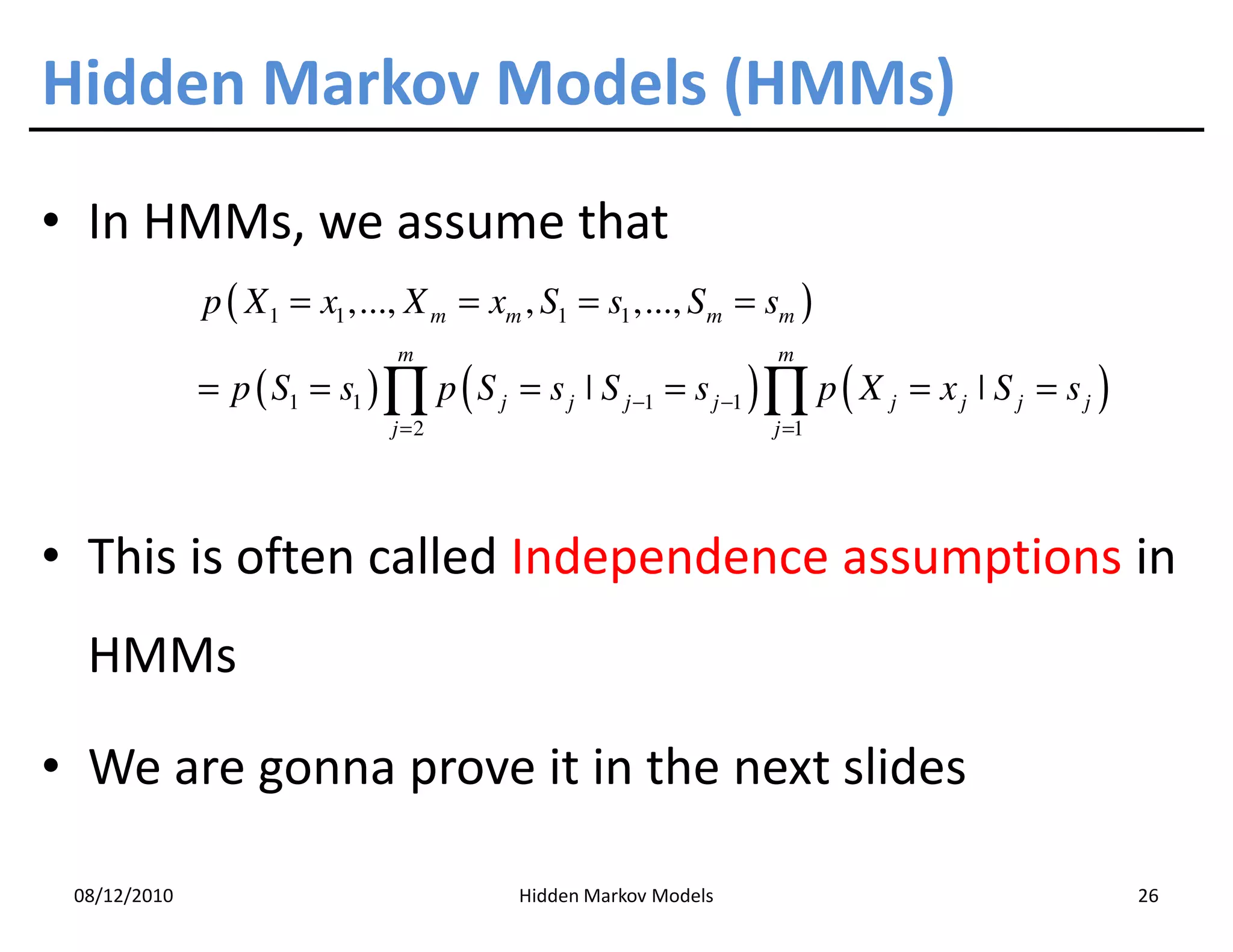

26. Hidden Markov Models (HMMs)
• In HMMs, we assume that
p ( X 1 = x1 ,..., X m = xm , S1 = s1 ,..., Sm = sm )
m m
= p ( S1 = s1 ) ∏ p ( S j = s j ˚ S j −1 = s j −1 ) ∏ p ( X j = x j ˚ S j = s j )
j =2 j =1
• This is often called Independence assumptions in
HMMs
• We are gonna prove it in the next slides
08/12/2010 Hidden Markov Models 26

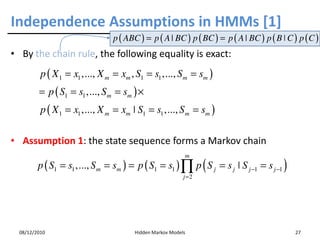

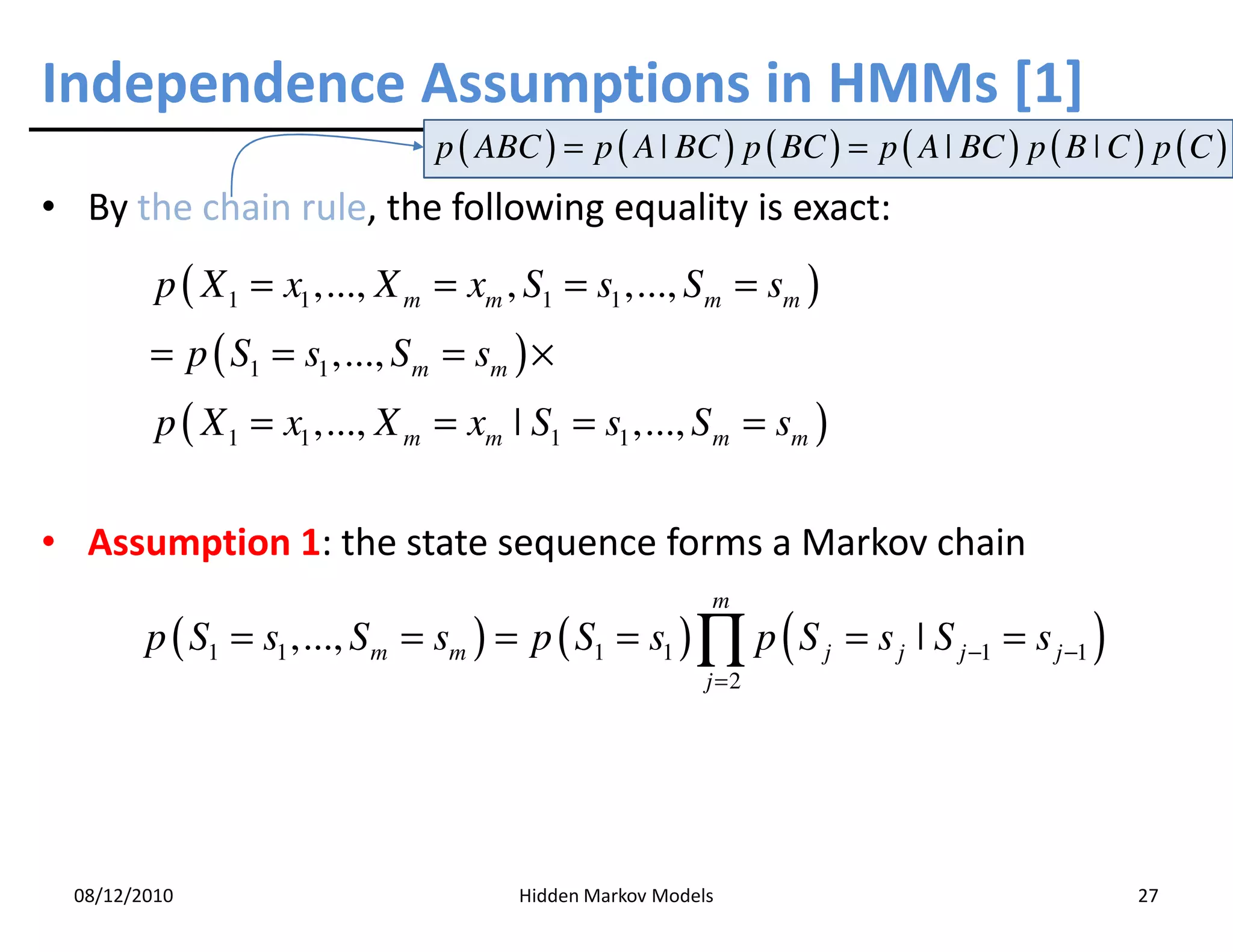

27. Independence Assumptions in HMMs [1]
p ( ABC ) = p ( A | BC ) p ( BC ) = p ( A | BC ) p ( B ˚ C ) p ( C )
• By the chain rule, the following equality is exact:
p ( X 1 = x1 ,..., X m = xm , S1 = s1 ,..., S m = sm )
= p ( S1 = s1 ,..., S m = sm ) ×
p ( X 1 = x1 ,..., X m = xm ˚ S1 = s1 ,..., S m = sm )
• Assumption 1: the state sequence forms a Markov chain
m
p ( S1 = s1 ,..., S m = sm ) = p ( S1 = s1 ) ∏ p ( S j = s j ˚ S j −1 = s j −1 )
j =2
08/12/2010 Hidden Markov Models 27

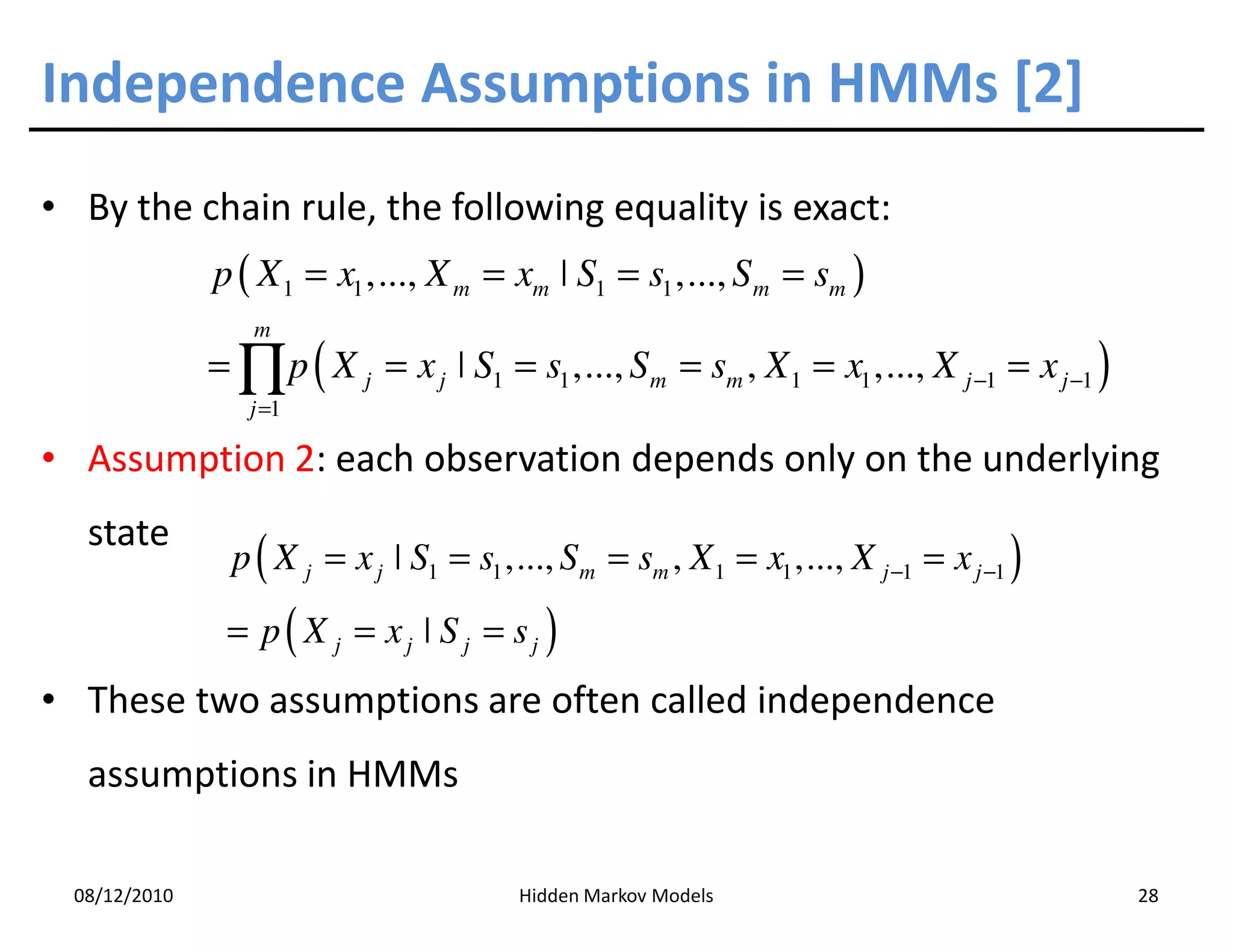

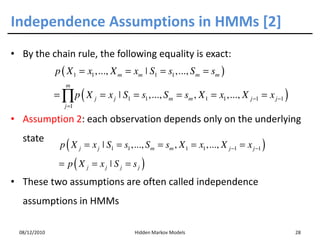

28. Independence Assumptions in HMMs [2]
• By the chain rule, the following equality is exact:
p ( X 1 = x1 ,..., X m = xm ˚ S1 = s1 ,..., S m = sm )
m
= ∏ p ( X j = x j ˚ S1 = s1 ,..., Sm = sm , X 1 = x1 ,..., X j −1 = x j −1 )
j =1
• Assumption 2: each observation depends only on the underlying
state
p ( X j = x j ˚ S1 = s1 ,..., Sm = sm , X 1 = x1 ,..., X j −1 = x j −1 )
= p( X j = xj ˚ S j = sj )
• These two assumptions are often called independence
assumptions in HMMs
08/12/2010 Hidden Markov Models 28
29. The Model form for HMMs
• The model takes the following form:
m m
p ( x1 ,.., xm , s1 ,..., sm ;θ ) = π ( s1 ) ∏ t ( s j ˚ s j −1 ) ∏ e ( x j ˚ s j )
j =2 j =1
• Parameters in the model:
– Initial probabilities π ( s ) for s ∈ {1, 2,..., k }
– Transition probabilities t ( s ˚ s′ ) for s, s ' ∈ {1, 2,..., k }
– Emission probabilities e ( x ˚ s ) for s ∈ {1, 2,..., k }
and x ∈ {1, 2,.., o}
08/12/2010 Hidden Markov Models 29

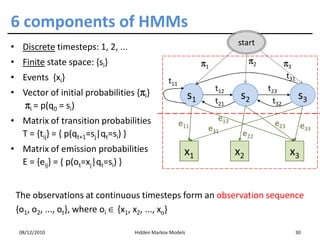

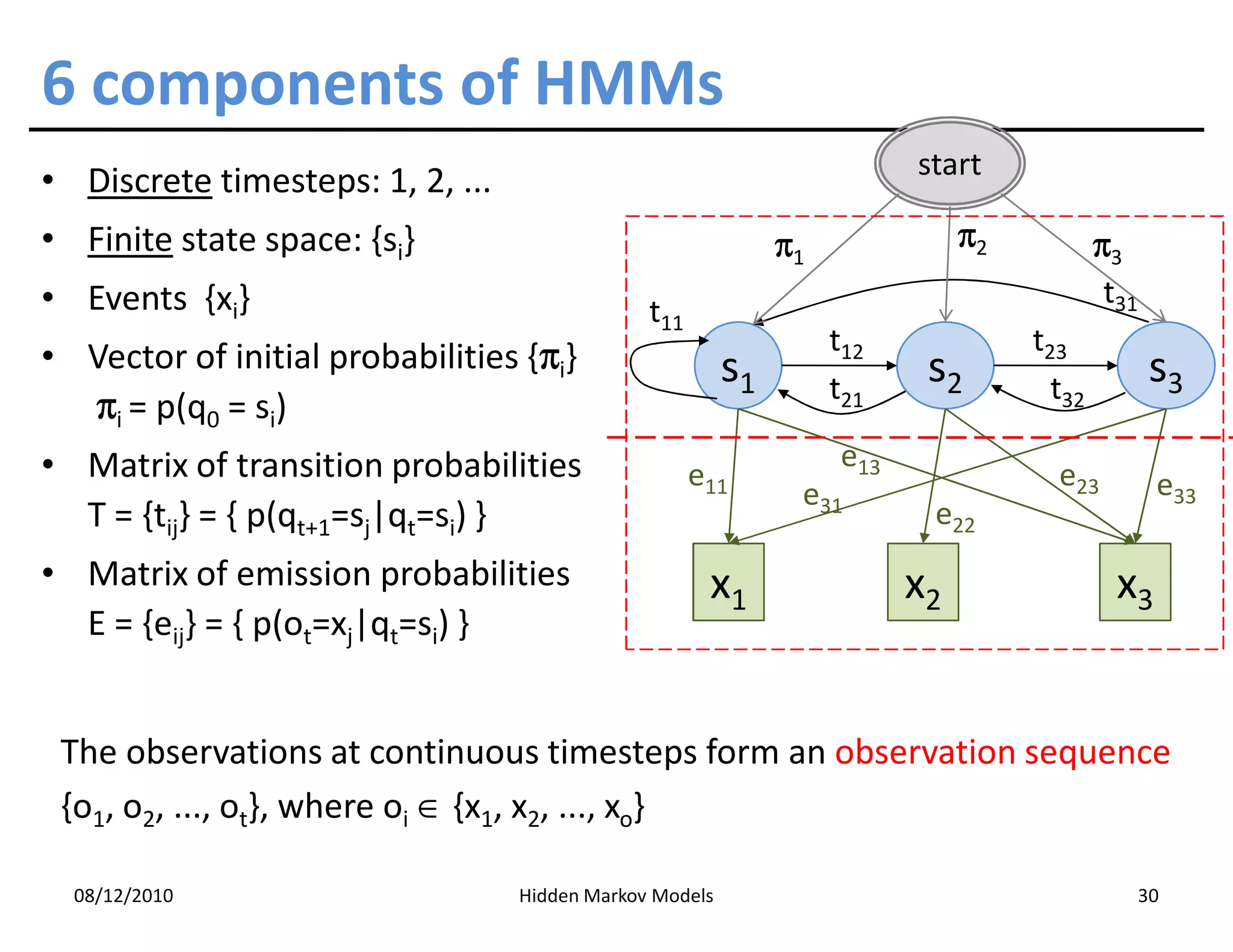

30. 6 components of HMMs
start
• Discrete timesteps: 1, 2, ...
• Finite state space: {si} π1 π2 π3
• Events {xi} t31
t11
t12 t23
π
• Vector of initial probabilities {πi} s1 s2 s3
t21 t32
πi = p(q0 = si)
• Matrix of transition probabilities e13
e11 e23 e33
e31
T = {tij} = { p(qt+1=sj|qt=si) } e22
• Matrix of emission probabilities x1 x2 x3
E = {eij} = { p(ot=xj|qt=si) }
The observations at continuous timesteps form an observation sequence
{o1, o2, ..., ot}, where oi ∈ {x1, x2, ..., xo}
08/12/2010 Hidden Markov Models 30

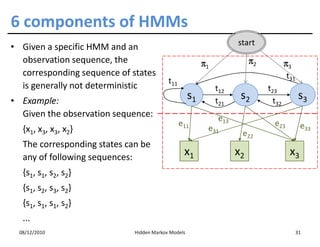

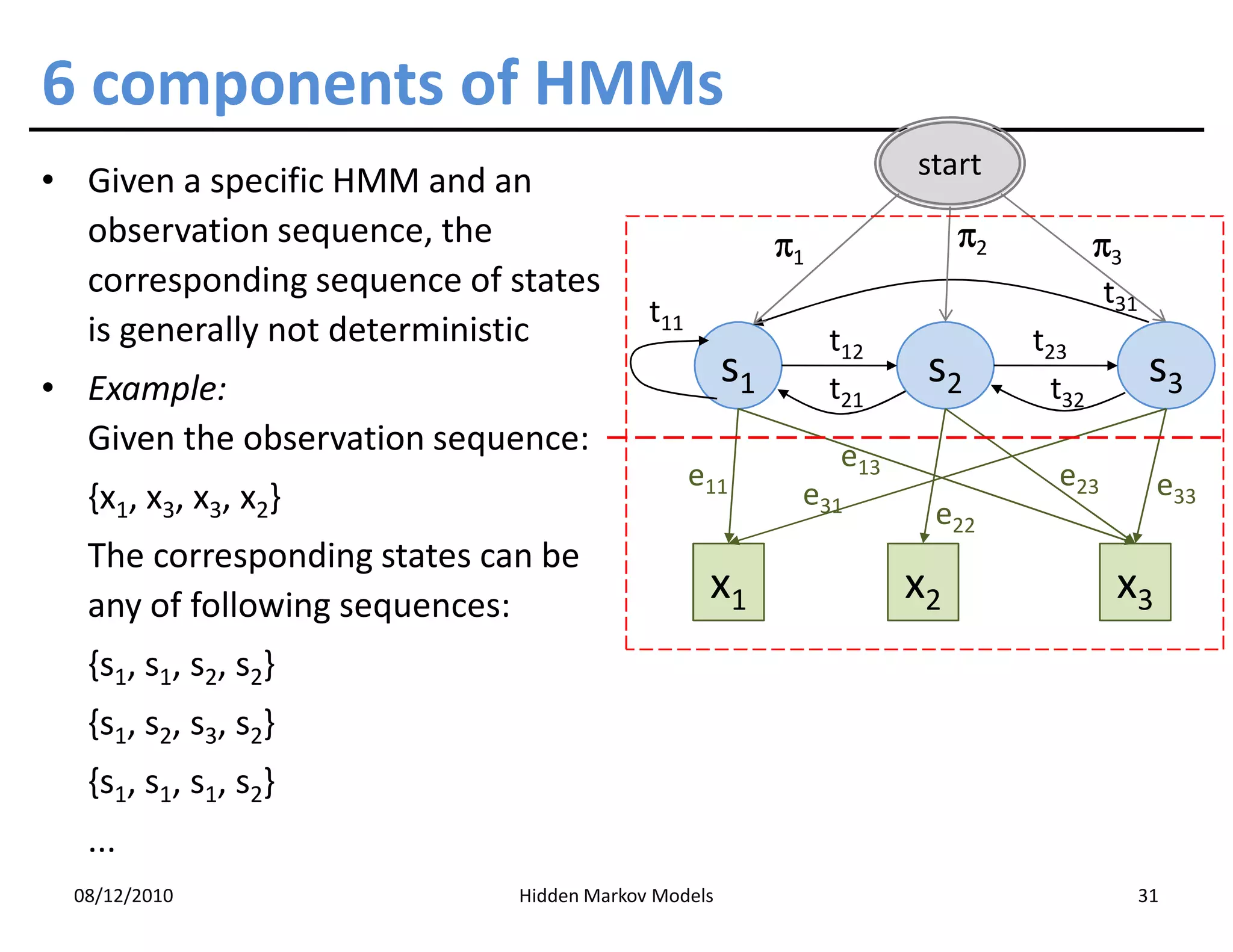

31. 6 components of HMMs
start
• Given a specific HMM and an
observation sequence, the π1 π2 π3
corresponding sequence of states t31
t11
is generally not deterministic t12 t23
• Example: s1 t21
s2 t32
s3
Given the observation sequence: e13
e11 e23 e33
{x1, x3, x3, x2} e31
e22
The corresponding states can be
any of following sequences:
x1 x2 x3
{s1, s1, s2, s2}
{s1, s2, s3, s2}
{s1, s1, s1, s2}
...
08/12/2010 Hidden Markov Models 31

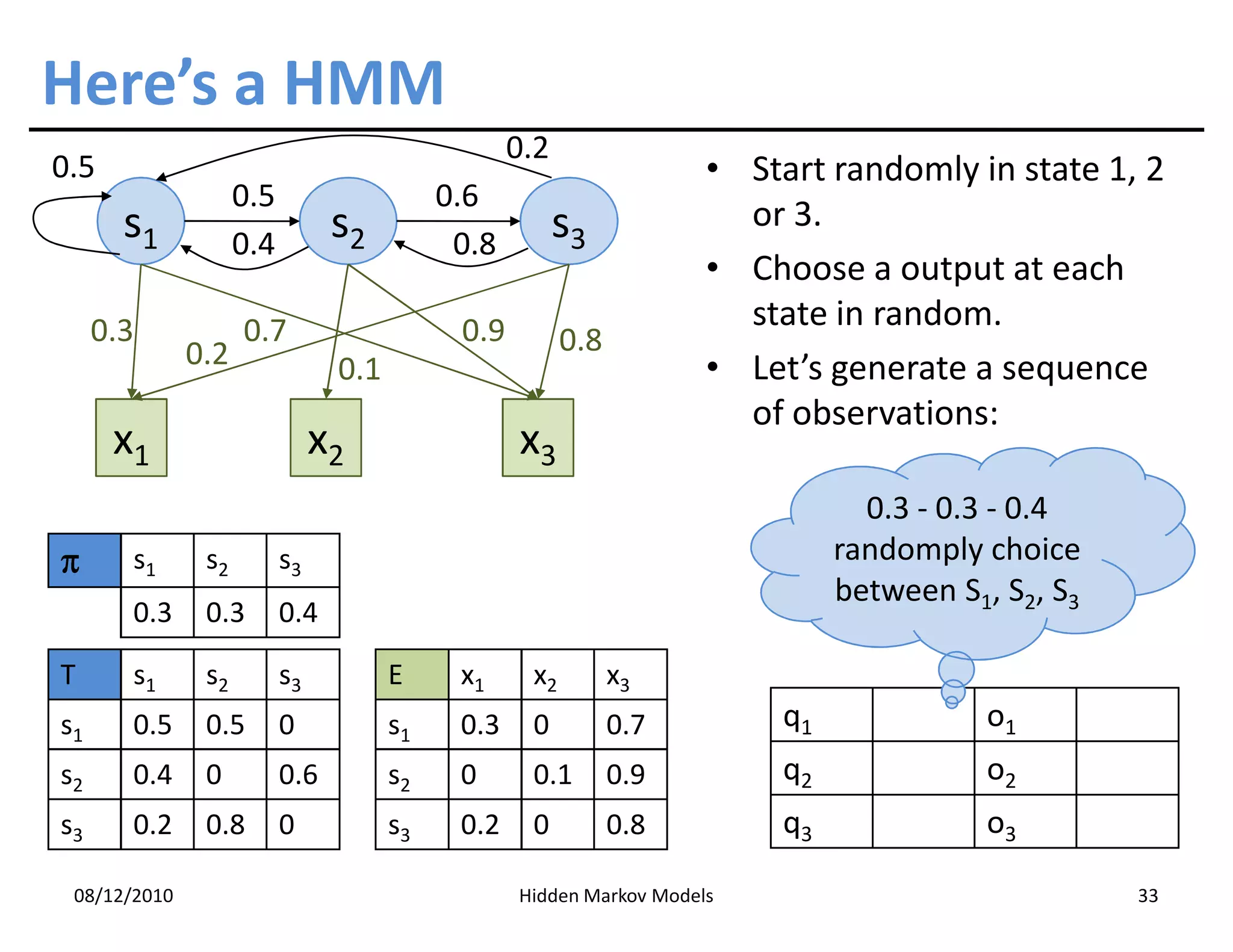

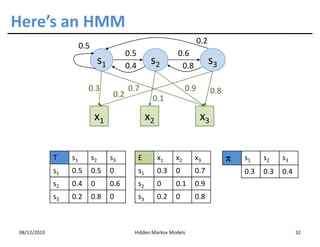

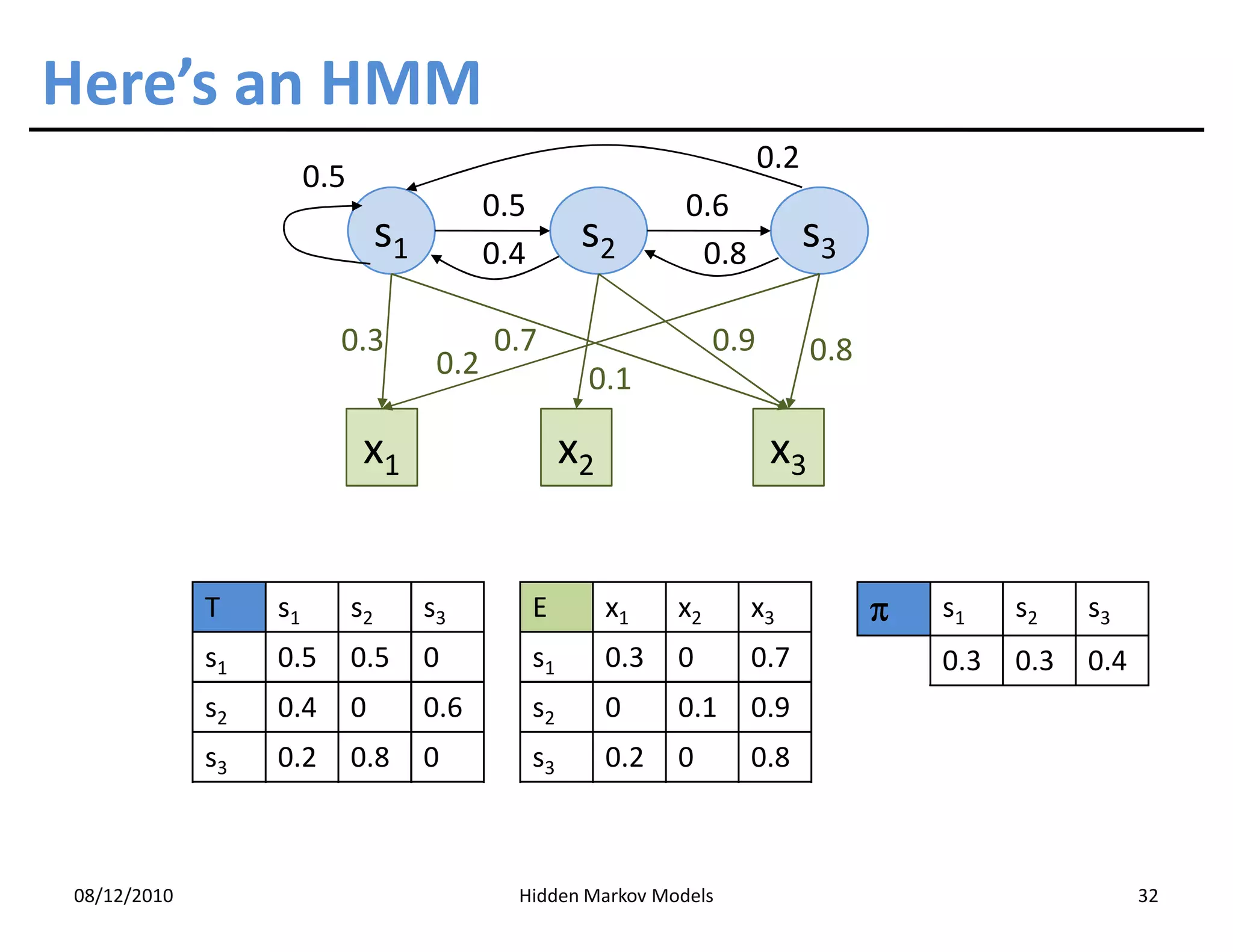

33. Here’s a HMM
0.2
0.5 • Start randomly in state 1, 2
0.5 0.6
s1 s2 s3 or 3.
0.4 0.8
• Choose a output at each
0.3 0.7 0.9 state in random.
0.2 0.8
0.1 • Let’s generate a sequence
of observations:
x1 x2 x3
0.3 - 0.3 - 0.4
π s1 s2 s3 randomply choice
between S1, S2, S3
0.3 0.3 0.4
T s1 s2 s3 E x1 x2 x3
s1 0.5 0.5 0 s1 0.3 0 0.7 q1 o1
s2 0.4 0 0.6 s2 0 0.1 0.9 q2 o2
s3 0.2 0.8 0 s3 0.2 0 0.8 q3 o3
08/12/2010 Hidden Markov Models 33

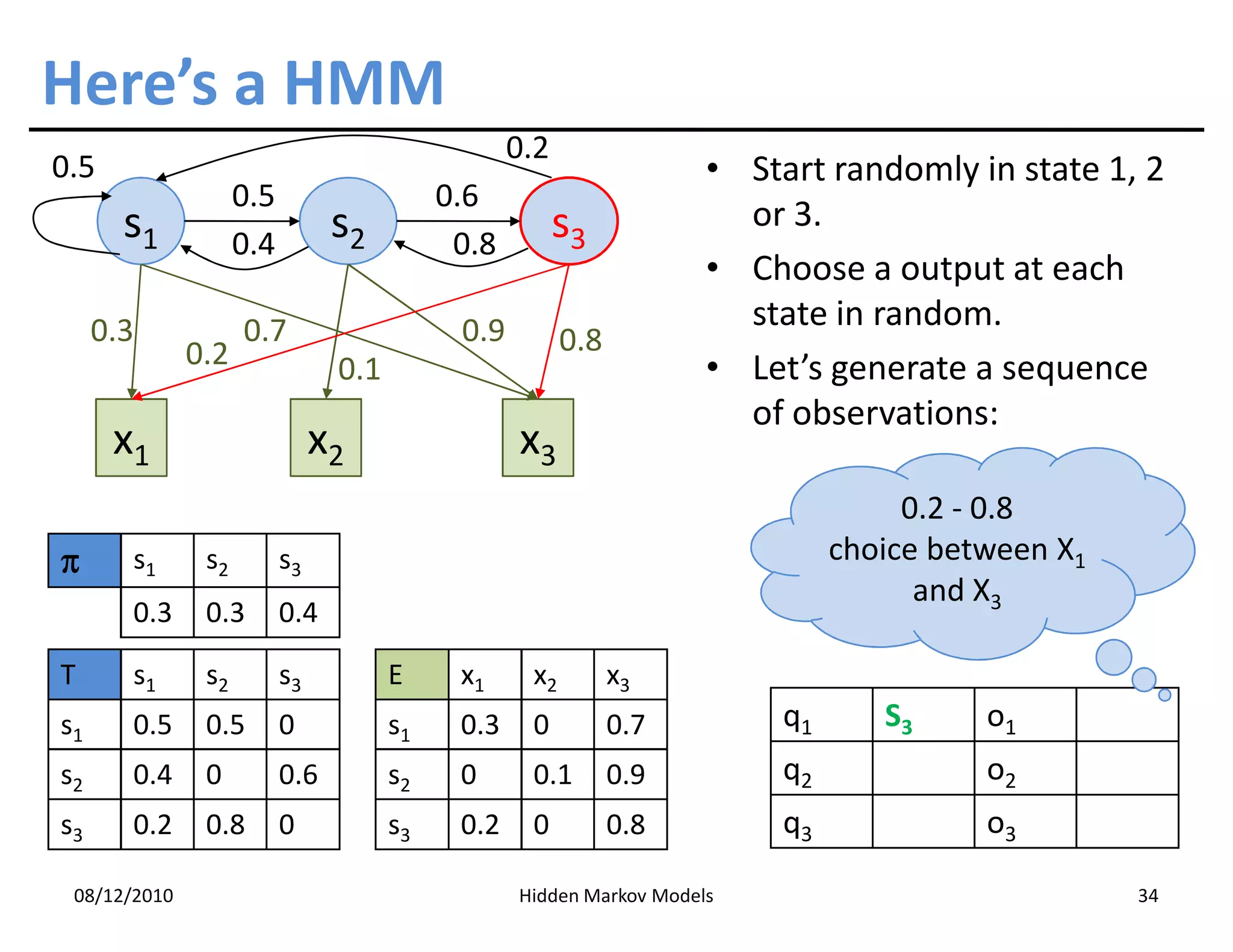

34. Here’s a HMM
0.2
0.5 • Start randomly in state 1, 2
0.5 0.6
s1 s2 s3 or 3.
0.4 0.8
• Choose a output at each
0.3 0.7 0.9 state in random.
0.2 0.8
0.1 • Let’s generate a sequence
of observations:
x1 x2 x3
0.2 - 0.8
π s1 s2 s3 choice between X1
and X3
0.3 0.3 0.4
T s1 s2 s3 E x1 x2 x3
s1 0.5 0.5 0 s1 0.3 0 0.7 q1 S3 o1
s2 0.4 0 0.6 s2 0 0.1 0.9 q2 o2
s3 0.2 0.8 0 s3 0.2 0 0.8 q3 o3
08/12/2010 Hidden Markov Models 34

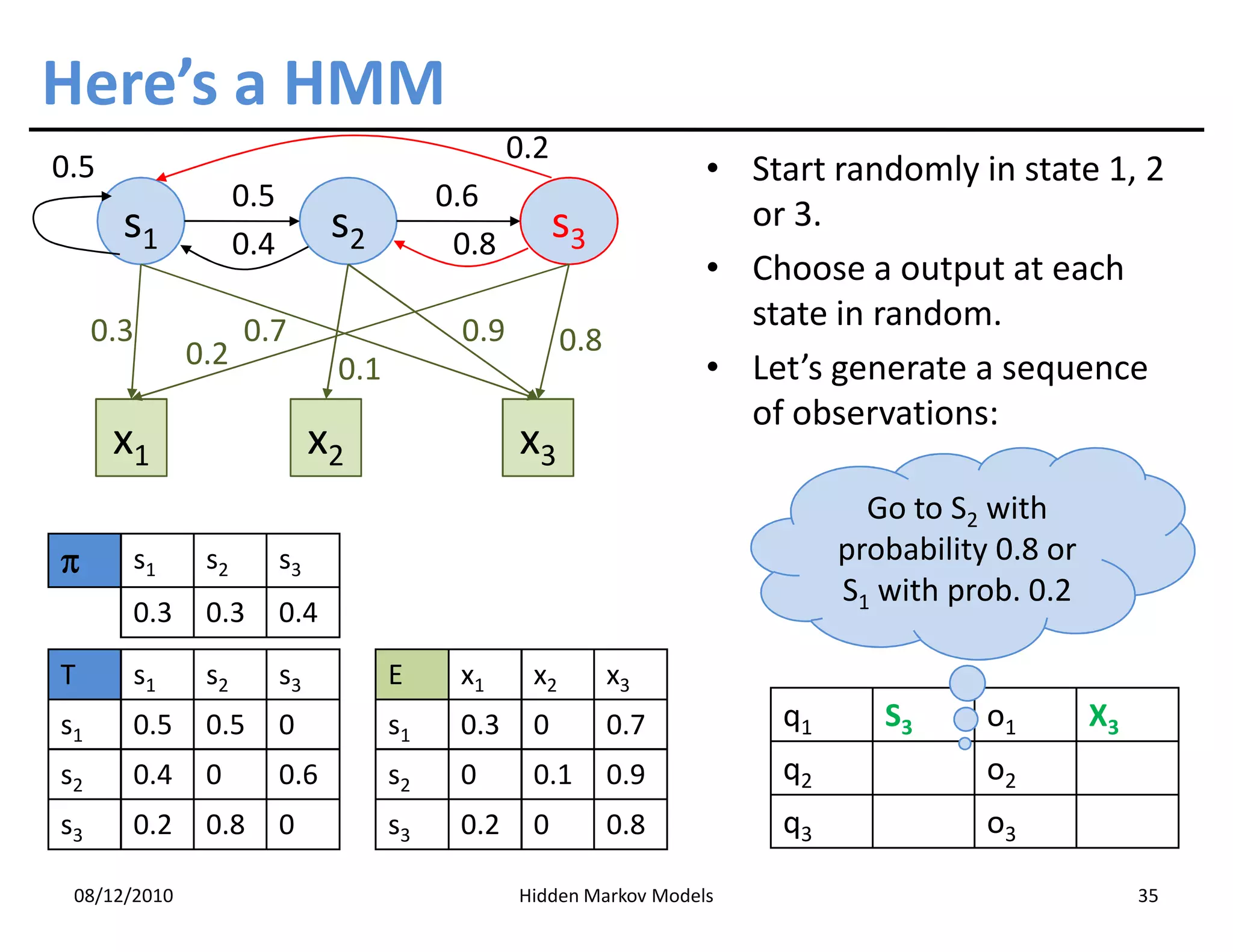

35. Here’s a HMM
0.2
0.5 • Start randomly in state 1, 2
0.5 0.6
s1 s2 s3 or 3.
0.4 0.8
• Choose a output at each
0.3 0.7 0.9 state in random.
0.2 0.8
0.1 • Let’s generate a sequence
of observations:
x1 x2 x3
Go to S2 with
π s1 s2 s3 probability 0.8 or
S1 with prob. 0.2
0.3 0.3 0.4
T s1 s2 s3 E x1 x2 x3
s1 0.5 0.5 0 s1 0.3 0 0.7 q1 S3 o1 X3
s2 0.4 0 0.6 s2 0 0.1 0.9 q2 o2
s3 0.2 0.8 0 s3 0.2 0 0.8 q3 o3
08/12/2010 Hidden Markov Models 35

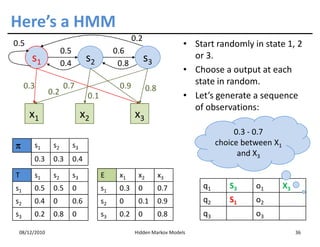

36. Here’s a HMM
0.2
0.5 • Start randomly in state 1, 2
0.5 0.6
s1 s2 s3 or 3.
0.4 0.8
• Choose a output at each
0.3 0.7 0.9 state in random.
0.2 0.8
0.1 • Let’s generate a sequence
of observations:
x1 x2 x3
0.3 - 0.7
π s1 s2 s3 choice between X1
and X3
0.3 0.3 0.4
T s1 s2 s3 E x1 x2 x3
s1 0.5 0.5 0 s1 0.3 0 0.7 q1 S3 o1 X3
s2 0.4 0 0.6 s2 0 0.1 0.9 q2 S1 o2
s3 0.2 0.8 0 s3 0.2 0 0.8 q3 o3
08/12/2010 Hidden Markov Models 36
37. Here’s a HMM
0.2
0.5 • Start randomly in state 1, 2
0.5 0.6
s1 s2 s3 or 3.
0.4 0.8
• Choose a output at each
0.3 0.7 0.9 state in random.
0.2 0.8
0.1 • Let’s generate a sequence
of observations:
x1 x2 x3

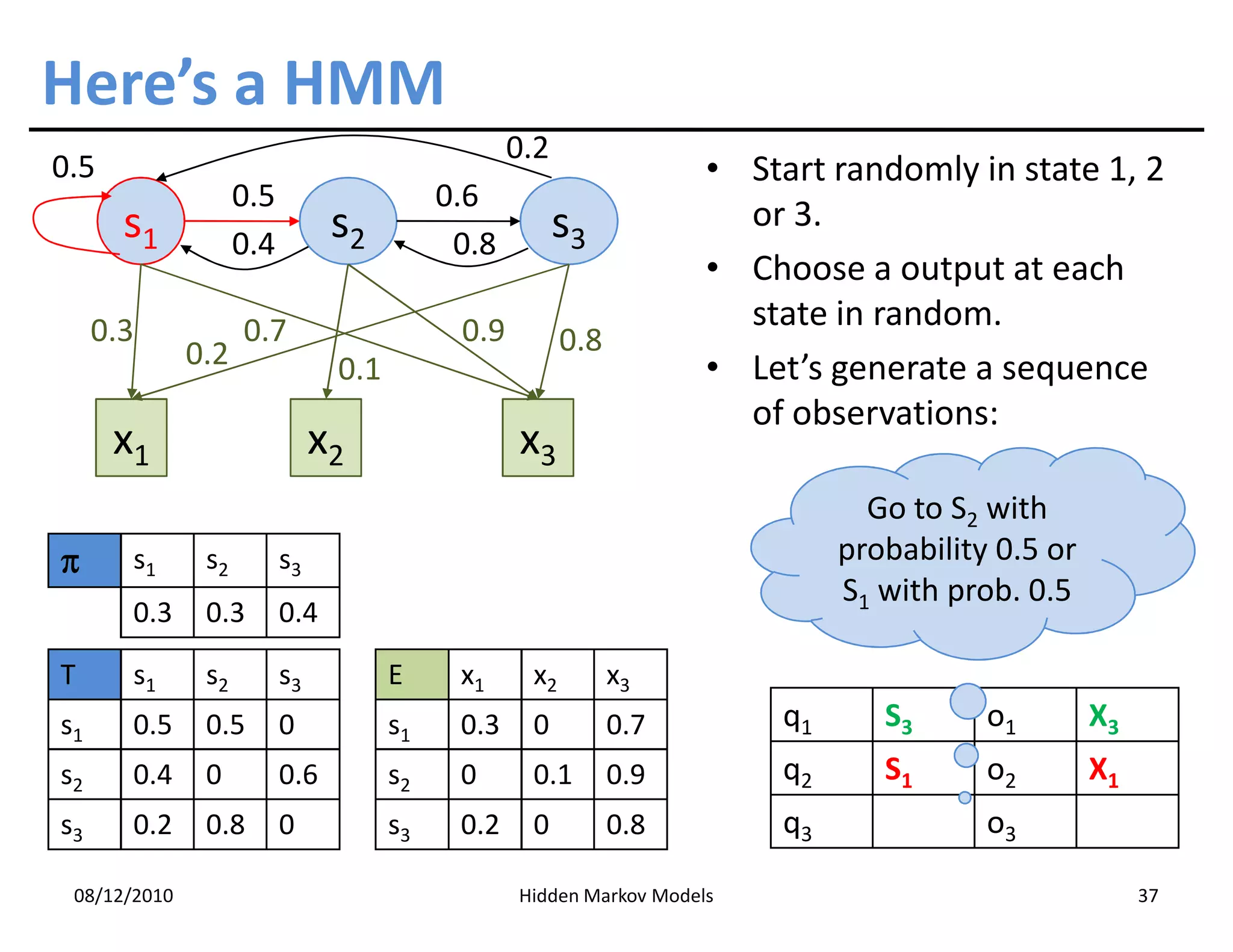

Go to S2 with
π s1 s2 s3 probability 0.5 or
S1 with prob. 0.5
0.3 0.3 0.4
T s1 s2 s3 E x1 x2 x3
s1 0.5 0.5 0 s1 0.3 0 0.7 q1 S3 o1 X3
s2 0.4 0 0.6 s2 0 0.1 0.9 q2 S1 o2 X1
s3 0.2 0.8 0 s3 0.2 0 0.8 q3 o3
08/12/2010 Hidden Markov Models 37
38. Here’s a HMM
0.2
0.5 • Start randomly in state 1, 2
0.5 0.6
s1 s2 s3 or 3.
0.4 0.8
• Choose a output at each
0.3 0.7 0.9 state in random.
0.2 0.8
0.1 • Let’s generate a sequence
of observations:
x1 x2 x3
0.3 - 0.7
π s1 s2 s3 choice between X1
and X3
0.3 0.3 0.4
T s1 s2 s3 E x1 x2 x3
s1 0.5 0.5 0 s1 0.3 0 0.7 q1 S3 o1 X3
s2 0.4 0 0.6 s2 0 0.1 0.9 q2 S1 o2 X1
s3 0.2 0.8 0 s3 0.2 0 0.8 q3 S1 o3
08/12/2010 Hidden Markov Models 38
39. Here’s a HMM
0.2
0.5 • Start randomly in state 1, 2
0.5 0.6
s1 s2 s3 or 3.
0.4 0.8
• Choose a output at each
0.3 0.7 0.9 state in random.
0.2 0.8
0.1 • Let’s generate a sequence
of observations:
x1 x2 x3
We got a sequence
of states and
π s1 s2 s3 corresponding
0.3 0.3 0.4 observations!
T s1 s2 s3 E x1 x2 x3
s1 0.5 0.5 0 s1 0.3 0 0.7 q1 S3 o1 X3
s2 0.4 0 0.6 s2 0 0.1 0.9 q2 S1 o2 X1
s3 0.2 0.8 0 s3 0.2 0 0.8 q3 S1 o3 X3
08/12/2010 Hidden Markov Models 39

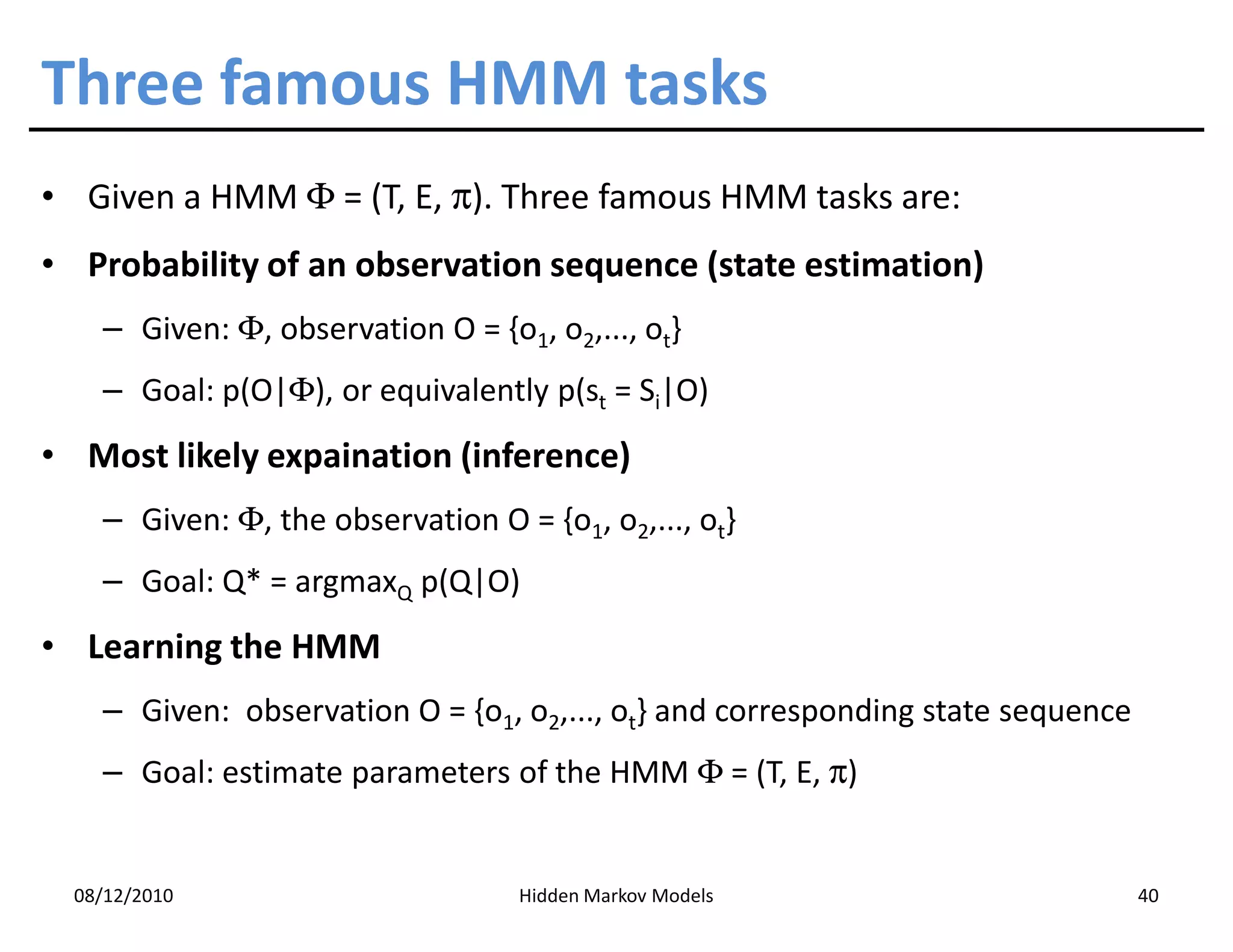

40. Three famous HMM tasks
• Given a HMM Φ = (T, E, π). Three famous HMM tasks are:
• Probability of an observation sequence (state estimation)
– Given: Φ, observation O = {o1, o2,..., ot}
– Goal: p(O|Φ), or equivalently p(st = Si|O)
• Most likely expaination (inference)
– Given: Φ, the observation O = {o1, o2,..., ot}
– Goal: Q* = argmaxQ p(Q|O)
• Learning the HMM
– Given: observation O = {o1, o2,..., ot} and corresponding state sequence
– Goal: estimate parameters of the HMM Φ = (T, E, π)
08/12/2010 Hidden Markov Models 40

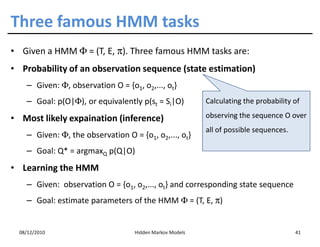

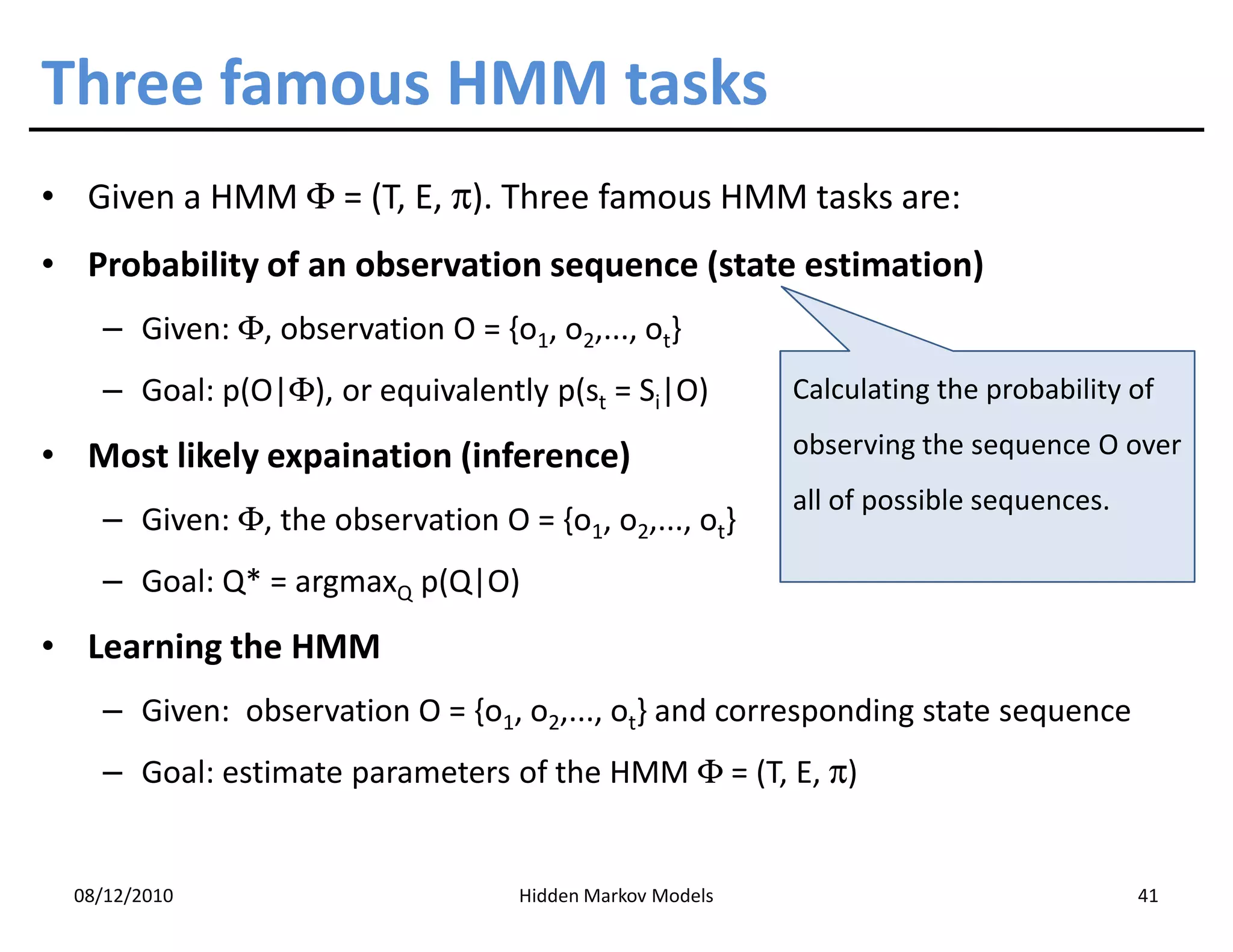

41. Three famous HMM tasks
• Given a HMM Φ = (T, E, π). Three famous HMM tasks are:
• Probability of an observation sequence (state estimation)
– Given: Φ, observation O = {o1, o2,..., ot}
– Goal: p(O|Φ), or equivalently p(st = Si|O) Calculating the probability of
• Most likely expaination (inference) observing the sequence O over
all of possible sequences.
– Given: Φ, the observation O = {o1, o2,..., ot}
– Goal: Q* = argmaxQ p(Q|O)
• Learning the HMM
– Given: observation O = {o1, o2,..., ot} and corresponding state sequence
– Goal: estimate parameters of the HMM Φ = (T, E, π)
08/12/2010 Hidden Markov Models 41

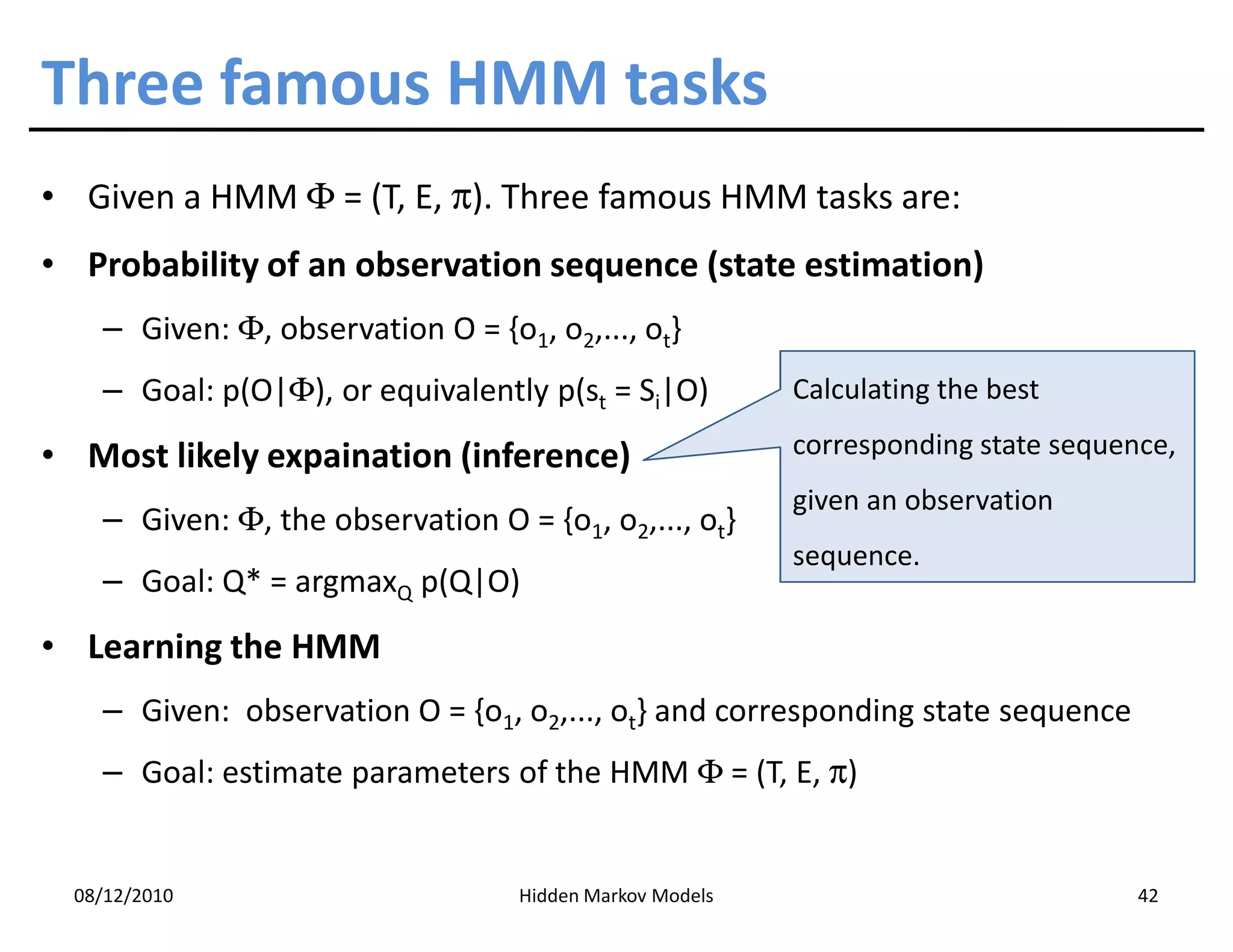

42. Three famous HMM tasks
• Given a HMM Φ = (T, E, π). Three famous HMM tasks are:
• Probability of an observation sequence (state estimation)
– Given: Φ, observation O = {o1, o2,..., ot}
– Goal: p(O|Φ), or equivalently p(st = Si|O) Calculating the best
• Most likely expaination (inference) corresponding state sequence,
given an observation
– Given: Φ, the observation O = {o1, o2,..., ot}
sequence.
– Goal: Q* = argmaxQ p(Q|O)
• Learning the HMM
– Given: observation O = {o1, o2,..., ot} and corresponding state sequence
– Goal: estimate parameters of the HMM Φ = (T, E, π)
08/12/2010 Hidden Markov Models 42

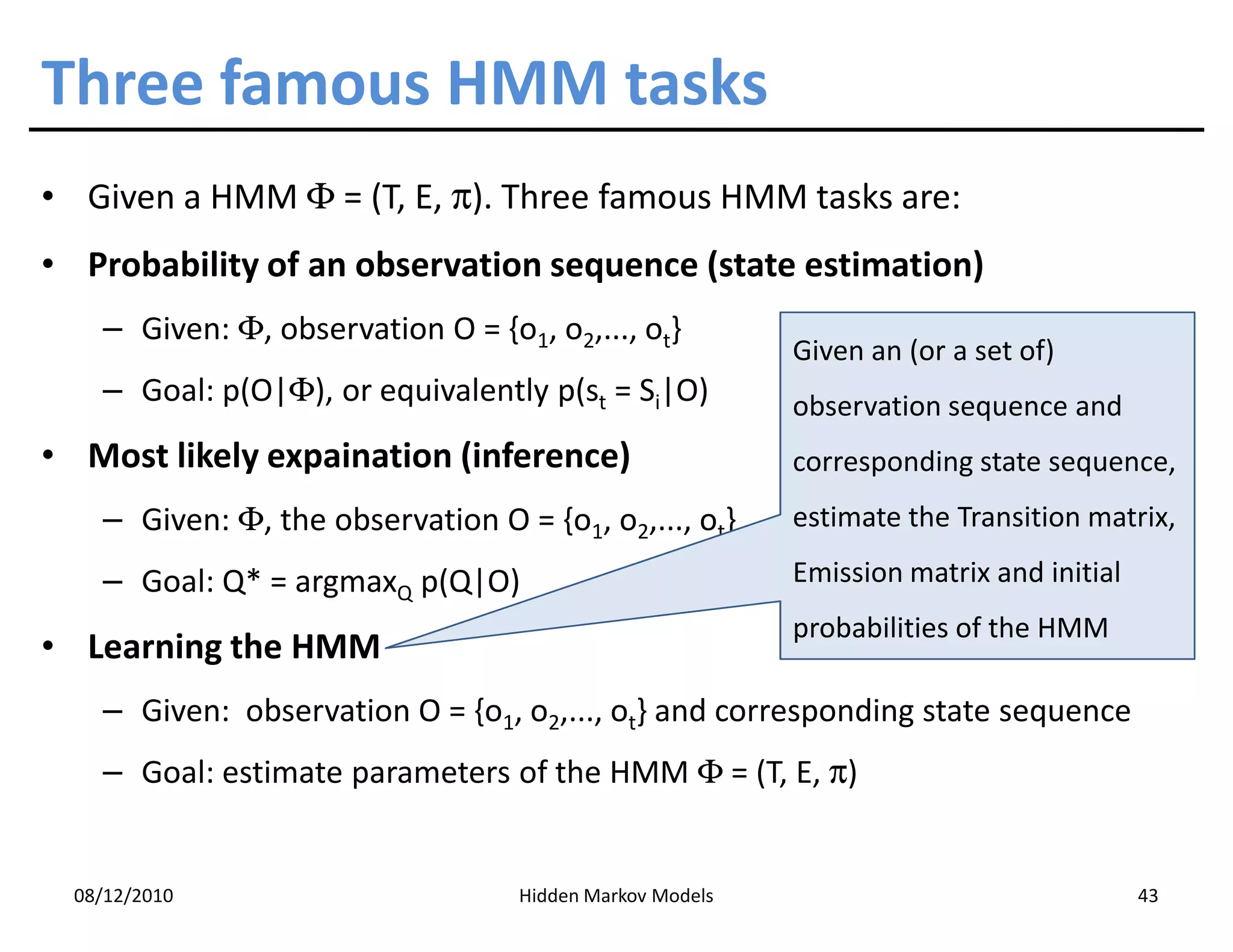

43. Three famous HMM tasks
• Given a HMM Φ = (T, E, π). Three famous HMM tasks are:
• Probability of an observation sequence (state estimation)
– Given: Φ, observation O = {o1, o2,..., ot}
Given an (or a set of)
– Goal: p(O|Φ), or equivalently p(st = Si|O) observation sequence and
• Most likely expaination (inference) corresponding state sequence,
– Given: Φ, the observation O = {o1, o2,..., ot} estimate the Transition matrix,
– Goal: Q* = argmaxQ p(Q|O) Emission matrix and initial
probabilities of the HMM
• Learning the HMM
– Given: observation O = {o1, o2,..., ot} and corresponding state sequence
– Goal: estimate parameters of the HMM Φ = (T, E, π)
08/12/2010 Hidden Markov Models 43

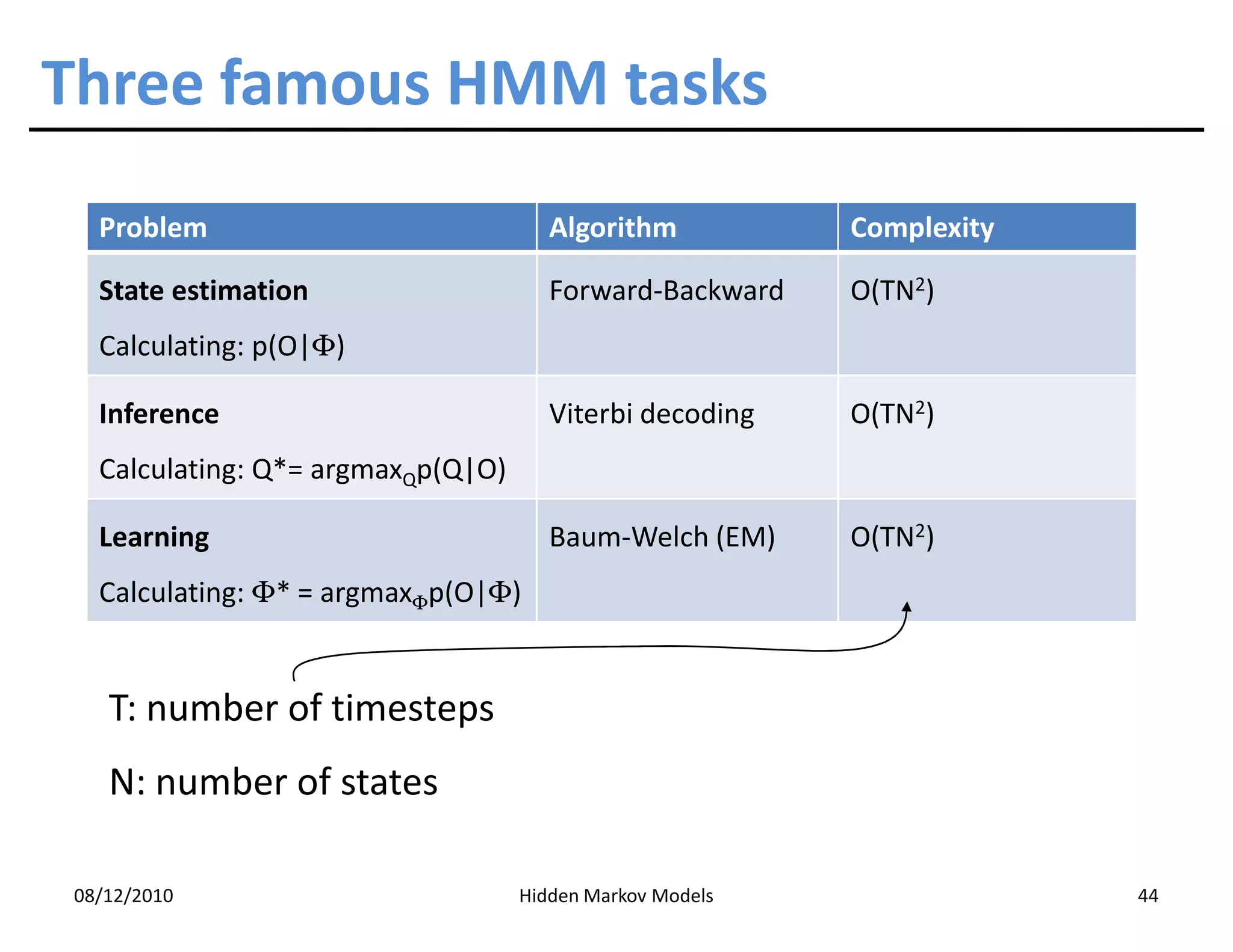

44. Three famous HMM tasks
Problem Algorithm Complexity
State estimation Forward-Backward O(TN2)
Calculating: p(O|Φ)
Inference Viterbi decoding O(TN2)
Calculating: Q*= argmaxQp(Q|O)
Learning Baum-Welch (EM) O(TN2)
Calculating: Φ* = argmaxΦp(O|Φ)
T: number of timesteps
N: number of states
08/12/2010 Hidden Markov Models 44

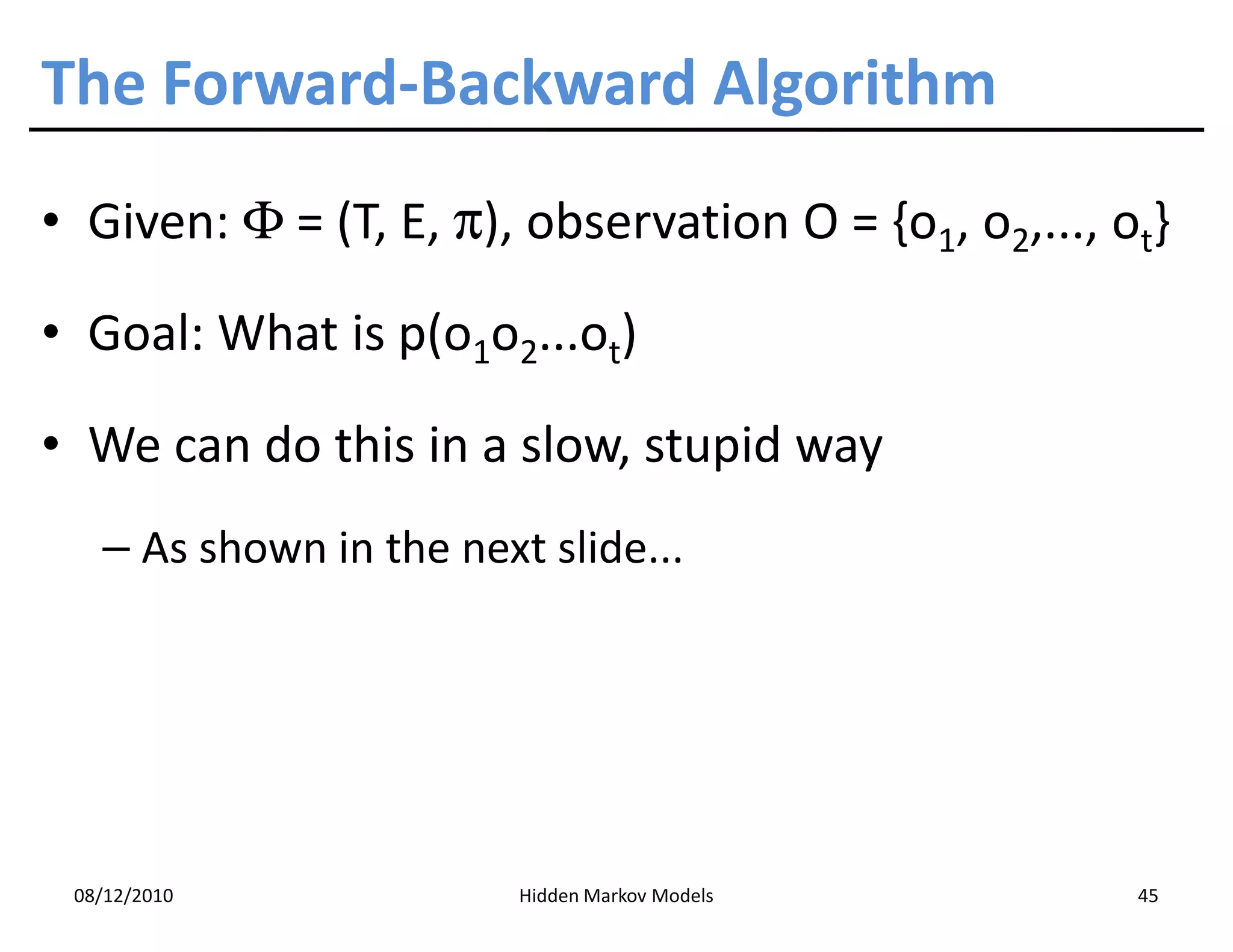

45. The Forward-Backward Algorithm
• Given: Φ = (T, E, π), observation O = {o1, o2,..., ot}
• Goal: What is p(o1o2...ot)
• We can do this in a slow, stupid way
– As shown in the next slide...
08/12/2010 Hidden Markov Models 45

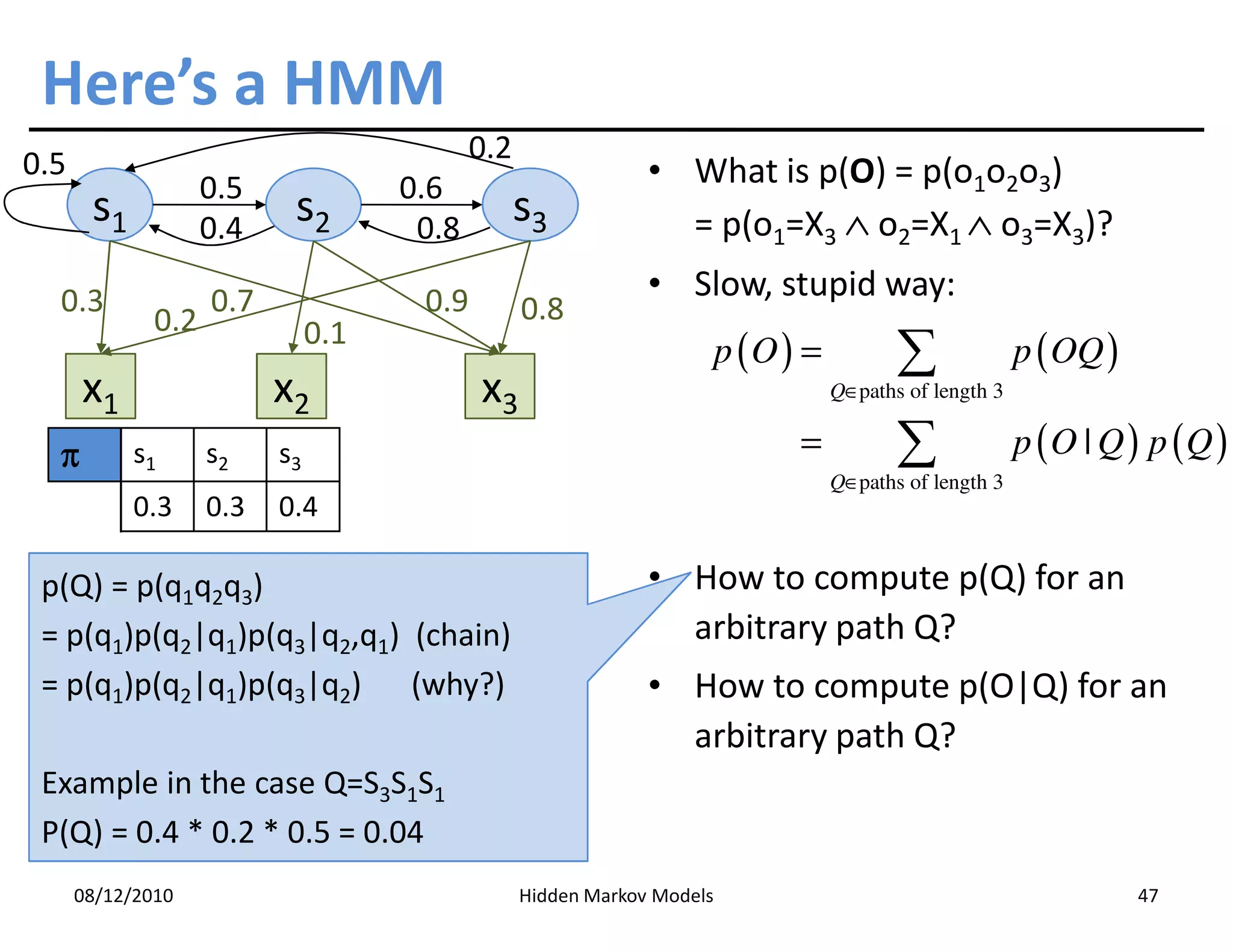

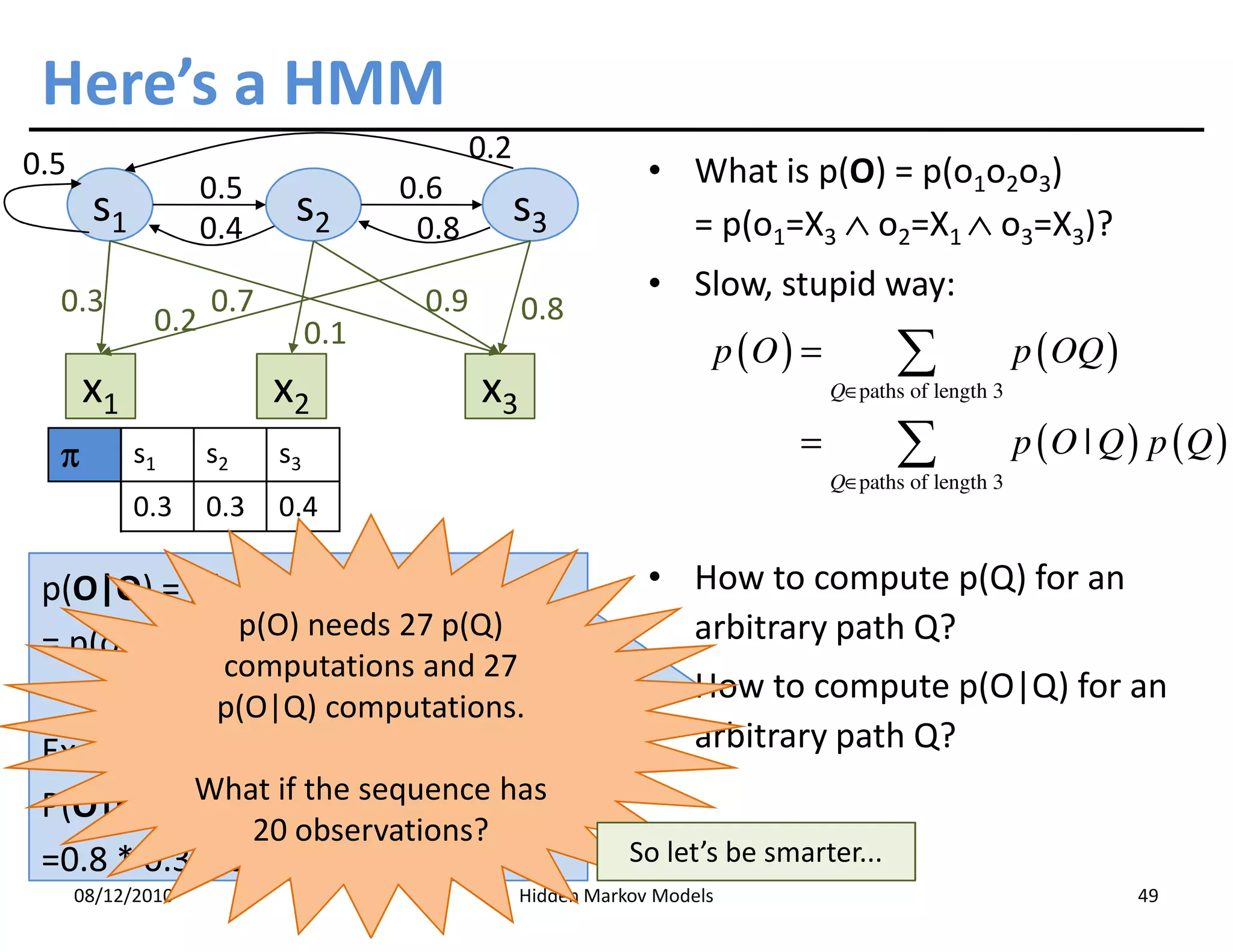

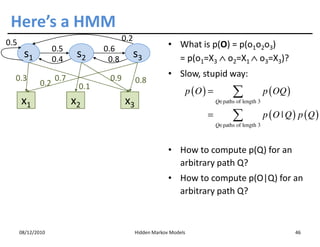

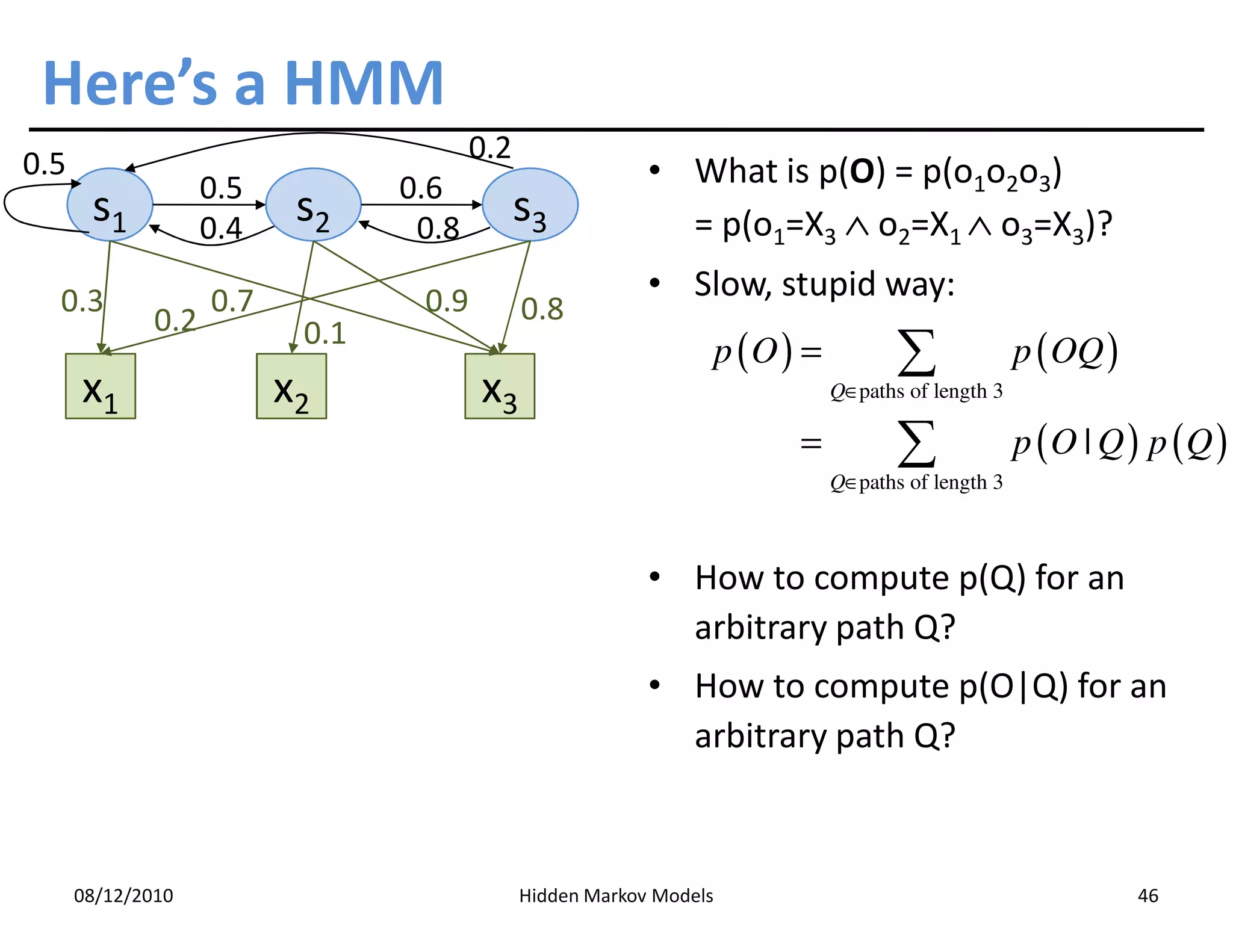

46. Here’s a HMM
0.5 0.2
0.5 0.6 • What is p(O) = p(o1o2o3)
s1 0.4
s2 0.8
s3 = p(o1=X3 ∧ o2=X1 ∧ o3=X3)?
0.3 0.7 0.9 • Slow, stupid way:
0.2 0.8
0.1
p (O ) = ∑ p ( OQ )
x1 x2 x3 Q∈paths of length 3
= ∑ p (O | Q ) p (Q )
Q∈paths of length 3
Q∈
• How to compute p(Q) for an
arbitrary path Q?
• How to compute p(O|Q) for an
arbitrary path Q?
08/12/2010 Hidden Markov Models 46

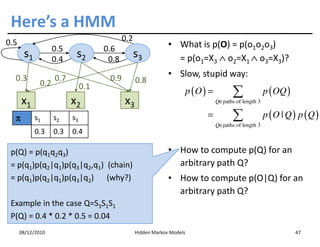

47. Here’s a HMM
0.5 0.2
0.5 0.6 • What is p(O) = p(o1o2o3)
s1 0.4
s2 0.8
s3 = p(o1=X3 ∧ o2=X1 ∧ o3=X3)?
0.3 0.7 0.9 • Slow, stupid way:
0.2 0.8
0.1
p (O ) = ∑ p ( OQ )
x1 x2 x3 Q∈paths of length 3
π s1 s2 s3 = ∑ p (O | Q ) p (Q )
Q∈paths of length 3
Q∈
0.3 0.3 0.4
p(Q) = p(q1q2q3) • How to compute p(Q) for an
= p(q1)p(q2|q1)p(q3|q2,q1) (chain) arbitrary path Q?
= p(q1)p(q2|q1)p(q3|q2) (why?) • How to compute p(O|Q) for an
arbitrary path Q?
Example in the case Q=S3S1S1
P(Q) = 0.4 * 0.2 * 0.5 = 0.04
08/12/2010 Hidden Markov Models 47

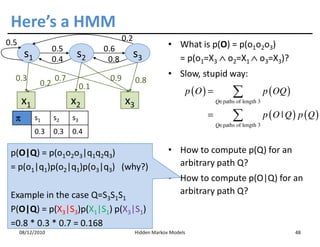

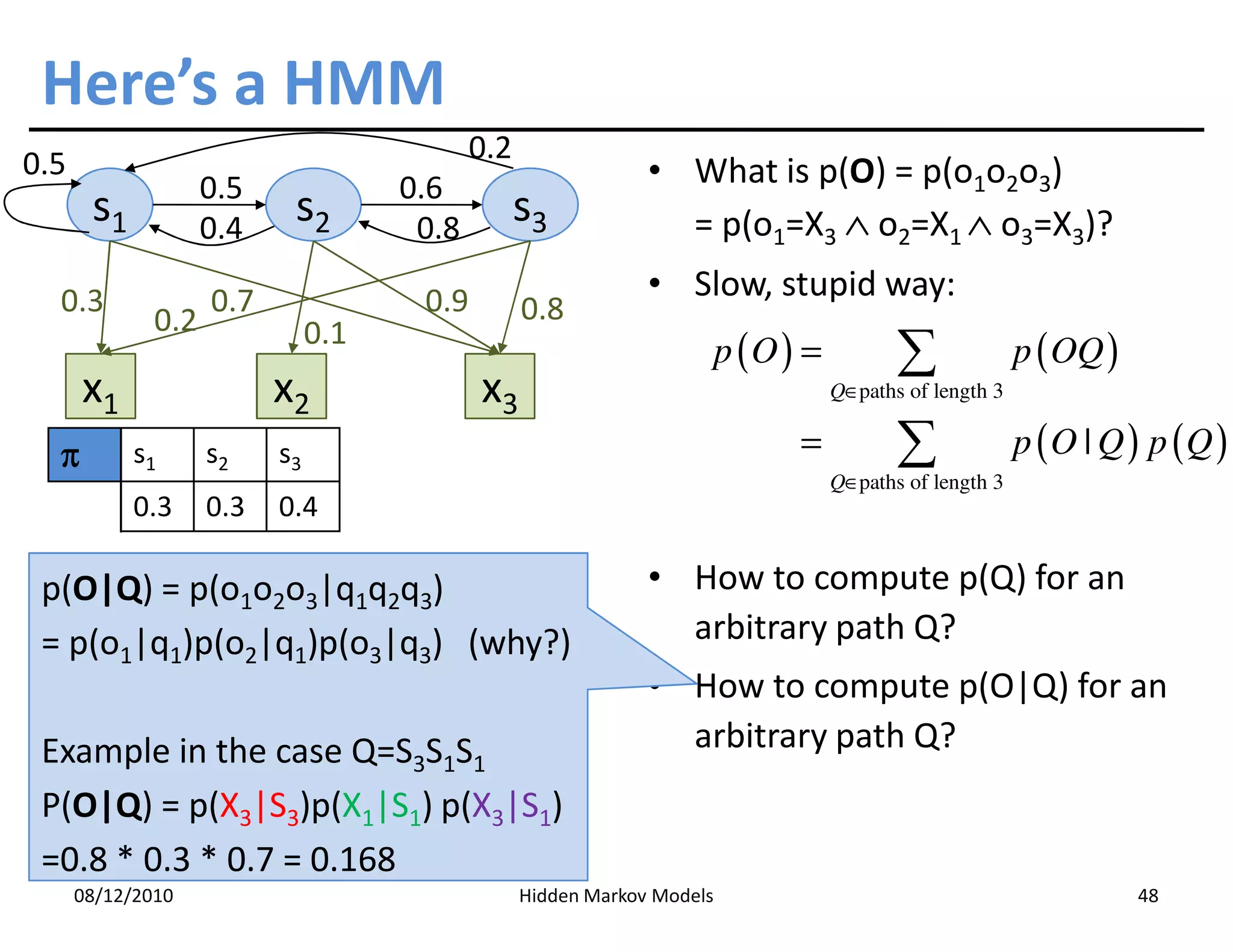

48. Here’s a HMM
0.5 0.2
0.5 0.6 • What is p(O) = p(o1o2o3)
s1 0.4
s2 0.8
s3 = p(o1=X3 ∧ o2=X1 ∧ o3=X3)?
0.3 0.7 0.9 • Slow, stupid way:
0.2 0.8
0.1
p (O ) = ∑ p ( OQ )
x1 x2 x3 Q∈paths of length 3
π s1 s2 s3 = ∑ p (O | Q ) p (Q )
Q∈paths of length 3
Q∈
0.3 0.3 0.4
p(O|Q) = p(o1o2o3|q1q2q3) • How to compute p(Q) for an
= p(o1|q1)p(o2|q1)p(o3|q3) (why?) arbitrary path Q?
• How to compute p(O|Q) for an
Example in the case Q=S3S1S1 arbitrary path Q?
P(O|Q) = p(X3|S3)p(X1|S1) p(X3|S1)
=0.8 * 0.3 * 0.7 = 0.168
08/12/2010 Hidden Markov Models 48
49. Here’s a HMM
0.5 0.2
0.5 0.6 • What is p(O) = p(o1o2o3)
s1 0.4
s2 0.8
s3 = p(o1=X3 ∧ o2=X1 ∧ o3=X3)?
0.3 0.7 0.9 • Slow, stupid way:
0.2 0.8
0.1
p (O ) = ∑ p ( OQ )
x1 x2 x3 Q∈paths of length 3
π s1 s2 s3 = ∑ p (O | Q ) p (Q )
Q∈paths of length 3
Q∈
0.3 0.3 0.4
p(O|Q) = p(o1o2o3|q1q2q3) • How to compute p(Q) for an
p(O) needs 27 p(Q) arbitrary path Q?
= p(o1|q1)p(o2|q1)p(o3|q3) (why?)
computations and 27
• How to compute p(O|Q) for an
p(O|Q) computations.
Example in the case Q=S3S1S1 arbitrary path Q?
P(O|Q) = p(X3|S3)p(Xsequence3has )
What if the
1|S1) p(X |S1
20 observations?
=0.8 * 0.3 * 0.7 = 0.168 So let’s be smarter...
08/12/2010 Hidden Markov Models 49

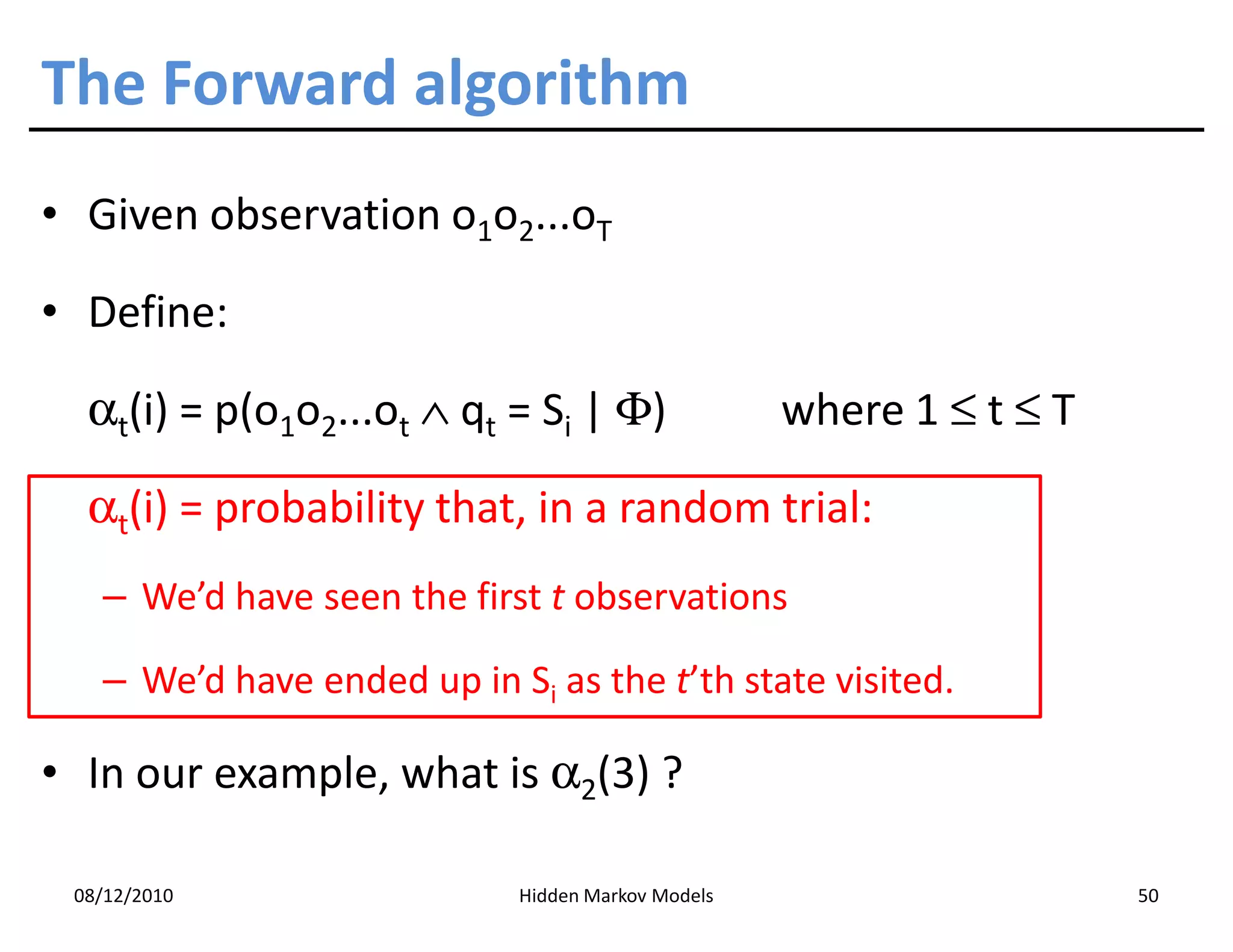

50. The Forward algorithm
• Given observation o1o2...oT
• Define:
αt(i) = p(o1o2...ot ∧ qt = Si | Φ) where 1 ≤ t ≤ T
αt(i) = probability that, in a random trial:
– We’d have seen the first t observations
– We’d have ended up in Si as the t’th state visited.
• In our example, what is α2(3) ?
08/12/2010 Hidden Markov Models 50
