Simulated annealing is a global optimization technique inspired by the physical process of annealing in solids. It can find the global minimum of a cost function by slowly cooling the system. At each temperature, the algorithm accepts random moves to neighboring solutions with a probability based on the change in cost and current temperature. This allows occasionally moving to higher-cost solutions and avoids getting stuck in local minima. While slower than local search methods, simulated annealing is more likely to find the global optimum solution over multiple iterations as the temperature decreases.

1. 1

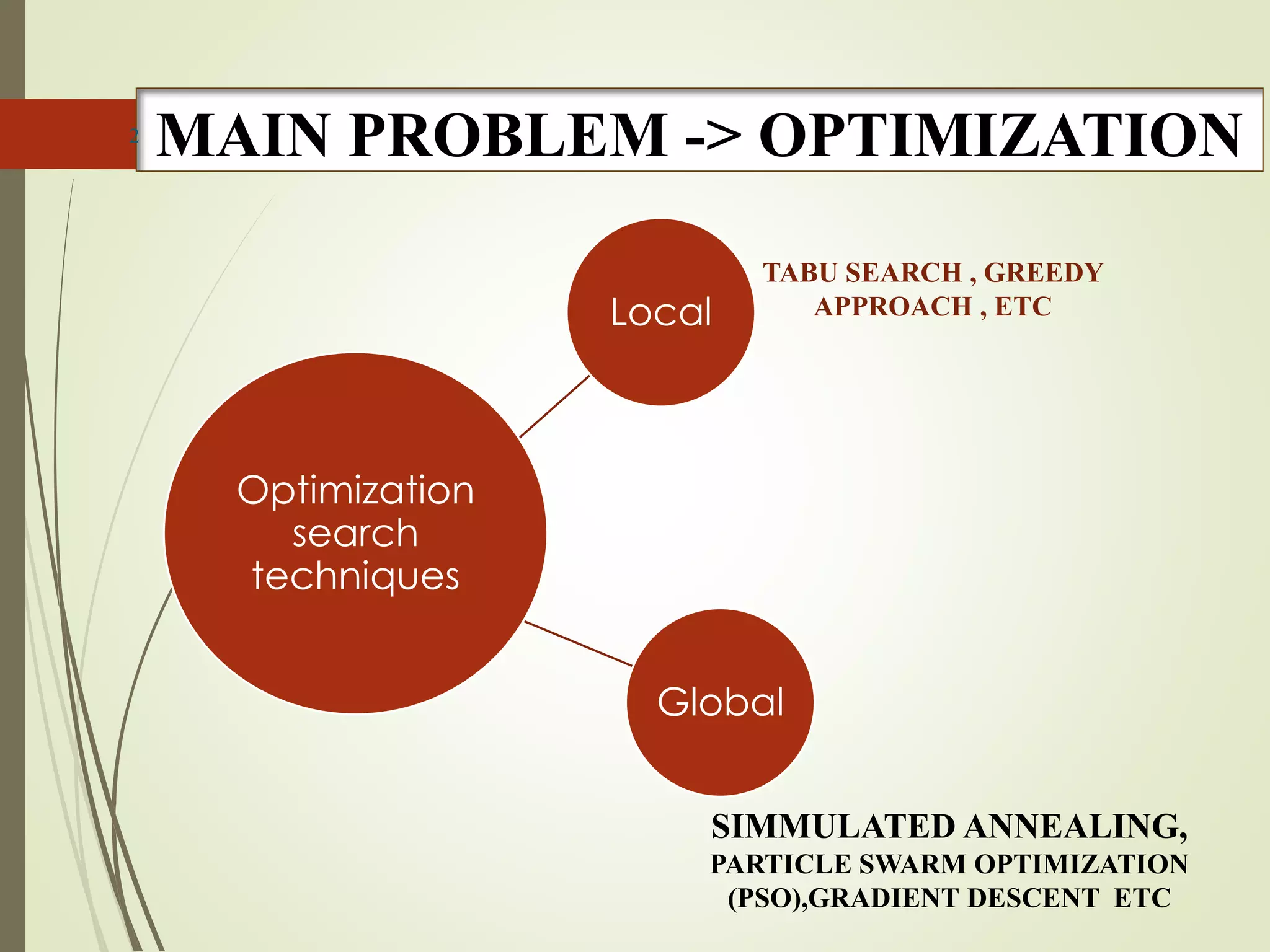

2. MAIN PROBLEM -> OPTIMIZATION
Local
Global
Optimization
search
techniques
2
TABU SEARCH , GREEDY
APPROACH , ETC
SIMMULATED ANNEALING,
PARTICLE SWARM OPTIMIZATION
(PSO),GRADIENT DESCENT ETC

3. Difficulty in Searching Global Optima3
starting
point
descend
direction
local minima
global minima
barrier to local search

4. Background: Annealing
 Simulated annealing is so named because of its analogy to
the process of physical annealing with solids,.
 A crystalline solid is heated and then allowed to cool very
slowly
until it achieves its most regular possible crystal lattice
configuration (i.e., its minimum lattice energy state), and
thus is free of crystal defects.
 If the cooling schedule is sufficiently slow, the final
configuration results in a solid with such superior structural
integrity.
 Simulated annealing establishes the connection between this
type of thermodynamic behaviour and the search for global
minima for a discrete optimization problem.
4

5. Simulated Annealing(SA)
 SA is a global optimization technique.
 SA distinguishes between different local optima.
 SA is a memory less algorithm, the algorithm
does not use any information gathered during the
search
 SA is motivated by an analogy to annealing in
solids.
 Simulated Annealing – an iterative improvement
algorithm.
5

6. Simulated Annealing6
Local Search
Solution space
Costfunction
?

7. Analogy
 Slowly cool down a heated solid, so that all particles arrange
in the ground energy state
 At each temperature wait until the solid reaches its thermal
equilibrium
 Probability of being in a state with energy E :
Pr { E = E } = 1/Z(T) . exp (-E / kB.T)
E Energy
T Temperature
kB Boltzmann constant
Z(T) Normalization factor (temperature dependant)
7

8. Simulation Of Cooling (Metropolis 1953)
 At a fixed temperature T :
 Perturb (randomly) the current state to a new state
 E is the difference in energy between current and new state
 If E < 0 (new state is lower), accept new state as current state
 If E  0 , accept new state with probability
Pr (accepted) = exp (- E / kB.T)
 Eventually the systems evolves into thermal equilibrium at
temperature T .
 When equilibrium is reached, temperature T can be lowered and
the process can be repeated
8

9. Relationship Between Physical
Annealing And Simulated Annealing
Thermodynamic
Simulation
Combinatorial
Optimization
System states Solutions
Energy Cost
Change of State Neighbouring Solutions
Temperature Control Parameter T
Frozen State Heuristic Solution
9

10. Simulated Annealing
 Same algorithm can be used for combinatorial optimization
problems:
 Energy E corresponds to the Cost function C
 Temperature T corresponds to control parameter c
Pr { configuration = i } = 1/Q(c) . exp (-C(i) / c)
C Cost
c Control parameter
Q(c) Normalization factor (not important)
10

11. Ball On Terrain Example – SA Vs.
Greedy Algorithms
Greedy Algorithm
gets stuck here!
Locally Optimum
Solution.
Simulated Annealing explores
more. Chooses this move with a
small probability (Hill Climbing)
Upon a large no. of iterations,
SA converges to this solution.
Initial position
of the ball
11

12. 12 Advantages
 Can deal with arbitrary systems and cost functions.
 Statistically guarantees finding an optimal solution.
 Is relatively easy to code, even for complex problems.
 Generally gives a ``good'' solution
 This makes annealing an attractive option for Optimization
problems where heuristic (specialized or problem specific)
methods are not available.

13. 13
 Repeatedly annealing with a 1/log k schedule is very
slow, especially if the cost function is expensive to
compute.
 For problems where the energy landscape is smooth, or
there are few local minima, SA is overkill - simpler, faster
methods (e.g., gradient descent) will work better. But
generally don't know what the energy landscape is for a
particular problem.
 The method cannot tell whether it has found an optimal
solution. Some other complimentary method (e.g. branch
and bound) is required to do this.

14. Conclusions
 Simulated Annealing algorithms are
usually better than greedy algorithms,
when it comes to problems that have
numerous locally optimum solutions.
14

15. References15
 P.J.M. van Laarhoven, E.H.L. Aarts, Simulated Annealing:
Theory and Applications, Kluwer Academic Publisher,
1987.
 A. A. Zhigljavsky, Theory of Global Random Search,
Kluwer Academic Publishers, 1991.
