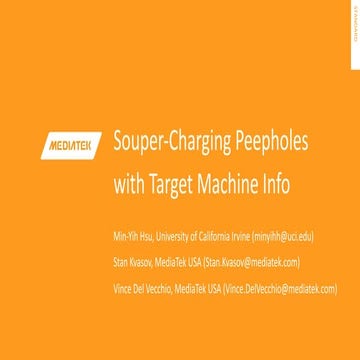

Souper-Charging Peepholes with Target Machine InfoMin-Yih Hsu
# LLVM Dev Meeting 2019 - Bay Area
Souper, a LLVM-based superoptimization framework, has seen adoption in both academic research and industry projects. Given an LLVM IR as an input, Souper tries to generate peephole patterns by synthesizing semantically equivalent but shorter instruction sequences. However, as a platform-independent framework, it lacks a model of the actual cost of an instruction sequence on the target machine. This leads to missing optimizations opportunities or generation of peephole patterns which degrade performance.
In this talk, we’re going to demonstrate how Souper can benefit from target machine information. Then, we will explore some possible approaches to providing Souper with target machine info to steer the superoptimizer to find more patterns with improvements than regressions. This will enable Souper to be used in a more automated way and reduce the manual intervention required.
Code reviews are vital for ensuring good code quality. They serve as one of our last lines of defense against bugs and subpar code reaching production.
Yet, they often turn into annoying tasks riddled with frustration, hostility, unclear feedback and lack of standards. How can we improve this crucial process?
In this session we will cover:
- The Art of Effective Code Reviews
- Streamlining the Review Process
- Elevating Reviews with Automated Tools
By the end of this presentation, you'll have the knowledge on how to organize and improve your code review proces
Custom Healthcare Software for Managing Chronic Conditions and Remote Patient...Mind IT Systems
Healthcare providers often struggle with the complexities of chronic conditions and remote patient monitoring, as each patient requires personalized care and ongoing monitoring. Off-the-shelf solutions may not meet these diverse needs, leading to inefficiencies and gaps in care. It’s here, custom healthcare software offers a tailored solution, ensuring improved care and effectiveness.
We describe the deployment and use of Globus Compute for remote computation. This content is aimed at researchers who wish to compute on remote resources using a unified programming interface, as well as system administrators who will deploy and operate Globus Compute services on their research computing infrastructure.
How to Position Your Globus Data Portal for Success Ten Good PracticesGlobus
Science gateways allow science and engineering communities to access shared data, software, computing services, and instruments. Science gateways have gained a lot of traction in the last twenty years, as evidenced by projects such as the Science Gateways Community Institute (SGCI) and the Center of Excellence on Science Gateways (SGX3) in the US, The Australian Research Data Commons (ARDC) and its platforms in Australia, and the projects around Virtual Research Environments in Europe. A few mature frameworks have evolved with their different strengths and foci and have been taken up by a larger community such as the Globus Data Portal, Hubzero, Tapis, and Galaxy. However, even when gateways are built on successful frameworks, they continue to face the challenges of ongoing maintenance costs and how to meet the ever-expanding needs of the community they serve with enhanced features. It is not uncommon that gateways with compelling use cases are nonetheless unable to get past the prototype phase and become a full production service, or if they do, they don't survive more than a couple of years. While there is no guaranteed pathway to success, it seems likely that for any gateway there is a need for a strong community and/or solid funding streams to create and sustain its success. With over twenty years of examples to draw from, this presentation goes into detail for ten factors common to successful and enduring gateways that effectively serve as best practices for any new or developing gateway.
top nidhi software solution freedownloadvrstrong314
This presentation emphasizes the importance of data security and legal compliance for Nidhi companies in India. It highlights how online Nidhi software solutions, like Vector Nidhi Software, offer advanced features tailored to these needs. Key aspects include encryption, access controls, and audit trails to ensure data security. The software complies with regulatory guidelines from the MCA and RBI and adheres to Nidhi Rules, 2014. With customizable, user-friendly interfaces and real-time features, these Nidhi software solutions enhance efficiency, support growth, and provide exceptional member services. The presentation concludes with contact information for further inquiries.
Exploring Innovations in Data Repository Solutions - Insights from the U.S. G...Globus
The U.S. Geological Survey (USGS) has made substantial investments in meeting evolving scientific, technical, and policy driven demands on storing, managing, and delivering data. As these demands continue to grow in complexity and scale, the USGS must continue to explore innovative solutions to improve its management, curation, sharing, delivering, and preservation approaches for large-scale research data. Supporting these needs, the USGS has partnered with the University of Chicago-Globus to research and develop advanced repository components and workflows leveraging its current investment in Globus. The primary outcome of this partnership includes the development of a prototype enterprise repository, driven by USGS Data Release requirements, through exploration and implementation of the entire suite of the Globus platform offerings, including Globus Flow, Globus Auth, Globus Transfer, and Globus Search. This presentation will provide insights into this research partnership, introduce the unique requirements and challenges being addressed and provide relevant project progress.
May Marketo Masterclass, London MUG May 22 2024.pdfAdele Miller
Can't make Adobe Summit in Vegas? No sweat because the EMEA Marketo Engage Champions are coming to London to share their Summit sessions, insights and more!
This is a MUG with a twist you don't want to miss.
Prosigns: Transforming Business with Tailored Technology SolutionsProsigns
Unlocking Business Potential: Tailored Technology Solutions by Prosigns
Discover how Prosigns, a leading technology solutions provider, partners with businesses to drive innovation and success. Our presentation showcases our comprehensive range of services, including custom software development, web and mobile app development, AI & ML solutions, blockchain integration, DevOps services, and Microsoft Dynamics 365 support.
Custom Software Development: Prosigns specializes in creating bespoke software solutions that cater to your unique business needs. Our team of experts works closely with you to understand your requirements and deliver tailor-made software that enhances efficiency and drives growth.
Web and Mobile App Development: From responsive websites to intuitive mobile applications, Prosigns develops cutting-edge solutions that engage users and deliver seamless experiences across devices.
AI & ML Solutions: Harnessing the power of Artificial Intelligence and Machine Learning, Prosigns provides smart solutions that automate processes, provide valuable insights, and drive informed decision-making.
Blockchain Integration: Prosigns offers comprehensive blockchain solutions, including development, integration, and consulting services, enabling businesses to leverage blockchain technology for enhanced security, transparency, and efficiency.
DevOps Services: Prosigns' DevOps services streamline development and operations processes, ensuring faster and more reliable software delivery through automation and continuous integration.
Microsoft Dynamics 365 Support: Prosigns provides comprehensive support and maintenance services for Microsoft Dynamics 365, ensuring your system is always up-to-date, secure, and running smoothly.
Learn how our collaborative approach and dedication to excellence help businesses achieve their goals and stay ahead in today's digital landscape. From concept to deployment, Prosigns is your trusted partner for transforming ideas into reality and unlocking the full potential of your business.
Join us on a journey of innovation and growth. Let's partner for success with Prosigns.
Understanding Globus Data Transfers with NetSageGlobus
NetSage is an open privacy-aware network measurement, analysis, and visualization service designed to help end-users visualize and reason about large data transfers. NetSage traditionally has used a combination of passive measurements, including SNMP and flow data, as well as active measurements, mainly perfSONAR, to provide longitudinal network performance data visualization. It has been deployed by dozens of networks world wide, and is supported domestically by the Engagement and Performance Operations Center (EPOC), NSF #2328479. We have recently expanded the NetSage data sources to include logs for Globus data transfers, following the same privacy-preserving approach as for Flow data. Using the logs for the Texas Advanced Computing Center (TACC) as an example, this talk will walk through several different example use cases that NetSage can answer, including: Who is using Globus to share data with my institution, and what kind of performance are they able to achieve? How many transfers has Globus supported for us? Which sites are we sharing the most data with, and how is that changing over time? How is my site using Globus to move data internally, and what kind of performance do we see for those transfers? What percentage of data transfers at my institution used Globus, and how did the overall data transfer performance compare to the Globus users?
First Steps with Globus Compute Multi-User EndpointsGlobus
In this presentation we will share our experiences around getting started with the Globus Compute multi-user endpoint. Working with the Pharmacology group at the University of Auckland, we have previously written an application using Globus Compute that can offload computationally expensive steps in the researcher's workflows, which they wish to manage from their familiar Windows environments, onto the NeSI (New Zealand eScience Infrastructure) cluster. Some of the challenges we have encountered were that each researcher had to set up and manage their own single-user globus compute endpoint and that the workloads had varying resource requirements (CPUs, memory and wall time) between different runs. We hope that the multi-user endpoint will help to address these challenges and share an update on our progress here.
Accelerate Enterprise Software Engineering with PlatformlessWSO2
Key takeaways:
Challenges of building platforms and the benefits of platformless.
Key principles of platformless, including API-first, cloud-native middleware, platform engineering, and developer experience.
How Choreo enables the platformless experience.
How key concepts like application architecture, domain-driven design, zero trust, and cell-based architecture are inherently a part of Choreo.
Demo of an end-to-end app built and deployed on Choreo.
Navigating the Metaverse: A Journey into Virtual Evolution"Donna Lenk
Join us for an exploration of the Metaverse's evolution, where innovation meets imagination. Discover new dimensions of virtual events, engage with thought-provoking discussions, and witness the transformative power of digital realms."
Enhancing Research Orchestration Capabilities at ORNL.pdfGlobus
Cross-facility research orchestration comes with ever-changing constraints regarding the availability and suitability of various compute and data resources. In short, a flexible data and processing fabric is needed to enable the dynamic redirection of data and compute tasks throughout the lifecycle of an experiment. In this talk, we illustrate how we easily leveraged Globus services to instrument the ACE research testbed at the Oak Ridge Leadership Computing Facility with flexible data and task orchestration capabilities.
Enterprise Resource Planning System includes various modules that reduce any business's workload. Additionally, it organizes the workflows, which drives towards enhancing productivity. Here are a detailed explanation of the ERP modules. Going through the points will help you understand how the software is changing the work dynamics.
To know more details here: https://blogs.nyggs.com/nyggs/enterprise-resource-planning-erp-system-modules/
Unleash Unlimited Potential with One-Time Purchase
BoxLang is more than just a language; it's a community. By choosing a Visionary License, you're not just investing in your success, you're actively contributing to the ongoing development and support of BoxLang.
Large Language Models and the End of ProgrammingMatt Welsh
Talk by Matt Welsh at Craft Conference 2024 on the impact that Large Language Models will have on the future of software development. In this talk, I discuss the ways in which LLMs will impact the software industry, from replacing human software developers with AI, to replacing conventional software with models that perform reasoning, computation, and problem-solving.
Software Engineering, Software Consulting, Tech Lead.
Spring Boot, Spring Cloud, Spring Core, Spring JDBC, Spring Security,
Spring Transaction, Spring MVC,
Log4j, REST/SOAP WEB-SERVICES.
1. Min-Yih “Min” Hsu @ LLVM Dev Meeting 2021
Handling inline assembly
in Clang and LLVM
2. about:me
“Min” Hsu
• Computer Science PhD Candidate in
University of California, Irvine
• Code owner of M68k LLVM backend
• Author of book “LLVM Techniques,
Tips and Best Practices” (2021)
2
34. Handling inline assembly in Clang & LLVM
Background
• Most parts of an inline assembly string are simply copied into the
fi
nal
assembly
fi
le
14
35. Handling inline assembly in Clang & LLVM
Background
• Most parts of an inline assembly string are simply copied into the
fi
nal
assembly
fi
le
• LLVM needs to “glue” inline assembly operands with the surrounding code
14
36. Handling inline assembly in Clang & LLVM
Background
• Most parts of an inline assembly string are simply copied into the
fi
nal
assembly
fi
le
• LLVM needs to “glue” inline assembly operands with the surrounding code
• Lots of target-speci
fi
c logics
• In both Clang and the backend
14
37. Handling inline assembly in Clang & LLVM
Background
• Most parts of an inline assembly string are simply copied into the
fi
nal
assembly
fi
le
• LLVM needs to “glue” inline assembly operands with the surrounding code
• Lots of target-speci
fi
c logics
• In both Clang and the backend
• Target-speci
fi
c callbacks are scattered in the codebase
• Documentation for this part is a little…shy
14
42. Outline of target-specific logics in each stage
16
Clang
Lowering
LLVM IR
Machine IR
AsmPrinter
• Simple validation on operand constraints
• Converting constraints
43. Outline of target-specific logics in each stage
16
Clang
Lowering
LLVM IR
Machine IR
AsmPrinter
• Simple validation on operand constraints
• Converting constraints
• Classifying constraints
• Constraint validations
• Lowering the operands
44. Outline of target-specific logics in each stage
16
Clang
Lowering
LLVM IR
Machine IR
AsmPrinter
• Simple validation on operand constraints
• Converting constraints
• Classifying constraints
• Constraint validations
• Lowering the operands
Print out di
ff
erent types of operands
45. Outline of target-specific logics in each stage
17
Clang
Lowering
LLVM IR
Machine IR
AsmPrinter
• Simple validation on operand constraints
• Converting constraints
• Classifying constraints
• Constraint validations
• Lowering the operands
Print out di
ff
erent types of operands
50. Operand constraint validations in Clang
Limitation on immediate value validations
20
void foo() {
int32_t x;
asm ("move.l %0, %%d1" : : "J" (x));
}
Constant signed 16-bit integer
* M68k assembly w/ Motorola syntax
51. Operand constraint validations in Clang
Limitation on immediate value validations
20
void foo() {
int32_t x;
asm ("move.l %0, %%d1" : : "J" (x));
}
$ clang -target m68k -fsyntax-only foo.c
# No error
$ clang -target m68k -emit-llvm foo.c
# No error
Constant signed 16-bit integer
* M68k assembly w/ Motorola syntax
52. Operand constraint validations in Clang
Limitation on immediate value validations
20
void foo() {
int32_t x;
asm ("move.l %0, %%d1" : : "J" (x));
}
$ clang -target m68k -fsyntax-only foo.c
# No error
$ clang -target m68k -emit-llvm foo.c
# No error
Constant signed 16-bit integer
$ clang -target m68k -S foo.c
error: constraint 'J' expects an integer constant expression
* M68k assembly w/ Motorola syntax
53. Inline assembly in LLVM IR
21
void foo() {
const int x = 87;
asm ("move.l %0, %%d1" : : "Ci" (x) : "d1");
}
C/C++
* M68k assembly w/ Motorola syntax
54. Inline assembly in LLVM IR
21
void foo() {
const int x = 87;
asm ("move.l %0, %%d1" : : "Ci" (x) : "d1");
}
C/C++
call void asm sideeffect "move.l $0, %d1", “^Ci,~{d1}“(i32 87)
LLVM IR
* M68k assembly w/ Motorola syntax
55. Inline assembly in LLVM IR
21
void foo() {
const int x = 87;
asm ("move.l %0, %%d1" : : "Ci" (x) : "d1");
}
C/C++
call void asm sideeffect "move.l $0, %d1", “^Ci,~{d1}“(i32 87)
LLVM IR
* M68k assembly w/ Motorola syntax
56. Inline assembly in LLVM IR
21
void foo() {
const int x = 87;
asm ("move.l %0, %%d1" : : "Ci" (x) : "d1");
}
C/C++
call void asm sideeffect "move.l $0, %d1", “^Ci,~{d1}“(i32 87)
LLVM IR
* M68k assembly w/ Motorola syntax
57. Inline assembly in LLVM IR
21
void foo() {
const int x = 87;
asm ("move.l %0, %%d1" : : "Ci" (x) : "d1");
}
C/C++
call void asm sideeffect "move.l $0, %d1", “^Ci,~{d1}“(i32 87)
LLVM IR
* M68k assembly w/ Motorola syntax
58. Inline assembly in LLVM IR
21
void foo() {
const int x = 87;
asm ("move.l %0, %%d1" : : "Ci" (x) : "d1");
}
C/C++
call void asm sideeffect "move.l $0, %d1", “^Ci,~{d1}“(i32 87)
LLVM IR
* M68k assembly w/ Motorola syntax
59. Outline of target-specific logics in each stage
22
Clang
Lowering
LLVM IR
Machine IR
AsmPrinter
• Simple validation on operand constraints
• Converting constraints
• Classifying constraints
• Constraint validations
• Lowering the operands
Print out di
ff
erent types of operands
76. Lowering register operands
26
std::pair<unsigned, const TargetRegisterClass *>
TargetLowering::getRegForInlineAsmConstraint(const TargetRegisterInfo *TRI,
StringRef Constraint,
MVT VT) const;
A speci
fi
c register or 0 if not applicable
77. Lowering register operands
26
std::pair<unsigned, const TargetRegisterClass *>
TargetLowering::getRegForInlineAsmConstraint(const TargetRegisterInfo *TRI,
StringRef Constraint,
MVT VT) const;
A speci
fi
c register or 0 if not applicable Valid register class to select from
95. Outline of target-specific logics in each stage
38
Clang
Lowering
LLVM IR
Machine IR
AsmPrinter
• Simple validation on operand constraints
• Converting constraints
• Classifying constraints
• Constraint validations
• Lowering the operands
Print out di
ff
erent types of operands
108. Converting constraints in Clang
46
An operand constraint is assumed to have only a single character by default
109. Converting constraints in Clang
46
An operand constraint is assumed to have only a single character by default
Example: “Ci”
110. Converting constraints in Clang
46
An operand constraint is assumed to have only a single character by default
Example: “Ci” -> “^Ci”
111. Converting constraints in Clang
46
std::string
M68kTargetInfo::convertConstraint(const char *&Constraint) const override {
if (*Constraint == 'C')
// Two-character constraint; add "^" hint for later parsing
return std::string("^") + std::string(Constraint++, 2);
return std::string(1, *Constraint);
}
An operand constraint is assumed to have only a single character by default
Example: “Ci” -> “^Ci”
112. Operand constraint validations in Clang
Limitation on immediate value validations (cont’d)
47
bool M68kTargetInfo::validateAsmConstraint(const char *&Name, ConstraintInfo &info) const {
switch (*Name) {
…
case 'C':
++Name;
switch (*Name) {
case 'i': // constant integer
case 'j': // integer constant that doesn't fit in 16 bits
info.setRequiresImmediate();
return true;
}
break;
}
…
}
