This document discusses schema migration in agile environments. It describes some common issues that can occur with schema migrations like corrupt data or implied dependencies not being cleaned properly. It then discusses the "legacy way" of managing schema migrations with separate scripts for installations and upgrades. Finally, it introduces the benefits of using a schema change management (SCM) tool that tracks changes, allows rolling back changes, and supports multiple developers through a single change log file and format.

1. Schema Migration in Agile
Developments

2. Schema Migration
● Management of incremental, reversible changes to any relational database
schema
● Facilitate ways to fix mistakes and adapt to requirement changes
● Can be performed in newer or older versions
● Essential part of Software Evolution in today’s agile environment

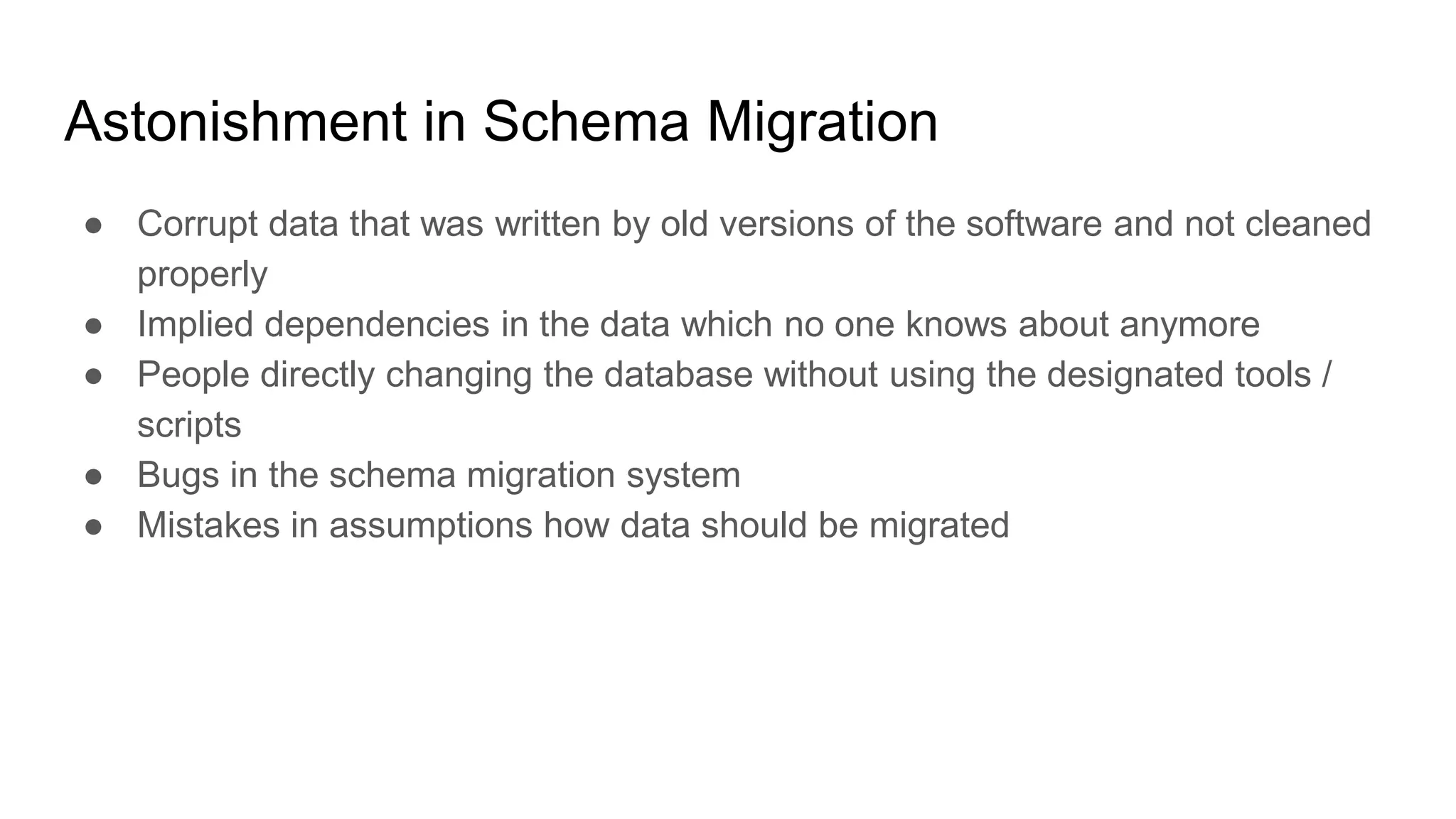

3. Astonishment in Schema Migration
● Corrupt data that was written by old versions of the software and not cleaned
properly
● Implied dependencies in the data which no one knows about anymore
● People directly changing the database without using the designated tools /
scripts
● Bugs in the schema migration system
● Mistakes in assumptions how data should be migrated

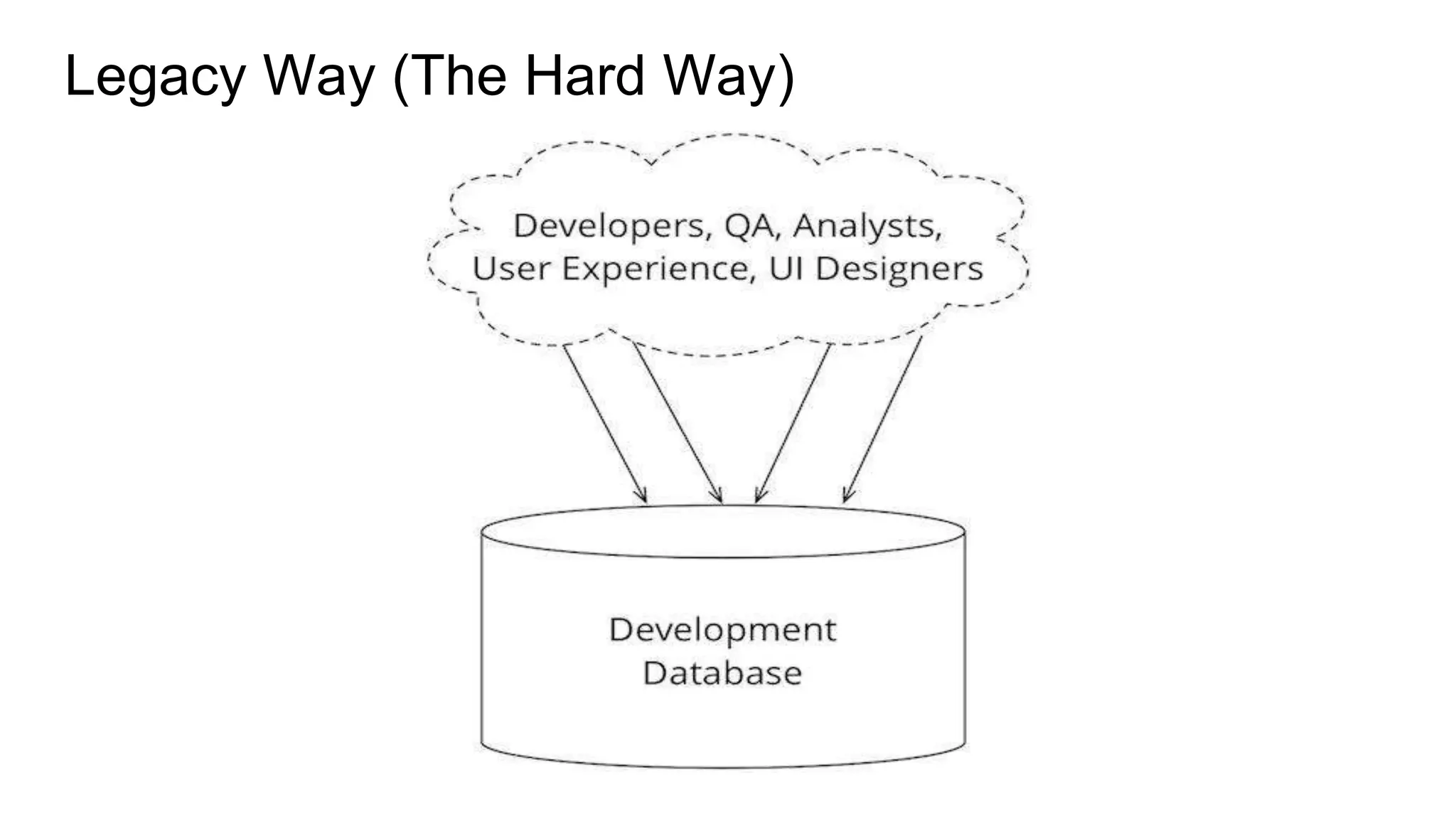

4. Legacy Way (The Hard Way)

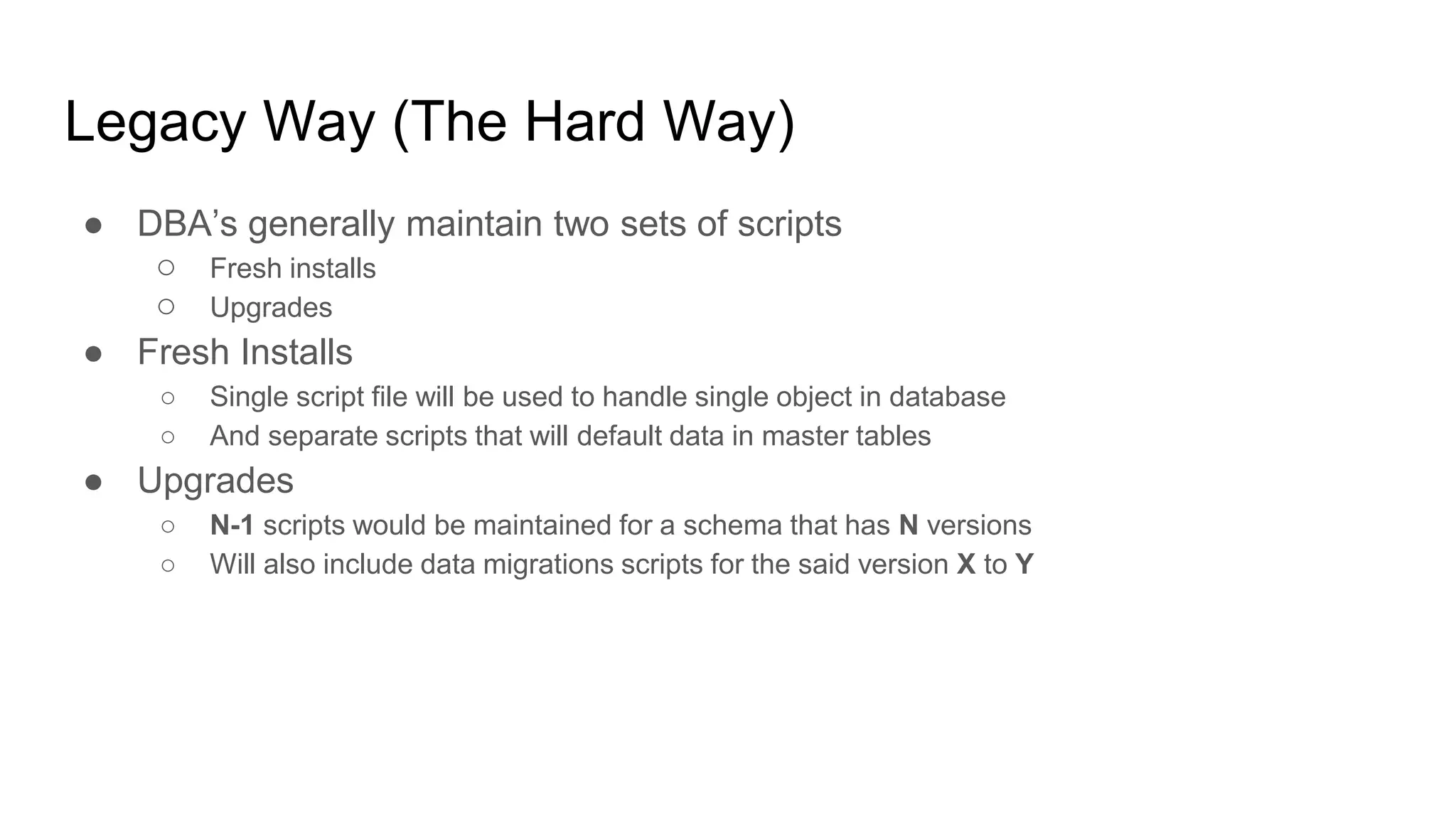

5. Legacy Way (The Hard Way)
● DBA’s generally maintain two sets of scripts
○ Fresh installs
○ Upgrades
● Fresh Installs
○ Single script file will be used to handle single object in database
○ And separate scripts that will default data in master tables
● Upgrades
○ N-1 scripts would be maintained for a schema that has N versions
○ Will also include data migrations scripts for the said version X to Y

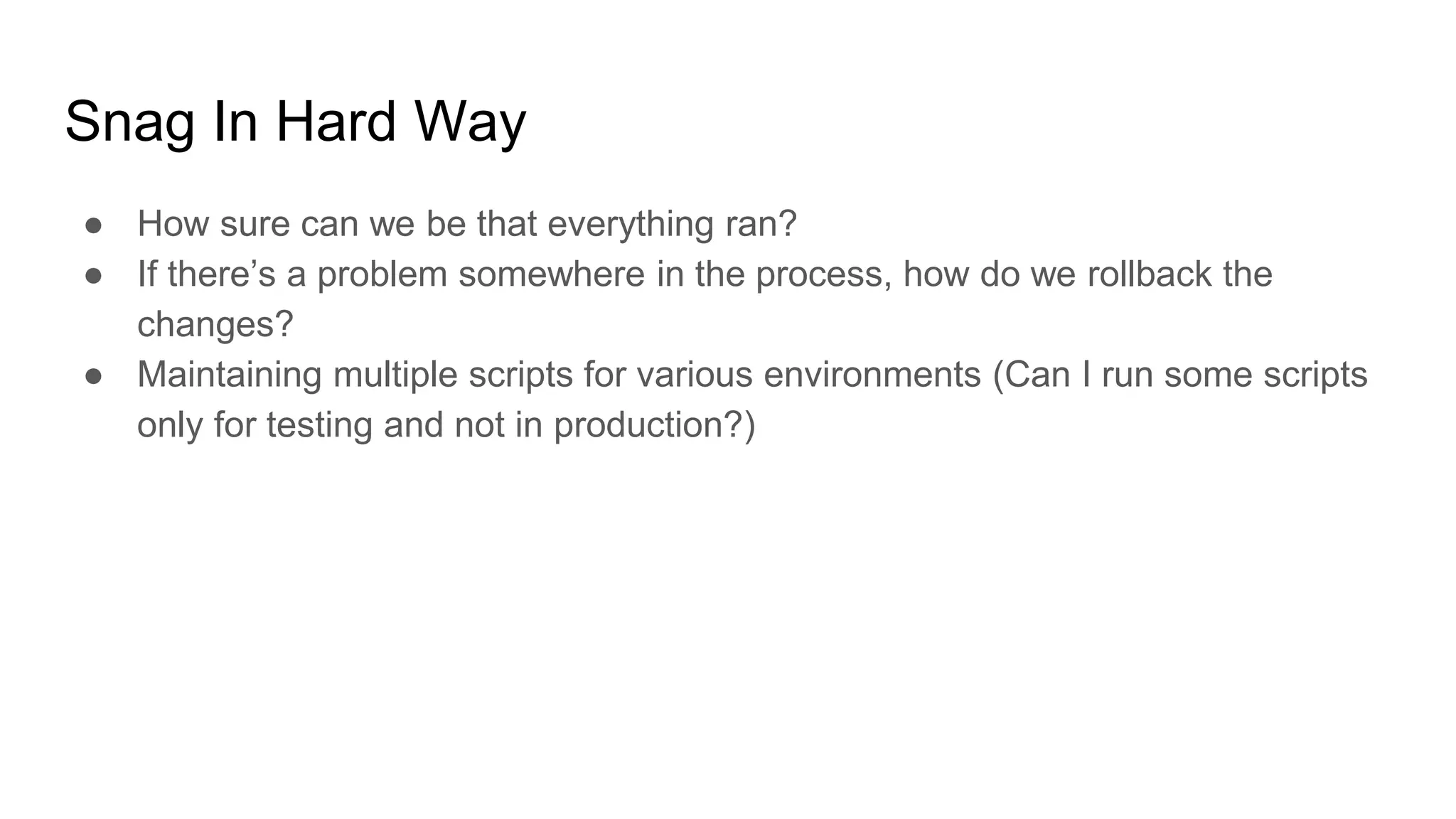

6. Snag In Hard Way
● How sure can we be that everything ran?
● If there’s a problem somewhere in the process, how do we rollback the
changes?
● Maintaining multiple scripts for various environments (Can I run some scripts
only for testing and not in production?)

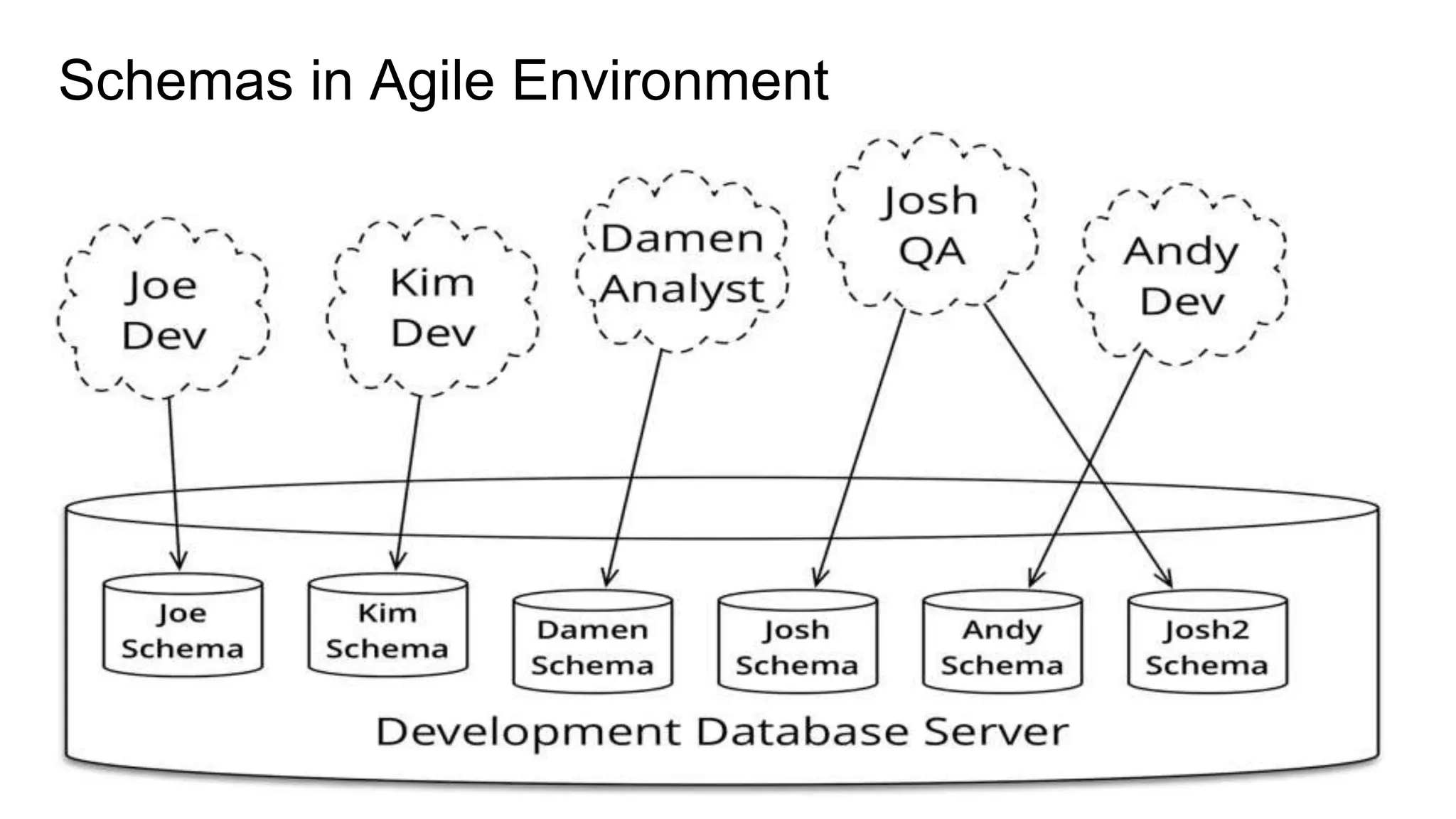

7. Schemas in Agile Environment

8. Database Changes in CI

9. Schema Change Management (SCM) Tool
● Every creation / change is defined in change log
● Start with create table in change log
● Followed by other DDL operations like adding or dropping column, index or
constraints in the table.
● SCM tools do support DML operations as well and can be part of change log
immediately after the DDL definitions
● SCM tools keeps track of what has or hasn’t been run and implement only the
new changes
● On a brand new DB SCM will run all the changes in change log.

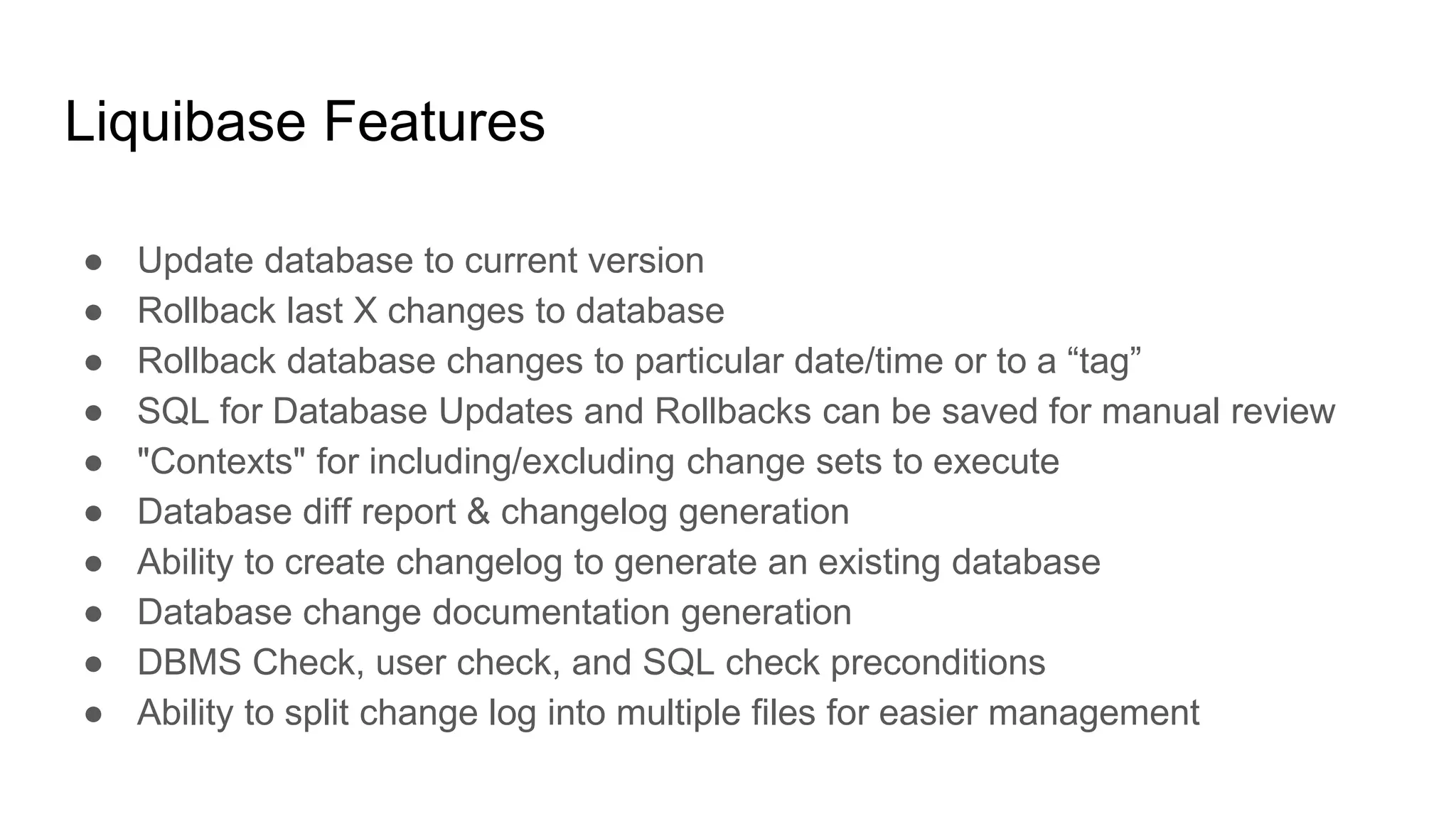

10. Liquibase Features
● Update database to current version
● Rollback last X changes to database
● Rollback database changes to particular date/time or to a “tag”
● SQL for Database Updates and Rollbacks can be saved for manual review
● "Contexts" for including/excluding change sets to execute
● Database diff report & changelog generation
● Ability to create changelog to generate an existing database
● Database change documentation generation
● DBMS Check, user check, and SQL check preconditions
● Ability to split change log into multiple files for easier management

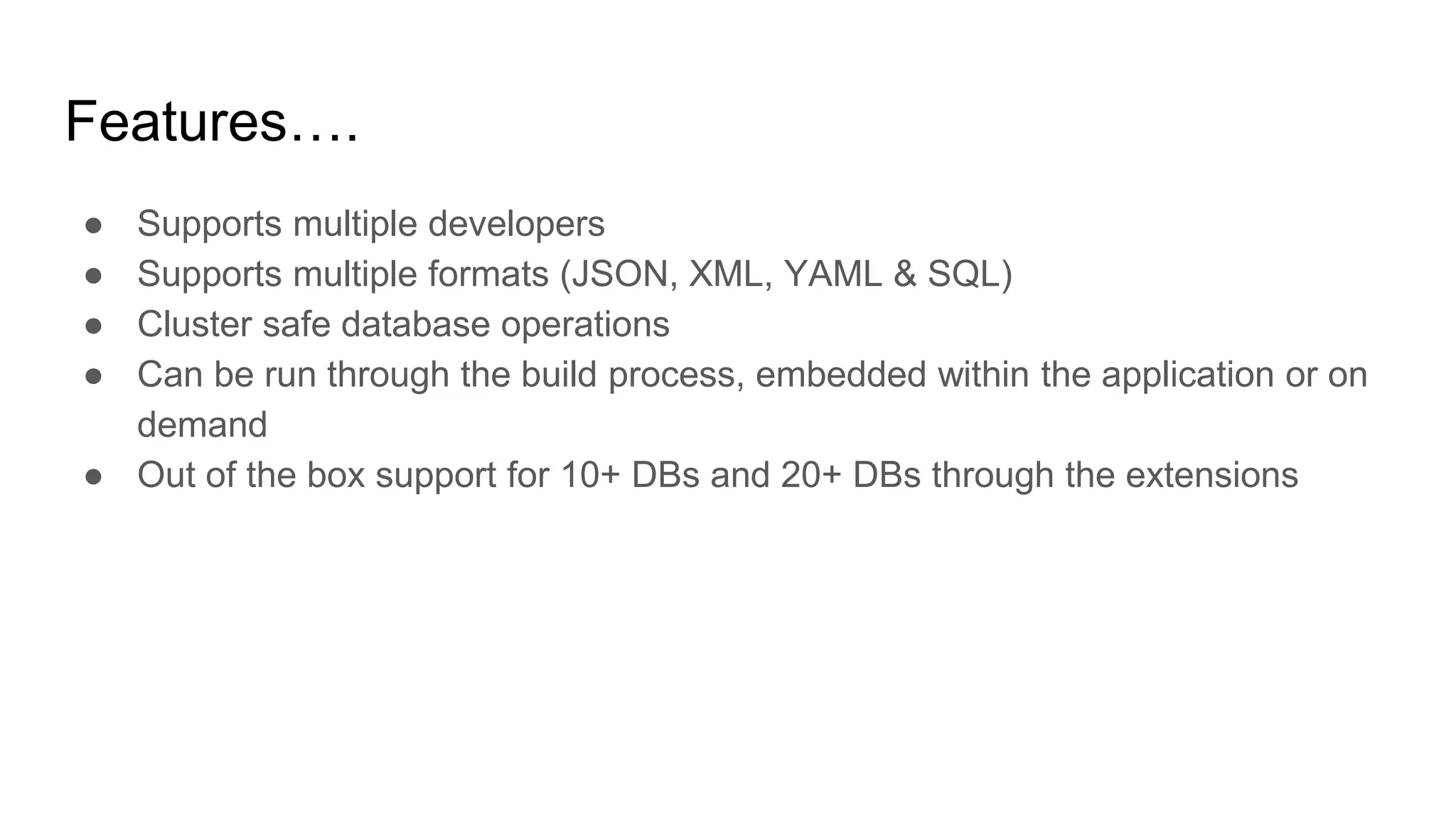

11. Features….
● Supports multiple developers
● Supports multiple formats (JSON, XML, YAML & SQL)
● Cluster safe database operations
● Can be run through the build process, embedded within the application or on
demand
● Out of the box support for 10+ DBs and 20+ DBs through the extensions

12. Appendix
We will be running through the XML format

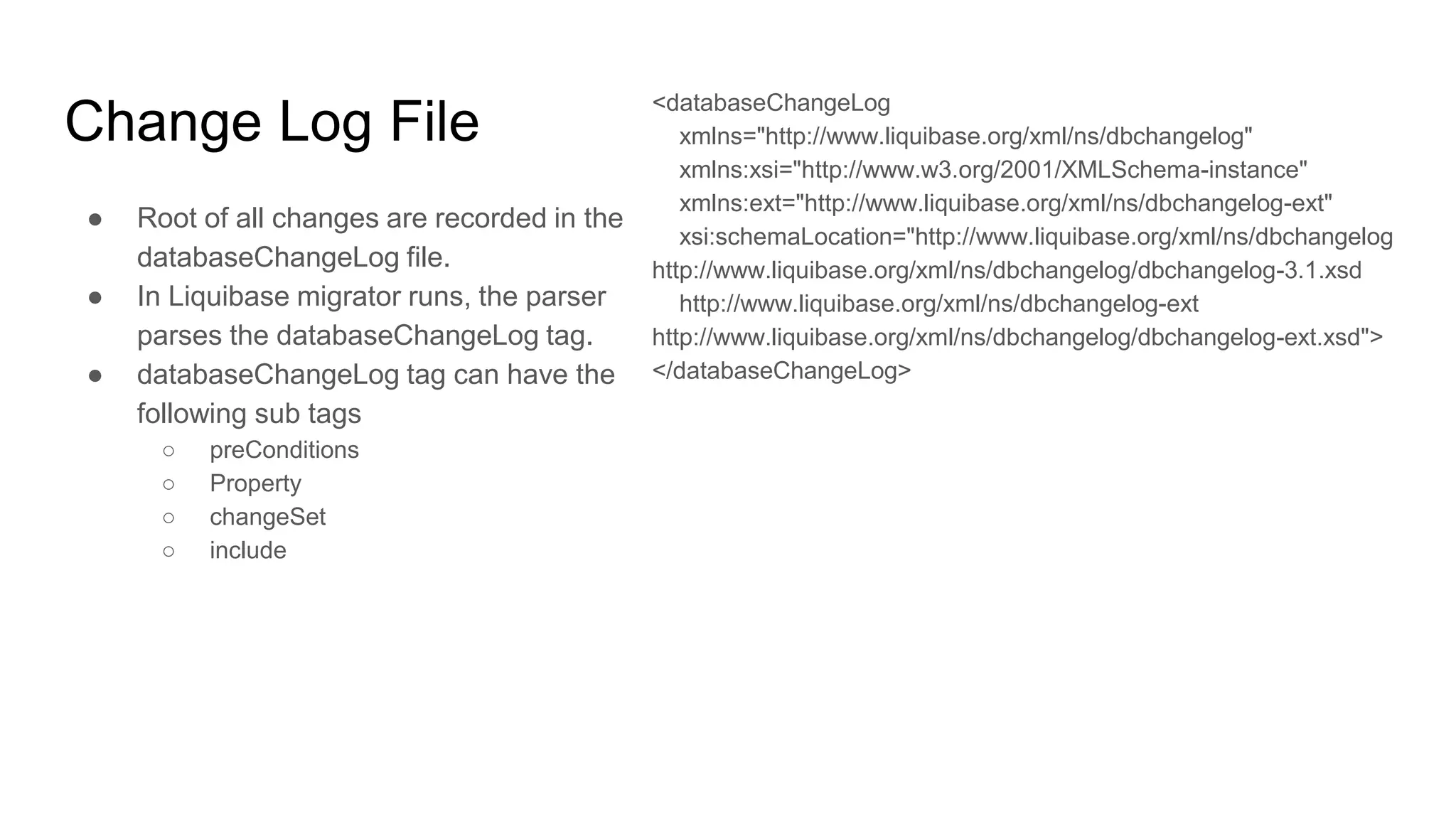

13. Change Log File
● Root of all changes are recorded in the
databaseChangeLog file.
● In Liquibase migrator runs, the parser
parses the databaseChangeLog tag.
● databaseChangeLog tag can have the
following sub tags
○ preConditions
○ Property
○ changeSet
○ include
<databaseChangeLog
xmlns="http://www.liquibase.org/xml/ns/dbchangelog"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:ext="http://www.liquibase.org/xml/ns/dbchangelog-ext"
xsi:schemaLocation="http://www.liquibase.org/xml/ns/dbchangelog
http://www.liquibase.org/xml/ns/dbchangelog/dbchangelog-3.1.xsd
http://www.liquibase.org/xml/ns/dbchangelog-ext
http://www.liquibase.org/xml/ns/dbchangelog/dbchangelog-ext.xsd">
</databaseChangeLog>

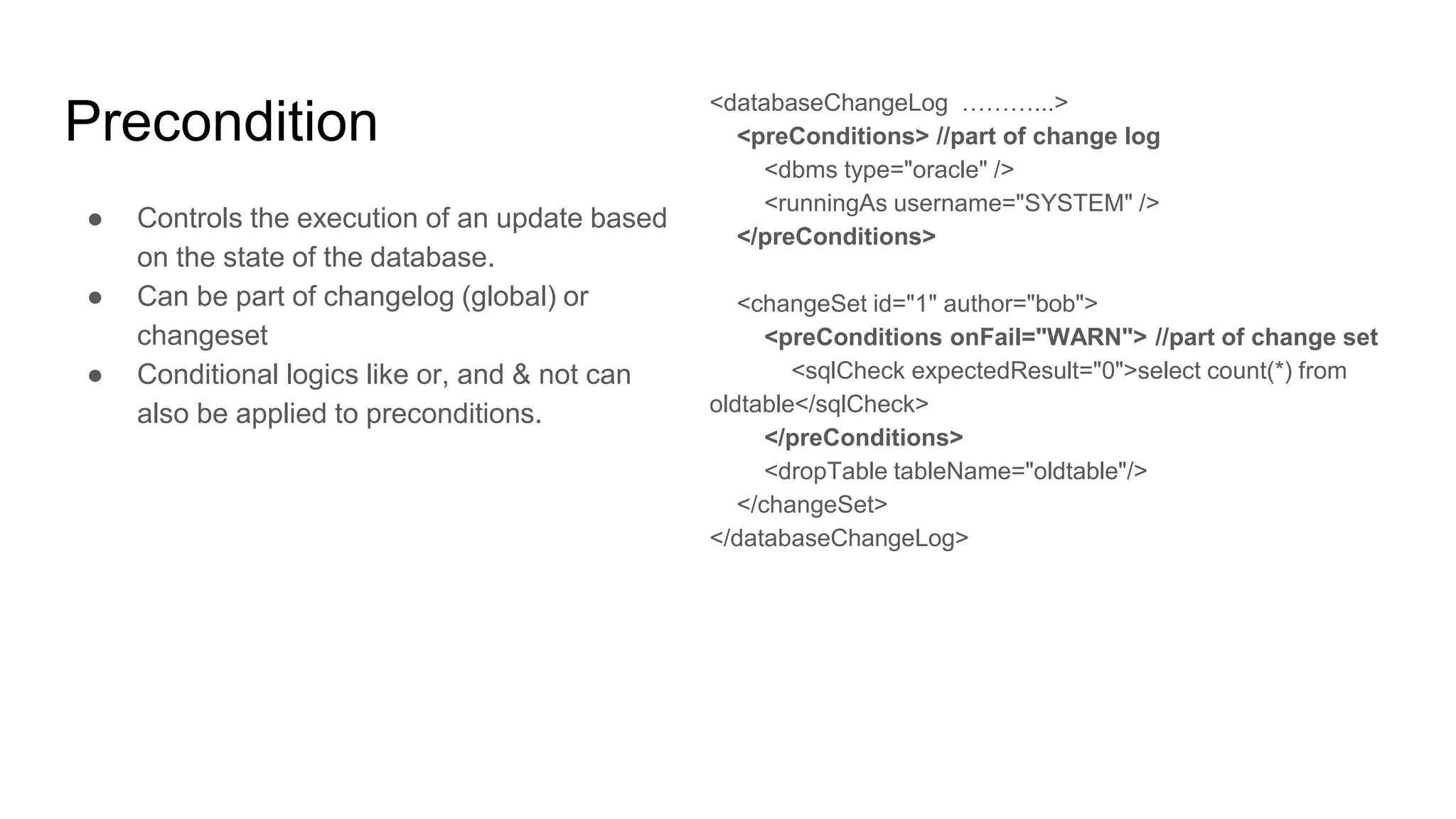

14. Precondition
● Controls the execution of an update based
on the state of the database.
● Can be part of changelog (global) or
changeset
● Conditional logics like or, and & not can
also be applied to preconditions.
<databaseChangeLog ………...>
<preConditions> //part of change log
<dbms type="oracle" />
<runningAs username="SYSTEM" />
</preConditions>
<changeSet id="1" author="bob">
<preConditions onFail="WARN"> //part of change set
<sqlCheck expectedResult="0">select count(*) from
oldtable</sqlCheck>
</preConditions>
<dropTable tableName="oldtable"/>
</changeSet>
</databaseChangeLog>

15. Property
● Liquibase allows dynamic substitution of
parameters in a changelog.
● Parameter values are looked up on the
following order:
○ Passed as a parameter to your Liquibase
runner
○ As a JVM system property
○ In the parameters block (<property> Tag)
of the changelog file.
<property name="clob.type" value="clob" dbms="oracle"/>
<property name="clob.type" value="longtext"
dbms="mysql"/>
<changeSet id="1" author="joe">
<createTable tableName="${table.name}">
<column name="id" type="int"/>
<column name="${column1.name}"
type="${clob.type}"/>
<column name="${column2.name}" type="int"/>
</createTable>
</changeSet>

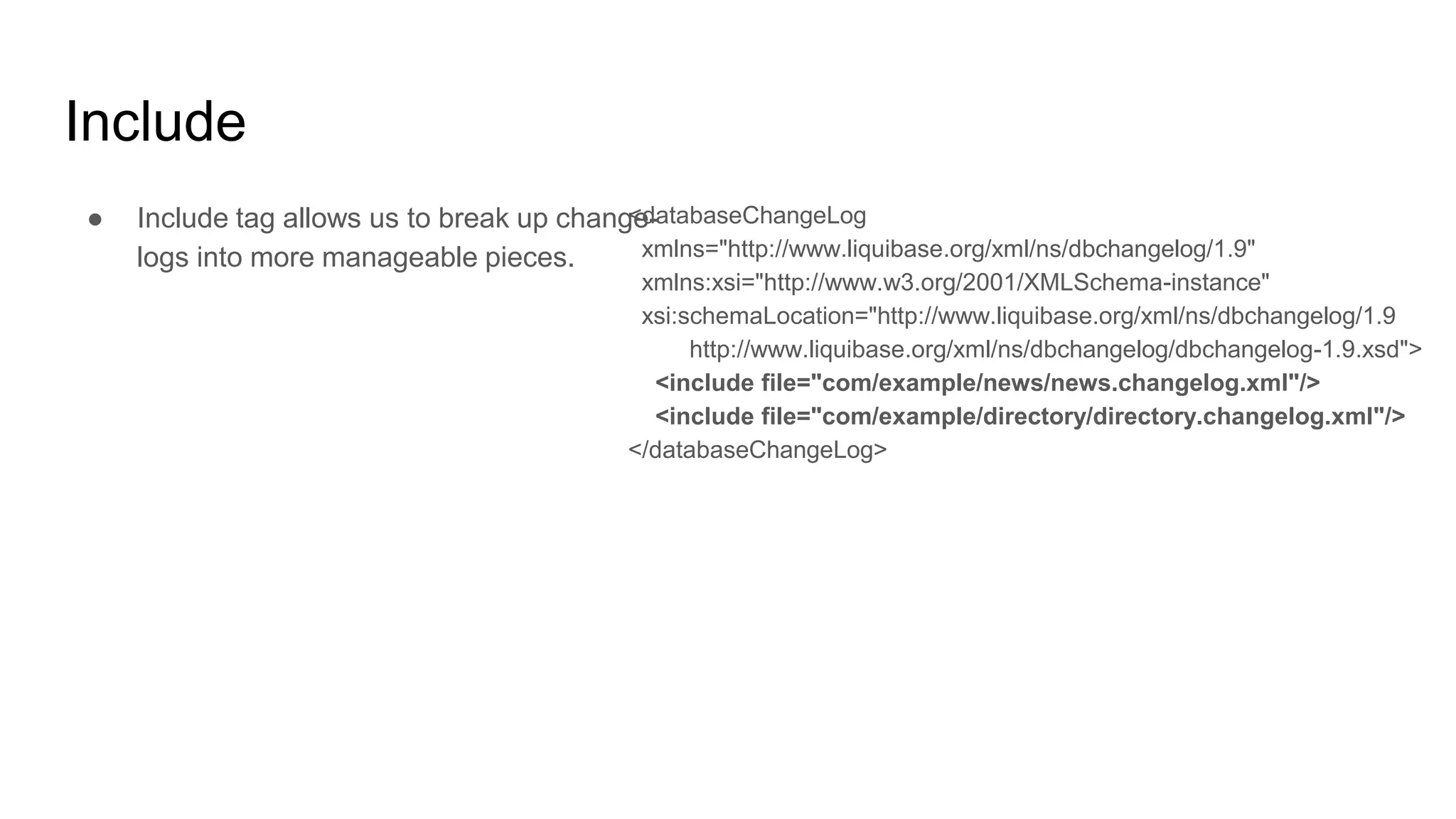

16. Include
● Include tag allows us to break up change-
logs into more manageable pieces.
<databaseChangeLog
xmlns="http://www.liquibase.org/xml/ns/dbchangelog/1.9"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.liquibase.org/xml/ns/dbchangelog/1.9
http://www.liquibase.org/xml/ns/dbchangelog/dbchangelog-1.9.xsd">
<include file="com/example/news/news.changelog.xml"/>
<include file="com/example/directory/directory.changelog.xml"/>
</databaseChangeLog>

17. ChangeSet
● Tag in which we can group database
changes/refactoring together
● Attributes available for changeSet are
○ Id → ChangeSet unique identifier
○ Author → Creator of the changeSet
○ dbms → the database on which the
specified changeset has to be run
○ runAlways → executes a changeSet every
time even if it has been run before
○ runOnChange → executes on the first time
and every time when there is a change in
changeSet
○ failOnError → specify if the migration has
to be failed on Error
● Available sub tags of changeSet are:
○ Comment → generally used for
descriptions
○ preConditions → Controls the execution of
an update based on the state of the
database.
○ Any Refactoring tags
○ Rollback → SQL statements or refactoring
tags that describe on how rollback needs
to taken place.

18. CreateTable
<changeSet author="liquibase-docs" id="createTable-example">
<createTable catalogName="cat"
remarks="A String"
schemaName="public"
tableName="person"
tablespace="A String">
<column name="address" type="varchar(255)"/>
</createTable>
</changeSet>

19. AddColumn
<changeSet author="liquibase-docs" id="addColumn-example">
<addColumn catalogName="cat"
schemaName="public"
tableName="person">
<column name="address" type="varchar(255)"/>
</addColumn>
</changeSet>

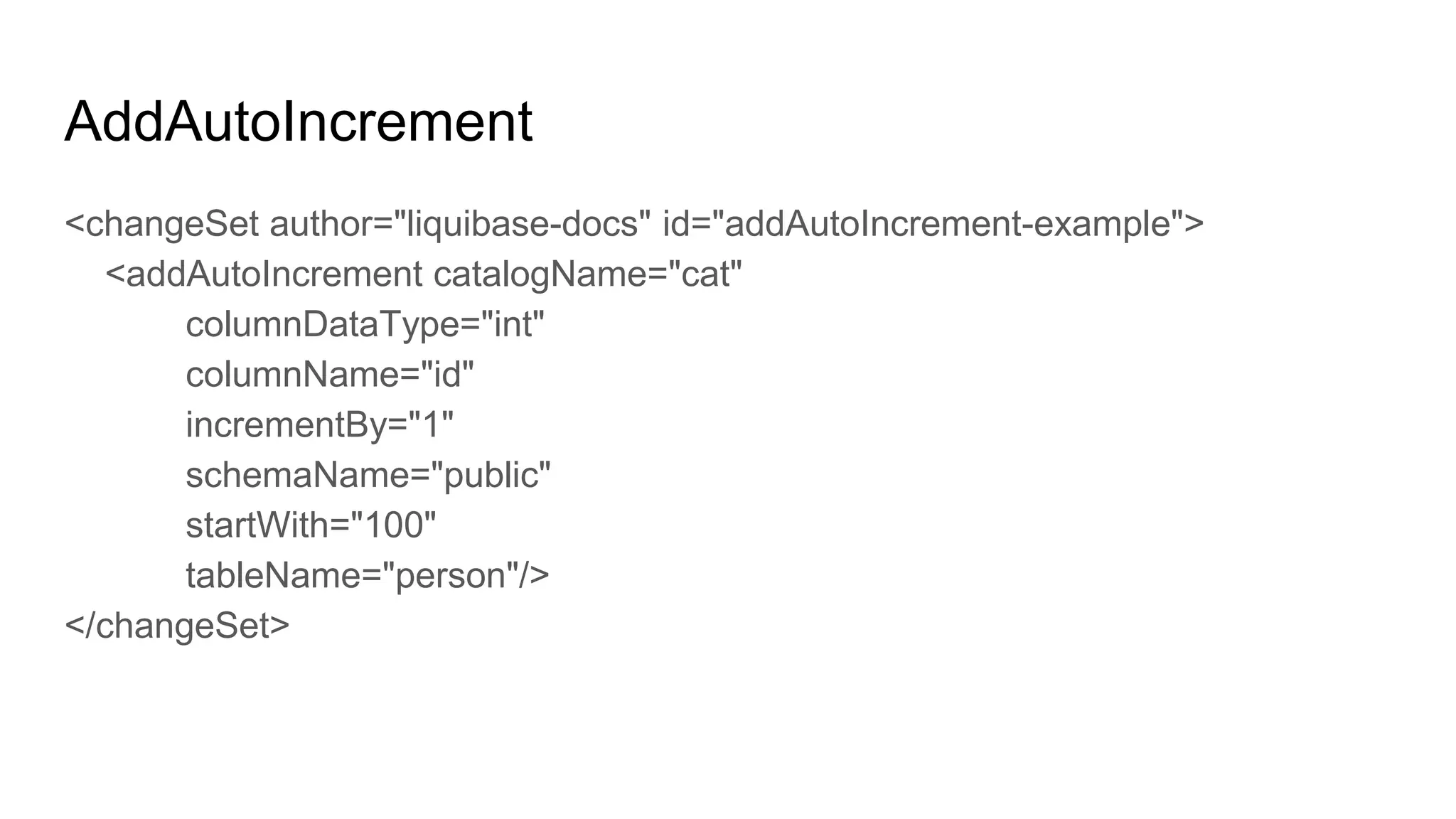

20. AddAutoIncrement
<changeSet author="liquibase-docs" id="addAutoIncrement-example">
<addAutoIncrement catalogName="cat"
columnDataType="int"
columnName="id"
incrementBy="1"
schemaName="public"
startWith="100"
tableName="person"/>
</changeSet>

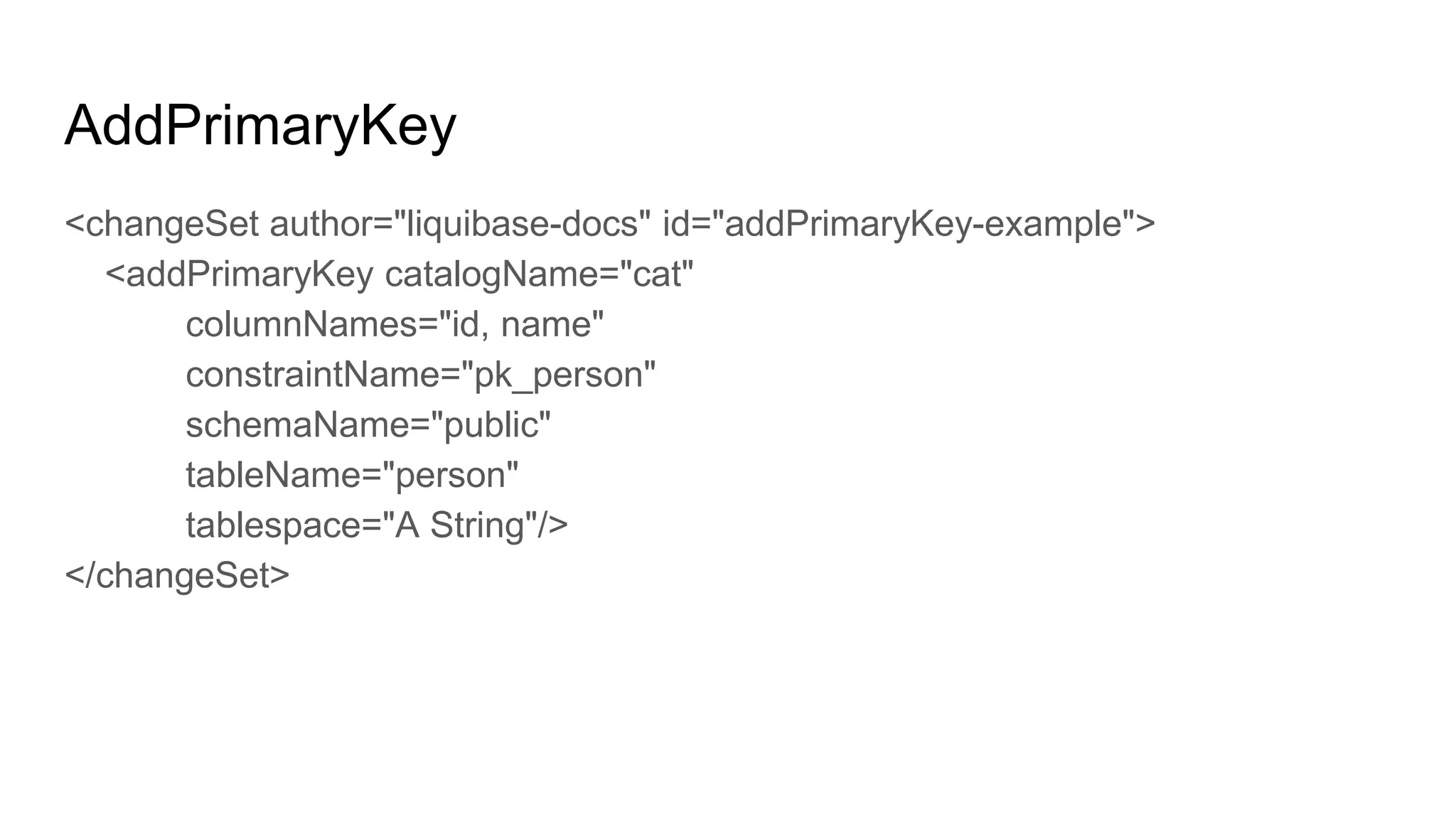

21. AddPrimaryKey
<changeSet author="liquibase-docs" id="addPrimaryKey-example">
<addPrimaryKey catalogName="cat"
columnNames="id, name"
constraintName="pk_person"
schemaName="public"
tableName="person"
tablespace="A String"/>
</changeSet>

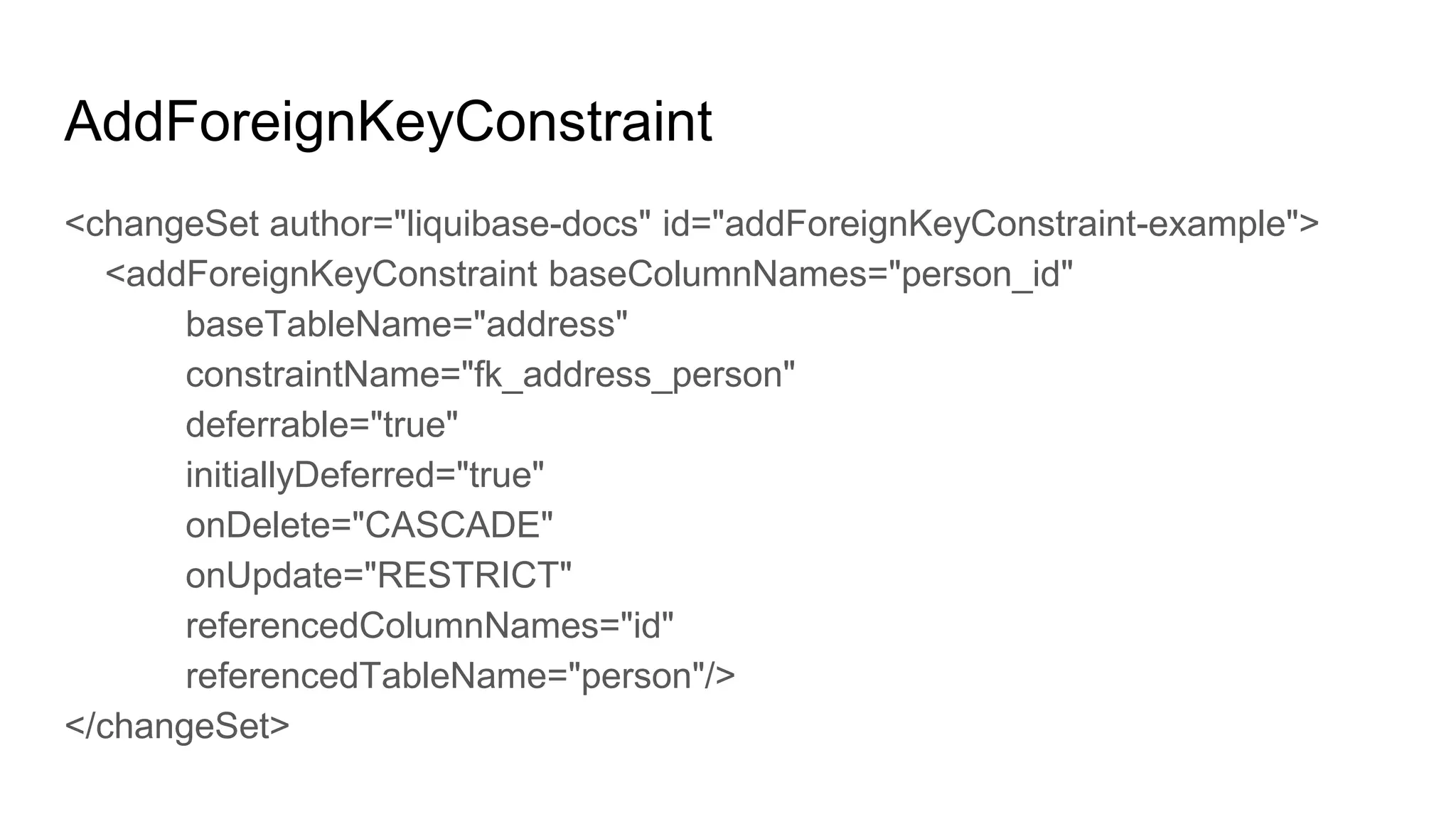

22. AddForeignKeyConstraint
<changeSet author="liquibase-docs" id="addForeignKeyConstraint-example">
<addForeignKeyConstraint baseColumnNames="person_id"
baseTableName="address"
constraintName="fk_address_person"
deferrable="true"
initiallyDeferred="true"
onDelete="CASCADE"
onUpdate="RESTRICT"
referencedColumnNames="id"
referencedTableName="person"/>
</changeSet>

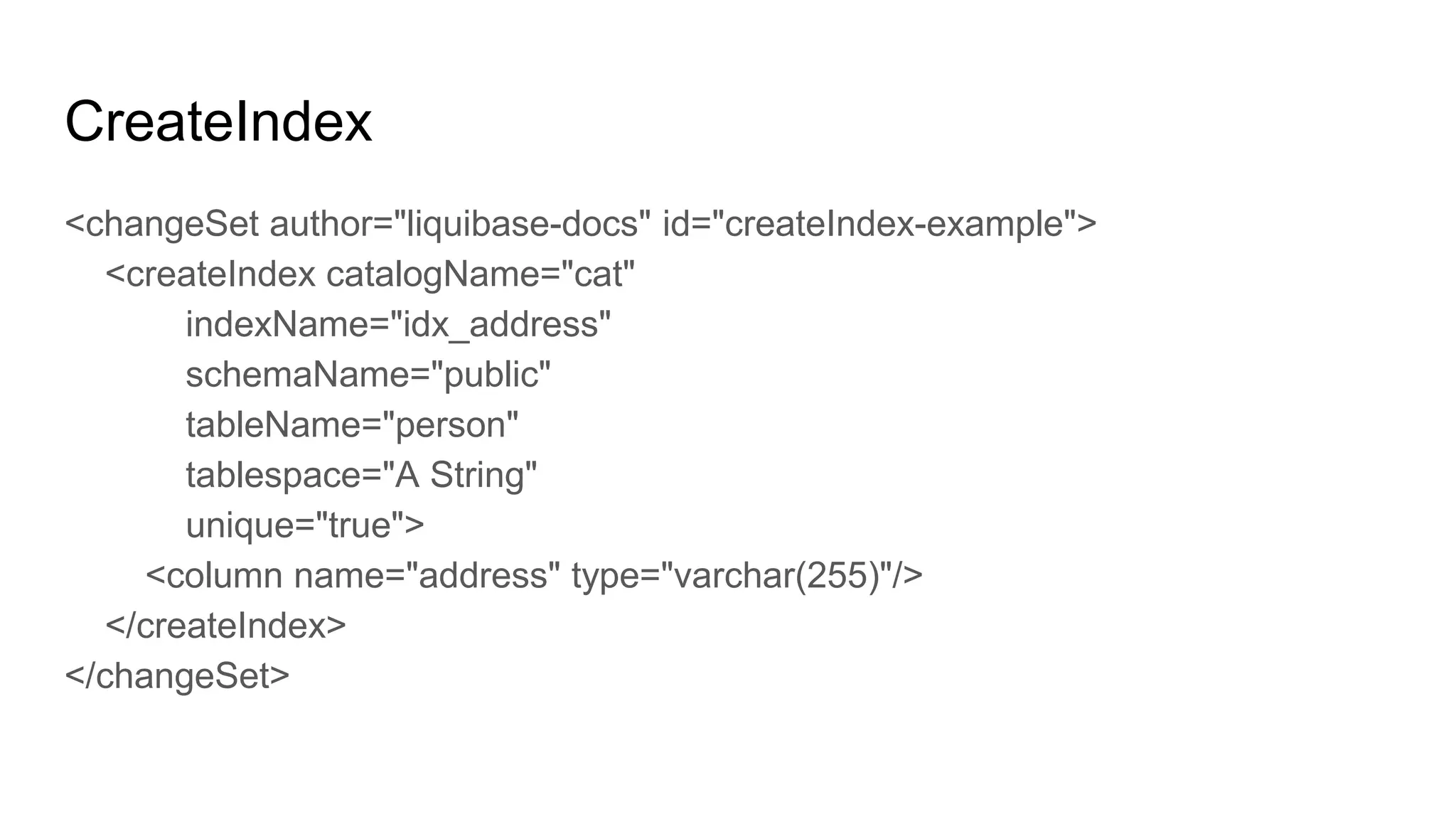

23. CreateIndex
<changeSet author="liquibase-docs" id="createIndex-example">
<createIndex catalogName="cat"
indexName="idx_address"
schemaName="public"
tableName="person"
tablespace="A String"
unique="true">
<column name="address" type="varchar(255)"/>
</createIndex>
</changeSet>

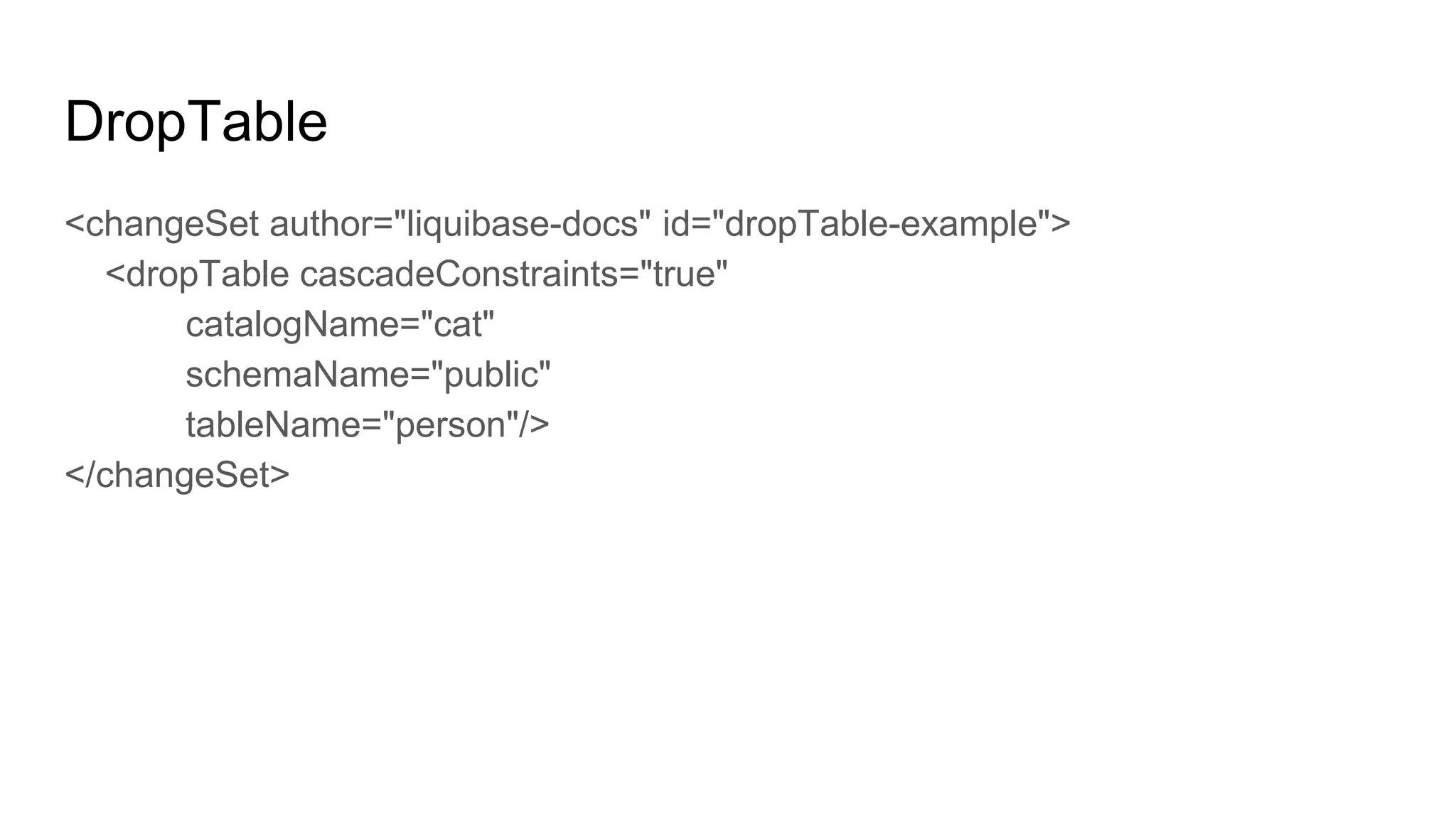

24. DropTable
<changeSet author="liquibase-docs" id="dropTable-example">
<dropTable cascadeConstraints="true"
catalogName="cat"
schemaName="public"
tableName="person"/>
</changeSet>

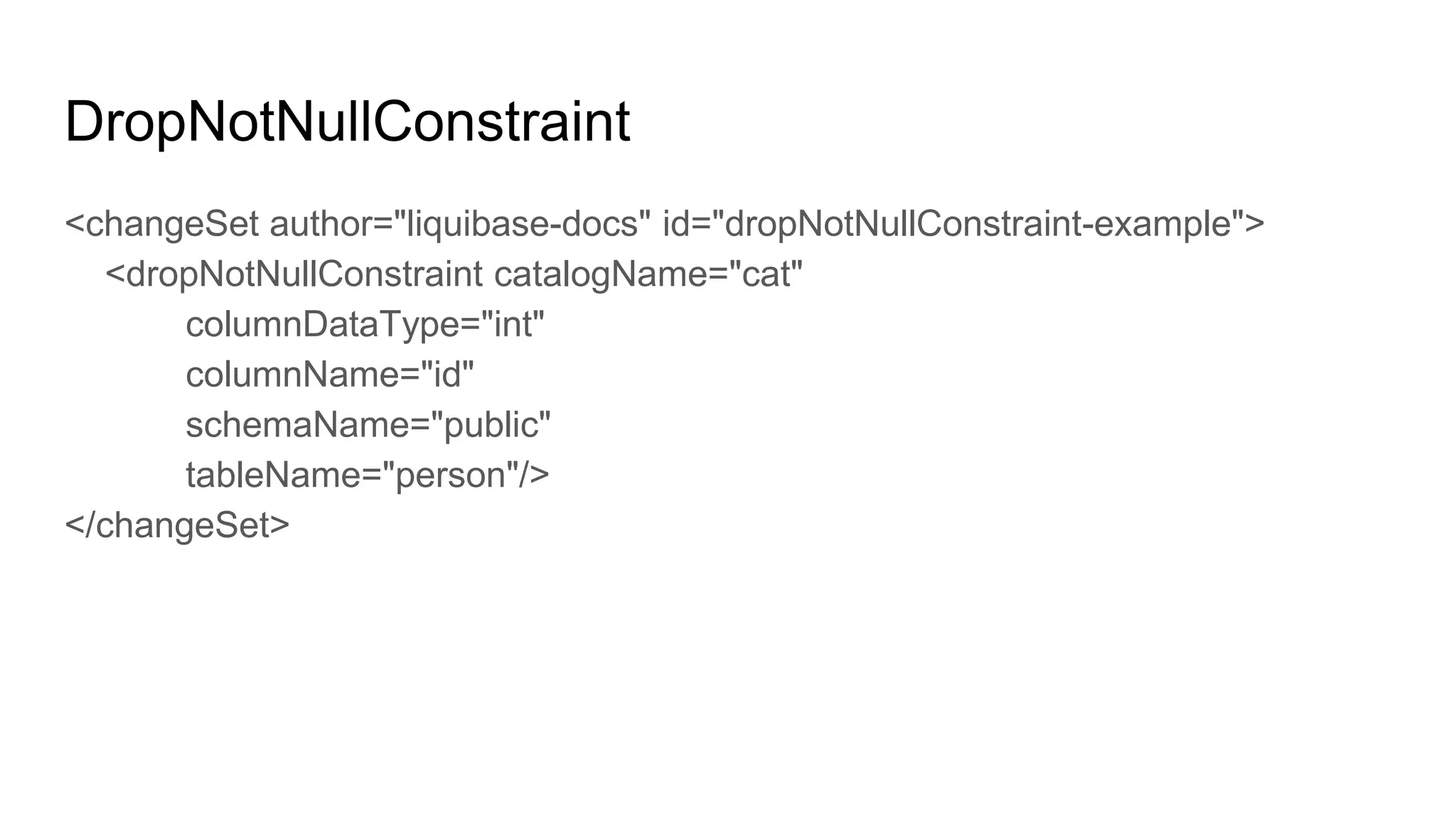

25. DropNotNullConstraint
<changeSet author="liquibase-docs" id="dropNotNullConstraint-example">
<dropNotNullConstraint catalogName="cat"
columnDataType="int"
columnName="id"
schemaName="public"
tableName="person"/>
</changeSet>

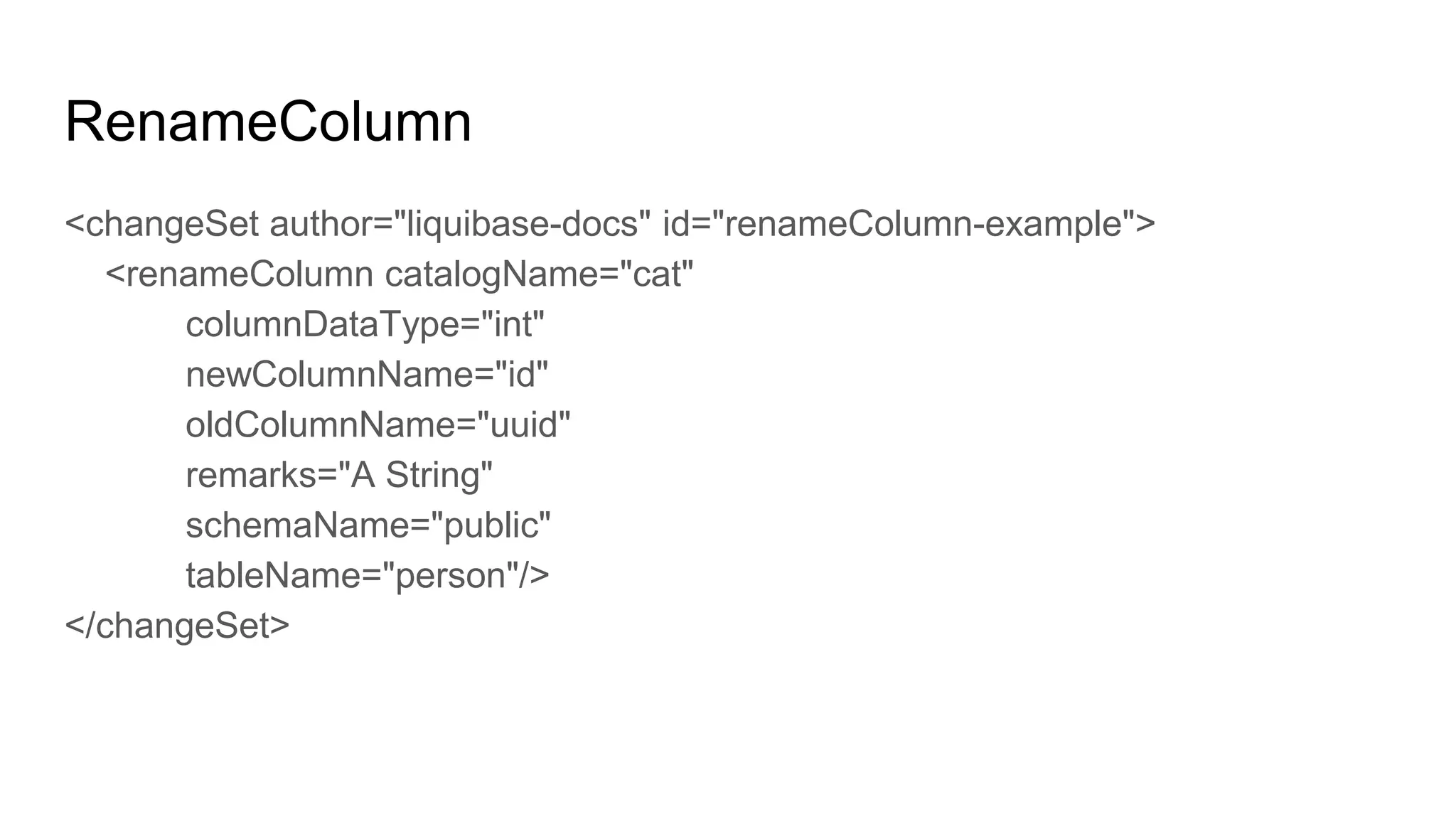

26. RenameColumn
<changeSet author="liquibase-docs" id="renameColumn-example">
<renameColumn catalogName="cat"
columnDataType="int"
newColumnName="id"
oldColumnName="uuid"
remarks="A String"
schemaName="public"
tableName="person"/>
</changeSet>

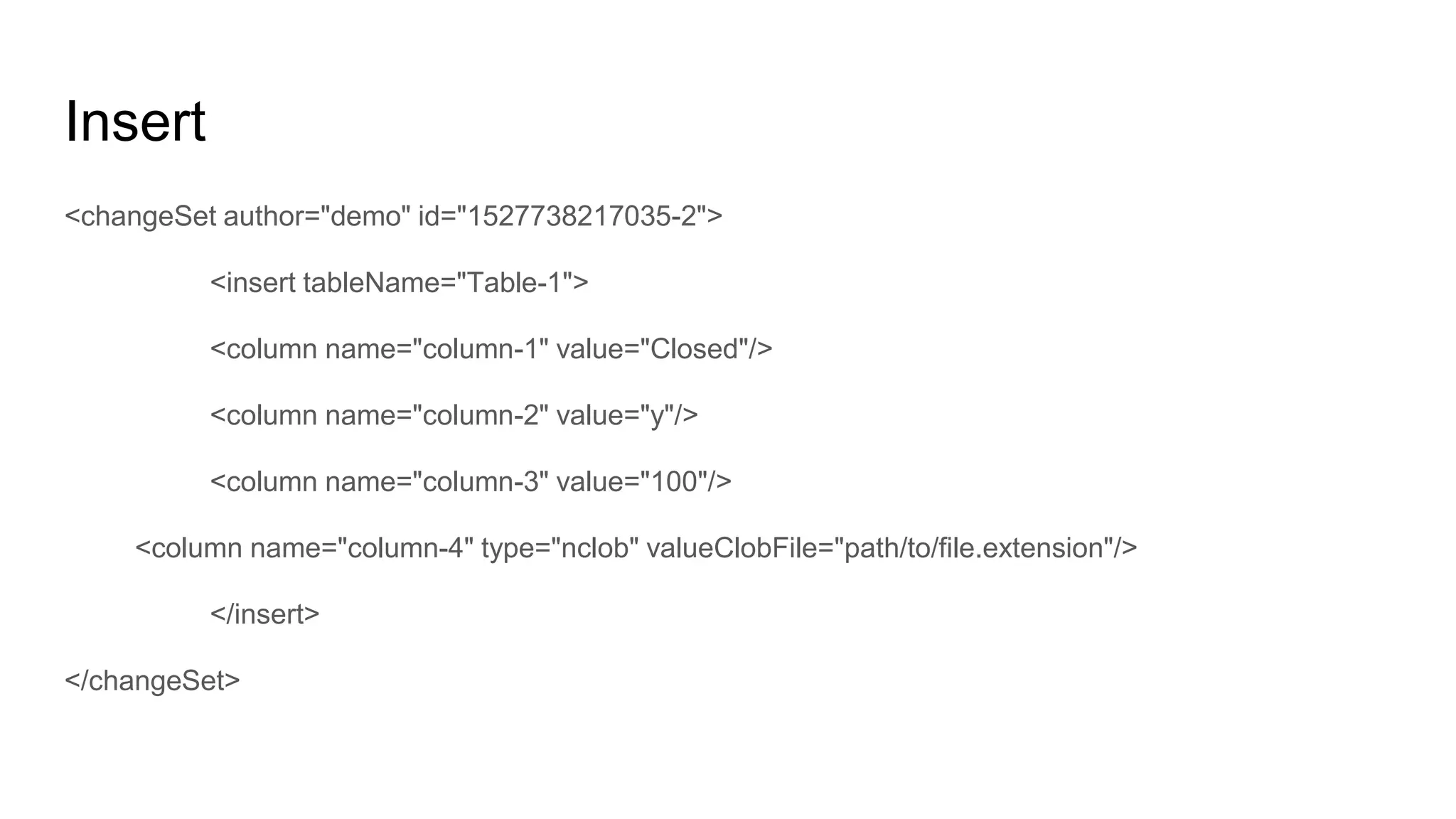

27. Insert
<changeSet author="demo" id="1527738217035-2">
<insert tableName="Table-1">
<column name="column-1" value="Closed"/>
<column name="column-2" value="y"/>
<column name="column-3" value="100"/>
<column name="column-4" type="nclob" valueClobFile="path/to/file.extension"/>
</insert>
</changeSet>

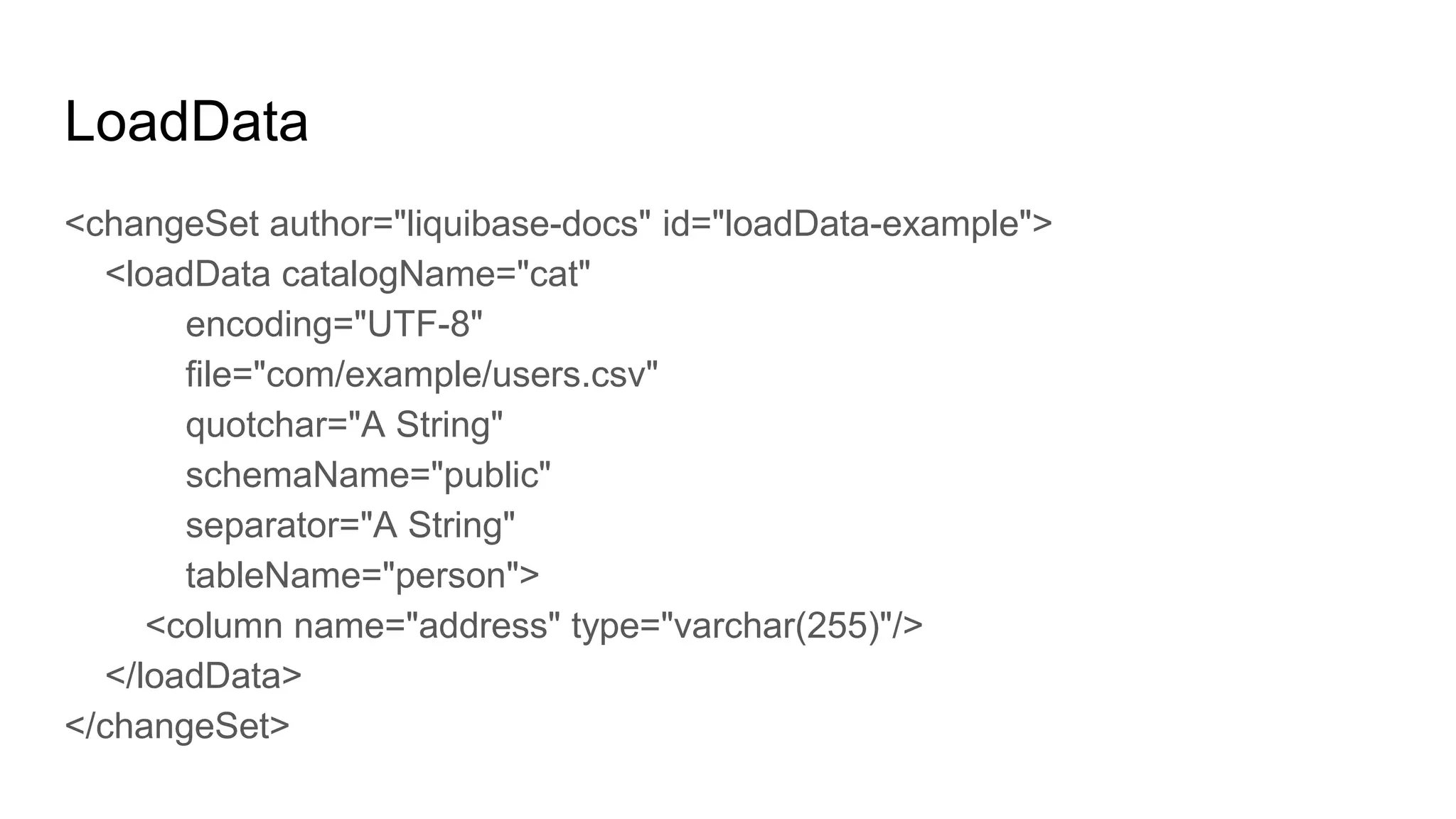

28. LoadData
<changeSet author="liquibase-docs" id="loadData-example">
<loadData catalogName="cat"
encoding="UTF-8"
file="com/example/users.csv"
quotchar="A String"
schemaName="public"
separator="A String"
tableName="person">
<column name="address" type="varchar(255)"/>
</loadData>
</changeSet>
