Evolutionary database design
The document outlines the principles of evolutionary database design, emphasizing the importance of collaboration between developers and DBAs in the context of agile methodologies. It describes a structured approach to database schema evolution through continuous integration, version control, and migration management, focusing on the process of making schema changes and managing data migration. The document highlights the need for maintaining a clear record of database changes and the importance of using automated tools for managing migrations effectively.
Evolutionary database design
- 1.
- 2. Synopsis • Let DatabaseDesign evolves as Application evolves • Continuous integration and automated refactoring to database development • Collaboration between DBA and Application Developer • Pre-production and Released System • Green field and Legacy systems
- 3. Authors • Pramod Sadalage –Developed the techniques of evolutionary Database design and database refactoring used by Thoughtworks in 2000 • Martin Fowler – Thoughtworks
- 4. Background • Agile Methodologies •Evolutionary Architecture • Detailed Design phase is impractical • System Architecture evolves through various iteration • In 2000, a Project ThoughtWorks • Desire to solve database evolving issue • Developed techniques to allow schema change and data migration comfortable

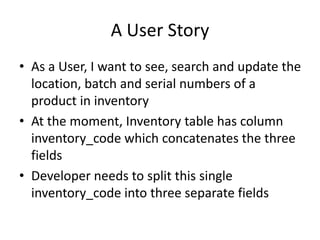

- 5. A User Story •As a User, I want to see, search and update the location, batch and serial numbers of a product in inventory • At the moment, Inventory table has column inventory_code which concatenates the three fields • Developer needs to split this single inventory_code into three separate fields
- 6. Development Steps • Addnew columns to the table, Inventory • Data Migration script to split data from the existing inventory_code column and update the three new columns • Change the Application code to use the new columns • Change any database code (view, sp, triggers etc.) to use the new columns • Change index based on inventory_code column • Commit data migration scripts and application code change to the version control system
- 7.

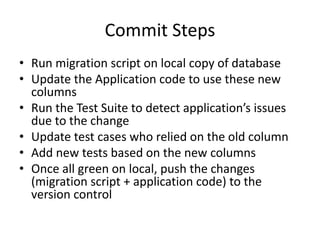

- 8. Commit Steps • Runmigration script on local copy of database • Update the Application code to use these new columns • Run the Test Suite to detect application’s issues due to the change • Update test cases who relied on the old column • Add new tests based on the new columns • Once all green on local, push the changes (migration script + application code) to the version control

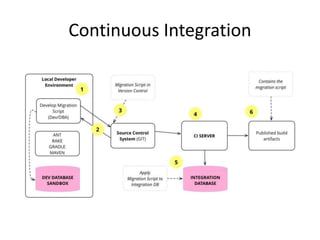

- 9. Integration Steps • CIServer will pick up the commit • Run the migration script on the master branch’s database • Run the Application Tests • Repeated across the deployment pipeline (QA, Staging etc.) • Finally, to production
- 10. ? • Small Stories •Database Refactoring
- 11. DBA, Developer Collaborates •In agile, people collaborate • Analyst, PM, Domain Expert, Developers and DBA • Generally, DBA and Devlopers work separately. • Development task may require database schema change • Developer knows the functionality • DBA knows the global view of the data • DBA may check the user story for data change • DBA may review the migration scripts • For Evolutionary DB Design, DBA, Developer must work closely
- 12.
- 13. Version Control Everything •All database artifacts should be version controlled • Benefits – Only one place to look – On issues, auditing is easy – Deployment with out of sync database is prevented – Easy to create new environment for development, testing, production
- 14. DB Changes AREMigration • Common Practice – Schema editing tool – ad-hoq sql – Compare the dev and prod db – Promote the change • Problem – Context of change is lost – Purpose of change needs revisiting
- 15. DB Changes AREMigration • Capture the change during development • Change is first class artifact • Deploy using same process and control as Application Code • All changes have Database Migration Script • Version controlled
- 16. Migration Scripts • SchemaChanges • Database Code change • Reference data update • Transaction data update • Fix to production data due to bugs
- 17. Migration Management • Uniqueidentification • Track which migrations are applied to the db • Migration Order
- 18. Migration Management • Givesequence number (unique identifier and migration order) – Use current highest number + 1 • Changelog table – Database Migration Frameworks – Or, automate with script
- 19.
- 20.
- 21. Migration Tools • Flyway •Dbdeploy • MyBatis
- 22. Everybody gets ownDb • Common Practice – Single Dev database – Separate db for QA, Staging perhaps – Only DBA changes DB – Or, Devs change Dev & DBA does downstream promotion
- 23. Everyone get ownDb • Developers can experiement with changes • Shared Db will interrupt others by half done changes • QA can work on controlled environment/db
- 24.
- 25. Automate Schema Creation •<target name="create_schema" description="create a schema as defined in the user properties"> <echo message="Admin UserName: ${admin.username}"/> <echo message="Creating Schema: ${db.username}"/> <sql password="${admin.password}" userid="${admin.username}" url="${db.url}" driver="${db.driver}" classpath="${jdbc.classpath}" > CREATE USER ${db.username} IDENTIFIED BY ${db.password} DEFAULT TABLESPACE ${db.tablespace}; GRANT CONNECT,RESOURCE, UNLIMITED TABLESPACE TO ${db.username}; GRANT CREATE VIEW TO ${db.username}; ALTER USER ${db.username} DEFAULT ROLE ALL; </sql> </target>
- 26. Drop Schema • <targetname="drop_schema"> <echo message="Admin UserName: ${admin.username}"/> <echo message="Working UserName: ${db.username}"/> <sql password="${admin.password}" userid="${admin.username}" url="${db.url}" driver="${db.driver}" classpath="${jdbc.classpath}" > DROP USER ${db.username} CASCADE; </sql> </target>
- 27. Developer’s Workflow • Joina project • Check out code base • Change build.properties file • Run ant create_schema • Run the database migration scripts
- 28. Non-developers • QA cantest on their own copy without surprise changes in db • DBA can do experiments on their own copy like, modeling options or performance tuning
- 29.
- 30. Database=Schema+Data • Not onlySchema and Code • Standing data – States – Products – ProductIndustryMapping – Insurer table data etc. • Test data – Application – Application_Product etc. – To Automate Testing • Data needs to be version Controlled – Helps test the migration after schema changed
- 31. Database Changes ==Refactoring • Change the way information is stored • Introduce new ways to store information • Remove unnecessary storage • Software behavior is not change by db change only • a change made to the internal structure of software to make it easier to understand and cheaper to modify without changing its observable behavior ~ Refactoring (Ch-2)
- 32. Database Refactoring • RefactoringCatalogue • 3D perspective – Changing the schema – Migrate the data – Change the db access code • Very very small • Ex: Introduce New Column (Backward compatible) • Ex: Make column non nullable (Destructive) • Ex: Split Table (More Destructive)
- 33. Transition Phase • DestructiveRefactoring • Data Access Code change isn’t easy • Shared DB • Allow both old access and new access • Ex: Rename Table
- 34.
- 35. Automate Refactoring • Wellknown for Application Code – Resharper etc. • Tools For Database – Liquibase – Active Record Migrations • Tools not adequate – Rule of DB migration and handling legacy data is complex • Preferred = Script + Automate Migration • Keep the scripts version controlled • Use metadata (e.g. change log table) – Know current version – Apply migration scripts
- 36. Automate Refactoring • Migrationtools – Flyway – Liquibase – MyBatis Migration – DBDeploy
- 37.
- 38. Devs update DBon demand
- 39. Devs update DBon demand
- 40. Separate DB AccessCode • Do not scatter SQL • Clean Data Access Layer
- 41. Release Frequently • Smallchanges are easy to manage
- 42.
