1. 08-Dec-2015
SAKURA Internet Research Center.
Senior Researcher / Naoto MATSUMOTO

2. GTP Connection Analysis 1/7
1) GTP : Echo request
User Datagram Protocol, Src Port: 2123 (2123), Dst Port: 2123 (2123)
GPRS Tunneling Protocol
Flags: 0x32
001. .... = Version: GTP release 99 version (1)
...1 .... = Protocol type: GTP (1)
.... 0... = Reserved: 0
.... .0.. = Is Next Extension Header present?: No
.... ..1. = Is Sequence Number present?: Yes
.... ...0 = Is N-PDU number present?: No
Message Type: Echo request (0x01)
Length: 4
TEID: 0x00000000
SOURCE: SAKURA Internet Research Center. 12/2015
NAT444
GGSN
SGSN
GTP
INTERNET

3. GTP Connection Analysis 2/7
2) GTP : Create PDP context request
User Datagram Protocol, Src Port: 2123 (2123), Dst Port: 2123 (2123)
GPRS Tunneling Protocol
Flags: 0x32
001. .... = Version: GTP release 99 version (1)
...1 .... = Protocol type: GTP (1)
.... 0... = Reserved: 0
.... .0.. = Is Next Extension Header present?: No
.... ..1. = Is Sequence Number present?: Yes
.... ...0 = Is N-PDU number present?: No
Message Type: Create PDP context request (0x10)
Length: 104
TEID: 0x00000000
Sequence number: 0x1401
IMSI: 240010123456789
Recovery: 5
.... ..01 = Selection mode: MS provided APN, subscription not verified (1)
TEID Data I: 0x00000001
TEID Control Plane: 0x00000001
NSAPI: 0
Charging characteristics: 2048
End user address (IETF/IPv4)
Access Point Name: test-apn
Protocol configuration options
GSN address : 10.0.0.50
GSN address : 10.0.0.50
MS international PSTN/ISDN number
Quality of Service
SOURCE: SAKURA Internet Research Center. 12/2015
NAT444
GGSN
SGSN
GTP
INTERNET

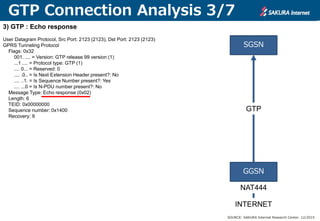

4. GTP Connection Analysis 3/7
3) GTP : Echo response
User Datagram Protocol, Src Port: 2123 (2123), Dst Port: 2123 (2123)
GPRS Tunneling Protocol
Flags: 0x32
001. .... = Version: GTP release 99 version (1)
...1 .... = Protocol type: GTP (1)
.... 0... = Reserved: 0
.... .0.. = Is Next Extension Header present?: No
.... ..1. = Is Sequence Number present?: Yes
.... ...0 = Is N-PDU number present?: No
Message Type: Echo response (0x02)
Length: 6
TEID: 0x00000000
Sequence number: 0x1400
Recovery: 9
SOURCE: SAKURA Internet Research Center. 12/2015
NAT444
GGSN
SGSN
GTP
INTERNET

5. GTP Connection Analysis 4/7
4) GTP : Create PDP context response Echo response
User Datagram Protocol, Src Port: 2123 (2123), Dst Port: 2123 (2123)
GPRS Tunneling Protocol
Flags: 0x32
001. .... = Version: GTP release 99 version (1)
...1 .... = Protocol type: GTP (1)
.... 0... = Reserved: 0
.... .0.. = Is Next Extension Header present?: No
.... ..1. = Is Sequence Number present?: Yes
.... ...0 = Is N-PDU number present?: No
Message Type: Create PDP context response (0x11)
Length: 78
TEID: 0x00000001
Sequence number: 0x1401
Cause: Request accepted (128)
Reordering required: False
Recovery: 9
TEID Data I: 0x00000001
TEID Control Plane: 0x00000001
Charging ID: 0x00000001
End user address (IETF/IPv4) : 192.168.0.2
Protocol configuration options
GSN address : 10.0.0.1
GSN address : 10.0.0.1
Quality of Service
SOURCE: SAKURA Internet Research Center. 12/2015
NAT444
GGSN
SGSN
GTP
INTERNET

6. GTP Connection Analysis 5/7
5) GTP : T-PDU <ICMP> 138 Echo (ping) request
User Datagram Protocol, Src Port: 2152 (2152), Dst Port: 2152 (2152)
GPRS Tunneling Protocol
Flags: 0x32
001. .... = Version: GTP release 99 version (1)
...1 .... = Protocol type: GTP (1)
.... 0... = Reserved: 0
.... .0.. = Is Next Extension Header present?: No
.... ..1. = Is Sequence Number present?: Yes
.... ...0 = Is N-PDU number present?: No
Message Type: T-PDU (0xff)
Length: 88
TEID: 0x00000001
Sequence number: 0x0000
T-PDU Data 80 bytes
Internet Protocol Version 4, Src: 192.168.0.2 (192.168.0.2), Dst: 192.168.11.43 (192.168.11.43)
Internet Control Message Protocol
SOURCE: SAKURA Internet Research Center. 12/2015
NAT444
GGSN
SGSN
T-PDU
GTP
INTERNET

7. GTP Connection Analysis 6/7
6) GTP : T-PDU <ICMP> 138 Echo (ping) reply
User Datagram Protocol, Src Port: 2152 (2152), Dst Port: 2152 (2152)
GPRS Tunneling Protocol
Flags: 0x32
001. .... = Version: GTP release 99 version (1)
...1 .... = Protocol type: GTP (1)
.... 0... = Reserved: 0
.... .0.. = Is Next Extension Header present?: No
.... ..1. = Is Sequence Number present?: Yes
.... ...0 = Is N-PDU number present?: No
Message Type: T-PDU (0xff)
Length: 88
TEID: 0x00000001
Sequence number: 0x0000
T-PDU Data 80 bytes
Internet Protocol Version 4, Src: 192.168.11.43 (192.168.11.43), Dst: 192.168.0.2 (192.168.0.2)
Internet Control Message Protocol
SOURCE: SAKURA Internet Research Center. 12/2015
NAT444
GGSN
SGSN
T-PDU
GTP
INTERNET

8. GTP Connection Analysis 7/7
7) GTP : Delete PDP context request / response
User Datagram Protocol, Src Port: 2123 (2123), Dst Port: 2123 (2123)
GPRS Tunneling Protocol
Flags: 0x32
001. .... = Version: GTP release 99 version (1)
...1 .... = Protocol type: GTP (1)
.... 0... = Reserved: 0
.... .0.. = Is Next Extension Header present?: No
.... ..1. = Is Sequence Number present?: Yes
.... ...0 = Is N-PDU number present?: No
Message Type: Delete PDP context request (0x14)
Length: 8
TEID: 0x00000001
Sequence number: 0x1402
:
GPRS Tunneling Protocol
Flags: 0x32
001. .... = Version: GTP release 99 version (1)
...1 .... = Protocol type: GTP (1)
.... 0... = Reserved: 0
.... .0.. = Is Next Extension Header present?: No
.... ..1. = Is Sequence Number present?: Yes
.... ...0 = Is N-PDU number present?: No
Message Type: Delete PDP context response (0x15)
Length: 6
TEID: 0x00000001
Sequence number: 0x1402
Cause: Request accepted (128)
SOURCE: SAKURA Internet Research Center. 12/2015
NAT444
GGSN
SGSN
GTP
INTERNET
