In this basic tutorial we look at different types of RAN architectures that are always being discussed. We start with the Distributed RAN (D-RAN) and then look at Centralized and Cloud RAN (both referred to as C-RAN) architectures. We also quickly look at RAN functional splits for 5G and then tie this all together. We also look at how Samsung and Nokia discuss these architectures in the context of 5G. All our #3G4G5G slides and videos are available at: Videos: https://www.youtube.com/3G4G5G Slides: https://www.slideshare.net/3G4GLtd Open RAN Page: https://www.3g4g.co.uk/OpenRAN/ 5G Page: https://www.3g4g.co.uk/5G/ Free Training Videos: https://www.3g4g.co.uk/Training/

1. Beginners:
Different Types of RAN
Architectures
Distributed, Centralized & Cloud
@3g4gUK

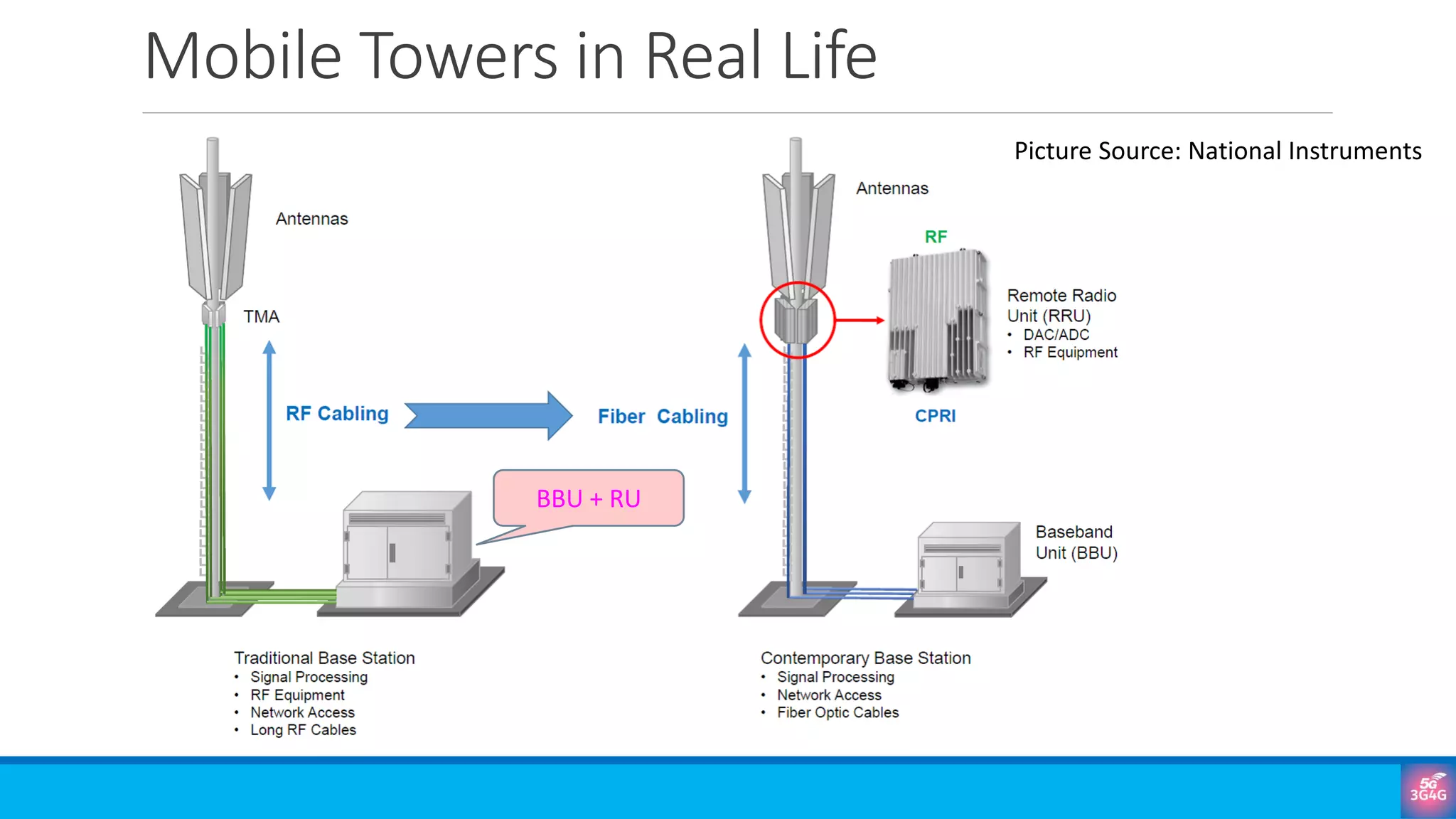

2. Mobile Towers in Real Life
BBU + RU
Picture Source: National Instruments

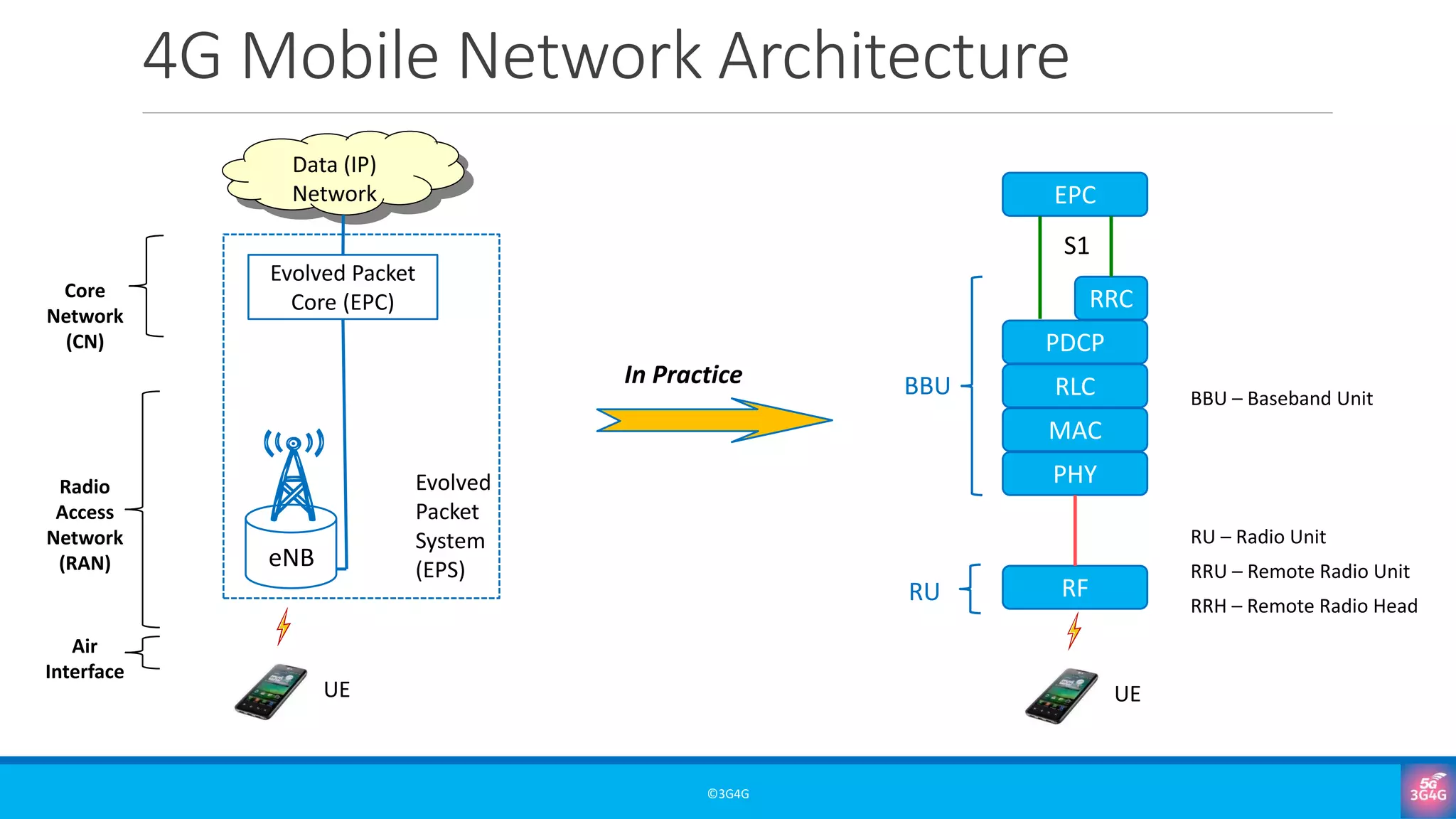

3. 4G Mobile Network Architecture
©3G4G
Air
Interface
Evolved Packet
Core (EPC)
Data (IP)
Network
eNB
UE
Evolved
Packet
System
(EPS)
Radio
Access
Network
(RAN)
Core
Network
(CN)
In Practice
PHY
MAC
RLC
PDCP
RRC
EPC
RF
BBU
S1
RU
UE
BBU – Baseband Unit
RU – Radio Unit
RRU – Remote Radio Unit
RRH – Remote Radio Head

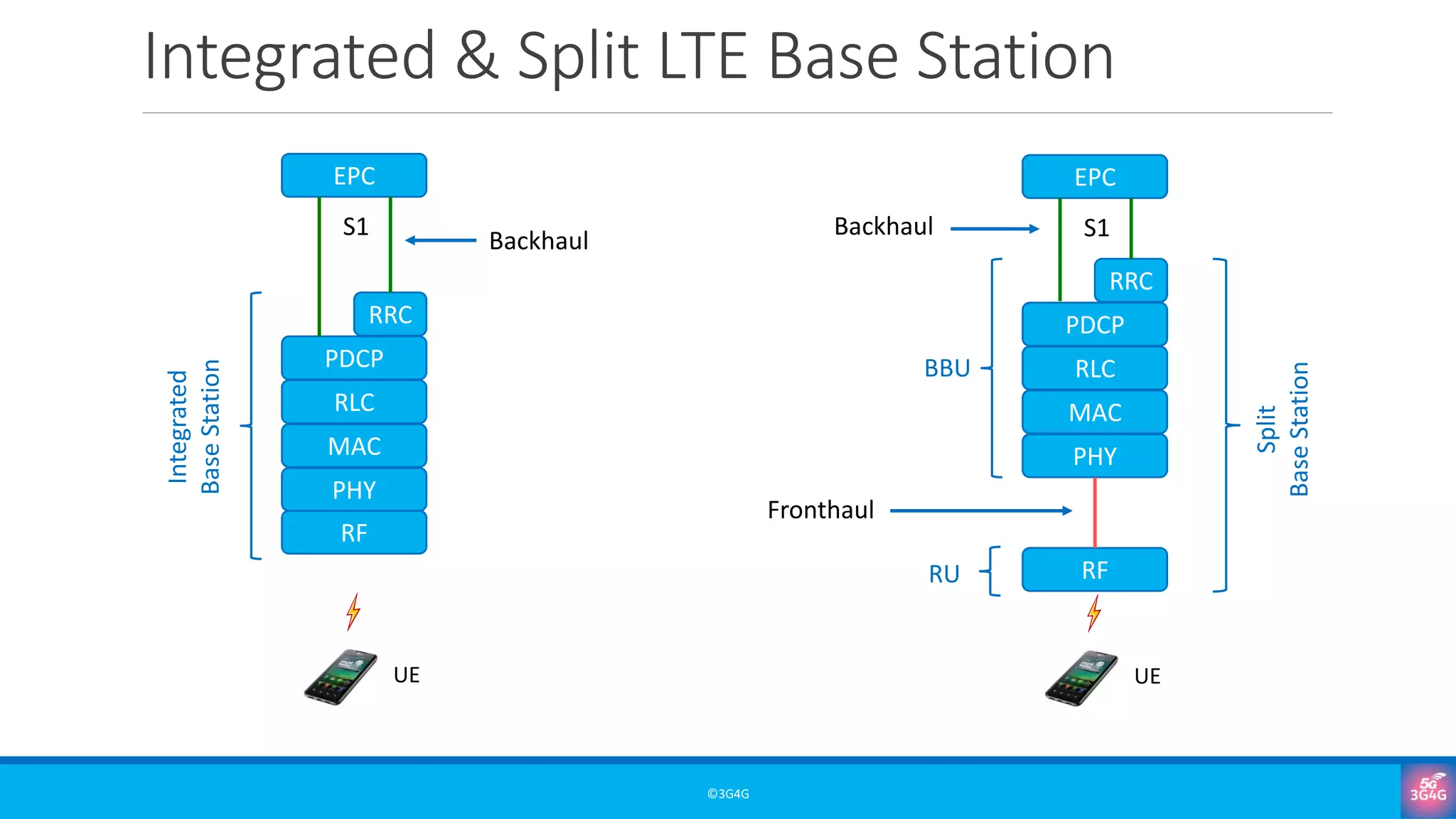

4. Integrated & Split LTE Base Station
©3G4G
PHY
MAC
RLC
PDCP
RRC
EPC
RF
BBU
S1
RU
UE
PHY
MAC
RLC
PDCP
RRC
EPC
RF
Integrated
Base
Station
S1
UE
Split
Base
Station
Backhaul
Backhaul
Fronthaul

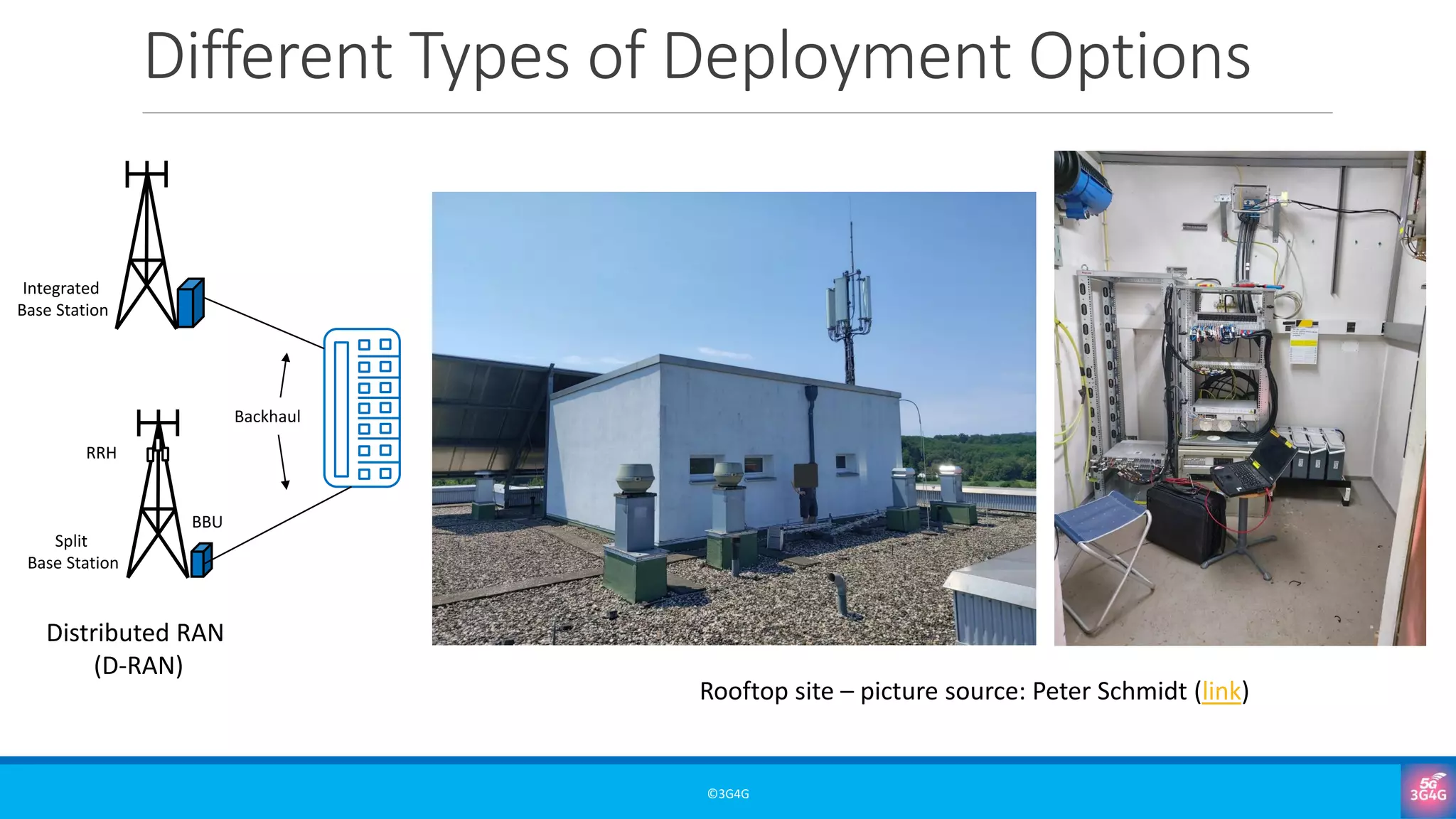

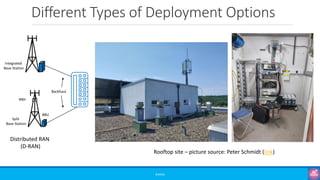

5. Different Types of Deployment Options
©3G4G
Distributed RAN
(D-RAN)
Integrated
Base Station
Split
Base Station
Backhaul
RRH
BBU
Rooftop site – picture source: Peter Schmidt (link)

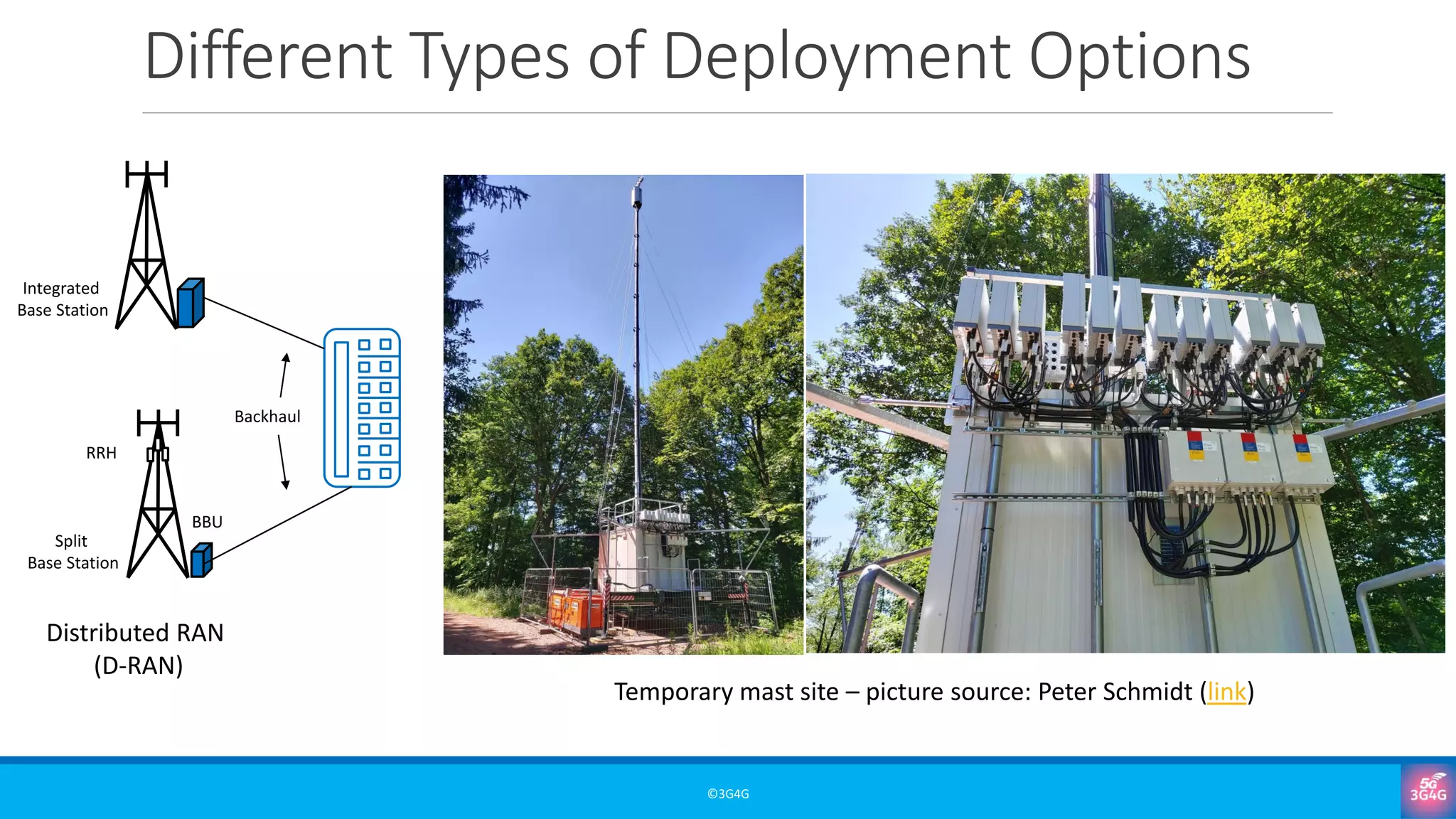

6. Different Types of Deployment Options
©3G4G
Distributed RAN
(D-RAN)
Integrated
Base Station
Split
Base Station
Backhaul
RRH
BBU
Temporary mast site – picture source: Peter Schmidt (link)

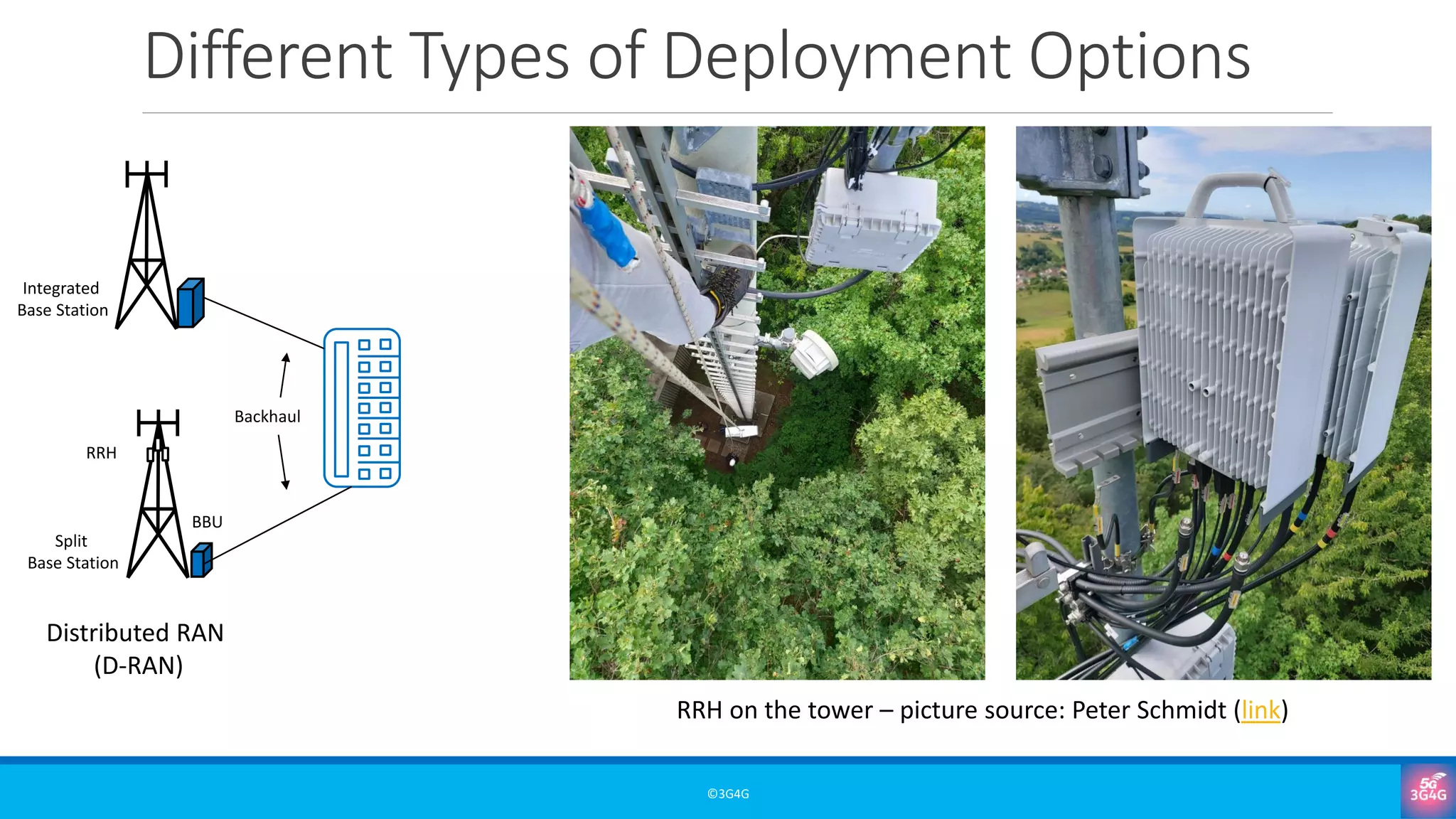

7. Different Types of Deployment Options
©3G4G
Distributed RAN
(D-RAN)
Integrated
Base Station
Split
Base Station
Backhaul
RRH
BBU
RRH on the tower – picture source: Peter Schmidt (link)

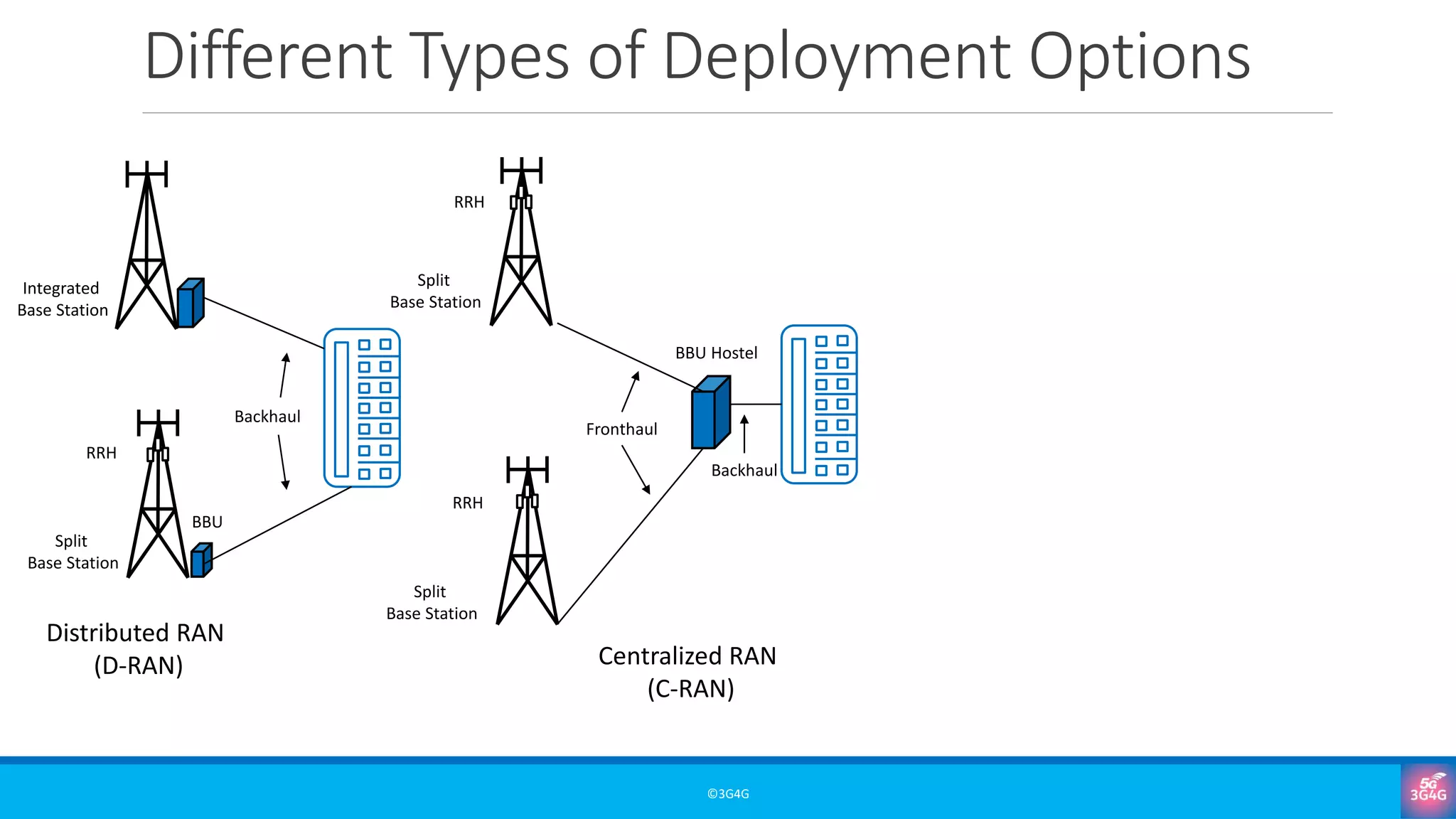

8. Different Types of Deployment Options
©3G4G
Distributed RAN
(D-RAN)
Integrated
Base Station
Split
Base Station
BBU Hostel
Backhaul
Backhaul
Fronthaul
Centralized RAN
(C-RAN)
Split
Base Station
Split
Base Station
RRH
BBU
RRH
RRH

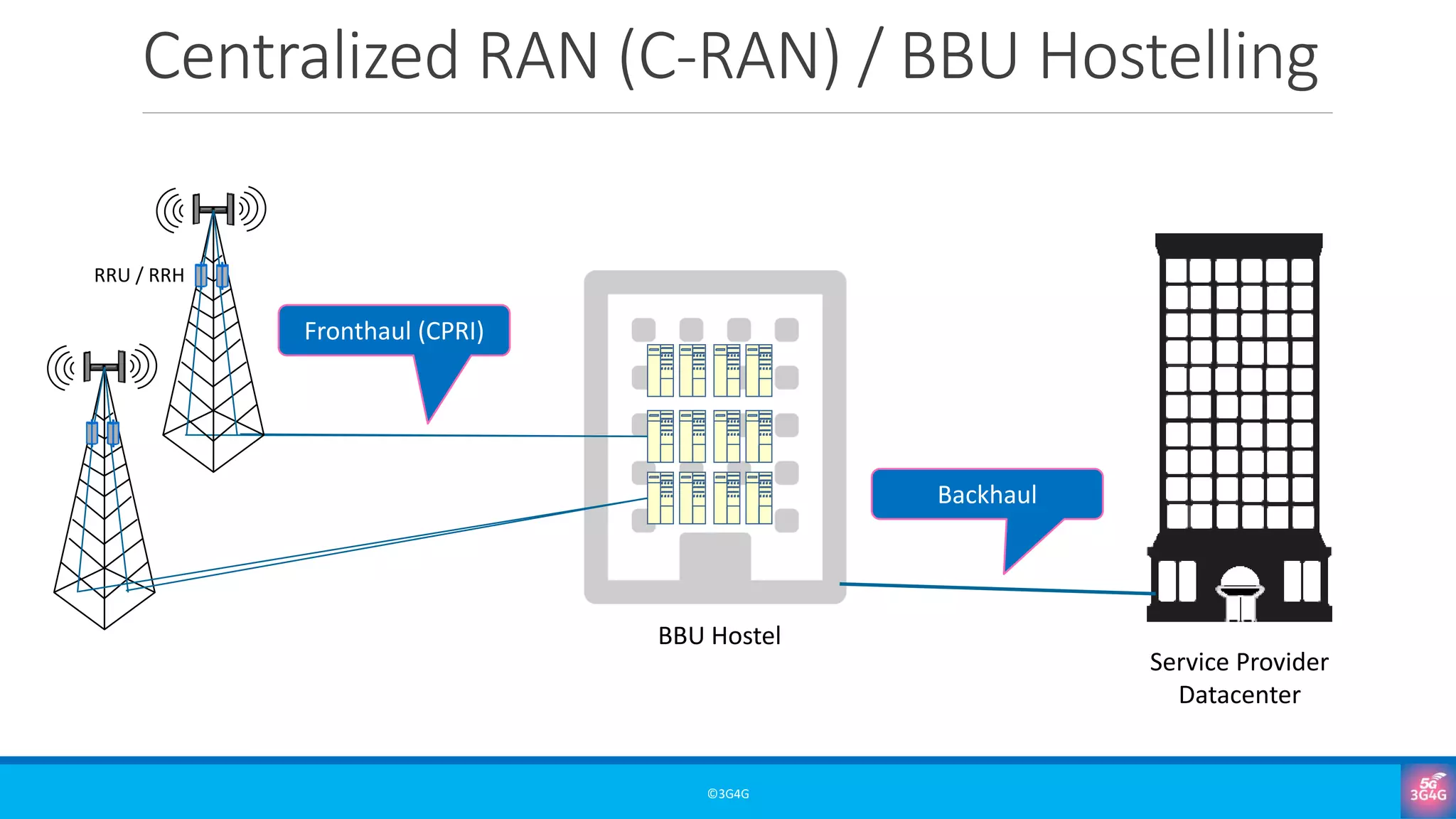

9. Centralized RAN (C-RAN) / BBU Hostelling
©3G4G
RRU / RRH
Fronthaul (CPRI)
Service Provider
Datacenter
Backhaul
BBU Hostel

10. Orange Labs Presentation, June 2013
©3G4G

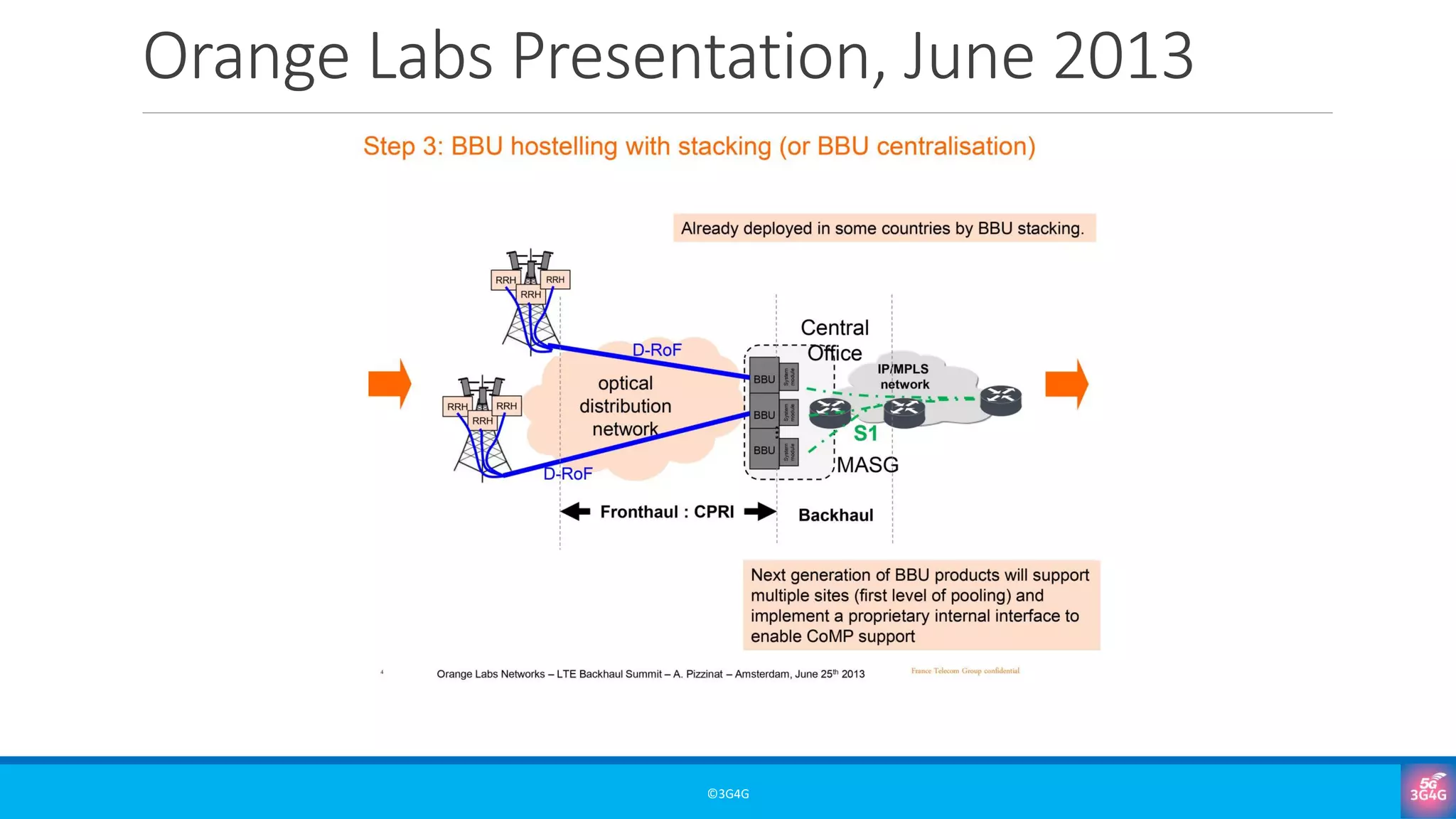

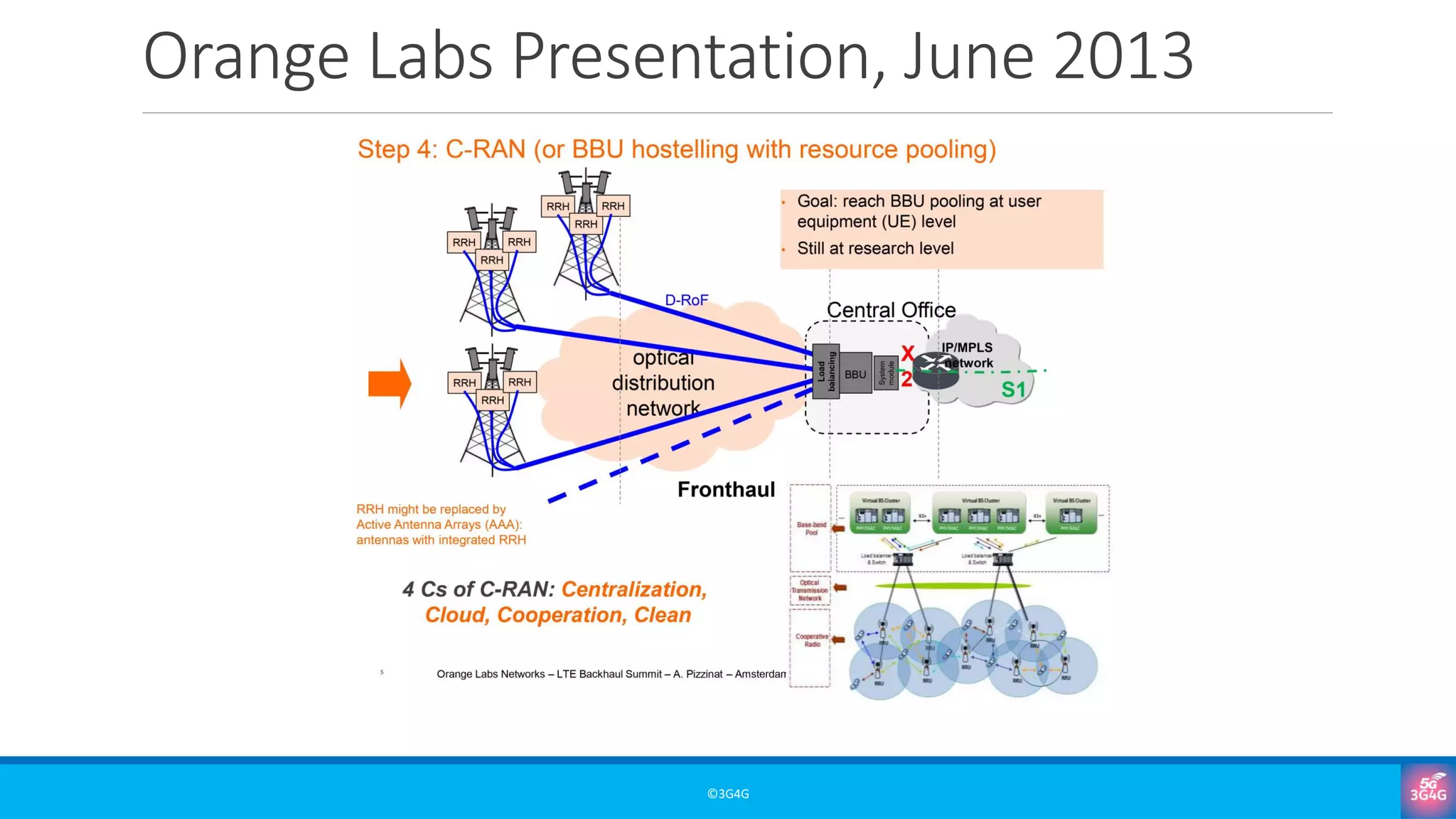

11. Orange Labs Presentation, June 2013
©3G4G

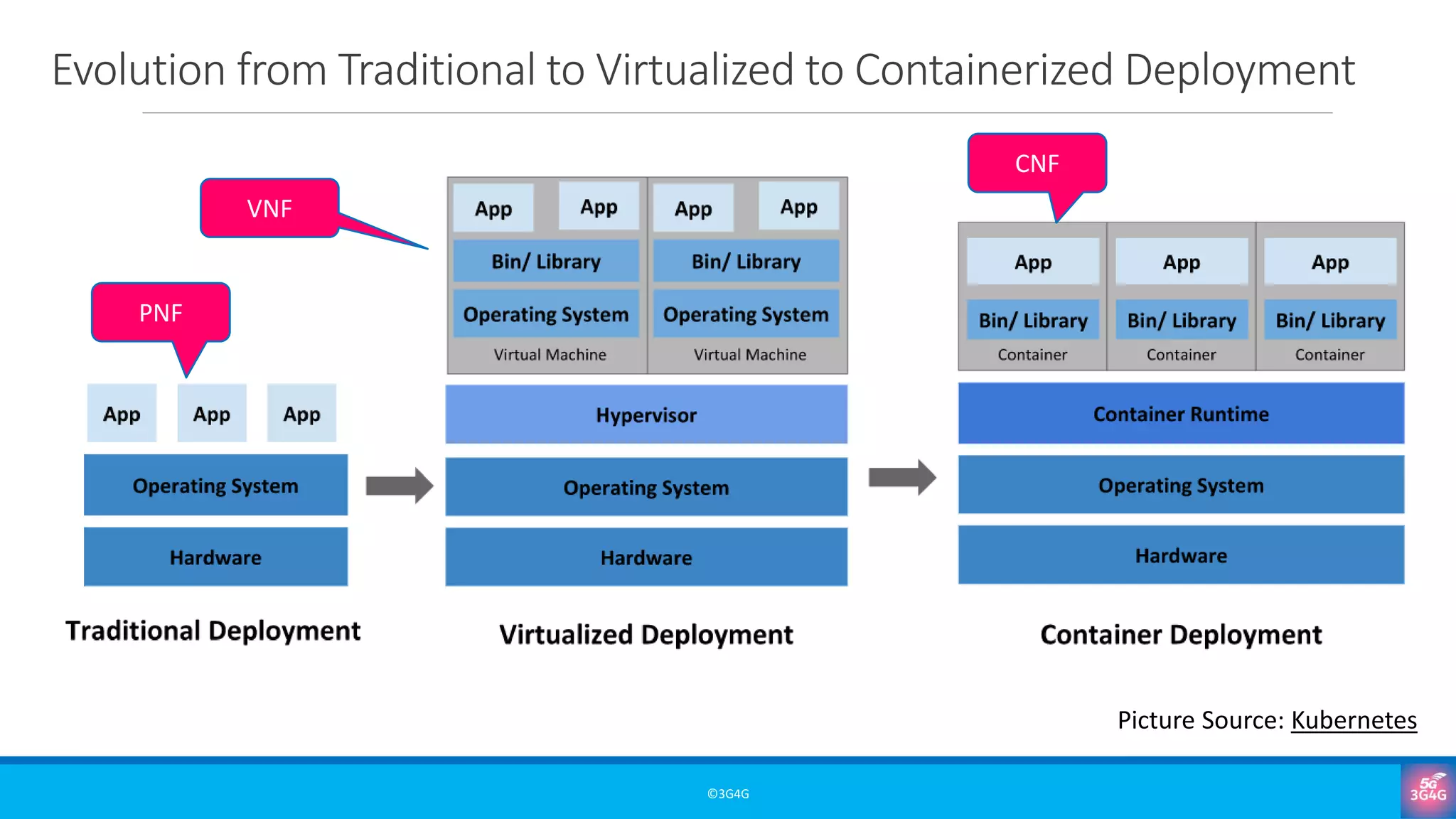

12. Evolution from Traditional to Virtualized to Containerized Deployment
©3G4G
Picture Source: Kubernetes
VNF
CNF
PNF

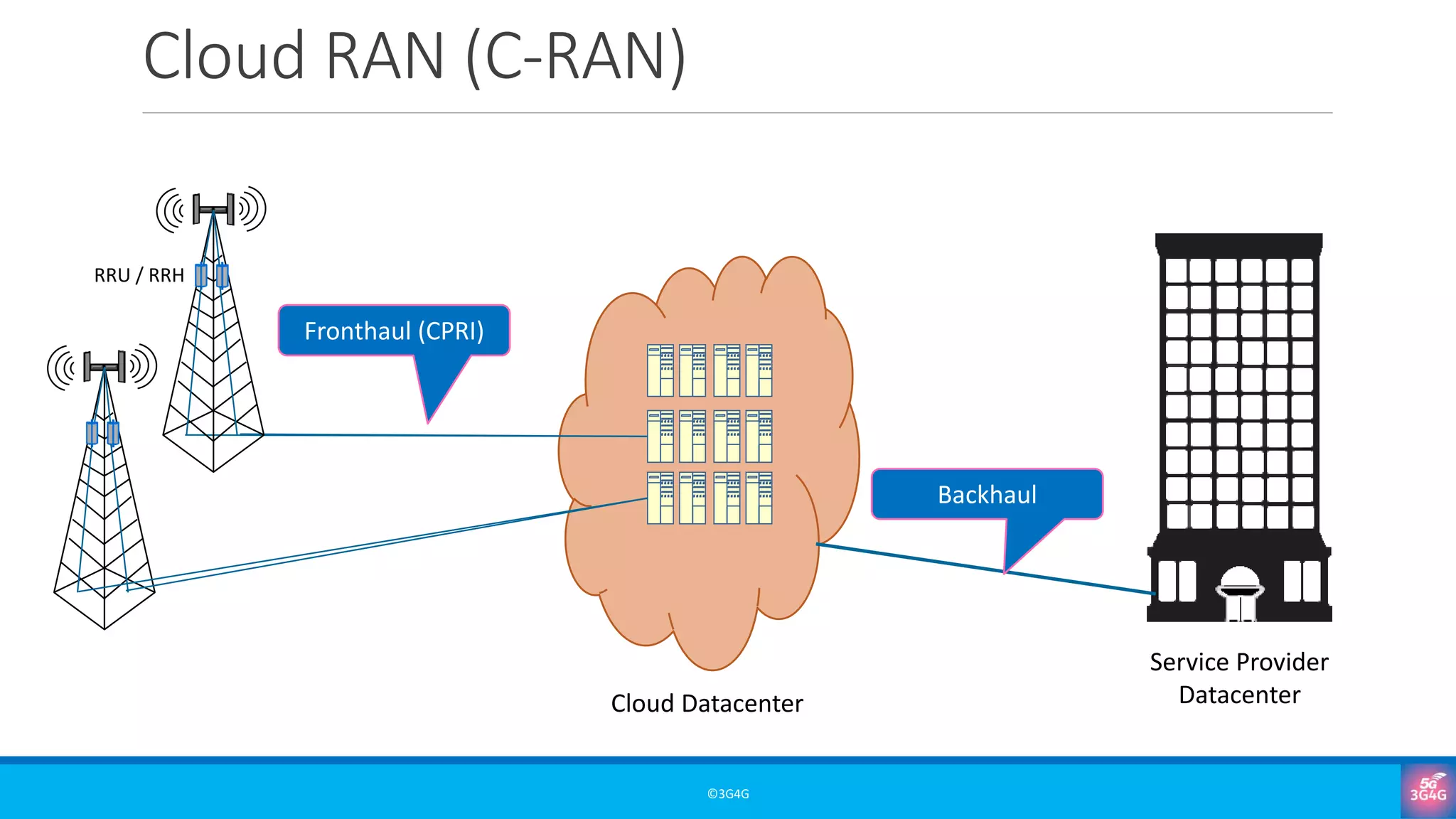

13. Cloud RAN (C-RAN)
©3G4G
RRU / RRH
Fronthaul (CPRI)
Service Provider
Datacenter
Backhaul
Cloud Datacenter

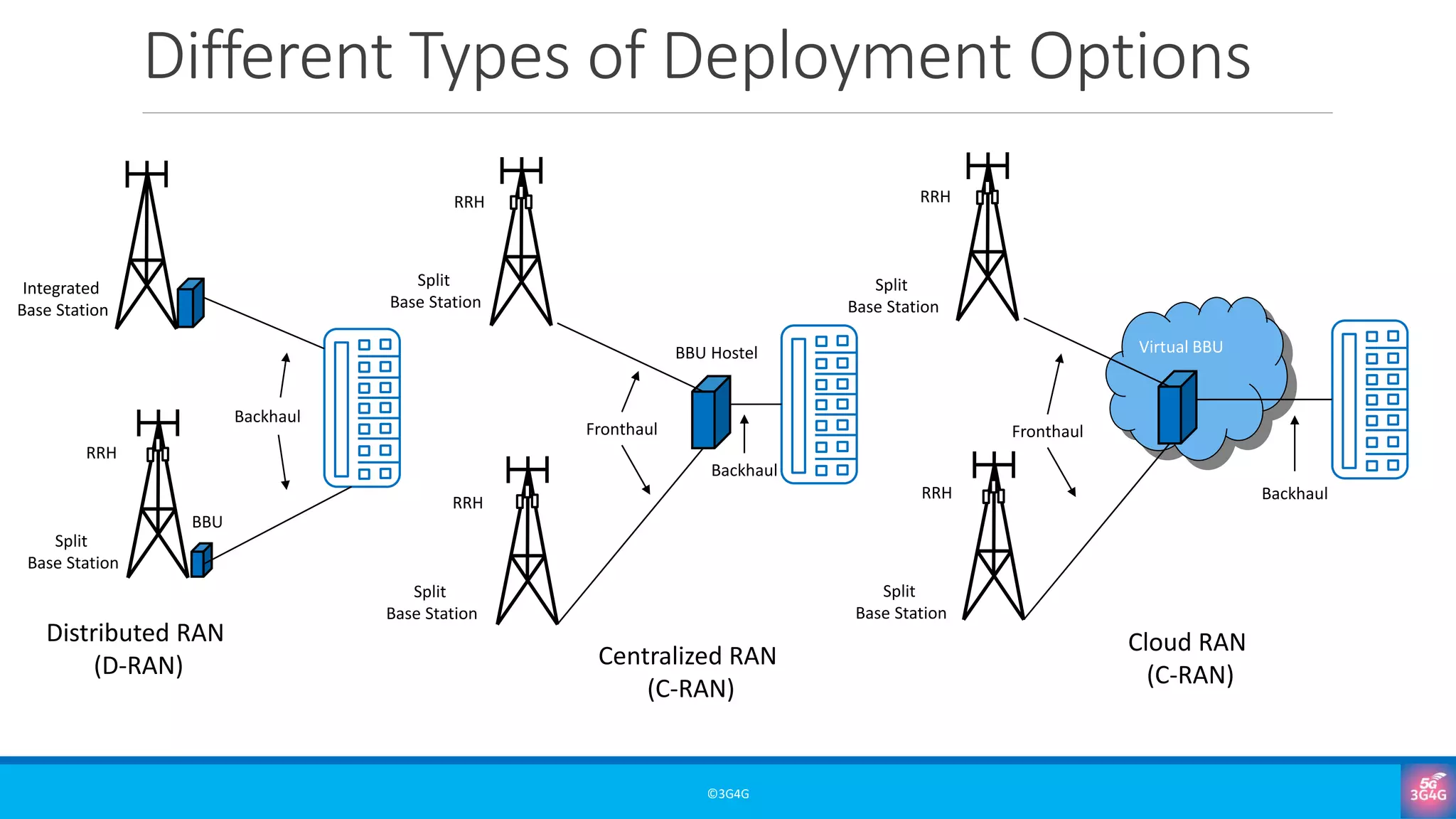

14. Different Types of Deployment Options
©3G4G
Distributed RAN
(D-RAN)
Integrated
Base Station
Split
Base Station
BBU Hostel
Backhaul
Backhaul
Fronthaul
Centralized RAN
(C-RAN)
Virtual BBU
Backhaul
Fronthaul
Cloud RAN
(C-RAN)
Split
Base Station
Split
Base Station
Split
Base Station
Split
Base Station
RRH
BBU
RRH RRH
RRH
RRH

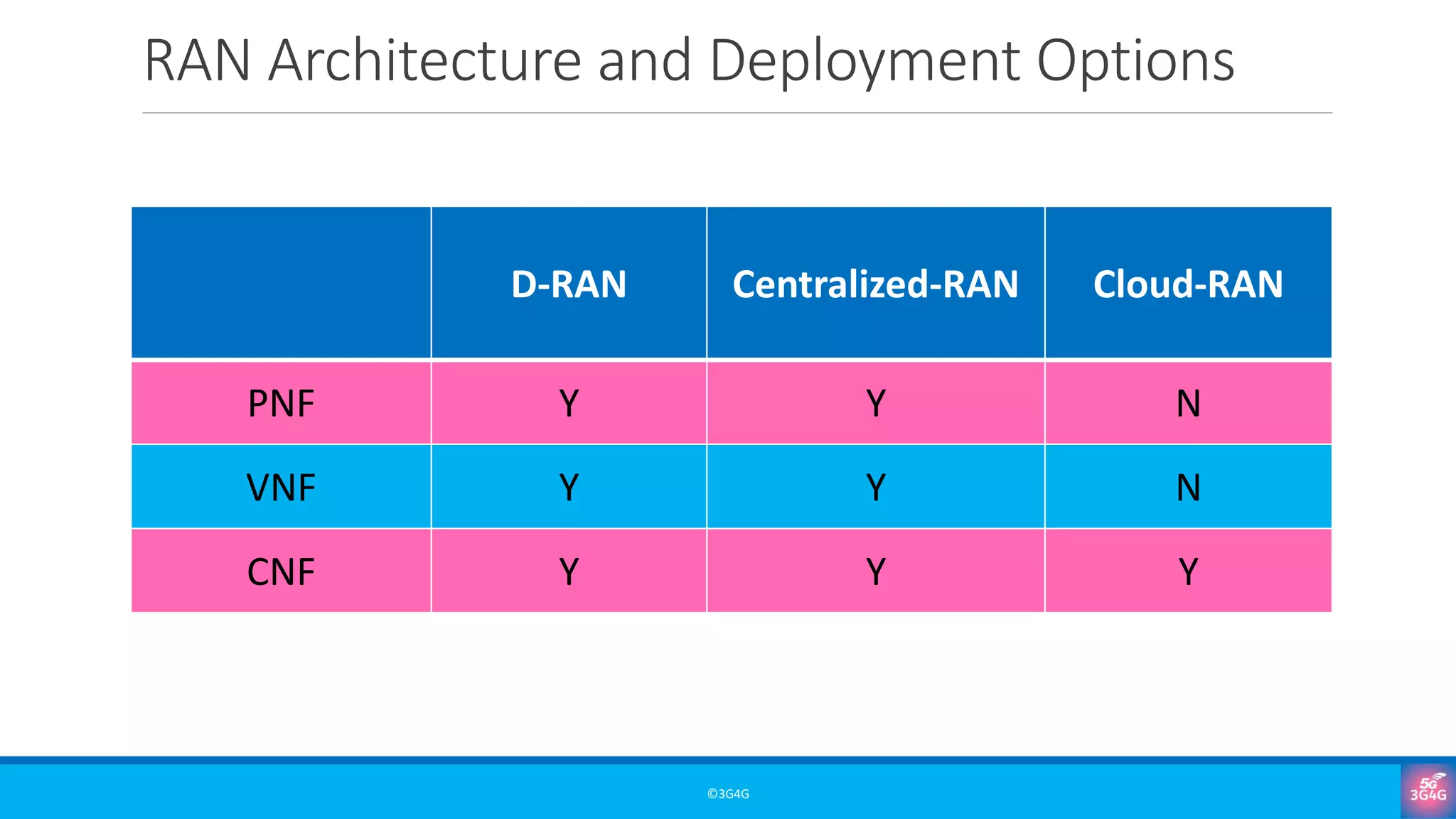

15. RAN Architecture and Deployment Options
©3G4G
D-RAN Centralized-RAN Cloud-RAN
PNF Y Y N
VNF Y Y N
CNF Y Y Y

16. Different Types of Deployment Options
©3G4G
Distributed RAN
(D-RAN)
Integrated
Base Station
Split
Base Station
BBU Hostel
Backhaul
Backhaul
Fronthaul
Centralized RAN
(C-RAN)
Virtual BBU
Backhaul
Fronthaul
Cloud RAN
(C-RAN)
Split
Base Station
Split
Base Station
Split
Base Station
Split
Base Station
RRH
BBU
RRH RRH
RRH
RRH

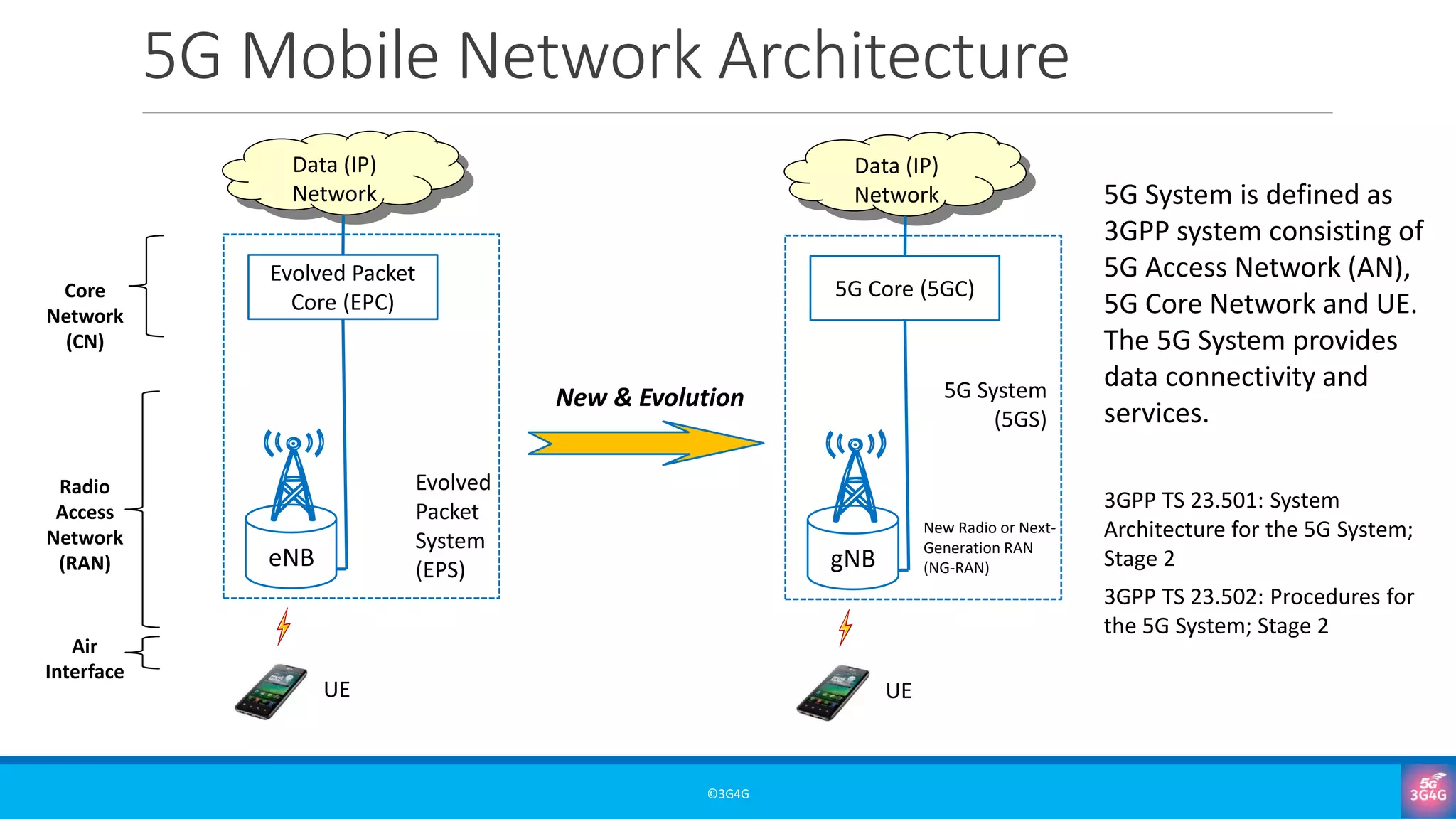

17. 5G Mobile Network Architecture
©3G4G
Air
Interface
New & Evolution
Evolved Packet
Core (EPC)
Data (IP)
Network
eNB
UE
Evolved
Packet
System
(EPS)
5G Core (5GC)
Data (IP)
Network
gNB
UE
5G System
(5GS)
New Radio or Next-
Generation RAN
(NG-RAN)
Radio
Access
Network
(RAN)
Core
Network
(CN)
5G System is defined as
3GPP system consisting of
5G Access Network (AN),
5G Core Network and UE.
The 5G System provides
data connectivity and
services.
3GPP TS 23.501: System
Architecture for the 5G System;
Stage 2
3GPP TS 23.502: Procedures for
the 5G System; Stage 2

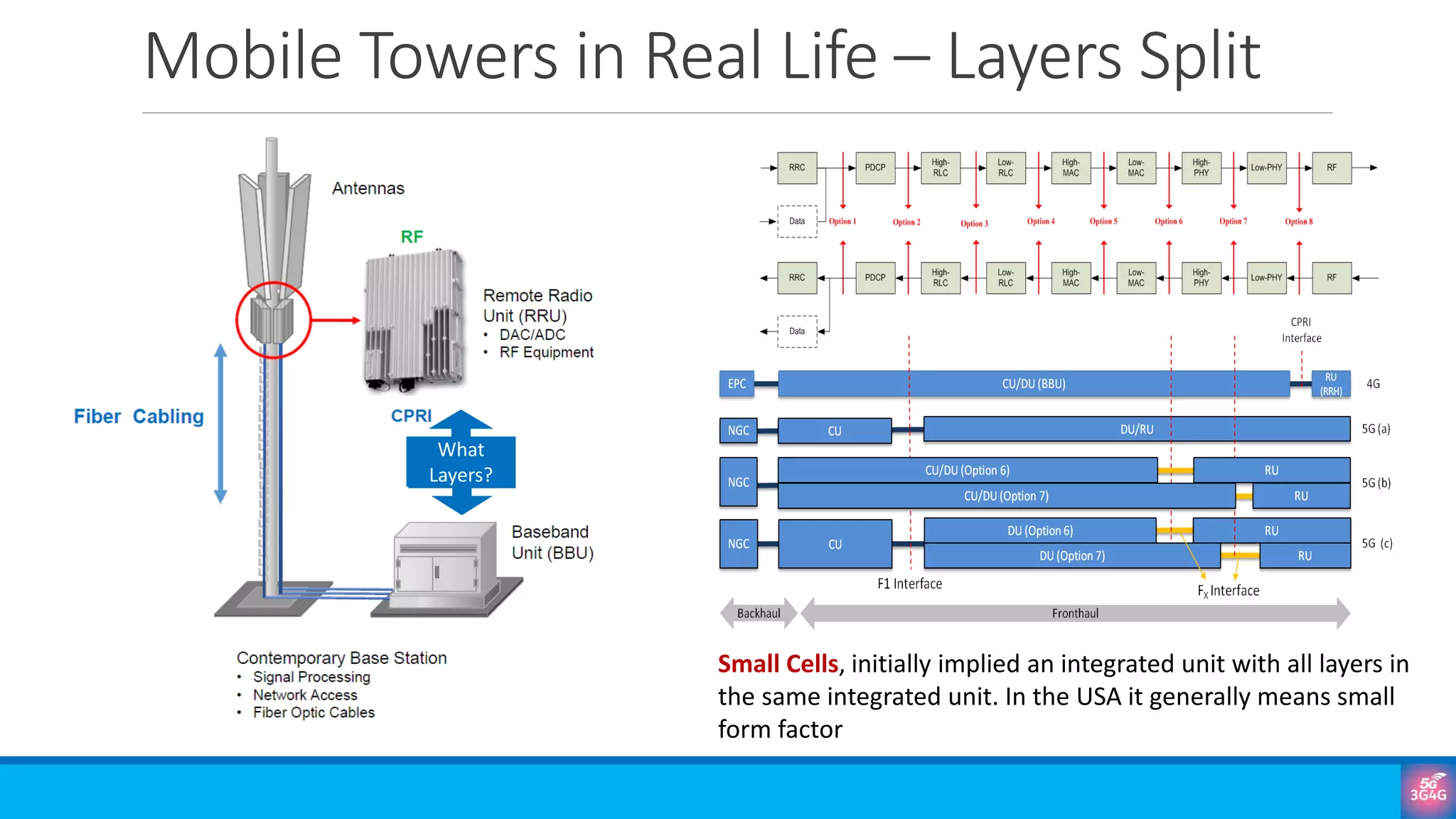

18. Mobile Towers in Real Life – Layers Split
What
Layers?
Small Cells, initially implied an integrated unit with all layers in
the same integrated unit. In the USA it generally means small
form factor

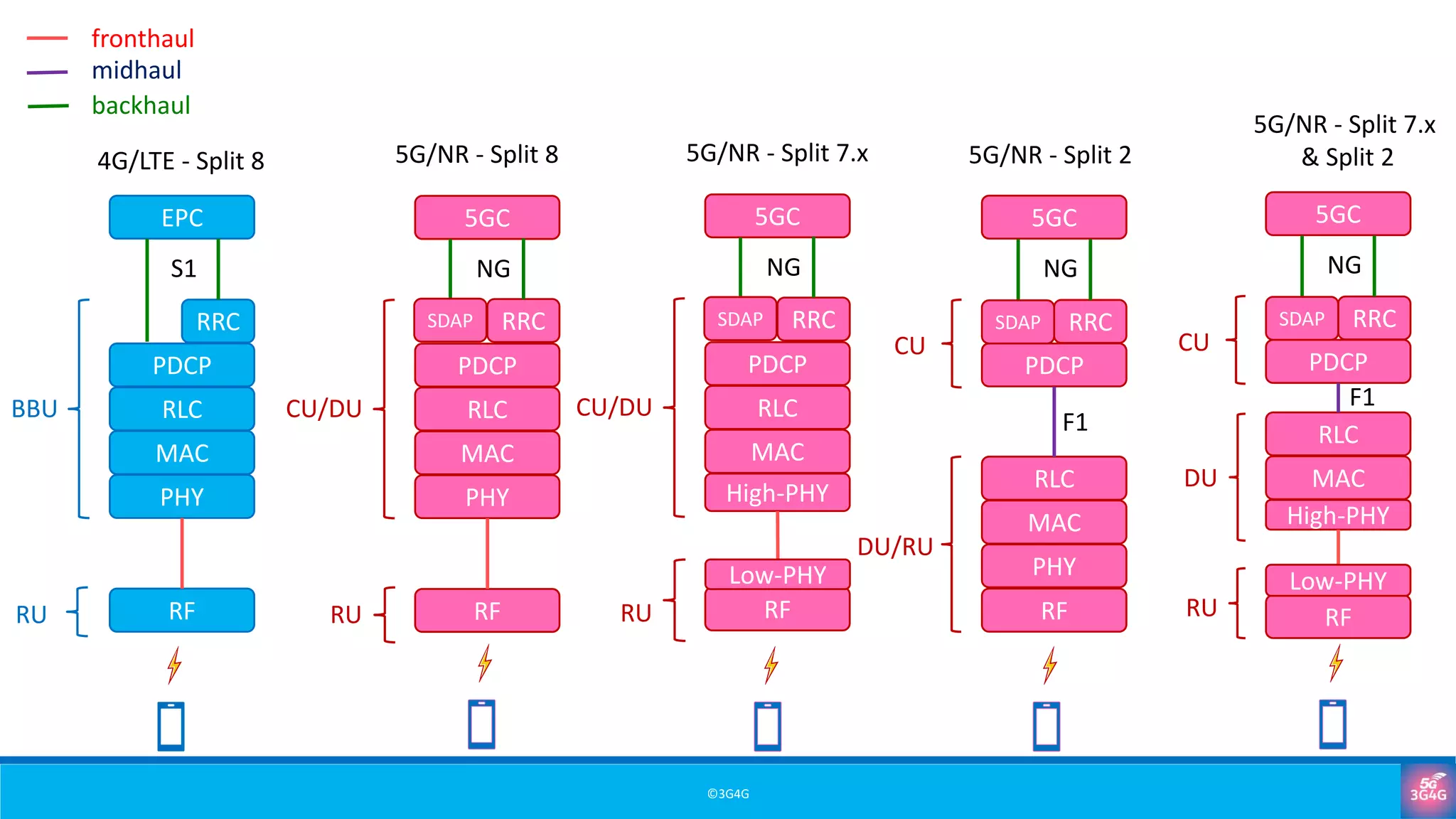

19. ©3G4G
PHY
MAC
RLC
PDCP
RRC
EPC
RF
4G/LTE - Split 8
fronthaul
backhaul
midhaul
BBU
S1
PHY
MAC
RLC
PDCP
RRC
5GC
RF
CU/DU
NG
5G/NR - Split 8
SDAP
PHY
MAC
RLC
PDCP
RRC
5GC
RF
CU
NG
SDAP
DU/RU
5G/NR - Split 2
F1
High-PHY
MAC
RLC
PDCP
RRC
5GC
RF
CU
NG
SDAP
DU
5G/NR - Split 7.x
& Split 2
F1
RU RU RU
High-PHY
MAC
RLC
PDCP
RRC
5GC
RF
CU/DU
NG
5G/NR - Split 7.x
SDAP
RU
Low-PHY Low-PHY

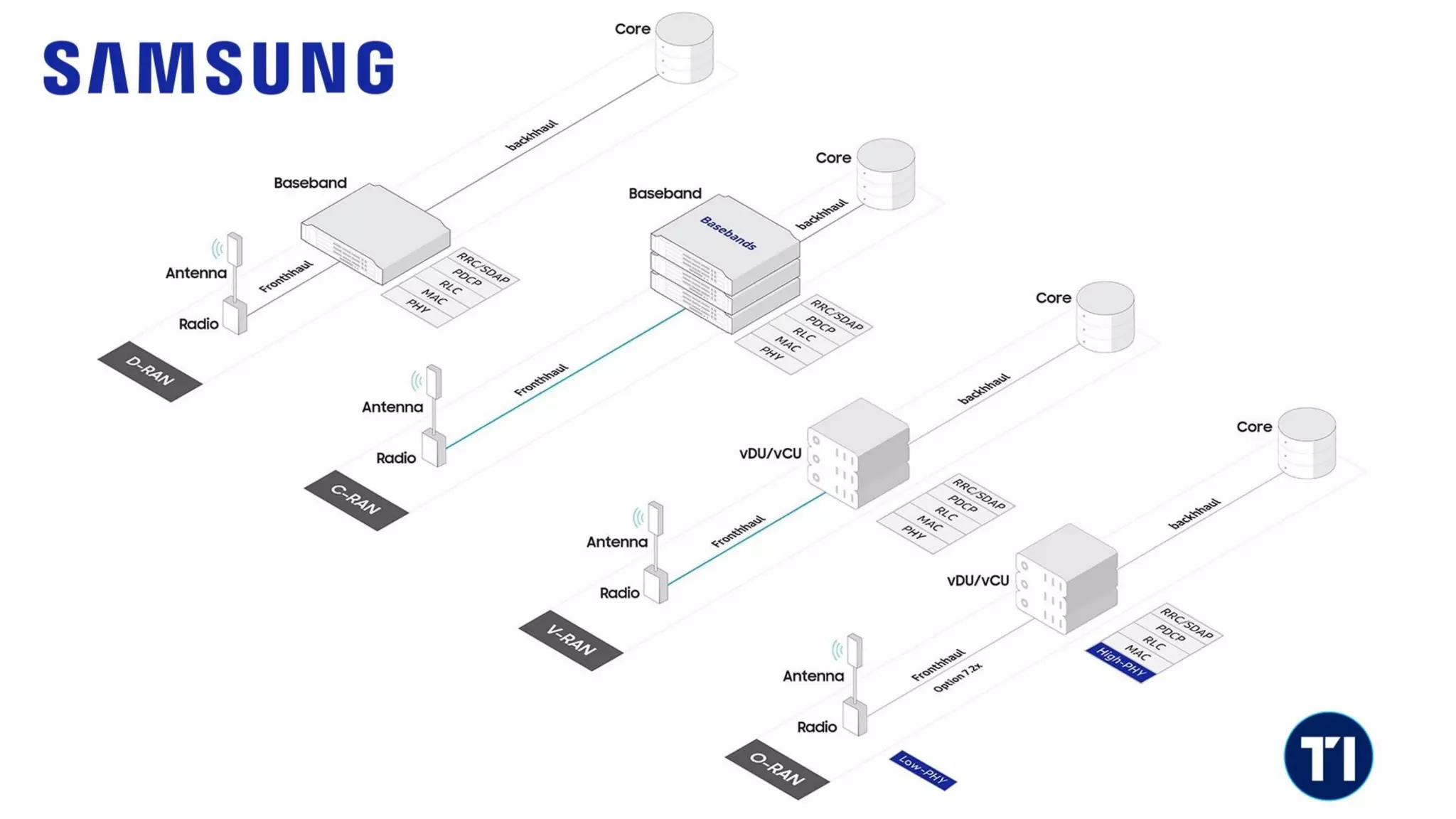

20. ©3G4G

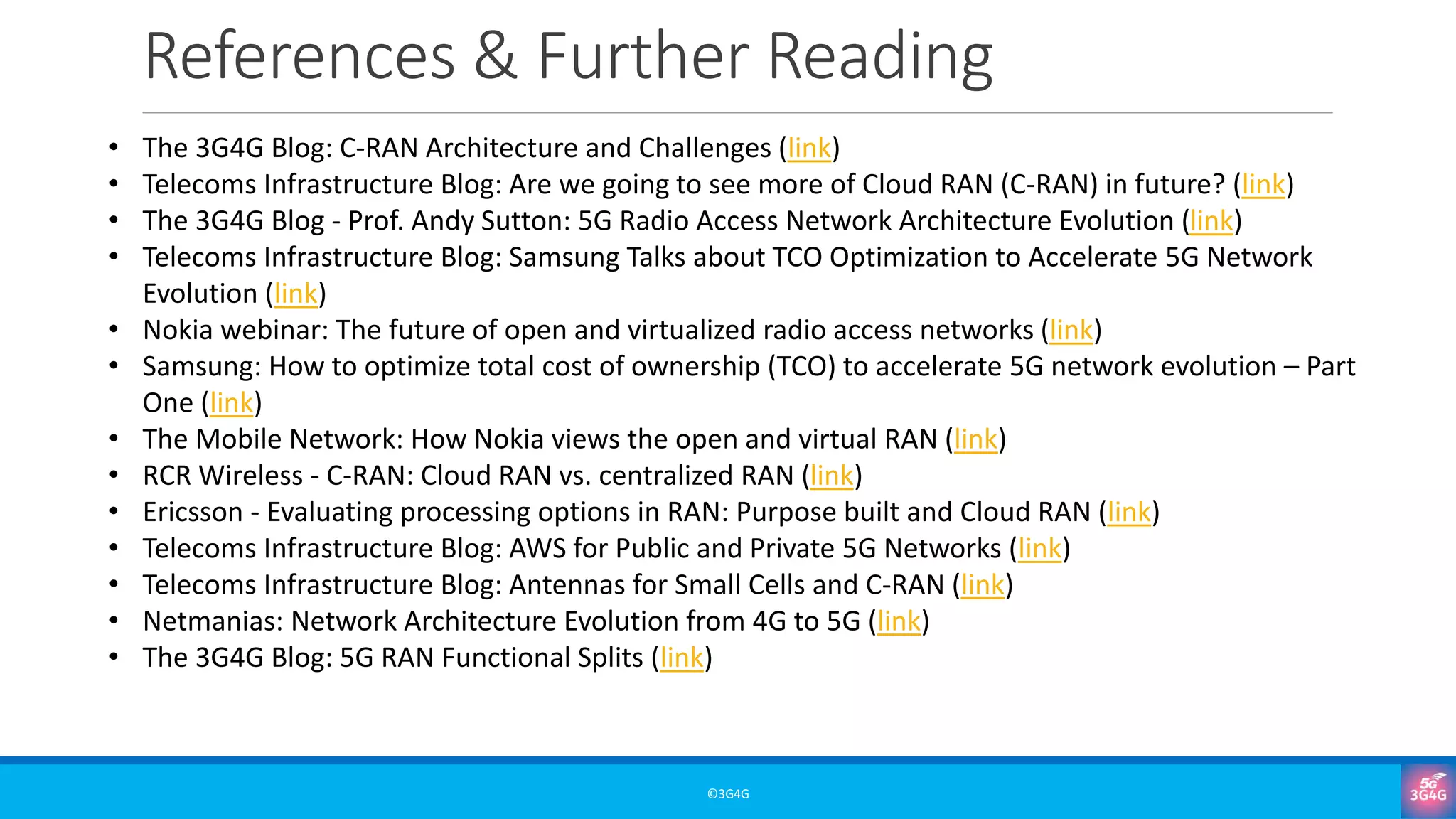

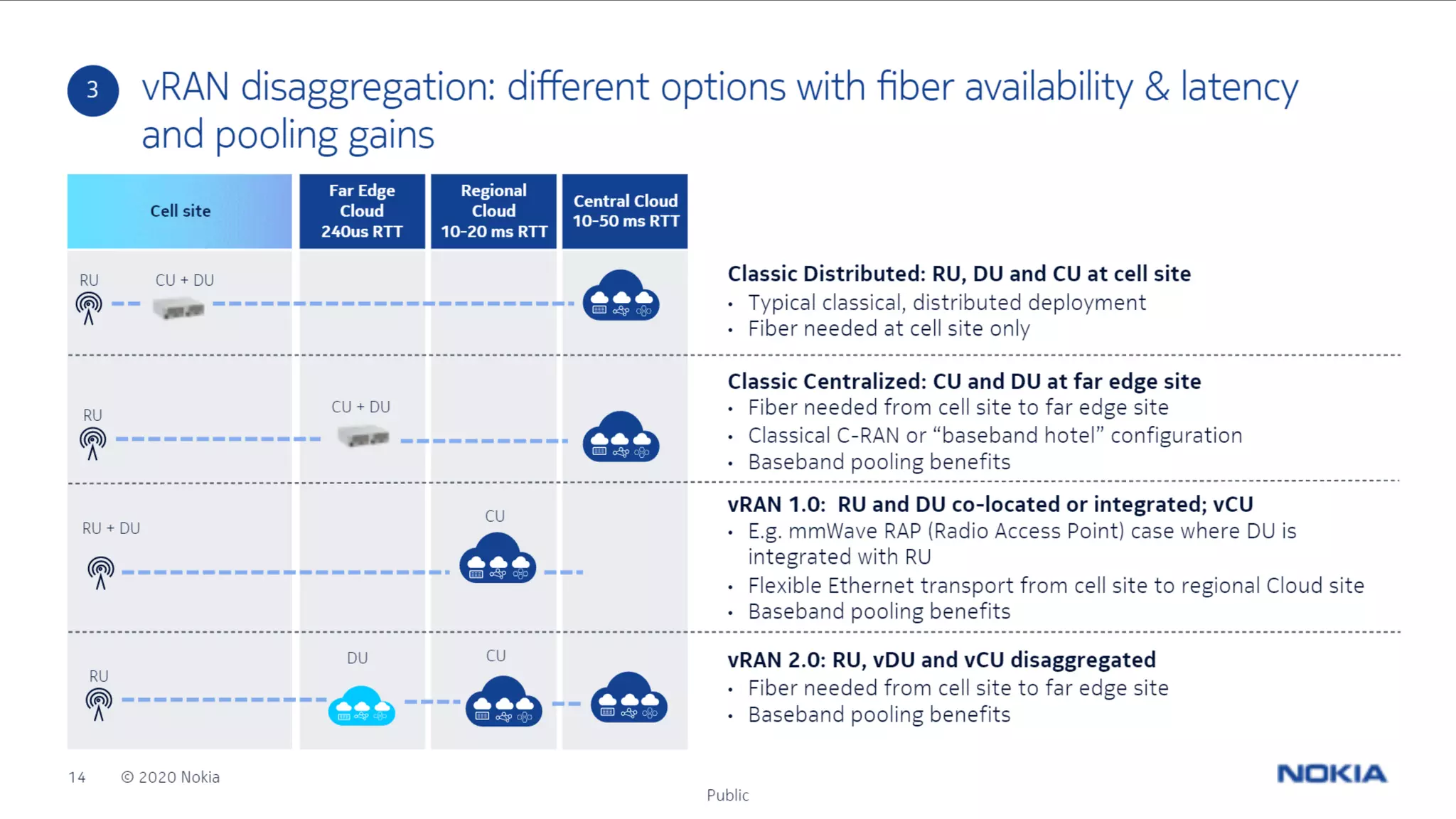

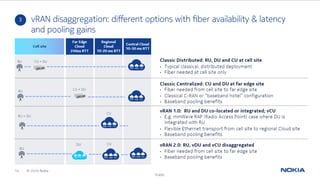

22. References & Further Reading
©3G4G
• The 3G4G Blog: C-RAN Architecture and Challenges (link)
• Telecoms Infrastructure Blog: Are we going to see more of Cloud RAN (C-RAN) in future? (link)
• The 3G4G Blog - Prof. Andy Sutton: 5G Radio Access Network Architecture Evolution (link)
• Telecoms Infrastructure Blog: Samsung Talks about TCO Optimization to Accelerate 5G Network
Evolution (link)
• Nokia webinar: The future of open and virtualized radio access networks (link)
• Samsung: How to optimize total cost of ownership (TCO) to accelerate 5G network evolution – Part
One (link)
• The Mobile Network: How Nokia views the open and virtual RAN (link)
• RCR Wireless - C-RAN: Cloud RAN vs. centralized RAN (link)
• Ericsson - Evaluating processing options in RAN: Purpose built and Cloud RAN (link)
• Telecoms Infrastructure Blog: AWS for Public and Private 5G Networks (link)
• Telecoms Infrastructure Blog: Antennas for Small Cells and C-RAN (link)
• Netmanias: Network Architecture Evolution from 4G to 5G (link)
• The 3G4G Blog: 5G RAN Functional Splits (link)

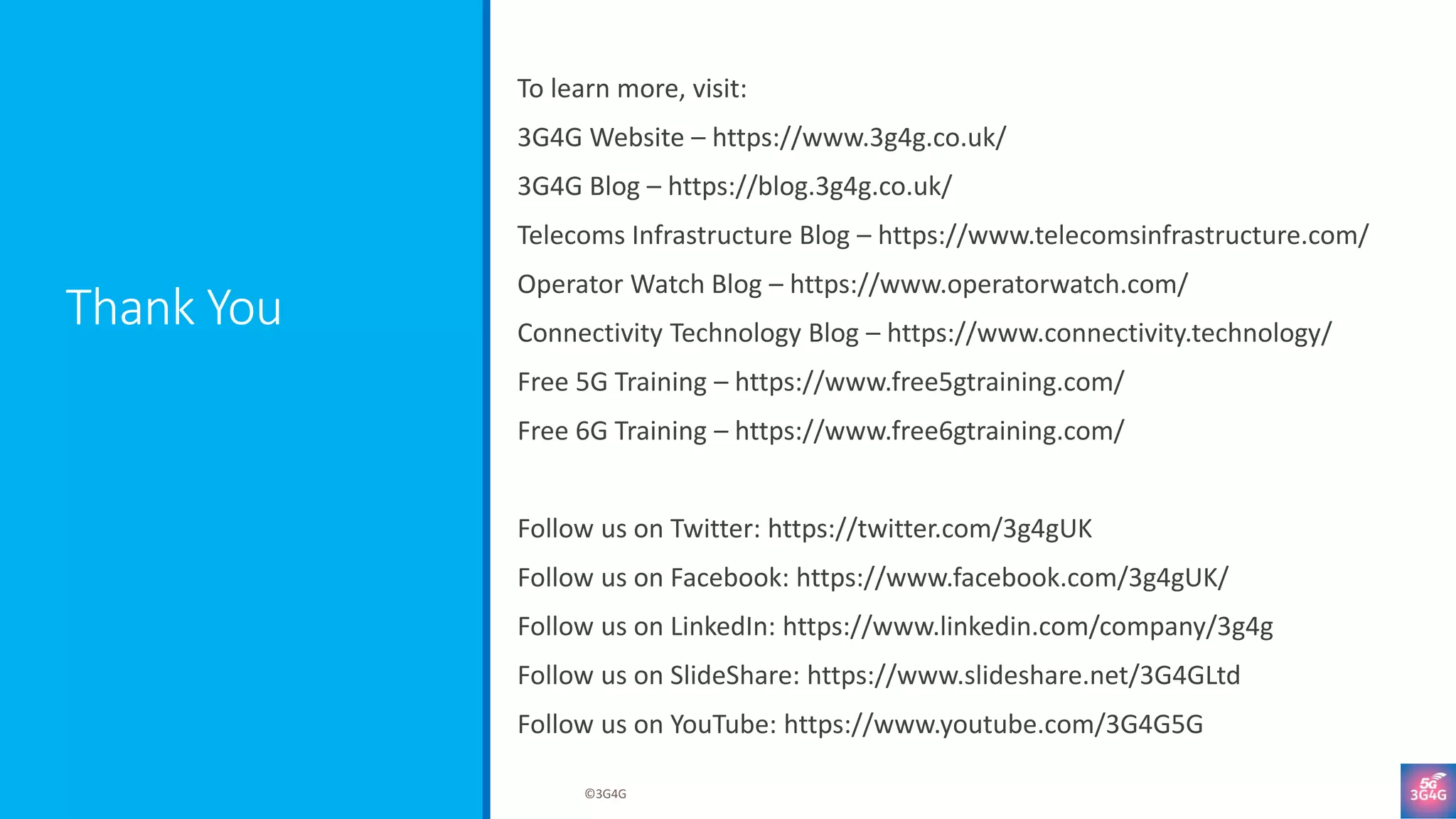

23. Thank You
