This document provides specifications for an AC 3 Phase 6540 TENV motor with a PS 1900 180:1 ratio gearbox. Key specifications include a voltage of 230V 60Hz, speed of 1460 rpm, output of 0.0135 HP at 8.1 rpm, and torque measurements for startup, operating, and breakdown conditions. Charts show efficiency curves for the gearbox, motor, and overall system at varying torque and speed levels.

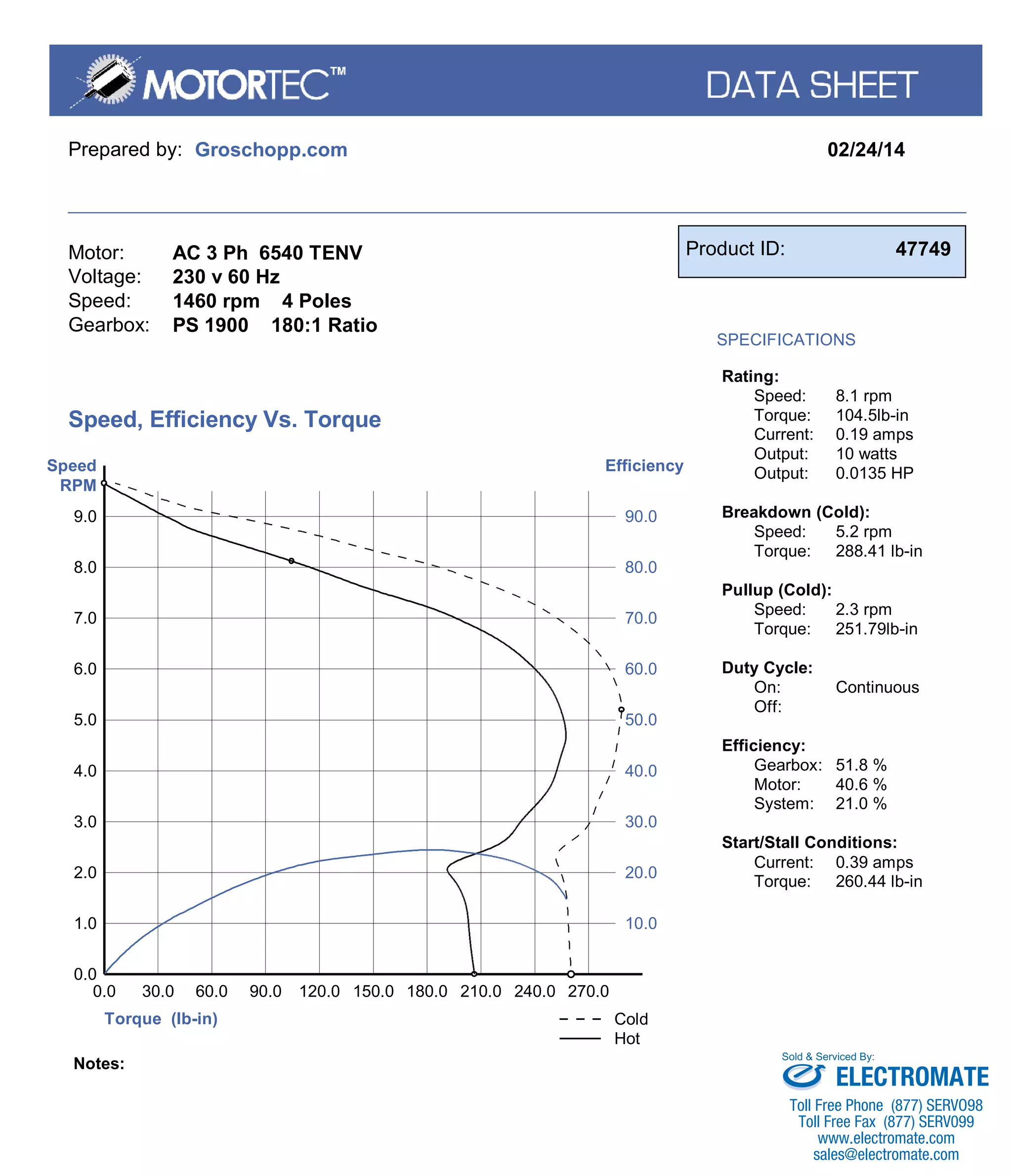

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
AC 3 Ph 6540 TENV
230 v 60 Hz
1460 rpm 4 Poles
PS 1900 180:1 Ratio
Product ID: 47749
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
8.1 rpm
104.5lb-in
0.19 amps
10 watts
0.0135 HP
Breakdown (Cold):
Speed:
Torque:
5.2 rpm
288.41 lb-in
Pullup (Cold):
Speed:
Torque:
2.3 rpm
251.79lb-in
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
51.8 %
40.6 %
21.0 %
Start/Stall Conditions:
Current:
Torque:
0.39 amps
260.44 lb-in
Torque (lb-in)
Speed
RPM
Efficiency
1.0
0.0
0.0
30.0
2.0
60.0
3.0
90.0
4.0
120.0
5.0
150.0
6.0
180.0
7.0
210.0
8.0
240.0
9.0
270.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
