This document provides specifications for a small AC motor including its voltage, speed, gearbox ratio, and performance metrics like torque and efficiency at varying speeds. It lists the motor as a 1 Ph 6540 TENV AC motor running at 230v 60Hz with a 1500 rpm speed and 5:1 ratio gearbox. Charts show its torque, speed, current and efficiency at different loads both cold and hot.

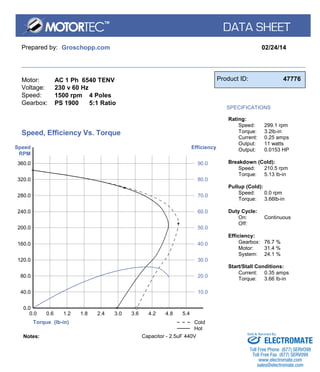

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
AC 1 Ph 6540 TENV
230 v 60 Hz
1500 rpm 4 Poles
PS 1900 5:1 Ratio
Product ID: 47776
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
299.1 rpm
3.2lb-in
0.25 amps
11 watts
0.0153 HP
Breakdown (Cold):
Speed:
Torque:
210.5 rpm
5.13 lb-in
Pullup (Cold):
Speed:
Torque:
0.0 rpm
3.66lb-in
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
76.7 %
31.4 %
24.1 %
Start/Stall Conditions:
Current:
Torque:
0.35 amps
3.66 lb-in
Torque (lb-in)
Speed
RPM
Efficiency
40.0
0.0
0.0
0.6
80.0
1.2
120.0
1.8
160.0
2.4
200.0
3.0
240.0
3.6
280.0
4.2
320.0
4.8
360.0
5.4
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes: Capacitor - 2.5uF 440V
