This document provides specifications for a small AC motor including its voltage, speed, gearbox ratio, product ID number, ratings for speed, torque, current and output. It also details startup, stall, efficiency and speed vs torque performance curves for the motor both cold and hot. The motor is to be continuously run and is sold and serviced by Electromate.

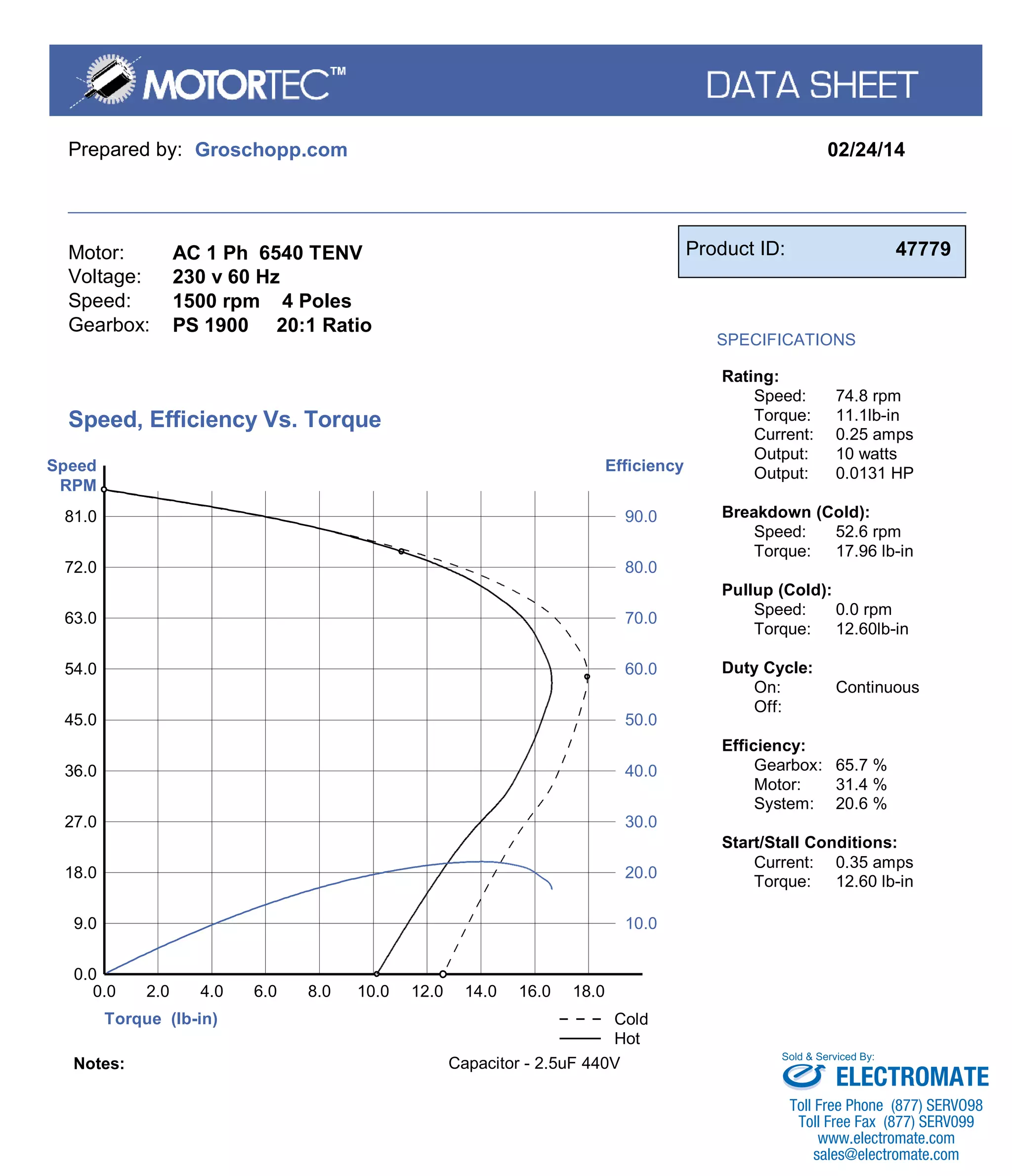

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
AC 1 Ph 6540 TENV
230 v 60 Hz
1500 rpm 4 Poles
PS 1900 20:1 Ratio
Product ID: 47779
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
74.8 rpm
11.1lb-in
0.25 amps
10 watts
0.0131 HP
Breakdown (Cold):
Speed:
Torque:
52.6 rpm
17.96 lb-in
Pullup (Cold):
Speed:
Torque:
0.0 rpm
12.60lb-in
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
65.7 %
31.4 %
20.6 %
Start/Stall Conditions:
Current:
Torque:
0.35 amps
12.60 lb-in
Torque (lb-in)
Speed
RPM
Efficiency
9.0
0.0
0.0
2.0
18.0
4.0
27.0
6.0
36.0
8.0
45.0
10.0
54.0
12.0
63.0
14.0
72.0
16.0
81.0
18.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes: Capacitor - 2.5uF 440V
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
