This document provides specifications for an AC 3 Phase 6540 TENV motor with a 5:1 ratio gearbox. Key specifications include a no-load speed of 542 rpm, maximum torque of 15.34 lb-in, start/stall current of 1 amp, and maximum efficiencies of 82.8% for the gearbox and 51.1% for the motor. Performance curves show speed, torque, and efficiency over a range of torques from 0 to 480 rpm.

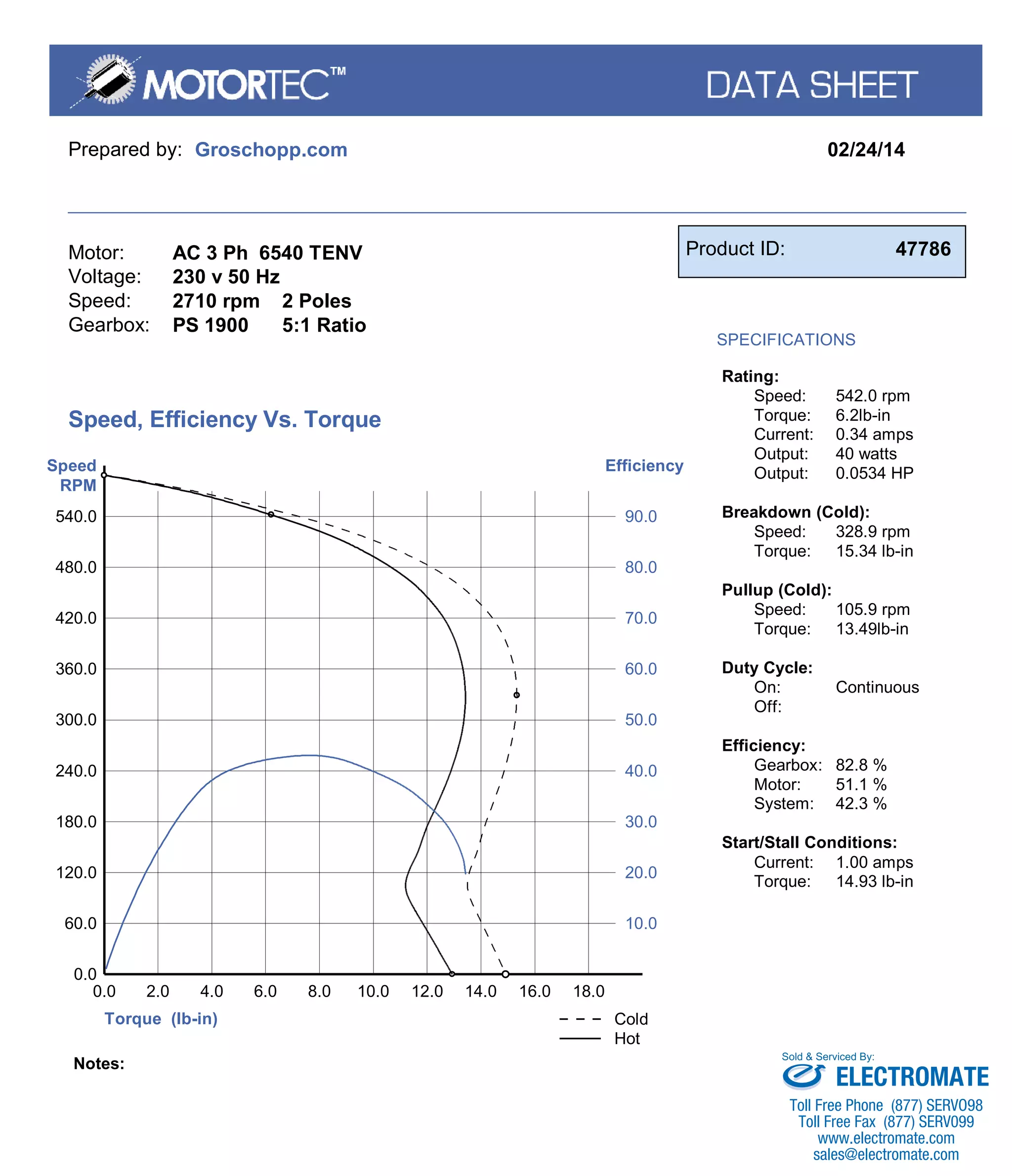

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
AC 3 Ph 6540 TENV
230 v 50 Hz
2710 rpm 2 Poles
PS 1900 5:1 Ratio
Product ID: 47786
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
542.0 rpm
6.2lb-in
0.34 amps
40 watts
0.0534 HP
Breakdown (Cold):
Speed:
Torque:
328.9 rpm
15.34 lb-in
Pullup (Cold):
Speed:
Torque:
105.9 rpm
13.49lb-in
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
82.8 %
51.1 %
42.3 %
Start/Stall Conditions:
Current:
Torque:
1.00 amps
14.93 lb-in
Torque (lb-in)
Speed
RPM
Efficiency
60.0
0.0
0.0
2.0
120.0
4.0
180.0
6.0
240.0
8.0
300.0
10.0
360.0
12.0
420.0
14.0
480.0
16.0
540.0
18.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
