This document provides specifications for a 1 phase AC motor with a 5:1 ratio gearbox. It details the motor's voltage, speed, product ID number and other key specifications. Charts are included showing torque and efficiency at varying speeds both when cold and hot. The motor has a continuous duty cycle and is sold and serviced by Electromate.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
AC 1 Ph 6540 TEFC
230 v 60 Hz
1490 rpm 4 Poles
PS 1900 5:1 Ratio
Product ID: 47780
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
298.6 rpm
4.1lb-in
0.33 amps
15 watts
0.0197 HP
Breakdown (Cold):
Speed:
Torque:
203.1 rpm
6.51 lb-in
Pullup (Cold):
Speed:
Torque:
0.0 rpm
5.19lb-in
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
79.4 %
28.6 %
22.7 %
Start/Stall Conditions:
Current:
Torque:
0.43 amps
5.19 lb-in
Torque (lb-in)
Speed
RPM
Efficiency
40.0
0.0
0.0
0.7
80.0
1.4
120.0
2.1
160.0
2.8
200.0
3.5
240.0
4.2
280.0
4.9
320.0
5.6
360.0
6.3
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0

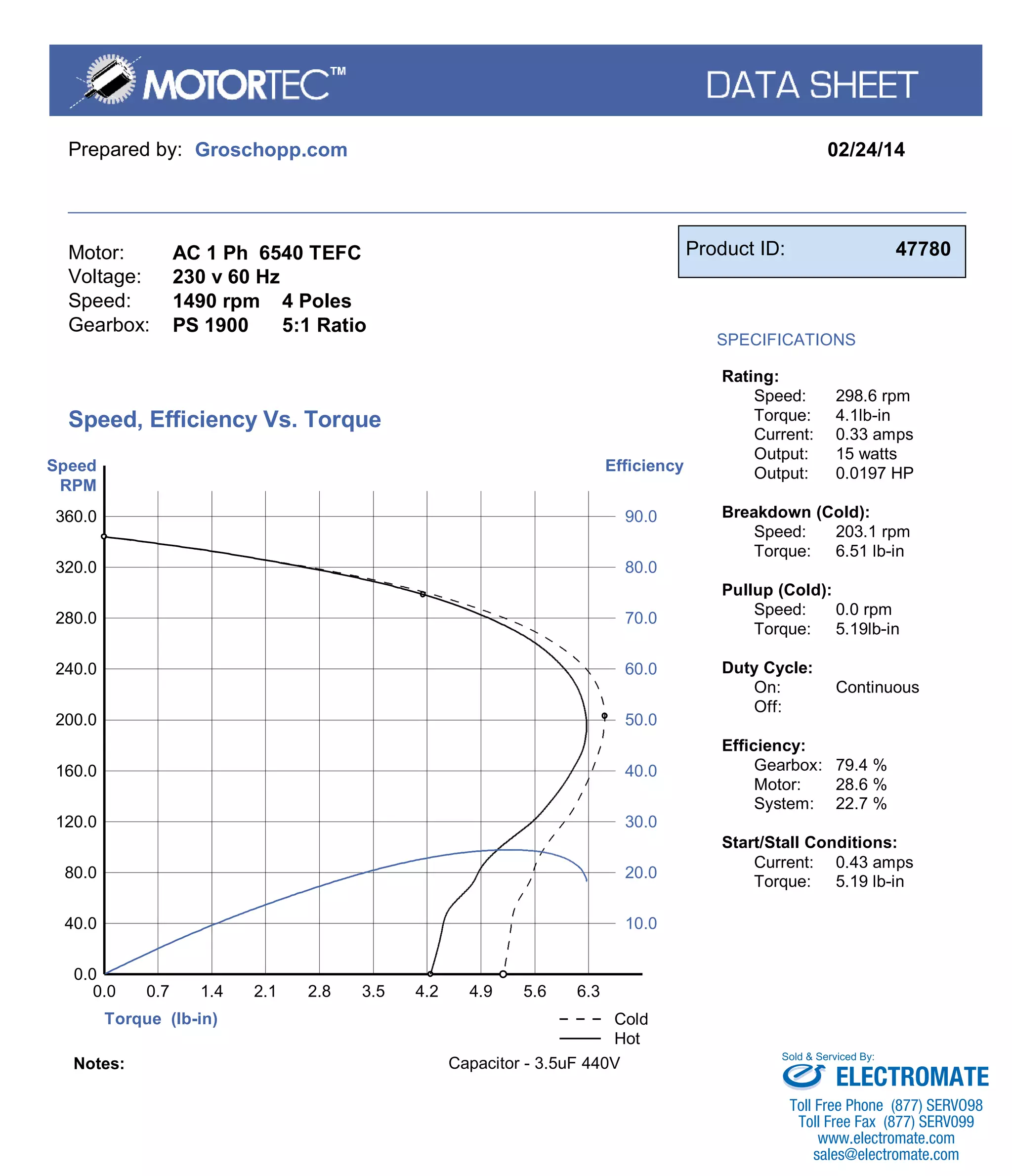

Speed, Efficiency Vs. Torque
Cold
Hot
Notes: Capacitor - 3.5uF 440V
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
