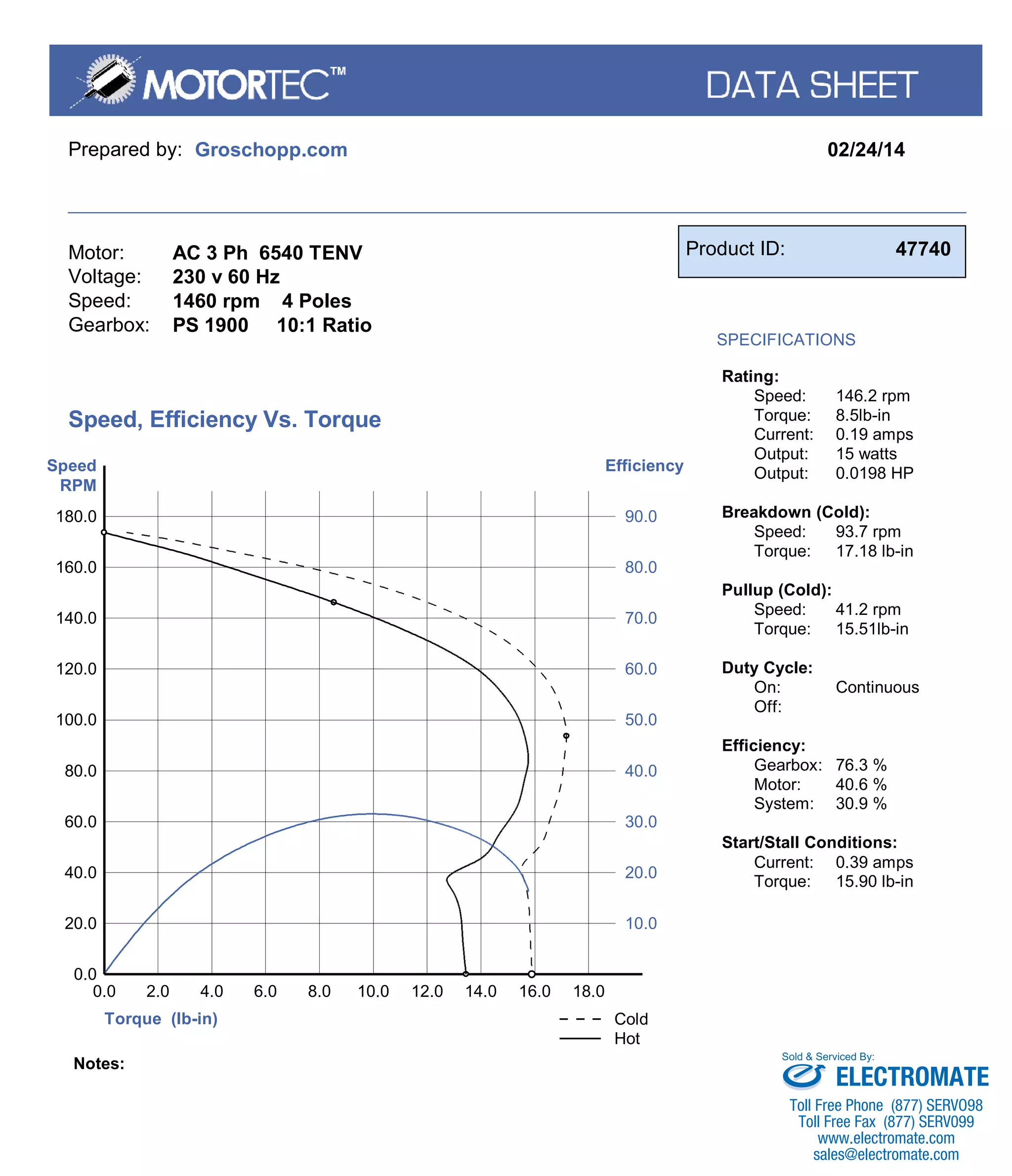

This document provides specifications for an AC 3 Phase 6540 TENV motor with a 230V 60Hz voltage and 1460rpm speed that is connected to a PS1900 10:1 ratio gearbox. The motor has a rated speed of 146.2rpm, torque of 8.5lb-in, and current of 0.19amps at an output of 15 watts and 0.0198HP. Breakdown and pullup tests were also run showing speed and torque values. Efficiency levels of the gearbox, motor, and system are listed along with start/stall current and torque conditions. A graph shows efficiency at varying torque and speed levels for cold and hot operation.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
AC 3 Ph 6540 TENV
230 v 60 Hz
1460 rpm 4 Poles
PS 1900 10:1 Ratio
Product ID: 47740
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
146.2 rpm
8.5lb-in
0.19 amps
15 watts
0.0198 HP
Breakdown (Cold):
Speed:
Torque:
93.7 rpm
17.18 lb-in
Pullup (Cold):
Speed:
Torque:
41.2 rpm
15.51lb-in
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
76.3 %
40.6 %
30.9 %
Start/Stall Conditions:
Current:
Torque:
0.39 amps
15.90 lb-in
Torque (lb-in)
Speed
RPM
Efficiency
20.0
0.0
0.0
2.0
40.0
4.0
60.0
6.0
80.0
8.0
100.0
10.0
120.0
12.0
140.0
14.0
160.0
16.0
180.0
18.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
