Griffin is a technique that aims to improve the understanding of concurrency bugs by grouping suspicious memory access patterns from failing tests. It first performs fault localization to generate ranked lists of memory access patterns, then clusters related tests together based on similarity of patterns. Finally, it reconstructs bugs by clustering patterns based on call stack similarity and identifying suspicious methods and a bug graph.

1. Background Limitations Griffin Empirical Study Conclusion
Sangmin Park, Mary Jean Harrold, Richard Vuduc
Georgia Institute of Technology
Griffin:
Grouping Suspicious Memory-Access
Patterns to Improve Understanding of
Concurrency Bugs

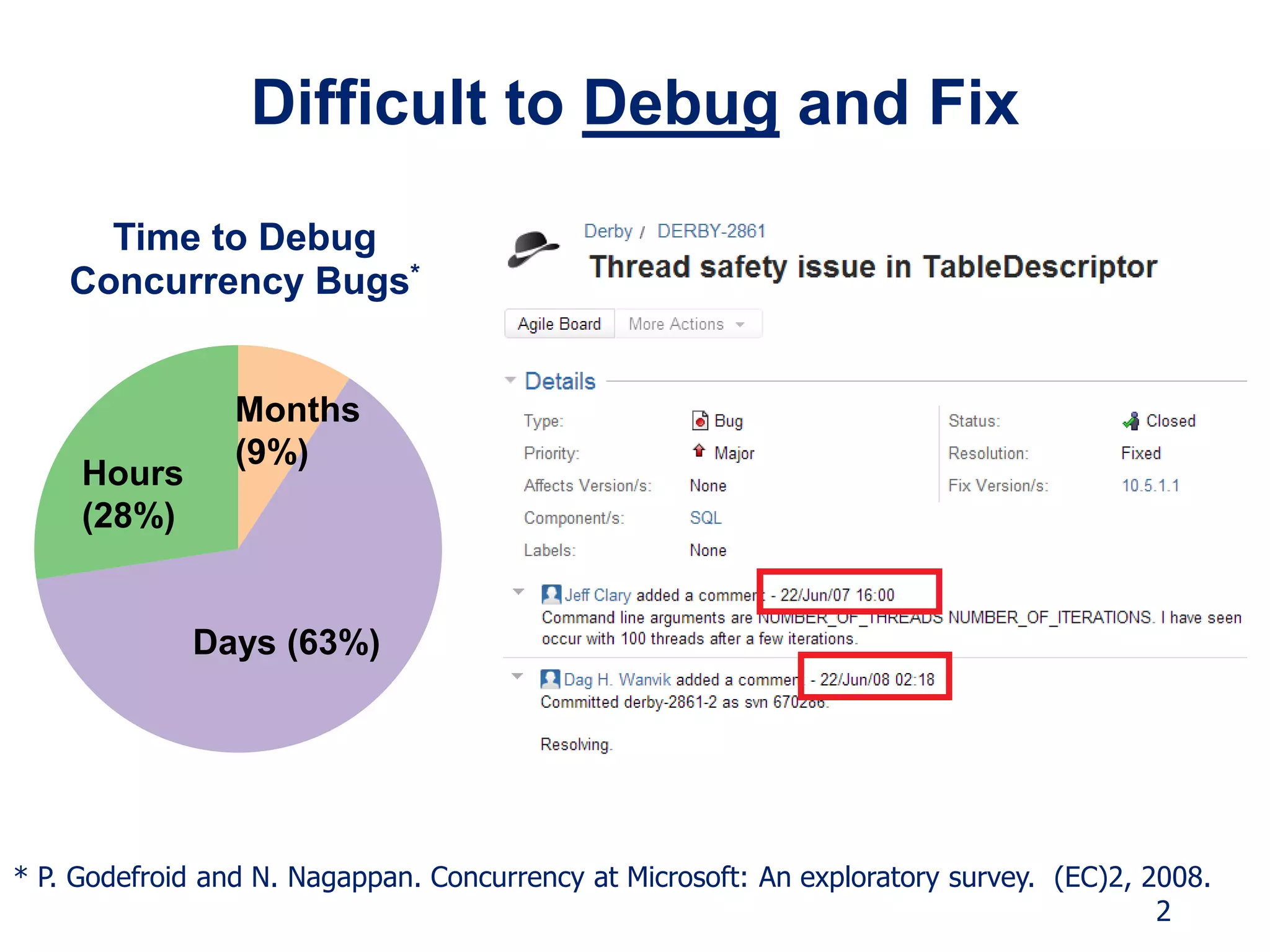

2. Background Limitations Griffin Empirical Study Conclusion
Difficult to Debug and Fix
Time to Debug
Concurrency Bugs*
Hours
(28%)
Months
(9%)
Days (63%)
* P. Godefroid and N. Nagappan. Concurrency at Microsoft: An exploratory survey. (EC)2, 2008.
2

3. Background Limitations Griffin Empirical Study Conclusion
Difficult to Debug and Fix
* Z. Yin et al. How do fixes become bugs? — a comprehensive characteristic study on incorrect
fixes in commercial and open source operating systems, ESEC/FSE 2011
Incorrect Fix
of Concurrency Bugs*
Correct
(61%)
Incorrect
(39%)
3

4. Background Limitations Griffin Empirical Study Conclusion
Existing Techniques
• Automatic fault-localization
• Suspicious pair of interaction [Jin 10]
• Memory-interaction list [Lucia 11]
• Memory-access patterns [Park 10, Park12]
• Semi-automated fix
• Atomicity violation fix [Jin 11, Liu 12]
• Order/atomicity violation fix [Jin 12]
Limitations
• Low-level memory accesses
• Too much spurious information
Limitation
• Require developer input
4

5. Background Limitations Griffin Empirical Study Conclusion
Overview
• Background
• Limitations
• Our technique: Griffin
• Empirical Study
• Conclusion
5

6. Background Limitations Griffin Empirical Study Conclusion
Concurrency Bugs
• Order violation
A pair of memory accesses
 unintended program behavior
• Atomicity violation
Code region should be atomic but is not
 unintended program behavior
6* Lu et al. Learning from Mistakes---A comprehensive study on concurrency bugs. ASPLOS 2008.

7. Background Limitations Griffin Empirical Study Conclusion
Concurrency Bugs: Atomicity Violation
* Example from Java Collection Library (Vector).
b.size
b.array
k
k
a.size
a.array
Thread 2
b.addElement(c)
k
k
7
Thread 1
a.initObject(b)
b.copyElements(a)
a = new Data(b)
+ c
c

8. Background Limitations Griffin Empirical Study Conclusion
Concurrency Bugs: Atomicity Violation
* Example from Java Collection Library (Vector).
b.size
b.array
k
k
a.size
a.array
Thread 2
b.addElement(c)
k
k
8
Thread 1
a.initObject(b)
b.copyElements(a)
a = new Data(b)
+ c
cRb.size
Rb.size
Wb.size
Rb.array
Rb.size
Wb.size
Wb.array

9. Background Limitations Griffin Empirical Study Conclusion
Variables Type Memory Access Patterns
Single
Order
R1,S(x) W2,S(x)
W1,S(x) R2,S(x)
W1,S(x) W2,S(x)
Single-
Variable
Atomicity
R1,S1(x) W2,S2(x) R1,S3(x)
W1,S1(x) W2,S2(x) R1,S3(x)
W1,S1(x) R2,S2(x) W1,S3(x)
W1,S1(x) R2,S2(x) W1,S3(x)
W1,S1(x) W2,S2(x) W1,S3(x)
Multiple
Multi-
Variable
Atomicity
W1,S1(x) W2,S2(x) W2,S3(y) W1,S4(y)
W1,S1(x) W2,S2(y) W2,S3(x) W1,S4(y)
W1,S1(x) W2,S2(y) W1,S3(y) W2,S4(x)
W1,S1(x) R2,S2(x) R2,S3(y) W1,S4(y)
W1,S1(x) R2,S2(y) R2,S3(x) W1,S4(y)
R1,S1(x) W2,S2(x) W2,S3(y) R1,S4(y)
R1,S1(x) W2,S2(y) W2,S3(x) R1,S4(y)
R1,S1(x) W2,S2(y) R1,S3(y) W2,S4(x)
W1,S1(x) R2,S2(x) W1,S3(y) R2,S4(y)
Problematic Memory-Access Patterns
Patterns identified by
Vaziri, Tip, Dolby.
POPL 2006.
9
Fault-localization techniques
Record suspicious memory-access patterns
and report them in a ranked list
(e.g., [Jin 10, Lucia 11, Park 10, Park 12])

10. Background Limitations Griffin Empirical Study Conclusion
L1. Context Information
main
Data
getSize
copyElements
….
Dynamic Calling Context
main
addElement
addSize addArray
….
10* Example from Java Collection Library (Vector).
Thread 2Thread 1
b.addElement(c)
a.initObject(b)
b.copyElements(a)
a = new Data(b)
initObject
Thread 1 Thread 2
a.size = b.getSize()
b.addSize(c.array)
b.addArray(c.array)
Problems
Existing techniques
• report only low-level memory accesses
• lose context information

11. Background Limitations Griffin Empirical Study Conclusion
Thread 2Thread 1
b.addElement(c)
a.initObject(b)
b.copyElements(a)
a = new Data(b)
L2. Multiple Bugs
Rb.array
Rb.size
Wb.size
Wb.array
Sample Report
…
1)
2)
3)
4)
RWR – size
RWWR – size/array
mem-order 3
mem-order 4
Problem
Existing techniques
• do not handle multiple concurrency
bugs
11* Example from Java Collection Library (Vector).

12. Background Limitations Griffin Empirical Study Conclusion
L3. False-positive Patterns
Sample Report
…
1)
2)
3)
4)
RWR – size
RWWR – size/array
mem-order 3
mem-order 4
12* Example from Java Collection Library (Vector).
Thread 2Thread 1
b.addElement(c)
a.initObject(b)
b.copyElements(a)
a = new Data(b)
Rb.array
Rb.size
Wb.size
Wb.array
Problem
Existing techniques
• do not handle false-positive
memory accesses

13. Background Limitations Griffin Empirical Study Conclusion
Our Technique: Griffin
13
1. Fault
Localization
2. Test
Clustering
3. Bug
Reconstruction
Test Case
Ranked Lists
Clustered Lists
Bug Graph
Patterns
Methods
Bug Graph
Patterns
Methods
Program

14. Background Limitations Griffin Empirical Study Conclusion
Step 1: Fault Localization
* Park, Vuduc, Harrold [ICST 2012] 14
Method [Unicorn, ICST 2012]:
1. Collect pairs of memory accesses in multiple tests
2. Combine pairs to patterns offline
3. Rank patterns by associating patterns with failures
Program
Test Case
Ranked Lists
Clustered Lists
Bug Graph
Patterns
Methods
Bug Graph
Patterns
Methods

15. Background Limitations Griffin Empirical Study Conclusion
Step 1: Fault Localization
15
Thread 2Thread 1
b.addElement(c)
a.initObject(b)
b.copyElements(a)
a = new Data(b)
Generate ranked list of patterns for each failing test
t1
RWR 271-851-681
RWWR 271-851-852-682
RW 271-851
RWR 250-353-252
t2
RWR 271-801-681
RWWR 271-801-802-682
RW 271-801
RWR 222-453-224
t3
t4
RWR 271-851-681
RWWR 271-851-852-682
RWR 250-354-253
RW 271-851
RWR 271-801-681
RWR 222-454-225
RW 271-801
RWWR 271-801-802-682

16. Background Limitations Griffin Empirical Study Conclusion
Step 2: Test Clustering
Method [Fault-localization-based clustering]:
1. Create initial clusters for each failing test with p patterns
2. Merge if similarity (Jaccard) above threshold th
Until no more clusters can be merged
* Jones, Bowring, Harrold [ISSTA 2007] 16
Program
Test Case
Ranked Lists
Clustered Lists
Bug Graph
Patterns
Methods
Bug Graph
Patterns
Methods

17. Background Limitations Griffin Empirical Study Conclusion
t1 t2
t3 t4
RWR 271-851-681
RWWR 271-851-852-682
RW 271-851
RWR 250-353-252
RWR 271-851-681
RWWR 271-851-852-682
RWR 250-354-253
RW 271-851
RWR 271-801-681
RWWR 271-801-802-682
RW 271-801
RWR 222-453-224
RWR 271-801-681
RWR 222-454-225
RW 271-801
RWWR 271-801-802-682
Step 2: Test Clustering
Cluster by similarity of top patterns
p =4 and th = 0.6
17

18. Background Limitations Griffin Empirical Study Conclusion
RWR 271-851-681
RWWR 271-851-852-682
RW 271-851
RWR 250-353-252
t1 t2
t3 t4
RWR 271-851-681
RWWR 271-851-852-682
RWR 250-354-253
RW 271-851
RWR 271-801-681
RWWR 271-801-802-682
RW 271-801
RWR 222-453-224
RWR 271-801-681
RWR 222-454-225
RW 271-801
RWWR 271-801-802-682
Step 2: Test Clustering
3/5 or 0.6≥th
Cluster by similarity of top patterns
p =4 and th = 0.6
18

19. Background Limitations Griffin Empirical Study Conclusion
t1 t2
t3 t4
RWR 271-851-681
RWWR 271-851-852-682
RW 271-851
RWR 250-353-252
RWR 271-851-681
RWWR 271-851-852-682
RWR 250-354-253
RW 271-851
RWR 271-801-681
RWWR 271-801-802-682
RW 271-801
RWR 222-453-224
RWR 271-801-681
RWR 222-454-225
RW 271-801
RWWR 271-801-802-682
Step 2: Test Clustering
Cluster by similarity of top patterns
p =4 and th = 0.6
19

20. Background Limitations Griffin Empirical Study Conclusion
t1 t2
t3 t4
RWR 271-851-681
RWWR 271-851-852-682
RW 271-851
RWR 250-353-252
RWR 271-851-681
RWWR 271-851-852-682
RWR 250-354-253
RW 271-851
RWR 271-801-681
RWWR 271-801-802-682
RW 271-801
RWR 222-453-224
RWR 271-801-681
RWR 222-454-225
RW 271-801
RWWR 271-801-802-682
Step 2: Test Clustering
3/5 or 0.6≥th
Cluster by similarity of top patterns
p =4 and th = 0.6
20

21. Background Limitations Griffin Empirical Study Conclusion
t1, t3 t2, t4
Two clusters of failing executions
Step 2: Test Clustering
Cluster by similarity of top patterns
p =4 and th = 0.6
21

22. Background Limitations Griffin Empirical Study Conclusion
Step 3: Bug Reconstruction
* See the paper for detailed clustering policy
22
Method:
1. Perform call-stack-based clustering to group true/false
positive patterns
(Agglomerative clustering like Step 2)
2. Identify suspicious methods, bug graph
Program
Test Case
Ranked Lists
Clustered Lists
Bug Graph
Patterns
Methods
Bug Graph
Patterns
Methods

23. Background Limitations Griffin Empirical Study Conclusion
Step 3: Bug Reconstruction
{t1,t3}
Cluster patterns based on call-stack similarity
RWR 271-851-681
RWWR 271-851-852-682
RW 271-851
RWR 250-353-252
RWR 271-851-681
RWWR 271-851-852-682
RWR 250-354-253
RW 271-851
23

24. Background Limitations Griffin Empirical Study Conclusion
Step 3: Bug Reconstruction
{t1,t3}
Cluster patterns based on call-stack similarity
RWR 271-851-681
RWWR 271-851-852-682
RW 271-851
RWR 250-353-252
RWR 271-851-681
RWWR 271-851-852-682
RWR 250-354-253
RW 271-851
RWR 271-851-681
RWWR 271-851-852-682
RW 271-851
RWR 250-353-252
RWR 250-354-253
24

25. Background Limitations Griffin Empirical Study Conclusion
Step 3: Bug Reconstruction
Cluster patterns based on call-stack similarity
RWR 271-851-681
RWWR 271-851-852-682
RW 271-851
RWR 250-353-252
RWR 250-354-253
Initial Clusters
RWR 271-851-681
RWR 250-354-253
RW 271-851
RWWR 271-851-852-682
RWR 250-353-252
25

26. Background Limitations Griffin Empirical Study Conclusion
120 main()
150 Data (Data c)
270 int getSize()
130 void run()
850 void addAll(Data c)
120 main()
151 Data (Data b)
680 void copyArray(a)
Step 3: Bug Reconstruction
Cluster patterns based on call-stack similarity
Initial Clusters
RWR 271-851-681
RWWR 271-851-852-682
26

27. Background Limitations Griffin Empirical Study Conclusion
120 main()
150 Data (Data c)
270 int getSize()
130 void run()
850 void addAll(Data c)
120 main()
151 Data (Data b)
680 void copyArray(a)
Step 3: Bug Reconstruction
Cluster patterns based on call-stack similarity
Initial Clusters
RWR 271-851-681
RWWR 271-851-852-682
120 main()
150 Data (Data c)
270 int getSize()
130 void run()
850 void addAll(Data c)
120 main()
151 Data (Data b)
680 void copyArray(a)
130 void run()
850 void addAll(Data c)
27
Common call stacks are
same for both clusters
 merge
* See the paper for detailed clustering policy

28. Background Limitations Griffin Empirical Study Conclusion
Step 3: Bug Reconstruction
Cluster patterns based on call-stack similarity
Initial Clusters
RWR 271-851-681
RWR 250-354-253
RW 271-851
RWWR 271-851-852-682
RWR 250-353-252
271-851 part of
271-851-681 
merge
28

29. Background Limitations Griffin Empirical Study Conclusion
Step 3: Bug Reconstruction
Cluster patterns based on call-stack similarity
Initial Clusters
RWR 271-851-681
RW 271-851
RWWR 271-851-852-682
120 main()
150 Data (Data c)
270 int getSize()
130 void run()
850 void addAll(Data c)
120 main()
151 Data (Data b)
680 void copyArray(a)
29

30. Background Limitations Griffin Empirical Study Conclusion
Step 3: Bug Reconstruction
Cluster patterns based on call-stack similarity
Initial Clusters
RWR 271-851-681
RW 271-851
RWWR 271-851-852-682
120 main()
150 Data (Data c)
270 int getSize()
130 void run()
850 void addAll(Data c)
120 main()
151 Data (Data b)
680 void copyArray(a)
Thread 2Thread 1
30

31. Background Limitations Griffin Empirical Study Conclusion
Step 3: Bug Reconstruction
Identify suspicious methods
Initial Clusters
RWR 271-851-681
RW 271-851
RWWR 271-851-852-682
120 main()
150 Data (Data c)
270 int getSize()
130 void run()
850 void addAll(Data c)
120 main()
151 Data (Data b)
680 void copyArray(a)
Thread 2Thread 1
31
suspicious method: the
method at the top in
the common call stack.

32. Background Limitations Griffin Empirical Study Conclusion
Step 3: Bug Reconstruction
Thread 1 Thread 2
120 main()
152 Data (Data b)
680 void copyArray( a)
681 a.size = b.size;
682 a.array = b.array;
120 main()
150 Data (Data c)
270 int getSize()
271 return size;
130 void run()
850 void addAll(Data c)
851 b.size += c.size;
852 b.array += c.array;
R
W
R
R
W
Present bug graph to developer
32

33. Background Limitations Griffin Empirical Study Conclusion
Empirical Studies
Studies
1. Evaluate effectiveness of finding multiple
faults
2. Evaluate effectiveness of explaining the
bug
3. Evaluate efficiency of the technique
(See paper)
Empirical Setup
• Implemented in Java (Soot) and C++ (Pin)
• Evaluated on a set of subjects
33

34. Background Limitations Griffin Empirical Study Conclusion
Evaluation: Subjects
Language Program KLOC Num.
Bugs
Bug Type
Java
TreeSet-1 7.5 5 Atomicity
TreeSet-2 7.5 3 Atomicity
StringBuffer-1 1.4 4 Atomicity
StringBuffer-2 1.4 1 Atomicity
Vector-1 9.5 4 Atomicity
Vector-2 9.5 2 Atomicity
C++
Mysql-169 331 1 Atomicity
Mysql-791 372 1 Atomicity
NSPR-165586 125 1 Atomicity
PBZip2 2 1 Order
Transmission 90 1 Order
34

35. Background Limitations Griffin Empirical Study Conclusion
Study 1: Handling Multiple Bugs
Goal
To investigate how well Griffin clusters failing
executions responsible for the same bug
Method
• Ran Step 2 of algorithm; p= 30, th= 0.8
• Computed F-measure* values to evaluate
effectiveness of clustering algorithm
35
* F-measure is a standard method to evaluate clustering. See “M. Steinbach et al.
A comparison of document clustering techniques. In Wksp, Text Mining, 2000.“

36. Background Limitations Griffin Empirical Study Conclusion
Study 1: Handling Multiple Bugs
Program # Patterns # Bugs # Output
Clusters
F-measure
TreeSet-1 714 5 7 0.88
TreeSet-2 656 3 4 0.91
StringBuffer-1 12 4 4 1.00
StringBuffer-2 3 1 1 1.00
Vector-1 18 4 4 1.00
Vector-2 10 2 2 1.00
Mysql-169 21834 1 1 1.00
Mysql-791 71694 1 2 0.94
NSPR-165586 1479 1 2 0.86
PBZip2 427 1 2 0.96
Transmission 226 1 1 1.00
36
• Most F-measures close to
1.00; indicates
effectiveness clustering
• Manual inspection when F-
measures < 1.00 indicates
that if th is a lesser value,
clustering is more effective
 may need to adjust
parameters

37. Background Limitations Griffin Empirical Study Conclusion
Study 2: Reconstructing Bug Context
Goal
To investigate how well Griffin reconstructs
bug context
Method
• Ran Step 3 of algorithm
• Investigated the results
37

38. Background Limitations Griffin Empirical Study Conclusion
Study 2: Reconstructing Bug Context
Program # Bugs # Output
Clusters
# False
Positives
Suspicious
Method
contains bug
Call
stack
size
TreeSet-1 5 5 0 Y 6
TreeSet-2 3 3 0 Y 6
StringBuffer-1 4 4 0 Y 1
StringBuffer-2 1 1 0 Y 1
Vector-1 4 4 0 Y 1
Vector-2 2 2 0 Y 1
Mysql-169 1 2 1 Y 9
Mysql-791 1 1 0 Y 1
NSPR-165586 1 1 0 Y 4
PBZip2 1 1 0 Y 0
Transmission 1 1 0 Y 7
38

39. Background Limitations Griffin Empirical Study Conclusion
Study 2: Reconstructing Bug Context
39
Program # Bugs # Output
Clusters
# False
Positives
Suspicious
Method
contains bug
Call
stack
size
TreeSet-1 5 5 0 Y 6
TreeSet-2 3 3 0 Y 6
StringBuffer-1 4 4 0 Y 1
StringBuffer-2 1 1 0 Y 1
Vector-1 4 4 0 Y 1
Vector-2 2 2 0 Y 1
Mysql-169 1 2 1 Y 9
Mysql-791 1 1 0 Y 1
NSPR-165586 1 1 0 Y 4
PBZip2 1 1 0 Y 0
Transmission 1 1 0 Y 7
1
Technique successfully
outputs clusters of patterns
with false positives

40. Background Limitations Griffin Empirical Study Conclusion
Study 2: Reconstructing Bug Context
40
Program # Bugs # Output
Clusters
# False
Positives
Suspicious
Method
contains bug
Call
stack
size
TreeSet-1 5 5 0 Y 6
TreeSet-2 3 3 0 Y 6
StringBuffer-1 4 4 0 Y 1
StringBuffer-2 1 1 0 Y 1
Vector-1 4 4 0 Y 1
Vector-2 2 2 0 Y 1
Mysql-169 1 2 1 Y 9
Mysql-791 1 1 0 Y 1
NSPR-165586 1 1 0 Y 4
PBZip2 1 1 0 Y 0
Transmission 1 1 0 Y 7
2
Technique successfully
locates the bug in the
suspicious method

41. Background Limitations Griffin Empirical Study Conclusion
Study 2: Reconstructing Bug Context
41
Program # Bugs # Output
Clusters
# False
Positives
Suspicious
Method
contains bug
Call
stack
size
TreeSet-1 5 5 0 Y 6
TreeSet-2 3 3 0 Y 6
StringBuffer-1 4 4 0 Y 1
StringBuffer-2 1 1 0 Y 1
Vector-1 4 4 0 Y 1
Vector-2 2 2 0 Y 1
Mysql-169 1 2 1 Y 9
Mysql-791 1 1 0 Y 1
NSPR-165586 1 1 0 Y 4
PBZip2 1 1 0 Y 0
Transmission 1 1 0 Y 7
3
Call-stack sizes greater
than 0 in all but one case 
difficult to infer method with
bug

42. Background Limitations Griffin Empirical Study Conclusion
Future Work
• Perform user studies to determine
the usefulness of the technique to
developers
42
• Perform more studies that involve
multiple bugs
• Perform studies to give more
guidance to select clustering
parameters

43. Background Limitations Griffin Empirical Study Conclusion
Contributions
• Fault explanation technique that provides
• Information about multiple bugs
• Patterns of true- and false-positive
• Visualization in a Bug Graph
• Empirical results that indicate the effectiveness
of fault explanation
• Effective in grouping concurrency bugs
• Effective in explaining concurrency bugs
• See www.cc.gatech.edu/~sangminp/issta2013
43
QUESTIONS?

44. Background Limitations Griffin Empirical Study Conclusion
44

45. Background Limitations Griffin Empirical Study Conclusion
Challenges
45
Engineering
issues…
Large
context size
Efficient information
gathering
Expensive
manual inspection
Large number
of patterns
