1. Exotic Functional Data
Structures:
Hitchhiker Trees
David Greenberg
9/17/16
Strange Loop

2. Who am I?

3. Functional
Data Structures
What are they, anyway?

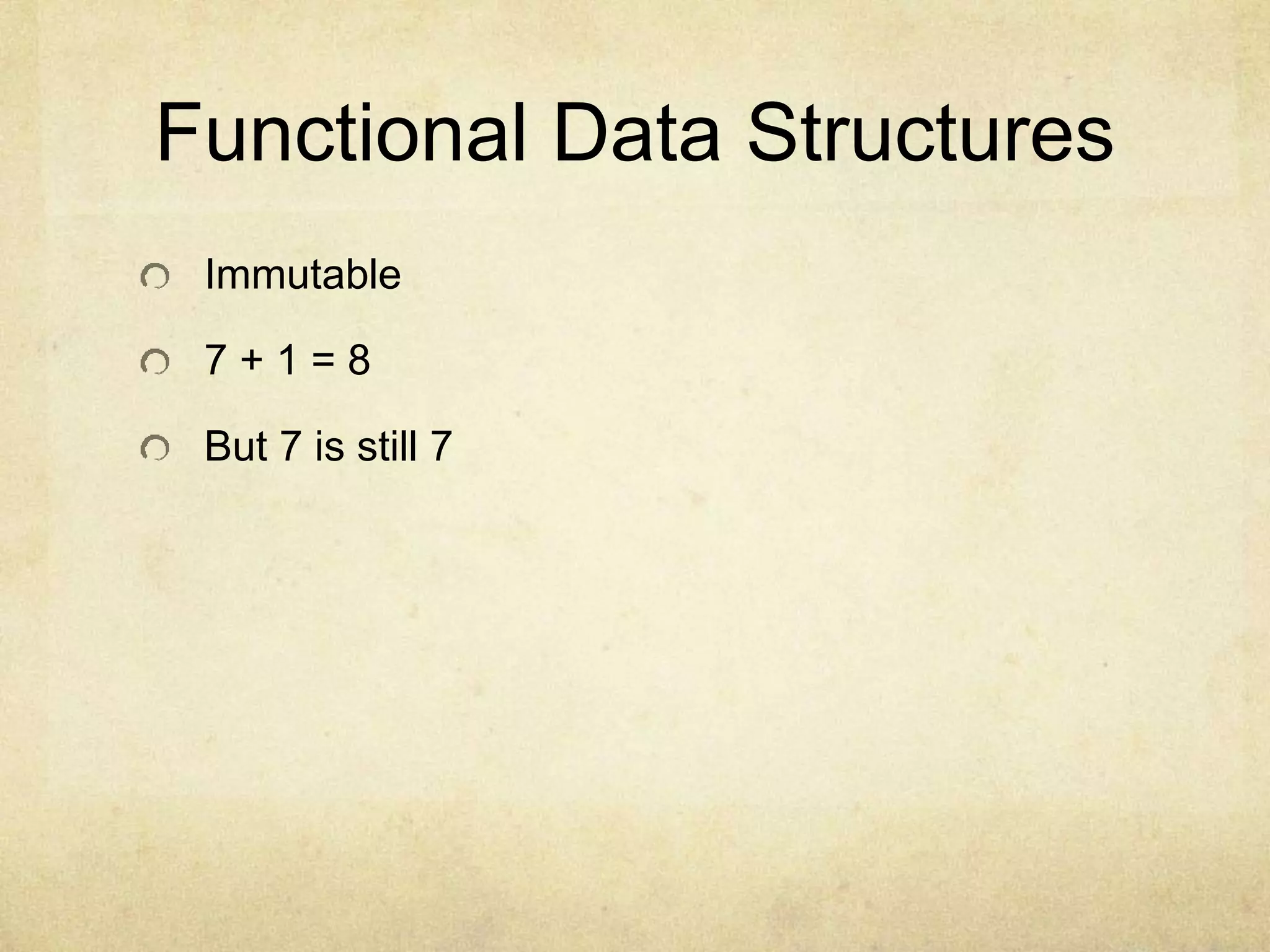

4. Functional Data Structures
Immutable
7 + 1 = 8
But 7 is still 7

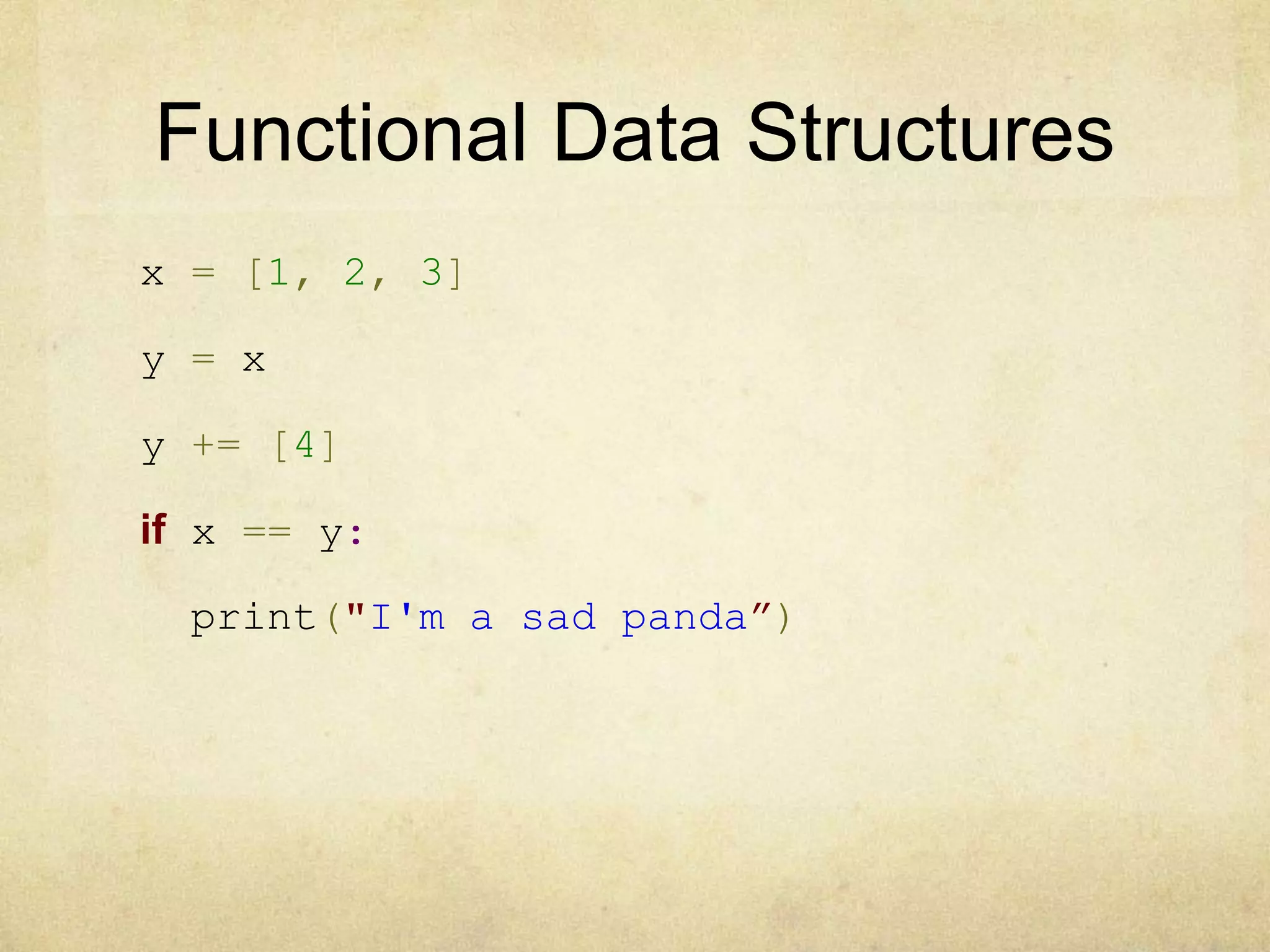

5. Functional Data Structures
x = [1, 2, 3]
y = x
y += [4]
if x == y:
print("I'm a sad panda”)

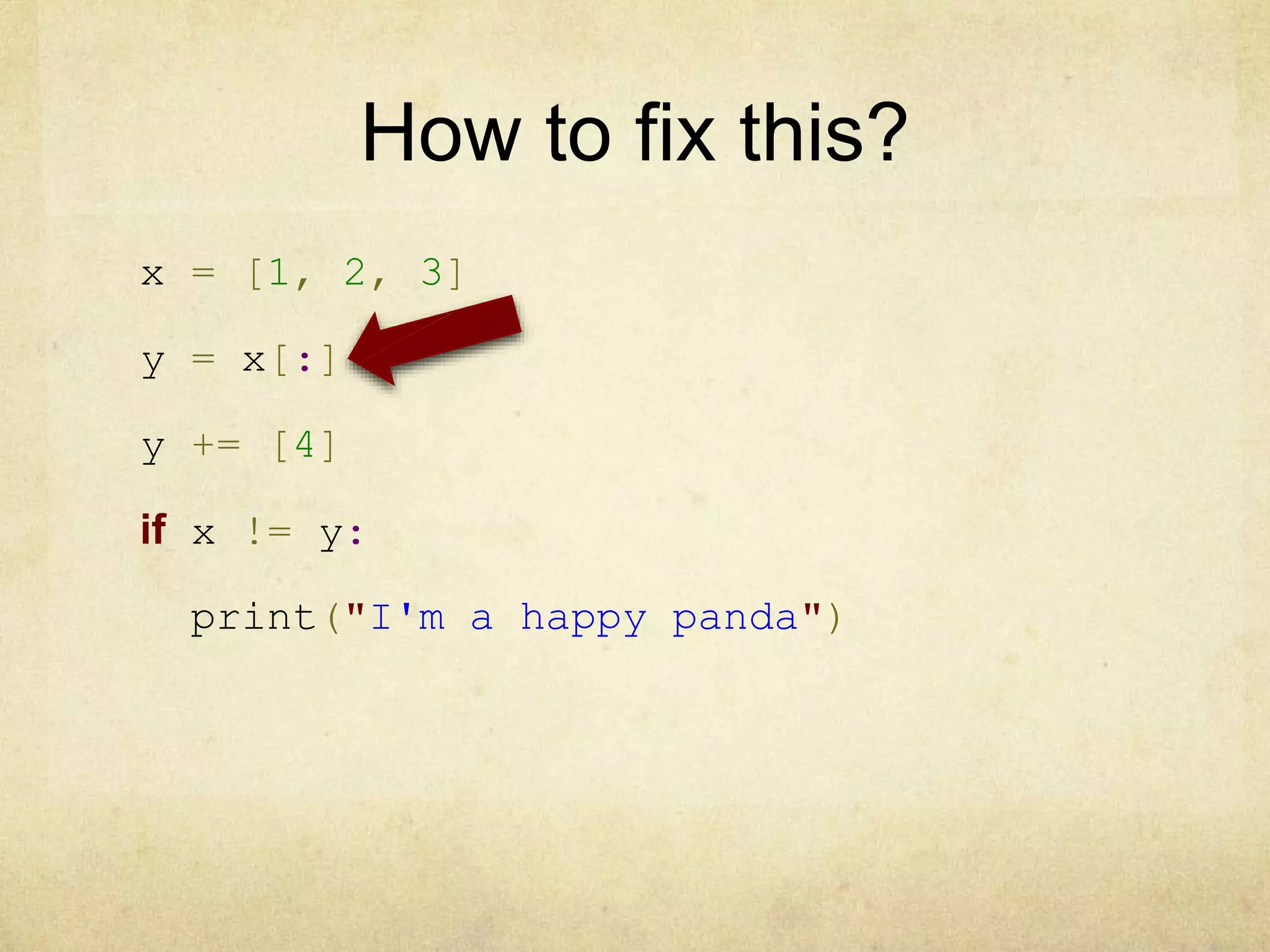

6. How to fix this?
x = [1, 2, 3]
y = x[:]
y += [4]
if x != y:
print("I'm a happy panda")

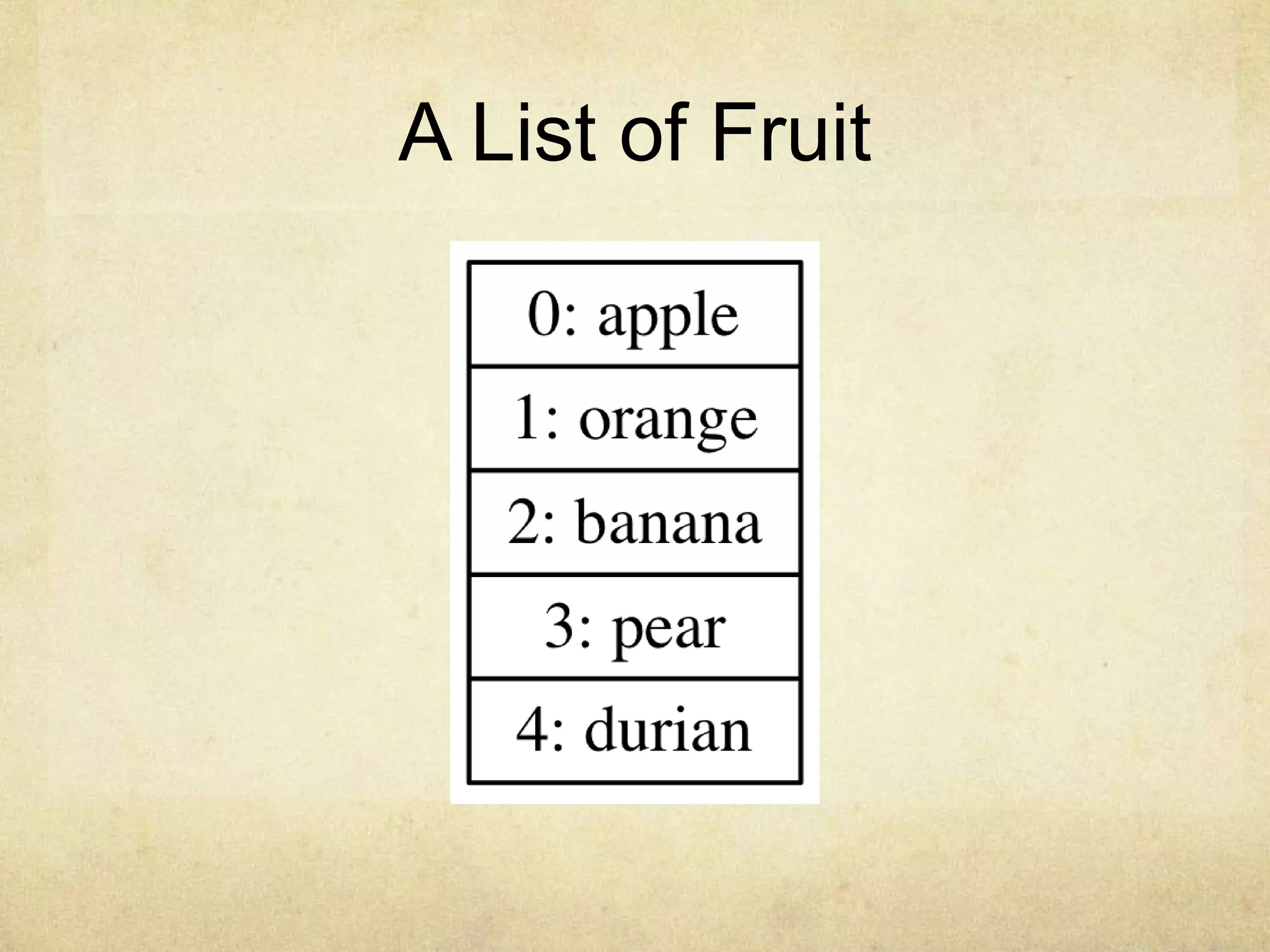

7. A List of Fruit

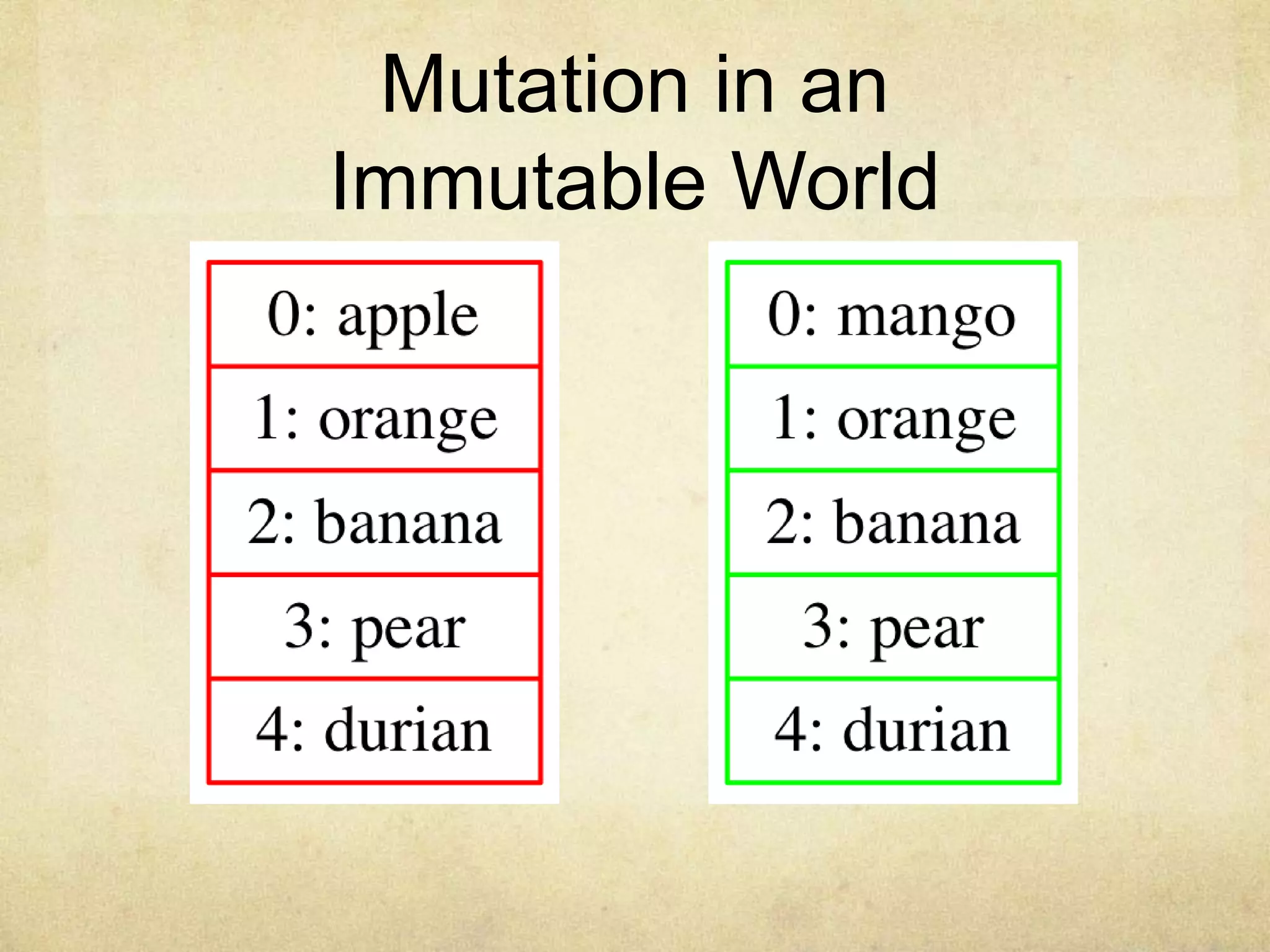

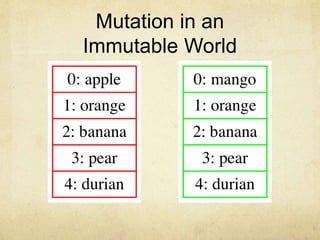

8. Mutation in an
Immutable World

9. What are
pointers?
(besides hard)

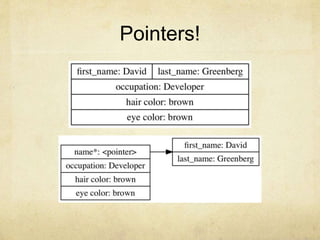

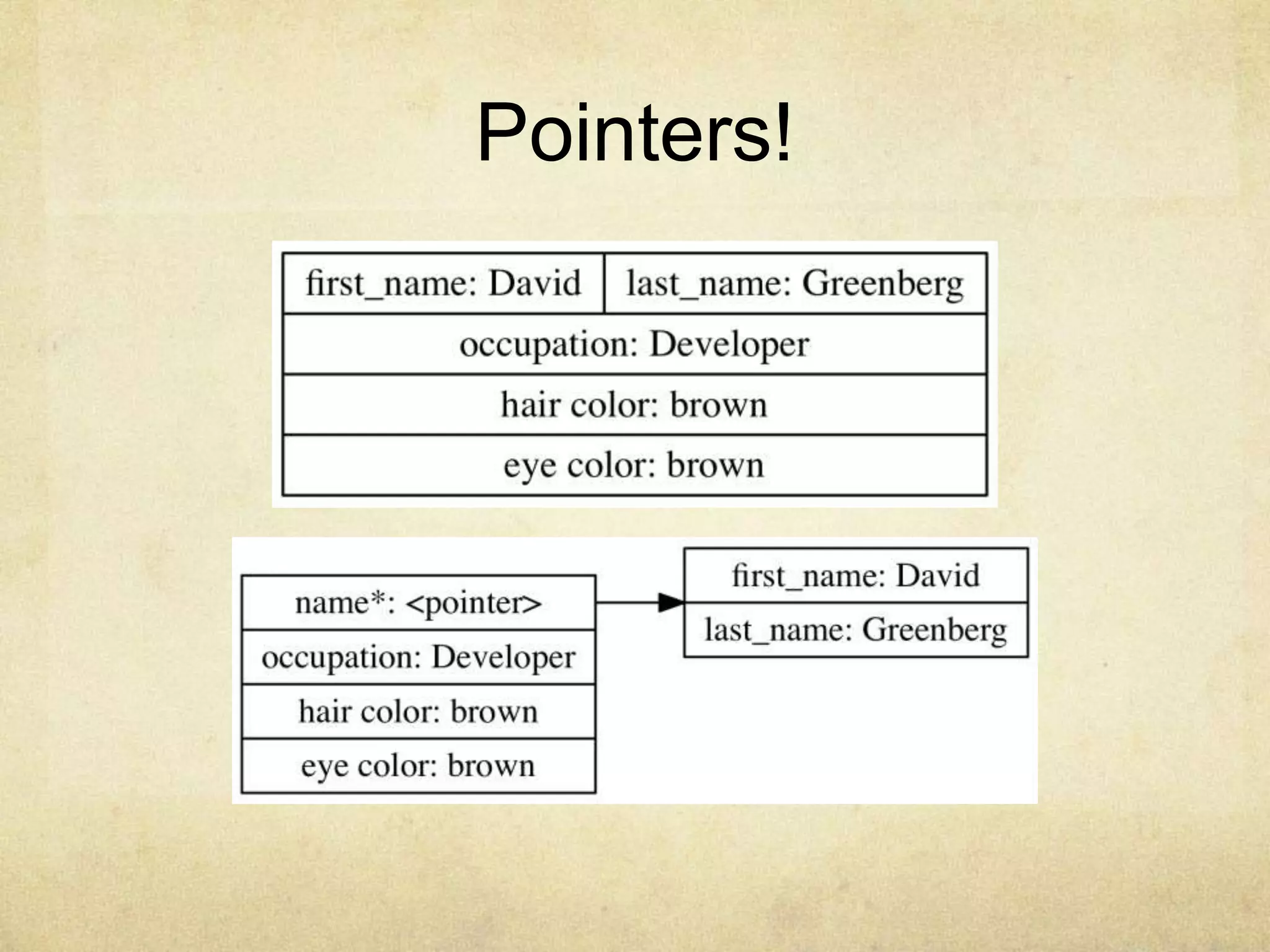

10. Pointers!

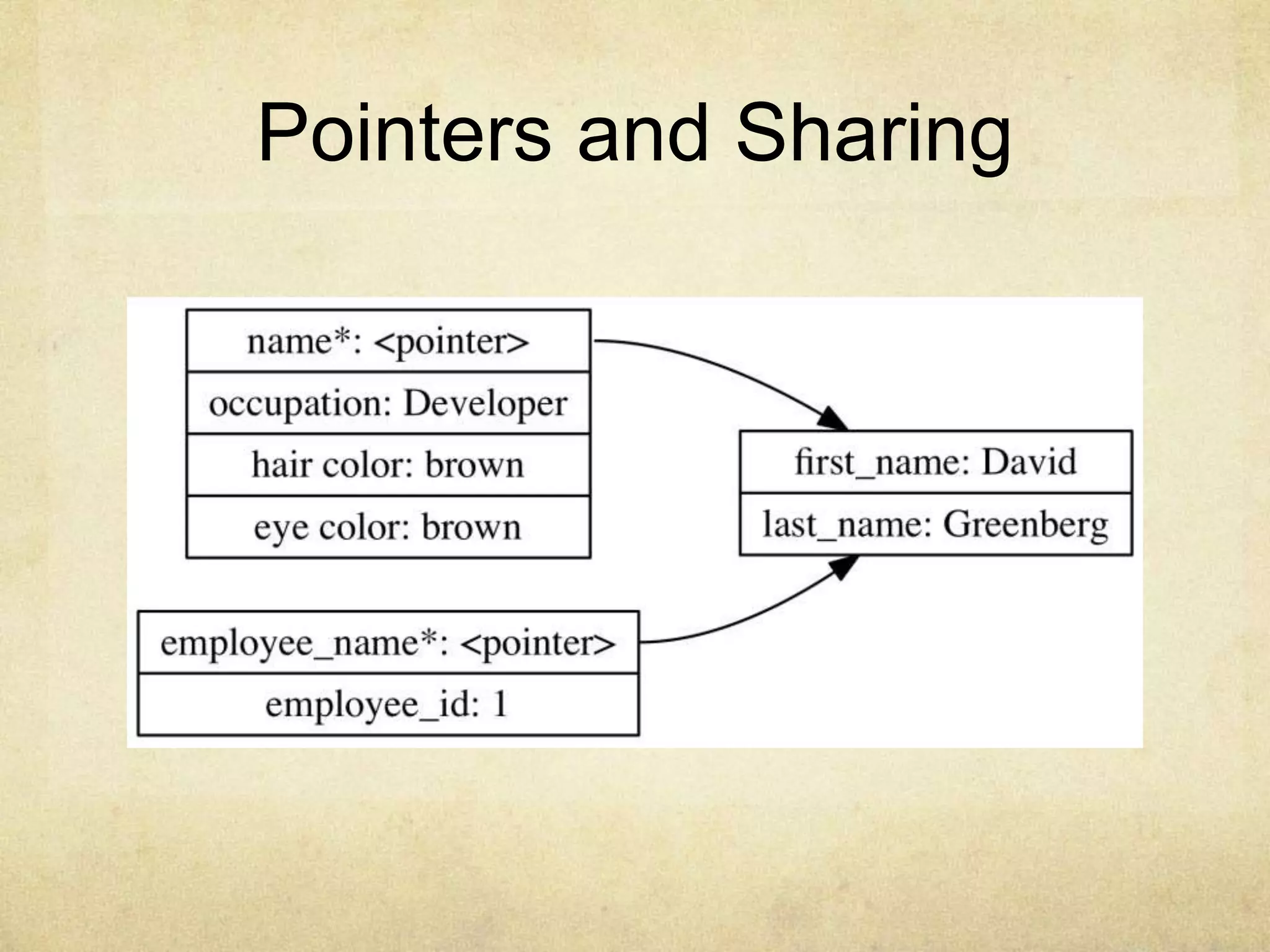

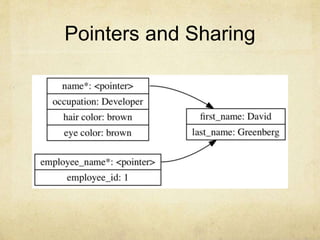

11. Pointers and Sharing

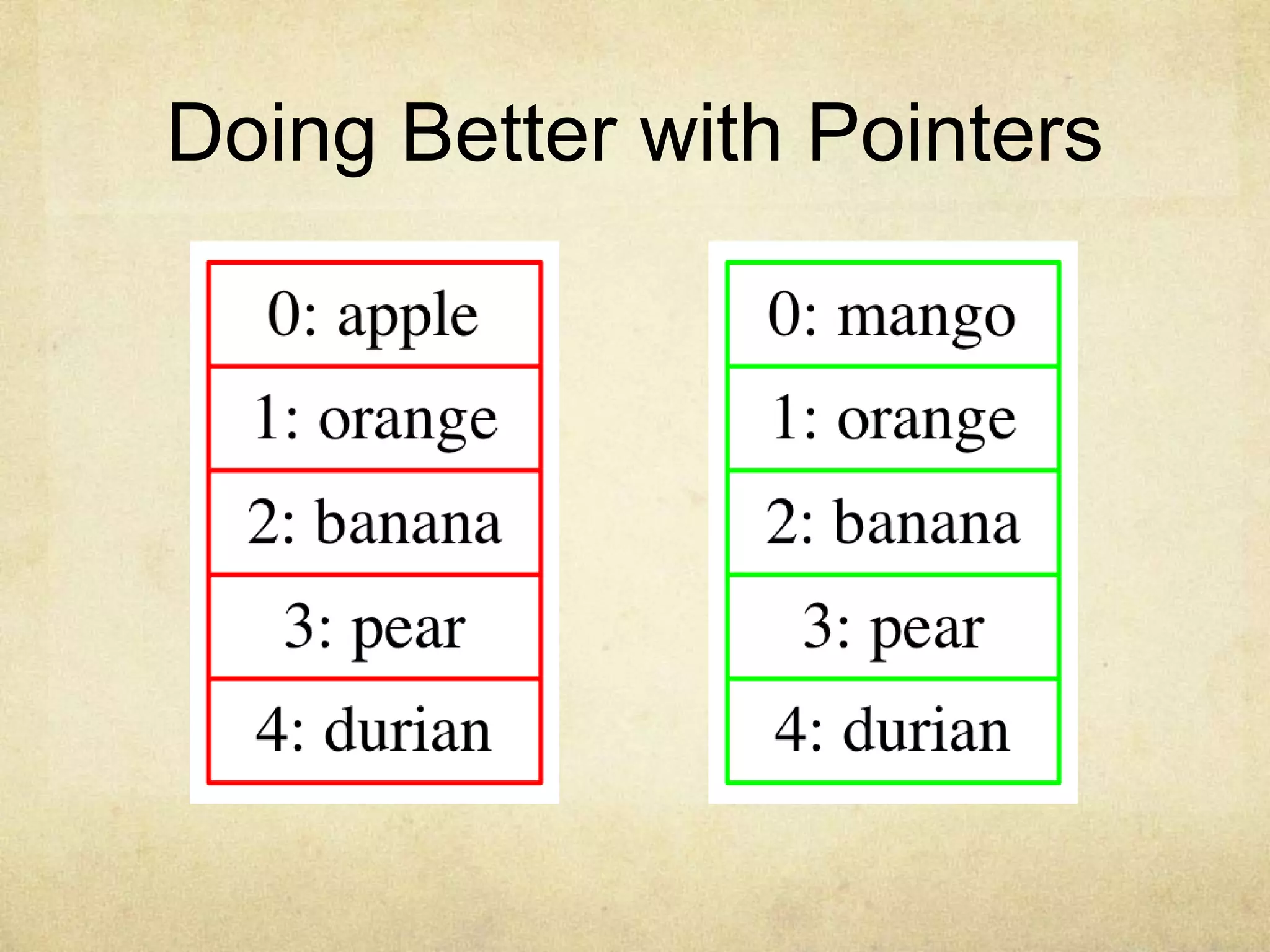

12. Doing Better with Pointers

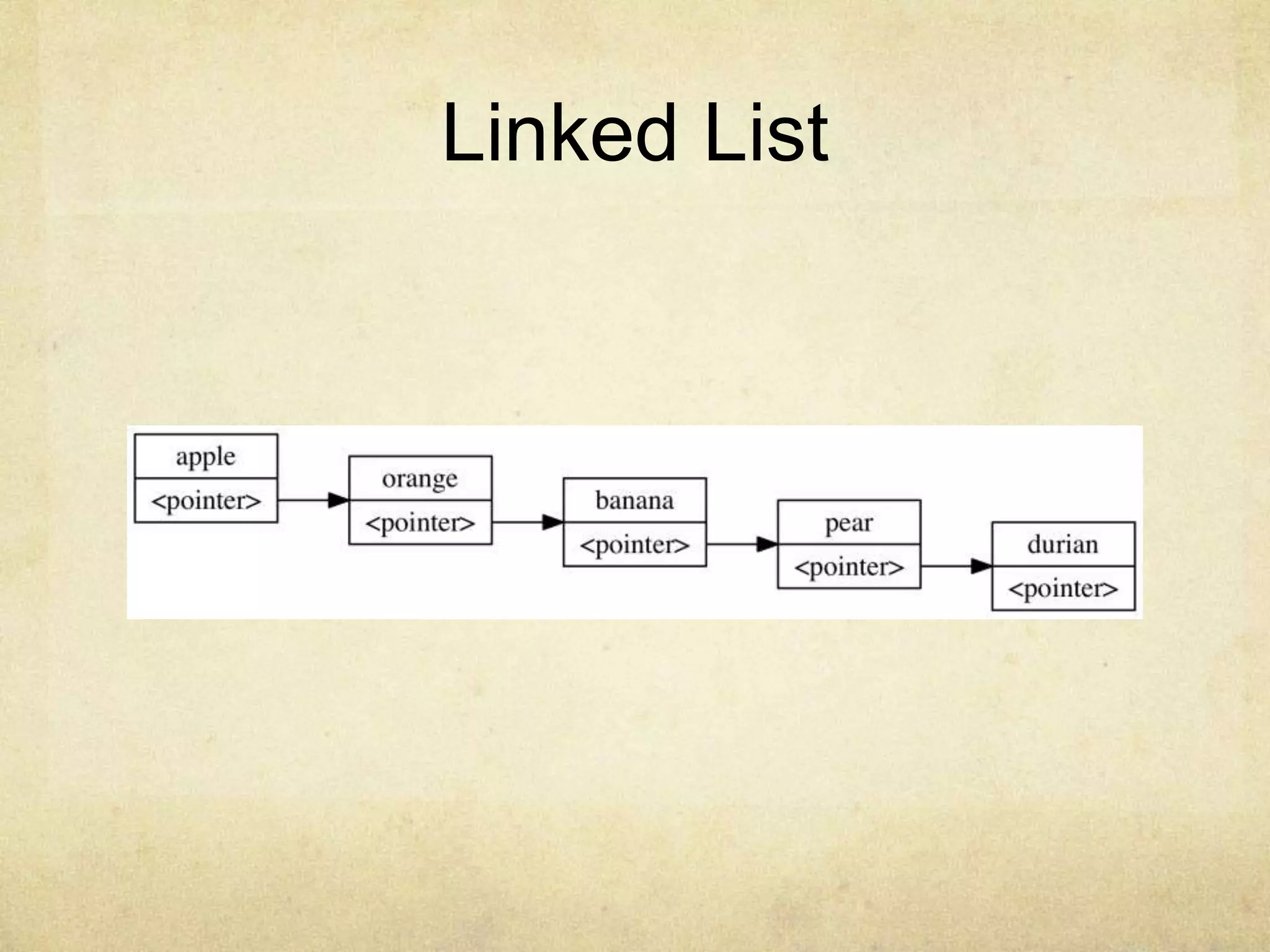

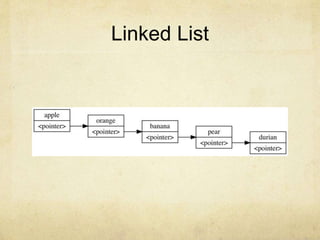

13. Linked List

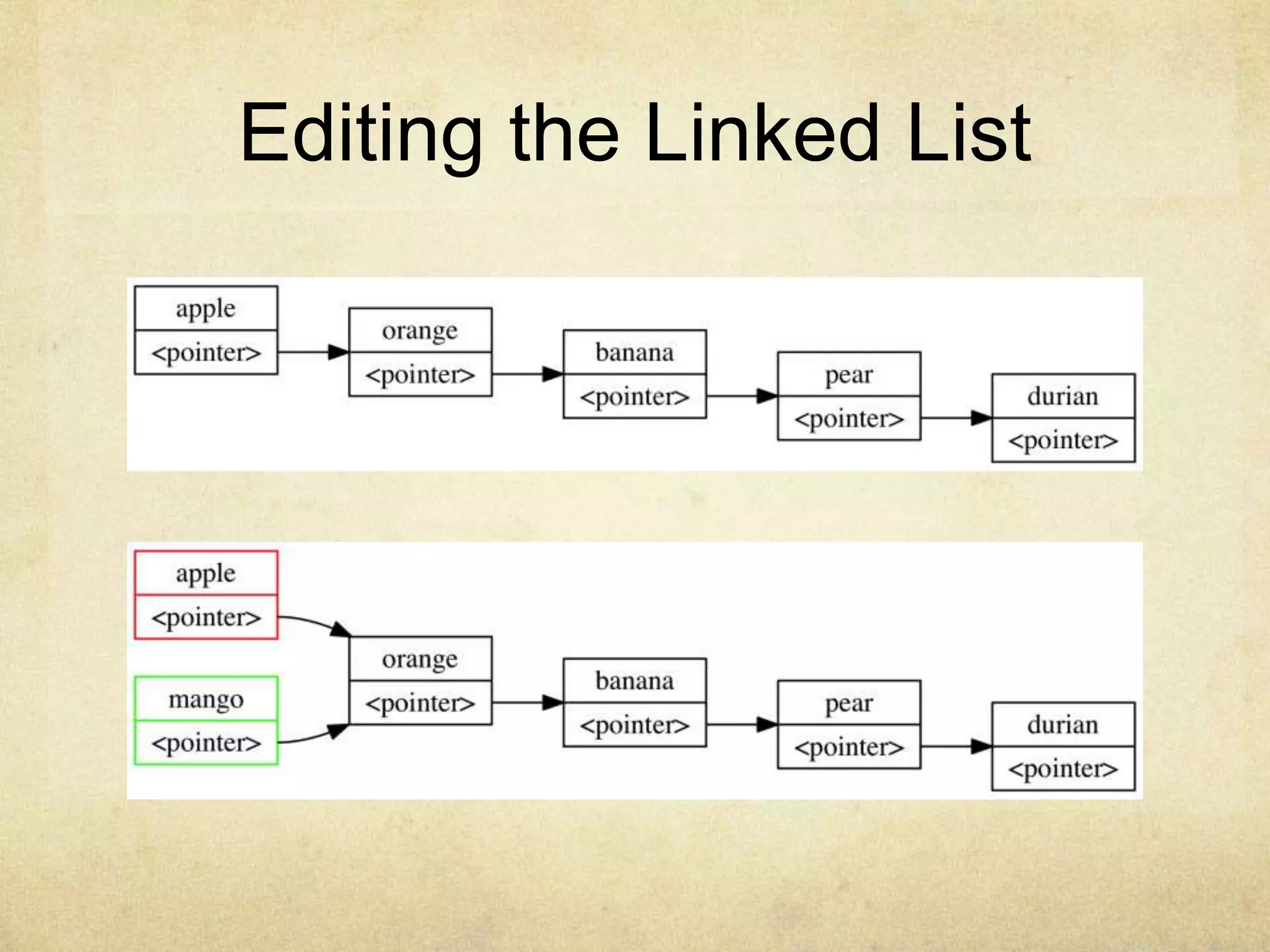

14. Editing the Linked List

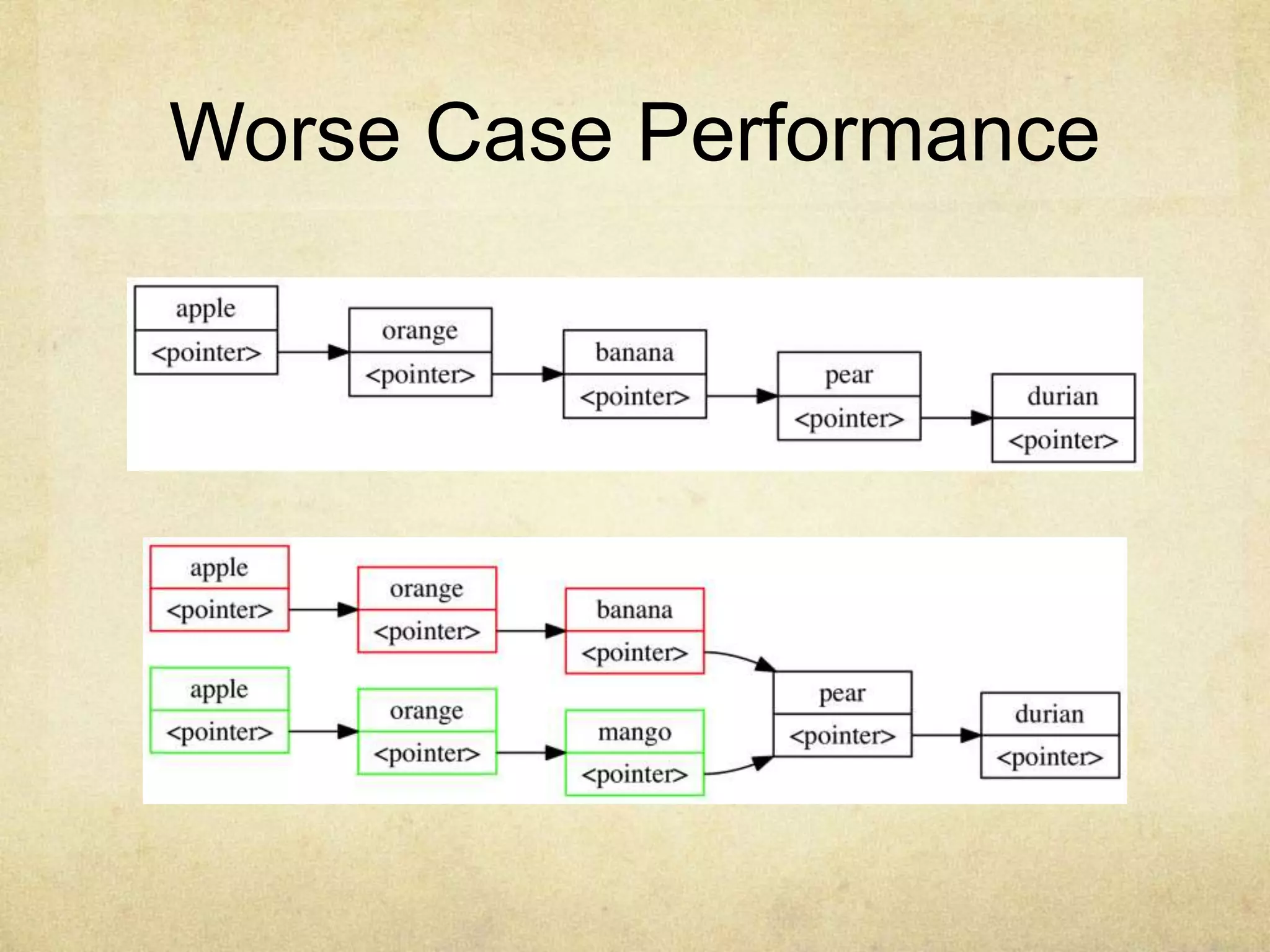

15. Worse Case Performance

16. Philosophy of Identity
Q: When isn’t an apple an apple?
A: When an apple points to an orange points to a banana
isn’t an apple points to an orange points to a mango.

17. Trees

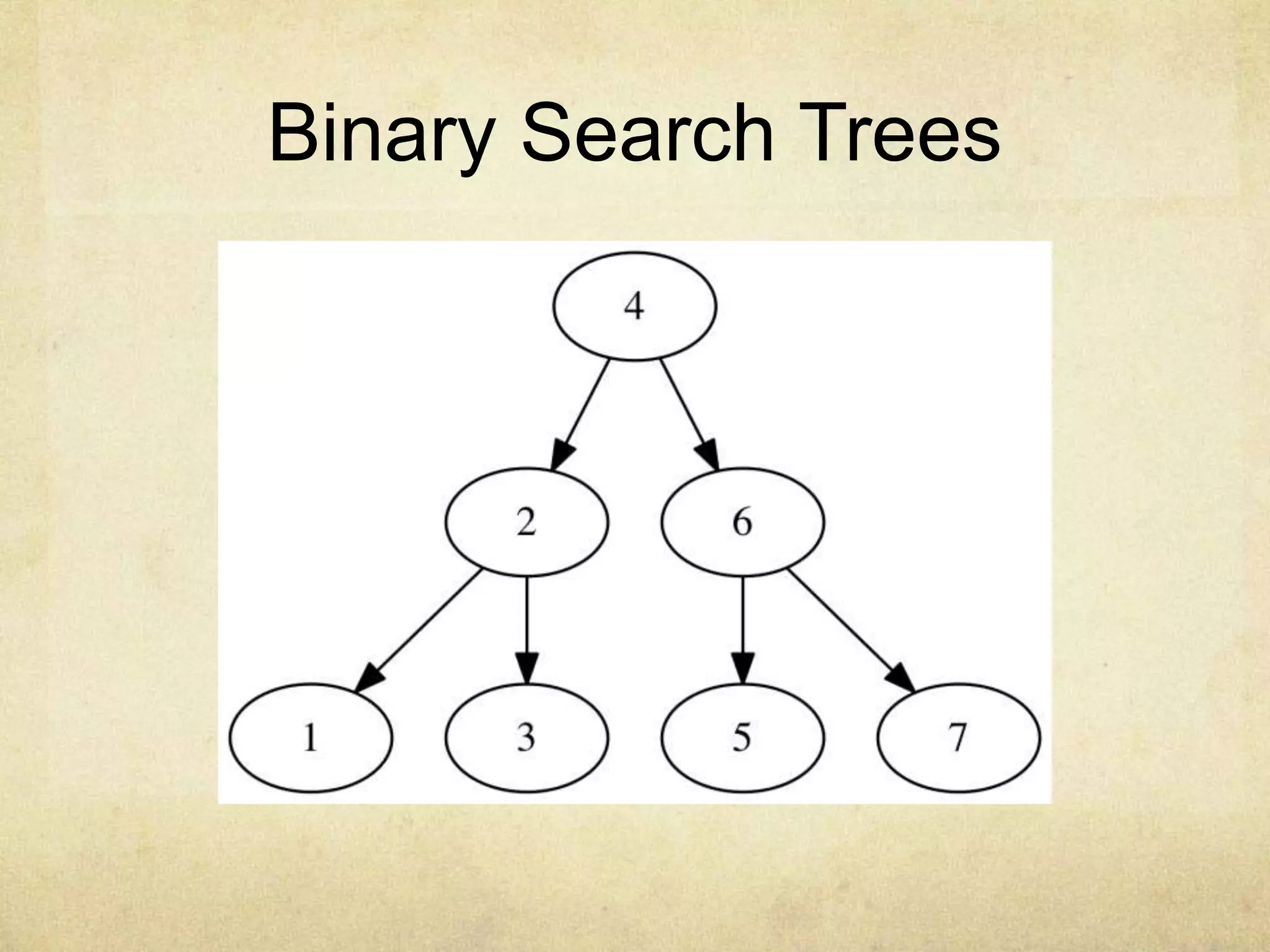

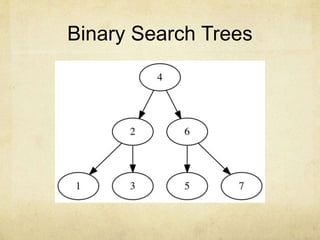

18. Binary Search Trees

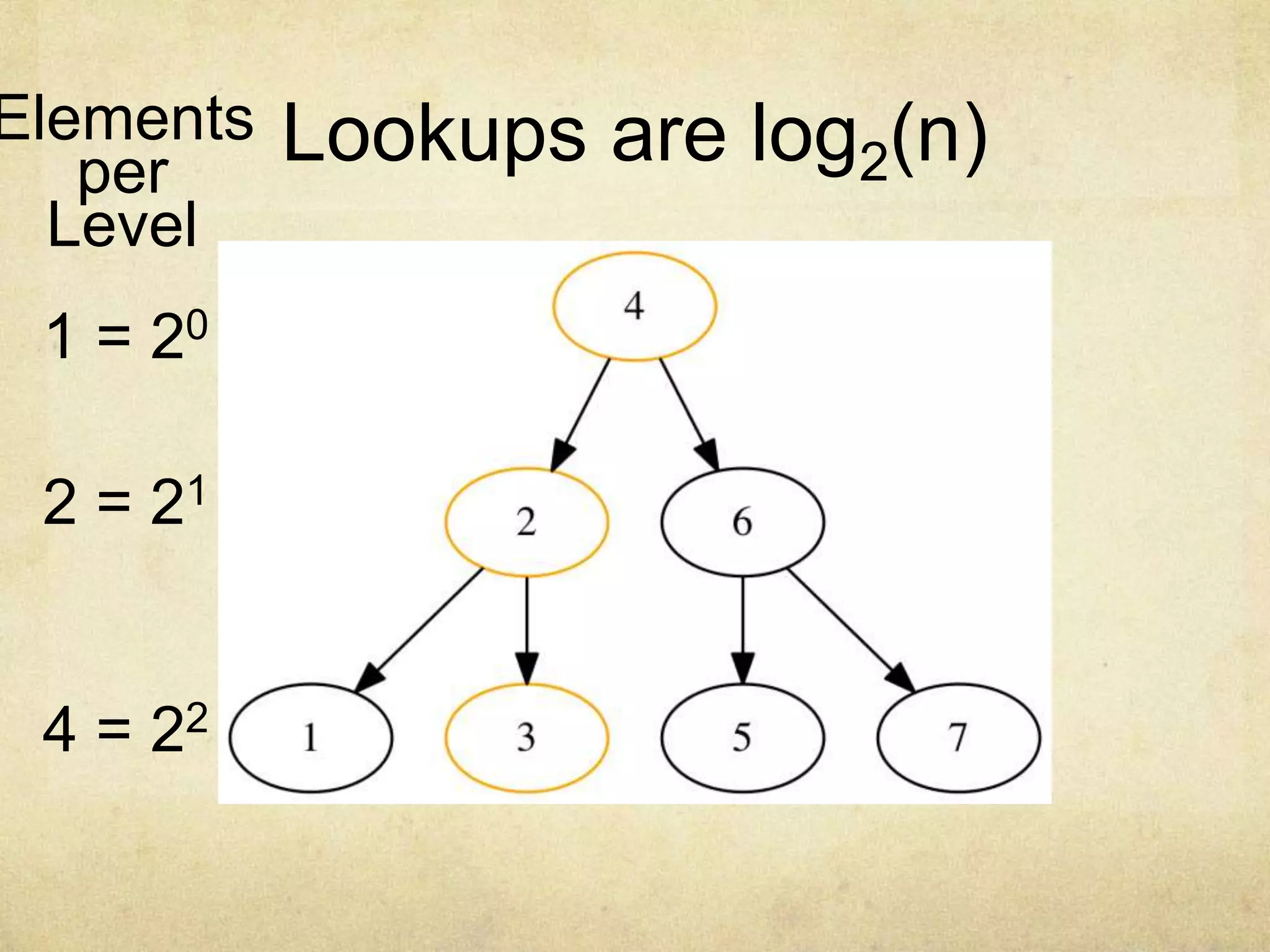

19. Lookups are log2(n)
1 = 20
2 = 21
4 = 22
Elements
per
Level

20. Big O Analysis
We Care About the Dominating Factor

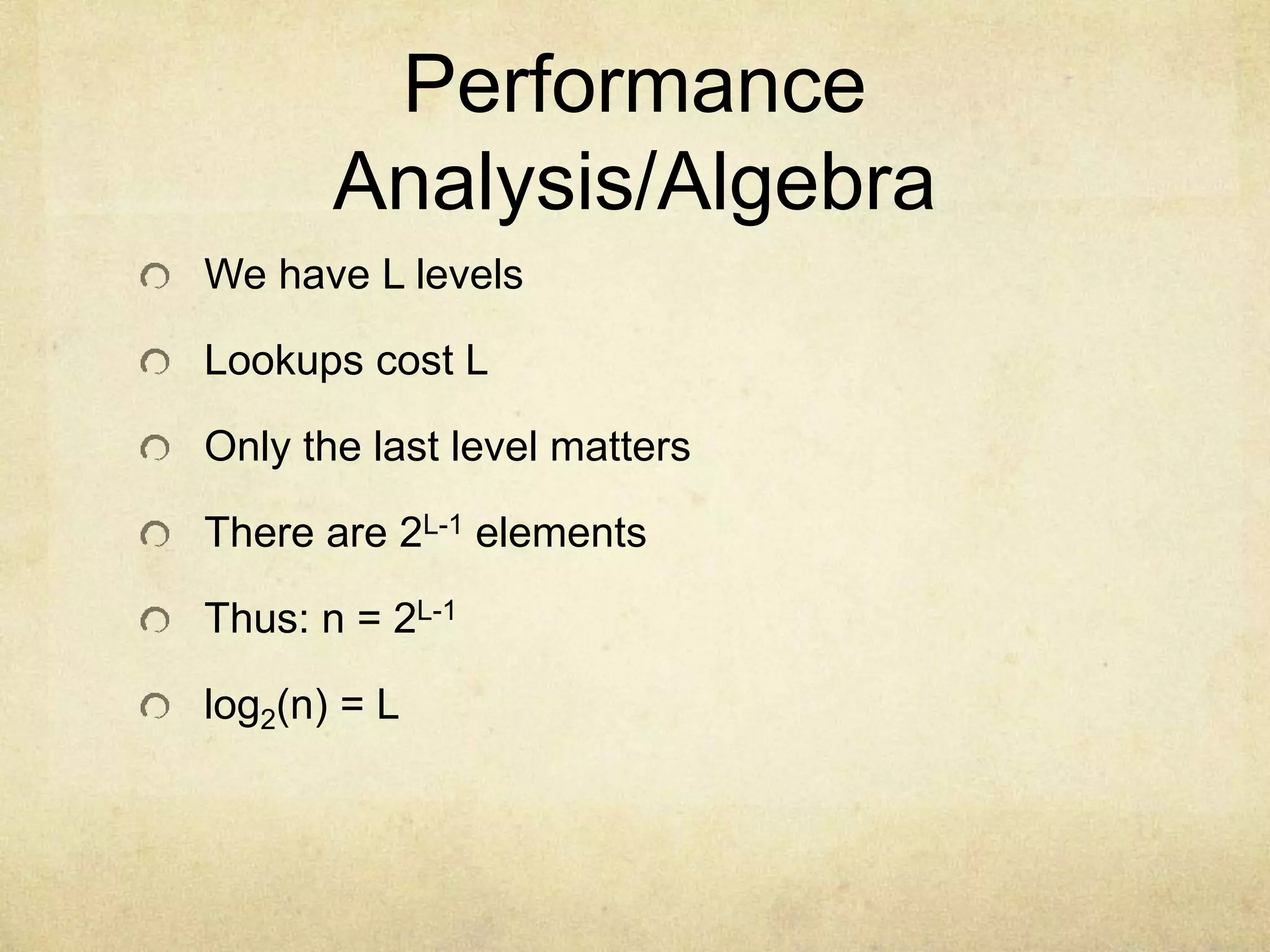

21. Performance
Analysis/Algebra
We have L levels
Lookups cost L
Only the last level matters
There are 2L-1 elements
Thus: n = 2L-1
log2(n) = L

22. Functional updates
Path Copying

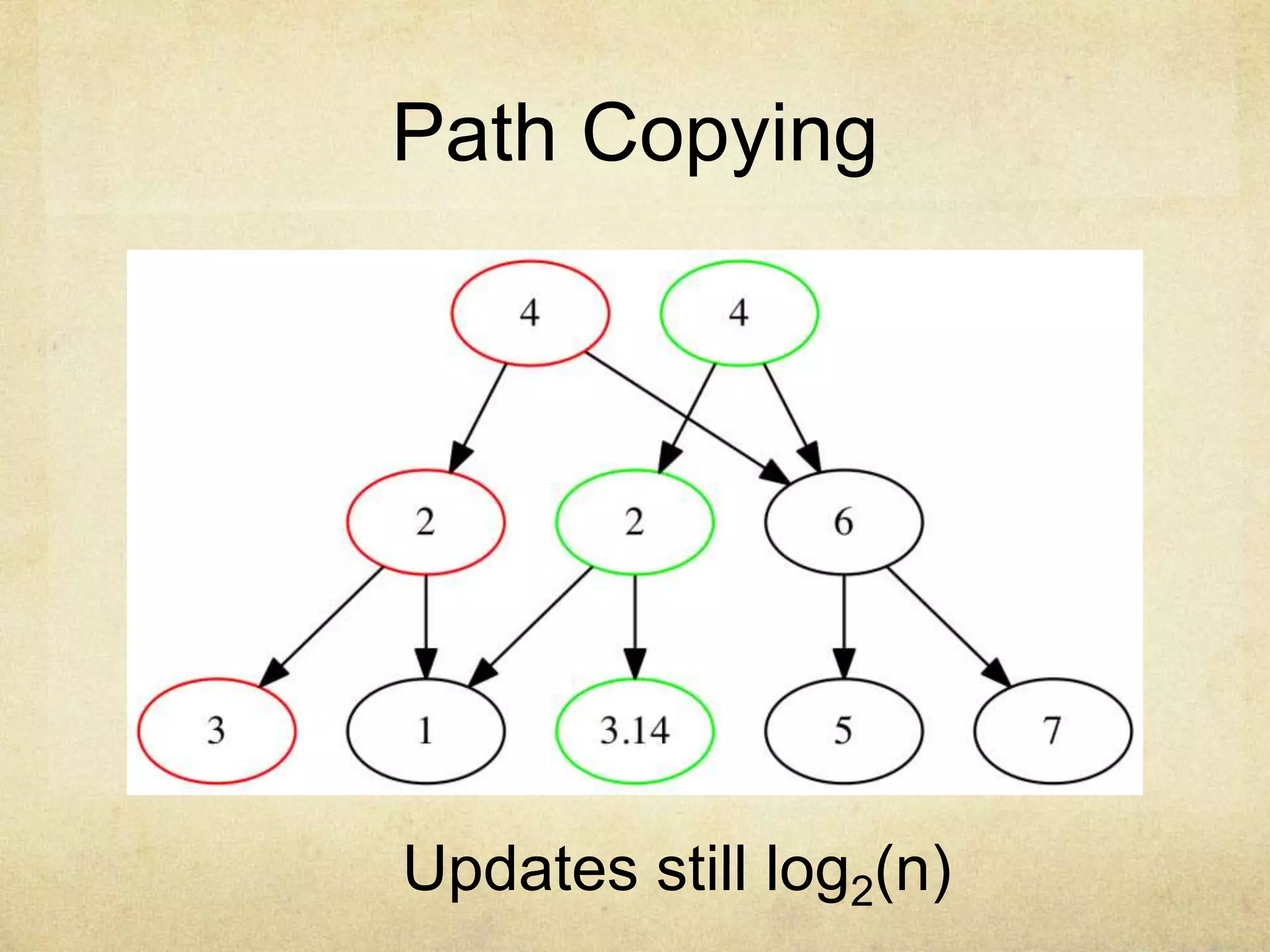

23. Path Copying
Updates still log2(n)

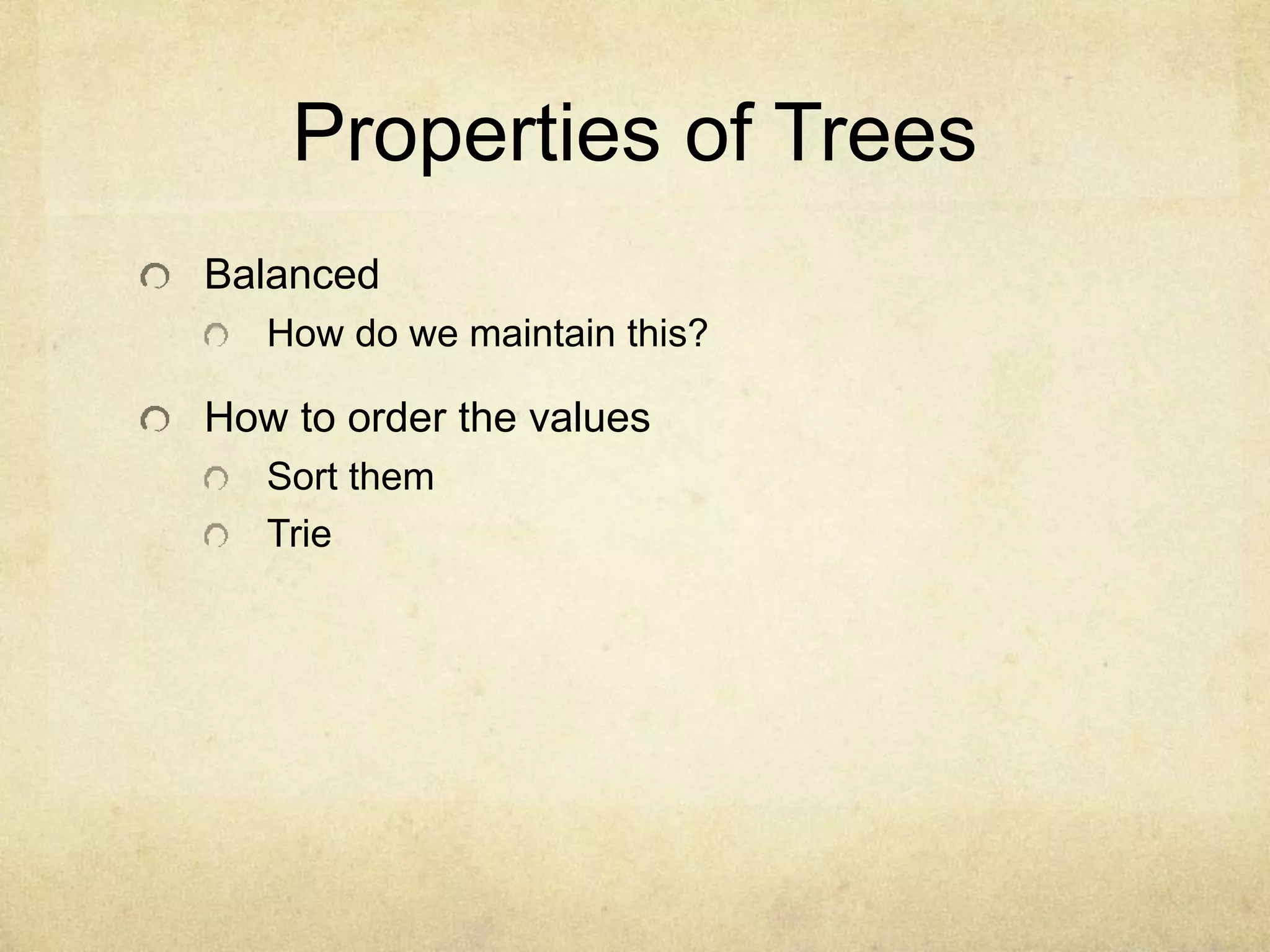

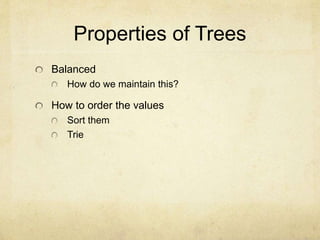

24. Properties of Trees
Balanced
How do we maintain this?
How to order the values
Sort them
Trie

25. Changing Our
Cost Model
Where did the 2 come from in log2(n)?

26. More children
Fat nodes with ~B children

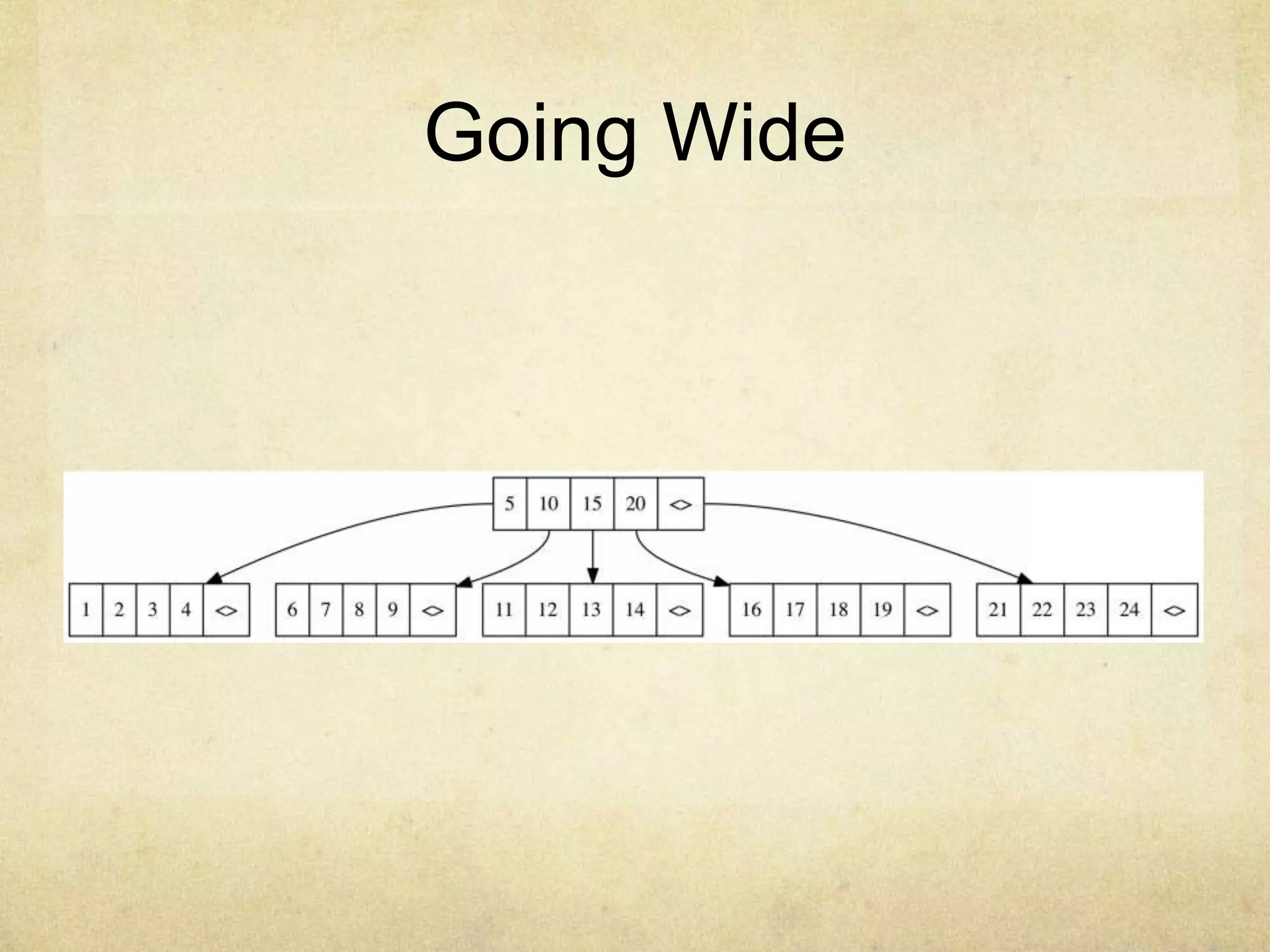

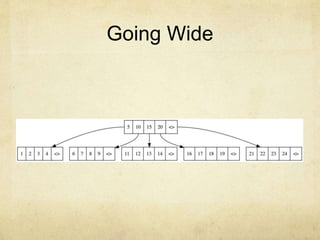

27. Going Wide

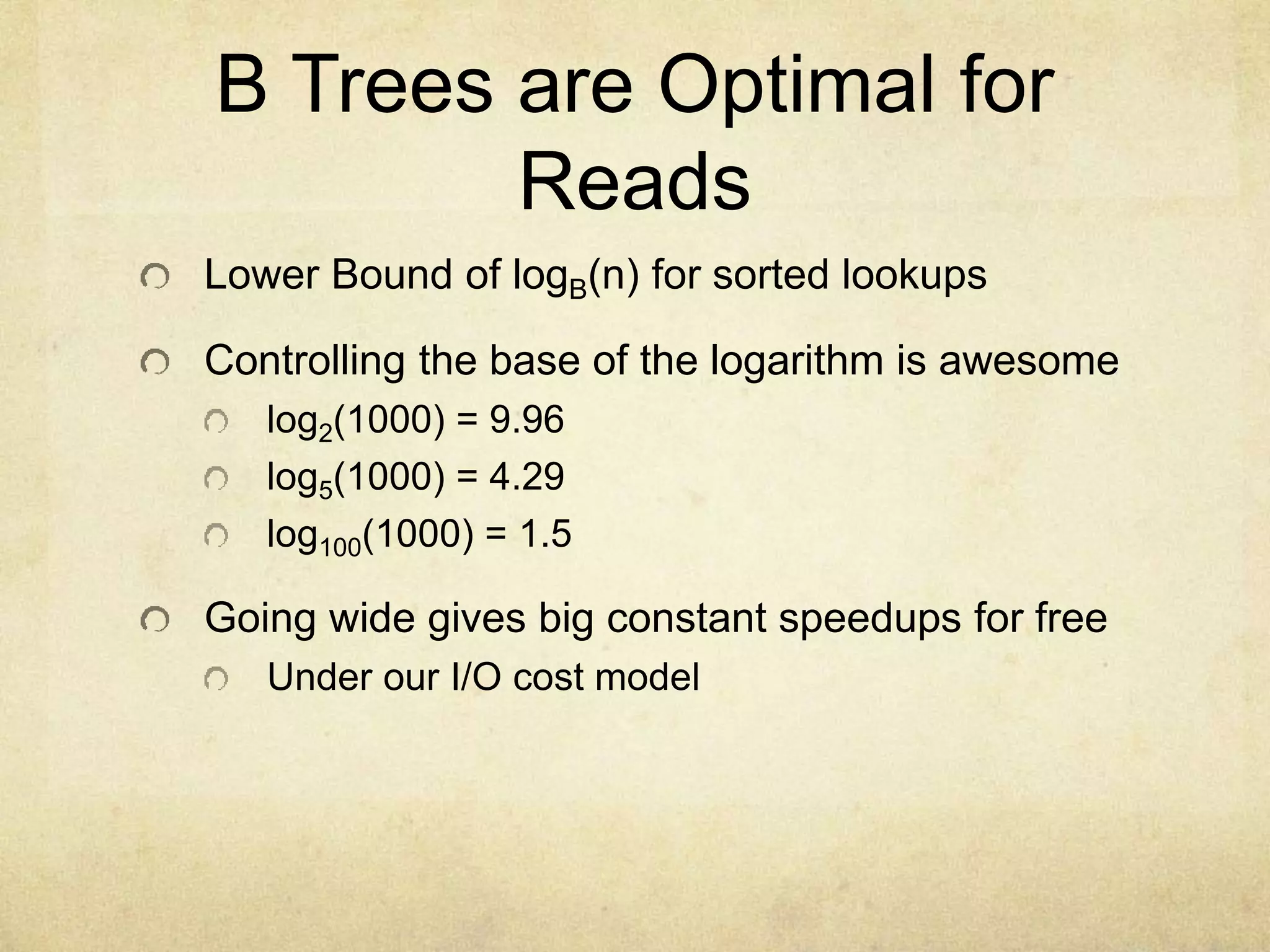

28. B Trees are Optimal for
Reads
Lower Bound of logB(n) for sorted lookups
Controlling the base of the logarithm is awesome
log2(1000) = 9.96
log5(1000) = 4.29
log100(1000) = 1.5
Going wide gives big constant speedups for free
Under our I/O cost model

29. B Tree Bookkeeping
Not as simple as a Binary Search Tree

30. Separate Node Types
Index & Data Nodes

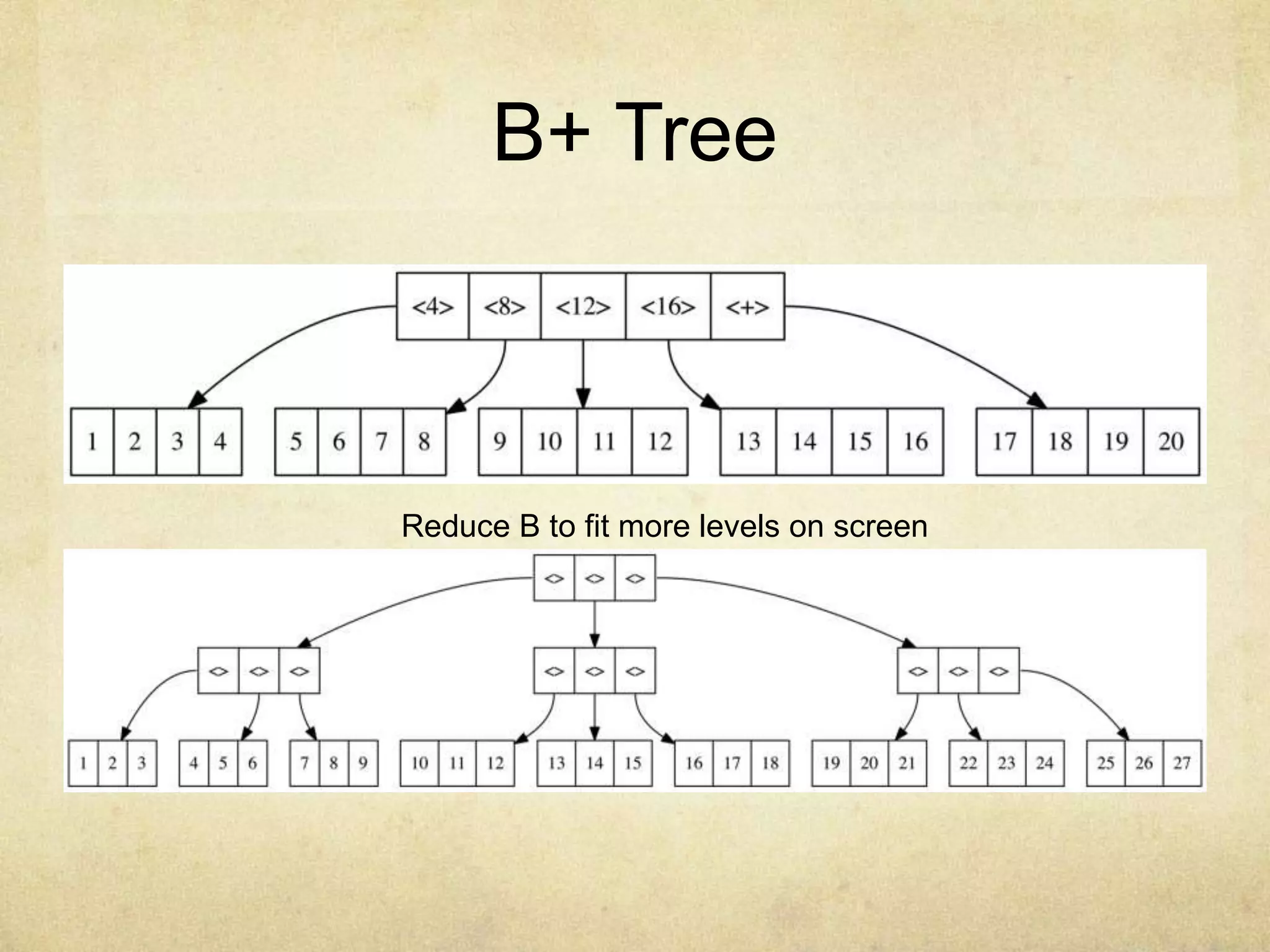

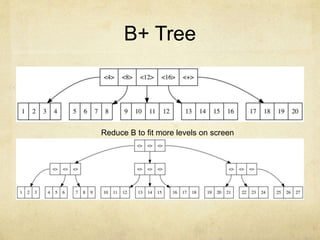

31. B+ Tree
Reduce B to fit more levels on screen

32. Introducing
Fractal Trees

33. Fractal Trees

34. We can insert
faster
logb(n) is only for sorted lookups

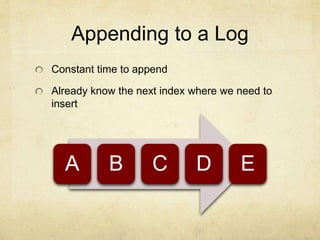

35. Appending to a Log
Constant time to append
Already know the next index where we need to
insert
A B C D E

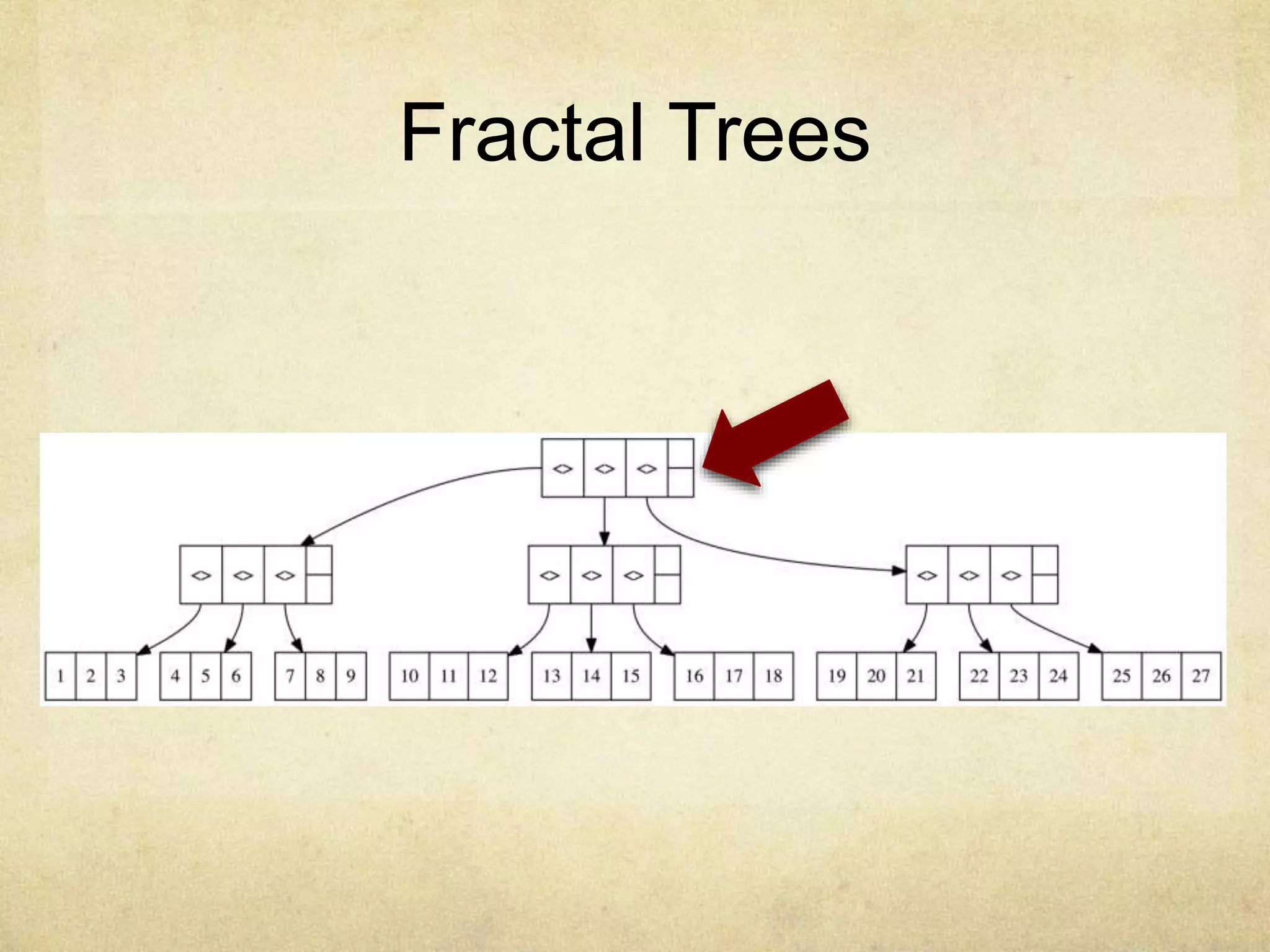

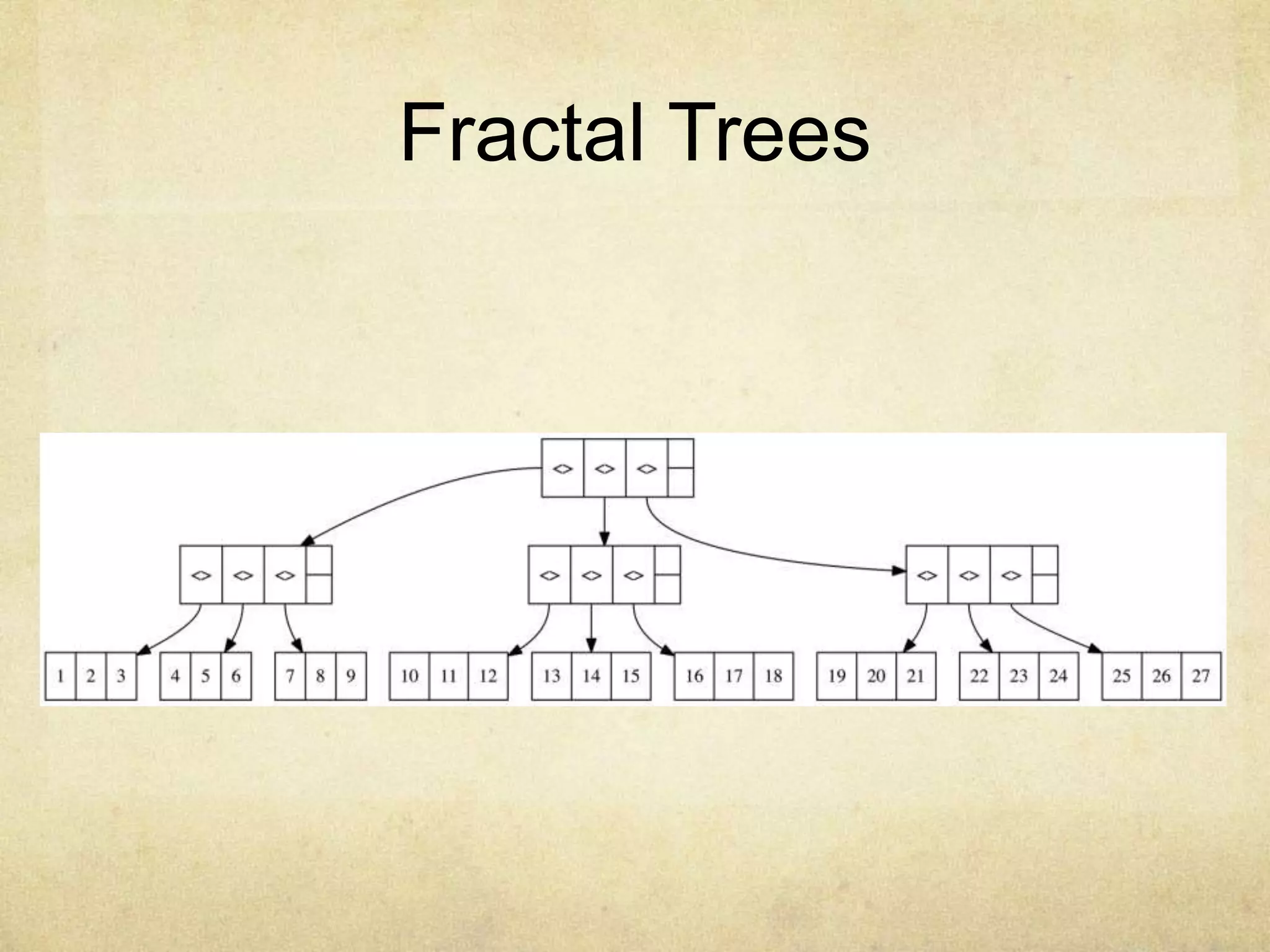

36. Fractal Trees

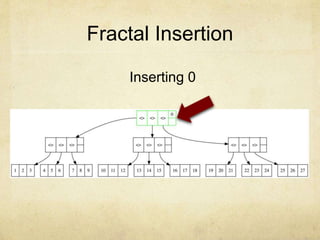

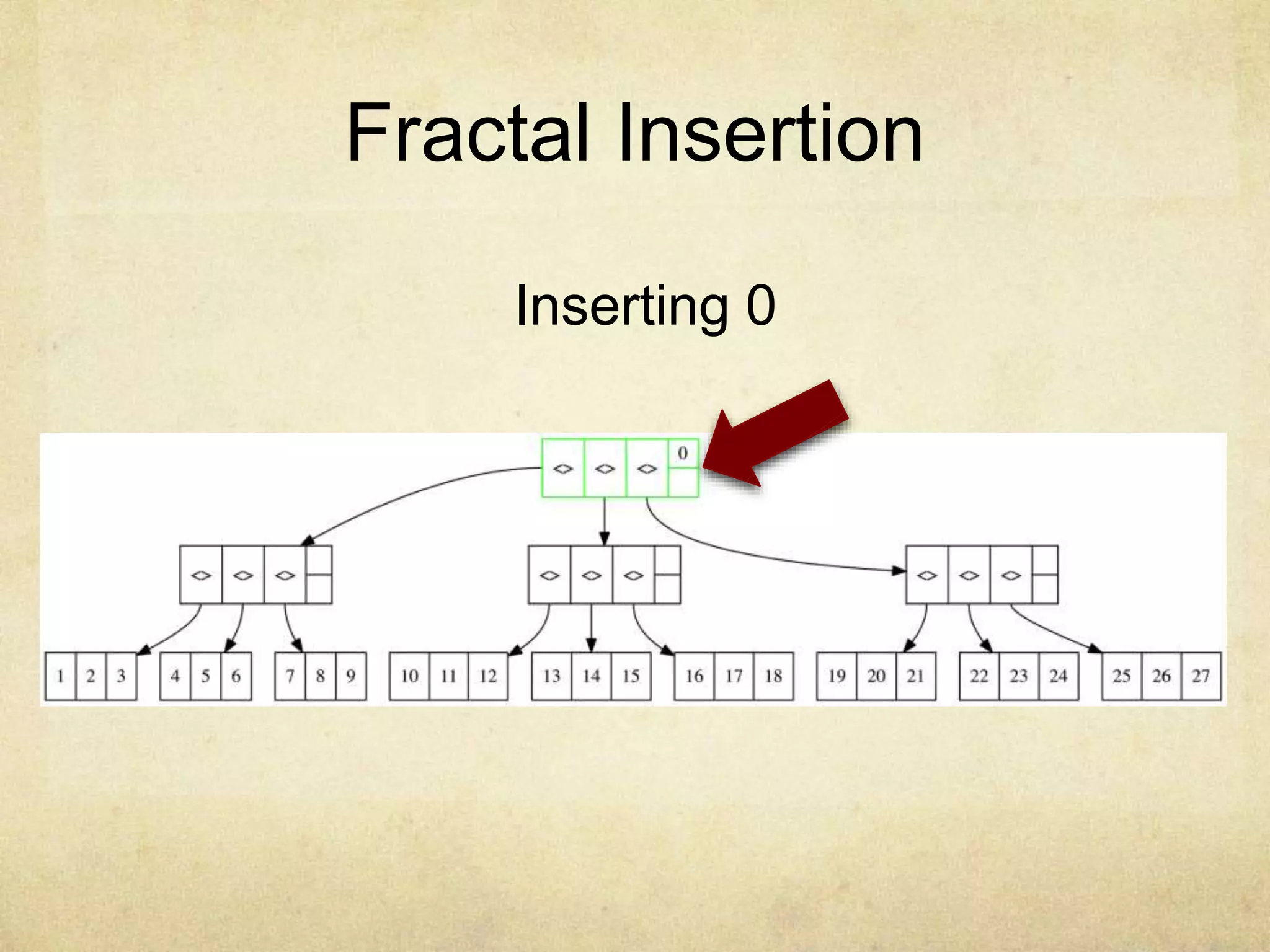

37. Fractal Insertion
Inserting 0

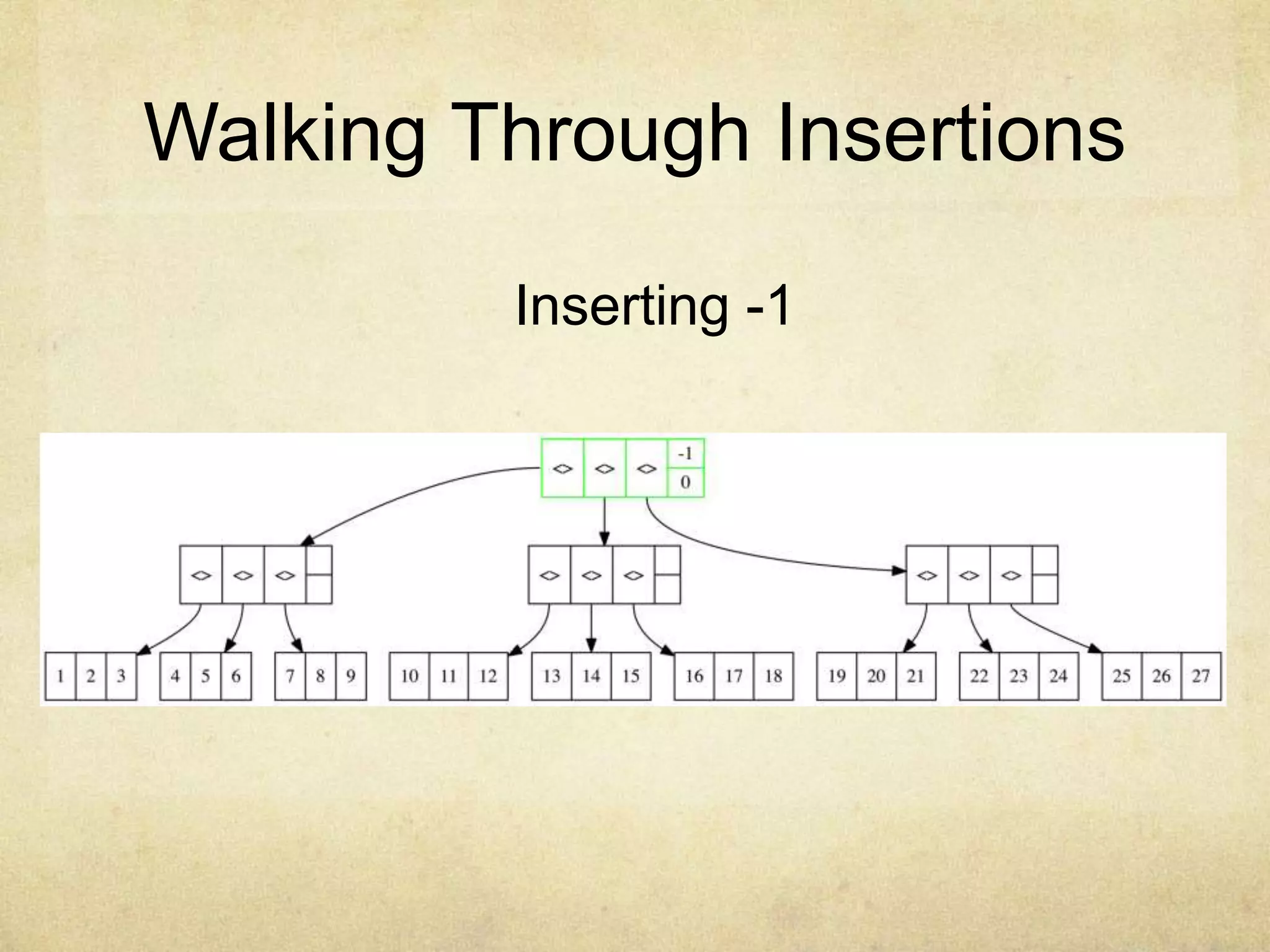

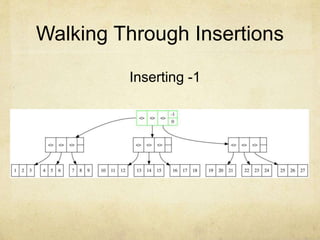

38. Walking Through Insertions
Inserting -1

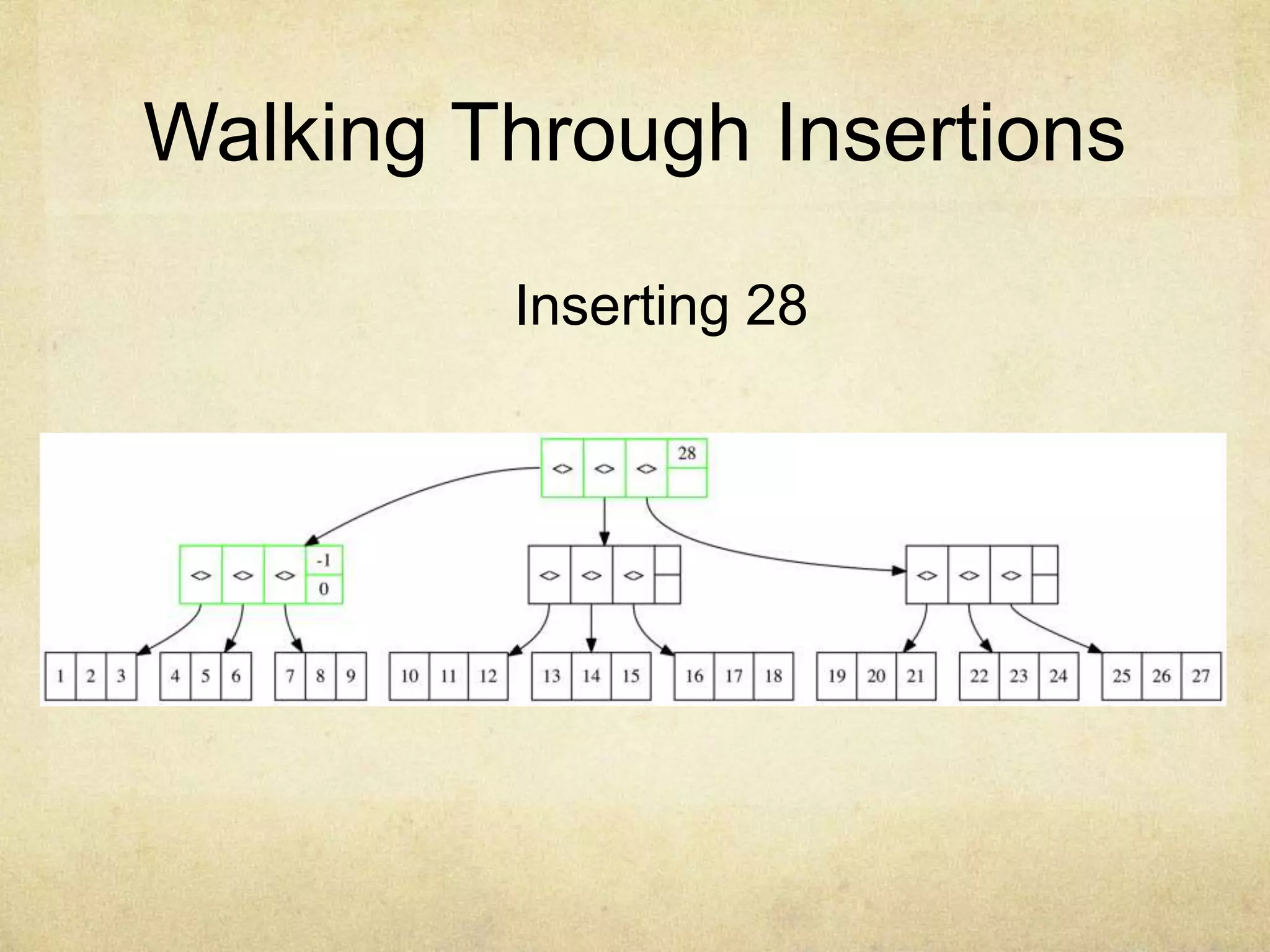

39. Walking Through Insertions
Inserting 28

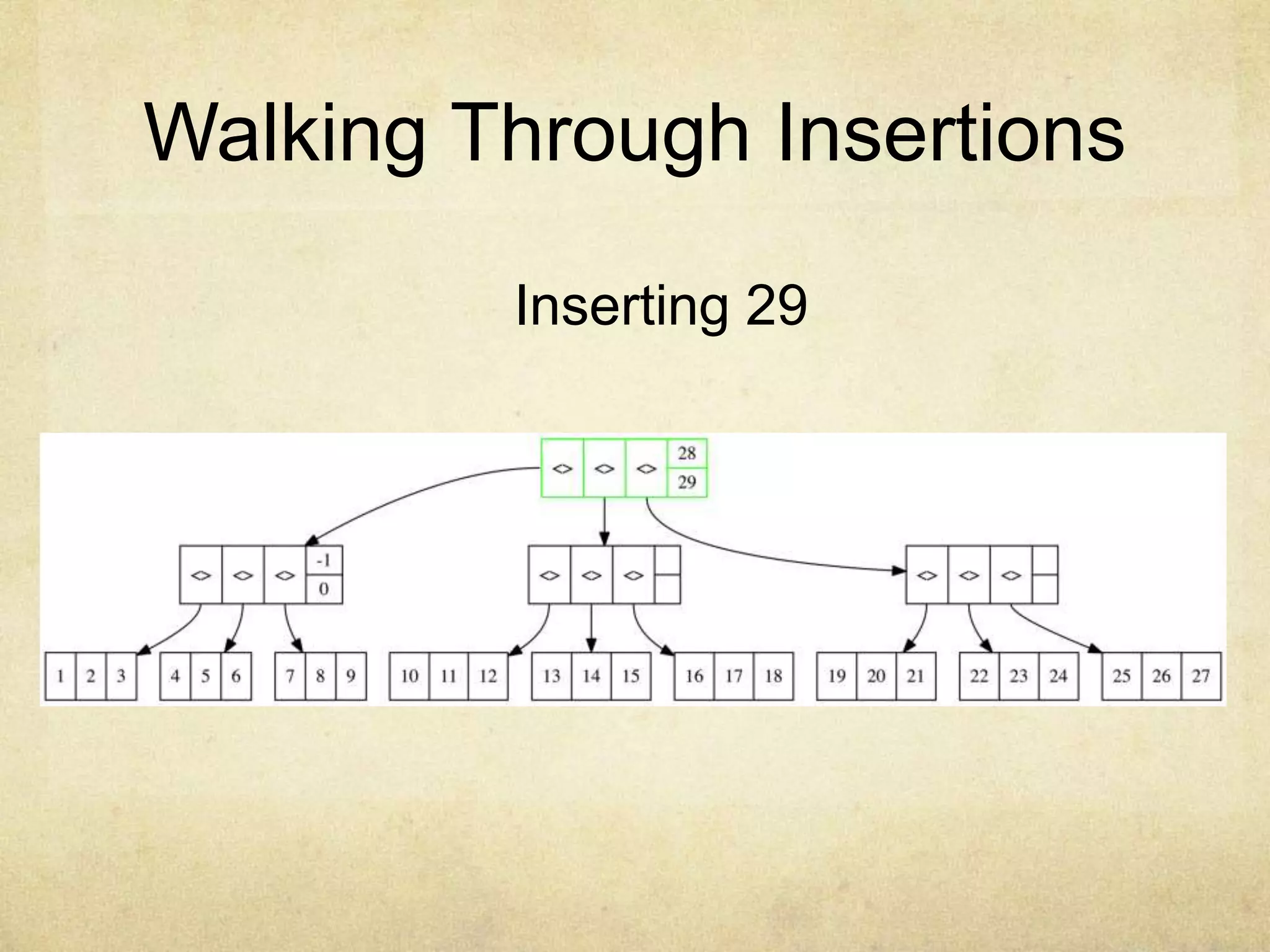

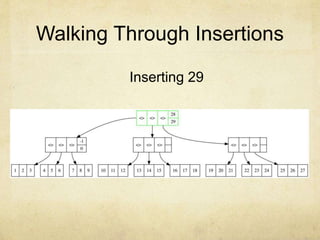

40. Walking Through Insertions
Inserting 29

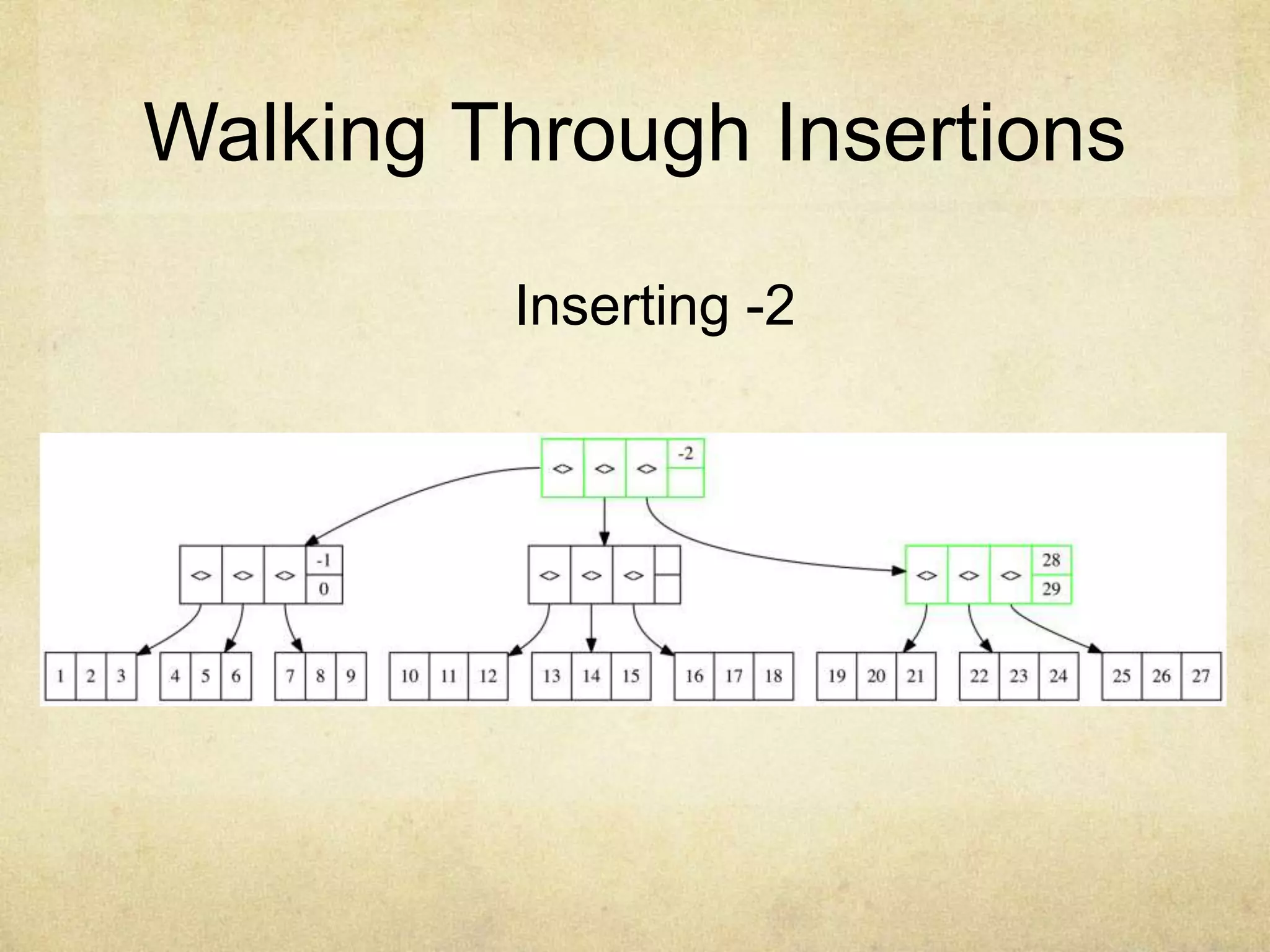

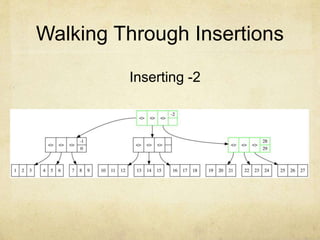

41. Walking Through Insertions
Inserting -2

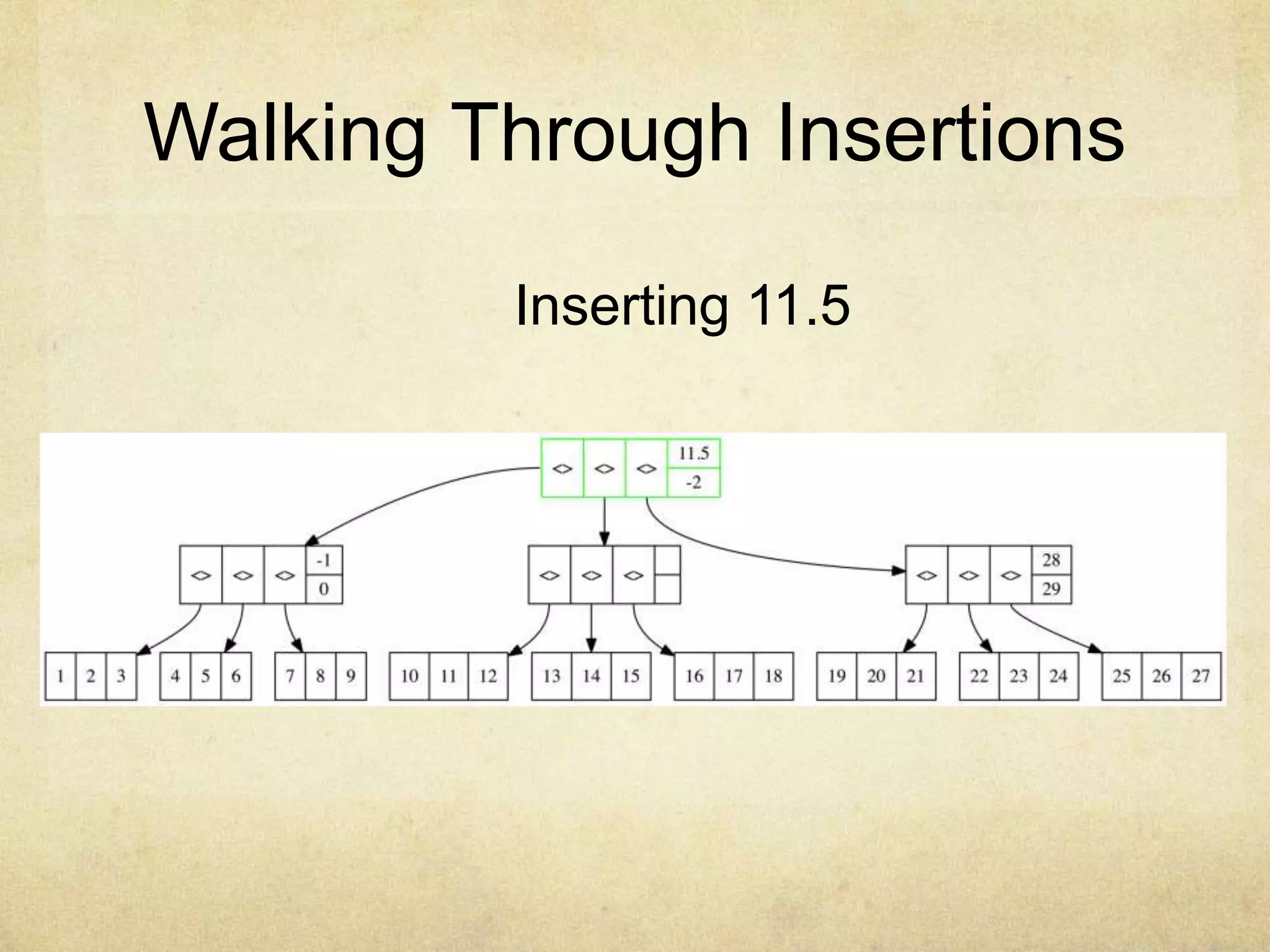

42. Walking Through Insertions
Inserting 11.5

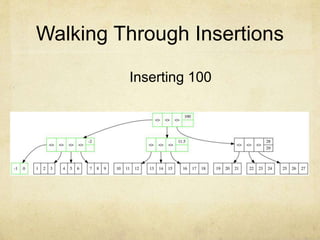

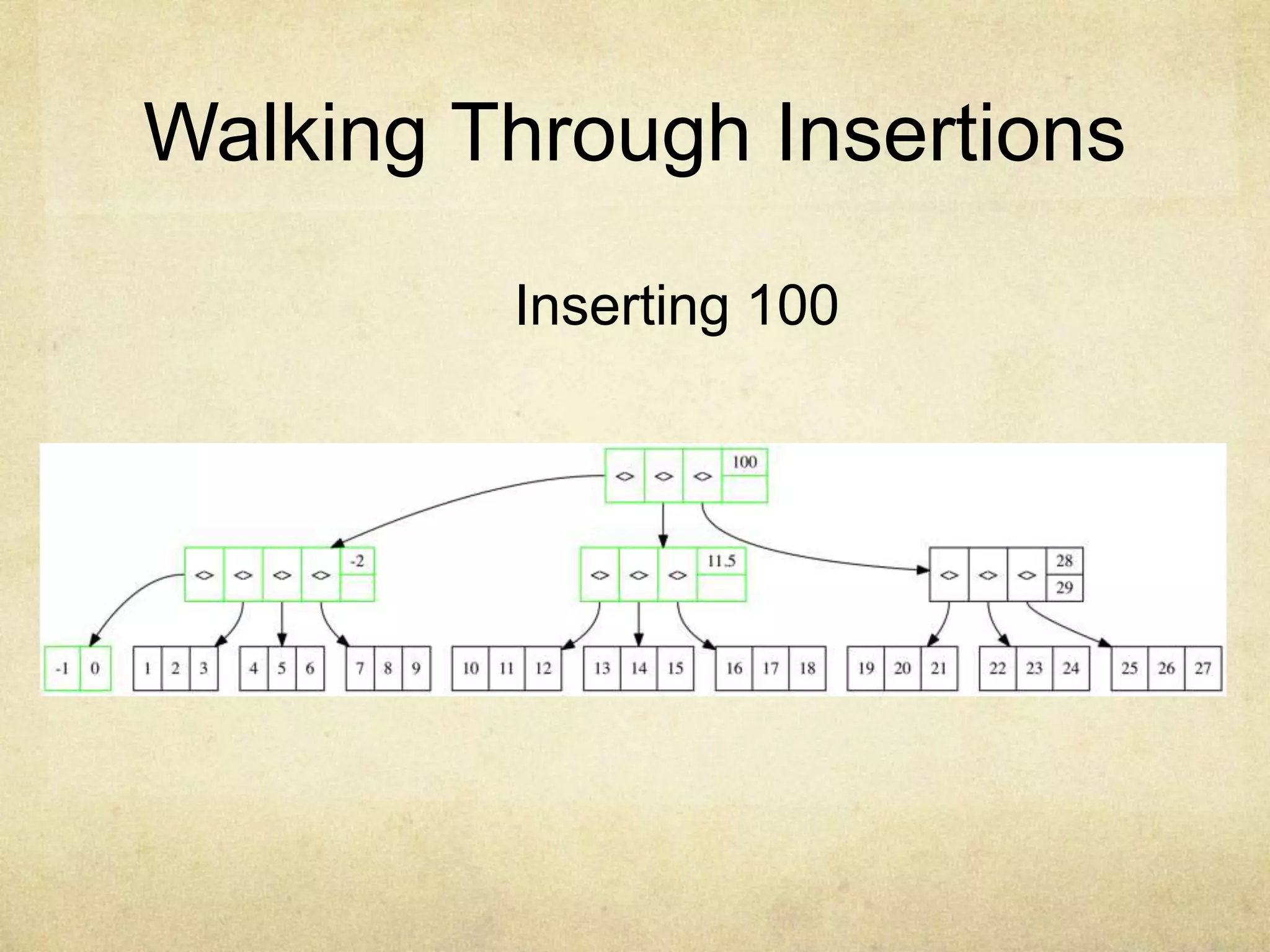

43. Walking Through Insertions
Inserting 100

44. What about
Reads?

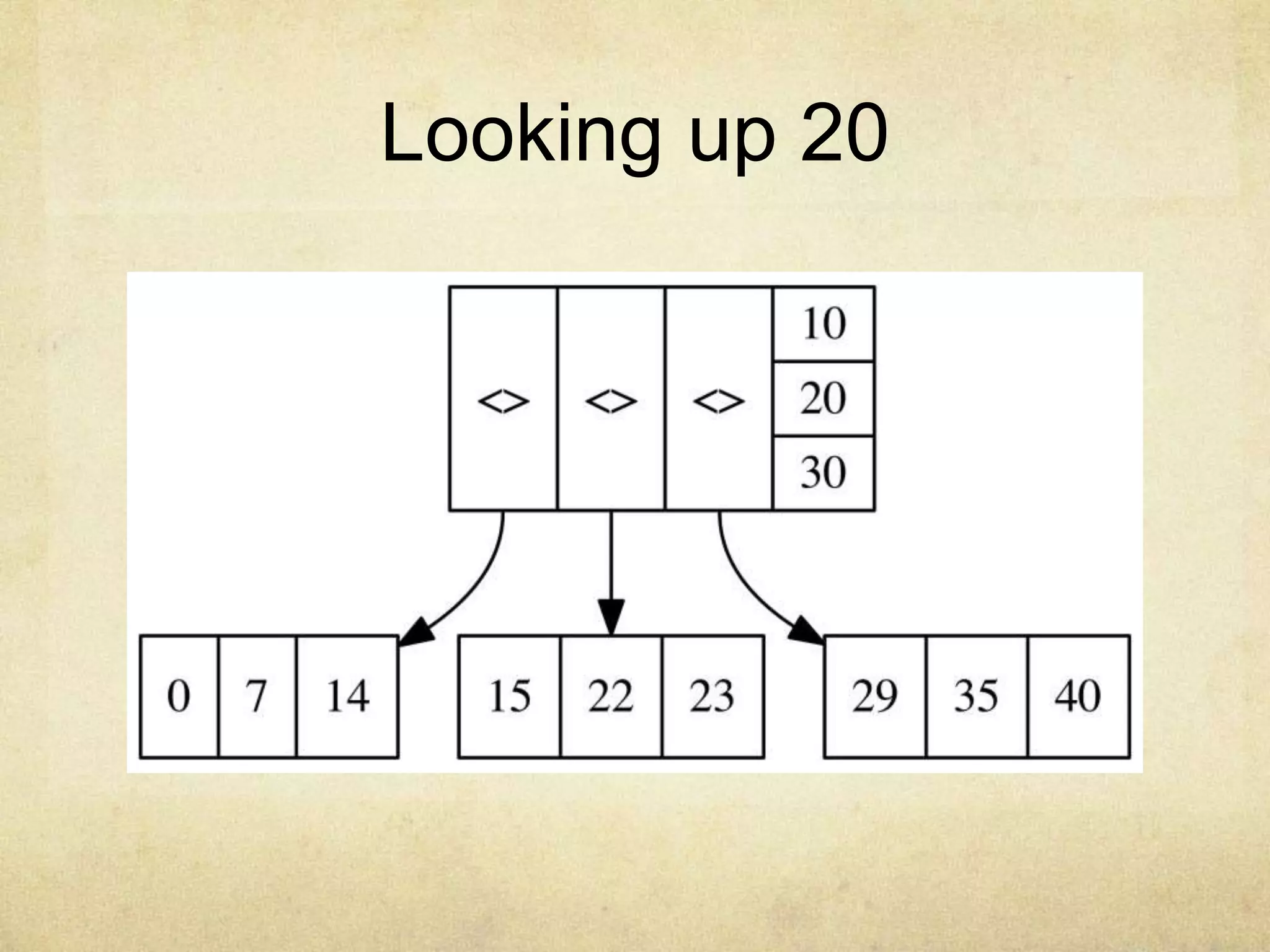

45. Looking up 20

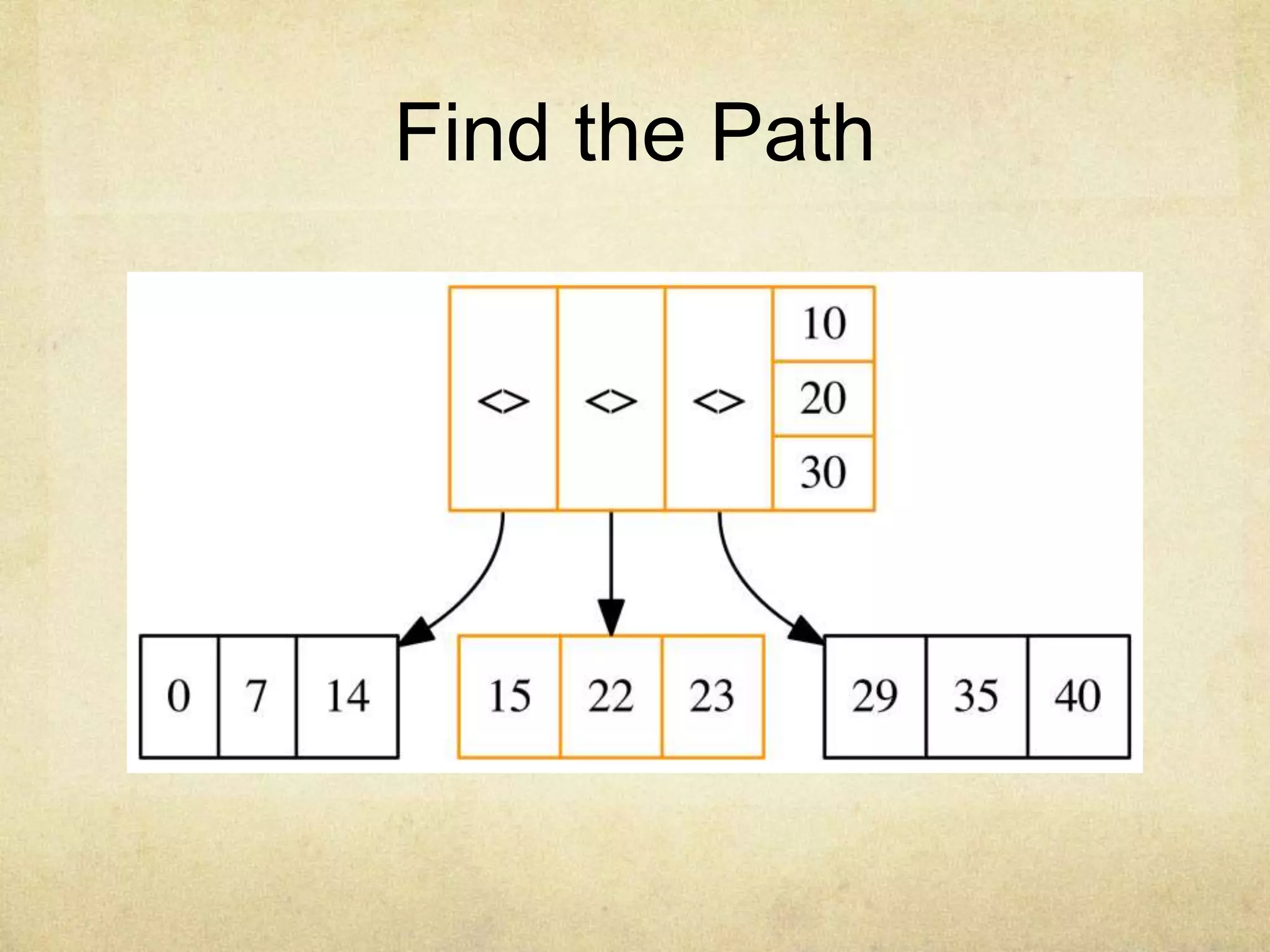

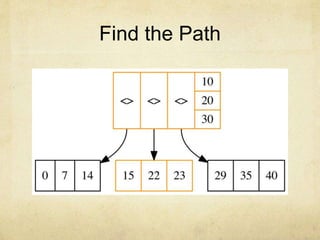

46. Find the Path

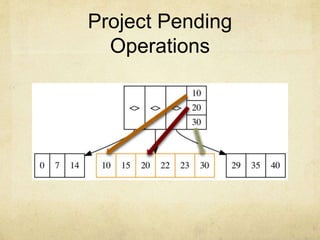

47. Project Pending
Operations

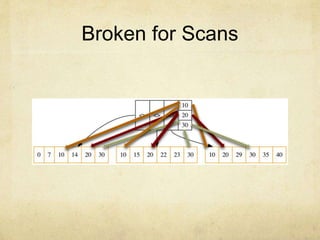

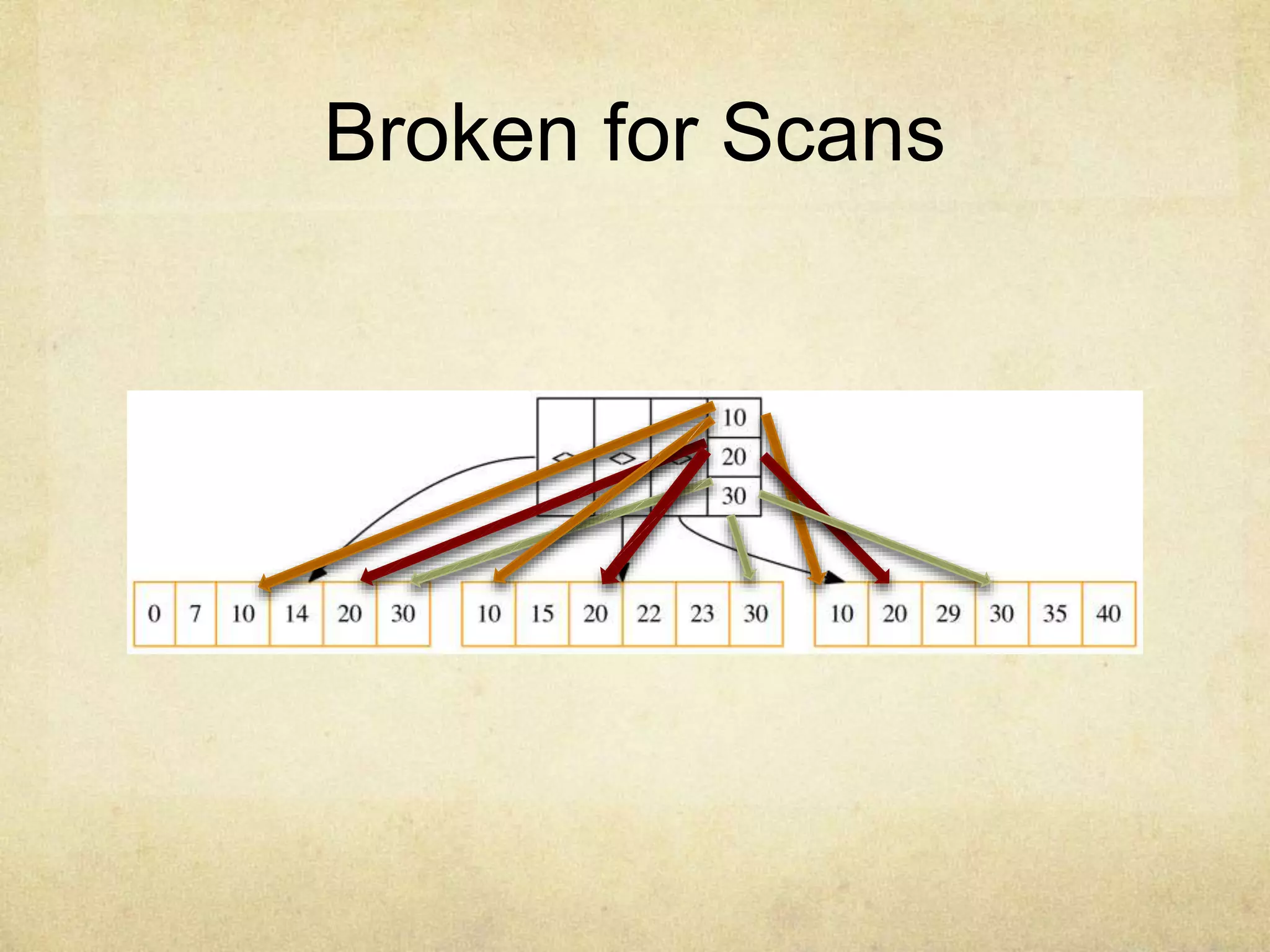

48. Broken for Scans

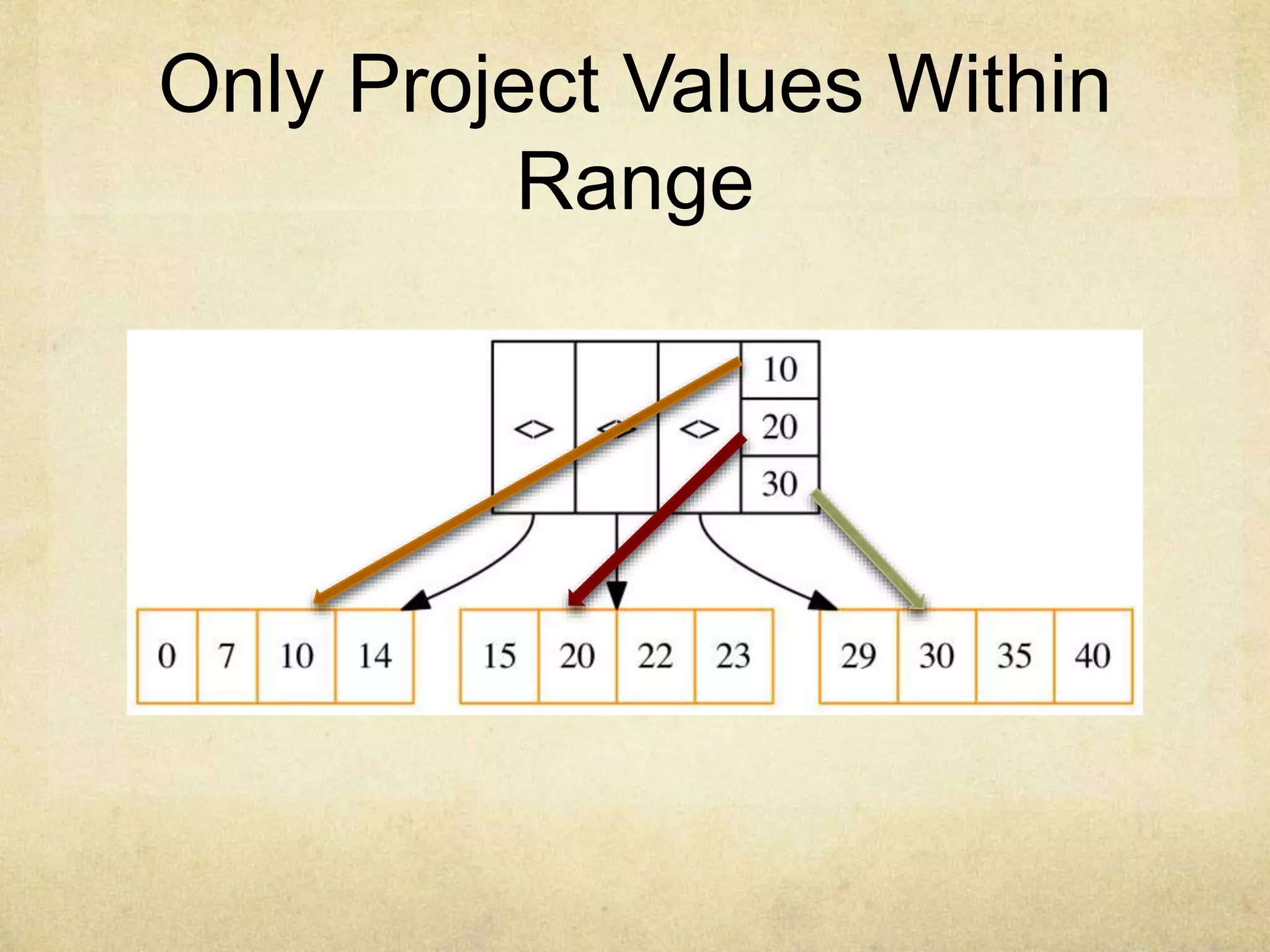

49. Only Project Values Within
Range

50. Hitchhiker vs Fractal

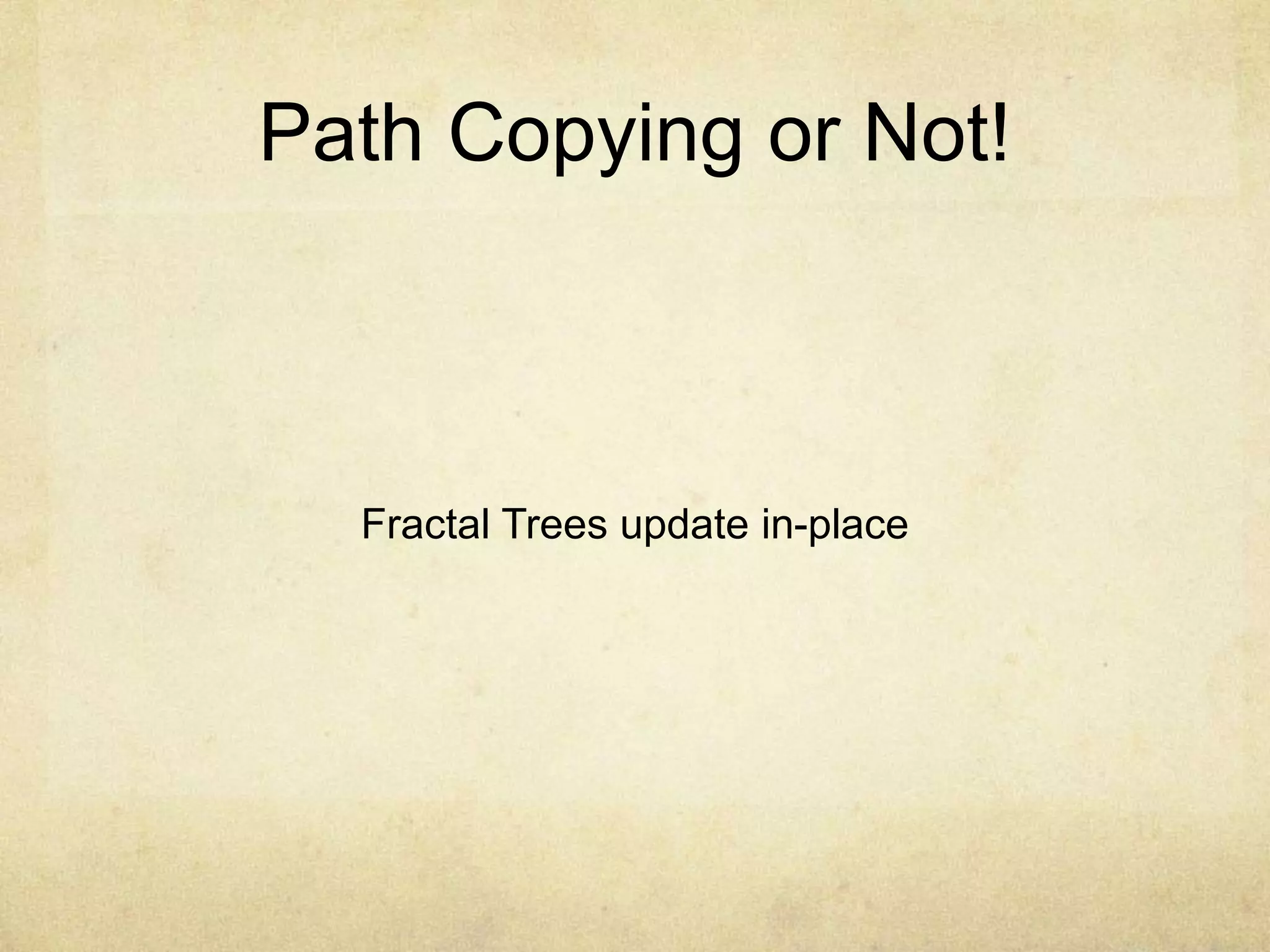

51. Path Copying or Not!
Fractal Trees update in-place

52. Path Copying or Not!
Hitchhiker Trees use path-copying

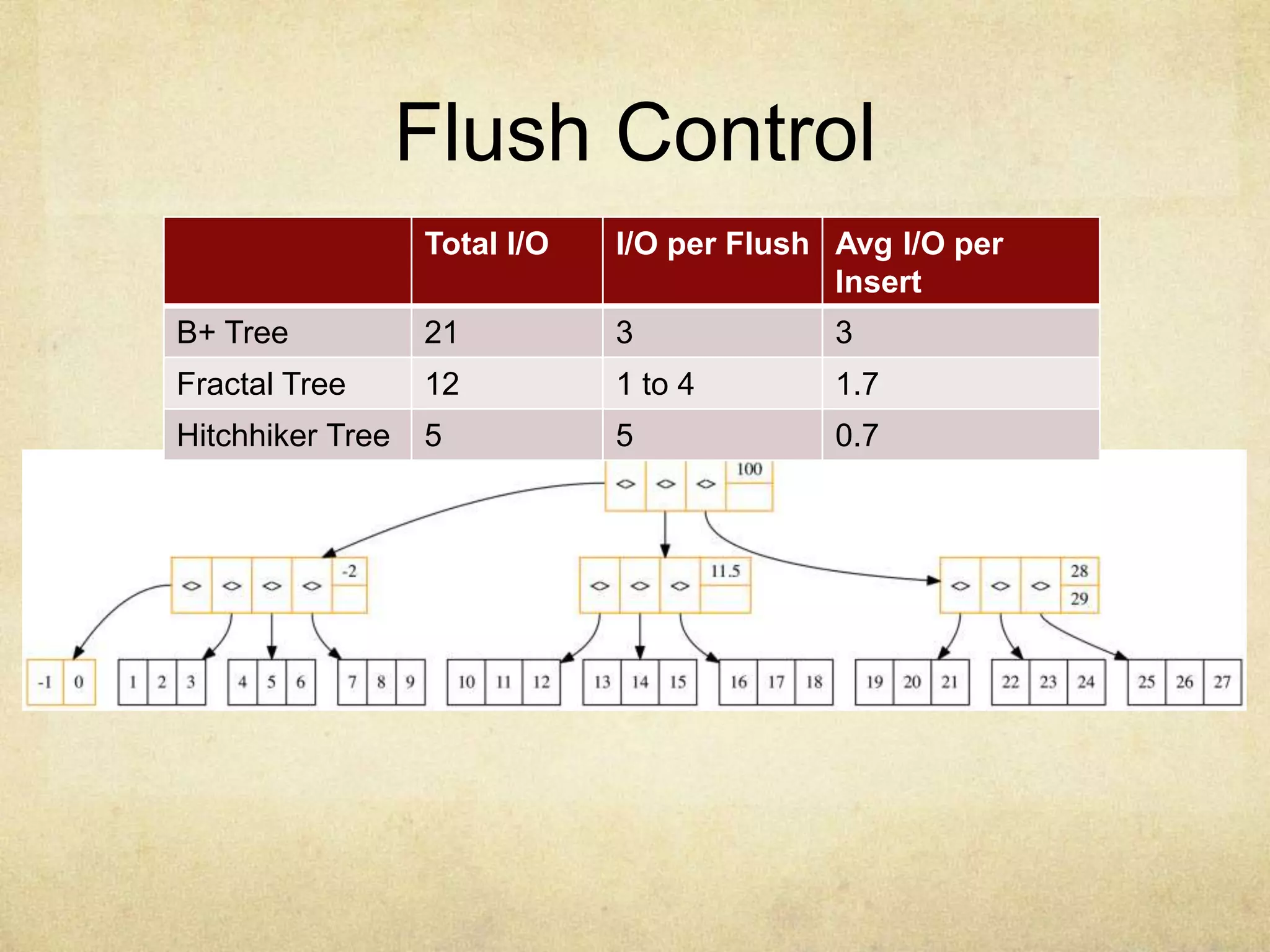

53. Flush Control
Total I/O I/O per Flush Avg I/O per
Insert
B+ Tree 21 3 3
Fractal Tree 12 1 to 4 1.7
Hitchhiker Tree 5 5 0.7

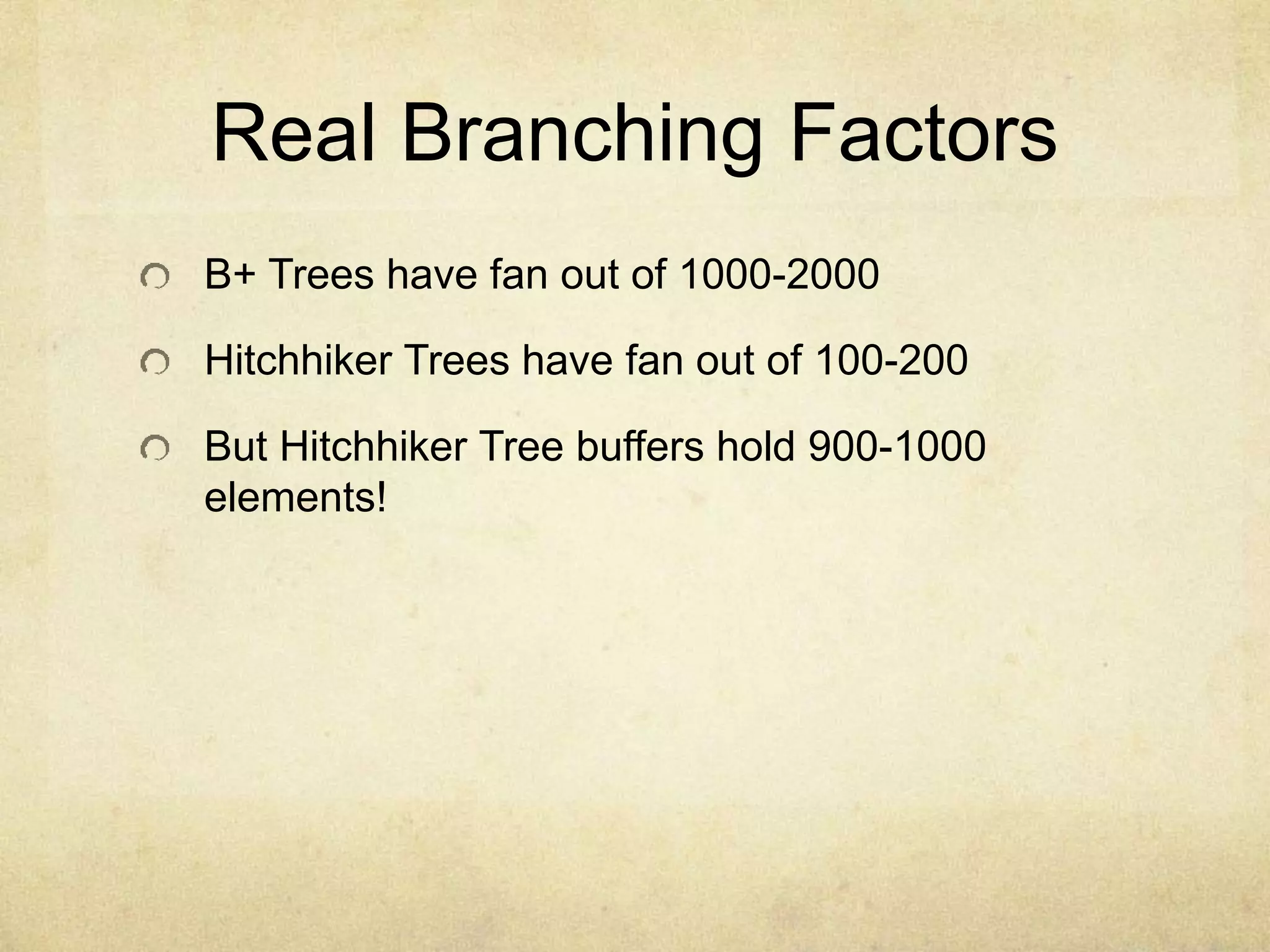

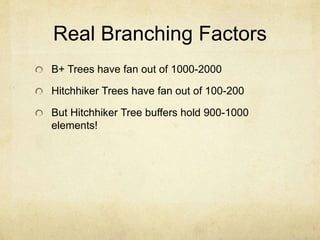

54. Real Branching Factors
B+ Trees have fan out of 1000-2000
Hitchhiker Trees have fan out of 100-200
But Hitchhiker Tree buffers hold 900-1000
elements!

55. I want to try it!
On Github

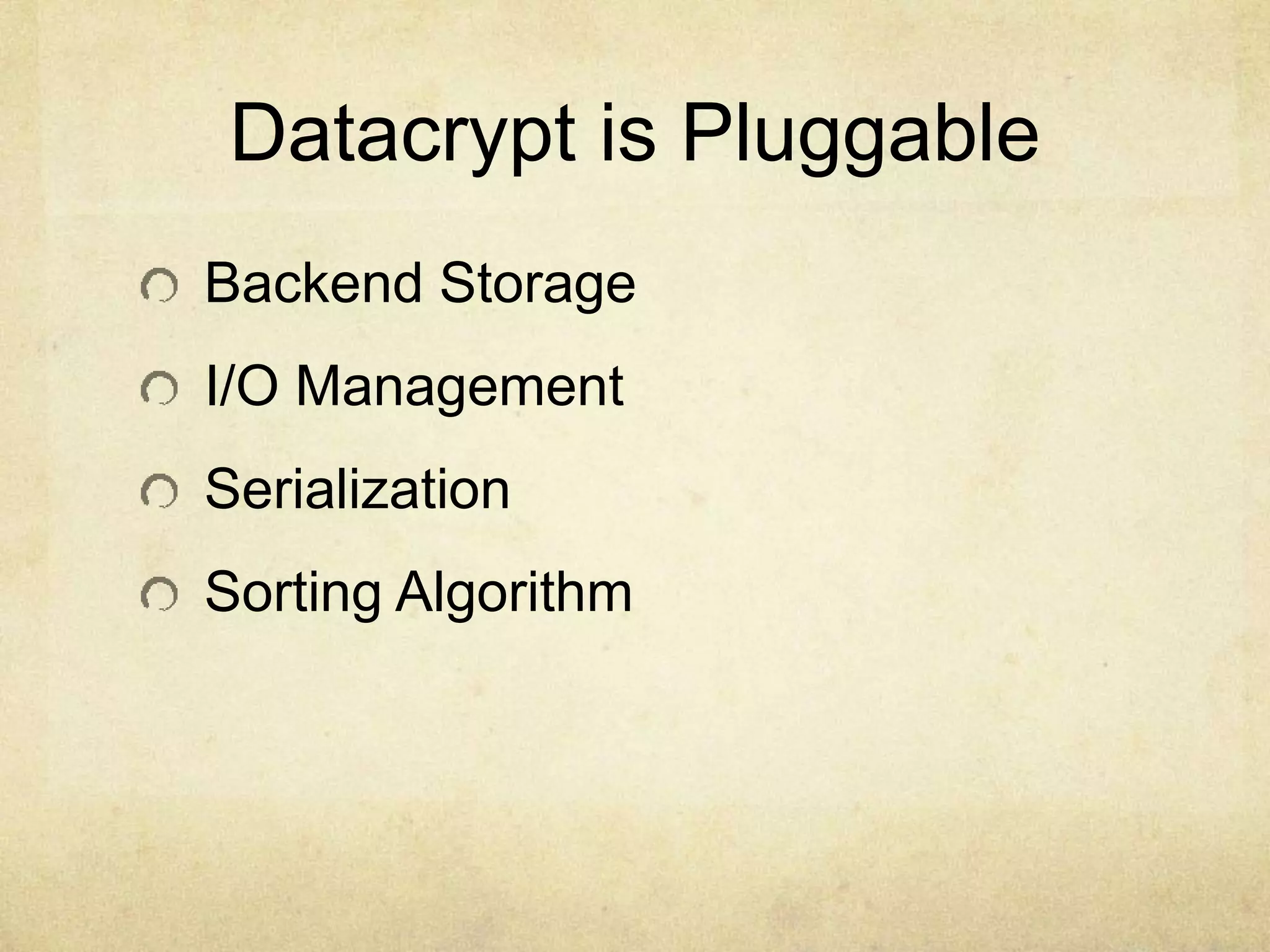

58. Datacrypt is Pluggable
Backend Storage
I/O Management
Serialization
Sorting Algorithm

59. Works with Redis
Called the Outboard API

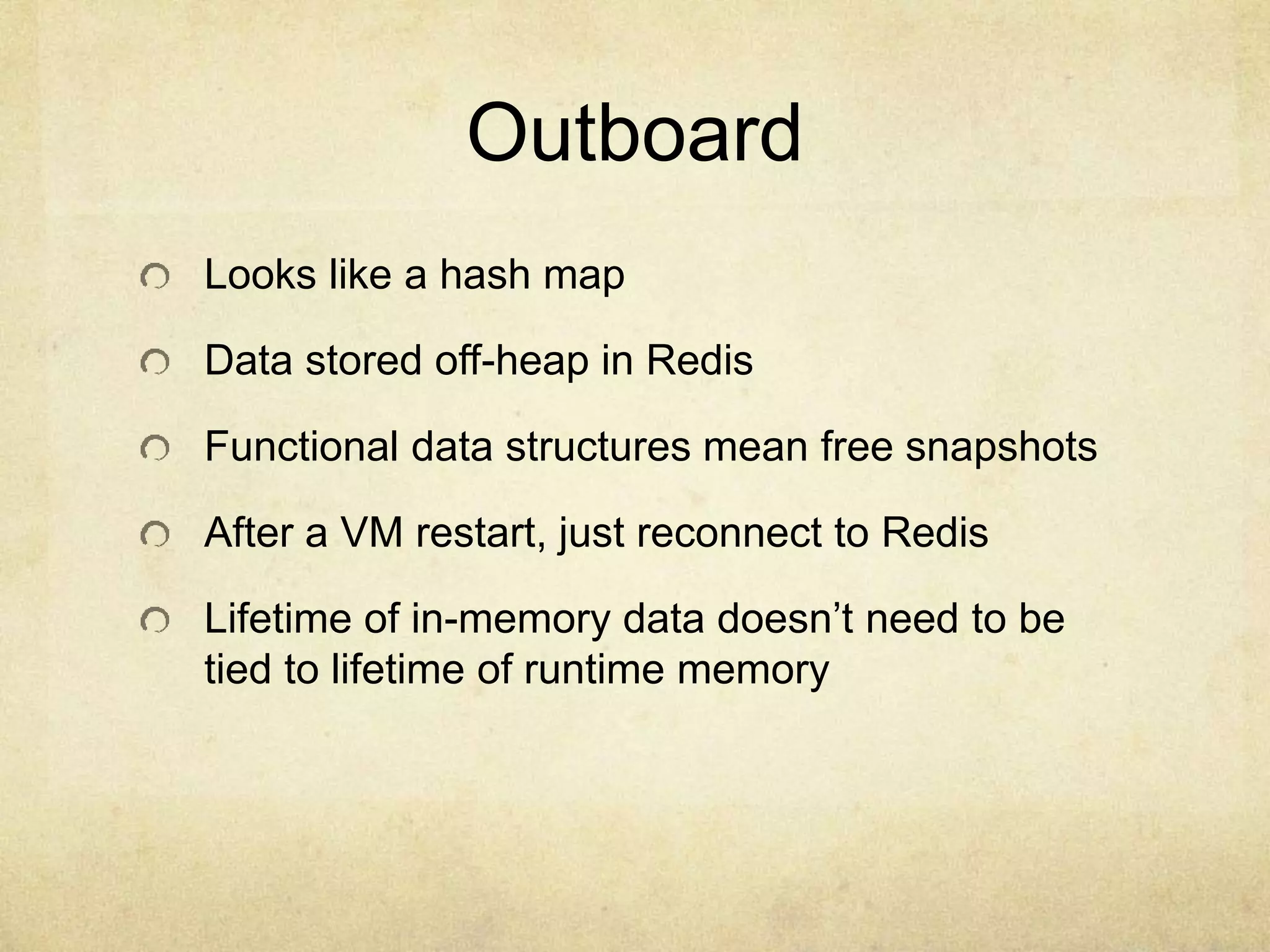

60. Outboard
Looks like a hash map
Data stored off-heap in Redis
Functional data structures mean free snapshots
After a VM restart, just reconnect to Redis
Lifetime of in-memory data doesn’t need to be
tied to lifetime of runtime memory

61. What’ll we build next?
Q&A
Thanks to:
Andy Chambers for JDBC Backend &
GC Improvements
Casey Marshall for S3 Backend

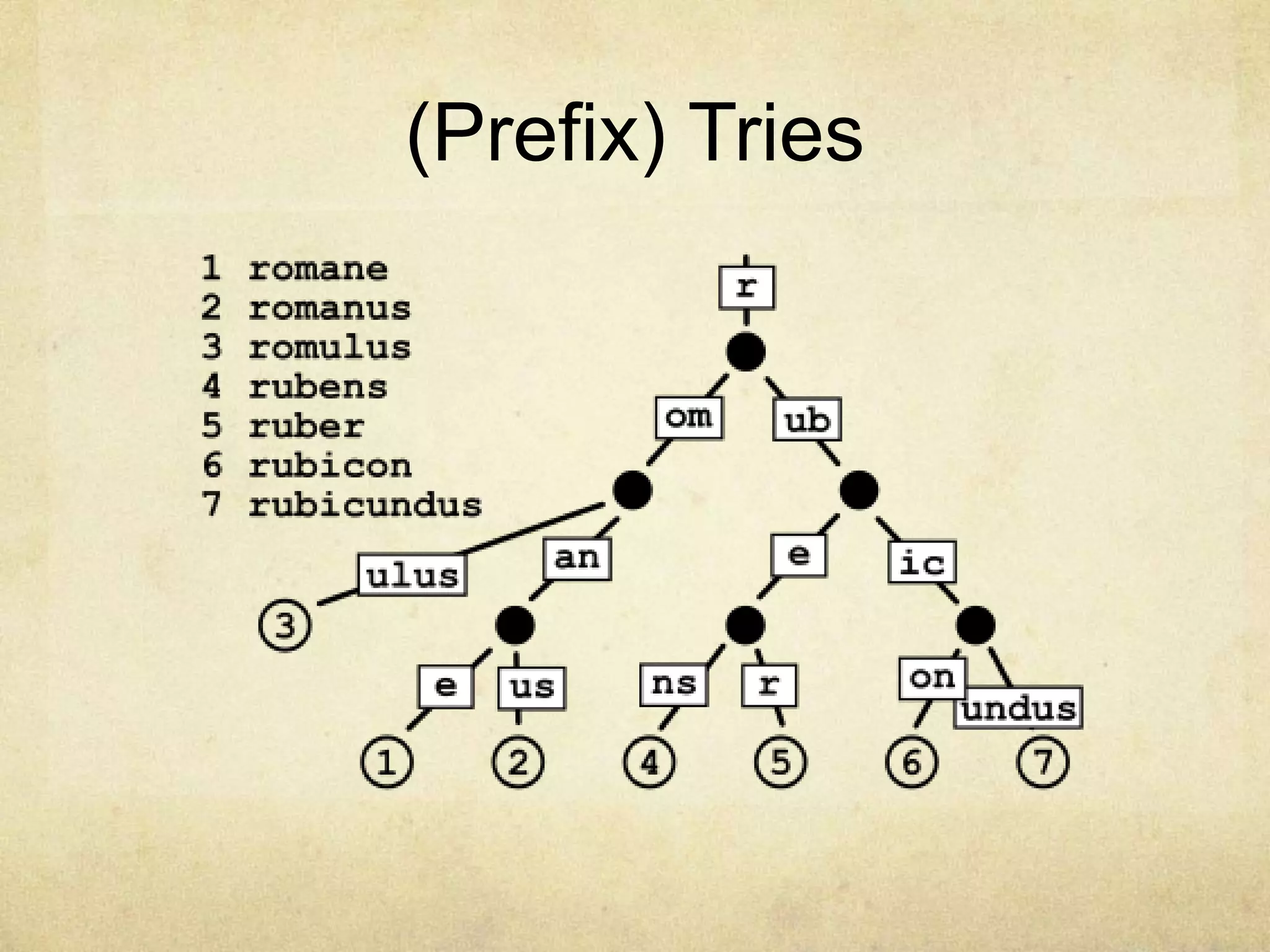

62. (Prefix) Tries

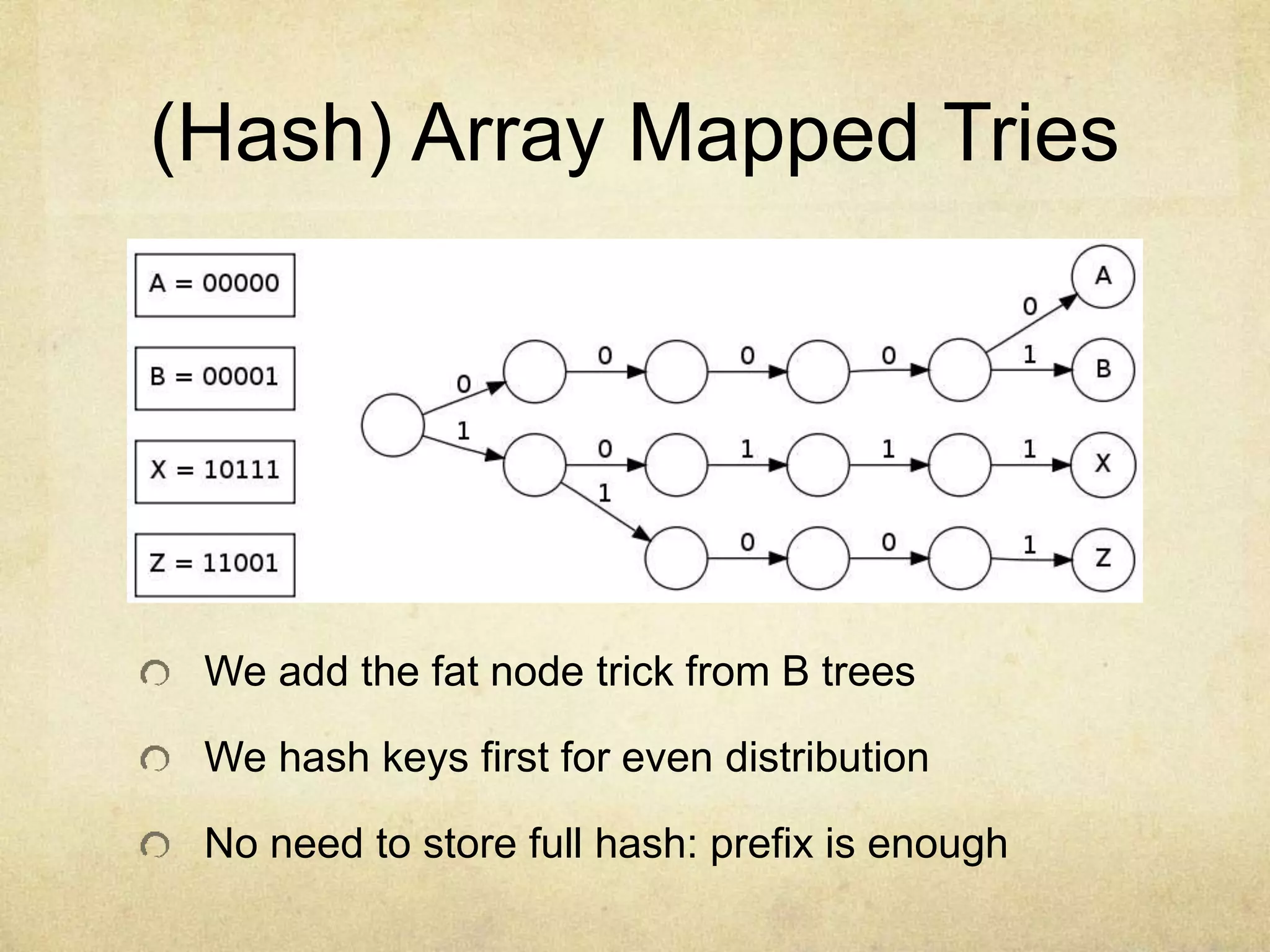

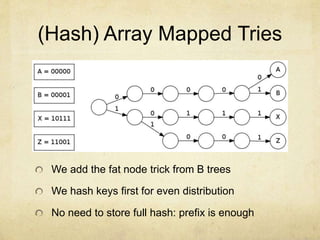

63. (Hash) Array Mapped Tries
We add the fat node trick from B trees
We hash keys first for even distribution
No need to store full hash: prefix is enough
