(Greach 2015) Dsl'ing your Groovy

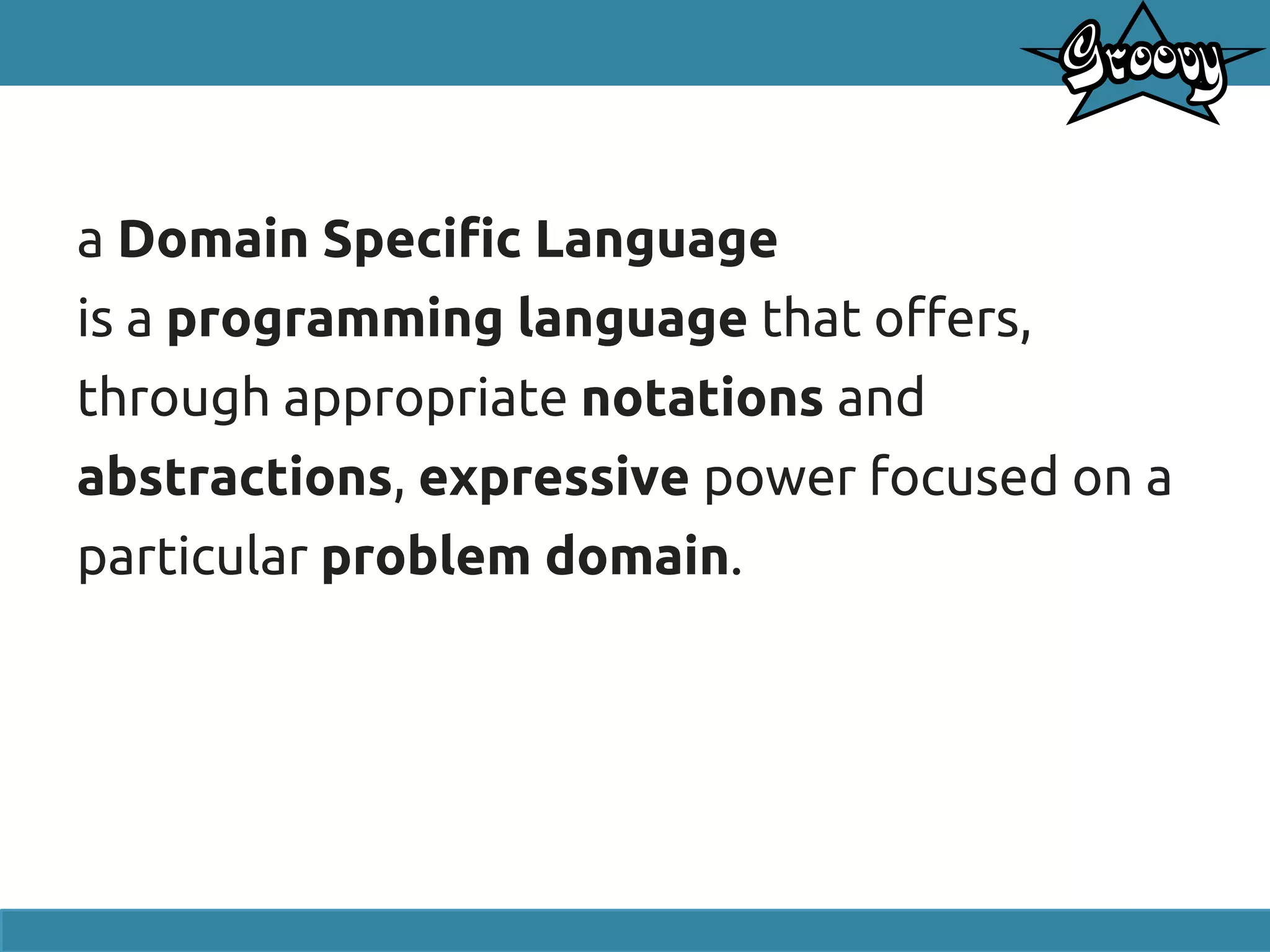

a Domain Specific Language
is a programming language that offers,
through appropriate notations and
abstractions, expressive power focused on a
particular problem domain.

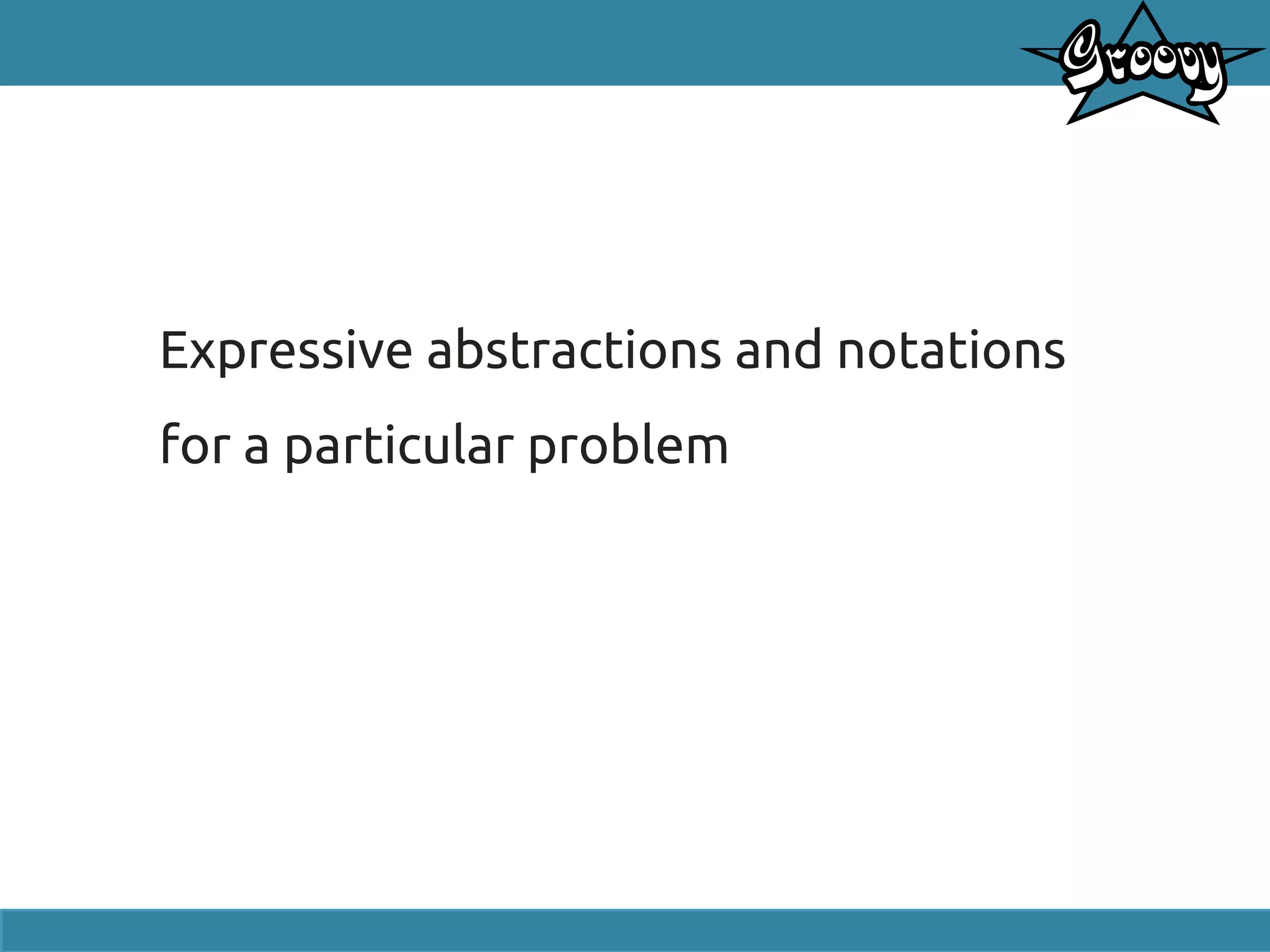

Expressive abstractions and notations
for a particular problem

A code snippet is worth a
thousand images

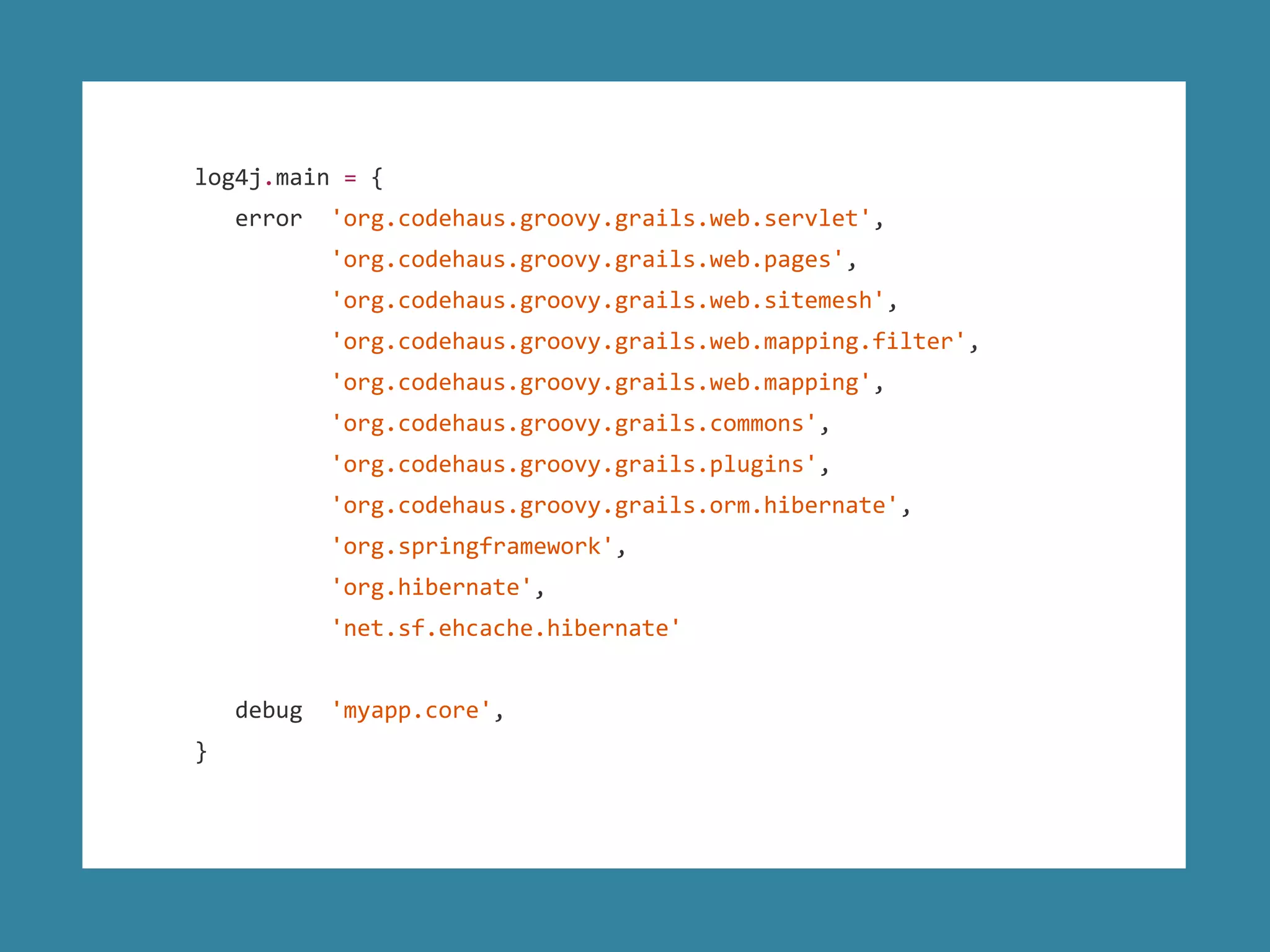

log4j.main = {
error 'org.codehaus.groovy.grails.web.servlet',
'org.codehaus.groovy.grails.web.pages',
'org.codehaus.groovy.grails.web.sitemesh',
'org.codehaus.groovy.grails.web.mapping.filter',
'org.codehaus.groovy.grails.web.mapping',
'org.codehaus.groovy.grails.commons',
'org.codehaus.groovy.grails.plugins',
'org.codehaus.groovy.grails.orm.hibernate',
'org.springframework',
'org.hibernate',
'net.sf.ehcache.hibernate'
debug 'myapp.core',
}

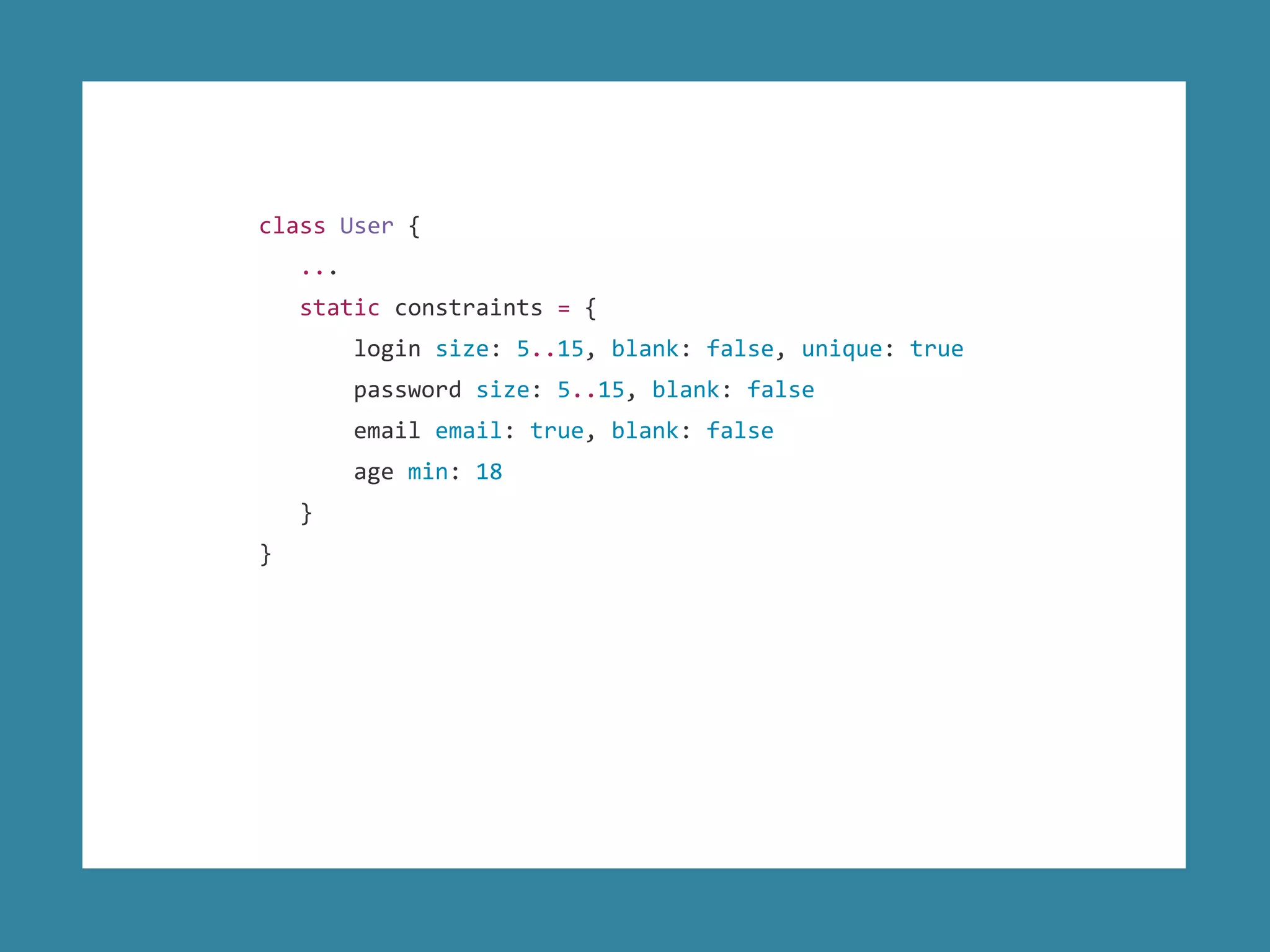

class User {
...
static constraints = {
login size: 5..15, blank: false, unique: true
password size: 5..15, blank: false
email email: true, blank: false
age min: 18
}
}

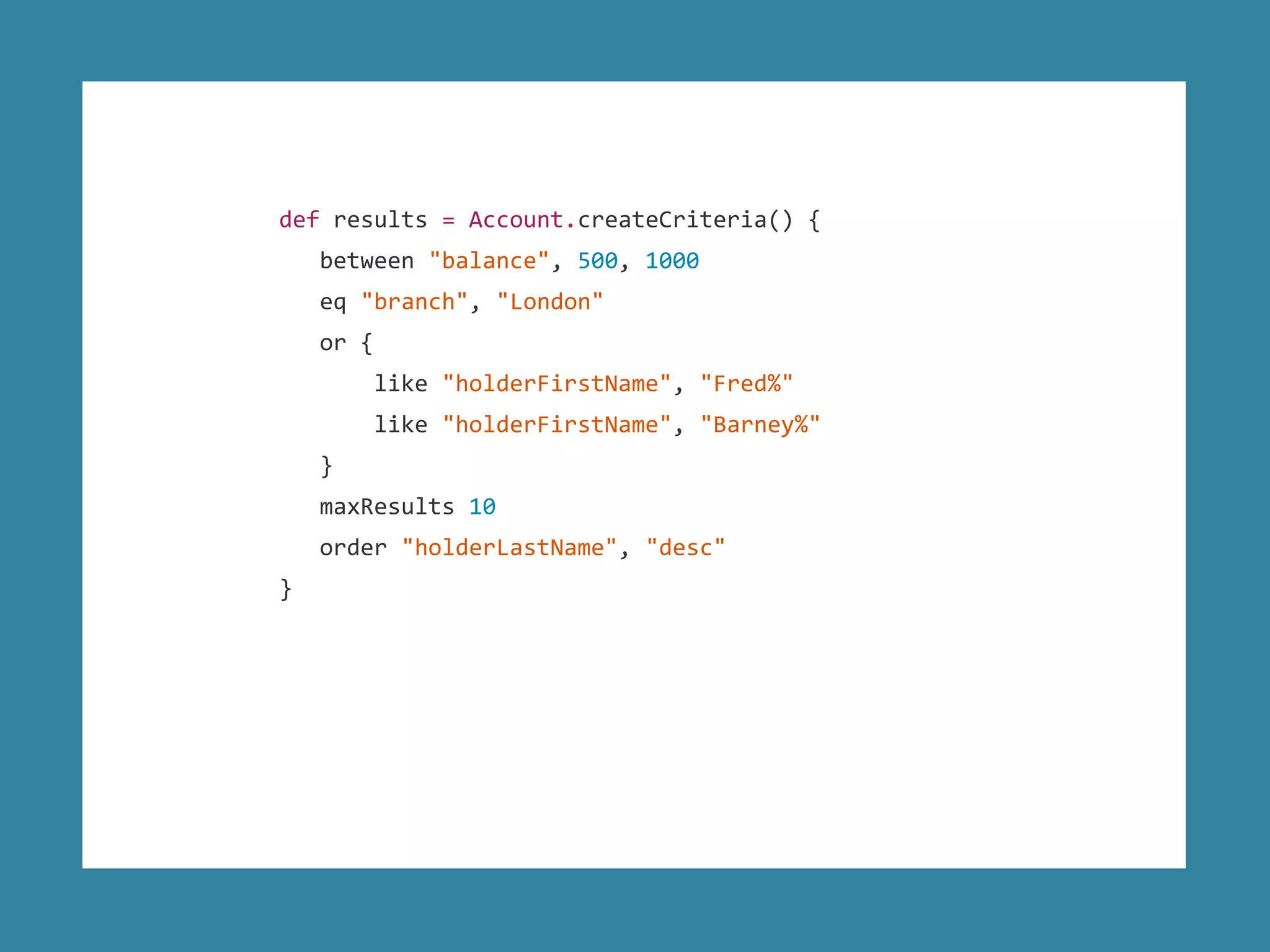

def results = Account.createCriteria() {
between "balance", 500, 1000
eq "branch", "London"
or {
like "holderFirstName", "Fred%"
like "holderFirstName", "Barney%"
}
maxResults 10
order "holderLastName", "desc"
}

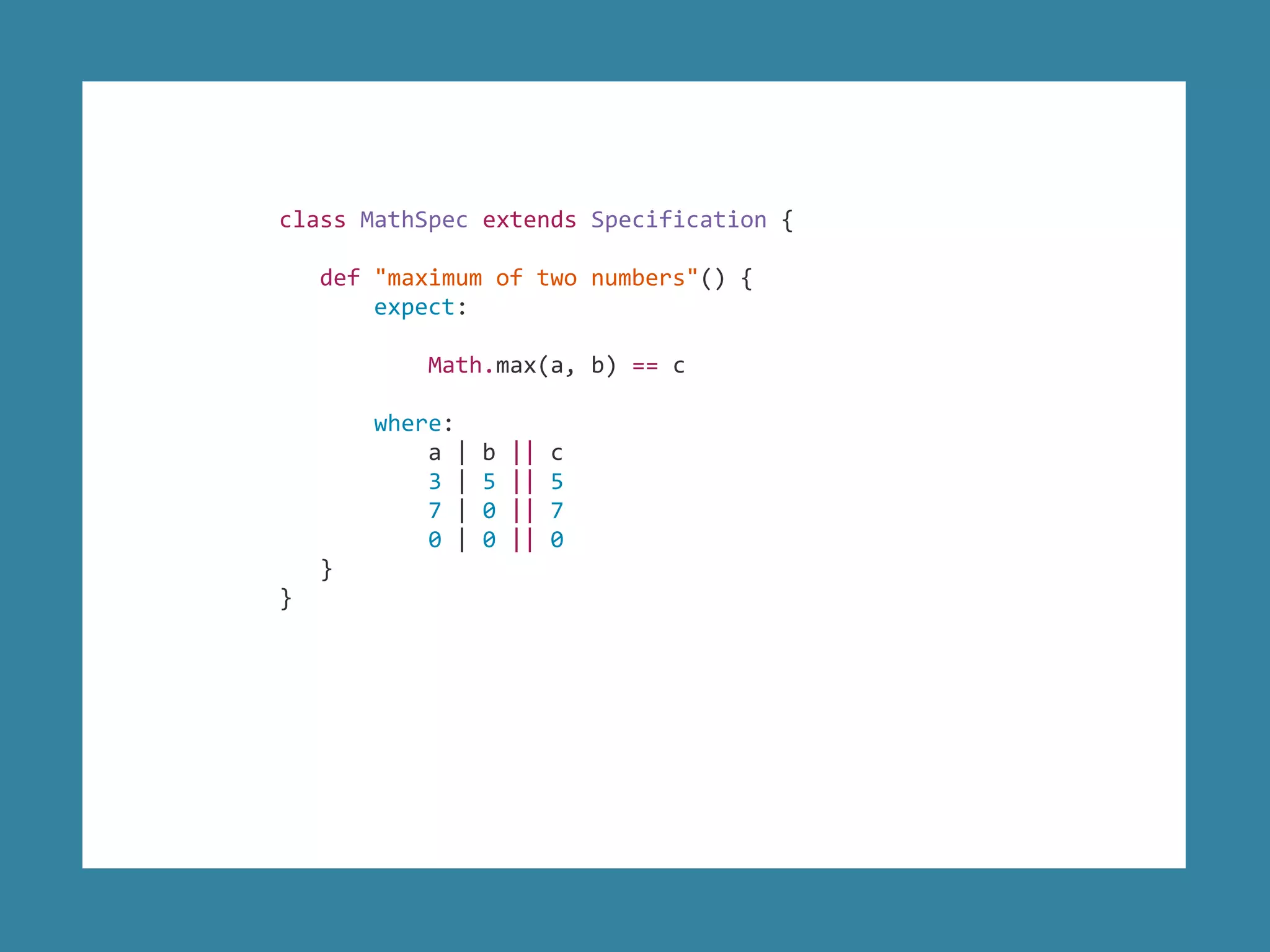

class MathSpec extends Specification {
def "maximum of two numbers"() {
expect:
Math.max(a, b) == c
where:
a | b || c
3 | 5 || 5
7 | 0 || 7
0 | 0 || 0
}
}

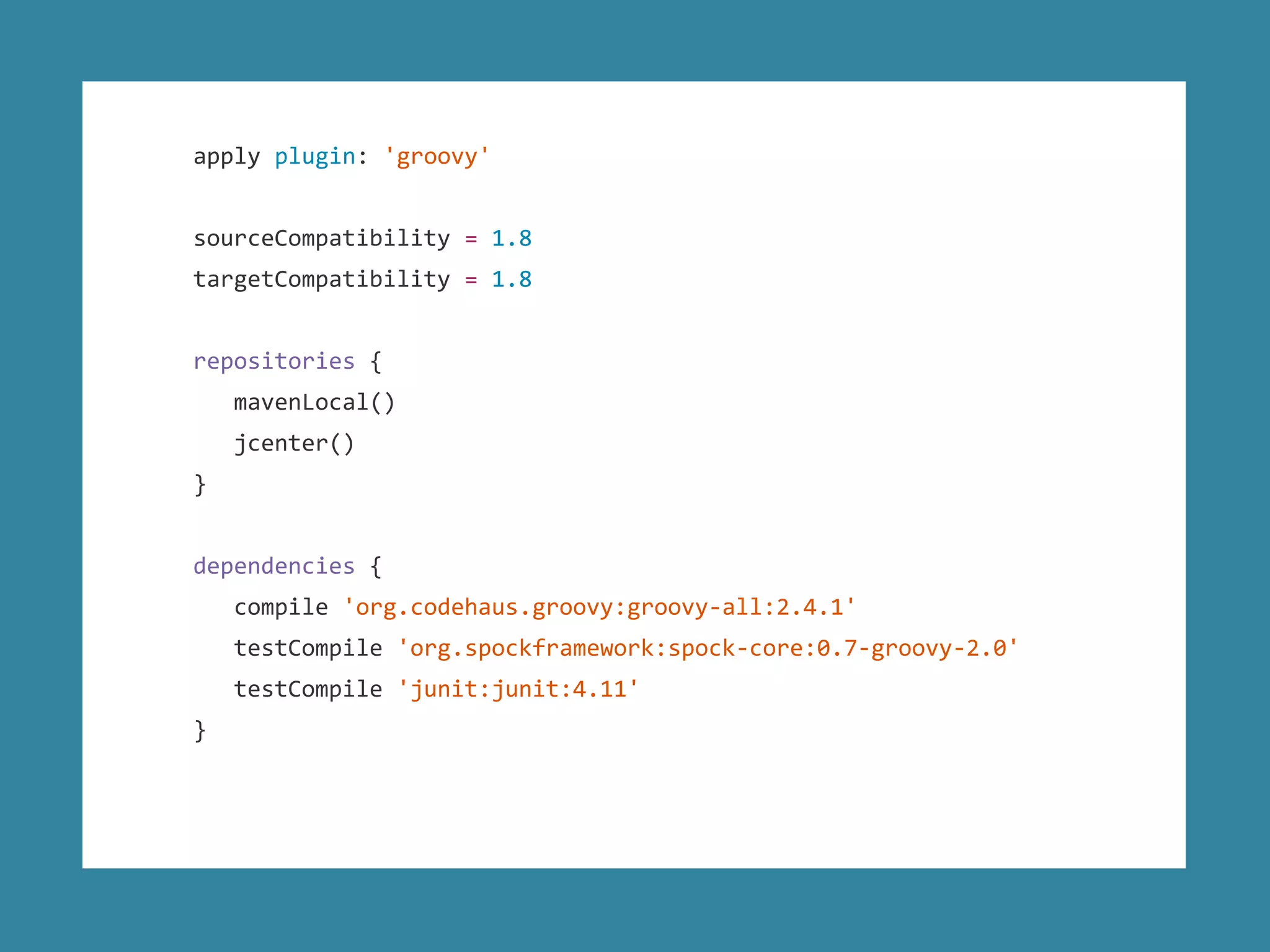

apply plugin: 'groovy'
sourceCompatibility = 1.8
targetCompatibility = 1.8
repositories {
mavenLocal()
jcenter()
}
dependencies {
compile 'org.codehaus.groovy:groovy-all:2.4.1'
testCompile 'org.spockframework:spock-core:0.7-groovy-2.0'
testCompile 'junit:junit:4.11'
}

But only “them”
can do those things

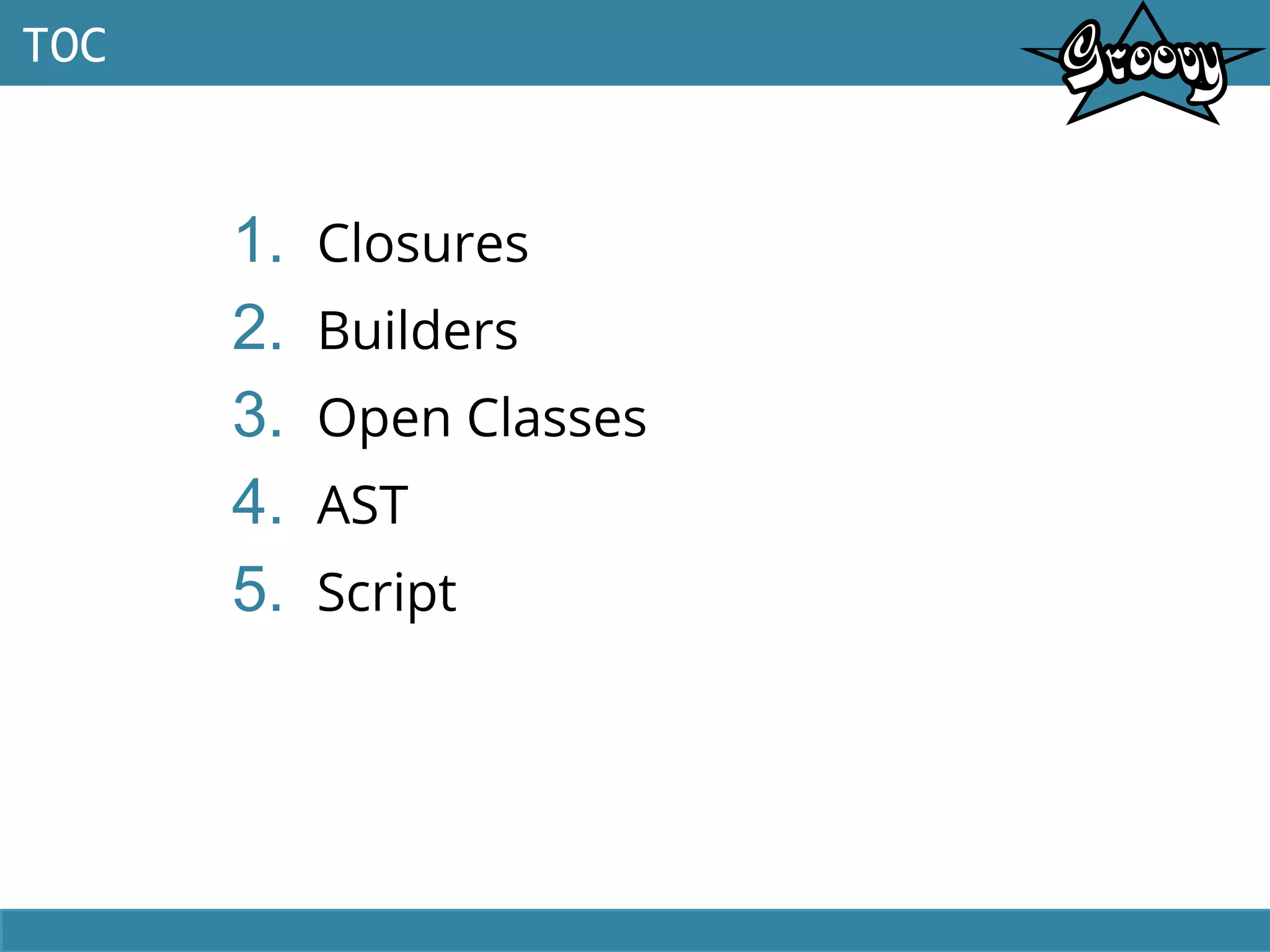

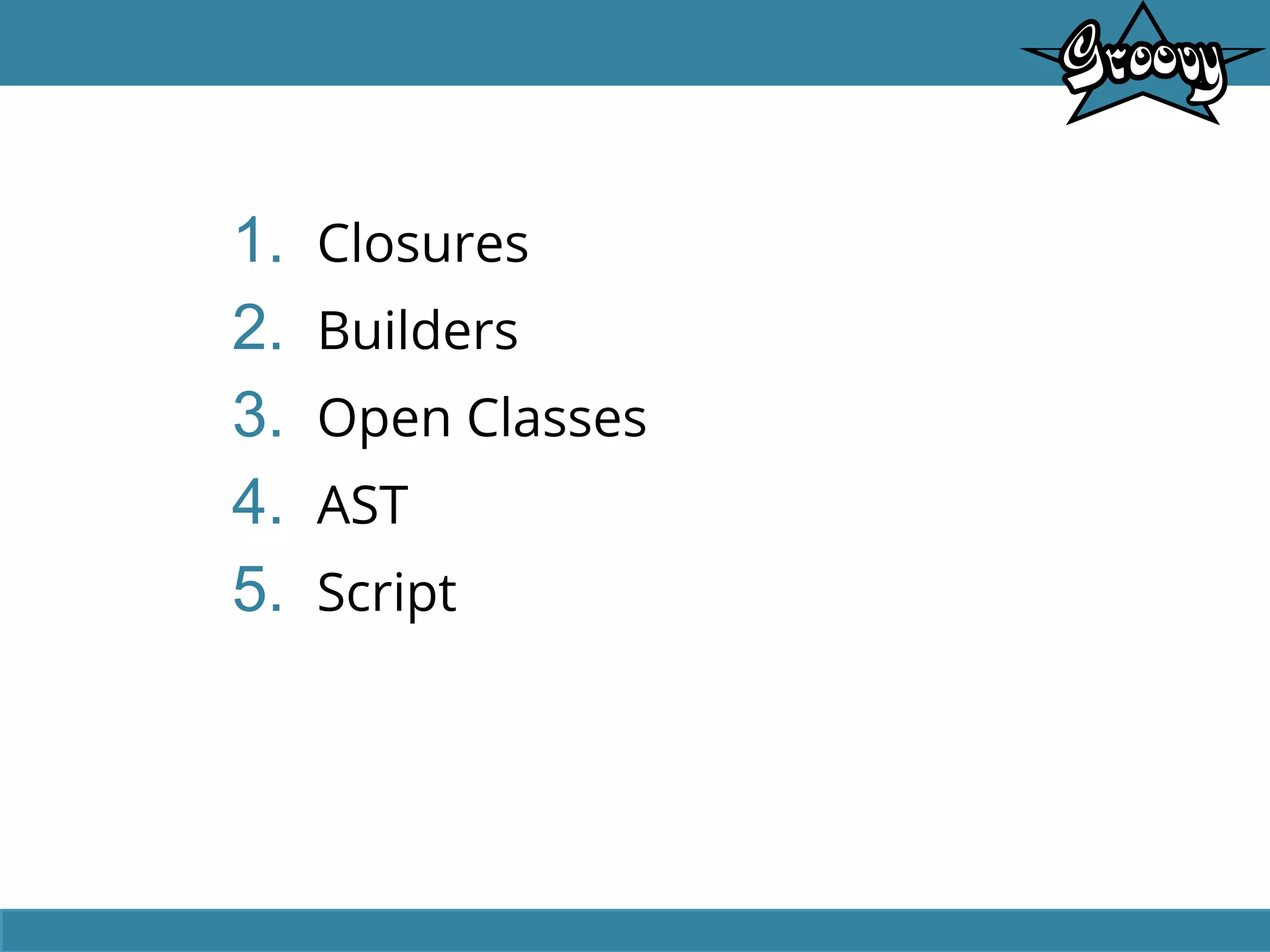

1. Closures
2. Builders

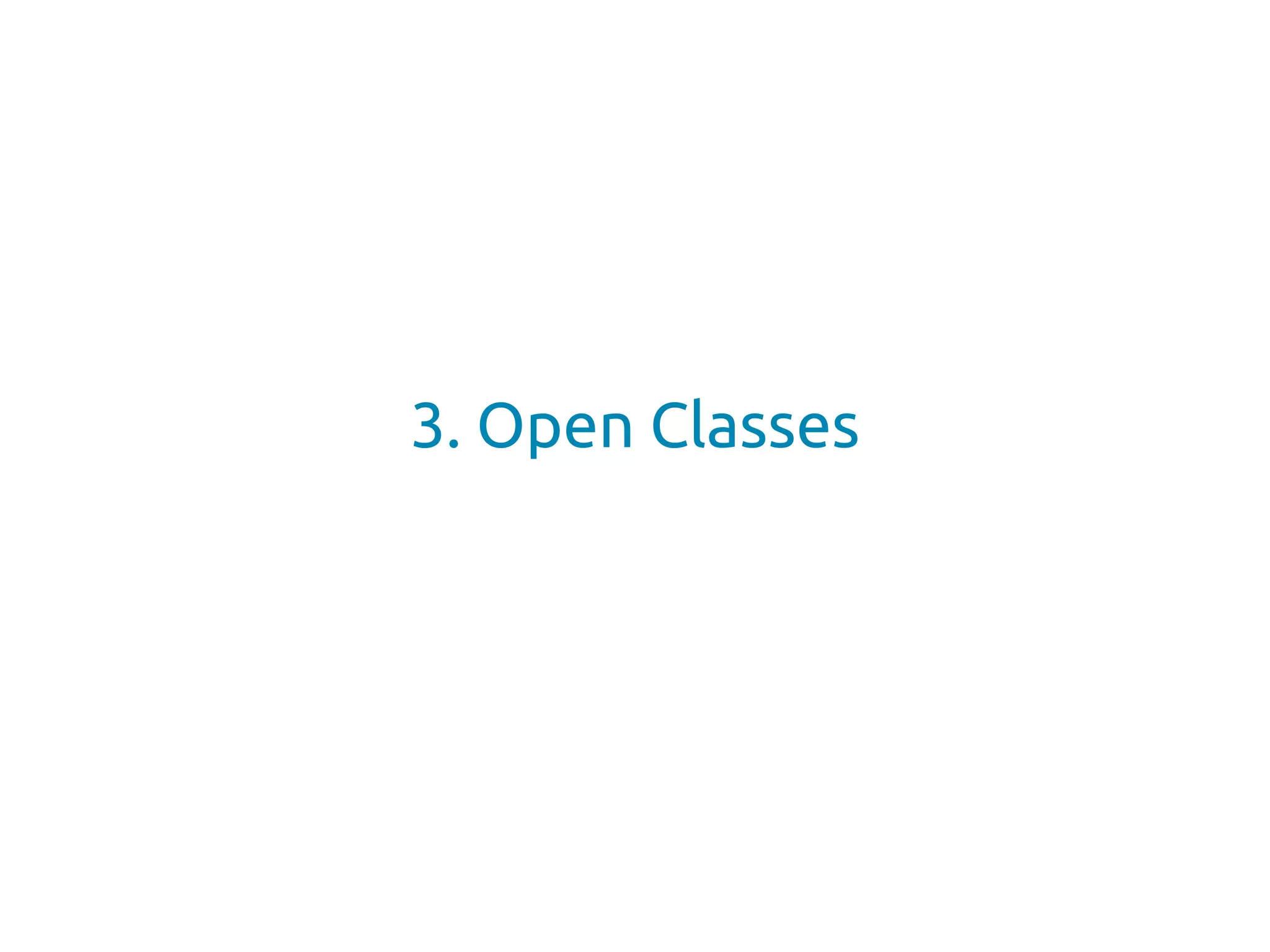

3. Open Classes
4. AST

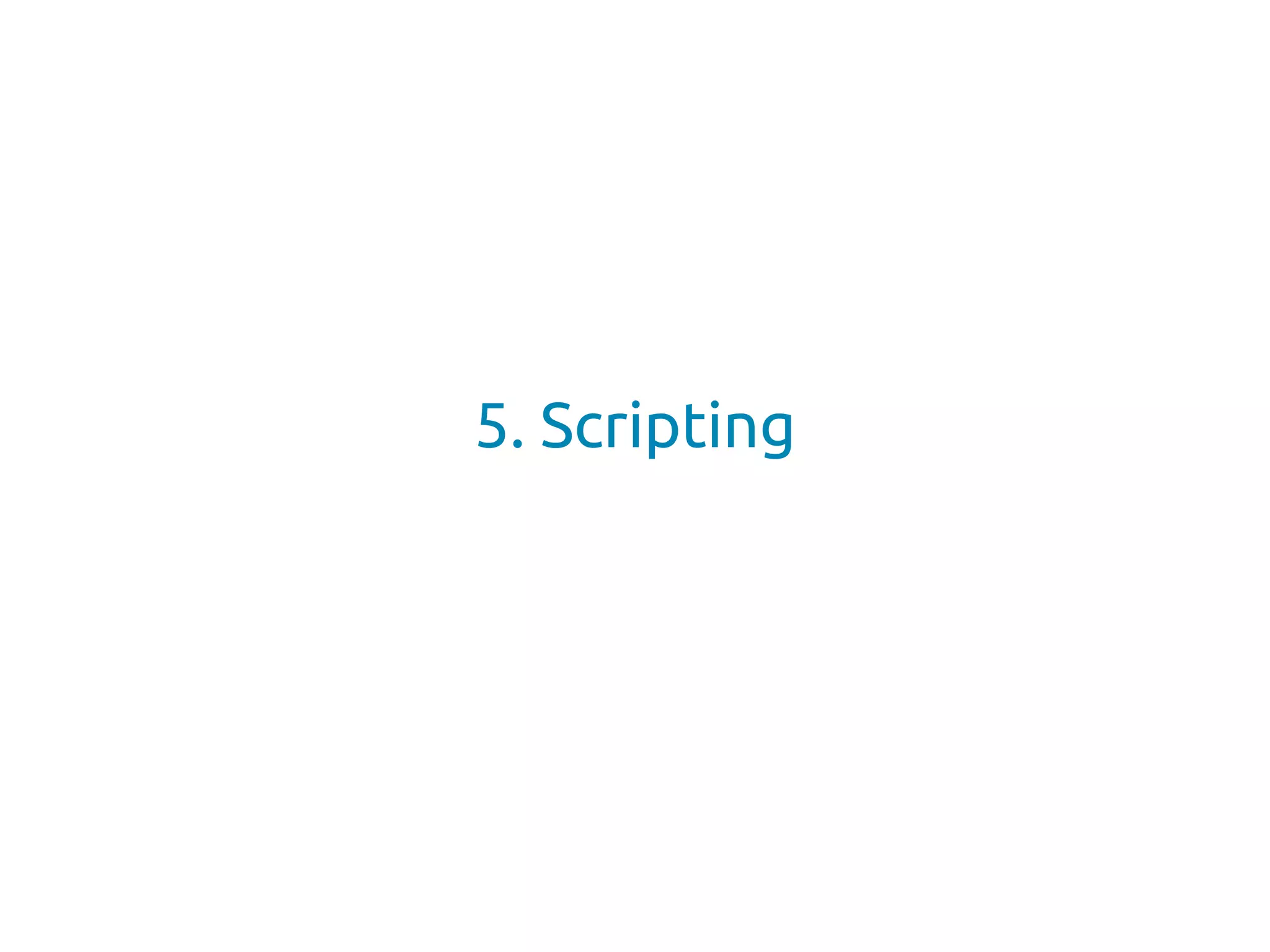

5. Script
TOC

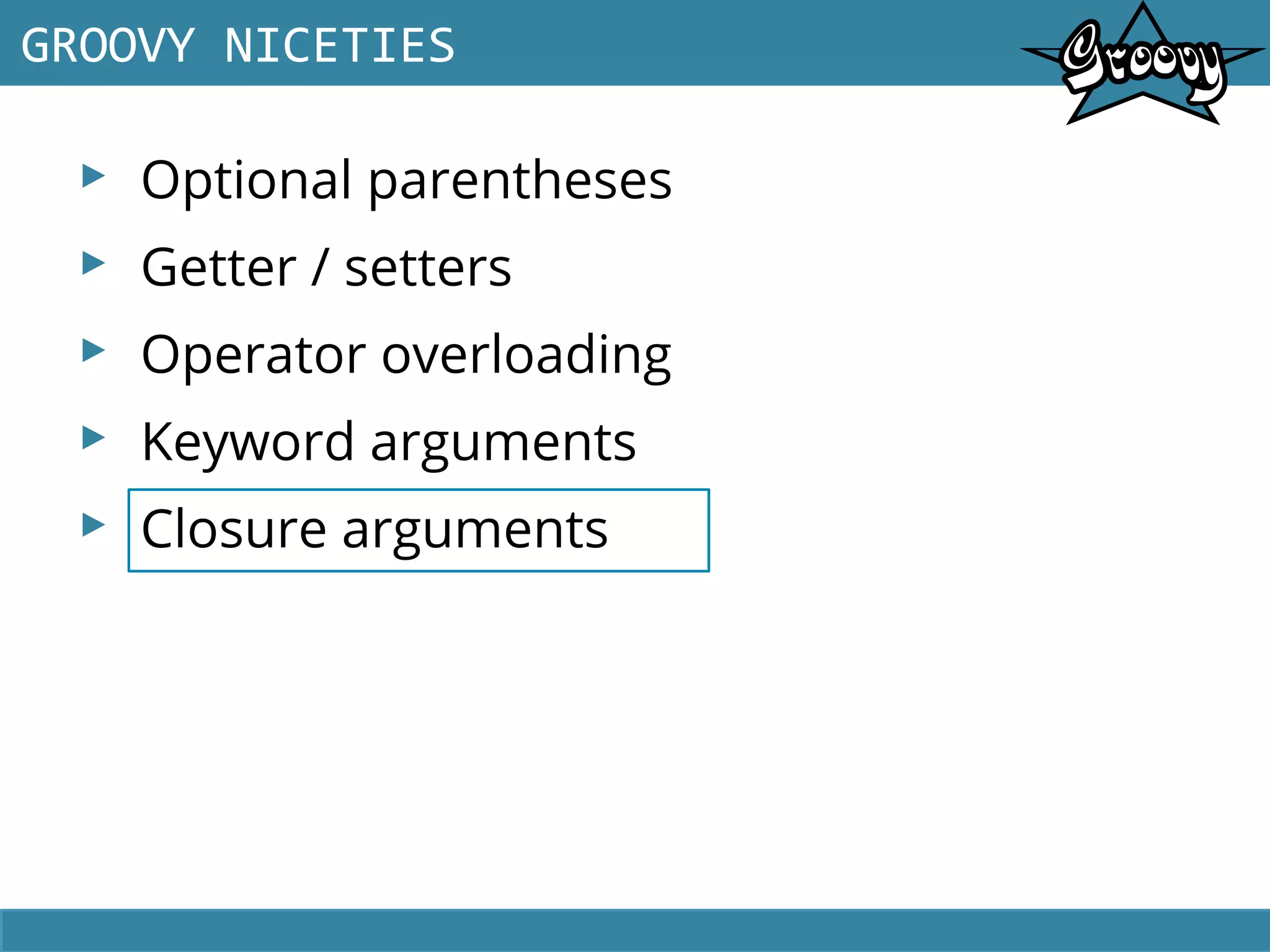

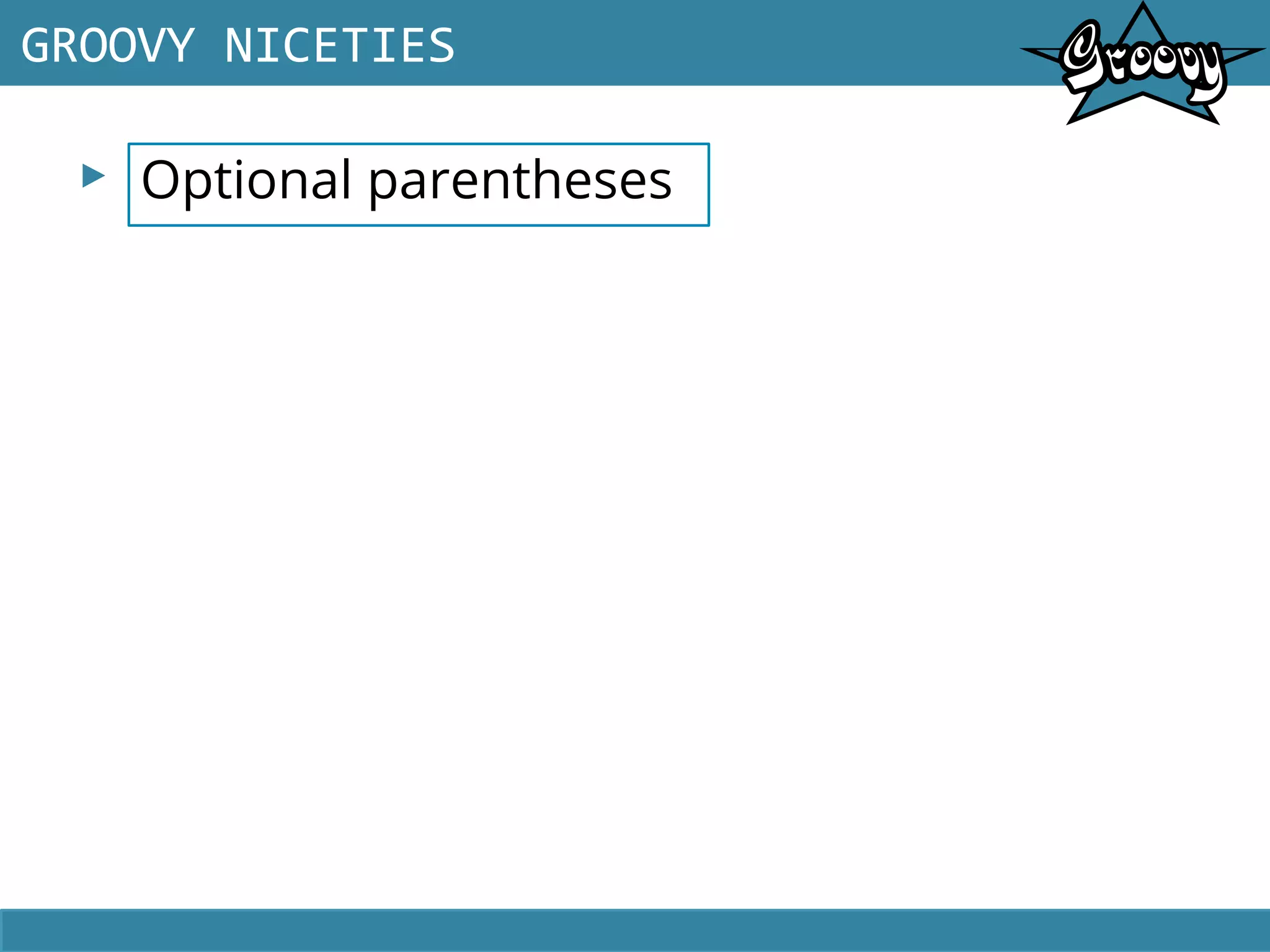

▸ Optional parentheses
GROOVY NICETIES

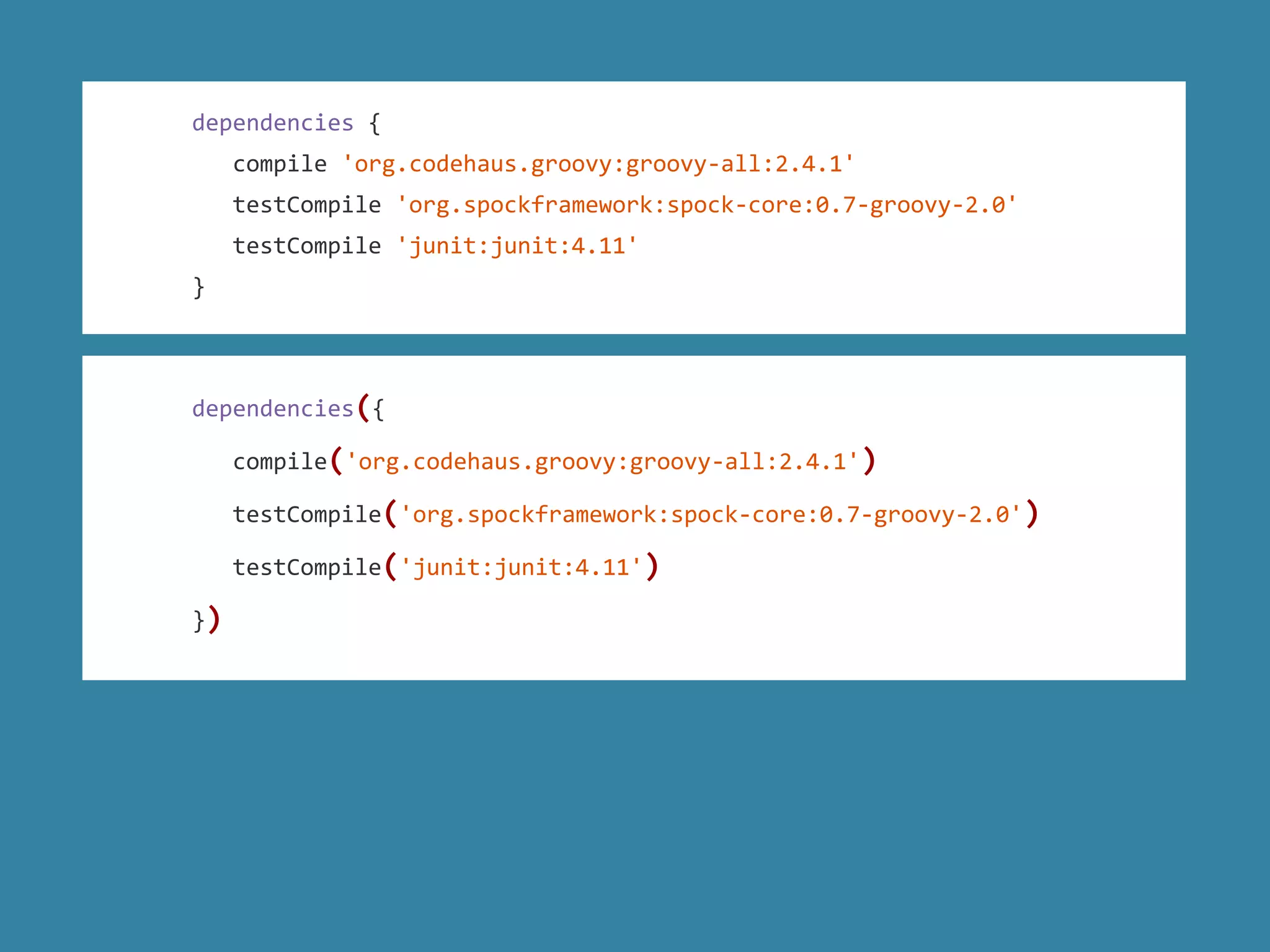

dependencies {
testCompile 'org.spockframework:spock-core:0.7-groovy-2.0'
}
dependencies({
compile('org.codehaus.groovy:groovy-all:2.4.1')
testCompile('org.spockframework:spock-core:0.7-groovy-2.0')
testCompile('junit:junit:4.11')
})

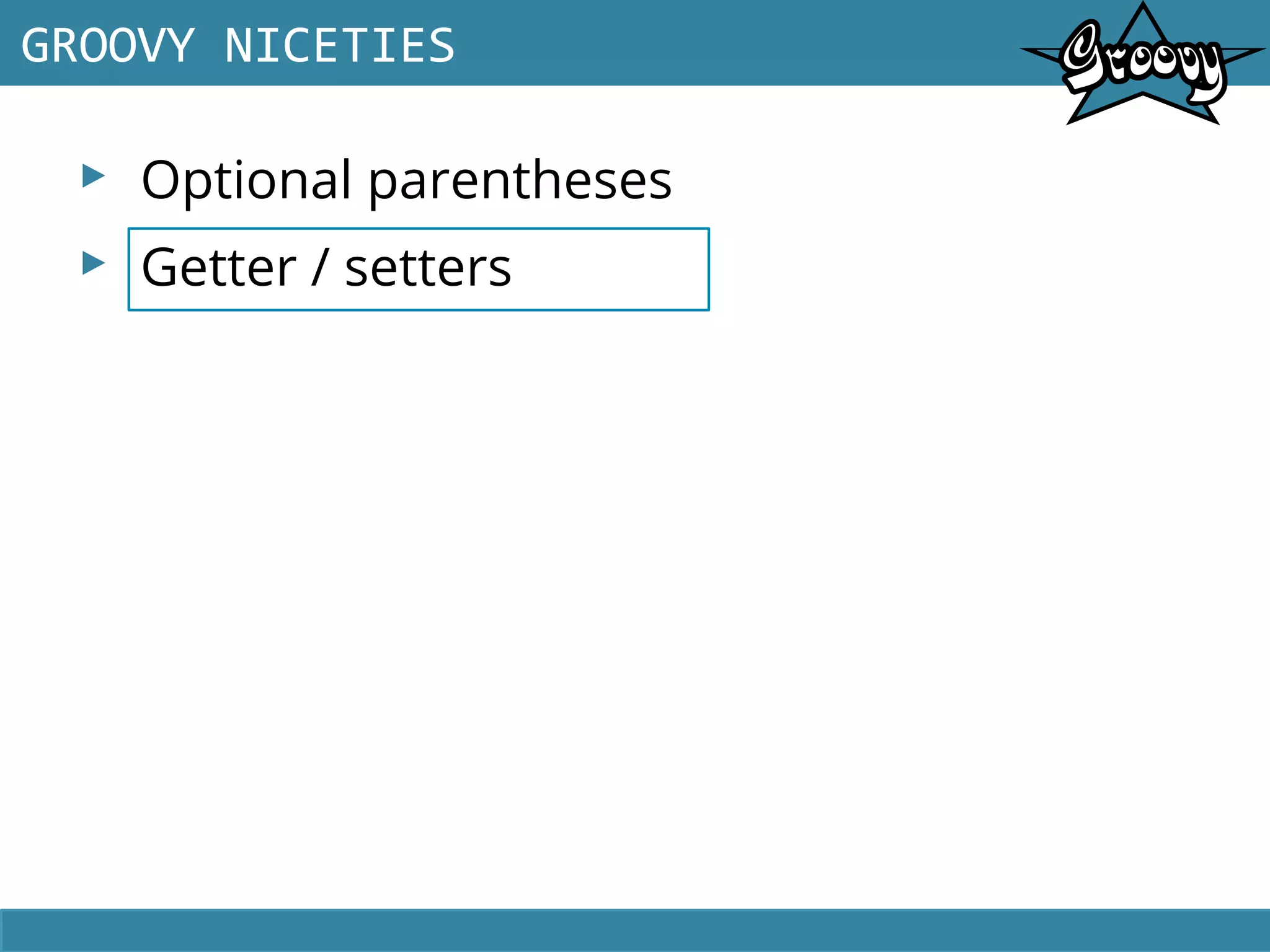

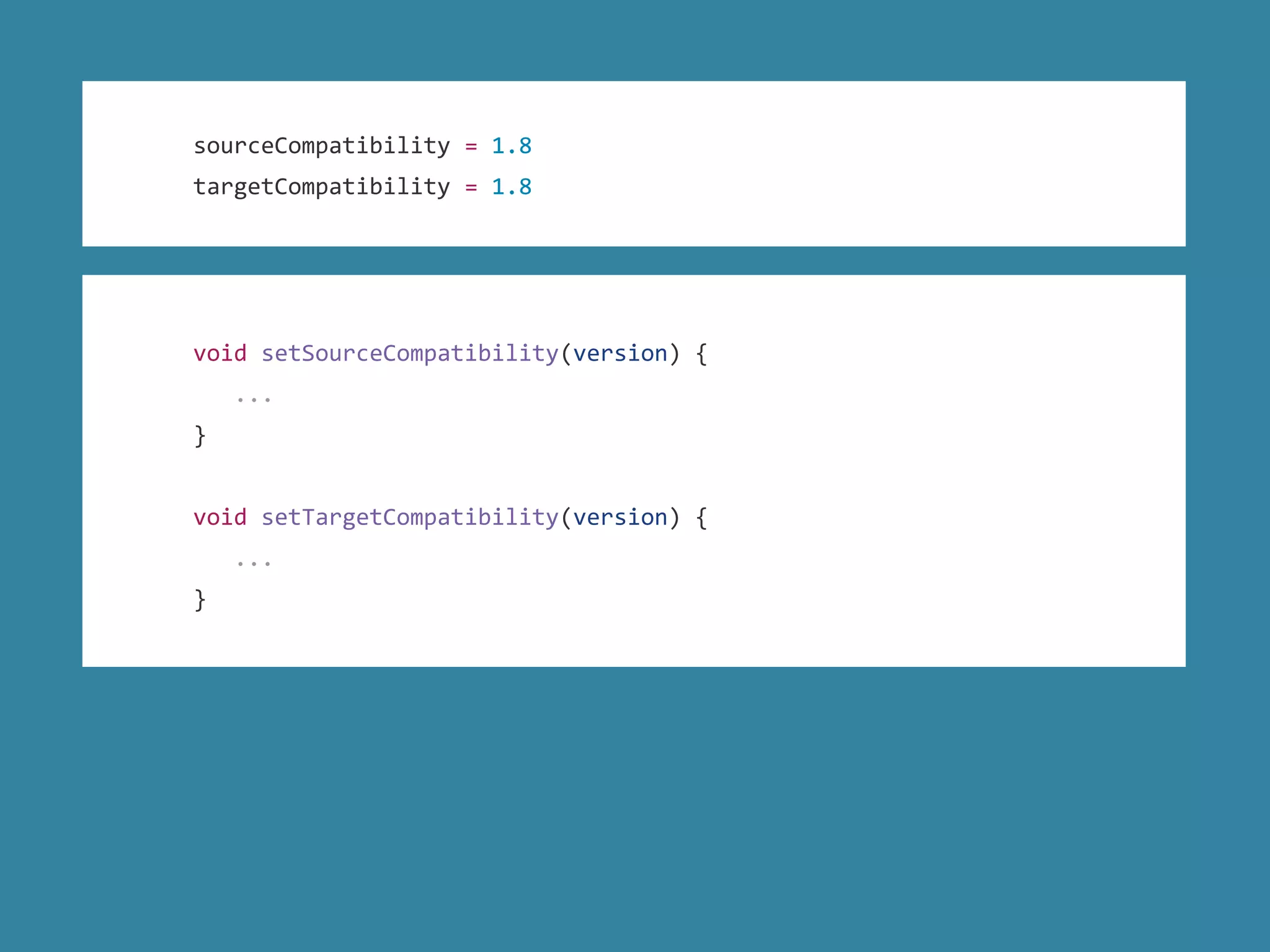

▸ Getter / setters
GROOVY NICETIES

void setSourceCompatibility(version) {
...
}
void setTargetCompatibility(version) {
...
}

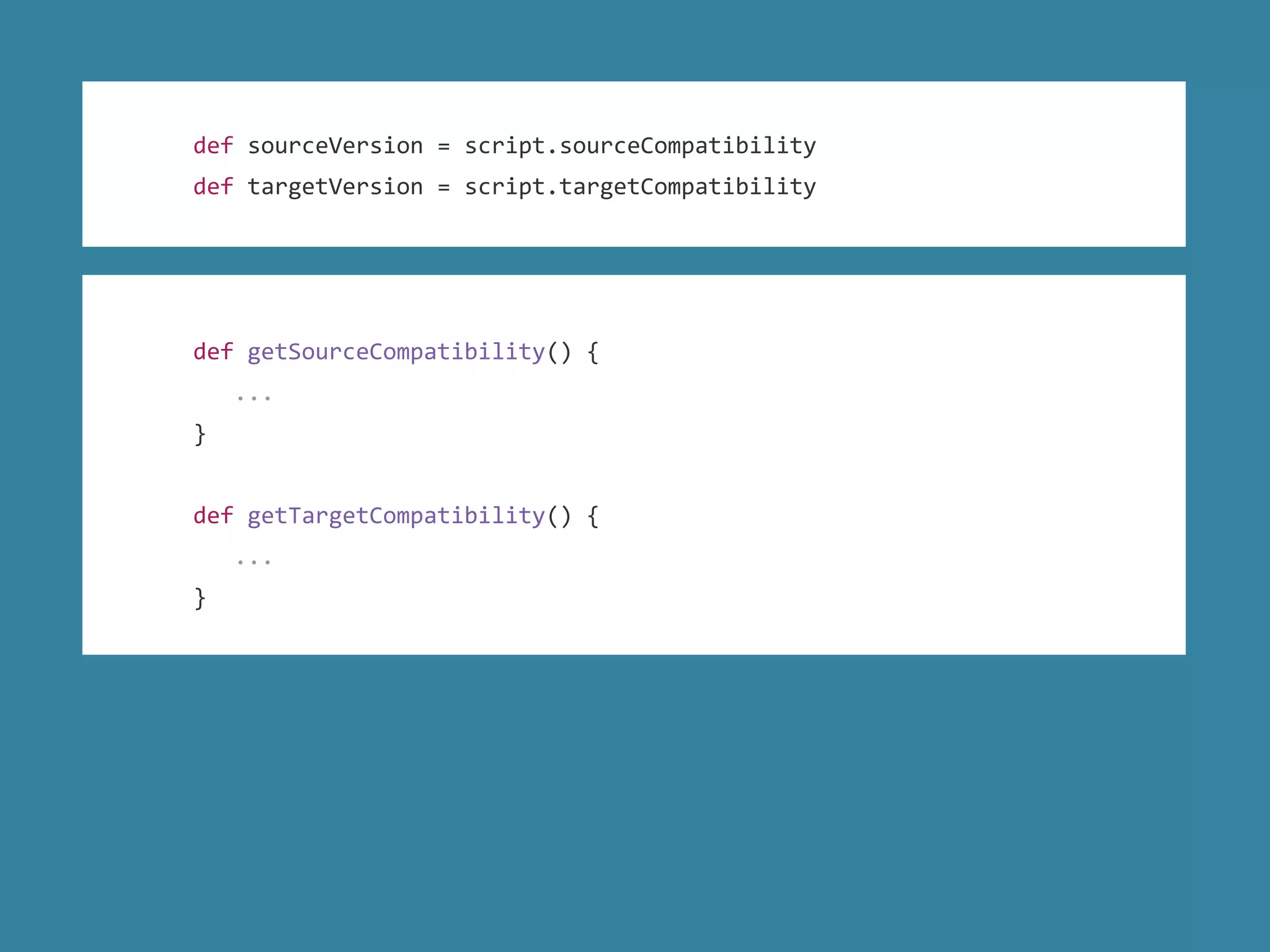

def sourceVersion = script.sourceCompatibility
def targetVersion = script.targetCompatibility
def getSourceCompatibility() {
...
}
def getTargetCompatibility() {
...
}

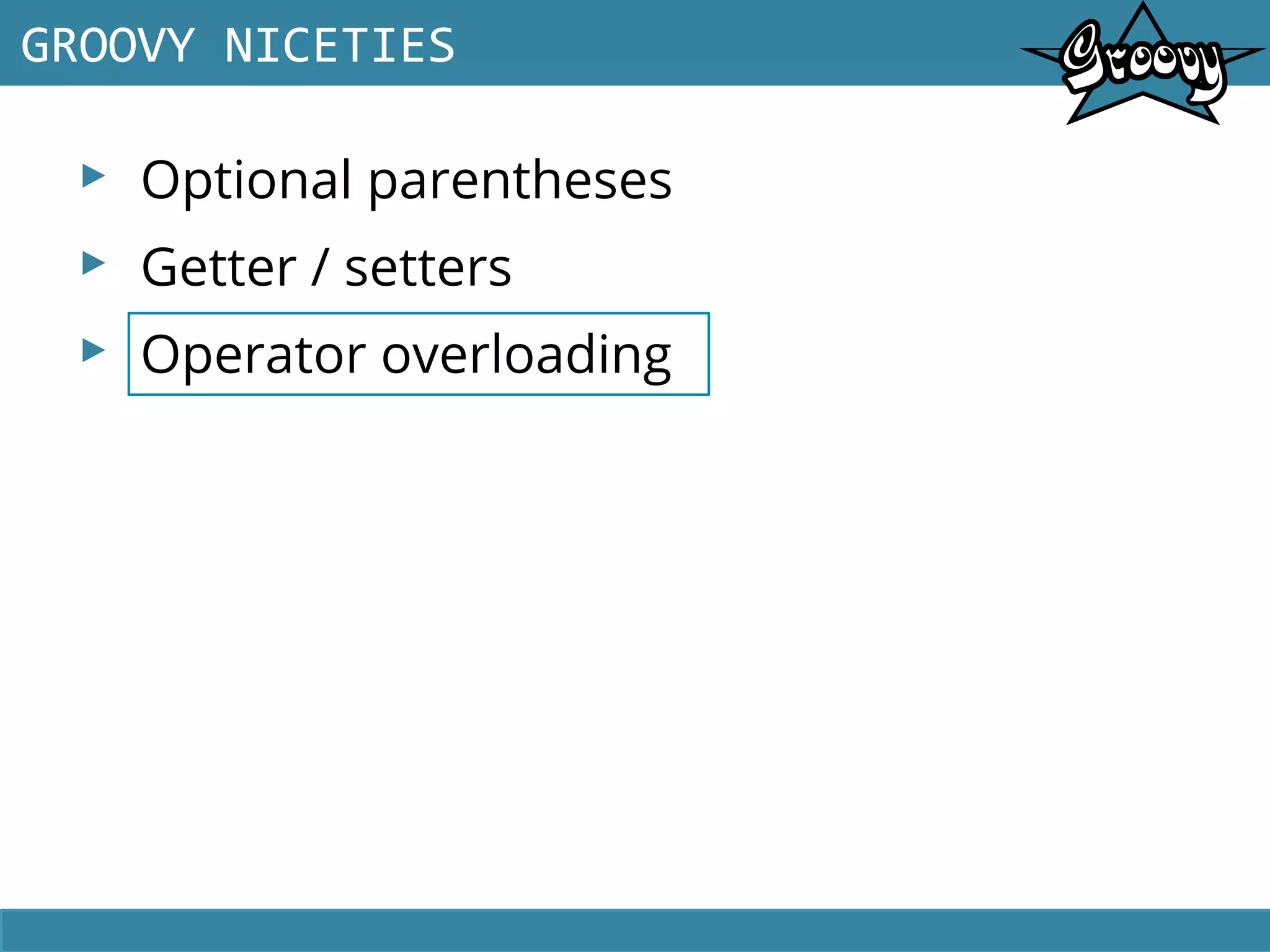

▸ Operator overloading
GROOVY NICETIES

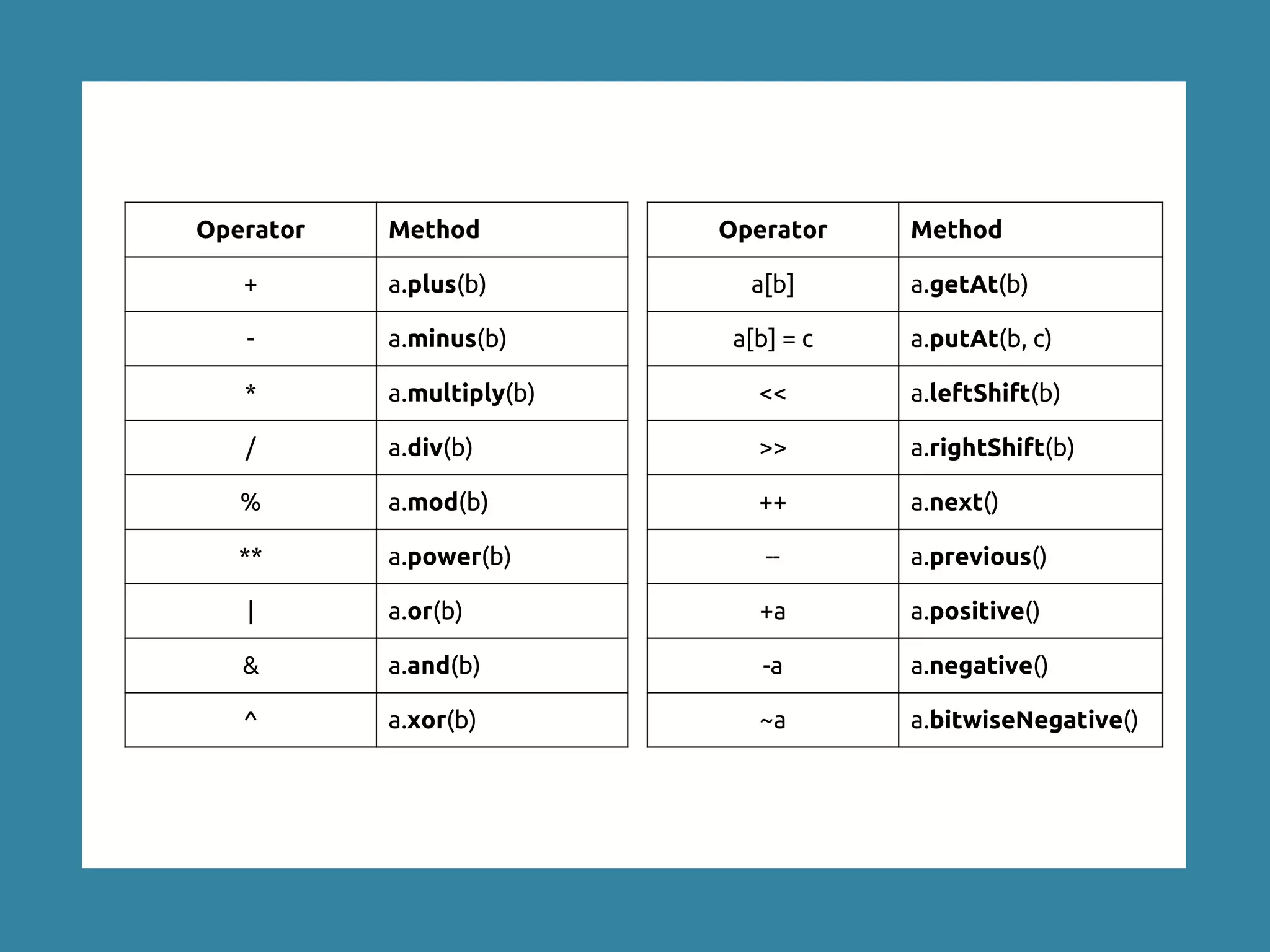

Operator Method
+ a.plus(b)
- a.minus(b)
* a.multiply(b)
/ a.div(b)
% a.mod(b)
** a.power(b)
| a.or(b)
& a.and(b)
^ a.xor(b)
Operator Method
a[b] a.getAt(b)
a[b] = c a.putAt(b, c)
<< a.leftShift(b)
>> a.rightShift(b)
++ a.next()
-- a.previous()
+a a.positive()
-a a.negative()
~a a.bitwiseNegative()

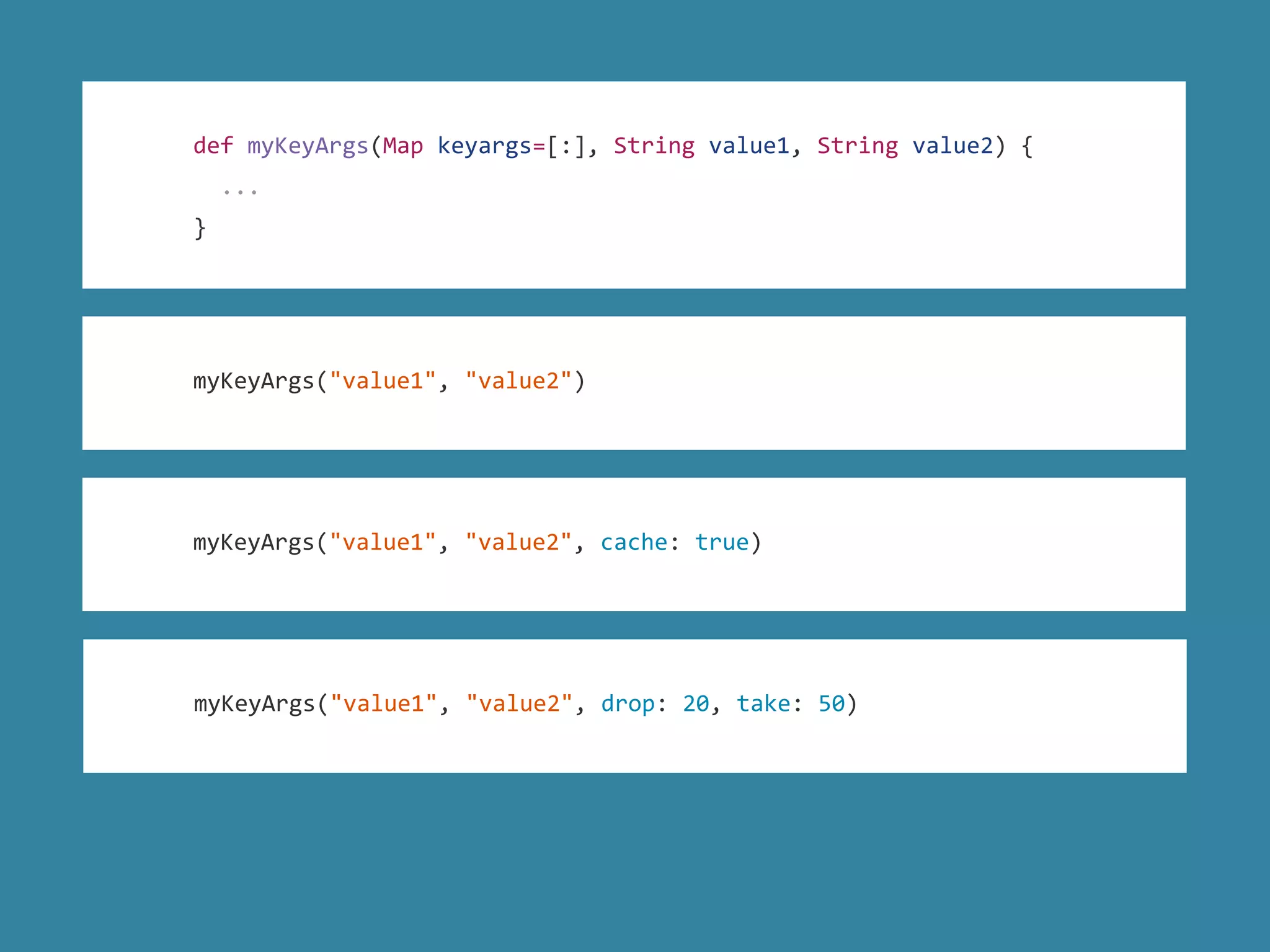

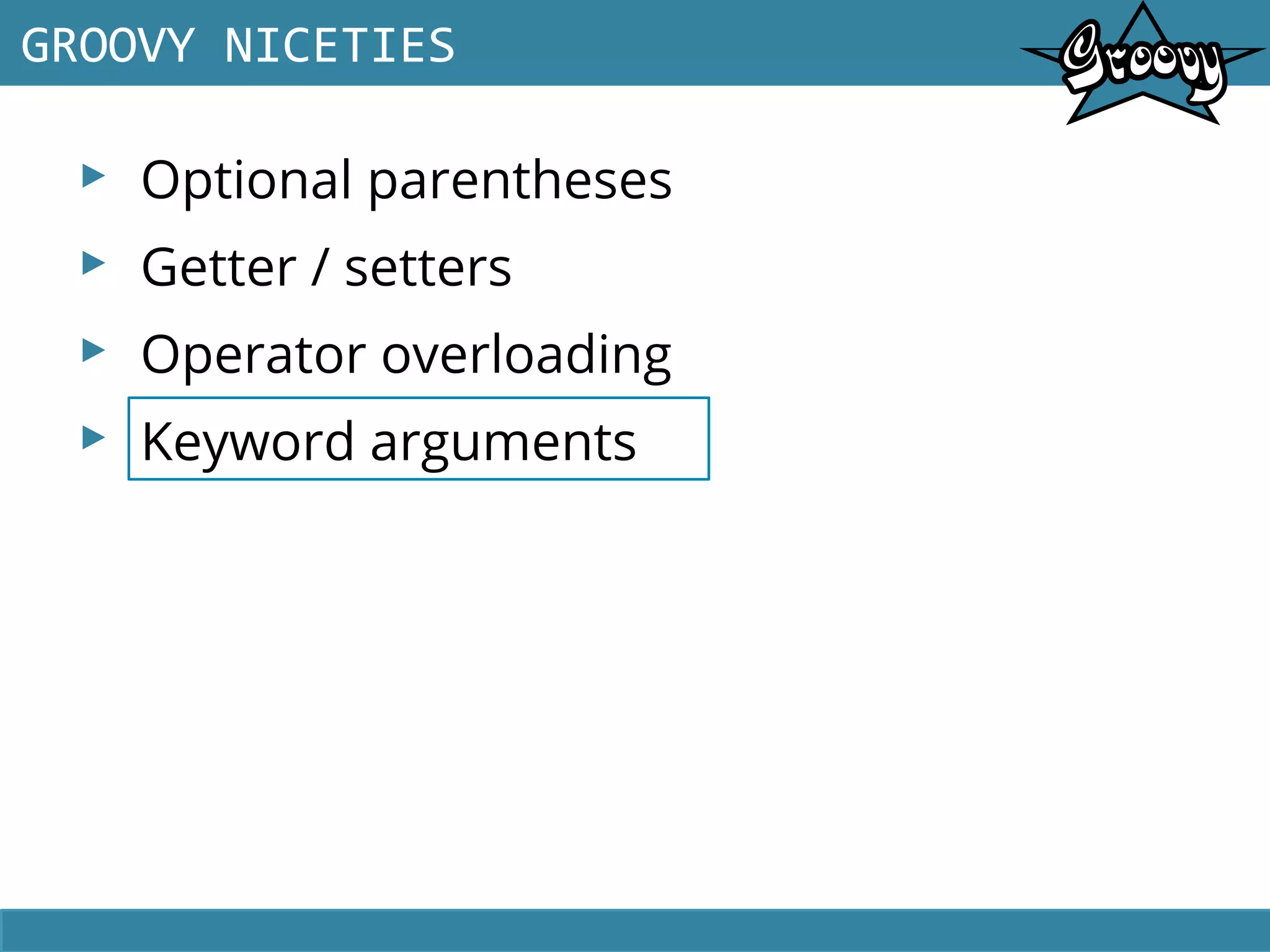

▸ Keyword arguments
GROOVY NICETIES

def myKeyArgs(Map keyargs=[:], String value1, String value2) {
...
}
myKeyArgs("value1", "value2")
myKeyArgs("value1", "value2", cache: true)
myKeyArgs("value1", "value2", drop: 20, take: 50)

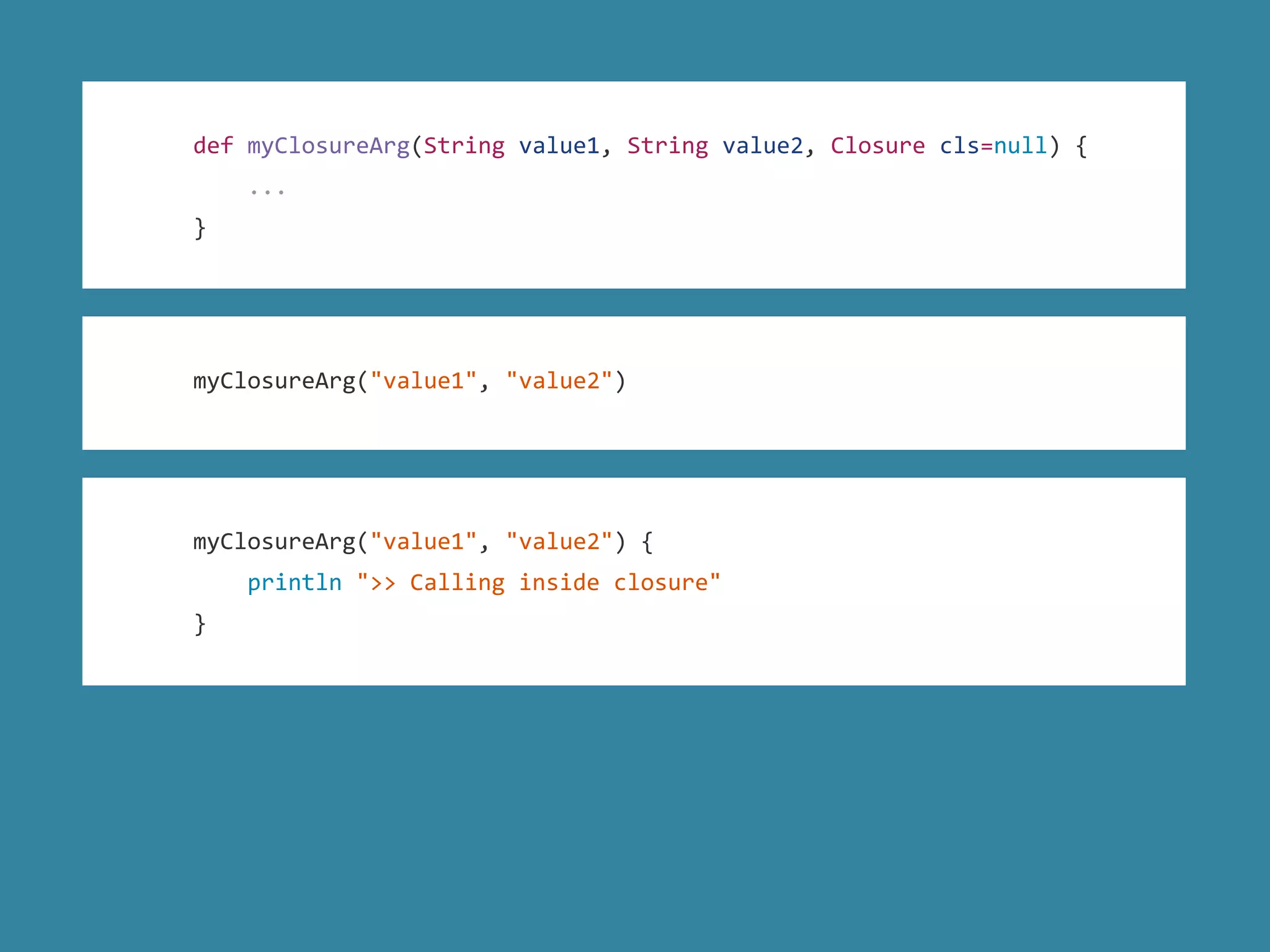

▸ Closure arguments
GROOVY NICETIES

def myClosureArg(String value1, String value2, Closure cls=null) {
...
}
myClosureArg("value1", "value2")
myClosureArg("value1", "value2") {
println ">> Calling inside closure"
}

▸ Closure arguments

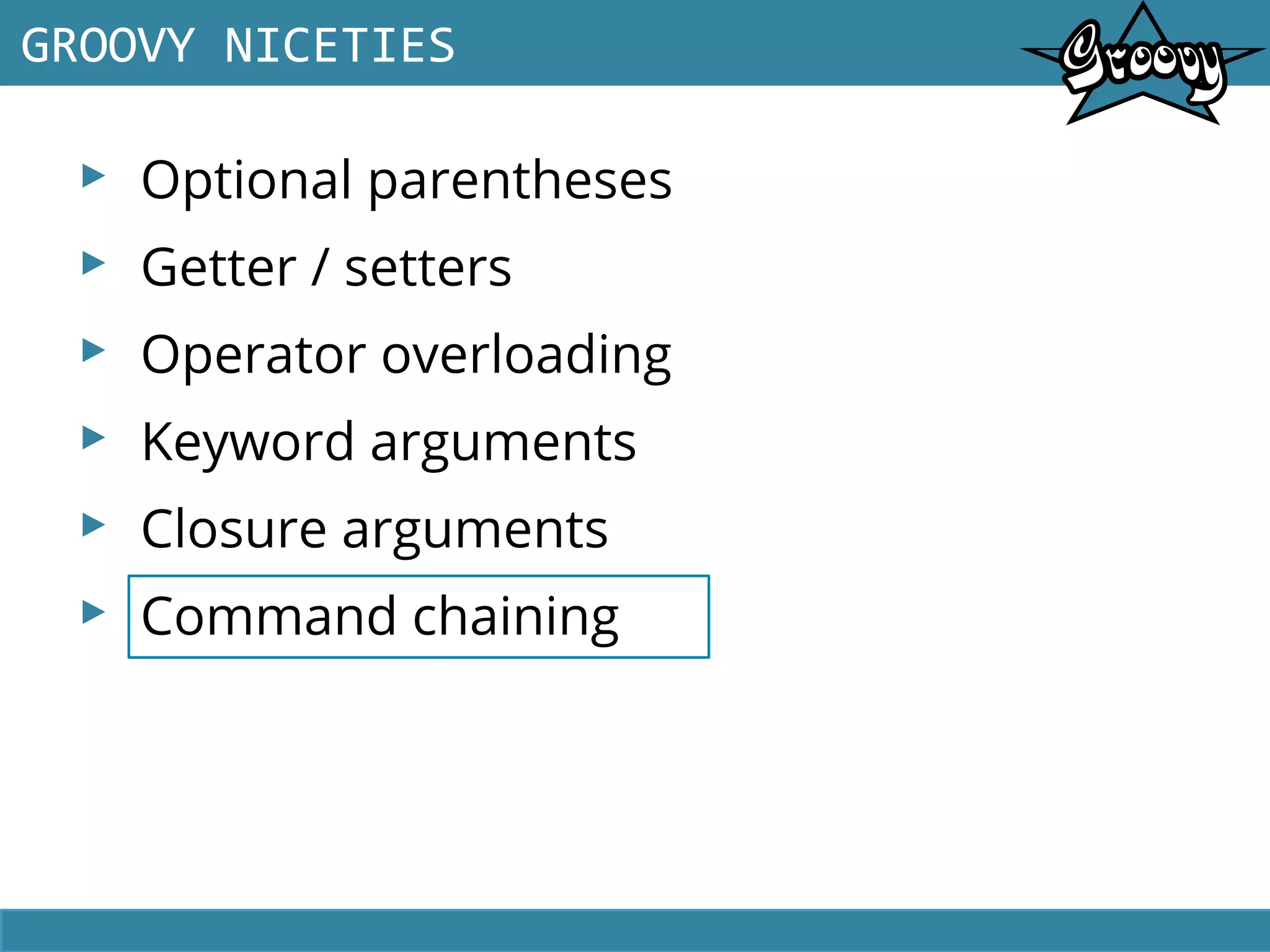

▸ Command chaining
GROOVY NICETIES

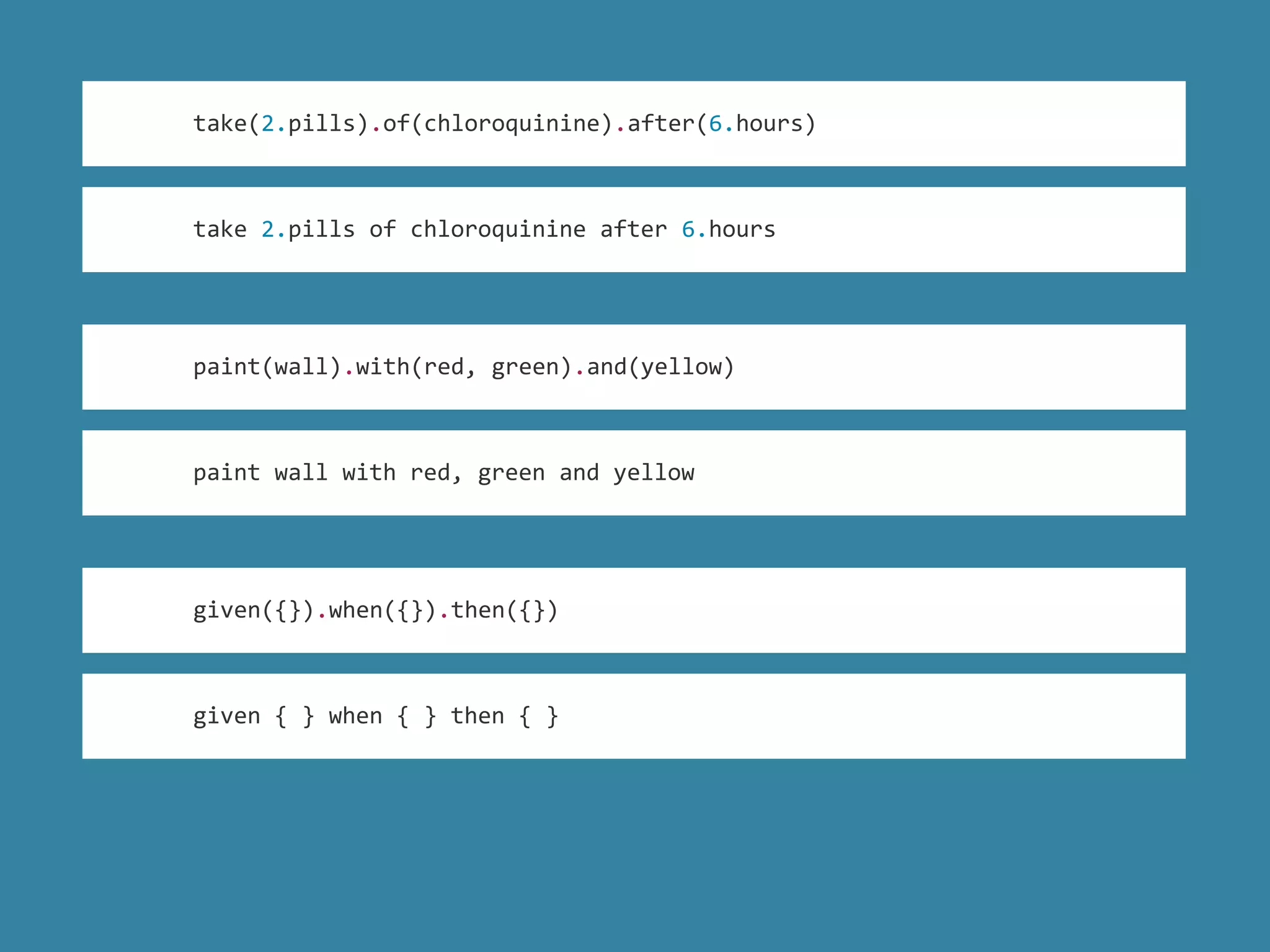

take 2.pills of chloroquinine after 6.hours
take(2.pills).of(chloroquinine).after(6.hours)
paint(wall).with(red, green).and(yellow)
paint wall with red, green and yellow
given({}).when({}).then({})
given { } when { } then { }

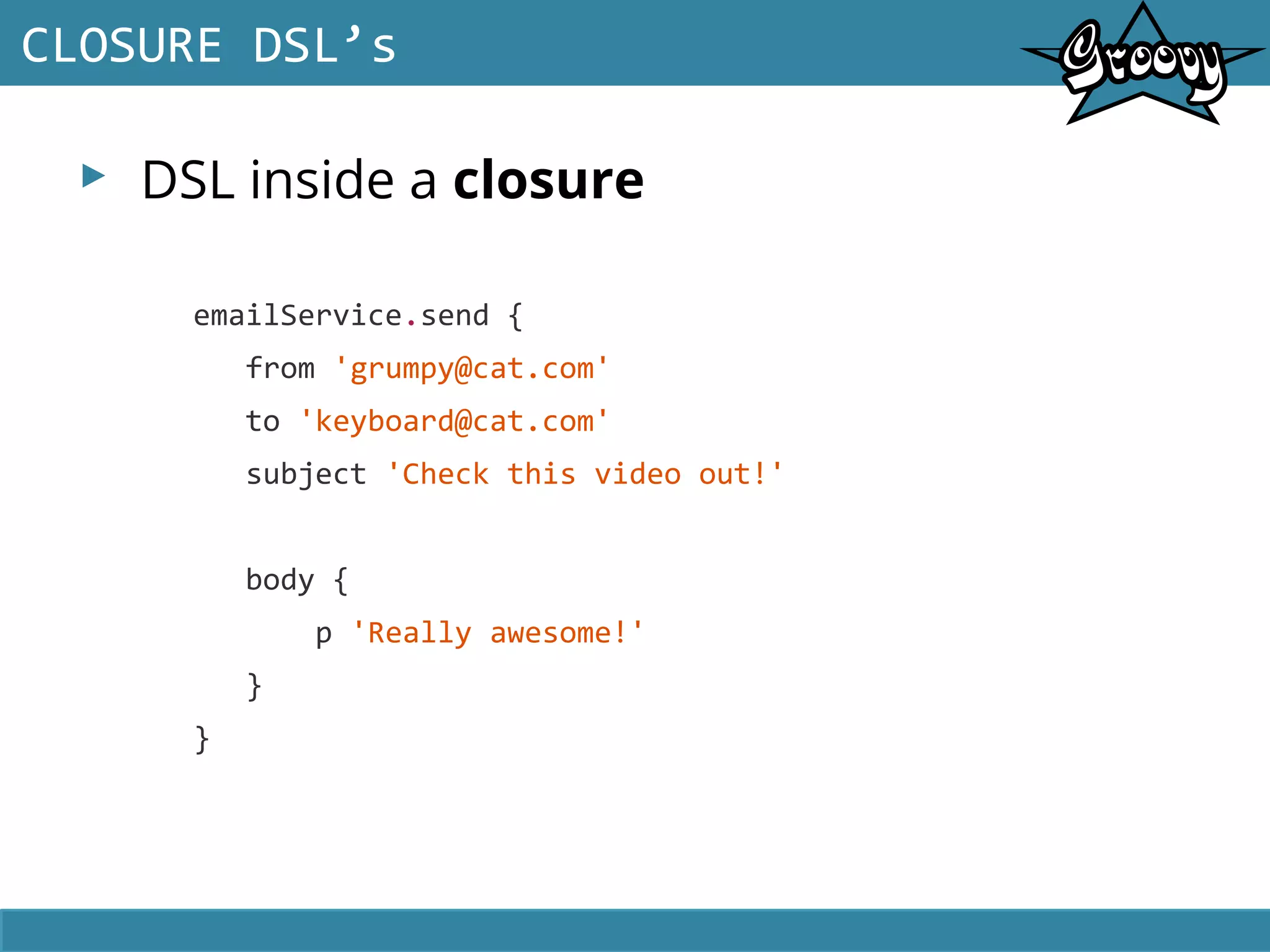

▸ DSL inside a closure
CLOSURE DSL’s
emailService.send {
from 'grumpy@cat.com'
to 'keyboard@cat.com'
subject 'Check this video out!'
body {
p 'Really awesome!'
}
}

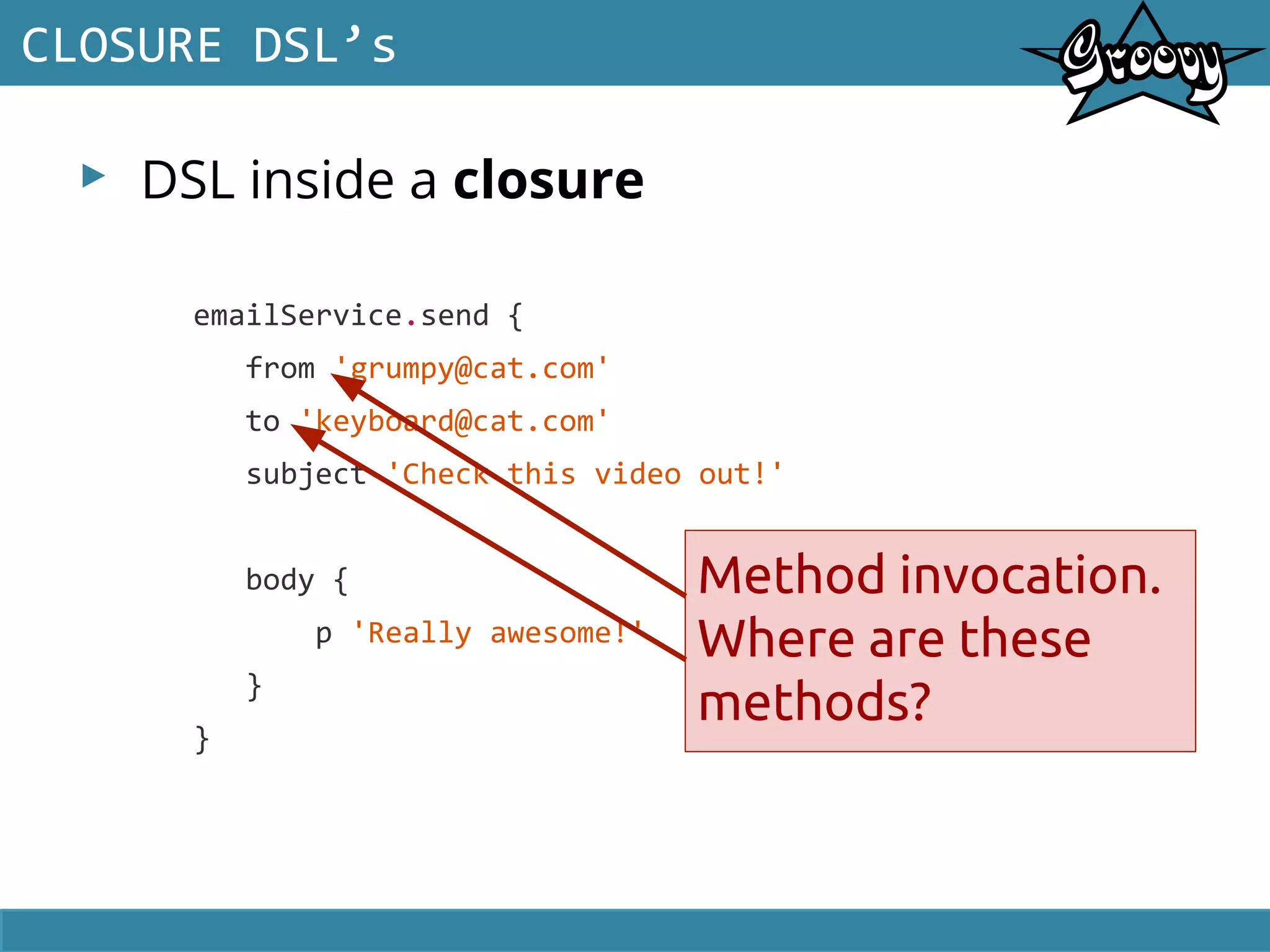

▸ DSL inside a closure
CLOSURE DSL’s
emailService.send {
from 'grumpy@cat.com'
to 'keyboard@cat.com'
subject 'Check this video out!'
body {
p 'Really awesome!'
}
}
Method invocation.
Where are these
methods?

▸ this
▸ owner
▸ delegate
GROOVY CLOSURES CONTEXT
Three objects handle
the closure context

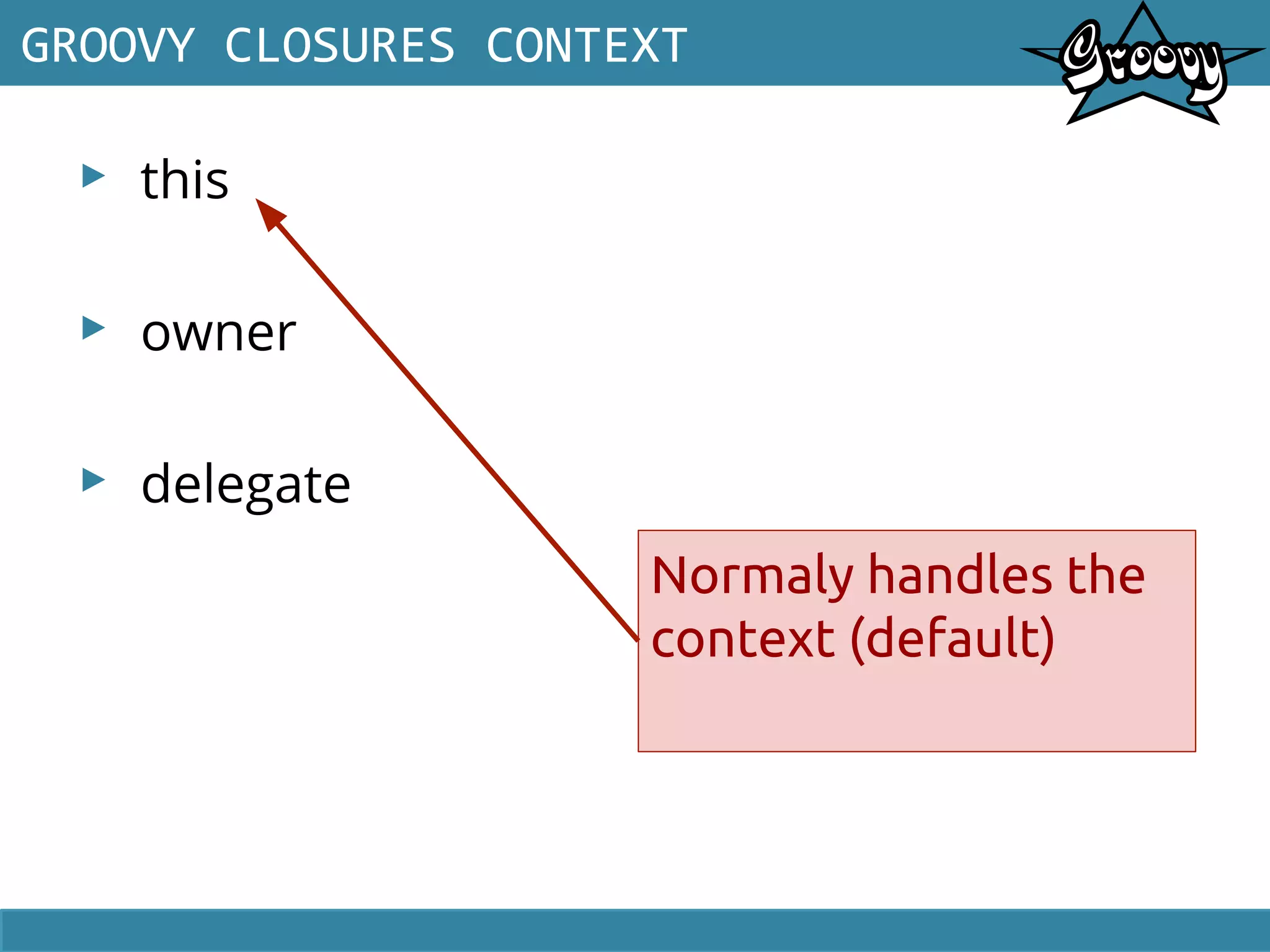

▸ this
▸ owner
▸ delegate
Normaly handles the
context (default)

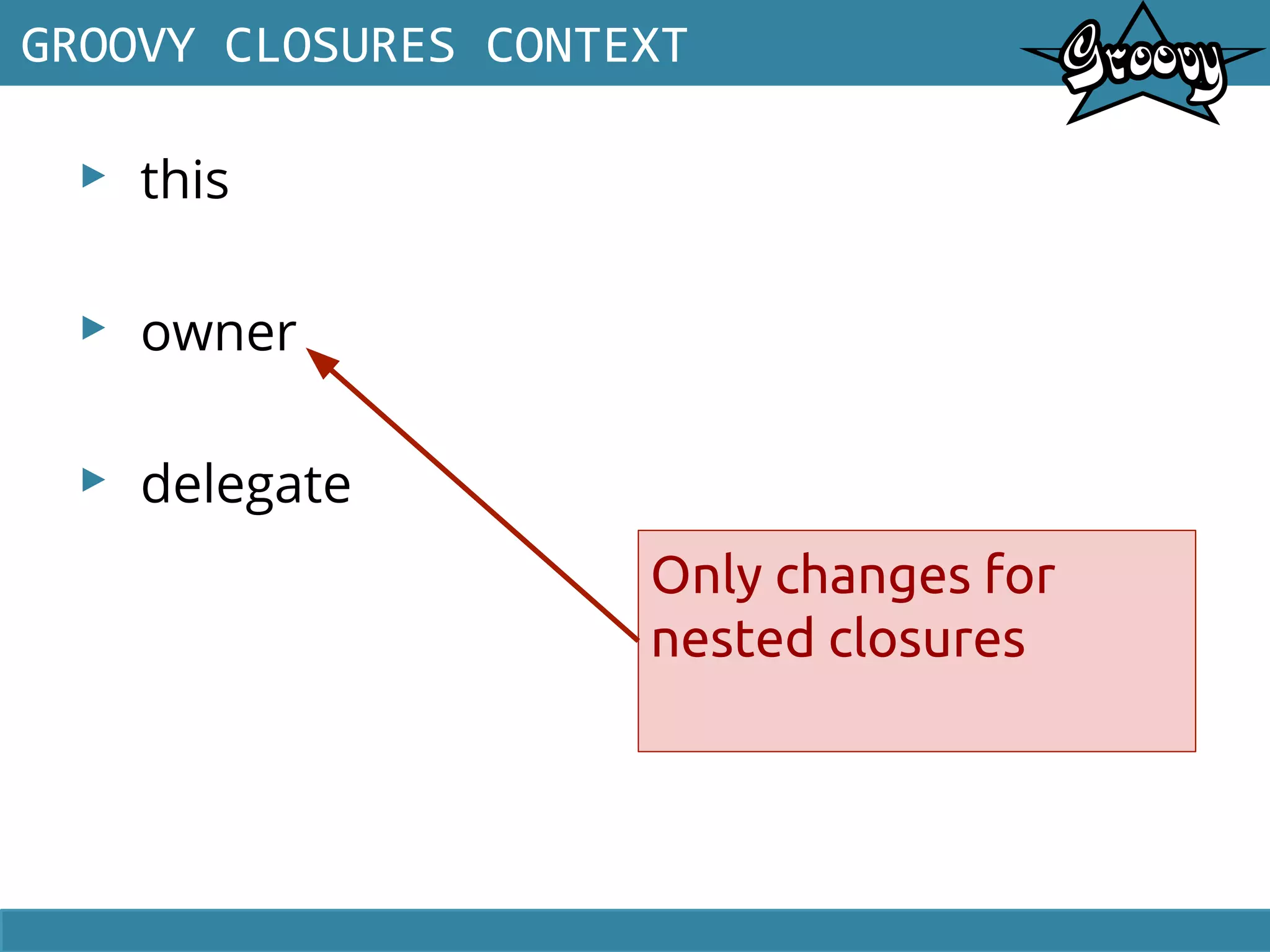

▸ this
▸ owner
▸ delegate
Only changes for
nested closures

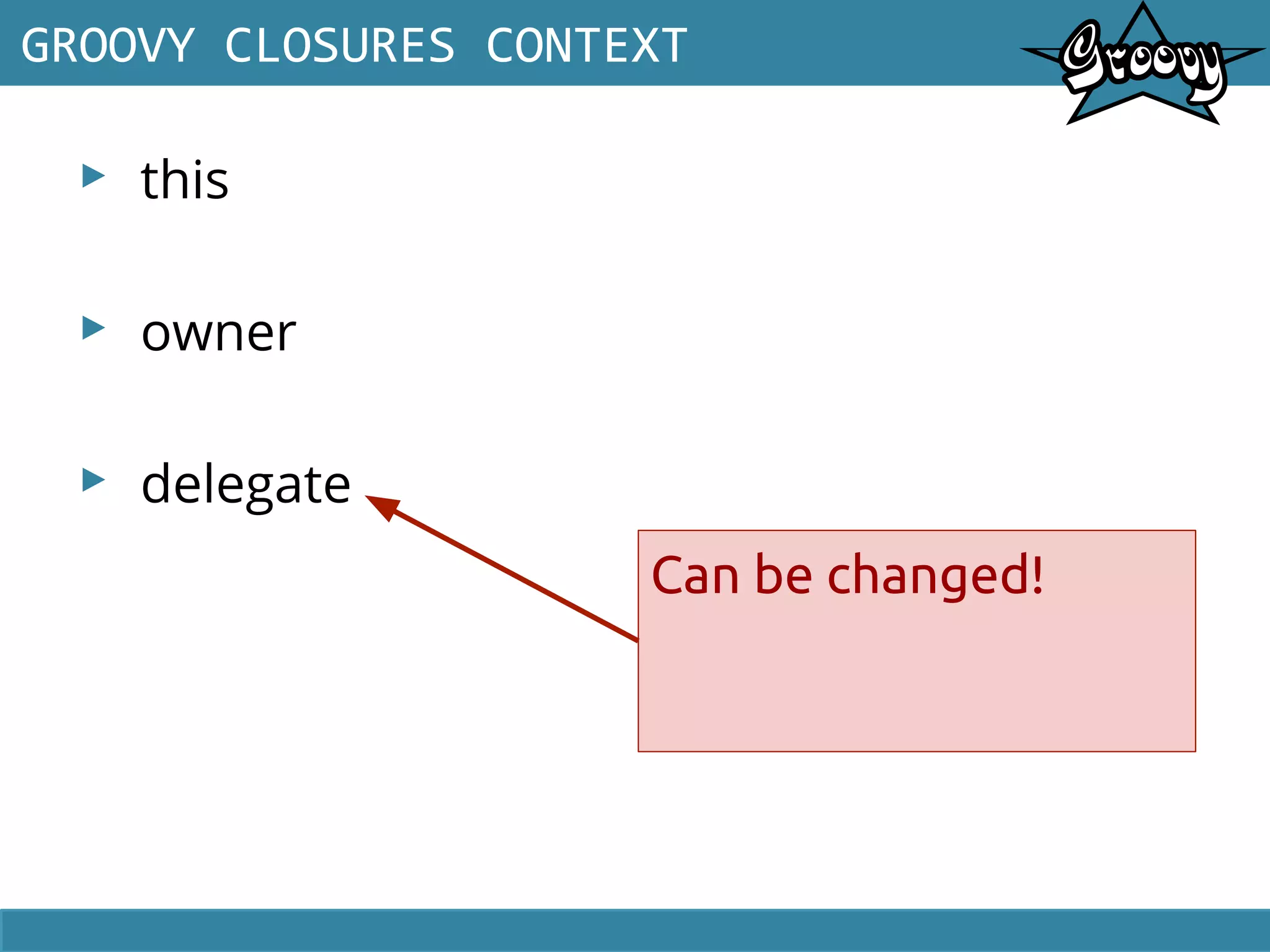

▸ this
▸ owner
▸ delegate
Can be changed!

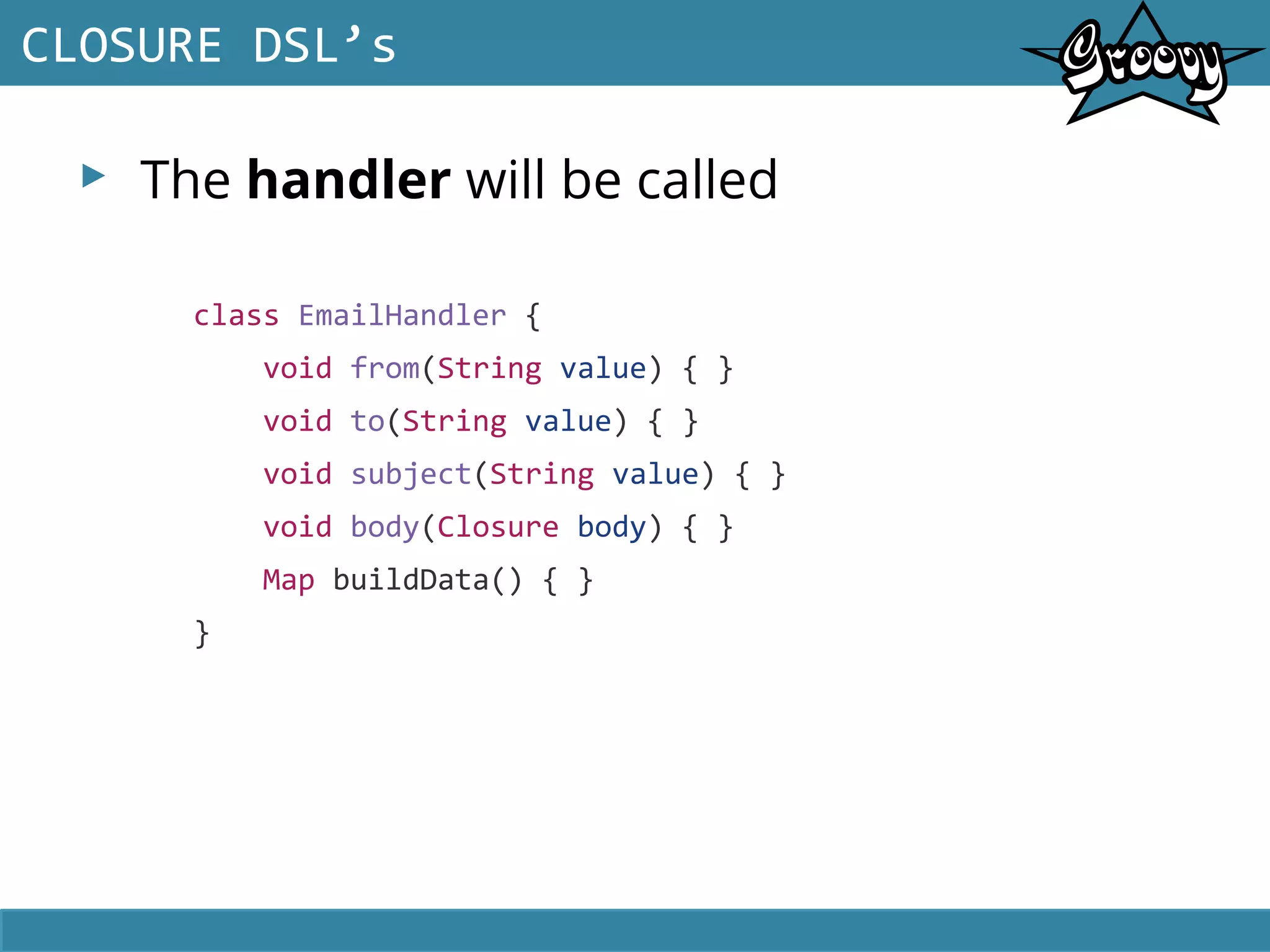

▸ The handler will be called
CLOSURE DSL’s
class EmailHandler {
void from(String value) { }
void to(String value) { }
void subject(String value) { }
void body(Closure body) { }
Map buildData() { }
}

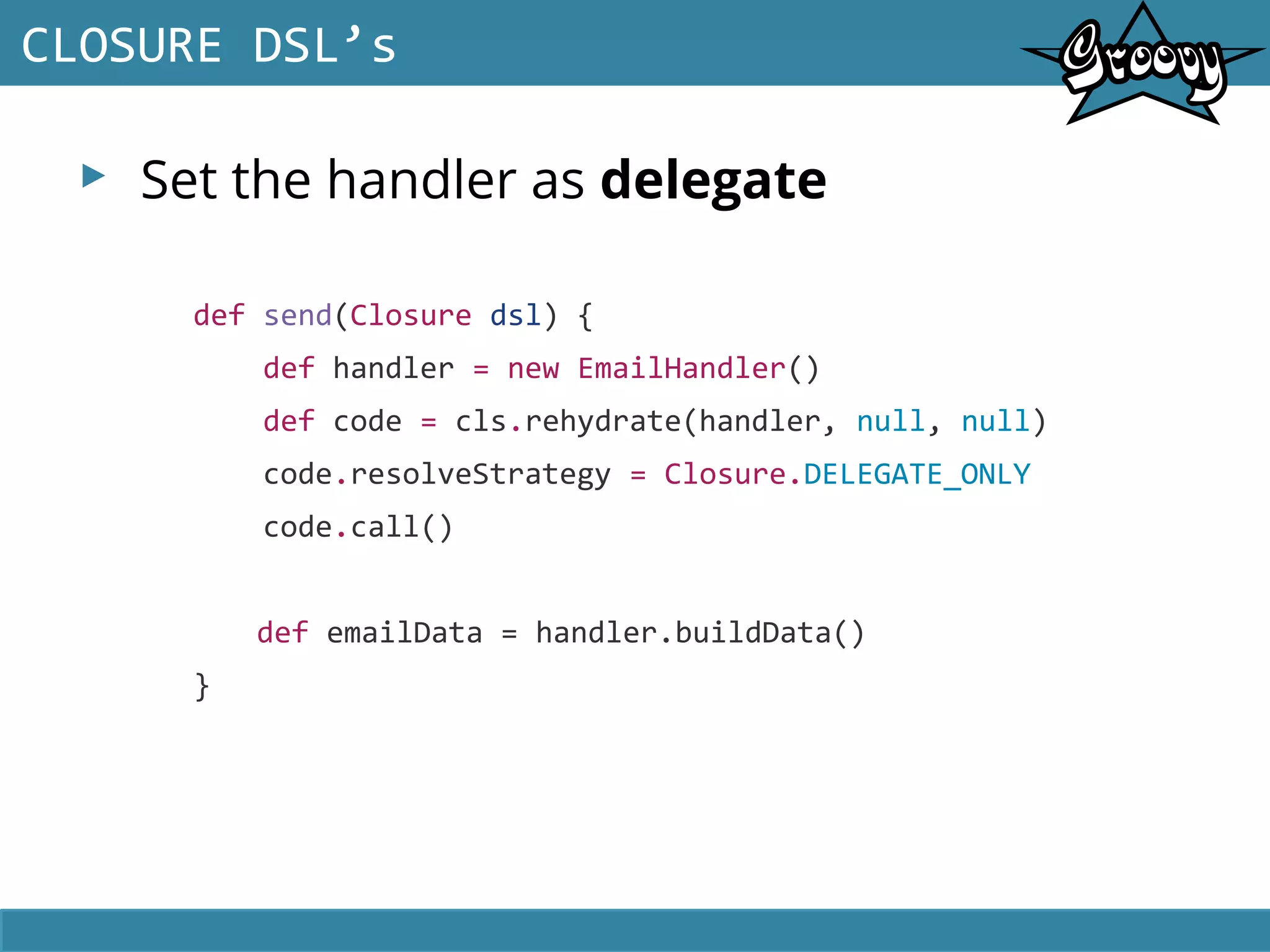

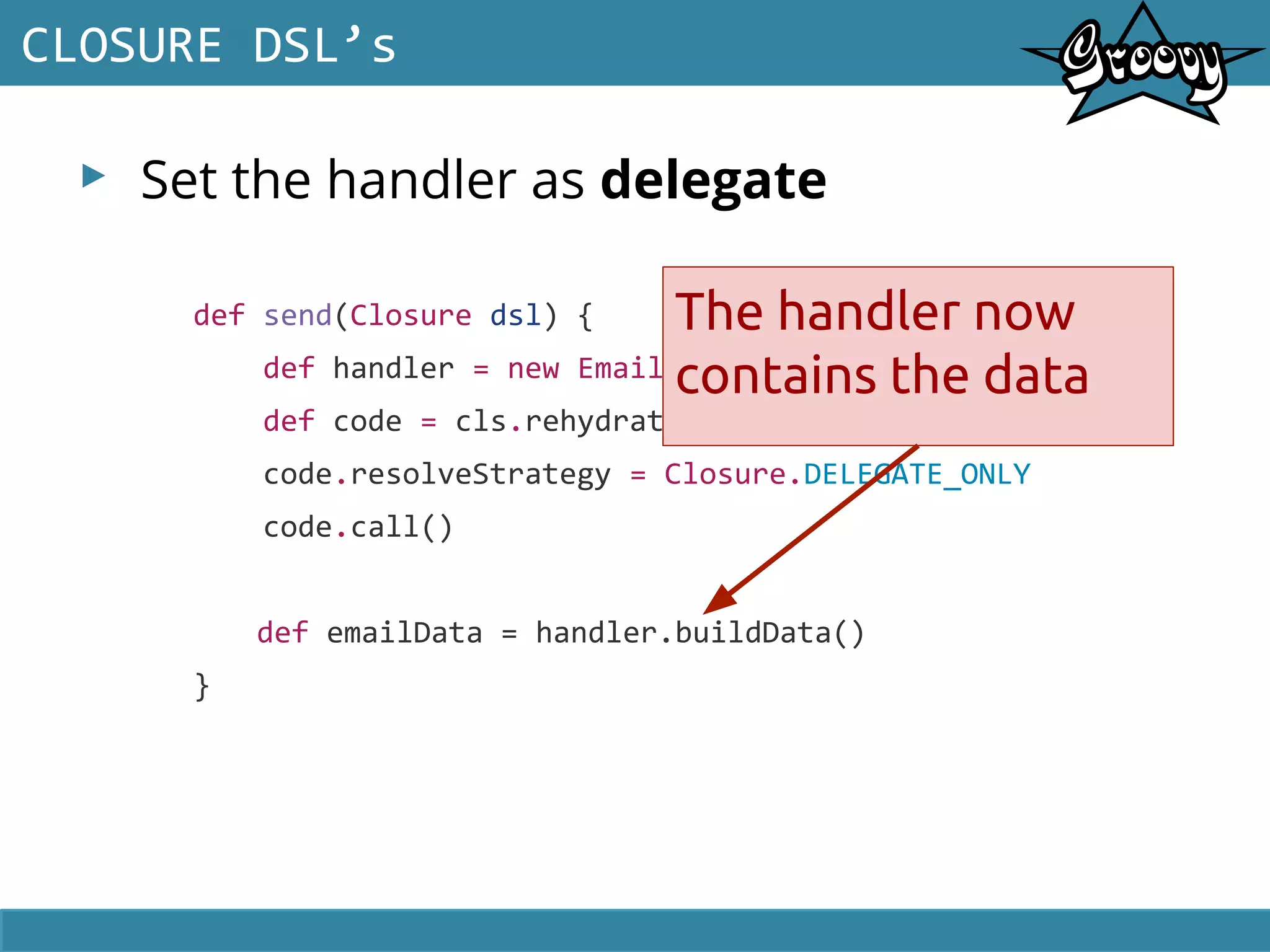

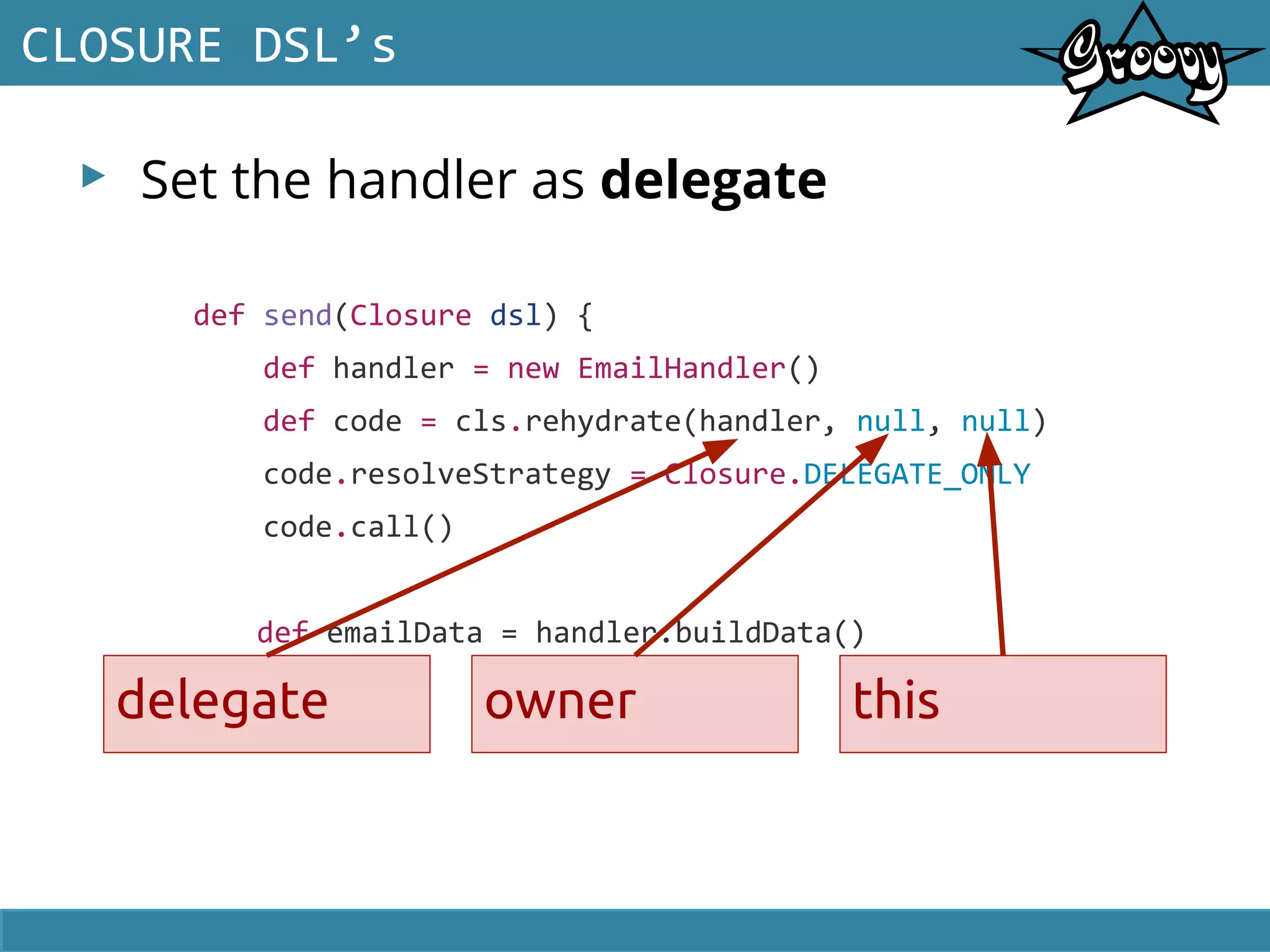

▸ Set the handler as delegate
CLOSURE DSL’s
def send(Closure dsl) {
def handler = new EmailHandler()
def code = cls.rehydrate(handler, null, null)
code.resolveStrategy = Closure.DELEGATE_ONLY
code.call()
def emailData = handler.buildData()
}

CLOSURE DSL’s
code.call()
}
delegate owner this

CLOSURE DSL’s
code.call()
}

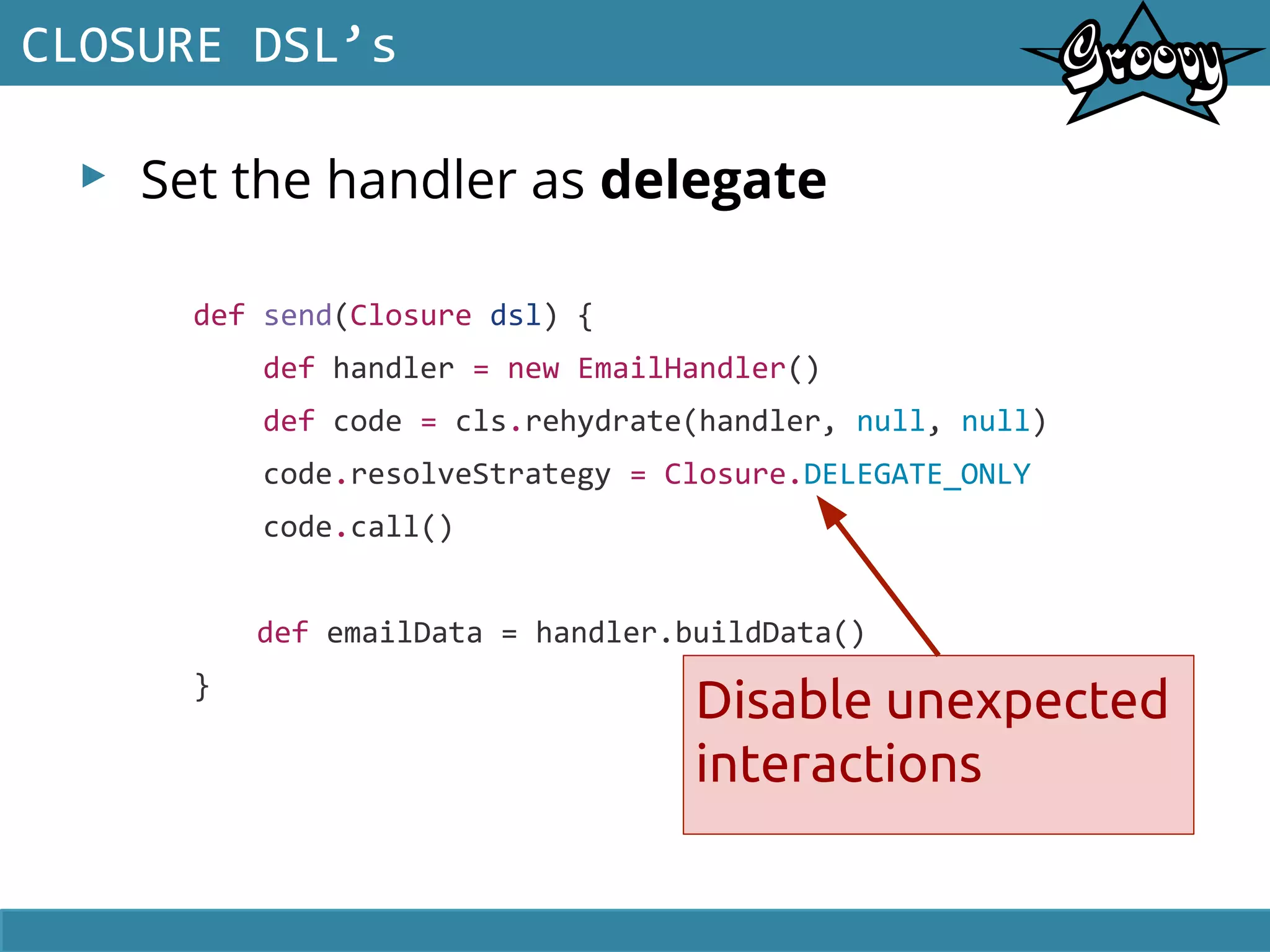

Disable unexpected
interactions

CLOSURE DSL’s
code.call()
}

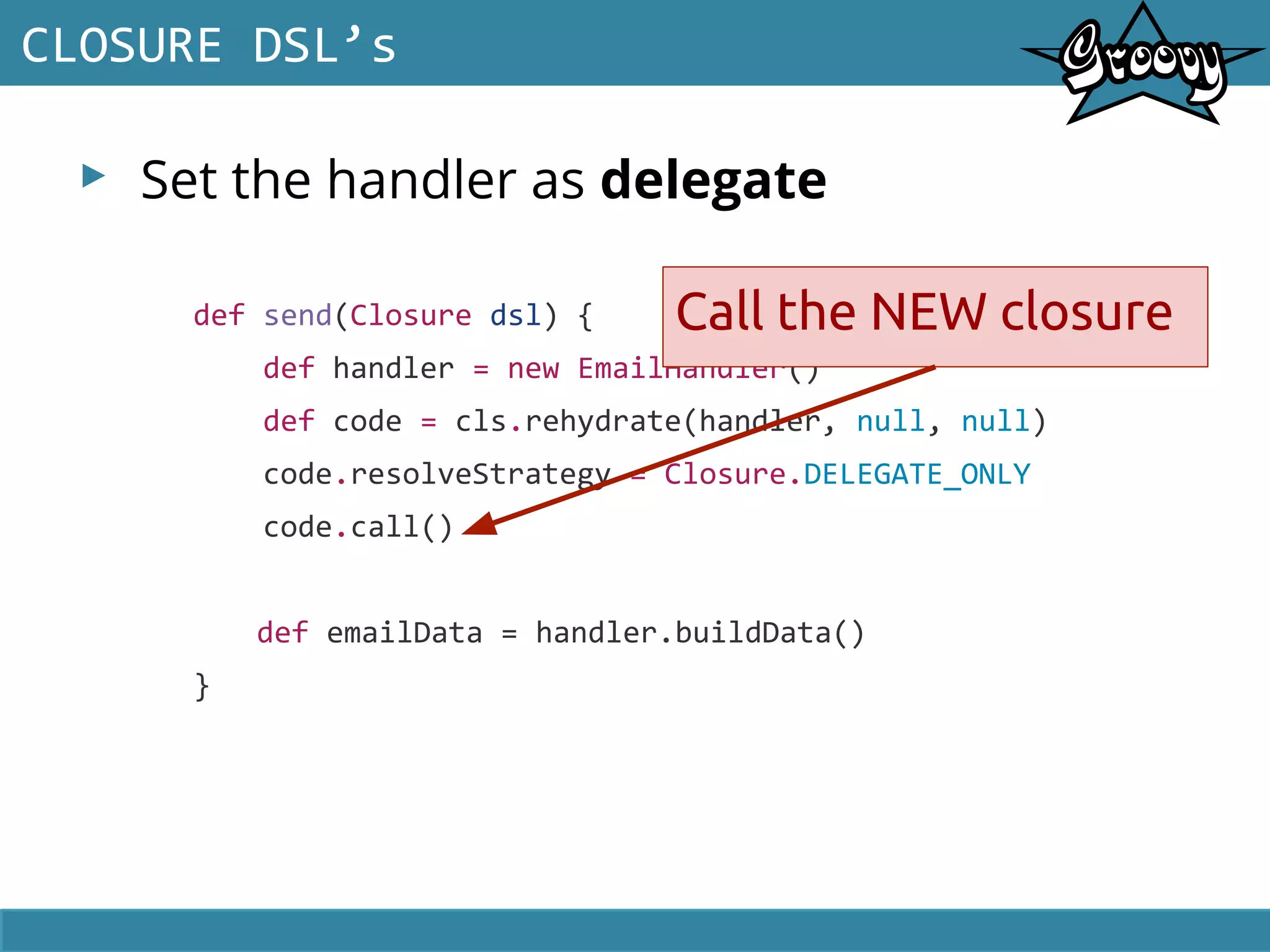

Call the NEW closure

CLOSURE DSL’s
code.call()
}
The handler now
contains the data

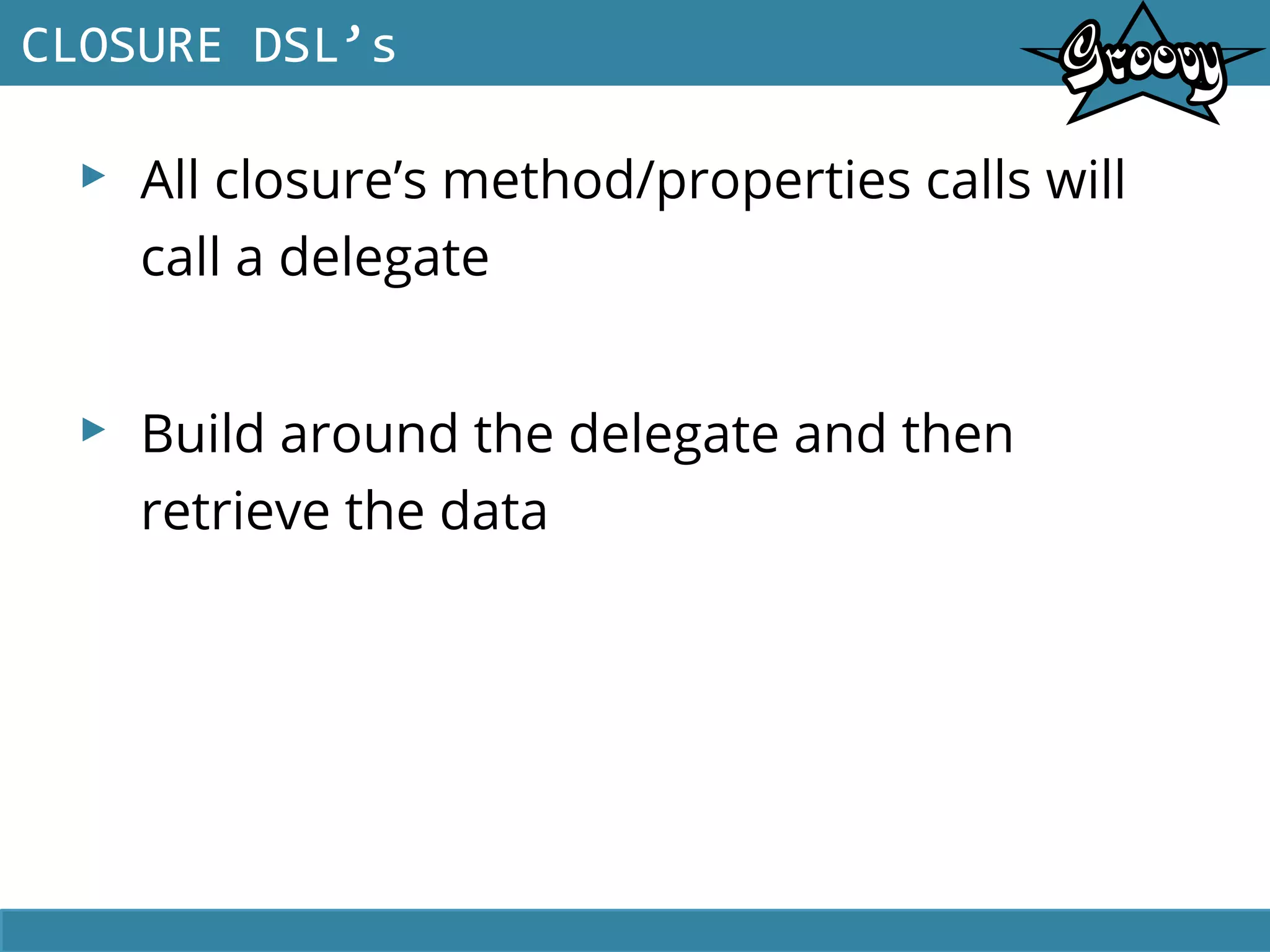

▸ All closure’s method/properties calls will
call a delegate
▸ Build around the delegate and then
retrieve the data
CLOSURE DSL’s

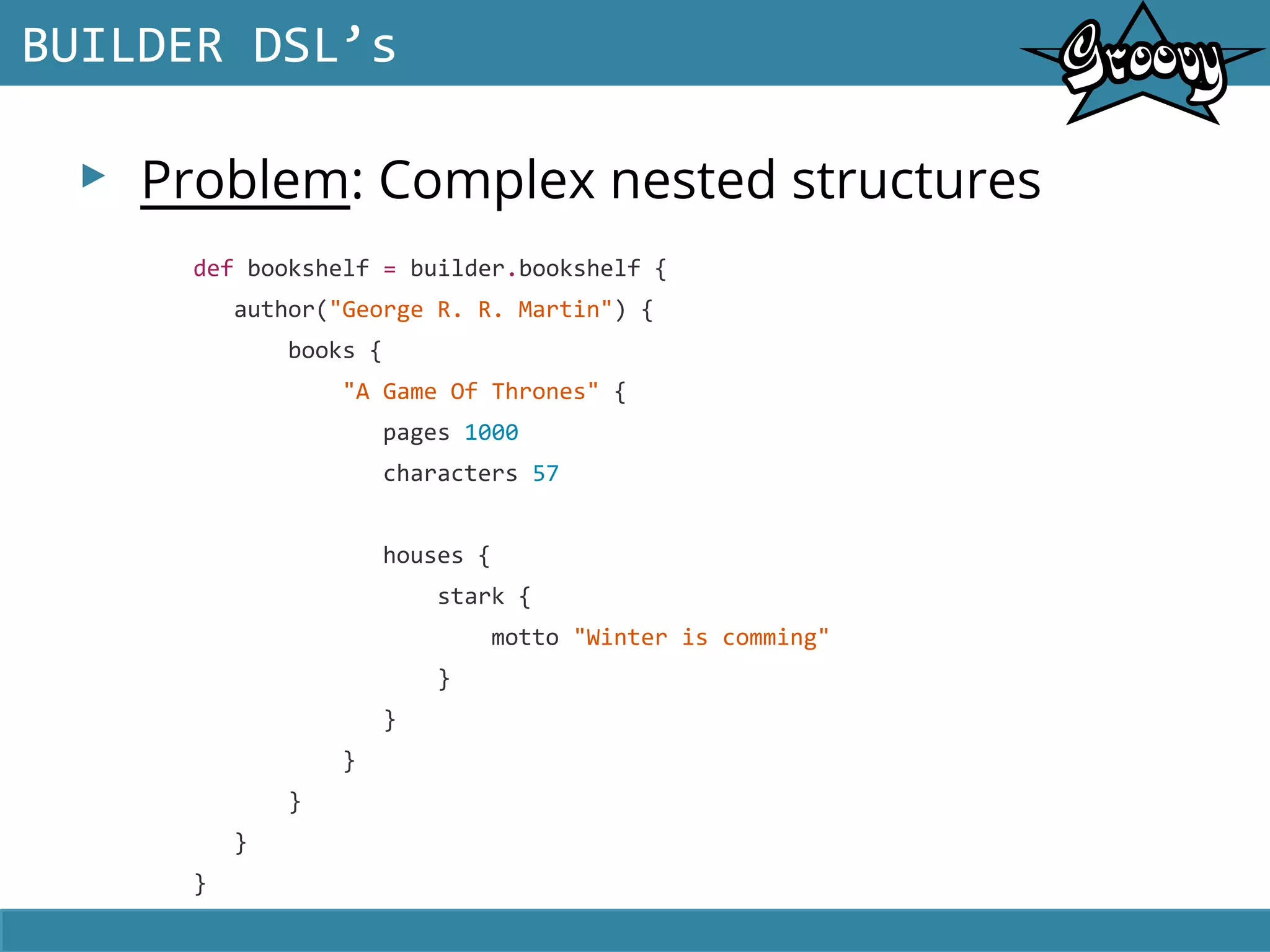

▸ Problem: Complex nested structures
BUILDER DSL’s
def bookshelf = builder.bookshelf {
author("George R. R. Martin") {
books {
"A Game Of Thrones" {
pages 1000
characters 57
houses {
stark {
motto "Winter is comming"
}
}
}
}
}
}

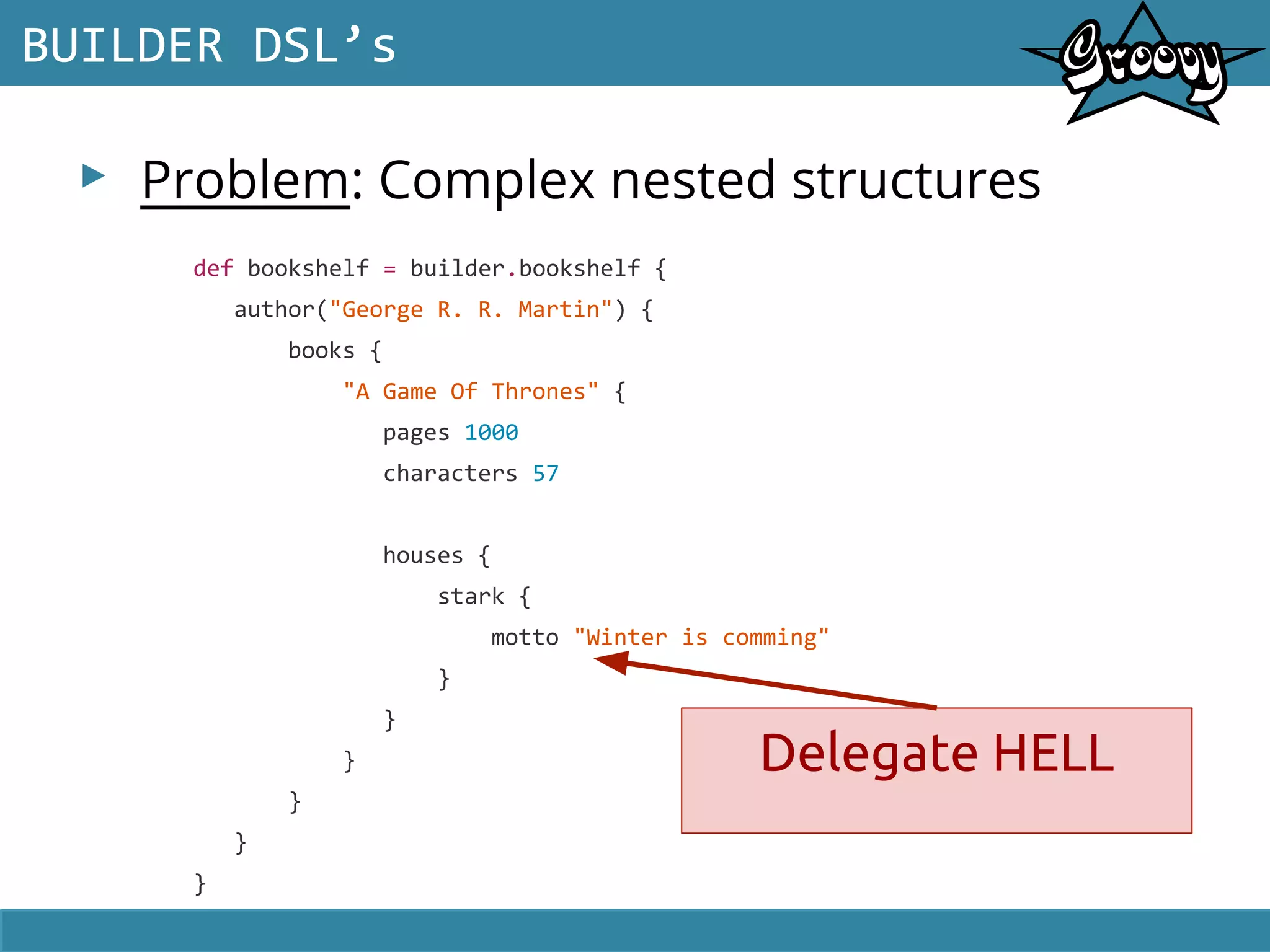

▸ Problem: Complex nested structures
BUILDER DSL’s
books {
pages 1000
characters 57
houses {
stark {
motto "Winter is comming"
}
}
}
}
}
}
Delegate HELL

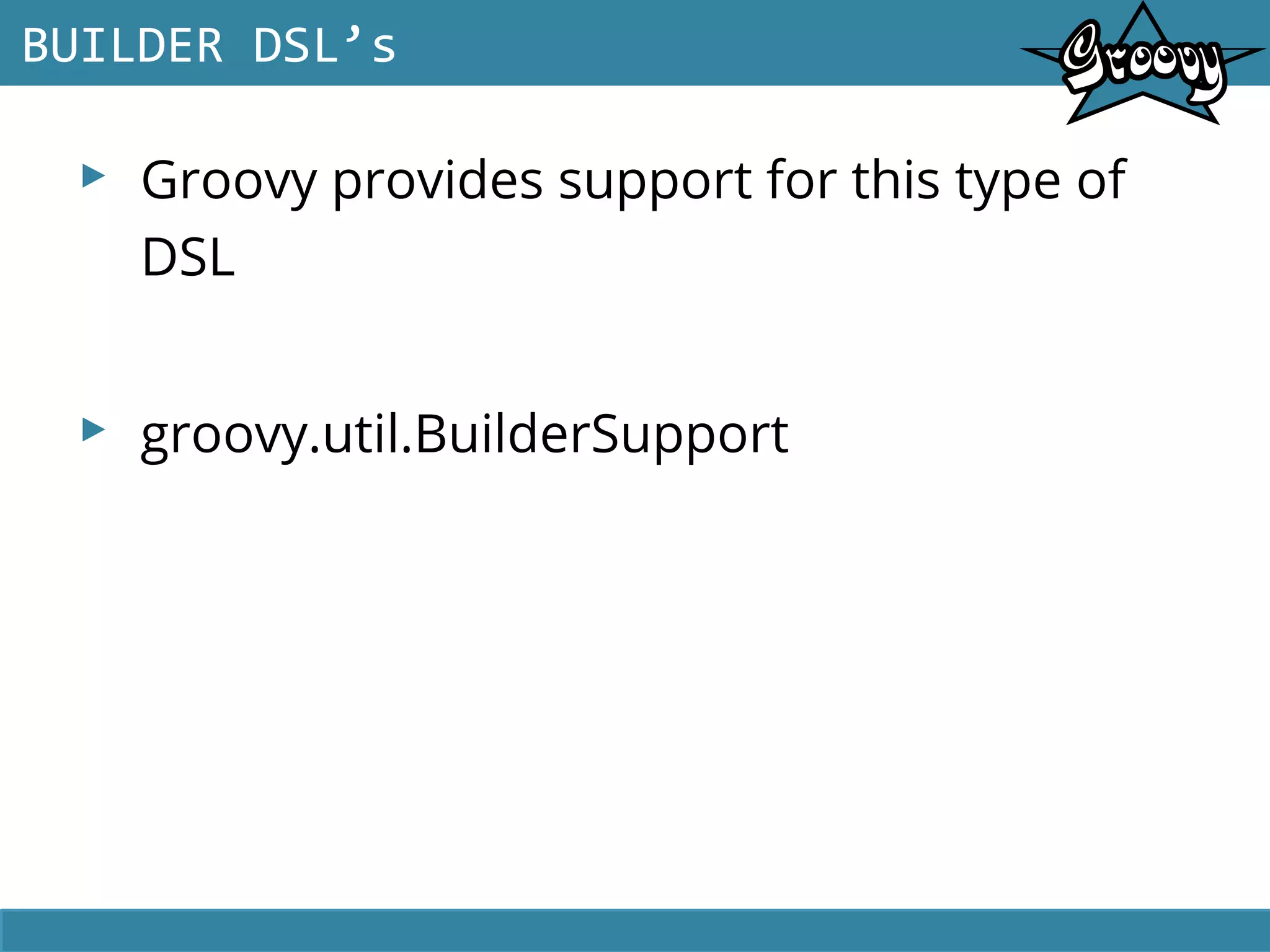

▸ Groovy provides support for this type of
DSL
▸ groovy.util.BuilderSupport
BUILDER DSL’s

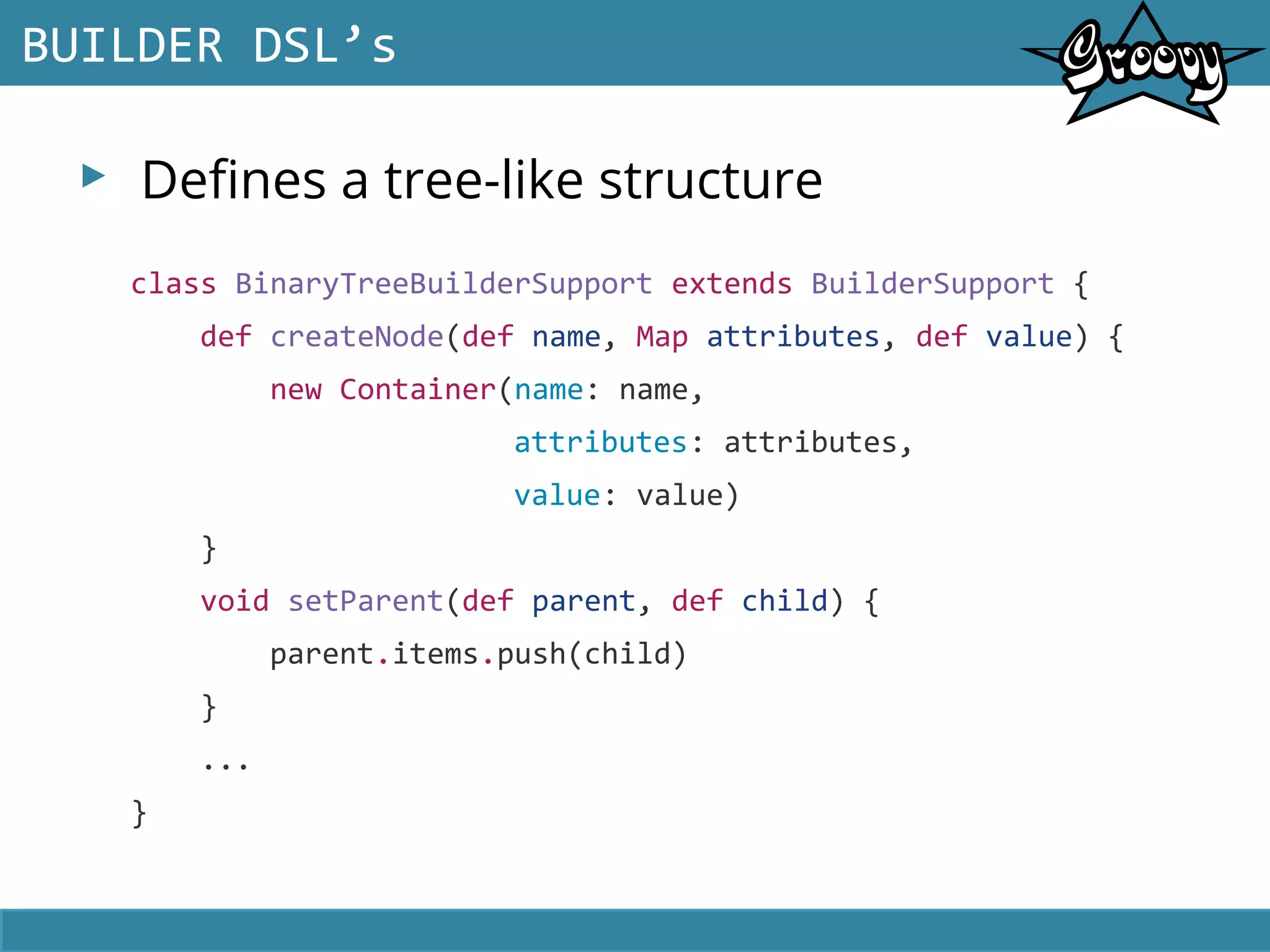

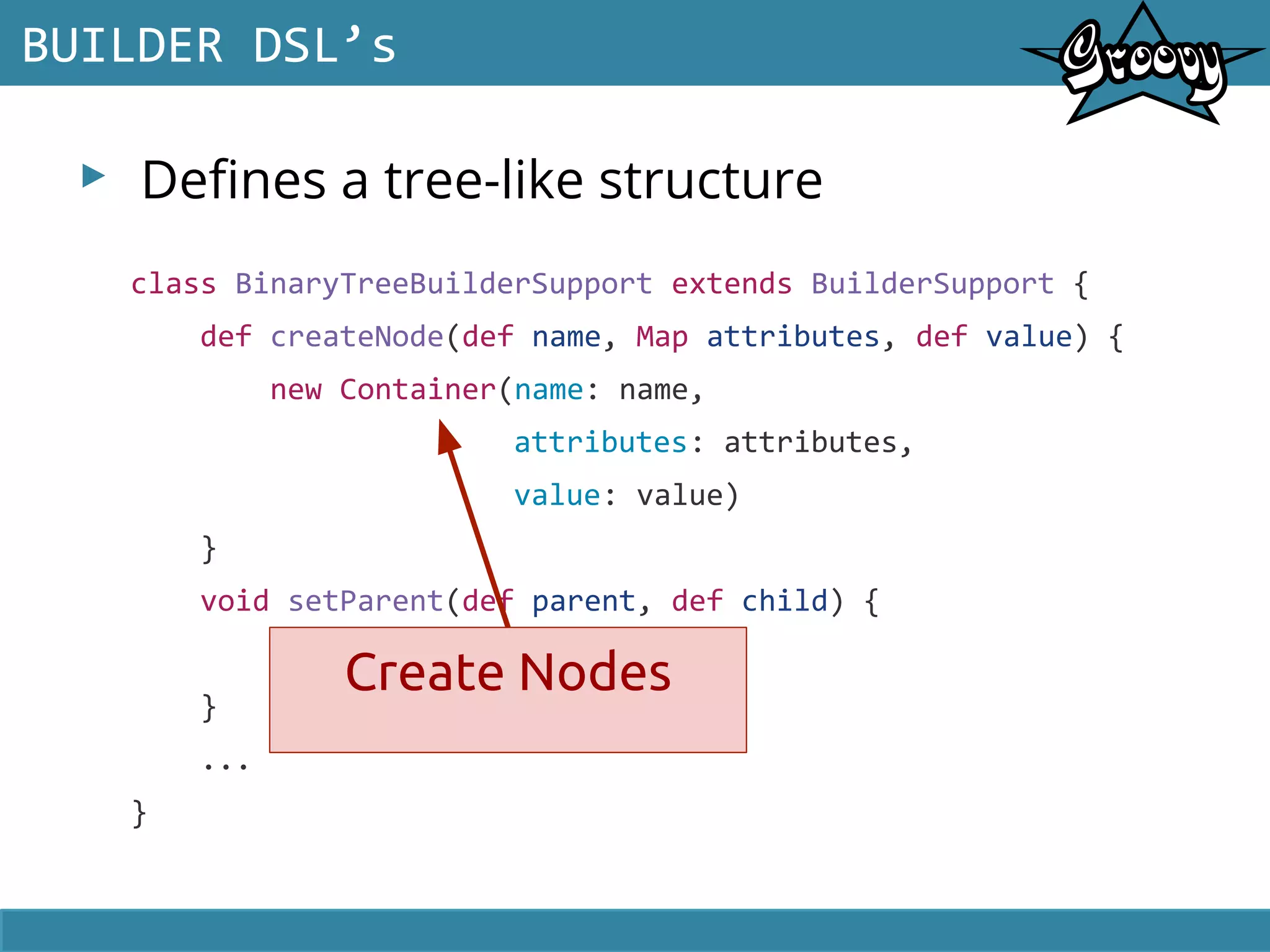

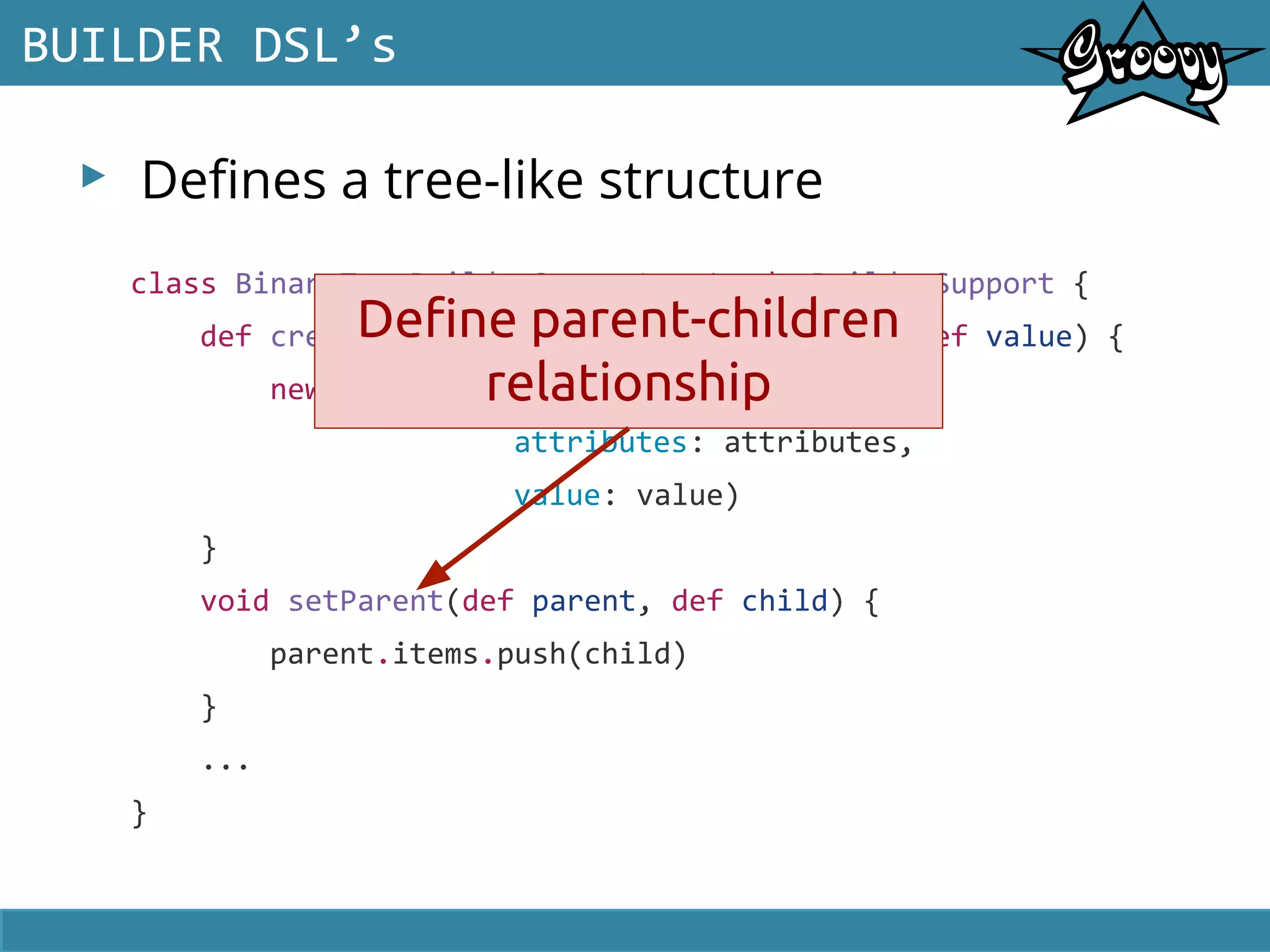

▸ Defines a tree-like structure
BUILDER DSL’s
class BinaryTreeBuilderSupport extends BuilderSupport {
def createNode(def name, Map attributes, def value) {
new Container(name: name,
attributes: attributes,
value: value)
}
void setParent(def parent, def child) {
parent.items.push(child)
}
...
}

BUILDER DSL’s
value: value)
}
}
...
}
Create Nodes

BUILDER DSL’s
value: value)
}
}
...
}
Define parent-children
relationship

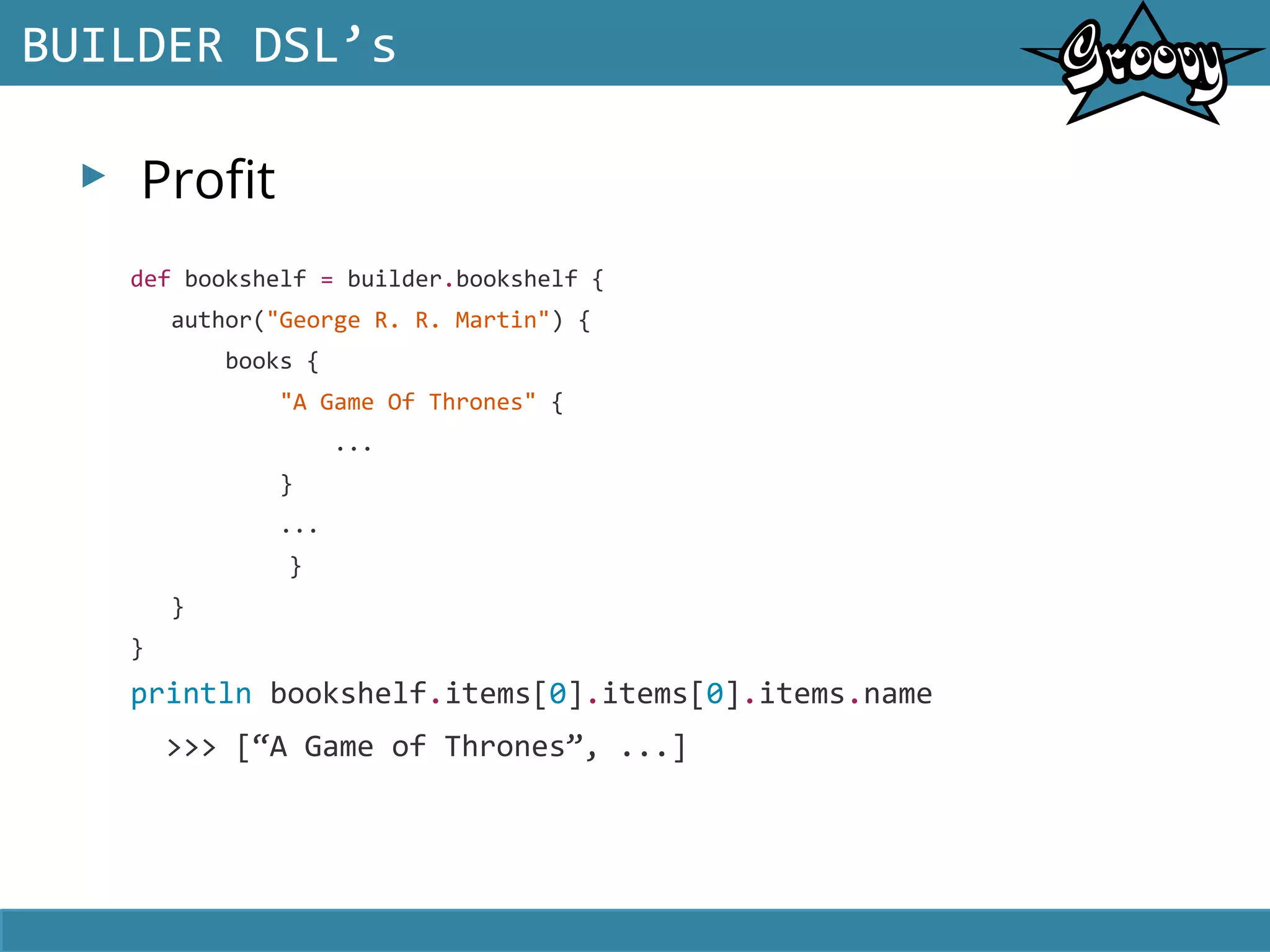

▸ Profit
BUILDER DSL’s
books {
...
}
...
}
}
}
println bookshelf.items[0].items[0].items.name
>>> [“A Game of Thrones”, ...]

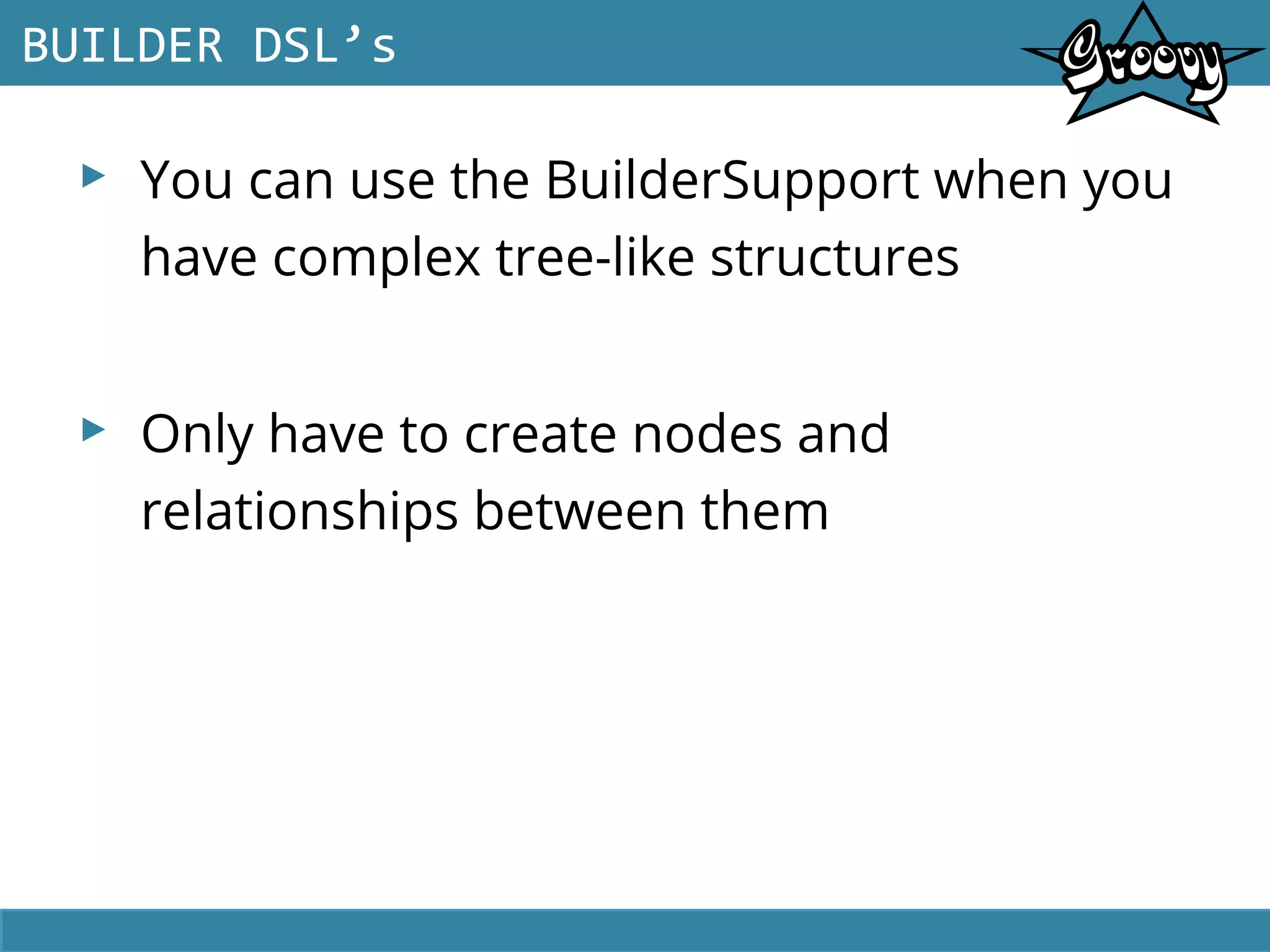

▸ You can use the BuilderSupport when you
have complex tree-like structures
▸ Only have to create nodes and
relationships between them
BUILDER DSL’s

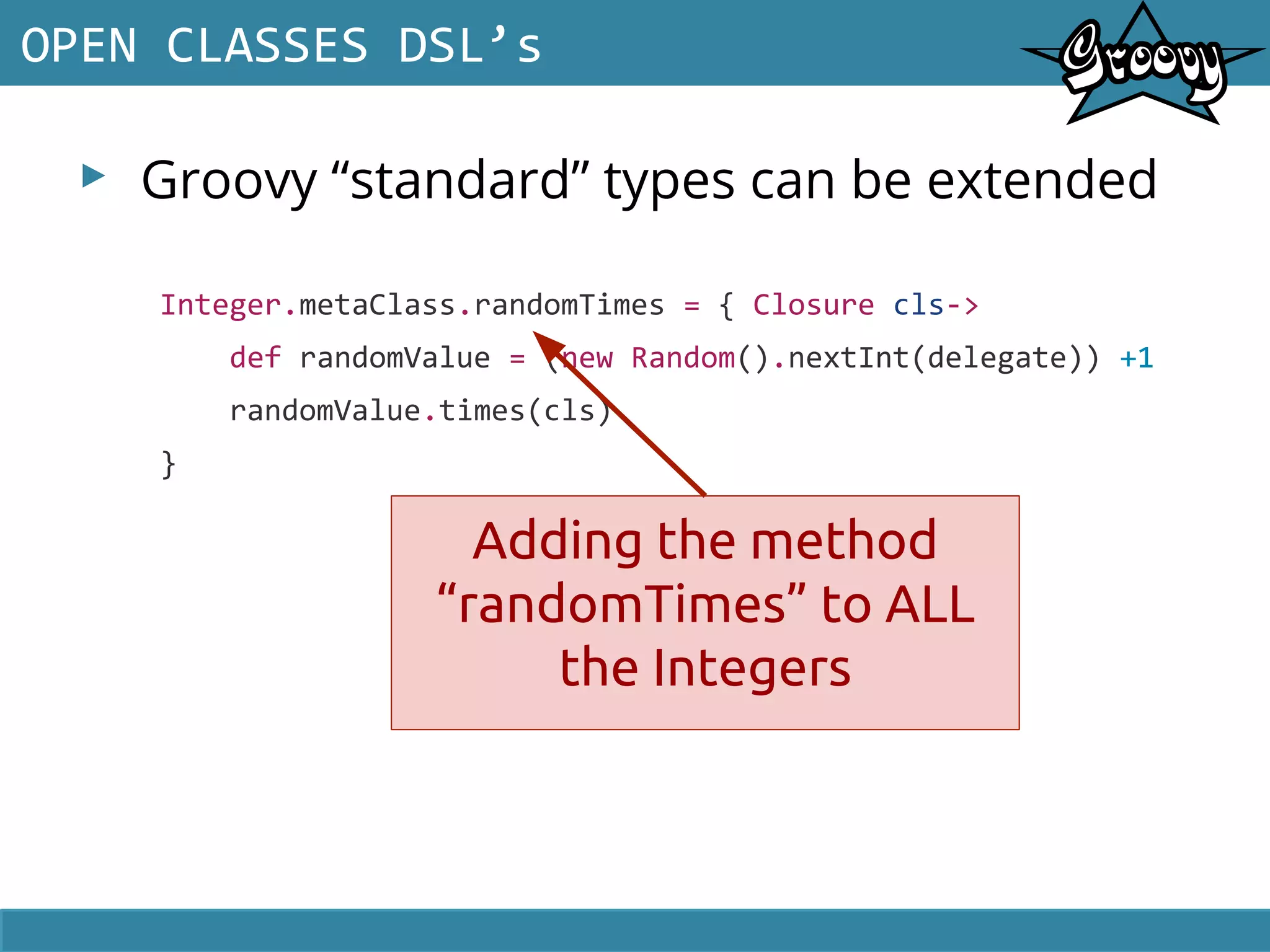

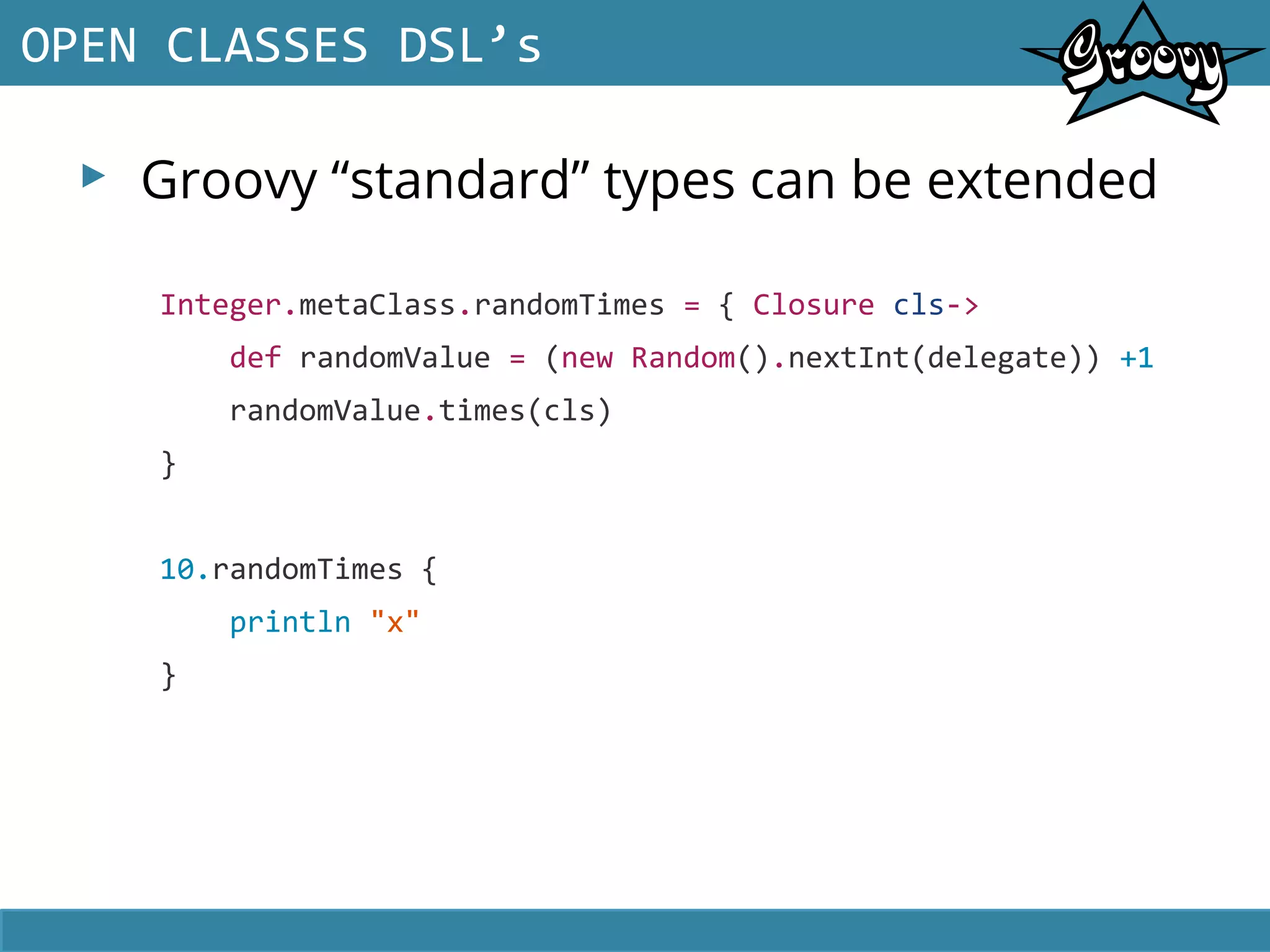

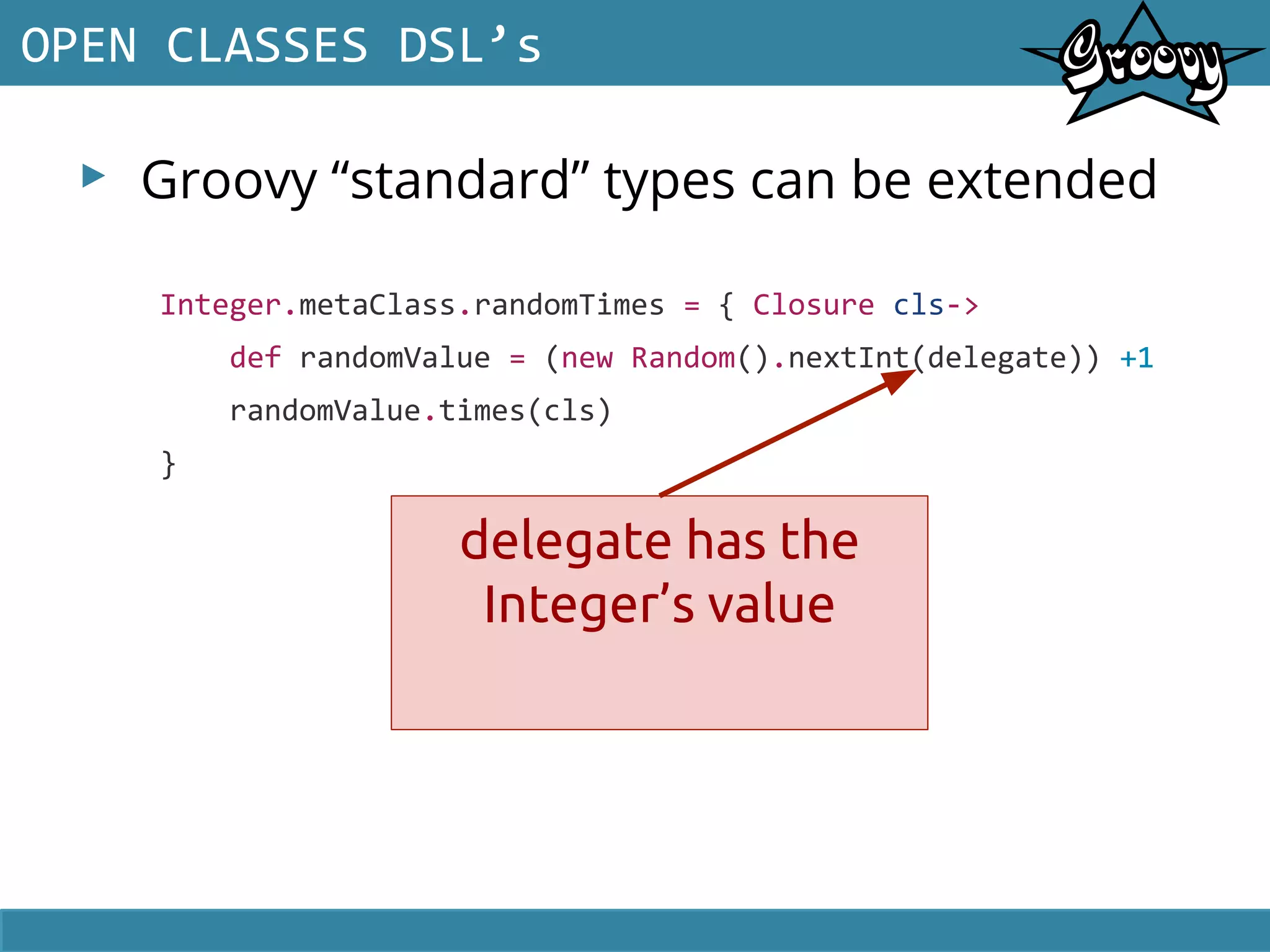

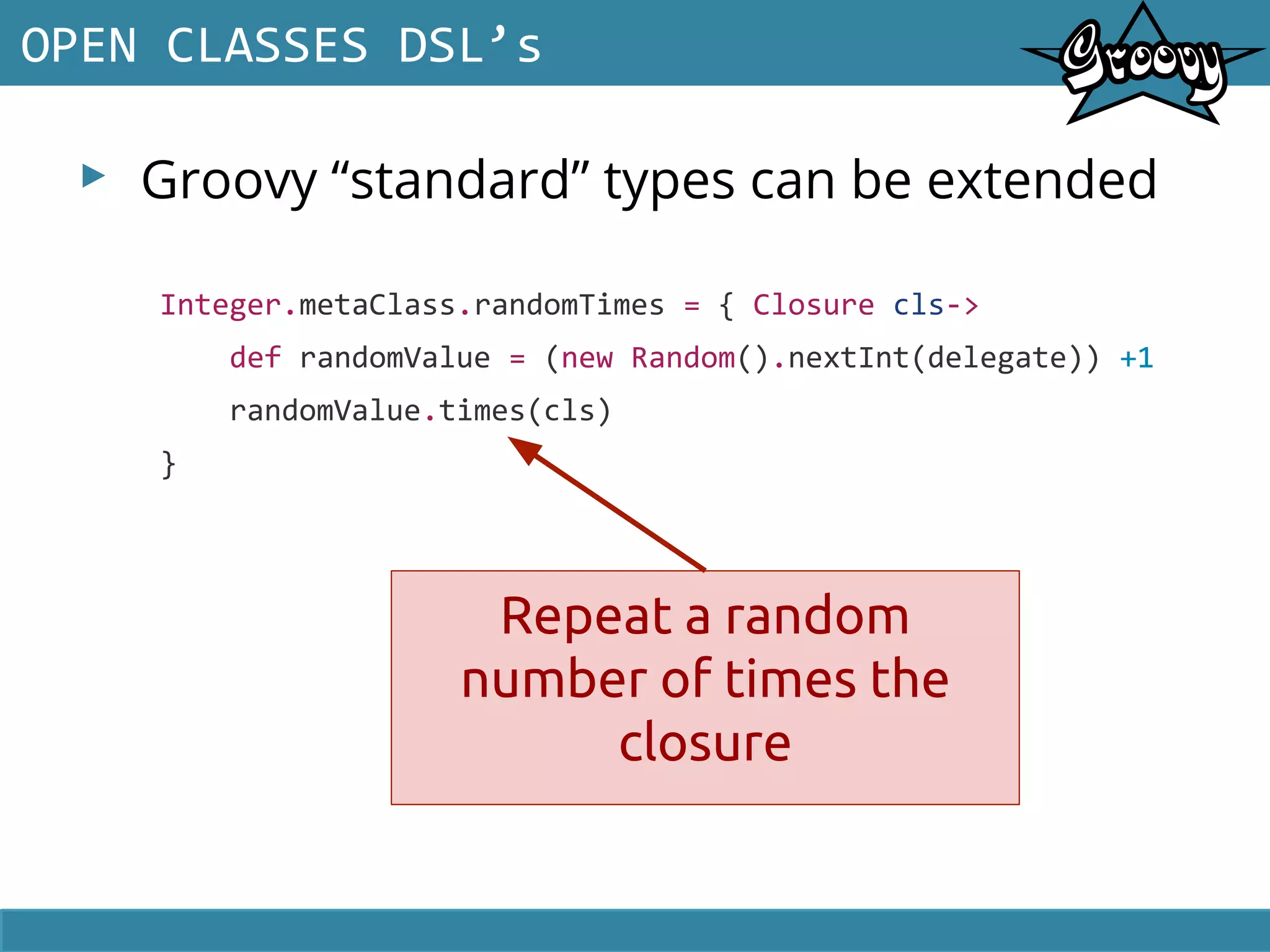

▸ Groovy “standard” types can be extended
OPEN CLASSES DSL’s
Integer.metaClass.randomTimes = { Closure cls->
def randomValue = (new Random().nextInt(delegate)) +1
randomValue.times(cls)
}
Adding the method
“randomTimes” to ALL
the Integers

}
delegate has the
Integer’s value

}
Repeat a random
number of times the
closure

}
10.randomTimes {
println "x"
}

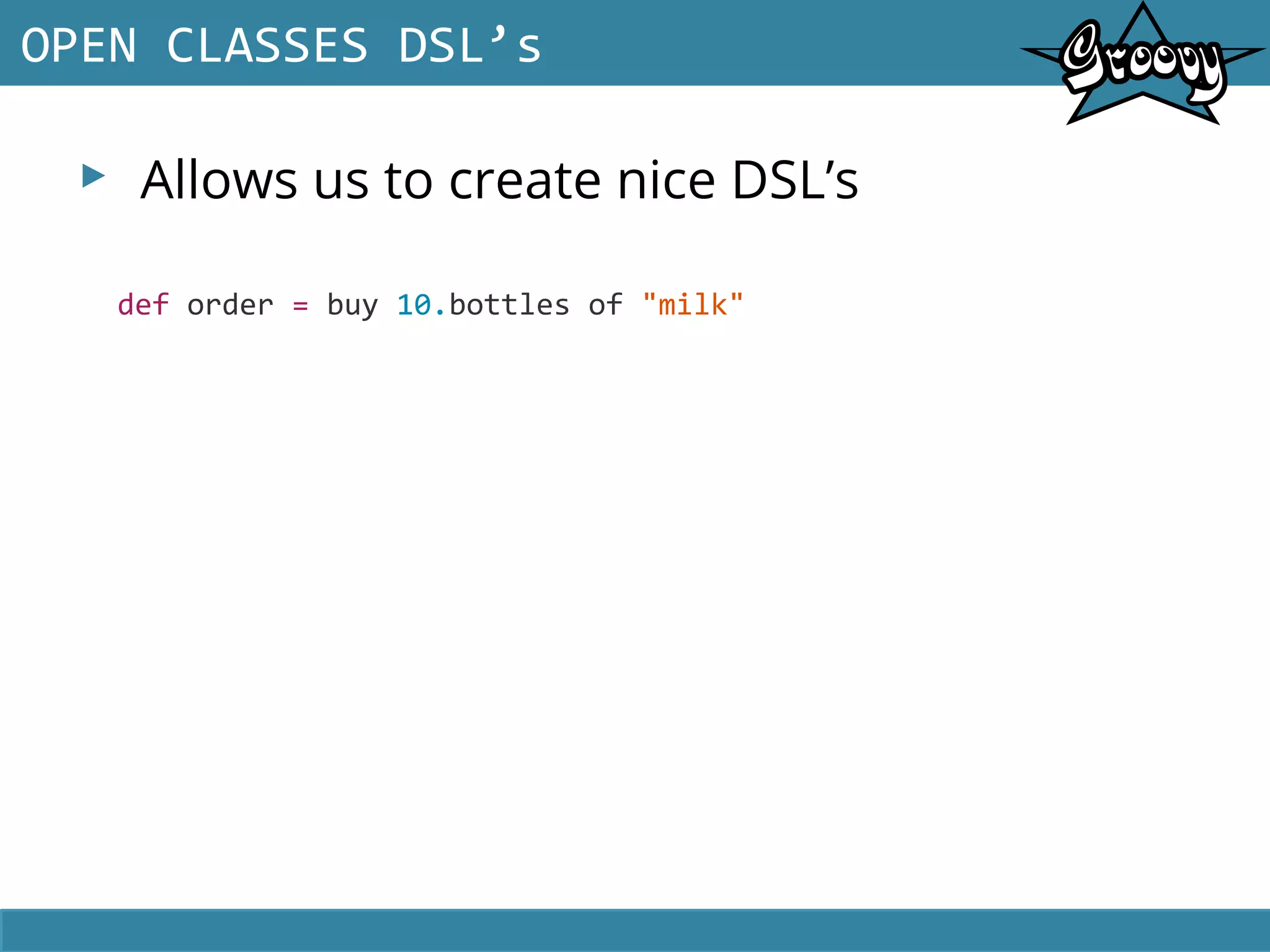

▸ Allows us to create nice DSL’s
def order = buy 10.bottles of "milk"

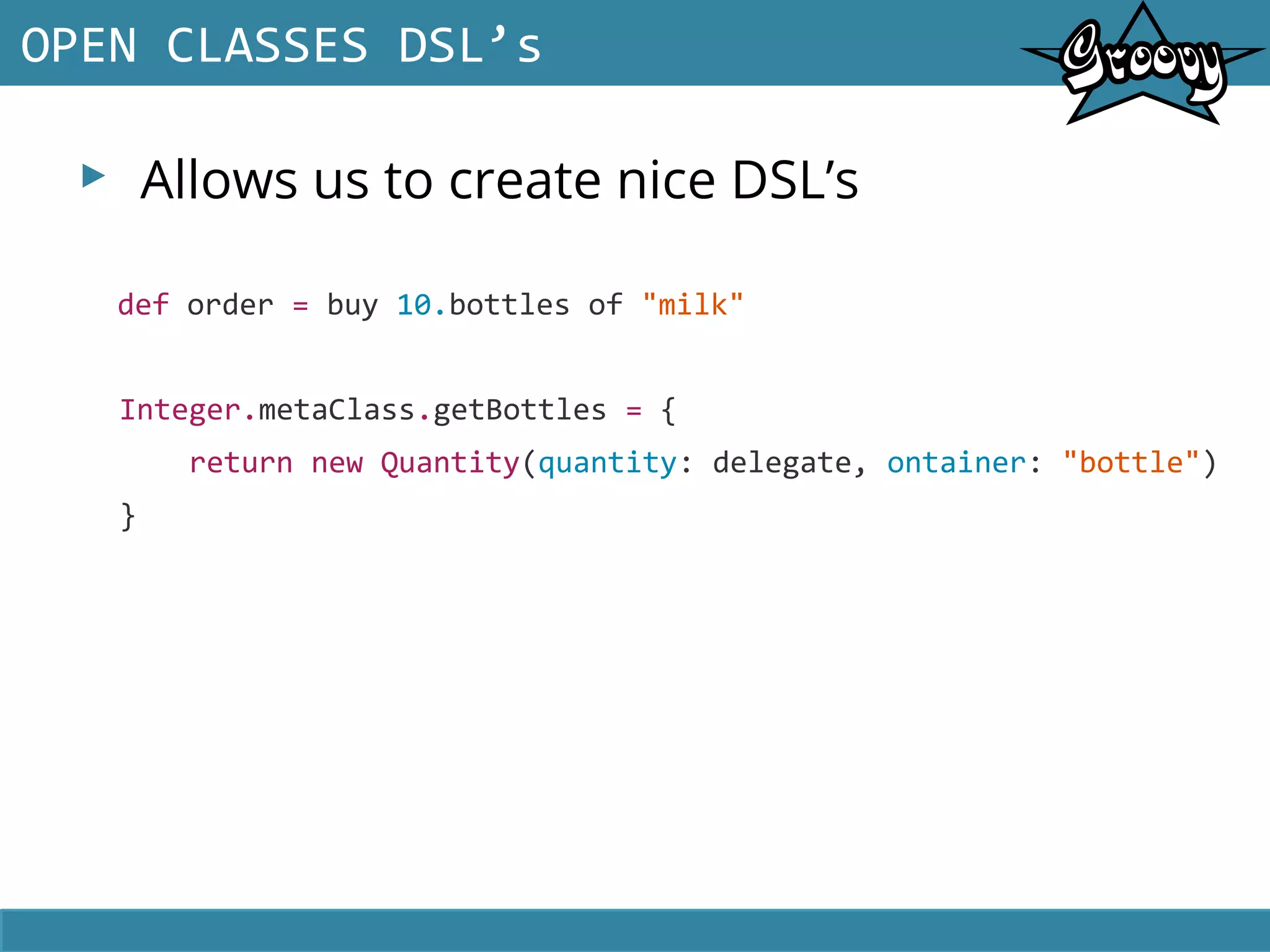

▸ Allows us to create nice DSL’s
def order = buy 10.bottles of "milk"
Integer.metaClass.getBottles = {
return new Quantity(quantity: delegate, ontainer: "bottle")
}

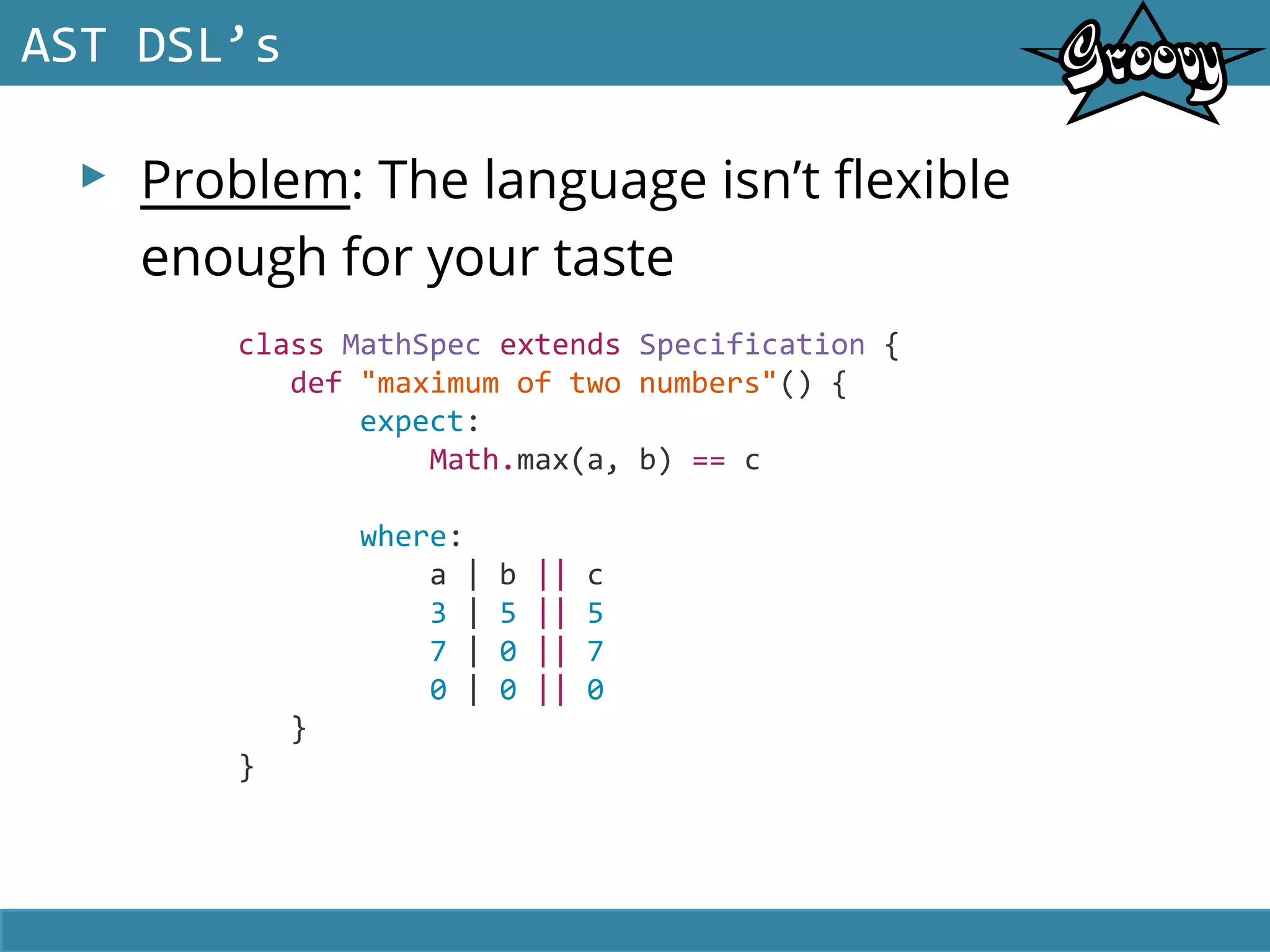

▸ Problem: The language isn’t flexible
enough for your taste
AST DSL’s
expect:
Math.max(a, b) == c
where:
a | b || c
3 | 5 || 5
7 | 0 || 7
0 | 0 || 0
}
}

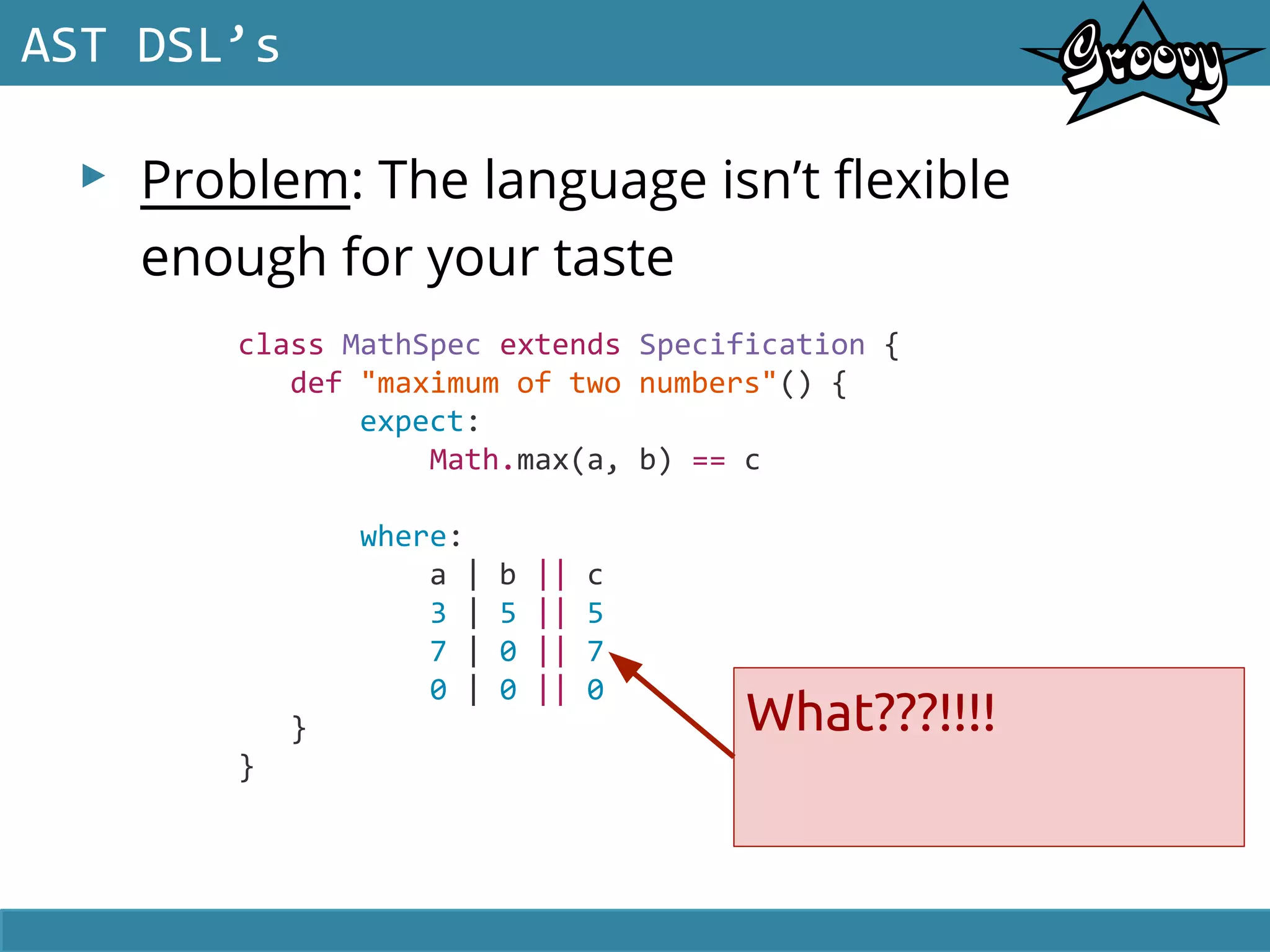

▸ Problem: The language isn’t flexible
enough for your taste
AST DSL’s
expect:
Math.max(a, b) == c
where:
a | b || c
3 | 5 || 5
7 | 0 || 7
0 | 0 || 0
}
}
What???!!!!

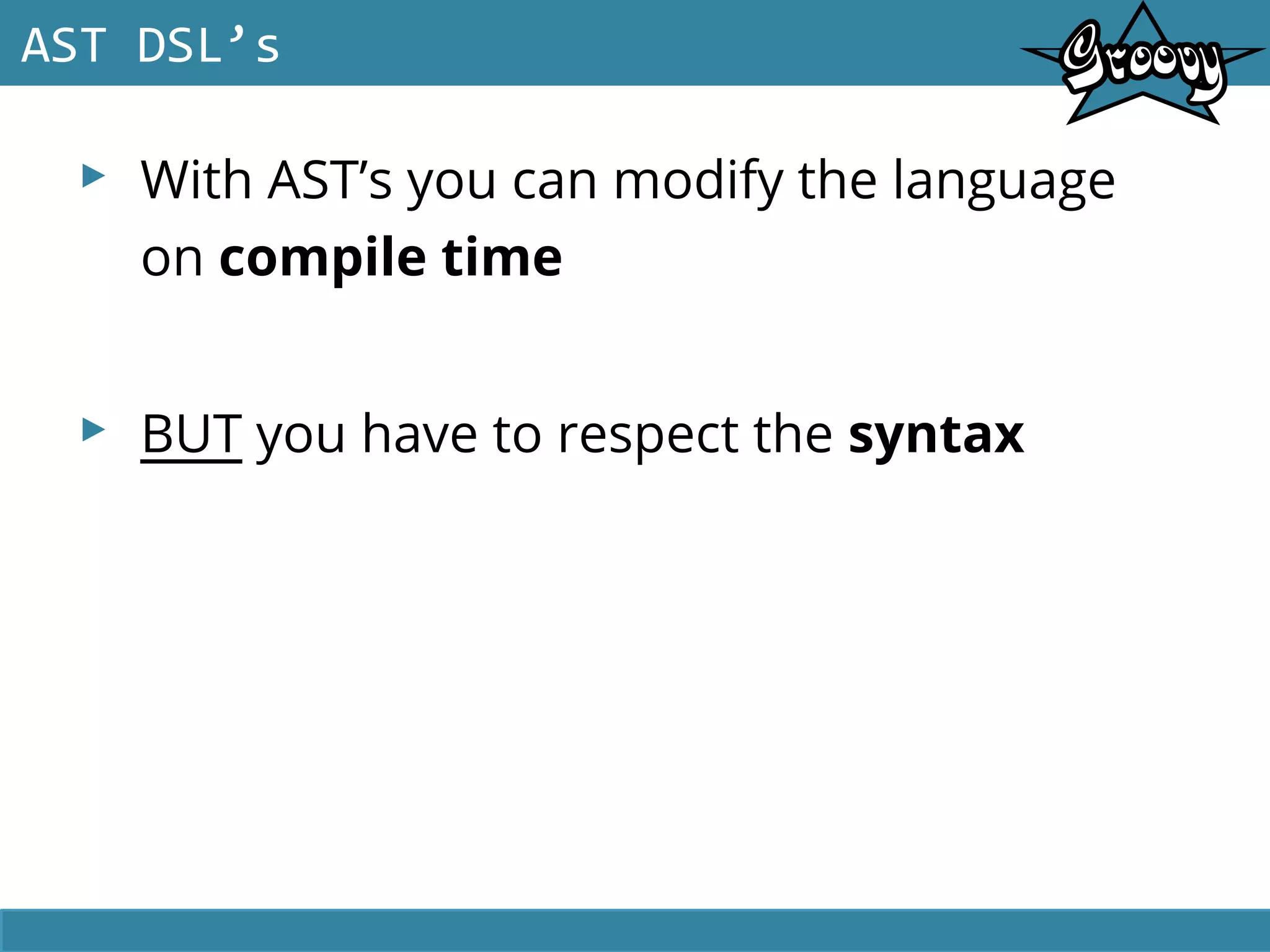

▸ With AST’s you can modify the language
on compile time
▸ BUT you have to respect the syntax
AST DSL’s

AST DSL’s
where:
a | b || c
3 | 5 || 5
7 | 0 || 7
0 | 0 || 0
Bit-level OR Logical OR

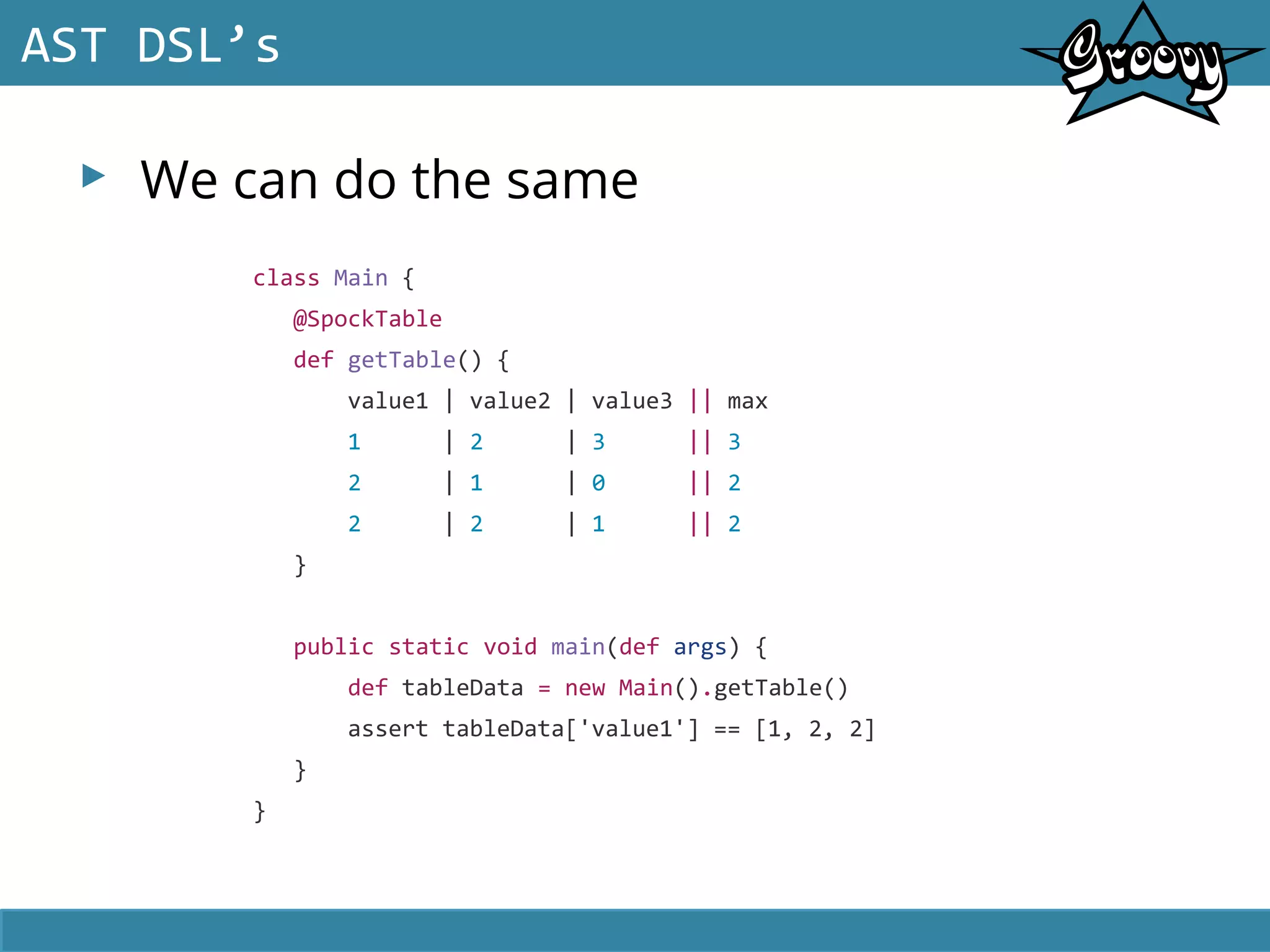

▸ We can do the same
AST DSL’s
class Main {
@SpockTable
def getTable() {
value1 | value2 | value3 || max
1 | 2 | 3 || 3
2 | 1 | 0 || 2
2 | 2 | 1 || 2
}
public static void main(def args) {
def tableData = new Main().getTable()
assert tableData['value1'] == [1, 2, 2]
}
}

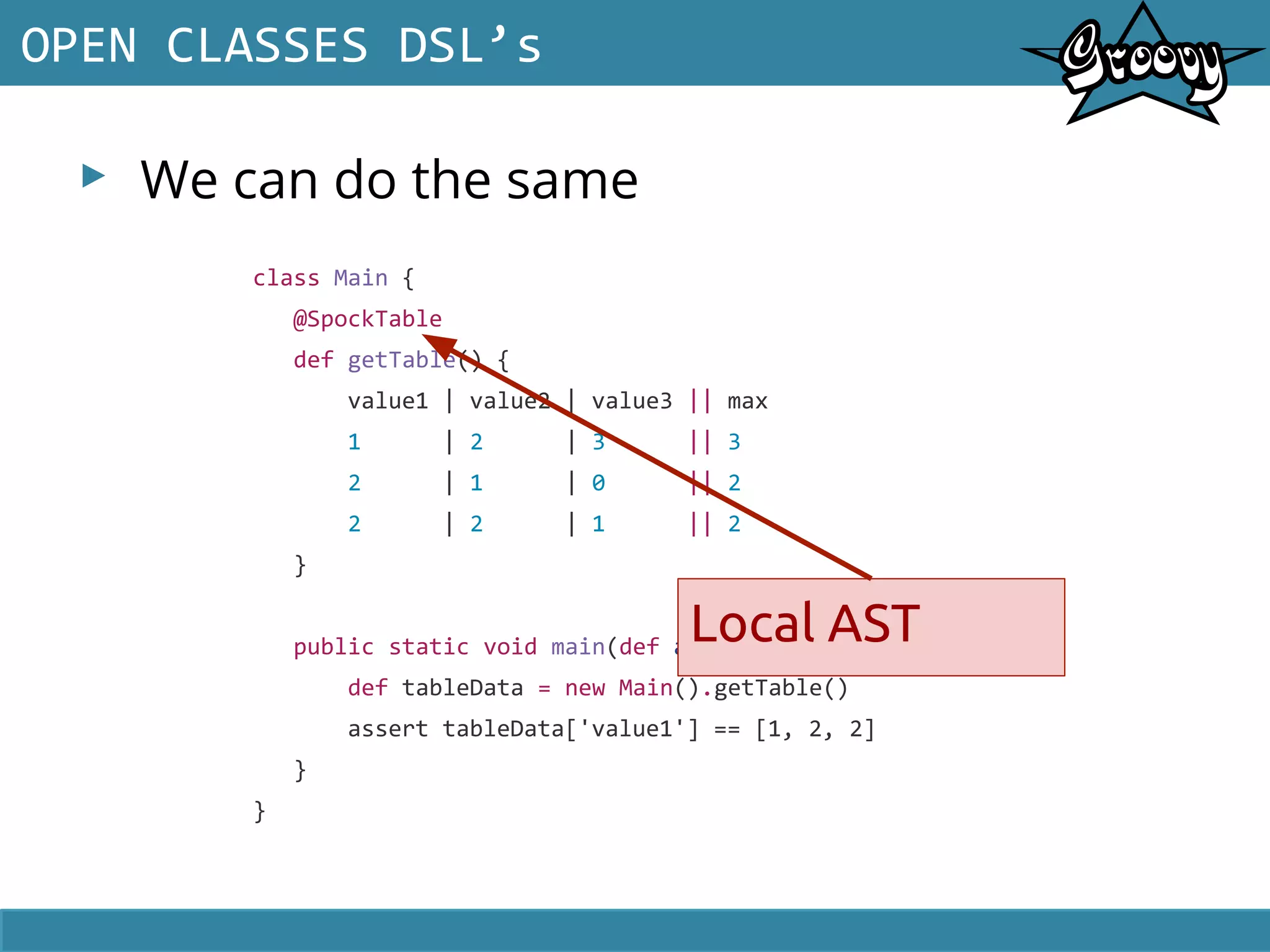

▸ We can do the same
class Main {
@SpockTable
def getTable() {
1 | 2 | 3 || 3
2 | 1 | 0 || 2
2 | 2 | 1 || 2
}
public static void main(def args) {
def tableData = new Main().getTable()
assert tableData['value1'] == [1, 2, 2]
}
}
Local AST

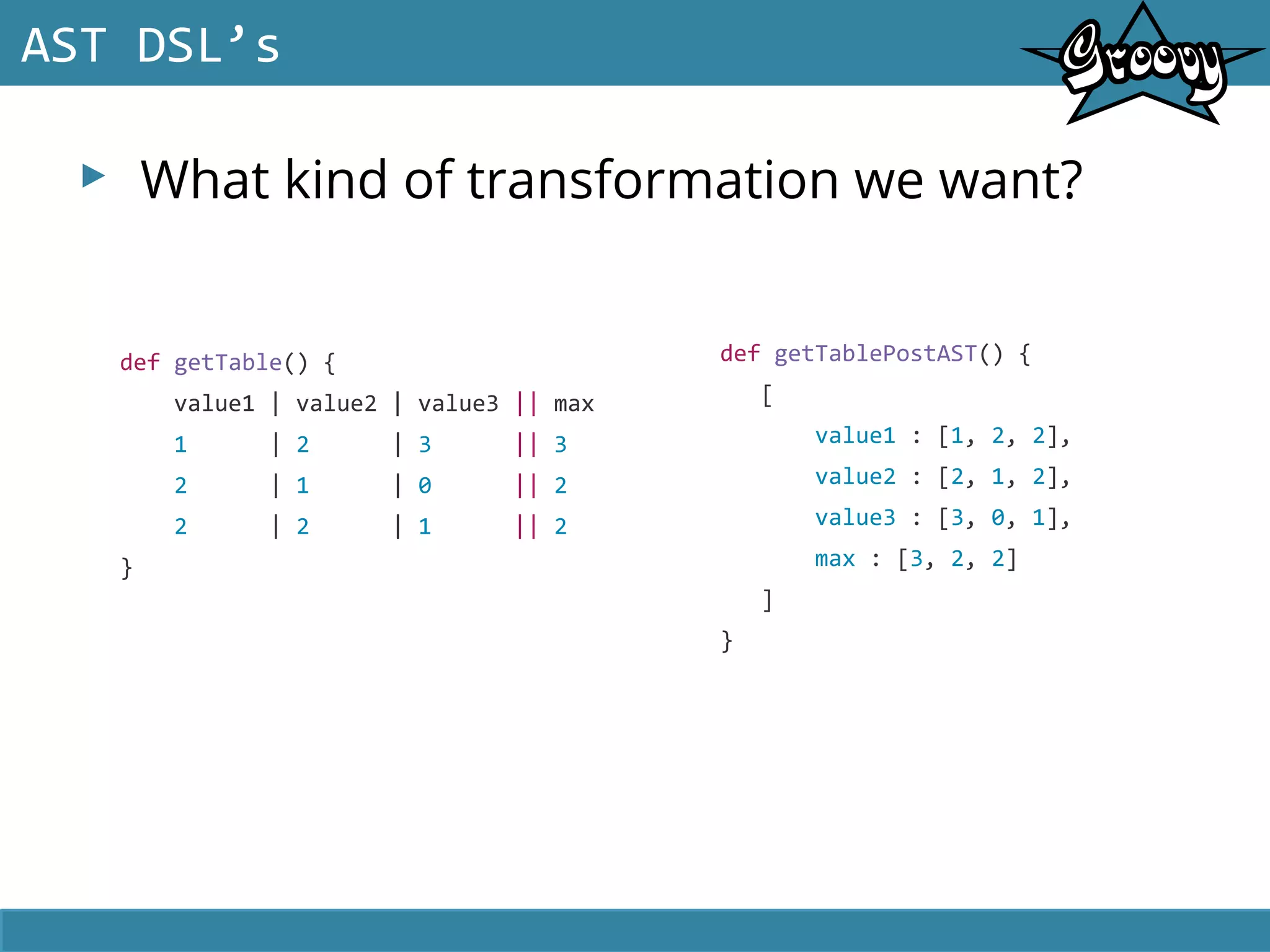

▸ What kind of transformation we want?
AST DSL’s
def getTable() {
1 | 2 | 3 || 3
2 | 1 | 0 || 2
2 | 2 | 1 || 2
}
def getTablePostAST() {
[
value1 : [1, 2, 2],
value2 : [2, 1, 2],
value3 : [3, 0, 1],
max : [3, 2, 2]
]
}

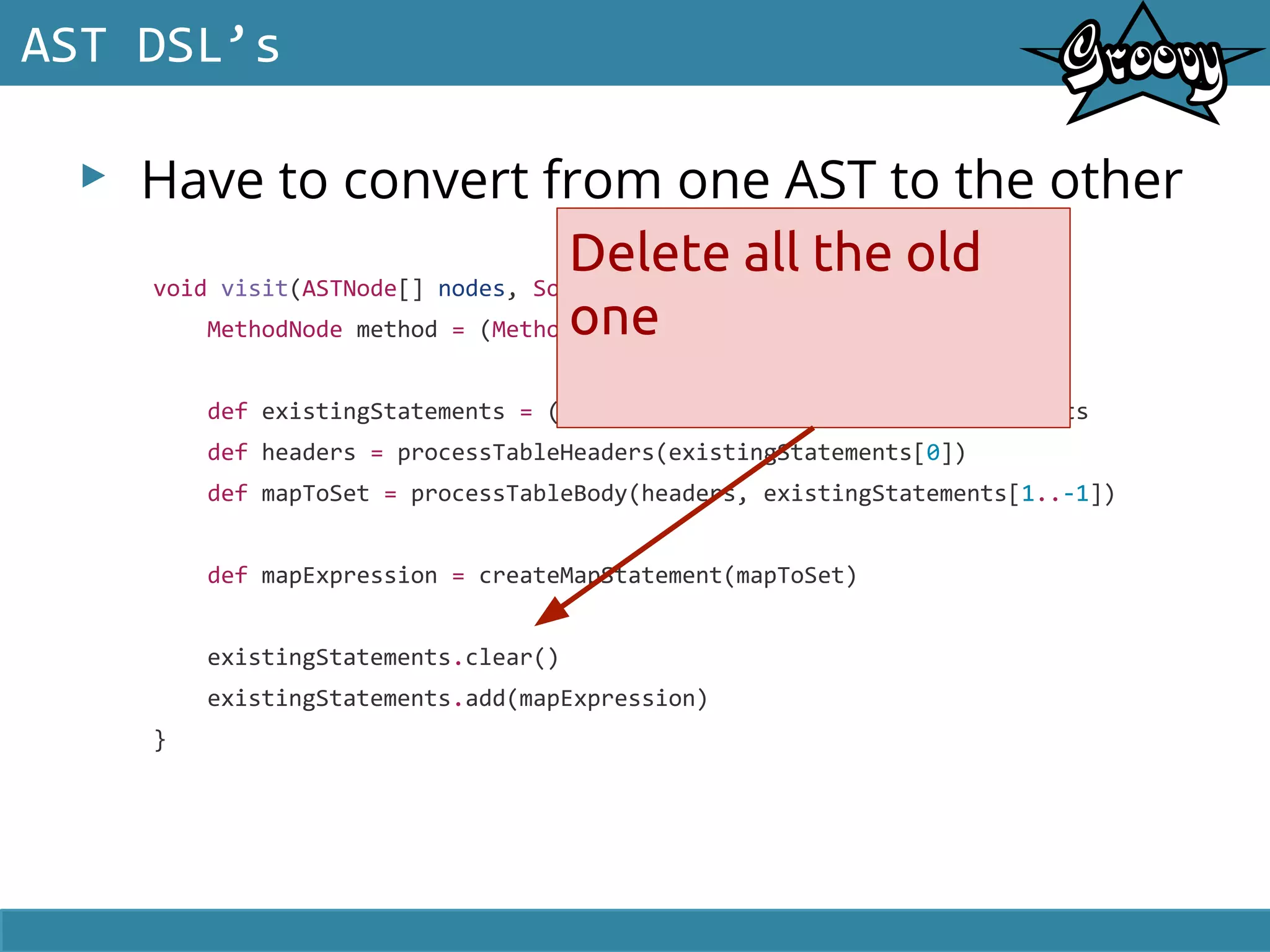

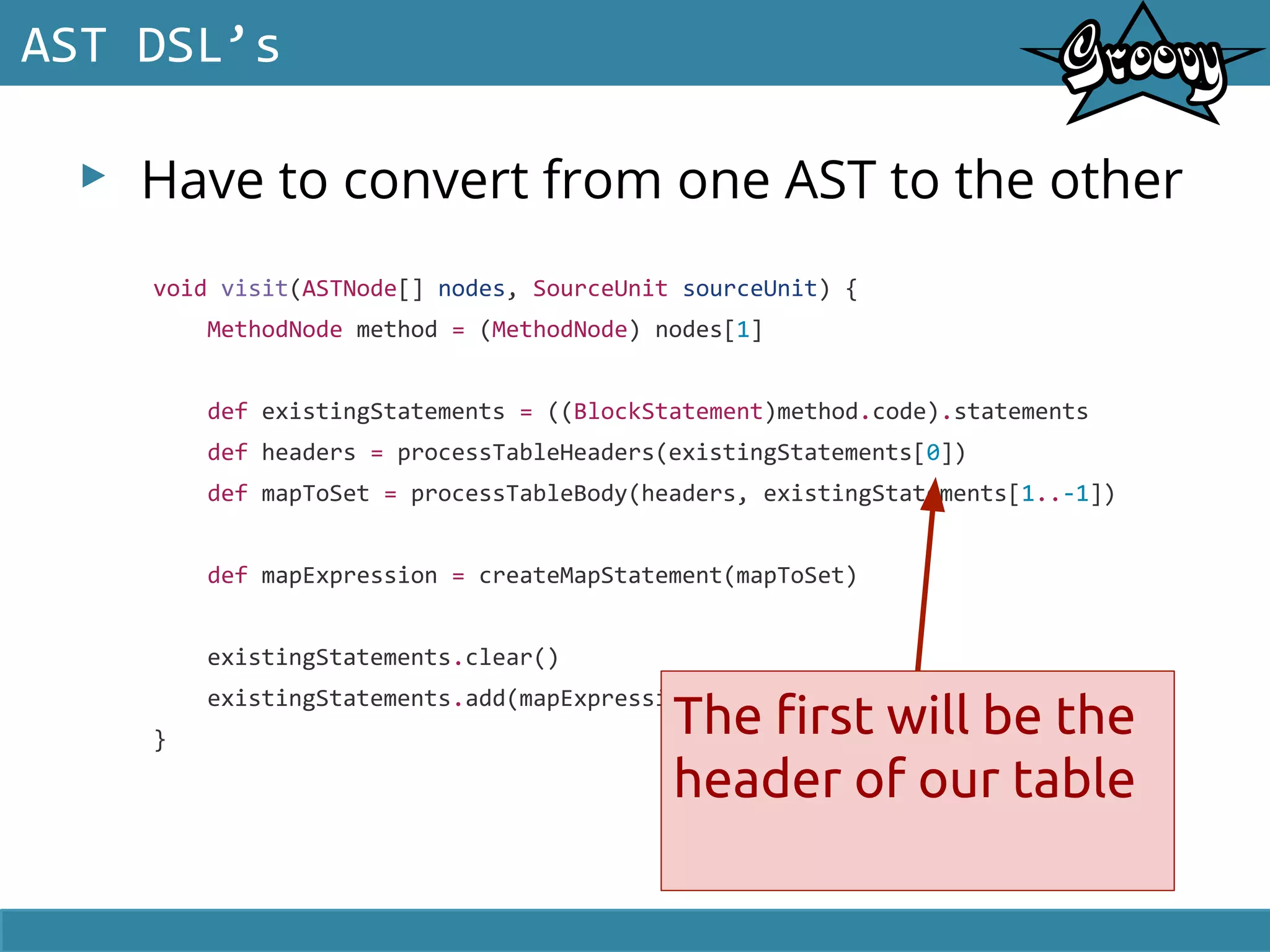

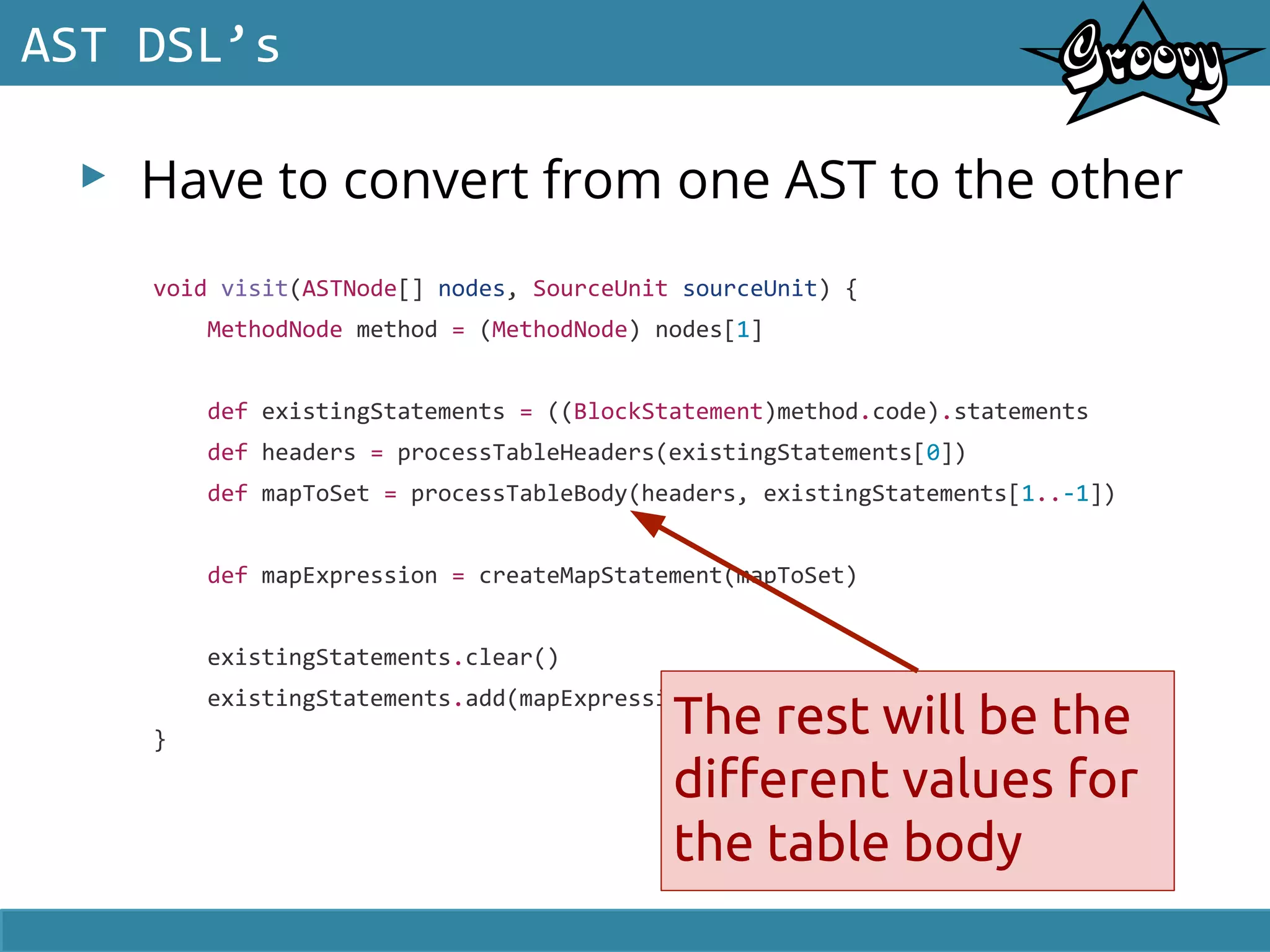

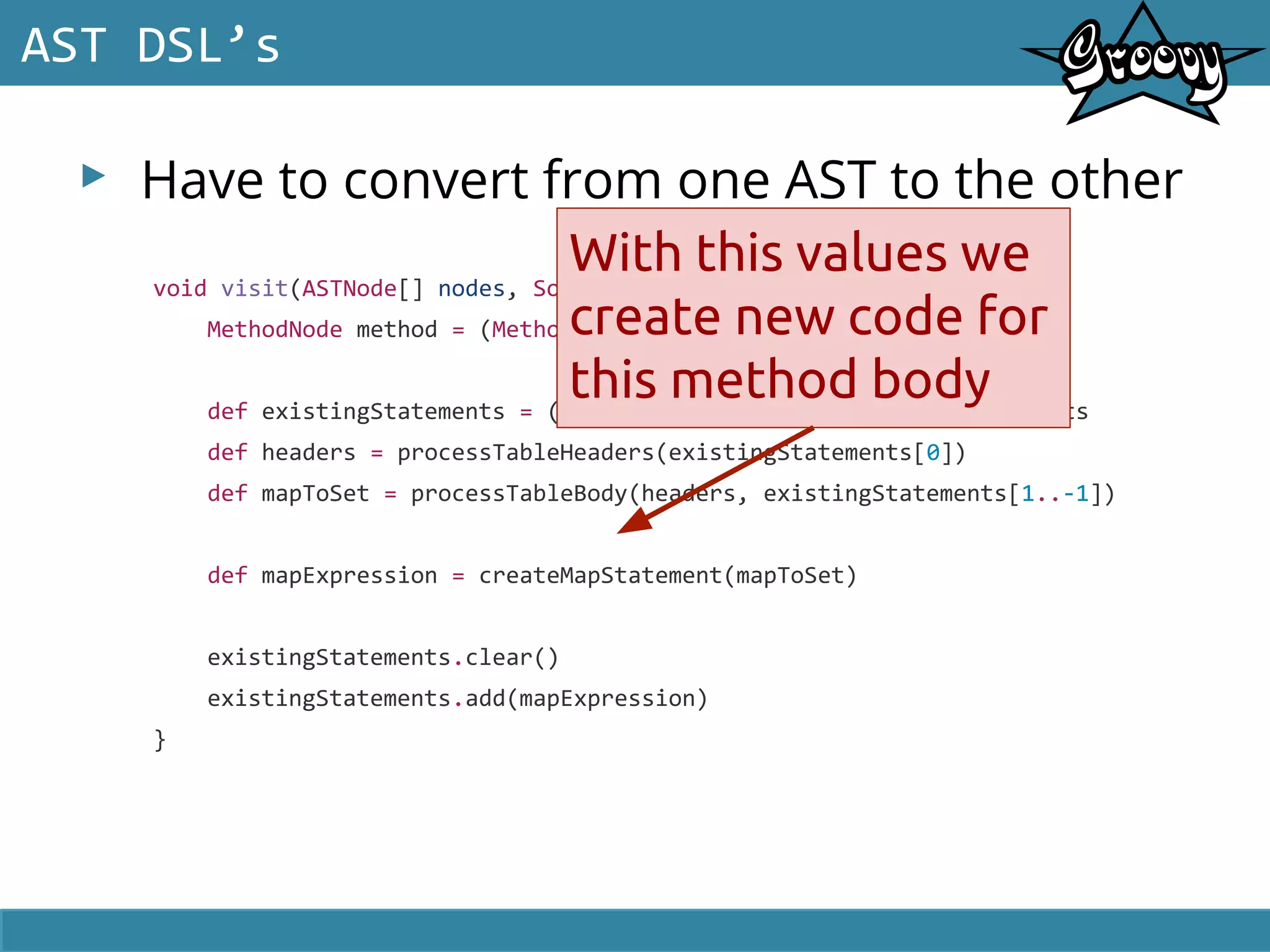

▸ Have to convert from one AST to the other
AST DSL’s
void visit(ASTNode[] nodes, SourceUnit sourceUnit) {
MethodNode method = (MethodNode) nodes[1]
def existingStatements = ((BlockStatement)method.code).statements
def headers = processTableHeaders(existingStatements[0])
def mapToSet = processTableBody(headers, existingStatements[1..-1])
def mapExpression = createMapStatement(mapToSet)
existingStatements.clear()
existingStatements.add(mapExpression)
}

AST DSL’s
}

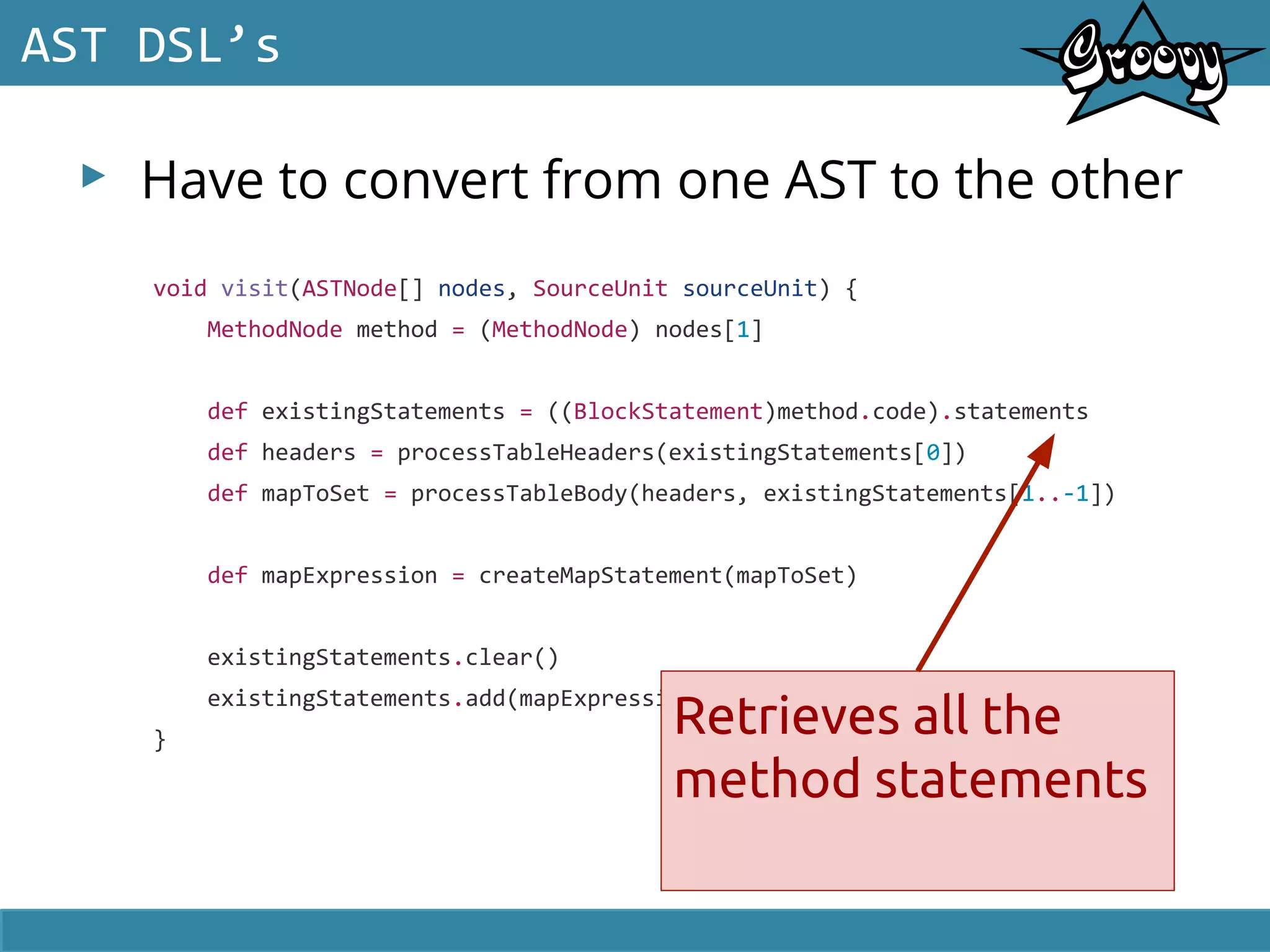

Retrieves all the
method statements

AST DSL’s
}
The first will be the
header of our table

AST DSL’s
}
The rest will be the
different values for
the table body

AST DSL’s
}
With this values we
create new code for
this method body

AST DSL’s
}
Delete all the old
one

AST DSL’s
}

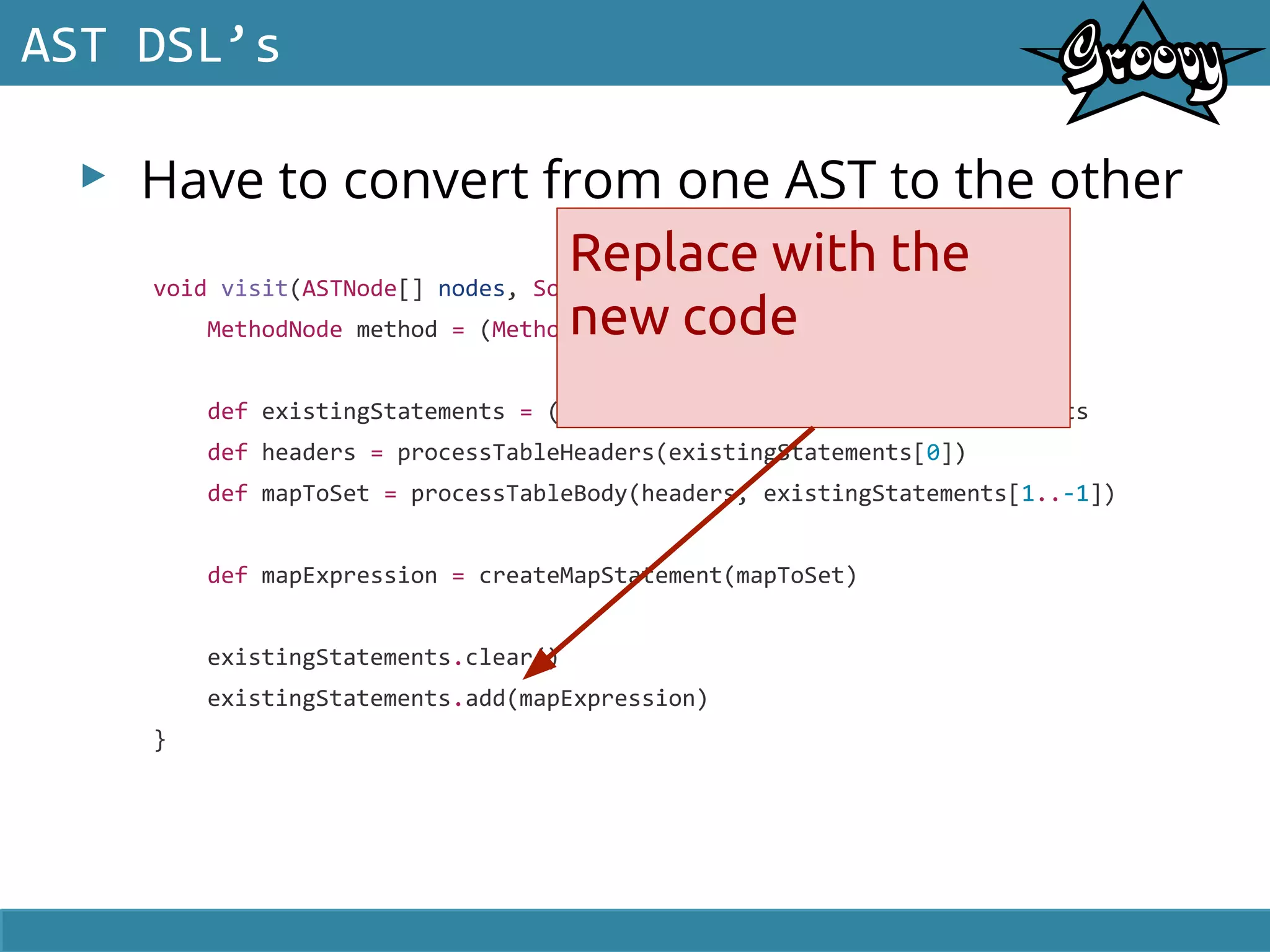

Replace with the
new code

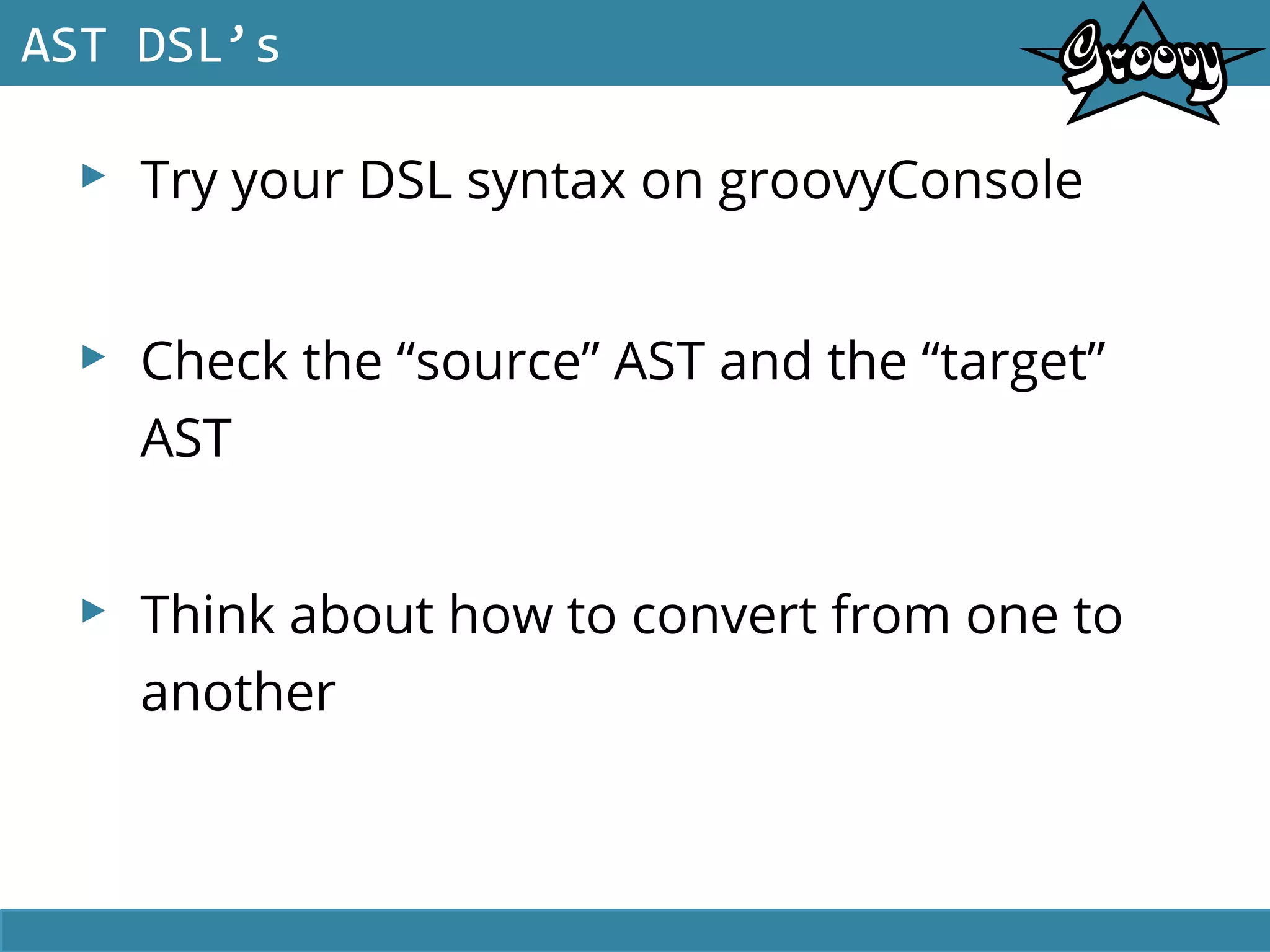

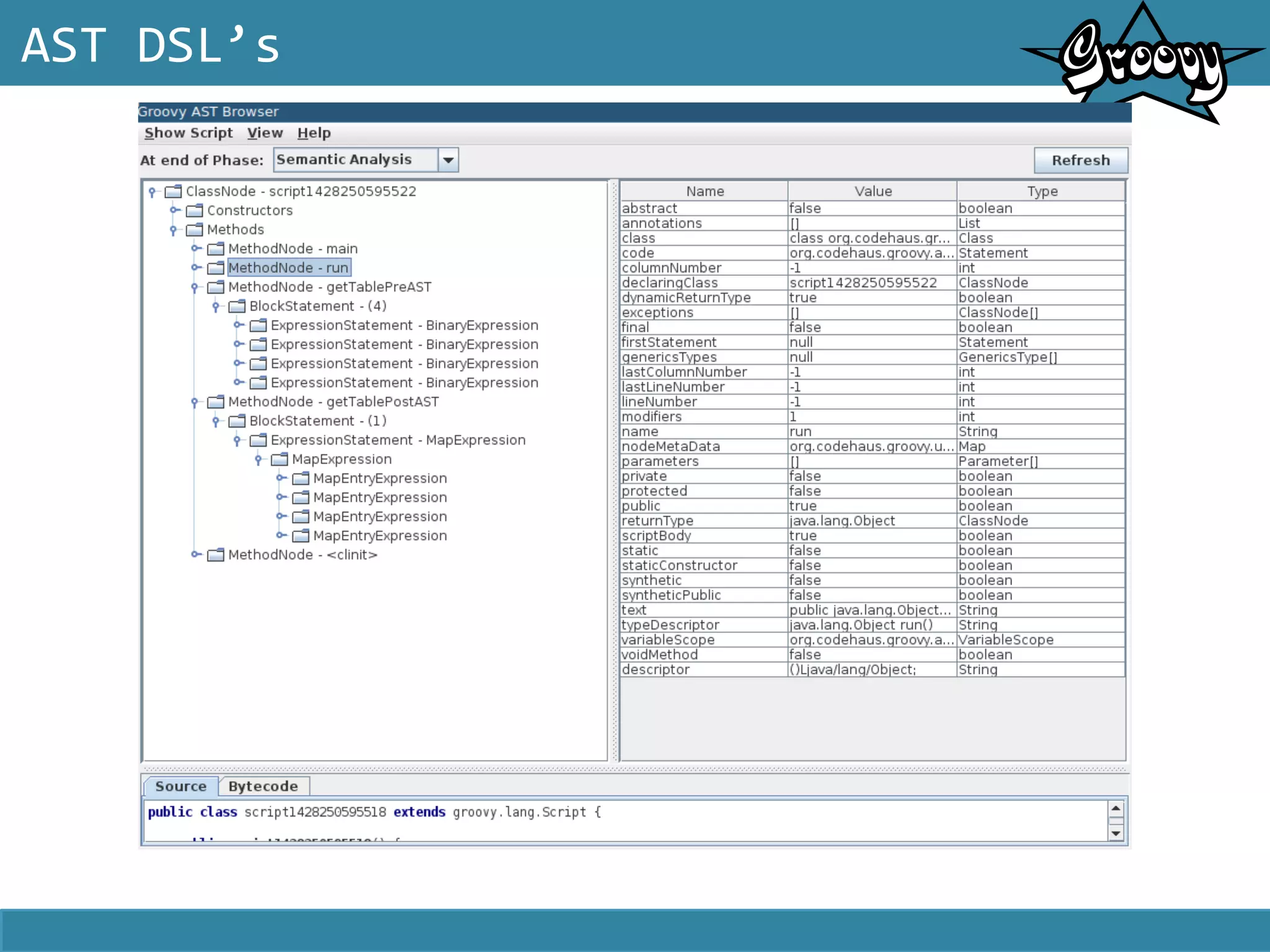

▸ Try your DSL syntax on groovyConsole
▸ Check the “source” AST and the “target”
AST
▸ Think about how to convert from one to
another
AST DSL’s

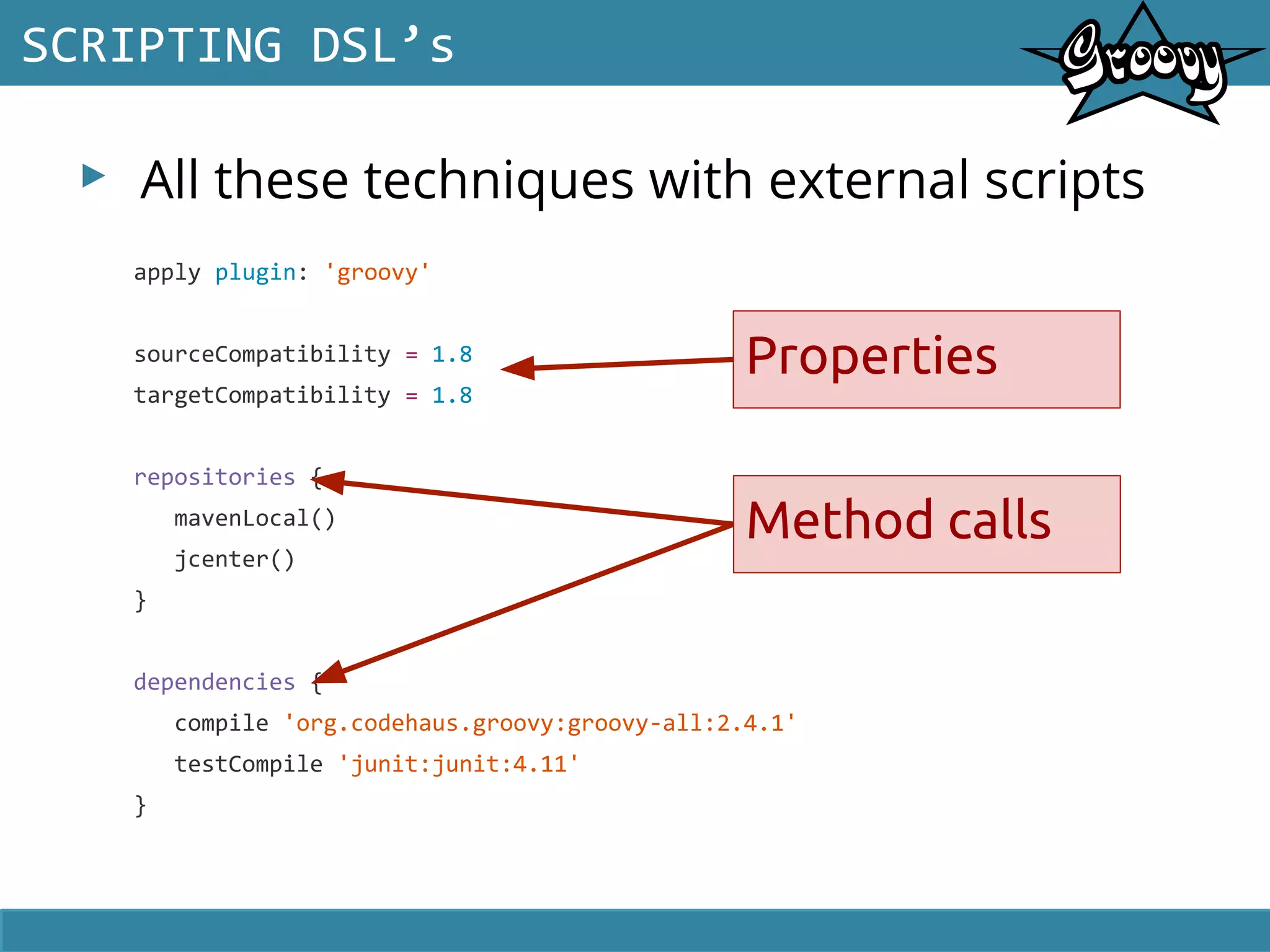

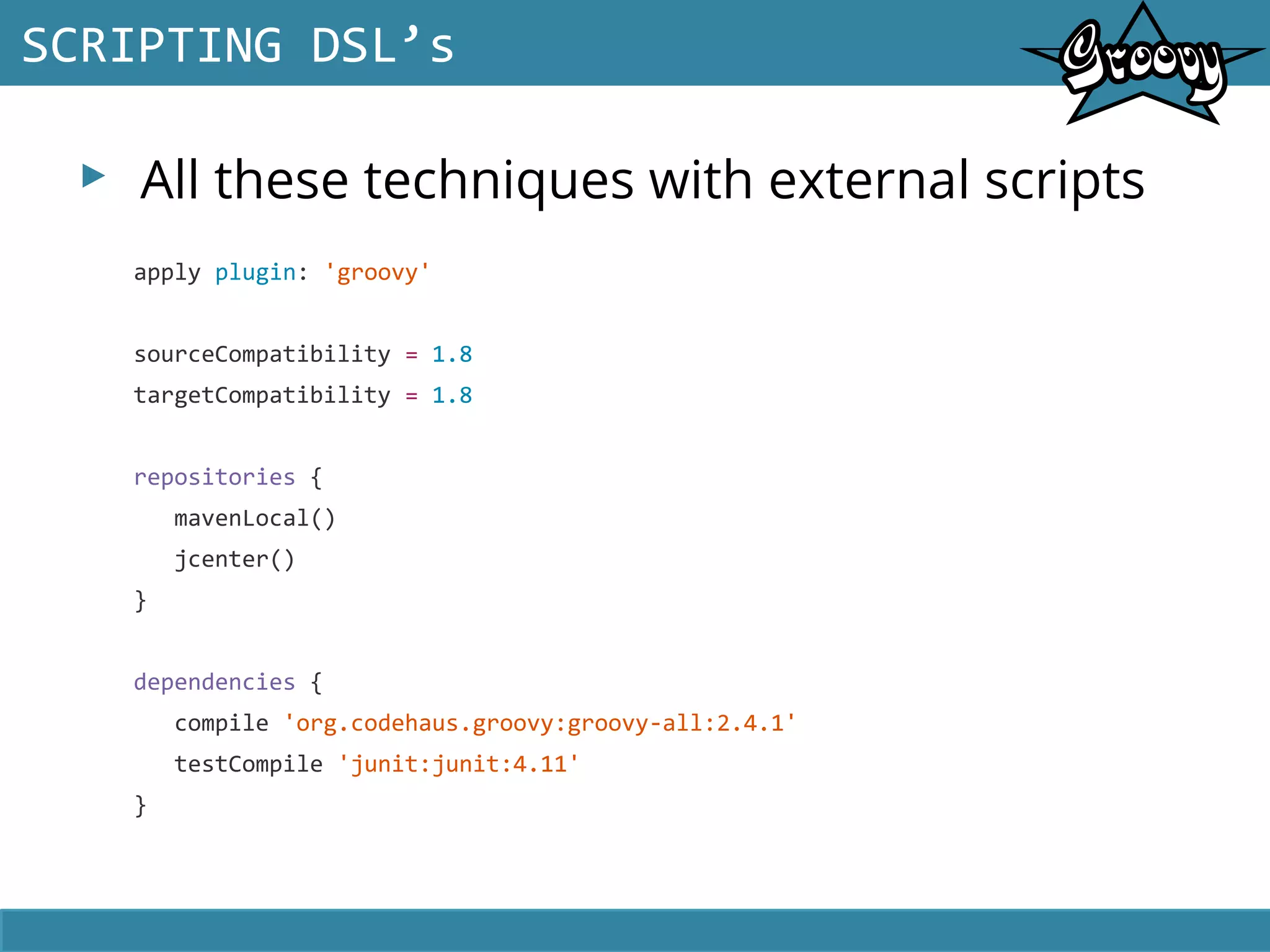

▸ All these techniques with external scripts
SCRIPTING DSL’s
repositories {
mavenLocal()
jcenter()
}
dependencies {
}

▸ All these techniques with external scripts
SCRIPTING DSL’s
repositories {
mavenLocal()
jcenter()
}
dependencies {
}
Properties
Method calls

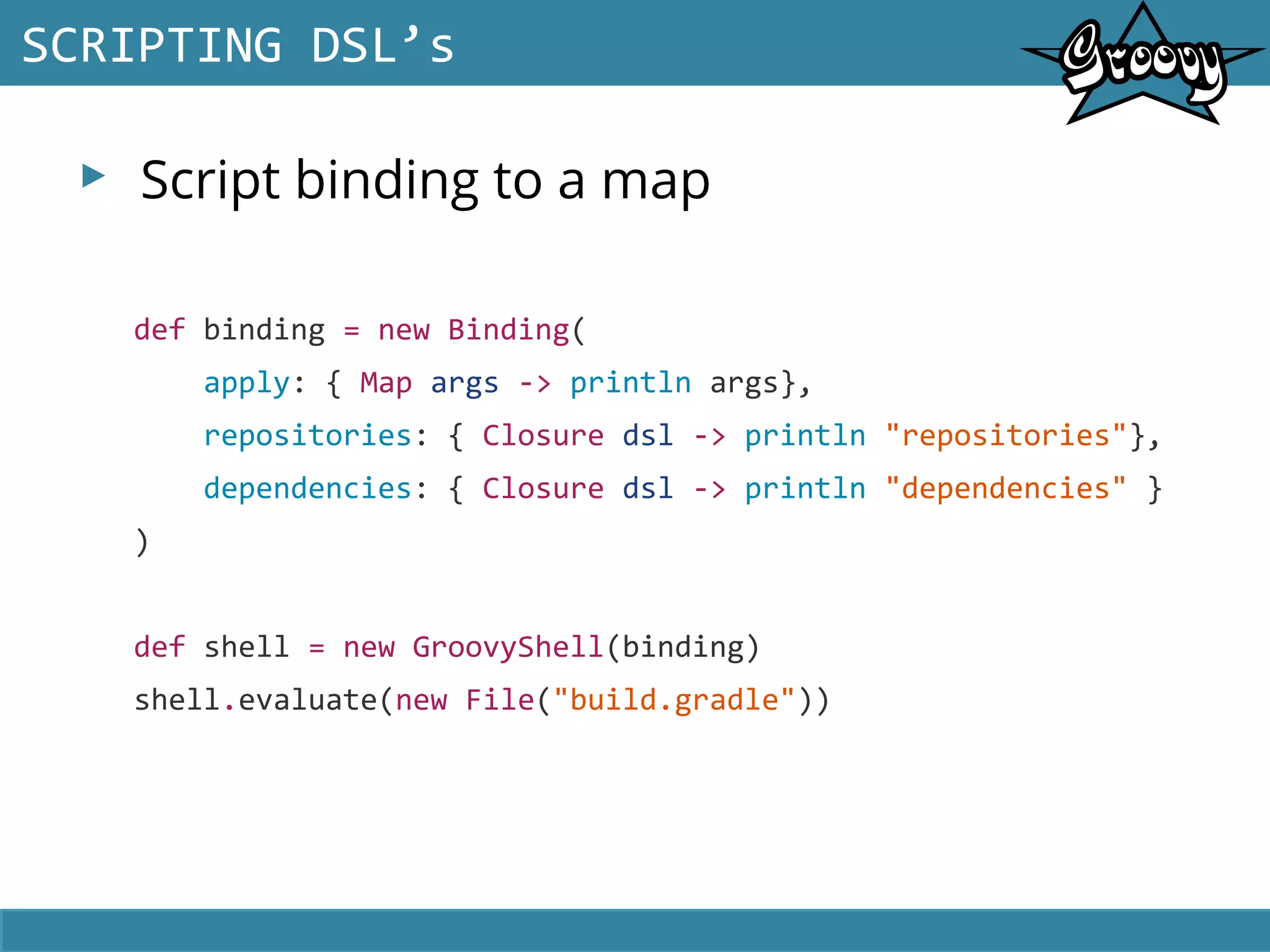

▸ Script binding to a map
SCRIPTING DSL’s
def binding = new Binding(
apply: { Map args -> println args},
repositories: { Closure dsl -> println "repositories"},
dependencies: { Closure dsl -> println "dependencies" }
)
def shell = new GroovyShell(binding)
shell.evaluate(new File("build.gradle"))

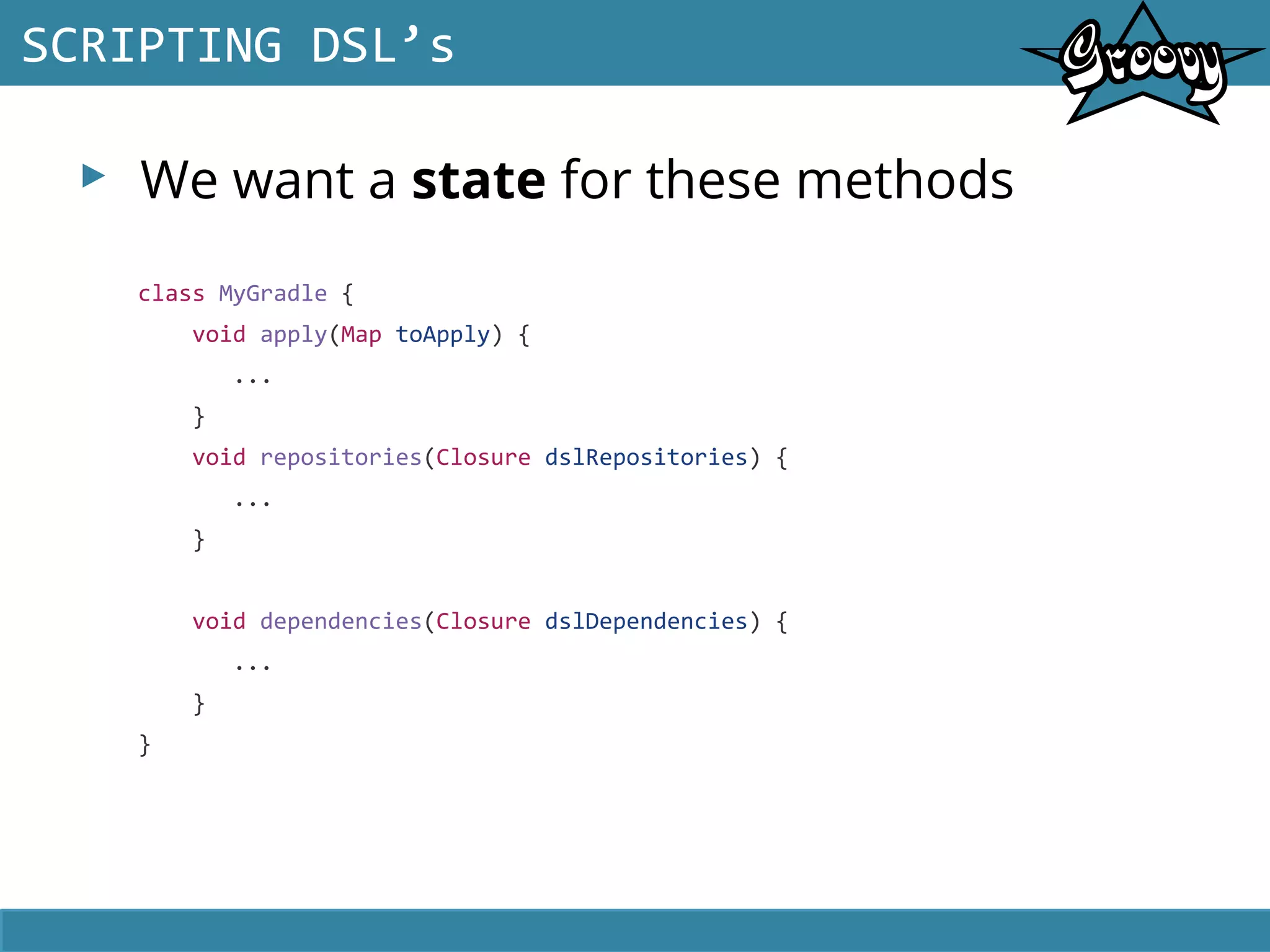

▸ We want a state for these methods
SCRIPTING DSL’s
class MyGradle {
void apply(Map toApply) {
...
}
void repositories(Closure dslRepositories) {
...
}
void dependencies(Closure dslDependencies) {
...
}
}

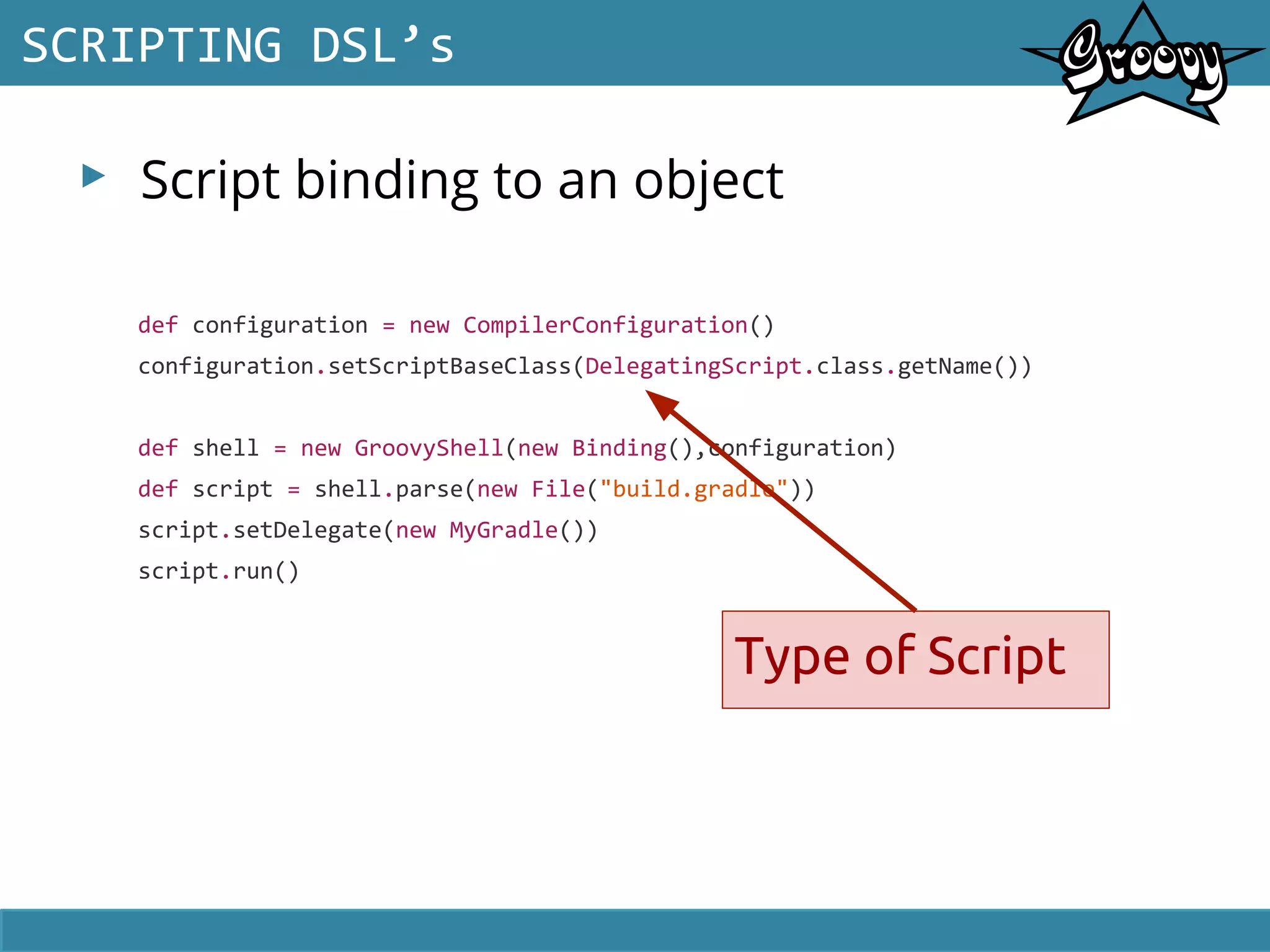

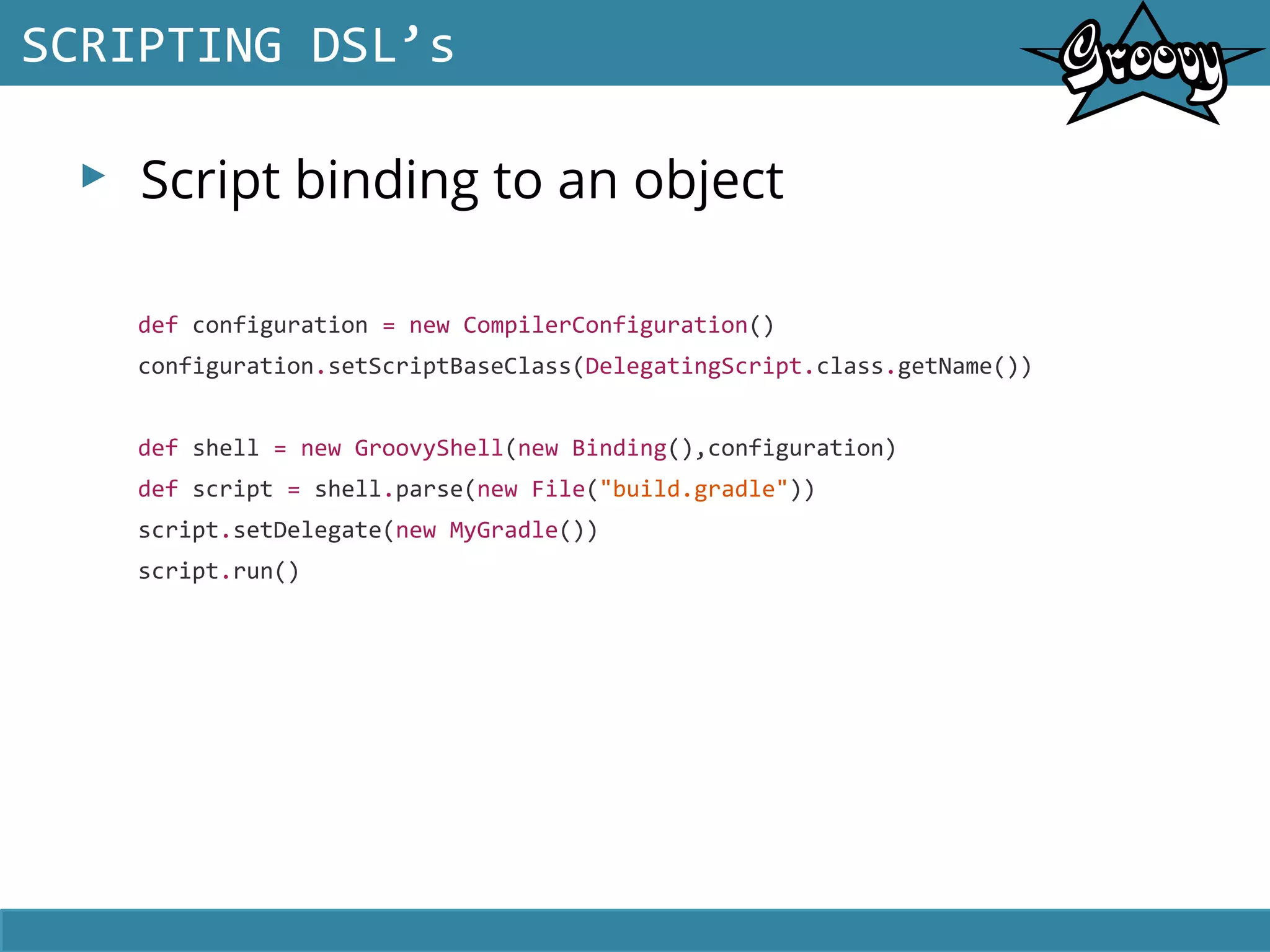

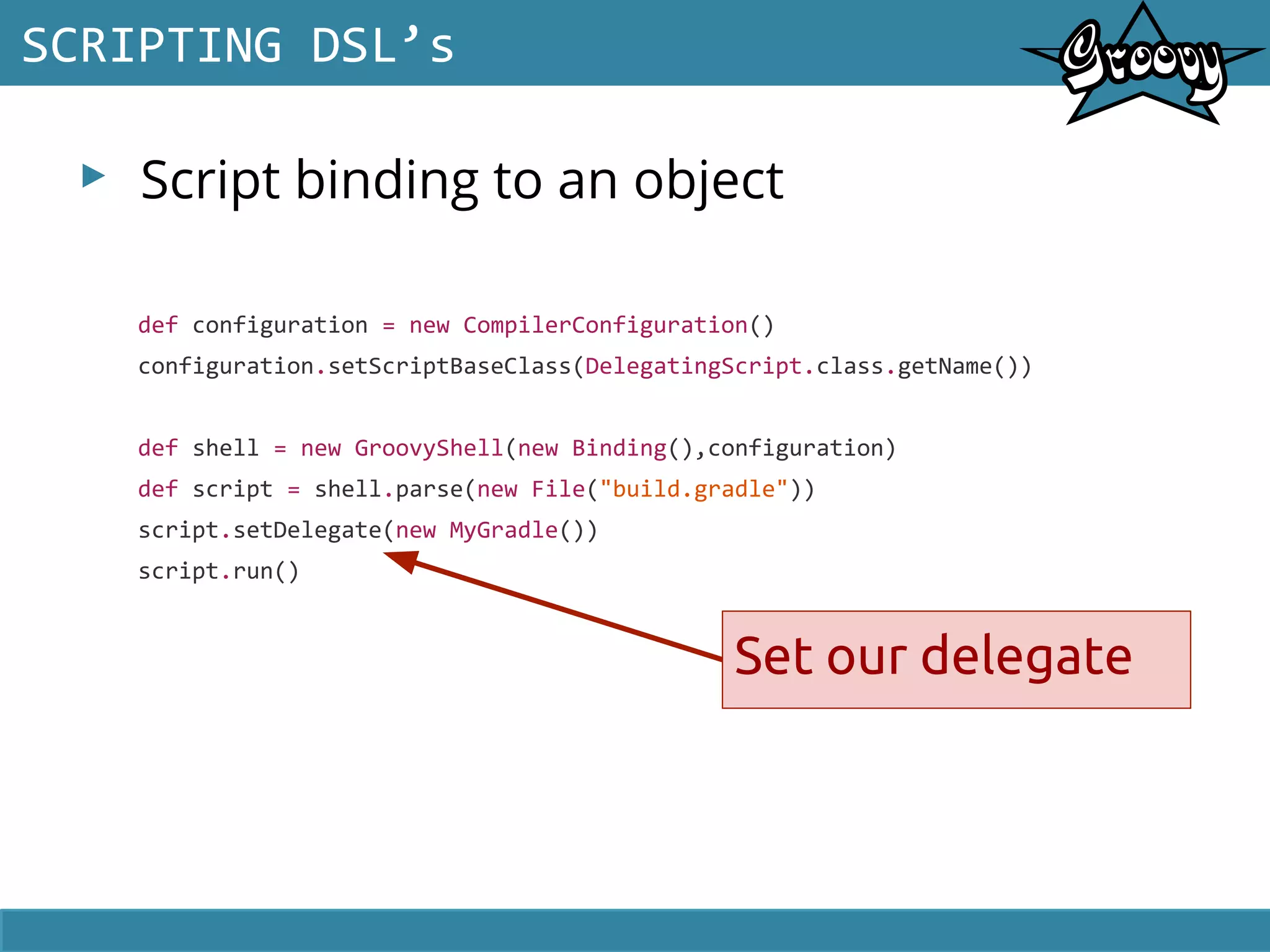

▸ Script binding to an object
SCRIPTING DSL’s
def configuration = new CompilerConfiguration()
configuration.setScriptBaseClass(DelegatingScript.class.getName())
def shell = new GroovyShell(new Binding(),configuration)
def script = shell.parse(new File("build.gradle"))
script.setDelegate(new MyGradle())
script.run()

SCRIPTING DSL’s
script.run()
Type of Script

SCRIPTING DSL’s
script.run()
Set our delegate

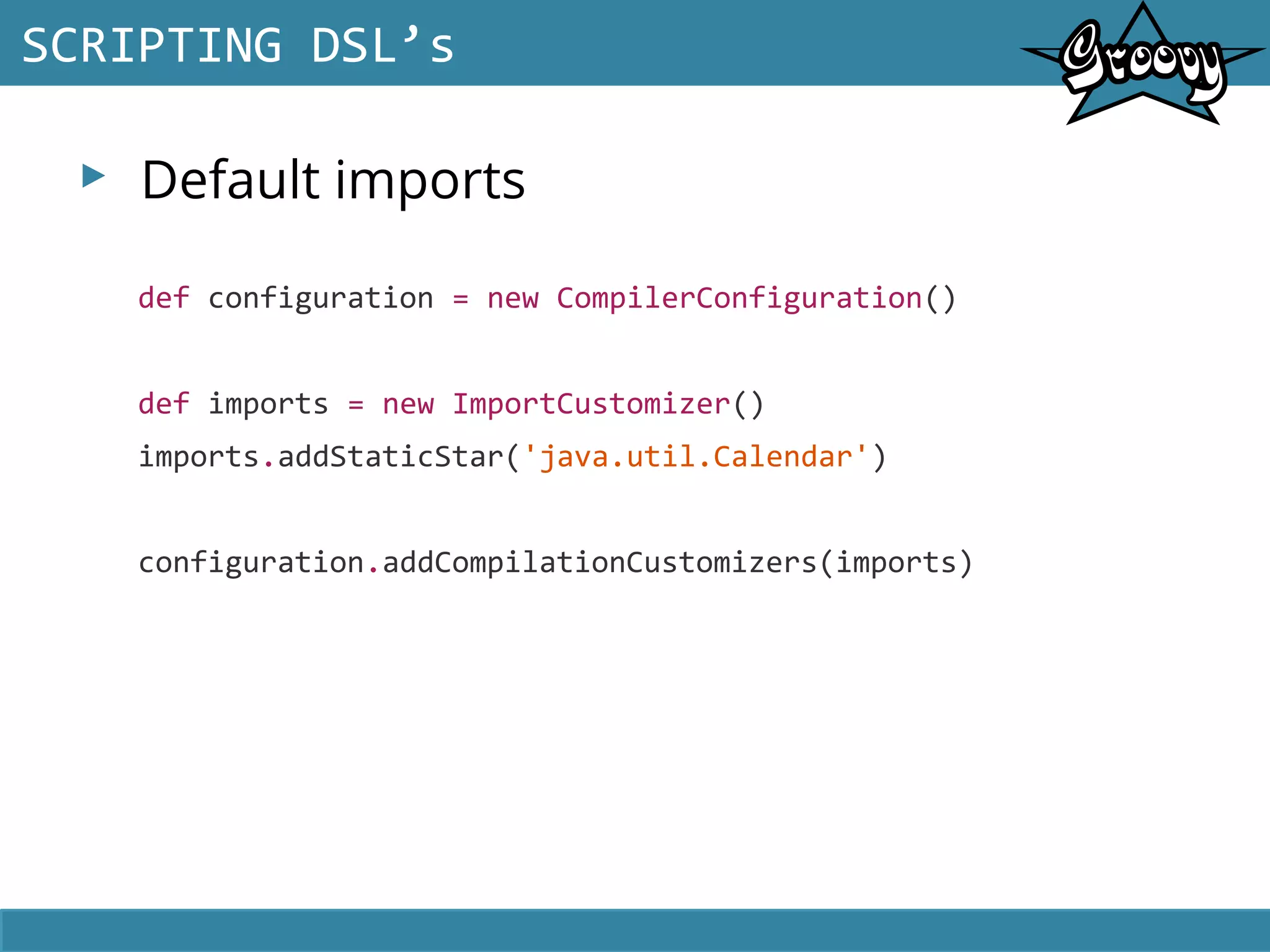

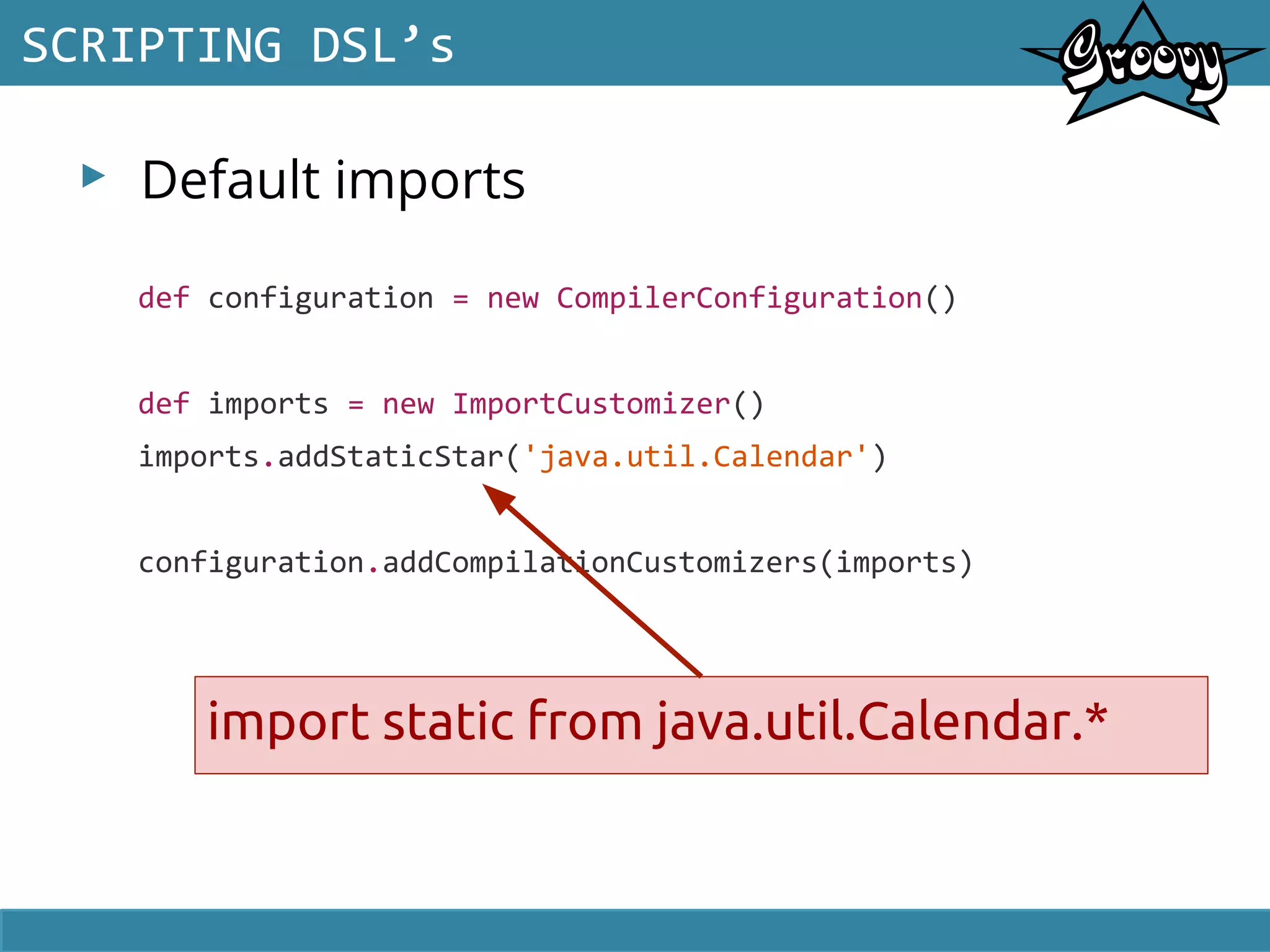

▸ Default imports
SCRIPTING DSL’s
def imports = new ImportCustomizer()
imports.addStaticStar('java.util.Calendar')
configuration.addCompilationCustomizers(imports)

▸ Default imports
SCRIPTING DSL’s
def imports = new ImportCustomizer()
imports.addStaticStar('java.util.Calendar')
configuration.addCompilationCustomizers(imports)
import static from java.util.Calendar.*

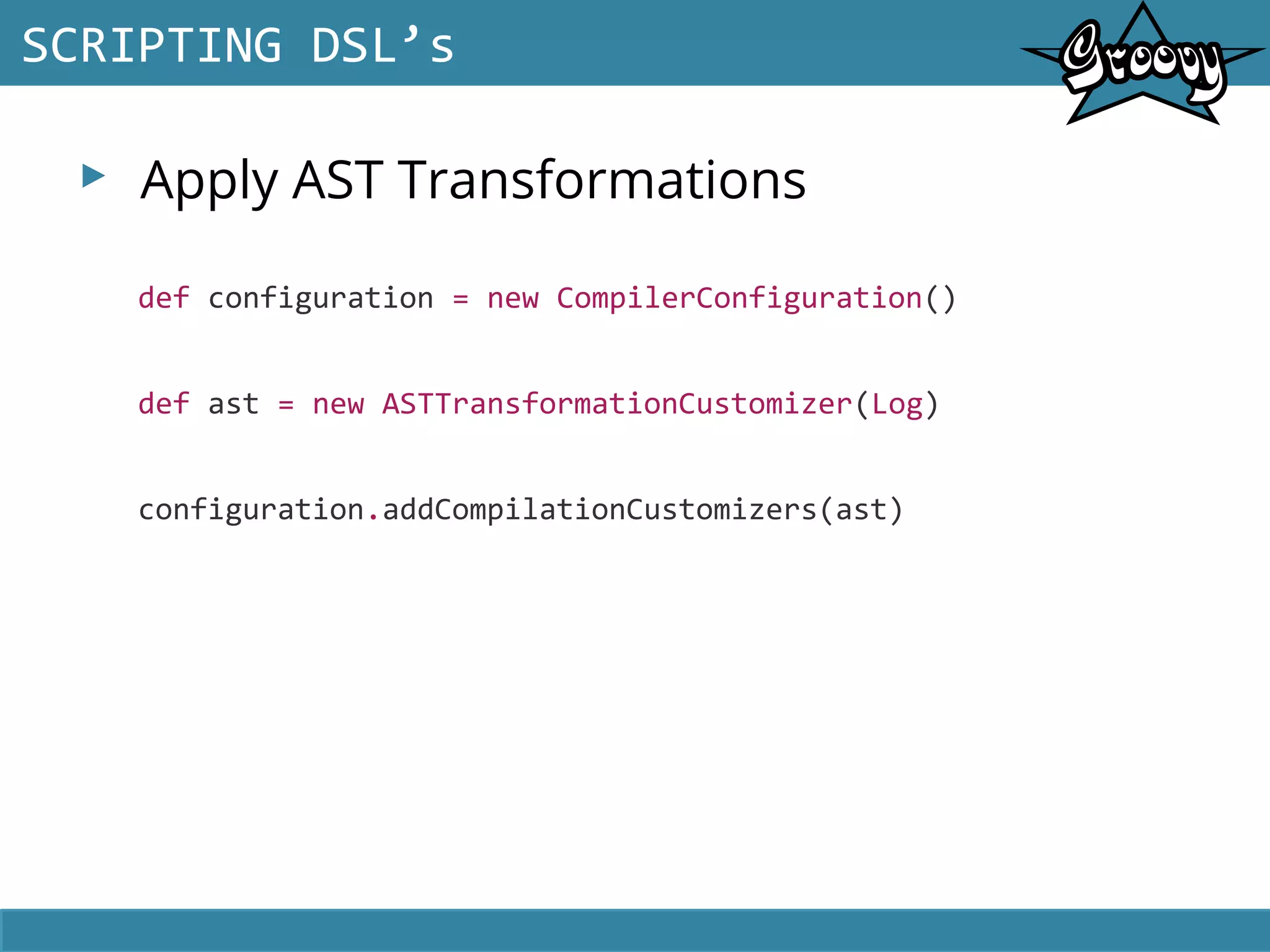

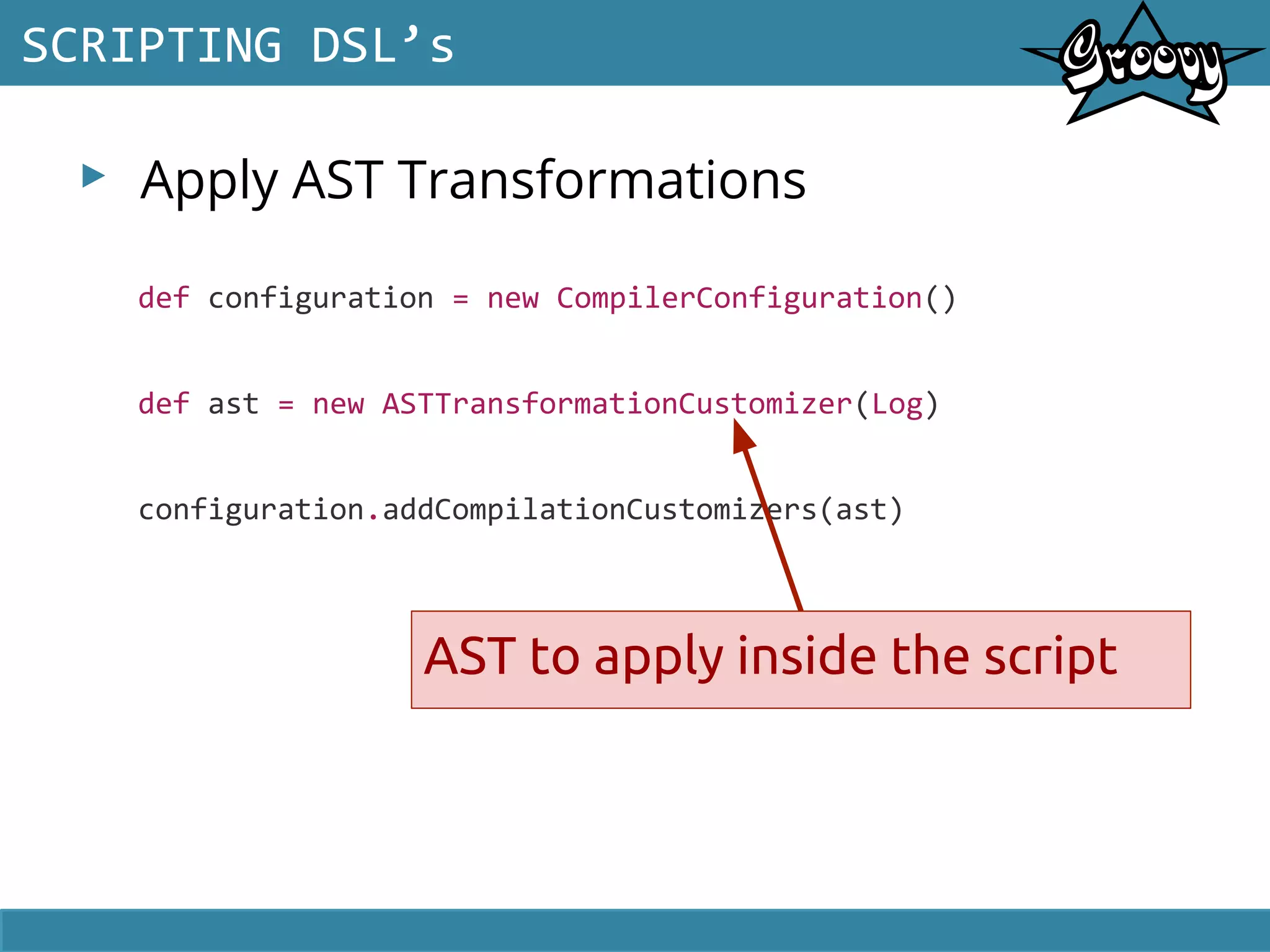

▸ Apply AST Transformations
SCRIPTING DSL’s
def ast = new ASTTransformationCustomizer(Log)
configuration.addCompilationCustomizers(ast)

▸ Apply AST Transformations
SCRIPTING DSL’s
def ast = new ASTTransformationCustomizer(Log)
configuration.addCompilationCustomizers(ast)
AST to apply inside the script

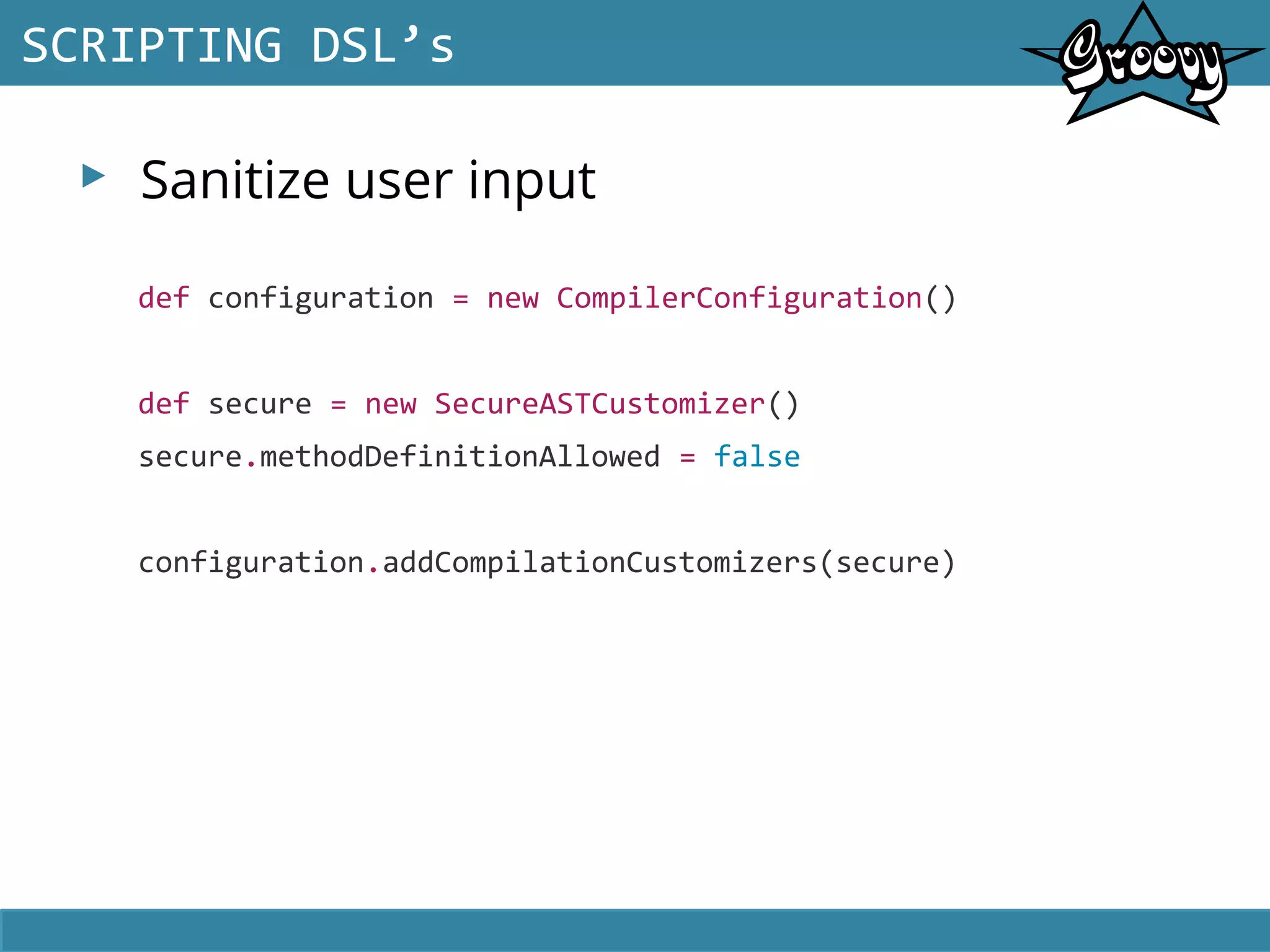

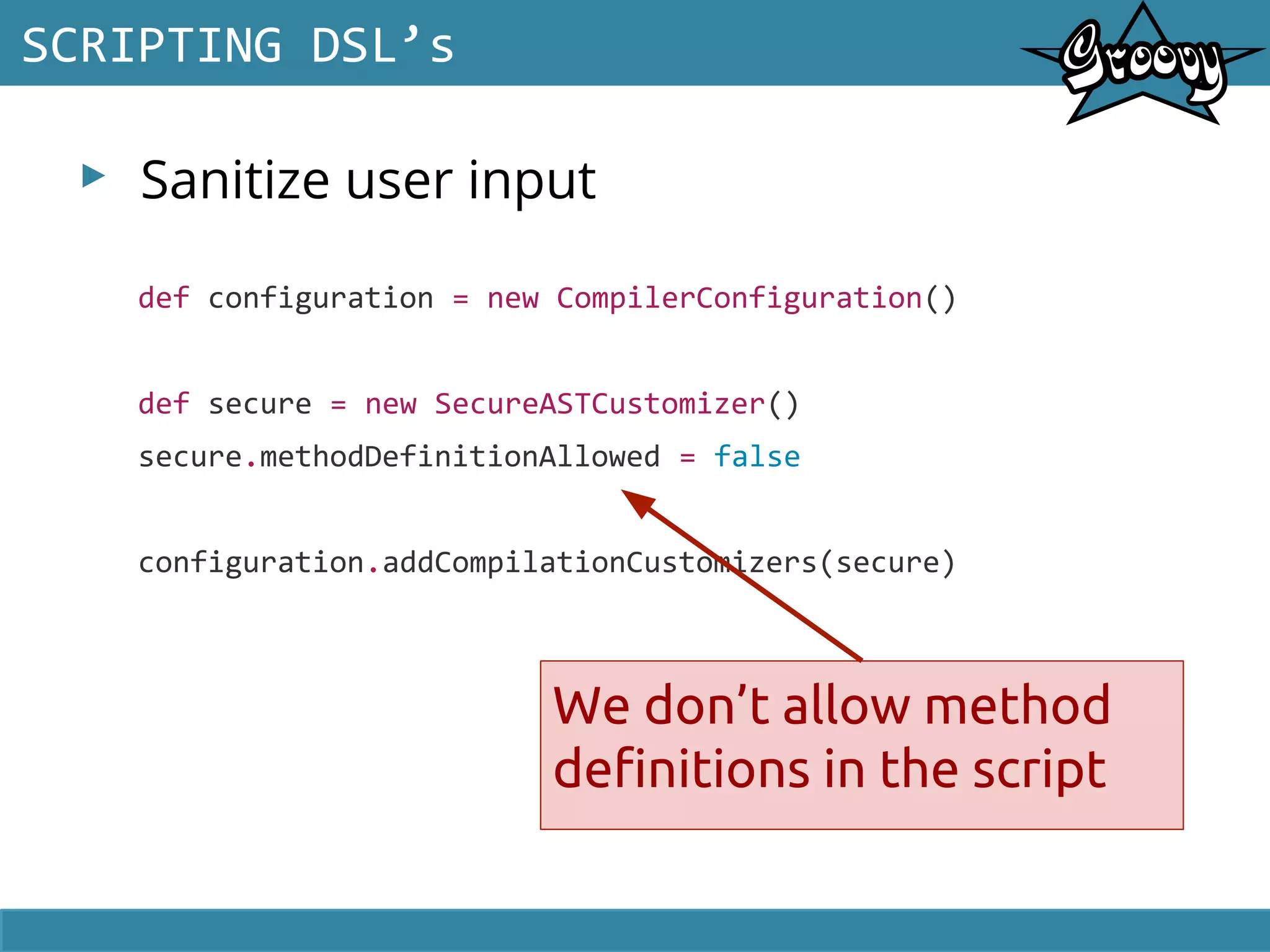

▸ Sanitize user input
SCRIPTING DSL’s
def secure = new SecureASTCustomizer()
secure.methodDefinitionAllowed = false
configuration.addCompilationCustomizers(secure)

▸ Sanitize user input
SCRIPTING DSL’s
def secure = new SecureASTCustomizer()
secure.methodDefinitionAllowed = false
configuration.addCompilationCustomizers(secure)
We don’t allow method
definitions in the script

1. Closures
2. Builders
3. Open Classes
4. AST
5. Script

(Greach 2015) Dsl'ing your Groovy

More Related Content

What's hot

Viewers also liked

Similar to (Greach 2015) Dsl'ing your Groovy

Recently uploaded

(Greach 2015) Dsl'ing your Groovy
