The document discusses using Groovy to create a turtle graphics domain specific language (DSL). Key points: - Turtle graphics is a vector-based graphics concept using a relative cursor called a "turtle" to draw. - The author created a Turtle class in Groovy to allow drawing on a canvas via turtle commands. A Groovy shell is used to execute scripts with bindings to provide the Turtle object. - Various techniques are discussed to customize the language, including adding imports, defining a base script class, and routing method calls through the Turtle object to enable turtle commands. - The author demonstrates how to execute scripts securely by removing dangerous language features like loops or increment operators.

1. <Insert Picture Here>
Turtle Graphics in Groovy
Jim Driscoll

2. 2

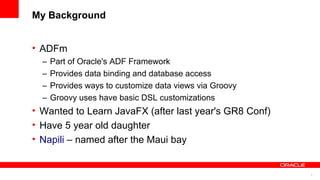

My Background
• ADFm
– Part of Oracle's ADF Framework
– Provides data binding and database access
– Provides ways to customize data views via Groovy
– Groovy uses have basic DSL customizations
• Wanted to Learn JavaFX (after last year's GR8 Conf)
• Have 5 year old daughter
• Napili – named after the Maui bay

3. 3
Logo
• An early programming language (1960's)
• Popular in the 80's as a teaching tool
– Which is how I first heard about it
• A dialect of Lisp (but much more approachable)
• Currently (per Wikipedia) 197 different dialects
• Most famous for it's use of Turtle Graphics

4. 4
Turtle Graphics
• Vector based graphics using a relative cursor
– The “Turtle”
– Represented in early work as a triangle
• Turtles have three attributes
– A location
– An orientation
– A “pen” (which has on/off state, color, width, etc)

5. 5

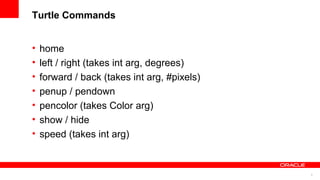

Turtle Commands
• home
• left / right (takes int arg, degrees)
• forward / back (takes int arg, #pixels)
• penup / pendown
• pencolor (takes Color arg)
• show / hide
• speed (takes int arg)

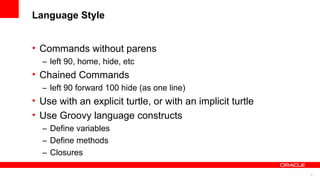

6. 6
Language Style
• Commands without parens
– left 90, home, hide, etc
• Chained Commands
– left 90 forward 100 hide (as one line)
• Use with an explicit turtle, or with an implicit turtle
• Use Groovy language constructs
– Define variables
– Define methods
– Closures

7. 7
Language Decisions – DSL vs GPL
• DSL (Domain Specific Language)
– A limited language, designed to be useful for a specific task
– HTML, SQL, stuff you can build with Groovy Builders
• GPL (General Purpose Language)
– A general language, designed to be useful for any task
– Java, Groovy, Assembler, etc
• I went the GPLish route, full Groovy + DSL extensions
– But there's not necessarily a one right answer

8. 8
Demo

9. 9

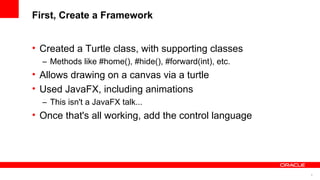

First, Create a Framework
• Created a Turtle class, with supporting classes
– Methods like #home(), #hide(), #forward(int), etc.
• Allows drawing on a canvas via a turtle
• Used JavaFX, including animations
– This isn't a JavaFX talk...
• Once that's all working, add the control language

10. 10
Executing Programs In Memory
• Object GroovyShell#evaluate(String)
– Can be slow (10ms)
• Cacheing Scripts
– Script GroovyShell#parse(String) ← slow part (10ms)
– Object Script#run() ← fast part (<1ms)
GroovyShell shell = new GroovyShell();
Script script = shell.parse("println 'hello world'");
script.run();

11. 11

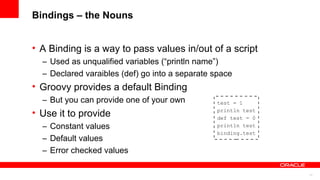

Bindings – the Nouns
• A Binding is a way to pass values in/out of a script
– Used as unqualified variables (“println name”)
– Declared varaibles (def) go into a separate space
• Groovy provides a default Binding
– But you can provide one of your own
• Use it to provide
– Constant values
– Default values
– Error checked values
test = 1
println test
def test = 0
println test
binding.test

12. 12

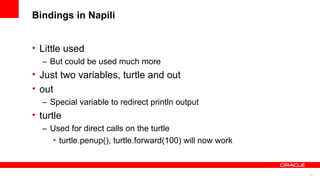

Bindings in Napili
• Little used
– But could be used much more
• Just two variables, turtle and out
• out
– Special variable to redirect println output
• turtle
– Used for direct calls on the turtle
• turtle.penup(), turtle.forward(100) will now work

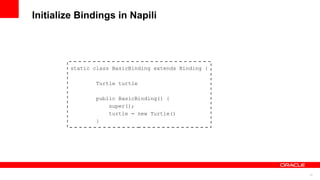

13. 13
Initialize Bindings in Napili
static class BasicBinding extends Binding {
Turtle turtle
public BasicBinding() {
super();
turtle = new Turtle()
}

14. 14
Getting Binding Values
public Object getVariable(String name) {
if (name == 'out') {
return NapiliOutput.getPrintWriter();
}
if (name == 'turtle') {
return turtle;
}
return super.getVariable(name)
}

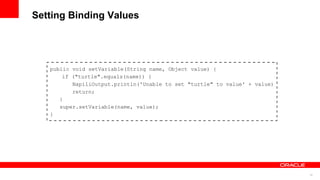

15. 15
Setting Binding Values
public void setVariable(String name, Object value) {
if ("turtle".equals(name)) {
NapiliOutput.println('Unable to set "turtle" to value' + value)
return;
}
super.setVariable(name, value);
}

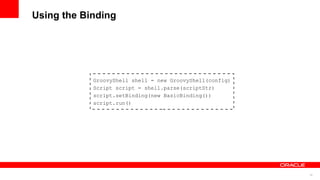

16. 16
Using the Binding
GroovyShell shell = new GroovyShell(config)
Script script = shell.parse(scriptStr)
script.setBinding(new BasicBinding())
script.run()

17. 17

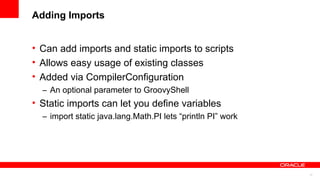

Adding Imports
• Can add imports and static imports to scripts
• Allows easy usage of existing classes
• Added via CompilerConfiguration
– An optional parameter to GroovyShell
• Static imports can let you define variables
– import static java.lang.Math.PI lets “println PI” work

18. 18

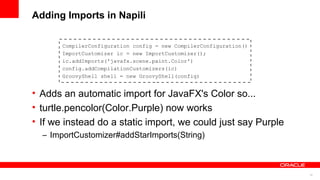

Adding Imports in Napili
CompilerConfiguration config = new CompilerConfiguration()
ImportCustomizer ic = new ImportCustomizer();
ic.addImports('javafx.scene.paint.Color')
config.addCompilationCustomizers(ic)
GroovyShell shell = new GroovyShell(config)
• Adds an automatic import for JavaFX's Color so...
• turtle.pencolor(Color.Purple) now works
• If we instead do a static import, we could just say Purple
– ImportCustomizer#addStarImports(String)

19. 19
ScriptBaseClass – the Verbs
• Dynamically assign a new base class
• Allows you to declare top level functions
• Inserted as part of the CompilerConfiguration
• Has access to Binding variables
– Can be used for implicit parameter passing

20. 20

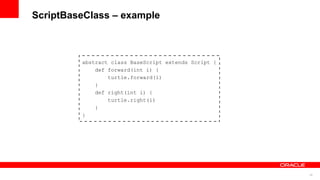

ScriptBaseClass – example
abstract class BaseScript extends Script {
def forward(int i) {
turtle.forward(i)
}
def right(int i) {
turtle.right(i)
}
}

21. 21
InvokeMethod
• Allows you to dynamically route method calls
– Lets you use a context object
– GroovyInterceptable interface
• Just add a #invokeMethod(String,args) function
def invokeMethod(String name, args) {
println name
}
def test() {println “hey”}
hello()
test()

22. 22

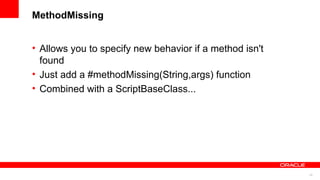

MethodMissing
• Allows you to specify new behavior if a method isn't
found
• Just add a #methodMissing(String,args) function
• Combined with a ScriptBaseClass...

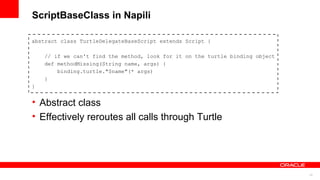

23. 23
ScriptBaseClass in Napili
abstract class TurtleDelegateBaseScript extends Script {
// if we can't find the method, look for it on the turtle binding object
def methodMissing(String name, args) {
binding.turtle."$name"(* args)
}
}
• Abstract class
• Effectively reroutes all calls through Turtle

24. 24

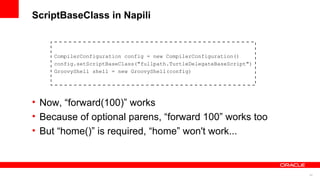

ScriptBaseClass in Napili
CompilerConfiguration config = new CompilerConfiguration()
config.setScriptBaseClass("fullpath.TurtleDelegateBaseScript")
GroovyShell shell = new GroovyShell(config)
• Now, “forward(100)” works
• Because of optional parens, “forward 100” works too
• But “home()” is required, “home” won't work...

25. 25

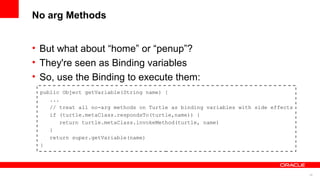

No arg Methods
• But what about “home” or “penup”?
• They're seen as Binding variables
• So, use the Binding to execute them:
public Object getVariable(String name) {
...
// treat all no-arg methods on Turtle as binding variables with side effects
if (turtle.metaClass.respondsTo(turtle,name)) {
return turtle.metaClass.invokeMethod(turtle, name)
}
return super.getVariable(name)
}

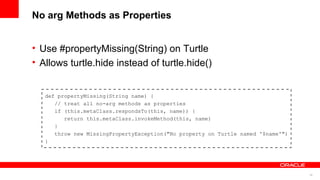

26. 26
No arg Methods as Properties
• Use #propertyMissing(String) on Turtle
• Allows turtle.hide instead of turtle.hide()
def propertyMissing(String name) {
// treat all no-arg methods as properties
if (this.metaClass.respondsTo(this, name)) {
return this.metaClass.invokeMethod(this, name)
}
throw new MissingPropertyException("No property on Turtle named '$name'")
}

27. 27

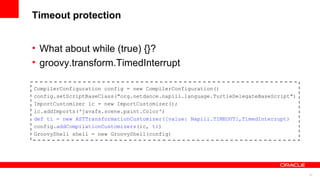

Timeout protection
• What about while (true) {}?
• groovy.transform.TimedInterrupt
CompilerConfiguration config = new CompilerConfiguration()
config.setScriptBaseClass("org.netdance.napili.language.TurtleDelegateBaseScript")
ImportCustomizer ic = new ImportCustomizer();
ic.addImports('javafx.scene.paint.Color')
def ti = new ASTTransformationCustomizer([value: Napili.TIMEOUT],TimedInterrupt)
config.addCompilationCustomizers(ic, ti)
GroovyShell shell = new GroovyShell(config)

28. 28
Recap
• Create a Turtle object
• Make it available to scripts via the Binding
• Use ScriptBaseClass to route all method calls through it
• ImportCustomizer to allow using JavaFX Color
• TimedInterrupt to stop runaway processes

29. 29
Method Chaining
• You may have noticed....
– forward 100 back 100 hide
• It's harder than it looks
– first second third fourth == first(second).third(fourth)
– first second third fourth fifth == first(second).third(fourth).fifth
– GroovyConsole is great for understanding the parse rules
• No arg methods break that flow
– forward 100 hide home ← doesn't work

30. 30

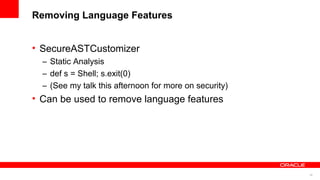

Removing Language Features
• SecureASTCustomizer
– Static Analysis
– def s = Shell; s.exit(0)
– (See my talk this afternoon for more on security)
• Can be used to remove language features

31. 31

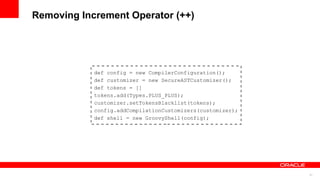

Removing Increment Operator (++)
def config = new CompilerConfiguration();
def customizer = new SecureASTCustomizer();
def tokens = []
tokens.add(Types.PLUS_PLUS);
customizer.setTokensBlacklist(tokens);
config.addCompilationCustomizers(customizer);
def shell = new GroovyShell(config);

32. 32

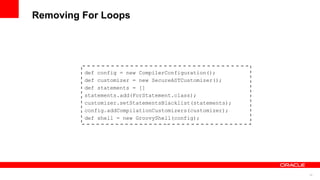

Removing For Loops
def config = new CompilerConfiguration();
def customizer = new SecureASTCustomizer();
def statements = []
statements.add(ForStatement.class);
customizer.setStatementsBlacklist(statements);
config.addCompilationCustomizers(customizer);
def shell = new GroovyShell(config);

33. 33
Q&A

34. 34

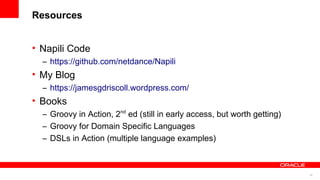

Resources
• Napili Code
– https://github.com/netdance/Napili
• My Blog
– https://jamesgdriscoll.wordpress.com/
• Books
– Groovy in Action, 2nd
ed (still in early access, but worth getting)
– Groovy for Domain Specific Languages
– DSLs in Action (multiple language examples)

35. 35

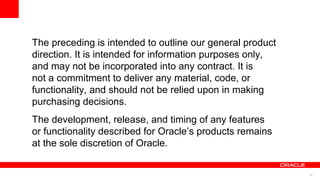

The preceding is intended to outline our general product
