IDIOMATIC GRADLE PLUGIN WRITING
Schalk W. Cronjé
ABOUT ME
Email:
Twitter / Ello : @ysb33r
ysb33r@gmail.com
Gradle plugins authored/contributed to: VFS, Asciidoctor,
JRuby family (base, jar, war etc.), GnuMake, Doxygen

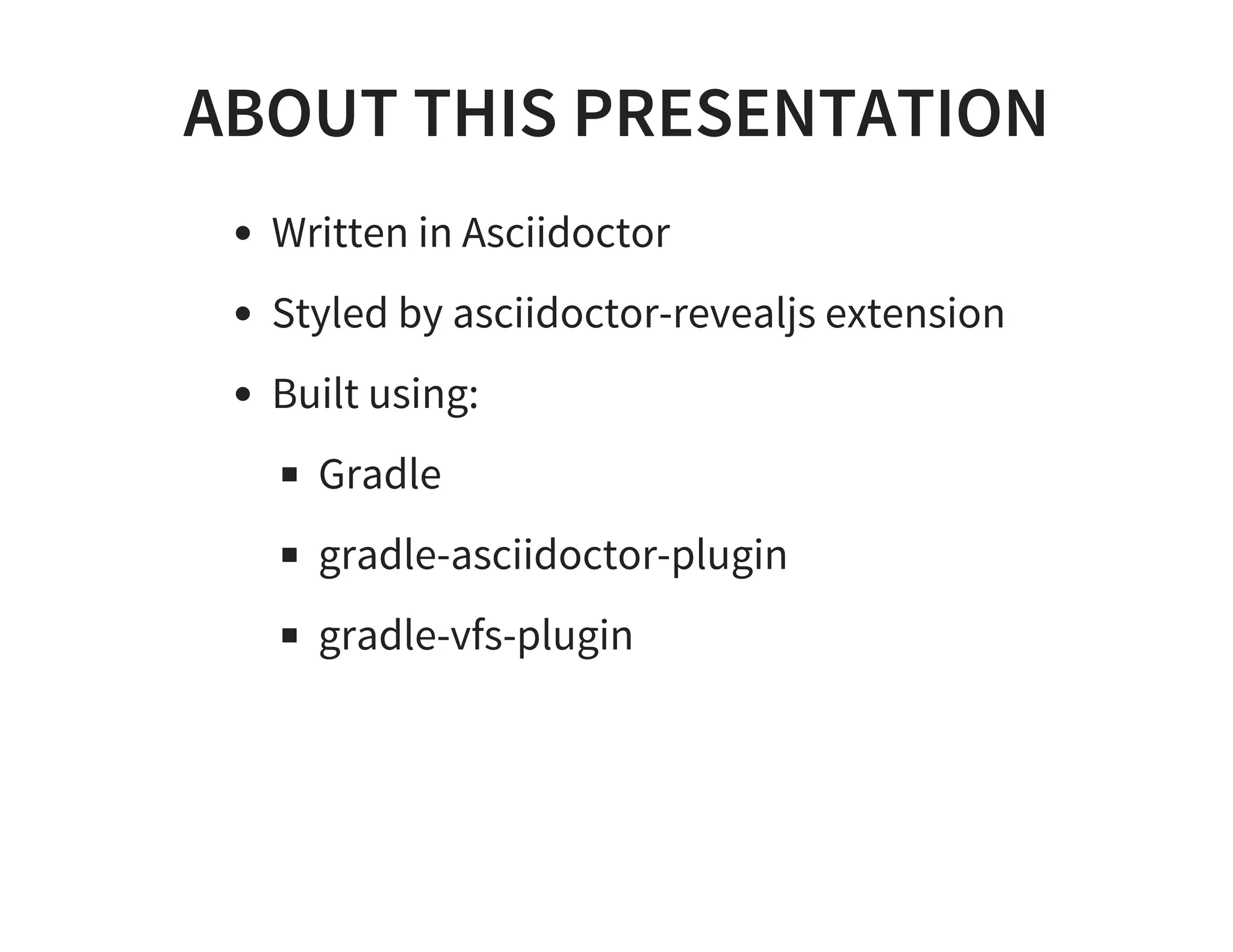

ABOUT THIS PRESENTATION
Written in Asciidoctor
Styled by asciidoctor-revealjs extension
Built using:
Gradle
gradle-asciidoctor-plugin
gradle-vfs-plugin

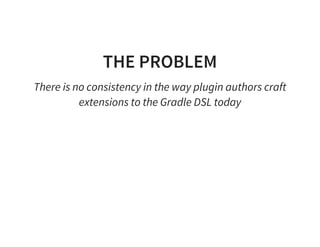

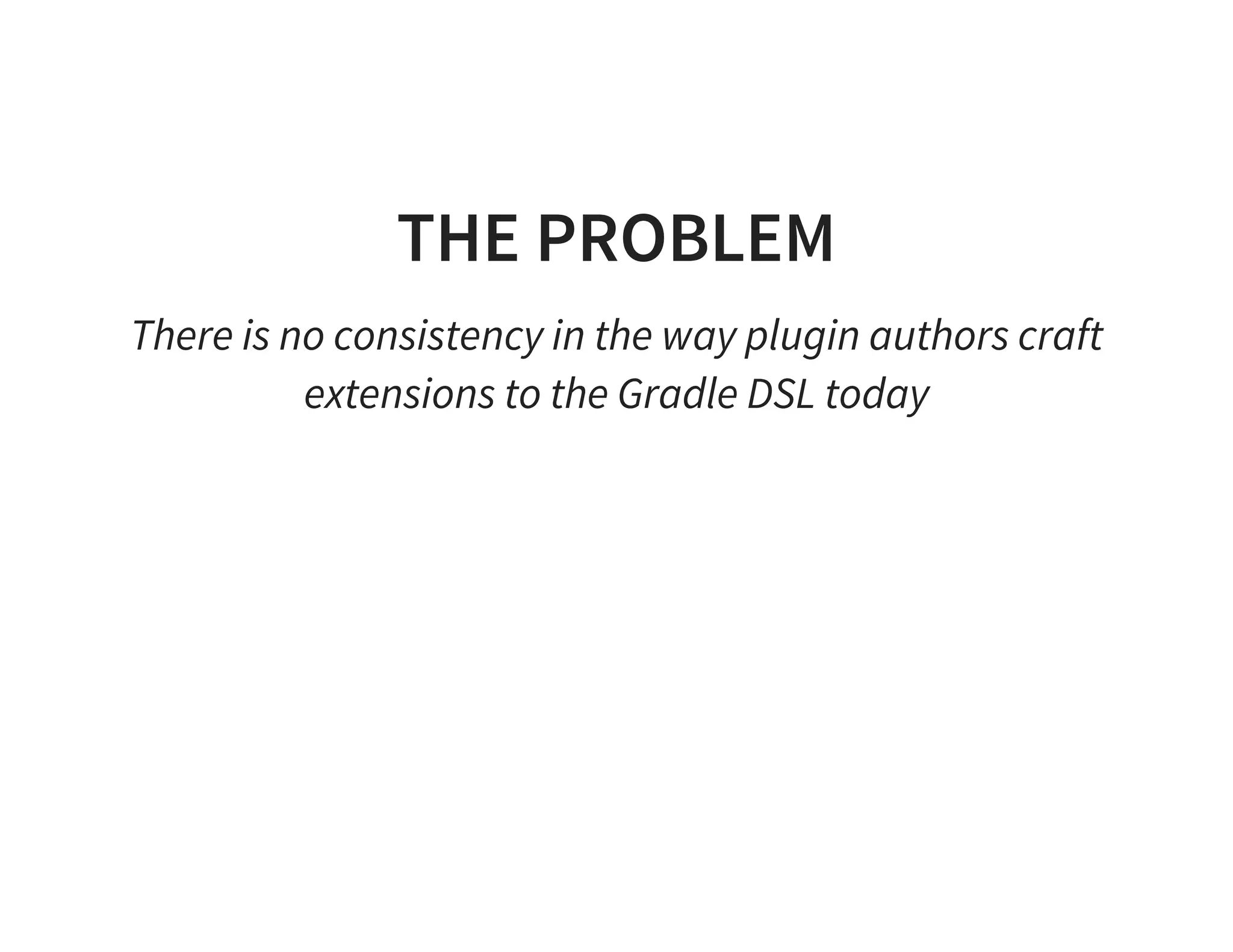

THE PROBLEM
There is no consistency in the way plugin authors craft
extensions to the Gradle DSL today

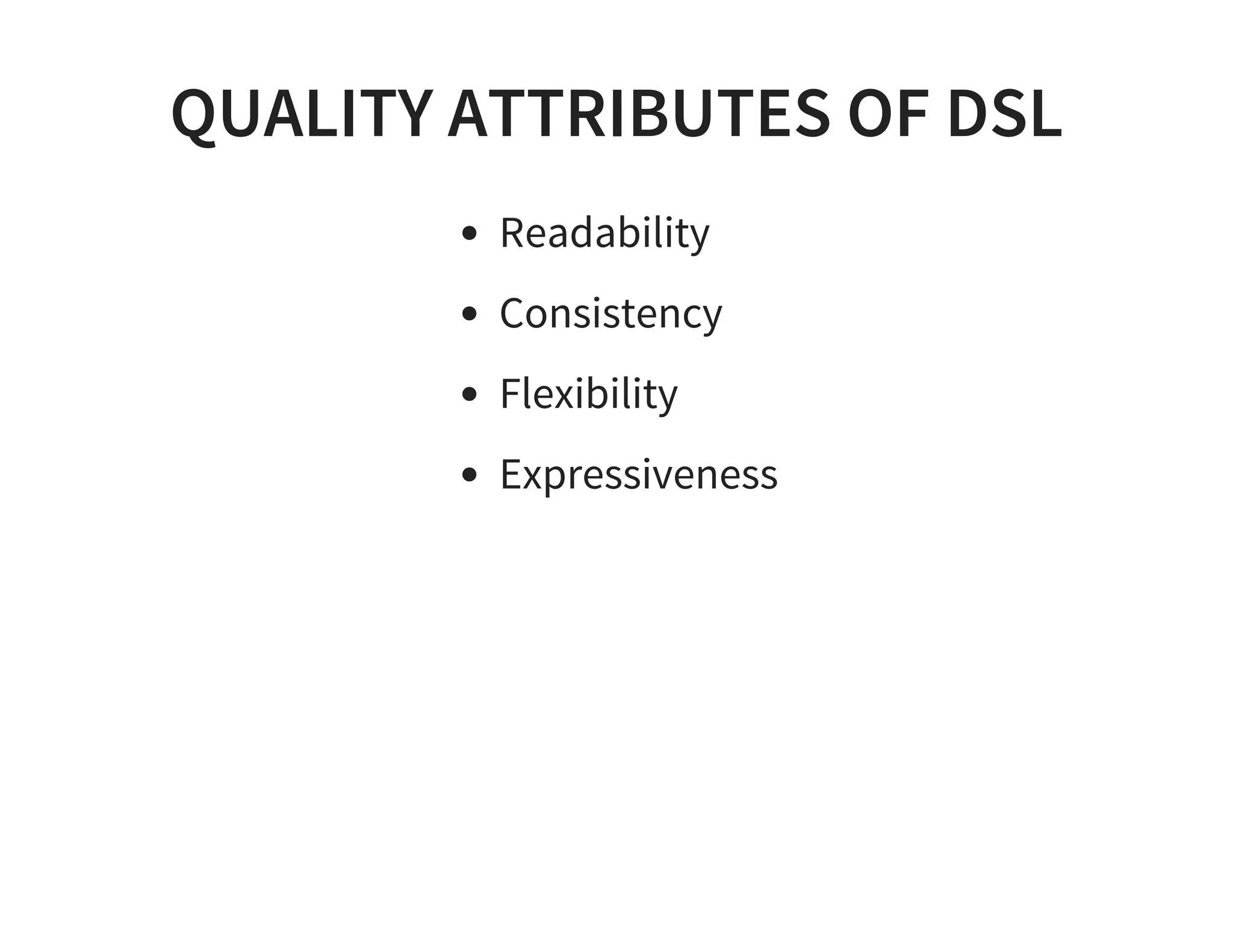

QUALITY ATTRIBUTES OF DSL
Readability
Consistency
Flexibility
Expressiveness

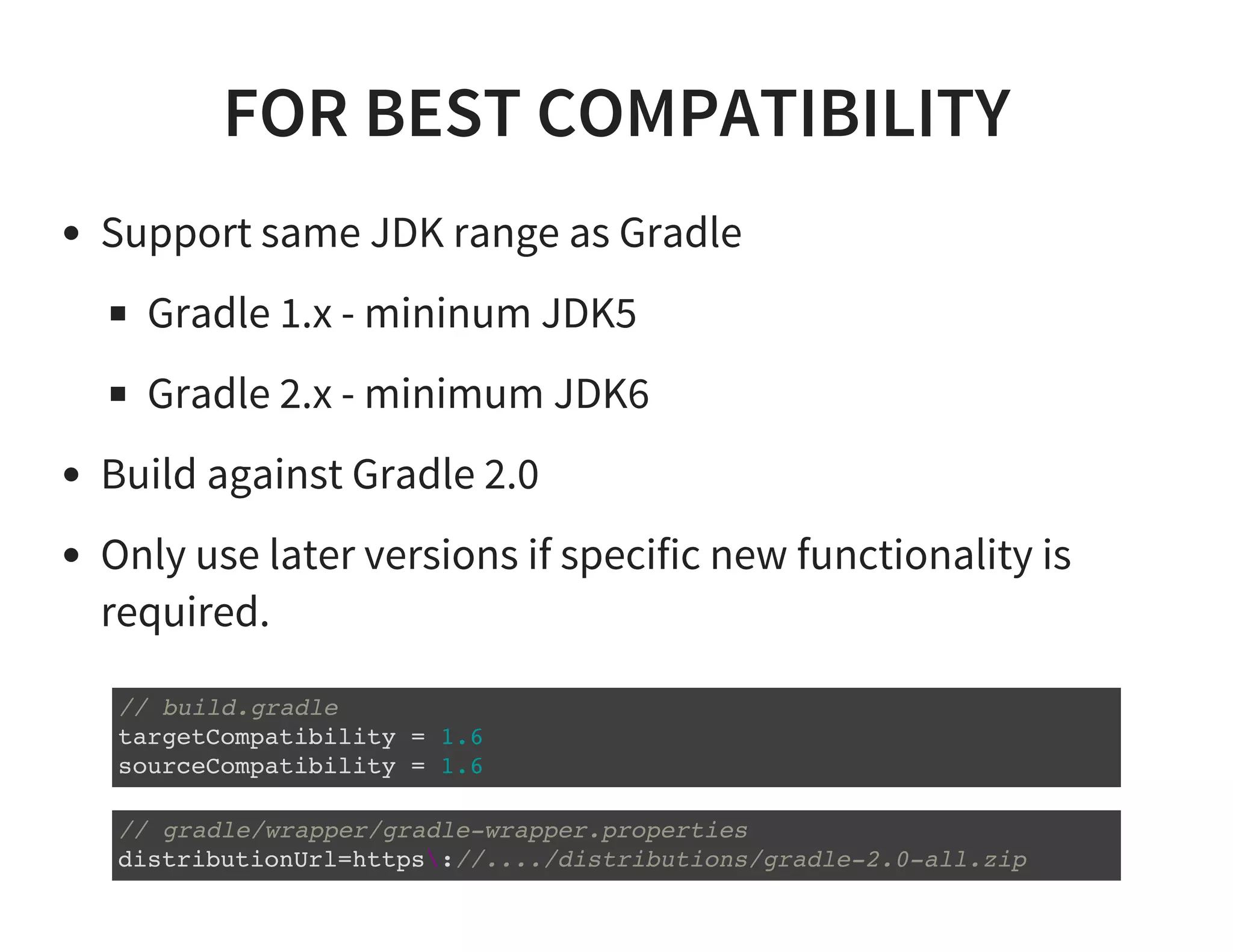

FOR BEST COMPATIBILITY
Support same JDK range as Gradle
Gradle 1.x - mininum JDK5
Gradle 2.x - minimum JDK6
Build against Gradle 2.0
Only use later versions if specific new functionality is
required.
// build.gradle
targetCompatibility = 1.6
sourceCompatibility = 1.6
// gradle/wrapper/gradle-wrapper.properties
distributionUrl=https://..../distributions/gradle-2.0-all.zip

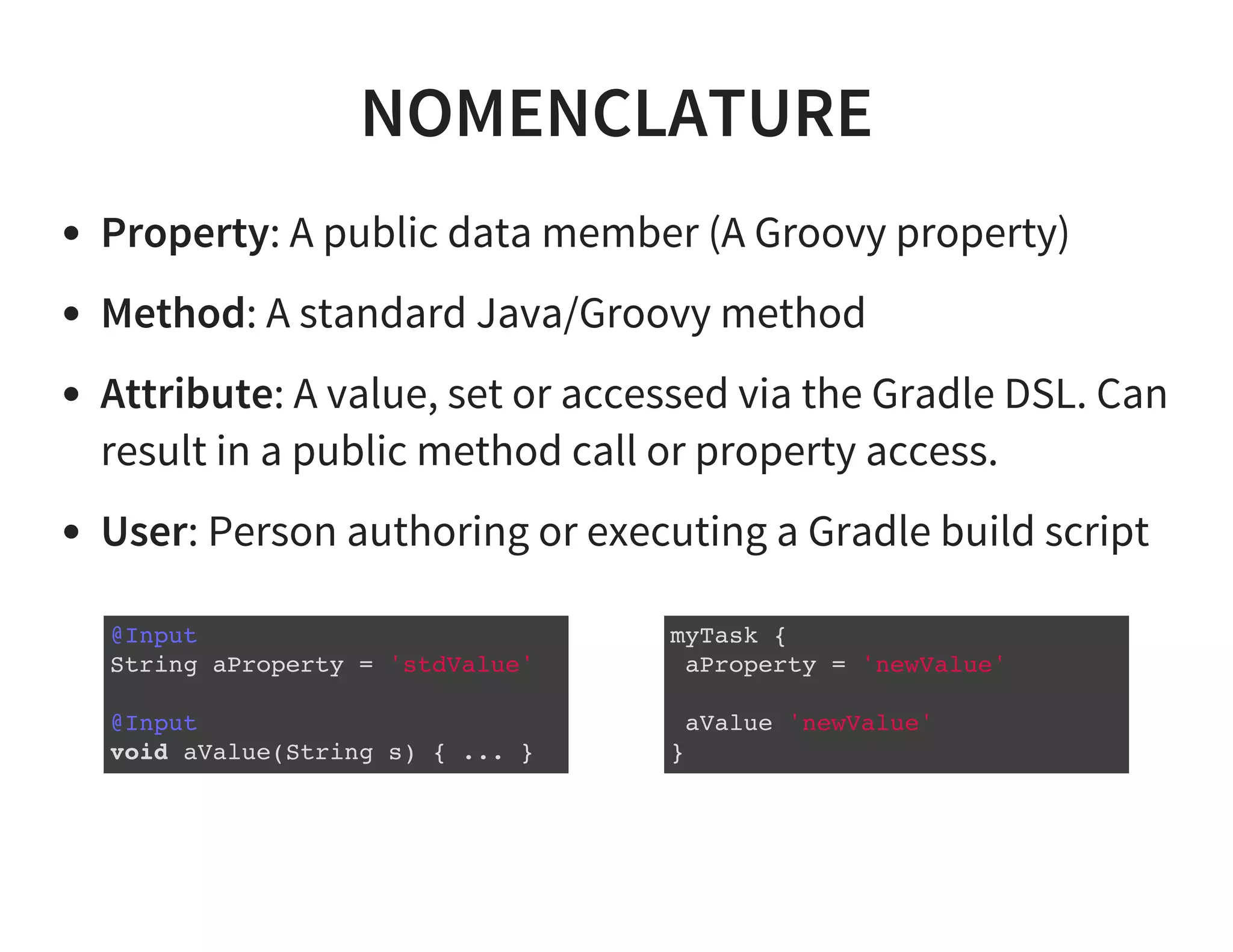

NOMENCLATURE
Property: A public data member (A Groovy property)
Method: A standard Java/Groovy method
Attribute: A value, set or accessed via the Gradle DSL. Can
result in a public method call or property access.
User: Person authoring or executing a Gradle build script
@Input
String aProperty = 'stdValue'
@Input
void aValue(String s) { ... }
myTask {
aProperty = 'newValue'
aValue 'newValue'
}

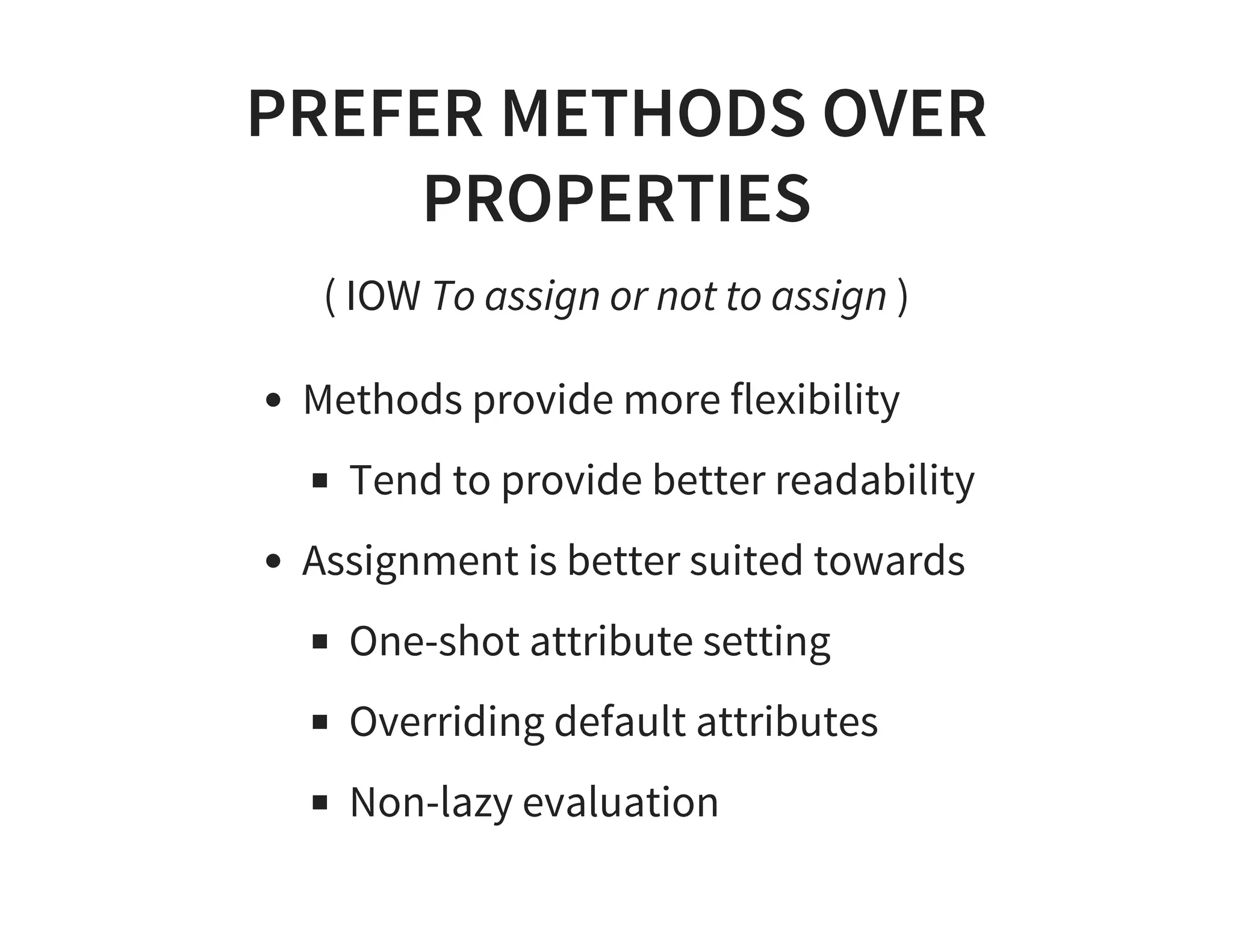

PREFER METHODS OVER
PROPERTIES
( IOW To assign or not to assign )
Methods provide more flexibility
Tend to provide better readability
Assignment is better suited towards
One-shot attribute setting
Overriding default attributes
Non-lazy evaluation

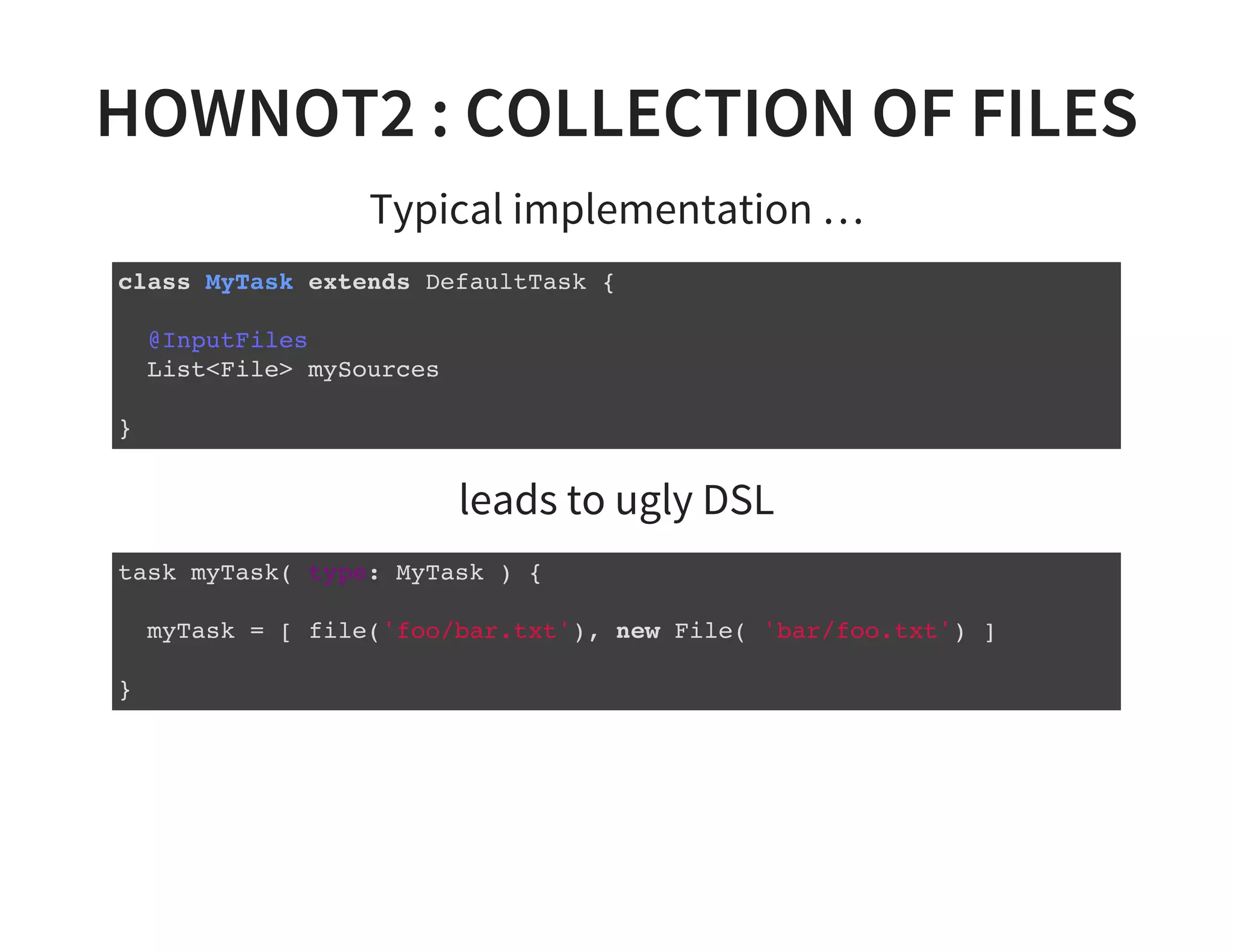

HOWNOT2 : COLLECTION OF FILES
Typical implementation …
class MyTask extends DefaultTask {
@InputFiles
List<File> mySources
}
leads to ugly DSL
task myTask( type: MyTask ) {
myTask = [ file('foo/bar.txt'), new File( 'bar/foo.txt') ]
}

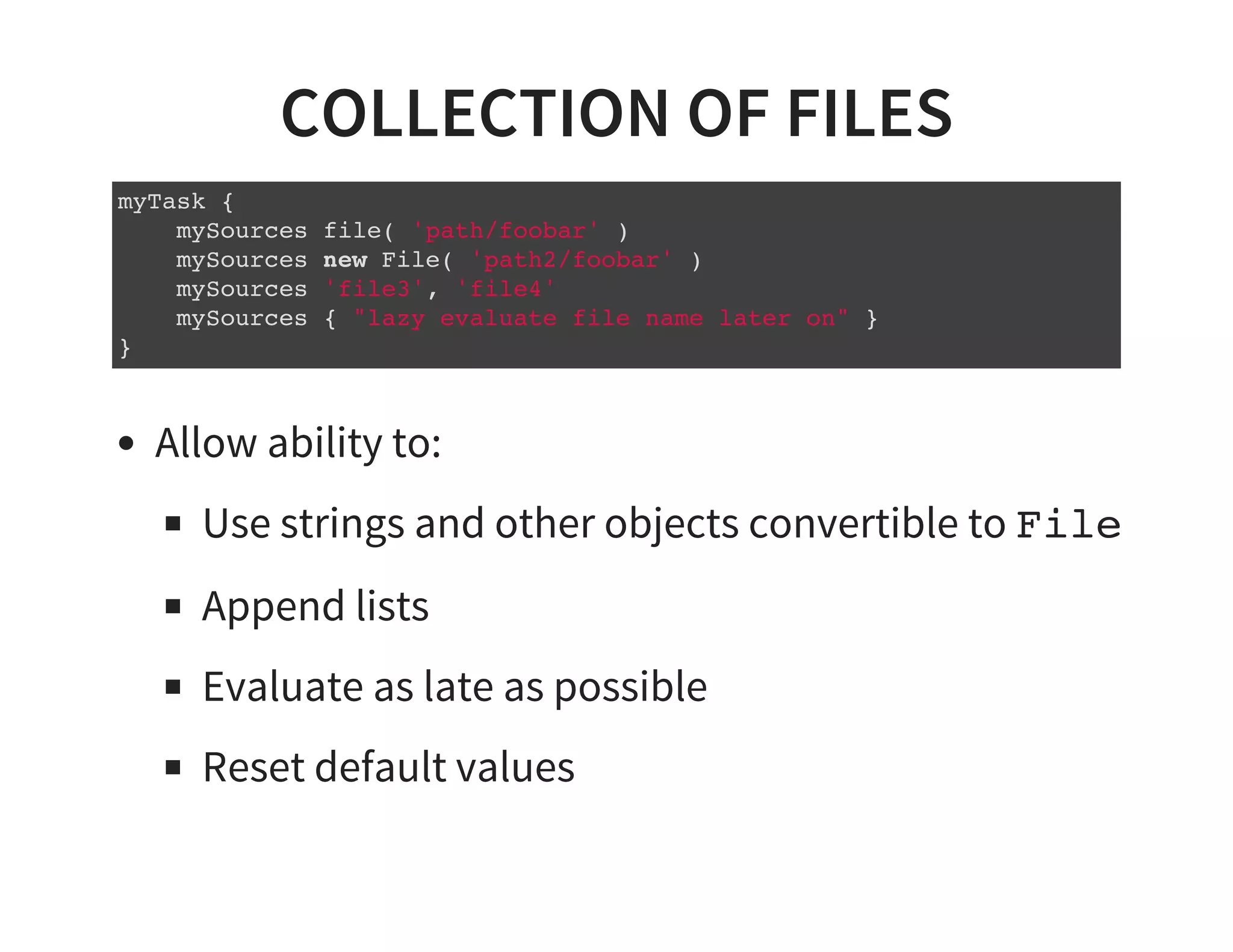

COLLECTION OF FILES
myTask {
mySources file( 'path/foobar' )
mySources new File( 'path2/foobar' )
mySources 'file3', 'file4'
mySources { "lazy evaluate file name later on" }
}
Allow ability to:
Use strings and other objects convertible to File
Append lists
Evaluate as late as possible
Reset default values

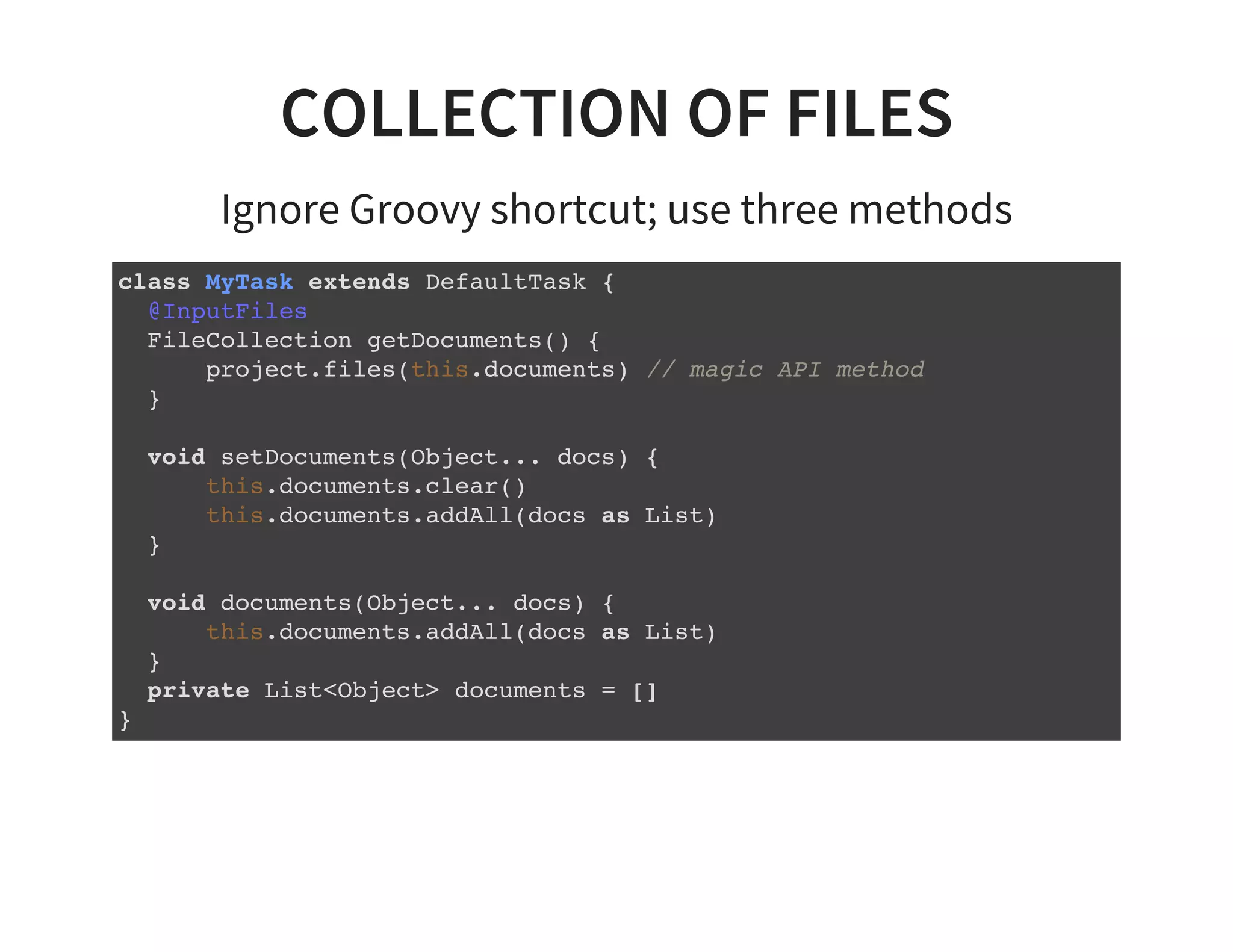

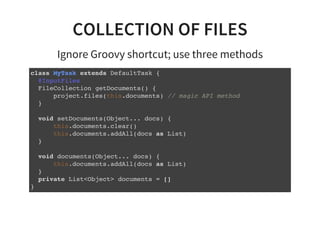

COLLECTION OF FILES
Ignore Groovy shortcut; use three methods
class MyTask extends DefaultTask {
@InputFiles
FileCollection getDocuments() {
project.files(this.documents) // magic API method
}
void setDocuments(Object... docs) {
this.documents.clear()
this.documents.addAll(docs as List)
}
void documents(Object... docs) {
this.documents.addAll(docs as List)
}
private List<Object> documents = []
}

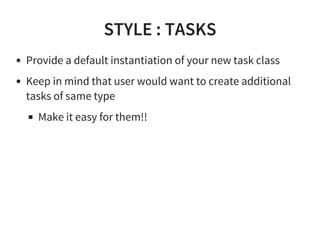

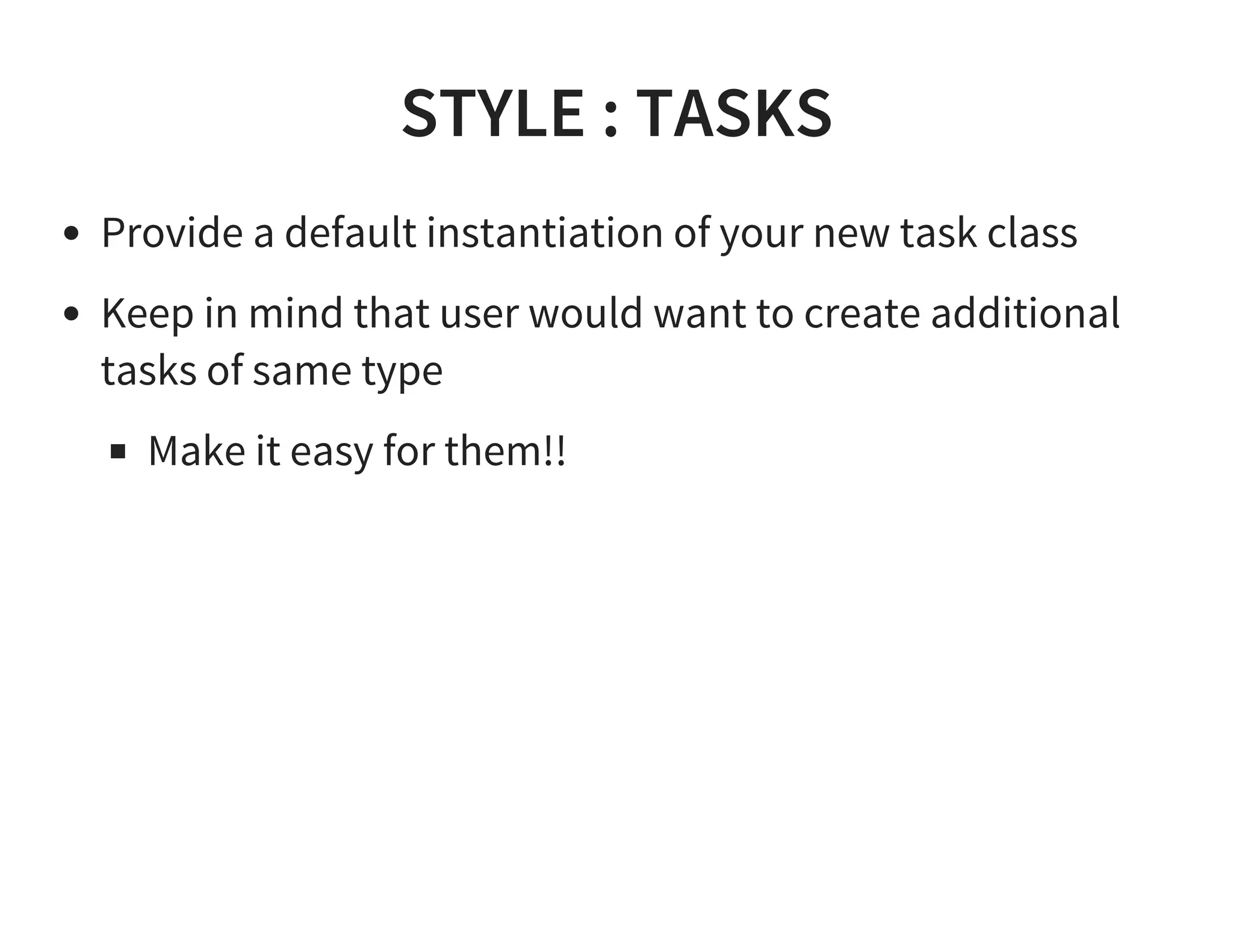

STYLE : TASKS
Provide a default instantiation of your new task class
Keep in mind that user would want to create additional
tasks of same type
Make it easy for them!!

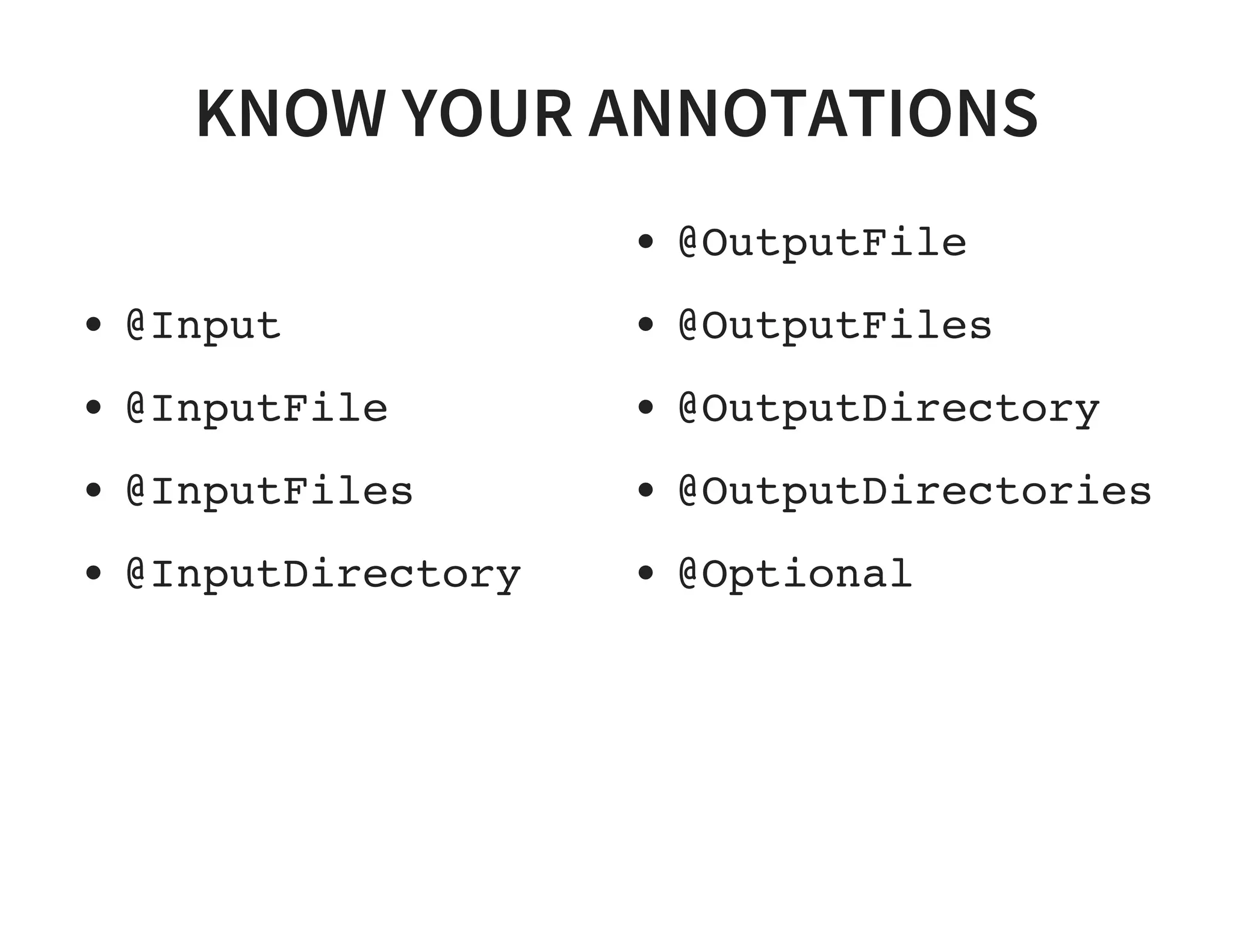

KNOW YOUR ANNOTATIONS
@Input
@InputFile
@InputFiles
@InputDirectory
@OutputFile
@OutputFiles
@OutputDirectory
@OutputDirectories
@Optional

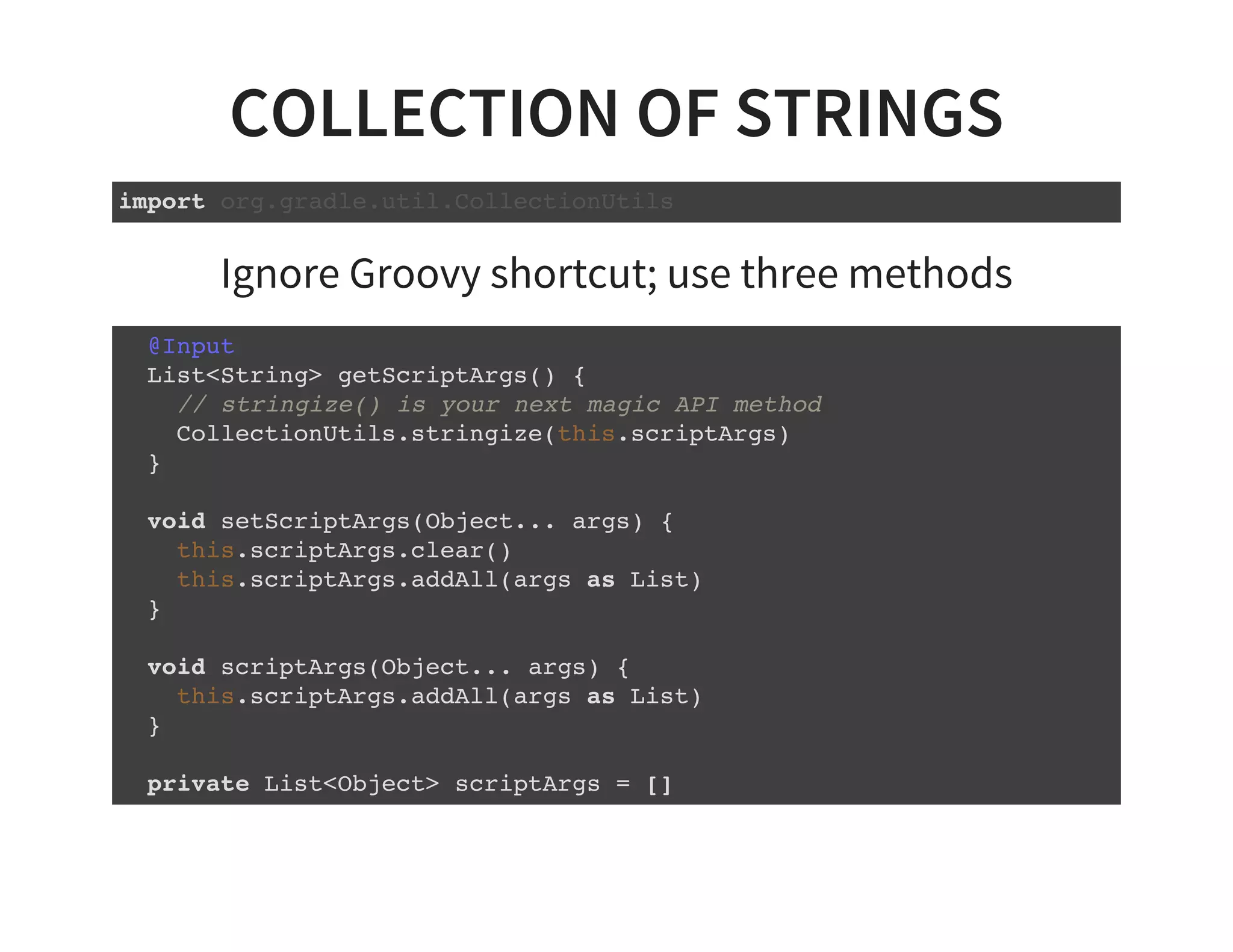

COLLECTION OF STRINGS
import org.gradle.util.CollectionUtils
Ignore Groovy shortcut; use three methods
@Input
List<String> getScriptArgs() {
// stringize() is your next magic API method
CollectionUtils.stringize(this.scriptArgs)
}
void setScriptArgs(Object... args) {
this.scriptArgs.clear()
this.scriptArgs.addAll(args as List)
}
void scriptArgs(Object... args) {
this.scriptArgs.addAll(args as List)
}
private List<Object> scriptArgs = []

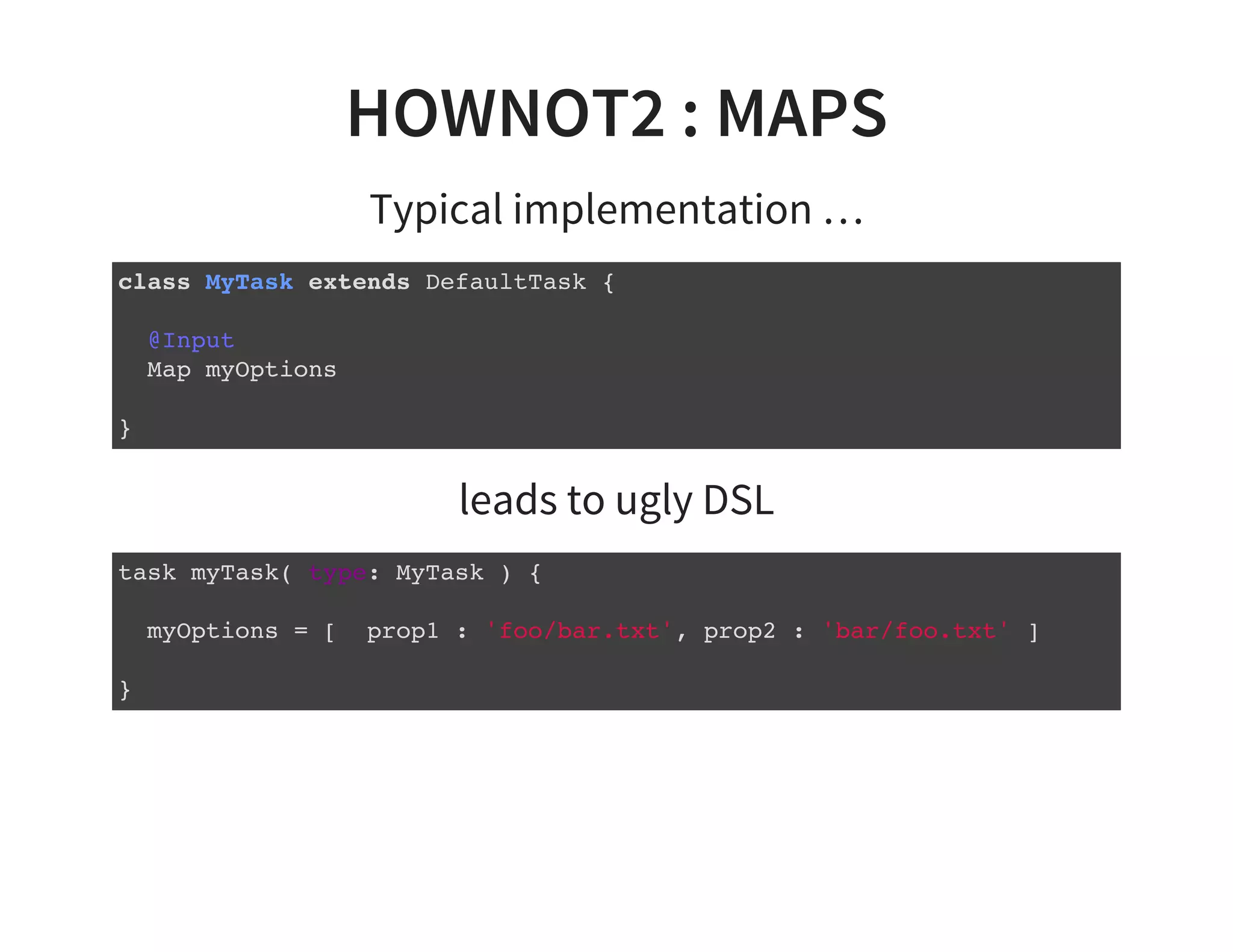

HOWNOT2 : MAPS
Typical implementation …
class MyTask extends DefaultTask {
@Input
Map myOptions
}
leads to ugly DSL
task myTask( type: MyTask ) {
myOptions = [ prop1 : 'foo/bar.txt', prop2 : 'bar/foo.txt' ]
}

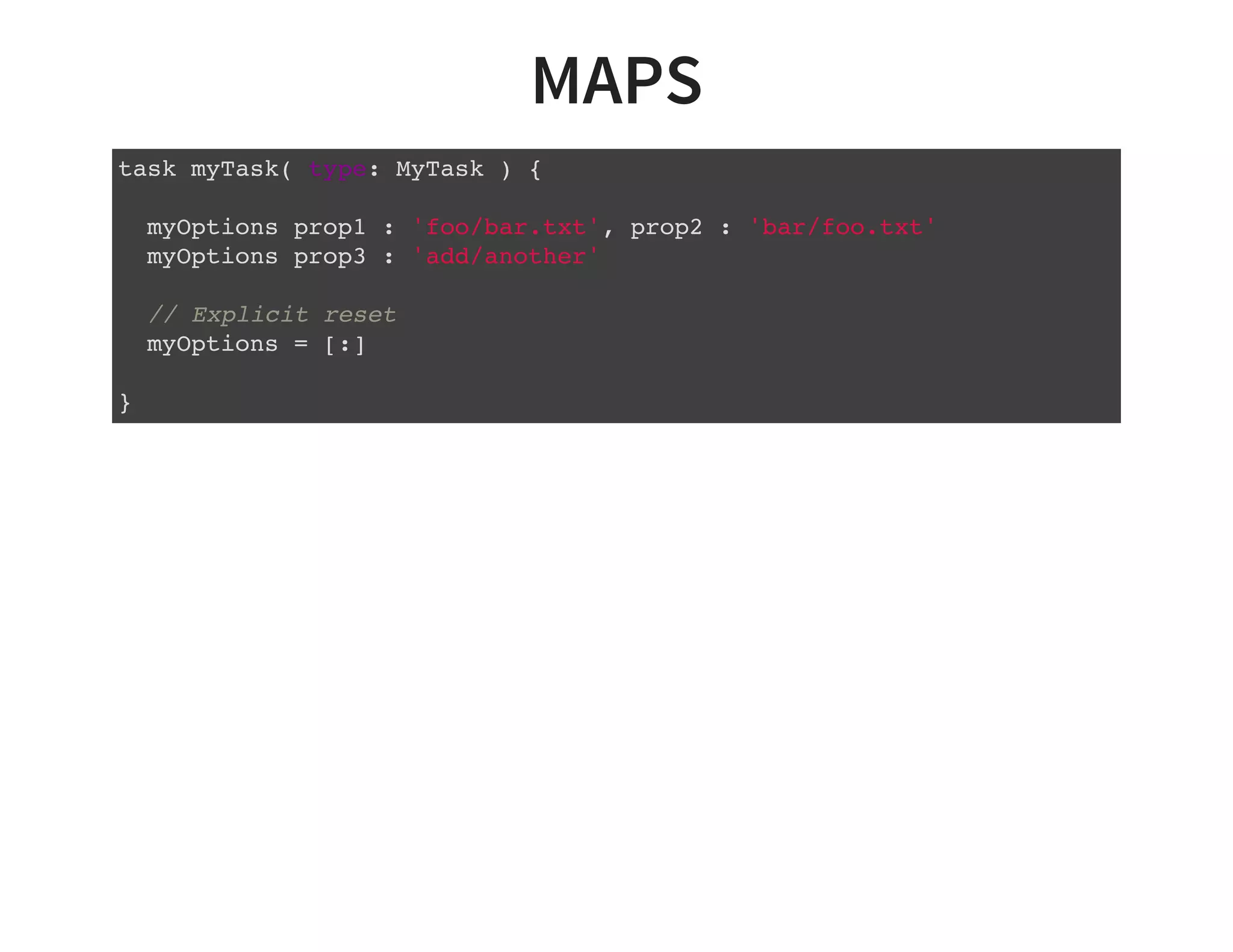

MAPS
task myTask( type: MyTask ) {
myOptions prop1 : 'foo/bar.txt', prop2 : 'bar/foo.txt'
myOptions prop3 : 'add/another'
// Explicit reset
myOptions = [:]
}

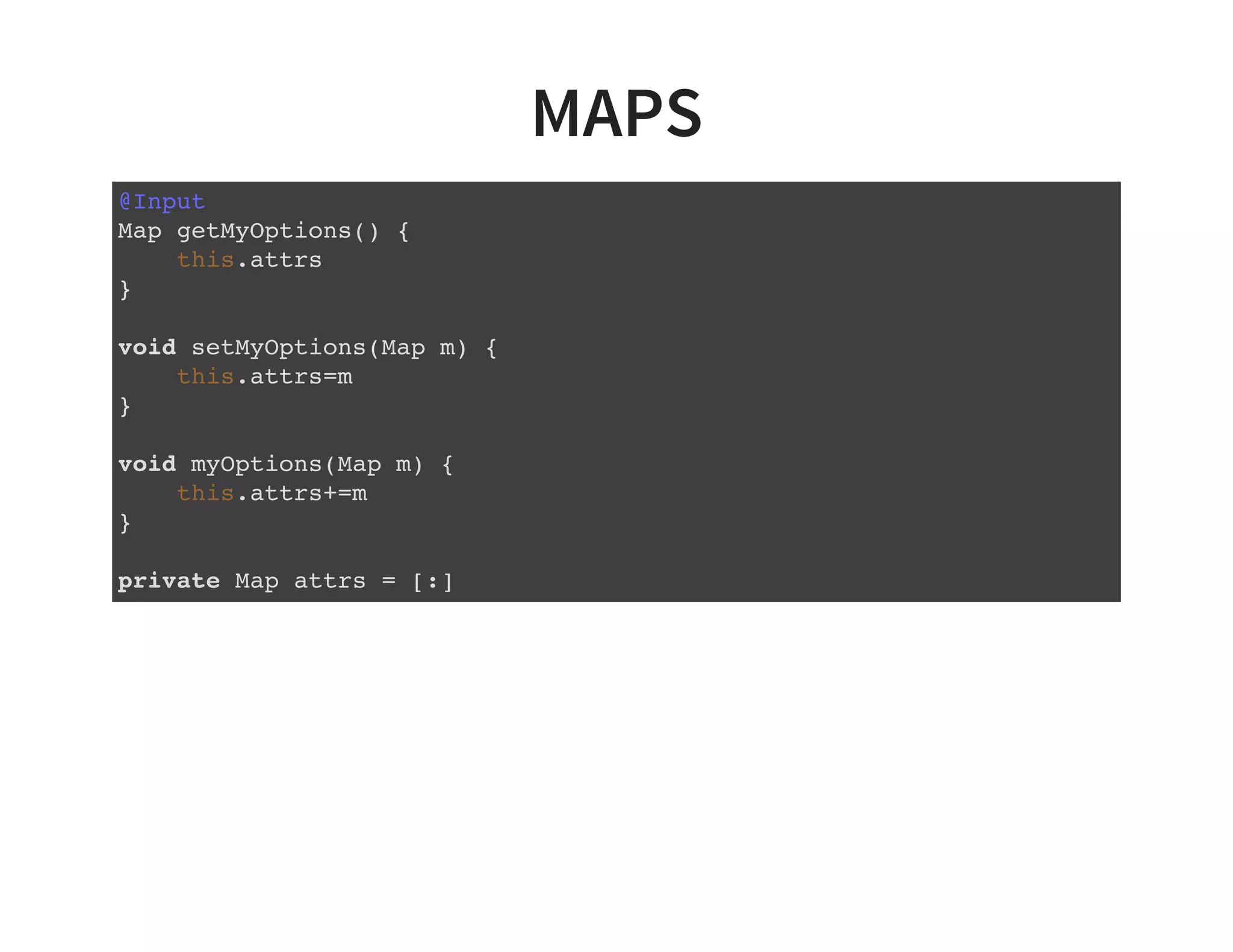

MAPS
@Input
Map getMyOptions() {
this.attrs
}
void setMyOptions(Map m) {
this.attrs=m
}
void myOptions(Map m) {
this.attrs+=m
}
private Map attrs = [:]

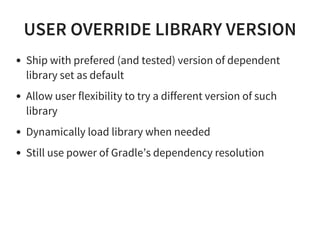

USER OVERRIDE LIBRARY VERSION
Ship with prefered (and tested) version of dependent
library set as default
Allow user flexibility to try a different version of such
library
Dynamically load library when needed
Still use power of Gradle’s dependency resolution

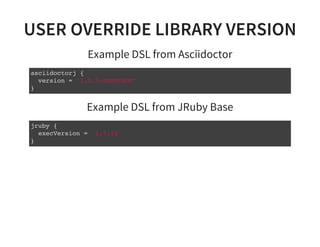

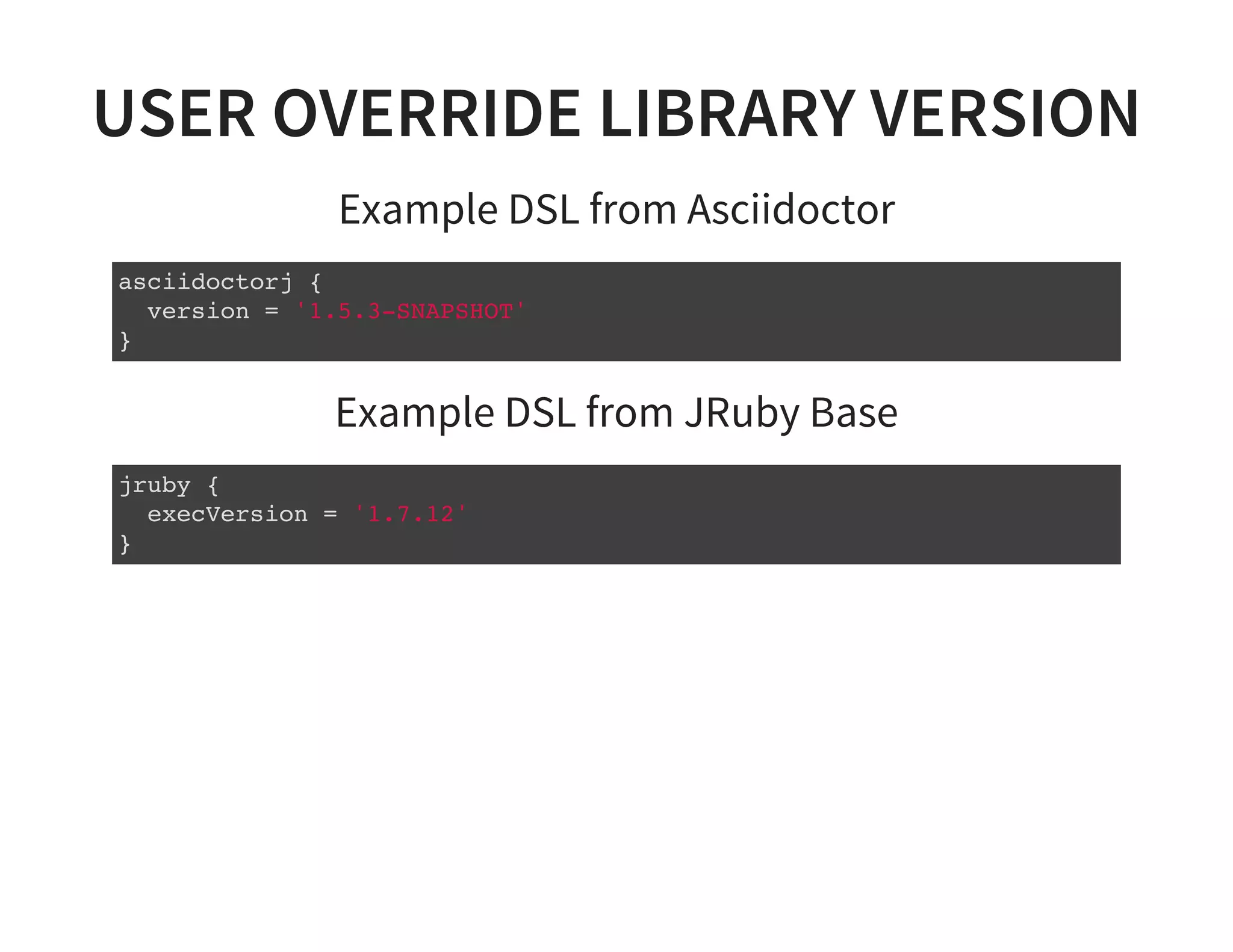

USER OVERRIDE LIBRARY VERSION
Example DSL from Asciidoctor
asciidoctorj {
version = '1.5.3-SNAPSHOT'
}
Example DSL from JRuby Base
jruby {
execVersion = '1.7.12'
}

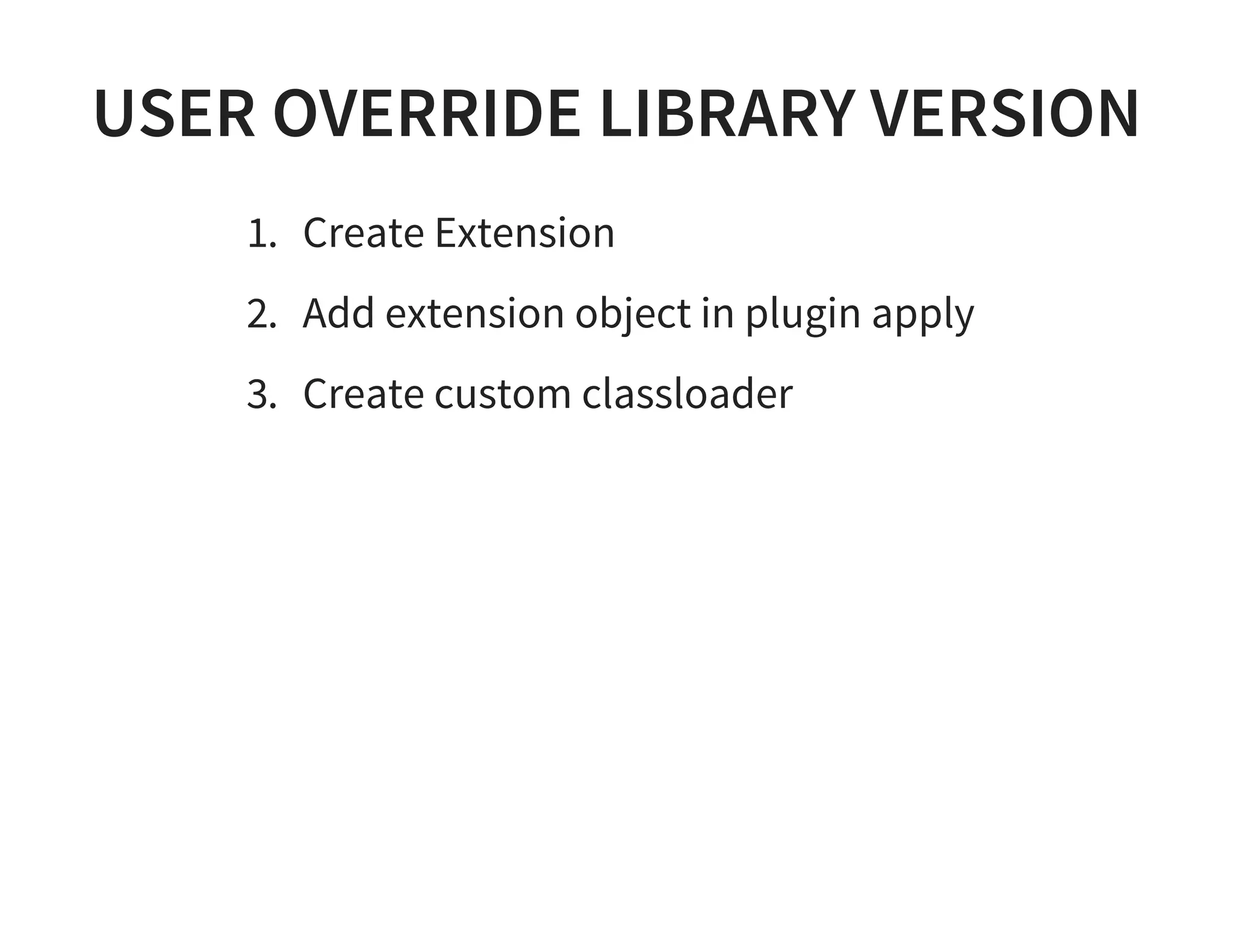

USER OVERRIDE LIBRARY VERSION
1. Create Extension
2. Add extension object in plugin apply
3. Create custom classloader

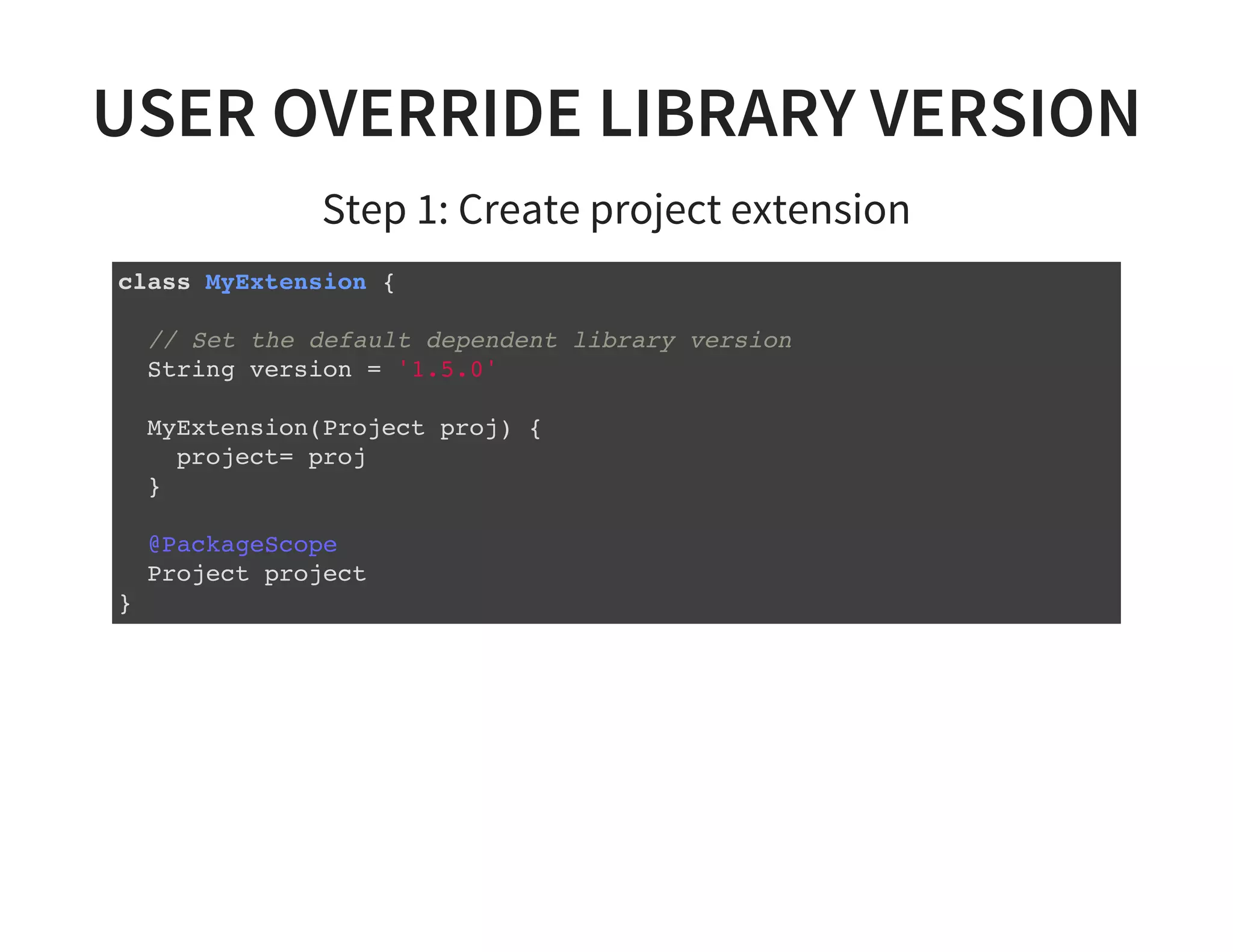

USER OVERRIDE LIBRARY VERSION
Step 1: Create project extension
class MyExtension {
// Set the default dependent library version
String version = '1.5.0'
MyExtension(Project proj) {
project= proj
}
@PackageScope
Project project
}

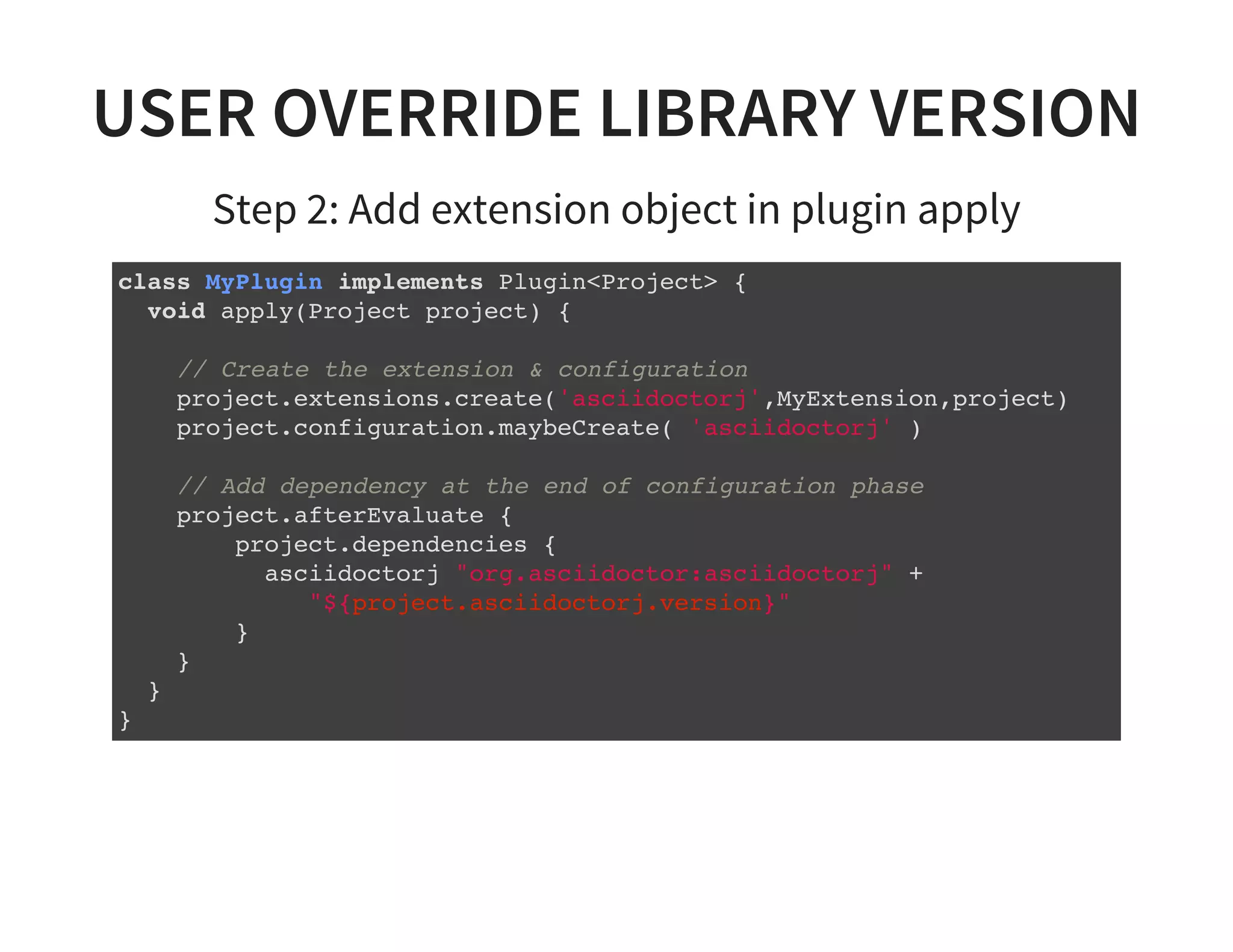

USER OVERRIDE LIBRARY VERSION
Step 2: Add extension object in plugin apply
class MyPlugin implements Plugin<Project> {
void apply(Project project) {
// Create the extension & configuration
project.extensions.create('asciidoctorj',MyExtension,project)
project.configuration.maybeCreate( 'asciidoctorj' )
// Add dependency at the end of configuration phase
project.afterEvaluate {
project.dependencies {
asciidoctorj "org.asciidoctor:asciidoctorj" +
"${project.asciidoctorj.version}"
}
}
}
}

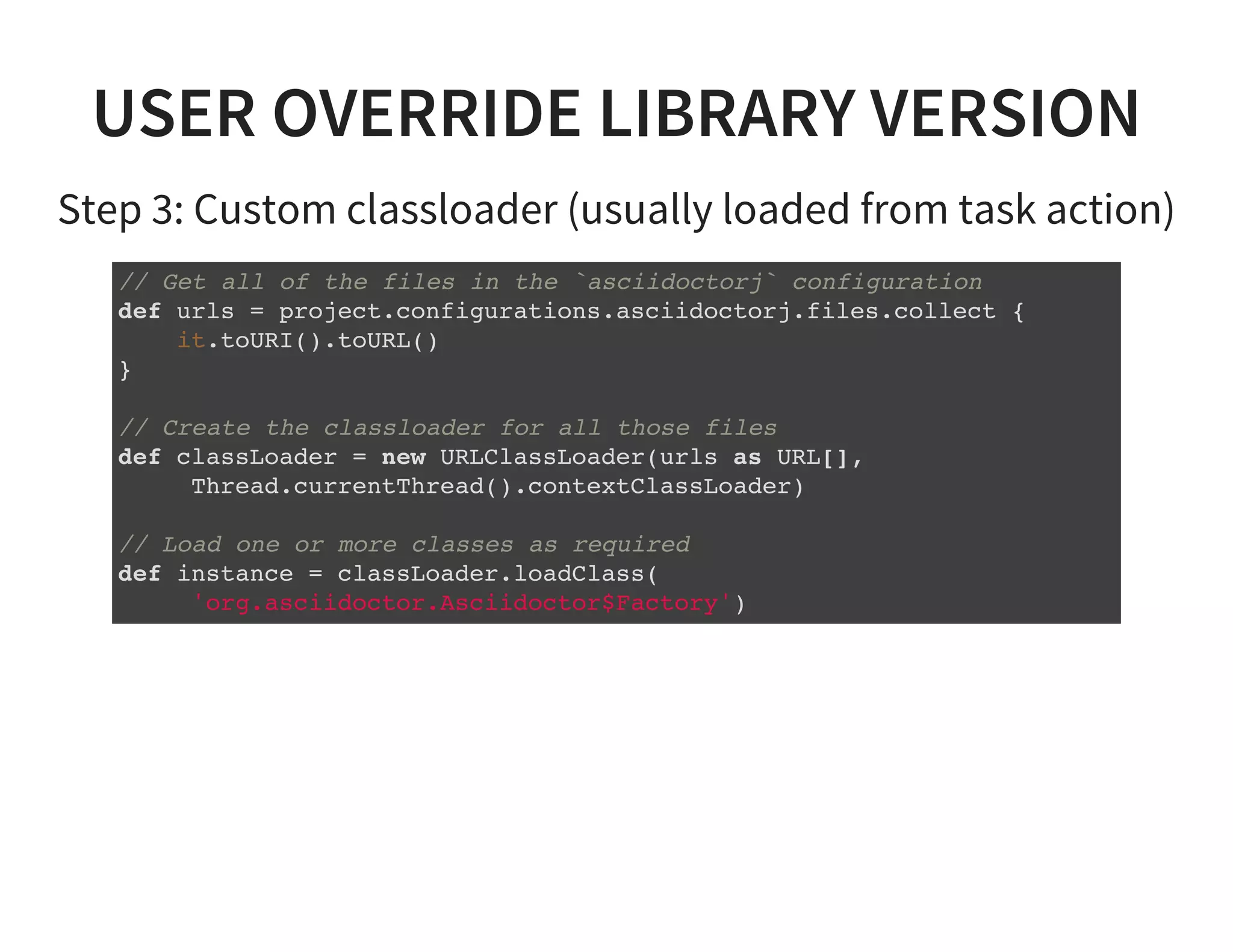

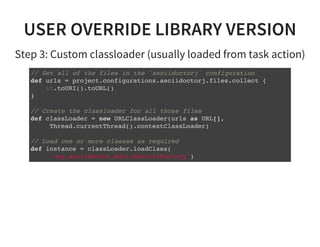

USER OVERRIDE LIBRARY VERSION
Step 3: Custom classloader (usually loaded from task action)
// Get all of the files in the `asciidoctorj` configuration
def urls = project.configurations.asciidoctorj.files.collect {
it.toURI().toURL()
}
// Create the classloader for all those files
def classLoader = new URLClassLoader(urls as URL[],
Thread.currentThread().contextClassLoader)
// Load one or more classes as required
def instance = classLoader.loadClass(
'org.asciidoctor.Asciidoctor$Factory')

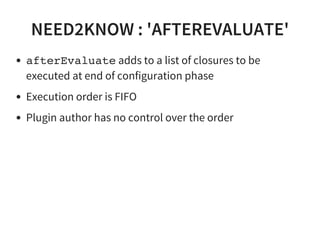

NEED2KNOW : 'AFTEREVALUATE'
afterEvaluate adds to a list of closures to be
executed at end of configuration phase
Execution order is FIFO
Plugin author has no control over the order

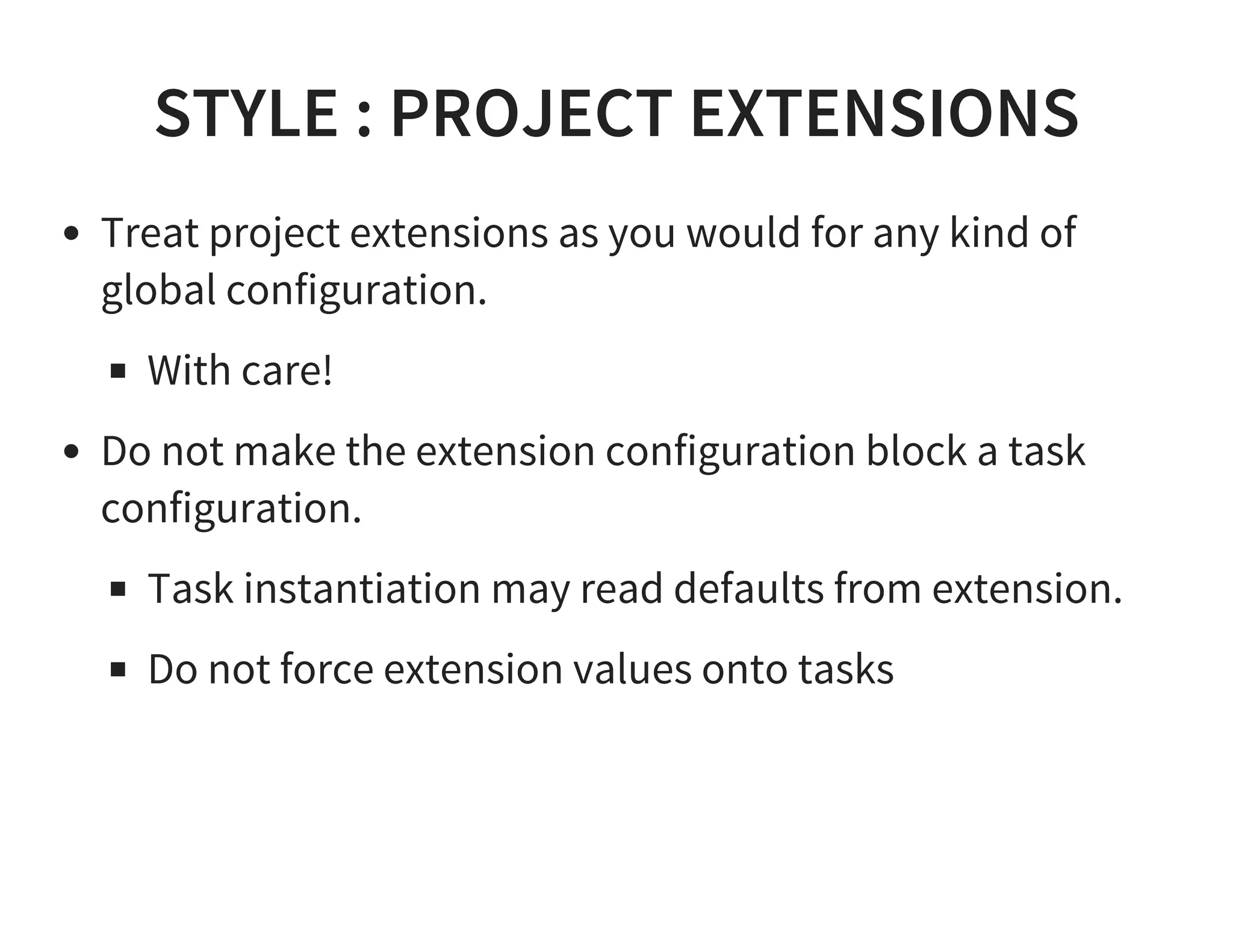

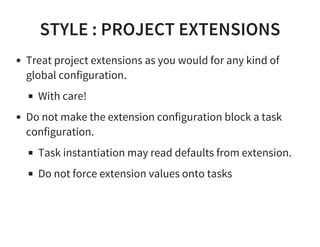

STYLE : PROJECT EXTENSIONS
Treat project extensions as you would for any kind of
global configuration.
With care!
Do not make the extension configuration block a task
configuration.
Task instantiation may read defaults from extension.
Do not force extension values onto tasks

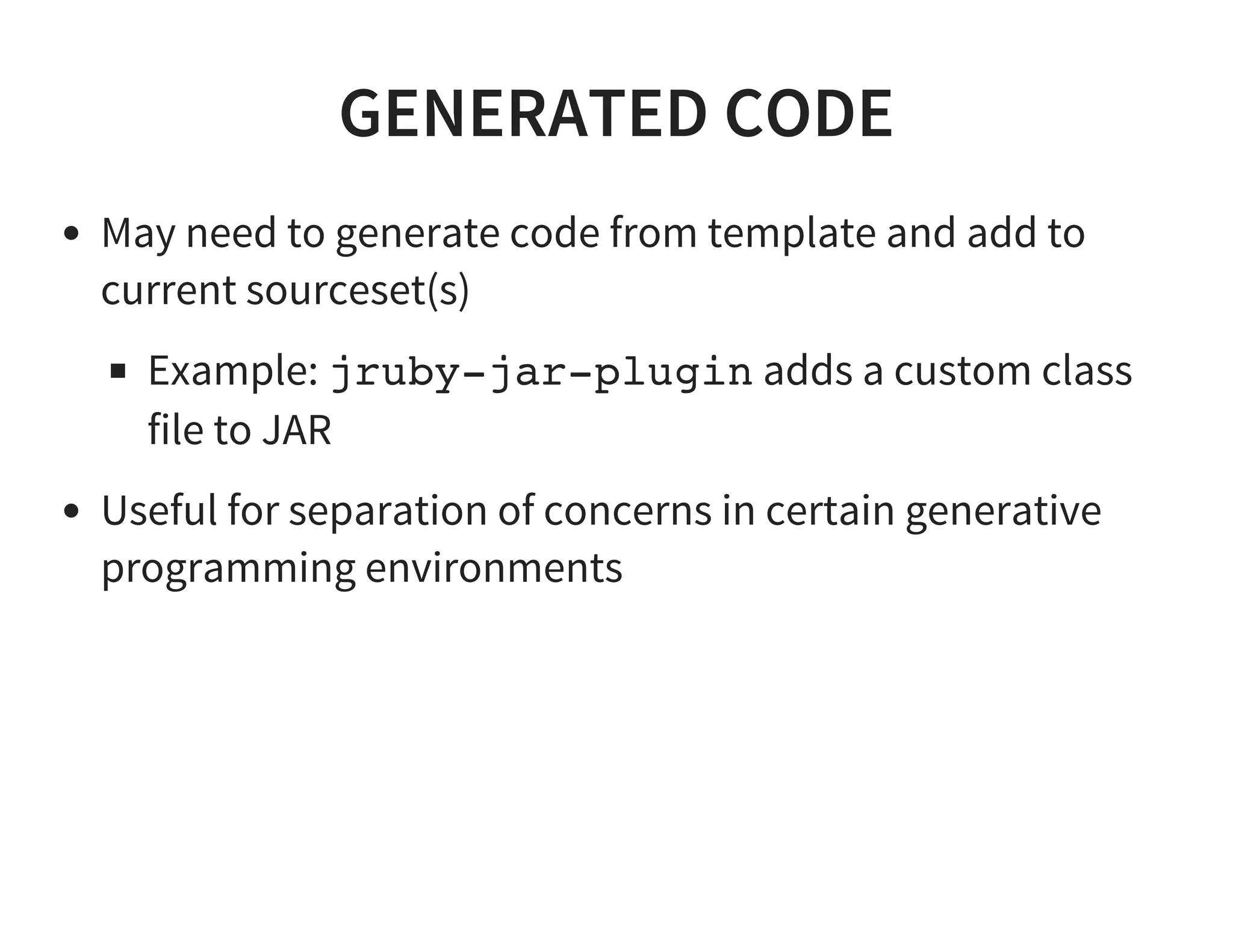

GENERATED CODE
May need to generate code from template and add to
current sourceset(s)
Example: jruby-jar-plugin adds a custom class
file to JAR
Useful for separation of concerns in certain generative
programming environments

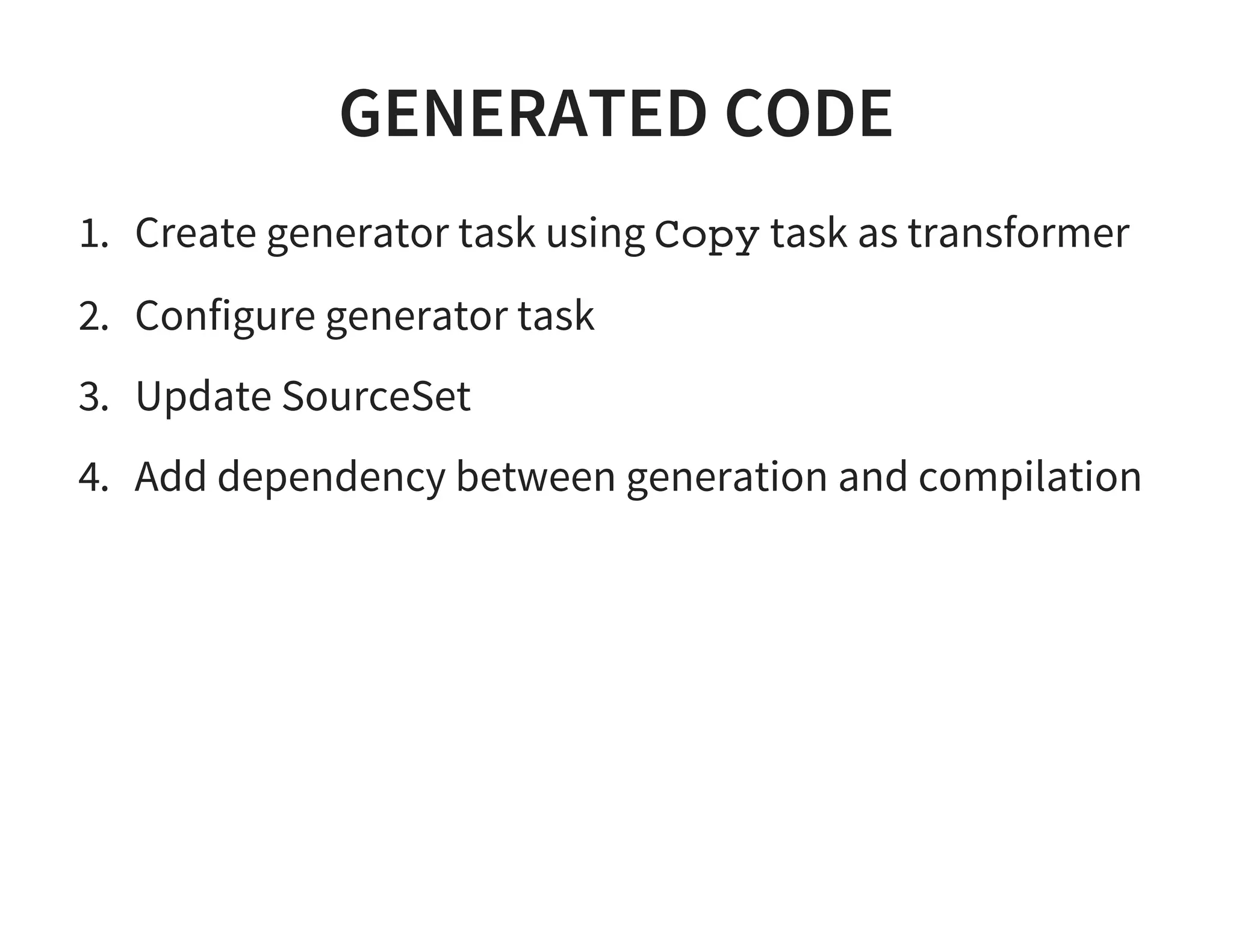

GENERATED CODE
1. Create generator task using Copy task as transformer
2. Configure generator task
3. Update SourceSet
4. Add dependency between generation and compilation

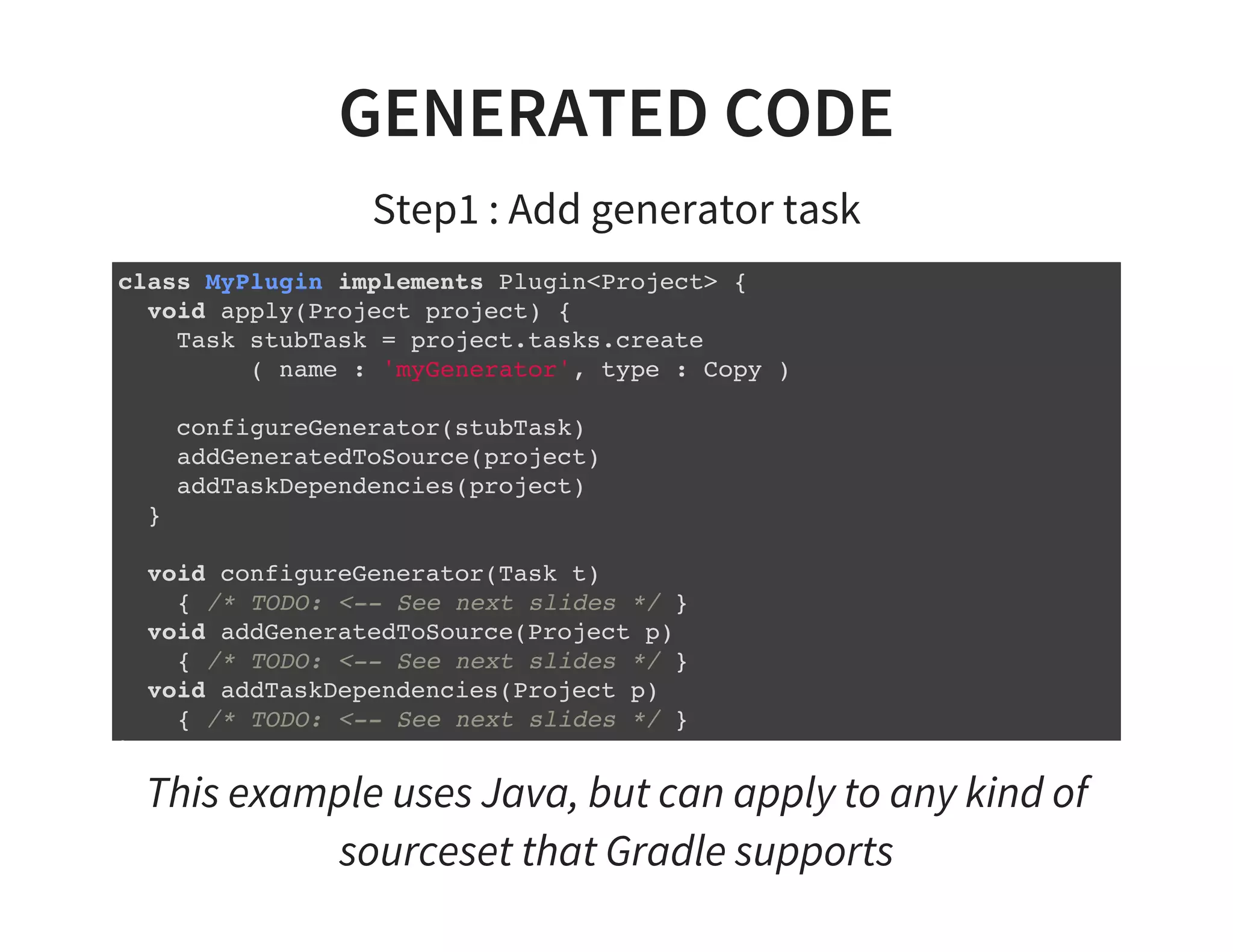

GENERATED CODE
Step1 : Add generator task
class MyPlugin implements Plugin<Project> {
void apply(Project project) {
Task stubTask = project.tasks.create
( name : 'myGenerator', type : Copy )
configureGenerator(stubTask)
addGeneratedToSource(project)
addTaskDependencies(project)
}
void configureGenerator(Task t)
{ /* TODO: <-- See next slides */ }
void addGeneratedToSource(Project p)
{ /* TODO: <-- See next slides */ }
void addTaskDependencies(Project p)
{ /* TODO: <-- See next slides */ }
}
This example uses Java, but can apply to any kind of
sourceset that Gradle supports

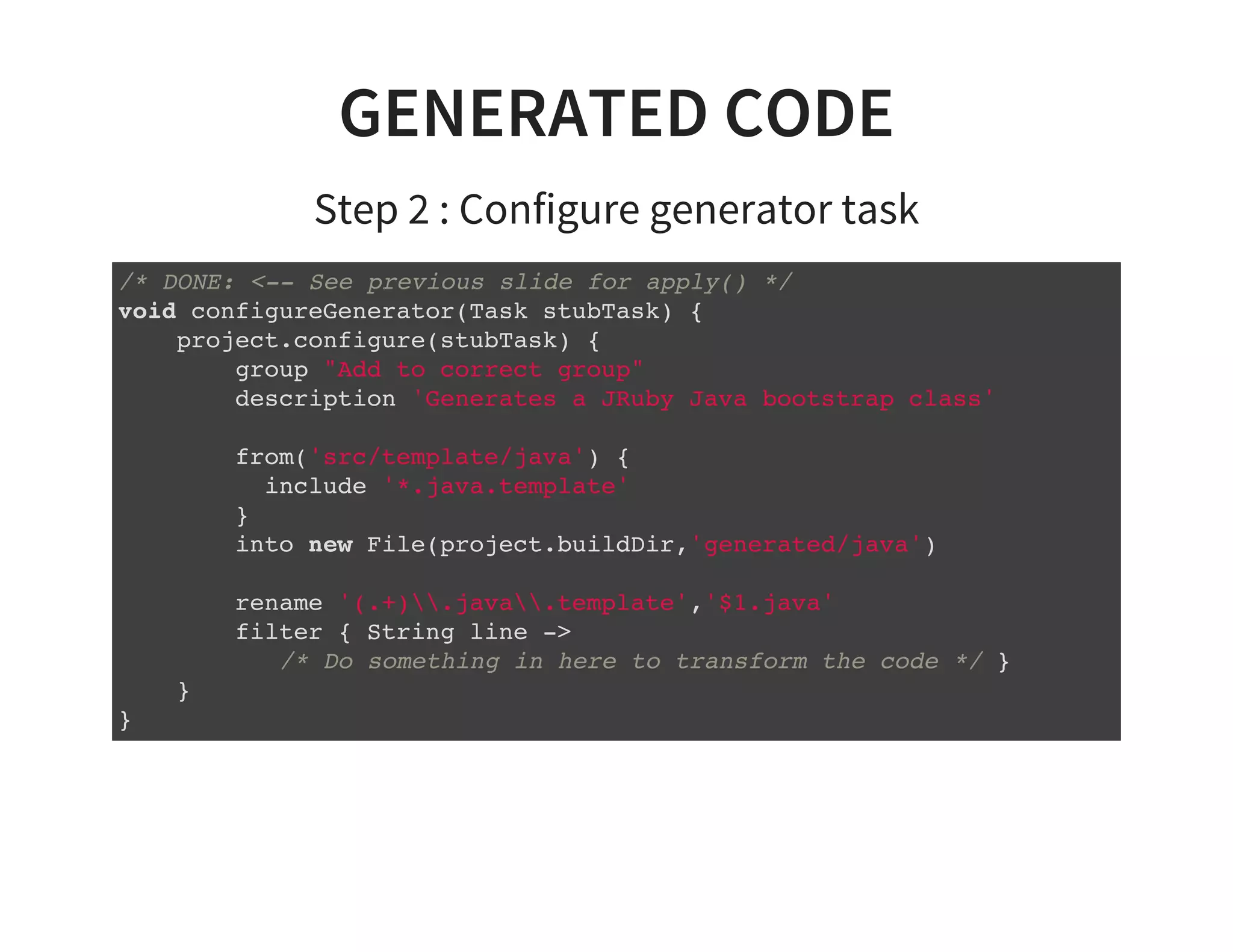

GENERATED CODE
Step 2 : Configure generator task
/* DONE: <-- See previous slide for apply() */
void configureGenerator(Task stubTask) {
project.configure(stubTask) {
group "Add to correct group"
description 'Generates a JRuby Java bootstrap class'
from('src/template/java') {
include '*.java.template'
}
into new File(project.buildDir,'generated/java')
rename '(.+).java.template','$1.java'
filter { String line ->
/* Do something in here to transform the code */ }
}
}

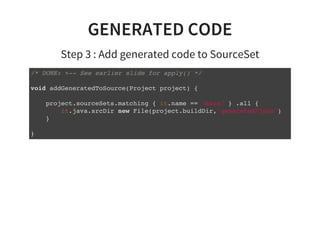

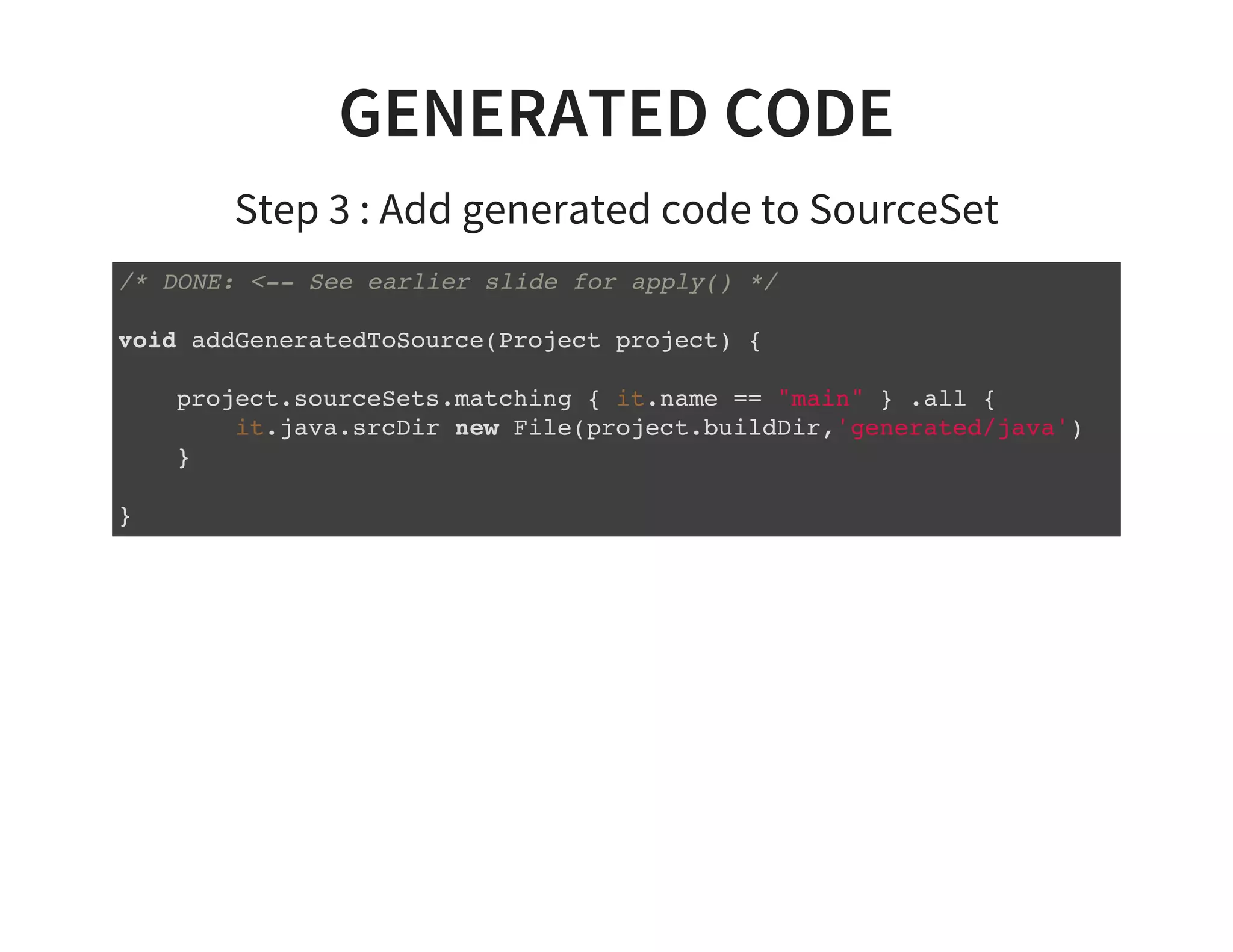

GENERATED CODE
Step 3 : Add generated code to SourceSet
/* DONE: <-- See earlier slide for apply() */
void addGeneratedToSource(Project project) {
project.sourceSets.matching { it.name == "main" } .all {
it.java.srcDir new File(project.buildDir,'generated/java')
}
}

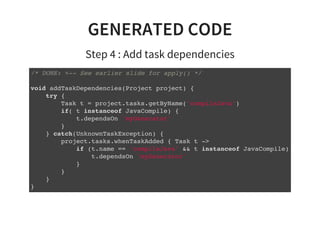

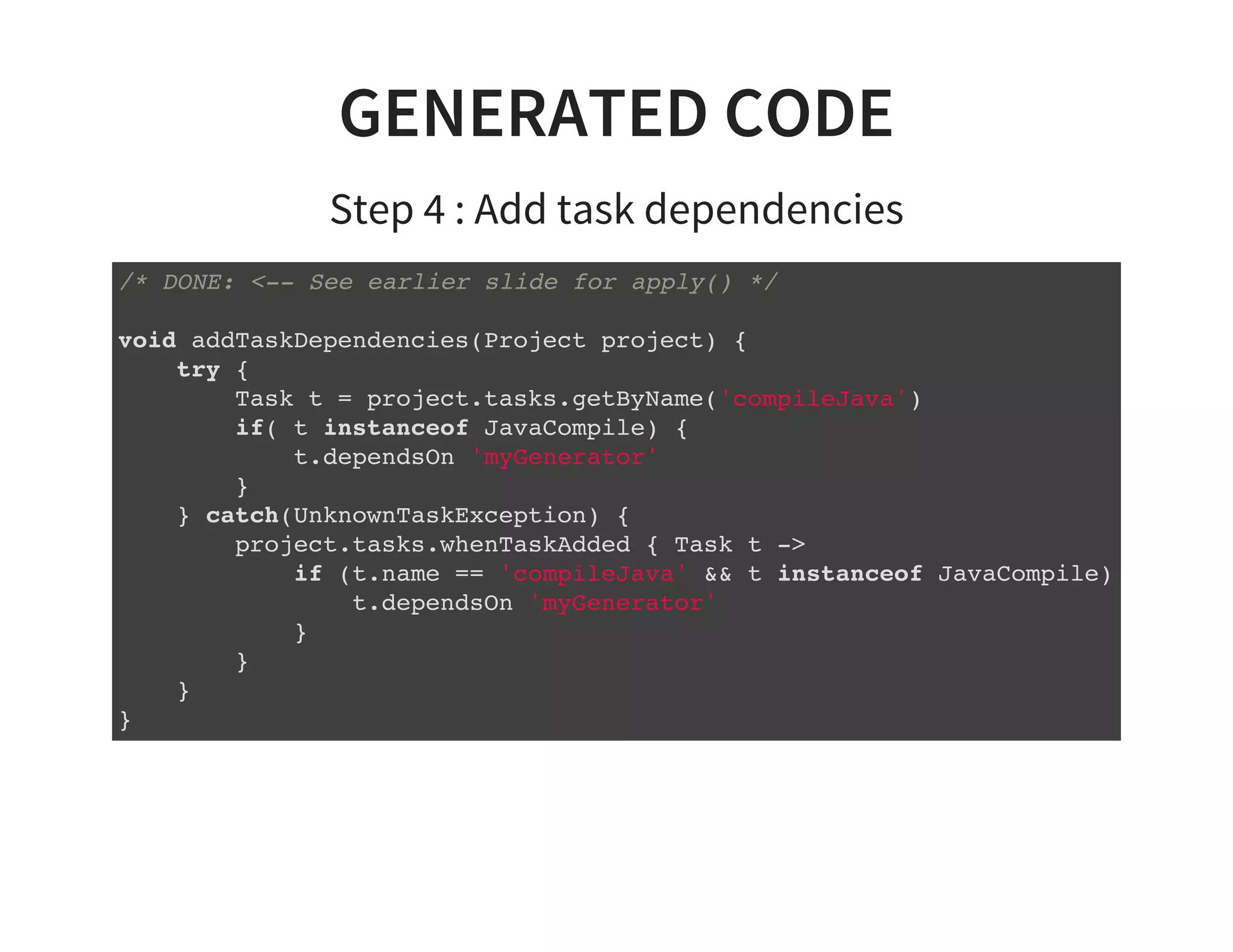

GENERATED CODE
Step 4 : Add task dependencies
/* DONE: <-- See earlier slide for apply() */
void addTaskDependencies(Project project) {
try {
Task t = project.tasks.getByName('compileJava')
if( t instanceof JavaCompile) {
t.dependsOn 'myGenerator'
}
} catch(UnknownTaskException) {
project.tasks.whenTaskAdded { Task t ->
if (t.name == 'compileJava' && t instanceof JavaCompile) {
t.dependsOn 'myGenerator'
}
}
}
}

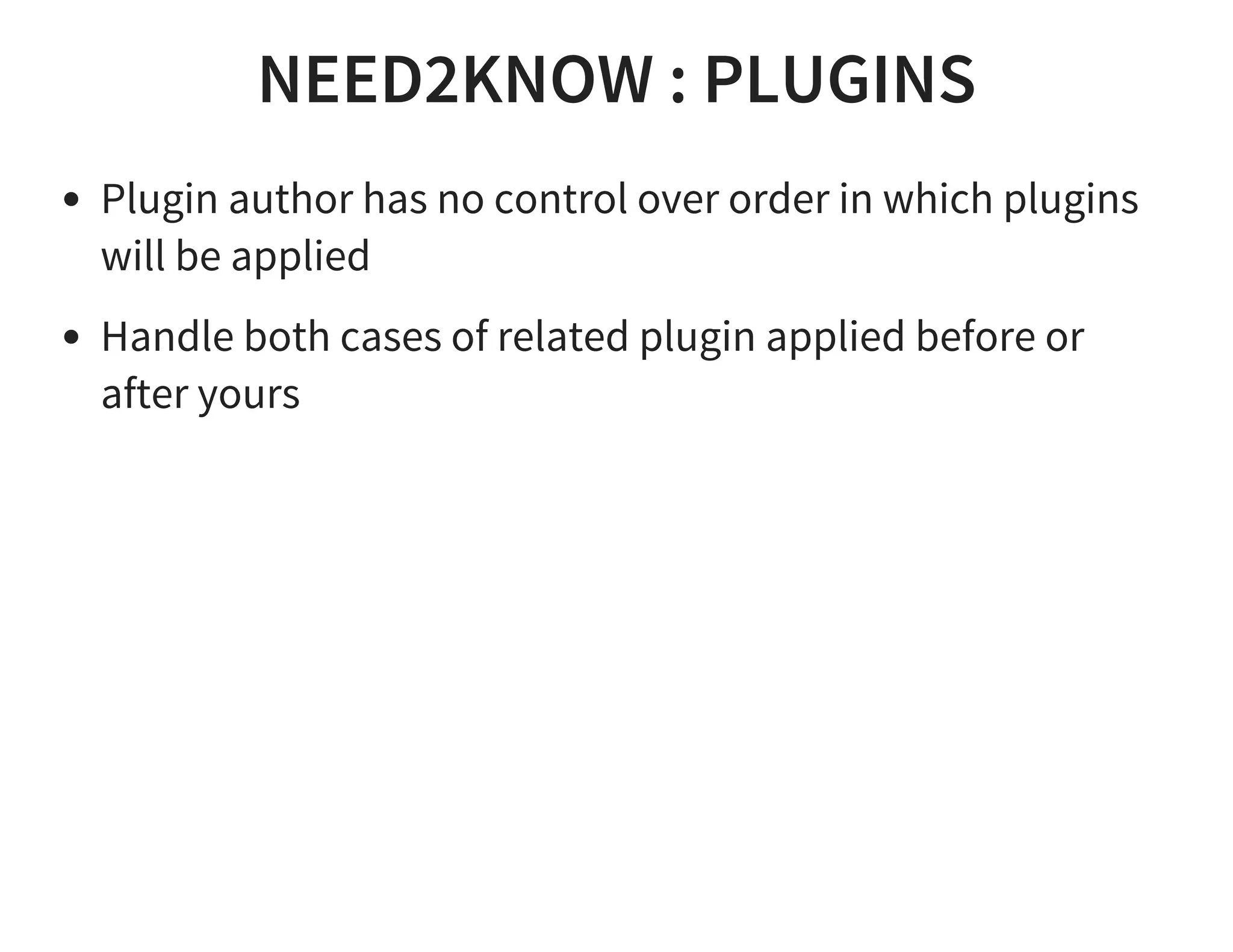

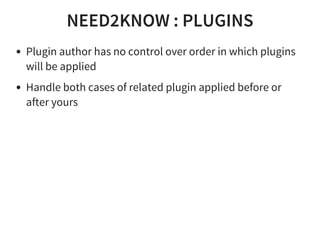

NEED2KNOW : PLUGINS
Plugin author has no control over order in which plugins
will be applied
Handle both cases of related plugin applied before or
after yours

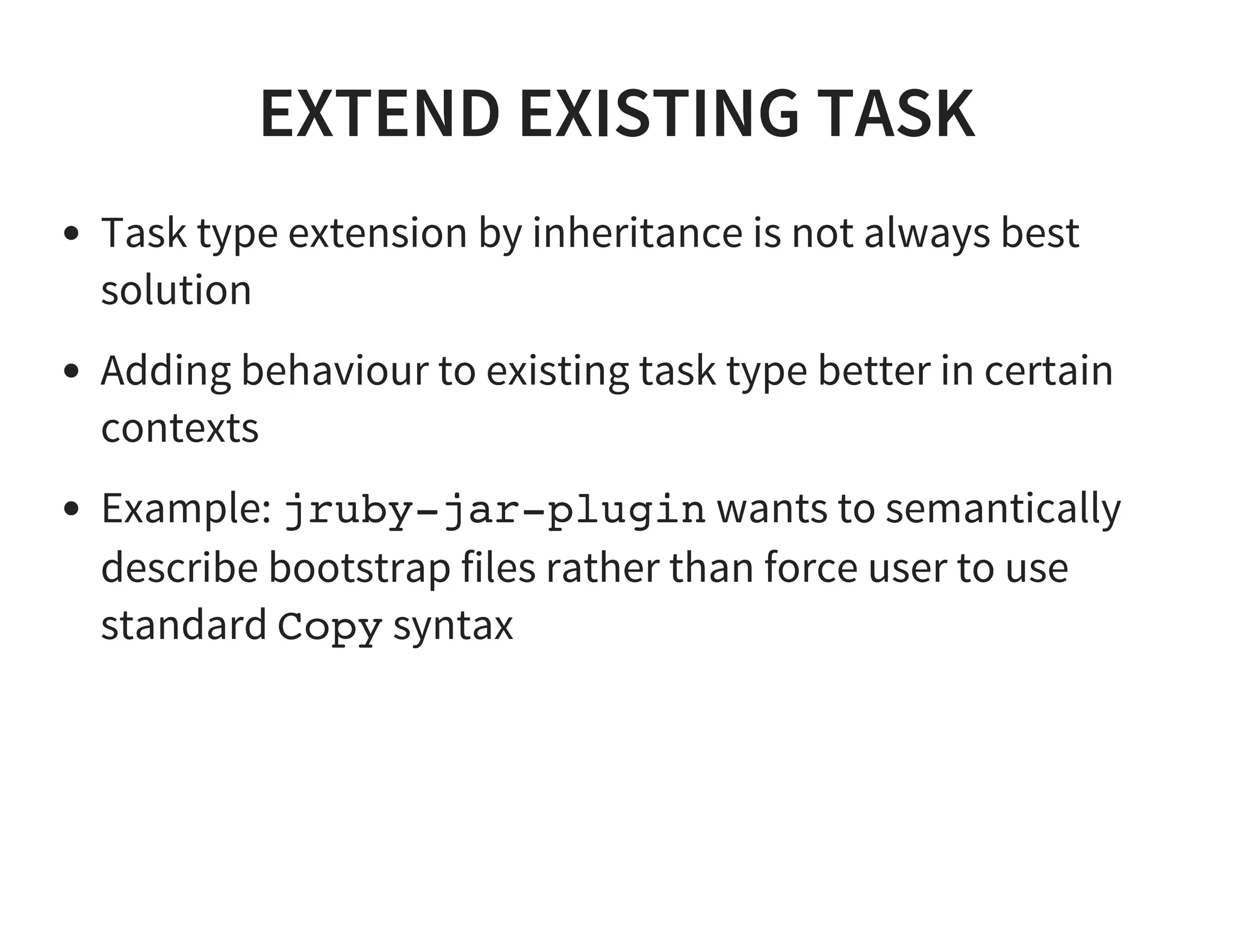

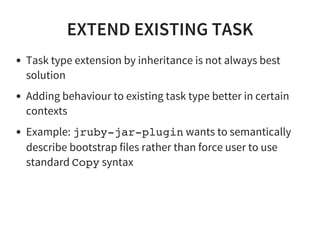

EXTEND EXISTING TASK
Task type extension by inheritance is not always best
solution
Adding behaviour to existing task type better in certain
contexts
Example: jruby-jar-plugin wants to semantically
describe bootstrap files rather than force user to use
standard Copy syntax

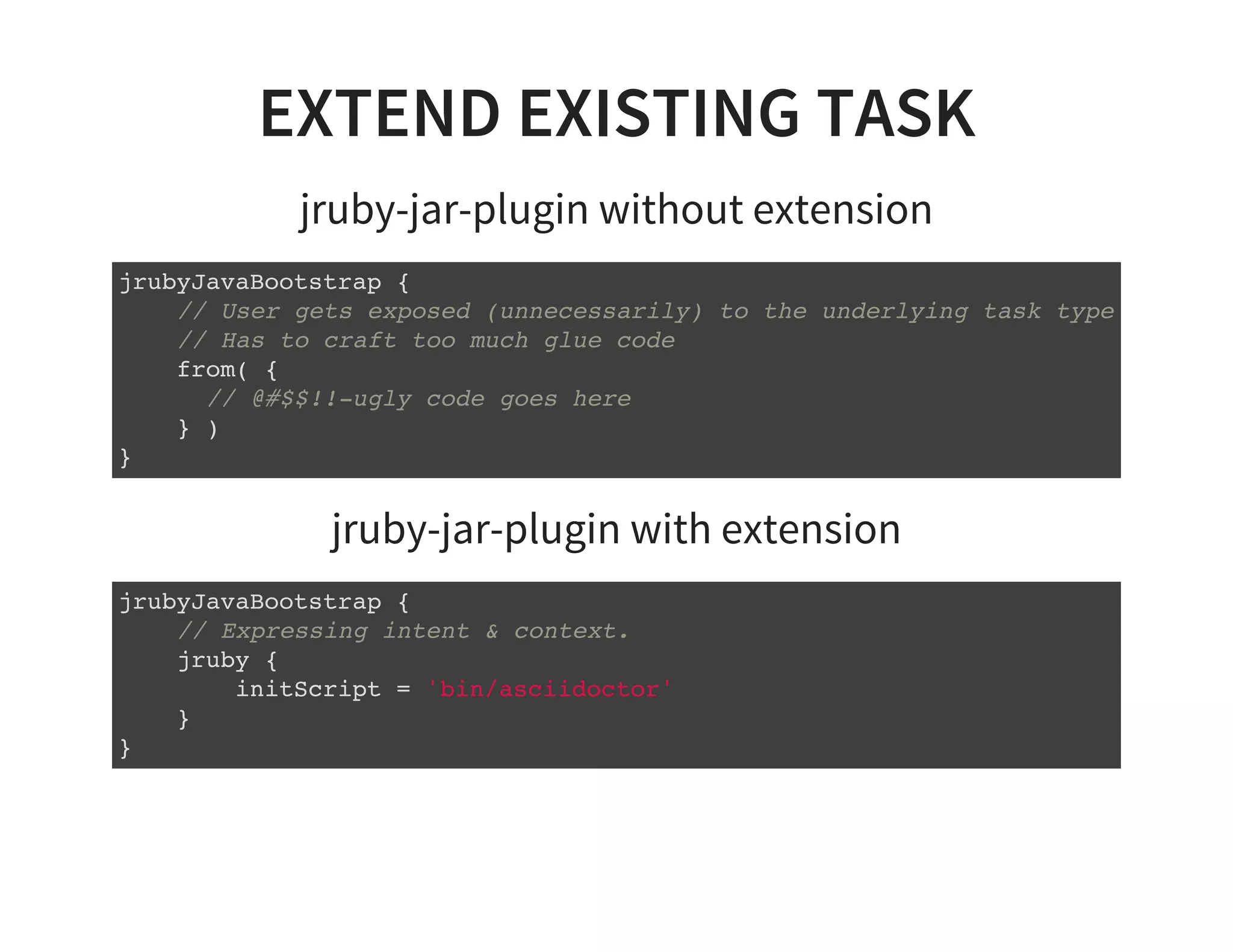

EXTEND EXISTING TASK
jruby-jar-plugin without extension
jrubyJavaBootstrap {
// User gets exposed (unnecessarily) to the underlying task type
// Has to craft too much glue code
from( {
// @#$$!!-ugly code goes here
} )
}
jruby-jar-plugin with extension
jrubyJavaBootstrap {
// Expressing intent & context.
jruby {
initScript = 'bin/asciidoctor'
}
}

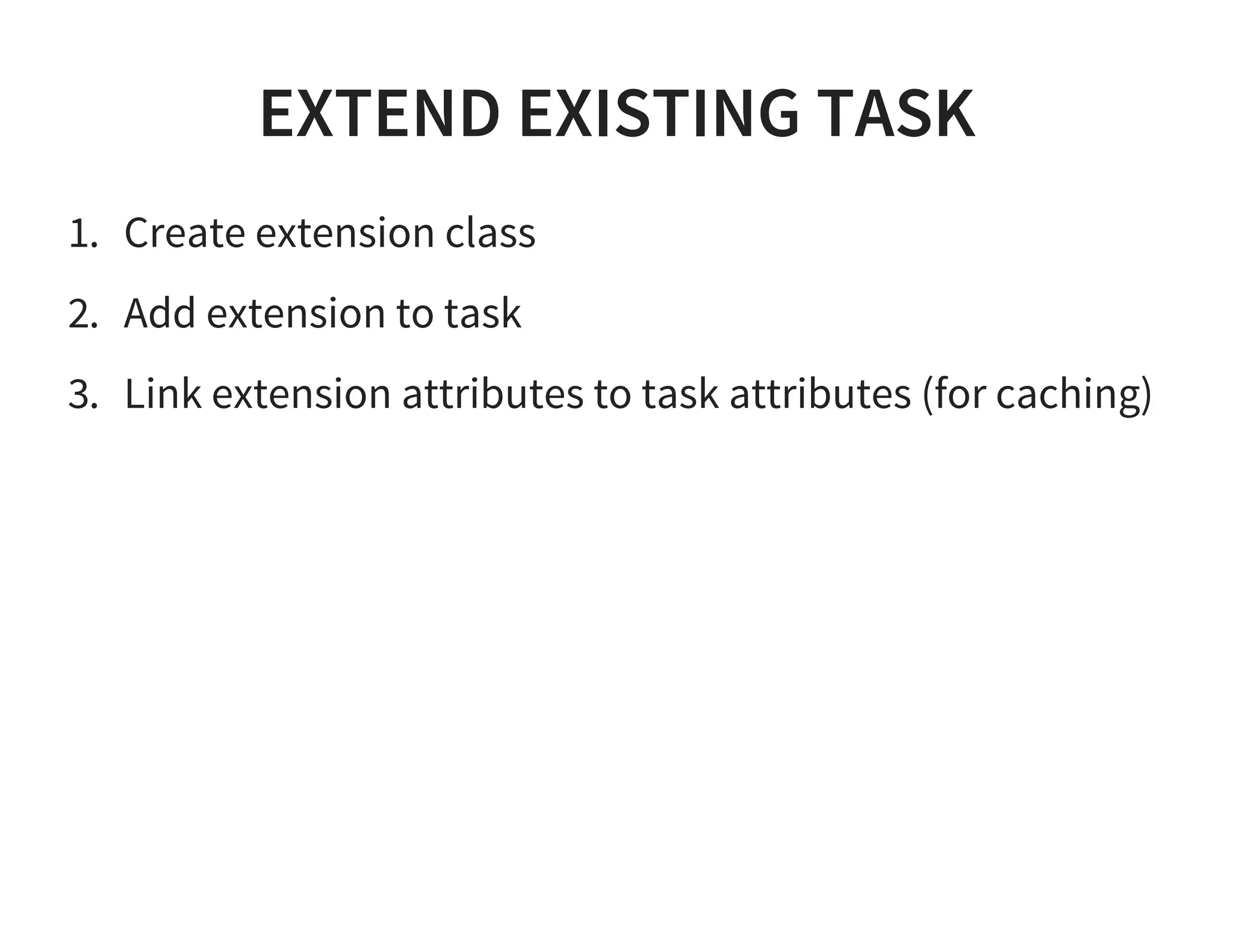

EXTEND EXISTING TASK
1. Create extension class
2. Add extension to task
3. Link extension attributes to task attributes (for caching)

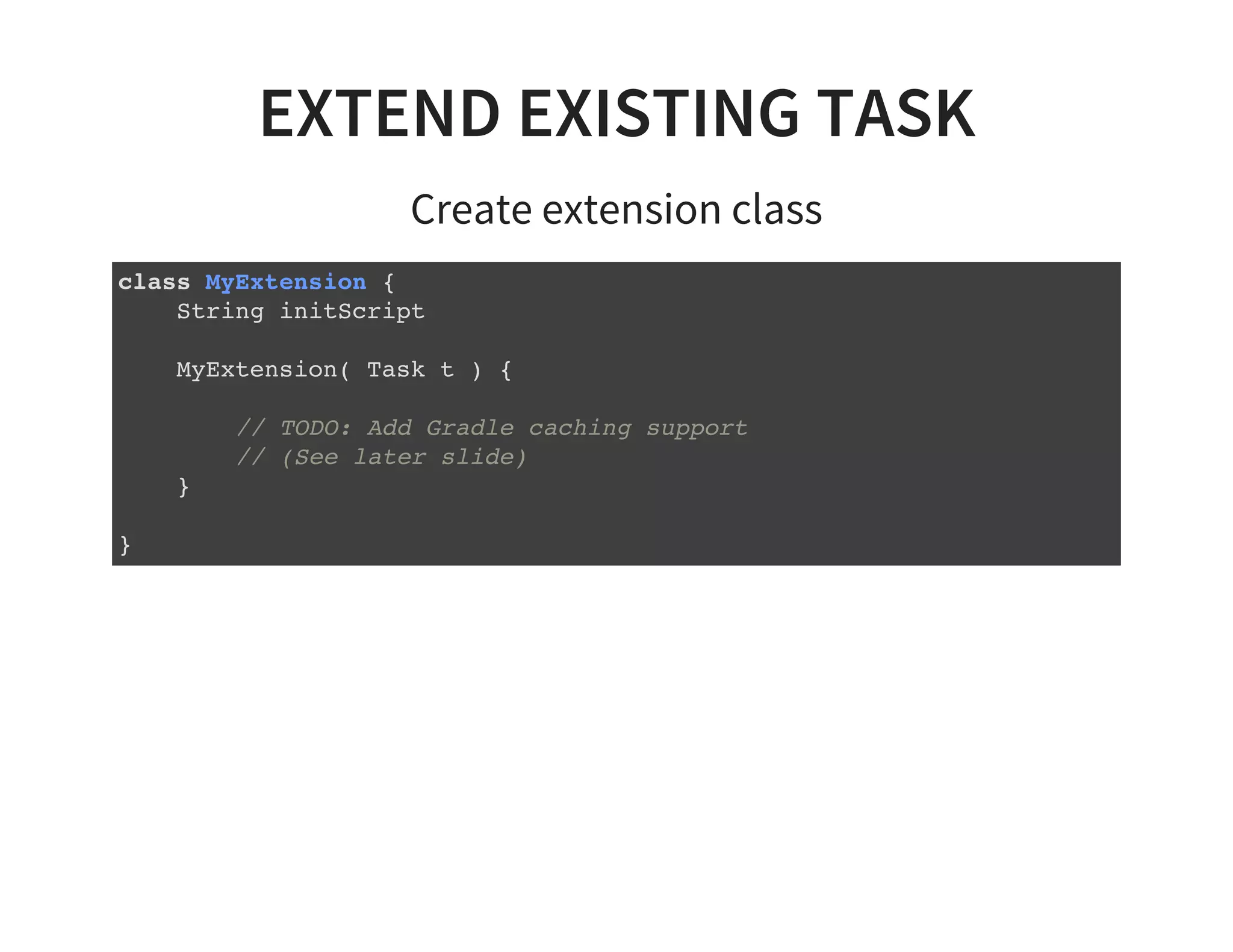

EXTEND EXISTING TASK
Create extension class
class MyExtension {
String initScript
MyExtension( Task t ) {
// TODO: Add Gradle caching support
// (See later slide)
}
}

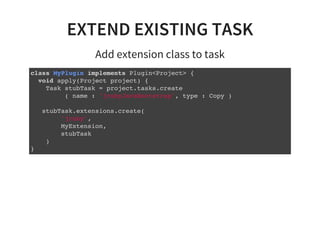

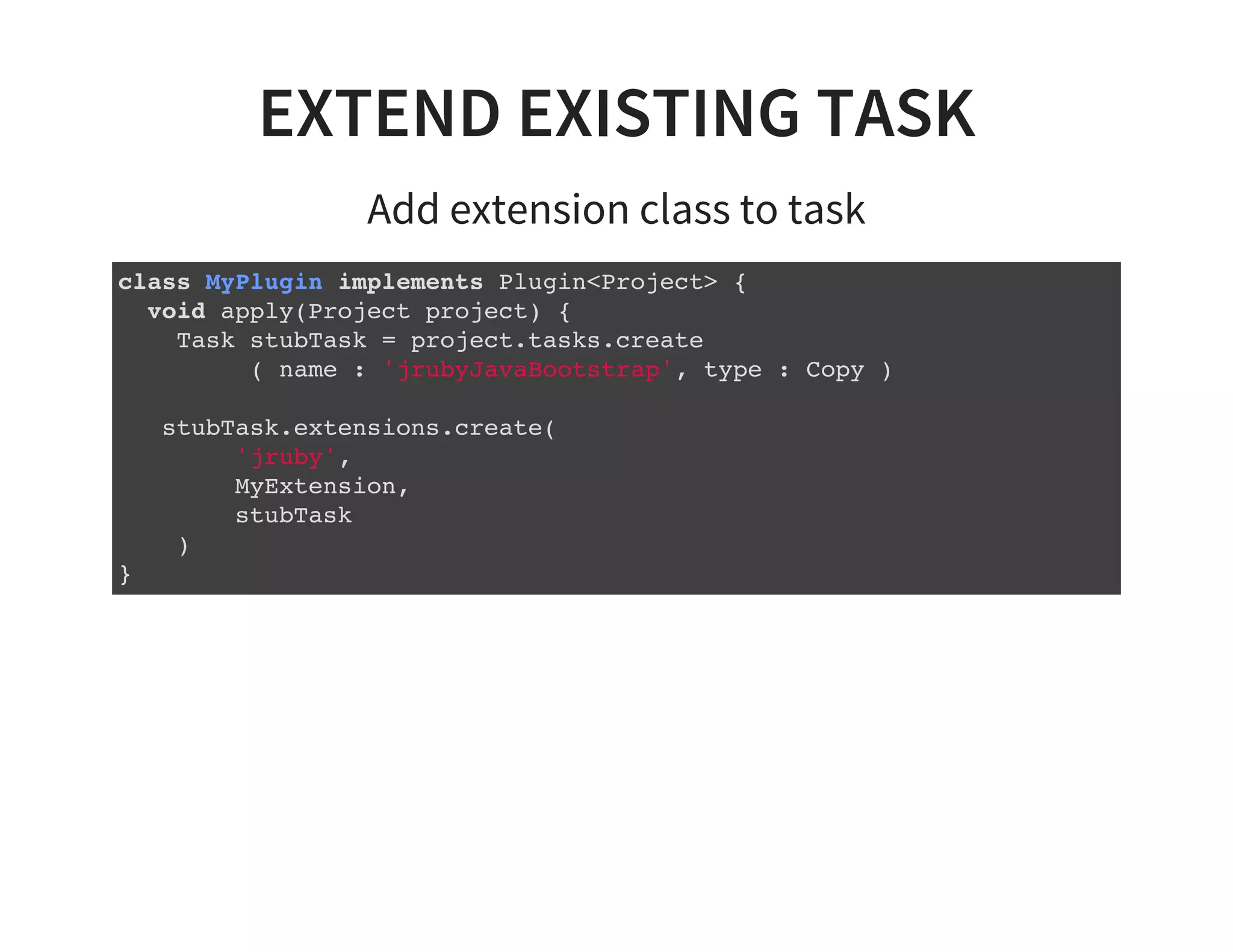

EXTEND EXISTING TASK
Add extension class to task
class MyPlugin implements Plugin<Project> {
void apply(Project project) {
Task stubTask = project.tasks.create
( name : 'jrubyJavaBootstrap', type : Copy )
stubTask.extensions.create(
'jruby',
MyExtension,
stubTask
)
}

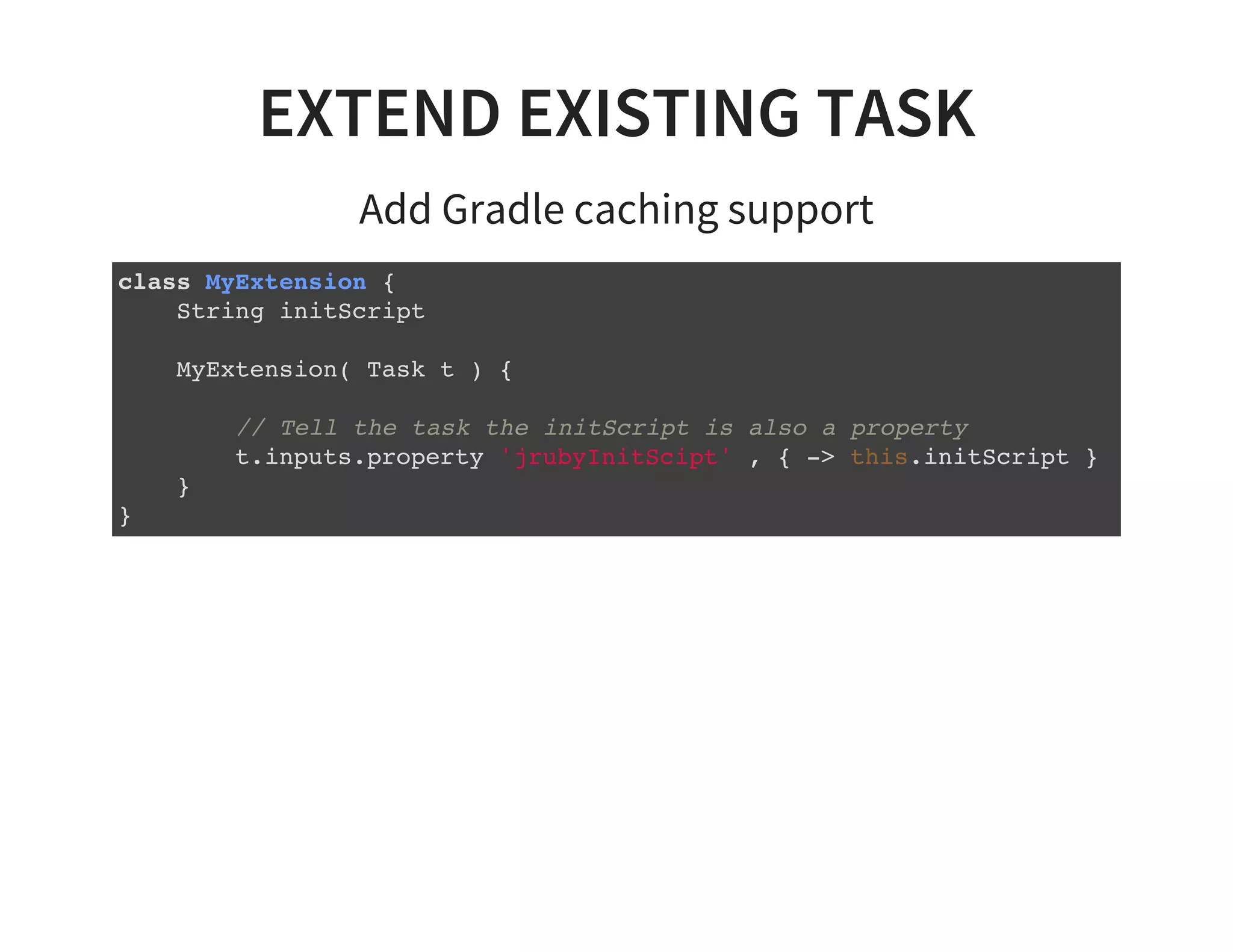

EXTEND EXISTING TASK
Add Gradle caching support
class MyExtension {
String initScript
MyExtension( Task t ) {
// Tell the task the initScript is also a property
t.inputs.property 'jrubyInitScipt' , { -> this.initScript }
}
}

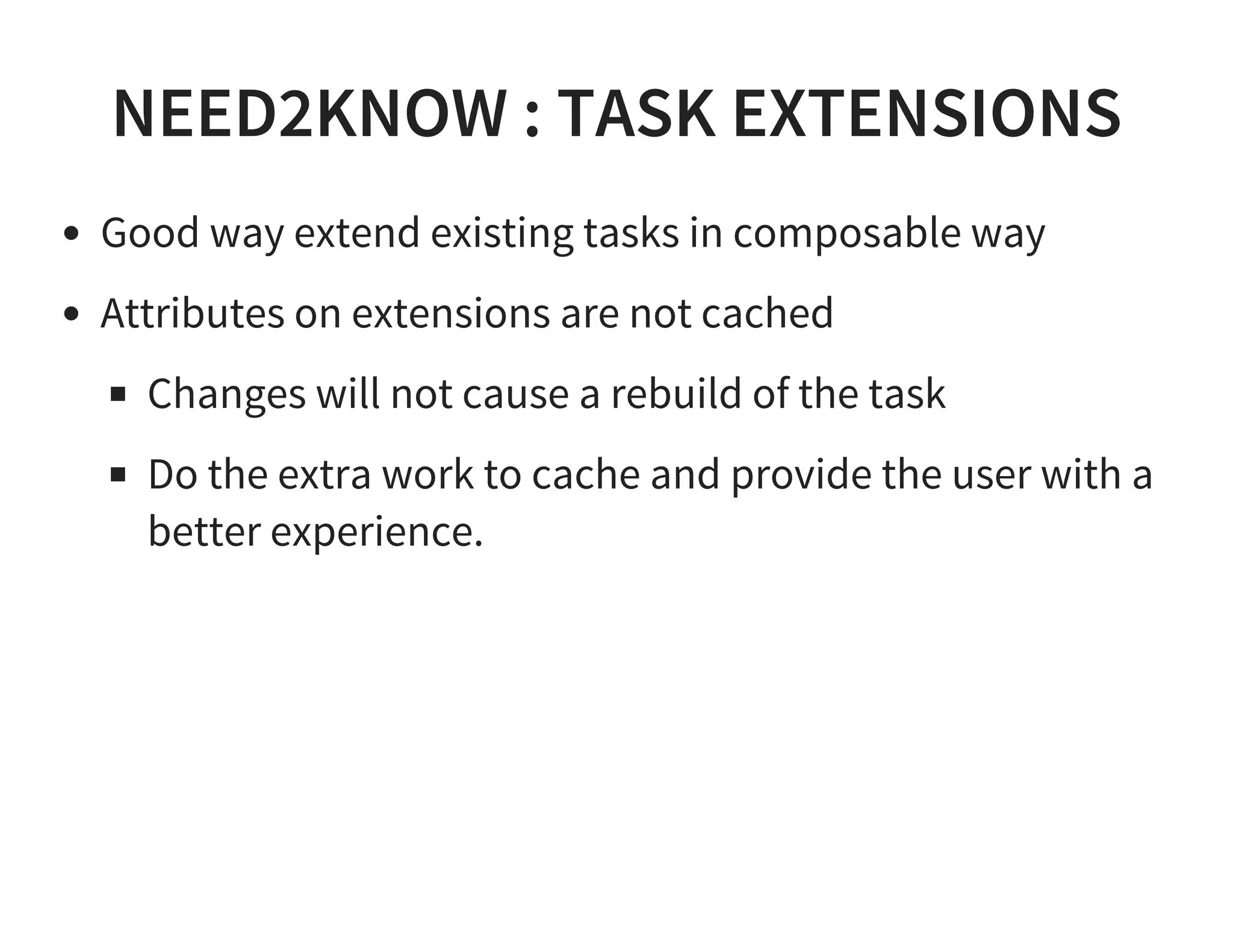

NEED2KNOW : TASK EXTENSIONS
Good way extend existing tasks in composable way
Attributes on extensions are not cached
Changes will not cause a rebuild of the task
Do the extra work to cache and provide the user with a
better experience.

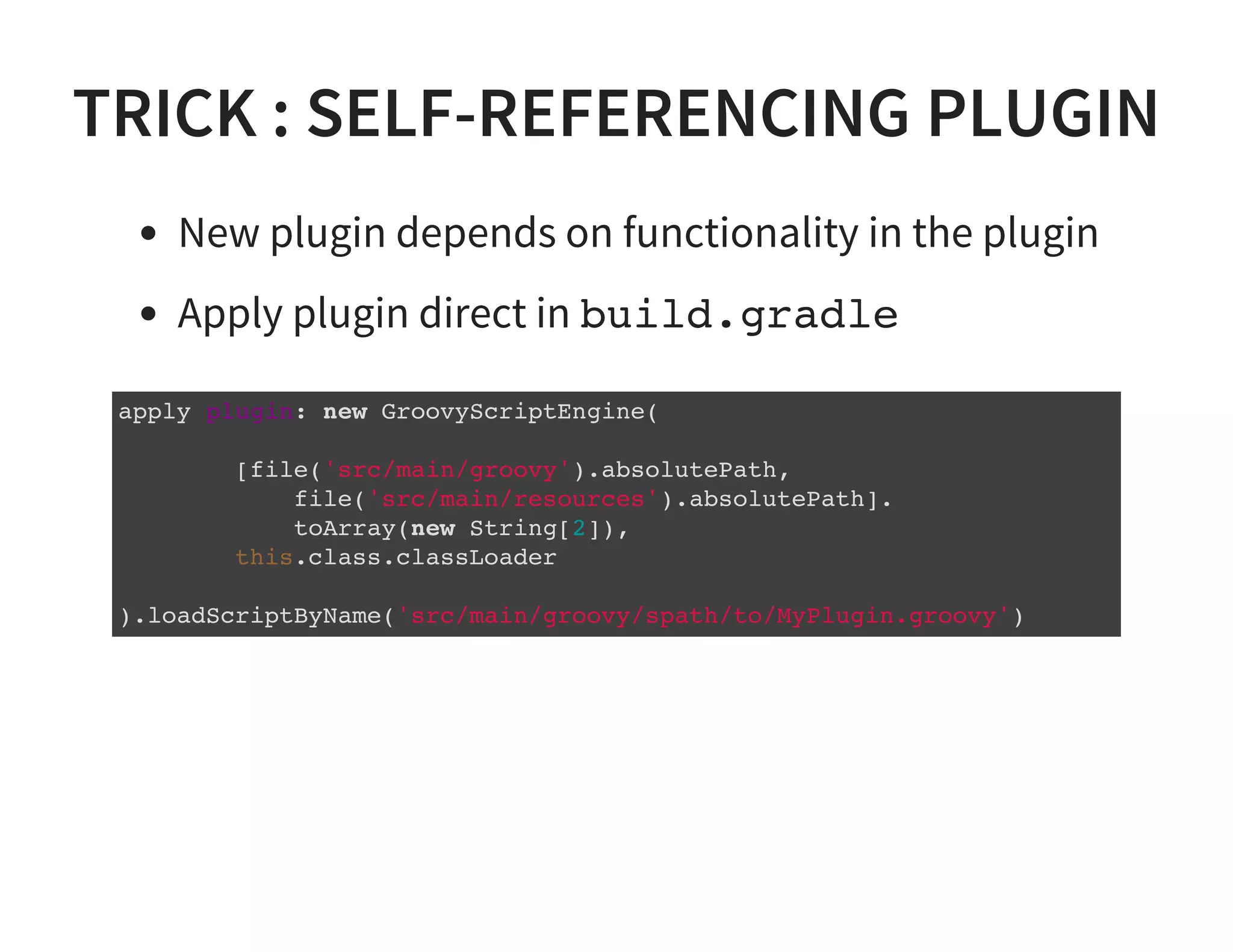

TRICK : SELF-REFERENCING PLUGIN
New plugin depends on functionality in the plugin
Apply plugin direct in build.gradle
apply plugin: new GroovyScriptEngine(
[file('src/main/groovy').absolutePath,
file('src/main/resources').absolutePath].
toArray(new String[2]),
this.class.classLoader
).loadScriptByName('src/main/groovy/spath/to/MyPlugin.groovy')

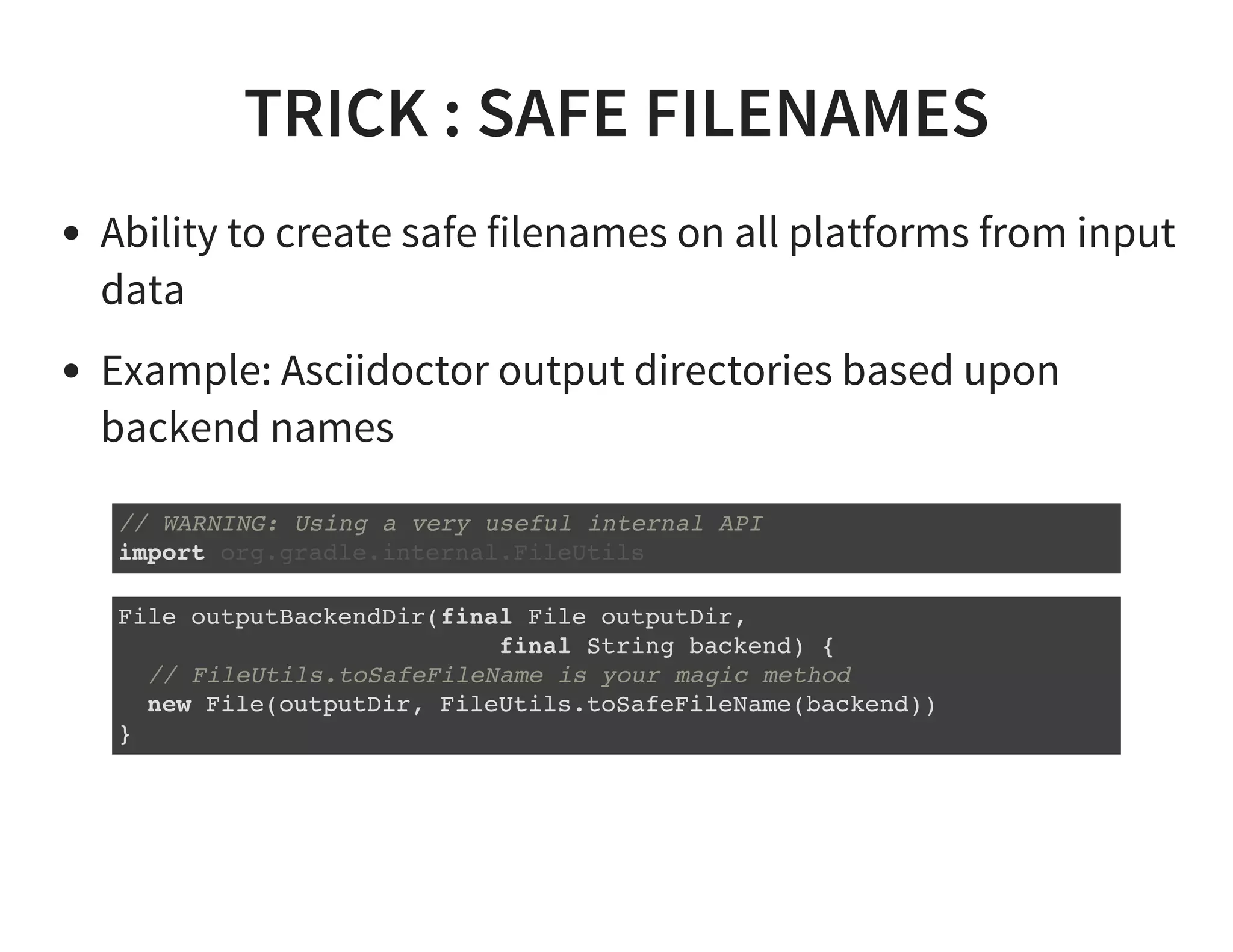

TRICK : SAFE FILENAMES
Ability to create safe filenames on all platforms from input
data
Example: Asciidoctor output directories based upon
backend names
// WARNING: Using a very useful internal API
import org.gradle.internal.FileUtils
File outputBackendDir(final File outputDir,
final String backend) {
// FileUtils.toSafeFileName is your magic method
new File(outputDir, FileUtils.toSafeFileName(backend))
}

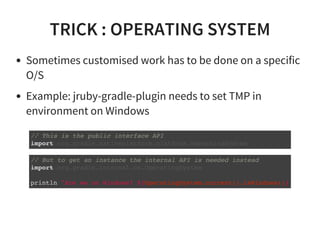

TRICK : OPERATING SYSTEM
Sometimes customised work has to be done on a specific
O/S
Example: jruby-gradle-plugin needs to set TMP in
environment on Windows
// This is the public interface API
import org.gradle.nativeplatform.platform.OperatingSystem
// But to get an instance the internal API is needed instead
import org.gradle.internal.os.OperatingSystem
println "Are we on Windows? ${OperatingSystem.current().isWindows()}

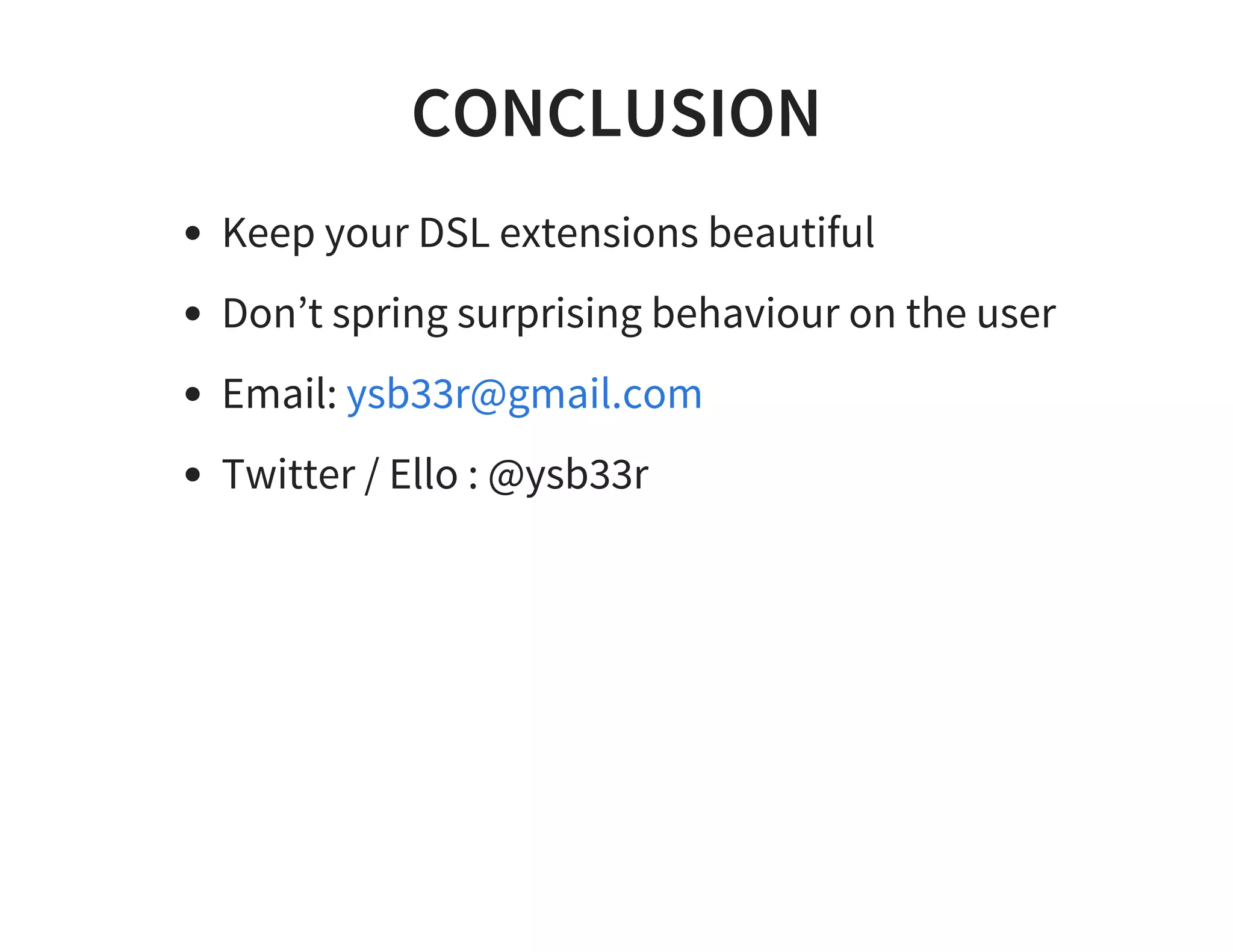

CONCLUSION
Keep your DSL extensions beautiful
Don’t spring surprising behaviour on the user
Email:
Twitter / Ello : @ysb33r
ysb33r@gmail.com

More Related Content

What's hot

Idiomatic Gradle Plugin Writing
Idiomatic Gradle Plugin WritingIdiomatic Gradle Plugin Writing
Idiomatic Gradle Plugin Writing
Schalk Cronjé

Idiomatic Gradle Plugin Writing
Idiomatic Gradle Plugin WritingIdiomatic Gradle Plugin Writing
Idiomatic Gradle Plugin Writing
Schalk Cronjé

Gradle build tool that rocks with DSL JavaOne India 4th May 2012
Gradle build tool that rocks with DSL JavaOne India 4th May 2012Gradle build tool that rocks with DSL JavaOne India 4th May 2012
Gradle build tool that rocks with DSL JavaOne India 4th May 2012
Rajmahendra Hegde

Gradle in a Polyglot World
Gradle in a Polyglot WorldGradle in a Polyglot World
Gradle in a Polyglot World
Schalk Cronjé

Gradle
GradleGradle
うさぎ組 in G* WorkShop -うさみみの日常-
うさぎ組 in G* WorkShop -うさみみの日常-うさぎ組 in G* WorkShop -うさみみの日常-
うさぎ組 in G* WorkShop -うさみみの日常-
kyon mm

In the Brain of Hans Dockter: Gradle
In the Brain of Hans Dockter: GradleIn the Brain of Hans Dockter: Gradle
In the Brain of Hans Dockter: Gradle
Skills Matter

Gradle: The Build System you have been waiting for!
Gradle: The Build System you have been waiting for!Gradle: The Build System you have been waiting for!
Gradle: The Build System you have been waiting for!
Corneil du Plessis

Gradle talk, Javarsovia 2010
Gradle talk, Javarsovia 2010Gradle talk, Javarsovia 2010
Gradle talk, Javarsovia 2010
Tomek Kaczanowski

Custom deployments with sbt-native-packager
Custom deployments with sbt-native-packagerCustom deployments with sbt-native-packager
Custom deployments with sbt-native-packager
GaryCoady

Js tacktalk team dev js testing performance
Js tacktalk team dev js testing performanceJs tacktalk team dev js testing performance
Js tacktalk team dev js testing performance
Артем Захарченко

Ship your Scala code often and easy with Docker
Ship your Scala code often and easy with DockerShip your Scala code often and easy with Docker
Ship your Scala code often and easy with Docker
Marcus Lönnberg

groovy & grails - lecture 10
groovy & grails - lecture 10groovy & grails - lecture 10
groovy & grails - lecture 10
Alexandre Masselot

Continous delivery with sbt
Continous delivery with sbtContinous delivery with sbt
Continous delivery with sbt
Wojciech Pituła

OrientDB - The 2nd generation of (multi-model) NoSQL
OrientDB - The 2nd generation of  (multi-model) NoSQLOrientDB - The 2nd generation of  (multi-model) NoSQL
OrientDB - The 2nd generation of (multi-model) NoSQL
Roberto Franchini

10 Cool Facts about Gradle
10 Cool Facts about Gradle10 Cool Facts about Gradle
10 Cool Facts about Gradle
Evgeny Goldin

SBT Crash Course
SBT Crash CourseSBT Crash Course
SBT Crash Course
Michal Bigos

Simple Build Tool
Simple Build ToolSimple Build Tool
Simple Build Tool
David Galichet

Midiendo la calidad de código en WTF/Min (Revisado EUI Abril 2014)
Midiendo la calidad de código en WTF/Min (Revisado EUI Abril 2014)Midiendo la calidad de código en WTF/Min (Revisado EUI Abril 2014)
Midiendo la calidad de código en WTF/Min (Revisado EUI Abril 2014)
David Gómez García

Java Libraries You Can’t Afford to Miss
Java Libraries You Can’t Afford to MissJava Libraries You Can’t Afford to Miss
Java Libraries You Can’t Afford to Miss
Andres Almiray


What's hot (20)

Idiomatic Gradle Plugin Writing
Idiomatic Gradle Plugin WritingIdiomatic Gradle Plugin Writing
Idiomatic Gradle Plugin Writing

Idiomatic Gradle Plugin Writing
Idiomatic Gradle Plugin WritingIdiomatic Gradle Plugin Writing
Idiomatic Gradle Plugin Writing

Gradle build tool that rocks with DSL JavaOne India 4th May 2012
Gradle build tool that rocks with DSL JavaOne India 4th May 2012Gradle build tool that rocks with DSL JavaOne India 4th May 2012
Gradle build tool that rocks with DSL JavaOne India 4th May 2012

Gradle in a Polyglot World
Gradle in a Polyglot WorldGradle in a Polyglot World
Gradle in a Polyglot World

Gradle
GradleGradle
Gradle

うさぎ組 in G* WorkShop -うさみみの日常-
うさぎ組 in G* WorkShop -うさみみの日常-うさぎ組 in G* WorkShop -うさみみの日常-
うさぎ組 in G* WorkShop -うさみみの日常-

In the Brain of Hans Dockter: Gradle
In the Brain of Hans Dockter: GradleIn the Brain of Hans Dockter: Gradle
In the Brain of Hans Dockter: Gradle

Gradle: The Build System you have been waiting for!
Gradle: The Build System you have been waiting for!Gradle: The Build System you have been waiting for!
Gradle: The Build System you have been waiting for!

Gradle talk, Javarsovia 2010
Gradle talk, Javarsovia 2010Gradle talk, Javarsovia 2010
Gradle talk, Javarsovia 2010

Custom deployments with sbt-native-packager
Custom deployments with sbt-native-packagerCustom deployments with sbt-native-packager
Custom deployments with sbt-native-packager

Js tacktalk team dev js testing performance
Js tacktalk team dev js testing performanceJs tacktalk team dev js testing performance
Js tacktalk team dev js testing performance

Ship your Scala code often and easy with Docker
Ship your Scala code often and easy with DockerShip your Scala code often and easy with Docker
Ship your Scala code often and easy with Docker

groovy & grails - lecture 10
groovy & grails - lecture 10groovy & grails - lecture 10
groovy & grails - lecture 10

Continous delivery with sbt
Continous delivery with sbtContinous delivery with sbt
Continous delivery with sbt

OrientDB - The 2nd generation of (multi-model) NoSQL
OrientDB - The 2nd generation of  (multi-model) NoSQLOrientDB - The 2nd generation of  (multi-model) NoSQL
OrientDB - The 2nd generation of (multi-model) NoSQL

10 Cool Facts about Gradle
10 Cool Facts about Gradle10 Cool Facts about Gradle
10 Cool Facts about Gradle

SBT Crash Course
SBT Crash CourseSBT Crash Course
SBT Crash Course

Simple Build Tool
Simple Build ToolSimple Build Tool
Simple Build Tool

Midiendo la calidad de código en WTF/Min (Revisado EUI Abril 2014)
Midiendo la calidad de código en WTF/Min (Revisado EUI Abril 2014)Midiendo la calidad de código en WTF/Min (Revisado EUI Abril 2014)
Midiendo la calidad de código en WTF/Min (Revisado EUI Abril 2014)

Java Libraries You Can’t Afford to Miss
Java Libraries You Can’t Afford to MissJava Libraries You Can’t Afford to Miss
Java Libraries You Can’t Afford to Miss


Viewers also liked

Creating Gradle Plugins
Creating Gradle PluginsCreating Gradle Plugins
Creating Gradle Plugins
Annyce Davis

Down the Rabbit Hole: An Adventure in JVM Wonderland
Down the Rabbit Hole: An Adventure in JVM WonderlandDown the Rabbit Hole: An Adventure in JVM Wonderland
Down the Rabbit Hole: An Adventure in JVM Wonderland
Charles Nutter

Dependencies and Licenses
Dependencies and LicensesDependencies and Licenses
Dependencies and Licenses
Robert Reiz

XSLT and XPath - without the pain!
XSLT and XPath - without the pain!XSLT and XPath - without the pain!
XSLT and XPath - without the pain!
Bertrand Delacretaz

Living with Garbage by Gregg Donovan at LuceneSolr Revolution 2013
Living with Garbage by Gregg Donovan at LuceneSolr Revolution 2013Living with Garbage by Gregg Donovan at LuceneSolr Revolution 2013
Living with Garbage by Gregg Donovan at LuceneSolr Revolution 2013
Gregg Donovan

(Greach 2015) Dsl'ing your Groovy
(Greach 2015) Dsl'ing your Groovy(Greach 2015) Dsl'ing your Groovy
(Greach 2015) Dsl'ing your Groovy
Alonso Torres

Gradle by Example
Gradle by ExampleGradle by Example
Gradle by Example
Eric Wendelin

Continuous Deployment at Etsy: A Tale of Two Approaches
Continuous Deployment at Etsy: A Tale of Two ApproachesContinuous Deployment at Etsy: A Tale of Two Approaches
Continuous Deployment at Etsy: A Tale of Two Approaches
Ross Snyder


Viewers also liked (8)

Creating Gradle Plugins
Creating Gradle PluginsCreating Gradle Plugins
Creating Gradle Plugins

Down the Rabbit Hole: An Adventure in JVM Wonderland
Down the Rabbit Hole: An Adventure in JVM WonderlandDown the Rabbit Hole: An Adventure in JVM Wonderland
Down the Rabbit Hole: An Adventure in JVM Wonderland

Dependencies and Licenses
Dependencies and LicensesDependencies and Licenses
Dependencies and Licenses

XSLT and XPath - without the pain!
XSLT and XPath - without the pain!XSLT and XPath - without the pain!
XSLT and XPath - without the pain!

Living with Garbage by Gregg Donovan at LuceneSolr Revolution 2013
Living with Garbage by Gregg Donovan at LuceneSolr Revolution 2013Living with Garbage by Gregg Donovan at LuceneSolr Revolution 2013
Living with Garbage by Gregg Donovan at LuceneSolr Revolution 2013

(Greach 2015) Dsl'ing your Groovy
(Greach 2015) Dsl'ing your Groovy(Greach 2015) Dsl'ing your Groovy
(Greach 2015) Dsl'ing your Groovy

Gradle by Example
Gradle by ExampleGradle by Example
Gradle by Example

Continuous Deployment at Etsy: A Tale of Two Approaches
Continuous Deployment at Etsy: A Tale of Two ApproachesContinuous Deployment at Etsy: A Tale of Two Approaches
Continuous Deployment at Etsy: A Tale of Two Approaches


Similar to Idiomatic gradle plugin writing

Gradle plugin, take control of the build
Gradle plugin, take control of the buildGradle plugin, take control of the build
Gradle plugin, take control of the build
Eyal Lezmy

GradleFX
GradleFXGradleFX
Making the Most of Your Gradle Build
Making the Most of Your Gradle BuildMaking the Most of Your Gradle Build
Making the Most of Your Gradle Build
Andres Almiray

Anatomy of a Gradle plugin
Anatomy of a Gradle pluginAnatomy of a Gradle plugin
Anatomy of a Gradle plugin
Dmytro Zaitsev

Making the Most of Your Gradle Build
Making the Most of Your Gradle BuildMaking the Most of Your Gradle Build
Making the Most of Your Gradle Build
Andres Almiray

Improving your Gradle builds
Improving your Gradle buildsImproving your Gradle builds
Improving your Gradle builds
Peter Ledbrook

Making the most of your gradle build - Gr8Conf 2017
Making the most of your gradle build - Gr8Conf 2017Making the most of your gradle build - Gr8Conf 2017
Making the most of your gradle build - Gr8Conf 2017
Andres Almiray

Making the most of your gradle build - Greach 2017
Making the most of your gradle build - Greach 2017Making the most of your gradle build - Greach 2017
Making the most of your gradle build - Greach 2017
Andres Almiray

Gradle - small introduction
Gradle - small introductionGradle - small introduction
Gradle - small introduction
Igor Popov

Dependency injection in scala
Dependency injection in scalaDependency injection in scala
Dependency injection in scala
Michal Bigos

Ejb3 Struts Tutorial En
Ejb3 Struts Tutorial EnEjb3 Struts Tutorial En
Ejb3 Struts Tutorial En
Ankur Dongre

Ejb3 Struts Tutorial En
Ejb3 Struts Tutorial EnEjb3 Struts Tutorial En
Ejb3 Struts Tutorial En
Ankur Dongre

Gradle Introduction
Gradle IntroductionGradle Introduction
Gradle Introduction
Dmitry Buzdin

Gradleintroduction 111010130329-phpapp01
Gradleintroduction 111010130329-phpapp01Gradleintroduction 111010130329-phpapp01
Gradleintroduction 111010130329-phpapp01
Tino Isnich

Building maintainable javascript applications
Building maintainable javascript applicationsBuilding maintainable javascript applications
Building maintainable javascript applications
equisodie

Android presentation - Gradle ++
Android presentation - Gradle ++Android presentation - Gradle ++
Android presentation - Gradle ++
Javier de Pedro López

Faster Java EE Builds with Gradle
Faster Java EE Builds with GradleFaster Java EE Builds with Gradle
Faster Java EE Builds with Gradle
Ryan Cuprak

Faster Java EE Builds with Gradle
Faster Java EE Builds with GradleFaster Java EE Builds with Gradle
Faster Java EE Builds with Gradle
Ryan Cuprak

Spock
SpockSpock
Sencha / ExtJS : Object Oriented JavaScript
Sencha / ExtJS : Object Oriented JavaScriptSencha / ExtJS : Object Oriented JavaScript
Sencha / ExtJS : Object Oriented JavaScript
Rohan Chandane


Similar to Idiomatic gradle plugin writing (20)

Gradle plugin, take control of the build
Gradle plugin, take control of the buildGradle plugin, take control of the build
Gradle plugin, take control of the build

GradleFX
GradleFXGradleFX
GradleFX

Making the Most of Your Gradle Build
Making the Most of Your Gradle BuildMaking the Most of Your Gradle Build
Making the Most of Your Gradle Build

Anatomy of a Gradle plugin
Anatomy of a Gradle pluginAnatomy of a Gradle plugin
Anatomy of a Gradle plugin

Making the Most of Your Gradle Build
Making the Most of Your Gradle BuildMaking the Most of Your Gradle Build
Making the Most of Your Gradle Build

Improving your Gradle builds
Improving your Gradle buildsImproving your Gradle builds
Improving your Gradle builds

Making the most of your gradle build - Gr8Conf 2017
Making the most of your gradle build - Gr8Conf 2017Making the most of your gradle build - Gr8Conf 2017
Making the most of your gradle build - Gr8Conf 2017

Making the most of your gradle build - Greach 2017
Making the most of your gradle build - Greach 2017Making the most of your gradle build - Greach 2017
Making the most of your gradle build - Greach 2017

Gradle - small introduction
Gradle - small introductionGradle - small introduction
Gradle - small introduction

Dependency injection in scala
Dependency injection in scalaDependency injection in scala
Dependency injection in scala

Ejb3 Struts Tutorial En
Ejb3 Struts Tutorial EnEjb3 Struts Tutorial En
Ejb3 Struts Tutorial En

Ejb3 Struts Tutorial En
Ejb3 Struts Tutorial EnEjb3 Struts Tutorial En
Ejb3 Struts Tutorial En

Gradle Introduction
Gradle IntroductionGradle Introduction
Gradle Introduction

Gradleintroduction 111010130329-phpapp01
Gradleintroduction 111010130329-phpapp01Gradleintroduction 111010130329-phpapp01
Gradleintroduction 111010130329-phpapp01

Building maintainable javascript applications
Building maintainable javascript applicationsBuilding maintainable javascript applications
Building maintainable javascript applications

Android presentation - Gradle ++
Android presentation - Gradle ++Android presentation - Gradle ++
Android presentation - Gradle ++

Faster Java EE Builds with Gradle
Faster Java EE Builds with GradleFaster Java EE Builds with Gradle
Faster Java EE Builds with Gradle

Faster Java EE Builds with Gradle
Faster Java EE Builds with GradleFaster Java EE Builds with Gradle
Faster Java EE Builds with Gradle

Spock
SpockSpock
Spock

Sencha / ExtJS : Object Oriented JavaScript
Sencha / ExtJS : Object Oriented JavaScriptSencha / ExtJS : Object Oriented JavaScript
Sencha / ExtJS : Object Oriented JavaScript


More from Schalk Cronjé

DocuOps & Asciidoctor in a JVM World
DocuOps & Asciidoctor in a JVM WorldDocuOps & Asciidoctor in a JVM World
DocuOps & Asciidoctor in a JVM World
Schalk Cronjé

DocuOps & Asciidoctor
DocuOps & AsciidoctorDocuOps & Asciidoctor
DocuOps & Asciidoctor
Schalk Cronjé

What's new in Asciidoctor
What's new in AsciidoctorWhat's new in Asciidoctor
What's new in Asciidoctor
Schalk Cronjé

Probability Management
Probability ManagementProbability Management
Probability Management
Schalk Cronjé

Seeking Enligtenment - A journey of purpose rather than instruction
Seeking Enligtenment  - A journey of purpose rather than instructionSeeking Enligtenment  - A journey of purpose rather than instruction
Seeking Enligtenment - A journey of purpose rather than instruction
Schalk Cronjé

Seeking Enligtenment - A journey of purpose rather tan instruction
Seeking Enligtenment - A journey of purpose rather tan instructionSeeking Enligtenment - A journey of purpose rather tan instruction
Seeking Enligtenment - A journey of purpose rather tan instruction
Schalk Cronjé

Beyond Estimates - Probability Management
Beyond Estimates - Probability ManagementBeyond Estimates - Probability Management
Beyond Estimates - Probability Management
Schalk Cronjé

Documentation An Engineering Problem Unsolved
Documentation  An Engineering Problem UnsolvedDocumentation  An Engineering Problem Unsolved
Documentation An Engineering Problem Unsolved
Schalk Cronjé

Death of Agile : Welcome to Value-focused Testing
Death of Agile : Welcome to Value-focused TestingDeath of Agile : Welcome to Value-focused Testing
Death of Agile : Welcome to Value-focused Testing
Schalk Cronjé

Asciidoctor in 15min
Asciidoctor in 15minAsciidoctor in 15min
Asciidoctor in 15min
Schalk Cronjé

Tree of Knowledge - About Philosophy, Unity & Testing
Tree of Knowledge - About Philosophy, Unity & TestingTree of Knowledge - About Philosophy, Unity & Testing
Tree of Knowledge - About Philosophy, Unity & Testing
Schalk Cronjé

Beyond estimates - Overview at Agile:MK
Beyond estimates - Overview at Agile:MKBeyond estimates - Overview at Agile:MK
Beyond estimates - Overview at Agile:MK
Schalk Cronjé

Groovy VFS (with 1.0 news)
Groovy VFS (with 1.0 news)Groovy VFS (with 1.0 news)
Groovy VFS (with 1.0 news)
Schalk Cronjé

Beyond estimates - Reflection on the state of Agile Forecasting
Beyond estimates - Reflection on the state of Agile ForecastingBeyond estimates - Reflection on the state of Agile Forecasting
Beyond estimates - Reflection on the state of Agile Forecasting
Schalk Cronjé

Seeking enligtenment - A journey of "Why?" rather than "How?"
Seeking enligtenment - A journey of "Why?" rather than "How?"Seeking enligtenment - A journey of "Why?" rather than "How?"
Seeking enligtenment - A journey of "Why?" rather than "How?"
Schalk Cronjé

RfC2822 for Mere Mortals
RfC2822 for Mere MortalsRfC2822 for Mere Mortals
RfC2822 for Mere Mortals
Schalk Cronjé

Groovy VFS
Groovy VFSGroovy VFS
Groovy VFS
Schalk Cronjé

Prosperity-focused Agile Technology Leadership
Prosperity-focused Agile Technology LeadershipProsperity-focused Agile Technology Leadership
Prosperity-focused Agile Technology Leadership
Schalk Cronjé

Real World TDD
Real World TDDReal World TDD
Real World TDD
Schalk Cronjé


More from Schalk Cronjé (19)

DocuOps & Asciidoctor in a JVM World
DocuOps & Asciidoctor in a JVM WorldDocuOps & Asciidoctor in a JVM World
DocuOps & Asciidoctor in a JVM World

DocuOps & Asciidoctor
DocuOps & AsciidoctorDocuOps & Asciidoctor
DocuOps & Asciidoctor

What's new in Asciidoctor
What's new in AsciidoctorWhat's new in Asciidoctor
What's new in Asciidoctor

Probability Management
Probability ManagementProbability Management
Probability Management

Seeking Enligtenment - A journey of purpose rather than instruction
Seeking Enligtenment  - A journey of purpose rather than instructionSeeking Enligtenment  - A journey of purpose rather than instruction
Seeking Enligtenment - A journey of purpose rather than instruction

Seeking Enligtenment - A journey of purpose rather tan instruction
Seeking Enligtenment - A journey of purpose rather tan instructionSeeking Enligtenment - A journey of purpose rather tan instruction
Seeking Enligtenment - A journey of purpose rather tan instruction

Beyond Estimates - Probability Management
Beyond Estimates - Probability ManagementBeyond Estimates - Probability Management
Beyond Estimates - Probability Management

Documentation An Engineering Problem Unsolved
Documentation  An Engineering Problem UnsolvedDocumentation  An Engineering Problem Unsolved
Documentation An Engineering Problem Unsolved

Death of Agile : Welcome to Value-focused Testing
Death of Agile : Welcome to Value-focused TestingDeath of Agile : Welcome to Value-focused Testing
Death of Agile : Welcome to Value-focused Testing

Asciidoctor in 15min
Asciidoctor in 15minAsciidoctor in 15min
Asciidoctor in 15min

Tree of Knowledge - About Philosophy, Unity & Testing
Tree of Knowledge - About Philosophy, Unity & TestingTree of Knowledge - About Philosophy, Unity & Testing
Tree of Knowledge - About Philosophy, Unity & Testing

Beyond estimates - Overview at Agile:MK
Beyond estimates - Overview at Agile:MKBeyond estimates - Overview at Agile:MK
Beyond estimates - Overview at Agile:MK

Groovy VFS (with 1.0 news)
Groovy VFS (with 1.0 news)Groovy VFS (with 1.0 news)
Groovy VFS (with 1.0 news)

Beyond estimates - Reflection on the state of Agile Forecasting
Beyond estimates - Reflection on the state of Agile ForecastingBeyond estimates - Reflection on the state of Agile Forecasting
Beyond estimates - Reflection on the state of Agile Forecasting

Seeking enligtenment - A journey of "Why?" rather than "How?"
Seeking enligtenment - A journey of "Why?" rather than "How?"Seeking enligtenment - A journey of "Why?" rather than "How?"
Seeking enligtenment - A journey of "Why?" rather than "How?"

RfC2822 for Mere Mortals
RfC2822 for Mere MortalsRfC2822 for Mere Mortals
RfC2822 for Mere Mortals

Groovy VFS
Groovy VFSGroovy VFS
Groovy VFS

Prosperity-focused Agile Technology Leadership
Prosperity-focused Agile Technology LeadershipProsperity-focused Agile Technology Leadership
Prosperity-focused Agile Technology Leadership

Real World TDD
Real World TDDReal World TDD
Real World TDD


Recently uploaded

AWS Certified Solutions Architect Associate (SAA-C03)
AWS Certified Solutions Architect Associate (SAA-C03)AWS Certified Solutions Architect Associate (SAA-C03)
AWS Certified Solutions Architect Associate (SAA-C03)
HarpalGohil4

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP
c5vrf27qcz

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)
Javier Junquera

GlobalLogic Java Community Webinar #18 “How to Improve Web Application Perfor...
GlobalLogic Java Community Webinar #18 “How to Improve Web Application Perfor...GlobalLogic Java Community Webinar #18 “How to Improve Web Application Perfor...
GlobalLogic Java Community Webinar #18 “How to Improve Web Application Perfor...
GlobalLogic Ukraine

Containers & AI - Beauty and the Beast!?!
Containers & AI - Beauty and the Beast!?!Containers & AI - Beauty and the Beast!?!
Containers & AI - Beauty and the Beast!?!
Tobias Schneck

From Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMsFrom Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMs
Sease

QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...
QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...
QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...
AlexanderRichford

"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba
Fwdays

Principle of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptxPrinciple of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptx
BibashShahi

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision
DianaGray10

The Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptxThe Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptx
operationspcvita

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
DianaGray10

Demystifying Knowledge Management through Storytelling
Demystifying Knowledge Management through StorytellingDemystifying Knowledge Management through Storytelling
Demystifying Knowledge Management through Storytelling
Enterprise Knowledge

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx
christinelarrosa

Discover the Unseen: Tailored Recommendation of Unwatched Content
Discover the Unseen: Tailored Recommendation of Unwatched ContentDiscover the Unseen: Tailored Recommendation of Unwatched Content
Discover the Unseen: Tailored Recommendation of Unwatched Content
ScyllaDB

What is an RPA CoE? Session 2 – CoE Roles
What is an RPA CoE?  Session 2 – CoE RolesWhat is an RPA CoE?  Session 2 – CoE Roles
What is an RPA CoE? Session 2 – CoE Roles
DianaGray10

AppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSFAppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSF
Ajin Abraham

A Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's ArchitectureA Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's Architecture
ScyllaDB

AI in the Workplace Reskilling, Upskilling, and Future Work.pptx
AI in the Workplace Reskilling, Upskilling, and Future Work.pptxAI in the Workplace Reskilling, Upskilling, and Future Work.pptx
AI in the Workplace Reskilling, Upskilling, and Future Work.pptx
Sunil Jagani

QA or the Highway - Component Testing: Bridging the gap between frontend appl...
QA or the Highway - Component Testing: Bridging the gap between frontend appl...QA or the Highway - Component Testing: Bridging the gap between frontend appl...
QA or the Highway - Component Testing: Bridging the gap between frontend appl...
zjhamm304


Recently uploaded (20)

AWS Certified Solutions Architect Associate (SAA-C03)
AWS Certified Solutions Architect Associate (SAA-C03)AWS Certified Solutions Architect Associate (SAA-C03)
AWS Certified Solutions Architect Associate (SAA-C03)

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)

GlobalLogic Java Community Webinar #18 “How to Improve Web Application Perfor...
GlobalLogic Java Community Webinar #18 “How to Improve Web Application Perfor...GlobalLogic Java Community Webinar #18 “How to Improve Web Application Perfor...
GlobalLogic Java Community Webinar #18 “How to Improve Web Application Perfor...

Containers & AI - Beauty and the Beast!?!
Containers & AI - Beauty and the Beast!?!Containers & AI - Beauty and the Beast!?!
Containers & AI - Beauty and the Beast!?!

From Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMsFrom Natural Language to Structured Solr Queries using LLMs
From Natural Language to Structured Solr Queries using LLMs

QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...
QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...
QR Secure: A Hybrid Approach Using Machine Learning and Security Validation F...

"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba"NATO Hackathon Winner: AI-Powered Drug Search",  Taras Kloba
"NATO Hackathon Winner: AI-Powered Drug Search", Taras Kloba

Principle of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptxPrinciple of conventional tomography-Bibash Shahi ppt..pptx
Principle of conventional tomography-Bibash Shahi ppt..pptx

What is an RPA CoE? Session 1 – CoE Vision
What is an RPA CoE?  Session 1 – CoE VisionWhat is an RPA CoE?  Session 1 – CoE Vision
What is an RPA CoE? Session 1 – CoE Vision

The Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptxThe Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptx

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors

Demystifying Knowledge Management through Storytelling
Demystifying Knowledge Management through StorytellingDemystifying Knowledge Management through Storytelling
Demystifying Knowledge Management through Storytelling

Christine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptxChristine's Product Research Presentation.pptx
Christine's Product Research Presentation.pptx

Discover the Unseen: Tailored Recommendation of Unwatched Content
Discover the Unseen: Tailored Recommendation of Unwatched ContentDiscover the Unseen: Tailored Recommendation of Unwatched Content
Discover the Unseen: Tailored Recommendation of Unwatched Content

What is an RPA CoE? Session 2 – CoE Roles
What is an RPA CoE?  Session 2 – CoE RolesWhat is an RPA CoE?  Session 2 – CoE Roles
What is an RPA CoE? Session 2 – CoE Roles

AppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSFAppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSF

A Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's ArchitectureA Deep Dive into ScyllaDB's Architecture
A Deep Dive into ScyllaDB's Architecture

AI in the Workplace Reskilling, Upskilling, and Future Work.pptx
AI in the Workplace Reskilling, Upskilling, and Future Work.pptxAI in the Workplace Reskilling, Upskilling, and Future Work.pptx
AI in the Workplace Reskilling, Upskilling, and Future Work.pptx

QA or the Highway - Component Testing: Bridging the gap between frontend appl...
QA or the Highway - Component Testing: Bridging the gap between frontend appl...QA or the Highway - Component Testing: Bridging the gap between frontend appl...
QA or the Highway - Component Testing: Bridging the gap between frontend appl...


Idiomatic gradle plugin writing

  • 1. IDIOMATIC GRADLE PLUGIN WRITING Schalk W. Cronjé
  • 2. ABOUT ME Email: Twitter / Ello : @ysb33r ysb33r@gmail.com Gradle plugins authored/contributed to: VFS, Asciidoctor, JRuby family (base, jar, war etc.), GnuMake, Doxygen
  • 3. ABOUT THIS PRESENTATION Written in Asciidoctor Styled by asciidoctor-revealjs extension Built using: Gradle gradle-asciidoctor-plugin gradle-vfs-plugin
  • 4. THE PROBLEM There is no consistency in the way plugin authors craft extensions to the Gradle DSL today
  • 5. QUALITY ATTRIBUTES OF DSL Readability Consistency Flexibility Expressiveness
  • 6. FOR BEST COMPATIBILITY Support same JDK range as Gradle Gradle 1.x - mininum JDK5 Gradle 2.x - minimum JDK6 Build against Gradle 2.0 Only use later versions if specific new functionality is required. // build.gradle targetCompatibility = 1.6 sourceCompatibility = 1.6 // gradle/wrapper/gradle-wrapper.properties distributionUrl=https://..../distributions/gradle-2.0-all.zip
  • 7. NOMENCLATURE Property: A public data member (A Groovy property) Method: A standard Java/Groovy method Attribute: A value, set or accessed via the Gradle DSL. Can result in a public method call or property access. User: Person authoring or executing a Gradle build script @Input String aProperty = 'stdValue' @Input void aValue(String s) { ... } myTask { aProperty = 'newValue' aValue 'newValue' }
  • 8. PREFER METHODS OVER PROPERTIES ( IOW To assign or not to assign ) Methods provide more flexibility Tend to provide better readability Assignment is better suited towards One-shot attribute setting Overriding default attributes Non-lazy evaluation
  • 9. HOWNOT2 : COLLECTION OF FILES Typical implementation … class MyTask extends DefaultTask { @InputFiles List<File> mySources } leads to ugly DSL task myTask( type: MyTask ) { myTask = [ file('foo/bar.txt'), new File( 'bar/foo.txt') ] }
  • 10. COLLECTION OF FILES myTask { mySources file( 'path/foobar' ) mySources new File( 'path2/foobar' ) mySources 'file3', 'file4' mySources { "lazy evaluate file name later on" } } Allow ability to: Use strings and other objects convertible to File Append lists Evaluate as late as possible Reset default values
  • 11. COLLECTION OF FILES Ignore Groovy shortcut; use three methods class MyTask extends DefaultTask { @InputFiles FileCollection getDocuments() { project.files(this.documents) // magic API method } void setDocuments(Object... docs) { this.documents.clear() this.documents.addAll(docs as List) } void documents(Object... docs) { this.documents.addAll(docs as List) } private List<Object> documents = [] }
  • 12. STYLE : TASKS Provide a default instantiation of your new task class Keep in mind that user would want to create additional tasks of same type Make it easy for them!!
  • 14. COLLECTION OF STRINGS import org.gradle.util.CollectionUtils Ignore Groovy shortcut; use three methods @Input List<String> getScriptArgs() { // stringize() is your next magic API method CollectionUtils.stringize(this.scriptArgs) } void setScriptArgs(Object... args) { this.scriptArgs.clear() this.scriptArgs.addAll(args as List) } void scriptArgs(Object... args) { this.scriptArgs.addAll(args as List) } private List<Object> scriptArgs = []
  • 15. HOWNOT2 : MAPS Typical implementation … class MyTask extends DefaultTask { @Input Map myOptions } leads to ugly DSL task myTask( type: MyTask ) { myOptions = [ prop1 : 'foo/bar.txt', prop2 : 'bar/foo.txt' ] }
  • 16. MAPS task myTask( type: MyTask ) { myOptions prop1 : 'foo/bar.txt', prop2 : 'bar/foo.txt' myOptions prop3 : 'add/another' // Explicit reset myOptions = [:] }
  • 17. MAPS @Input Map getMyOptions() { this.attrs } void setMyOptions(Map m) { this.attrs=m } void myOptions(Map m) { this.attrs+=m } private Map attrs = [:]
  • 18. USER OVERRIDE LIBRARY VERSION Ship with prefered (and tested) version of dependent library set as default Allow user flexibility to try a different version of such library Dynamically load library when needed Still use power of Gradle’s dependency resolution
  • 19. USER OVERRIDE LIBRARY VERSION Example DSL from Asciidoctor asciidoctorj { version = '1.5.3-SNAPSHOT' } Example DSL from JRuby Base jruby { execVersion = '1.7.12' }
  • 20. USER OVERRIDE LIBRARY VERSION 1. Create Extension 2. Add extension object in plugin apply 3. Create custom classloader
  • 21. USER OVERRIDE LIBRARY VERSION Step 1: Create project extension class MyExtension { // Set the default dependent library version String version = '1.5.0' MyExtension(Project proj) { project= proj } @PackageScope Project project }
  • 22. USER OVERRIDE LIBRARY VERSION Step 2: Add extension object in plugin apply class MyPlugin implements Plugin<Project> { void apply(Project project) { // Create the extension & configuration project.extensions.create('asciidoctorj',MyExtension,project) project.configuration.maybeCreate( 'asciidoctorj' ) // Add dependency at the end of configuration phase project.afterEvaluate { project.dependencies { asciidoctorj "org.asciidoctor:asciidoctorj" + "${project.asciidoctorj.version}" } } } }
  • 23. USER OVERRIDE LIBRARY VERSION Step 3: Custom classloader (usually loaded from task action) // Get all of the files in the `asciidoctorj` configuration def urls = project.configurations.asciidoctorj.files.collect { it.toURI().toURL() } // Create the classloader for all those files def classLoader = new URLClassLoader(urls as URL[], Thread.currentThread().contextClassLoader) // Load one or more classes as required def instance = classLoader.loadClass( 'org.asciidoctor.Asciidoctor$Factory')
  • 24. NEED2KNOW : 'AFTEREVALUATE' afterEvaluate adds to a list of closures to be executed at end of configuration phase Execution order is FIFO Plugin author has no control over the order
  • 25. STYLE : PROJECT EXTENSIONS Treat project extensions as you would for any kind of global configuration. With care! Do not make the extension configuration block a task configuration. Task instantiation may read defaults from extension. Do not force extension values onto tasks
  • 26. GENERATED CODE May need to generate code from template and add to current sourceset(s) Example: jruby-jar-plugin adds a custom class file to JAR Useful for separation of concerns in certain generative programming environments
  • 27. GENERATED CODE 1. Create generator task using Copy task as transformer 2. Configure generator task 3. Update SourceSet 4. Add dependency between generation and compilation
  • 28. GENERATED CODE Step1 : Add generator task class MyPlugin implements Plugin<Project> { void apply(Project project) { Task stubTask = project.tasks.create ( name : 'myGenerator', type : Copy ) configureGenerator(stubTask) addGeneratedToSource(project) addTaskDependencies(project) } void configureGenerator(Task t) { /* TODO: <-- See next slides */ } void addGeneratedToSource(Project p) { /* TODO: <-- See next slides */ } void addTaskDependencies(Project p) { /* TODO: <-- See next slides */ } } This example uses Java, but can apply to any kind of sourceset that Gradle supports
  • 29. GENERATED CODE Step 2 : Configure generator task /* DONE: <-- See previous slide for apply() */ void configureGenerator(Task stubTask) { project.configure(stubTask) { group "Add to correct group" description 'Generates a JRuby Java bootstrap class' from('src/template/java') { include '*.java.template' } into new File(project.buildDir,'generated/java') rename '(.+).java.template','$1.java' filter { String line -> /* Do something in here to transform the code */ } } }
  • 30. GENERATED CODE Step 3 : Add generated code to SourceSet /* DONE: <-- See earlier slide for apply() */ void addGeneratedToSource(Project project) { project.sourceSets.matching { it.name == "main" } .all { it.java.srcDir new File(project.buildDir,'generated/java') } }
  • 31. GENERATED CODE Step 4 : Add task dependencies /* DONE: <-- See earlier slide for apply() */ void addTaskDependencies(Project project) { try { Task t = project.tasks.getByName('compileJava') if( t instanceof JavaCompile) { t.dependsOn 'myGenerator' } } catch(UnknownTaskException) { project.tasks.whenTaskAdded { Task t -> if (t.name == 'compileJava' && t instanceof JavaCompile) { t.dependsOn 'myGenerator' } } } }
  • 32. NEED2KNOW : PLUGINS Plugin author has no control over order in which plugins will be applied Handle both cases of related plugin applied before or after yours
  • 33. EXTEND EXISTING TASK Task type extension by inheritance is not always best solution Adding behaviour to existing task type better in certain contexts Example: jruby-jar-plugin wants to semantically describe bootstrap files rather than force user to use standard Copy syntax
  • 34. EXTEND EXISTING TASK jruby-jar-plugin without extension jrubyJavaBootstrap { // User gets exposed (unnecessarily) to the underlying task type // Has to craft too much glue code from( { // @#$$!!-ugly code goes here } ) } jruby-jar-plugin with extension jrubyJavaBootstrap { // Expressing intent & context. jruby { initScript = 'bin/asciidoctor' } }
  • 35. EXTEND EXISTING TASK 1. Create extension class 2. Add extension to task 3. Link extension attributes to task attributes (for caching)
  • 36. EXTEND EXISTING TASK Create extension class class MyExtension { String initScript MyExtension( Task t ) { // TODO: Add Gradle caching support // (See later slide) } }
  • 37. EXTEND EXISTING TASK Add extension class to task class MyPlugin implements Plugin<Project> { void apply(Project project) { Task stubTask = project.tasks.create ( name : 'jrubyJavaBootstrap', type : Copy ) stubTask.extensions.create( 'jruby', MyExtension, stubTask ) }
  • 38. EXTEND EXISTING TASK Add Gradle caching support class MyExtension { String initScript MyExtension( Task t ) { // Tell the task the initScript is also a property t.inputs.property 'jrubyInitScipt' , { -> this.initScript } } }
  • 39. NEED2KNOW : TASK EXTENSIONS Good way extend existing tasks in composable way Attributes on extensions are not cached Changes will not cause a rebuild of the task Do the extra work to cache and provide the user with a better experience.
  • 40. TRICK : SELF-REFERENCING PLUGIN New plugin depends on functionality in the plugin Apply plugin direct in build.gradle apply plugin: new GroovyScriptEngine( [file('src/main/groovy').absolutePath, file('src/main/resources').absolutePath]. toArray(new String[2]), this.class.classLoader ).loadScriptByName('src/main/groovy/spath/to/MyPlugin.groovy')
  • 41. TRICK : SAFE FILENAMES Ability to create safe filenames on all platforms from input data Example: Asciidoctor output directories based upon backend names // WARNING: Using a very useful internal API import org.gradle.internal.FileUtils File outputBackendDir(final File outputDir, final String backend) { // FileUtils.toSafeFileName is your magic method new File(outputDir, FileUtils.toSafeFileName(backend)) }
  • 42. TRICK : OPERATING SYSTEM Sometimes customised work has to be done on a specific O/S Example: jruby-gradle-plugin needs to set TMP in environment on Windows // This is the public interface API import org.gradle.nativeplatform.platform.OperatingSystem // But to get an instance the internal API is needed instead import org.gradle.internal.os.OperatingSystem println "Are we on Windows? ${OperatingSystem.current().isWindows()}
  • 43. CONCLUSION Keep your DSL extensions beautiful Don’t spring surprising behaviour on the user Email: Twitter / Ello : @ysb33r ysb33r@gmail.com
