Dynamic C++
POCOC++ PORTABLE COMPONENTS
alex@pocoproject.org
Sunday, October 7, 12

Content
> The Problem
> The Solution
> The Anatomy of the Solution
> The Heart and Soul of the Solution
> Let’s Dance - code example
> Other solutions
> Performance and comparisons
> Conclusion

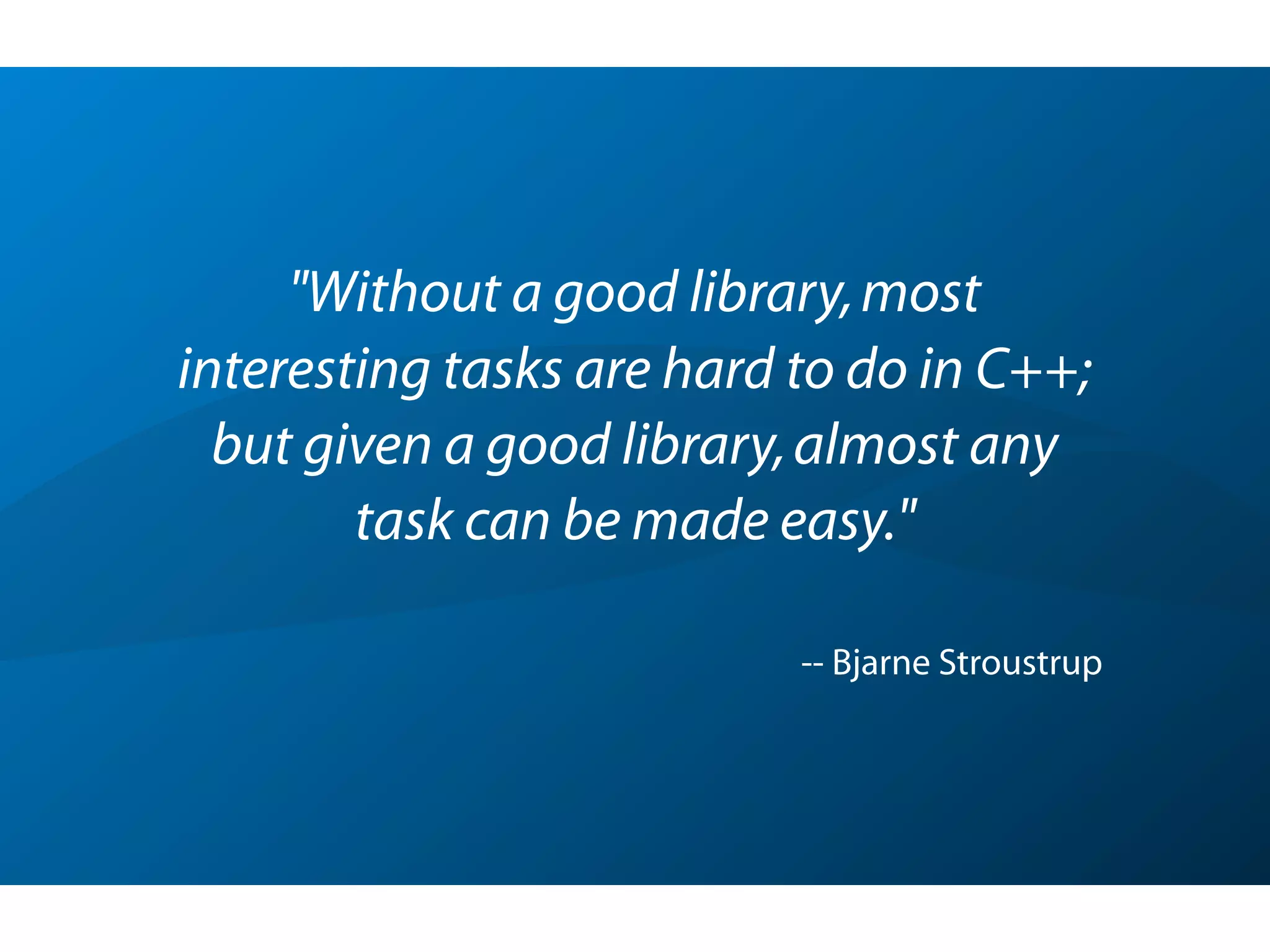

"Without a good library,most
interesting tasks are hard to do in C++;
but given a good library,almost any
task can be made easy."
Bjarne Stroustrup
(designer and original implementor of C++)

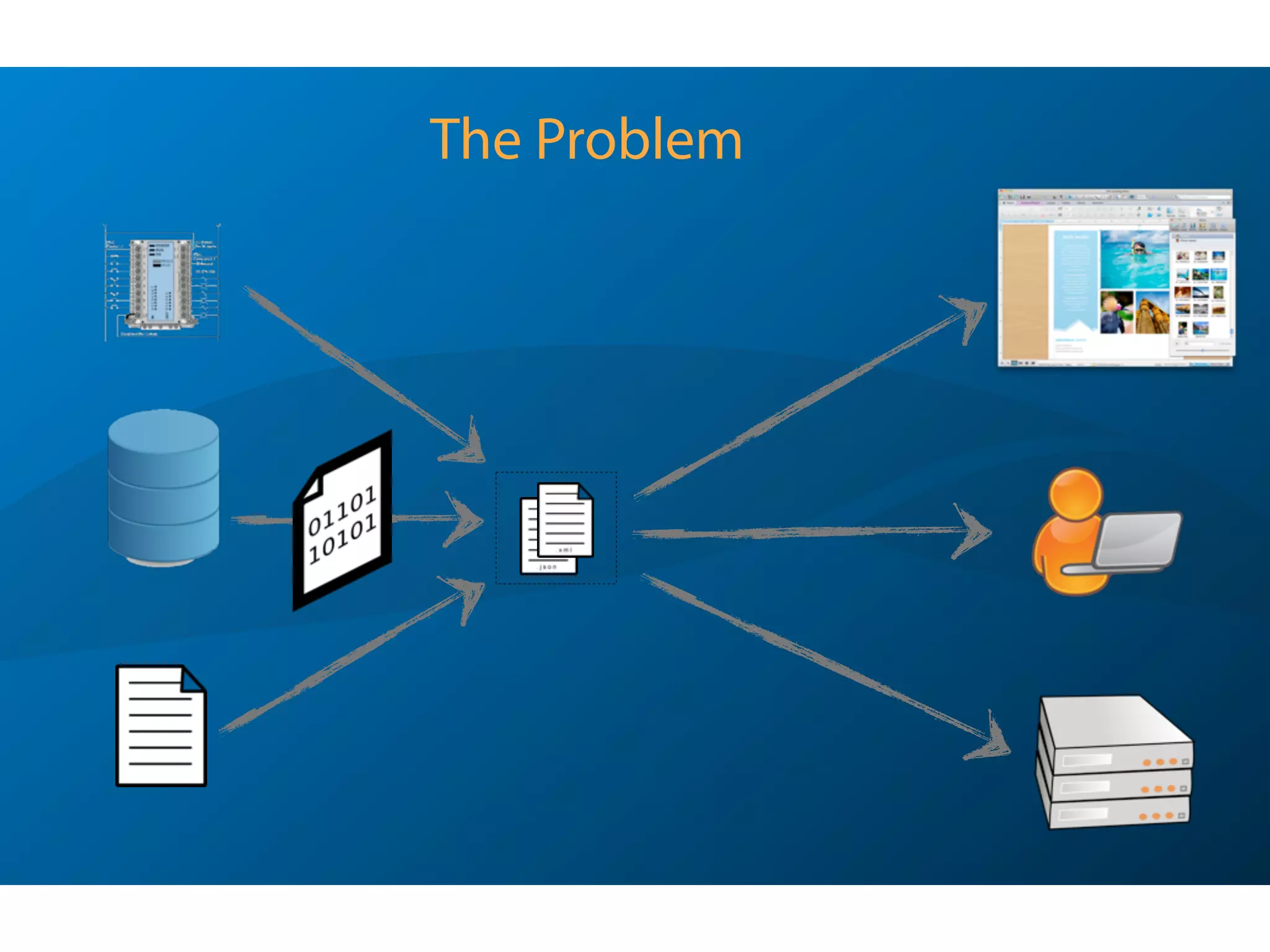

A Brief History of Data Access

Data Formats
> often in proprietary binary format
> transform into character strings of desired format
> server-side needs an equivalent of HTML rendering engine

So,how do we do this?
> generate the desired format in the database :-
> use dynamic language
> mix HTML with server-side code and compile on the fly (shudder)
> browser plugin (double-shudder)
> or ... use static language on the server-side and AJA(X|J) in the browser?

SELECT * FROM Simpsons
> discover column count
The Problem
> discover column data types
> bind returned data to variables

SQLRETURN rc;
SQLHENV henv = SQL_NULL_HENV;
SQLHDBC hdbc = SQL_NULL_HDBC;
SQLHSTMT hstmt = SQL_NULL_HSTMT;
rc = SQLAllocHandle(SQL_HANDLE_ENV, SQL_NULL_HANDLE, &henv);
odbc_check_env (rc, henv);
rc = SQLSetEnvAttr(henv, SQL_ATTR_ODBC_VERSION, (SQLPOINTER) SQL_OV_ODBC3, 0);
odbc_check_env (rc, henv);
rc = SQLAllocHandle(SQL_HANDLE_DBC, henv, &hdbc);
odbc_check_dbc (rc, hdbc);
SQLCHAR connectOutput[1024] = {0};
SQLSMALLINT result;
rc = SQLDriverConnect(hdbc,NULL,(SQLCHAR*)dbConnString.c_str(),(SQLSMALLINT)SQL_NTS,connectOutput,sizeof(connectOutput),&result,SQL_DRIVER_NOPROMPT);
odbc_check_dbc (rc, hdbc);
sql = "SELECT * FROM Simpsons";
SQLCHAR* pStr = (SQLCHAR*) sql.c_str();
rc = SQLPrepare(hstmt, pStr, (SQLINTEGER) sql.length());
odbc_check_stmt (rc, hstmt);
char name[50] = { 0 };
SQLLEN lengths[3] = { 0 };
int age = 0;
ﬂoat weight = 0.0f;
std::memset(&sixth, 0, sizeof(sixth));
rc = SQLBindCol(hstmt, (SQLUSMALLINT) 1, SQL_C_CHAR, (SQLPOINTER) chr, (SQLINTEGER) sizeof(chr[0]), &lengths[0]);
rc = SQLBindCol(hstmt, (SQLUSMALLINT) 2, SQL_C_INTEGER, (SQLPOINTER) &age, (SQLINTEGER) sizeof(age), &lengths[1]);
rc = SQLBindCol(hstmt, (SQLUSMALLINT) 3, SQL_C_BINARY, (SQLPOINTER) &weight, (SQLINTEGER) sizeof(weight), &lengths[2]);
printf(“Name: %s, Age: %d, Weight: %f”, name, age, weight);
! !
“solution”
© mark du toit

using namespace Poco::Data::SQLite;
int main()
{
Session session("SQLite", "simpsons.db");
std::cout << RecordSet(session,
"SELECT * FROM Simpsons");
return 0;
}
The Solution
© mark du toit

Statement stmt =
(session << "SELECT * FROM Simpsons", now);
RecordSet rs(stmt);
ostream& operator << (ostream &os,
const RecordSet& rs)
{
return rs.copy(os);
}
The Anatomy of the Solution
(step - by - step)

The Anatomy of the Solution
(under the hood)
using namespace std;
ostream& RecordSet::copy(ostream& os, size_t offset = 0, size_t length = END)
{
RowFormatter& rf = (*_pBegin)->getFormatter();
os << rf.prefix();
copyNames(os);
copyValues(os, offset, length);
os << rf.postfix();
return os;
}
ostream& RecordSet::copyValues(ostream& os, size_t offset, size_t length)
{
RowIterator begin = *_pBegin + offset;
RowIterator end = (RowIterator::END != length) ? it + length : *_pEnd;
std::copy(begin, end, std::ostream_iterator<Row>(os));
return os;
}

Row& RowIterator::operator * ()
{
if (END == _position)
throw InvalidAccessException("End of iterator reached.");
return _pRecordSet->row(_position);
}
ostream& operator << (ostream &os, const Row& row)
{
os << row.valuesToString();
return os;
}
const string& Row::valuesToString() const
{
return _pFormatter->formatValues(values(), _valueStr);
}
The Anatomy of the Solution,contd.
(STL - compliance)

class Row
{
public:
// ...
template <typename T>
void set(size_t pos, const T& val)
{
try { _values.at(pos) = val; }
catch (out_of_range&)
{ throw RangeException("Invalid column."); }
}
// ...
private:
vector<Poco::Dynamic::Var> _values;
};
The Heart of the Solution
(Row::set)

namespace Poco {
namespace Dynamic {
class Var
{
public:
// ...
template <typename T>
Var(const T& val):
_pHolder(new VarHolderImpl<T>(val))
{
}
// ...
private:
VarHolder* _pHolder;
};
} }
The Soul of the Machine
(Poco::Dynamic::Var)

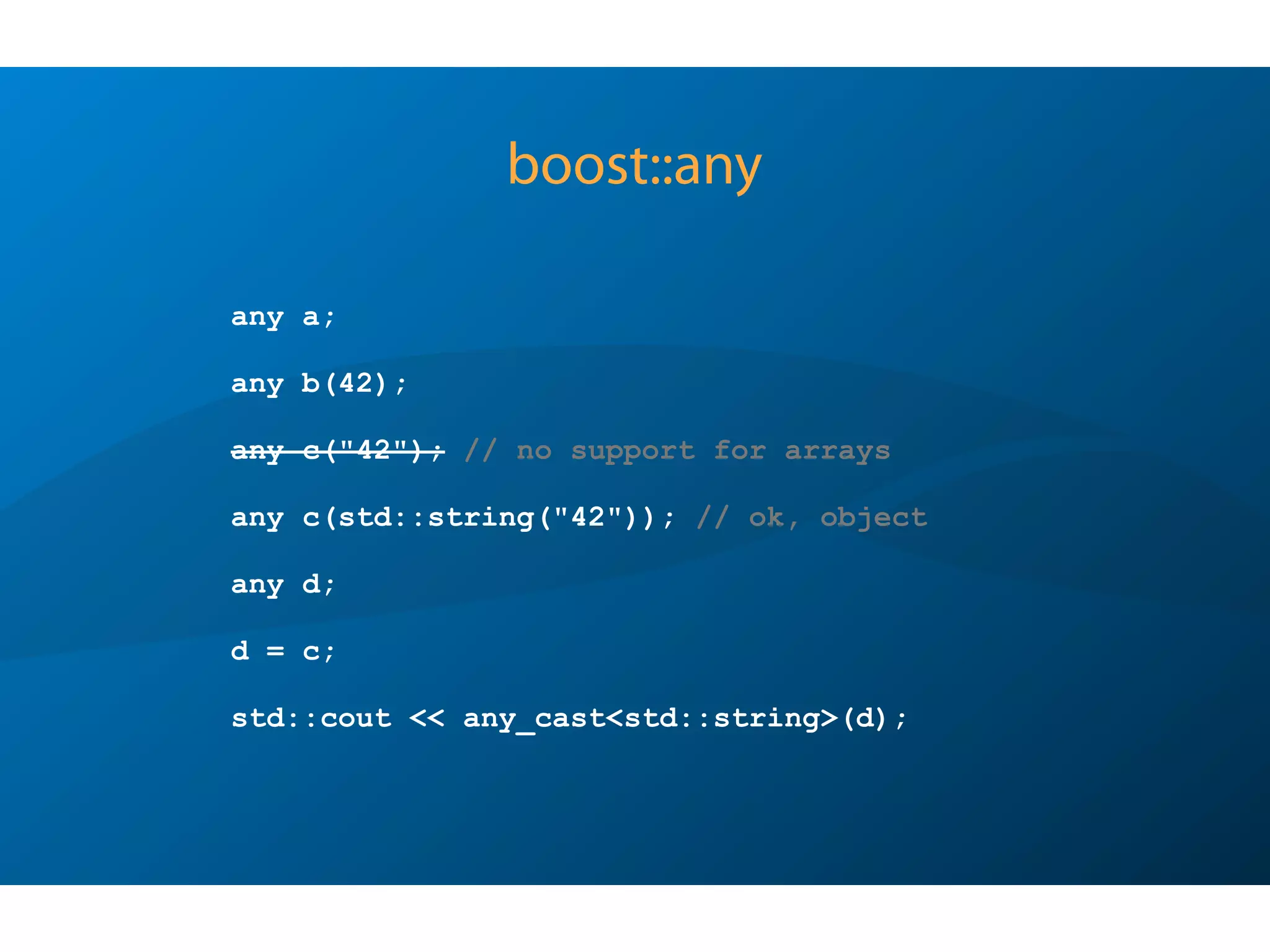

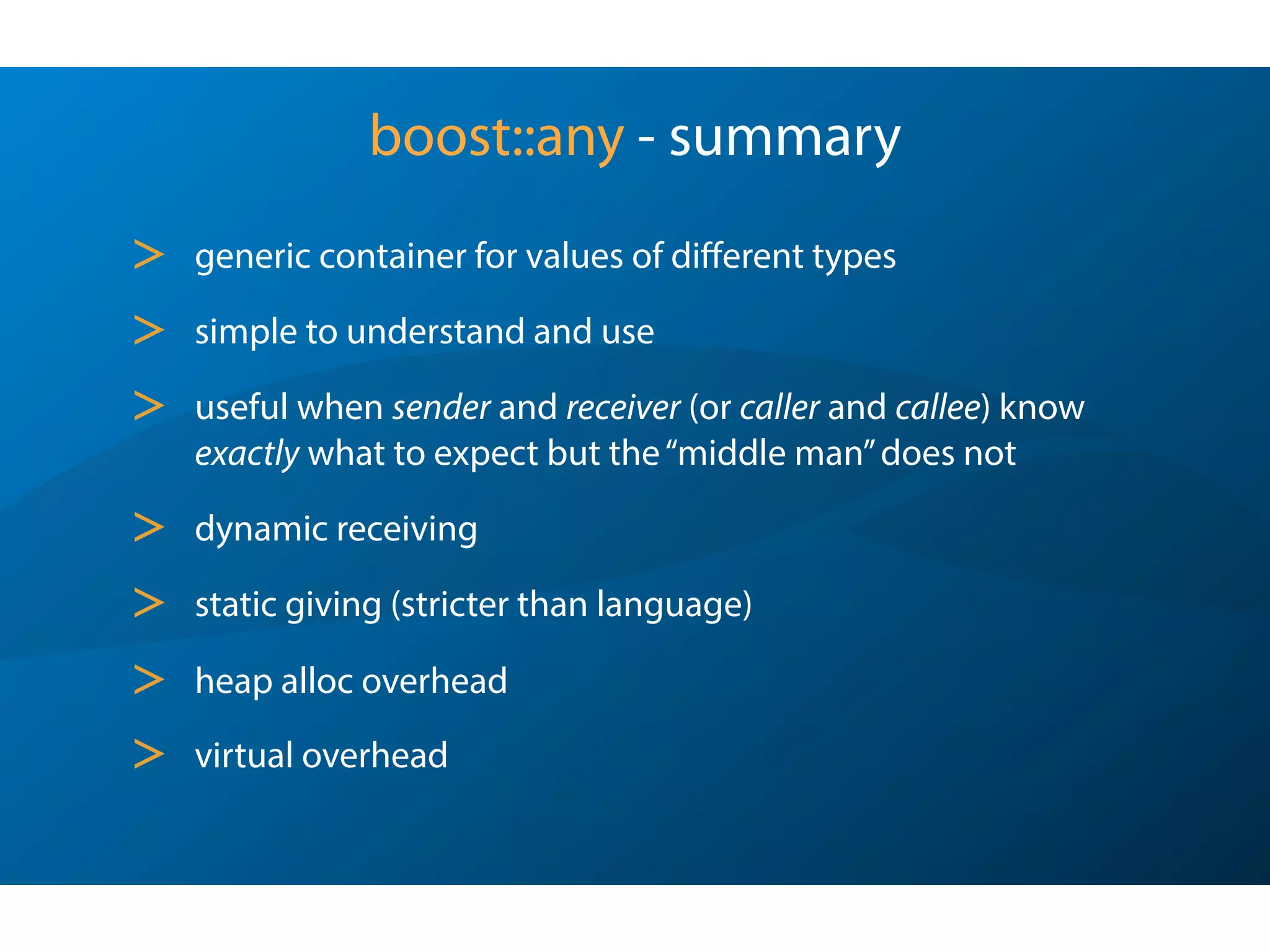

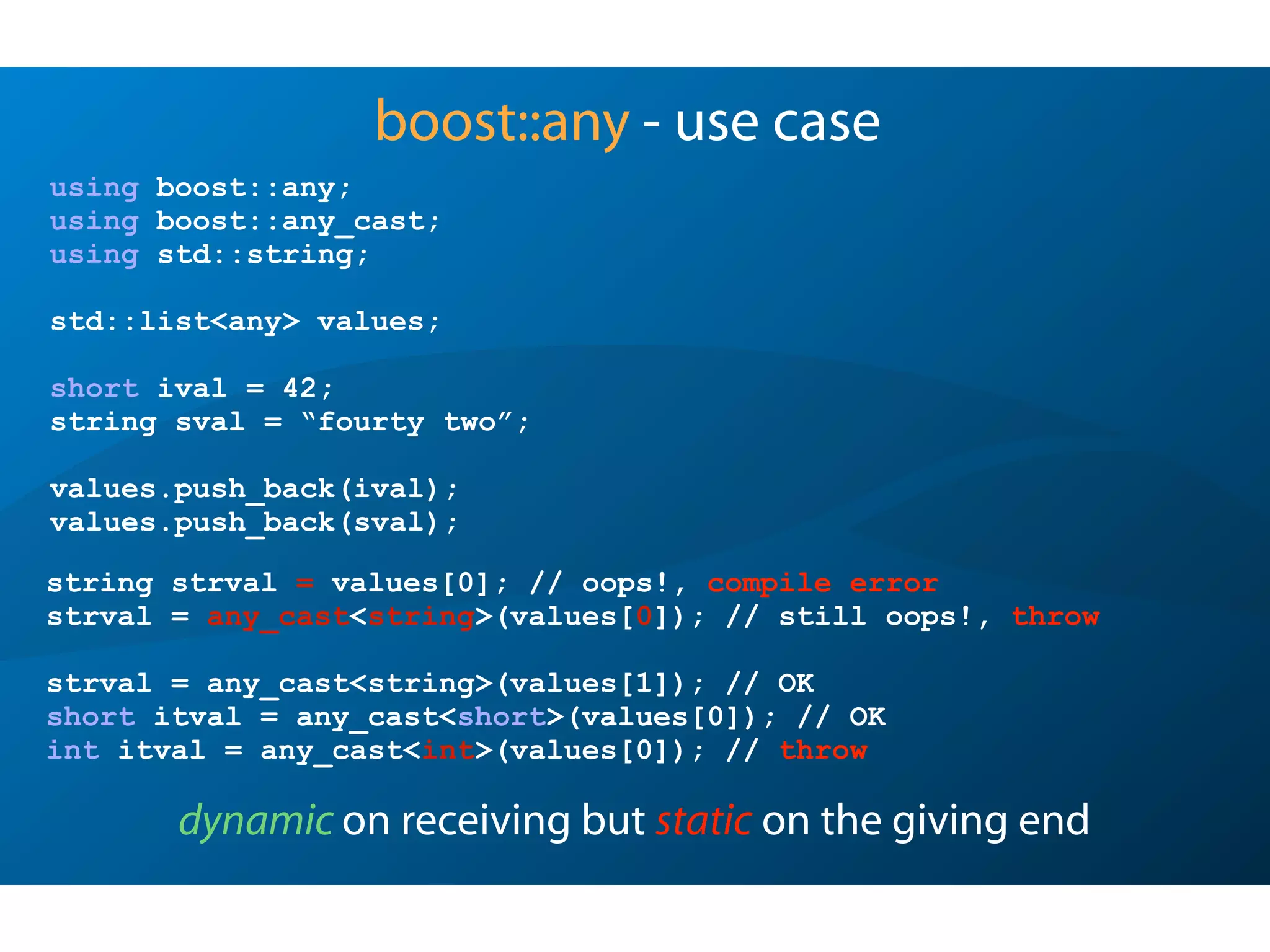

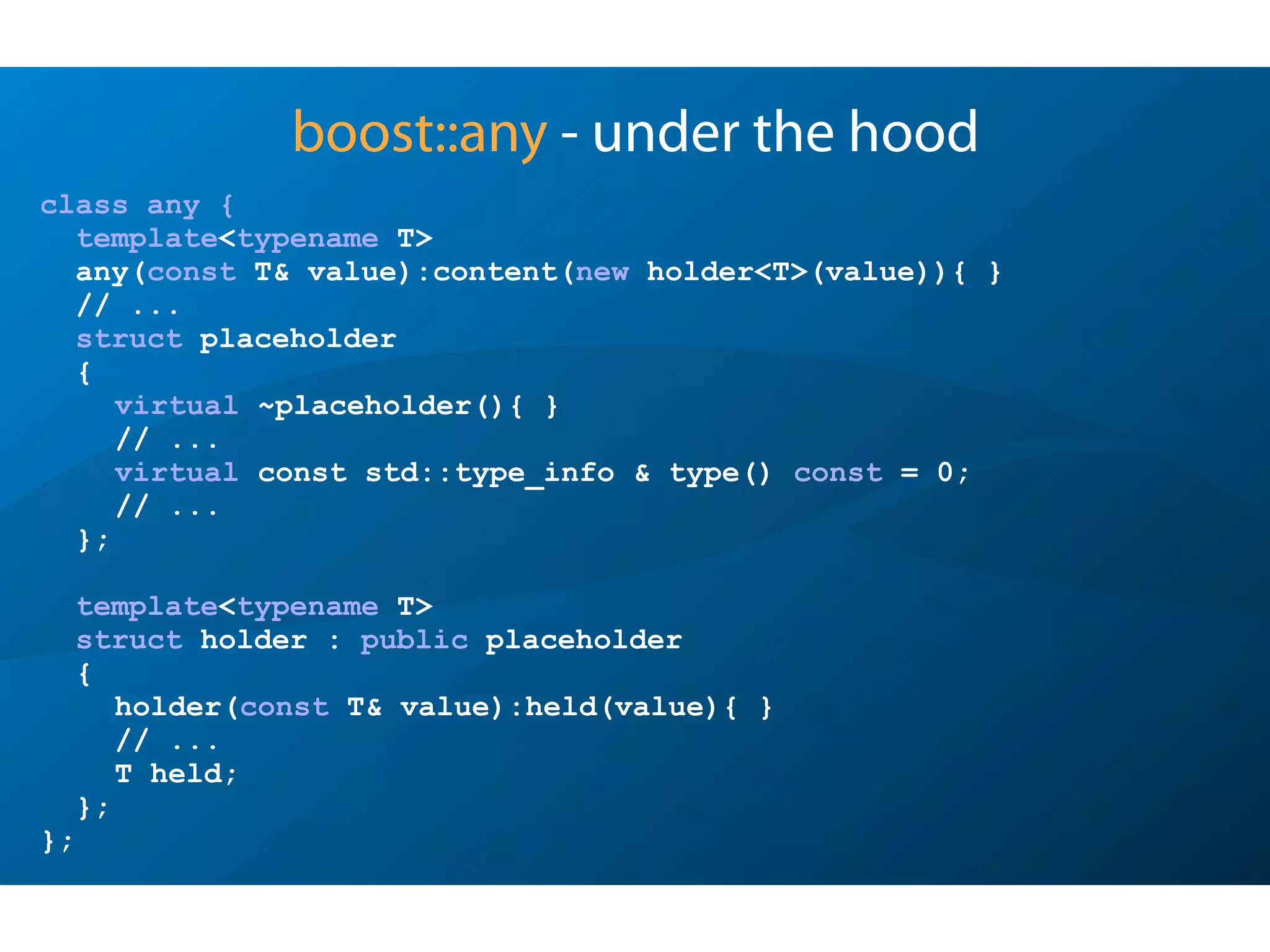

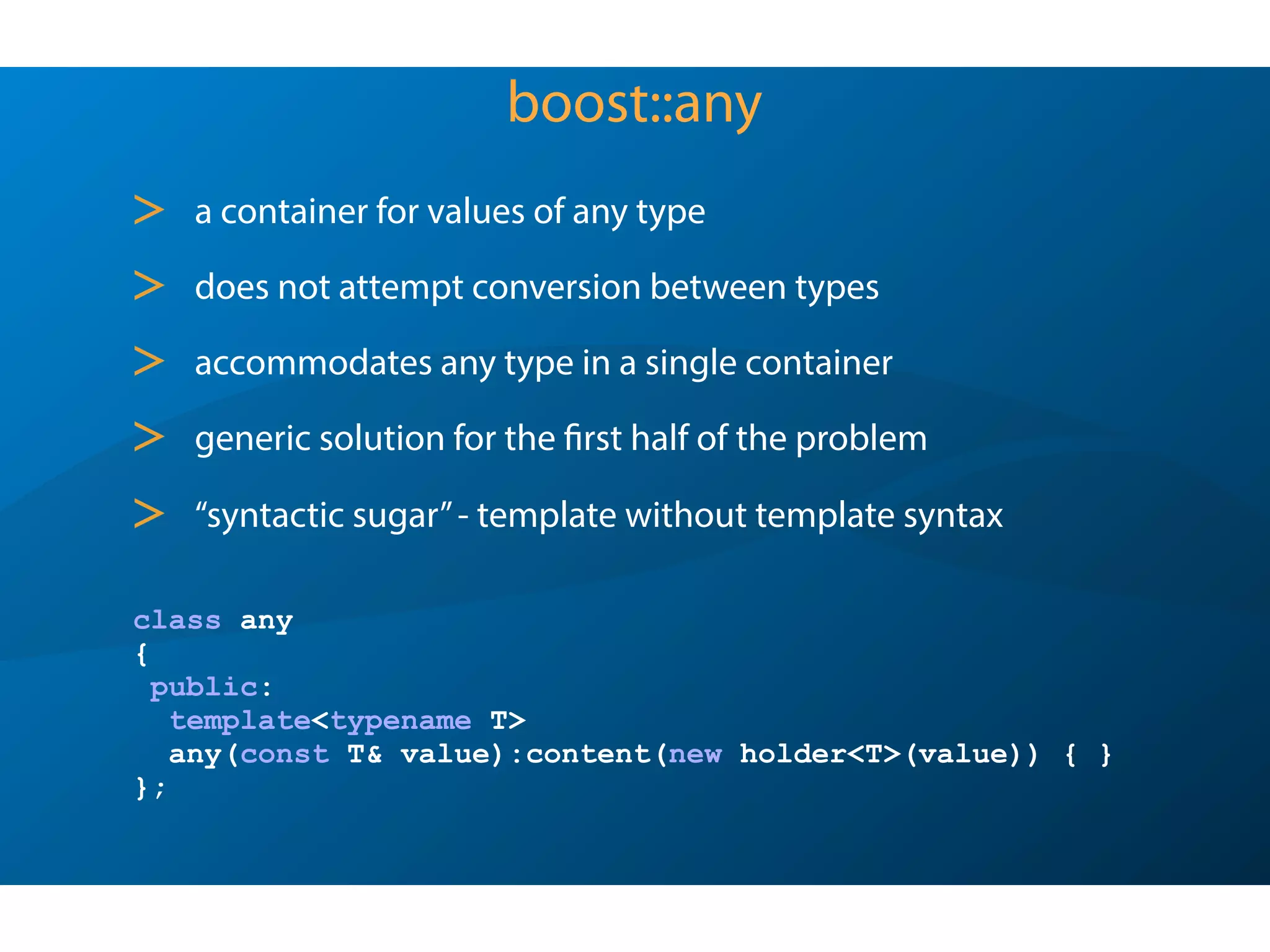

* Design based on boost::any

So,where was boost::any found lacking ?
It’s a great idea with limited applicability -
dynamic on receiving,but static on the giving end.
using boost::any;
using boost::any_cast;
typedef std::list<any> many;
int ival = 42;
std::string sval = “fourty two”;
values.push_back(ival);
values.push_back(sval);
std::string sival = values[0]; // oops!, compile error
sival = any_cast<std::string>(values[0]); // still oops!, throw

Var in Practical Use
std::string s1("string");
Poco::Int8 s2(23);
std::vector<Var> s16;
s16.push_back(s1);
s16.push_back(s2);
Var a1(s16);
std::string res = a1.convert<std::string>();
// ["string", 23]
DynamicStruct aStruct;
aStruct["First Name"] = "Junior";
aStruct["Last Name"] = "POCO";
aStruct["Age"] = 1;
Var a1(aStruct);
std::string res = a1.convert<std::string>();
// { "Age”: 1, "First Name": "Junior", "Last Name" : "POCO" }
std::string str("42");
Var v1 = str; // "42"
double d = v1; // 42.0
Var v2 = d + 1.0; // 43.0
float f = v2 + 1; // 44.0

What Else is in the Var Box
> Dynamic array, pair and struct (map) support
(Poco::Dynamic::Pair/Struct)
> JSON (de)serialization of the above
> Empty value support (very handy with null DB fields)
> Strict conversion checks

namespace Poco {
namespace Dynamic {
class VarHolder
{
public:
virtual ~VarHolder();
virtual void convert(int& val) const;
// ...
protected:
VarHolder();
// ...
};
template <typename T> // for end-user extensions
class VarHolderImpl: public VarHolder
{
//...
};
template <> // native and frequently used types specializations provided by POCO
class VarHolderImpl<int>: public VarHolder
{
//...
};
//...
}}
The Soul of the Machine
(Poco::Dynamic::VarHolder)

Poco::Net::HTTPServer
The Machine Assembled
RecordSetStatement
RowFormatter
Session
Poco::Dynamic::Var

Let’s Dance
class DataRequestHandler: public HTTPRequestHandler
{
public:
void handleRequest(HTTPServerRequest& request,
HTTPServerResponse& response)
{
response.setChunkedTransferEncoding(true);
response.setContentType("text/xml");
ostream& ostr = response.send();
Session sess("SQLite", "sample.db");
ostr << RecordSet(sess,
"SELECT * FROM Simpsons",
new XMLFormatter);
}
};

A Real World Example

Is it REALLY Dynamic?
Of course not.
Dig deep enough and there is no such thing as
dynamic.
Type handlers are templates,hence generated
by compiler and statically checked for type.

And there’s a price to pay ...
Binary sizes:
============
Linux
-----
5160 AnySize.o
23668 DynamicAnySizeExtract.o
25152 DynamicAnySizeConvert.o
9600 lexical_cast_size.o
Windows
-------
26,924 AnySize.obj
96,028 DynamicAnySizeExtract.obj
103,943 DynamicAnySizeConvert.obj
84,217 lexical_cast_size.obj
Lines of code:
=============
Any 145
DynamicAny* 3,588
lexical_cast 971

struct Person
{
std::string name;
std::string address;
int age;
};
But what if I need performance?
There is,of course,a lean and elegant static workaround.
In fact,several of them ...

namespace Poco {
namespace Data {
template <>
class TypeHandler<Person>
{
public:
static std::size_t size()
{
return 3;
}
static void bind(size_t pos, const Person& person, AbstractBinder* pBinder, Direction dir)
{
TypeHandler<std::string>::bind(pos++, person.name, pBinder, dir);
TypeHandler<std::string>::bind(pos++, person.address, pBinder, dir);
TypeHandler<int>::bind(pos++, person.age, pBinder, dir);
}
static void extract(size_t pos, Person& person, const Person& deflt, AbstractExtractor* pE)
{
TypeHandler<std::string>::extract(pos++, person.name, deflt.name, pExtr);
TypeHandler<std::string>::extract(pos++, person.address, deflt.address, pExtr);
TypeHandler<int>::extract(pos++, person.age, deflt.age, pExtr);
}
};
} }
Scaffolding - wrap Person into a TypeHandler

Person person =
{
"Bart Simpson",
"Springfield",
12
};
session << "INSERT INTO Person VALUES(?, ?, ?)", use(person);
std::vector<Person> people;
session << "SELECT Name, Address, Age FROM Person",into(people), now;
And Life is Good Again
std::string name, address;
int age;
session << "INSERT INTO Person VALUES(?, ?, ?)",
use(name),
use(address),
use(age);

using namespace std;
using namespace Poco;
typedef Tuple<string, string, int> Person;
typedef vector<Person> People;
People people;
people.push_back(Person("Bart Simpson", "Springfield", 12));
people.push_back(Person("Lisa Simpson", "Springfield", 10));
session << "INSERT INTO Person VALUES(?, ?, ?)", use(people), now;
people.clear();
session << "SELECT Name, Address, Age FROM Person", into(people), now;
But wait,there’s more!

What else is out there ?
> void*
> C union
> MS COM Variant

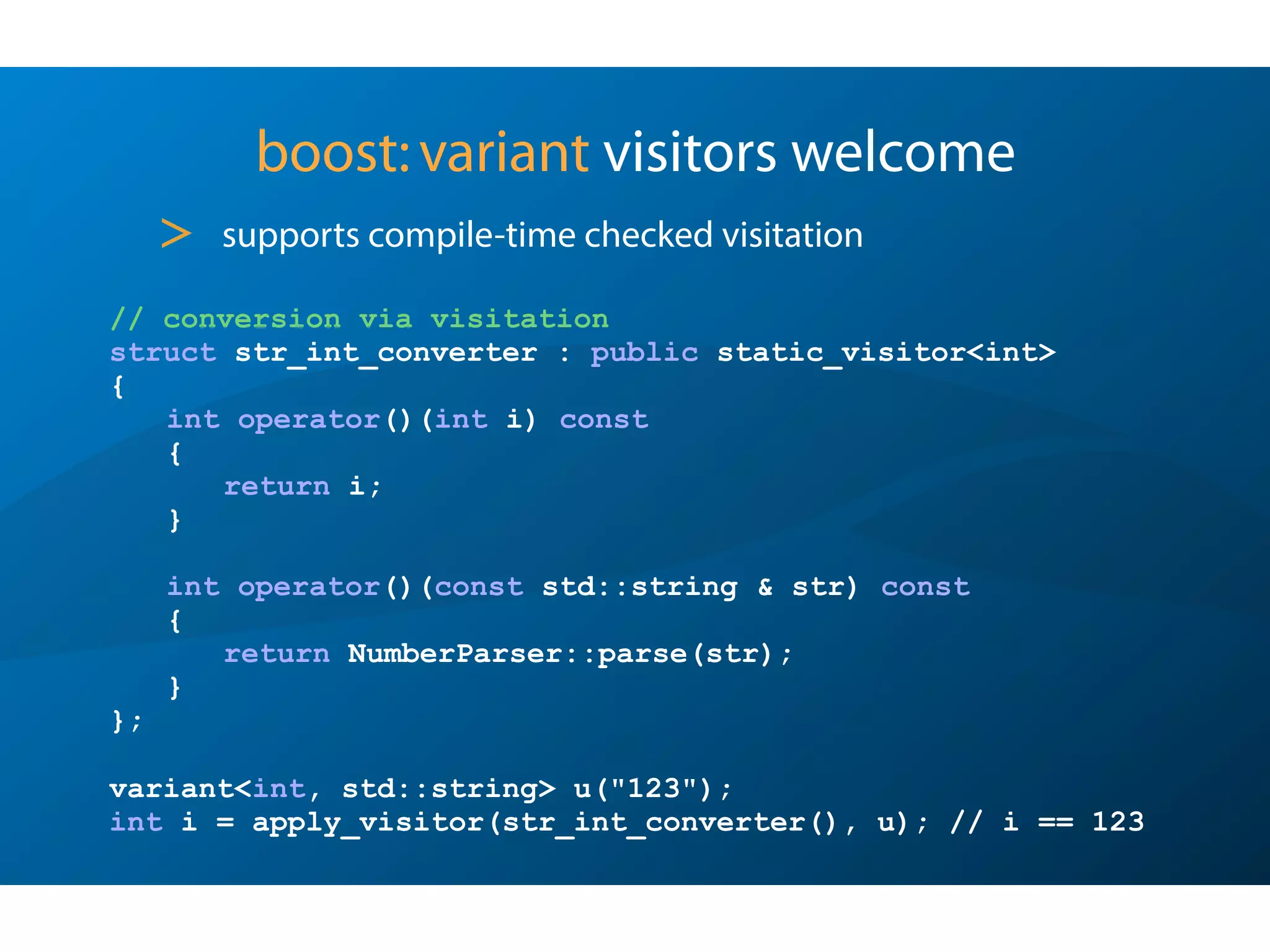

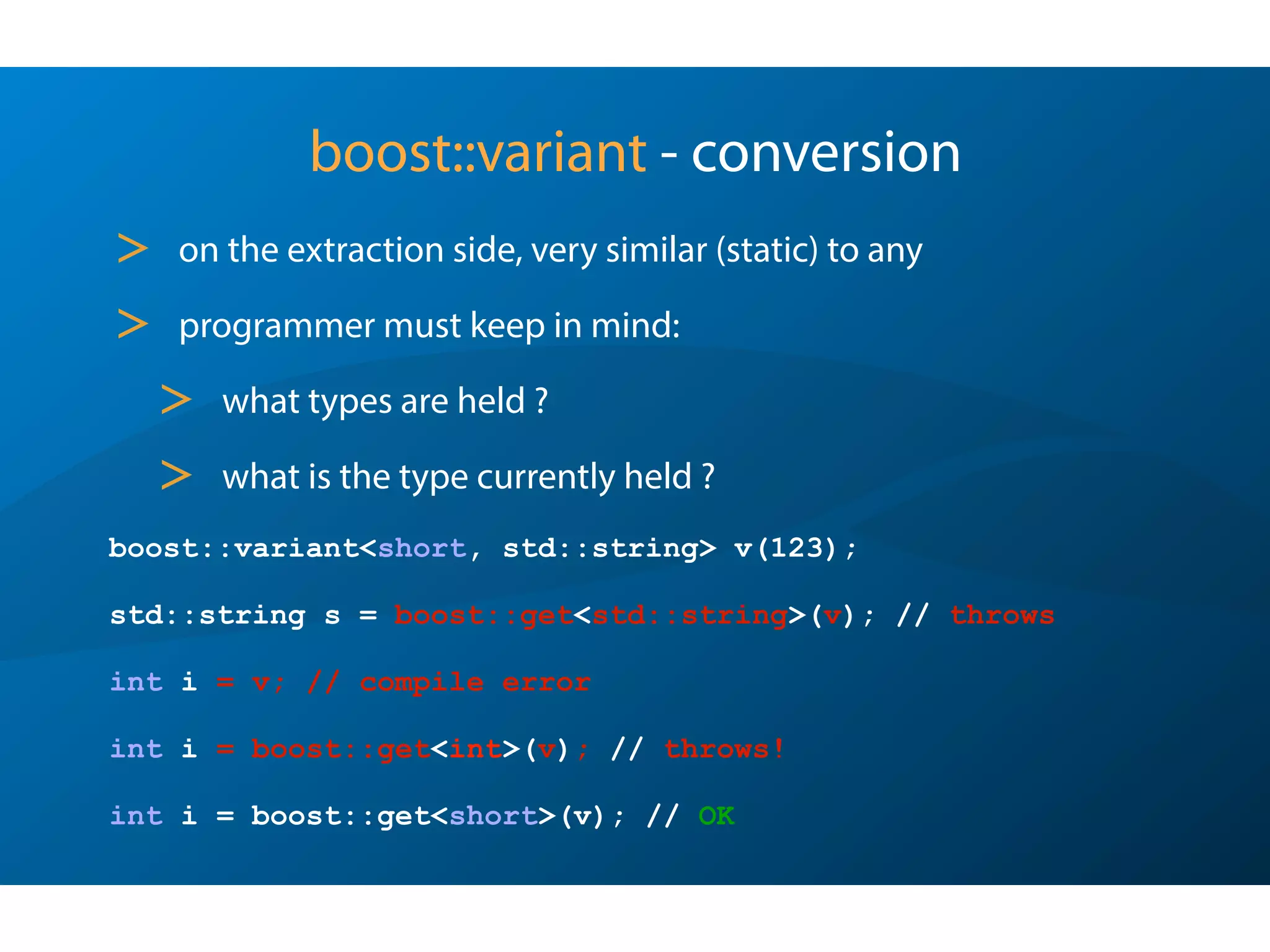

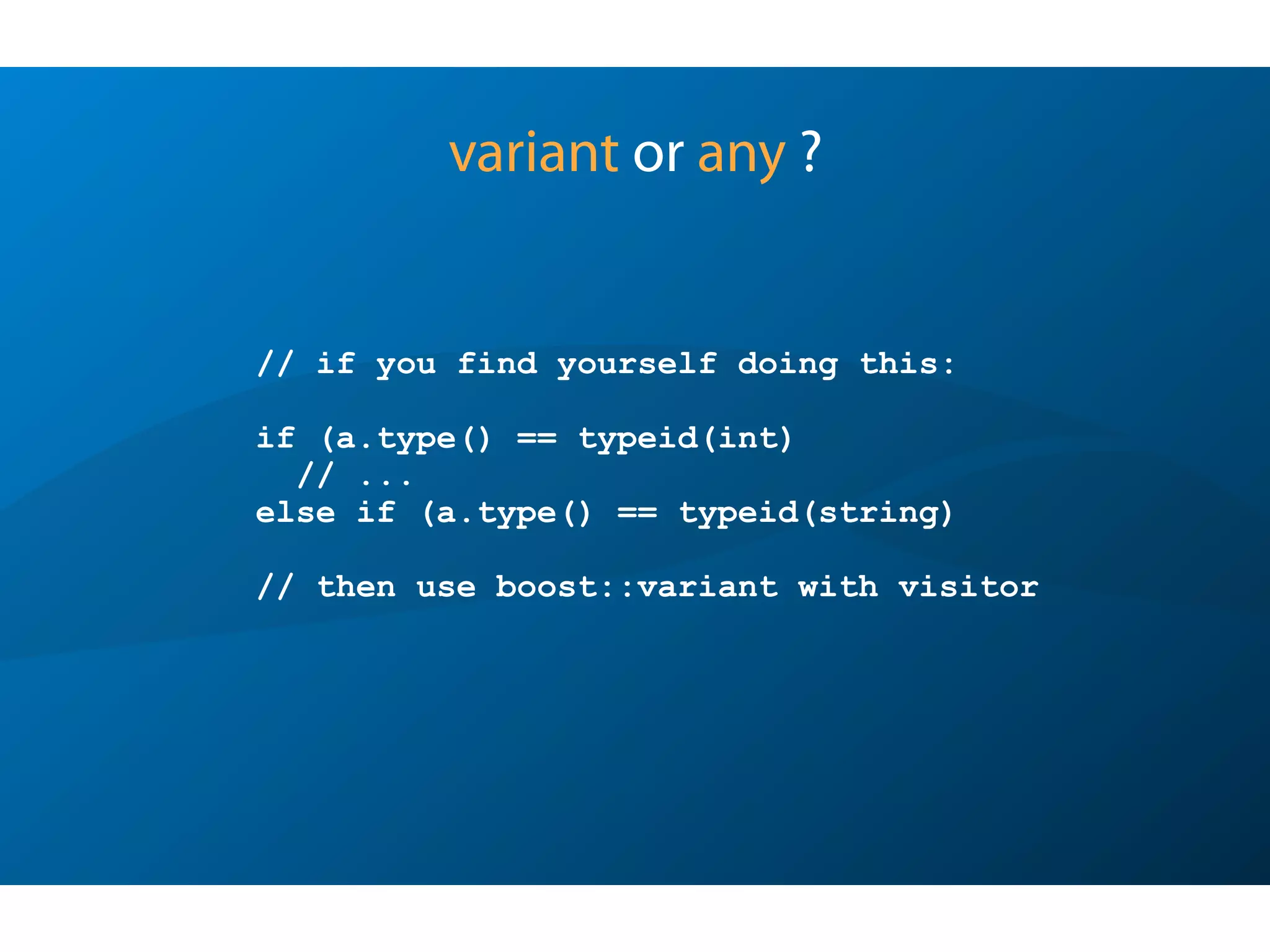

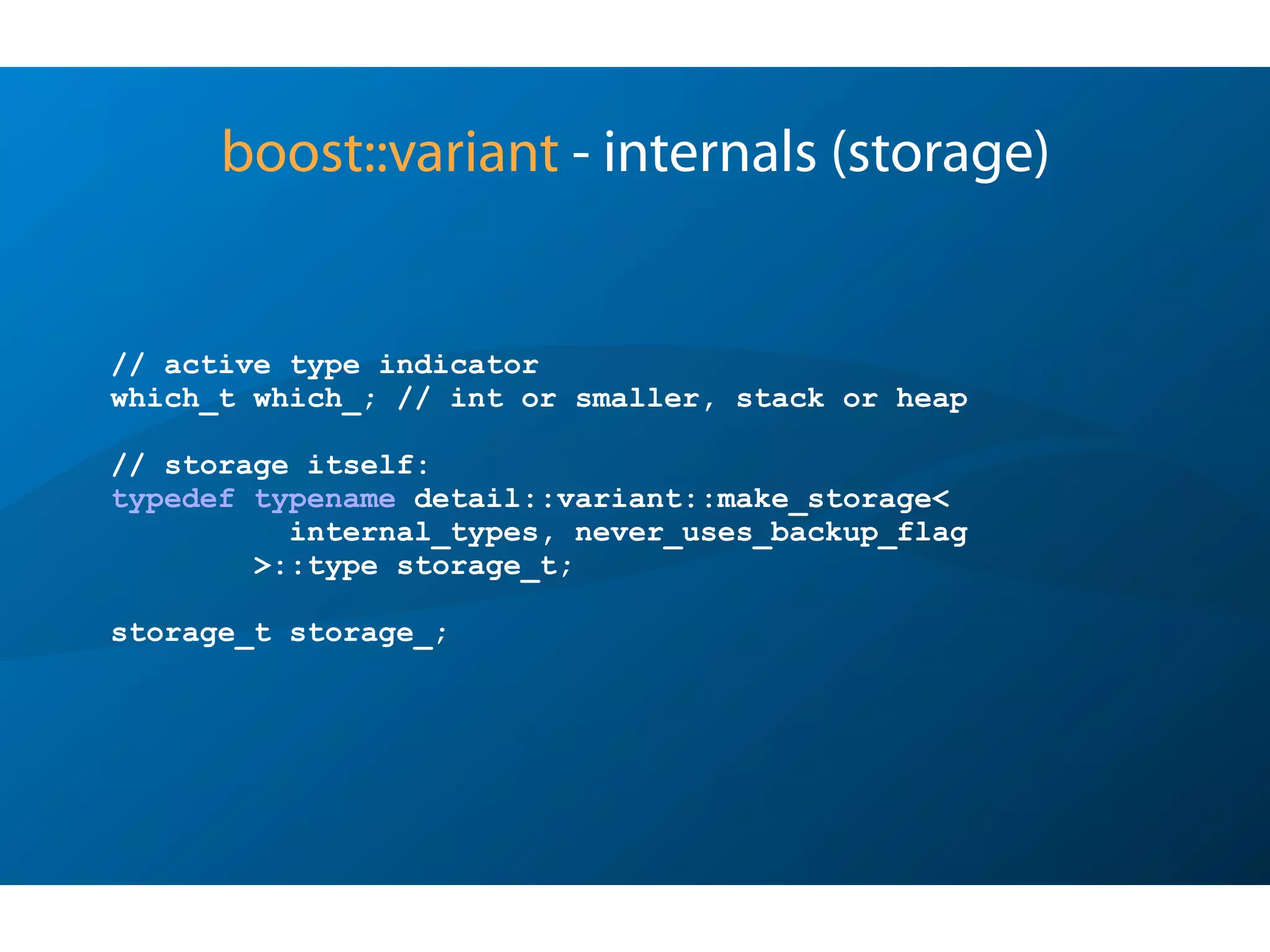

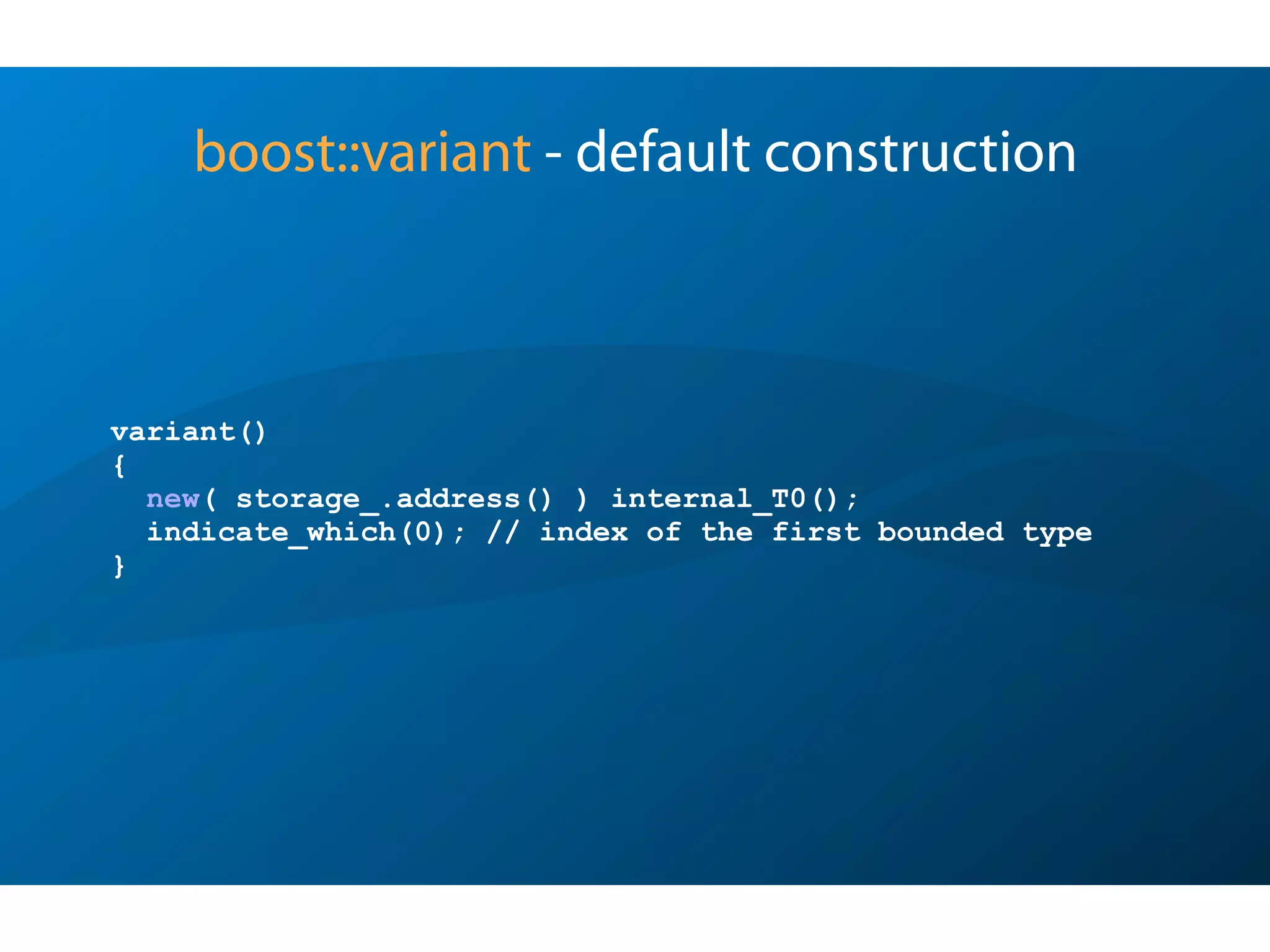

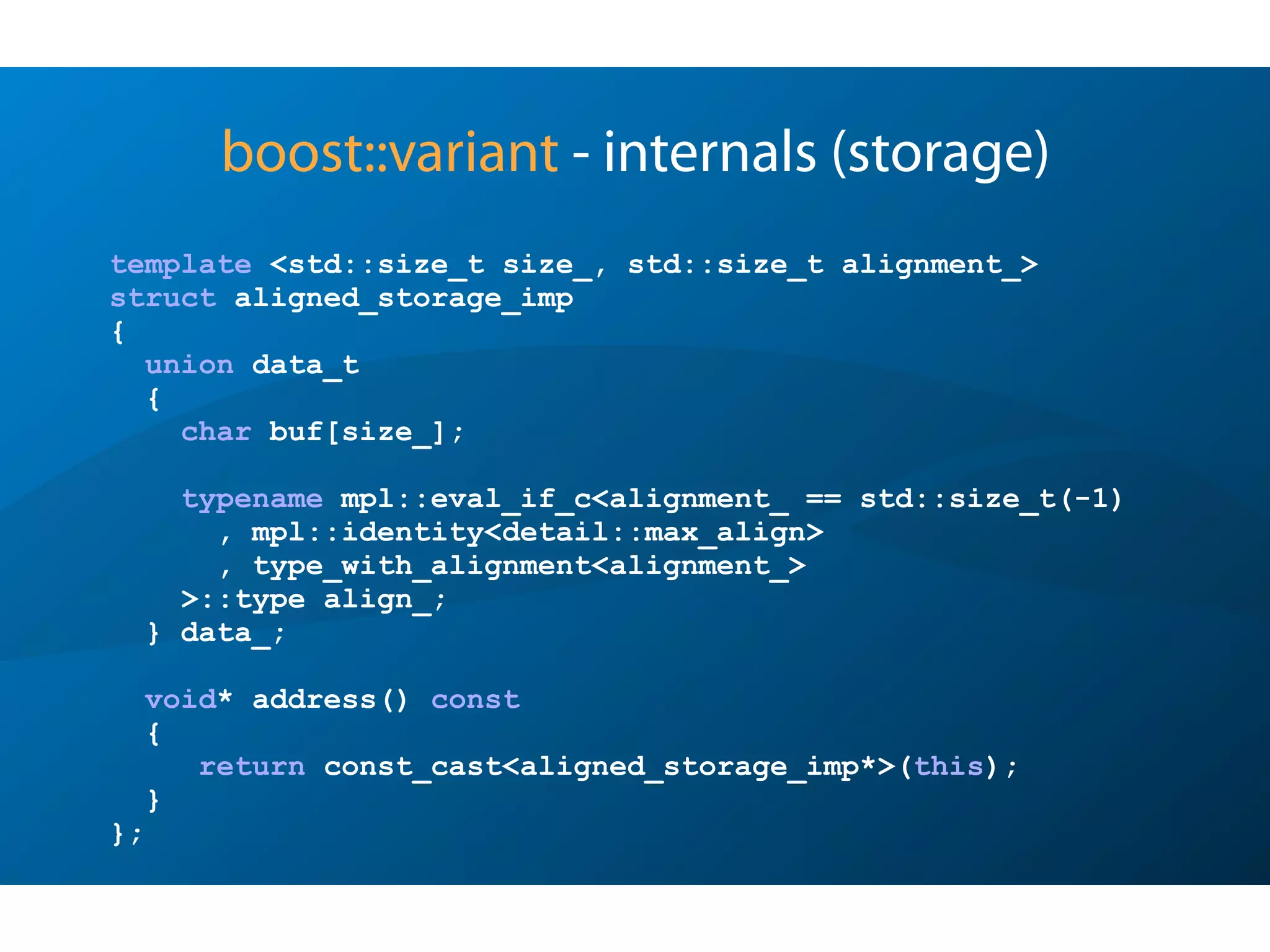

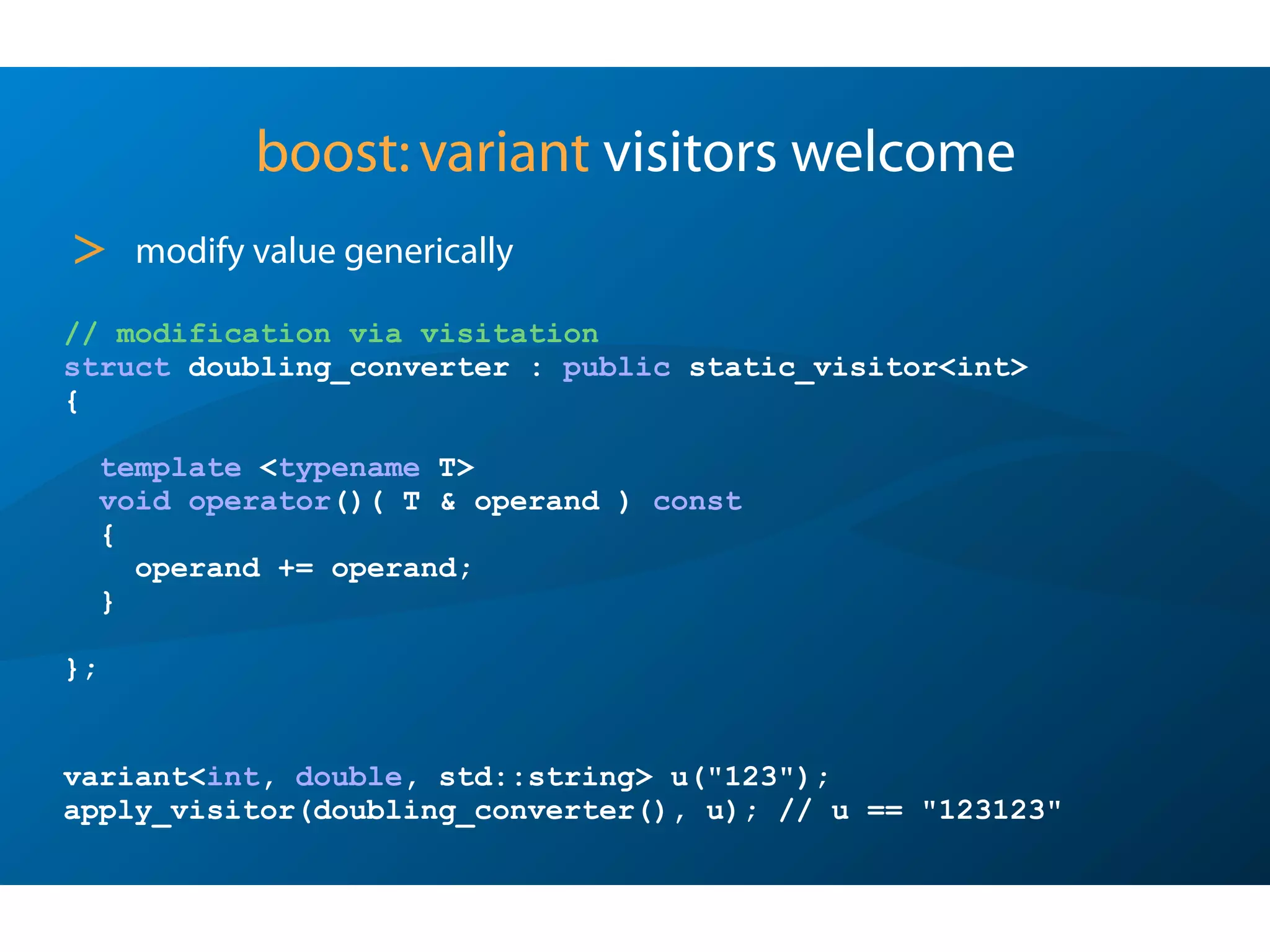

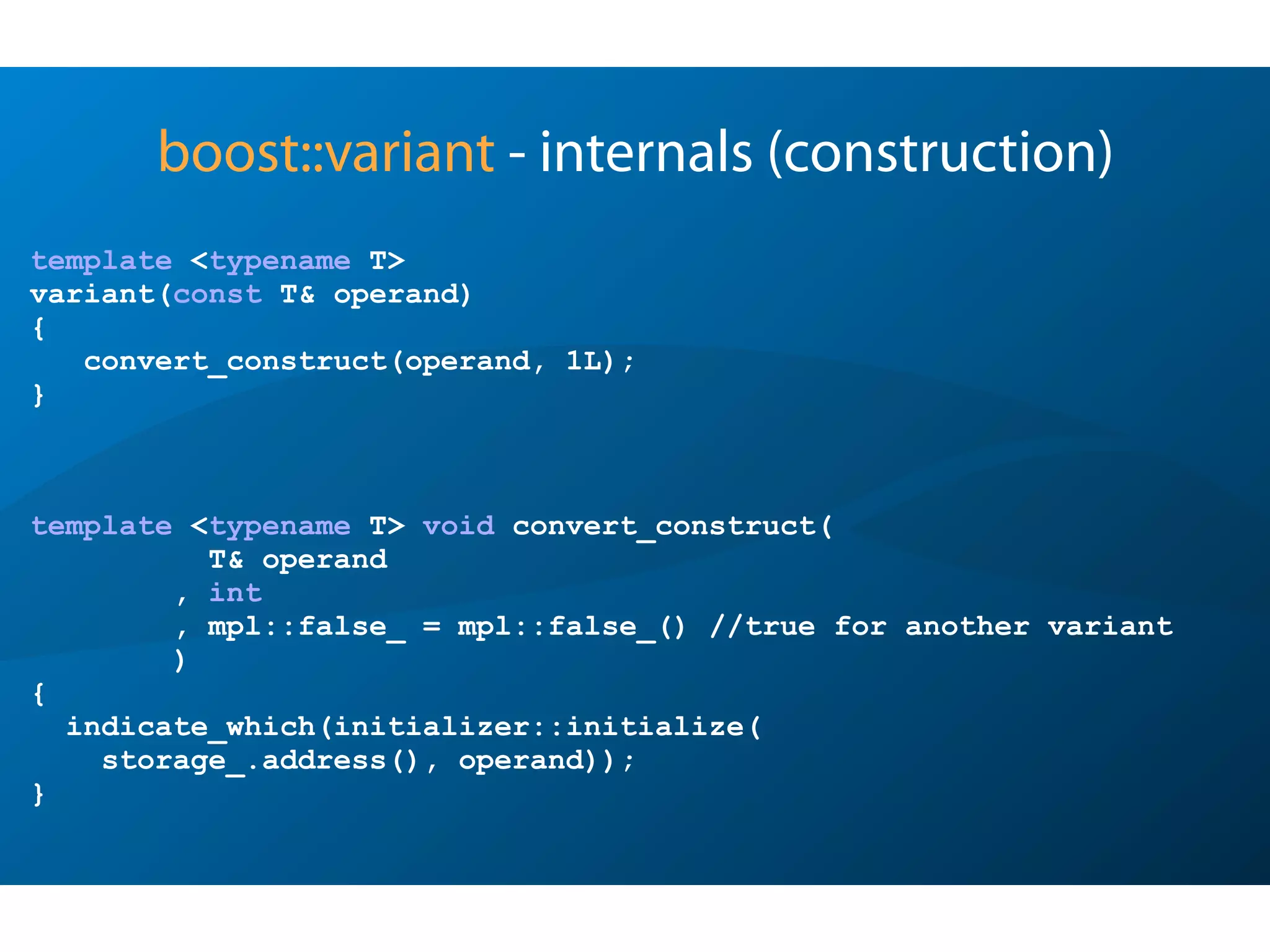

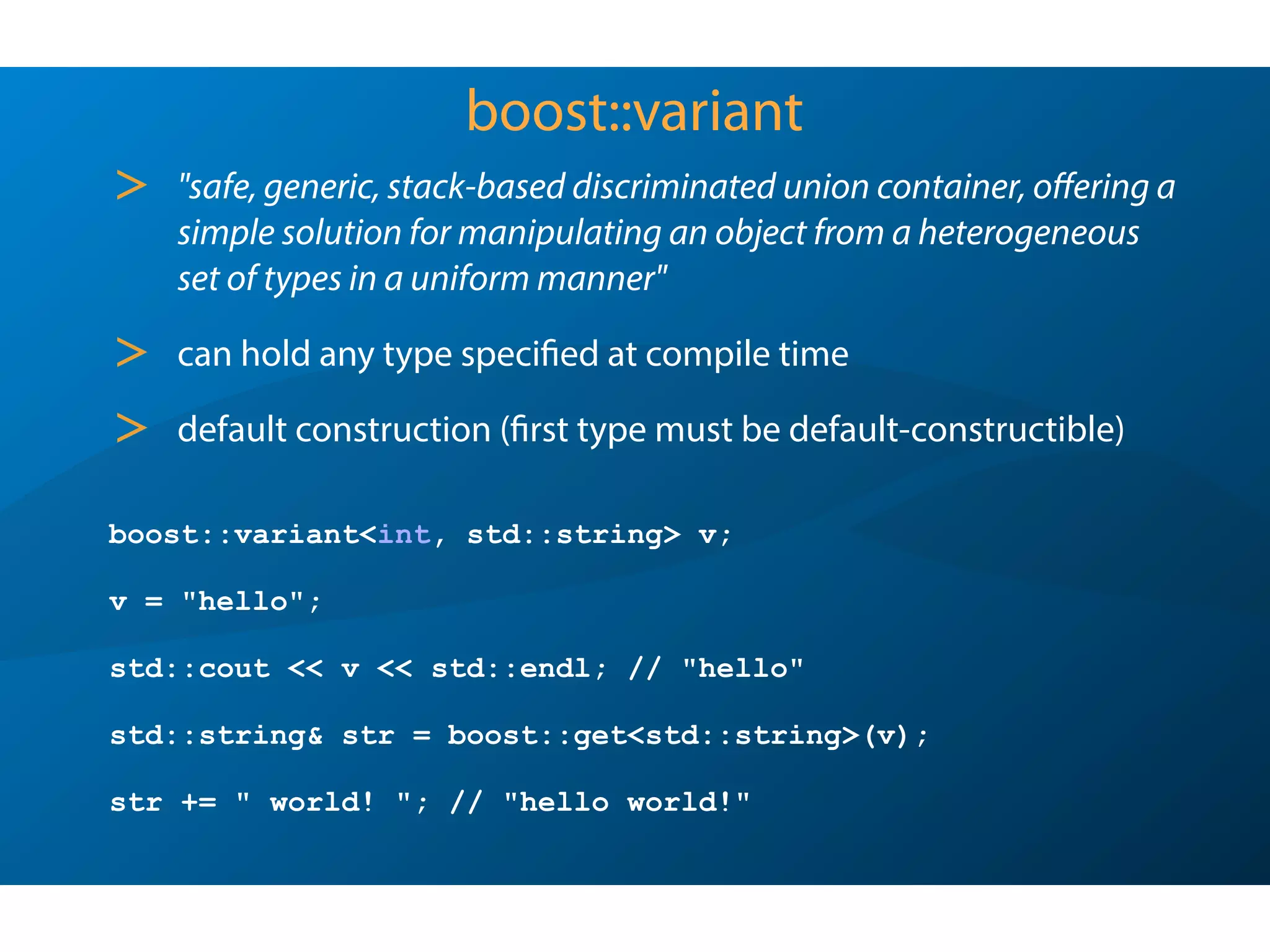

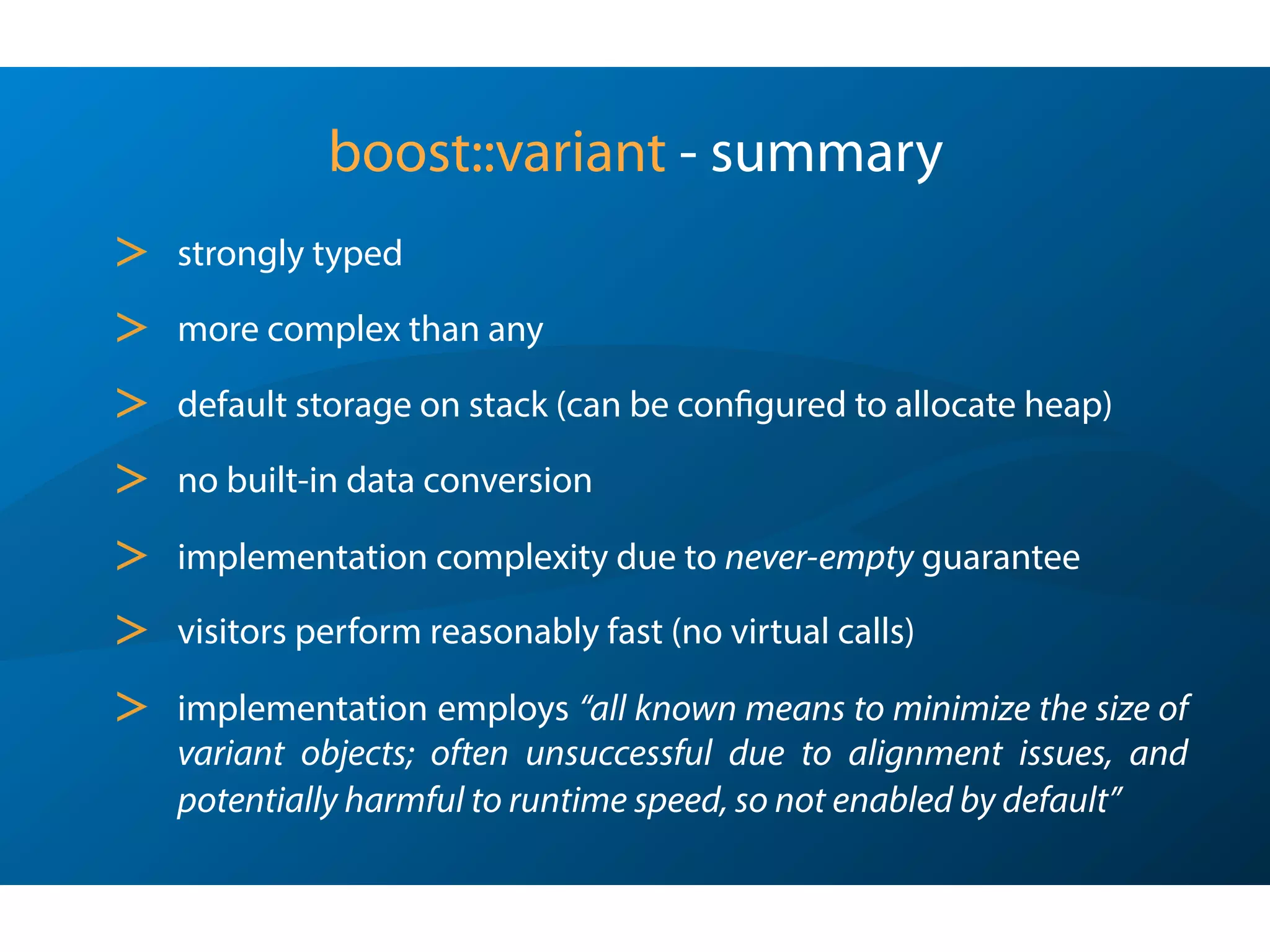

> boost::variant
> boost::lexical_cast

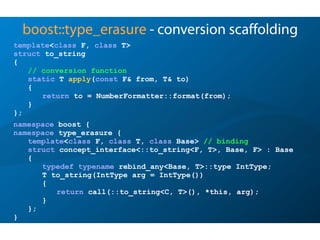

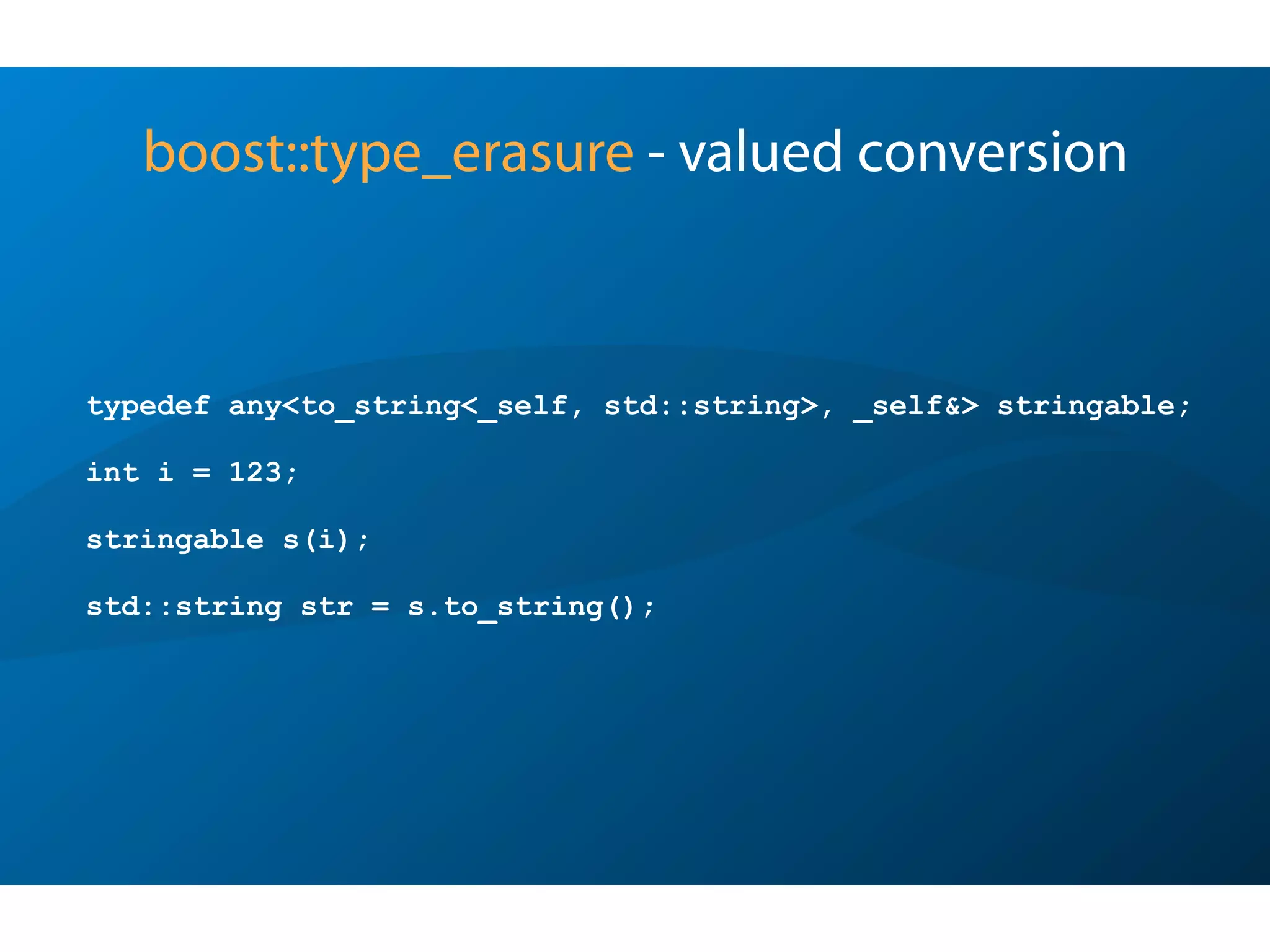

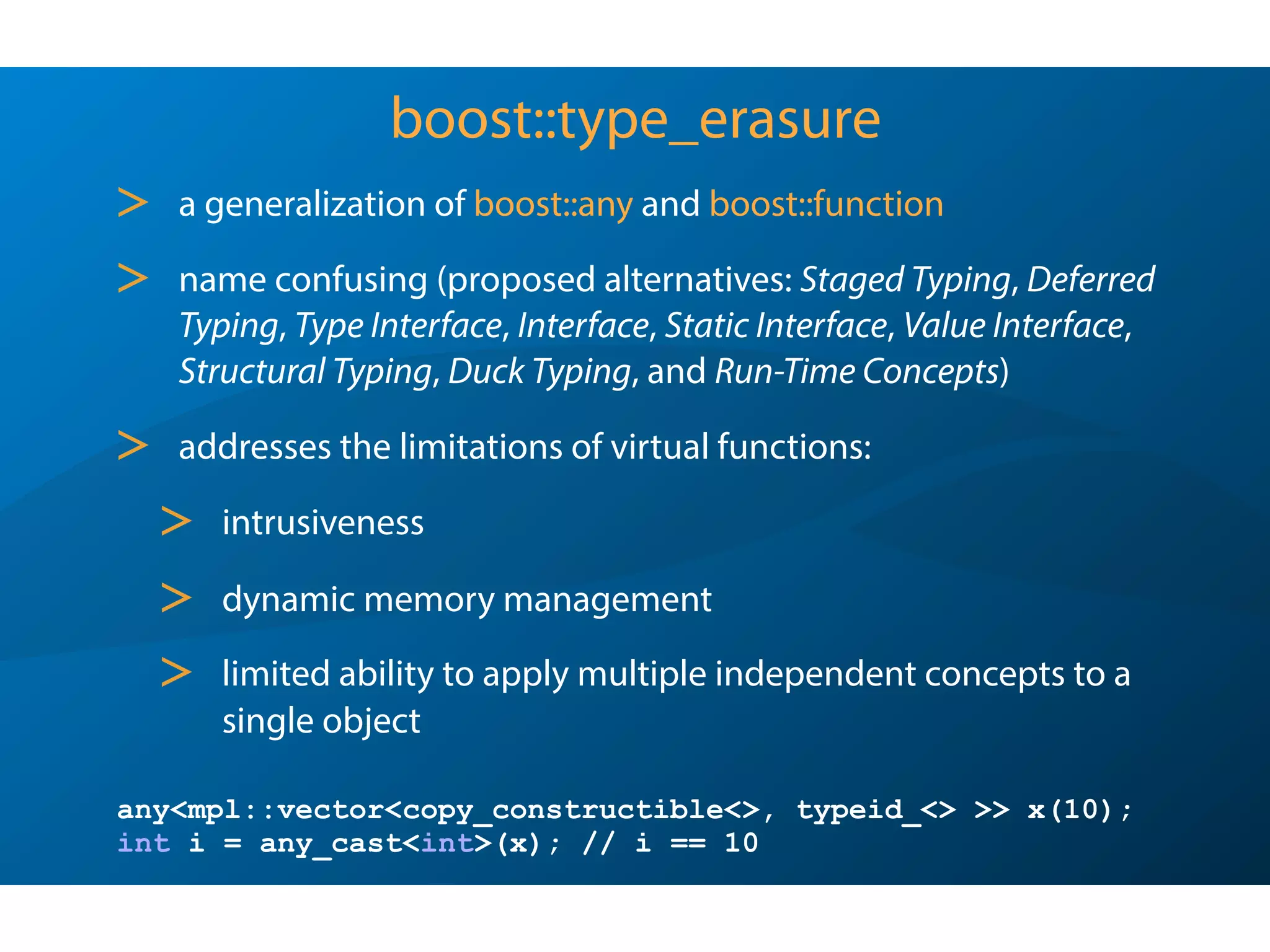

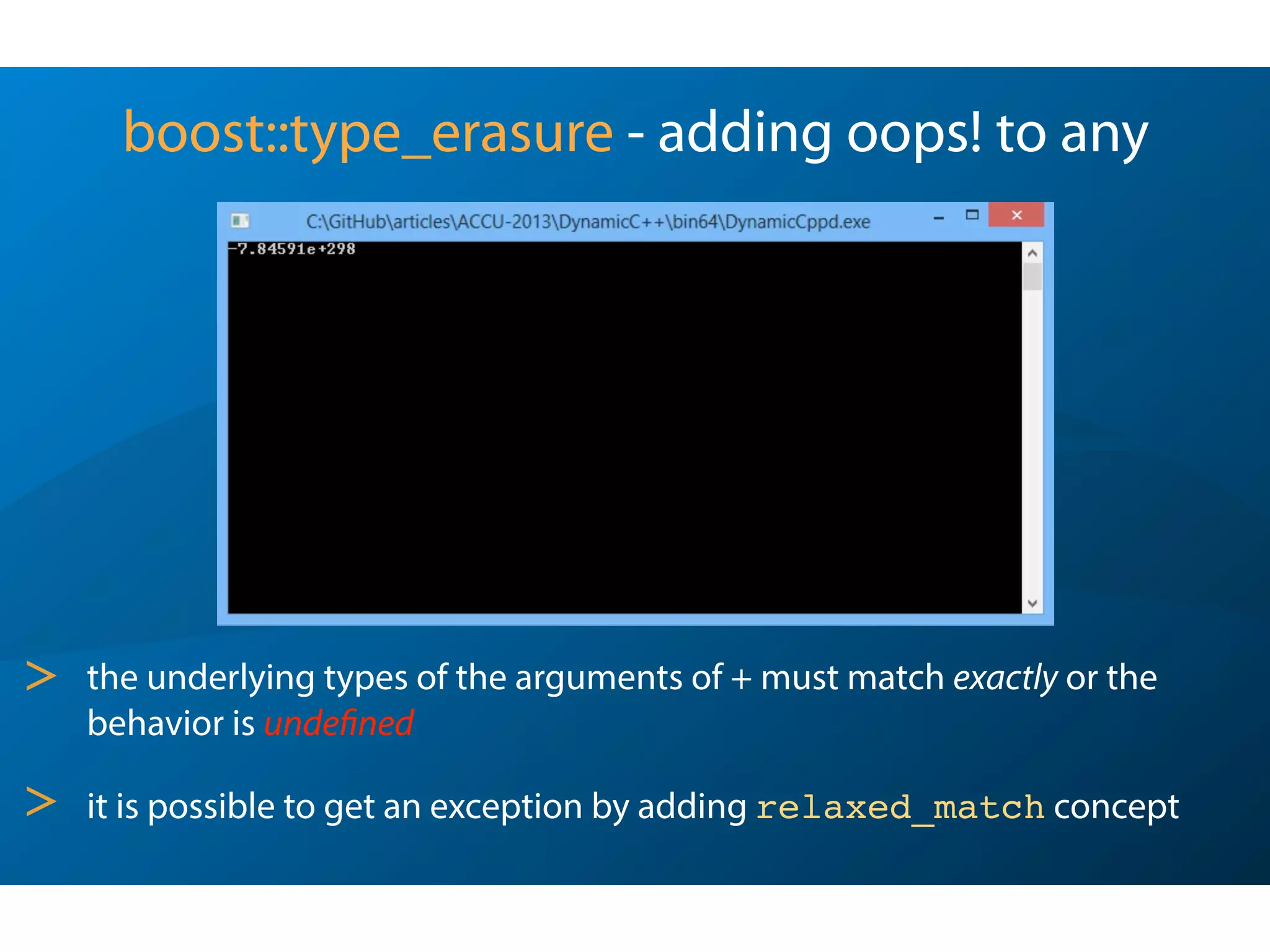

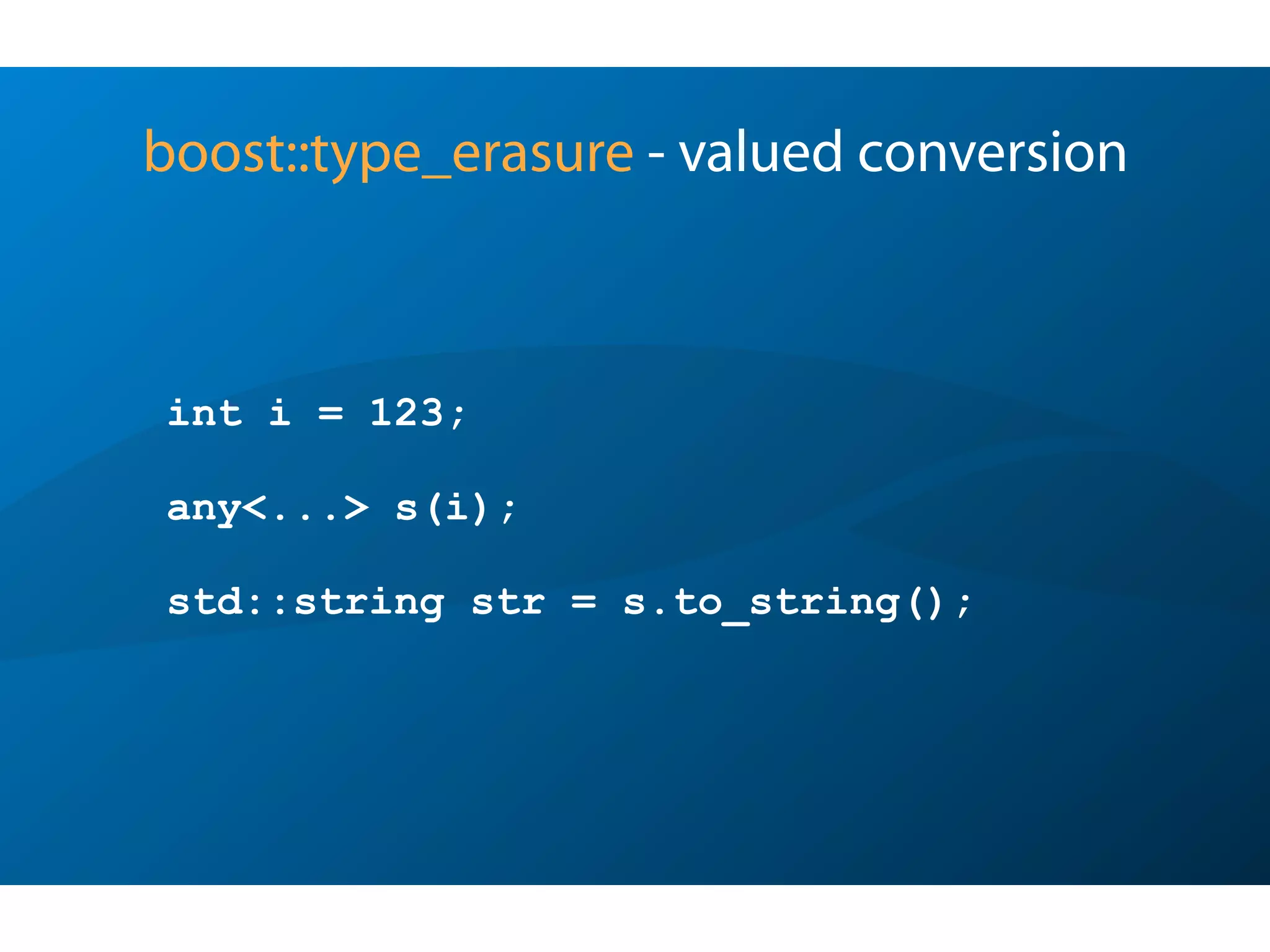

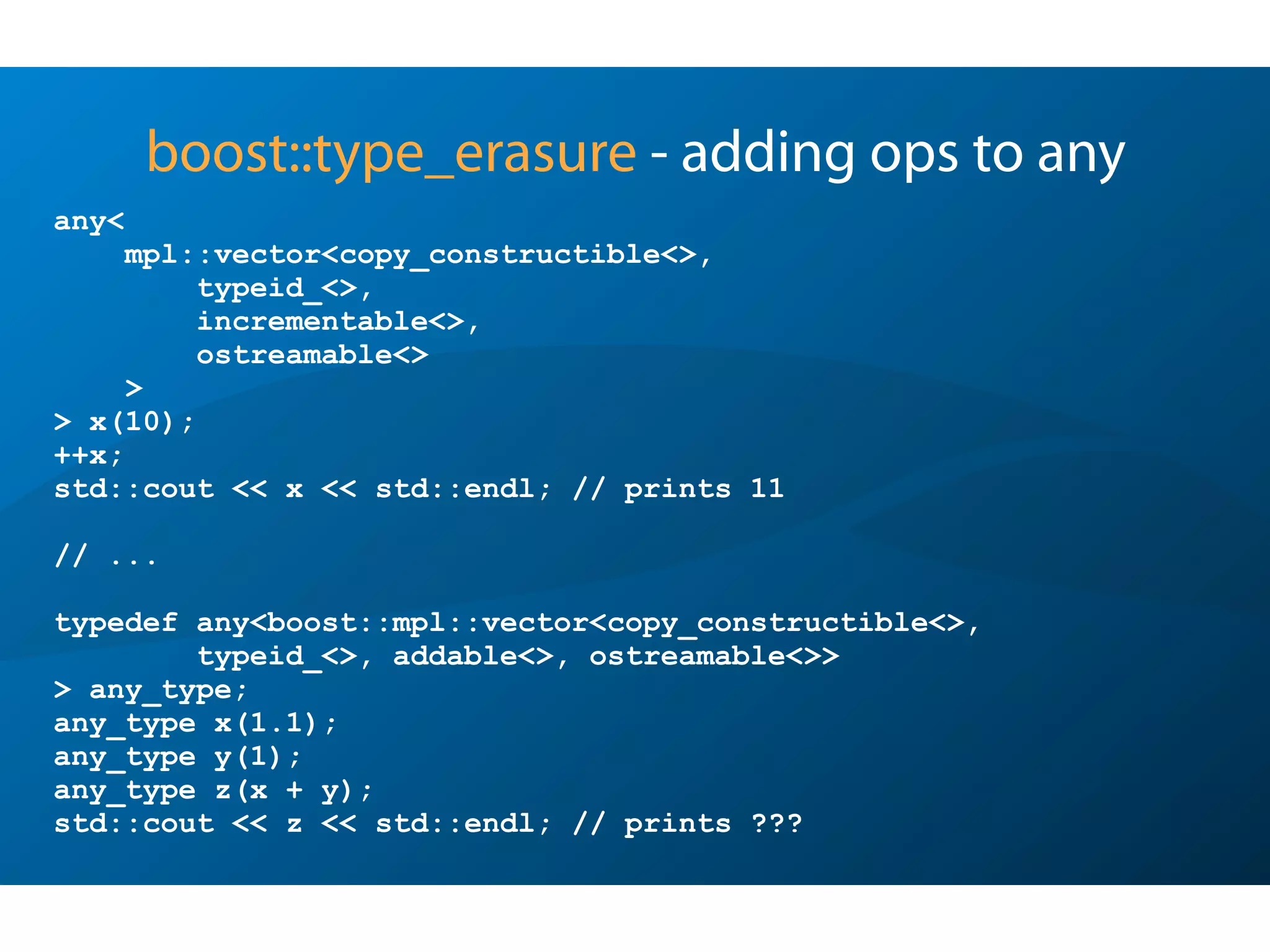

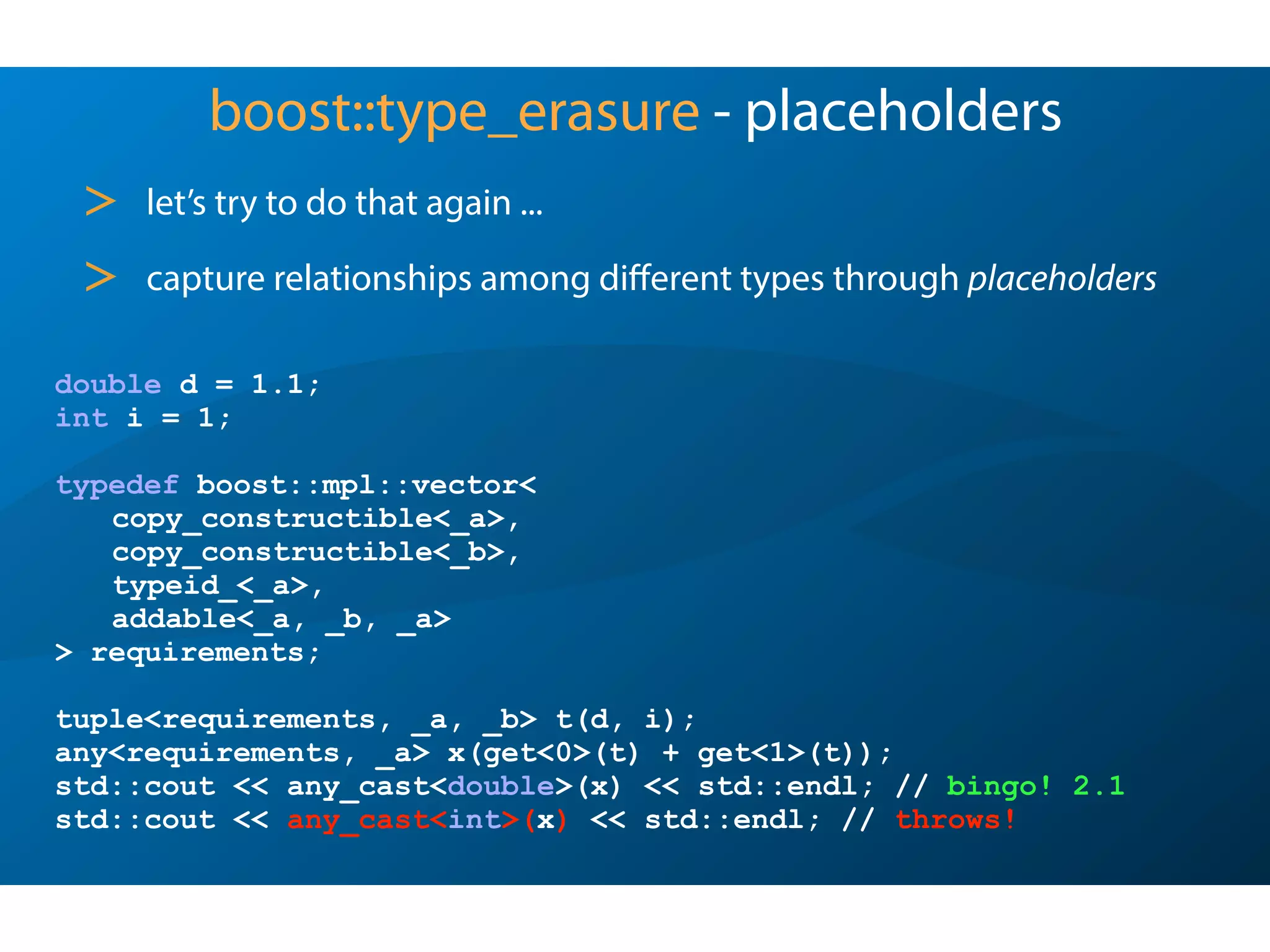

> boost::type_erasure
> folly::dynamic

Linux Performance Windows

ACCU Overload Journal Articles
http://accu.org/index.php/journals/1511
http://accu.org/index.php/journals/1502

Last but not Least
POCO
> large, comprehensive, well-designed framework
> designed for practical everyday use, with end-user in mind
> makes C++ programming fun
> 100% standard C++
> not reinventing the wheel (except when necessary ;-)
http://poco.svn.sourceforge.net/viewvc/poco/poco/trunk
https://poco.svn.sourceforge.net/svnroot/poco/poco/trunk
http://pocoproject.org

got POCO?C++ PORTABLE COMPONENTS
http://pocoproject.org alex@pocoproject.org
