1. Spark GraphX & Pregel
Challenges and Best Practices
Ashutosh Trivedi (IIIT Bangalore)
Kaushik Ranjan (IIIT Bangalore)
Sigmoid-Meetup Bangalore
https://github.com/anantasty/SparkAlgorithms

2. Agenda
• Introduction to GraphX
– How to describe a graph
– RDDs to store Graph
– Algorithms available
• Application in graph algorithms
– Feedback Vertex Set of a Graph
– Identifying parallel parts of the solution.
• Challenges we faced
• Best practices
Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
2

3. Graph Representation
Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
3

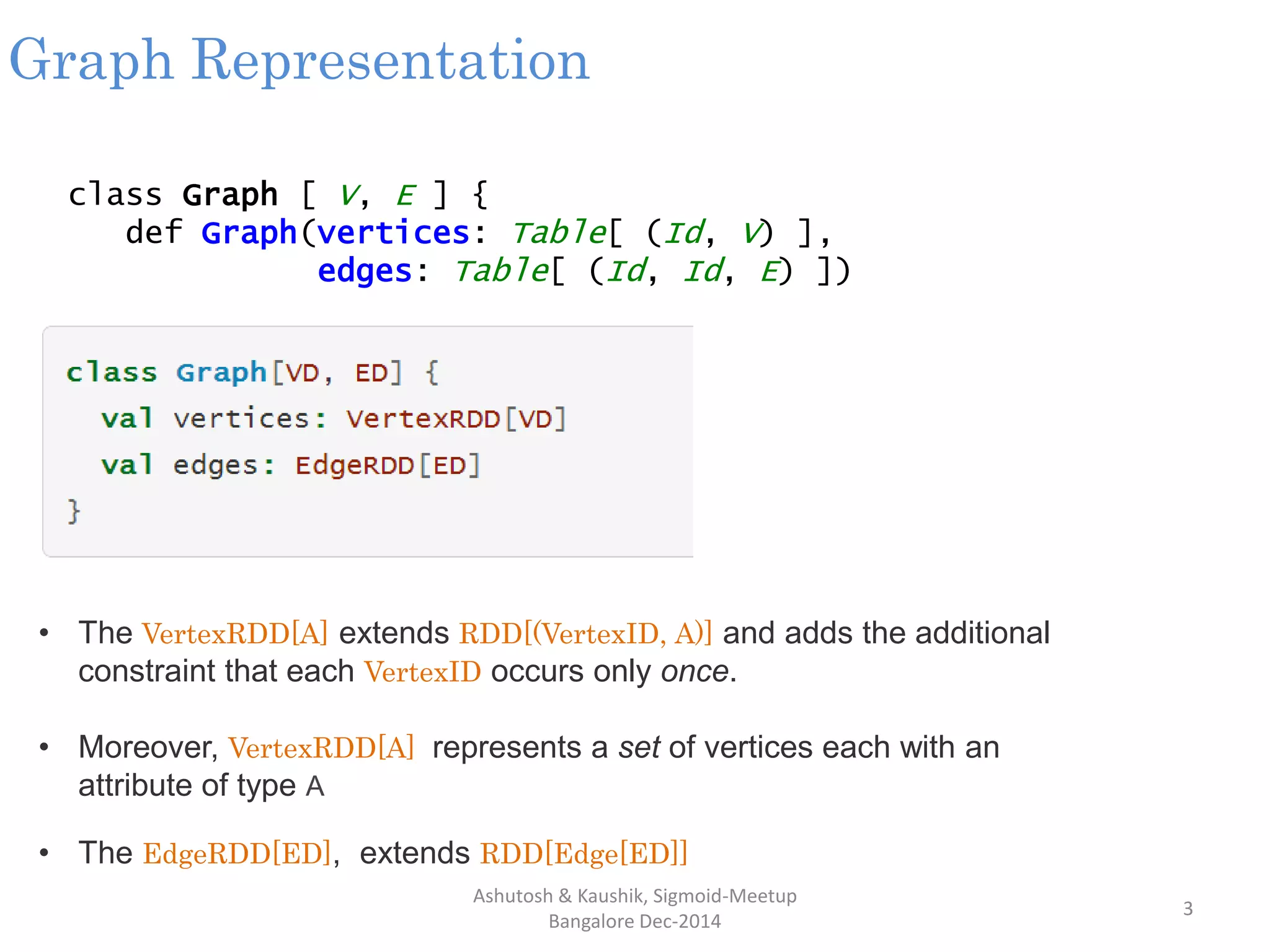

class Graph [ V, E ] {
def Graph(vertices: Table[ (Id, V) ],
edges: Table[ (Id, Id, E) ])
• The VertexRDD[A] extends RDD[(VertexID, A)] and adds the additional
constraint that each VertexID occurs only once.
• Moreover, VertexRDD[A] represents a set of vertices each with an
attribute of type A
• The EdgeRDD[ED], extends RDD[Edge[ED]]

4. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
4

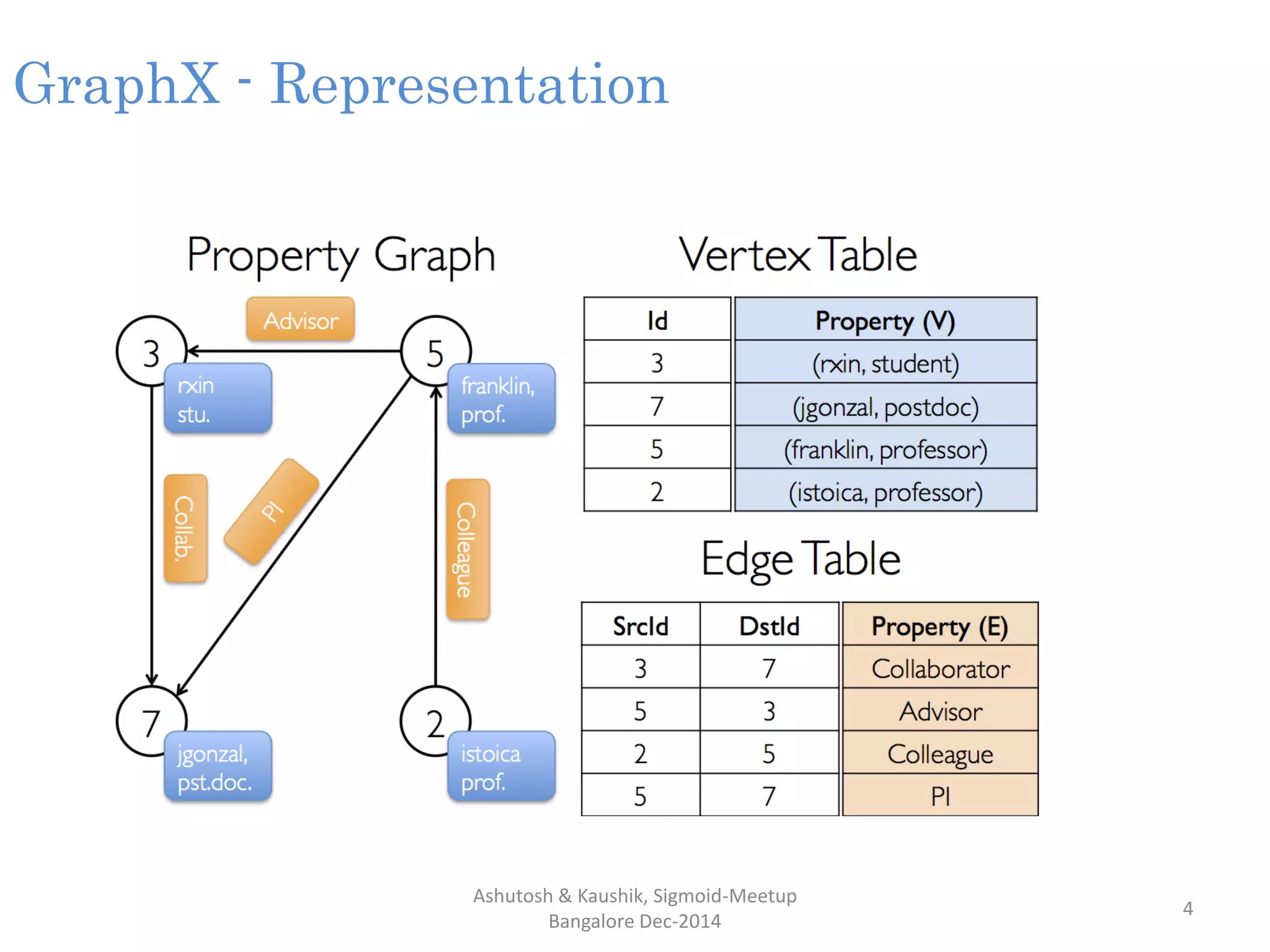

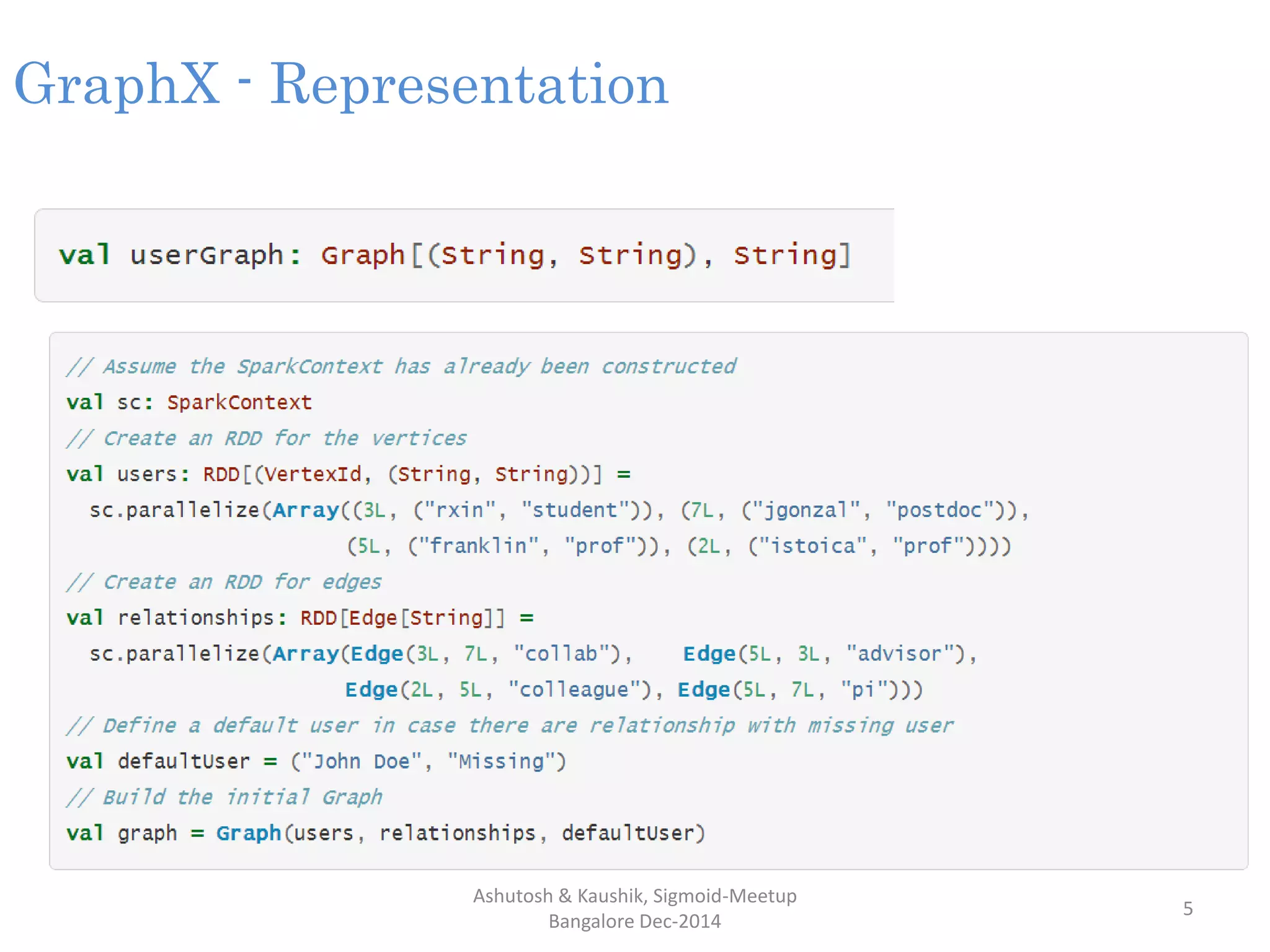

GraphX - Representation

5. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
5
GraphX - Representation

6. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
6

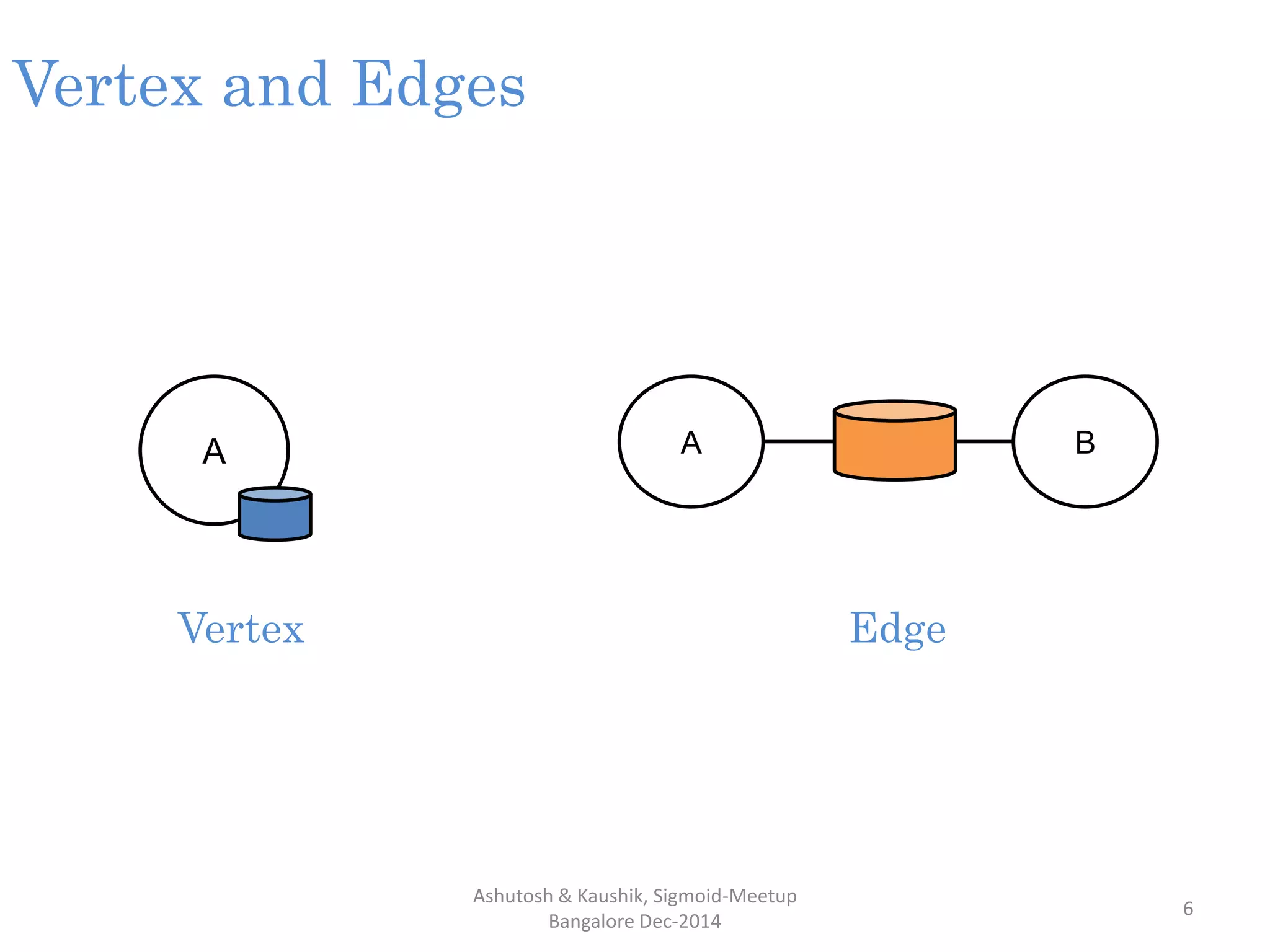

A BA
Vertex and Edges
Vertex Edge

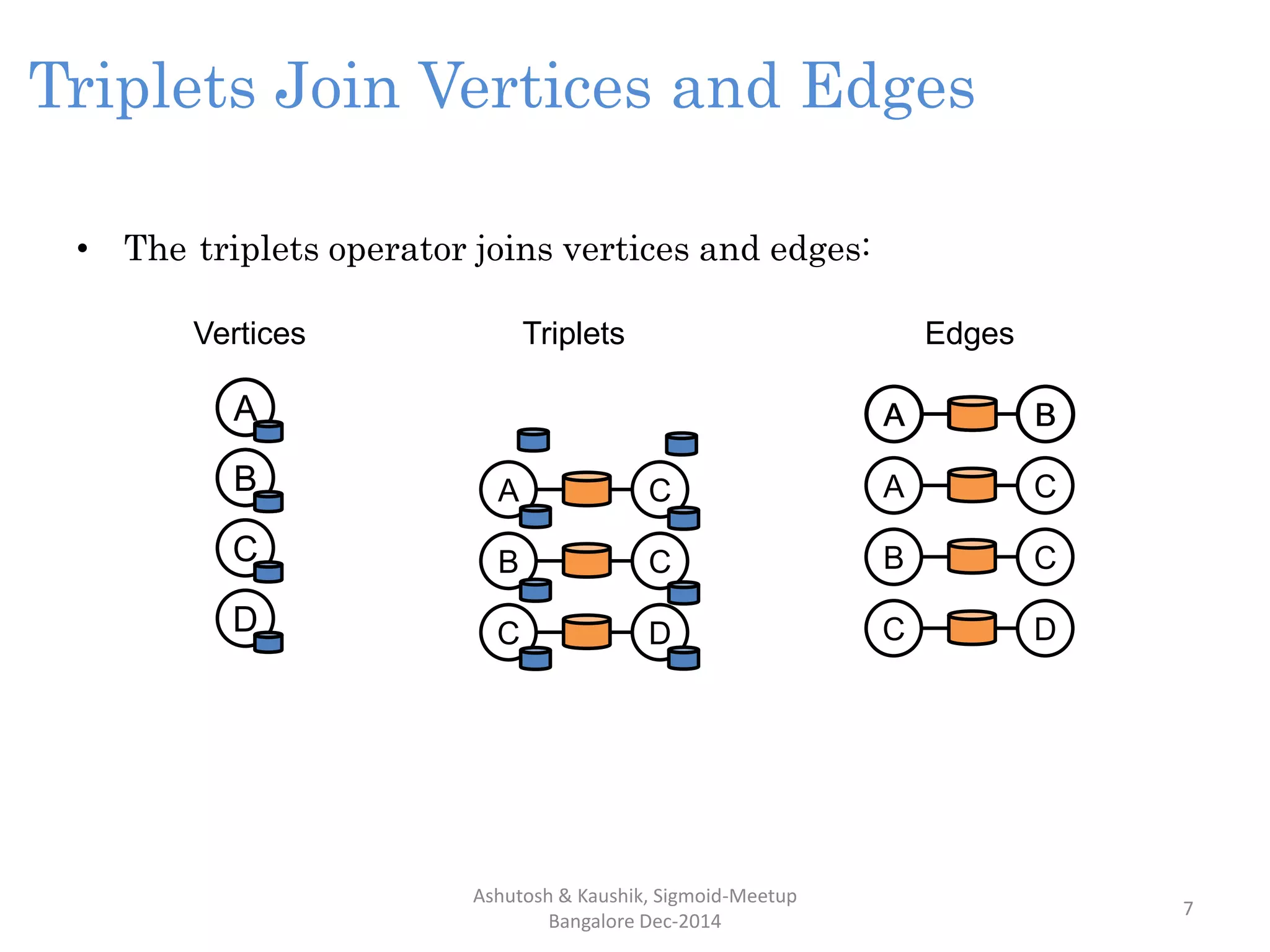

7. Triplets Join Vertices and Edges
• The triplets operator joins vertices and edges:
TripletsVertices
B
A
C
D
Edges
A B
A C
B C
C D
A BA
B A C
B C
C D
Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
7

8. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
8
Triplets elements

9. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
9

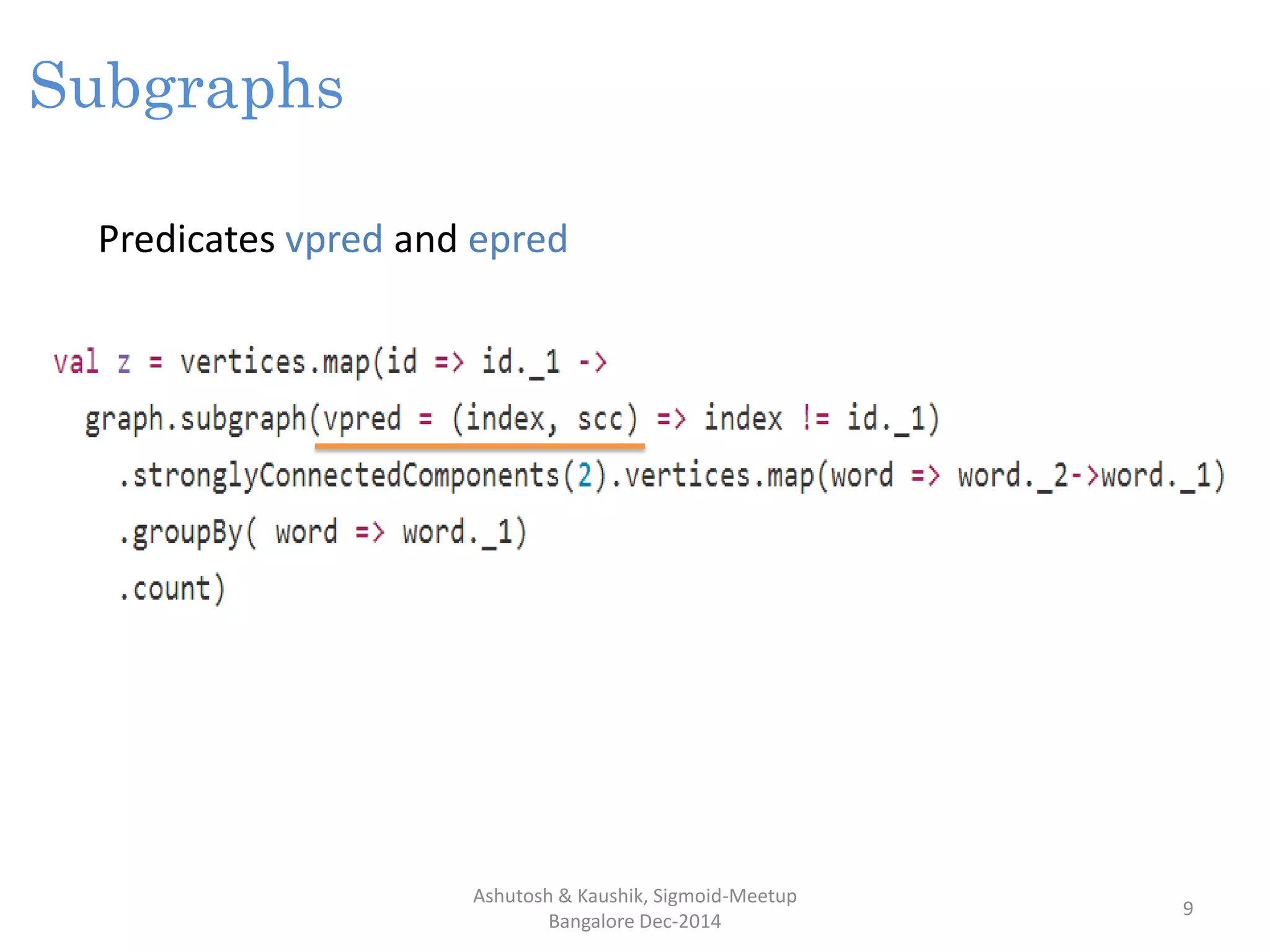

Subgraphs
Predicates vpred and epred

10. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
10

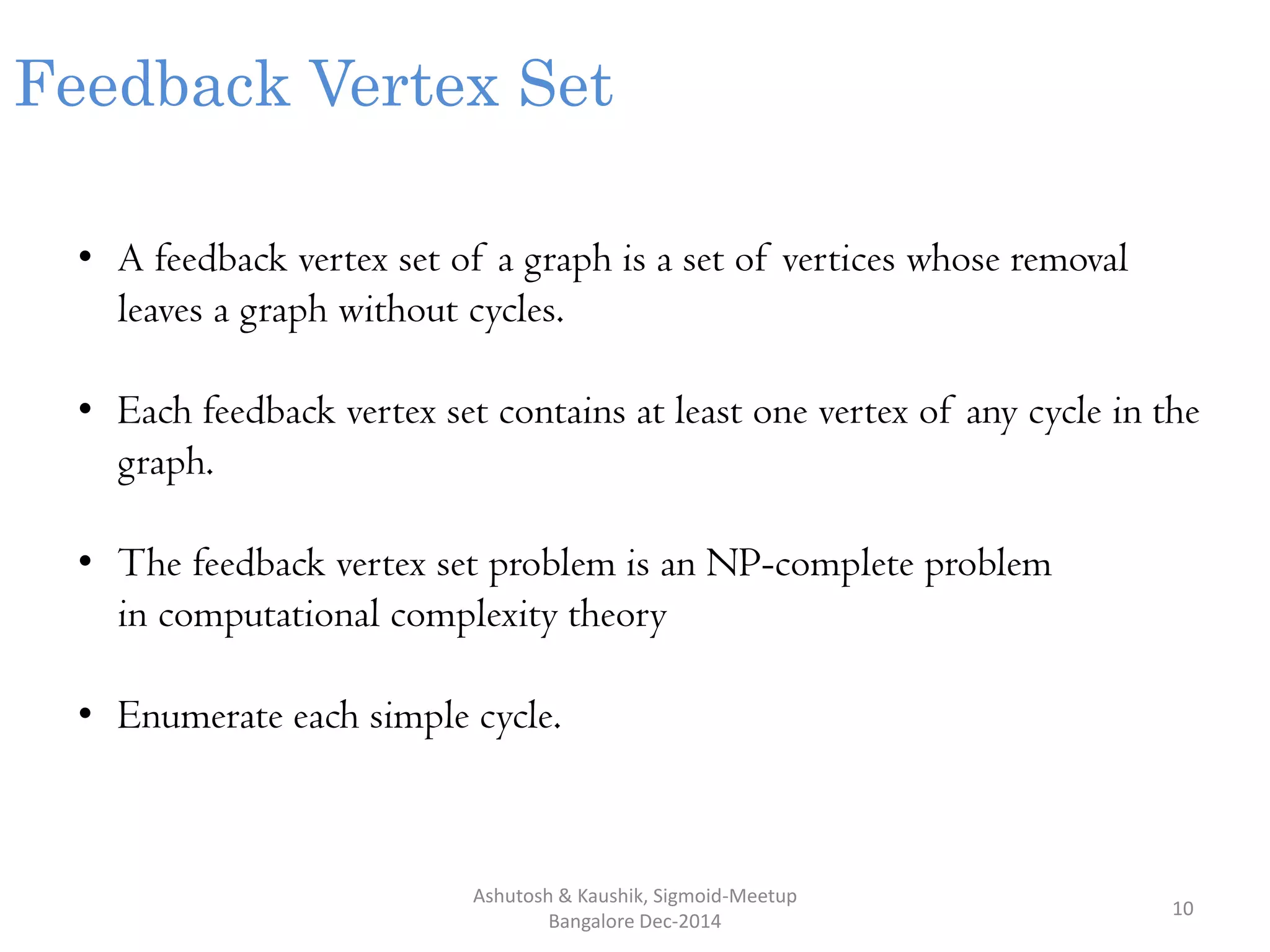

Feedback Vertex Set
• A feedback vertex set of a graph is a set of vertices whose removal
leaves a graph without cycles.
• Each feedback vertex set contains at least one vertex of any cycle in the
graph.
• The feedback vertex set problem is an NP-complete problem
in computational complexity theory
• Enumerate each simple cycle.

11. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
11
1 2
34
5
6
7
8
9
10

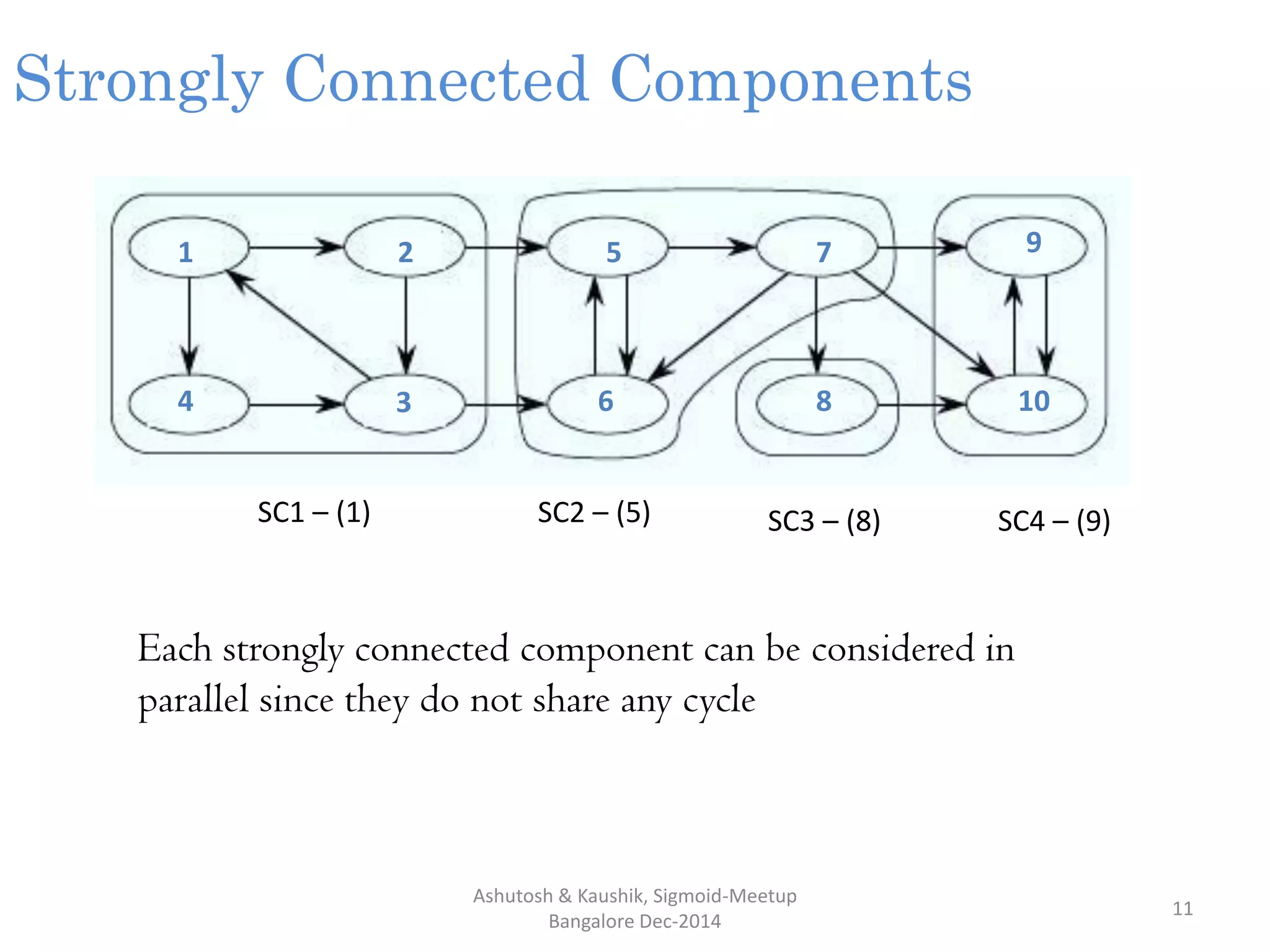

Strongly Connected Components
Each strongly connected component can be considered in
parallel since they do not share any cycle
SC1 – (1) SC2 – (5) SC3 – (8) SC4 – (9)

12. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
12

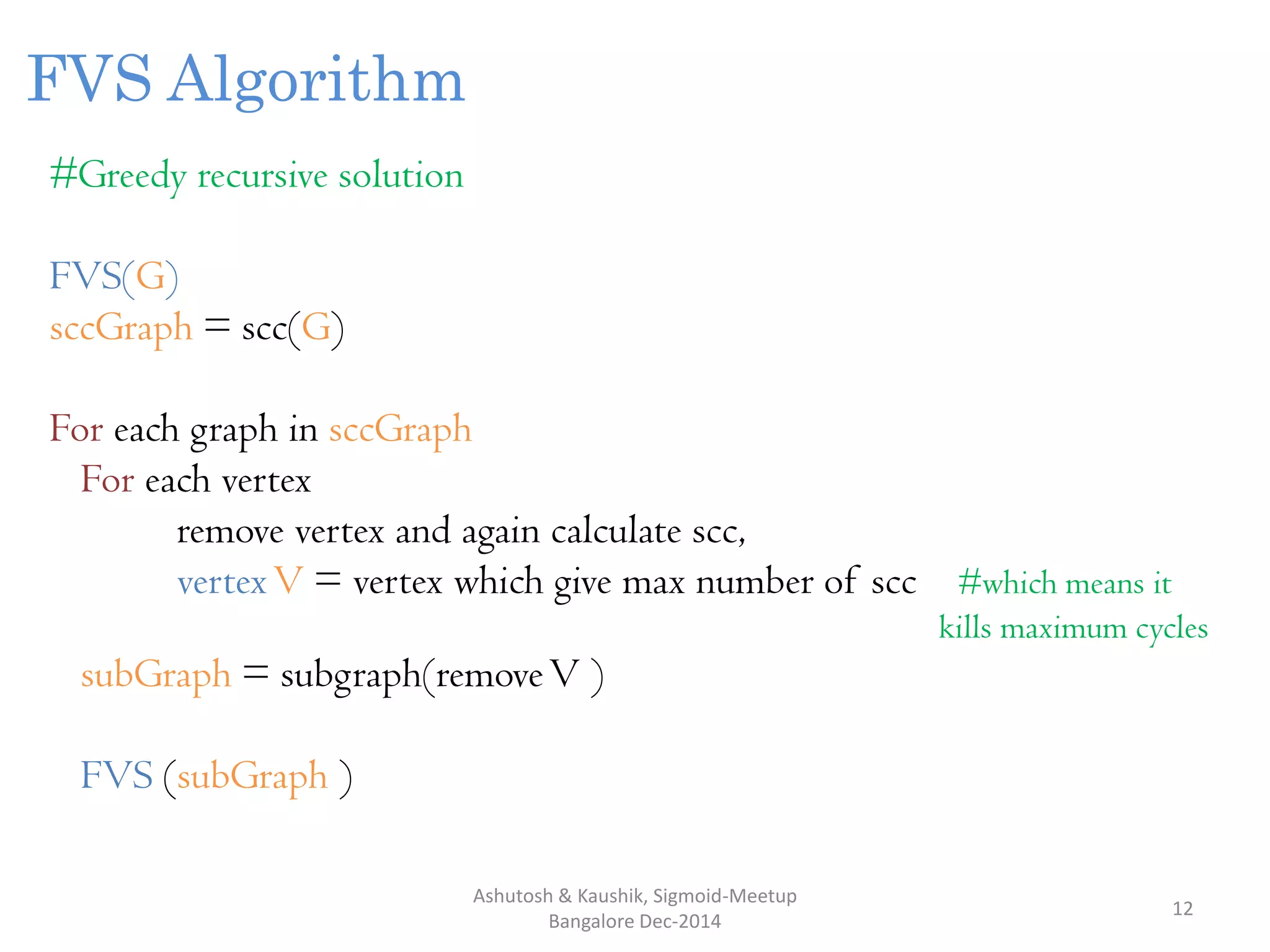

FVS Algorithm
#Greedy recursive solution
FVS(G)
sccGraph = scc(G)
For each graph in sccGraph
For each vertex
remove vertex and again calculate scc,
vertexV = vertex which give max number of scc #which means it
kills maximum cycles
subGraph = subgraph(removeV )
FVS (subGraph )

13. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
13

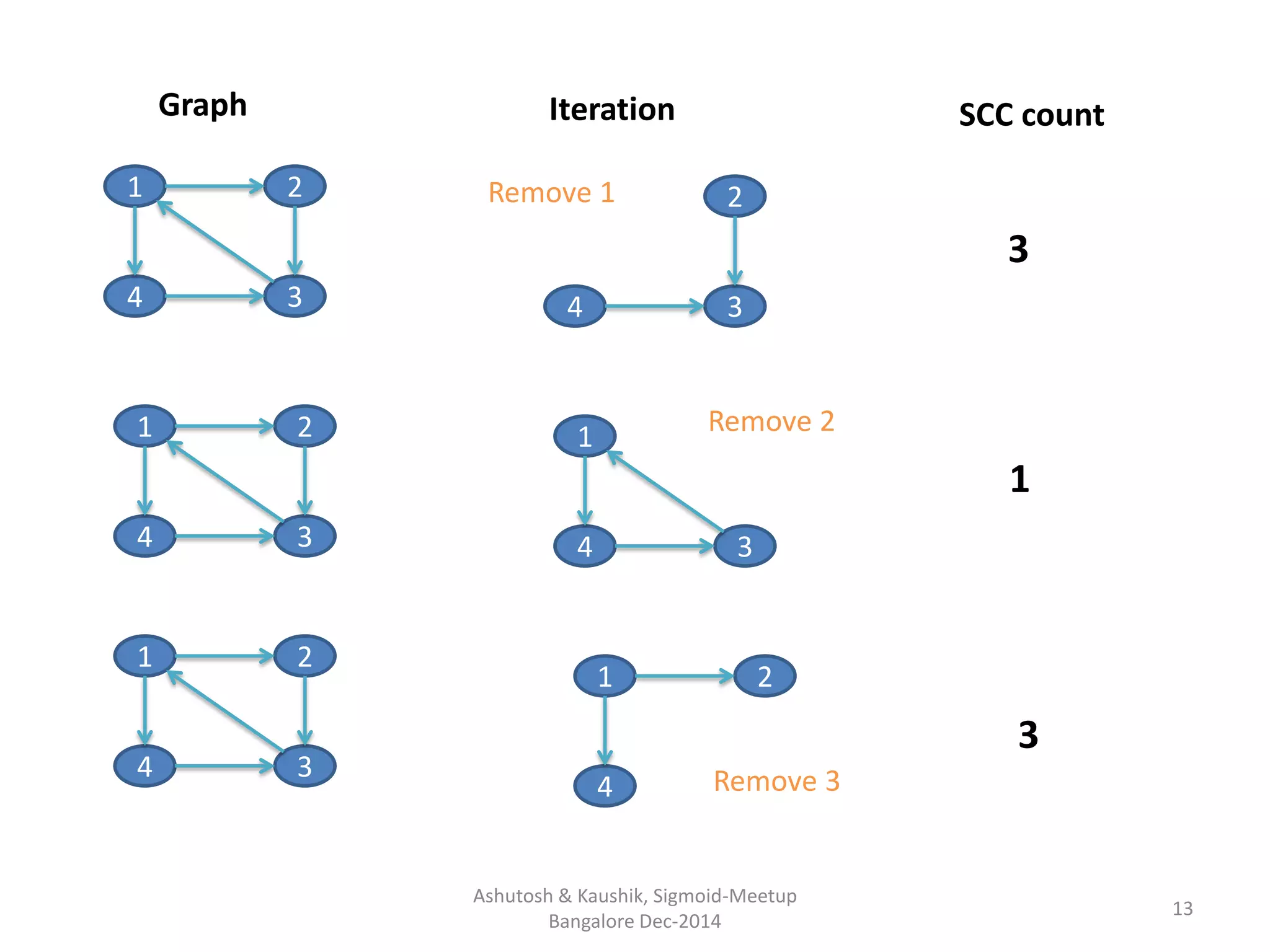

1 2
4 3
2
4 3
Graph Iteration SCC count
3
1
4 3
1
1 2
4
3
1 2
4 3
1 2
4 3
Remove 2
Remove 1
Remove 3

14. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
14

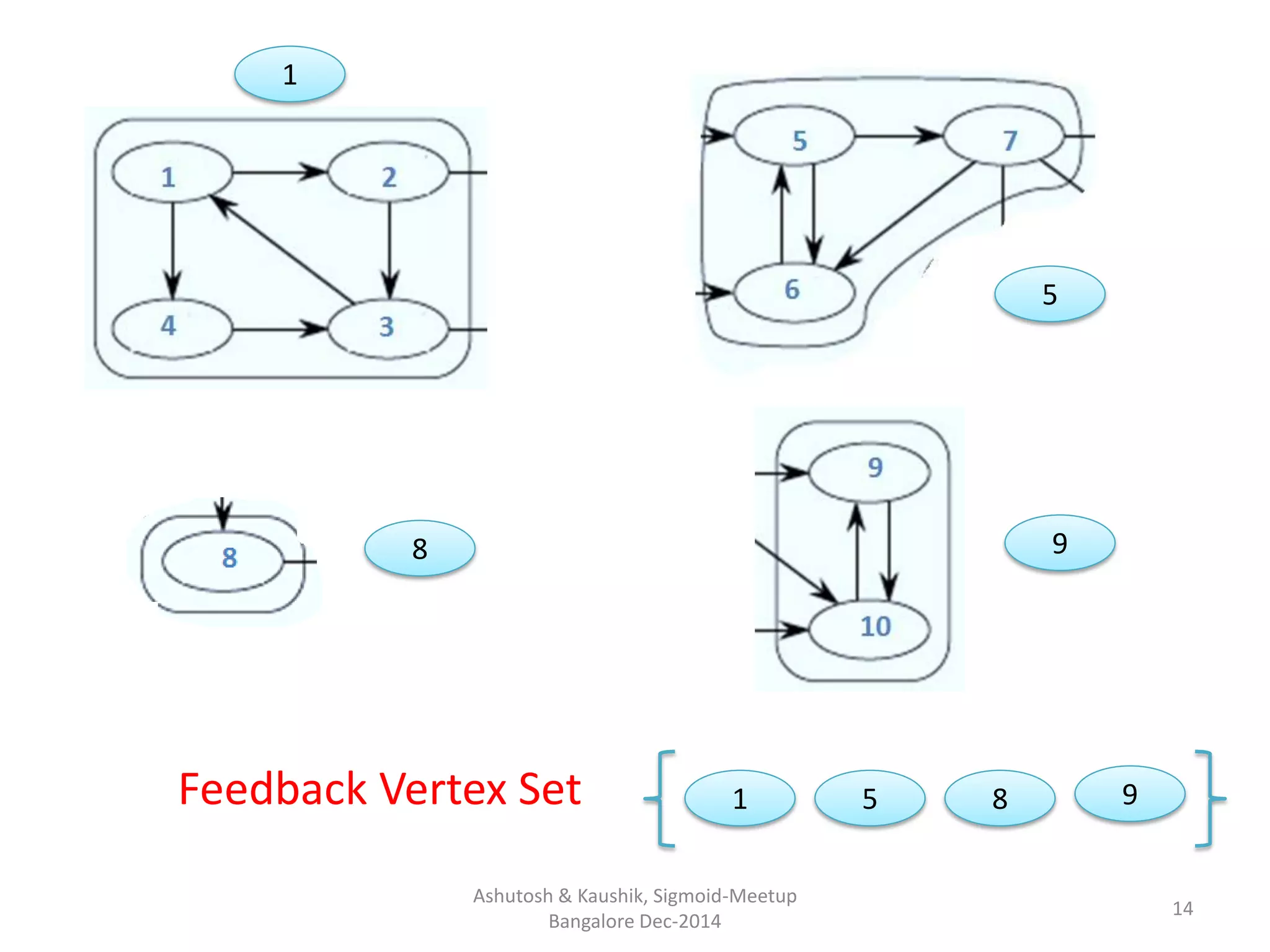

1
5
8 9
1 5 8 9Feedback Vertex Set

15. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
15

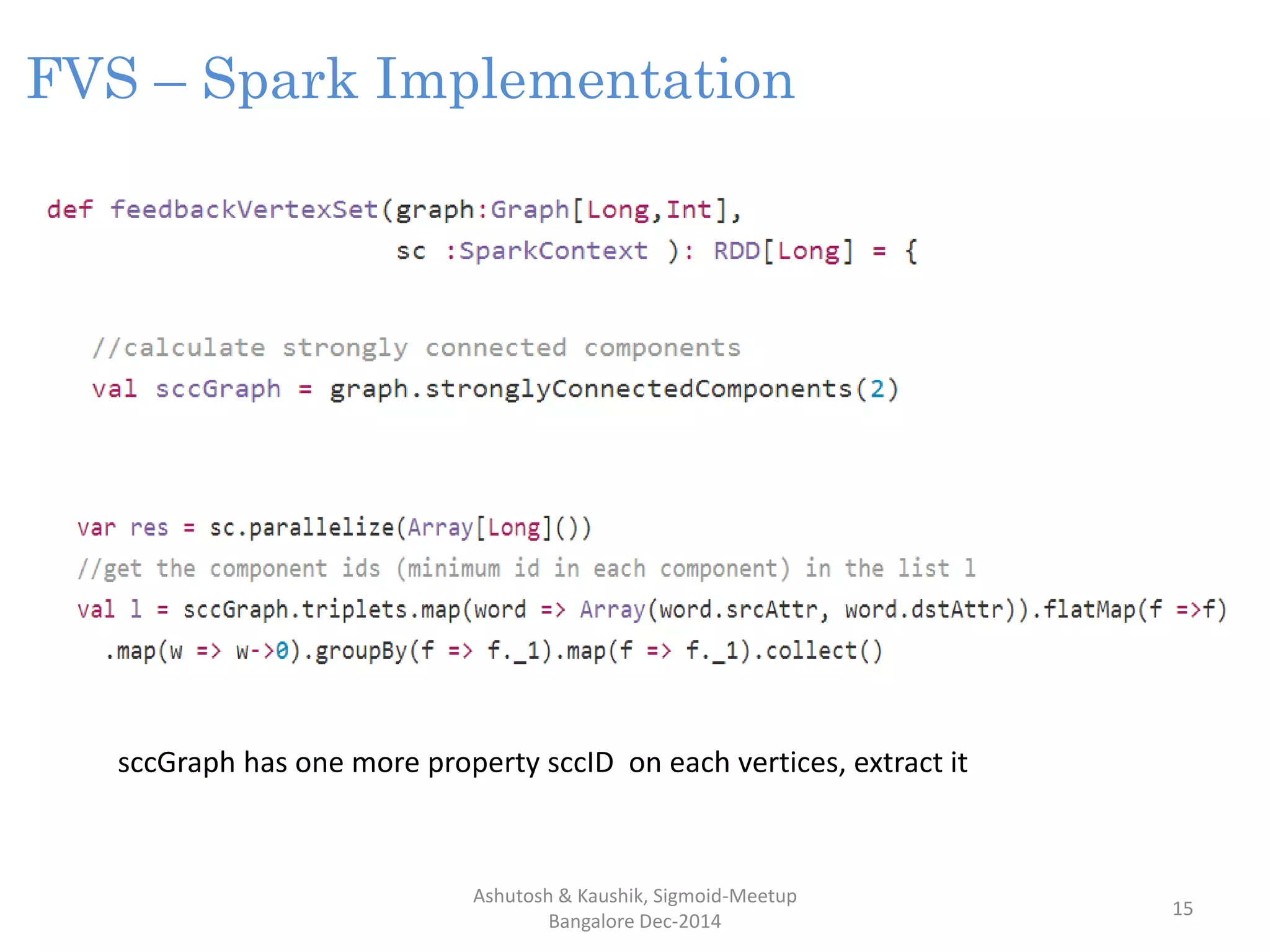

FVS – Spark Implementation
sccGraph has one more property sccID on each vertices, extract it

16. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
16

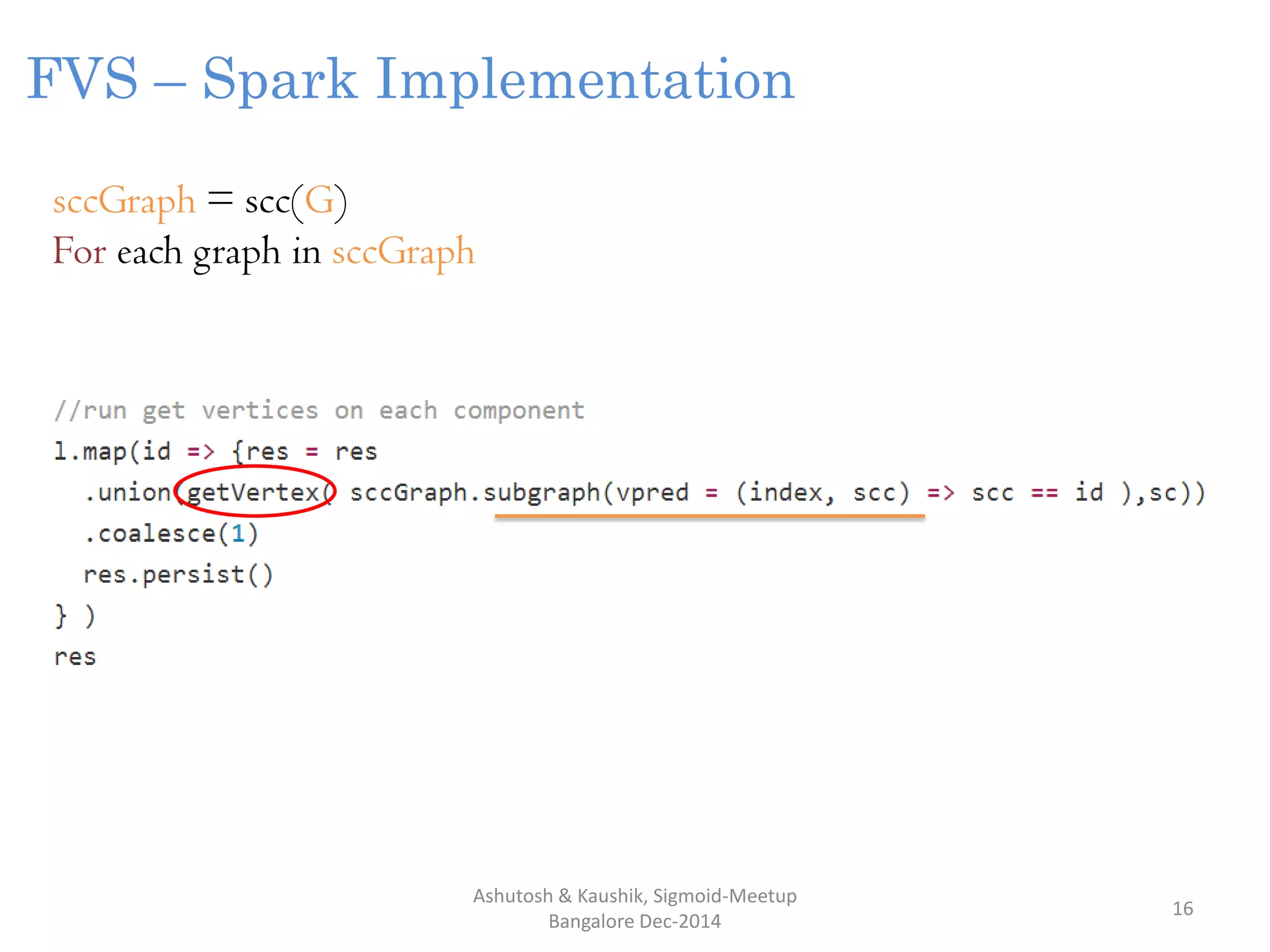

FVS – Spark Implementation
sccGraph = scc(G)
For each graph in sccGraph

17. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
17

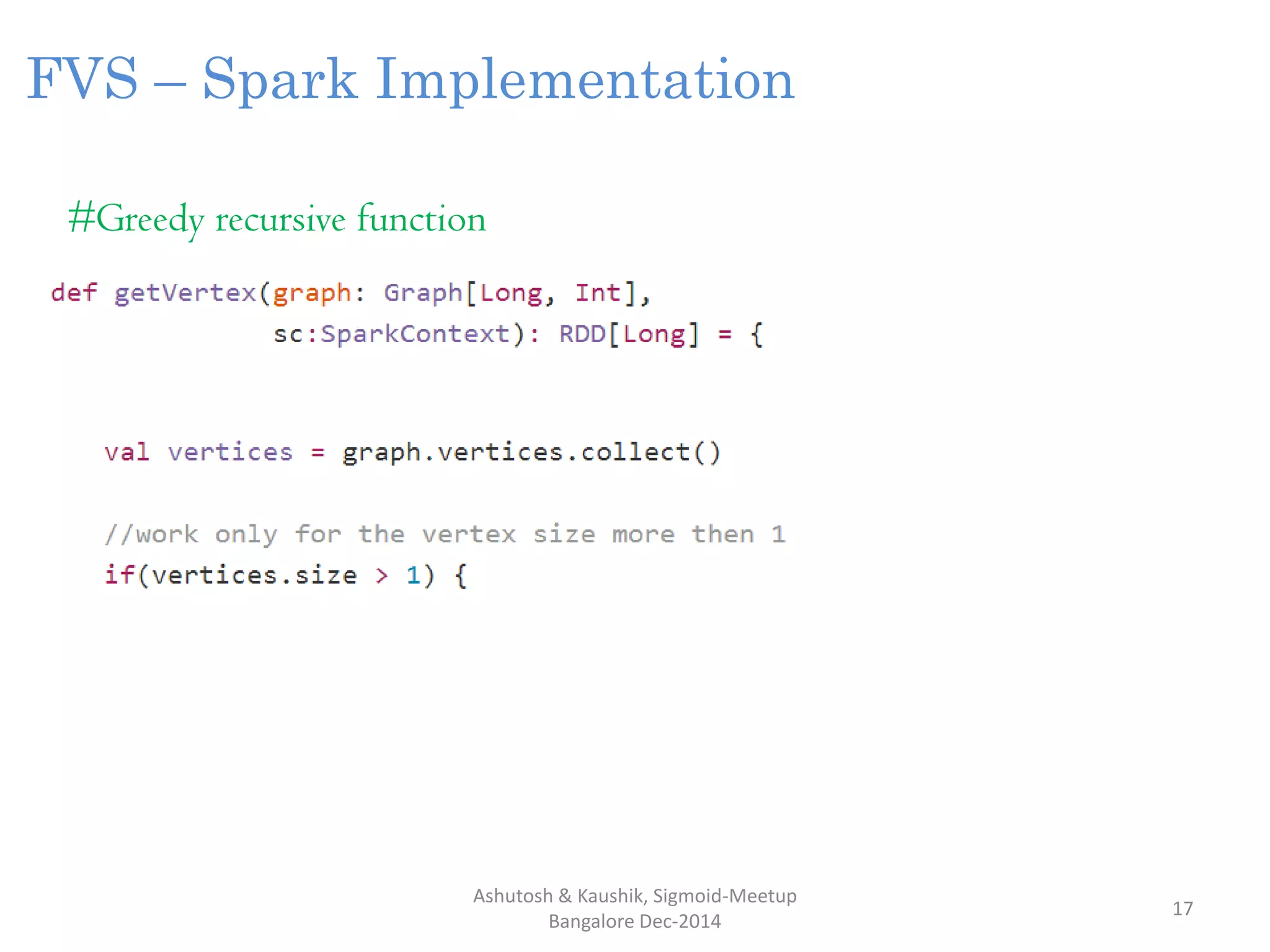

FVS – Spark Implementation
#Greedy recursive function

18. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
18

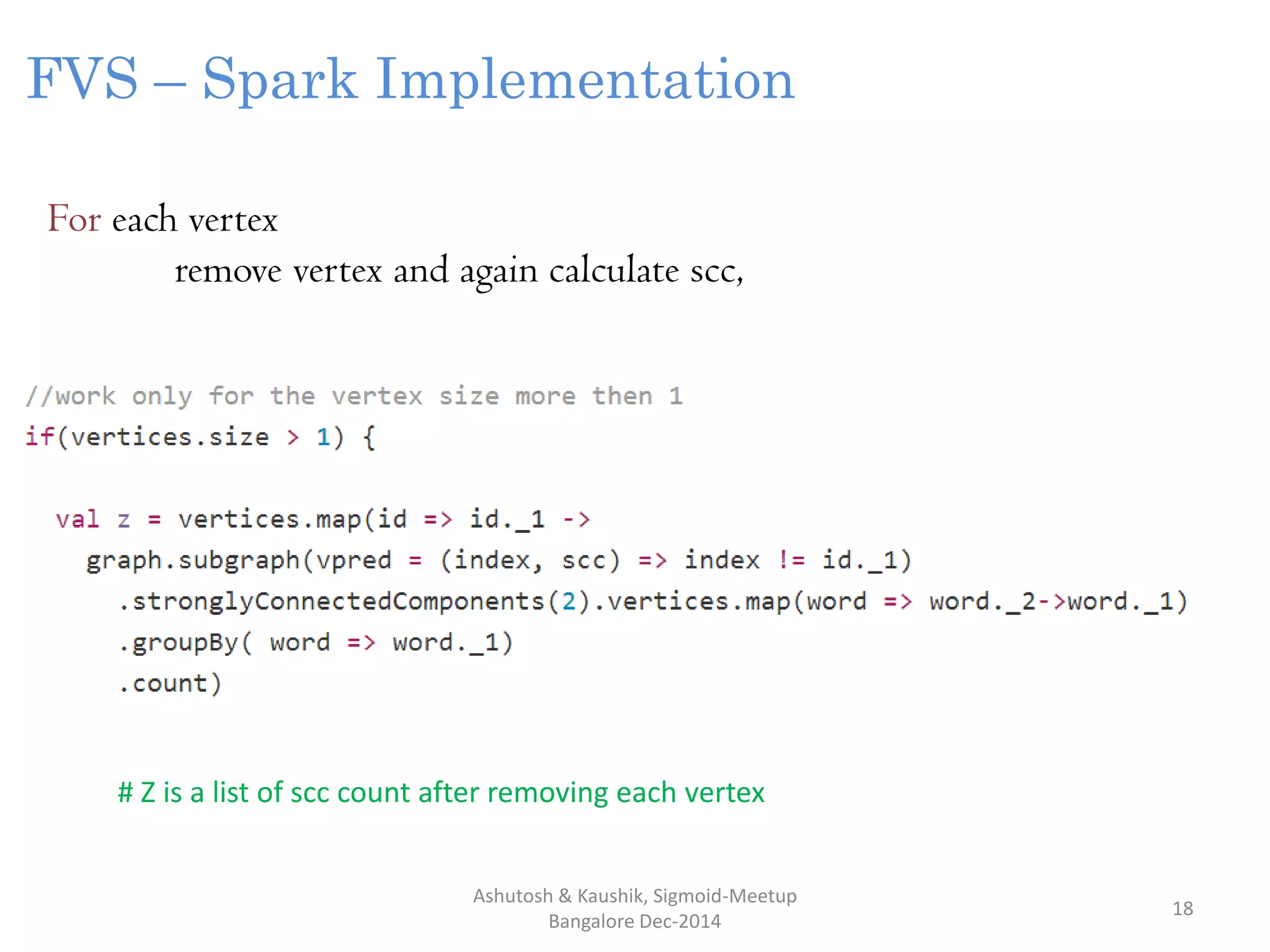

FVS – Spark Implementation
For each vertex
remove vertex and again calculate scc,
# Z is a list of scc count after removing each vertex

19. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
19

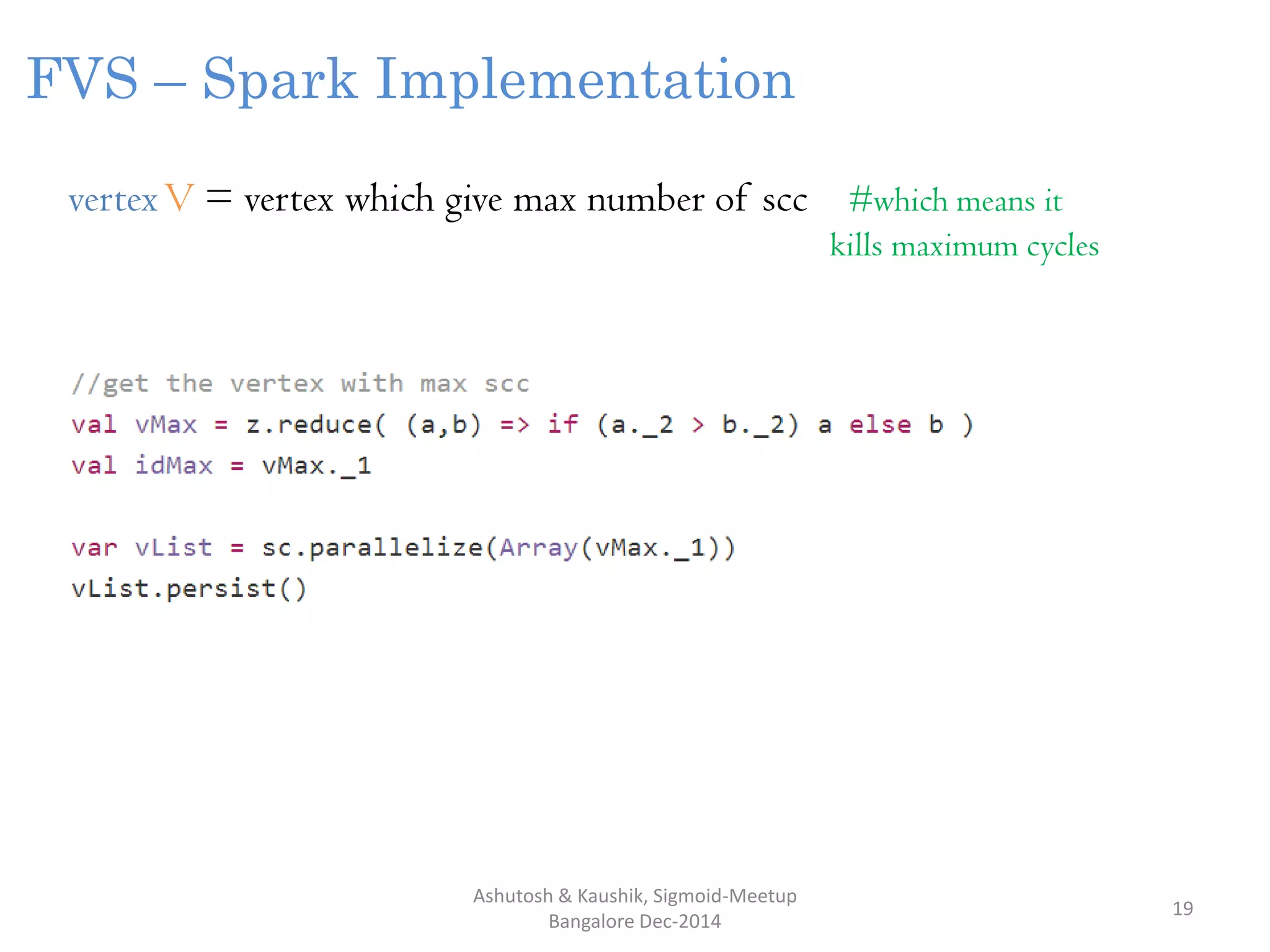

vertexV = vertex which give max number of scc #which means it
kills maximum cycles
FVS – Spark Implementation

20. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
20

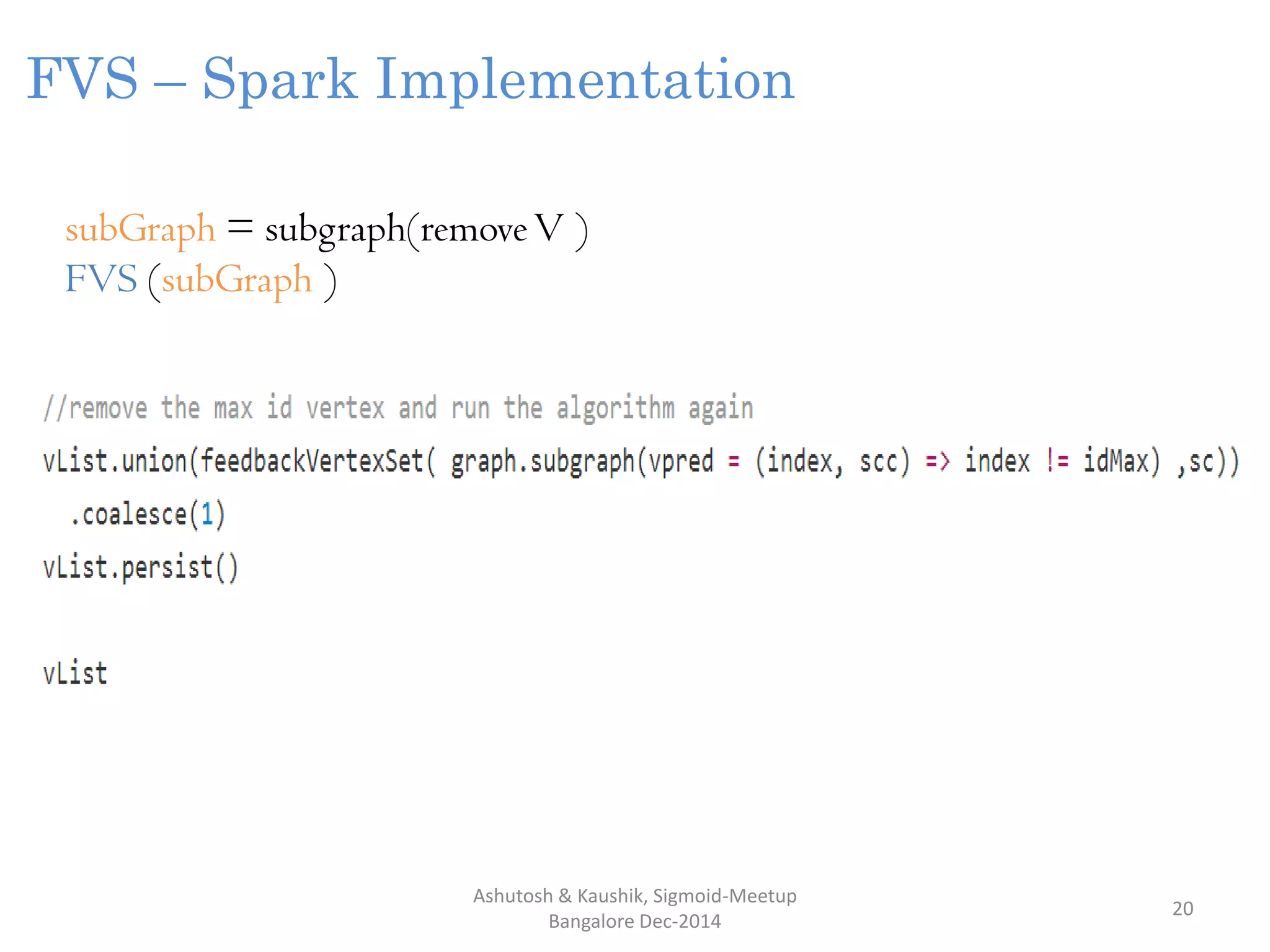

subGraph = subgraph(removeV )
FVS (subGraph )
FVS – Spark Implementation

21. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
21

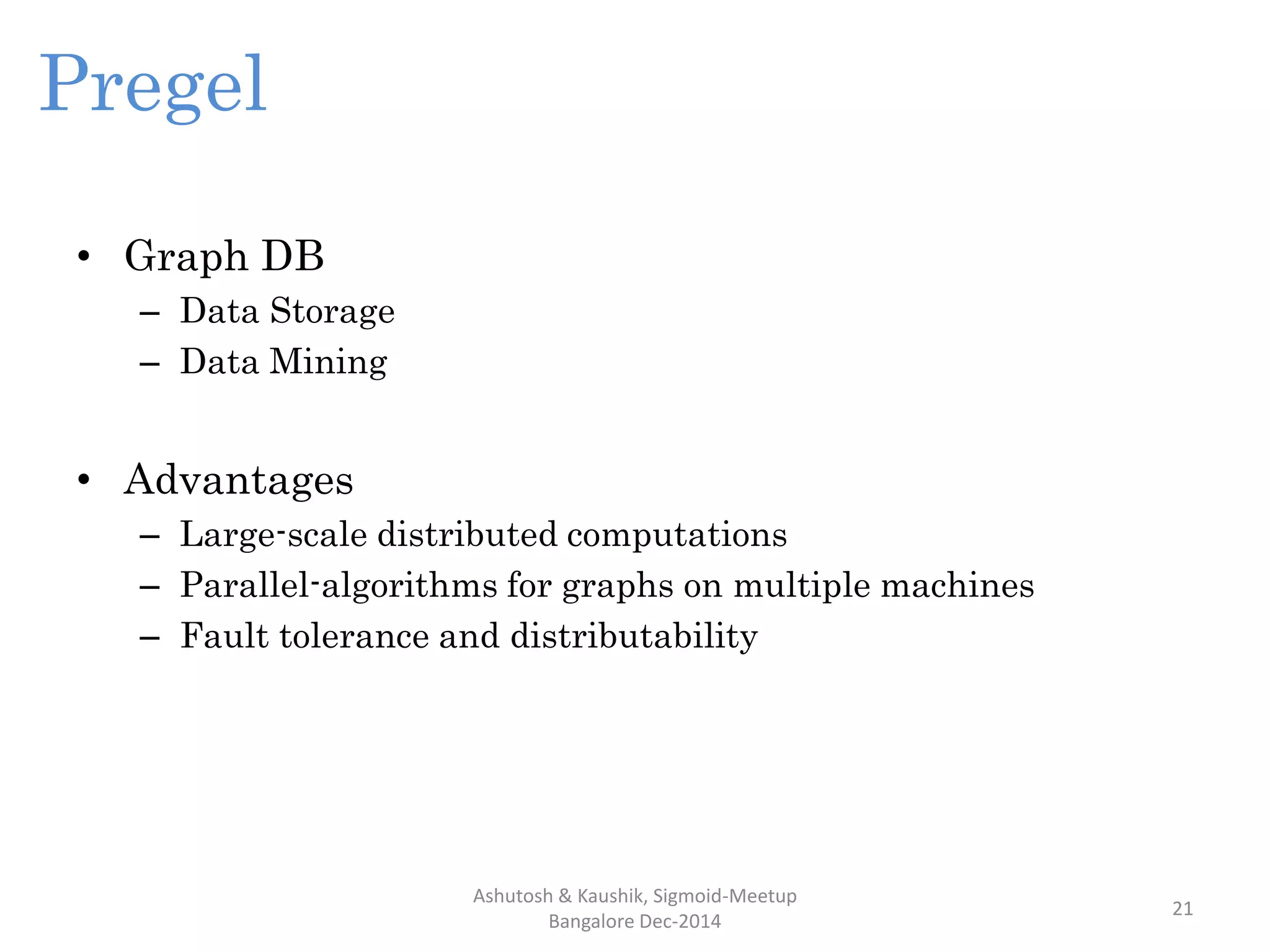

Pregel
• Graph DB
– Data Storage
– Data Mining
• Advantages
– Large-scale distributed computations
– Parallel-algorithms for graphs on multiple machines
– Fault tolerance and distributability

22. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
22

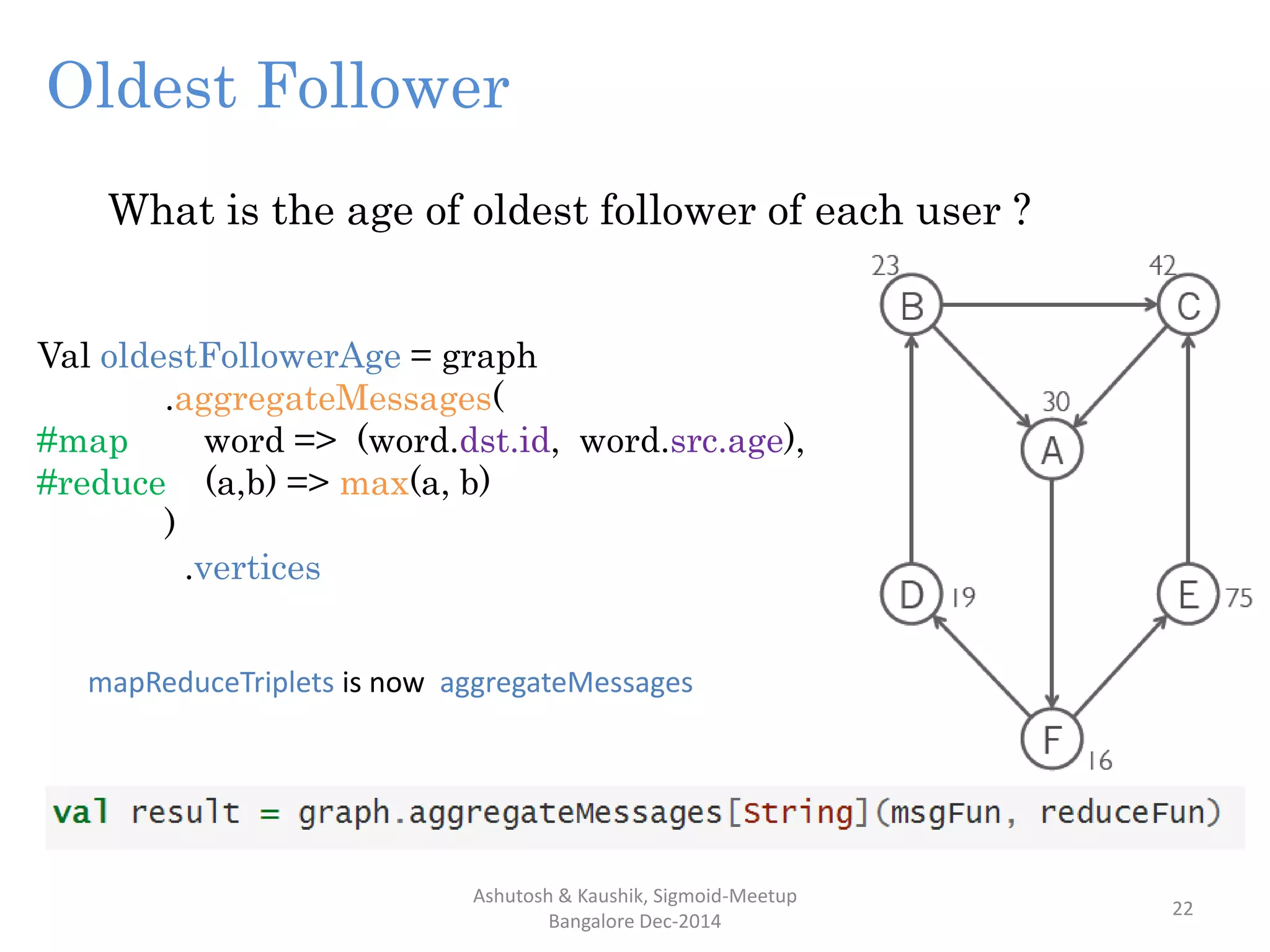

Oldest Follower
What is the age of oldest follower of each user ?
Val oldestFollowerAge = graph
.aggregateMessages(
#map word => (word.dst.id, word.src.age),
#reduce (a,b) => max(a, b)
)
.vertices
mapReduceTriplets is now aggregateMessages

23. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
23

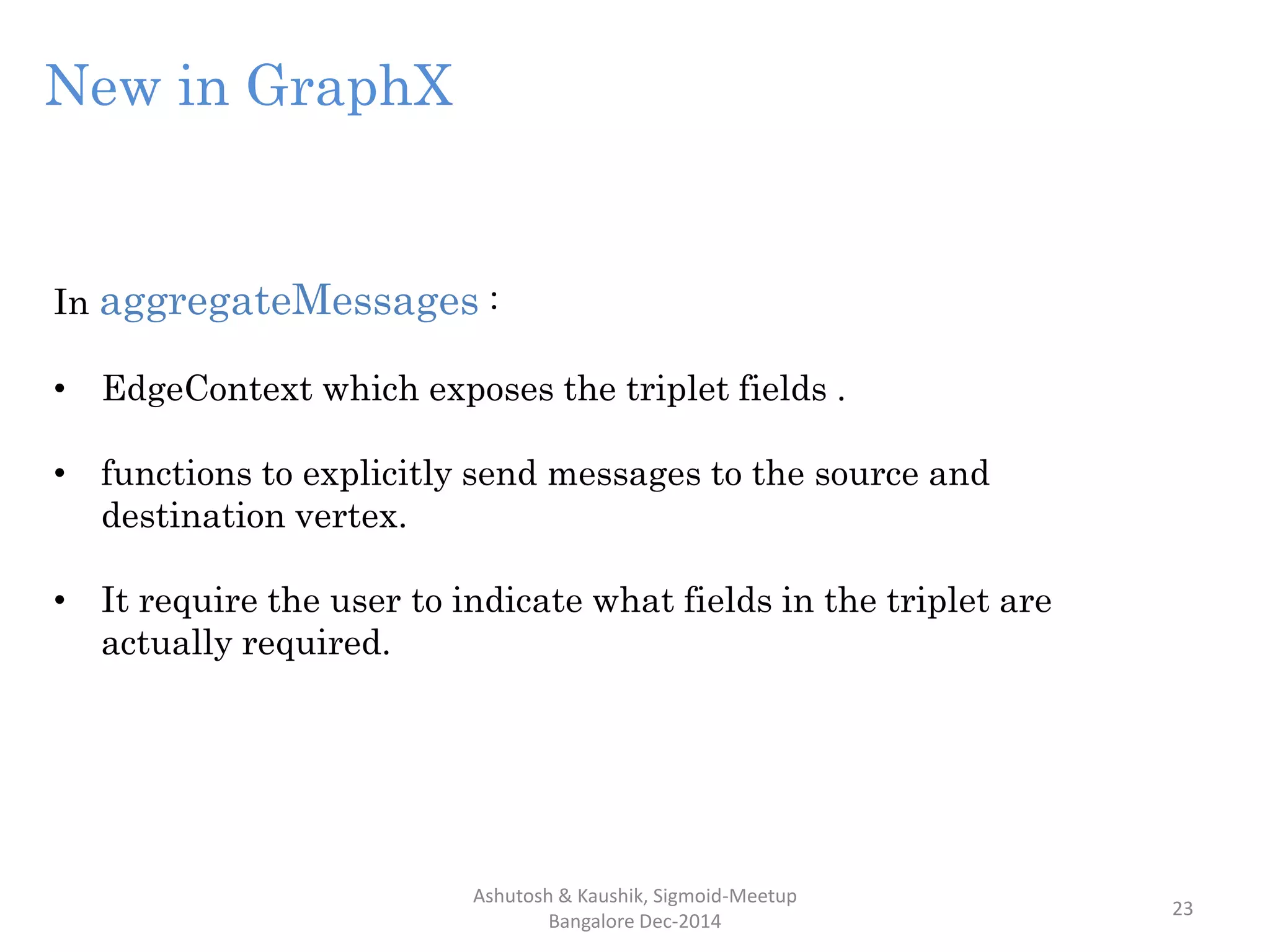

In aggregateMessages :
• EdgeContext which exposes the triplet fields .
• functions to explicitly send messages to the source and
destination vertex.
• It require the user to indicate what fields in the triplet are
actually required.
New in GraphX

24. Theory – it’s Good
How it works – that’s awesome
Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
24

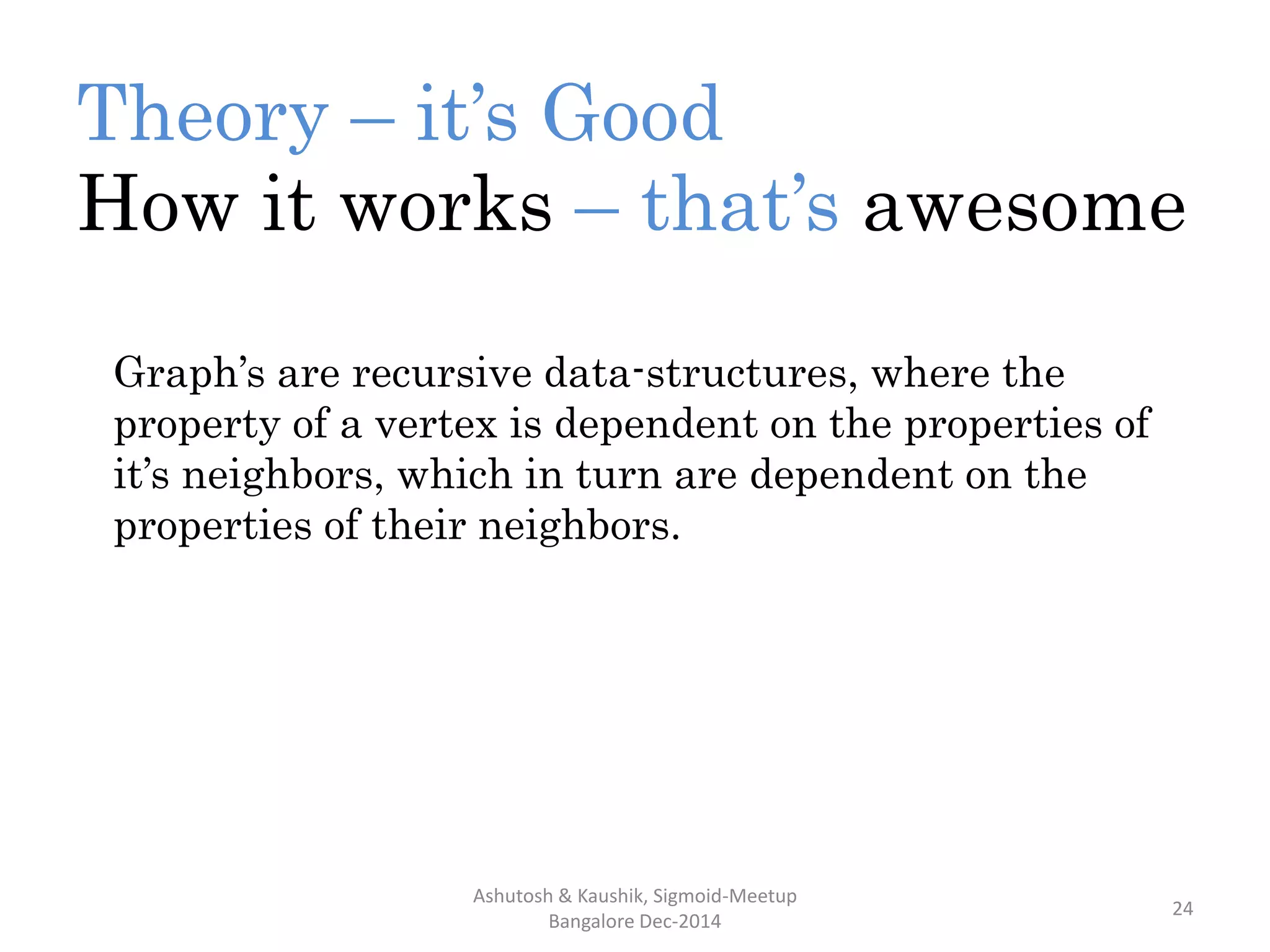

Graph’s are recursive data-structures, where the
property of a vertex is dependent on the properties of
it’s neighbors, which in turn are dependent on the
properties of their neighbors.

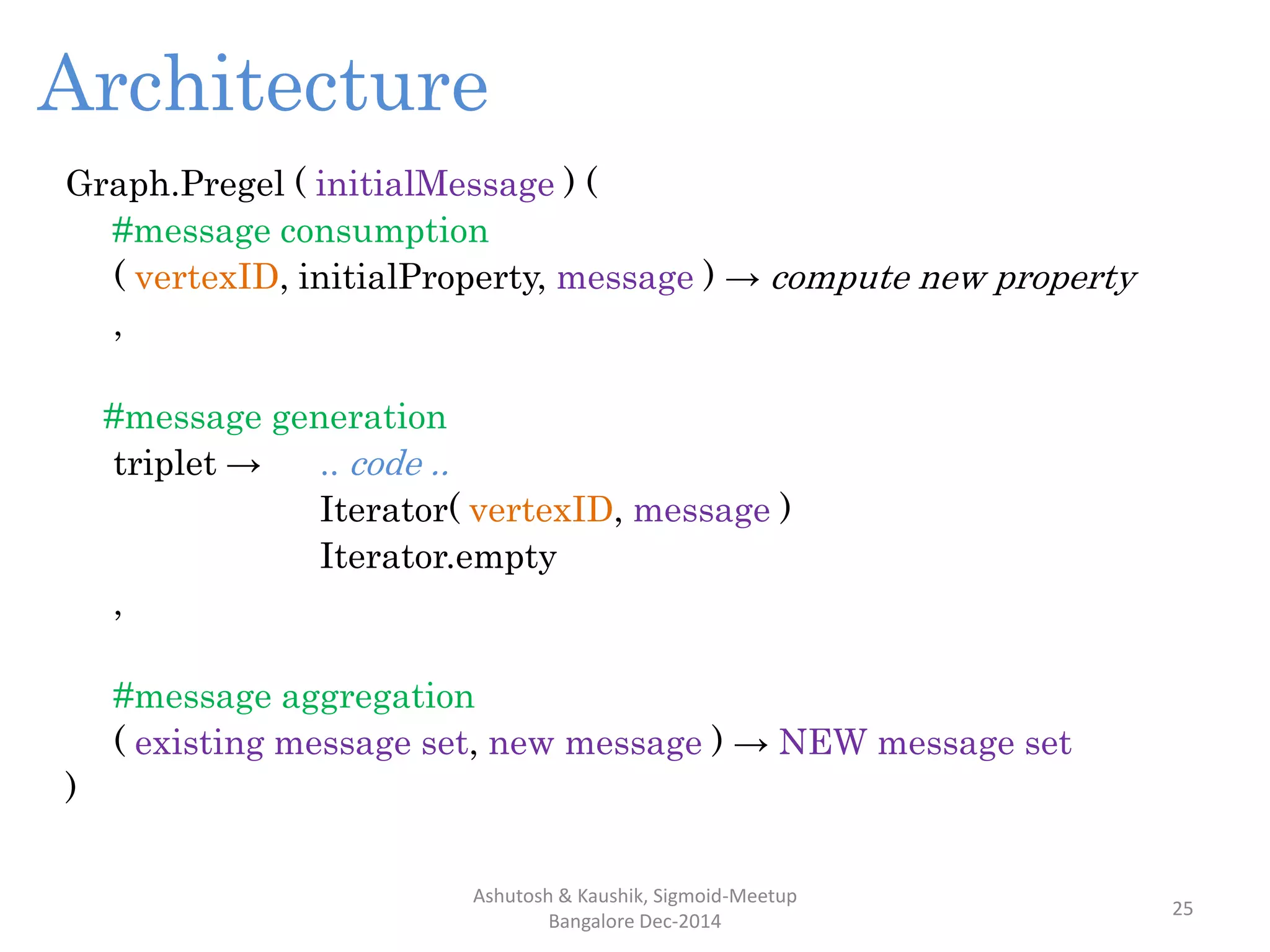

25. Graph.Pregel ( initialMessage ) (
#message consumption
( vertexID, initialProperty, message ) → compute new property
,
#message generation
triplet → .. code ..
Iterator( vertexID, message )
Iterator.empty
,
#message aggregation
( existing message set, new message ) → NEW message set
)
Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
25
Architecture

26. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
26

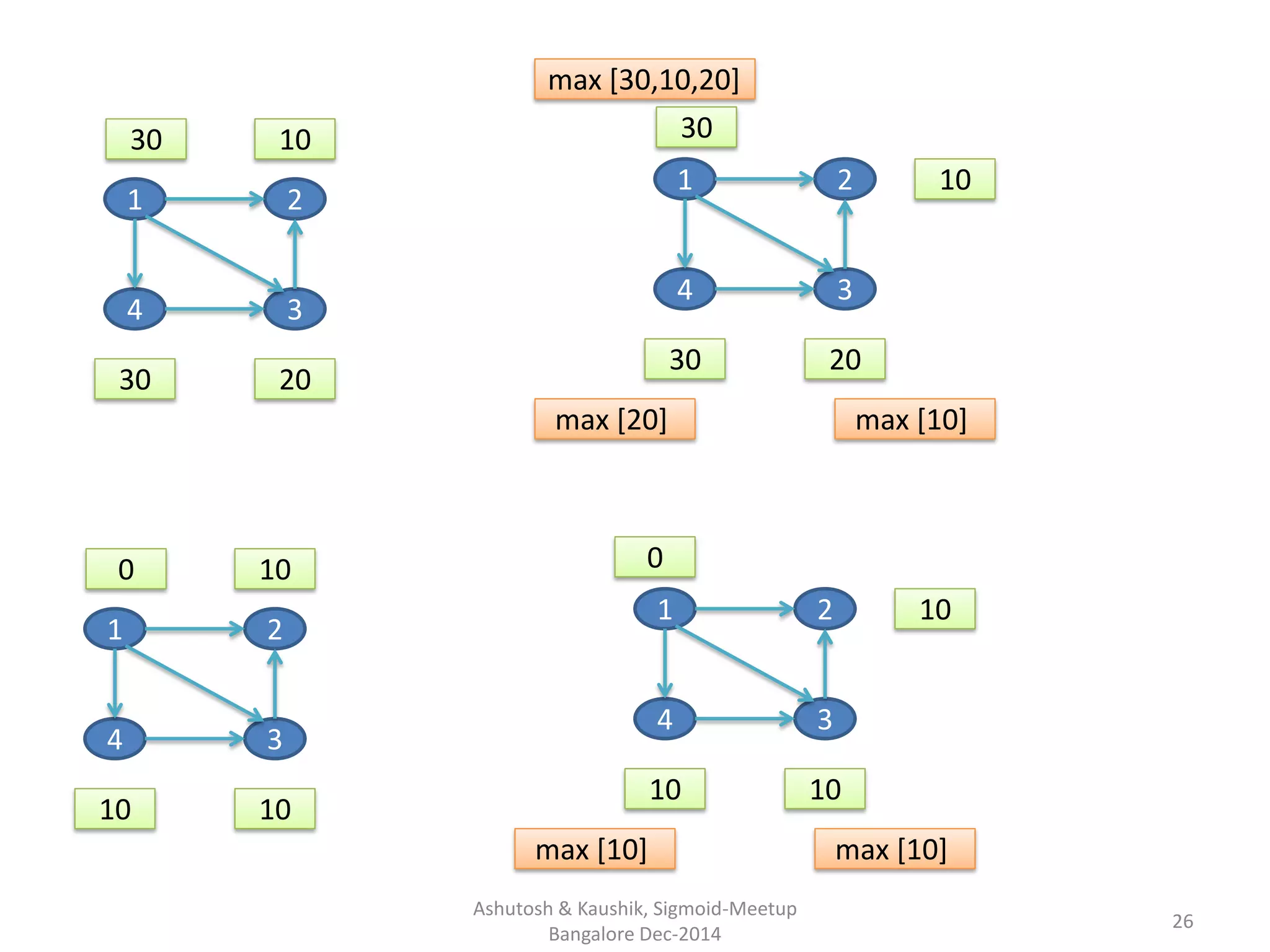

1 2
4 3
1030
30 20
1 2
4 3
10
30
30 20
max [30,10,20]
max [20] max [10]
1 2
4 3
100
10 10
1 2
4 3
10
0
10 10
max [10] max [10]

27. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
27

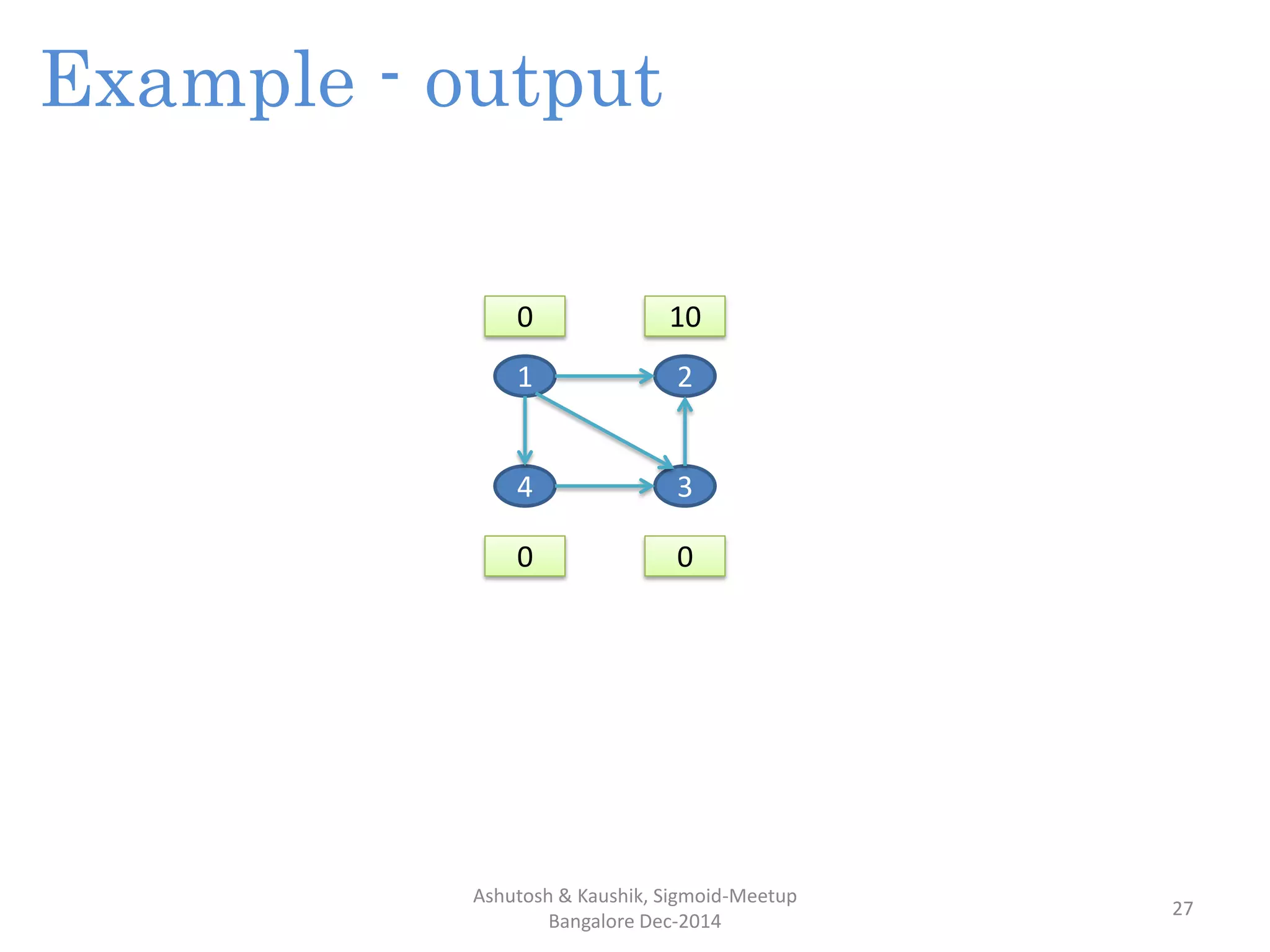

Example - output
1 2
4 3
100
0 0

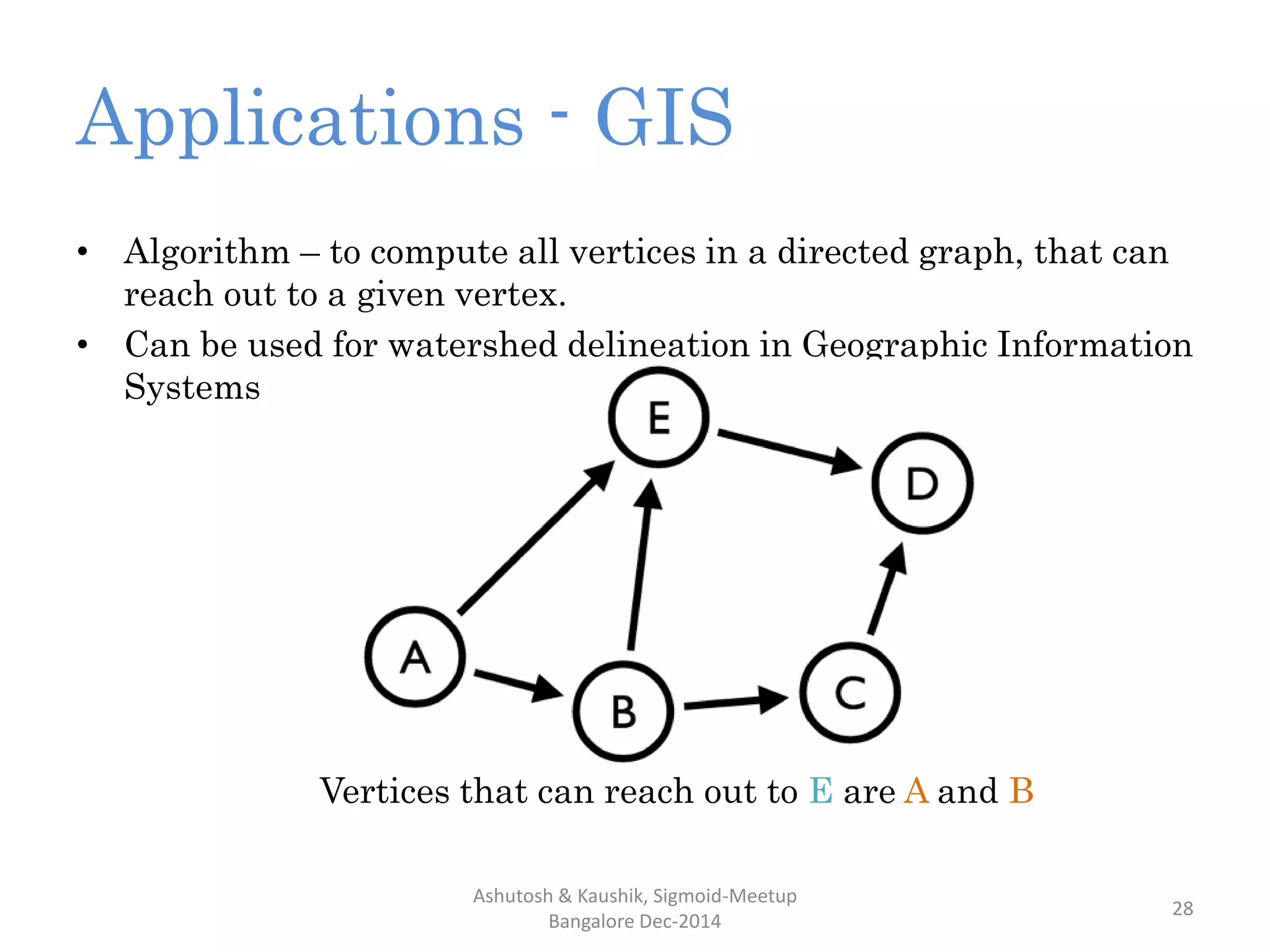

28. Applications - GIS
• Algorithm – to compute all vertices in a directed graph, that can
reach out to a given vertex.
• Can be used for watershed delineation in Geographic Information
Systems
Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
28
Vertices that can reach out to E are A and B

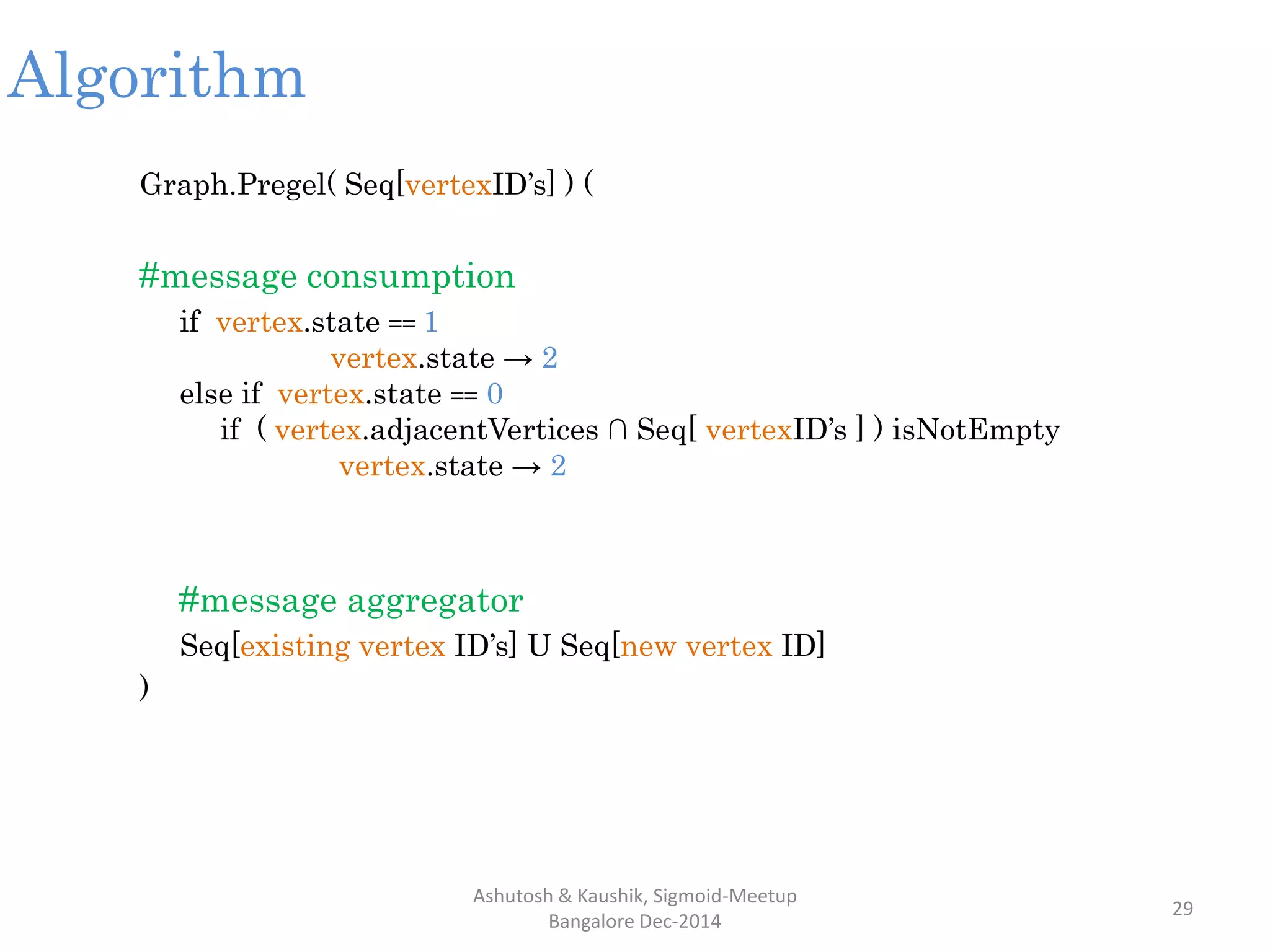

29. Algorithm
Graph.Pregel( Seq[vertexID’s] ) (
#message consumption
if vertex.state == 1
vertex.state → 2
else if vertex.state == 0
if ( vertex.adjacentVertices ∩ Seq[ vertexID’s ] ) isNotEmpty
vertex.state → 2
#message aggregator
Seq[existing vertex ID’s] U Seq[new vertex ID]
)
Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
29

30. Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
30

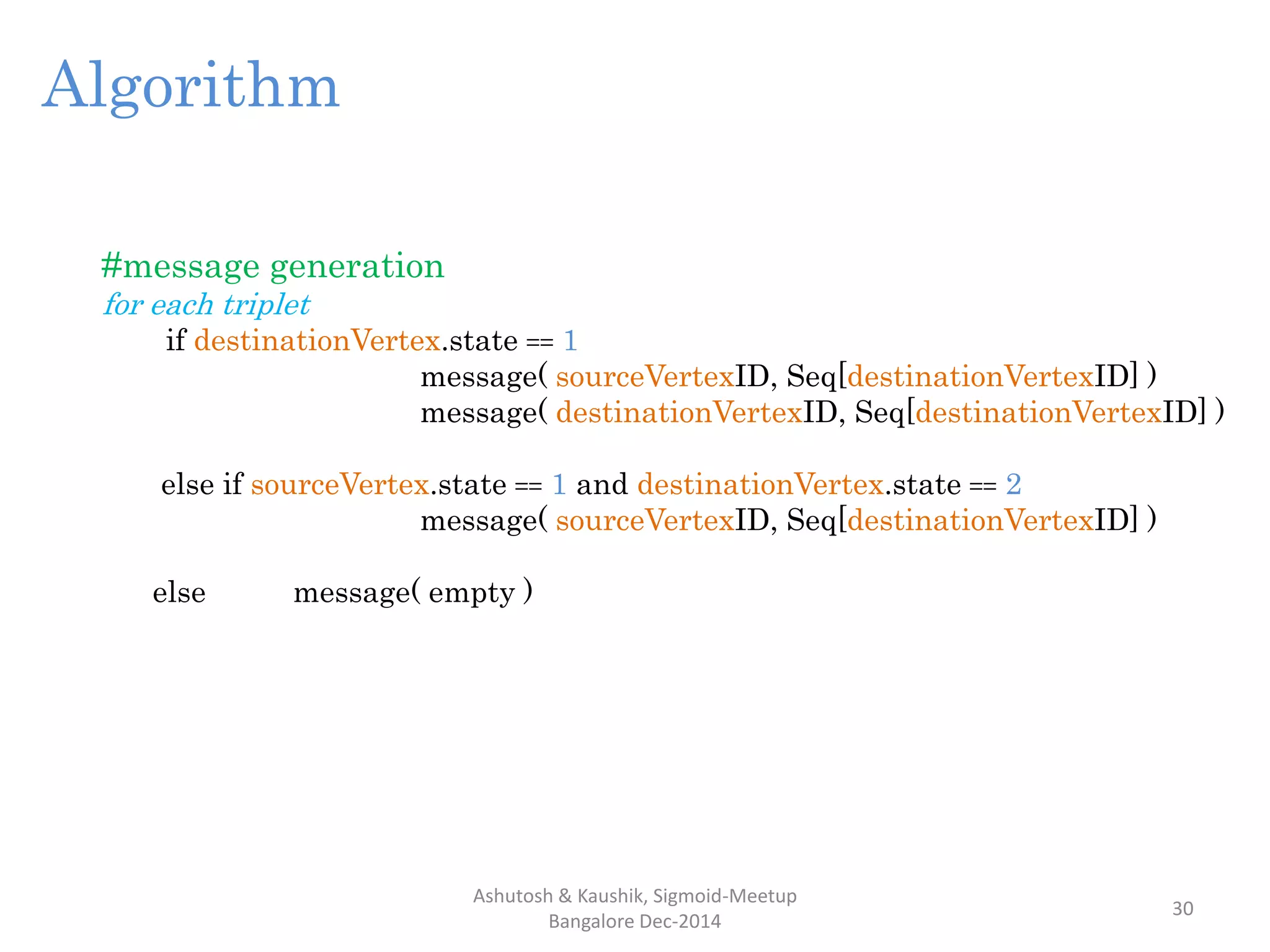

#message generation
for each triplet
if destinationVertex.state == 1
message( sourceVertexID, Seq[destinationVertexID] )
message( destinationVertexID, Seq[destinationVertexID] )
else if sourceVertex.state == 1 and destinationVertex.state == 2
message( sourceVertexID, Seq[destinationVertexID] )
else message( empty )
Algorithm

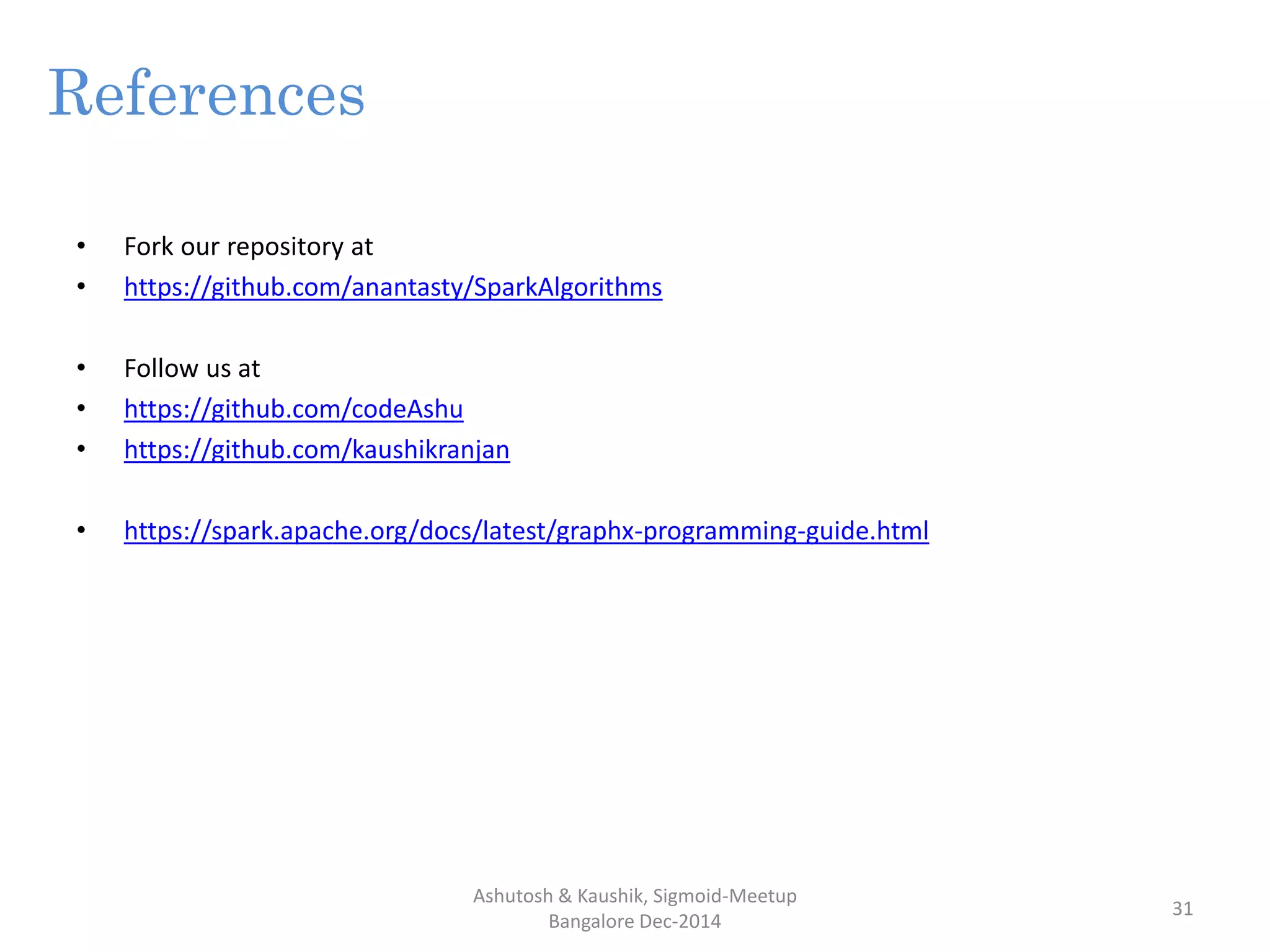

31. References
• Fork our repository at
• https://github.com/anantasty/SparkAlgorithms
• Follow us at
• https://github.com/codeAshu
• https://github.com/kaushikranjan
• https://spark.apache.org/docs/latest/graphx-programming-guide.html
Ashutosh & Kaushik, Sigmoid-Meetup
Bangalore Dec-2014
31
