This document discusses C# .NET graphics and how to draw various shapes and text. It covers: 1. Creating a Graphics instance to draw on a surface and creating Pen and Brush objects to draw lines and fill shapes. 2. Basic drawing functions including drawing lines using DrawLine(), rectangles using DrawRectangle(), polygons using DrawPolygon(), and text using DrawString(). 3. Examples of drawing a cross when the mouse is clicked, drawing a line that follows the mouse, and pixel drawing.

1. C# .NET Graphics Extra – not testedRequired for assignment 1

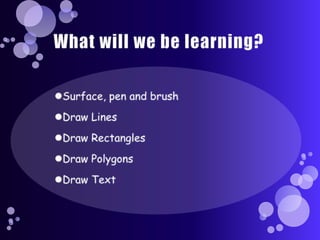

2. What will we be learning?Surface, pen and brushDraw LinesDraw RectanglesDraw PolygonsDraw Text

3. Basic - Graphics(1) we need to have a Graphics instance (similar to a surface)

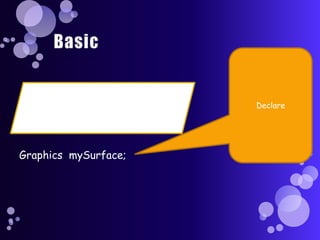

4. BasicDeclareGraphics mySurface;

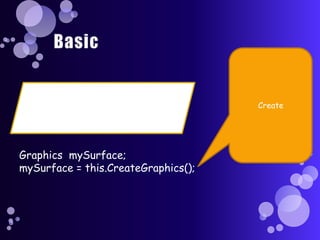

5. BasicCreateGraphics mySurface;mySurface = this.CreateGraphics();

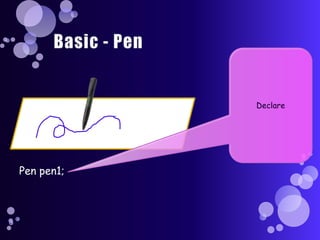

6. Basic - Pen(2) To draw lines or outlines of shapes, we need a Pen

7. Basic - PenDeclarePen pen1;

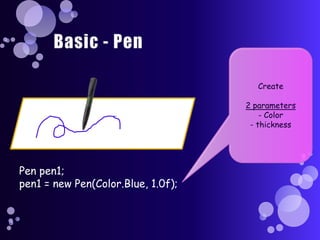

8. Basic - PenCreate2 parameters- Color- thicknessPen pen1;pen1 = new Pen(Color.Blue, 1.0f);

9. Basic - Brush(3) To fill inside shapes, we need a Brush

10. Basic - BrushDeclareTypes of brushSolidBrushHatchBrushLinearGradientBrushPathGradientBrushTextureBrushSolidBrush brush1;

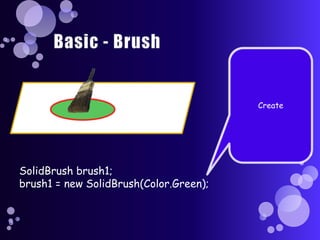

11. Basic - BrushCreateSolidBrush brush1;brush1 = new SolidBrush(Color.Green);

12. Basic - BrushTypes of brushSolidBrushHatchBrushLinearGradientBrushPathGradientBrushTextureBrush

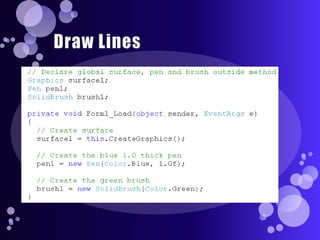

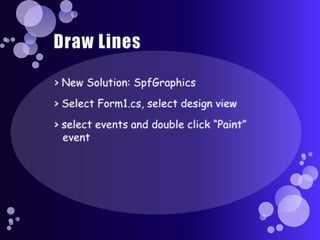

13. Draw Lines> New Solution: SpfGraphics> Select Form1.cs, select design view> select events and double click “Paint” event

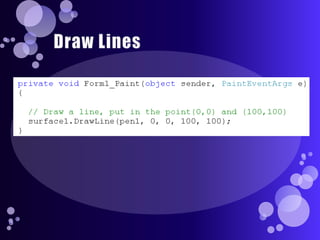

14. Draw Lines

15. Draw Lines

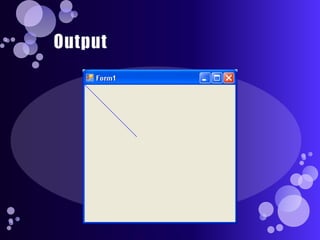

16. Output

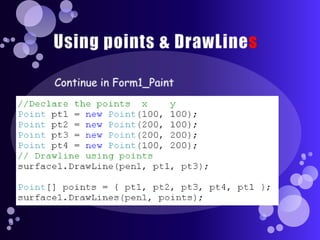

17. Using points & DrawLinesContinue in Form1_Paint

18. Outputsurface1.DrawLine(pen1, pt1, pt3);surface1.DrawLines(pen1, points);

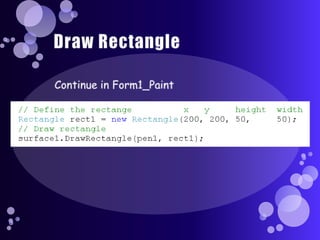

19. Draw RectangleContinue in Form1_Paint

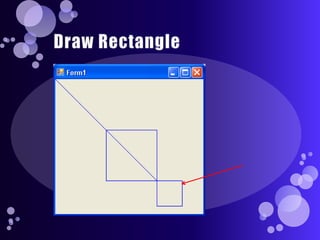

20. Draw Rectangle

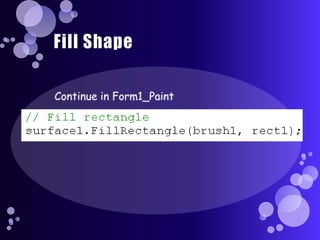

21. Fill ShapeContinue in Form1_Paint

22. Fill Shape

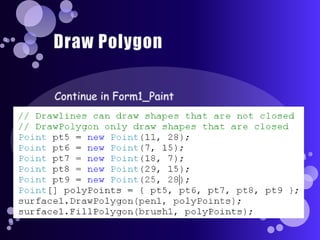

23. Draw PolygonContinue in Form1_Paint

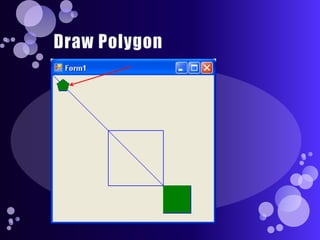

24. Draw Polygon

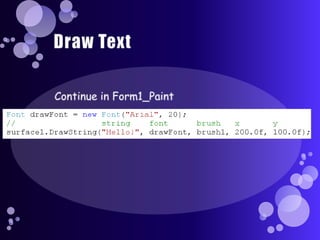

25. Draw TextContinue in Form1_Paint

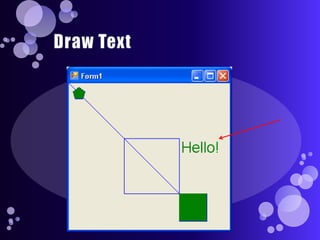

26. Draw Text

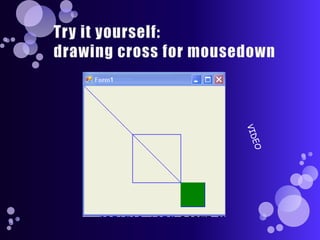

27. Try it yourself: drawing cross for mousedownVIDEO

28. Try it yourself!Hint: use the mousedown eventHint: use points (e.X-5, e.Y-5) , (e.X+5, e.Y+5), (e.X+5, e.Y-5) , (e.X-5, e.Y+5)

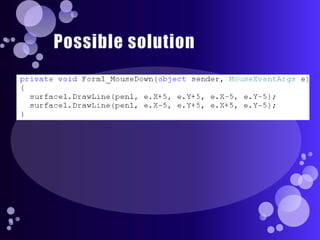

29. Possible solution

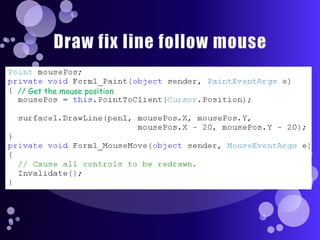

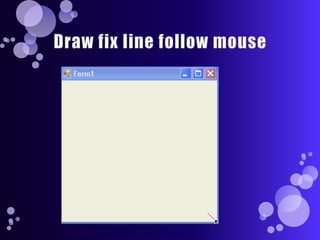

30. Draw fix line follow mouse

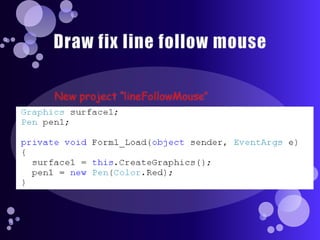

31. Draw fix line follow mouseNew project “lineFollowMouse”

32. Draw fix line follow mouse// Get the mouse position

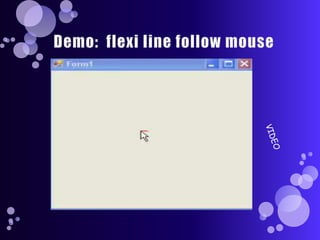

33. Demo: flexi line follow mouseVIDEO

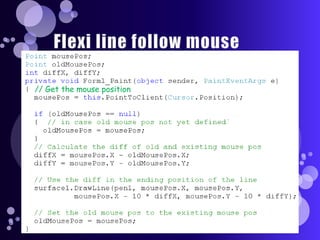

34. Flexi line follow mouse// Get the mouse position

35. Demo: Simple pixel drawingVIDEO

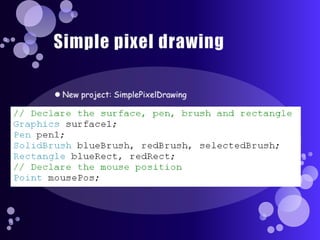

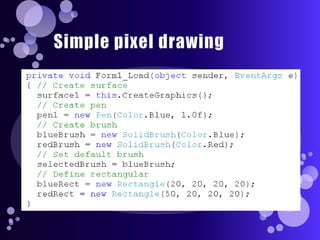

36. Simple pixel drawingNew project: SimplePixelDrawing

37. Simple pixel drawing

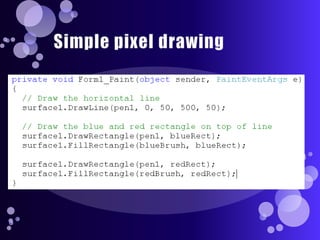

38. Simple pixel drawing

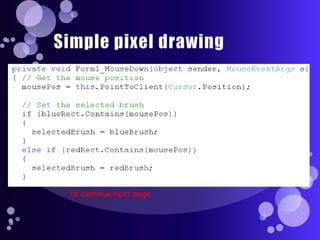

39. Simple pixel drawingto continue next page

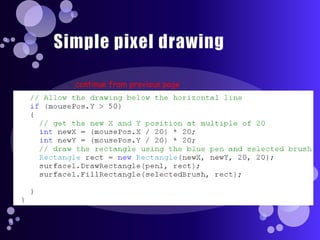

40. Simple pixel drawingcontinue from previous page

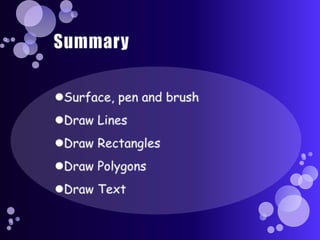

41. SummarySurface, pen and brushDraw LinesDraw RectanglesDraw PolygonsDraw Text
