Grade 10 Science 2018 Exam
This document provides instructions and reference materials for a written examination in Applied Science and Technology. It begins with multiple choice questions about topics like oxidation, gravitational force, electric circuits, and friction. This is followed by constructed response questions to be answered in the student booklet. The final section involves analyzing a clock to understand its mechanical, electrical components, and maintenance requirements. Formulas and quantities for applied science and technology are provided as a reference document. Students are instructed to use the question booklet, student booklet, reference document, and answer sheet to complete the exam within the allotted 3 hours.
More Related Content
Similar to Grade 10 Science 2018 Exam
Grade 10 Science 2018 Exam
- 1. Secondary School Leaving 2018 Examination 557-410APPLIED SCIENCE JUNE AND TECHNOLOGY WRITTEN EXAMINATION QUESTION BOOKLET INSTRUCTIONS 1. Verify the information indicated in Sections 1 and 2 of the scannable answer sheet. 2. Stick the student identification label or fill in the required information on the cover page of the Student Booklet. 3. Answer the questions in Part A on the scannable answer sheet provided. 4. Write your answers to the questions in Parts B and C in the Student Booklet, showing all your work. 5. You may start with any part of the examination. 6. Dictionaries are not permitted. Only the Question Booklet, the Student Booklet and the Reference Document (sheet of formulas and quantities and diagrams of the technical object) may be used. 7. You may use a calculator (with or without a graphic display) and a ruler. 8. During the examination, students are strictly forbidden to have in their possession any electronic device (smart phone, portable media player, smart watch, etc.) that can be used to communicate, surf the Internet, translate texts, or create, save or consult data. Any student who violates this rule will be expelled from the examination room and will be considered to have cheated on the examination. 9. Hand in the Question Booklet, the Student Booklet, the Reference Document and the scannable answer sheet at the end of the examination. Note: Each question is worth four marks. All the data and programs stored in your calculator’s memory must be erased before the examination. TIME ALLOTTED: 3 hours © Gouvernement du Québec ue ec

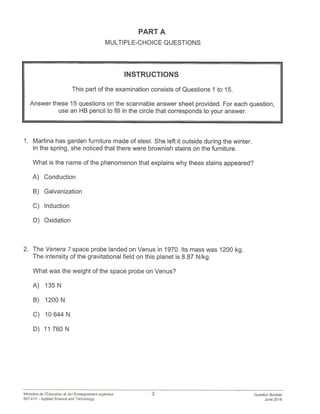

- 3. PART A MULTIPLE-CHOICE QUESTIONS INSTRUCTIONS Thispart of the examination consists of Questions 1 to 15. Answer these 15 questions on the scannable answer sheet provided. For each question, use an HB pencil to fill in the circle that corresponds to your answer. 1. Martina has garden furniture made of steel. She left it outside during the winter. In the spring, she noticed that there were brownish stains on the furniture. What is the name of the phenomenon that explains why these stains appeared? A) Conduction B) Galvanization C) Induction D) Oxidation 2. The Venera 7 space probe landed on Venus in 1970. Its mass was 1200 kg. The intensity of the gravitational field on this planet is 8.87 N/kg. What was the weight of the space probe on Venus? A) 135N B) 1200 N C) 10644 N D) 11760N Ministère de l’Education et de lEnseignement superleur 3 Question Booklet 557-410— Applied Science and Technology June 2018

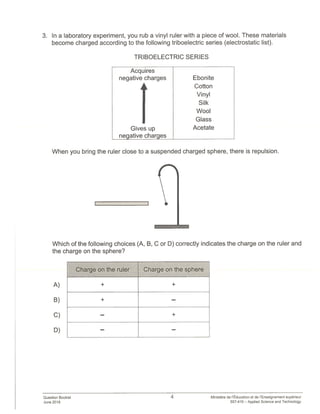

- 4. 3. In alaboratory experiment, you rub a vinyl ruler with a piece of wool. These materials become charged according to the following triboelectric series (electrostatic list). TRIBOELECTRIC SERIES Acquires negative charges Ebonite I Cotton Vinyl Silk Wool Glass Gives up Acetate negative_charges When you bring the ruler close to a suspended charged sphere, there is repulsion. Which of the following choices (A, B, C or D) correctly indicates the charge on the ruler and the charge on the sphere? A) B) C) D) Question Booklet June 2018 4 Charge on the ruler Charge on the sphere + + + — + Ministere de ‘Education et de l’Enseignement superieur 557-410 — Applied Science and Technology

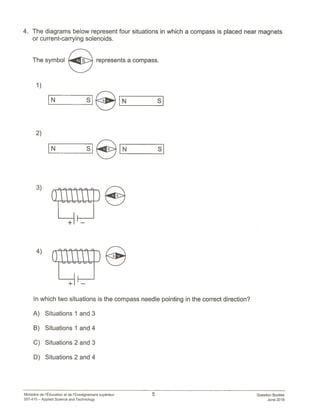

- 5. 4. The diagramsbelow represent four situations in which a compass is placed near magnets or current-carrying solenoids. 1) 2) IN ii 3) 4) 0 + — iS In which two situations is the compass needle pointing in the correct direction? A) Situations 1 and 3 B) Situations 1 and 4 C) Situations 2 and 3 D) Situations 2 and 4 The symbol represents a compass. Ministere de lEducation et de l’Enseignement superieur 557-410 — Applied Science and Technology 5 Question Booklet June 2018
- 6. 5. Air hockeyis a game played on a table where the players use a pusher to strike the puck. A forced-air system makes it easier for the puck to move across the table. Puck Puck The following four statements relate to this game. 1- The force of friction is the same under both conditions. 2- The force of friction is different under the two conditions. 3- The gravitational force is the same under both conditions. 4- The gravitational force is different under the two conditions. Which of these statements are TRUE? A) Statements 1 and 3 B) Statements 1 and 4 C) Statements 2 and 3 D) Statements 2 and 4 2 / Here are the two possible conditions the puck can encounter. The forced-air system is off. The forced-air system is on. _—Cushion of air Table Table Question Booklet June 2018 6 Ministère de lEducation et de lEnseignement superieur 557-410 — Applied Science and Technology

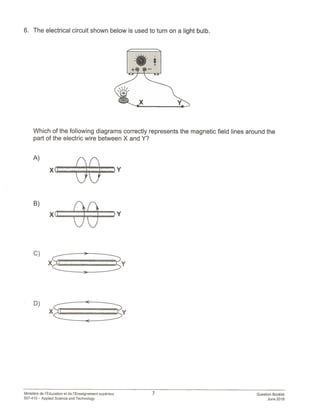

- 7. 6. The electricalcircuit shown below is used to turn on a light bulb. B) xtEEEz, C) XI I. Which of the following diagrams correctly represents the magnetic field lines around the part of the electric wire between X and Y? A) A I Y 7 Question Booklet June 2018 Ministére de ‘Education et de ‘Enseignement superieur 557-410 — Applied Science and Technology

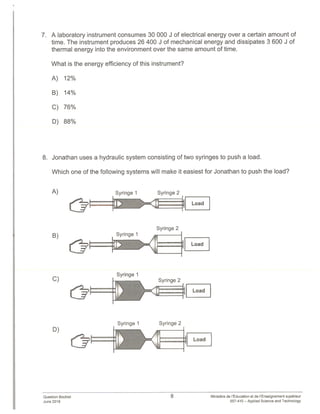

- 8. 7. A laboratoryinstrument consumes 30 000 J of electrical energy over a certain amount of time. The instrument produces 26 400 J of mechanical energy and dissipates 3 600 J of thermal energy into the environment over the same amount of time. What is the energy efficiency of this instrument? A) 12% B) 14% C) 76% D) 88% 8. Jonathan uses a hydraulic system consisting of two syringes to push a load. Which one of the following systems will make it easiest for Jonathan to push the load? A) B) Syringe 1 Syringe 2 h- zjii C.UFZZZZj Load Syringe 2 Syringe 1 _____________ ____ Load C) D) Syringe 1 zL Syringe 2 _________ Load Syringe 2 [I[ Load Question Booklet June 2018 Syringe 1 8 Ministère de rEducation et de Enseignement superieur 557-410 — Applied Science and Technology

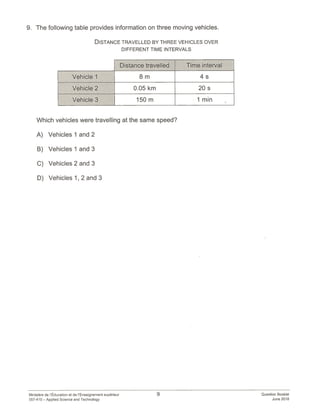

- 9. 9. The followingtable provides information on three moving vehicles. DISTANCE TRAVELLED BY THREE VEHICLES OVER DIFFERENT TIME INTERVALS Distance travelled Time interval Vehiclel 8m 4s Vehicle 2 0.05 km 20 s Vehicle3 150m 1 mm Which vehicles were travelling at the same speed? A) Vehicles 1 and 2 B) Vehicles 1 and 3 C) Vehicles 2 and 3 D) Vehicles 1, 2 and 3 Ministère de lEducation et de lEnseignement superleur 9 Question Booklet 557-410 — Applied Science and Technology June 2018

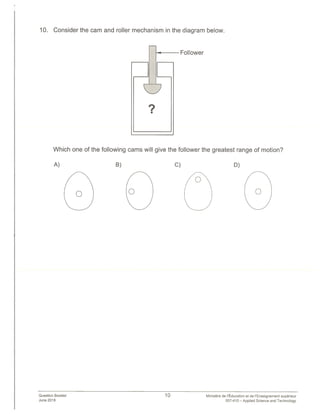

- 10. Follower 10. Consider thecam and roller mechanism in the diagram below. ? Which one of the following cams will give the follower the greatest range of motion? A) B) C) D) Question Booklet 10 June 2018 Ministere de I’Education et de ‘Enseignement superieur 557-410 — Applied Science and Technology

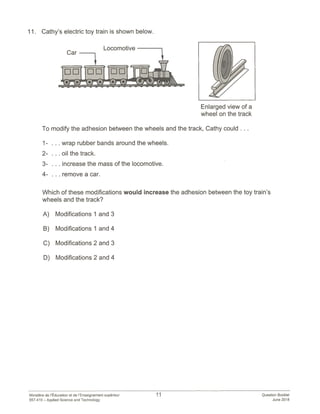

- 11. 11. Cathy’s electrictoy train is shown below. Enlarged view of a wheel on the track To modify the adhesion between the wheels and the track, Cathy could 1- . . . wrap rubber bands around the wheels. 2- . . . oil the track. 3- . . . increase the mass of the locomotive. 4- . . . remove a car. Which of these modifications would increase the adhesion between the toy train’s wheels and the track? A) Modifications 1 and 3 B) Modifications 1 and 4 C) Modifications 2 and 3 D) Modifications 2 and 4 11 Question Booklet June 2018 Ministére de ‘Education et de I’Enseignement superieur 557-410 — Applied Science and Technology

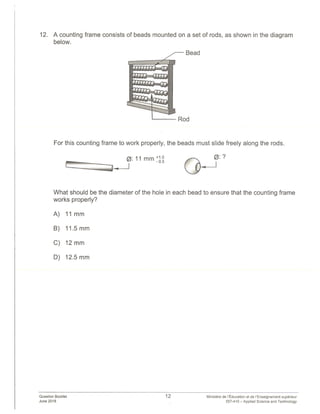

- 12. 12. A countingframe consists of beads mounted on a set of rods, as shown in the diagram below. Bead For this counting frame to work properly, the beads must slide freely along the rods. 0: 11 mm ÷1.0 -0.5 What should be the diameter of the hole in each bead to ensure that the counting frame works properly? A) 11mm B) 11.5mm C) 12mm D) 12.5 mm Question ookIet June 2018 Rod 12 Ministère de Education et de I’Enseignement superieur 557-410 — Applied Science and Technology

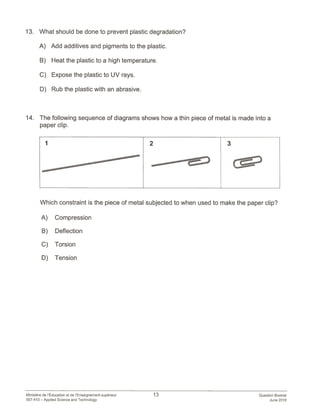

- 13. 13. What shouldbe done to prevent plastic degradation? A) Add additives and pigments to the plastic. B) Heat the plastic to a high temperature. C) Expose the plastic to UV rays. D) Rub the plastic with an abrasive. 14. The following sequence of diagrams shows how a thin piece of metal is made into a paper clip. 1 2 3 — — Which constraint is the piece of metal subjected to when used to make the paper clip? A) Compression B) Deflection C) Torsion D) Tension Ministère de lEducation et de lEnseignement supérieur 13 Question Booklet 557-470 — Applied Science and Technology June 2018

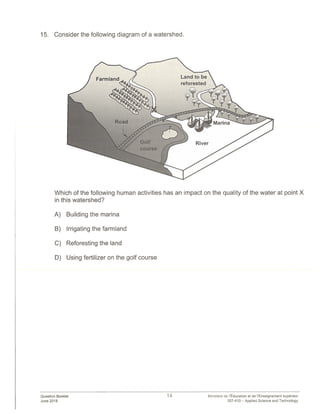

- 14. 15. Consider thefollowing diagram of a watershed. Which of the following human activities has an impact on the quality of the water at point X in this watershed? A) Building the marina B) Irrigating the farmland C) Reforesting the land D) Using fertilizer on the golf course Question Booklet June 2018 14 Ministère de lEducation et de lEnseignement superieur 557-410— Applied Science and Technology

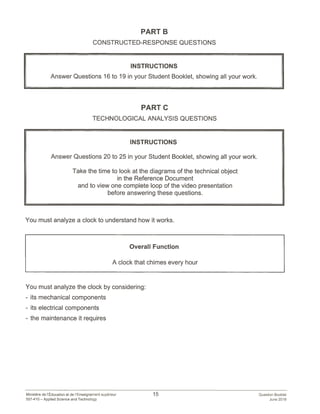

- 15. PART B CONSTRUCTED-RESPONSE QUESTIONS INSTRUCTIONS AnswerQuestions 16 to 19 in your Student Booklet, showing all your work. PART C TECHNOLOGICAL ANALYSIS QUESTIONS INSTRUCTIONS Answer Questions 20 to 25 in your Student Booklet, showing all your work. Take the time to look at the diagrams of the technical object in the Reference Document and to view one complete loop of the video presentation before answering these questions. You must analyze a clock to understand how it works. Overall Function A clock that chimes every hour You must analyze the clock by considering: - its mechanical components - its electrical components - the maintenance it requires Ministére de l’Education et de I’Enseignement superieur 15 Question Booklet 557-410 — Applied Science and Technology June 2018
- 16.

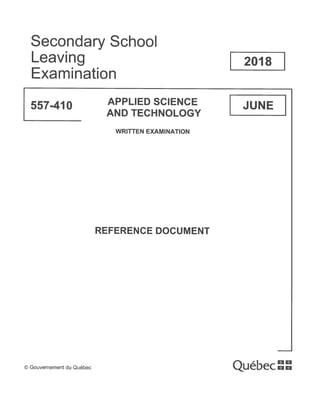

- 17. Secondary School Leaving 2018 Examination 557-410APPLIED SCIENCE JUNE AND TECHNOLOGY WRITTEN EXAMINATION REFERENCE DOCUMENT A © Gouvernement du Québec ue ec

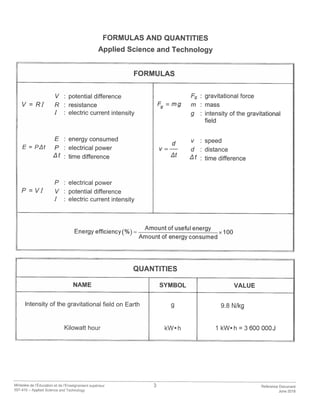

- 19. FORMULAS AND QUANTITIES AppliedScience and Technology FORMULAS V : potential difference Fg : gravitational force V = RI R resistance Fg = mg m mass I : electric current intensity g : intensity of the gravitational field E : energy consumed d v speed E = Pt P : electrical power v = — U distance /t time difference Jit i.t : time difference P : electrical power P = VI V potential difference I : electric current intensity . Amount of useful energy Energy efflciency(%)= xlOO Amount of energy consumed QUANTITI ES NAME SYMBOL VALUE Intensity of the gravitational field on Earth g 9.8 N/kg Kilowatt hour kW•h 1 kW• h 3 600 000J Ministère de I’Education et de l’Enseignement superieur 3 Reference Document 557-410 — Applied Science and Technology June 2018

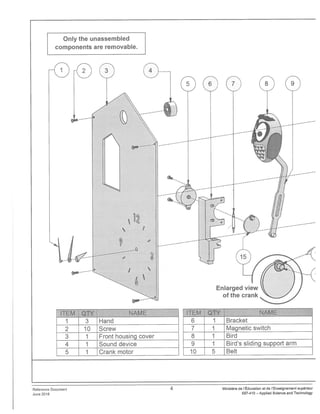

- 20. -0 f ITEM OPtNAME 1 3 Hand 2 10 Screw 3 1 Front housing cover 4 1 Sound device 5 1 Crank motor ITEM QTY NAME 6 1 Bracket 7 1 Magnetic switch 8 1 Bird 9 1 Bird’s sliding support arm 10 5 Belt Only the unassembled components are removable. Enlarged view of the crank Reference Document June 2018 4 Minstere de tducation et de Enseignement supéneur 557-470 — Apped Science and Technology

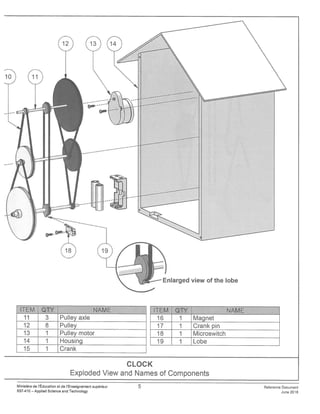

- 21. 13 — --—1 10 II ®19 ITEM Qy,NAME 11 3 Pulley axle 12 8 Pulley 13 1 Pulley motor 14 1 Housing 15 1 Crank ITEM QTY NAME 16 1 Magnet 17 1 Crank pin 18 1 Microswitch 19 1 Lobe Exploded View and Names of Components I ‘F s— Enlarged view of the lobe CLOCK Ministére de tEducation et de lEnseignement supérleur 557-410 — Applied Science and Technology 5 Reference Document June 2018

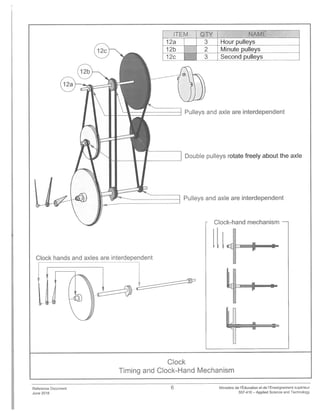

- 22. ITEM QTY NAME 12a3 Hour pulleys 12b ] 2 Minute pulleys 12c 3 Second pulleys Pulleys and axle are interdependent Double pulleys rotate freely about the axle Pulleys and axle are interdependent Clock-hand mechanism LL. Ip C Clock hands dent Clock Timing and Clock-Hand Mechanism Reference Document June 2018 6 Ministëre de IEducaUon et de I’Ensei9nement superieur 557-410 — Applied Science and Technology

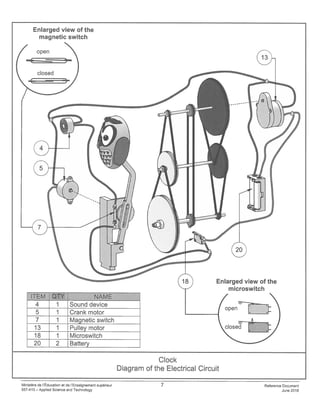

- 23. Enlarged view ofthe magnetic switch closed Clock Diagram of the Electrical Circuit Enlarged view of the microswitch Reference Document June 2018 NAME Sound device Crank motor Magnetic switch Pulley motor M icroswitch Battery Ministere de I’Education et de lEnseignement superieur 557-410 — Applied Science and Technology 7
