9. 2-2. Fusion Tables (2)
Google的官方定義 :
Google Fusion Tables is a web application used for sharing, visualizing, and
publishing tabular data.
You can upload your own CSV, KML, ODS, XLS, or Google Spreadsheet data to a
Fusion Tables table.
Once your data is in Fusion Tables, you can collaborate on it with others in real
time, publish it for Google Search, create map and chart visualizations for
private use or for embedding on websites, filter it according to specific criteria,
and update the data behind your visualizations or filters at any time.

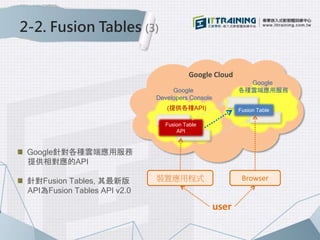

10. 2-2. Fusion Tables (3)
Google Cloud
Google
各種雲端應用服務Google
Developers Console
(提供各種API)
Fusion Table
API
Fusion Table
user
Browser裝置應用程式
Google針對各種雲端應用服務
提供相對應的API
針對Fusion Tables, 其最新版
API為Fusion Tables API v2.0

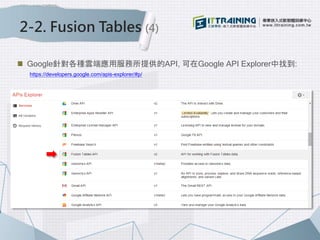

11. 2-2. Fusion Tables (4)
Google針對各種雲端應用服務所提供的API, 可在Google API Explorer中找到:
https://developers.google.com/apis-explorer/#p/

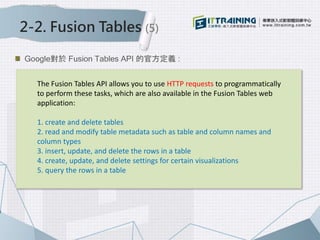

12. 2-2. Fusion Tables (5)
Google對於 Fusion Tables API 的官方定義 :
The Fusion Tables API allows you to use HTTP requests to programmatically
to perform these tasks, which are also available in the Fusion Tables web
application:
1. create and delete tables
2. read and modify table metadata such as table and column names and
column types
3. insert, update, and delete the rows in a table
4. create, update, and delete settings for certain visualizations
5. query the rows in a table

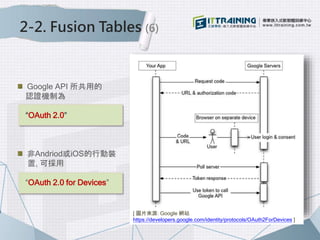

13. 2-2. Fusion Tables (6)
Google API 所共用的
認證機制為
“OAuth 2.0”
非Andriod或iOS的行動裝
置, 可採用
“OAuth 2.0 for Devices”
[ 圖片來源: Google 網站
https://developers.google.com/identity/protocols/OAuth2ForDevices ]
