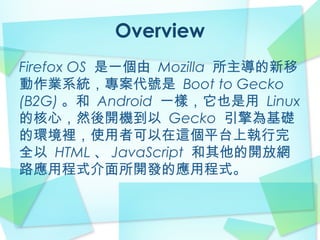

More Related Content Similar to Firefox OS Overview Similar to Firefox OS Overview (20) Firefox OS Overview3. Overview
Firefox OS 是一個由 Mozilla 所主導的新移
動作業系統,專案代號是 Boot to Gecko
(B2G) 。和 Android 一樣,它也是用 Linux
的核心,然後開機到以 Gecko 引擎為基礎
的環境裡,使用者可以在這個平台上執行完
全以 HTML 、 JavaScript 和其他的開放網
路應用程式介面所開發的應用程式。
7. How to build - Requirements
An installed 64 bit GNU/Linux
distribution (we recommend Ubuntu
12.04).
At least 4 GB of RAM/swap space.
At least 20 GB of available hard disk
space.

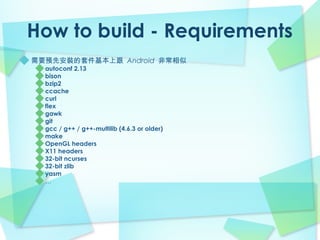

8. How to build - Requirements
需要預先安裝的套件基本上跟 Android 非常相似
autoconf 2.13
bison
bzip2
ccache
curl
flex
gawk
git
gcc / g++ / g++-multilib (4.6.3 or older)
make
OpenGL headers
X11 headers
32-bit ncurses
32-bit zlib
yasm
…
9. How to build – Supported
devices
目前支援的裝置分為 3 個 Tier , Tier 1 是主力
開發的部分, Tier 2 是比較多人使用,而 Tier 3
是不保證能順利運作的
Tier 1: Unagi, Otoro, Pandaboard, Emulator
(ARM/x86), Desktop (Firefox + addon )
Tier 2: Samsung Nexus S, Samsung Nexus S
4G
Tier 3: Samsung Galaxy S2, Samsung Galaxy
Nexus

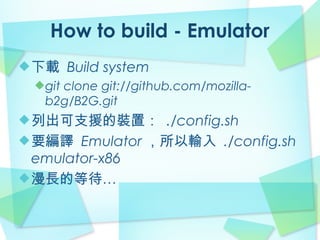

10. How to build - Emulator
下載 Build system
git clone git://github.com/mozilla-
b2g/B2G.git
列出可支援的裝置: ./config.sh
要編譯 Emulator ,所以輸入 ./config.sh
emulator-x86
漫長的等待…
11. How to build - Emulator
sudo ln –s /usr/lib/i386-linux-gnu/mesa/libGL.so.1
/usr/lib/i386-linux-gnu/libGL.so
sudo ln –s /usr/lib/i386-linux-gnu/libX11.so.6
/usr/lib/i386-linux-gnu/libX11.so
編輯 gecko/nsprpub/pr/src/Makefile.in 將 133 行的
OS_LIBS += -lrt 註解掉。
build system 基本上是採用 Android 的機制,輸入
./build.sh ,這個 script 會載入必要的環境變數,並用
lunch 設置要編譯的 product ,然後開始編譯。
又是一段漫長的過程。

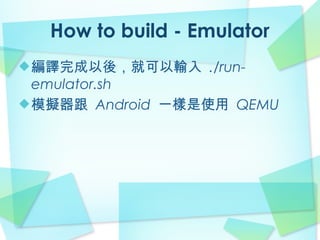

12. How to build - Emulator
編譯完成以後,就可以輸入 ./run-
emulator.sh
模擬器跟 Android 一樣是使用 QEMU
13. 開發 – build system
Build system 基本上與 Android 一致,使用
lunch 來決定要編譯出哪個產品,這部分可以參
考 config.sh 與 setup.sh 。
主要的差異在於 gecko , gecko 是 Mozilla
browser 的引擎,原來是用 C++ 開發,以
autoconf/automake 來編譯。因此這邊並不是
以 Android.mk 來編譯,事實上這個檔案也是空
的。應該要看的是 client.mk ,編譯時是在同層
的 objdir-gecko 進行編譯。
14. 開發 – boot process
從 bootloader 到 kernel 到
init/init.rc ,這部分都跟 Android 相同。
在 Android 的 init.rc 裡,原來是執行
zygote 的, Firefox OS 則是改為
b2g.sh
service b2g /system/bin/b2g.sh
class main
onrestart restart media
15. 開發 – user space 架構
圖片取自 Mozilla developer 網站
16. 開發 – Hardware module
Graphics: Gecko -> GLES 2.0 + EGL -> screen
Audio: 使用 Android 的 mediaserver
像 sensor/ 陀螺儀…等走的路子是沿用 Android
的機制,也就是在 hardware 目錄下去修改。
這裡有一份追蹤手機振動的文章,從 gaia 層
navigator.vibrate() 到 gecko/HAL ,寫的很
清楚。 http://j.mp/UVG92M
很大一部分都沿用自 Android
