GNSS Opportunities in Aviation
The document discusses the role of GNSS (Global Navigation Satellite System) in enhancing performance-based navigation in aviation, highlighting current and future implementation of EGNOS and Galileo systems. It emphasizes key trends including the shift from traditional to GNSS navigation solutions, increasing safety, and improved operational efficiency. By 2018, significant expansions in LPV (Localizer Performance with Vertical guidance) procedures and devices are anticipated, enhancing communication, navigation, and surveillance applications in aviation.
More Related Content
!["GPS" Global Positioning System [PDF]](https://cdn.slidesharecdn.com/ss_thumbnails/globalpositioningsystemgpsmainpdf-101105164539-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to GNSS Opportunities in Aviation
More from The European GNSS Agency (GSA)
GNSS Opportunities in Aviation
- 1. GNSS opportunities inAviation Carmen Aguilera Market Development Department 14 January 2015

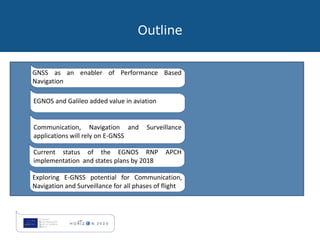

- 2. Outline GNSS as anenabler of Performance Based Navigation Current status of the EGNOS RNP APCH implementation and states plans by 2018 Communication, Navigation and Surveillance applications will rely on E-GNSS EGNOS and Galileo added value in aviation Exploring E-GNSS potential for Communication, Navigation and Surveillance for all phases of flight

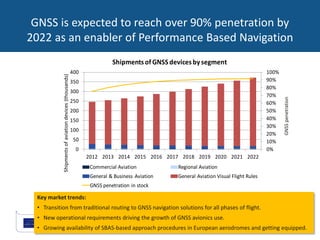

- 3. GNSS is expectedto reach over 90% penetration by 2022 as an enabler of Performance Based Navigation 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 0 50 100 150 200 250 300 350 400 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 Shipmentsofaviationdevices(thousands) Shipments of GNSS devices bysegment Commercial Aviation Regional Aviation General & Business Aviation General Aviation Visual Flight Rules GNSS penetration in stock GNSSpenetration Key market trends: • Transition from traditional routing to GNSS navigation solutions for all phases of flight. • New operational requirements driving the growth of GNSS avionics use. • Growing availability of SBAS-based approach procedures in European aerodromes and getting equipped.

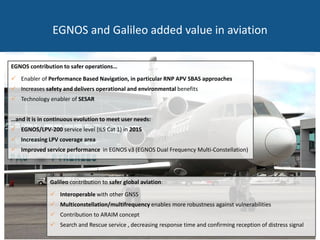

- 4. EGNOS and Galileoadded value in aviation EGNOS contribution to safer operations… Enabler of Performance Based Navigation, in particular RNP APV SBAS approaches Increases safety and delivers operational and environmental benefits Technology enabler of SESAR …and it is in continuous evolution to meet user needs: EGNOS/LPV-200 service level (ILS Cat 1) in 2015 Increasing LPV coverage area Improved service performance in EGNOS v3 (EGNOS Dual Frequency Multi-Constellation) Galileo contribution to safer global aviation: Interoperable with other GNSS Multiconstellation/multifrequency enables more robustness against vulnerabilities Contribution to ARAIM concept Search and Rescue service , decreasing response time and confirming reception of distress signal

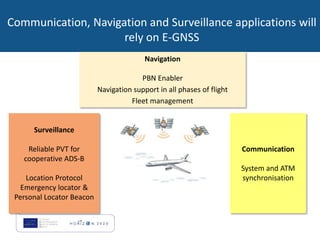

- 5. Communication, Navigation andSurveillance applications will rely on E-GNSS Navigation PBN Enabler Navigation support in all phases of flight Fleet management Communication System and ATM synchronisation Surveillance Reliable PVT for cooperative ADS-B Location Protocol Emergency locator & Personal Locator Beacon

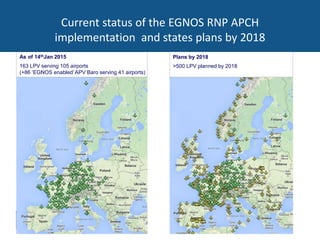

- 6. Current status ofthe EGNOS RNP APCH implementation and states plans by 2018 As of 14thJan 2015 163 LPV serving 105 airports (+86 ‘EGNOS enabled’ APV Baro serving 41 airports) Plans by 2018 >500 LPV planned by 2018

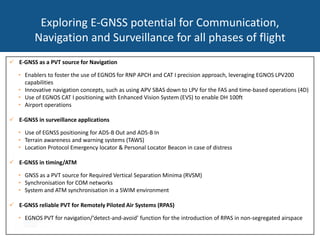

- 7. Exploring E-GNSS potentialfor Communication, Navigation and Surveillance for all phases of flight E-GNSS as a PVT source for Navigation • Enablers to foster the use of EGNOS for RNP APCH and CAT I precision approach, leveraging EGNOS LPV200 capabilities • Innovative navigation concepts, such as using APV SBAS down to LPV for the FAS and time-based operations (4D) • Use of EGNOS CAT I positioning with Enhanced Vision System (EVS) to enable DH 100ft • Airport operations E-GNSS in surveillance applications • Use of EGNSS positioning for ADS-B Out and ADS-B In • Terrain awareness and warning systems (TAWS) • Location Protocol Emergency locator & Personal Locator Beacon in case of distress E-GNSS in timing/ATM • GNSS as a PVT source for Required Vertical Separation Minima (RVSM) • Synchronisation for COM networks • System and ATM synchronisation in a SWIM environment E-GNSS reliable PVT for Remotely Piloted Air Systems (RPAS) • EGNOS PVT for navigation/‘detect-and-avoid’ function for the introduction of RPAS in non-segregated airspace
- 8.
Editor's Notes
- #5 EGNOS V3 is planned to offer significantly improved service performance (accuracy, continuity of service, lower vertical alert limit, coverage) thanks to new signals and Galileo satellites In case of an emergency in aviation segments, time is of the essence and first response is critical. Galileo will complement the existing network of satellites tasked to receive and transmit distress signals, decreasing response times. Galileo will also offer a return link confirming the distress signal was received.
- #8 Navigation Innovative navigation concepts Transition from P-RNAV / RNP / RNP AR to LPV Transition from continuous descent approach (CDA) to LPV Steep approach (5°) based on GNSS [EGNOS] Double slope steep approach based on GNSS [EGNOS] Advanced missed approach enabled by GNSS Wake vortex free approaches on HUB runway Single slope curved approach based on GNSS ‘Selected’ Advanced LPV Procedure (combining features of several of the previous concepts) Surveillance Automatic Dependent Surveillance (ADS-B) is widely recognized as a cornerstone technology for monitoring aircraft in the skies and on the ground in the continuing transformation to the SESAR conceptGNSS for ADS-B Out Mandate: (SPI-IR) states in Annex II, Part B, item 6 that: 6. The primary data source providing the data items in point 3(h) and (i) shall be at least compatible with GNSS receivers that perform receiver autonomous integrity monitoring (RAIM) and fault detection and exclusion (FDE), EASA means of compliance (EASA CS-ACNS ): an ETSO-C129a receiver is enough, although, an SBAS receiver (ETSO-C145/146) is valid as well WHILE FAA requires a SBAS receiver EGNSS for ADS-B In: although there is no mandate, ADS-B In was introduced operationally on a voluntary basis from 2011 onwards (in the context of the CASCADE
