A look into how you can start to use Docker today with ready made setup with php7, nginx, redis, blackfire and so on. How you may extend it, and integrating it into your continuous integration workflow, and how you can setup a continuous deployment workflow using for instance Travis-CI. Quicklink: https://legacy.joind.in/19070

1. GETTING INSTANTLY UP AND RUNNING
WITH DOCKER AND SYMFONY
GETTING STARTED AND BEYOND WITH DOCKER AND SYMFONY
André Rømcke - VP Engineering @ezsystems
Symfony Live London, 16th of September 2016

2. www.ez.no
Warning
๏Won’t cover performance issues on Win/Mac in dev mode due to very slow FS
๏Pragmatic “fix” is to use Linux, or VM with files shared to host over nfs
๏Besides that there are third party solutions with own pitfalls, eg docker-sync
๏This is the first time I do this talk, so hold on tight
๏Including demo effect ;)

3. www.ez.no

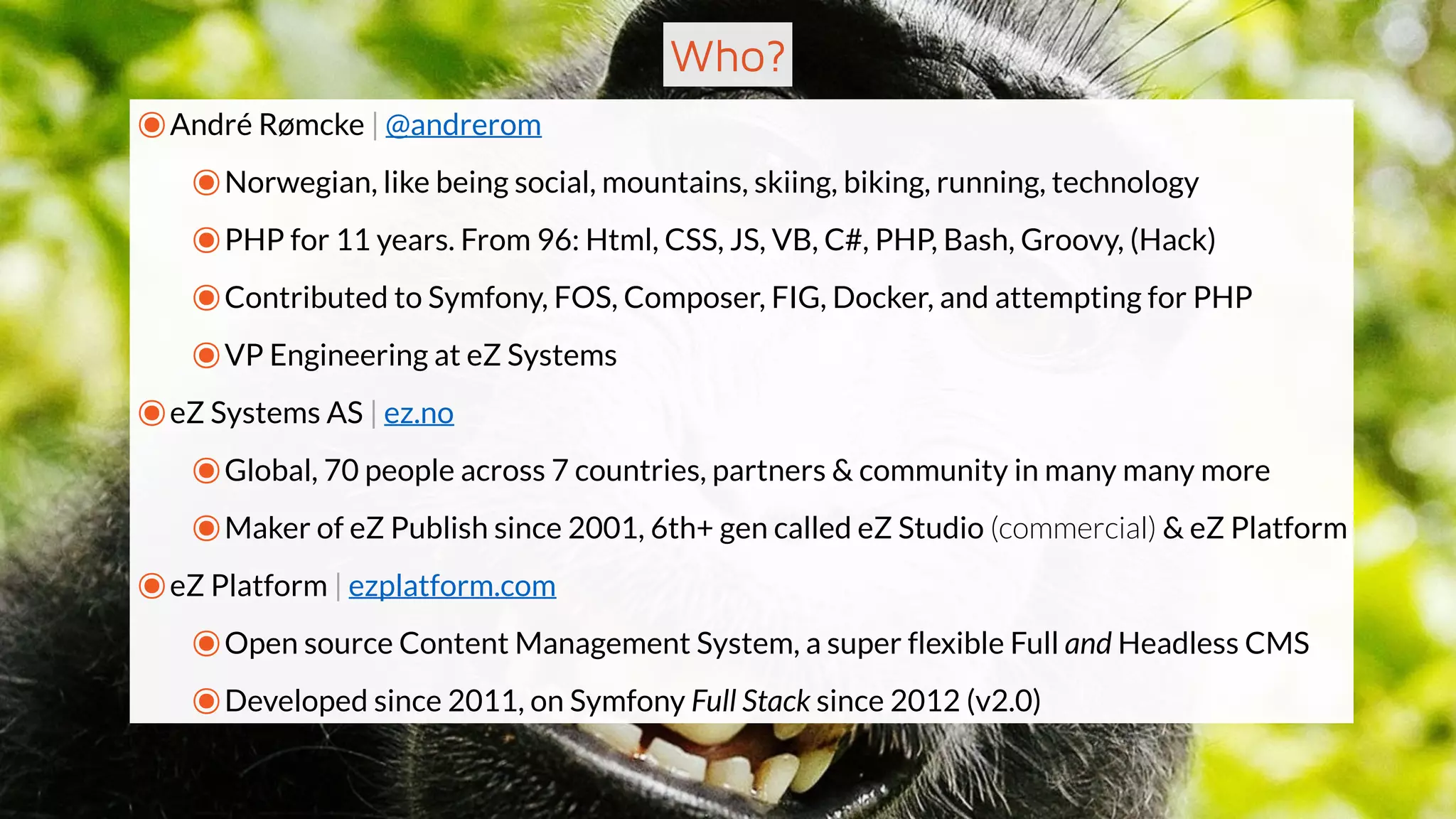

Who?
๏André Rømcke | @andrerom
๏Norwegian, like being social, mountains, skiing, biking, running, technology
๏PHP for 11 years. From 96: Html, CSS, JS, VB, C#, PHP, Bash, Groovy, (Hack)
๏Contributed to Symfony, FOS, Composer, FIG, Docker, and attempting for PHP
๏VP Engineering at eZ Systems
๏eZ Systems AS | ez.no
๏Global, 70 people across 7 countries, partners & community in many many more
๏Maker of eZ Publish since 2001, 6th+ gen called eZ Studio (commercial) & eZ Platform
๏eZ Platform | ezplatform.com
๏Open source Content Management System, a super flexible Full and Headless CMS
๏Developed since 2011, on Symfony Full Stack since 2012 (v2.0)

4. www.ez.no

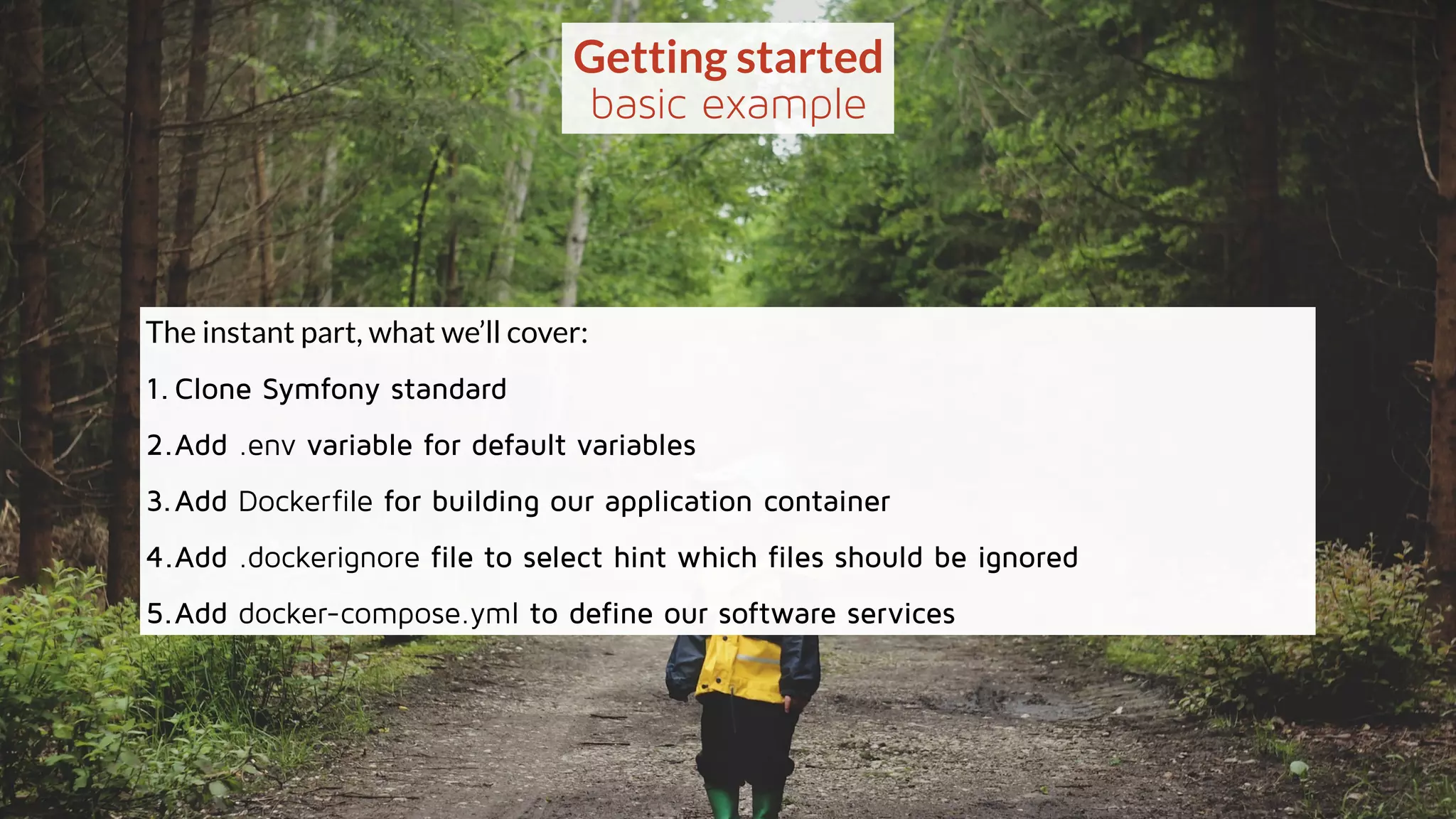

Getting started
basic example
The instant part, what we’ll cover:
1.Clone Symfony standard
2.Add Dockerfile for building our application container
3.Add docker-compose.yml to define our software services
4.[Optional] Add .dockerignore file to hint which files should be ignored
5.[Optional] Add .env variable for default variables

5. www.ez.nowww.ez.no

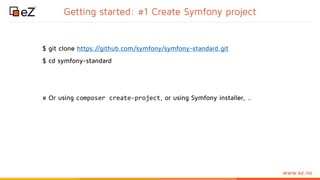

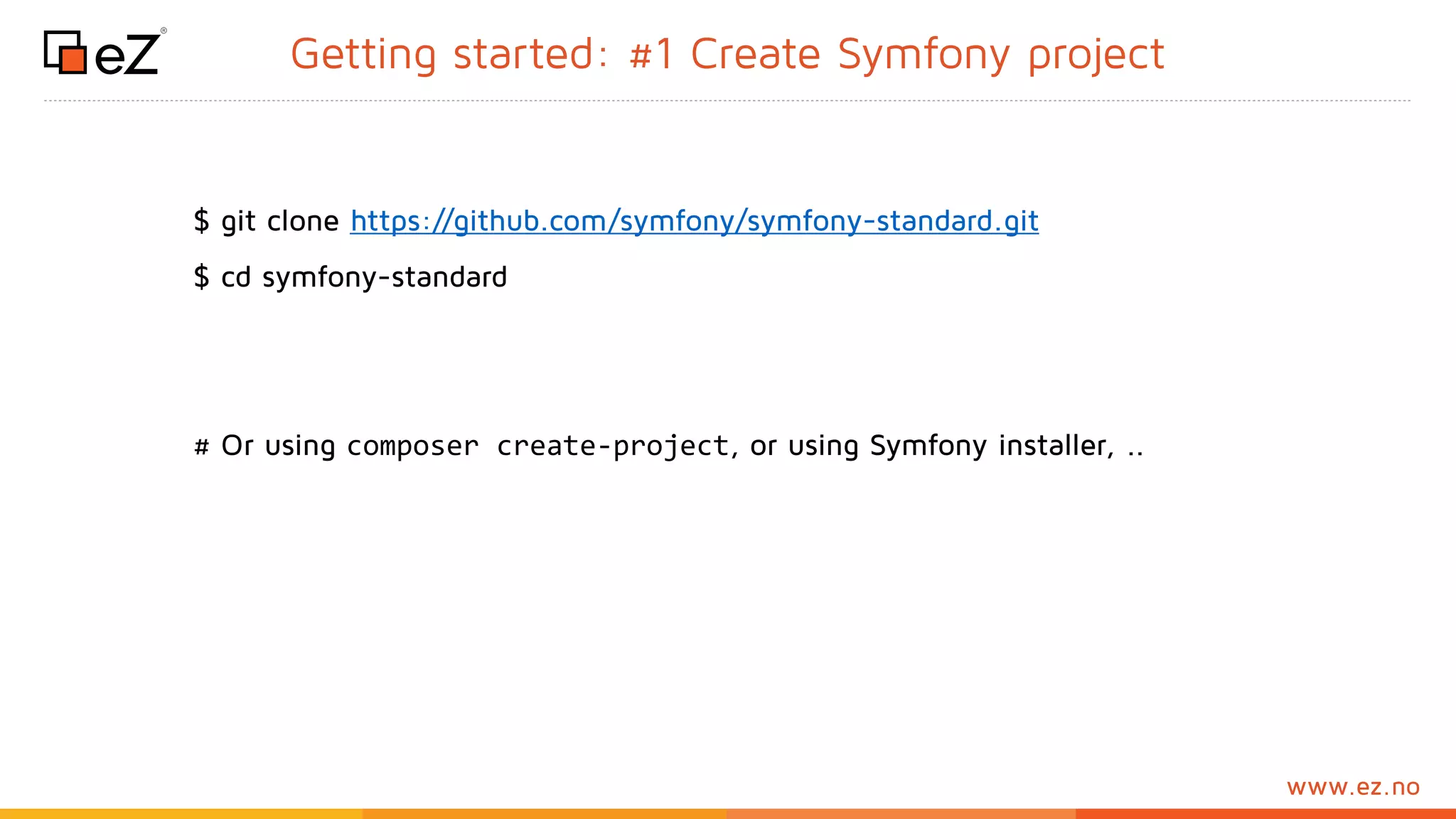

Getting started: #1 Clone Symfony standard
$ git clone https://github.com/symfony/symfony-standard.git
$ cd symfony-standard
# Or using composer create-project, or using Symfony installer, ..

6. www.ez.nowww.ez.no

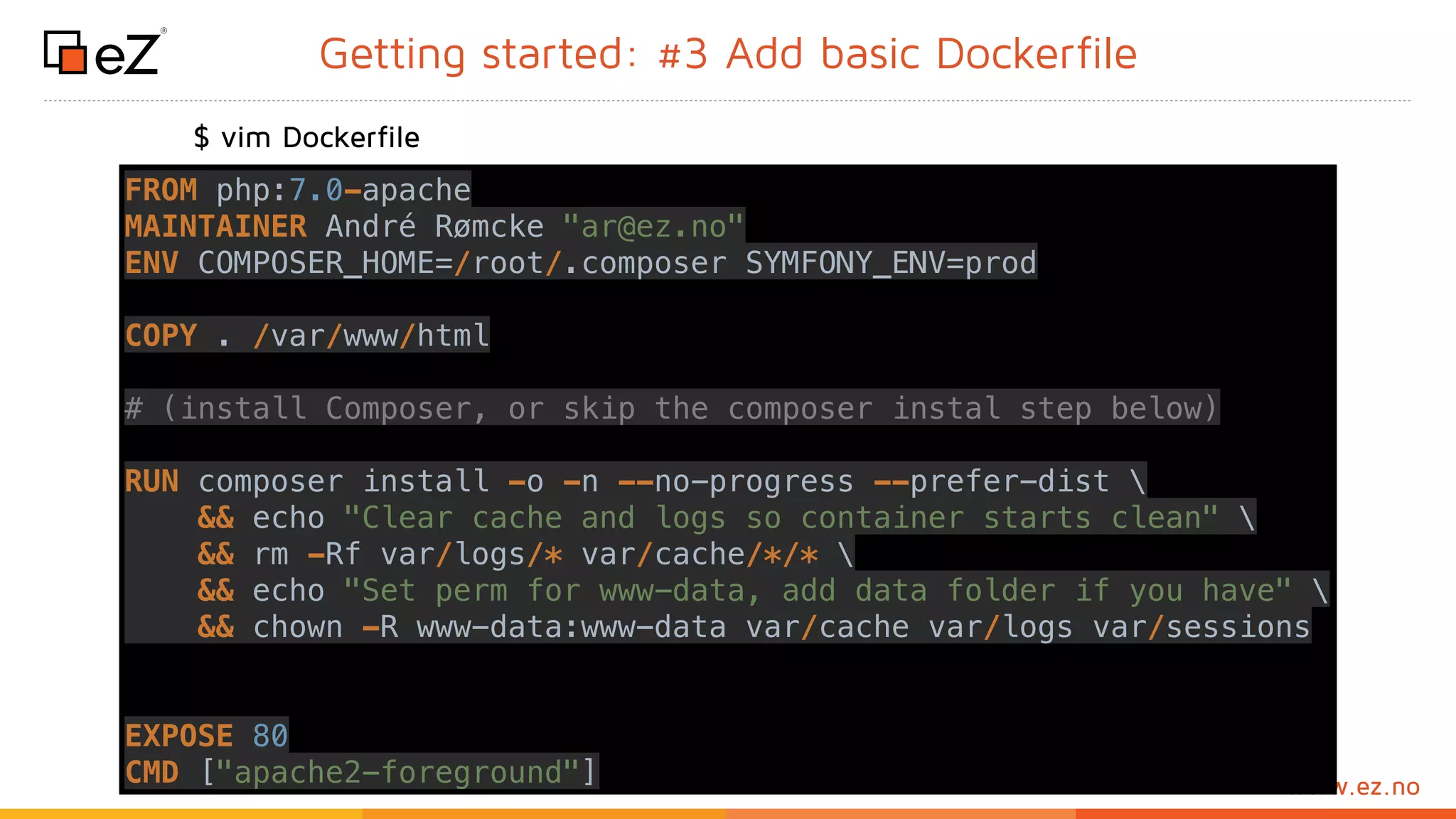

Getting started: #2 Add basic Dockerfile
$ vim Dockerfile
FROM php:7.0-apache
MAINTAINER André Rømcke "ar@ez.no"
ENV COMPOSER_HOME=/root/.composer SYMFONY_ENV=prod
COPY . /var/www/html
# … (install Composer, or skip the composer instal step below)
RUN composer install -o -n --no-progress --prefer-dist
&& echo "Clear cache and logs so container starts clean"
&& rm -Rf var/logs/* var/cache/*/*
&& echo "Set perm for www-data, add data folder if you have"
&& chown -R www-data:www-data var/cache var/logs var/sessions
EXPOSE 80
CMD ["apache2-foreground"]

7. www.ez.nowww.ez.no

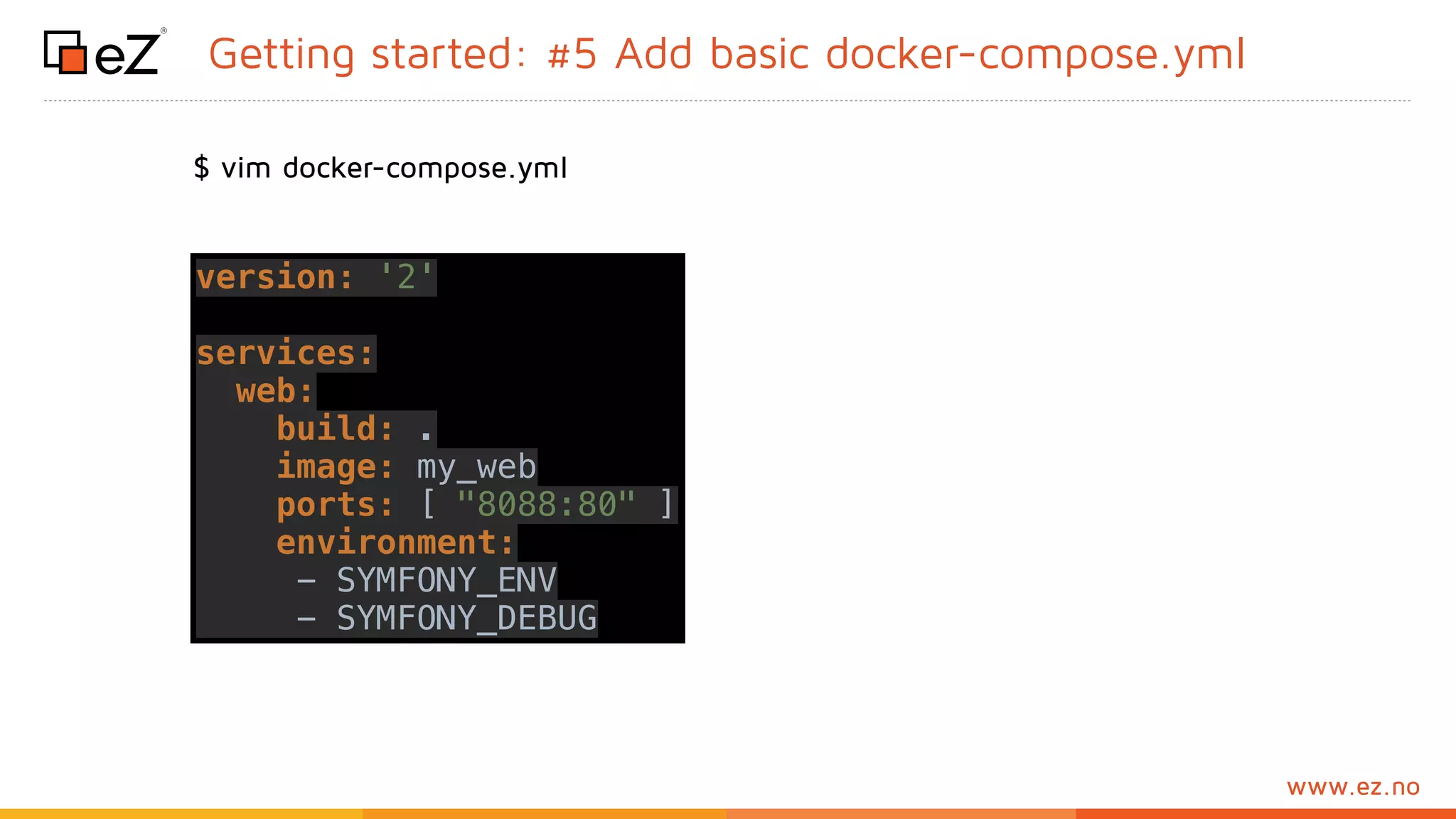

Getting started: #3 Add basic docker-compose.yml
$ vim docker-compose.yml
version: '2'
services:
web:
build: .
image: my_web
ports: [ "8088:80" ]
environment:
- SYMFONY_ENV
- SYMFONY_DEBUG

8. www.ez.nowww.ez.no

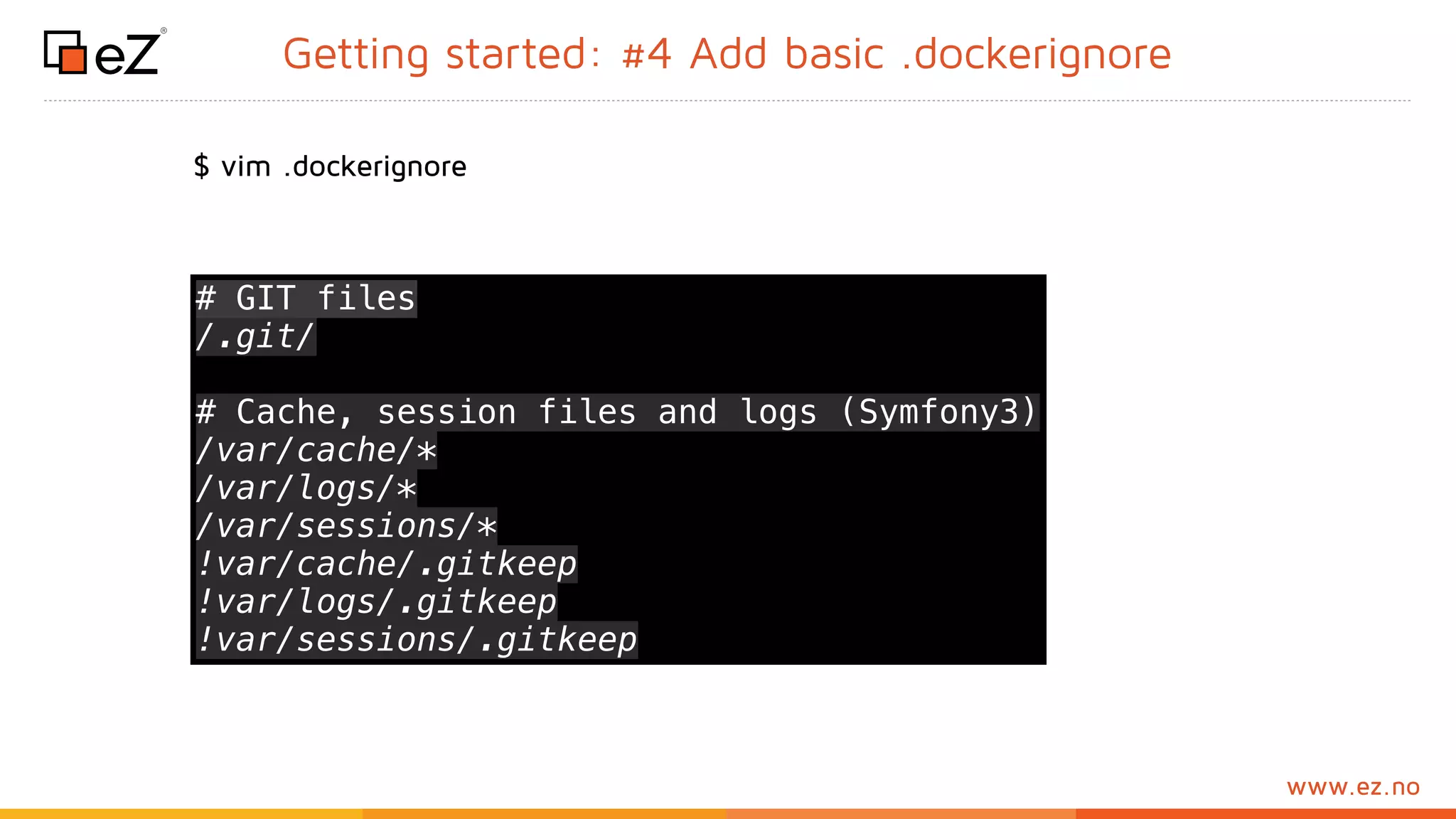

Getting started: #4 Add basic .dockerignore
$ vim .dockerignore
# GIT files
.git/
# Cache, session files and logs (Symfony3)
var/cache/*
var/logs/*
var/sessions/*
!var/cache/.gitkeep
!var/logs/.gitkeep
!var/sessions/.gitkeep

9. www.ez.nowww.ez.no
Getting started: #5 Add default .env variables
Or having to hard code and duplicate defaults in your docker-compose.yml:
environment:
- SYMFONY_ENV=prod
- SYMFONY_DEBUG=0
Instead of having to always specify ENV variables on command line:
export SYMFONY_ENV=prod SYMFONY_DEBUG=0
docker-compose up -d

10. www.ez.nowww.ez.no

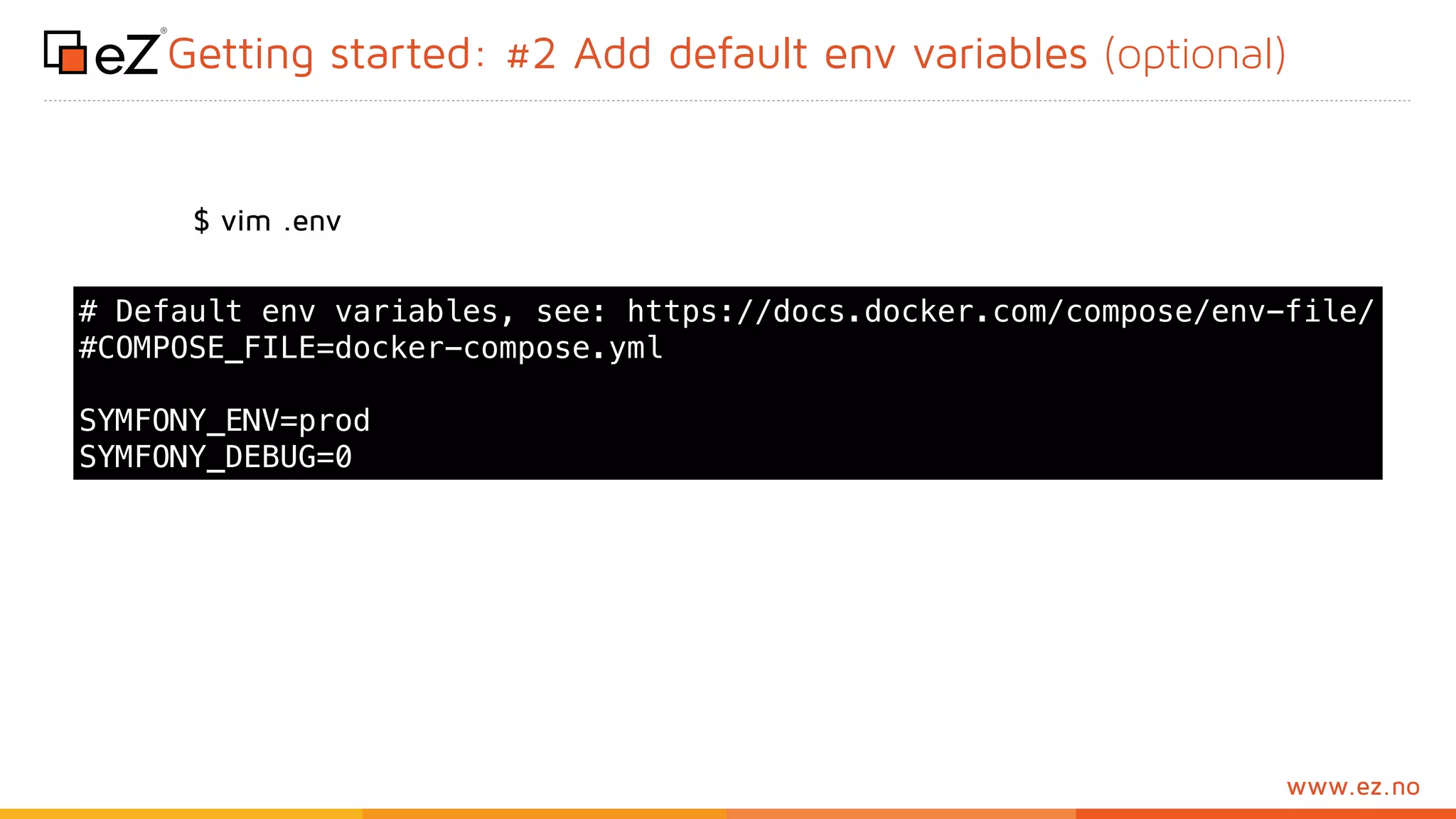

Getting started: #5 Add default .env variables
Instead we can set all default in one file:
$ vim .env
# Default env variables, see: https://docs.docker.com/compose/env-file/
#COMPOSE_FILE=docker-compose.yml
SYMFONY_ENV=prod
SYMFONY_DEBUG=0

11. Demo time
Up and running
git clone https://github.com/andrerom/symfony-live-london-2016-docker-demo.git sf_demo
cd sf_demo
git show
docker up -d

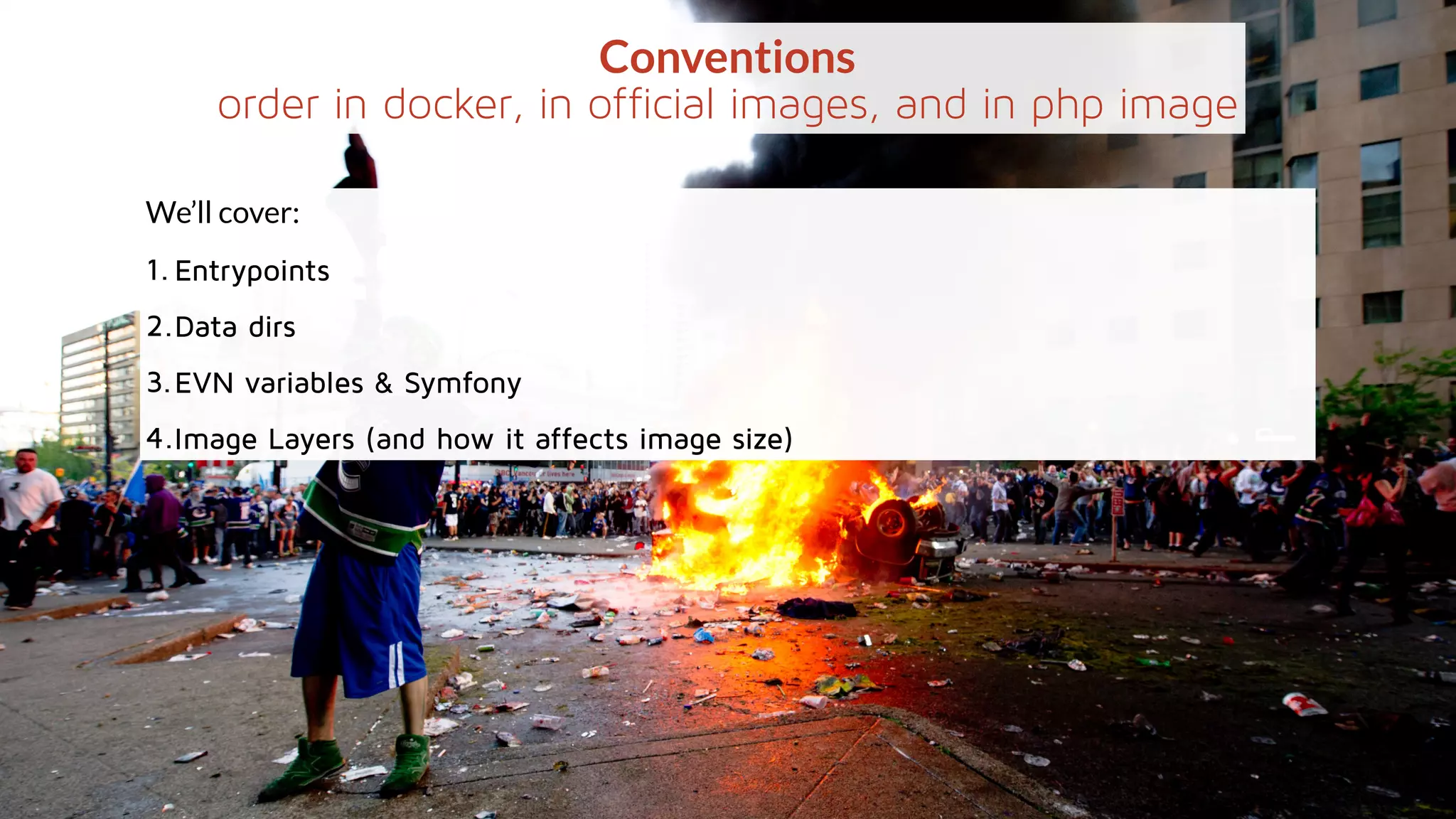

12. Conventions in official docker images
order in docker, in official images, and in php image
As the getting started example is way to simple, lets go over some things to know before we
make a more advance example.
We’ll cover:
1.Entrypoints
2.Data dirs
3.EVN variables & Symfony
4.Image Layers (and how it affects image size)

13. www.ez.nowww.ez.no

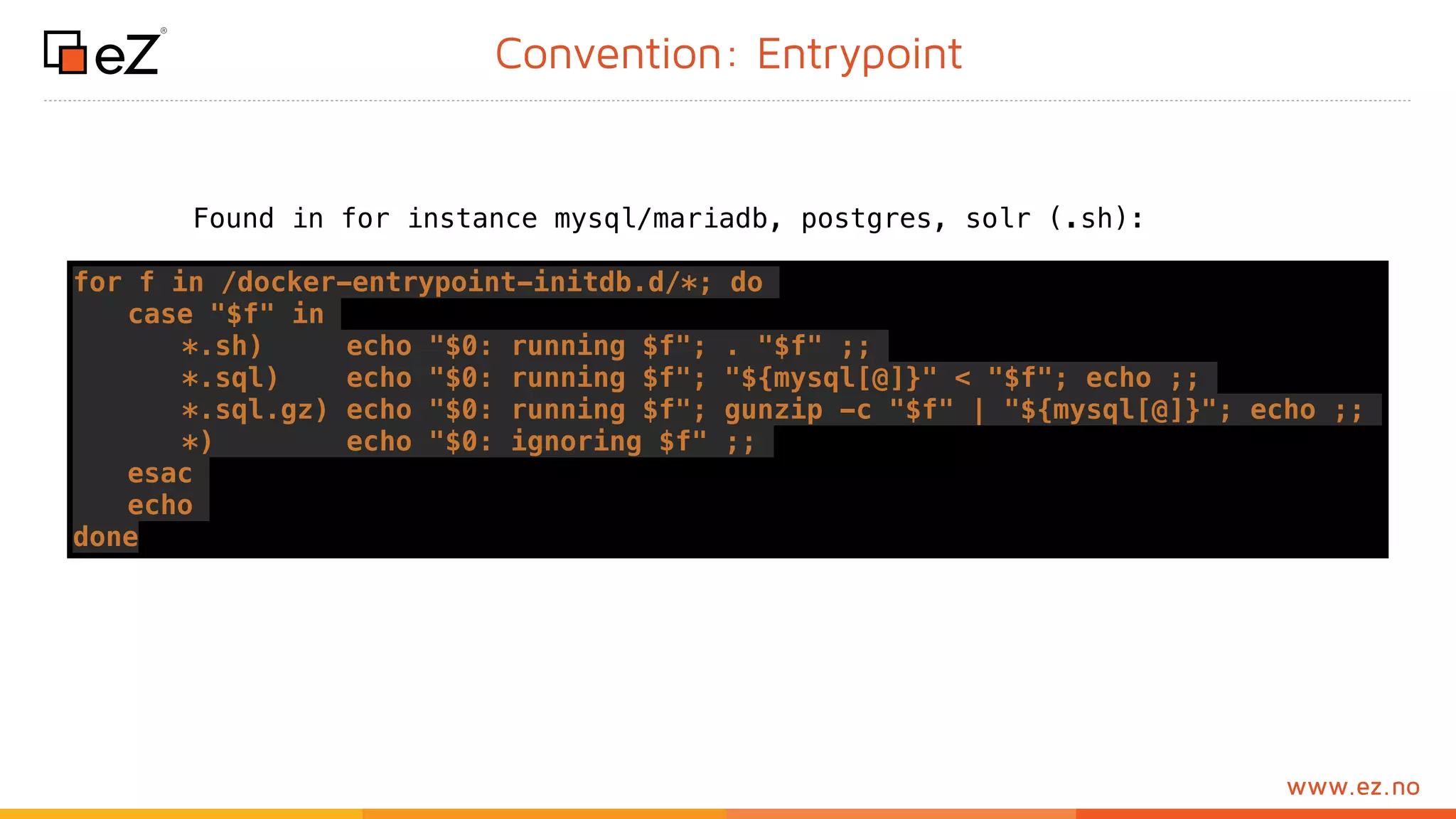

Convention: Entrypoint
Found in for instance official mysql/mariadb, postgres, solr images:
# https://github.com/docker-library/mariadb/blob/master/10.1/docker-entrypoint.sh
for f in /docker-entrypoint-initdb.d/*; do
case "$f" in
*.sh) echo "$0: running $f"; . "$f" ;;
*.sql) echo "$0: running $f"; "${mysql[@]}" < "$f"; echo ;;
*.sql.gz) echo "$0: running $f"; gunzip -c "$f" | "${mysql[@]}"; echo ;;
*) echo "$0: ignoring $f" ;;
esac
echo
done
This lets you to pass in sql and/or shell scripts to enhance a
official image without having to extend it with own docker image:
db:
image: ${MYSQL_IMAGE}
volumes_from:
- db_vol:ro

14. www.ez.nowww.ez.no

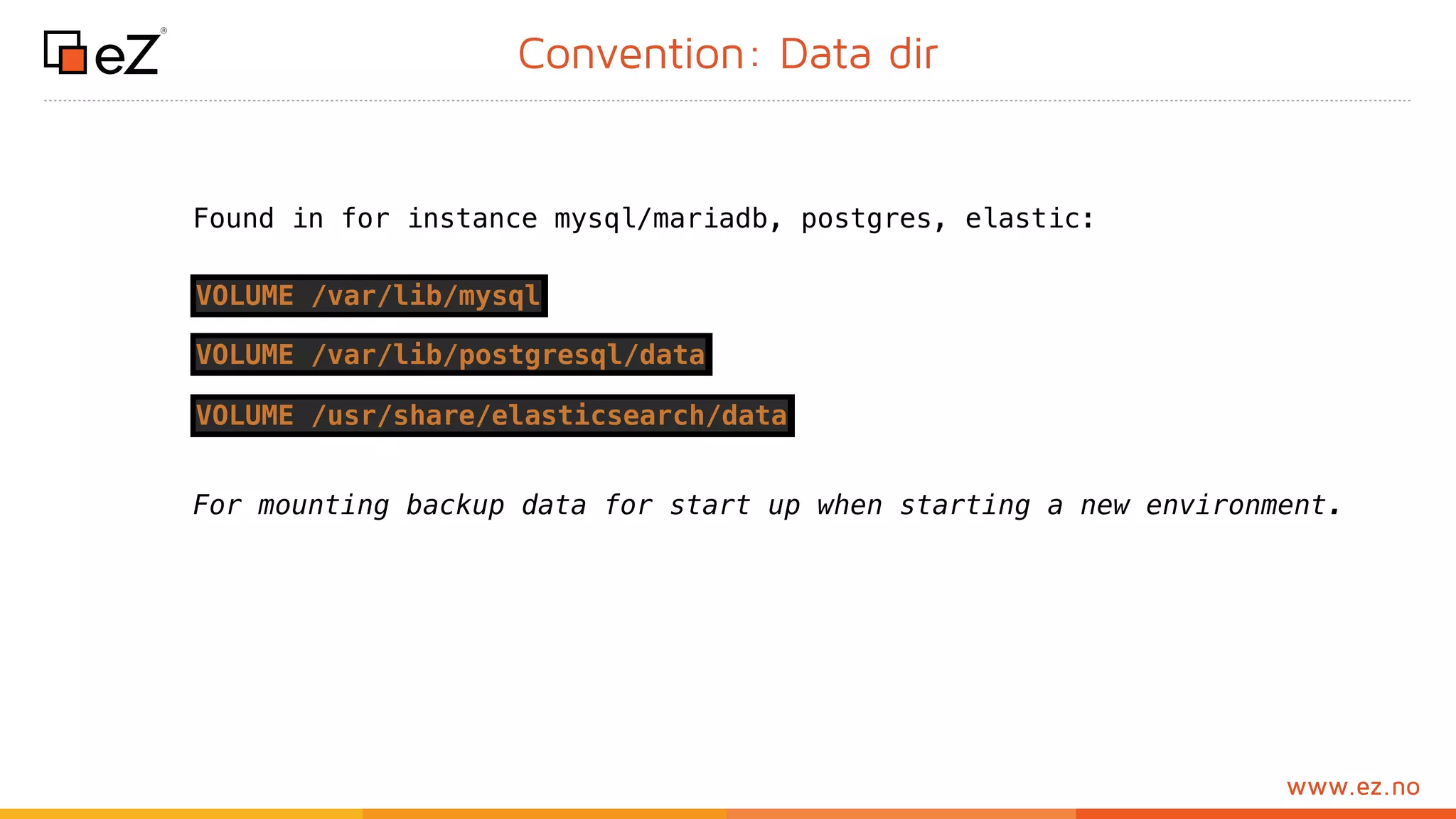

Convention: Data dir
Found in for instance mysql/mariadb, postgres, elastic:
Same benefit as entrypoint usage with sql files, but more specifically
for mounting backup data for start up when starting a new environment.
VOLUME /var/lib/mysql
VOLUME /usr/share/elasticsearch/data
VOLUME /var/lib/postgresql/data

15. www.ez.nowww.ez.no

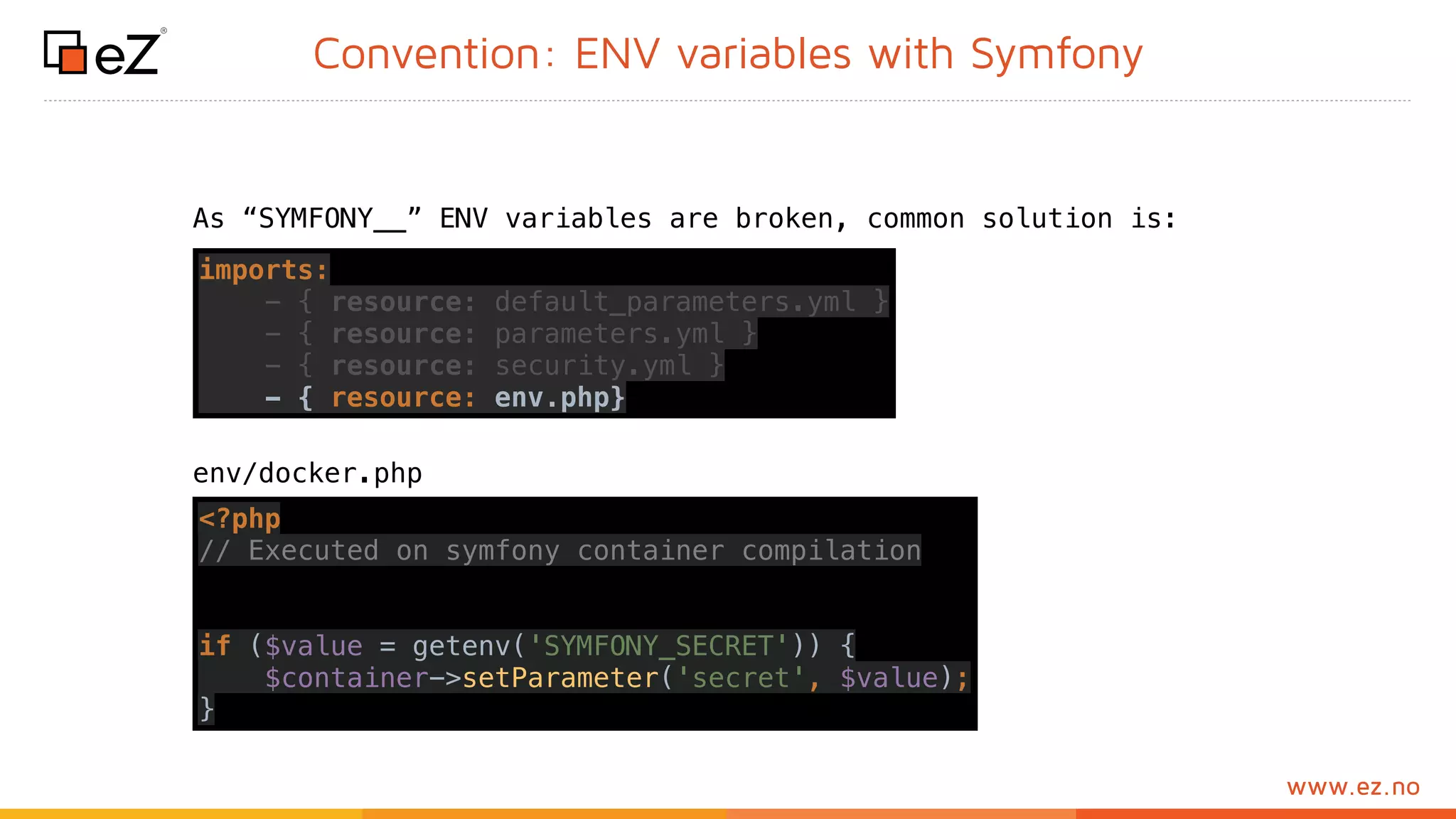

Convention: ENV variables with Symfony
As “SYMFONY__” ENV variables are broken, common solution is:
env/docker.php
imports:
- { resource: default_parameters.yml }
- { resource: parameters.yml }
- { resource: security.yml }
- { resource: env/docker.php}
<?php
// Executed on symfony container compilation
if ($value = getenv('SYMFONY_SECRET')) {
$container->setParameter('secret', $value);
}

16. www.ez.nowww.ez.no

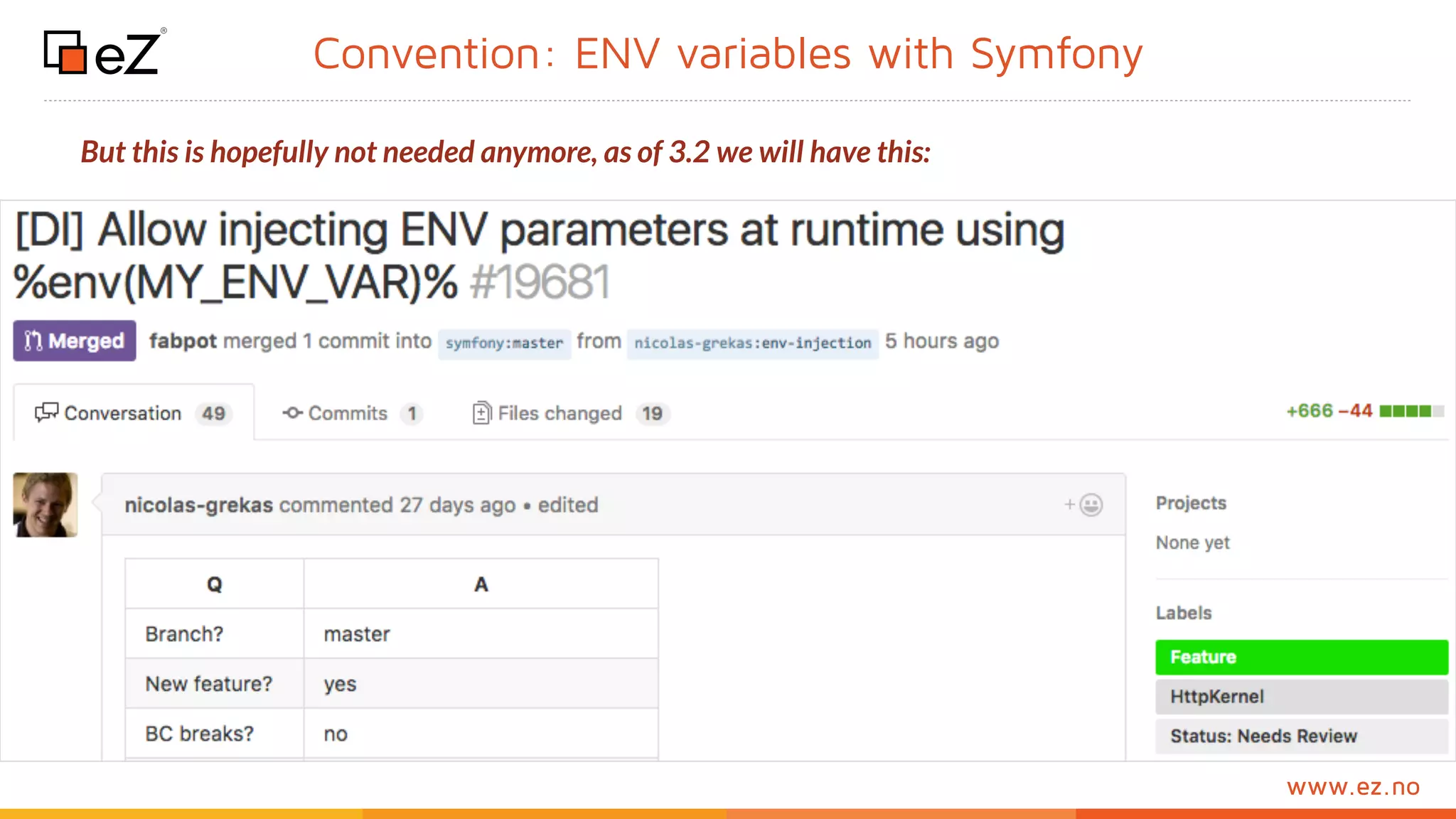

Convention: ENV variables with Symfony
But this is hopefully not needed anymore, as of 3.2 we will have this:

17. www.ez.nowww.ez.no
Convention: Image Layers & image size
• Each instruction in Dockerfile will by default create a new layer
• Which means files added in one layer continues taking space in final image
• Which means you will have to do things like:
# Install and configure php plugins
RUN set -xe
&& buildDeps="
$PHP_EXTRA_BUILD_DEPS
libfreetype6-dev
libjpeg62-turbo-dev libxpm-dev libpng12-dev libicu-dev libxslt1-dev
&& apt-get update && apt-get install -y --force-yes $buildDeps --no-install-
recommends && rm -rf /var/lib/apt/lists/*
# Extract php source and install missing extensions
&& docker-php-source extract
&& (…)
# Delete source & builds deps so it does not hang around in layers taking up space
&& docker-php-source delete
&& apt-get purge -y --auto-remove -o APT::AutoRemove::RecommendsImportant=false
$buildDeps

18. Advance use
extending, composing and using
Lets have a look at some actual code.
Sources:
- https://github.com/ezsystems/docker-php/blob/master/php/Dockerfile-7.0#L33
- https://github.com/ezsystems/ezplatform/tree/master/doc/docker-compose

19. Fin
the end, but hopefully just the beginning
For more on eZ Platform see ezplatform.com
