1. 1
Geotechnical Engineering–I [CE-221]
BSc Civil Engineering – 4th Semester
by
Dr. Muhammad Irfan
Assistant Professor
Civil Engg. Dept. – UET Lahore
Email: mirfan1@msn.com
Lecture Handouts: https://groups.google.com/d/forum/2016session-geotech-i
Lecture # 12
2-Mar-2018

2. 2
→ Classification procedure standardized by ASTM D3282 and
AASHTO M145.
→ Soil rating for subgrade construction.
→ Soils classified into 8 groups (+ several subgroups);
A-1 (best) to A-8 (worst).
→ Organic soils (peat and muck) assigned group A-8.
→ Required tests are sieve analysis and Atterberg limits.
AASHTO Soil Classification

3. 3
A4 ~ A7A1 ~ A3
Granular Materials Silt-clay Materials
LL and PI separates silty materials from
clayey materials
LL and PI separates silty materials from
clayey materials (only for A2 group)
AASHTO Soil Classification
(ASTM D3282; AASHTO M145)
A-1 (0)
Group Number Group Index
Example
 35% pass No. 200 sieve > 35% pass No. 200 sieve

4. 4
AASHTO Classification Chart
Note:
First group from the left to fit test data is the correct AASHTO classification.
(Coarse-grained Soils)

5. 5
AASHTO Classification Chart
Note:
First group from the left to fit test data is the correct AASHTO classification.
(Fine-grained Soils)

6. 6
Range of LL and PI for soils in groups A-2, A-4, A-5, A-6, and A-7.
AASHTO Plasticity Chart

7. 7

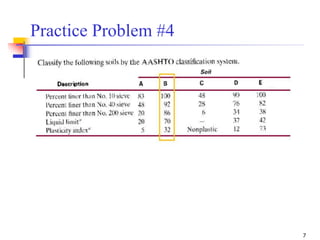

Practice Problem #4

8. 8

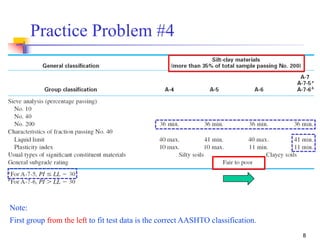

Note:
First group from the left to fit test data is the correct AASHTO classification.
Practice Problem #4

9. 9

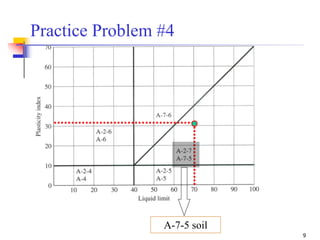

A-7-5 soil
Practice Problem #4

10. 10

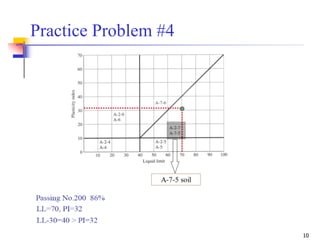

Practice Problem #4

11. 11
Classify the following soil Using AASHTO System. Given:
% passing No. 10 = 100;
% passing No. 40 = 80;
% passing No.200 = 58
LL = 30; PI = 10
Practice Problem #5
GI=3
A-4(3)

12. 12

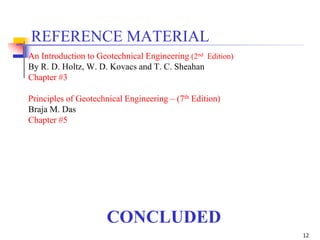

CONCLUDED
REFERENCE MATERIAL
An Introduction to Geotechnical Engineering (2nd Edition)
By R. D. Holtz, W. D. Kovacs and T. C. Sheahan
Chapter #3
Principles of Geotechnical Engineering – (7th Edition)
Braja M. Das
Chapter #5

13. 13

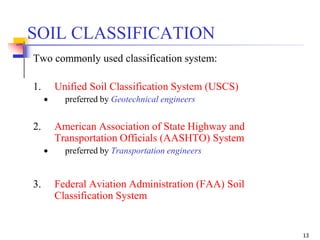

Two commonly used classification system:
1. Unified Soil Classification System (USCS)
 preferred by Geotechnical engineers
2. American Association of State Highway and
Transportation Officials (AASHTO) System
 preferred by Transportation engineers
SOIL CLASSIFICATION
3. Federal Aviation Administration (FAA) Soil
Classification System

14. 14

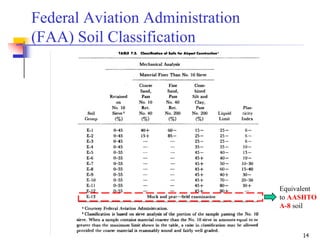

Federal Aviation Administration
(FAA) Soil Classification
Equivalent
to AASHTO
A-8 soil

15. 15

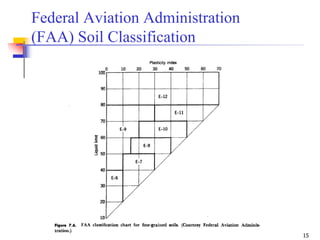

Federal Aviation Administration
(FAA) Soil Classification

16. 16

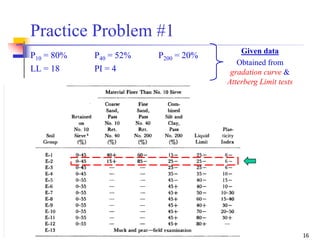

P10 = 80% P40 = 52% P200 = 20%
LL = 18 PI = 4
Given data
Obtained from
gradation curve &
Atterberg Limit tests
Practice Problem #1

17. 17

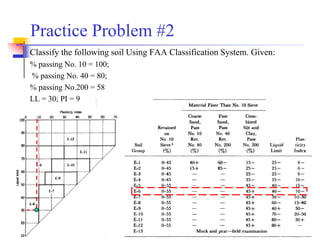

Classify the following soil Using FAA Classification System. Given:
% passing No. 10 = 100;
% passing No. 40 = 80;
% passing No.200 = 58
LL = 30; PI = 9
Practice Problem #2
