![Because of
This:
HTML
<script
src=‘https://apis.google.com/js/plusone.js’></script
>
Instead of:
HTML
<script>
(function() {
var po = document.createElement(‘script’);
po.src = ‘https://apis.google.com/js/plusone.js’;
var s = document.getElementsByTagName(‘script’)[0];
s.parentNode.insertBefore(po, s);
})();
</script>
http://www.stevesouders.com/blog/2009/12/01/google-analytics-goes-async/](https://image.slidesharecdn.com/protectingyouruserexperiencewhileintegrating3rd-partycode-120629104533-phpapp02/75/Google-I-O-2012-Protecting-your-user-experience-while-integrating-3rd-party-code-6-2048.jpg)
![Async Snippet
Good for code with no dependencies (widgets)
HTML
<script>
(function() {
var po = document.createElement(‘script’);
po.src =
‘https://apis.google.com/js/plusone.js’;
var s =
document.getElementsByTagName(‘script’)[0];
s.parentNode.insertBefore(po, s);
})();
</script>
17](https://image.slidesharecdn.com/protectingyouruserexperiencewhileintegrating3rd-partycode-120629104533-phpapp02/75/Google-I-O-2012-Protecting-your-user-experience-while-integrating-3rd-party-code-17-2048.jpg)
![Async Loaders
Help for dependency chaining
• Modernizr
• LABjs
• RequireJS
• ControlJS
Modernizr.load([{ HTML
load: '//ajax.googleapis.com/ajax/libs/jquery/1.7.1/jquery.js',
}, {
load: 'needs-jQuery.js'
}]);
20](https://image.slidesharecdn.com/protectingyouruserexperiencewhileintegrating3rd-partycode-120629104533-phpapp02/75/Google-I-O-2012-Protecting-your-user-experience-while-integrating-3rd-party-code-20-2048.jpg)
![HTML
Modernizr.load([ {
load: '//ajax.googleapis.com/ajax/libs/jquery/1.7.1/jquery.js',
complete: function () {
if ( !window.jQuery ) {
Modernizr.load('js/libs/jquery-1.7.1.min.js');
}
}
}, {
load: 'needs-jQuery.js'
} ]);
21](https://image.slidesharecdn.com/protectingyouruserexperiencewhileintegrating3rd-partycode-120629104533-phpapp02/75/Google-I-O-2012-Protecting-your-user-experience-while-integrating-3rd-party-code-21-2048.jpg)
Uploaded byPatrick Meenan
Google I/O 2012 - Protecting your user experience while integrating 3rd party code
The document discusses strategies for integrating third-party code while maintaining a good user experience, emphasizing the importance of asynchronous loading of scripts to prevent blocking the main content. It highlights the necessity of monitoring performance and user experience, while suggesting best practices for script placement and dependency management. Additionally, it outlines the potential issues with third-party code in varied network environments and provides recommendations for both widget owners and site owners on handling such integrations.
More Related Content
![[peachpit] Adaptive Images in Responsive Web Design](https://cdn.slidesharecdn.com/ss_thumbnails/peachpit-schmitt-adaptive-images-v2-130925150604-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Google I/O 2012 - Protecting your user experience while integrating 3rd party code
Google I/O 2012 - Protecting your user experience while integrating 3rd party code
- 1. Protecting your UserExperience While Integrating 3rd-party Code Patrick Meenan Software Engineer

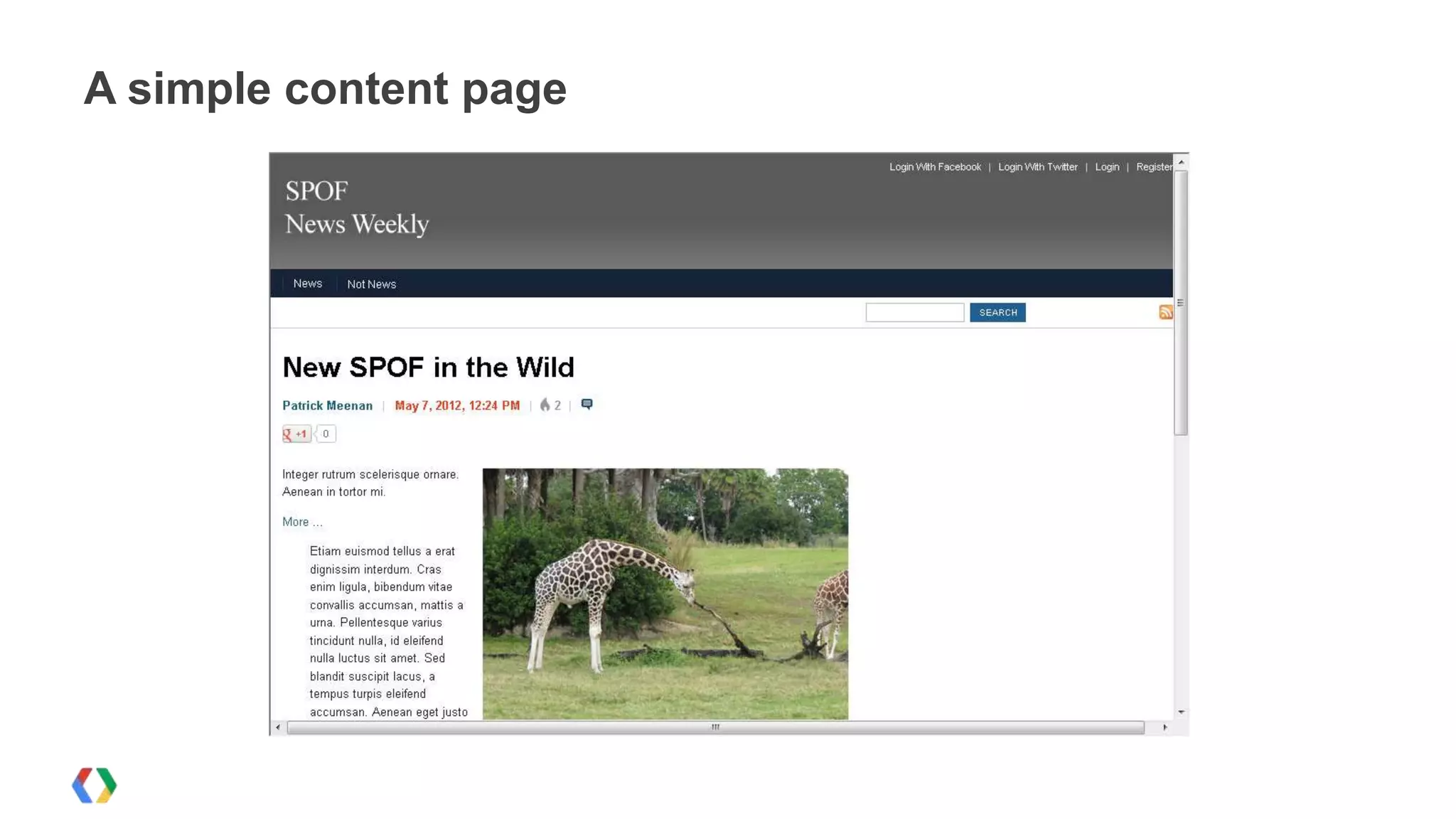

- 2. A simple contentpage

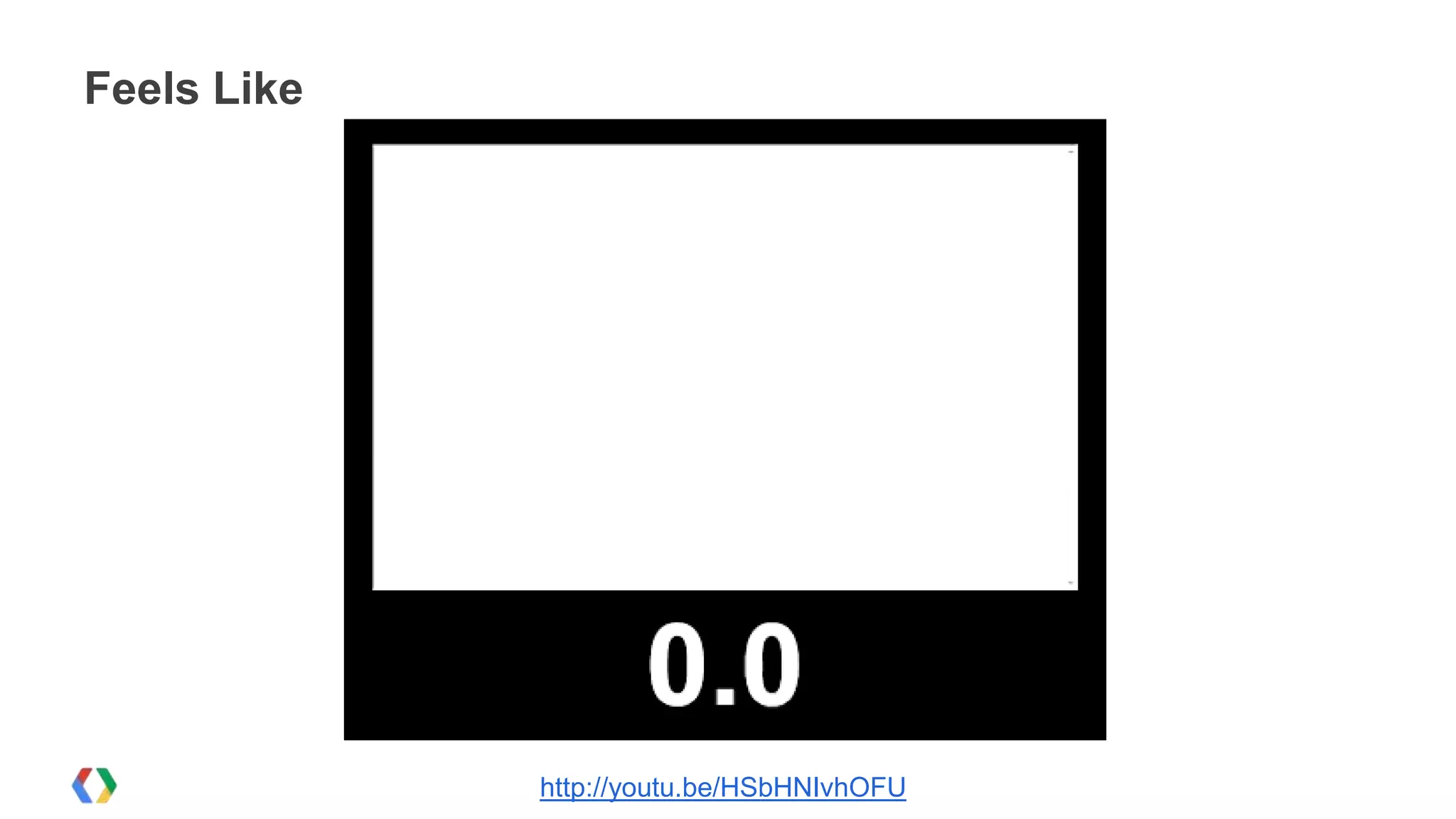

- 3. Feels Like http://youtu.be/HSbHNIvhOFU

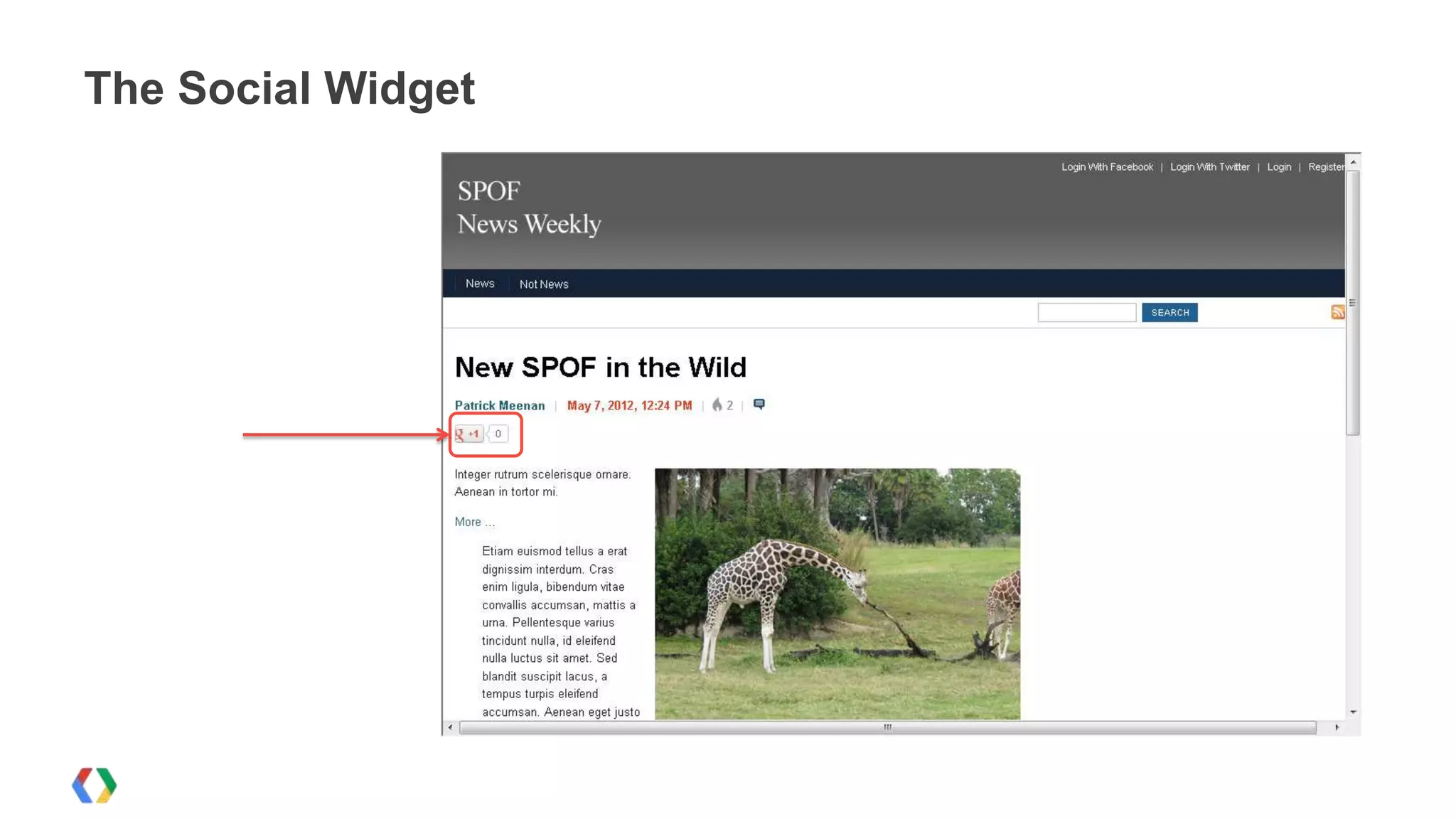

- 4.

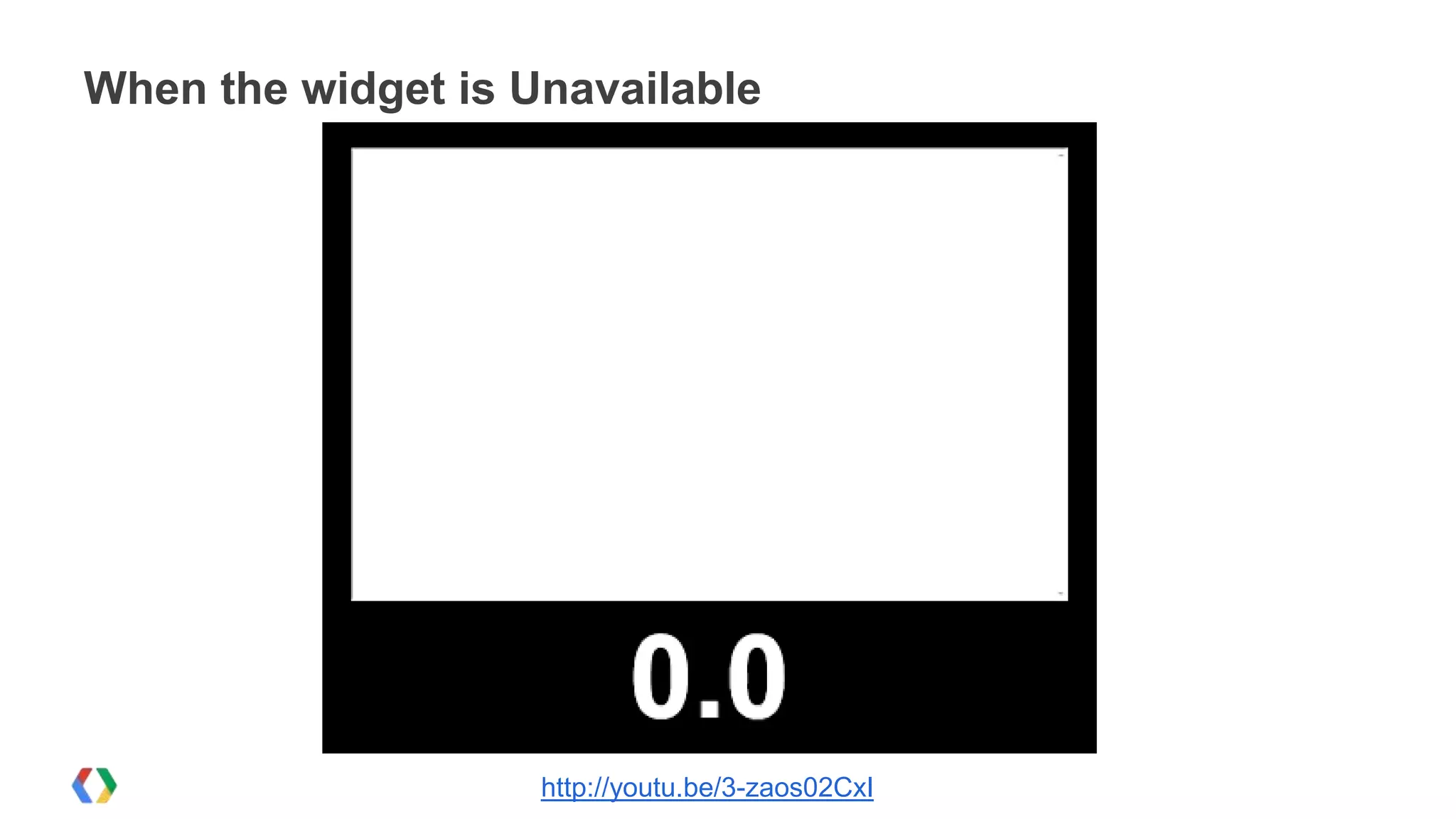

- 5. When the widgetis Unavailable http://youtu.be/3-zaos02CxI

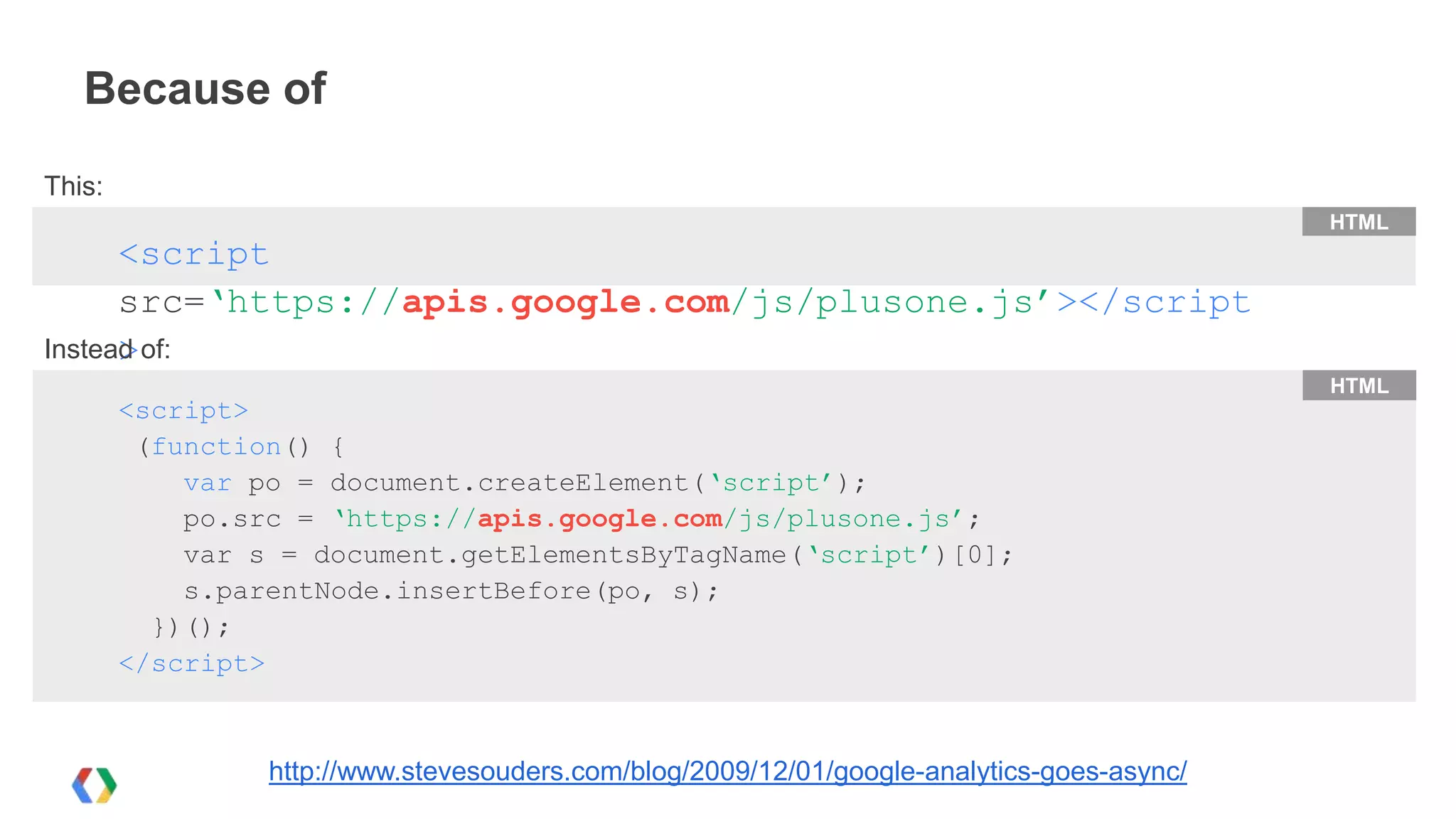

- 6. Because of This: HTML <script src=‘https://apis.google.com/js/plusone.js’></script > Instead of: HTML <script> (function() { var po = document.createElement(‘script’); po.src = ‘https://apis.google.com/js/plusone.js’; var s = document.getElementsByTagName(‘script’)[0]; s.parentNode.insertBefore(po, s); })(); </script> http://www.stevesouders.com/blog/2009/12/01/google-analytics-goes-async/

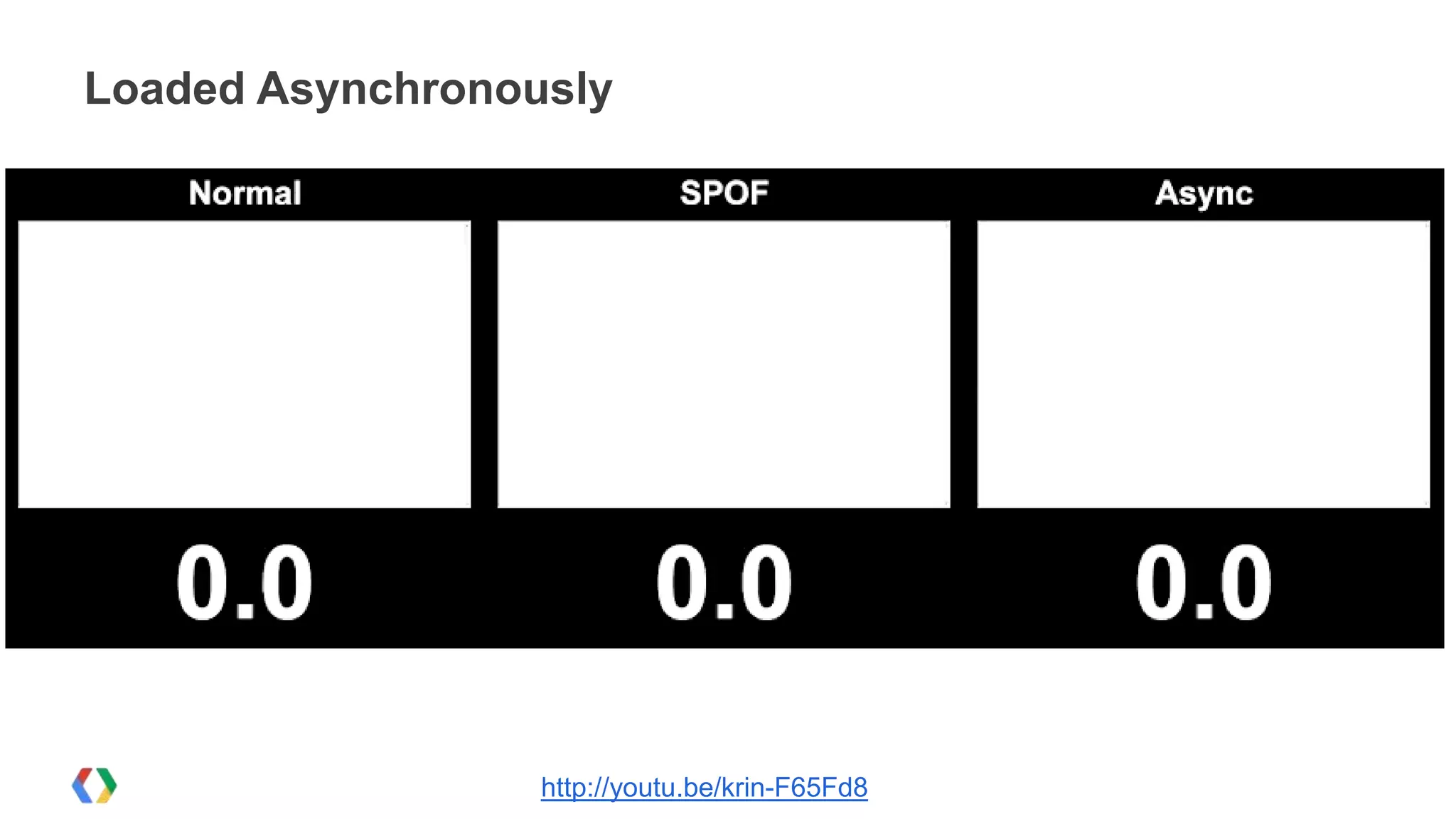

- 7. Loaded Asynchronously http://youtu.be/krin-F65Fd8
- 8. Loaded Asynchronously http://youtu.be/krin-F65Fd8

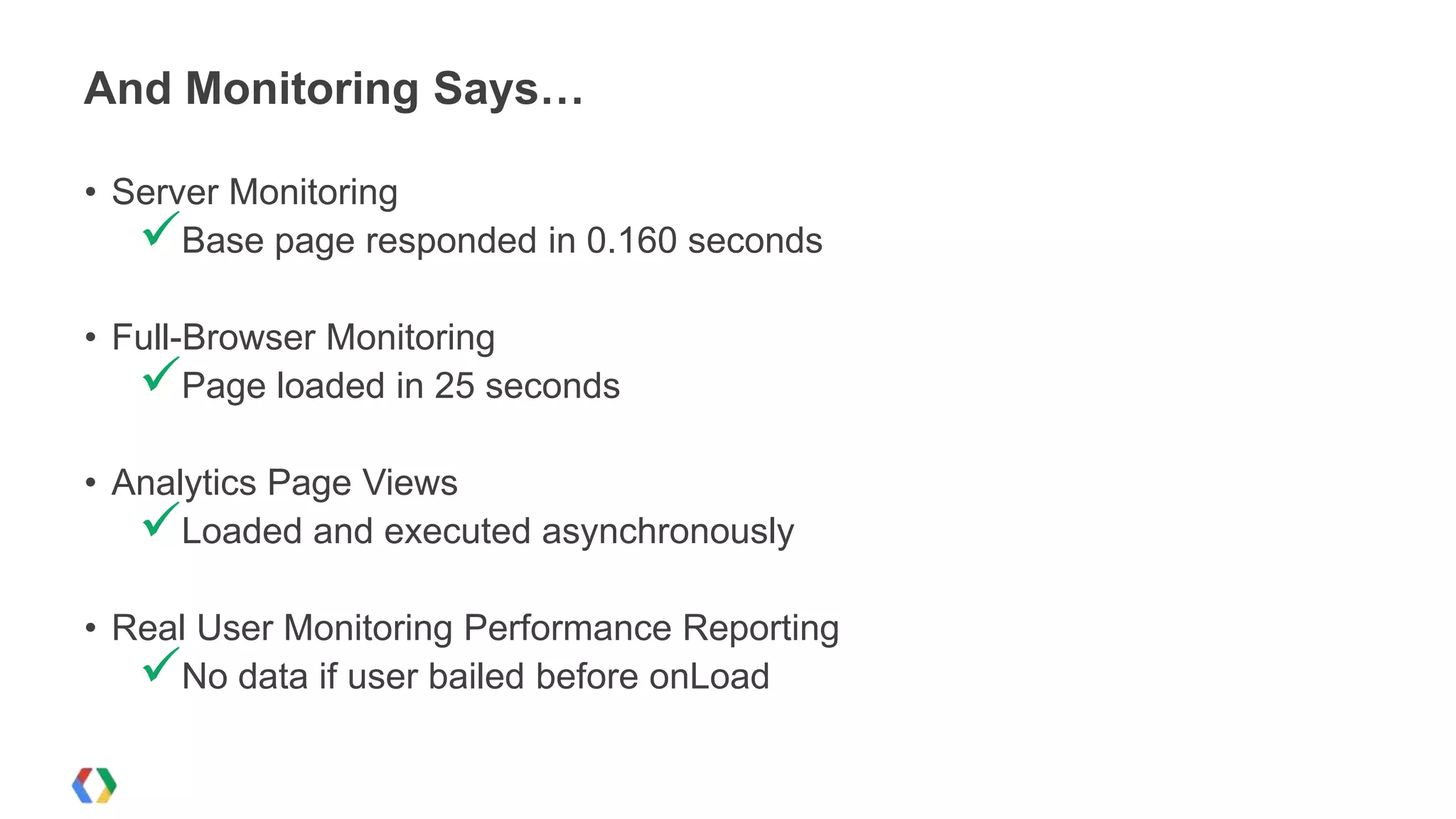

- 9. And Monitoring Says… •Server Monitoring Base page responded in 0.160 seconds • Full-Browser Monitoring Page loaded in 25 seconds • Analytics Page Views Loaded and executed asynchronously • Real User Monitoring Performance Reporting No data if user bailed before onLoad

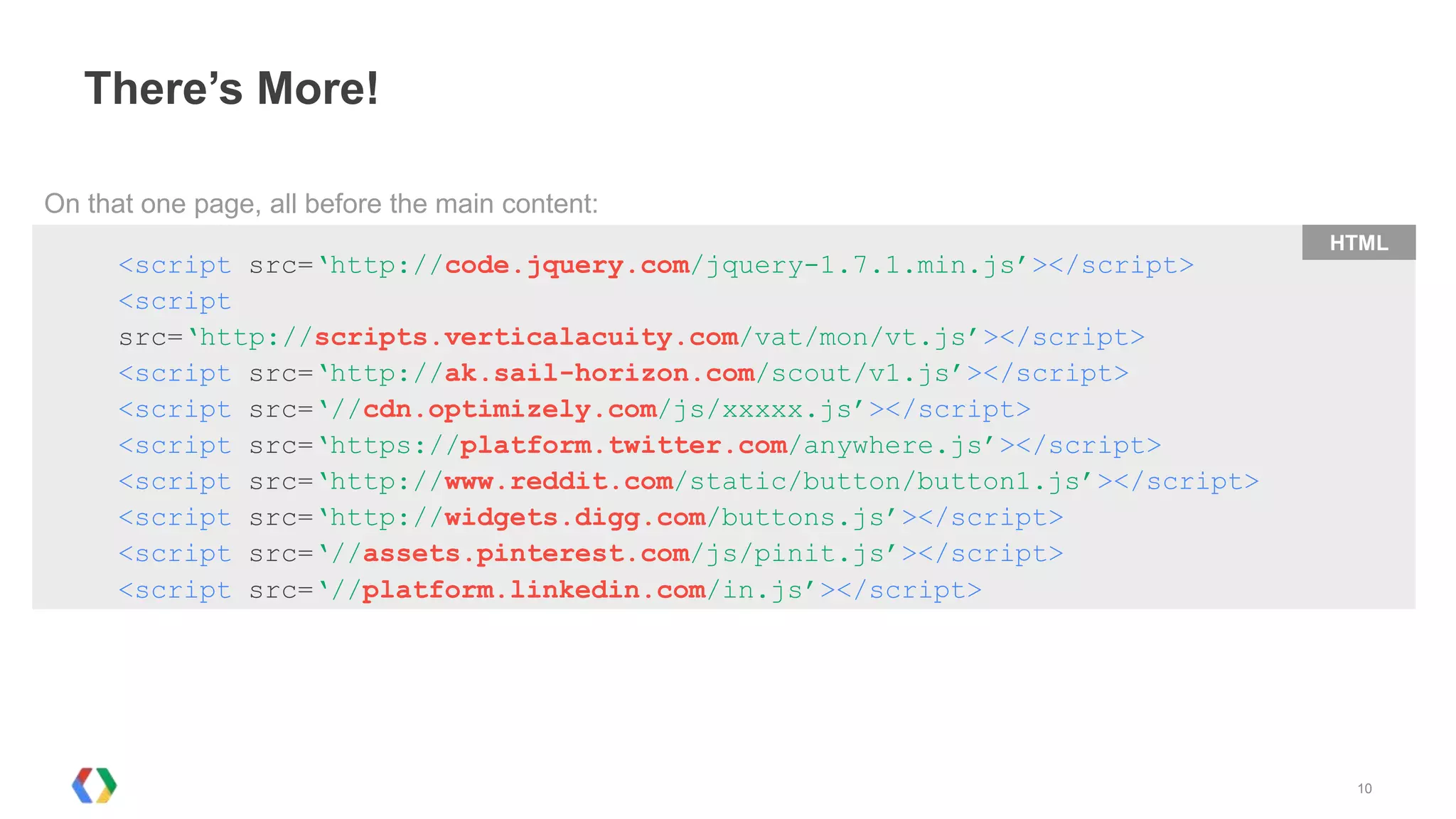

- 10. There’s More! On thatone page, all before the main content: HTML <script src=‘http://code.jquery.com/jquery-1.7.1.min.js’></script> <script src=‘http://scripts.verticalacuity.com/vat/mon/vt.js’></script> <script src=‘http://ak.sail-horizon.com/scout/v1.js’></script> <script src=‘//cdn.optimizely.com/js/xxxxx.js’></script> <script src=‘https://platform.twitter.com/anywhere.js’></script> <script src=‘http://www.reddit.com/static/button/button1.js’></script> <script src=‘http://widgets.digg.com/buttons.js’></script> <script src=‘//assets.pinterest.com/js/pinit.js’></script> <script src=‘//platform.linkedin.com/in.js’></script> 10

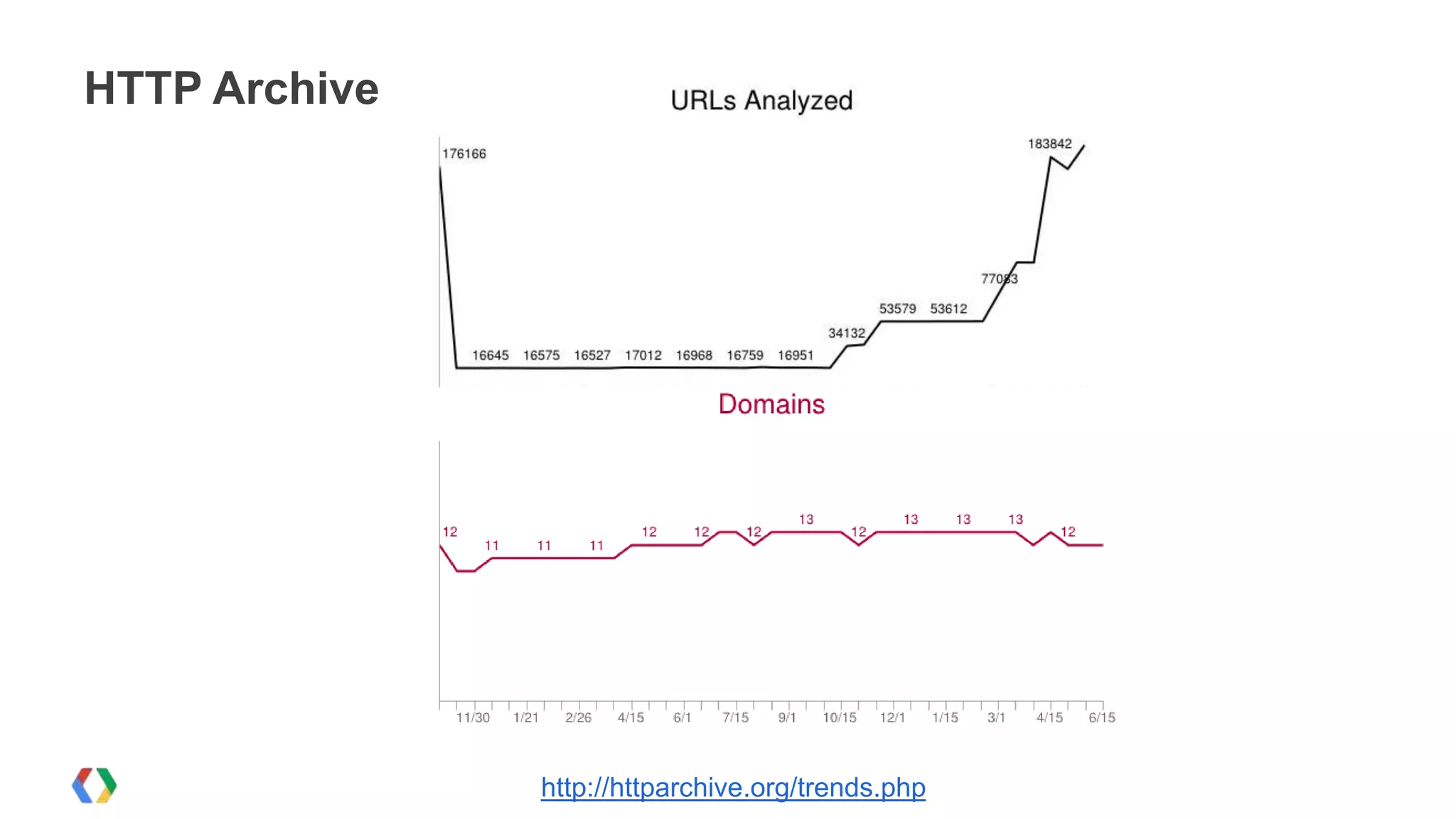

- 11. HTTP Archive http://httparchive.org/trends.php

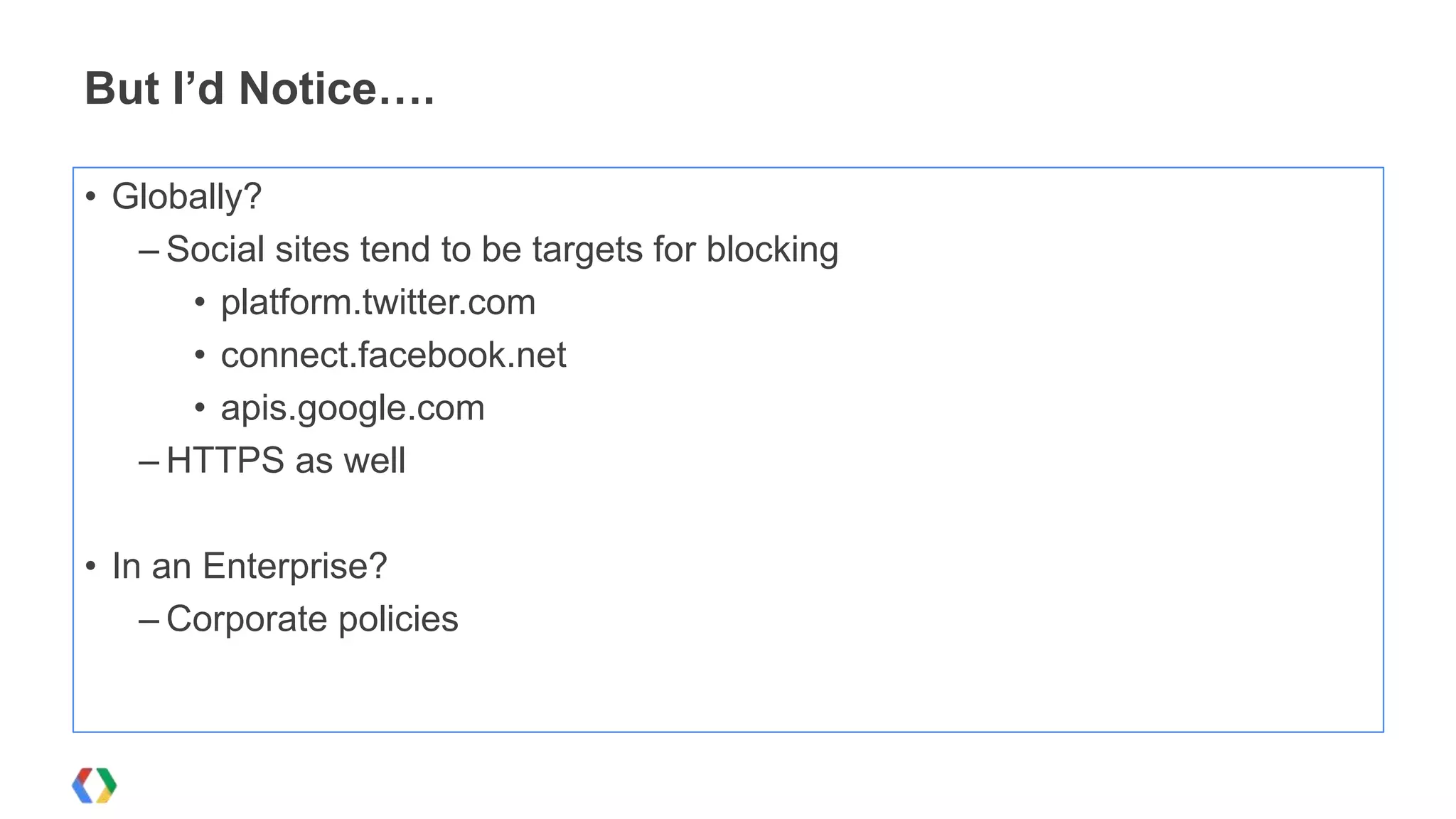

- 12. But I’d Notice…. •Globally? – Social sites tend to be targets for blocking • platform.twitter.com • connect.facebook.net • apis.google.com – HTTPS as well • In an Enterprise? – Corporate policies

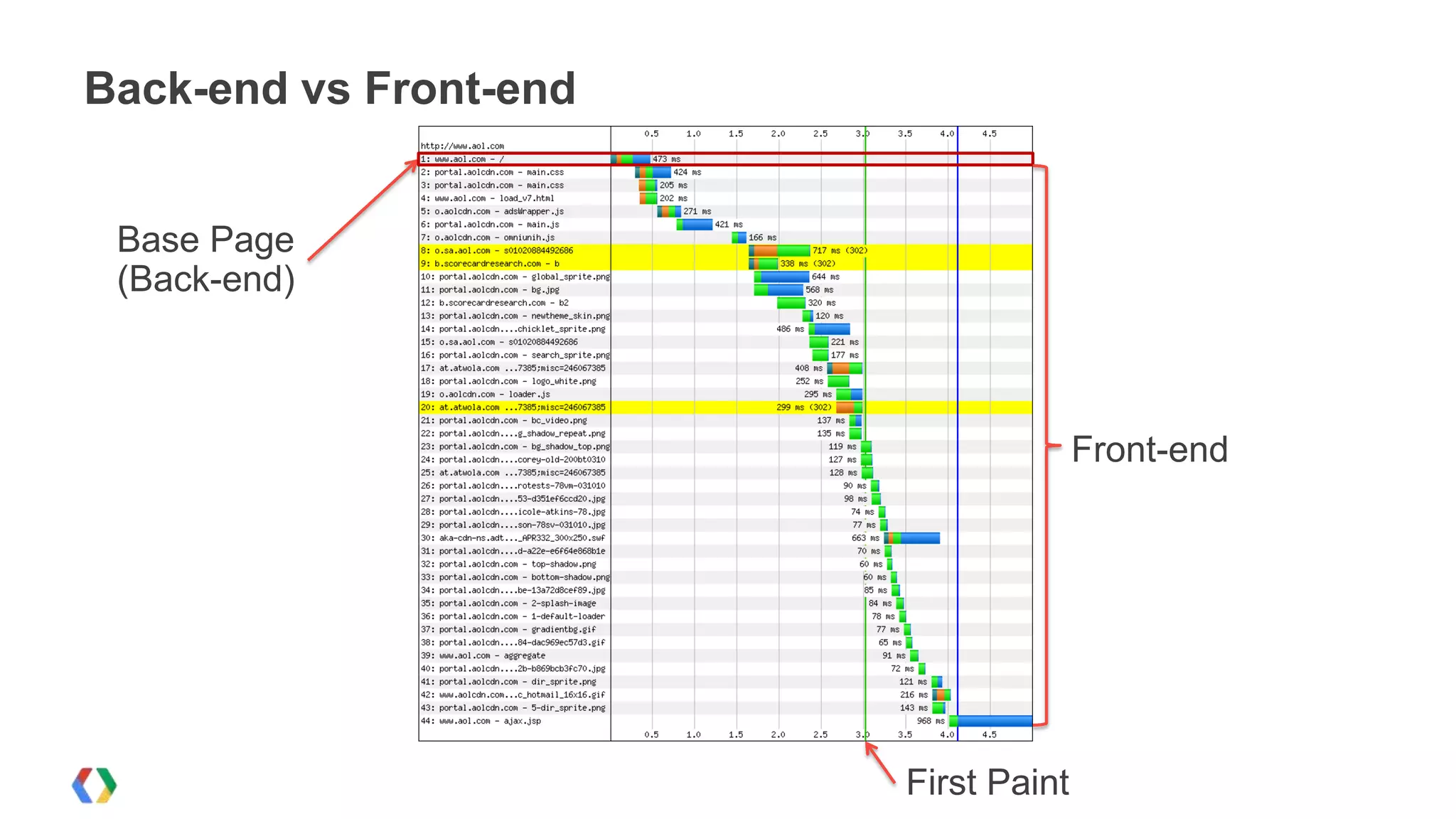

- 13. Back-end vs Front-end Base Page (Back-end) Front-end First Paint

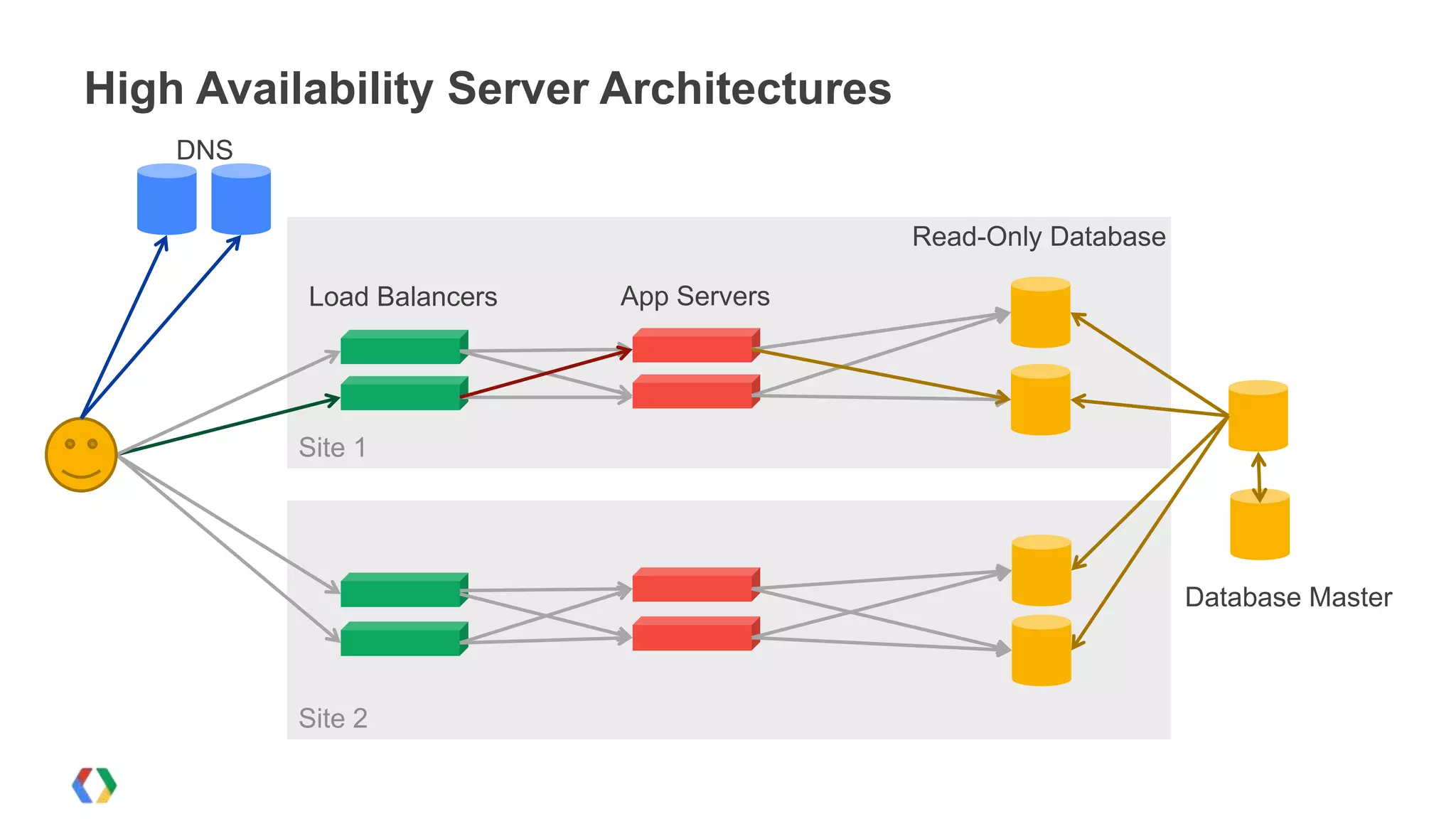

- 14. High Availability ServerArchitectures DNS Read-Only Database Load Balancers App Servers Site 1 Database Master Site 2

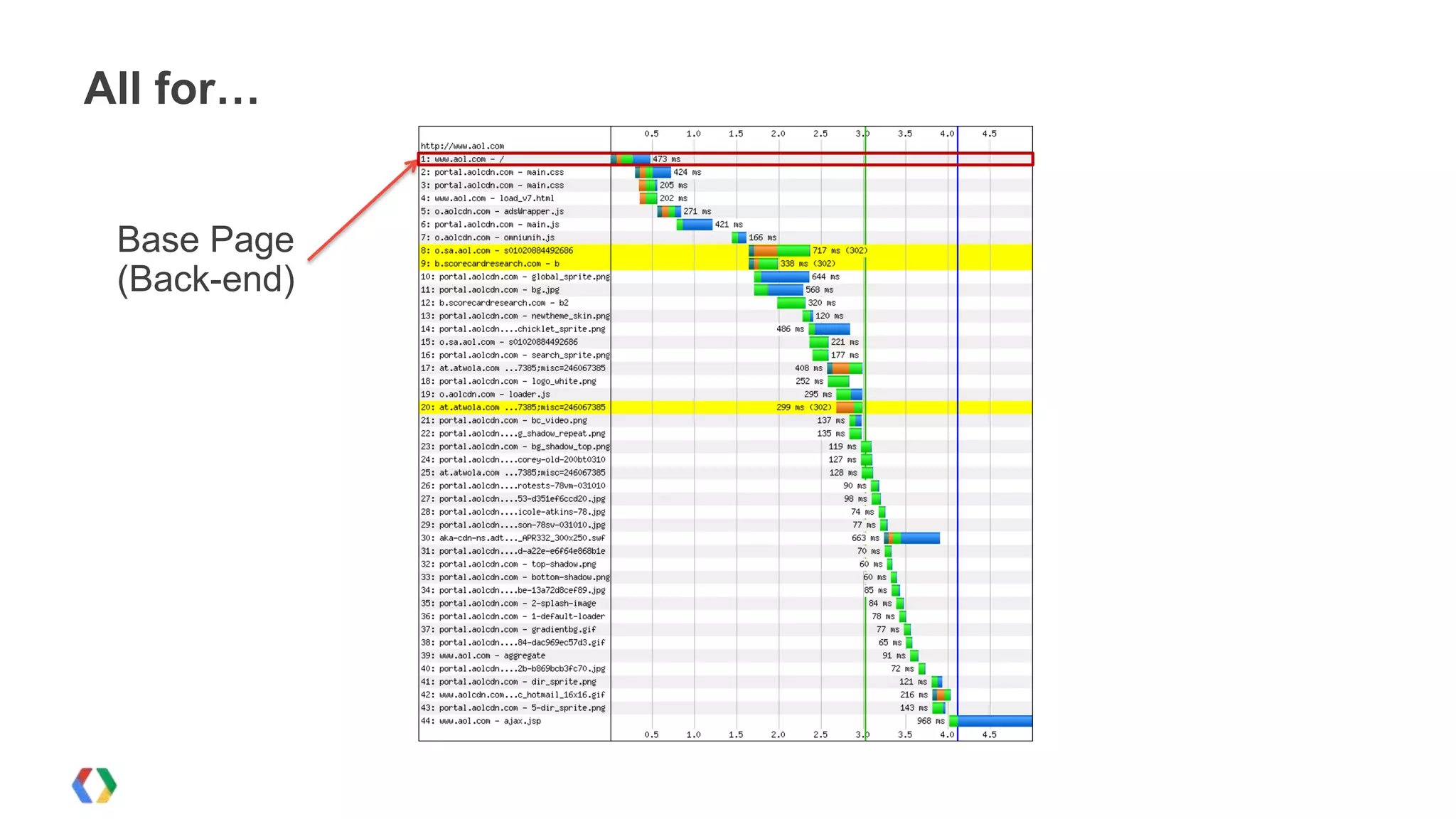

- 15. All for… BasePage (Back-end)

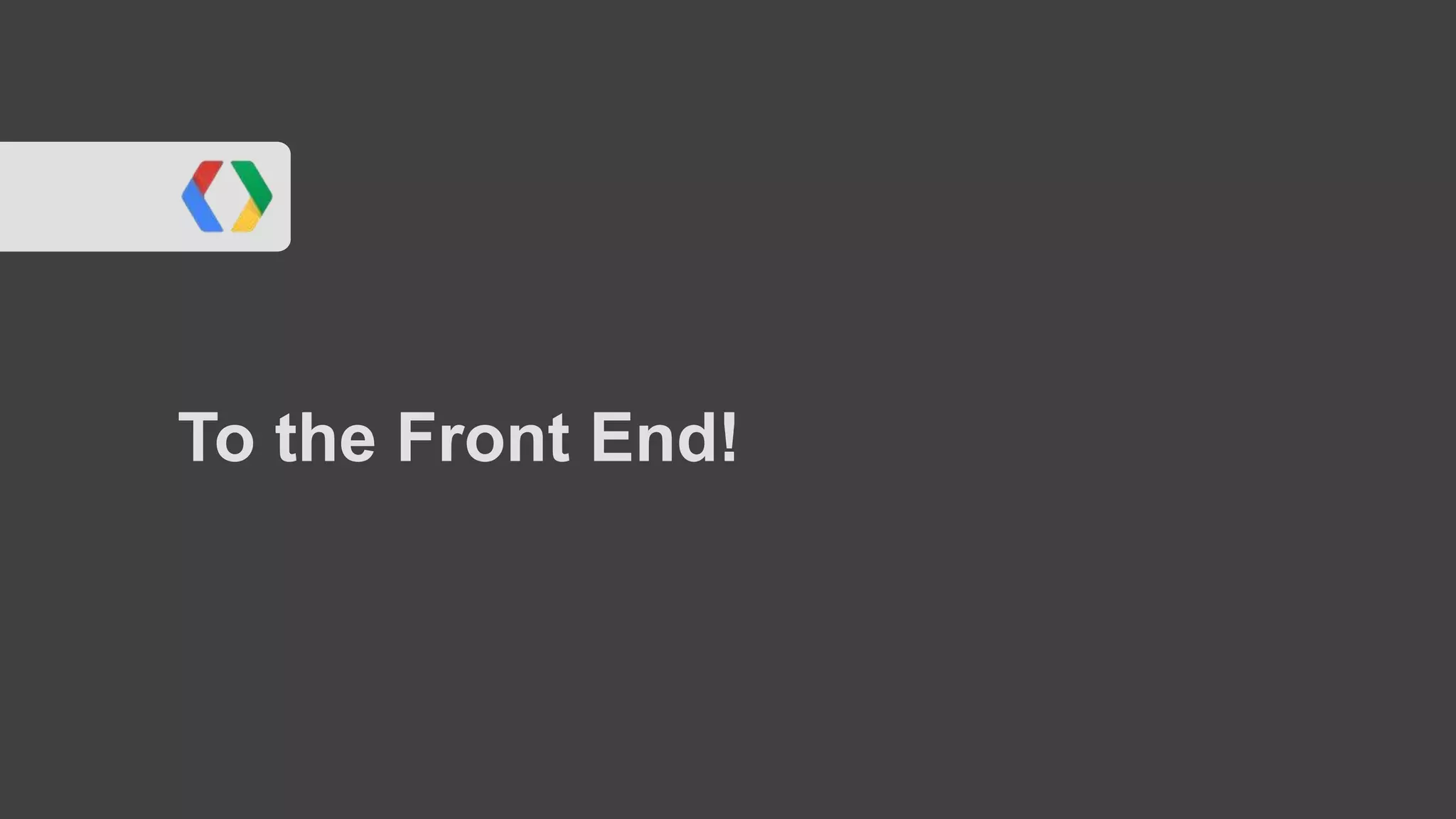

- 16. To the FrontEnd!

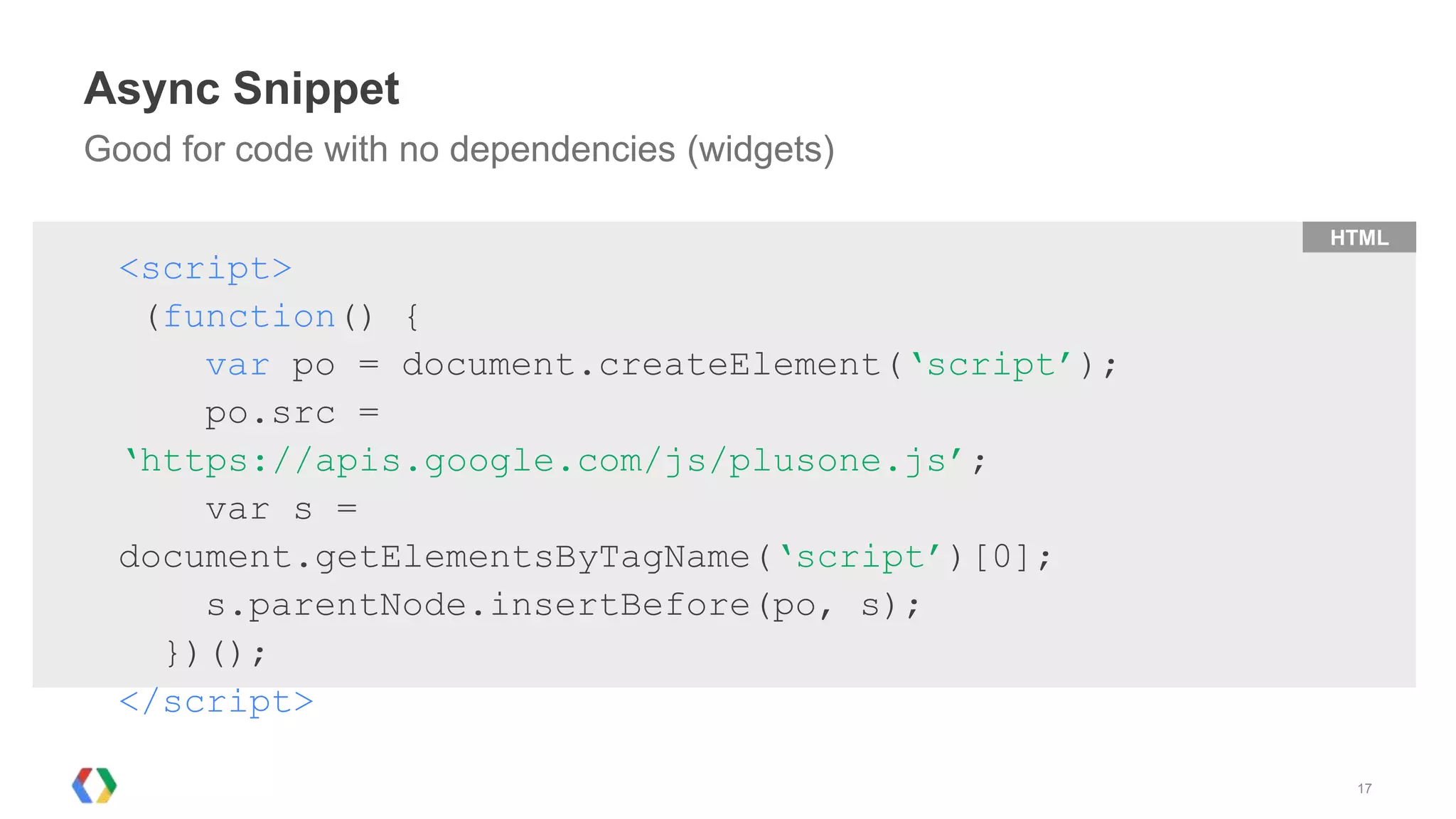

- 17. Async Snippet Good forcode with no dependencies (widgets) HTML <script> (function() { var po = document.createElement(‘script’); po.src = ‘https://apis.google.com/js/plusone.js’; var s = document.getElementsByTagName(‘script’)[0]; s.parentNode.insertBefore(po, s); })(); </script> 17

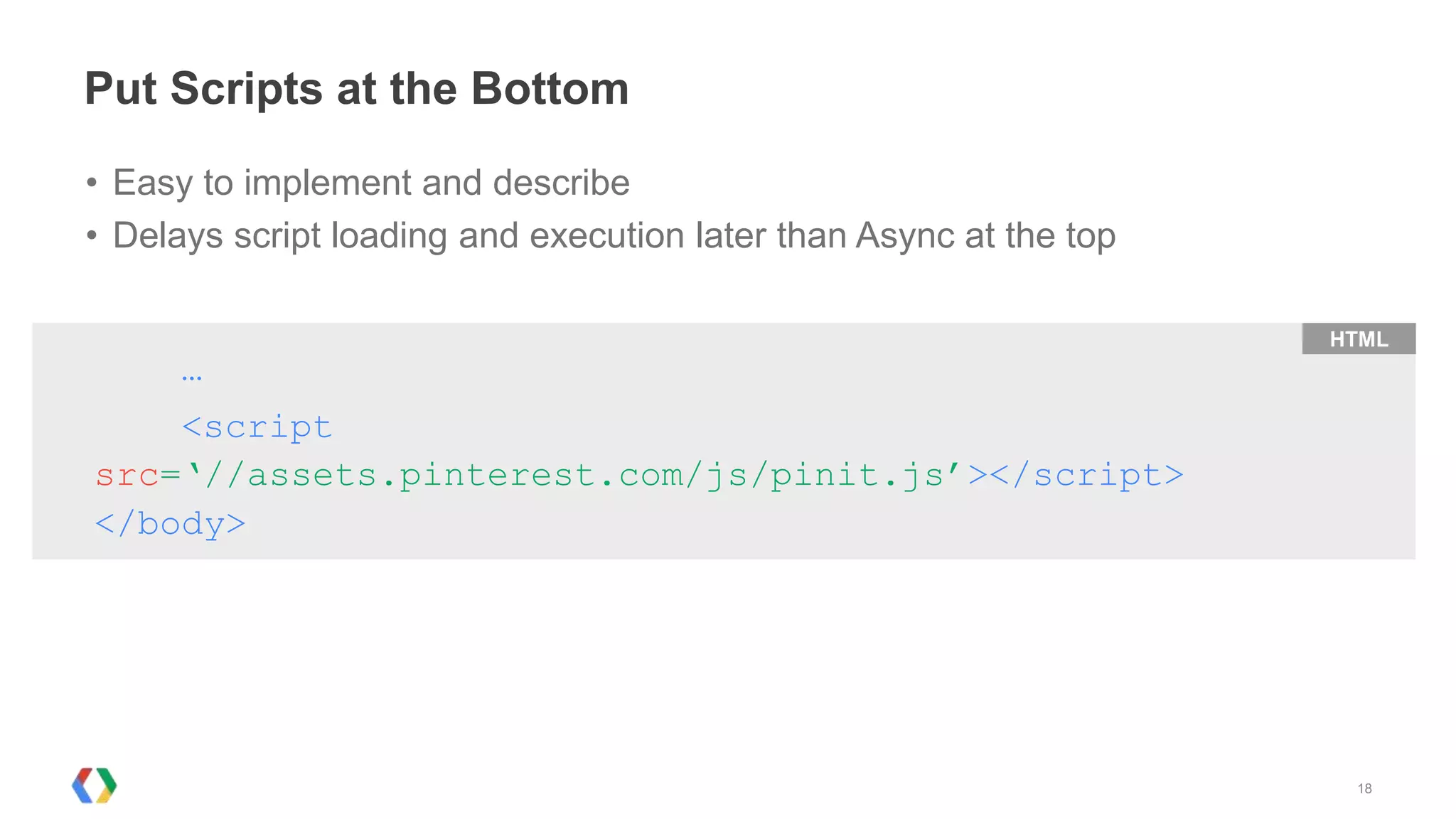

- 18. Put Scripts atthe Bottom • Easy to implement and describe • Delays script loading and execution later than Async at the top HTML … <script src=‘//assets.pinterest.com/js/pinit.js’></script> </body> 18

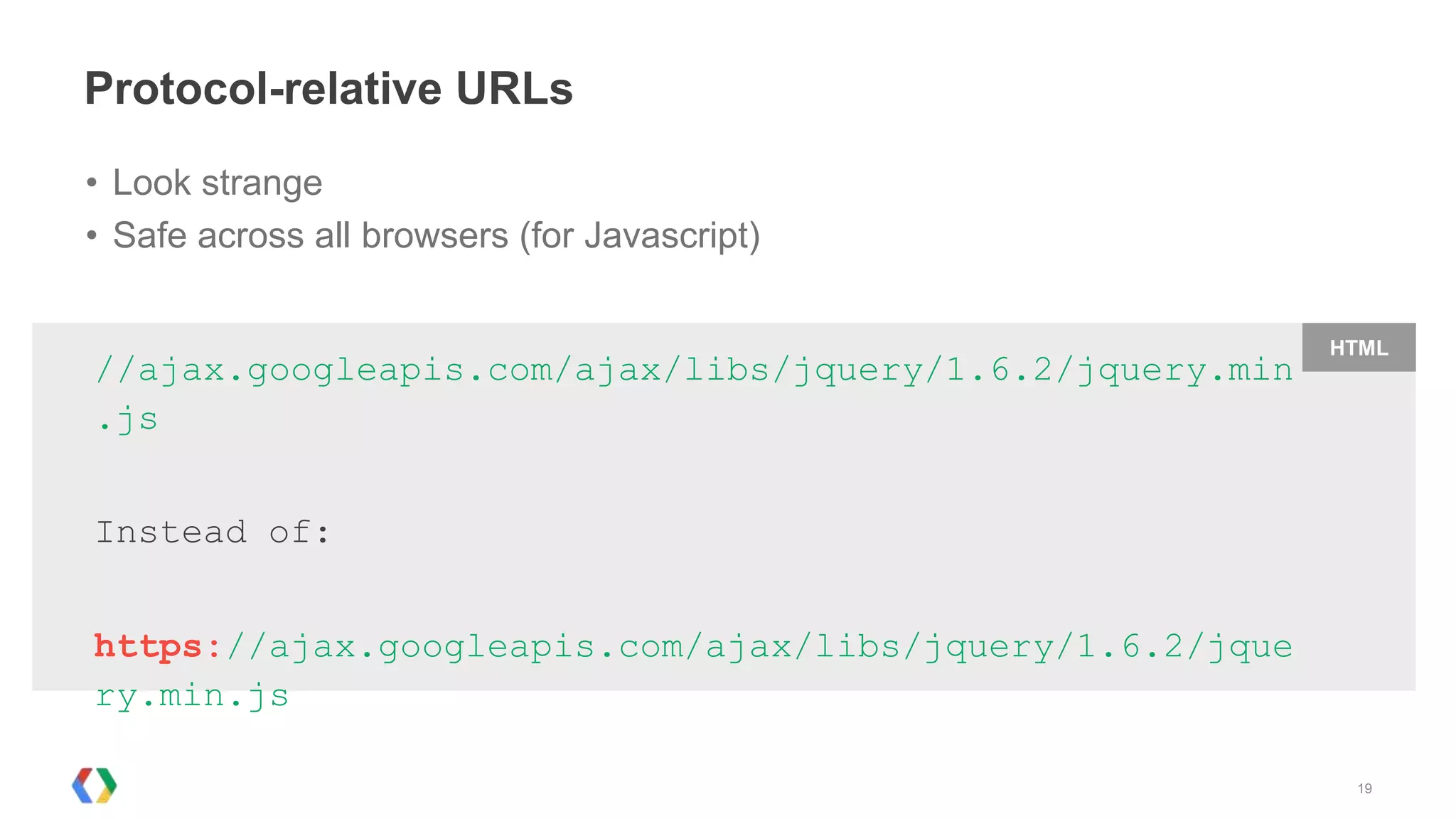

- 19. Protocol-relative URLs • Lookstrange • Safe across all browsers (for Javascript) HTML //ajax.googleapis.com/ajax/libs/jquery/1.6.2/jquery.min .js Instead of: https://ajax.googleapis.com/ajax/libs/jquery/1.6.2/jque ry.min.js 19

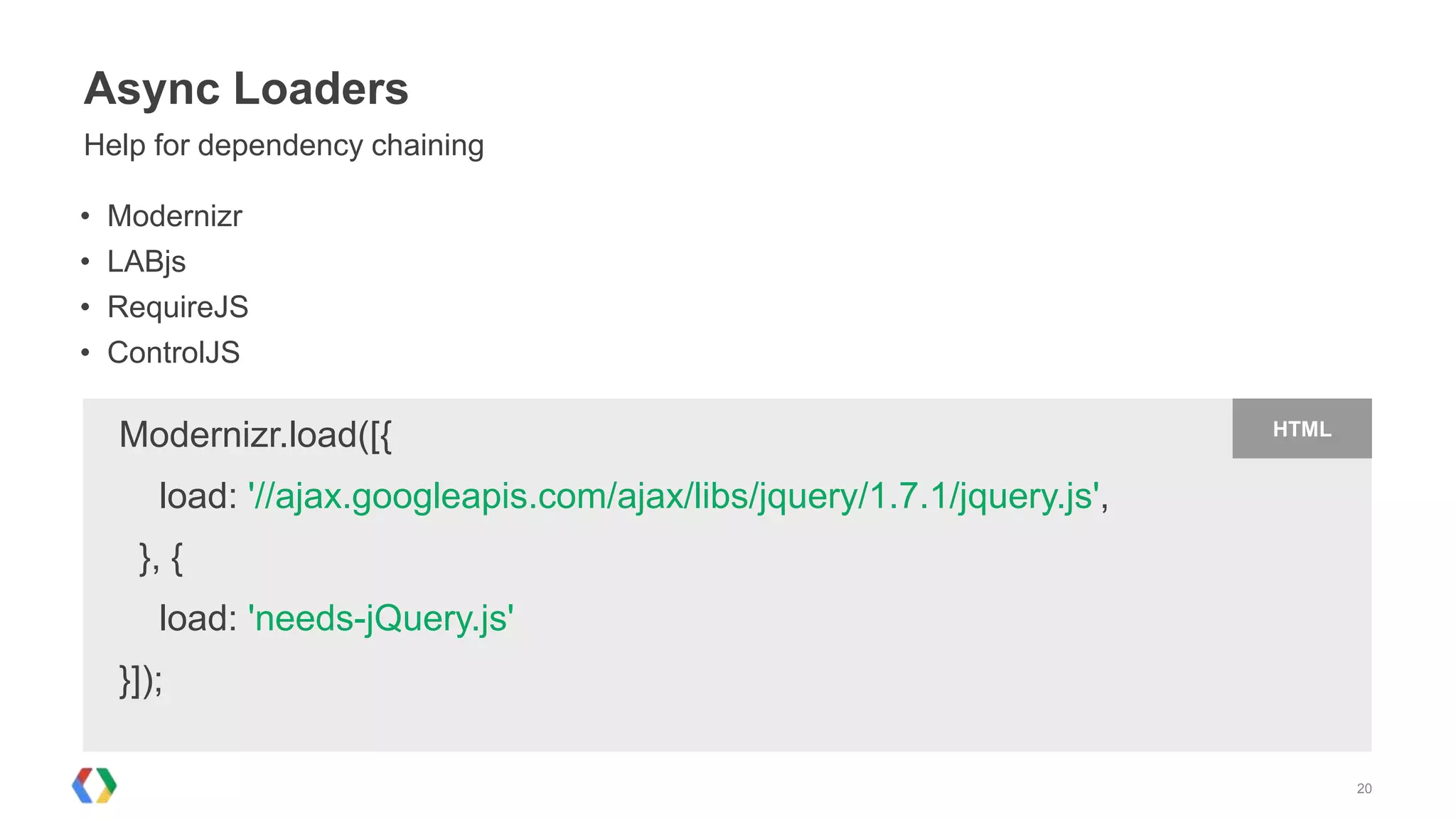

- 20. Async Loaders Help fordependency chaining • Modernizr • LABjs • RequireJS • ControlJS Modernizr.load([{ HTML load: '//ajax.googleapis.com/ajax/libs/jquery/1.7.1/jquery.js', }, { load: 'needs-jQuery.js' }]); 20

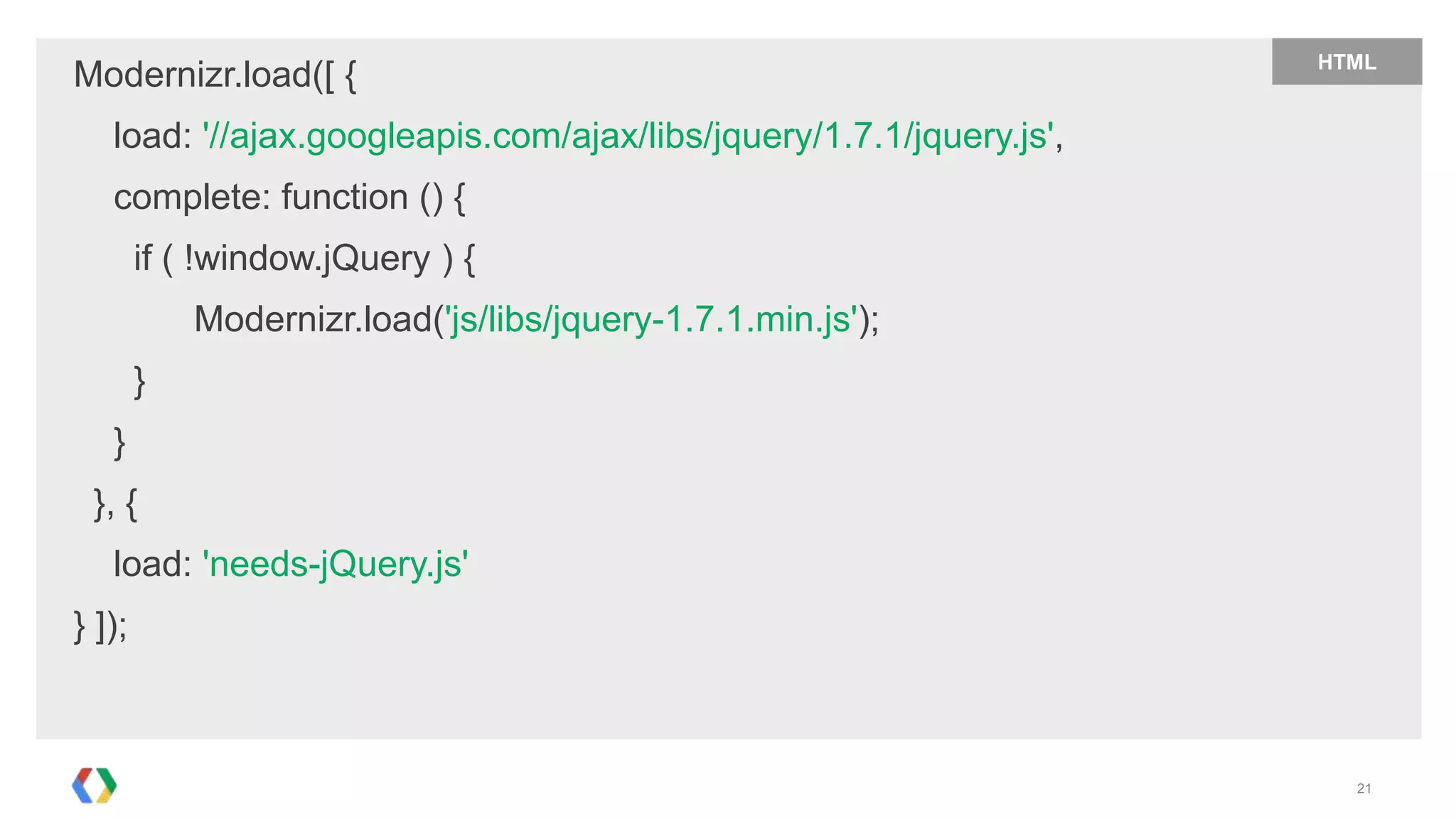

- 21. HTML Modernizr.load([ { load: '//ajax.googleapis.com/ajax/libs/jquery/1.7.1/jquery.js', complete: function () { if ( !window.jQuery ) { Modernizr.load('js/libs/jquery-1.7.1.min.js'); } } }, { load: 'needs-jQuery.js' } ]); 21

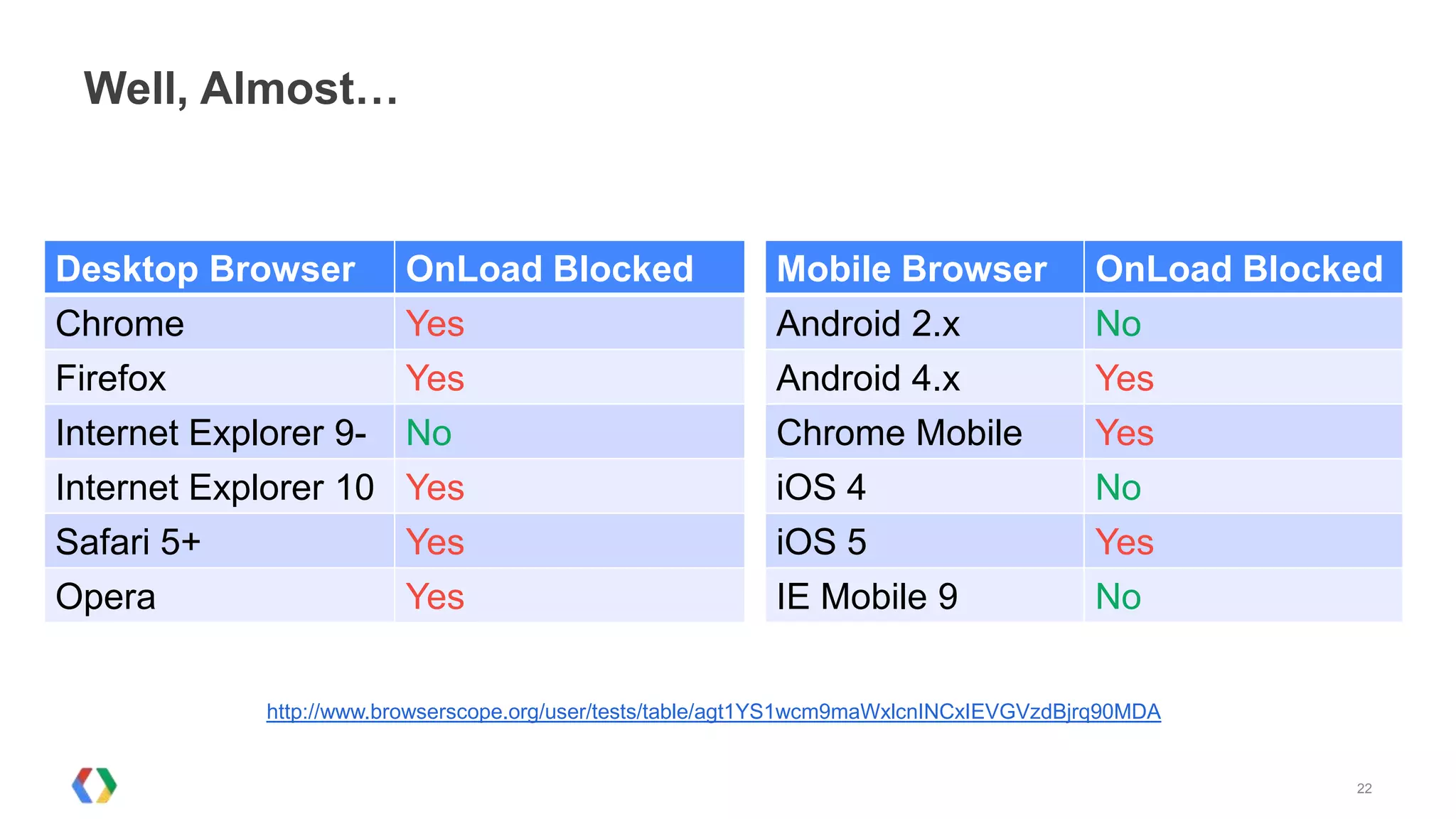

- 22. Well, Almost… Desktop Browser OnLoad Blocked Mobile Browser OnLoad Blocked Chrome Yes Android 2.x No Firefox Yes Android 4.x Yes Internet Explorer 9- No Chrome Mobile Yes Internet Explorer 10 Yes iOS 4 No Safari 5+ Yes iOS 5 Yes Opera Yes IE Mobile 9 No http://www.browserscope.org/user/tests/table/agt1YS1wcm9maWxlcnINCxIEVGVzdBjrq90MDA 22
- 23. How are wedoing?

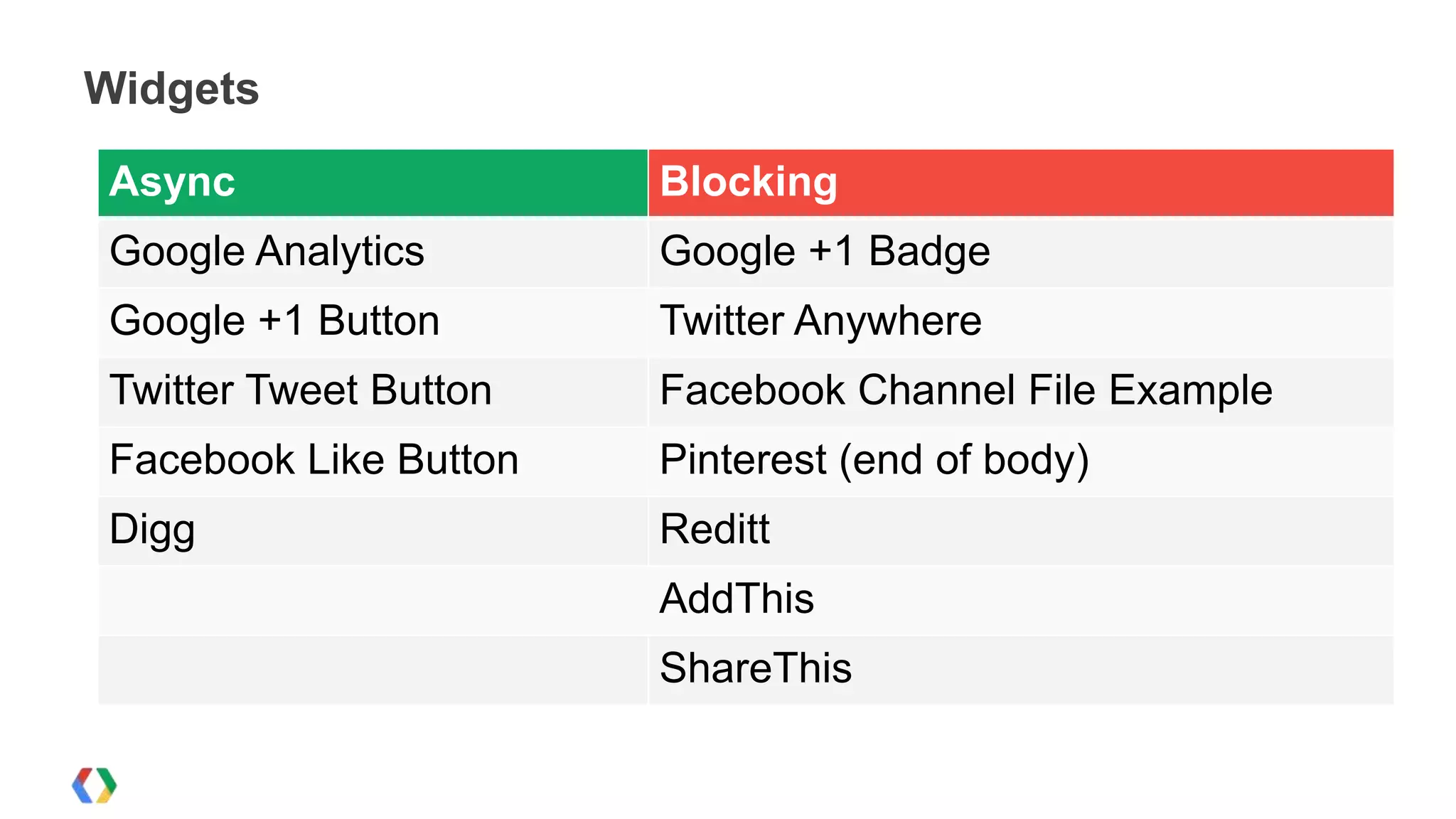

- 24. Widgets Async Blocking Google Analytics Google +1 Badge Google +1 Button Twitter Anywhere Twitter Tweet Button Facebook Channel File Example Facebook Like Button Pinterest (end of body) Digg Reditt AddThis ShareThis

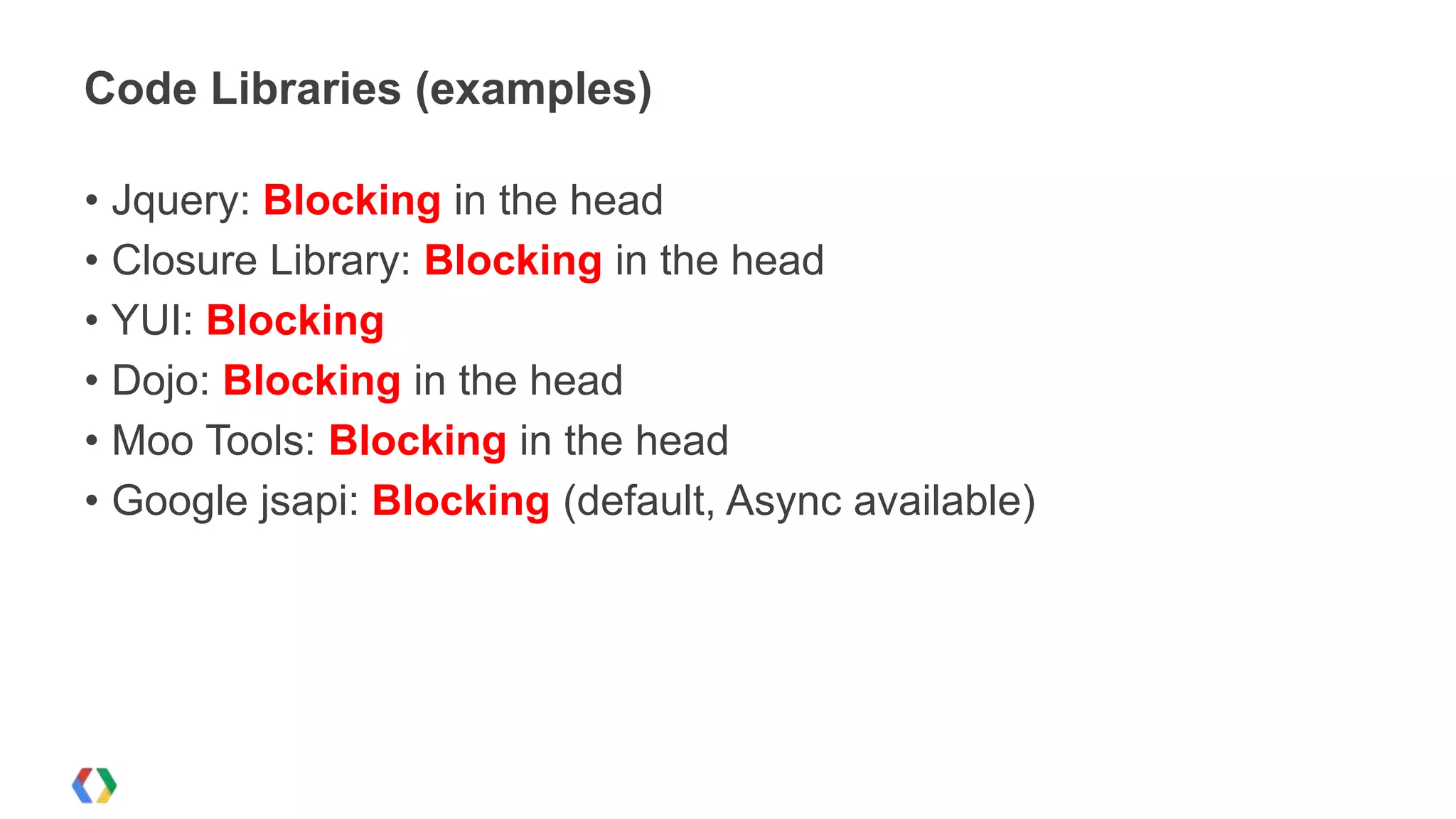

- 25. Code Libraries (examples) •Jquery: Blocking in the head • Closure Library: Blocking in the head • YUI: Blocking • Dojo: Blocking in the head • Moo Tools: Blocking in the head • Google jsapi: Blocking (default, Async available)

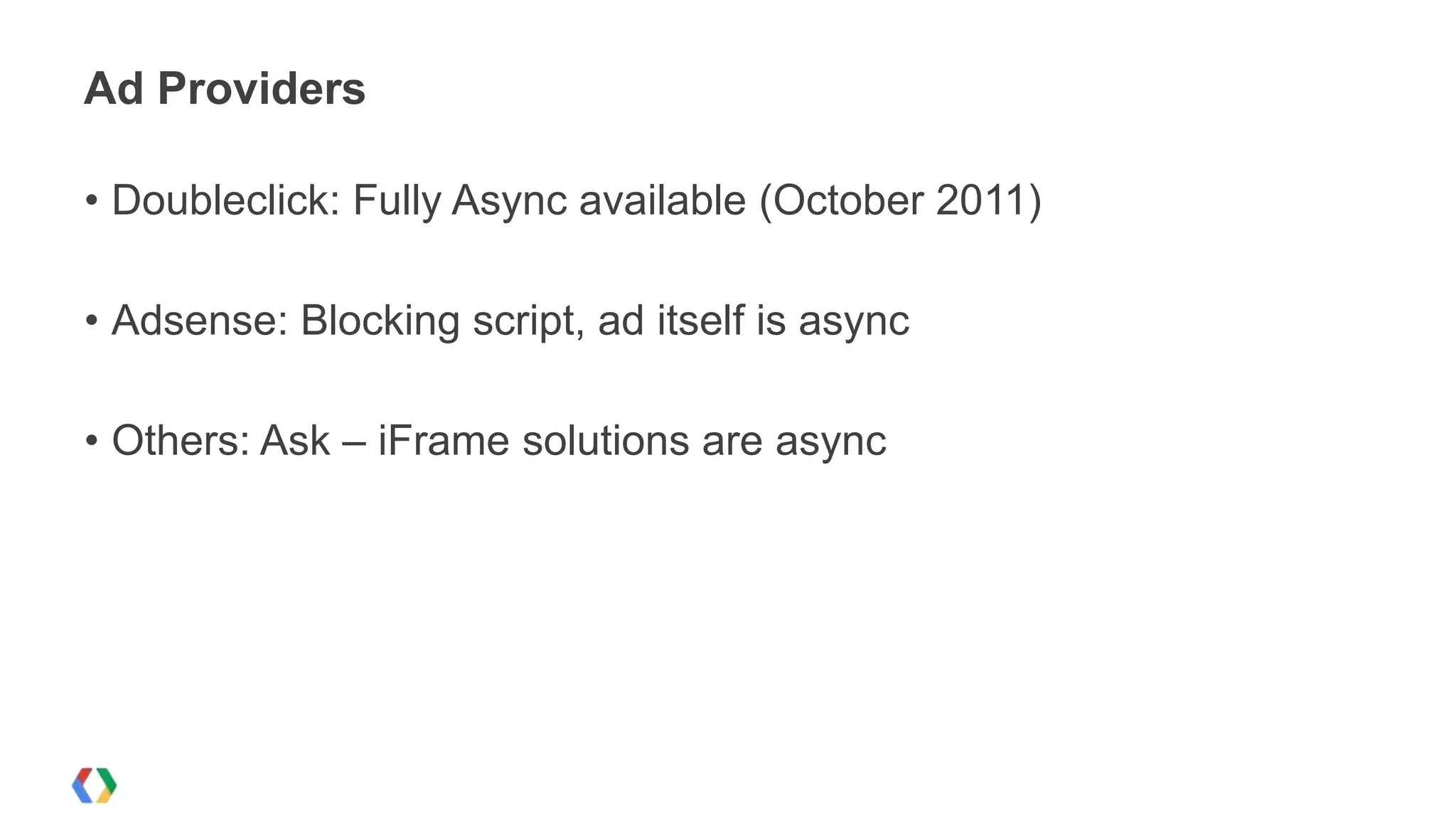

- 26. Ad Providers • Doubleclick:Fully Async available (October 2011) • Adsense: Blocking script, ad itself is async • Others: Ask – iFrame solutions are async
- 27.

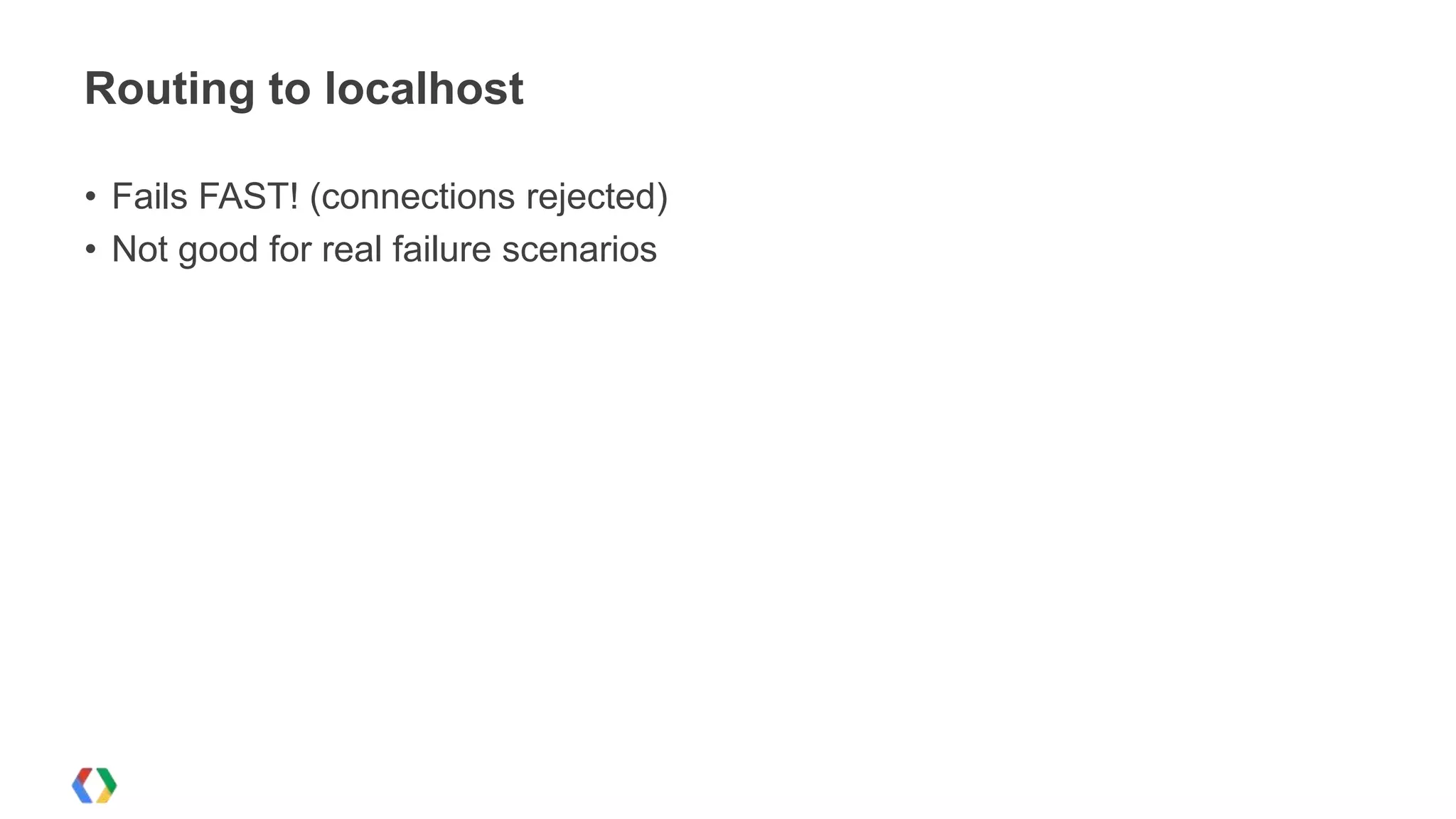

- 28. Routing to localhost •Fails FAST! (connections rejected) • Not good for real failure scenarios

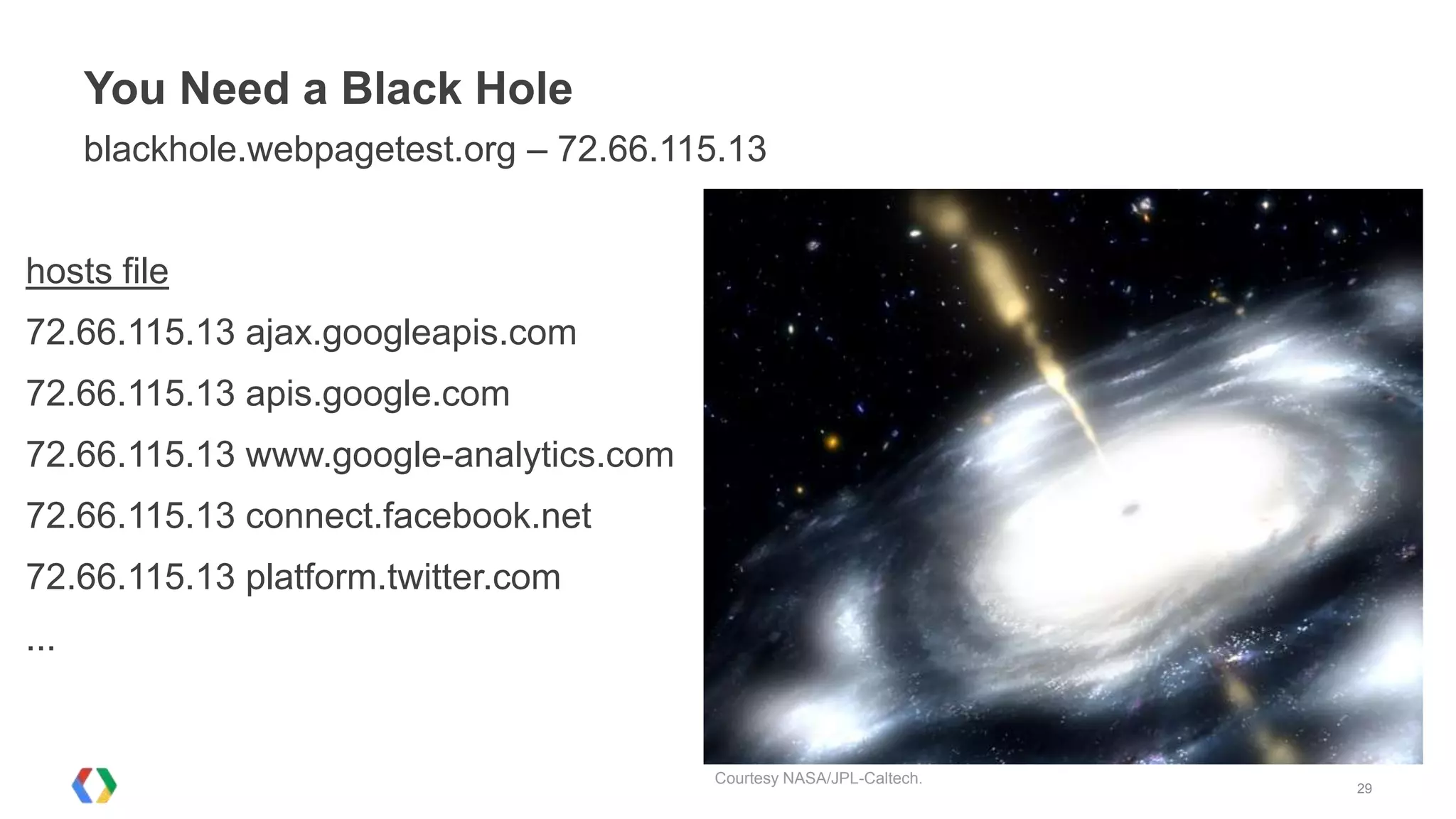

- 29. You Need aBlack Hole blackhole.webpagetest.org – 72.66.115.13 hosts file 72.66.115.13 ajax.googleapis.com 72.66.115.13 apis.google.com 72.66.115.13 www.google-analytics.com 72.66.115.13 connect.facebook.net 72.66.115.13 platform.twitter.com ... Courtesy NASA/JPL-Caltech. 29

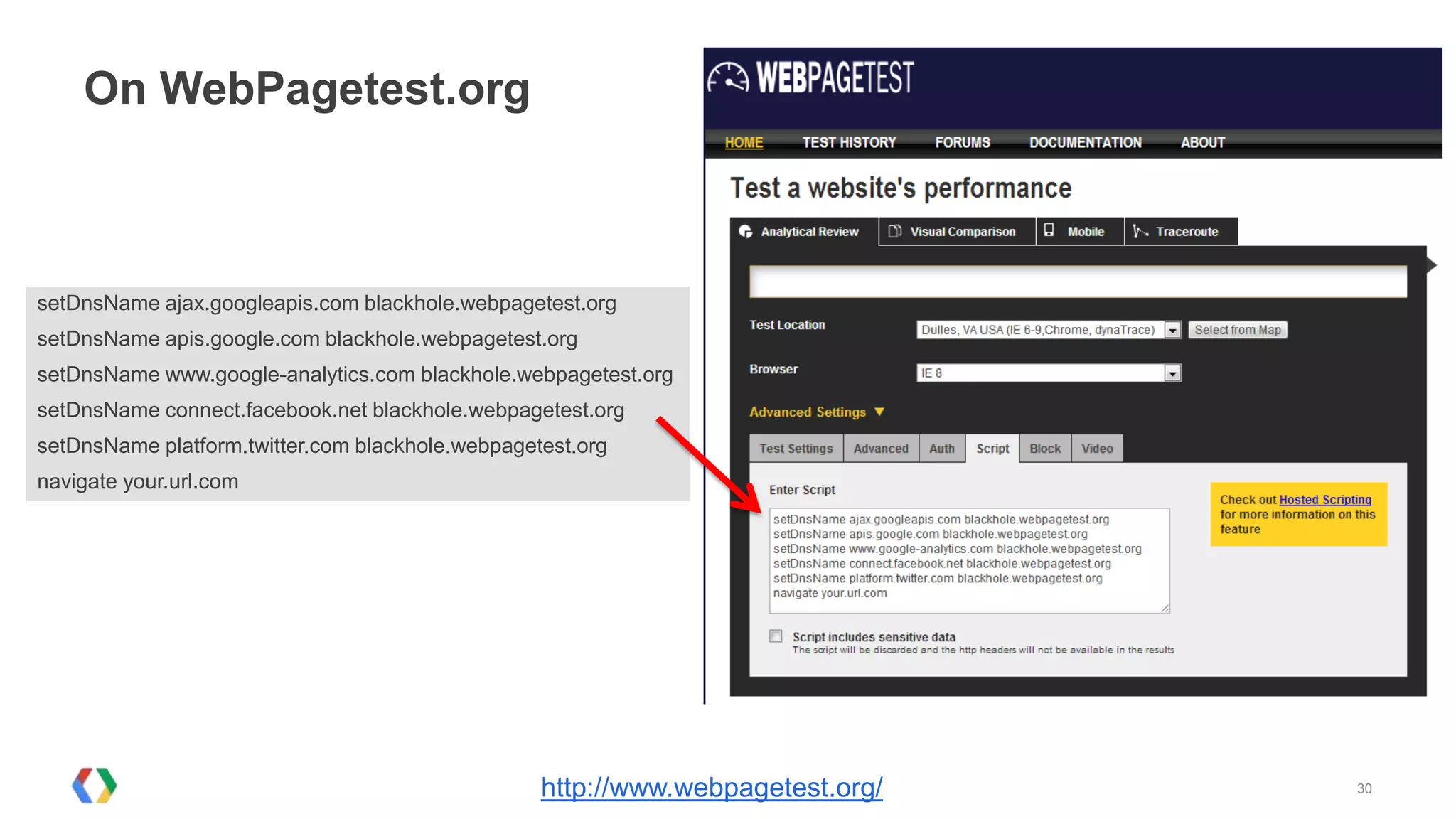

- 30. On WebPagetest.org setDnsName ajax.googleapis.comblackhole.webpagetest.org setDnsName apis.google.com blackhole.webpagetest.org setDnsName www.google-analytics.com blackhole.webpagetest.org setDnsName connect.facebook.net blackhole.webpagetest.org setDnsName platform.twitter.com blackhole.webpagetest.org navigate your.url.com http://www.webpagetest.org/ 30
- 31.

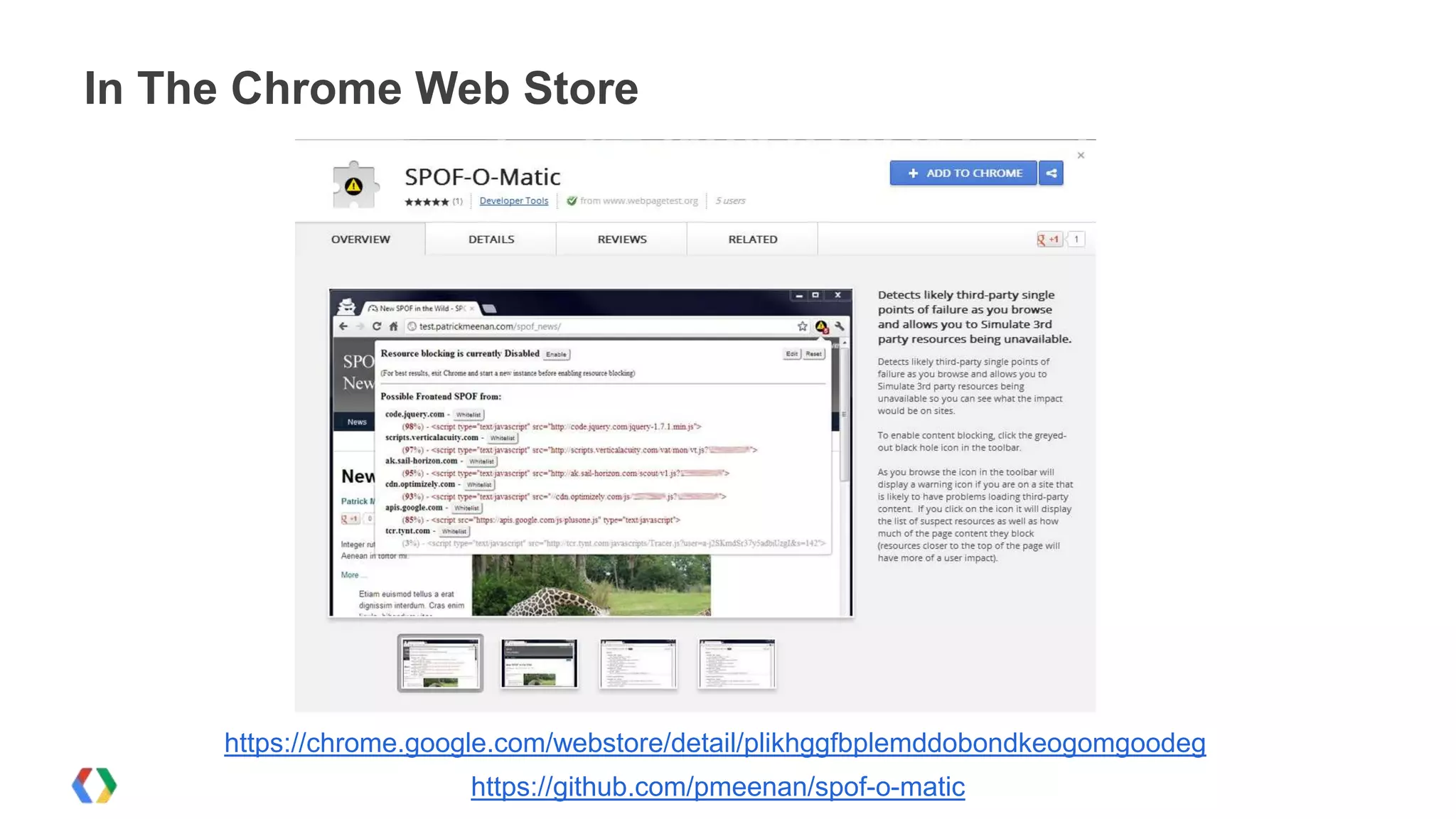

- 32. In The ChromeWeb Store https://chrome.google.com/webstore/detail/plikhggfbplemddobondkeogomgoodeg https://github.com/pmeenan/spof-o-matic

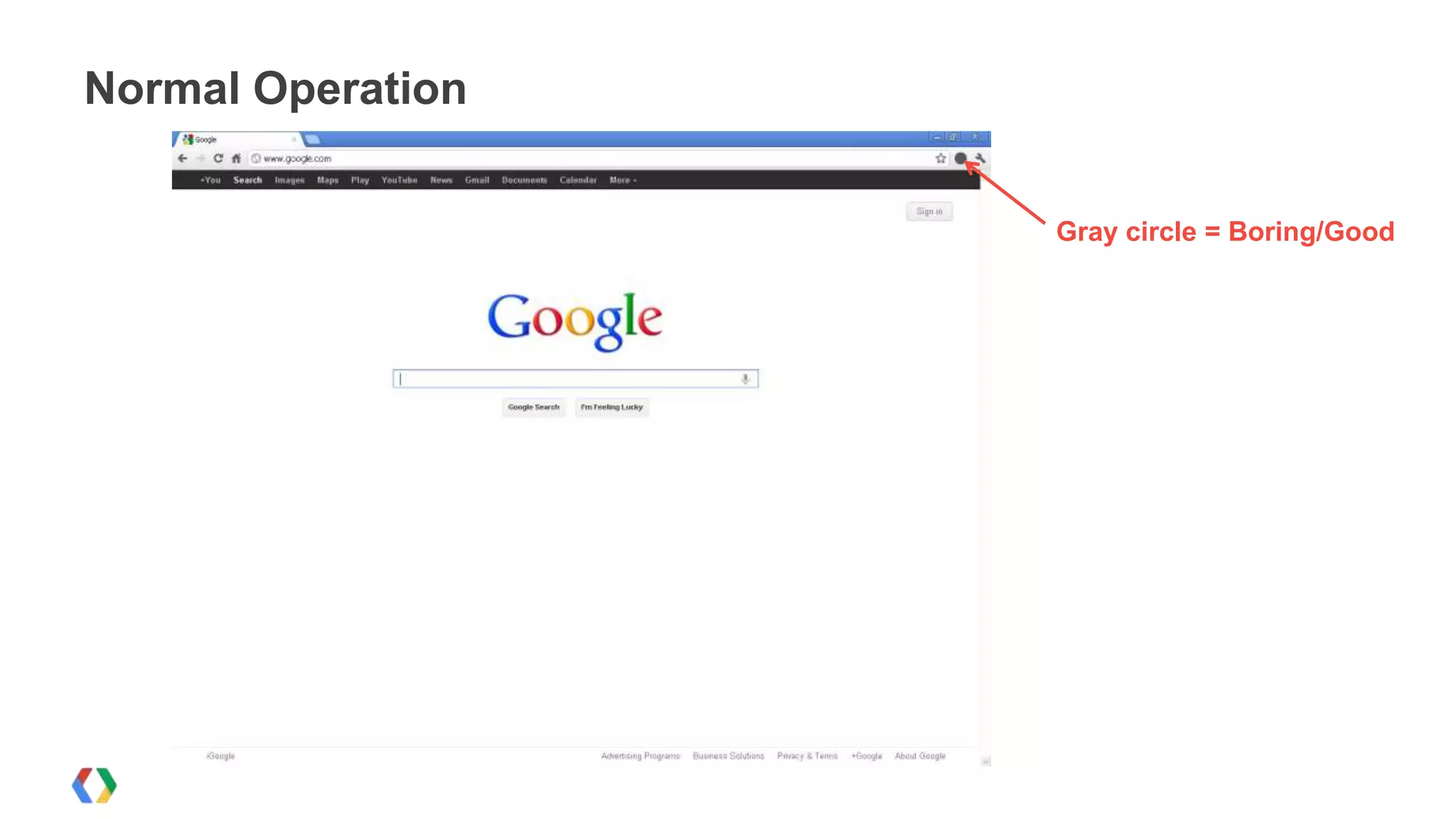

- 33. Normal Operation Gray circle = Boring/Good

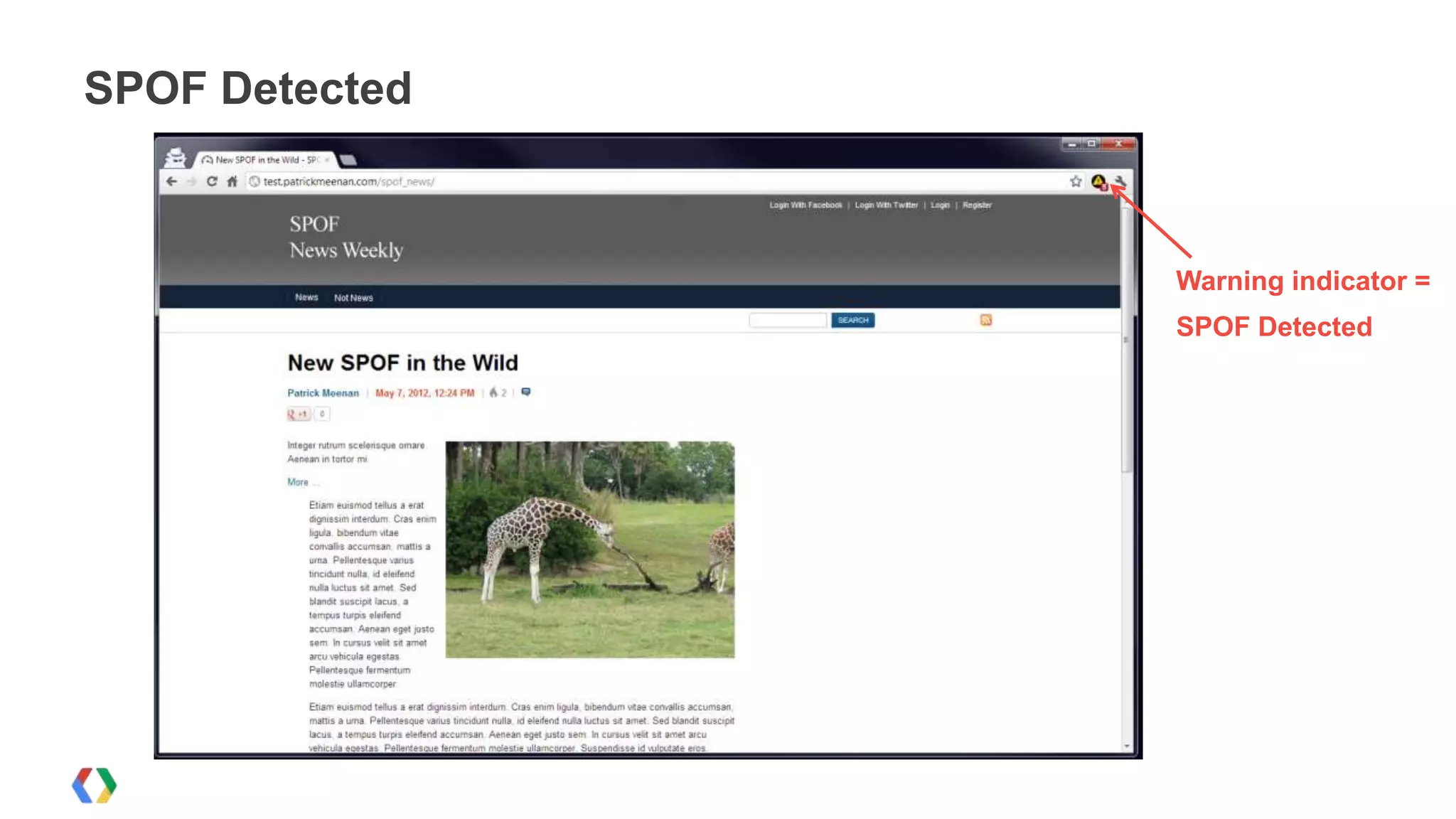

- 34. SPOF Detected Warning indicator = SPOF Detected
- 35.

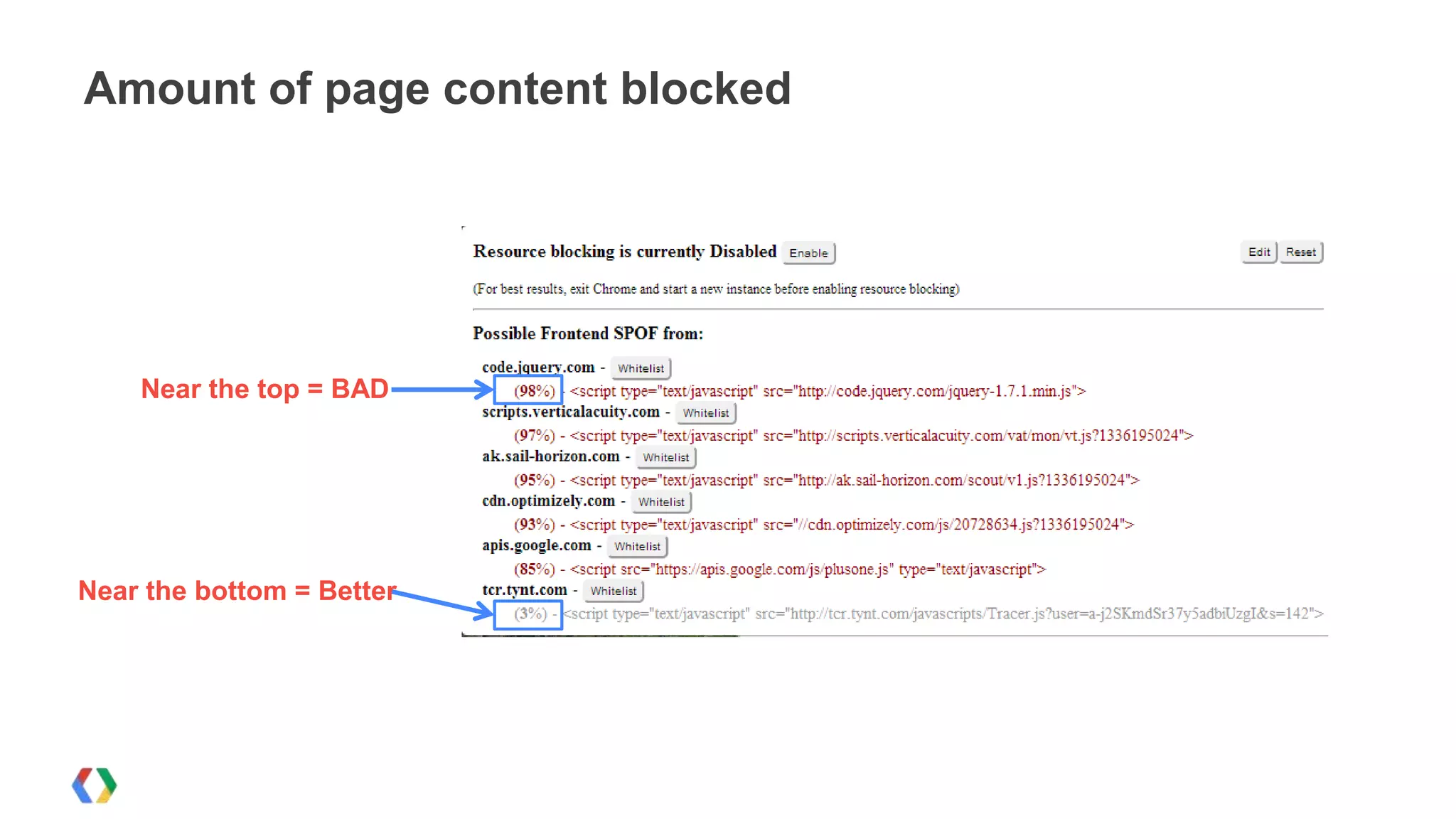

- 36. Amount of pagecontent blocked Near the top = BAD Near the bottom = Better
- 37.
- 38.
- 39.

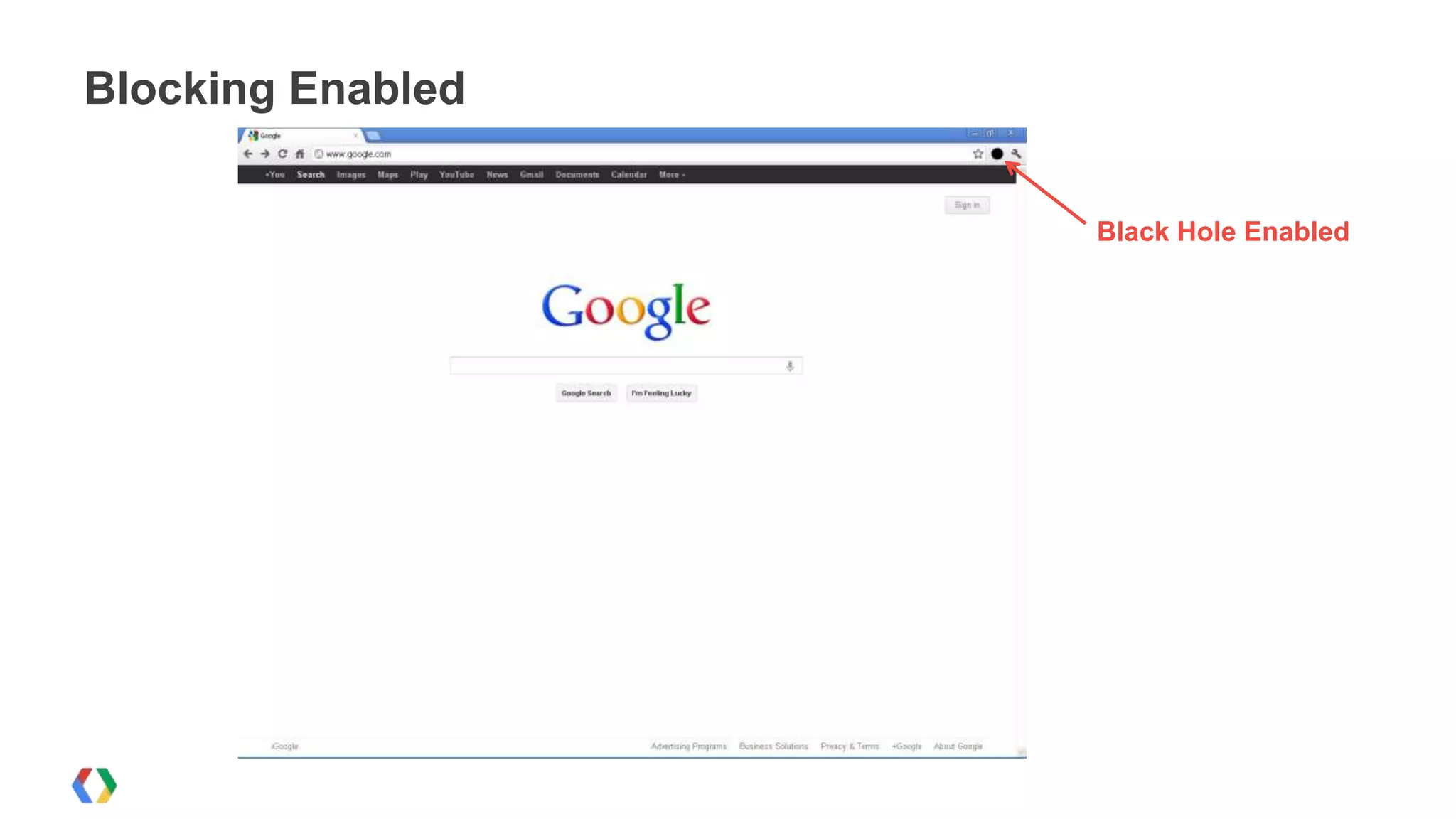

- 40. Blocking Enabled Black Hole Enabled

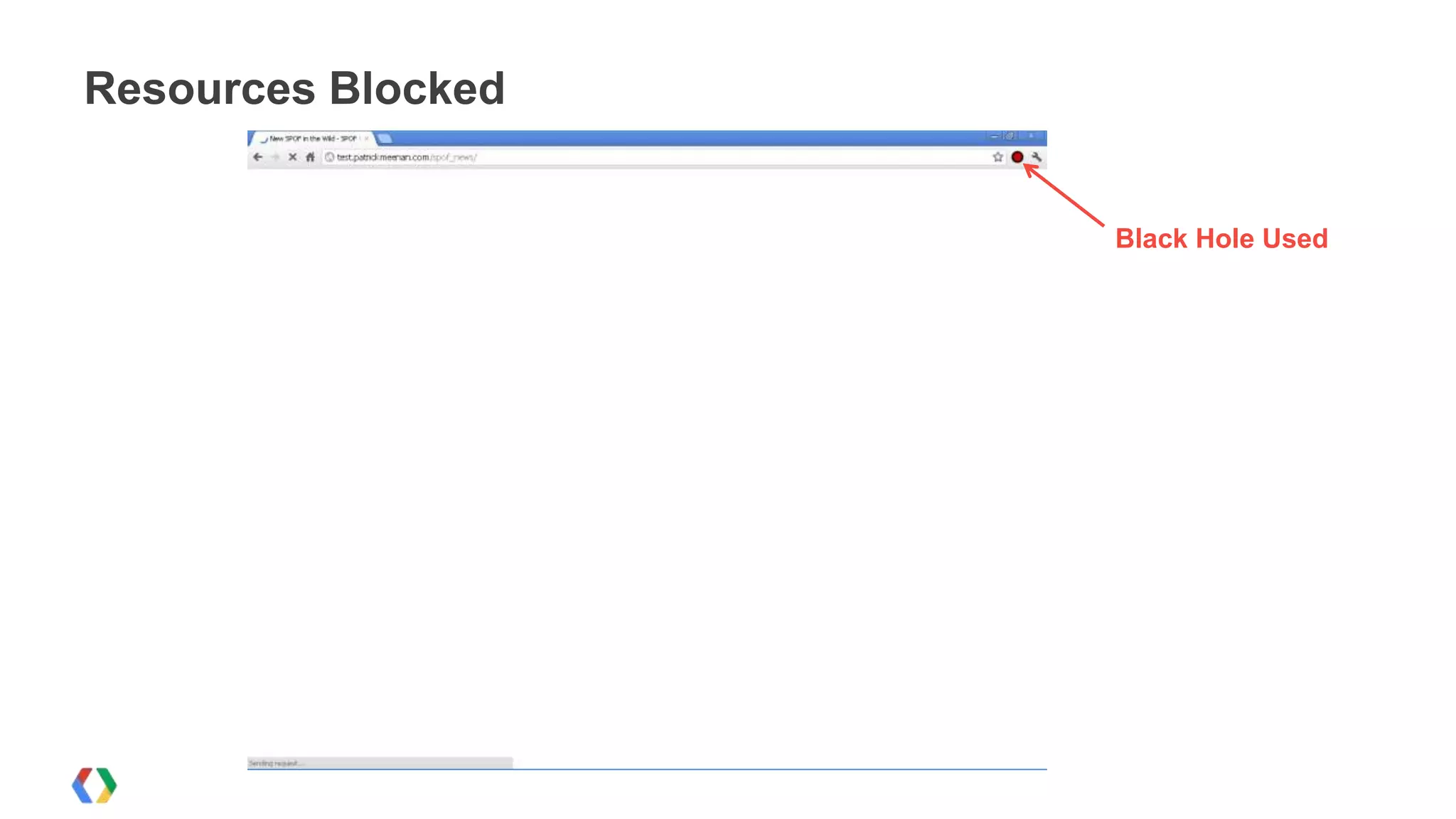

- 41. Resources Blocked Black Hole Used
- 42. Pages in theWild

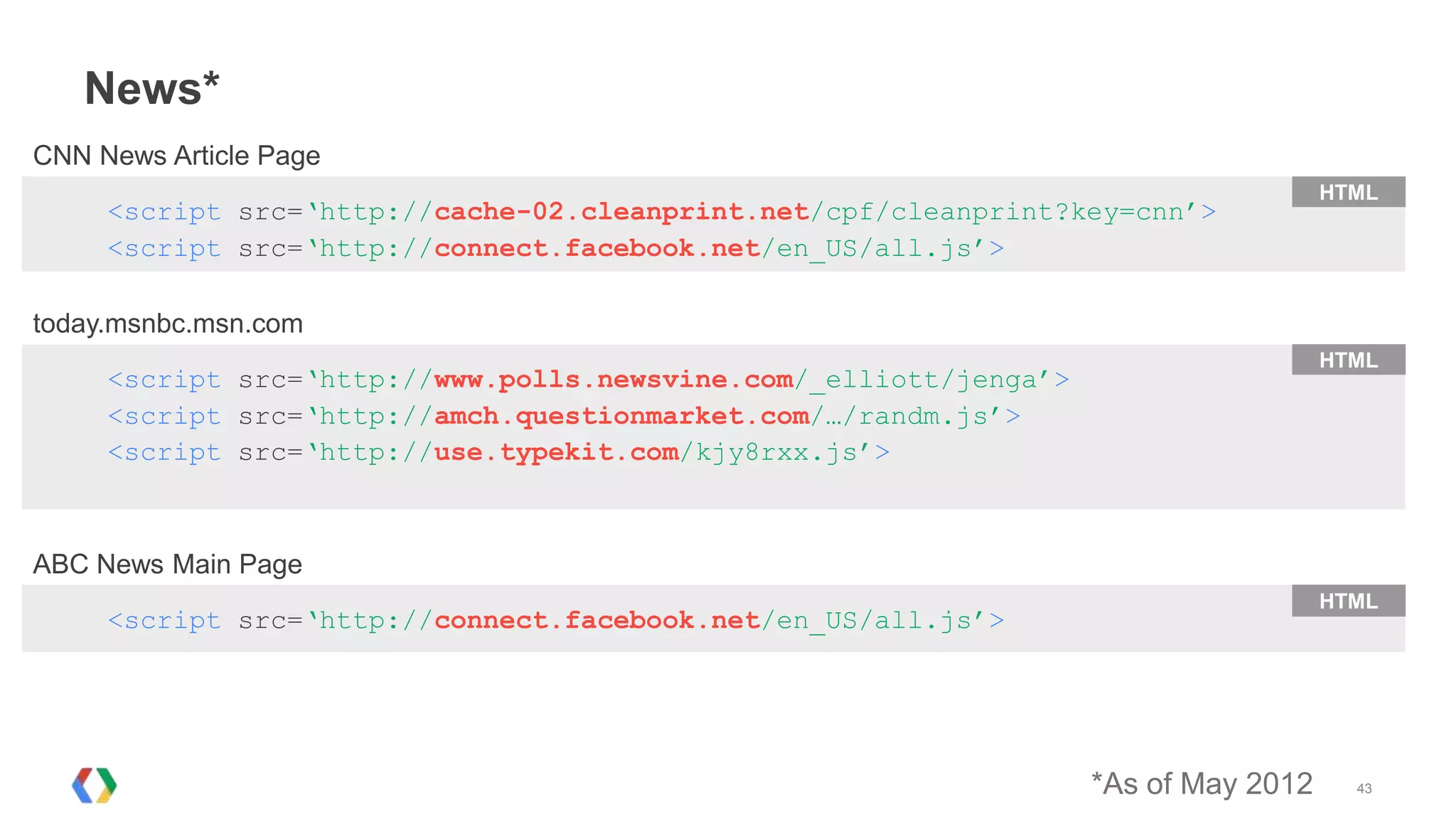

- 43. News* CNN News ArticlePage HTML <script src=‘http://cache-02.cleanprint.net/cpf/cleanprint?key=cnn’> <script src=‘http://connect.facebook.net/en_US/all.js’> today.msnbc.msn.com HTML <script src=‘http://www.polls.newsvine.com/_elliott/jenga’> <script src=‘http://amch.questionmarket.com/…/randm.js’> <script src=‘http://use.typekit.com/kjy8rxx.js’> ABC News Main Page HTML <script src=‘http://connect.facebook.net/en_US/all.js’> *As of May 2012 43

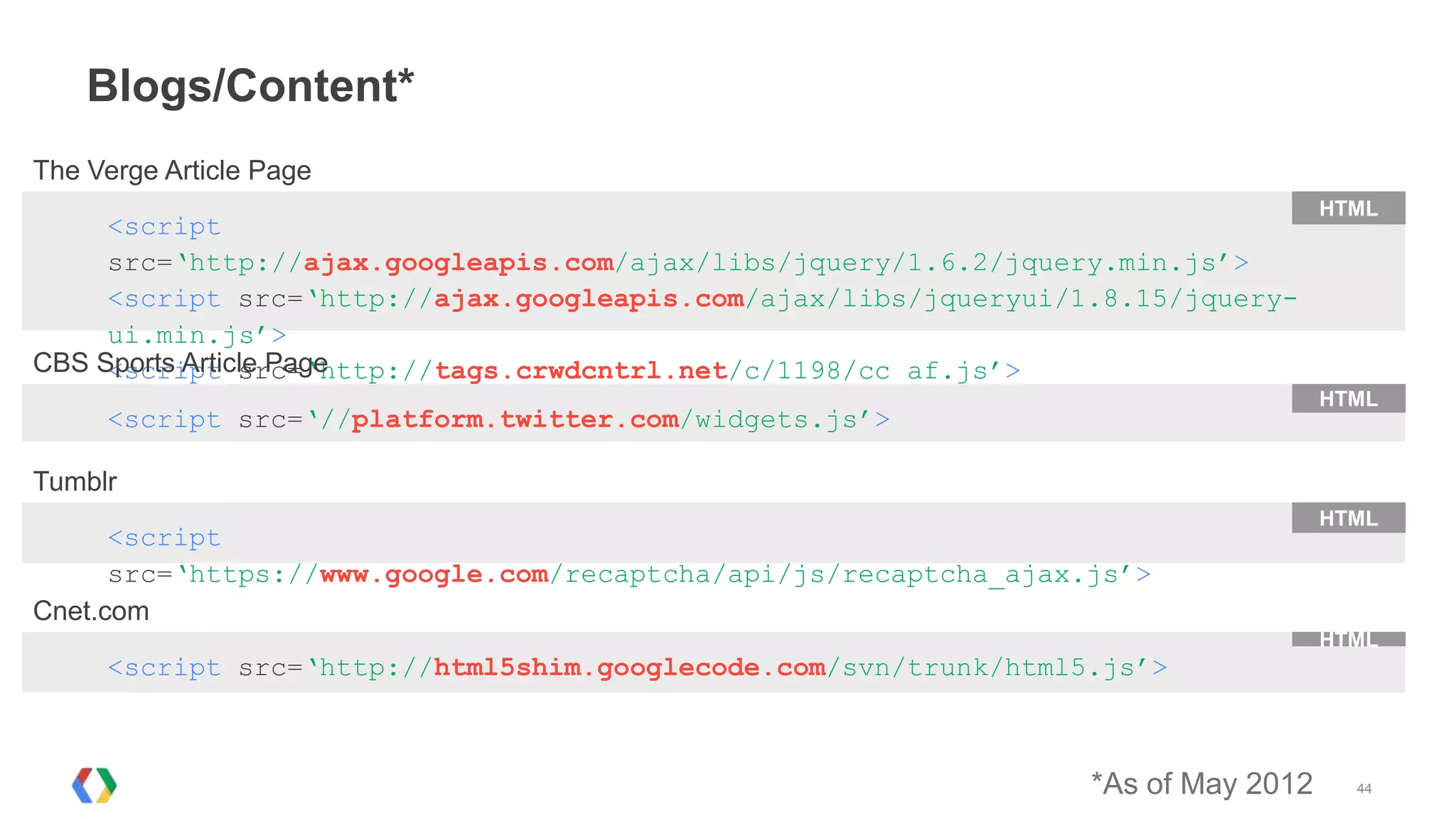

- 44. Blogs/Content* The Verge ArticlePage HTML <script src=‘http://ajax.googleapis.com/ajax/libs/jquery/1.6.2/jquery.min.js’> <script src=‘http://ajax.googleapis.com/ajax/libs/jqueryui/1.8.15/jquery- ui.min.js’> CBS Sports Article Page <script src=‘http://tags.crwdcntrl.net/c/1198/cc_af.js’> HTML <script src=‘//platform.twitter.com/widgets.js’> Tumblr HTML <script src=‘https://www.google.com/recaptcha/api/js/recaptcha_ajax.js’> Cnet.com HTML <script src=‘http://html5shim.googlecode.com/svn/trunk/html5.js’> *As of May 2012 44

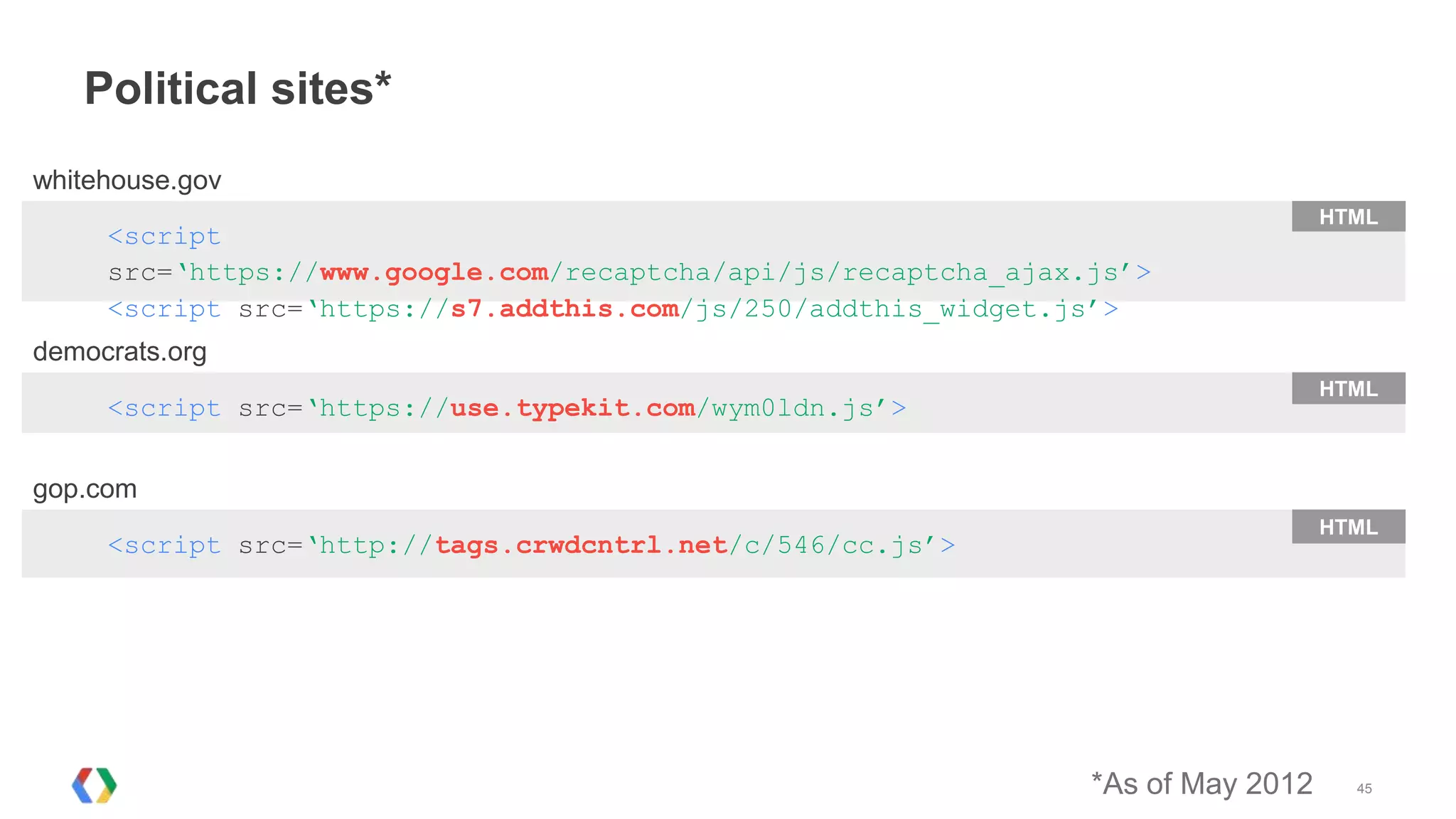

- 45. Political sites* whitehouse.gov HTML <script src=‘https://www.google.com/recaptcha/api/js/recaptcha_ajax.js’> <script src=‘https://s7.addthis.com/js/250/addthis_widget.js’> democrats.org HTML <script src=‘https://use.typekit.com/wym0ldn.js’> gop.com HTML <script src=‘http://tags.crwdcntrl.net/c/546/cc.js’> *As of May 2012 45

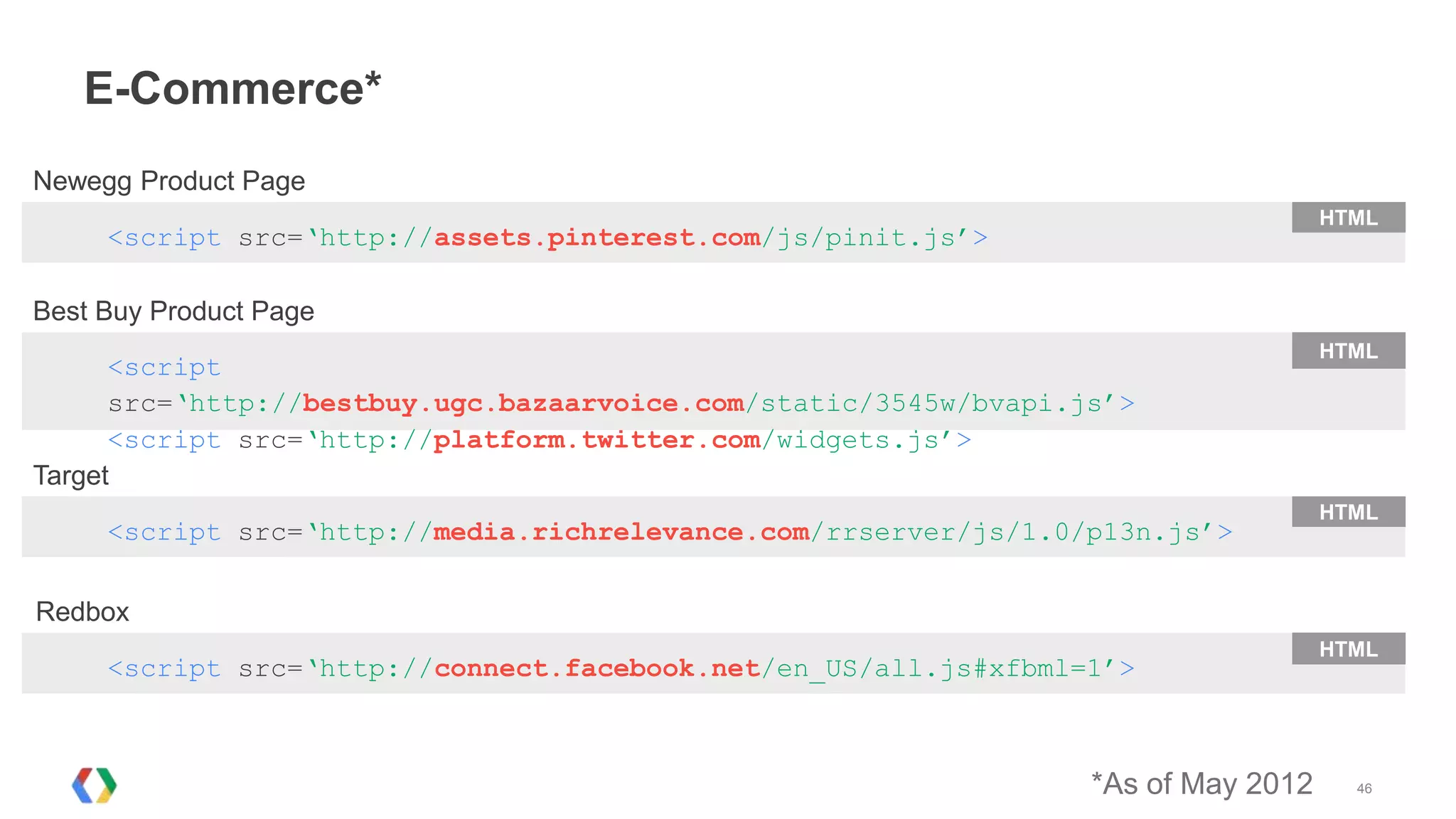

- 46. E-Commerce* Newegg Product Page HTML <script src=‘http://assets.pinterest.com/js/pinit.js’> Best Buy Product Page HTML <script src=‘http://bestbuy.ugc.bazaarvoice.com/static/3545w/bvapi.js’> <script src=‘http://platform.twitter.com/widgets.js’> Target HTML <script src=‘http://media.richrelevance.com/rrserver/js/1.0/p13n.js’> Redbox HTML <script src=‘http://connect.facebook.net/en_US/all.js#xfbml=1’> *As of May 2012 46
- 47.

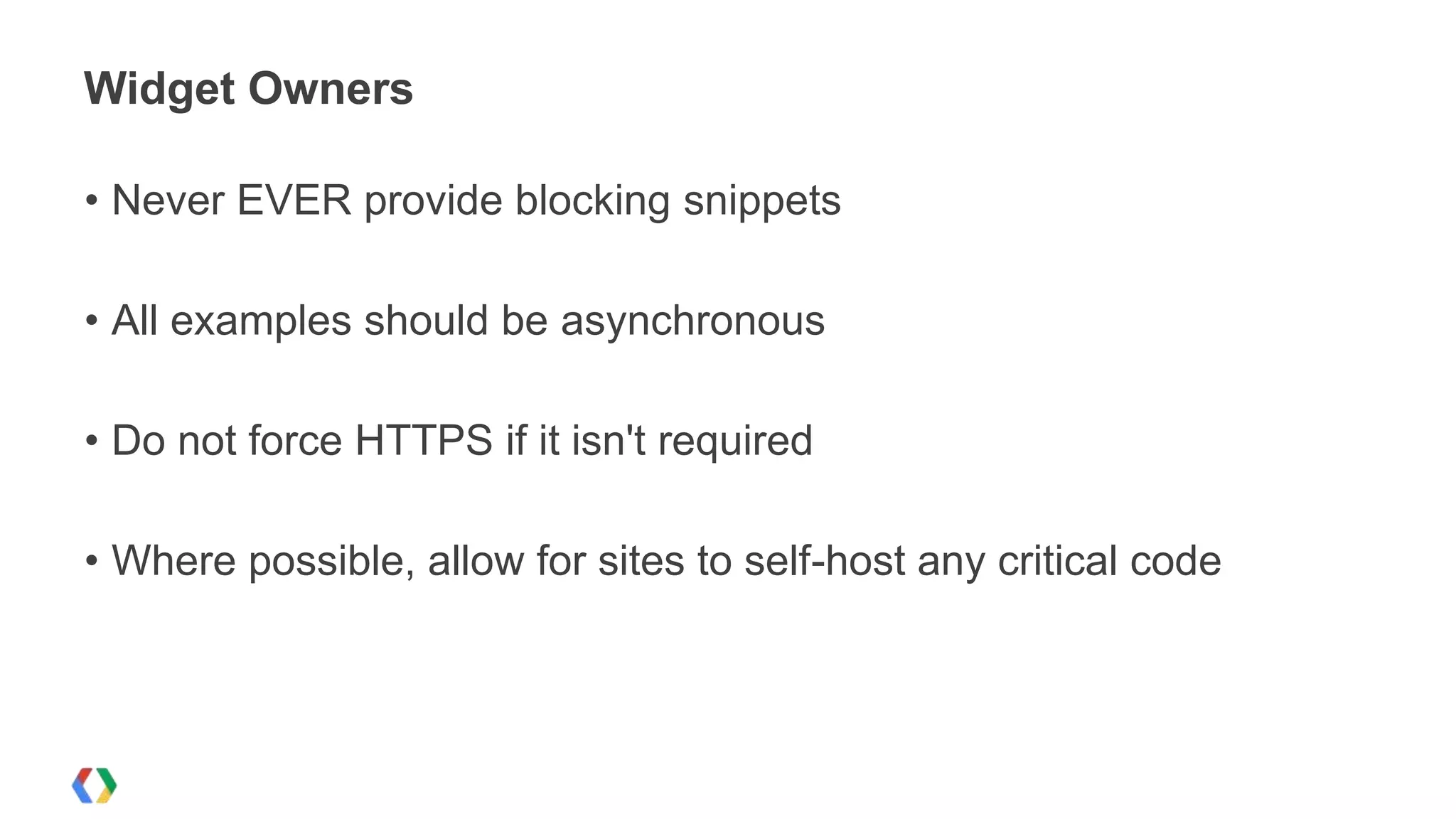

- 48. Widget Owners • NeverEVER provide blocking snippets • All examples should be asynchronous • Do not force HTTPS if it isn't required • Where possible, allow for sites to self-host any critical code

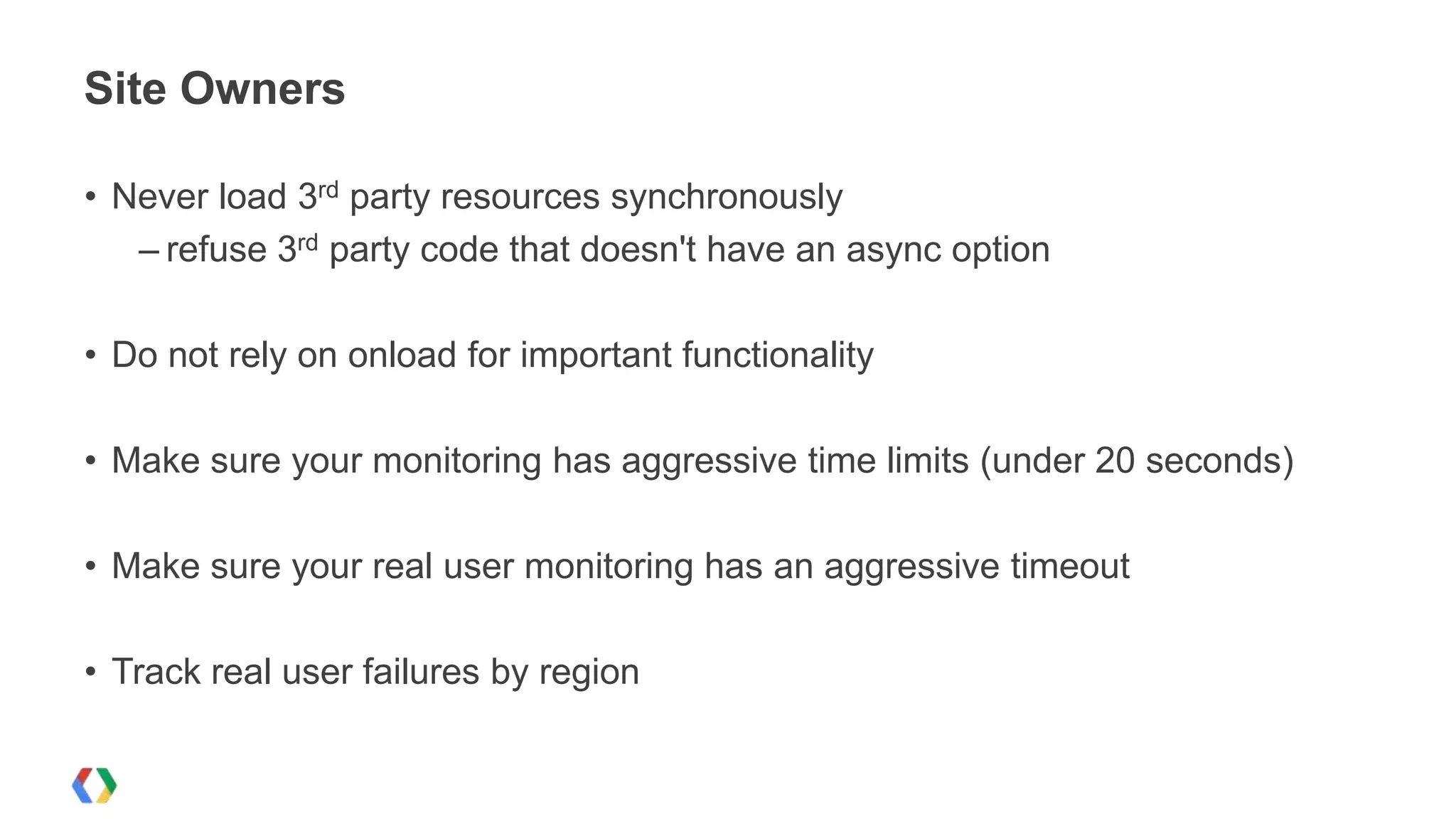

- 49. Site Owners • Neverload 3rd party resources synchronously – refuse 3rd party code that doesn't have an async option • Do not rely on onload for important functionality • Make sure your monitoring has aggressive time limits (under 20 seconds) • Make sure your real user monitoring has an aggressive timeout • Track real user failures by region
- 50. Live Browsing withSPOF-O-Matic
