The document outlines a series of QTP (Quick Test Professional) user-defined functions for automating web and flight reservation applications. Key functions include launching a browser, registering customers, and handling login operations with verification steps for each process. It also provides functions for managing orders and counting UI elements within applications, demonstrating an extensive approach to automated testing in QTP.

1. gcreddy@gcreddy.com
User Defined Functions
Visit:
www.gcreddy.com
for QTP Scripts
----------------------------------------------------------
i) Launching Application
Navigation:
a) Launch the Browser
b) Enter / Select the URL (“www.jjperfumes.com”)
Verification: Capture the Browser Name and Verify
—————
Function Launch_App()
SystemUtil.Run “C:Program FilesInternet
ExplorerIEXPLORE.EXE”,”",”C:Documents and SettingsAdministrator”,”open”
Browser(“Google”).Page(“Google”).Sync
Browser(“Google”).Navigate “http://www.jjperfumes.com/”
Wait (8)
Browser_Name = Browser(“Google”).GetROProperty(“title”)
If Browser_Name=”JJ Perfumes-Discount perfume cheap brand name perfumes,
fragrance & cologne online” Then
Launch_App=”Jjperumes.com Browser Launched Sucessfully”
Msgbox Launch_App
Else
Launch_App=”Jjperumes.com Browser Not Launched”
Msgbox Launch_App
End If
End Function
——————————————————————————————–
ii) Customer Registration
Pre-Setup: Launching Application
QTP Training 1

2. gcreddy@gcreddy.com
Navigation:
a) Select Registration Link in jjperfumes.com homepage
b) Enter all Mandatory details
c) Select Submit button
Verify: Capture confirmation Message and Verify
Function Register(Email)
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume”).Link(“Register”).Click
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebList(“usertype”).Select “Retailer”
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebEdit(“firstname”).Set “dfgdg”
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebEdit(“lastname”).Set “dgdfgdfg”
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebList(“gender”).Select “Male”
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebEdit(“address1″).Set “dfgfdgf”
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebEdit(“phone”).Set “9222222223″
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebEdit(“email”).Set Email
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebEdit(“city”).Set “chennai”
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebList(“state”).Select “MS – MISSISSIPPI”
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebEdit(“zip”).Set “23456″
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebEdit(“password”).SetSecure
“3c30bbc7daa0dccb83c2941bb87fa0709d34″
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebEdit(“conPass”).SetSecure
“3c30bbcdb1f7a32d27a56f70a60f7d1e4159″
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebButton(“Submit”).Click
Wait (5)
Confirm_Message = Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-
Discount perfume_3″).WebElement(“Registered
successfully.”).GetROProperty(“innertext”)
If Confirm_Message=”Registered successfully. “Then
Register=”Customer Registration Sucessful”
Msgbox Register
Else
Register=”Registration Failed”
Msgbox Register
End If
End Function
QTP Training 2

3. gcreddy@gcreddy.com
——————-

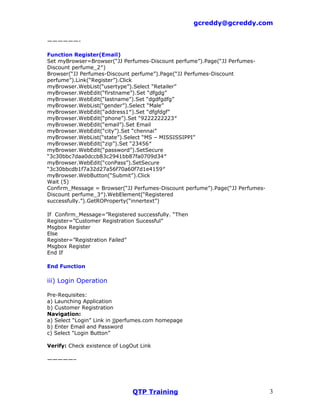

Function Register(Email)
Set myBrowser=Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-
Discount perfume_2″)
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume”).Link(“Register”).Click
myBrowser.WebList(“usertype”).Select “Retailer”
myBrowser.WebEdit(“firstname”).Set “dfgdg”
myBrowser.WebEdit(“lastname”).Set “dgdfgdfg”
myBrowser.WebList(“gender”).Select “Male”
myBrowser.WebEdit(“address1″).Set “dfgfdgf”
myBrowser.WebEdit(“phone”).Set “9222222223″
myBrowser.WebEdit(“email”).Set Email
myBrowser.WebEdit(“city”).Set “chennai”
myBrowser.WebList(“state”).Select “MS – MISSISSIPPI”
myBrowser.WebEdit(“zip”).Set “23456″
myBrowser.WebEdit(“password”).SetSecure
“3c30bbc7daa0dccb83c2941bb87fa0709d34″
myBrowser.WebEdit(“conPass”).SetSecure
“3c30bbcdb1f7a32d27a56f70a60f7d1e4159″
myBrowser.WebButton(“Submit”).Click
Wait (5)
Confirm_Message = Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-
Discount perfume_3″).WebElement(“Registered
successfully.”).GetROProperty(“innertext”)
If Confirm_Message=”Registered successfully. “Then
Register=”Customer Registration Sucessful”
Msgbox Register
Else
Register=”Registration Failed”
Msgbox Register
End If
End Function
iii) Login Operation
Pre-Requisites:
a) Launching Application
b) Customer Registration
Navigation:
a) Select “Login” Link in jjperfumes.com homepage
b) Enter Email and Password
c) Select “Login Button”
Verify: Check existence of LogOut Link
—————–
QTP Training 3

4. gcreddy@gcreddy.com

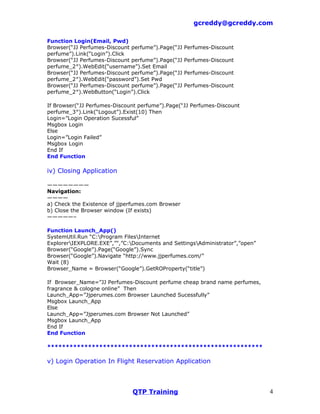

Function Login(Email, Pwd)
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume”).Link(“Login”).Click
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebEdit(“username”).Set Email
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebEdit(“password”).Set Pwd
Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_2″).WebButton(“Login”).Click
If Browser(“JJ Perfumes-Discount perfume”).Page(“JJ Perfumes-Discount
perfume_3″).Link(“Logout”).Exist(10) Then
Login=”Login Operation Sucessful”
Msgbox Login
Else
Login=”Login Failed”
Msgbox Login
End If
End Function
iv) Closing Application
————————
Navigation:
————
a) Check the Existence of jjperfumes.com Browser
b) Close the Browser window (If exists)
—————–
Function Launch_App()
SystemUtil.Run “C:Program FilesInternet
ExplorerIEXPLORE.EXE”,”",”C:Documents and SettingsAdministrator”,”open”
Browser(“Google”).Page(“Google”).Sync
Browser(“Google”).Navigate “http://www.jjperfumes.com/”
Wait (8)
Browser_Name = Browser(“Google”).GetROProperty(“title”)
If Browser_Name=”JJ Perfumes-Discount perfume cheap brand name perfumes,
fragrance & cologne online” Then
Launch_App=”Jjperumes.com Browser Launched Sucessfully”
Msgbox Launch_App
Else
Launch_App=”Jjperumes.com Browser Not Launched”
Msgbox Launch_App
End If
End Function
**********************************************************
v) Login Operation In Flight Reservation Application
QTP Training 4

5. gcreddy@gcreddy.com
Function Login (Agent, Password)
SystemUtil.Run “C:Program FilesHPQuickTest
Professionalsamplesflightappflight4a.exe”,”",”C:Program FilesHPQuickTest
Professionalsamplesflightapp”,”open”
Dialog(“Login”).Activate
Dialog(“Login”).WinEdit(“Agent Name:”).Set Agent
Dialog(“Login”).WinEdit(“Password:”).Set Password
wait 2
Dialog(“Login”).WinButton(“OK”).Click
If Window(“Flight Reservation”).Exist(12) Then
Window(“Flight Reservation”).Close
Login=”Login Operation Sucessful”
Msgbox Login
Else
SystemUtil.CloseDescendentProcesses
‘If Dialog(“Login”).Dialog(“Flight Reservations”).Exist(2) Then
‘Dialog(“Login”).Dialog(“Flight Reservations”).WinButton(“OK”).Click
‘Dialog(“Login”).WinButton(“Cancel”).Click
‘End if
Login=”Login Failed”
Msgbox Login
End if
End Function
———————————
vi) Open Order In Flight Reservation Application
Function Open_Order(Order_Number)
Window(“Flight Reservation”).Activate
Window(“Flight Reservation”).WinButton(“Button”).Click
Window(“Flight Reservation”).Dialog(“Open Order”).WinCheckBox(“Order No.”).Set
“ON”
Window(“Flight Reservation”).Dialog(“Open Order”).WinEdit(“Edit”).Set
Order_Number
Window(“Flight Reservation”).Dialog(“Open Order”).WinButton(“OK”).Click
OrdNum = Window(“Flight Reservation”).WinEdit(“Order No:”).GetVisibleText()
OrdNum=CInt(OrdNum)
If OrdNum=Order_Number Then
Open_Order= Order_Number& ” Opened sucessfully”
Msgbox Open_Order
Else
Open_Order= Order_Number& ” Not Opened”
Msgbox Open_Order
End If
End Function
——————————————
vii) Update Order In Flight Reservation Application
Function Update_Order(Tickets)
Window(“Flight Reservation”).Activate
Window(“Flight Reservation”).WinButton(“Button”).Click
QTP Training 5

6. gcreddy@gcreddy.com

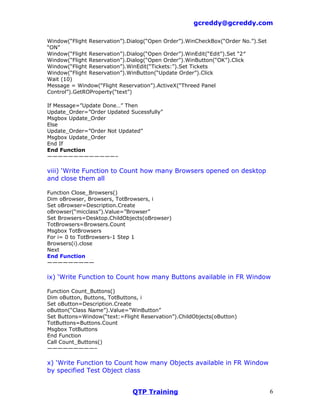

Window(“Flight Reservation”).Dialog(“Open Order”).WinCheckBox(“Order No.”).Set
“ON”
Window(“Flight Reservation”).Dialog(“Open Order”).WinEdit(“Edit”).Set “2″
Window(“Flight Reservation”).Dialog(“Open Order”).WinButton(“OK”).Click
Window(“Flight Reservation”).WinEdit(“Tickets:”).Set Tickets
Window(“Flight Reservation”).WinButton(“Update Order”).Click
Wait (10)
Message = Window(“Flight Reservation”).ActiveX(“Threed Panel
Control”).GetROProperty(“text”)
If Message=”Update Done…” Then
Update_Order=”Order Updated Sucessfully”
Msgbox Update_Order
Else
Update_Order=”Order Not Updated”
Msgbox Update_Order
End If
End Function
—————————————–
viii) ‘Write Function to Count how many Browsers opened on desktop
and close them all
Function Close_Browsers()
Dim oBrowser, Browsers, TotBrowsers, i
Set oBrowser=Description.Create
oBrowser(“micclass”).Value=”Browser”
Set Browsers=Desktop.ChildObjects(oBrowser)
TotBrowsers=Browsers.Count
Msgbox TotBrowsers
For i= 0 to TotBrowsers-1 Step 1
Browsers(i).close
Next
End Function
—————————
ix) ‘Write Function to Count how many Buttons available in FR Window
Function Count_Buttons()
Dim oButton, Buttons, TotButtons, i
Set oButton=Description.Create
oButton(“Class Name”).Value=”WinButton”
Set Buttons=Window(“text:=Flight Reservation”).ChildObjects(oButton)
TotButtons=Buttons.Count
Msgbox TotButtons
End Function
Call Count_Buttons()
—————————–
x) ‘Write Function to Count how many Objects available in FR Window
by specified Test Object class
QTP Training 6

7. gcreddy@gcreddy.com

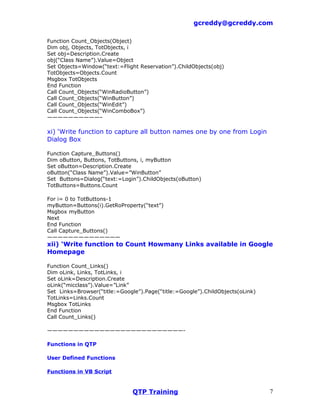

Function Count_Objects(Object)
Dim obj, Objects, TotObjects, i
Set obj=Description.Create
obj(“Class Name”).Value=Object
Set Objects=Window(“text:=Flight Reservation”).ChildObjects(obj)
TotObjects=Objects.Count
Msgbox TotObjects
End Function
Call Count_Objects(“WinRadioButton”)
Call Count_Objects(“WinButton”)
Call Count_Objects(“WinEdit”)
Call Count_Objects(“WinComboBox”)
——————————–
xi) ‘Write function to capture all button names one by one from Login
Dialog Box
Function Capture_Buttons()
Dim oButton, Buttons, TotButtons, i, myButton
Set oButton=Description.Create
oButton(“Class Name”).Value=”WinButton”
Set Buttons=Dialog(“text:=Login”).ChildObjects(oButton)
TotButtons=Buttons.Count
For i= 0 to TotButtons-1
myButton=Buttons(i).GetRoProperty(“text”)
Msgbox myButton
Next
End Function
Call Capture_Buttons()
——————————————
xii) ‘Write function to Count Howmany Links available in Google
Homepage
Function Count_Links()
Dim oLink, Links, TotLinks, i
Set oLink=Description.Create
oLink(“micclass”).Value=”Link”
Set Links=Browser(“title:=Google”).Page(“title:=Google”).ChildObjects(oLink)
TotLinks=Links.Count
Msgbox TotLinks
End Function
Call Count_Links()
——————————————————————————-
Functions in QTP
User Defined Functions
Functions in VB Script
QTP Training 7

8. gcreddy@gcreddy.com
QTP Training 8
