Enforcing Application SLA with Congress and Monasca
This document discusses using Congress and Monasca to enforce service level agreements (SLAs) for applications and infrastructure. It proposes using Congress policies to define SLA thresholds that trigger Monasca alarms, which then notify relevant parties. Examples are given for notifying operators if servers are underutilized, and evacuating critical business applications from unhealthy hosts. The current state integrates Monasca metrics with Congress, with future work including developing a Monasca alarm datasource and converting policies to alarms.
More Related Content
Enforcing Application SLA with Congress and Monasca
- 1. Enforcing Application SLAs withCongress and Monasca Fabio Giannetti, Ken Owens April 28, 2016

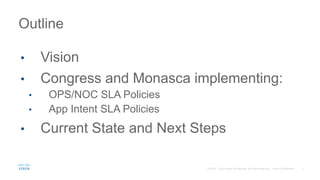

- 2. • Vision • Congressand Monasca implementing: • OPS/NOC SLA Policies • App Intent SLA Policies • Current State and Next Steps Outline

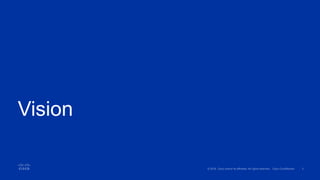

- 3.

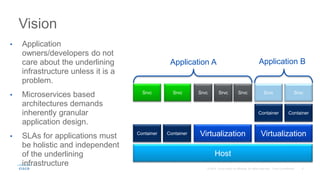

- 4. • Application owners/developers donot care about the underlining infrastructure unless it is a problem. • Microservices based architectures demands inherently granular application design. • SLAs for applications must be holistic and independent of the underlining infrastructure Vision Host Virtualization VirtualizationContainer Container Container Container Srvc Srvc Srvc Srvc Srvc Srvc Srvc Application A Application B
- 5. Enable business/application owners toeasily define the aspects that are relevant in running their applications with the budget constraints that are imposed by IT. Vision

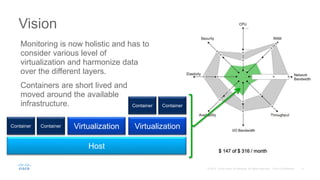

- 6. Monitoring is nowholistic and has to consider various level of virtualization and harmonize data over the different layers. Containers are short lived and moved around the available infrastructure. Vision Host Virtualization VirtualizationContainer Container Container Container

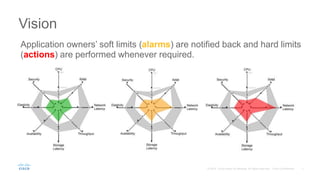

- 7. Application owners’ softlimits (alarms) are notified back and hard limits (actions) are performed whenever required. Vision

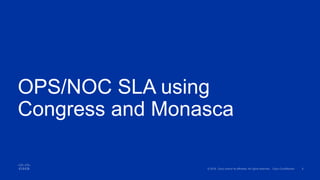

- 8. OPS/NOC SLA using Congressand Monasca

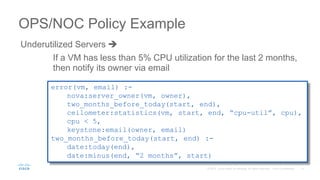

- 9. Underutilized Servers OPS/NOCPolicy Example error(vm, email) :- nova:server_owner(vm, owner), two_months_before_today(start, end), ceilometer:statistics(vm, start, end, “cpu-util”, cpu), cpu < 5, keystone:email(owner, email) two_months_before_today(start, end) :- date:today(end), date:minus(end, “2 months”, start) If a VM has less than 5% CPU utilization for the last 2 months, then notify its owner via email
- 10. Current Solution Ceilometer API CongressAPI Policy Engine Ceilometer Datasource GET /v2/meters/cpu_util/statistics?resource_ id=… VM UUID (Resource ID) CPU xxxxxxxx-0001-xxxx-xxxxxxxxxxx xxxxxxxx-0002-xxxx-xxxxxxxxxxx xxxxxxxx-0003-xxxx-xxxxxxxxxxx xxxxxxxx-0004-xxxx-xxxxxxxxxxx xxxxxxxx-0005-xxxx-xxxxxxxxxxx Poll every <n>s 40 30 2 70 55

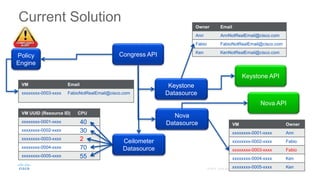

- 11. Current Solution Congress APIPolicy Engine Ceilometer Datasource VMUUID (Resource ID) CPU xxxxxxxx-0001-xxxx xxxxxxxx-0002-xxxx xxxxxxxx-0003-xxxx xxxxxxxx-0004-xxxx xxxxxxxx-0005-xxxx 40 30 2 70 55 Nova API Nova Datasource Keystone Datasource Keystone API VM Owner xxxxxxxx-0001-xxxx Ann xxxxxxxx-0002-xxxx Fabio xxxxxxxx-0003-xxxx Fabio xxxxxxxx-0004-xxxx Ken xxxxxxxx-0005-xxxx Ken Owner Email Ann AnnNotRealEmail@cisco.com Fabio FabioNotRealEmail@cisco.com Ken KenNotRealEmail@cisco.com VM Email xxxxxxxx-0003-xxxx FabioNotRealEmail@cisco.com

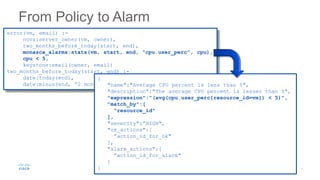

- 12. From Policy toAlarm error(vm, email) :- nova:server_owner(vm, owner), two_months_before_today(start, end), monasca_alarms:stats(vm, start, end, “cpu.user_perc”, cpu), cpu < 5, keystone:email(owner, email) two_months_before_today(start, end) :- date:today(end), date:minus(end, “2 months”, start) { "name":"Average CPU percent is less than 5", "description":"The average CPU percent is lesser than 5", "expression":"(avg(cpu.user_perc{resource_id=vm}) < 5)", "match_by":[ "resource_id" ], "severity":”HIGH", "ok_actions":[ ”action_id_for_ok" ], "alarm_actions":[ ”action_id_for_alarm" ] }

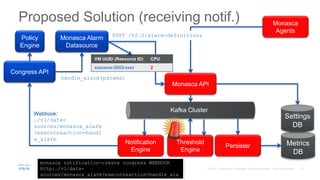

- 13. Proposed Solution (receivingnotif.) Metrics DB Monasca Agents Monasca API Notification Engine Threshold Engine Persister Kafka Cluster Congress API Policy Engine Monasca Alarm Datasource Webhook: …/v1/data- sources/monasca_alarm ?execute&action=handl e_alarm Settings DB monasca notification-create congress WEBHOOK http:…/v1/data- sources/monasca_alarm?execute&action=handle_ala handle_alarm(params) VM UUID (Resource ID) CPU xxxxxxxx-0003-xxxx 2 POST /v2.0/alarm-definitions

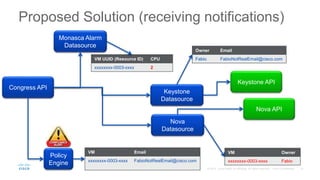

- 14. Proposed Solution (receivingnotifications) Congress API Policy Engine Monasca Alarm Datasource VM UUID (Resource ID) CPU xxxxxxxx-0003-xxxx 2 Nova API Nova Datasource Keystone Datasource Keystone API VM Owner xxxxxxxx-0003-xxxx Fabio Owner Email Fabio FabioNotRealEmail@cisco.com VM Email xxxxxxxx-0003-xxxx FabioNotRealEmail@cisco.com
- 15. Application Intent SLAusing Congress and Monasca

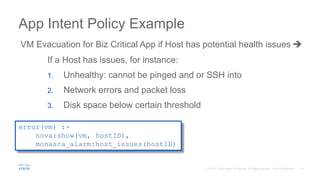

- 16. VM Evacuation forBiz Critical App if Host has potential health issues App Intent Policy Example error(vm) :- nova:show(vm, hostID), monasca_alarm:host_issues(hostID) If a Host has issues, for instance: 1. Unhealthy: cannot be pinged and or SSH into 2. Network errors and packet loss 3. Disk space below certain threshold
- 17. App Intent Policy:Metrics Correlation error(vm) :- nova:show(vm, hostID), monasca_alarm:host_issues(hostID) Metric Name Dimensions Value host_alive_status observer_host=fqdn, hostname=supplied hostname being checked, test_type=ping or ssh 0=online, 1=offline disk.space_used_perc device, mount_point The percentage of disk space that is being used on a device net.in_packets_dropped_sec device Number of inbound network packets dropped per second net.out_packets_dropped_sec device Number of outbound network packets dropped per second

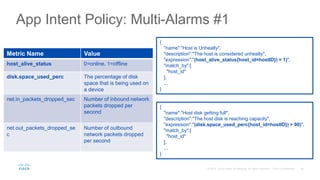

- 18. App Intent Policy:Multi-Alarms #1 { "name":”Host is Unhealty", "description":"The host is considered unhealty", "expression":"(host_alive_status{host_id=hostID}) = 1)", "match_by":[ "host_id" ], ... } { "name":”Host disk getting full", "description":"The host disk is reaching capacity", "expression":"(disk.space_used_perc{host_id=hostID}) > 90)", "match_by":[ "host_id" ], ... } Metric Name Value host_alive_status 0=online, 1=offline disk.space_used_perc The percentage of disk space that is being used on a device net.in_packets_dropped_sec Number of inbound network packets dropped per second net.out_packets_dropped_se c Number of outbound network packets dropped per second

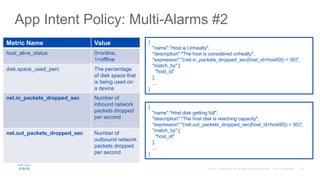

- 19. App Intent Policy:Multi-Alarms #2 { "name":”Host is Unhealty", "description":"The host is considered unhealty", "expression":"(net.in_packets_dropped_sec{host_id=hostID}) > 30)", "match_by":[ "host_id" ], ... } { "name":”Host disk getting full", "description":"The host disk is reaching capacity", "expression":"(net.out_packets_dropped_sec{host_id=hostID}) > 30)", "match_by":[ "host_id" ], ... } Metric Name Value host_alive_status 0=online, 1=offline disk.space_used_perc The percentage of disk space that is being used on a device net.in_packets_dropped_sec Number of inbound network packets dropped per second net.out_packets_dropped_sec Number of outbound network packets dropped per second
- 20. Current State andFuture Work

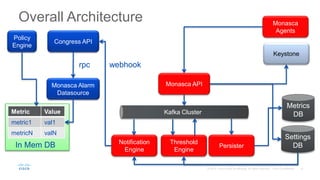

- 21. Overall Architecture Settings DB Metrics DB Monasca Agents Monasca API Keystone Notification Engine Threshold Engine Persister KafkaCluster Congress API Policy Engine Monasca Alarm Datasource Metric Value metric1 val1 metricN valN In Mem DB webhookrpc

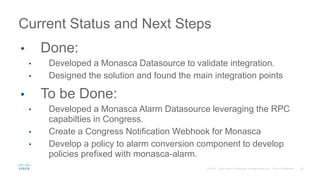

- 22. • Done: • Developeda Monasca Datasource to validate integration. • Designed the solution and found the main integration points • To be Done: • Developed a Monasca Alarm Datasource leveraging the RPC capabilties in Congress. • Create a Congress Notification Webhook for Monasca • Develop a policy to alarm conversion component to develop policies prefixed with monasca-alarm. Current Status and Next Steps
- 23. OpenStack Summit Austin, Texas2016 Thank You!
