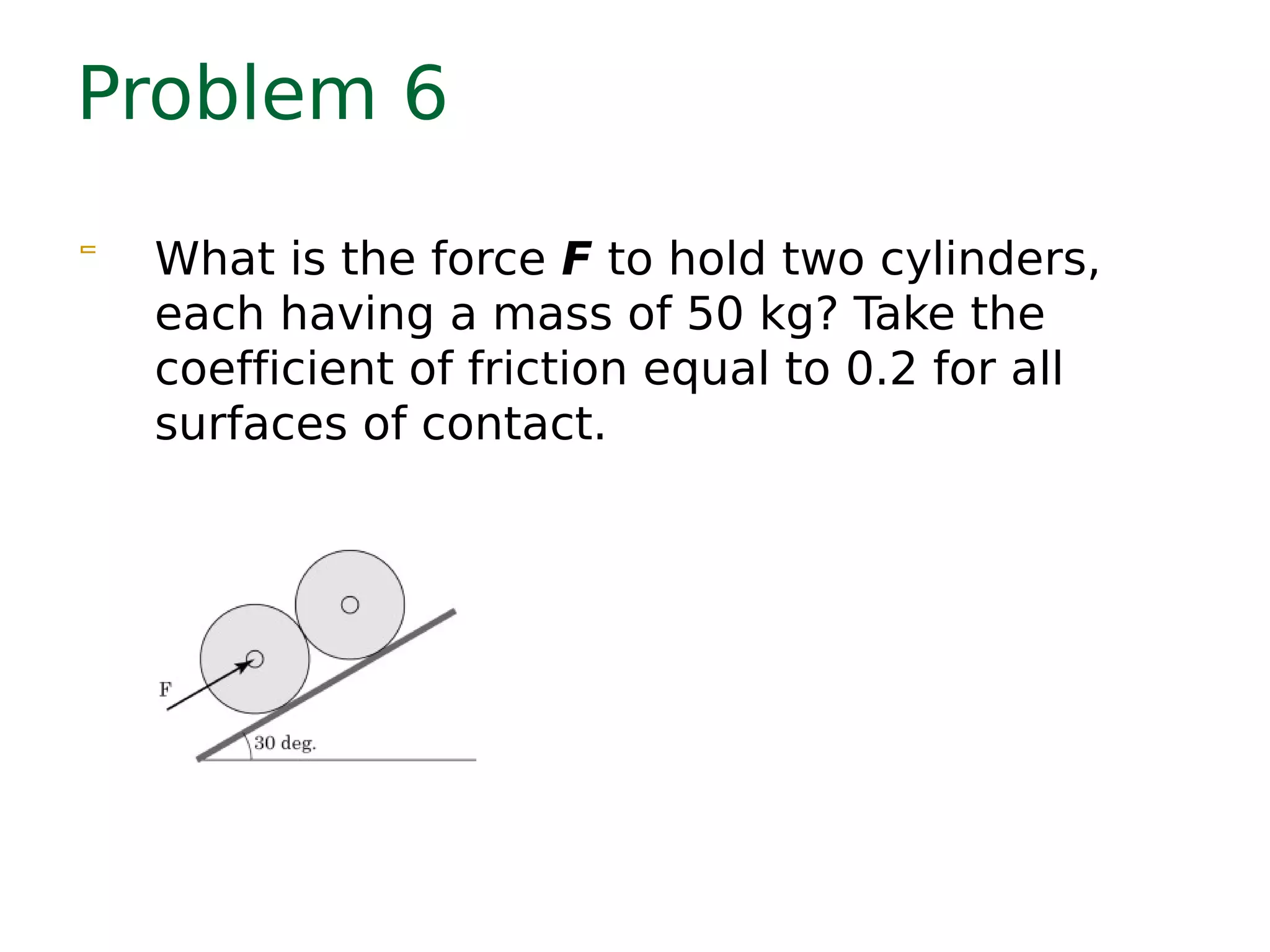

Here are the key steps to solve this problem:
* Identify the free body diagram of each cylinder
* Write the equations of static equilibrium for each cylinder
* The force F must be greater than or equal to the maximum static friction force between the cylinders, which is μNs = 0.2 * 50 * 9.8 = 98 N
* Therefore, the minimum value of F for which the cylinders will not slip is 98 N.
So in summary, the minimum force F required to hold the two cylinders without slipping is 98 N.
Solutions manual for mechanics of materials si 9th edition by hibbeler ibsn 9...jungkook11
Solutions manual for mechanics of materials si 9th edition by hibbeler ibsn 9789810694364
download: https://goo.gl/iqN3kb
People also search:
mechanics of materials 9th edition si pdf
hibbeler mechanics of materials 9th edition pdf
hibbeler mechanics of materials 10th edition pdf
hibbeler mechanics of materials 9th edition solutions
hibbeler mechanics of materials pdf
mechanics of materials rc hibbeler 9th edition pdf free download
mechanics of materials hibbeler 9th edition
mechanics of materials 9th edition solutions download
Solutions manual for statics and mechanics of materials 5th edition by hibbel...zaezo
Solutions manual for statics and mechanics of materials 5th edition by hibbeler ibsn 9780134301006
download at: https://goo.gl/rTKRQ1
people also search:
hibbeler statics and mechanics of materials; 5th edition pdf
statics and mechanics of materials 5th edition pdf download
statics and mechanics of materials 5th edition ebook
statics and mechanics of materials 5th edition solutions pdf
statics and mechanics of materials hibbeler pdf download
statics and mechanics of materials solutions
hibbeler statics and mechanics of materials 4th edition pdf
statics and mechanics of materials 5th edition pdf free
In Engineering Mechanics the static problems are classified as two types: Concurrent and Non-Concurrent force systems. The presentation discloses a methodology to solve the problems of Concurrent and Non-Concurrent force systems.
Learn Online Courses of Subject Engineering Mechanics of First Year Engineering. Clear the Concepts of Engineering Mechanics Through Video Lectures and PDF Notes. Visit us: https://ekeeda.com/streamdetails/subject/Engineering-Mechanics
Solutions manual for mechanics of materials si 9th edition by hibbeler ibsn 9...jungkook11
Solutions manual for mechanics of materials si 9th edition by hibbeler ibsn 9789810694364
download: https://goo.gl/iqN3kb
People also search:
mechanics of materials 9th edition si pdf
hibbeler mechanics of materials 9th edition pdf
hibbeler mechanics of materials 10th edition pdf
hibbeler mechanics of materials 9th edition solutions
hibbeler mechanics of materials pdf
mechanics of materials rc hibbeler 9th edition pdf free download
mechanics of materials hibbeler 9th edition
mechanics of materials 9th edition solutions download
Solutions manual for statics and mechanics of materials 5th edition by hibbel...zaezo
Solutions manual for statics and mechanics of materials 5th edition by hibbeler ibsn 9780134301006
download at: https://goo.gl/rTKRQ1
people also search:
hibbeler statics and mechanics of materials; 5th edition pdf
statics and mechanics of materials 5th edition pdf download
statics and mechanics of materials 5th edition ebook
statics and mechanics of materials 5th edition solutions pdf
statics and mechanics of materials hibbeler pdf download
statics and mechanics of materials solutions
hibbeler statics and mechanics of materials 4th edition pdf
statics and mechanics of materials 5th edition pdf free
In Engineering Mechanics the static problems are classified as two types: Concurrent and Non-Concurrent force systems. The presentation discloses a methodology to solve the problems of Concurrent and Non-Concurrent force systems.
Learn Online Courses of Subject Engineering Mechanics of First Year Engineering. Clear the Concepts of Engineering Mechanics Through Video Lectures and PDF Notes. Visit us: https://ekeeda.com/streamdetails/subject/Engineering-Mechanics
Ekeeda Provides Online Civil Engineering Degree Subjects Courses, Video Lectures for All Engineering Universities. Video Tutorials Covers Subjects of Mechanical Engineering Degree.
Ekeeda Provides Online Video Lectures for Civil Engineering Degree Subject Courses for All Engineering Universities. Visit us: https://ekeeda.com/streamdetails/stream/civil-engineering
Learn Online Courses of Subject Engineering Mechanics of First Year Engineering. Clear the Concepts of Engineering Mechanics Through Video Lectures and PDF Notes. Visit us: https://ekeeda.com/streamdetails/subject/Engineering-Mechanics
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.

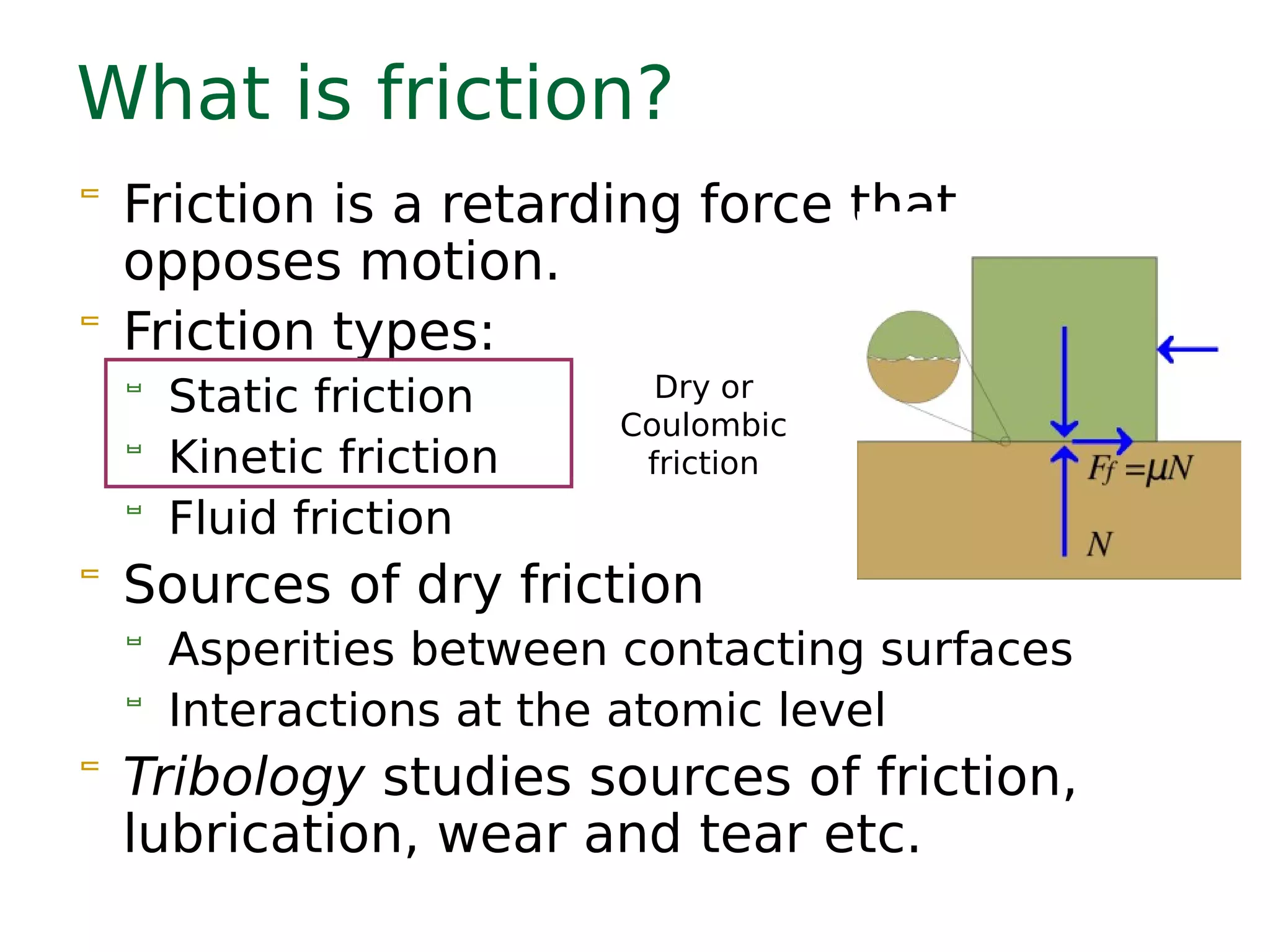

2. What is friction?
Friction is a retarding force that
opposes motion.
Friction types:
Static friction
Kinetic friction
Fluid friction
Sources of dry friction
Asperities between contacting surfaces
Interactions at the atomic level
Tribology studies sources of friction,
lubrication, wear and tear etc.
Dry or
Coulombic
friction

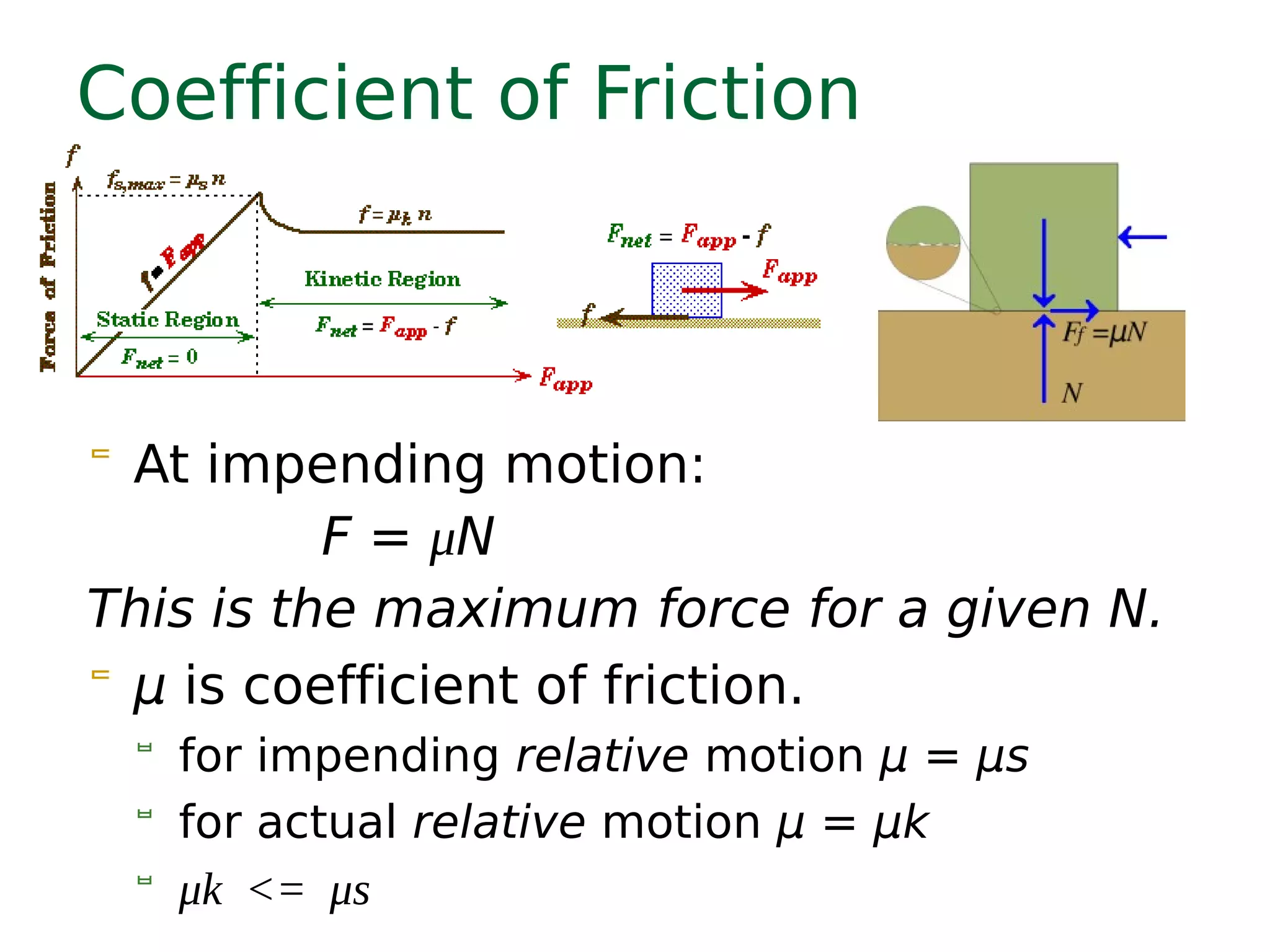

3. Coefficient of Friction
At impending motion:
F = μN
This is the maximum force for a given N.
μ is coefficient of friction.
for impending relative motion μ = μs
for actual relative motion μ = μk
μk <= μs

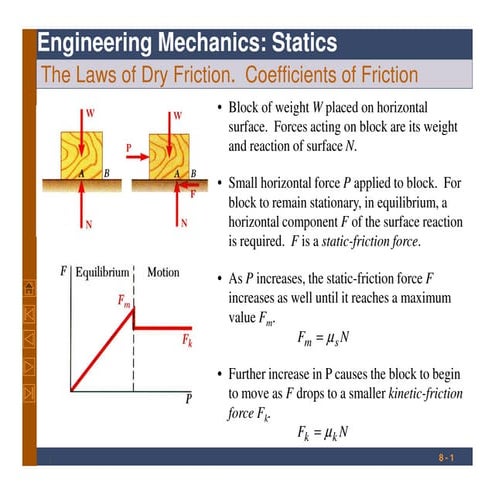

4. The Laws of Dry Friction. Coefficients
of Friction •
Maximum static-friction force:
•
Kinetic-friction force:
• Maximum static-friction force and kinetic-
friction force are:
- proportional to normal force
- dependent on type and condition of
contact surfaces
- independent of contact area
5. Application (BJ10)
8 - 5
Friction is both problematic
and useful in many engineering
applications, such as in tires
and brakes.

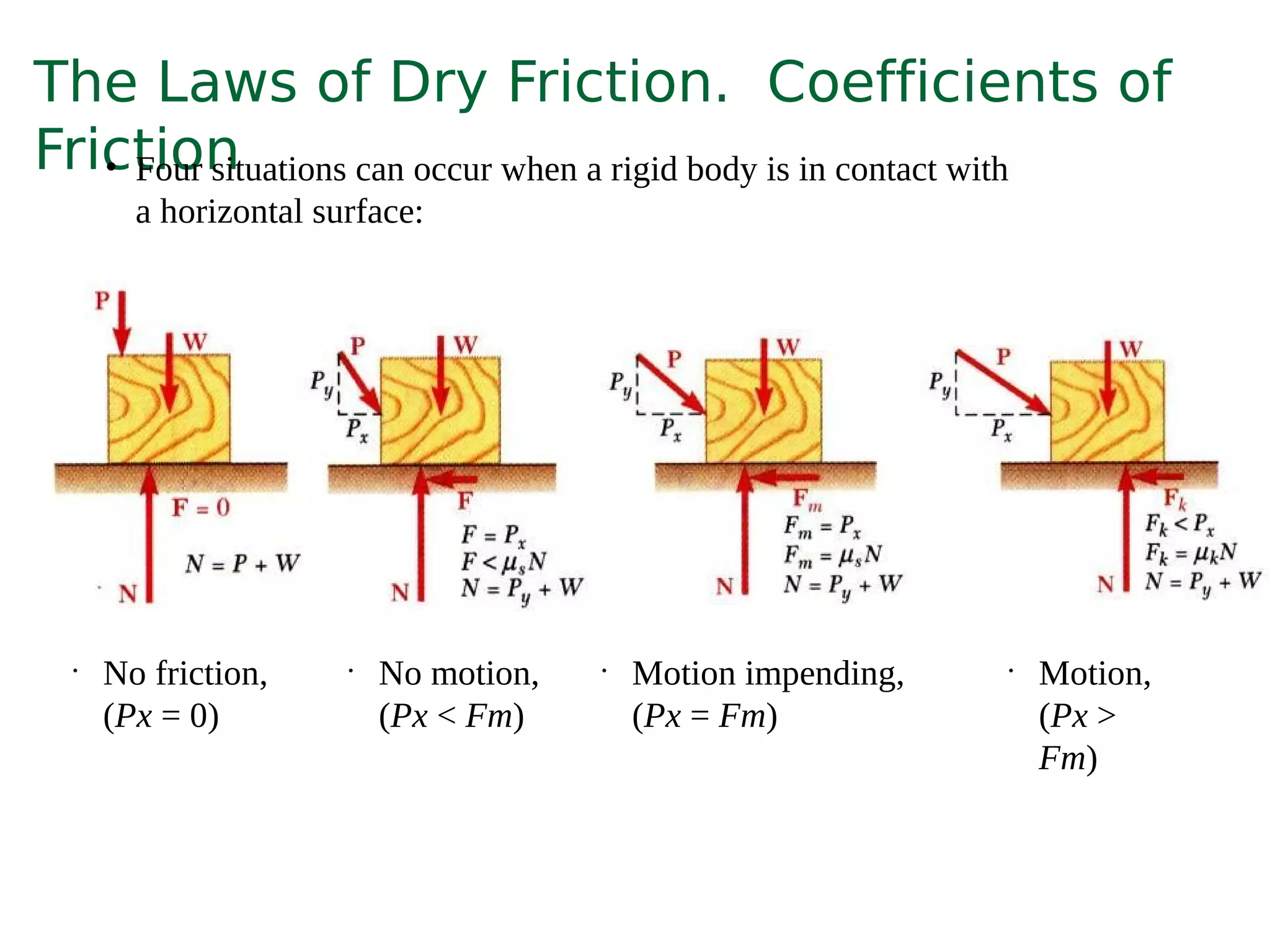

6. The Laws of Dry Friction. Coefficients of
Friction• Four situations can occur when a rigid body is in contact with
a horizontal surface:
•
No friction,
(Px = 0)
•
No motion,
(Px < Fm)
•
Motion impending,
(Px = Fm)
•
Motion,
(Px >
Fm)
7. Angles of Friction
• It is sometimes convenient to replace normal force
N and friction force F by their resultant R:
•
No friction •
Motion impending•
No motion •
Motion

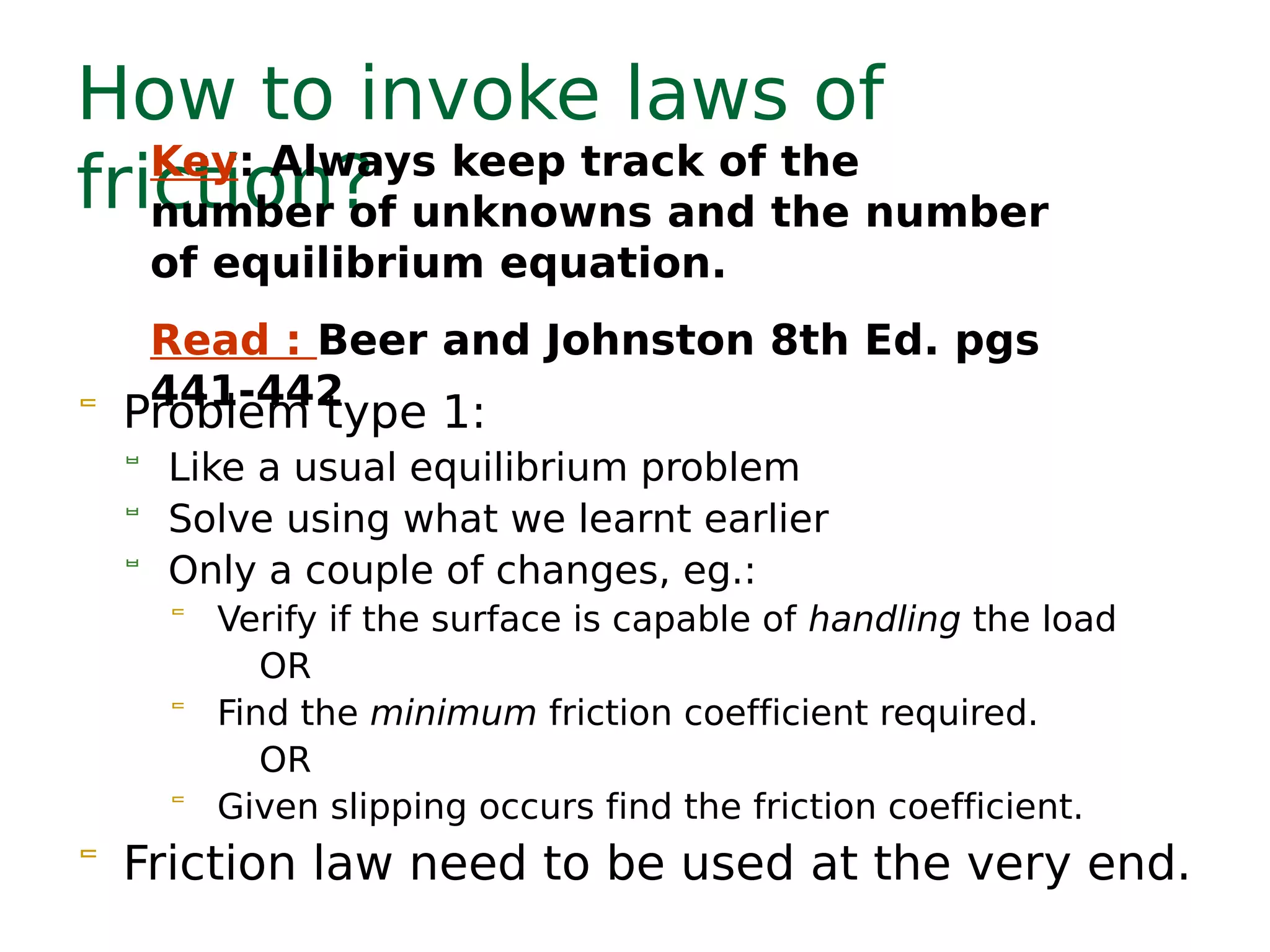

8. How to invoke laws of
friction?
Problem type 1:
Like a usual equilibrium problem
Solve using what we learnt earlier
Only a couple of changes, eg.:
Verify if the surface is capable of handling the load
OR
Find the minimum friction coefficient required.
OR
Given slipping occurs find the friction coefficient.
Friction law need to be used at the very end.
Key: Always keep track of the
number of unknowns and the number
of equilibrium equation.
Read : Beer and Johnston 8th Ed. pgs
441-442

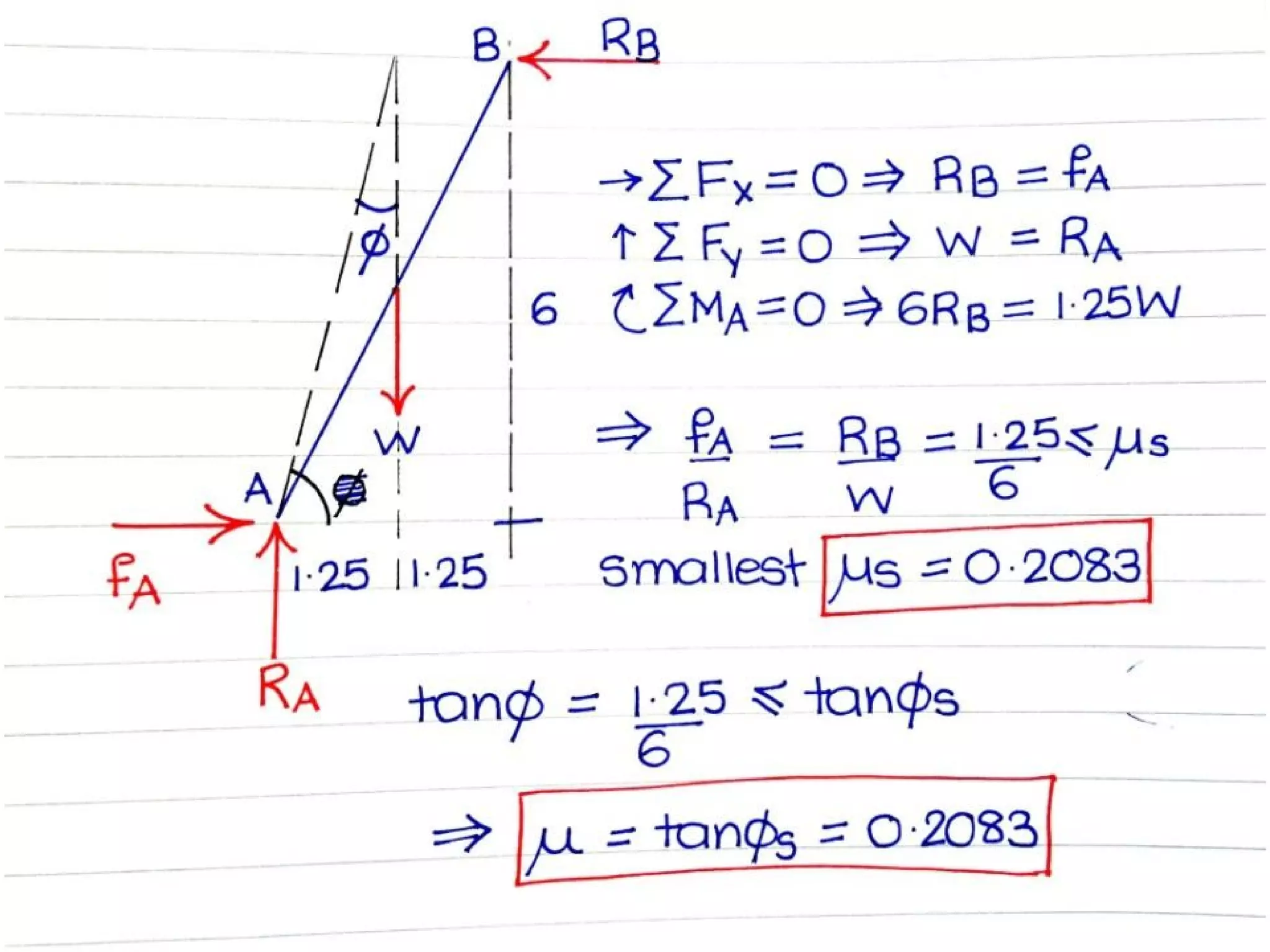

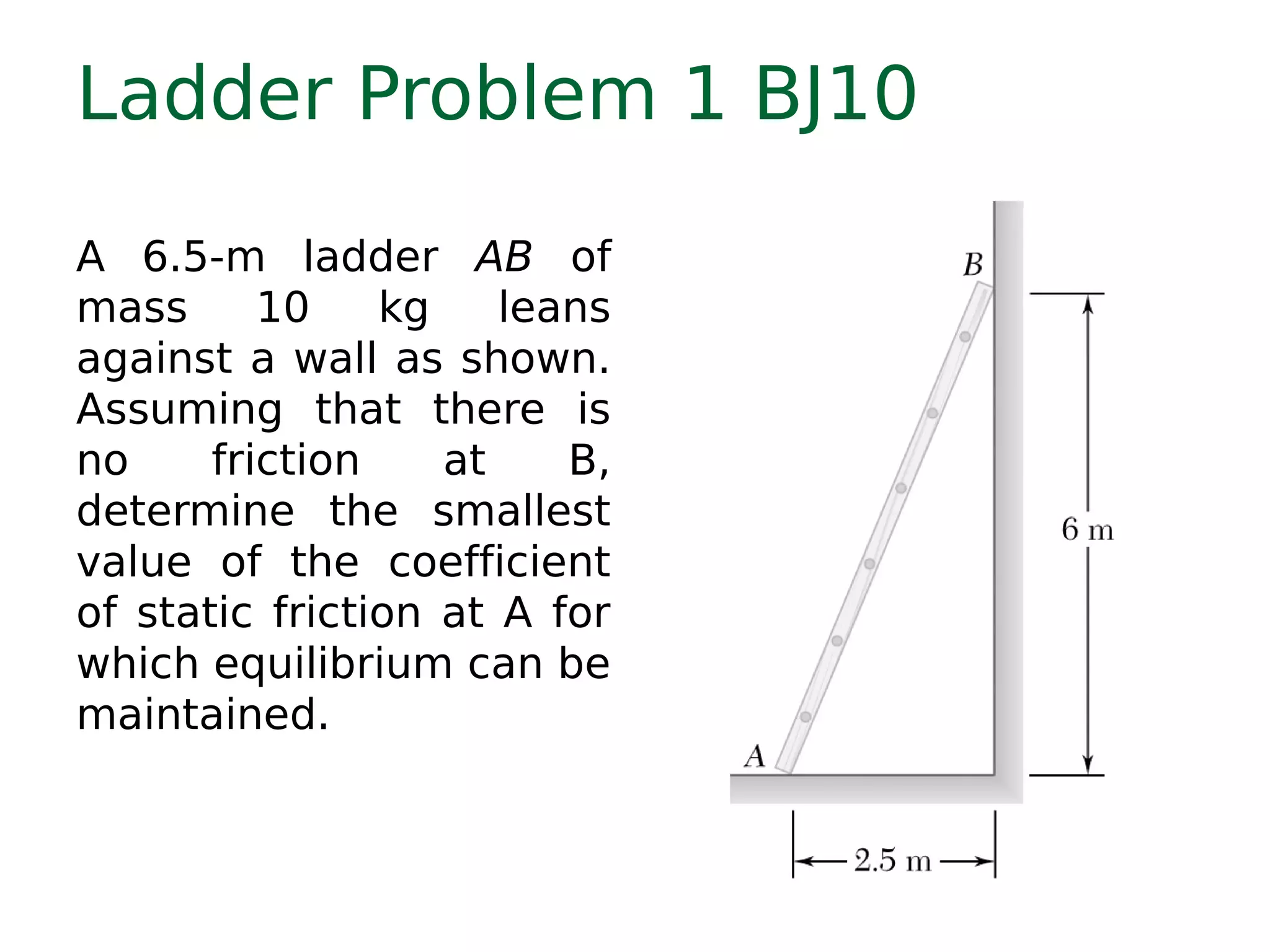

9. Ladder Problem 1 BJ10
A 6.5-m ladder AB of
mass 10 kg leans
against a wall as shown.
Assuming that there is
no friction at B,
determine the smallest
value of the coefficient
of static friction at A for
which equilibrium can be
maintained.
10.

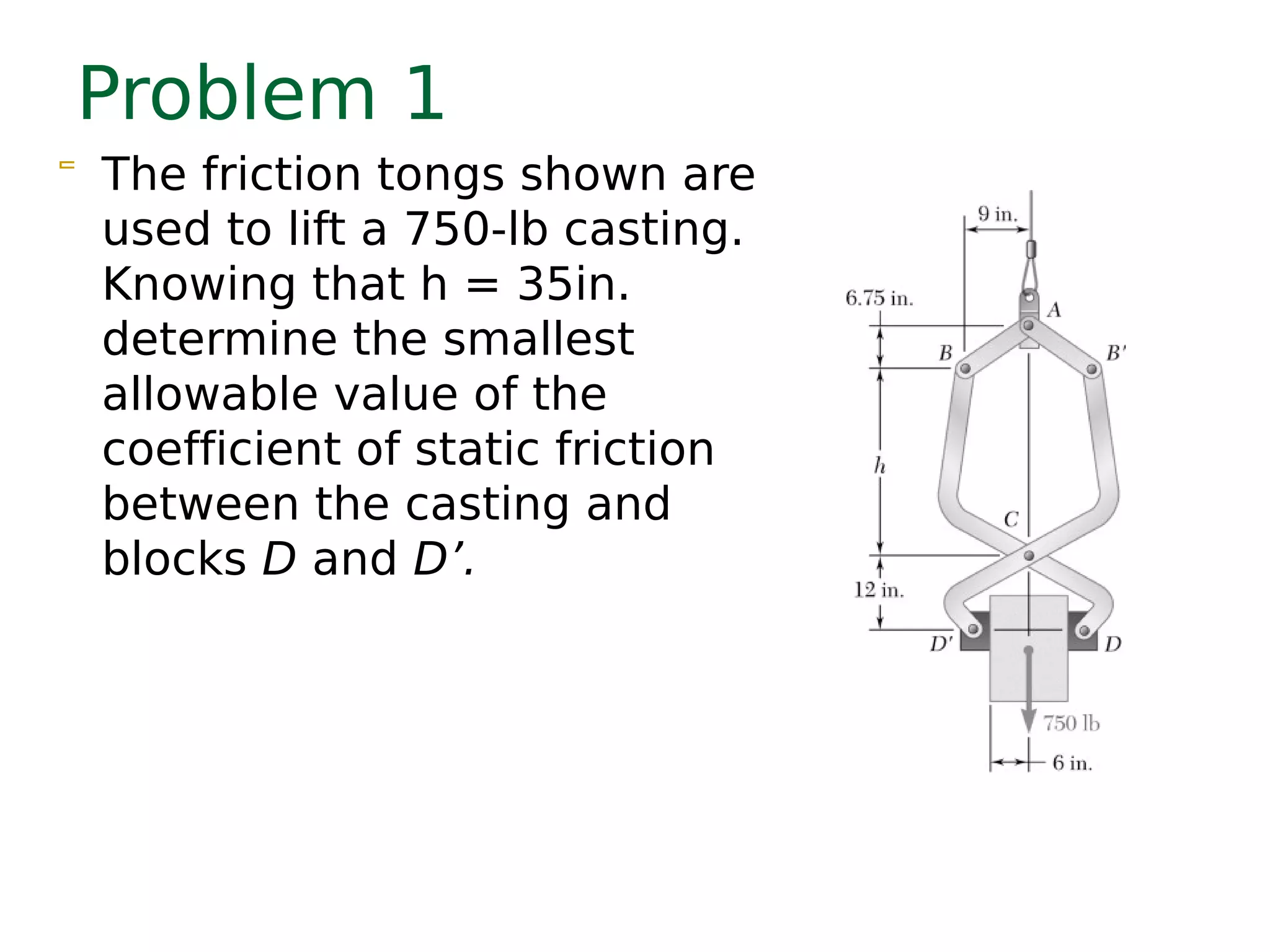

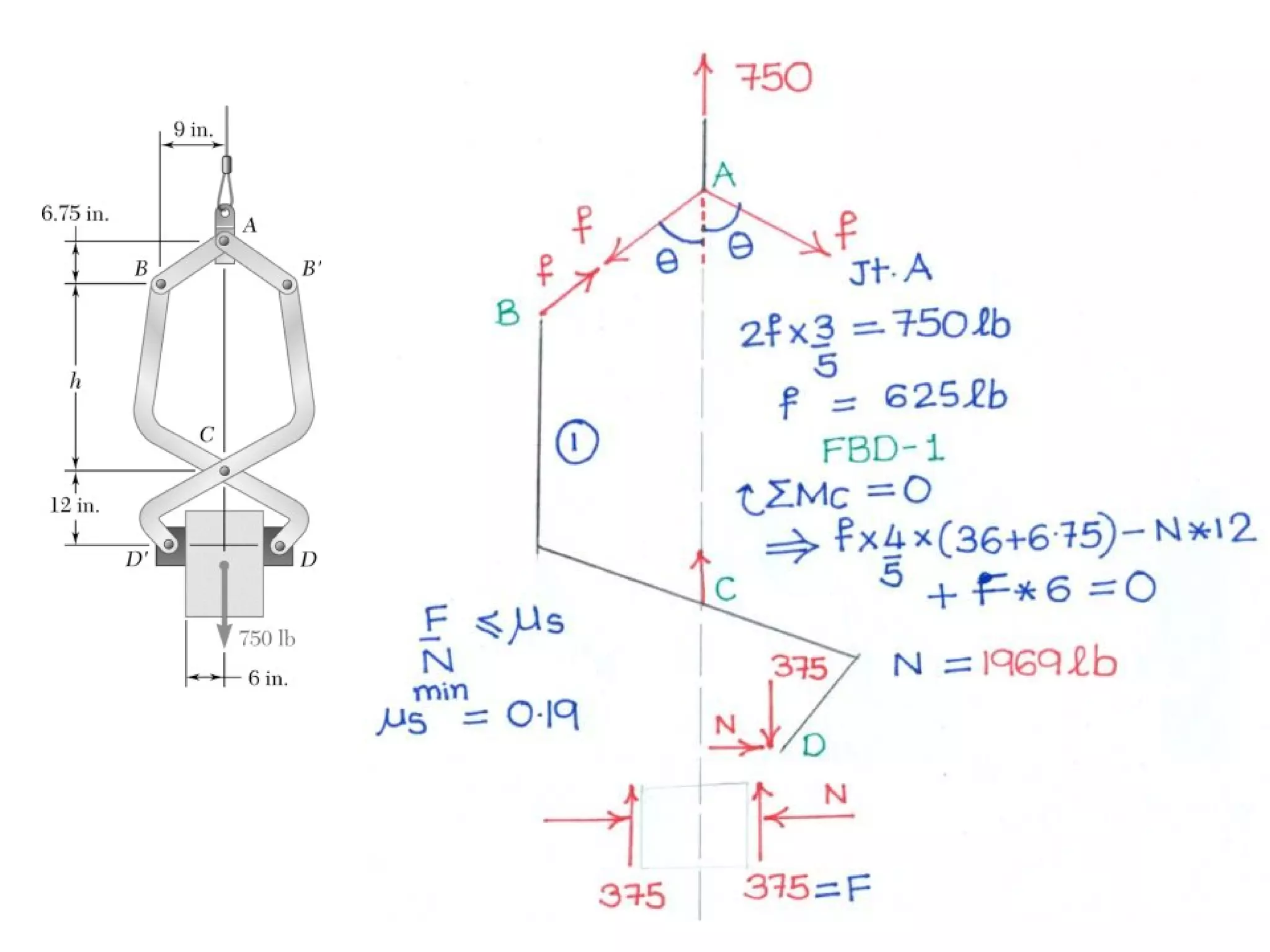

11. Problem 1
The friction tongs shown are
used to lift a 750-lb casting.
Knowing that h = 35in.
determine the smallest
allowable value of the
coefficient of static friction
between the casting and
blocks D and D’.
12.

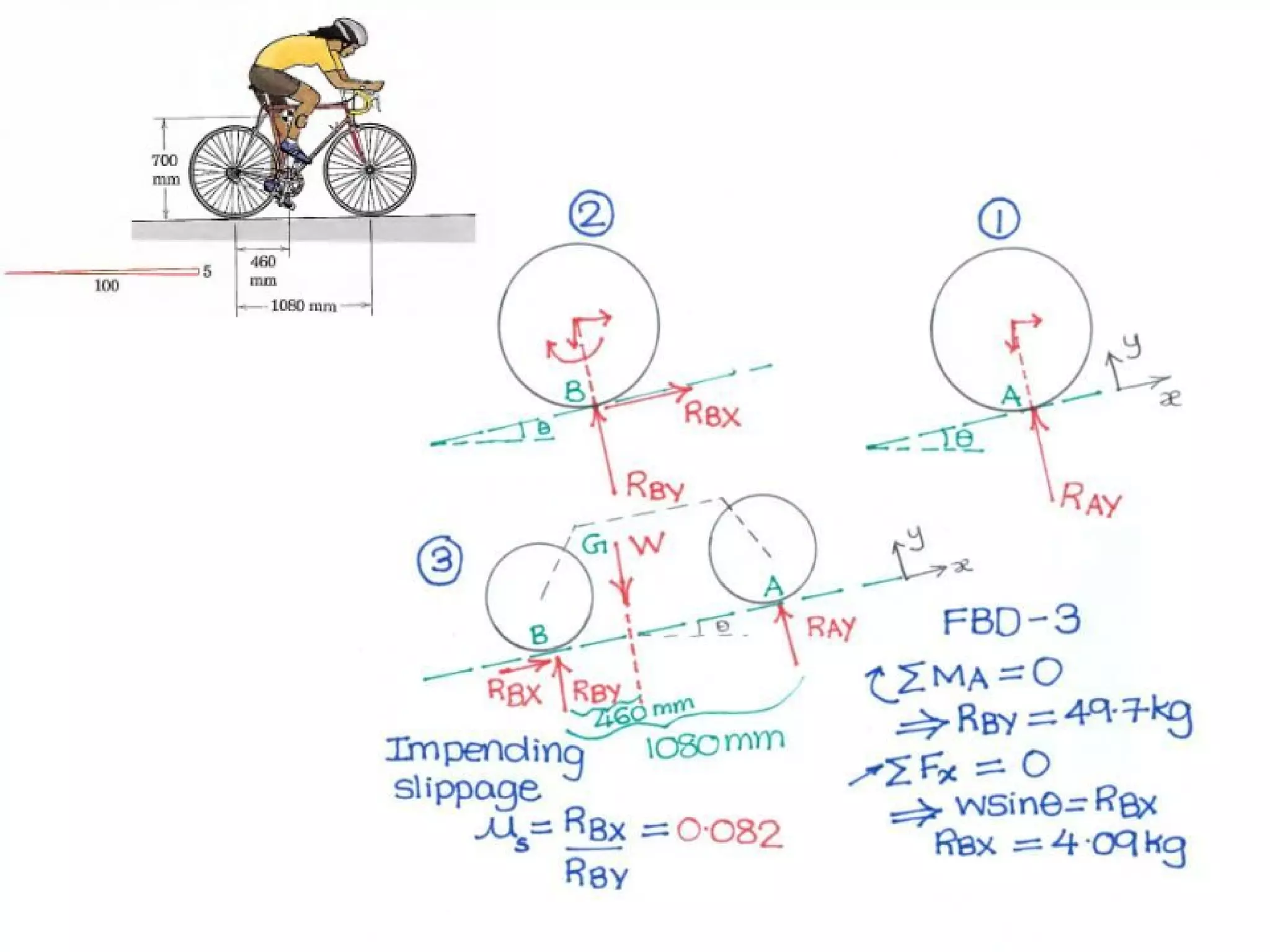

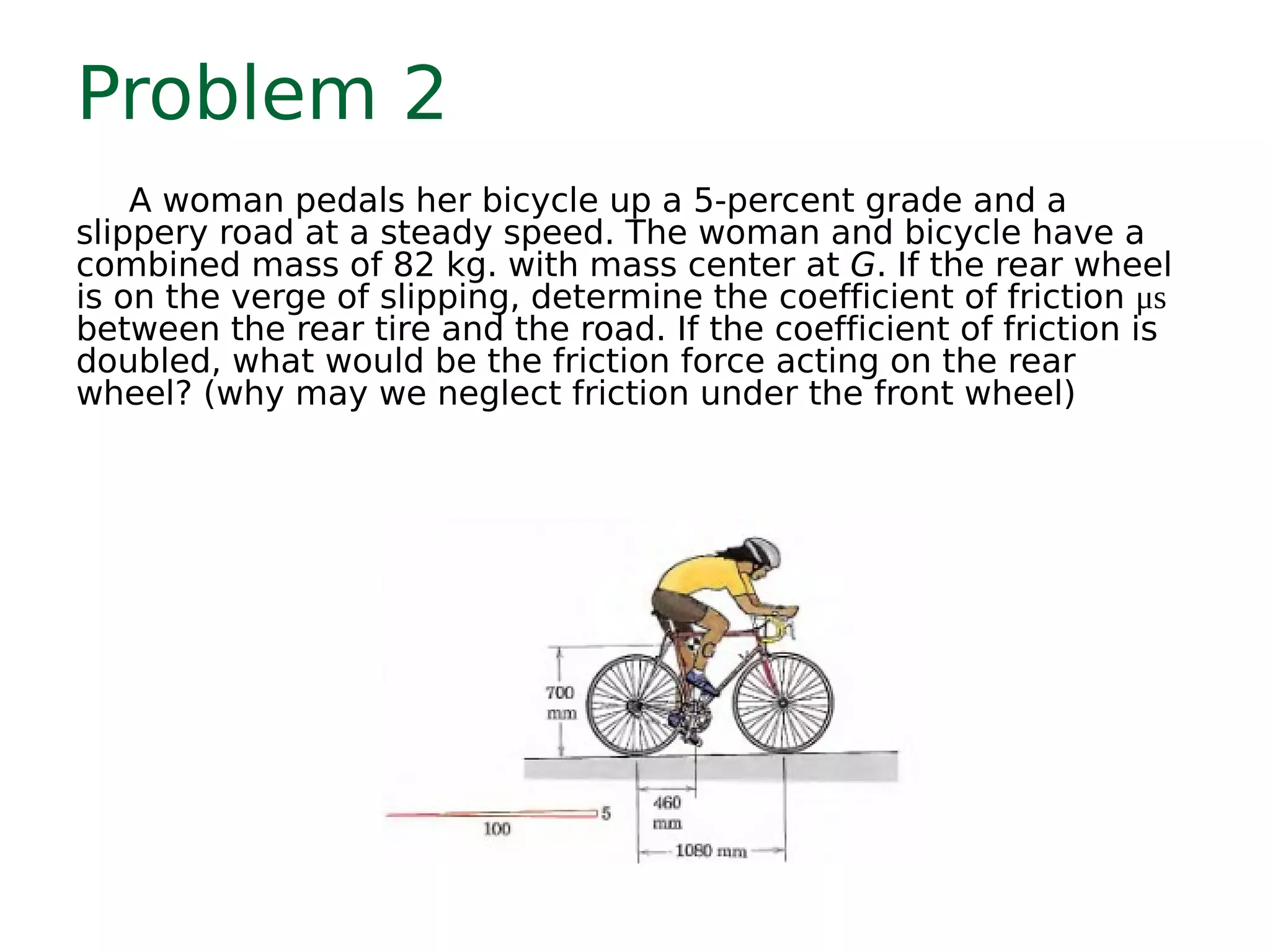

13. Problem 2
A woman pedals her bicycle up a 5-percent grade and a
slippery road at a steady speed. The woman and bicycle have a
combined mass of 82 kg. with mass center at G. If the rear wheel
is on the verge of slipping, determine the coefficient of friction μs
between the rear tire and the road. If the coefficient of friction is
doubled, what would be the friction force acting on the rear
wheel? (why may we neglect friction under the front wheel)
14.

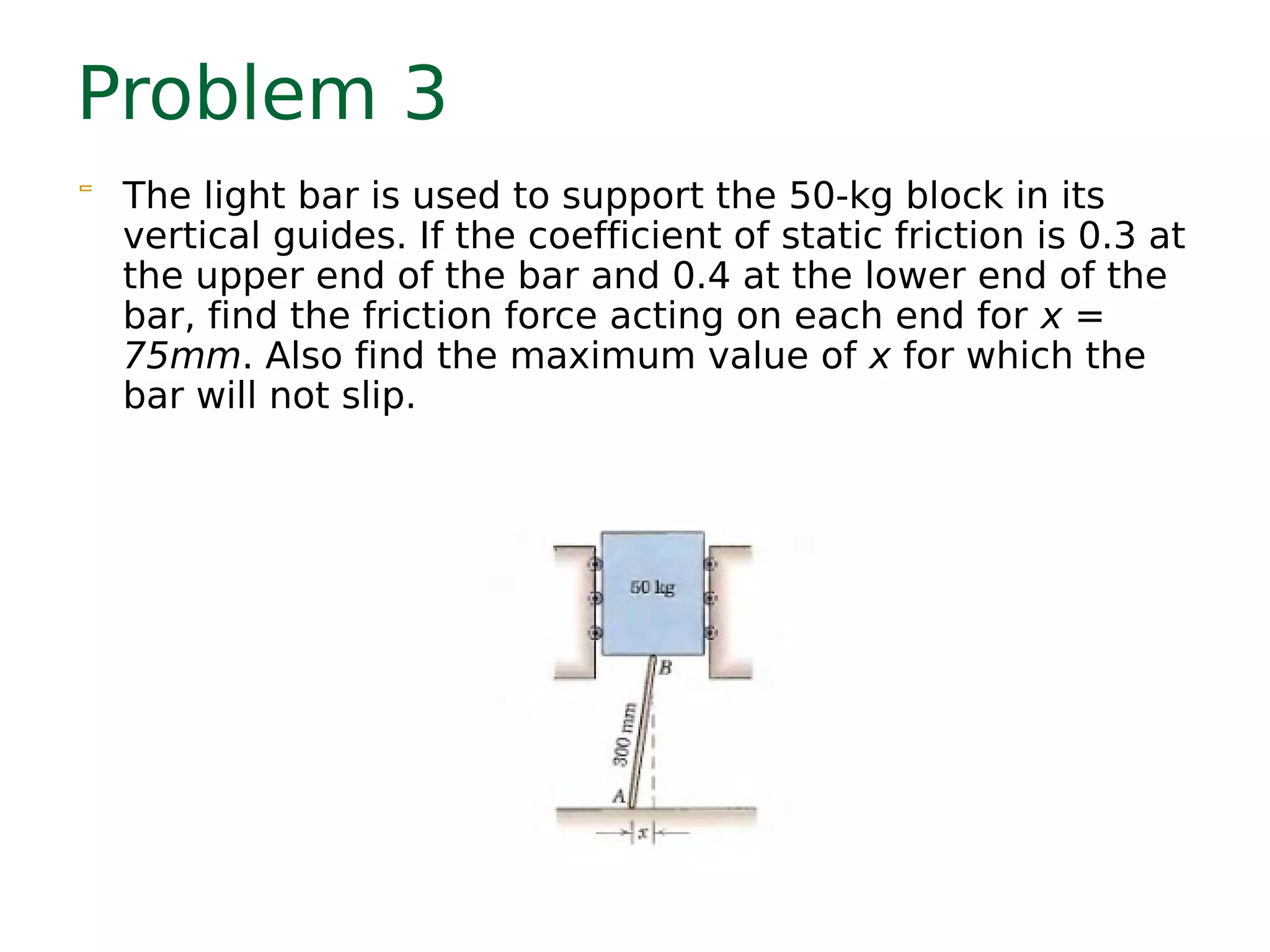

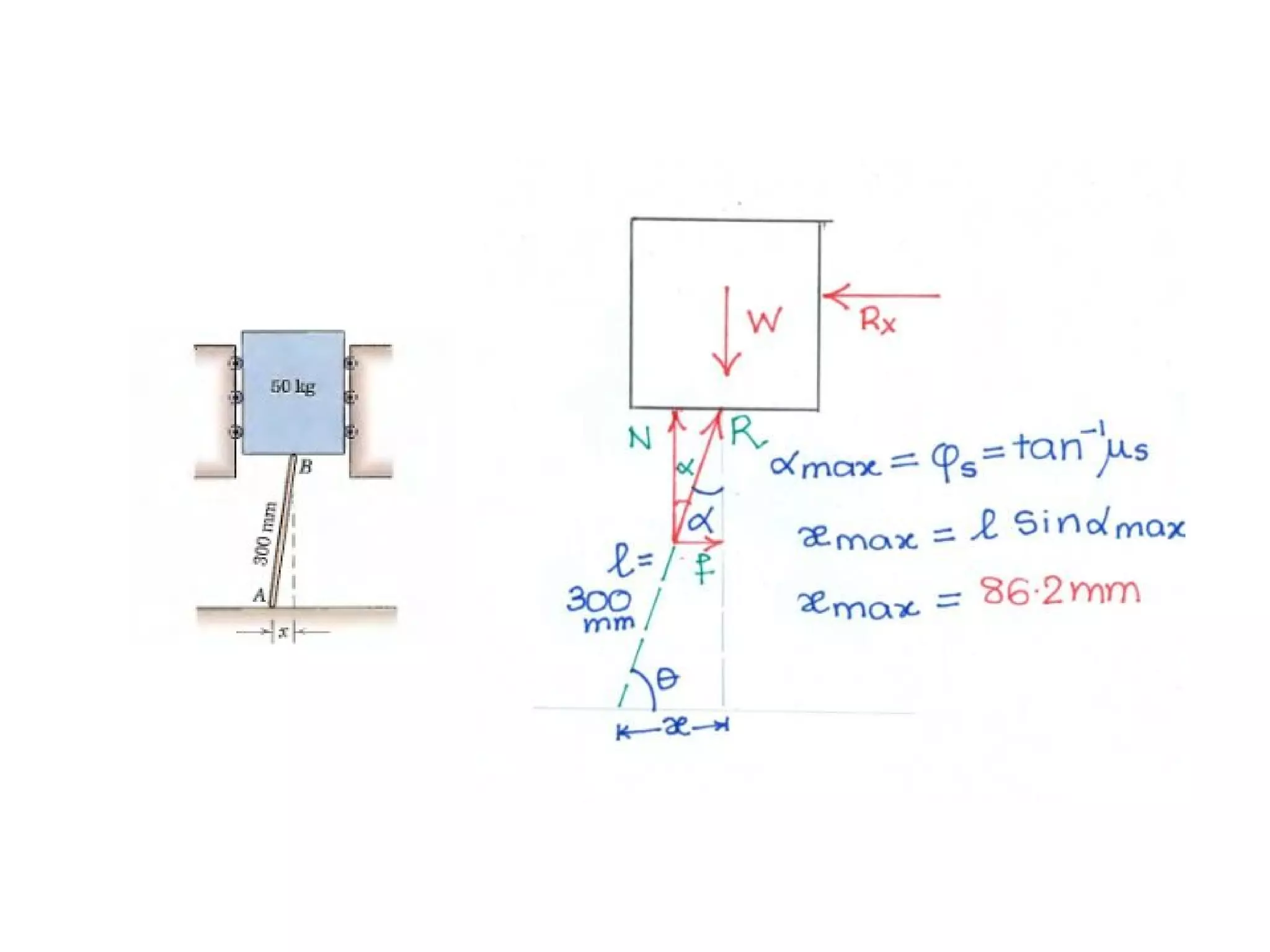

15. Problem 3
The light bar is used to support the 50-kg block in its
vertical guides. If the coefficient of static friction is 0.3 at
the upper end of the bar and 0.4 at the lower end of the
bar, find the friction force acting on each end for x =
75mm. Also find the maximum value of x for which the
bar will not slip.
16.

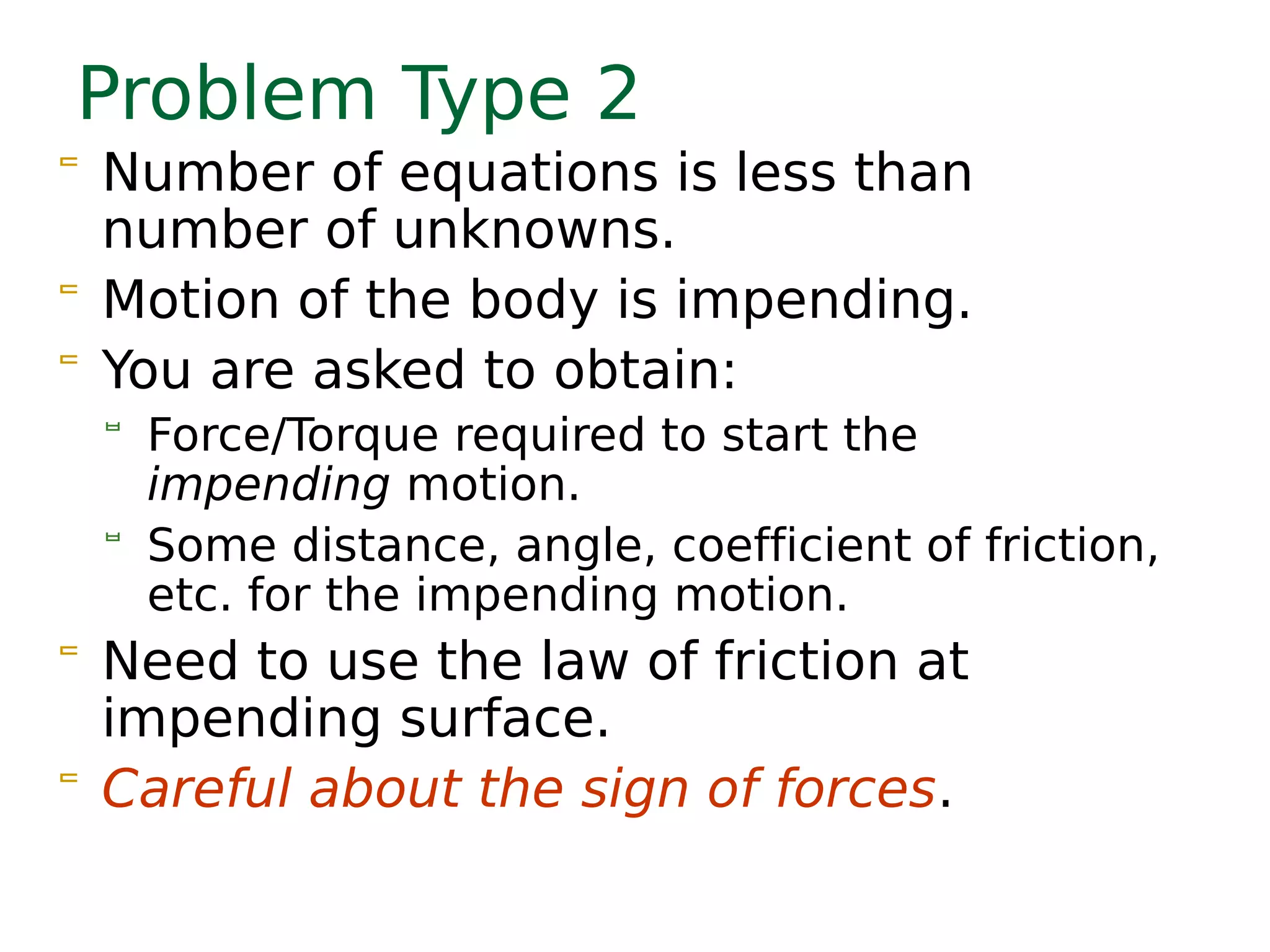

17. Problem Type 2
Number of equations is less than
number of unknowns.
Motion of the body is impending.
You are asked to obtain:
Force/Torque required to start the
impending motion.
Some distance, angle, coefficient of friction,
etc. for the impending motion.
Need to use the law of friction at
impending surface.
Careful about the sign of forces.

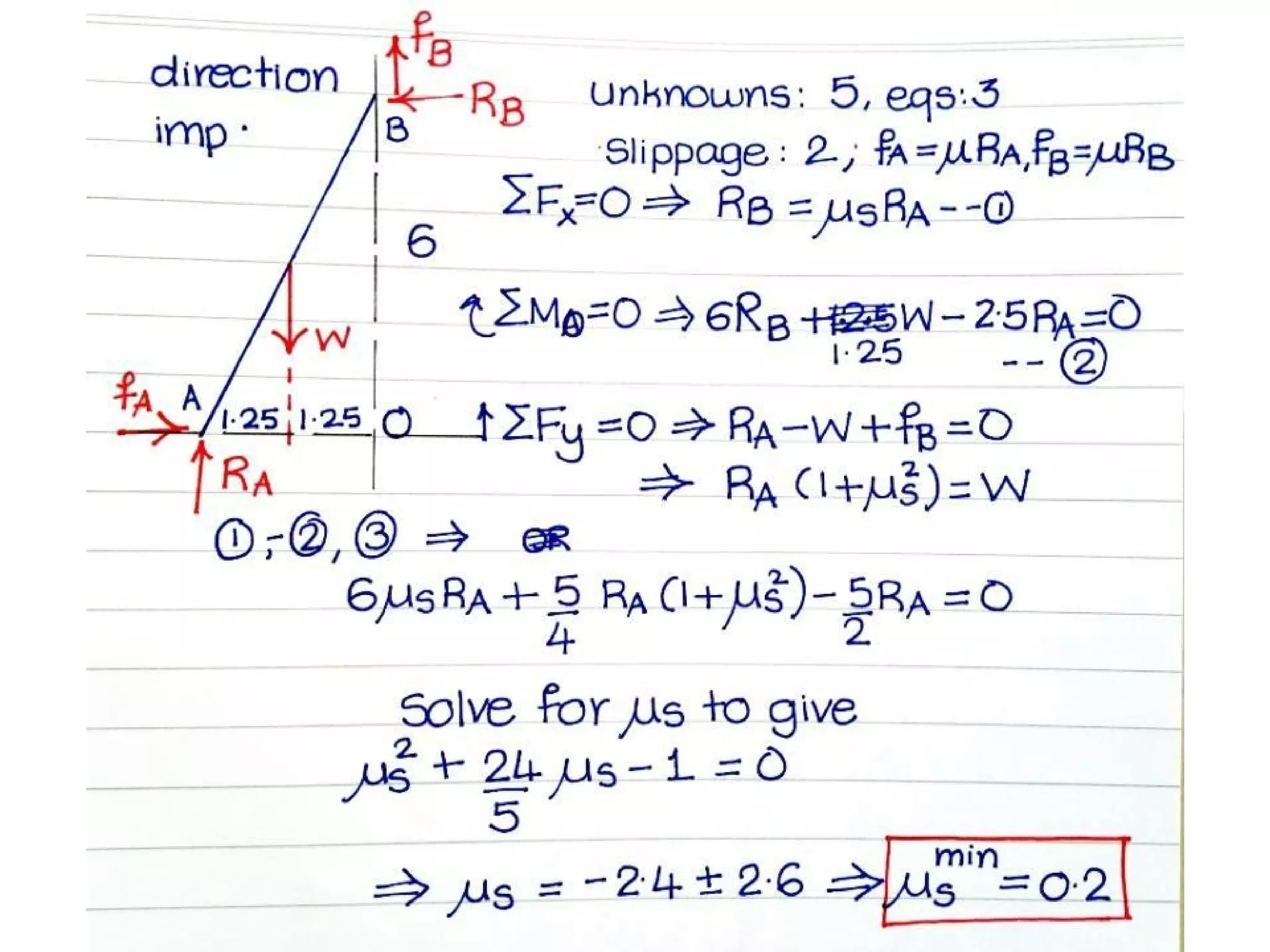

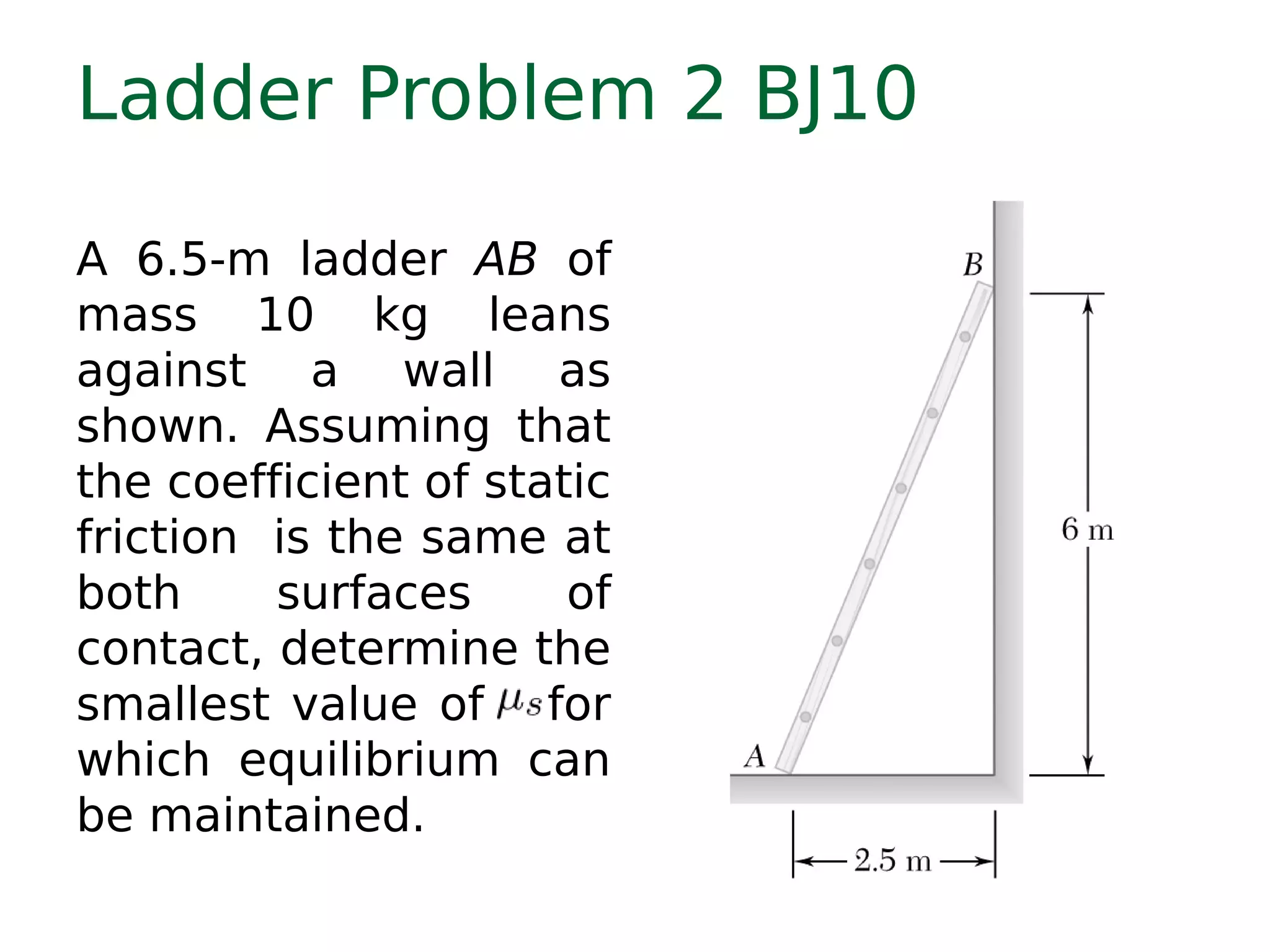

18. Ladder Problem 2 BJ10
A 6.5-m ladder AB of
mass 10 kg leans
against a wall as
shown. Assuming that
the coefficient of static
friction is the same at
both surfaces of
contact, determine the
smallest value of for
which equilibrium can
be maintained.
19.

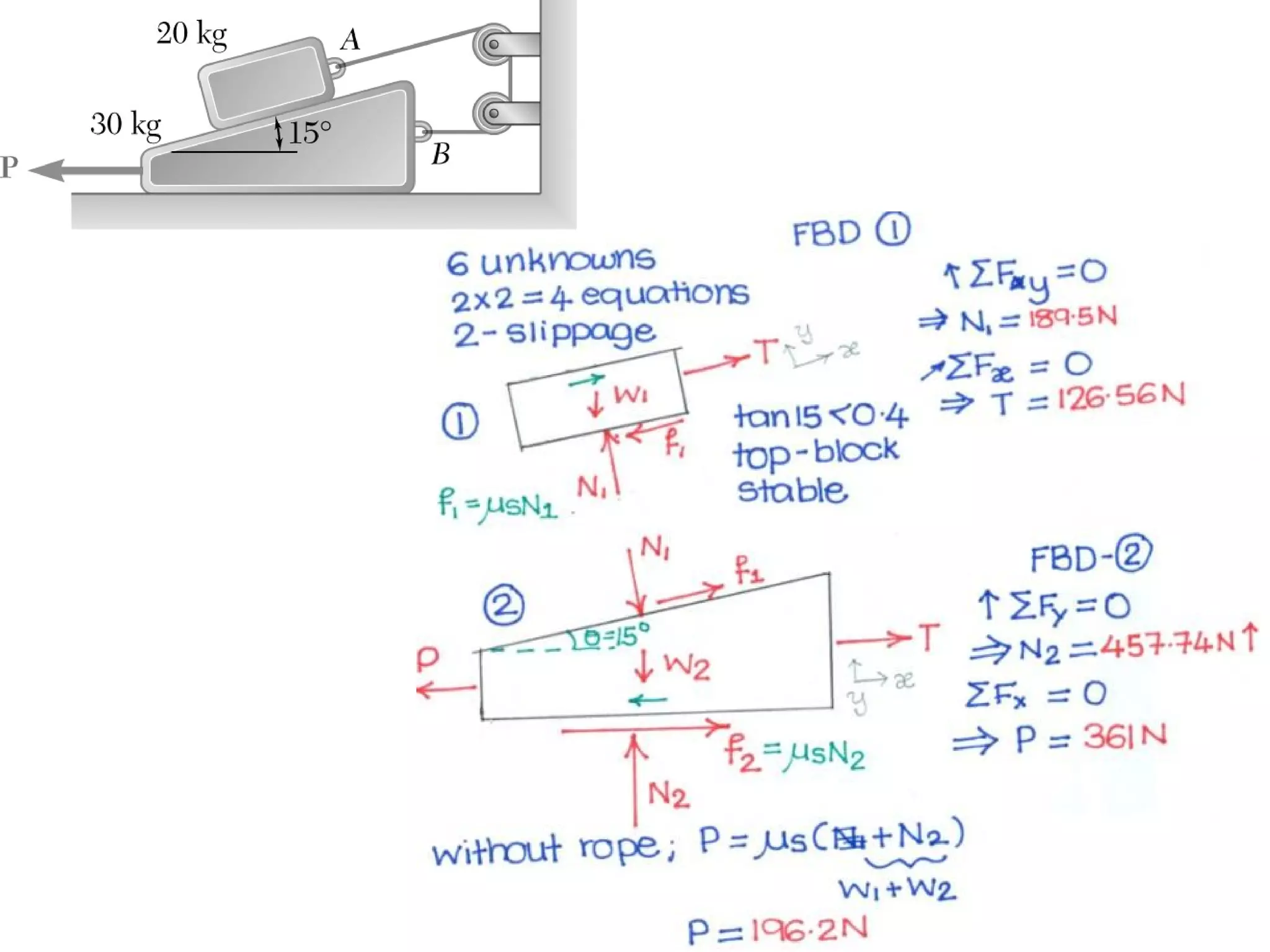

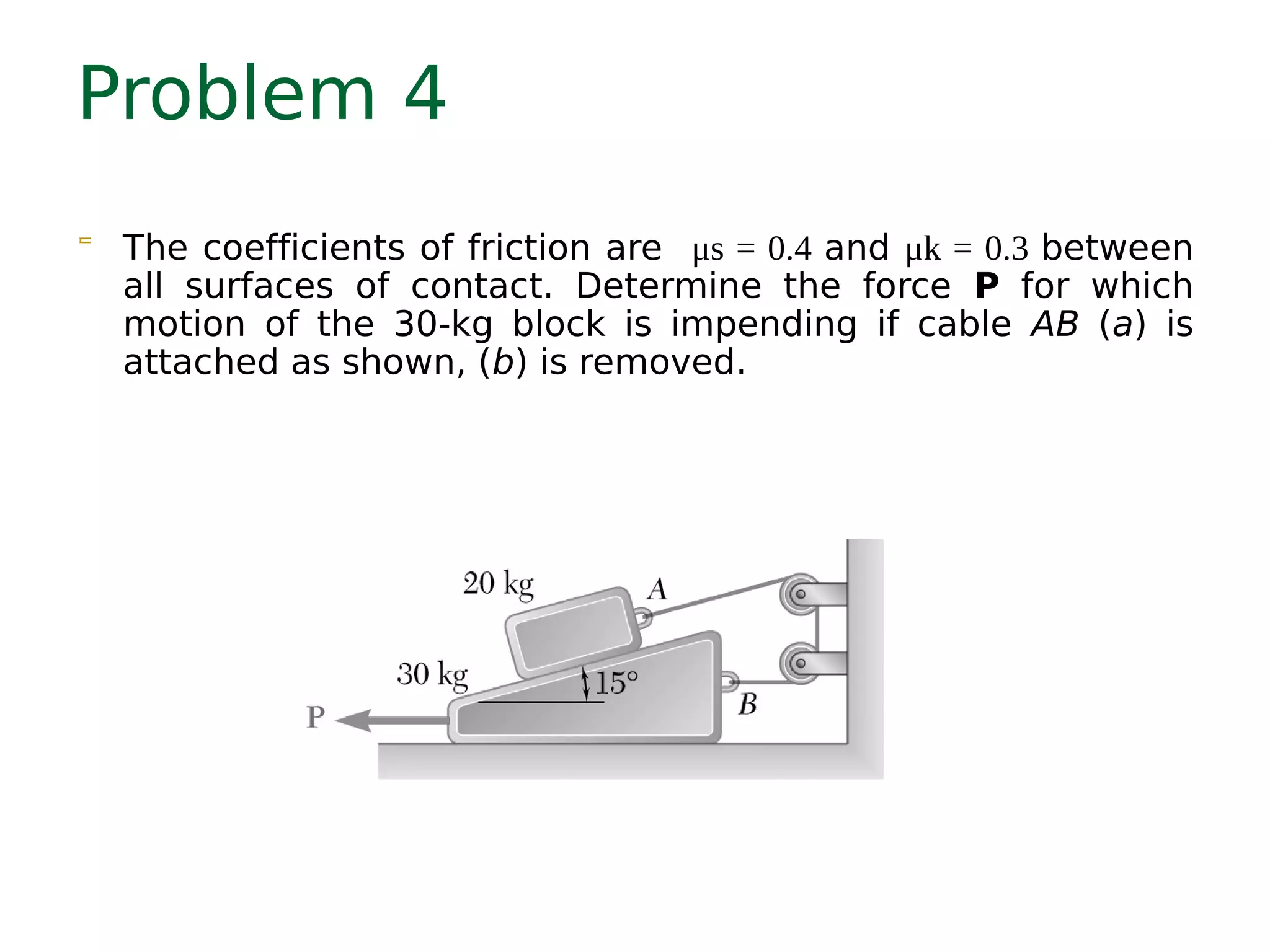

20. Problem 4
The coefficients of friction are μs = 0.4 and μk = 0.3 between
all surfaces of contact. Determine the force P for which
motion of the 30-kg block is impending if cable AB (a) is
attached as shown, (b) is removed.
21.

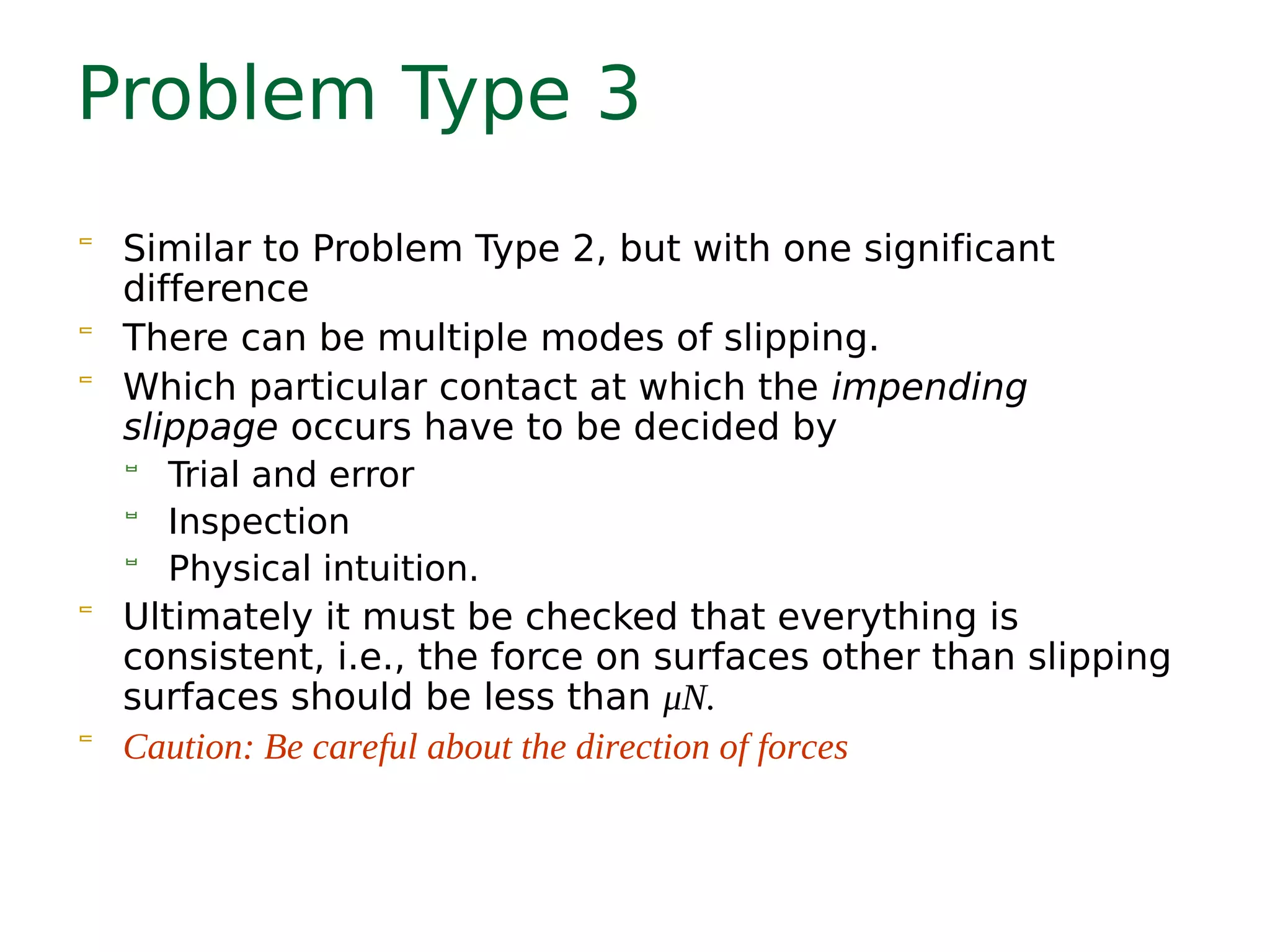

22. Problem Type 3
Similar to Problem Type 2, but with one significant
difference
There can be multiple modes of slipping.
Which particular contact at which the impending
slippage occurs have to be decided by
Trial and error
Inspection
Physical intuition.
Ultimately it must be checked that everything is
consistent, i.e., the force on surfaces other than slipping
surfaces should be less than μN.
Caution: Be careful about the direction of forces

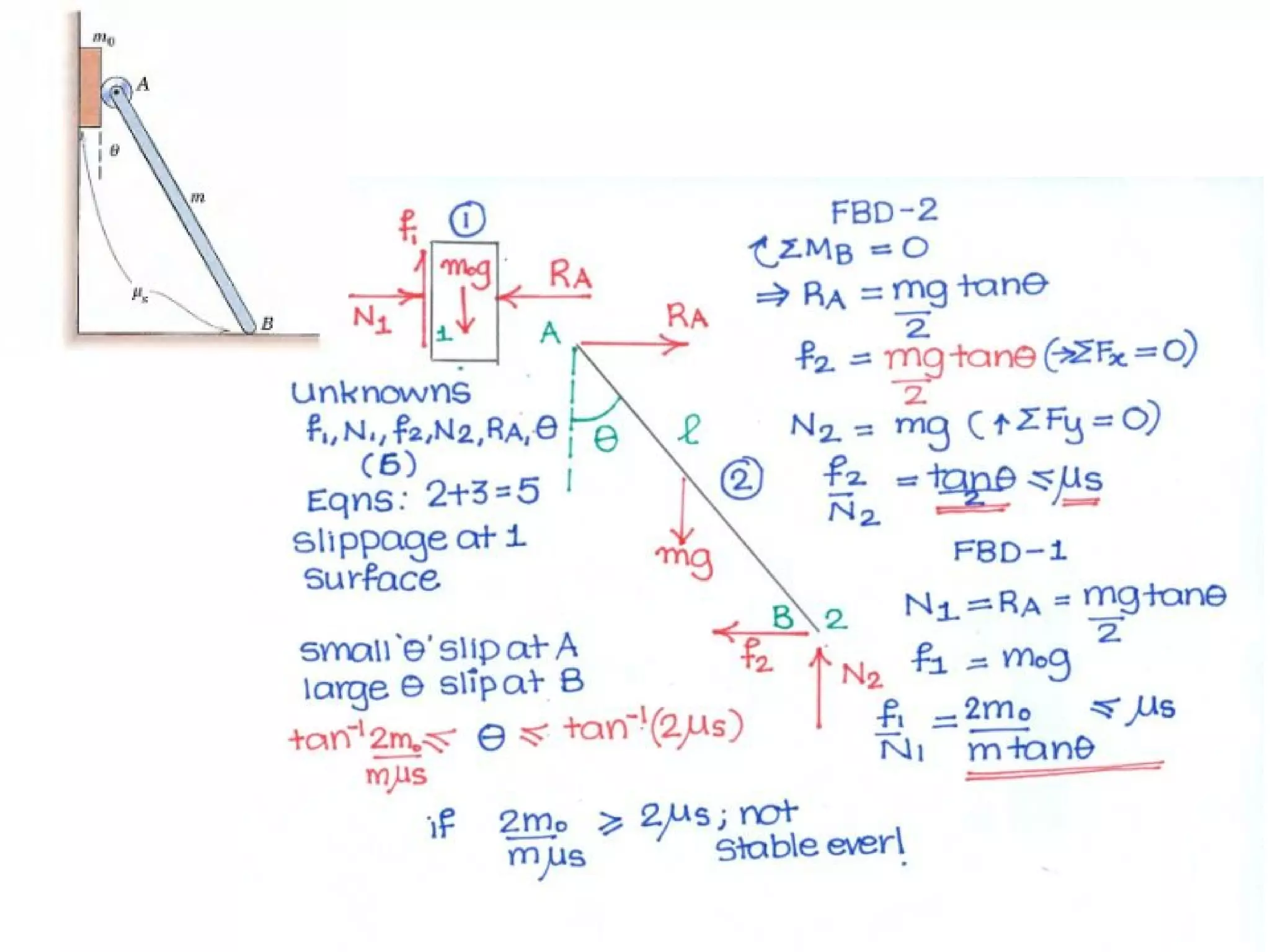

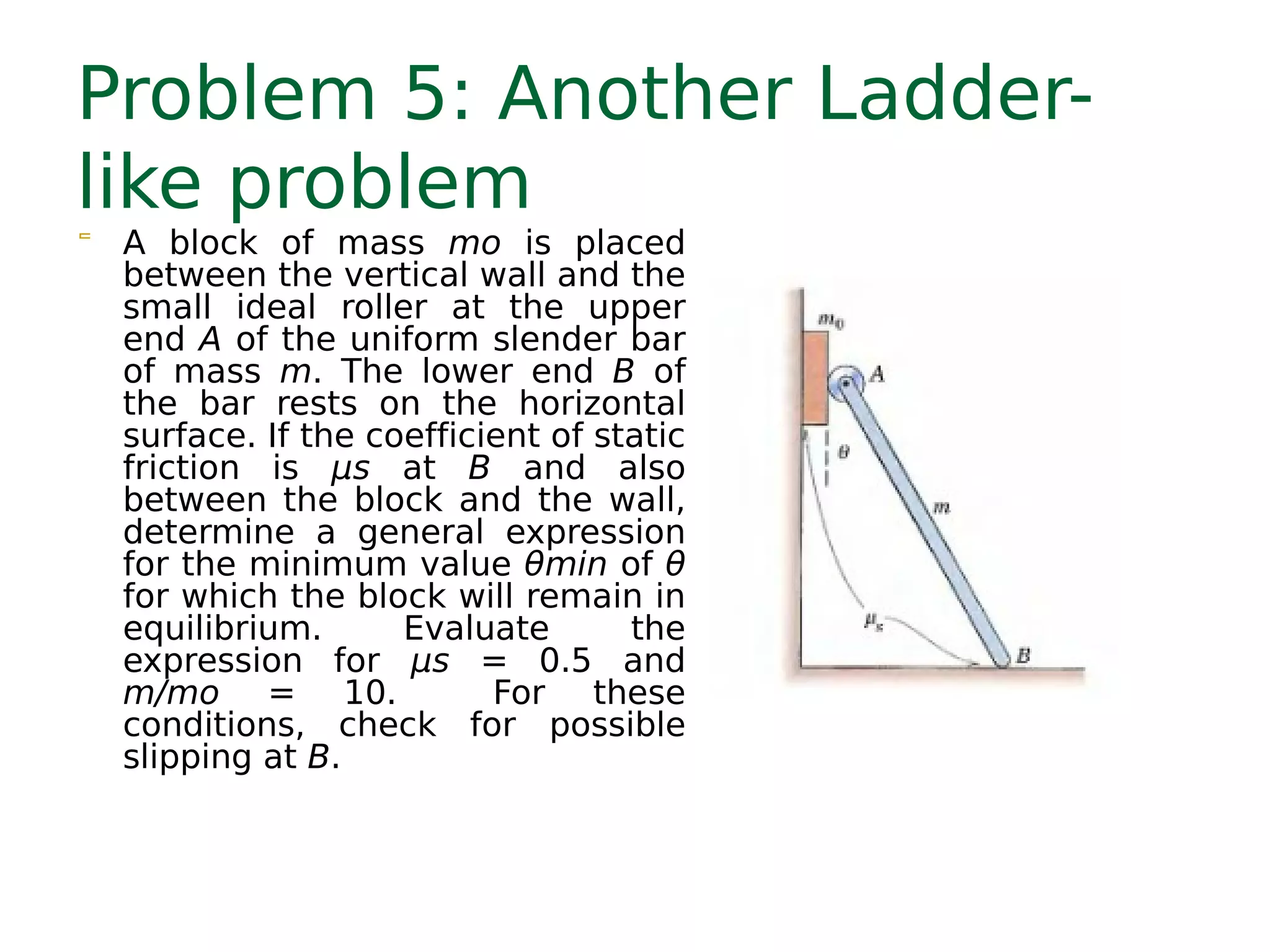

23. Problem 5: Another Ladder-
like problem
A block of mass mo is placed
between the vertical wall and the
small ideal roller at the upper
end A of the uniform slender bar
of mass m. The lower end B of
the bar rests on the horizontal
surface. If the coefficient of static
friction is μs at B and also
between the block and the wall,
determine a general expression
for the minimum value θmin of θ
for which the block will remain in
equilibrium. Evaluate the
expression for μs = 0.5 and
m/mo = 10. For these
conditions, check for possible
slipping at B.
24.

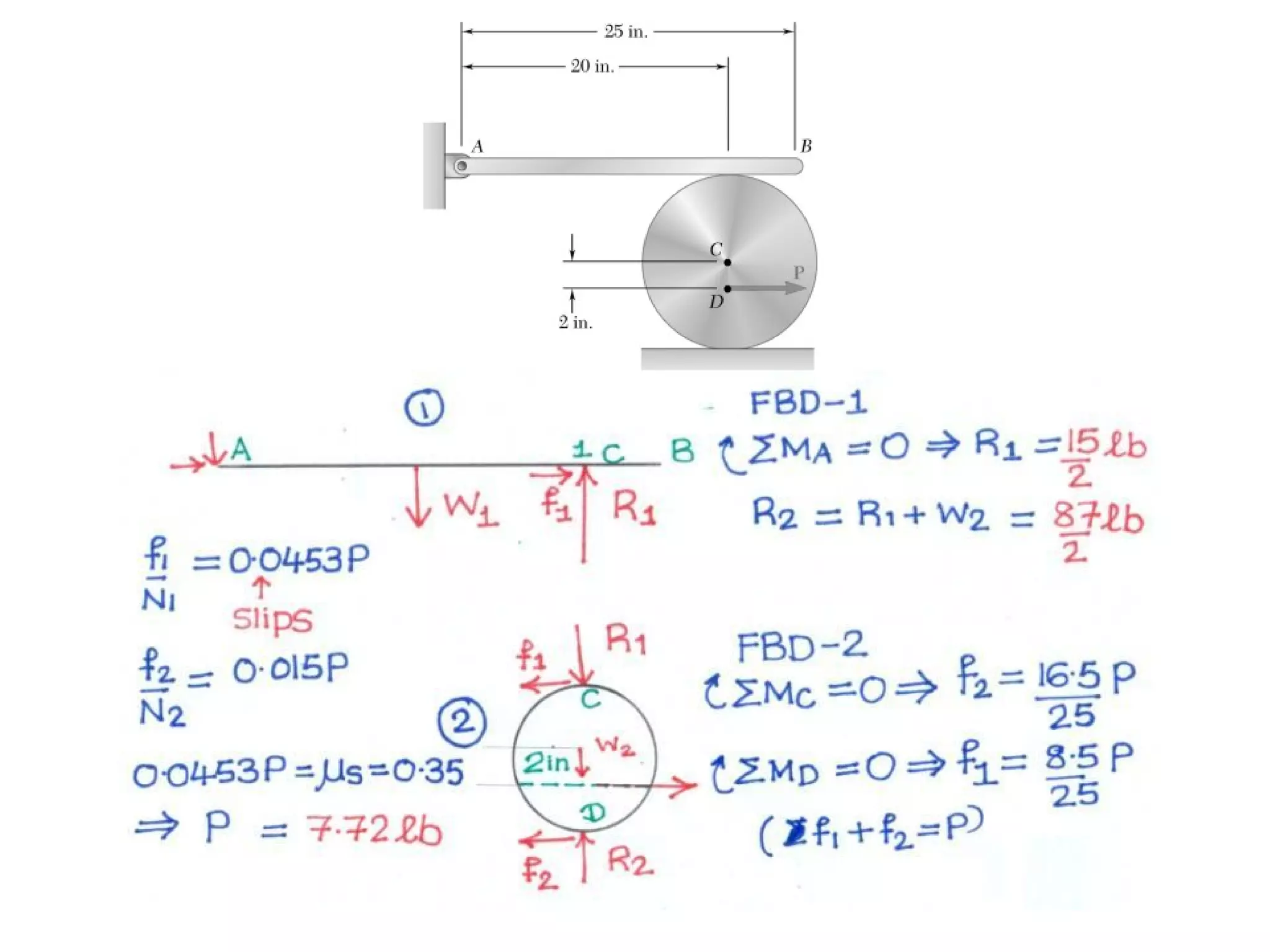

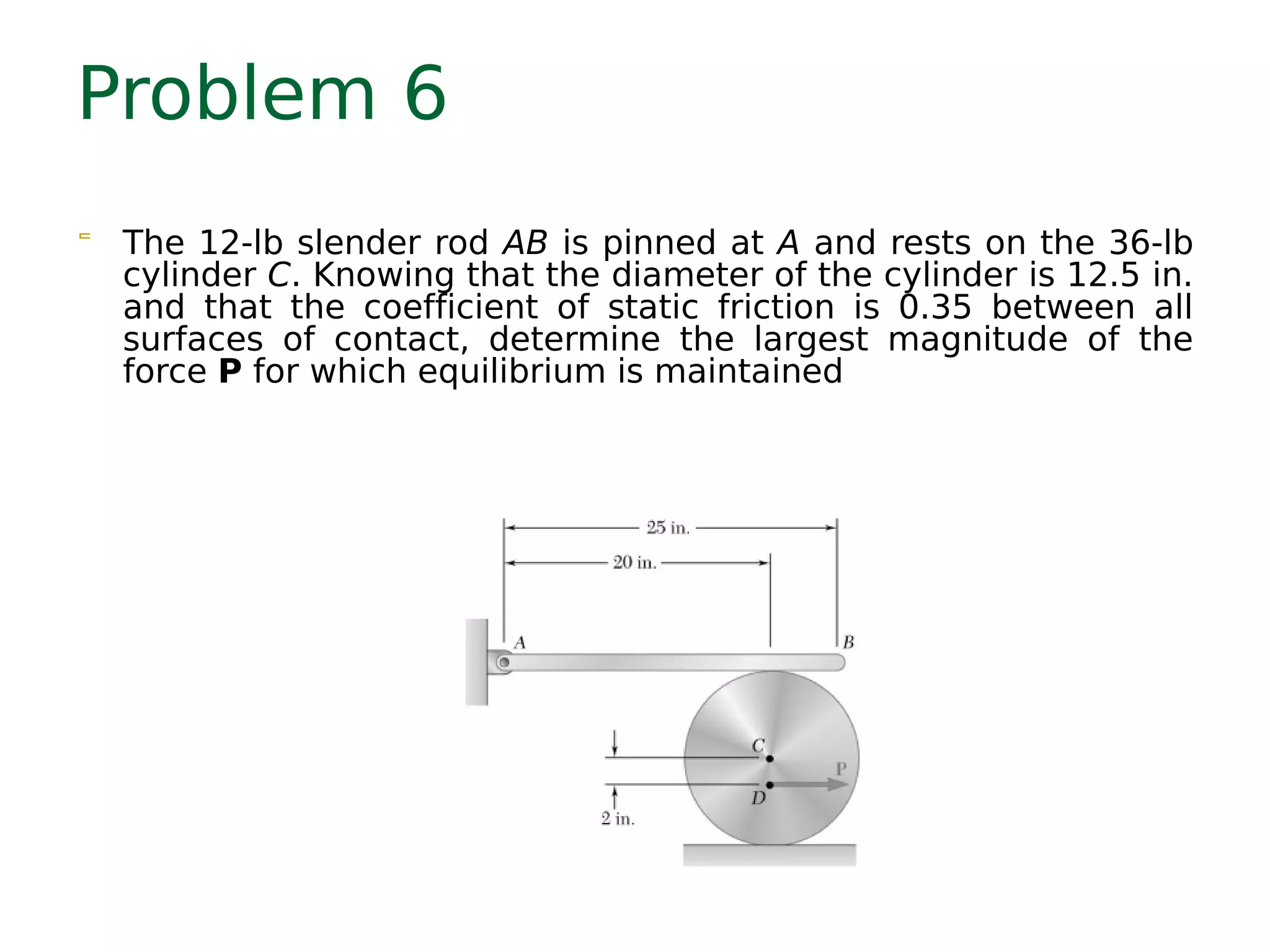

25. Problem 6
The 12-lb slender rod AB is pinned at A and rests on the 36-lb
cylinder C. Knowing that the diameter of the cylinder is 12.5 in.
and that the coefficient of static friction is 0.35 between all
surfaces of contact, determine the largest magnitude of the
force P for which equilibrium is maintained
26.

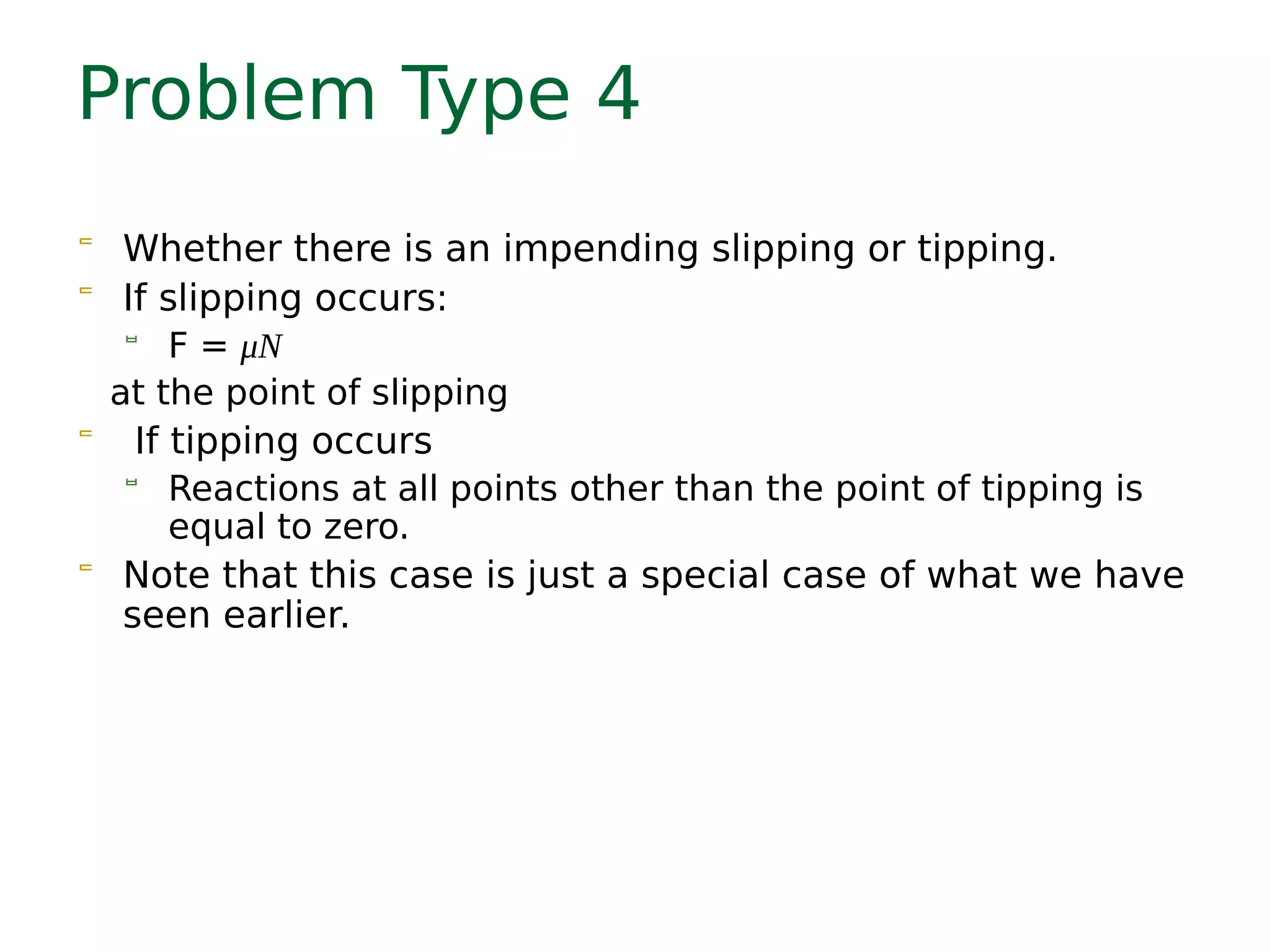

27. Problem Type 4
Whether there is an impending slipping or tipping.
If slipping occurs:
F = μN
at the point of slipping
If tipping occurs
Reactions at all points other than the point of tipping is
equal to zero.
Note that this case is just a special case of what we have
seen earlier.

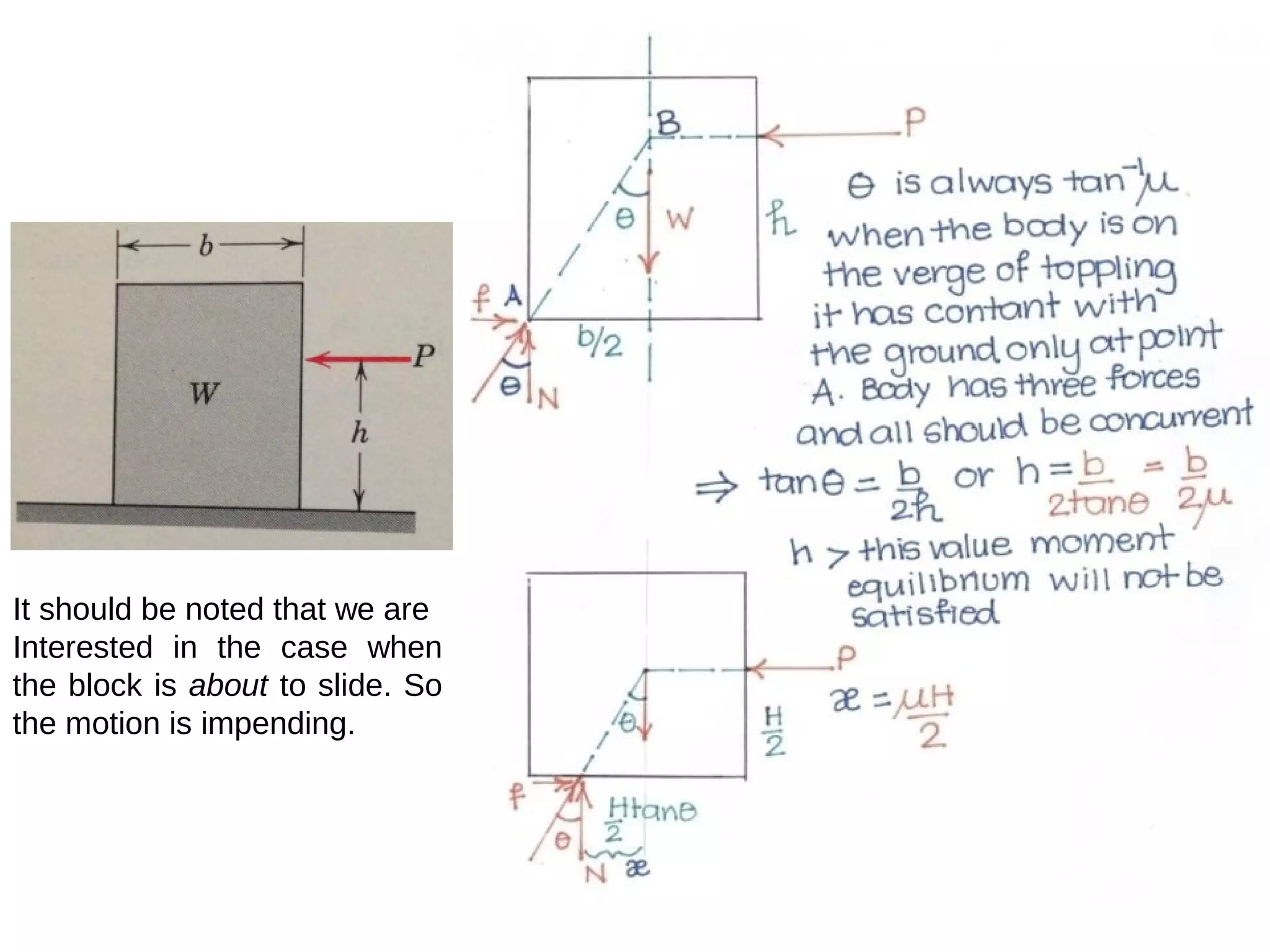

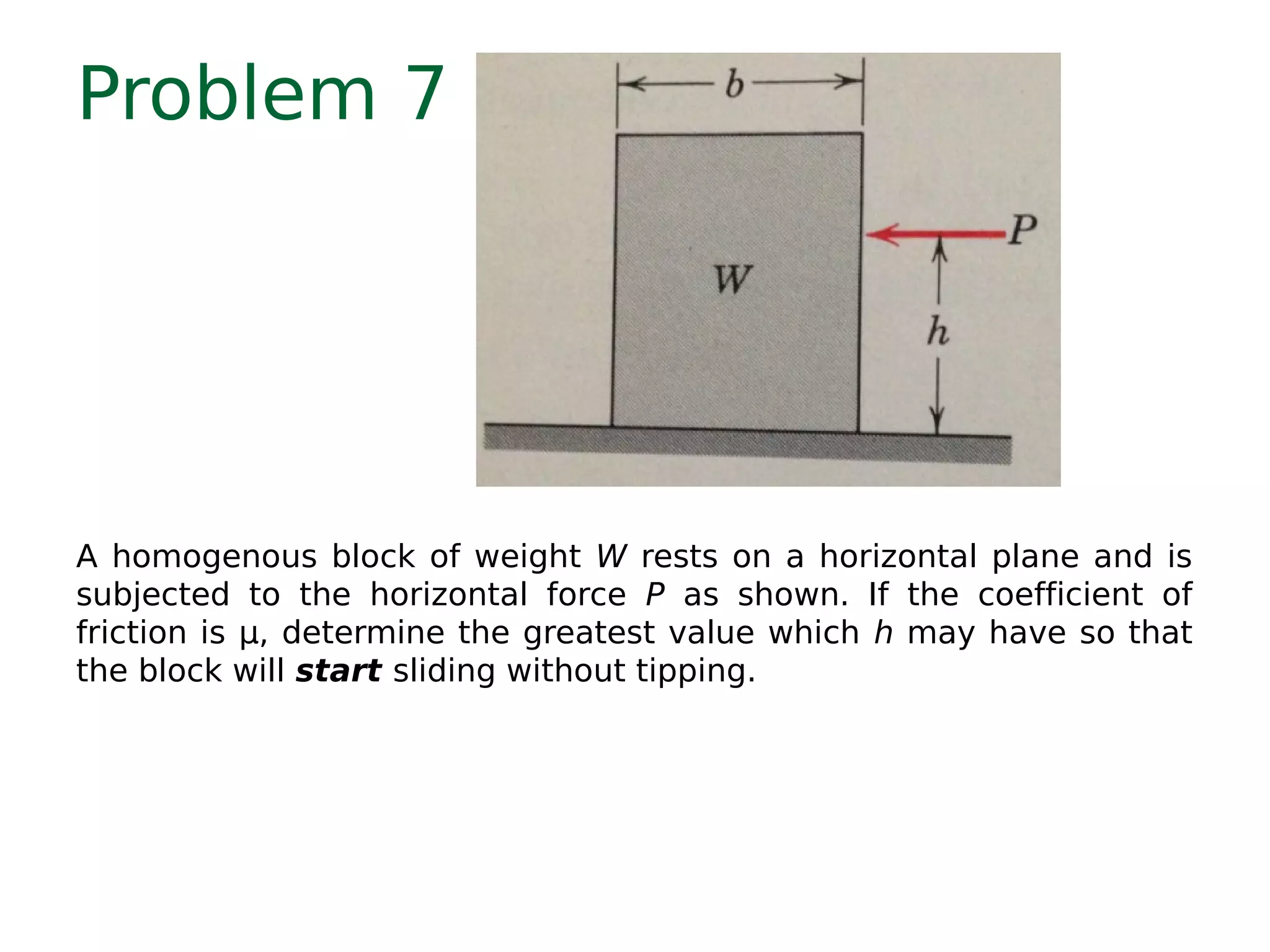

28. Problem 7
A homogenous block of weight W rests on a horizontal plane and is
subjected to the horizontal force P as shown. If the coefficient of
friction is μ, determine the greatest value which h may have so that
the block will start sliding without tipping.
29. It should be noted that we are
Interested in the case when
the block is about to slide. So
the motion is impending.

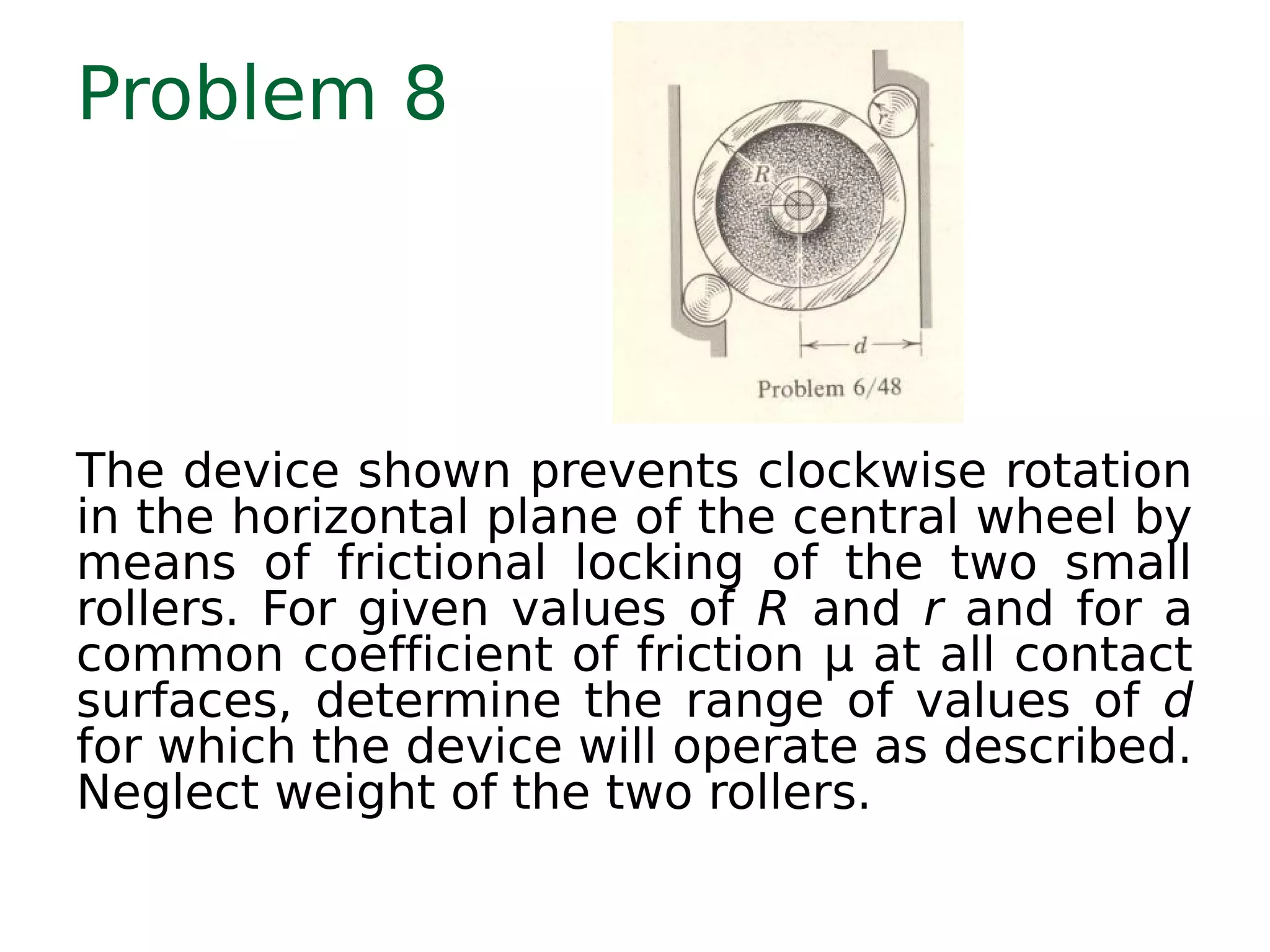

30. Problem 8
The device shown prevents clockwise rotation
in the horizontal plane of the central wheel by
means of frictional locking of the two small
rollers. For given values of R and r and for a
common coefficient of friction μ at all contact
surfaces, determine the range of values of d
for which the device will operate as described.
Neglect weight of the two rollers.

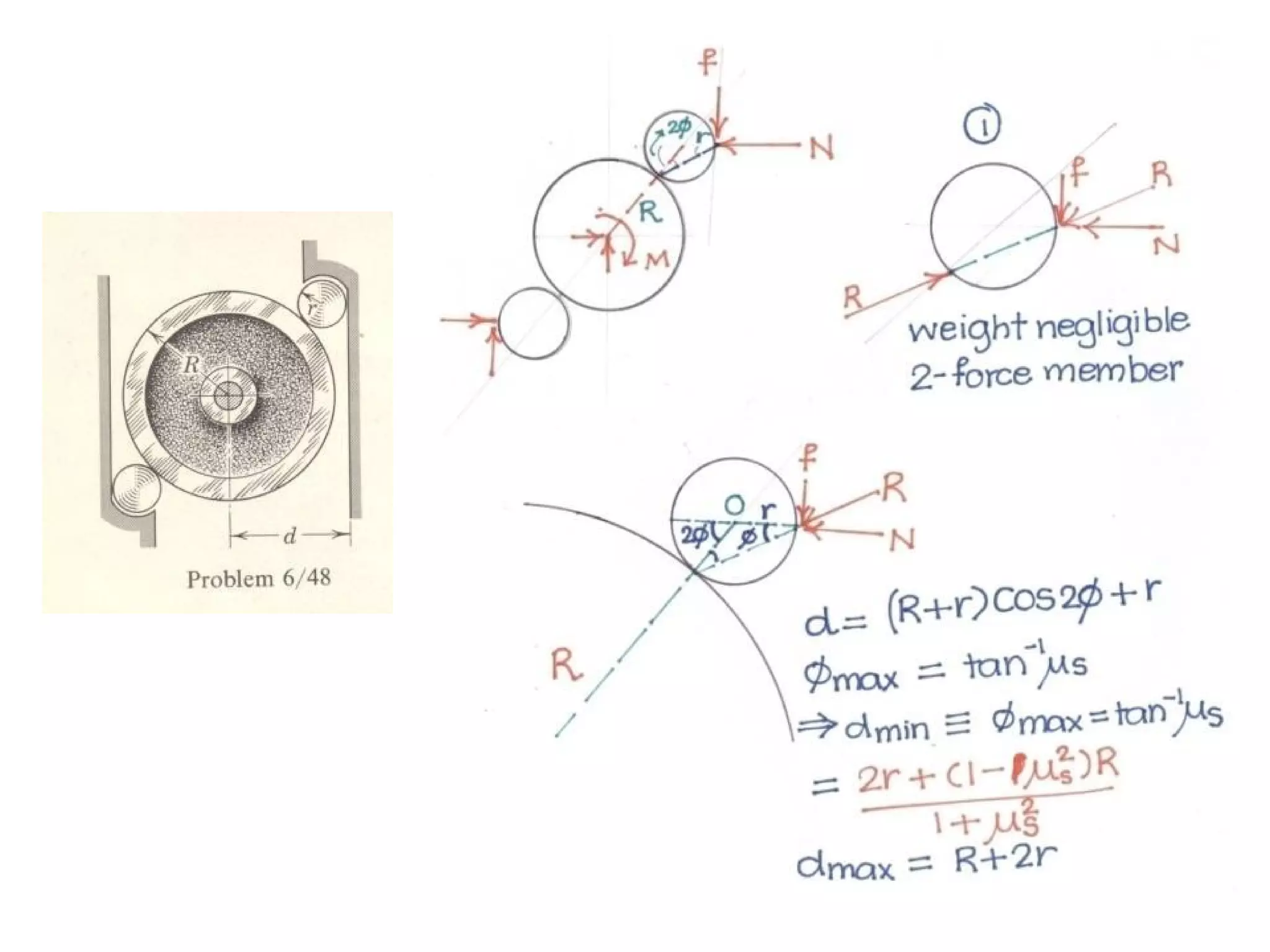

31.

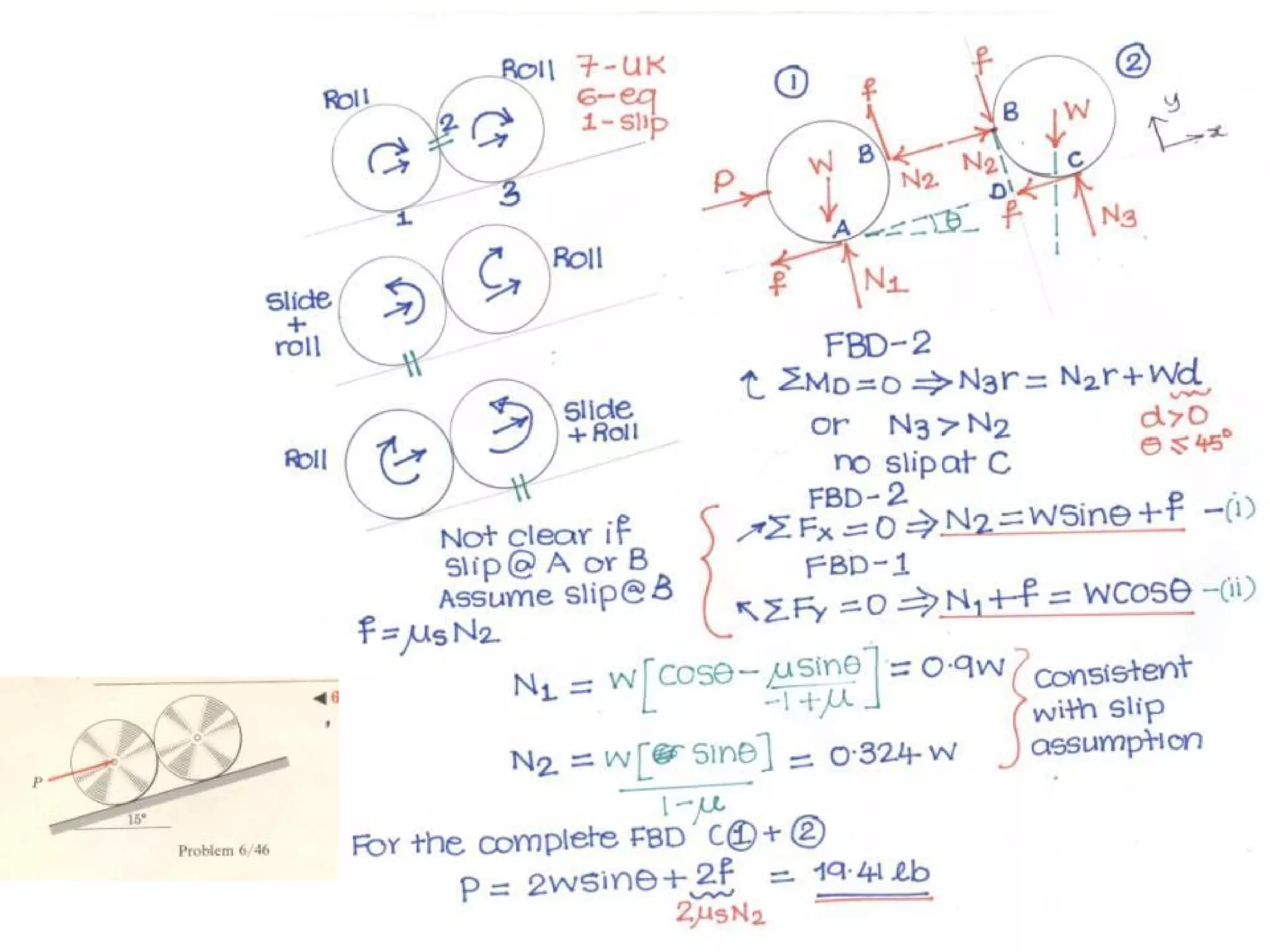

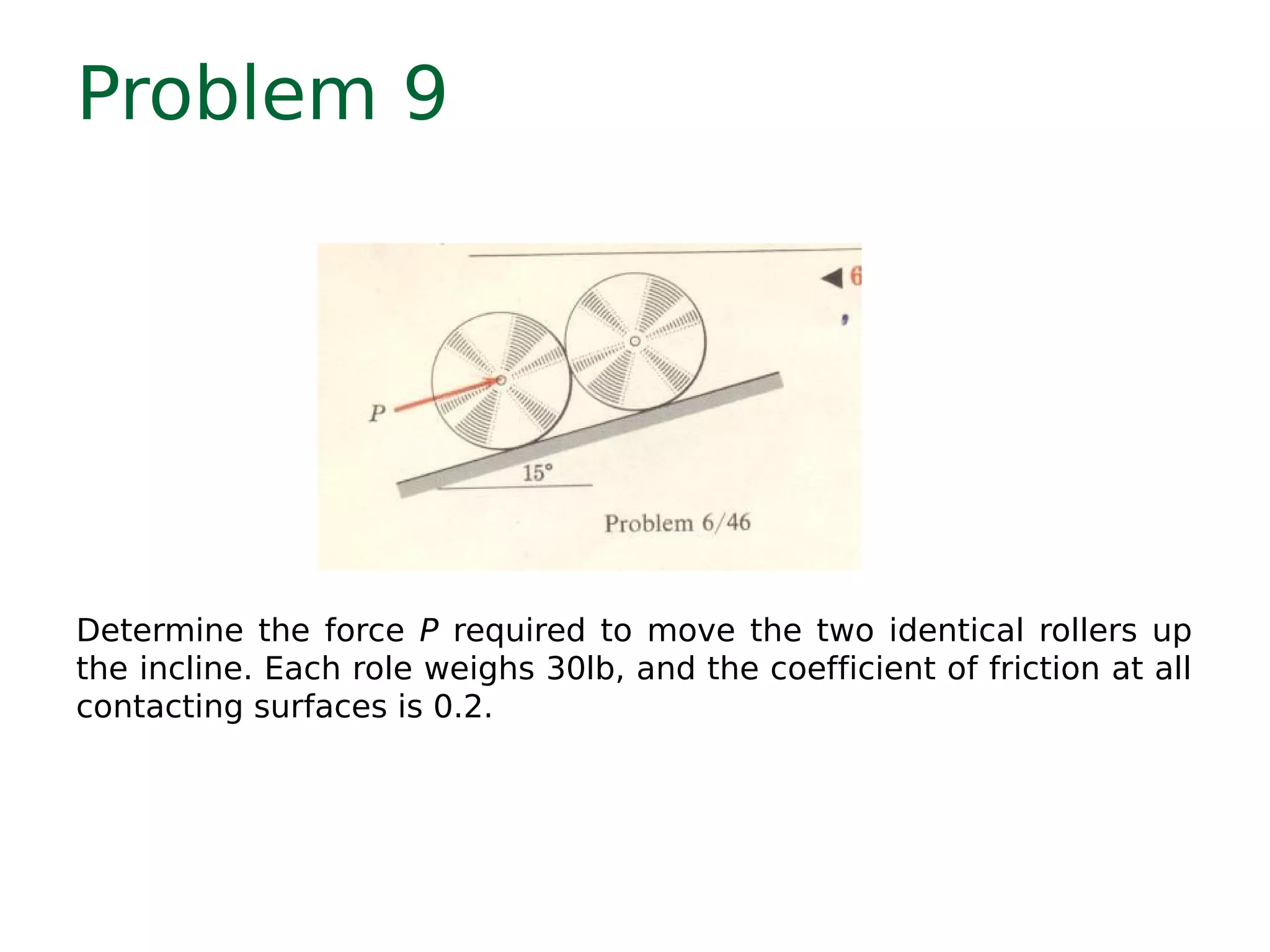

32. Problem 9
Determine the force P required to move the two identical rollers up
the incline. Each role weighs 30lb, and the coefficient of friction at all
contacting surfaces is 0.2.

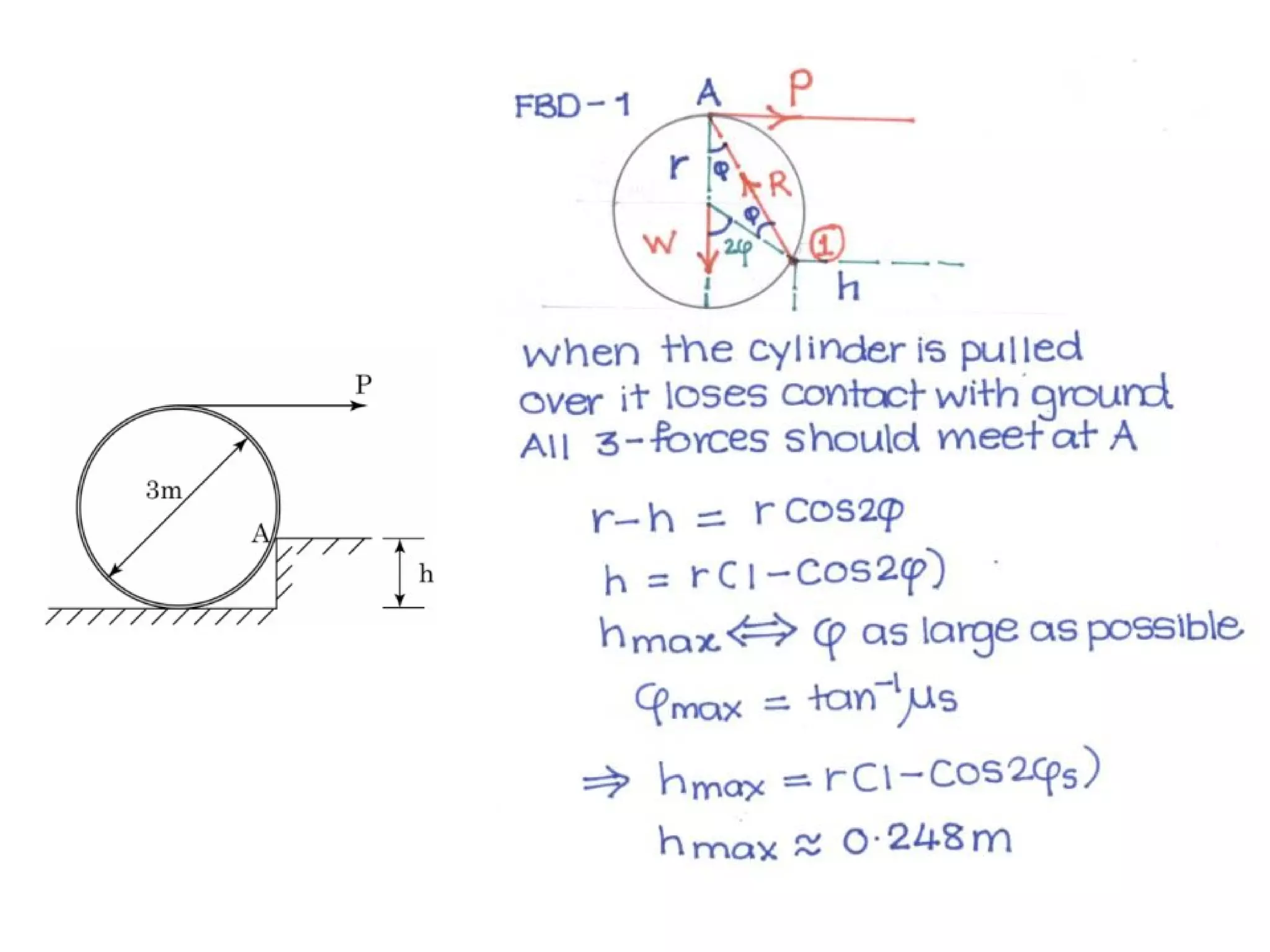

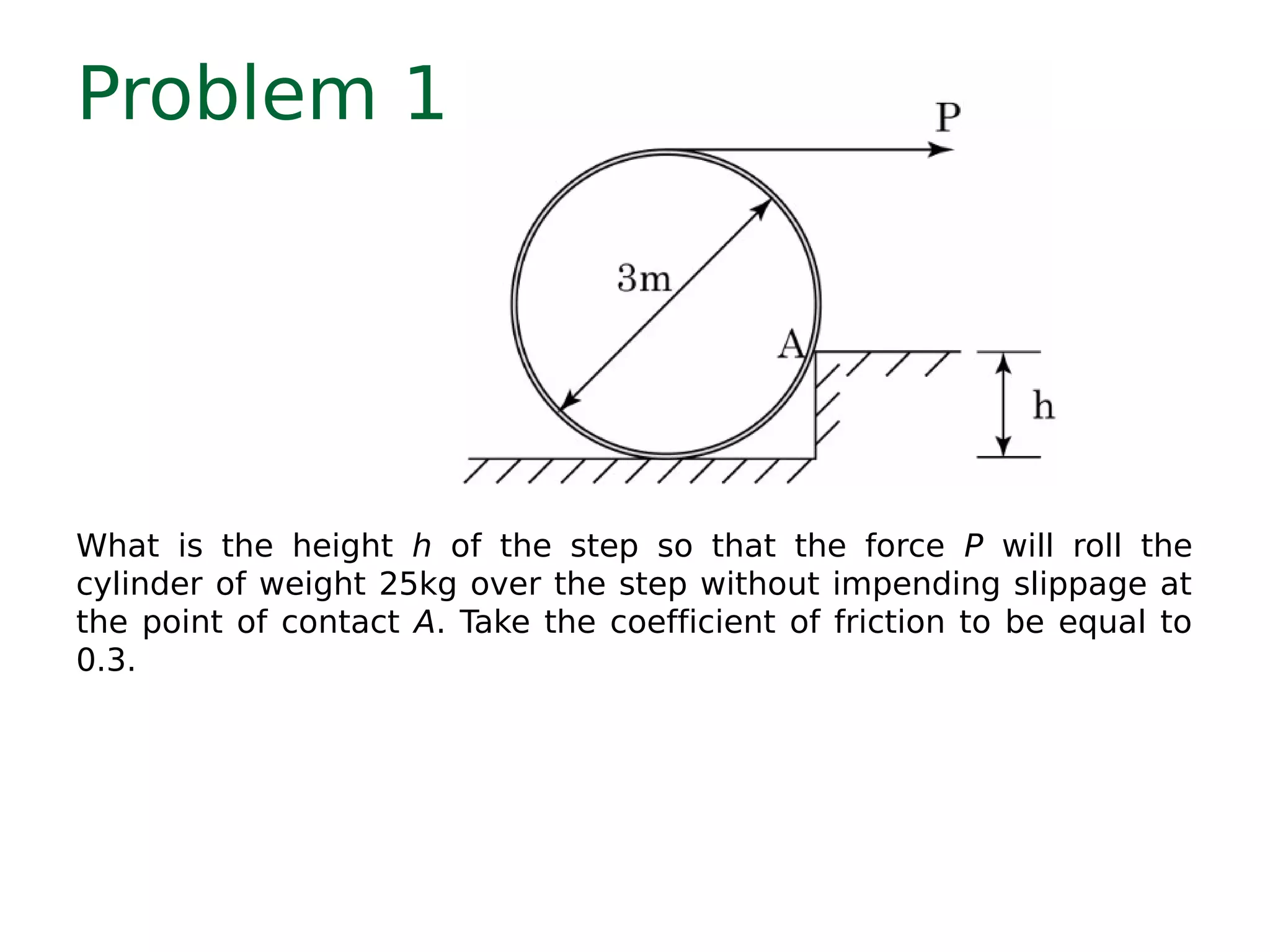

35. Problem 1
What is the height h of the step so that the force P will roll the
cylinder of weight 25kg over the step without impending slippage at
the point of contact A. Take the coefficient of friction to be equal to
0.3.
36.

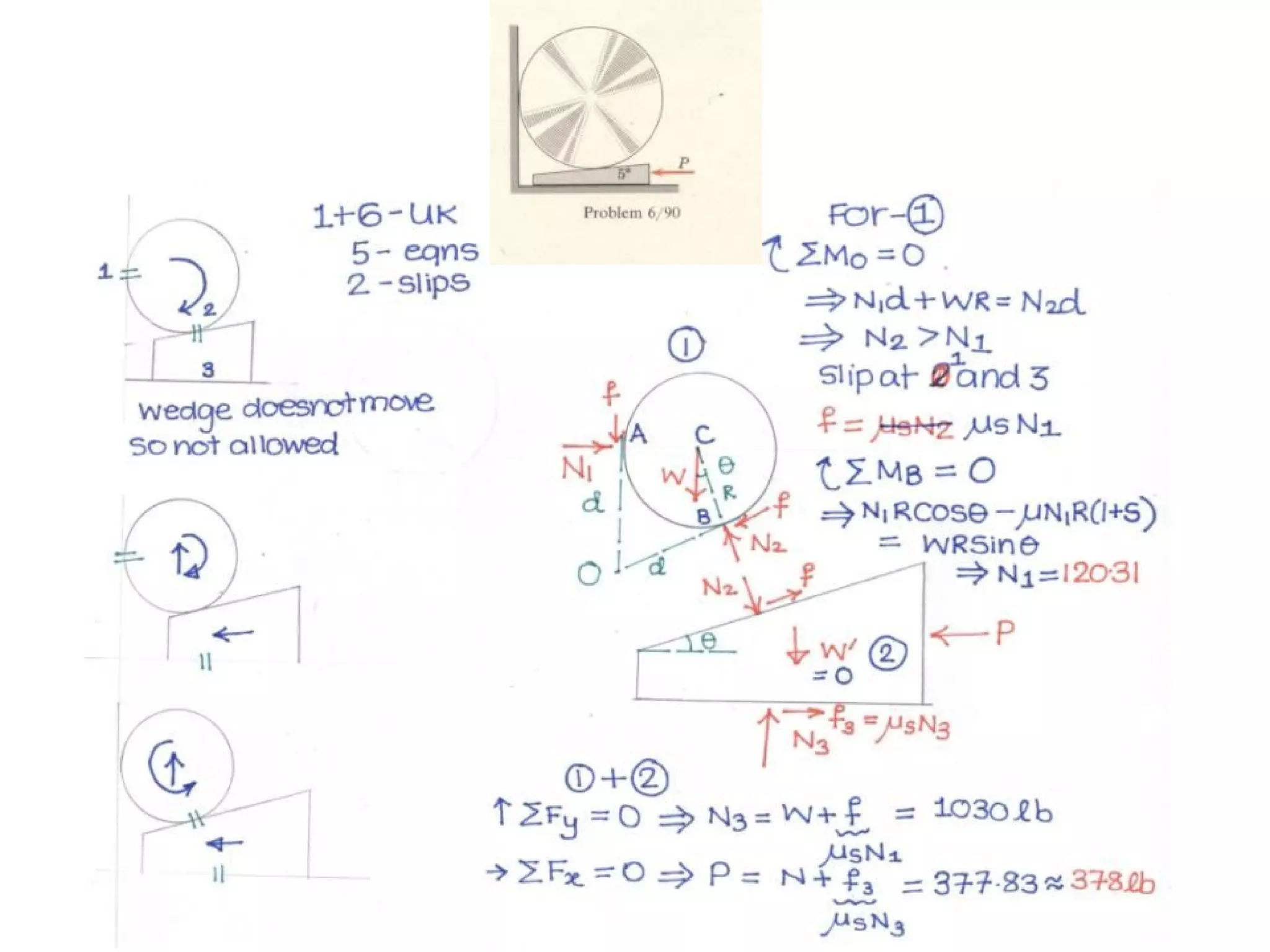

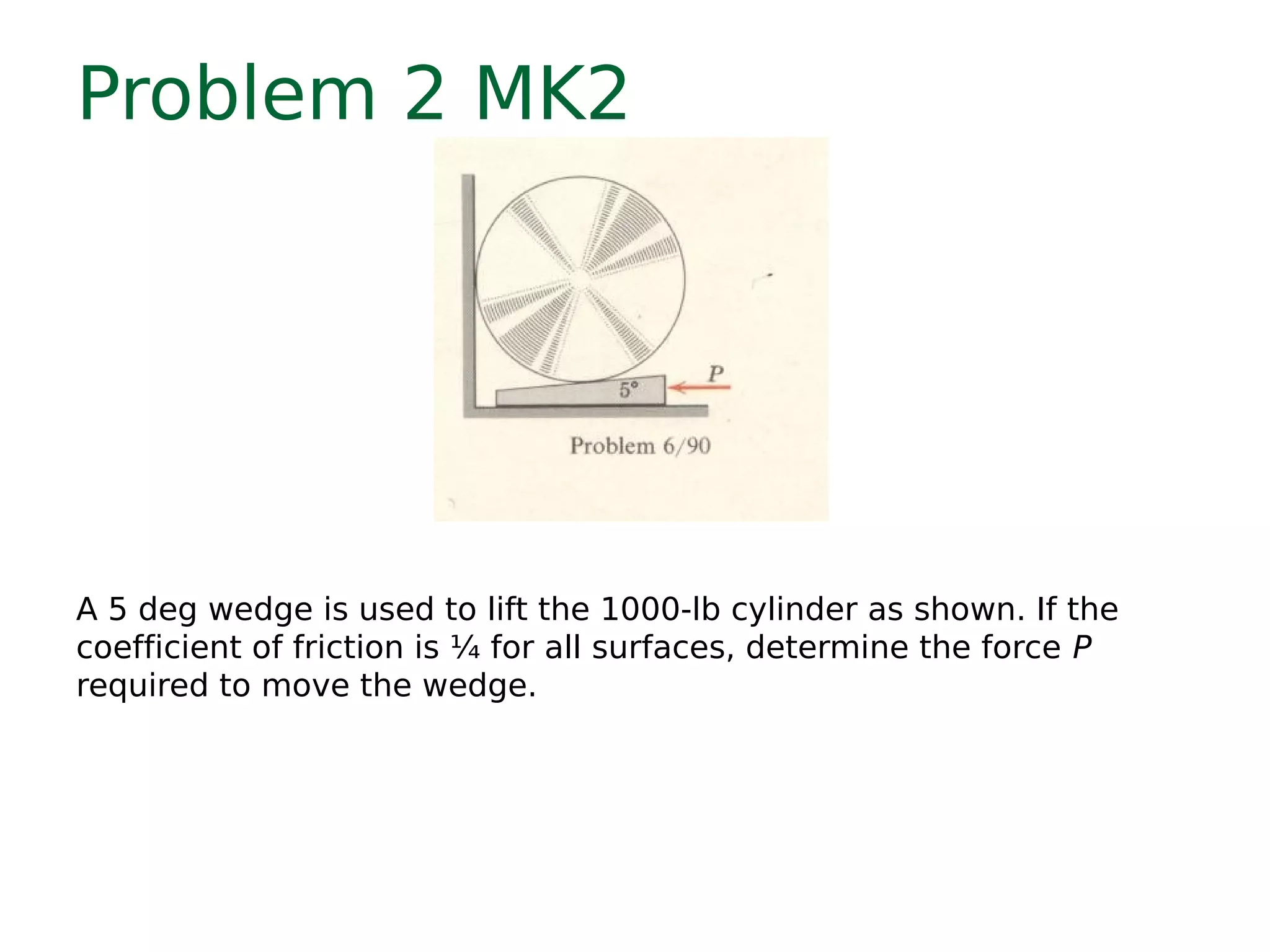

37. Problem 2 MK2
A 5 deg wedge is used to lift the 1000-lb cylinder as shown. If the
coefficient of friction is ¼ for all surfaces, determine the force P
required to move the wedge.
38.

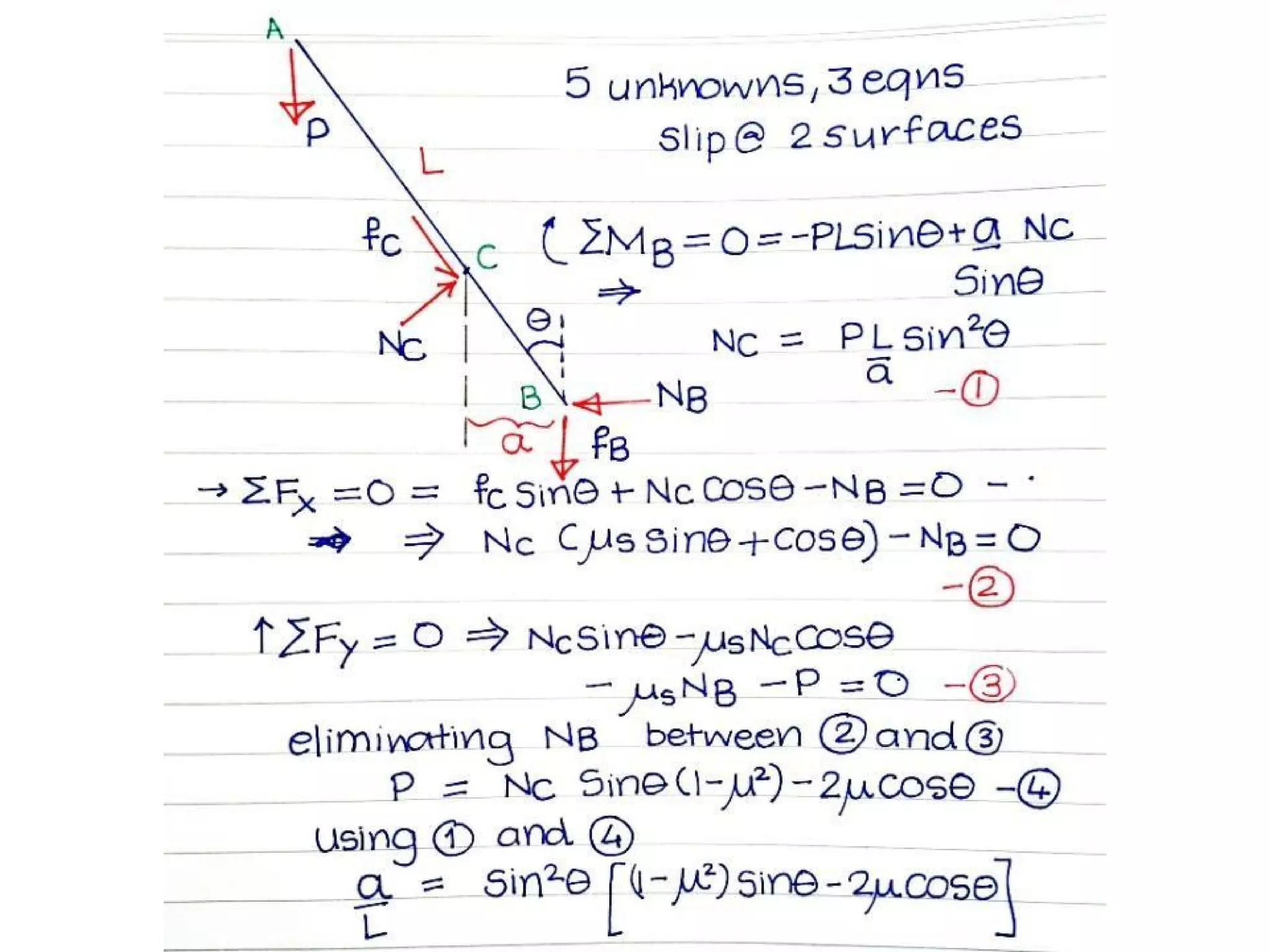

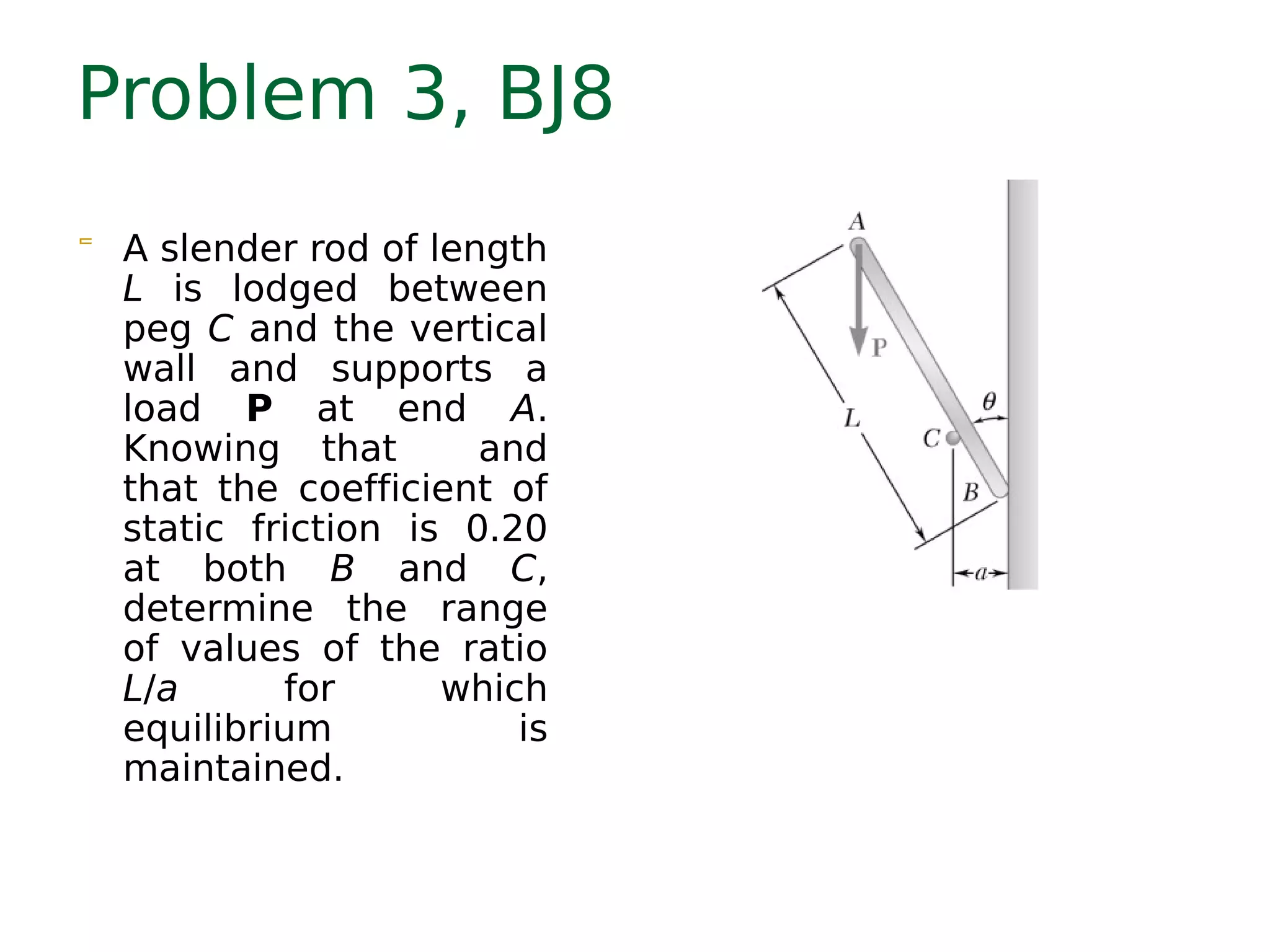

39. Problem 3, BJ8
A slender rod of length
L is lodged between
peg C and the vertical
wall and supports a
load P at end A.
Knowing that and
that the coefficient of
static friction is 0.20
at both B and C,
determine the range
of values of the ratio
L/a for which
equilibrium is
maintained.

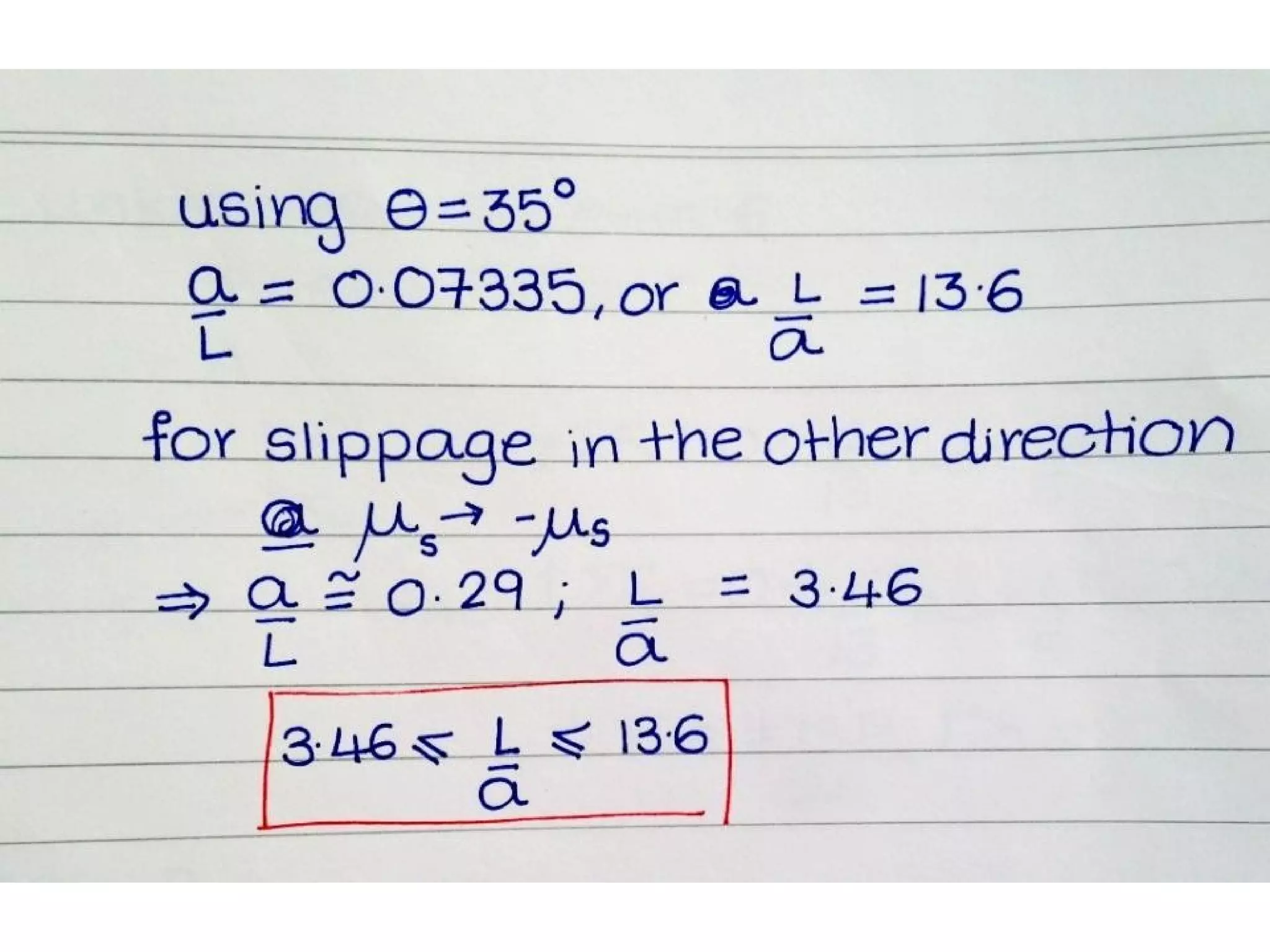

13.633.46 ≤≤
a
L
40.
41.

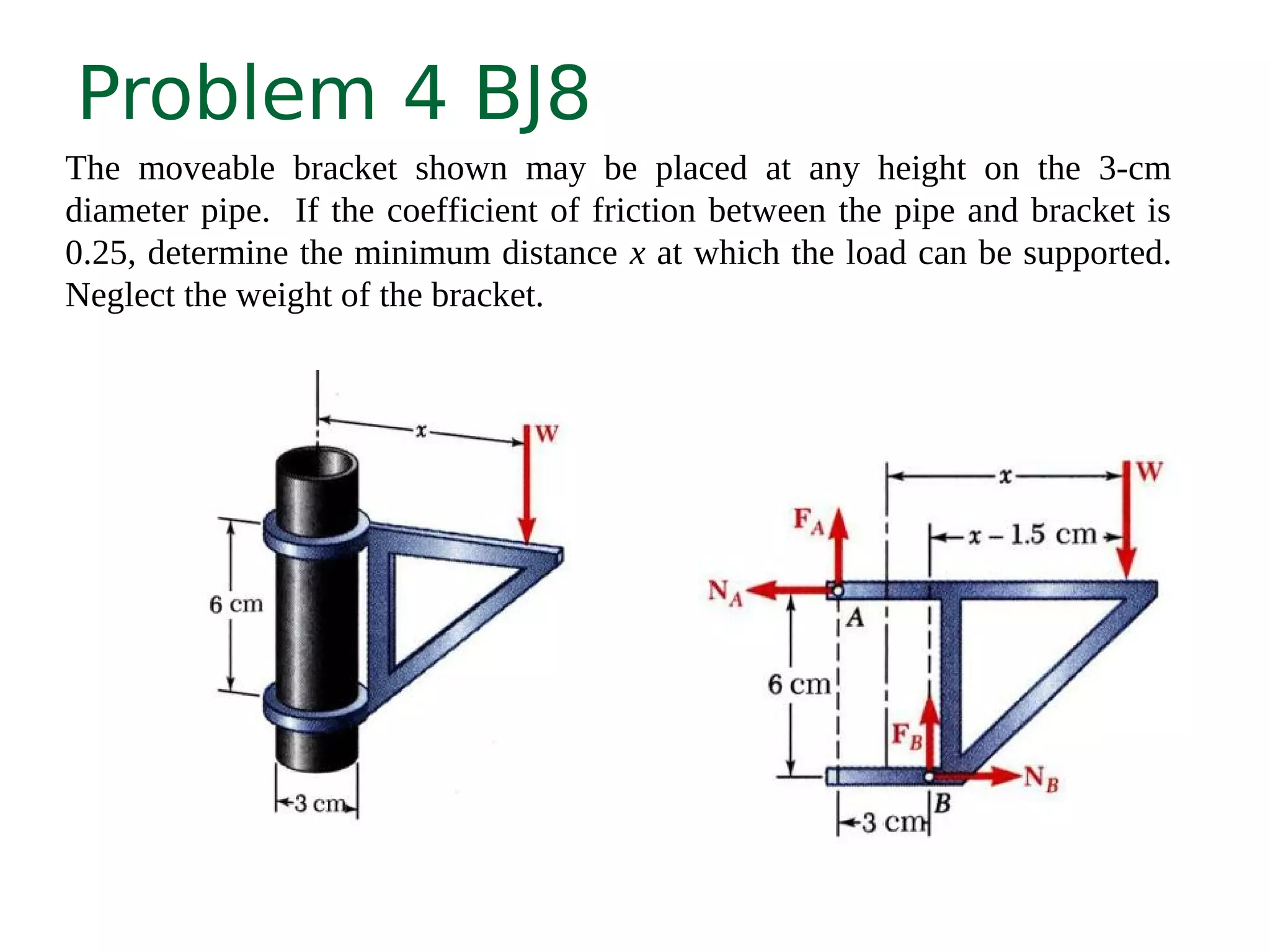

42. Problem 4 BJ8
The moveable bracket shown may be placed at any height on the 3-cm
diameter pipe. If the coefficient of friction between the pipe and bracket is
0.25, determine the minimum distance x at which the load can be supported.
Neglect the weight of the bracket.

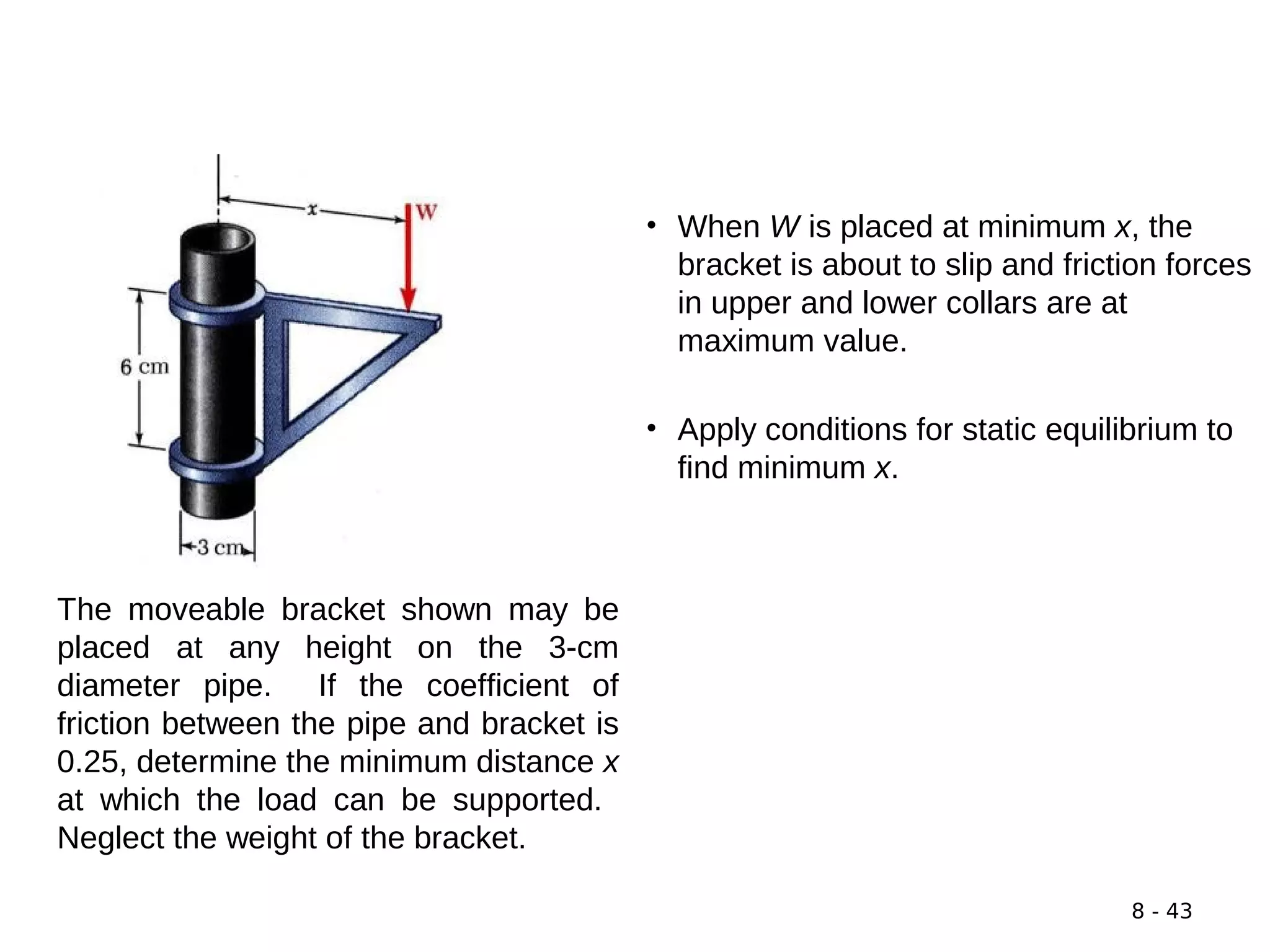

43. 8 - 43
The moveable bracket shown may be
placed at any height on the 3-cm
diameter pipe. If the coefficient of
friction between the pipe and bracket is
0.25, determine the minimum distance x
at which the load can be supported.
Neglect the weight of the bracket.
SOLUTION:
• When W is placed at minimum x, the
bracket is about to slip and friction forces
in upper and lower collars are at
maximum value.
• Apply conditions for static equilibrium to
find minimum x.

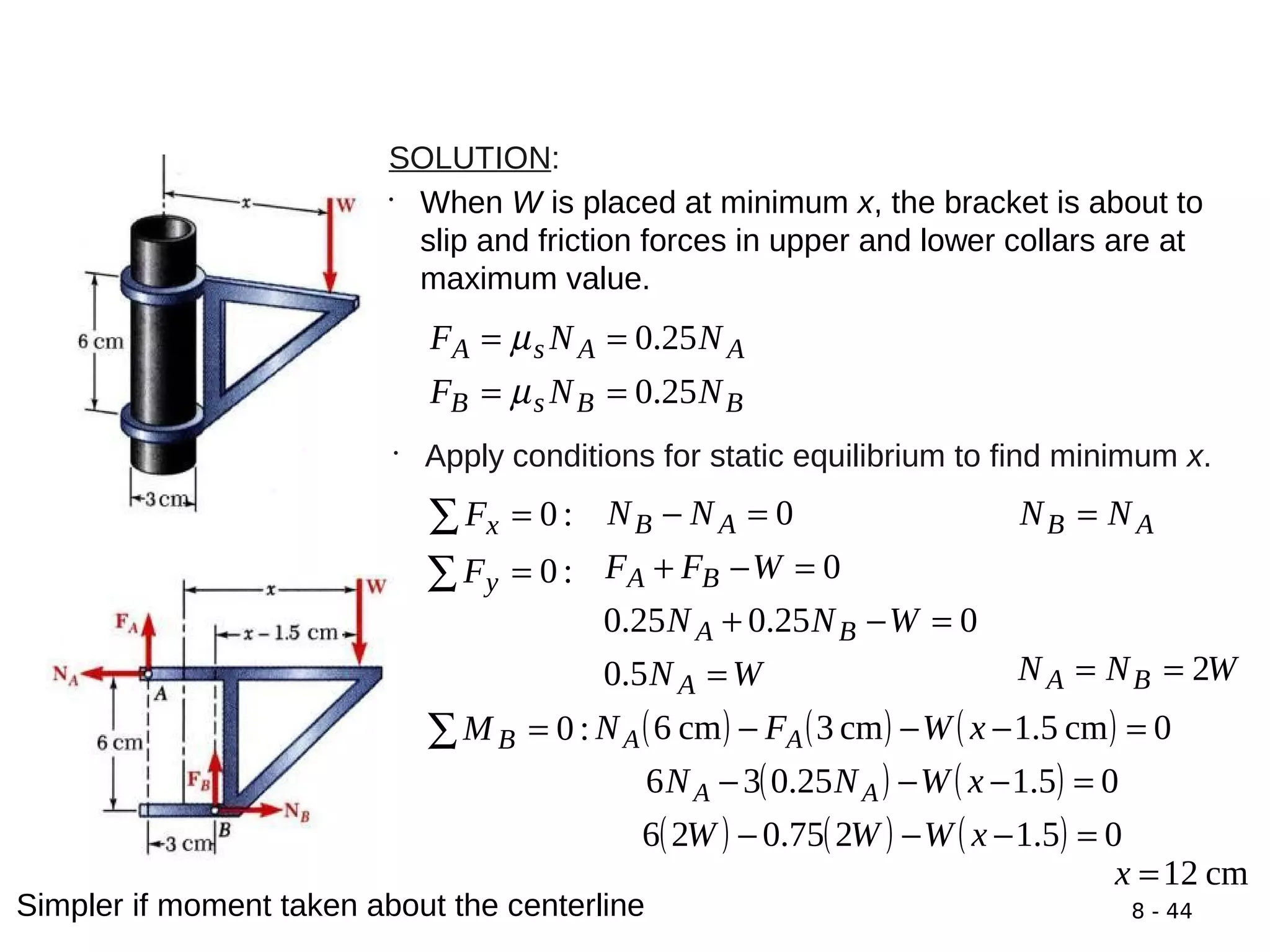

44. 8 - 44
SOLUTION:
•
When W is placed at minimum x, the bracket is about to
slip and friction forces in upper and lower collars are at
maximum value.
BBsB
AAsA
NNF
NNF
25.0
25.0
==
==
µ
µ
•
Apply conditions for static equilibrium to find minimum x.
:0=∑ xF 0=− AB NN AB NN =
:0=∑ yF
WN
WNN
WFF
A
BA
BA
=
=−+
=−+
5.0
025.025.0
0
WNN BA 2==
:0=∑ BM ( ) ( ) ( )
( ) ( )
( ) ( ) ( ) 05.1275.026
05.125.036
0cm5.1cm3cm6
=−−−
=−−−
=−−−
xWWW
xWNN
xWFN
AA
AA
cm12=x
Simpler if moment taken about the centerline

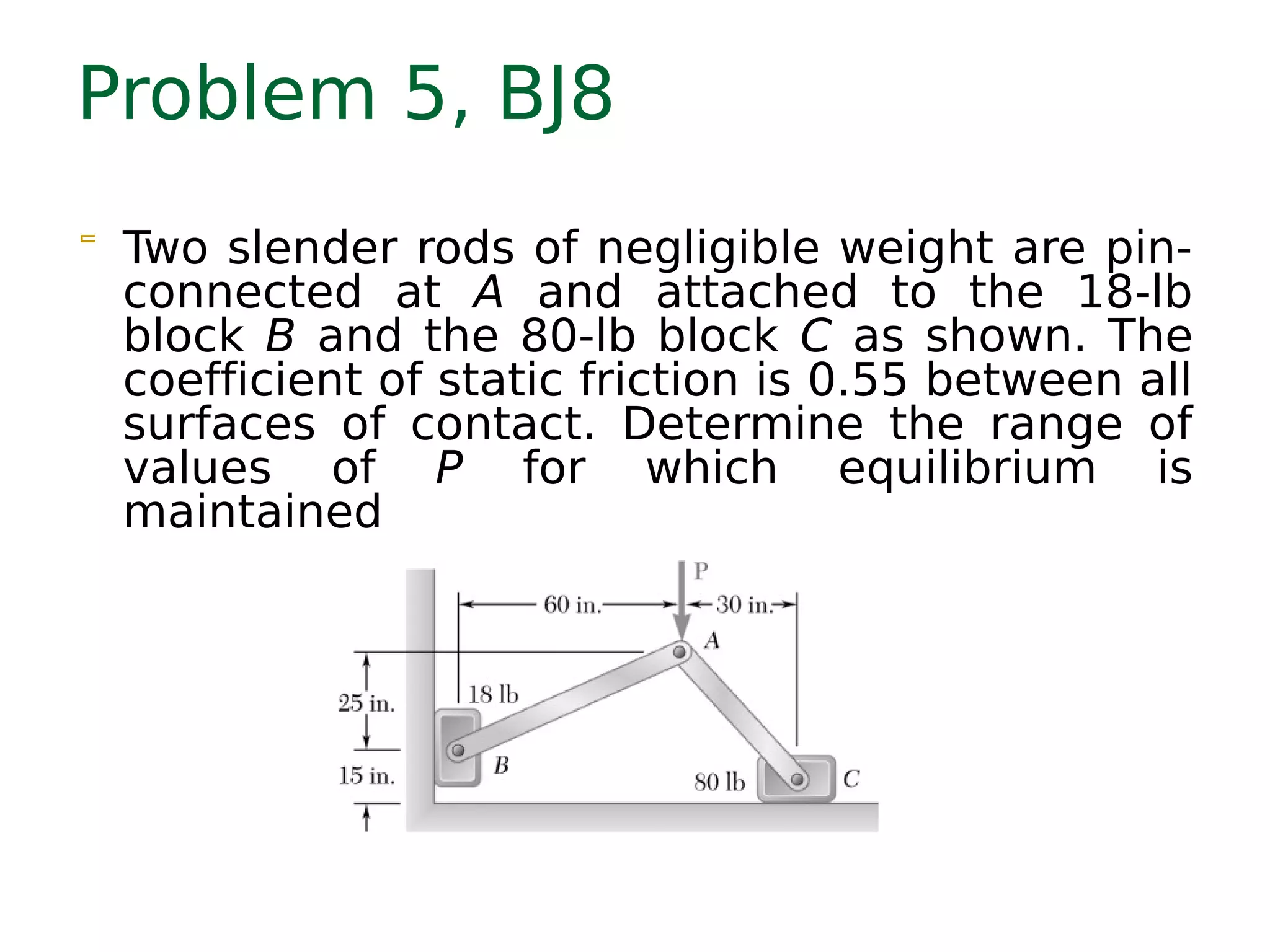

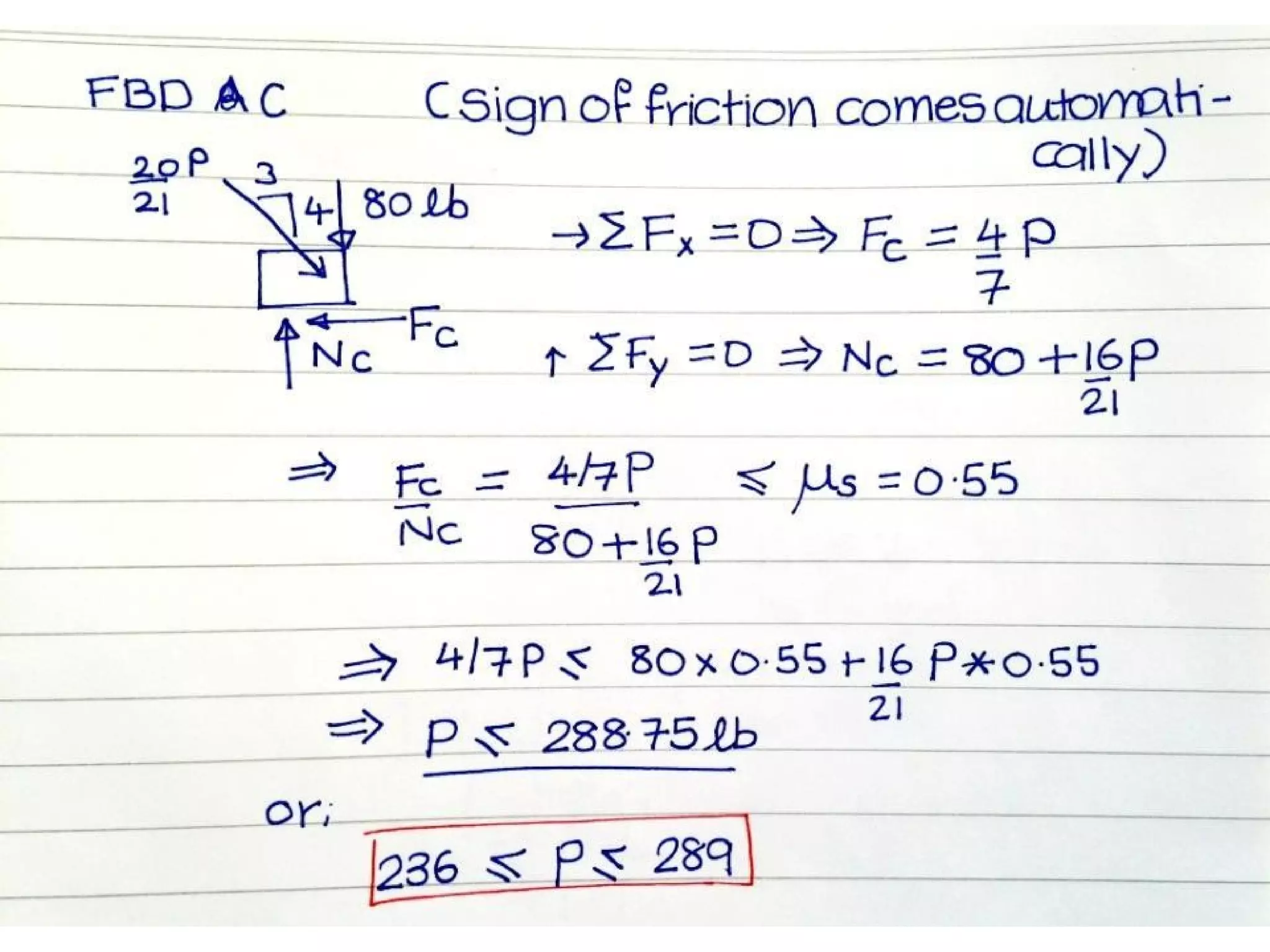

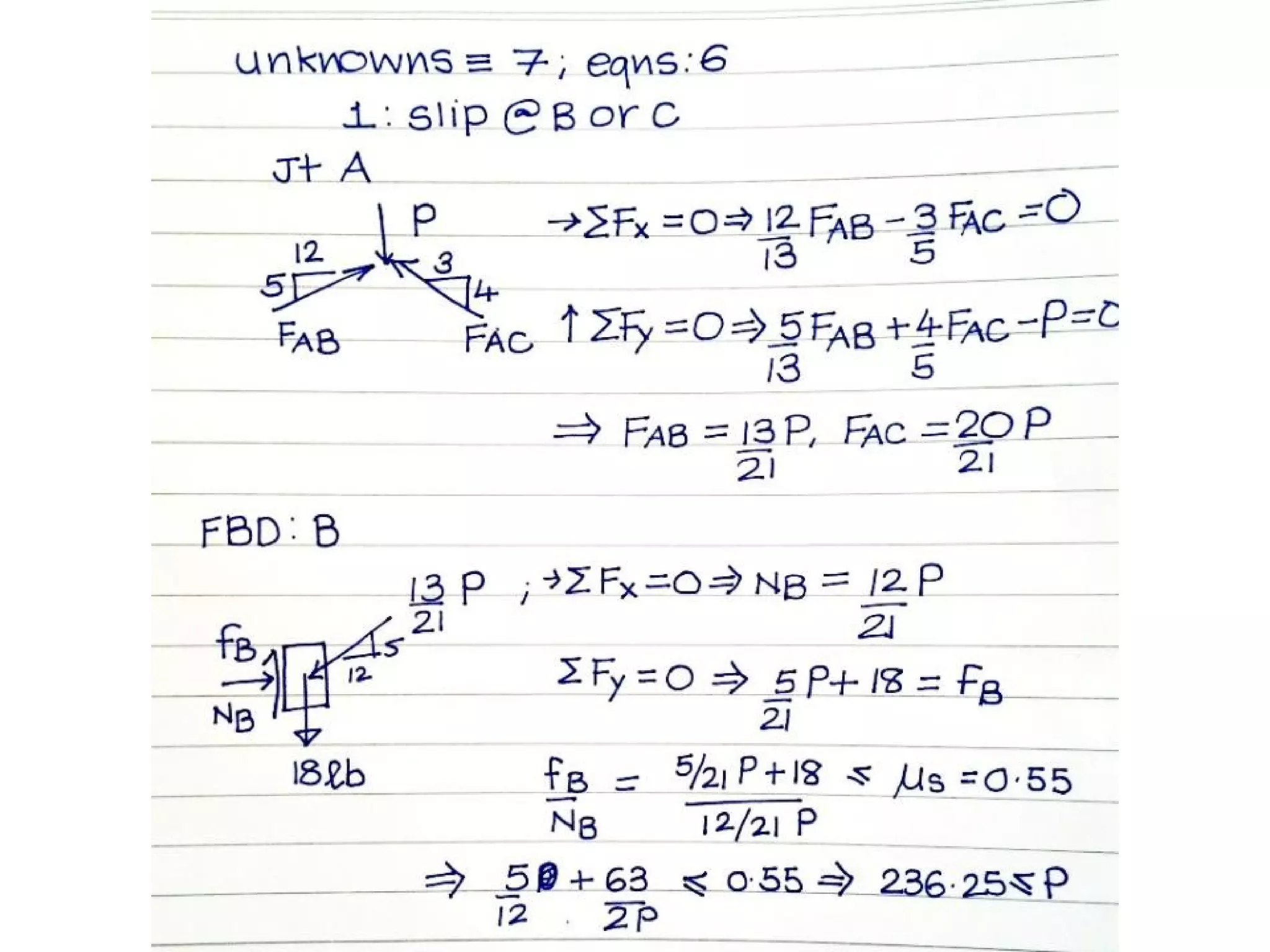

45. Problem 5, BJ8
Two slender rods of negligible weight are pin-
connected at A and attached to the 18-lb
block B and the 80-lb block C as shown. The
coefficient of static friction is 0.55 between all
surfaces of contact. Determine the range of
values of P for which equilibrium is
maintained
46.
47.
48. Problem 6
What is the force F to hold two cylinders,
each having a mass of 50 kg? Take the
coefficient of friction equal to 0.2 for all
surfaces of contact.
