The document discusses various tools and frameworks for efficient system deployment and management, including Cobbler for network installation of Linux, Puppet for configuration management, and Vagrant for creating virtual environments. It also covers tools for orchestration, such as Marionette Collective, and version control using Subversion, along with project management using Redmine and CI tools like Jenkins. Additionally, it highlights best practices for deployment speed, externalizing configuration, and managing software dependencies.

2. Agenda

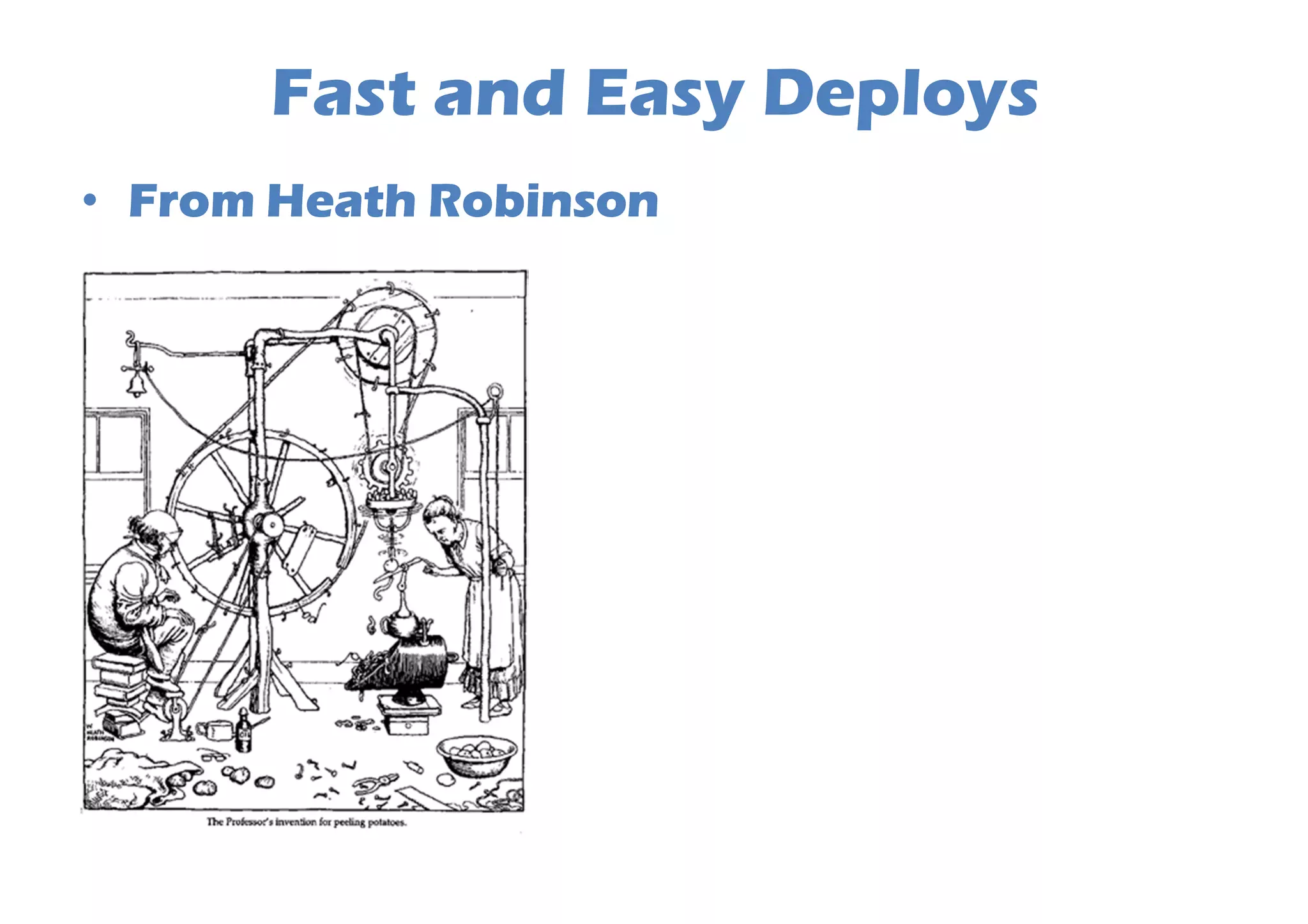

6. Fast and Easy Deploys
• From Heath Robinson

7. Fast and Easy Deploys
• From Heath Robinson to Production Line

11. Eliminating Configuration Drift
• Once deployed a machine will
inevitably drift from a known state

12. Infrastructure as Code
• Synthesizing machines from a known
codebase

16. Operating System Platform
• Customisable
• Easily automated
• Packaging friendly
• Free alternatives available

17. http://www.1900s.org.uk/life-times-images/cobbler-shop.jpg

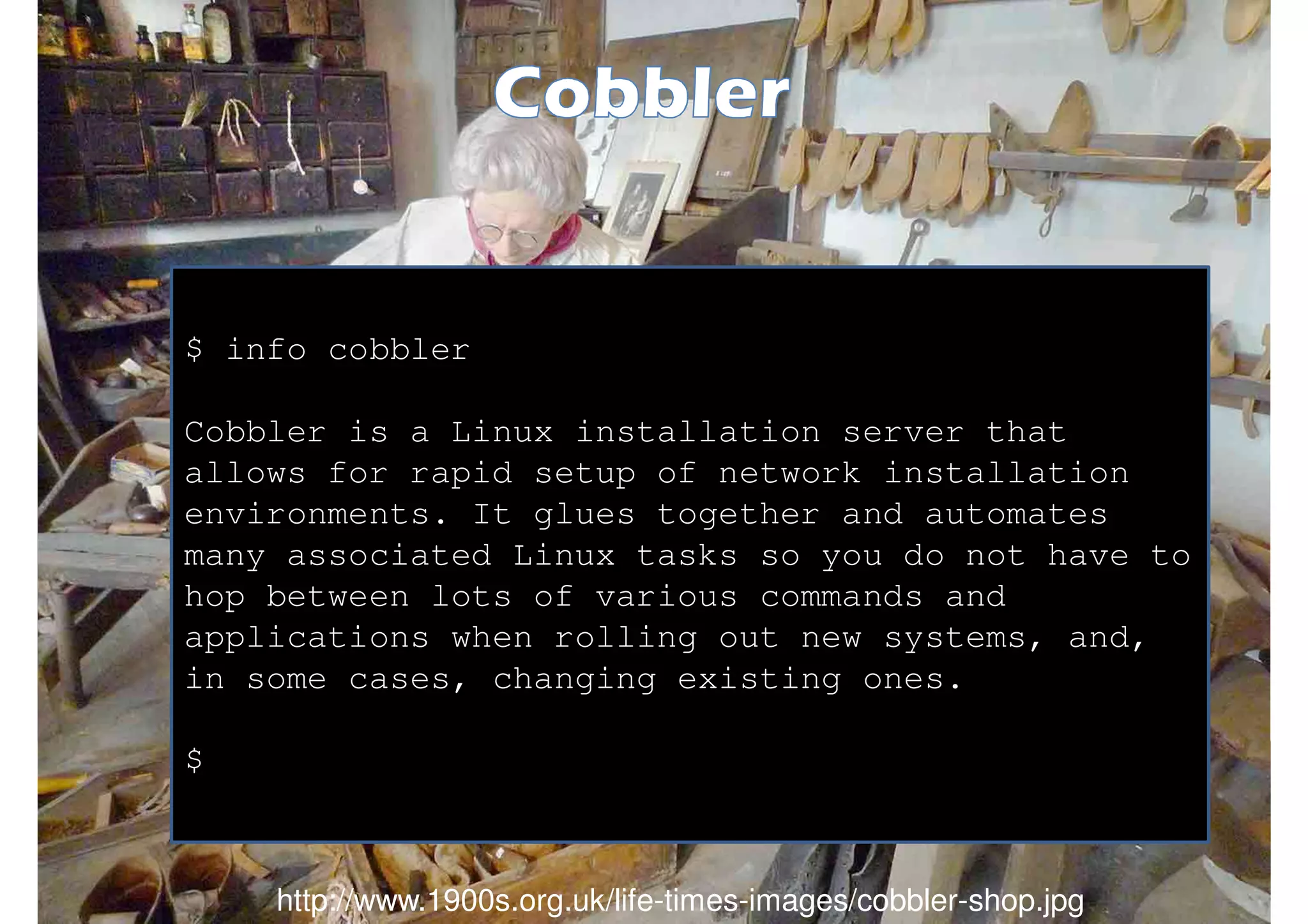

18. $ info cobbler
Cobbler is a Linux installation server that
allows for rapid setup of network installation
environments. It glues together and automates
many associated Linux tasks so you do not have to
hop between lots of various commands and
applications when rolling out new systems, and,
in some cases, changing existing ones.
$
http://www.1900s.org.uk/life-times-images/cobbler-shop.jpg

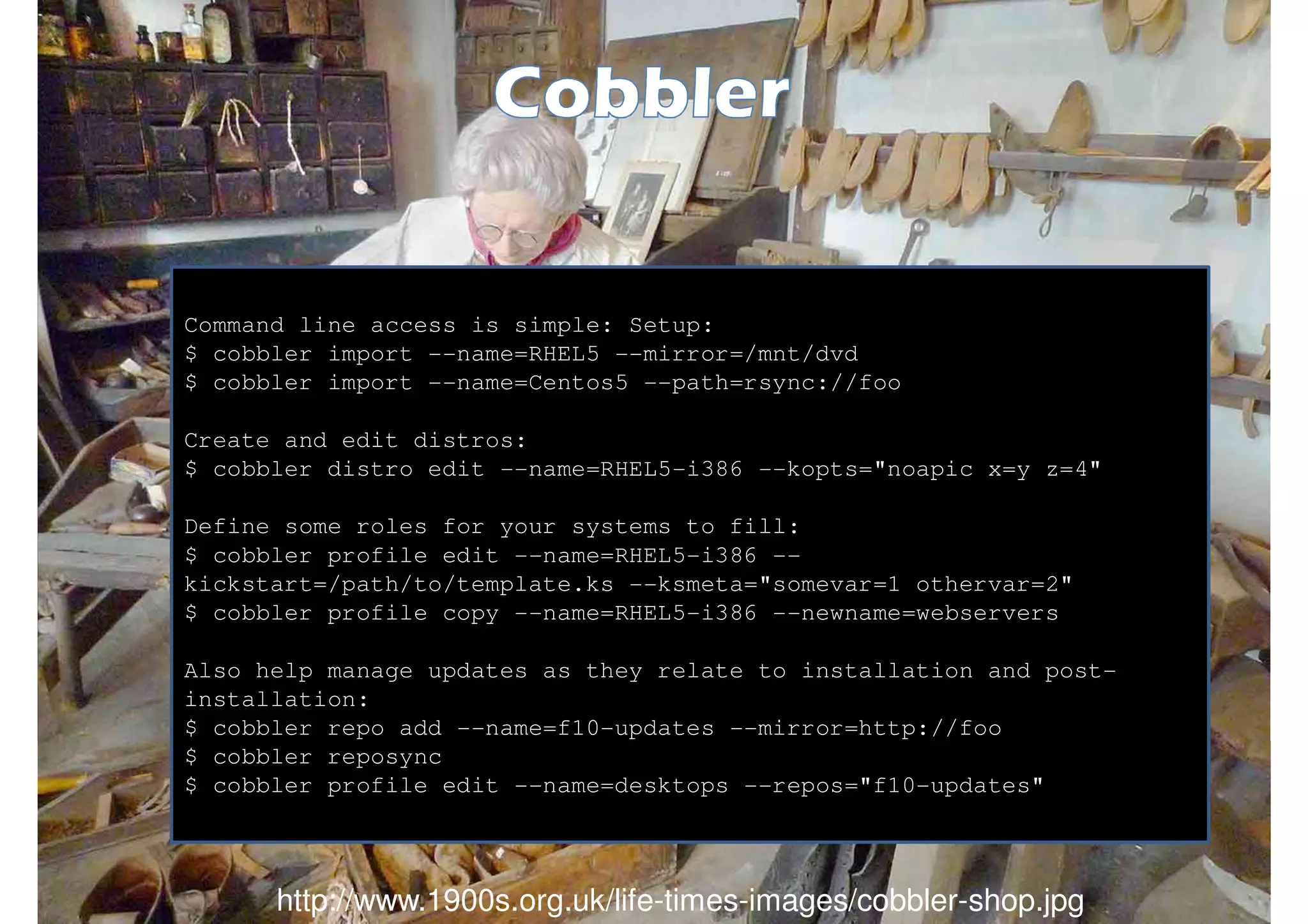

19. Command line access is simple: Setup:
$ cobbler import --name=RHEL5 --mirror=/mnt/dvd
$ cobbler import --name=Centos5 --path=rsync://foo
Create and edit distros:
$ cobbler distro edit --name=RHEL5-i386 --kopts="noapic x=y z=4"
Define some roles for your systems to fill:
$ cobbler profile edit --name=RHEL5-i386 --
kickstart=/path/to/template.ks --ksmeta="somevar=1 othervar=2"
$ cobbler profile copy --name=RHEL5-i386 --newname=webservers
Also help manage updates as they relate to installation and post-
installation:
$ cobbler repo add --name=f10-updates --mirror=http://foo
$ cobbler reposync
$ cobbler profile edit --name=desktops --repos="f10-updates"
http://www.1900s.org.uk/life-times-images/cobbler-shop.jpg

20. Puppet
http://www.wallpaperstop.com/wallpapers/cartoon-wallpapers/cartoon-puppet-wallpaper-1680x1050-0074.jpg

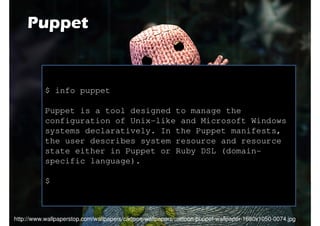

21. Puppet
$ info puppet
Puppet is a tool designed to manage the
configuration of Unix-like and Microsoft Windows
systems declaratively. In the Puppet manifests,
the user describes system resource and resource
state either in Puppet or Ruby DSL (domain-
specific language).
$
http://www.wallpaperstop.com/wallpapers/cartoon-wallpapers/cartoon-puppet-wallpaper-1680x1050-0074.jpg

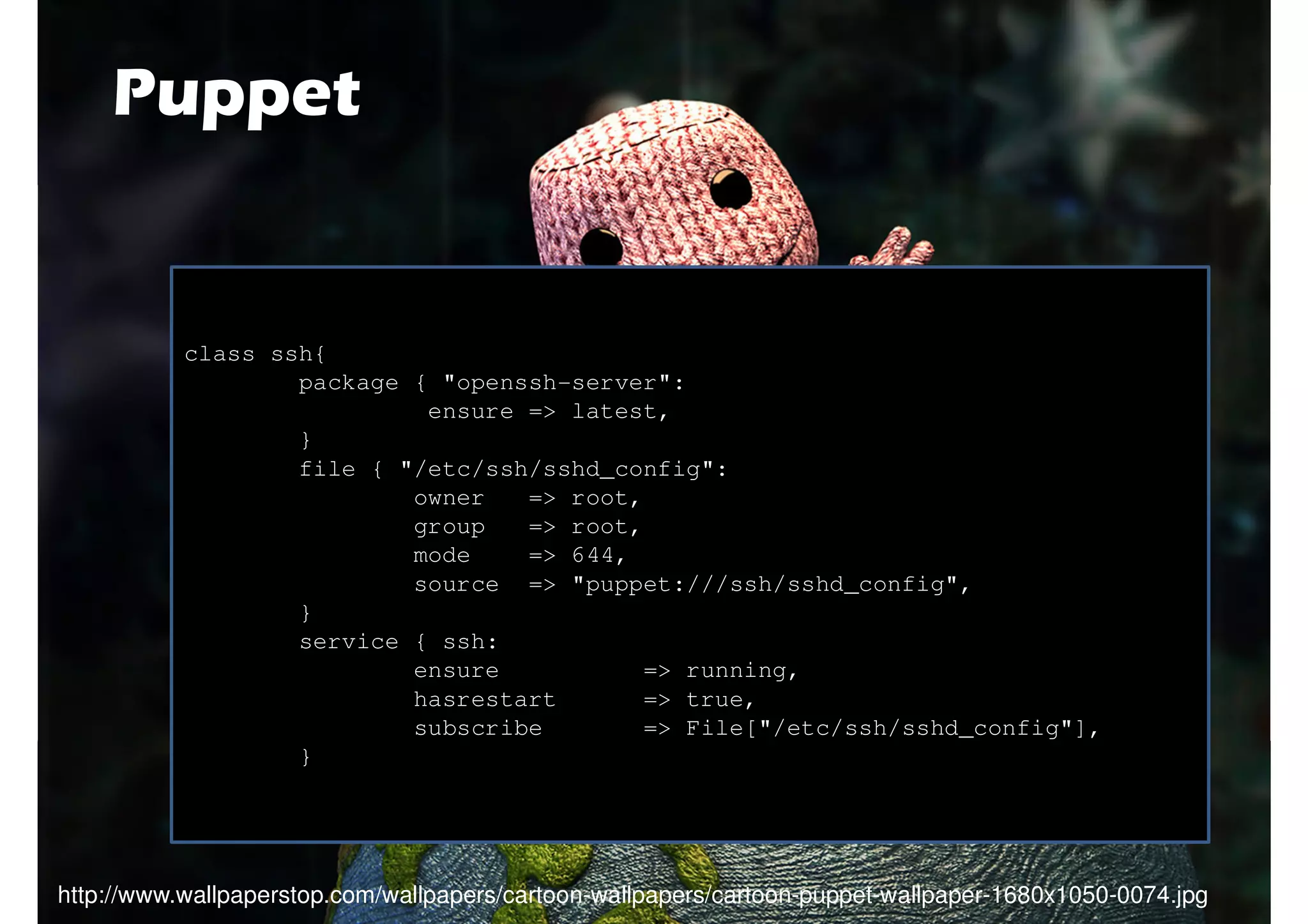

22. Puppet
class ssh{
package { "openssh-server":
ensure => latest,
}
file { "/etc/ssh/sshd_config":
owner => root,
group => root,
mode => 644,
source => "puppet:///ssh/sshd_config",
}
service { ssh:
ensure => running,
hasrestart => true,
subscribe => File["/etc/ssh/sshd_config"],
}
http://www.wallpaperstop.com/wallpapers/cartoon-wallpapers/cartoon-puppet-wallpaper-1680x1050-0074.jpg

23. Marionette Collective

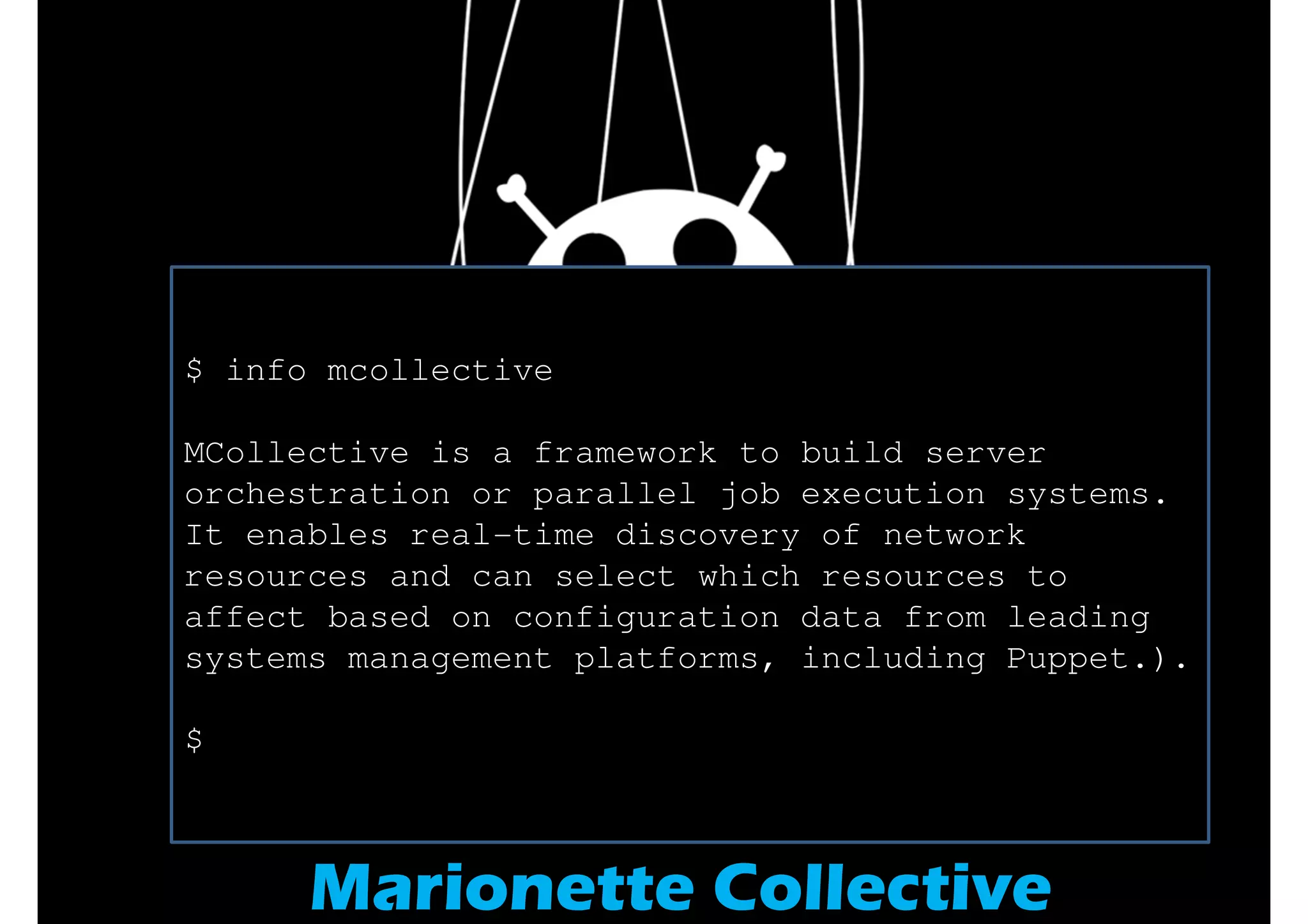

24. $ info mcollective
MCollective is a framework to build server
orchestration or parallel job execution systems.
It enables real-time discovery of network
resources and can select which resources to
affect based on configuration data from leading
systems management platforms, including Puppet.).
$
Marionette Collective

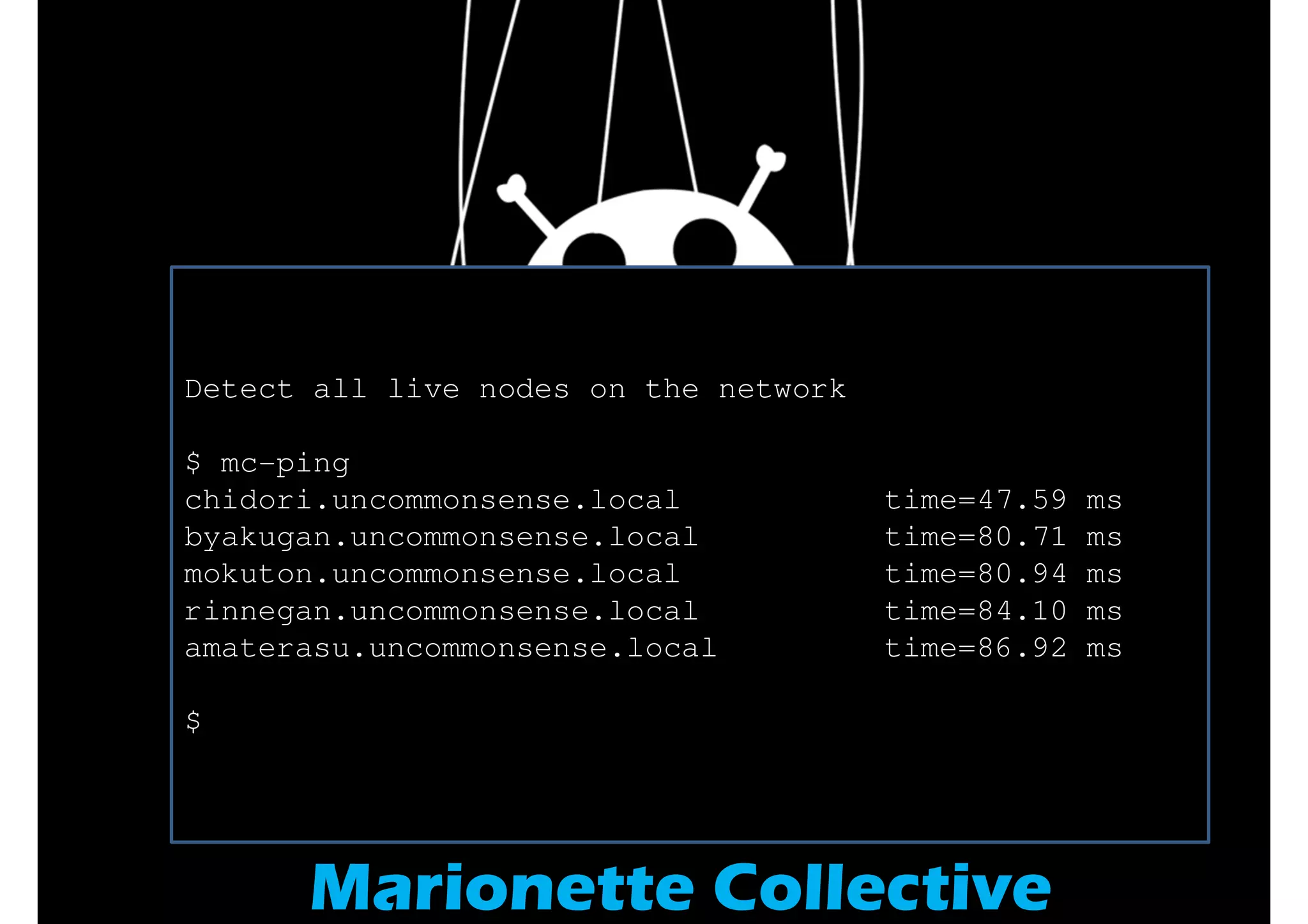

25. Detect all live nodes on the network
$ mc-ping
chidori.uncommonsense.local time=47.59 ms
byakugan.uncommonsense.local time=80.71 ms
mokuton.uncommonsense.local time=80.94 ms
rinnegan.uncommonsense.local time=84.10 ms
amaterasu.uncommonsense.local time=86.92 ms
$
Marionette Collective

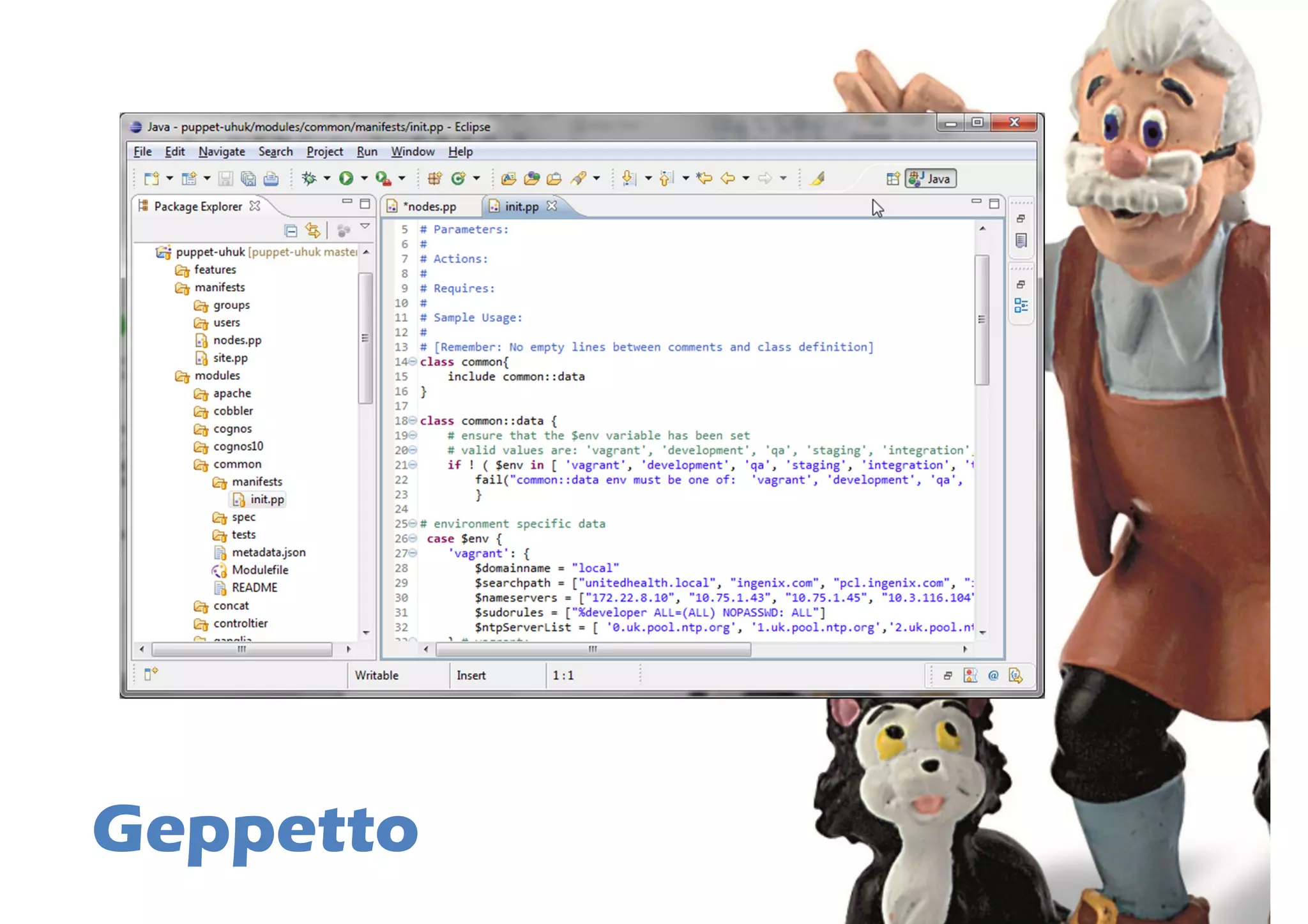

26. Geppetto

27. Questions and a Call to Action
Lets make things suck just a little bit less!

28. Questions and a Call to Action

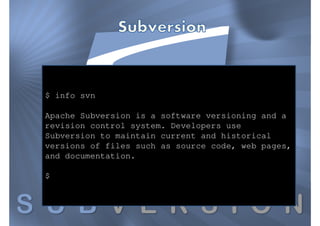

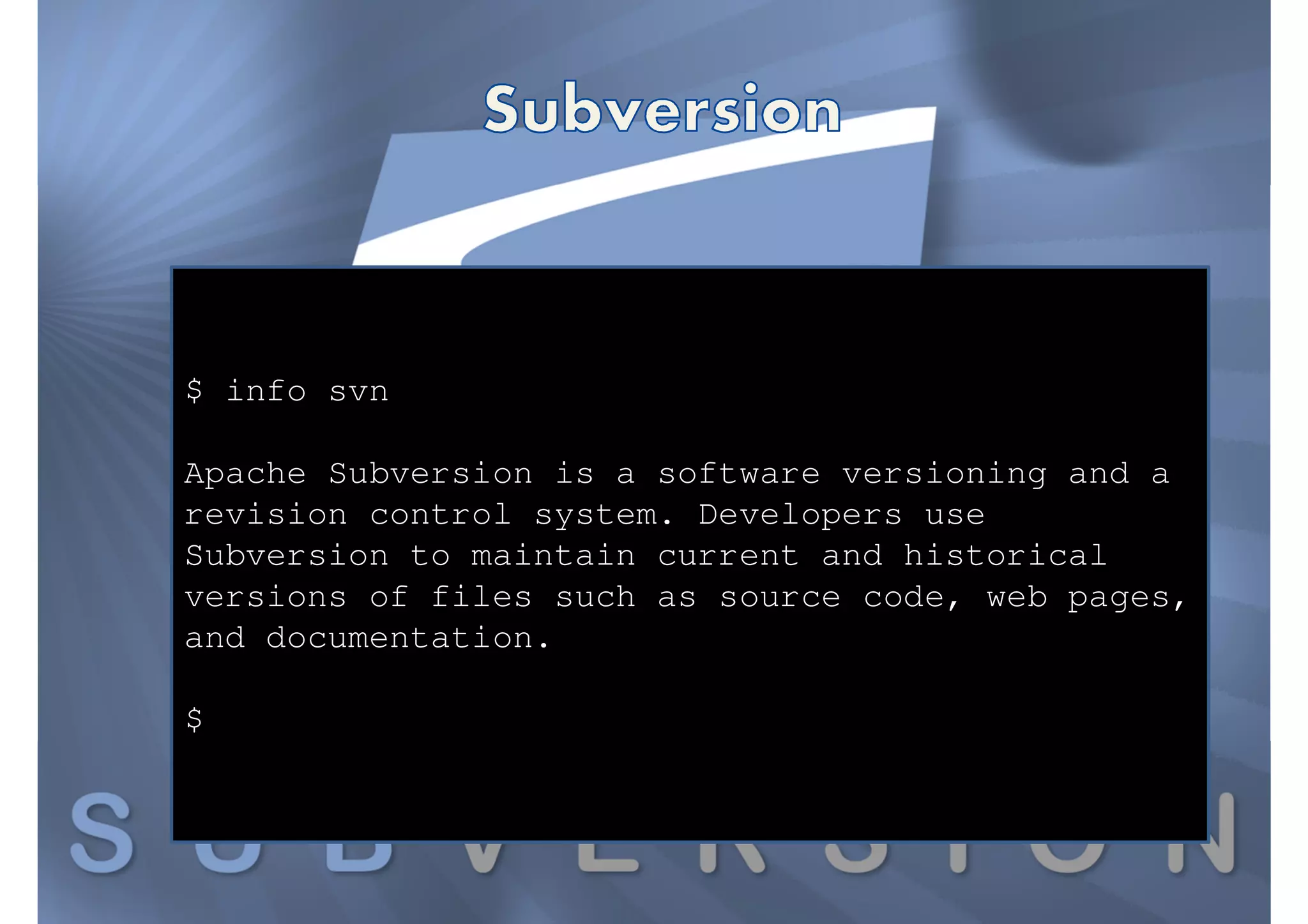

$ info svn
Lets make things suck just a little bit less!
Apache Subversion is a software versioning and a
revision control system. Developers use
Subversion to maintain current and historical
versions of files such as source code, web pages,
and documentation.
$

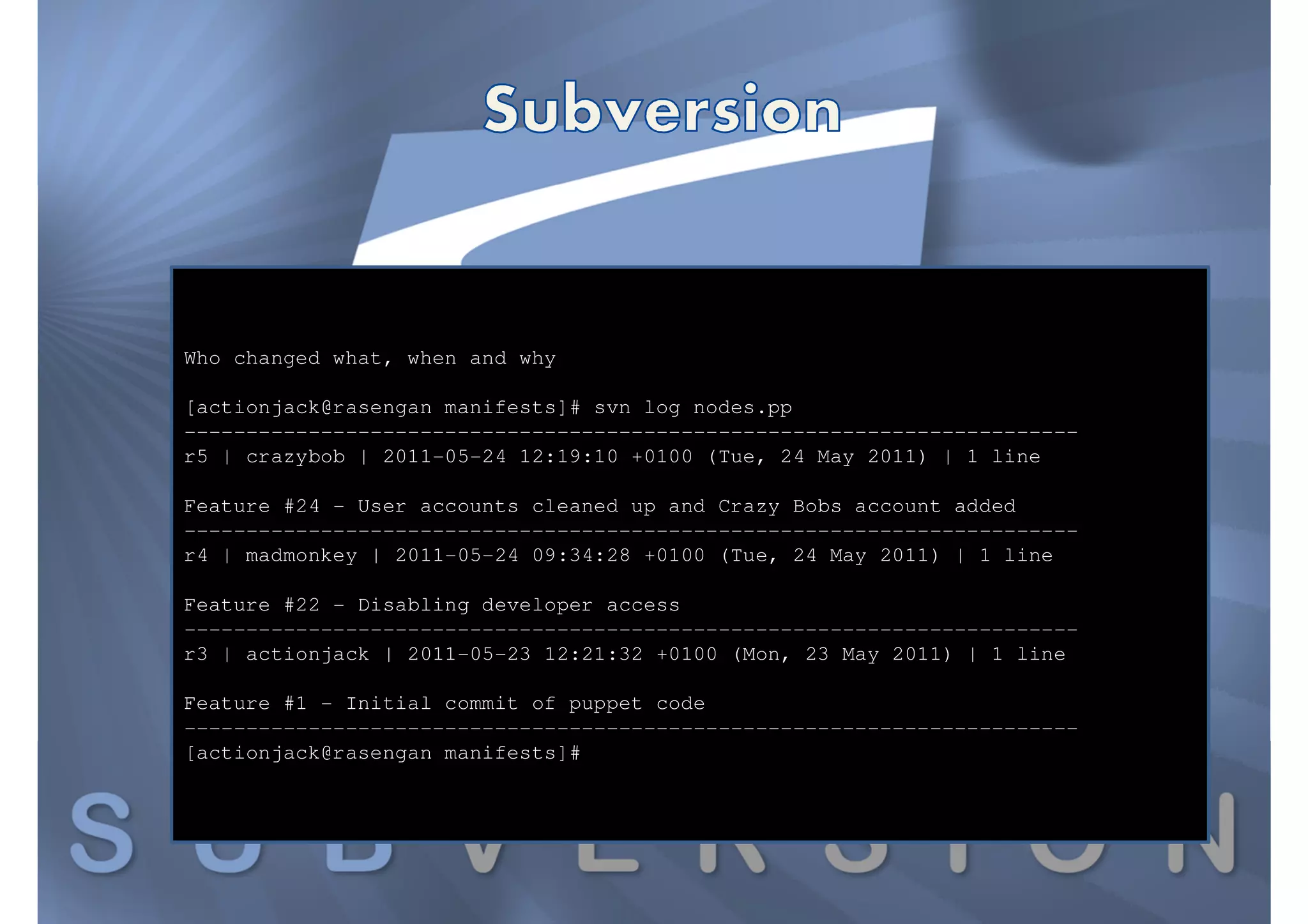

29. Questions and a Call to Action
Who changed what, when and why
[actionjack@rasengan manifests]# svn log nodes.pp
Lets make things suck just a little bit less!
------------------------------------------------------------------------
r5 | crazybob | 2011-05-24 12:19:10 +0100 (Tue, 24 May 2011) | 1 line
Feature #24 - User accounts cleaned up and Crazy Bobs account added
------------------------------------------------------------------------
r4 | madmonkey | 2011-05-24 09:34:28 +0100 (Tue, 24 May 2011) | 1 line
Feature #22 - Disabling developer access
------------------------------------------------------------------------
r3 | actionjack | 2011-05-23 12:21:32 +0100 (Mon, 23 May 2011) | 1 line
Feature #1 - Initial commit of puppet code
------------------------------------------------------------------------
[actionjack@rasengan manifests]#

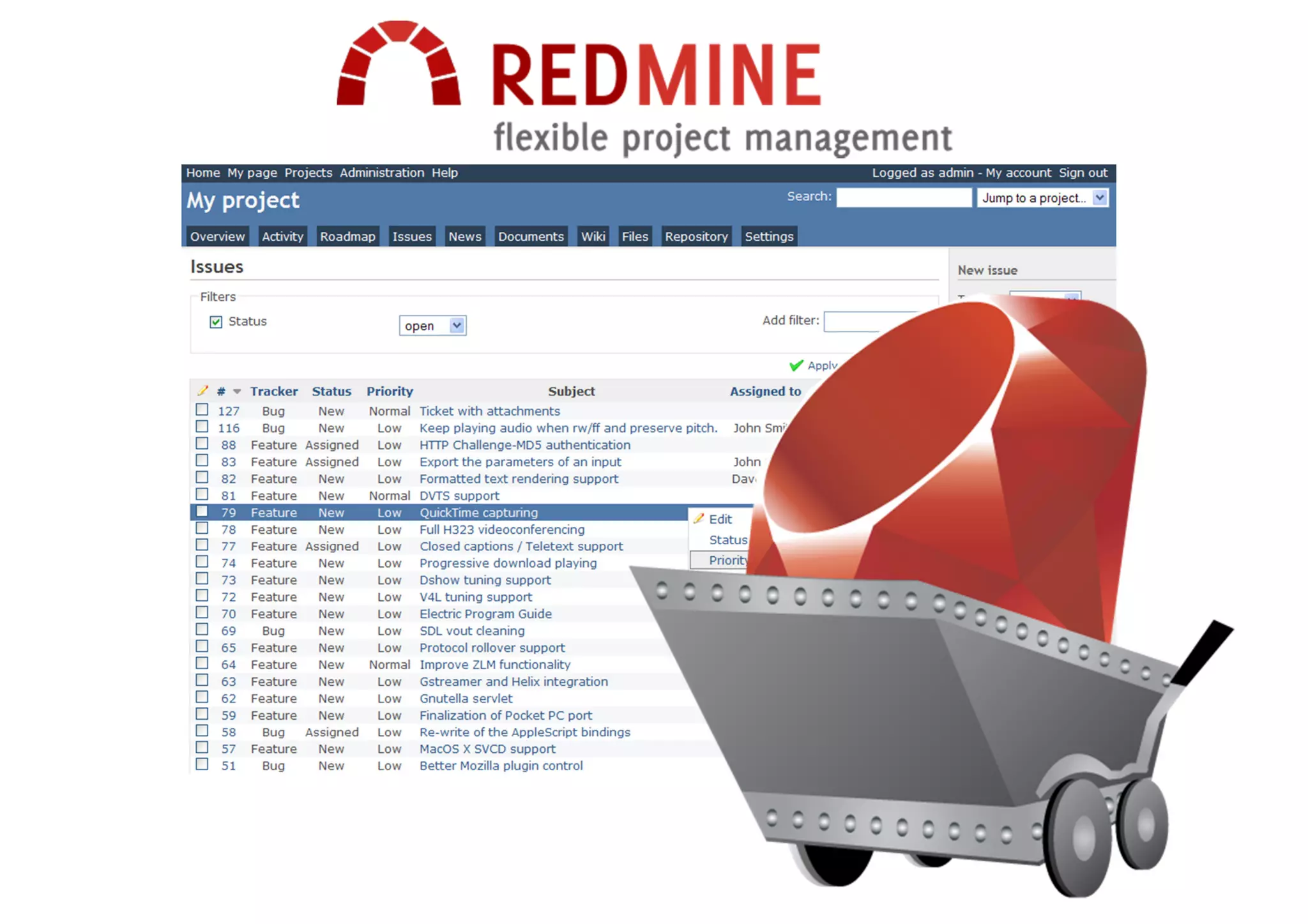

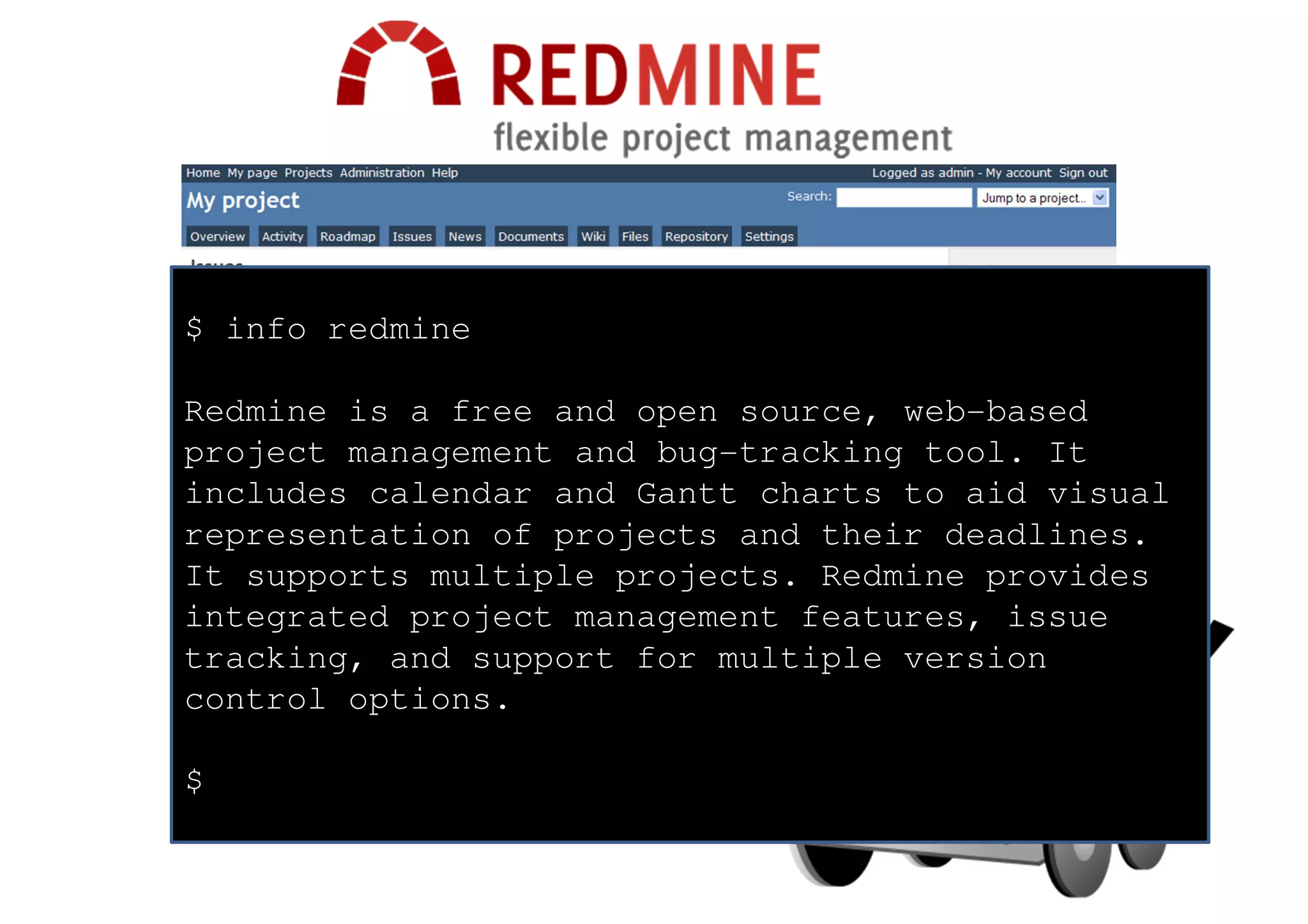

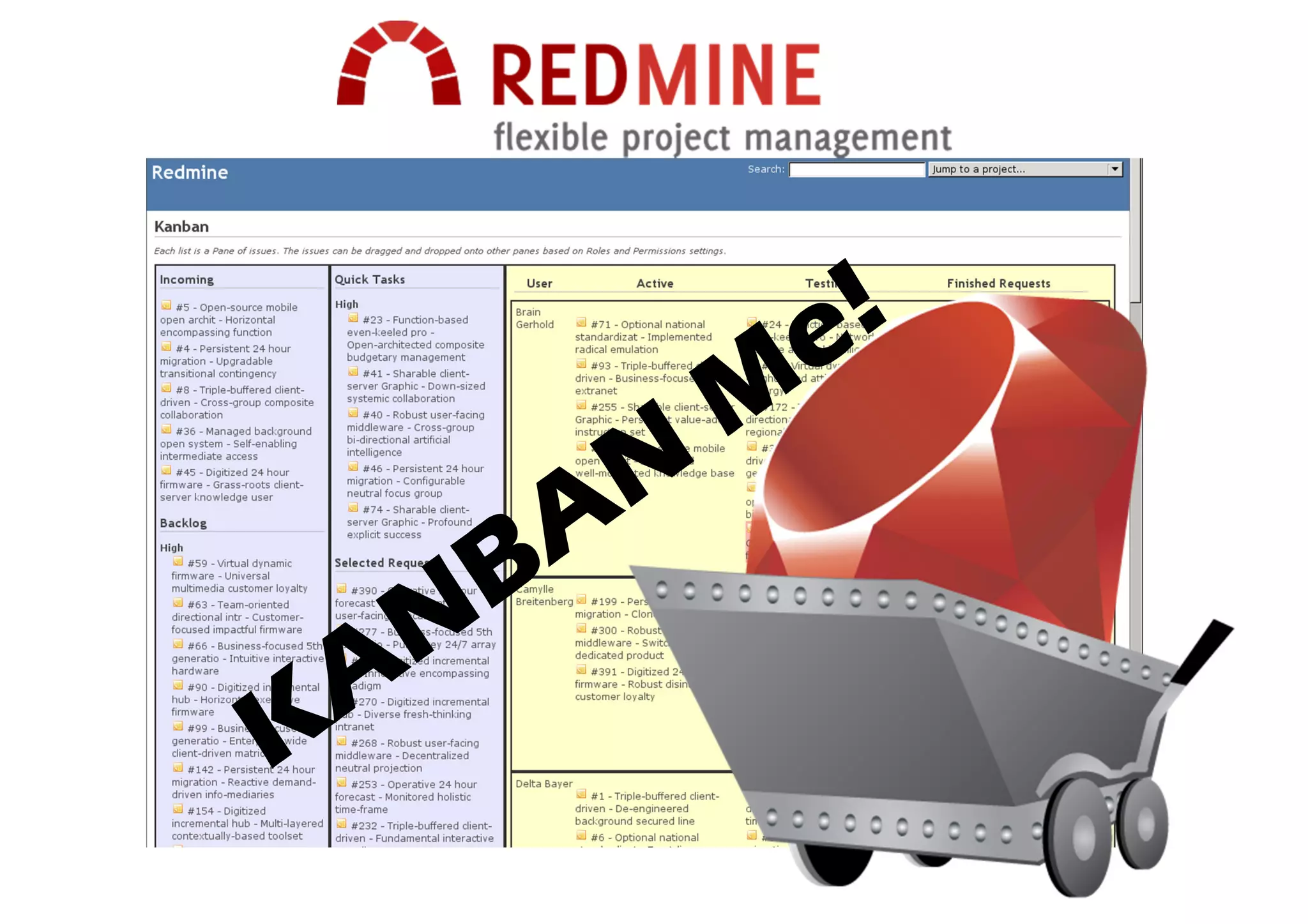

31. $ info redmine
Redmine is a free and open source, web-based
project management and bug-tracking tool. It
includes calendar and Gantt charts to aid visual
representation of projects and their deadlines.
It supports multiple projects. Redmine provides
integrated project management features, issue
tracking, and support for multiple version
control options.
$

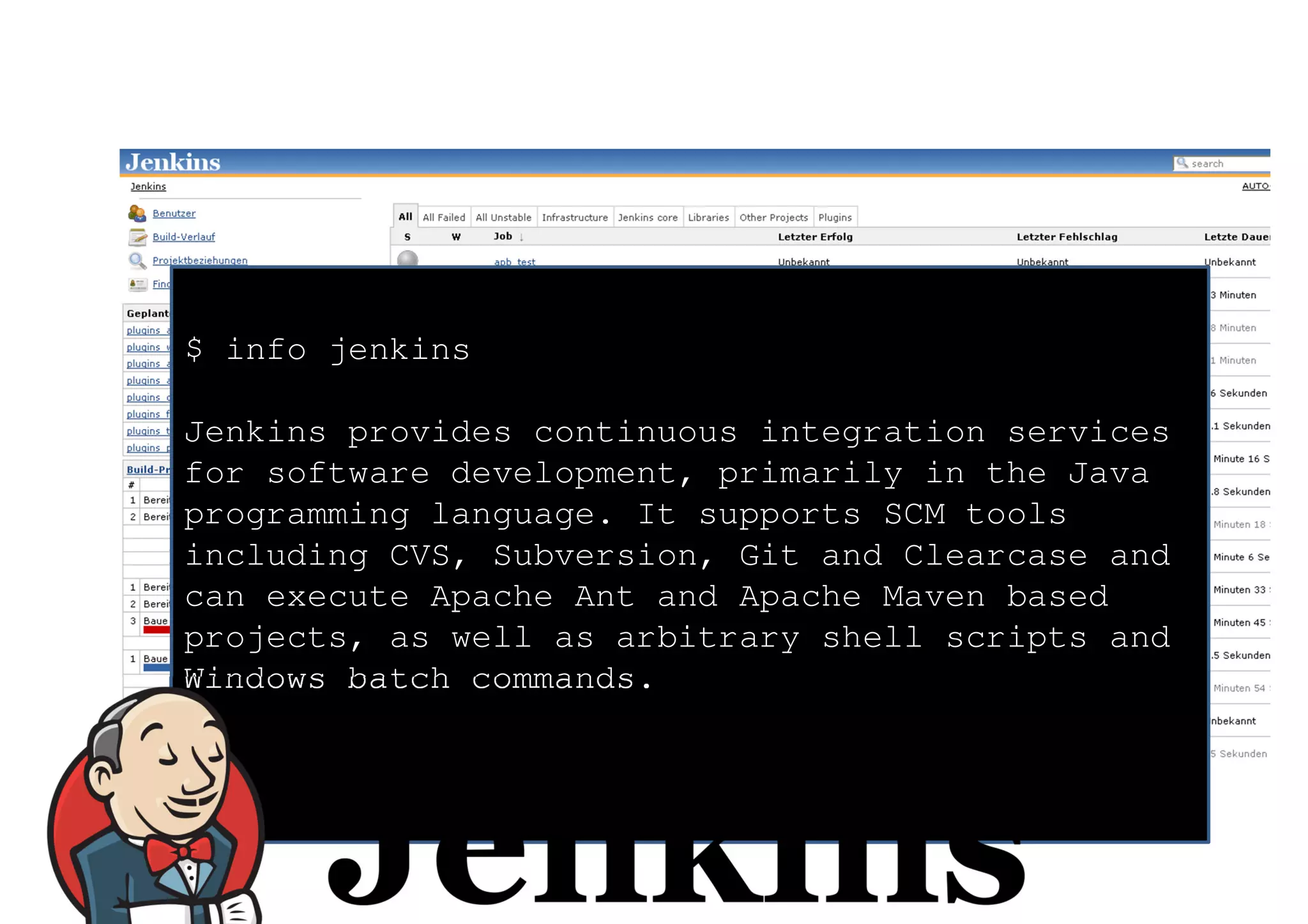

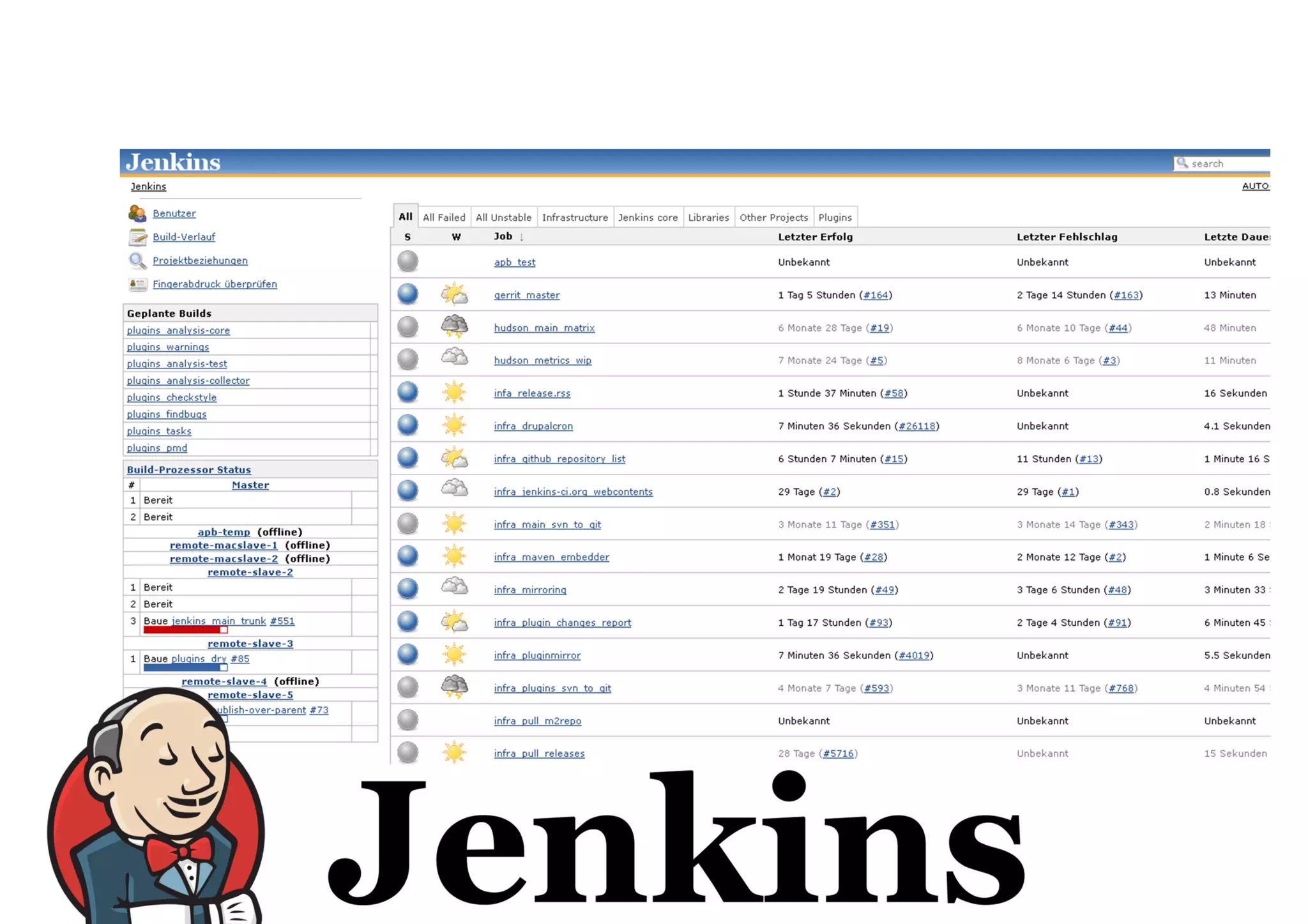

34. $ info jenkins
Jenkins provides continuous integration services
for software development, primarily in the Java
programming language. It supports SCM tools
including CVS, Subversion, Git and Clearcase and
can execute Apache Ant and Apache Maven based
projects, as well as arbitrary shell scripts and
Windows batch commands.
$

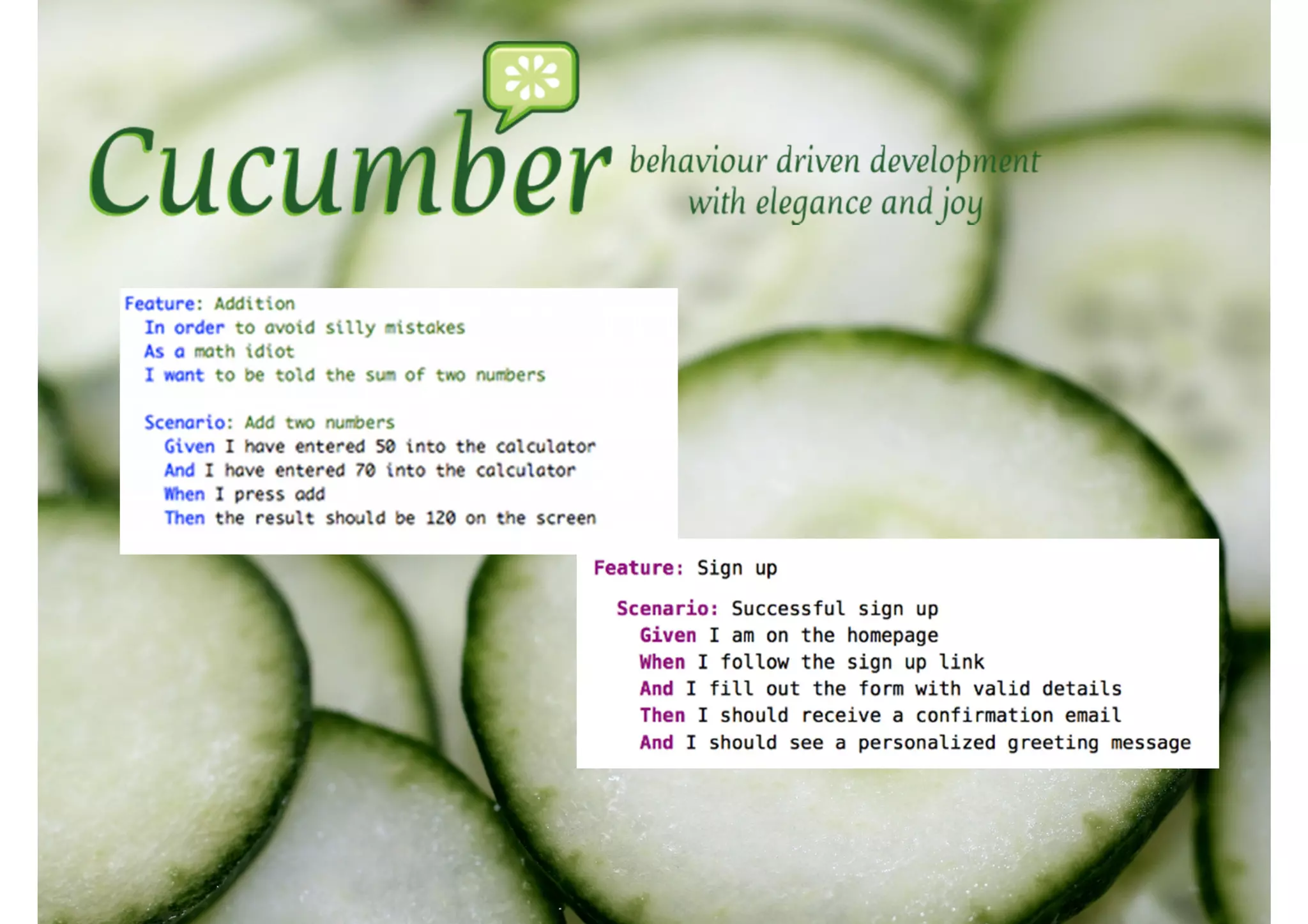

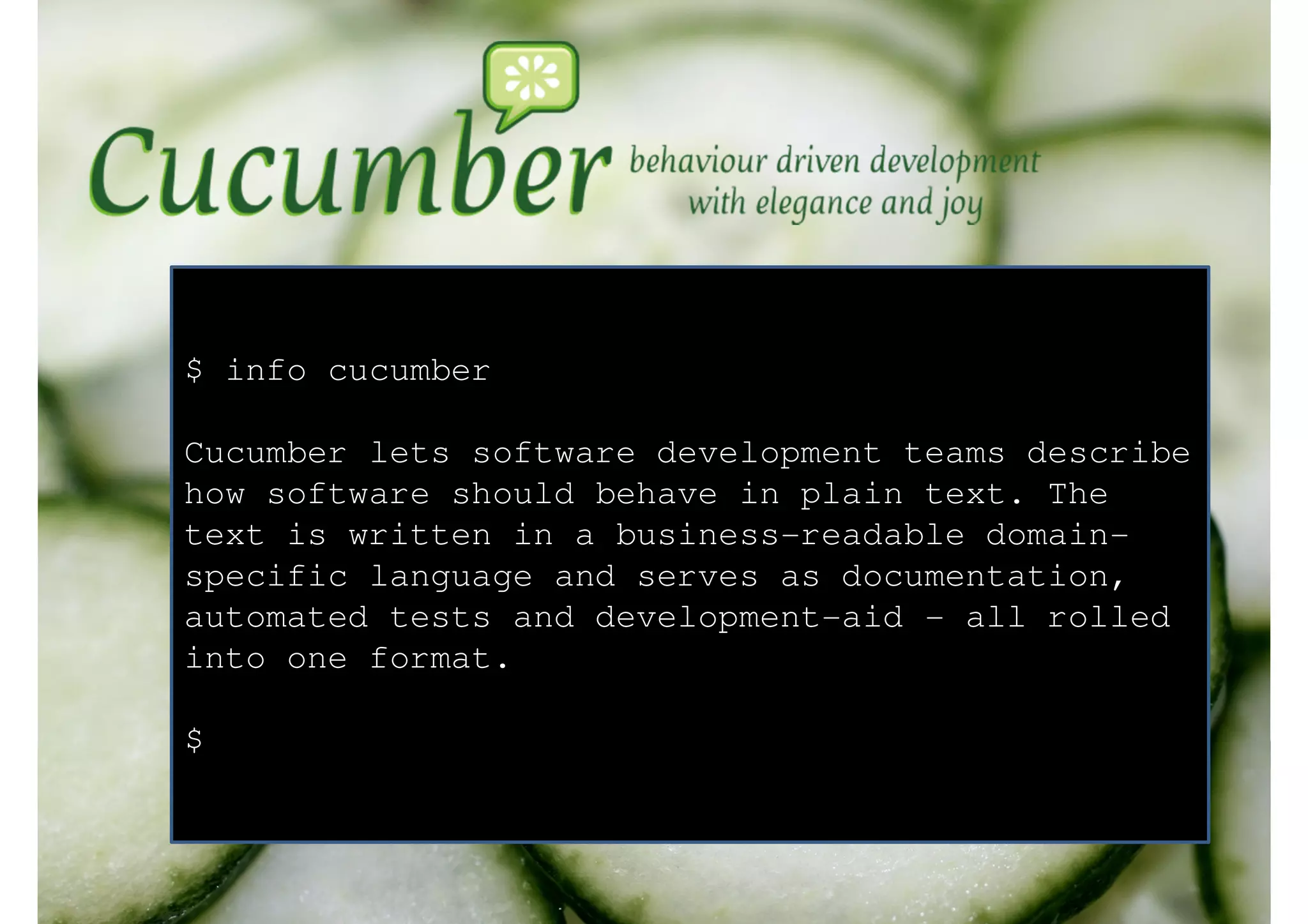

36. $ info cucumber
Cucumber lets software development teams describe
how software should behave in plain text. The
text is written in a business-readable domain-
specific language and serves as documentation,
automated tests and development-aid - all rolled
into one format.
$

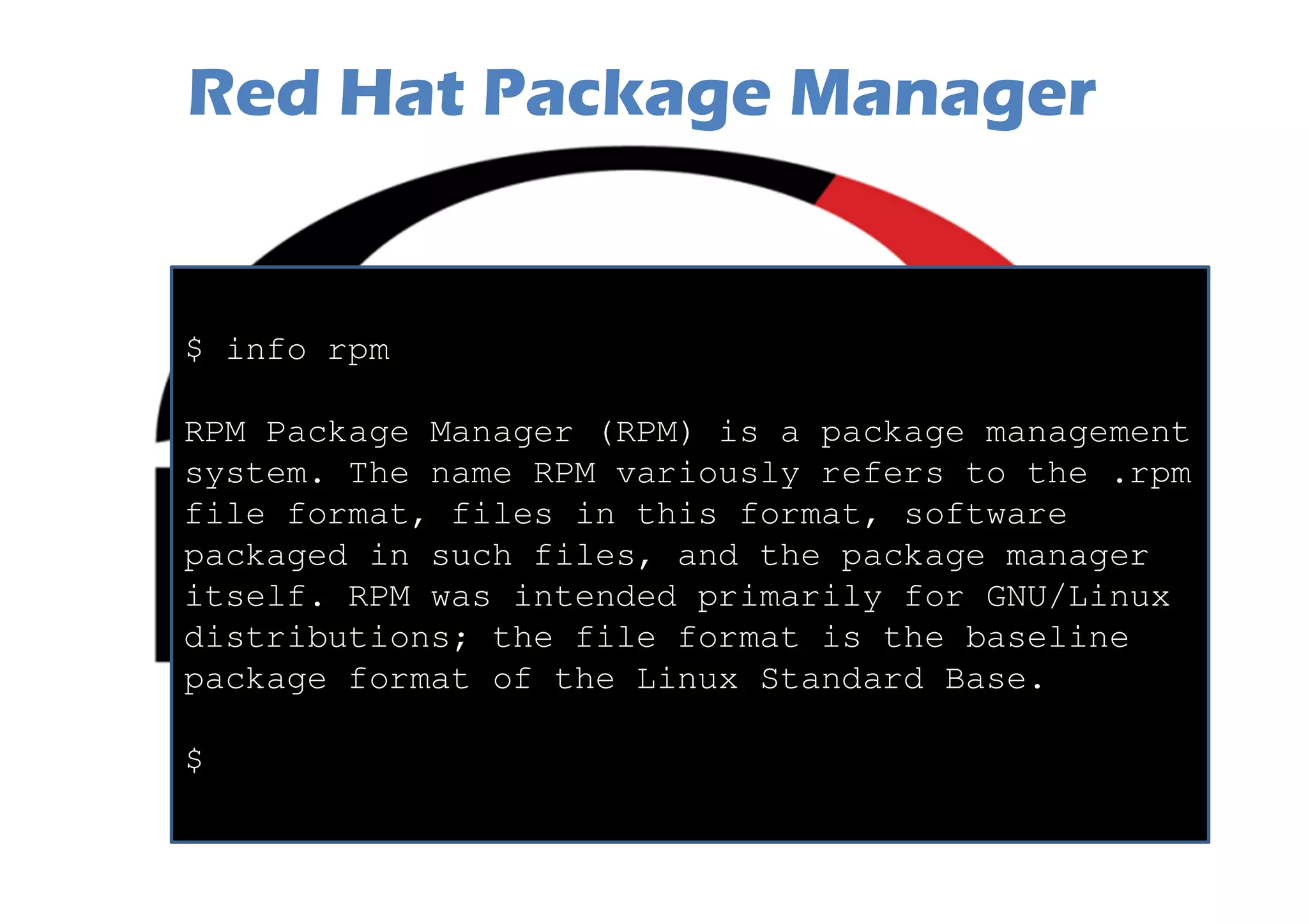

38. Red Hat Package Manager

39. Red Hat Package Manager
$ info rpm
RPM Package Manager (RPM) is a package management
system. The name RPM variously refers to the .rpm
file format, files in this format, software
packaged in such files, and the package manager
itself. RPM was intended primarily for GNU/Linux
distributions; the file format is the baseline
package format of the Linux Standard Base.
$

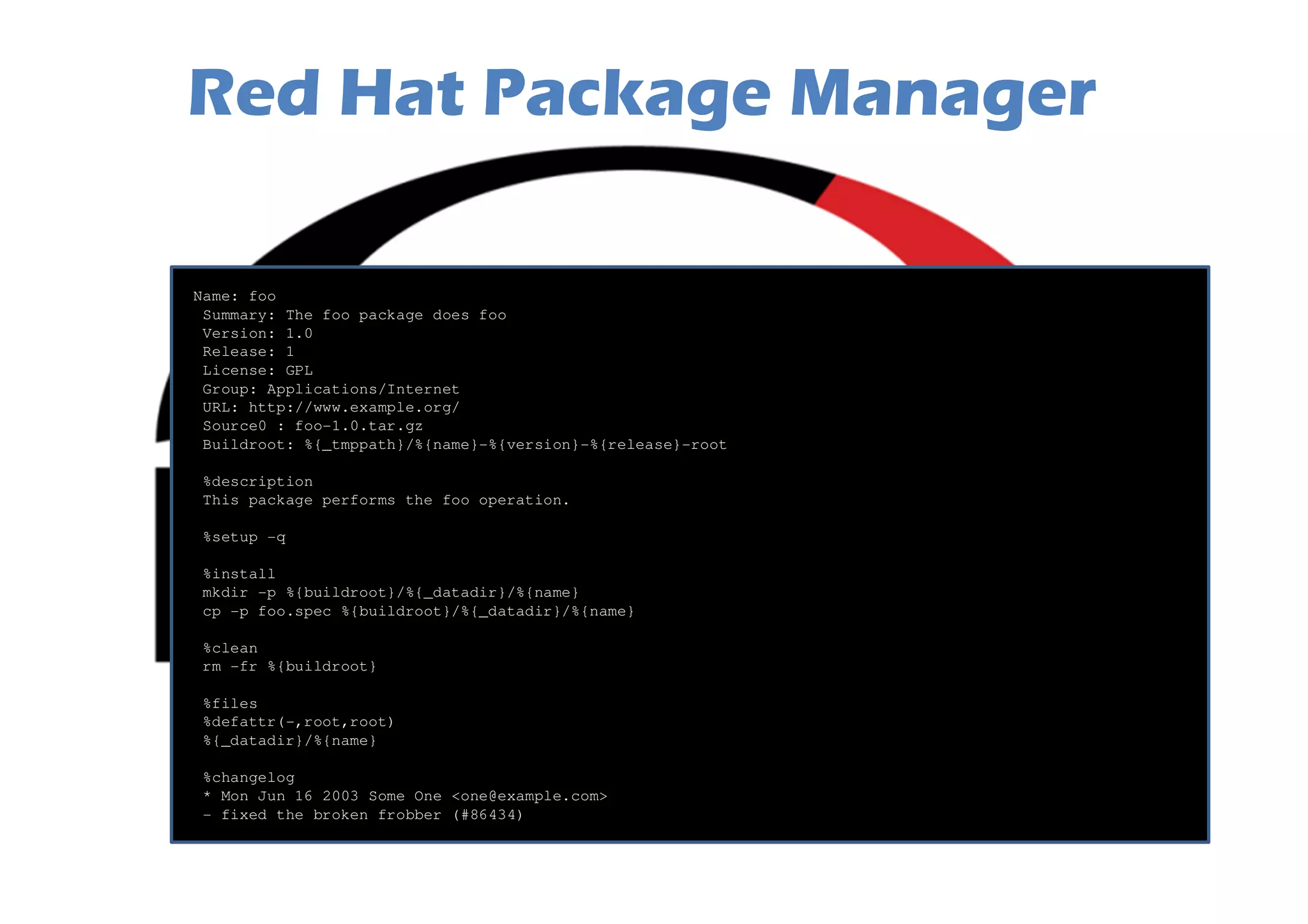

40. Red Hat Package Manager
Name: foo
Summary: The foo package does foo
Version: 1.0
Release: 1
License: GPL
Group: Applications/Internet
URL: http://www.example.org/
Source0 : foo-1.0.tar.gz
Buildroot: %{_tmppath}/%{name}-%{version}-%{release}-root
%description
This package performs the foo operation.
%setup -q
%install
mkdir -p %{buildroot}/%{_datadir}/%{name}
cp -p foo.spec %{buildroot}/%{_datadir}/%{name}
%clean
rm -fr %{buildroot}
%files
%defattr(-,root,root)
%{_datadir}/%{name}
%changelog
* Mon Jun 16 2003 Some One <one@example.com>
- fixed the broken frobber (#86434)

41. Futures

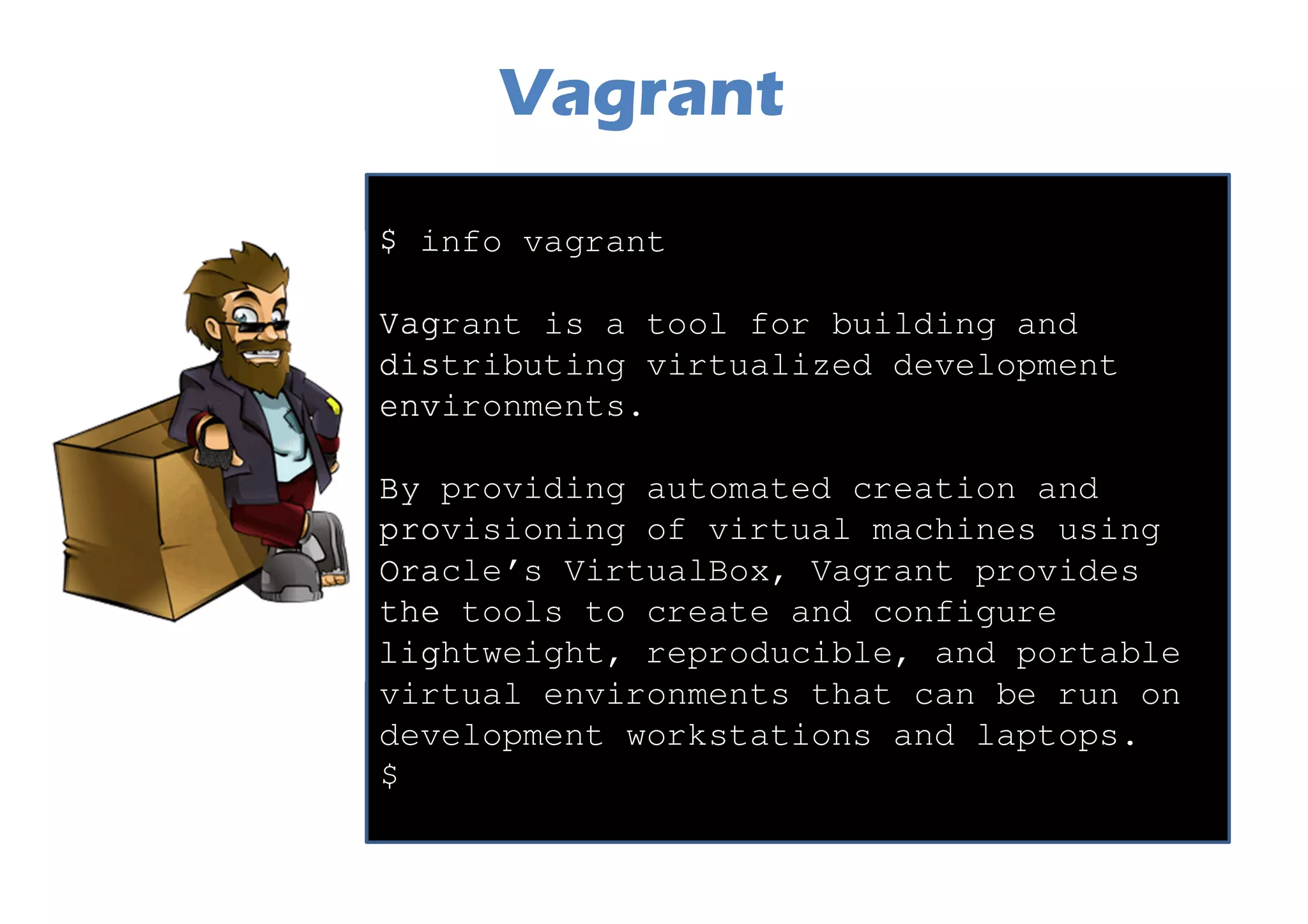

42. Vagrant
$ info vagrant
Vagrant is a tool for building and
distributing virtualized development
environments.
By providing automated creation and
provisioning of virtual machines using
Oracle’s VirtualBox, Vagrant provides
the tools to create and configure
lightweight, reproducible, and portable
virtual environments that can be run on
development workstations and laptops.
$

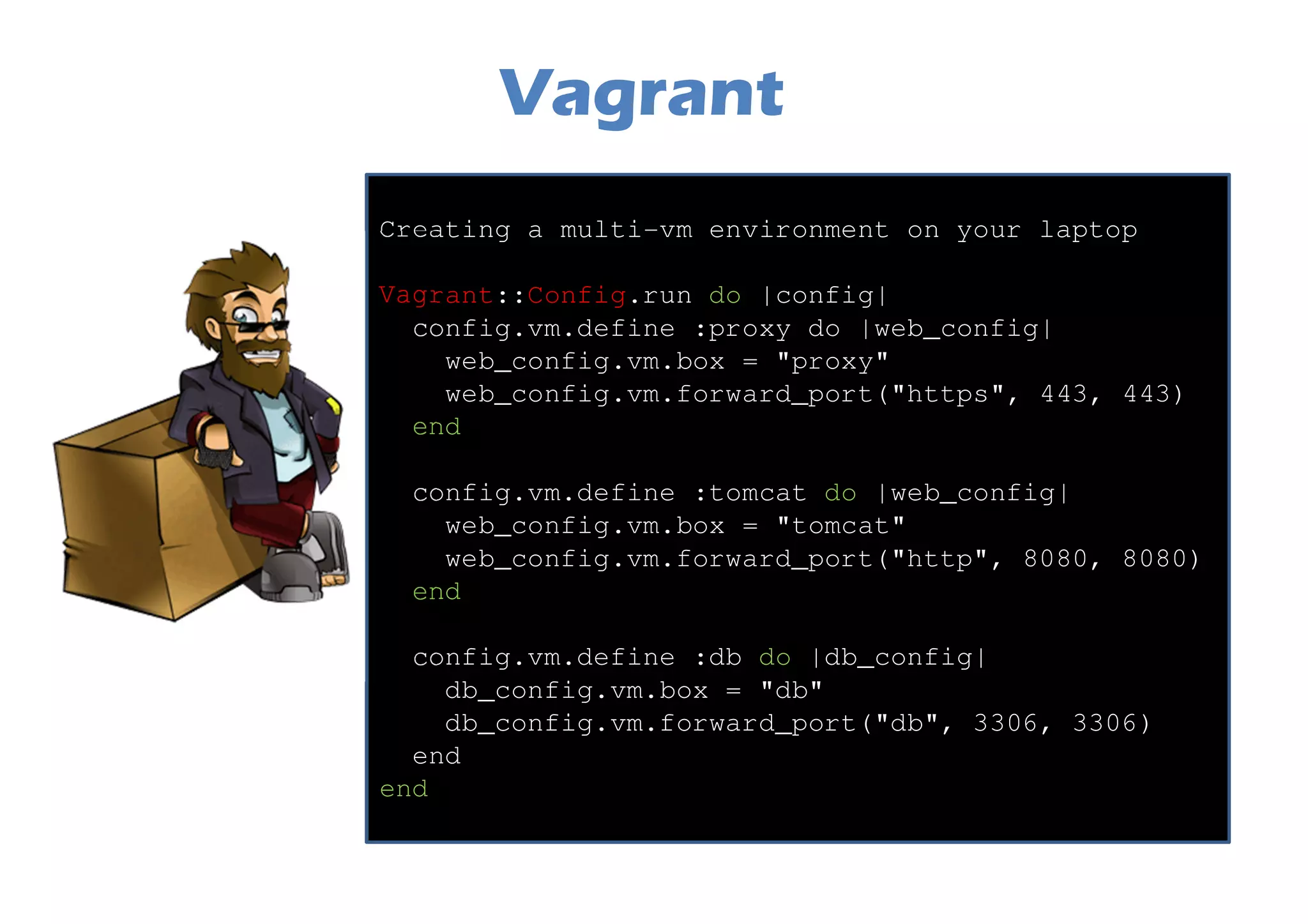

43. Vagrant
Creating a multi-vm environment on your laptop
Vagrant::Config.run do |config|
config.vm.define :proxy do |web_config|
web_config.vm.box = "proxy"
web_config.vm.forward_port("https", 443, 443)
end
config.vm.define :tomcat do |web_config|
web_config.vm.box = "tomcat"
web_config.vm.forward_port("http", 8080, 8080)
end
config.vm.define :db do |db_config|
db_config.vm.box = "db"
db_config.vm.forward_port("db", 3306, 3306)
end
end

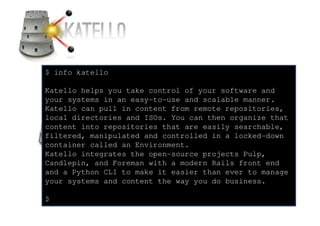

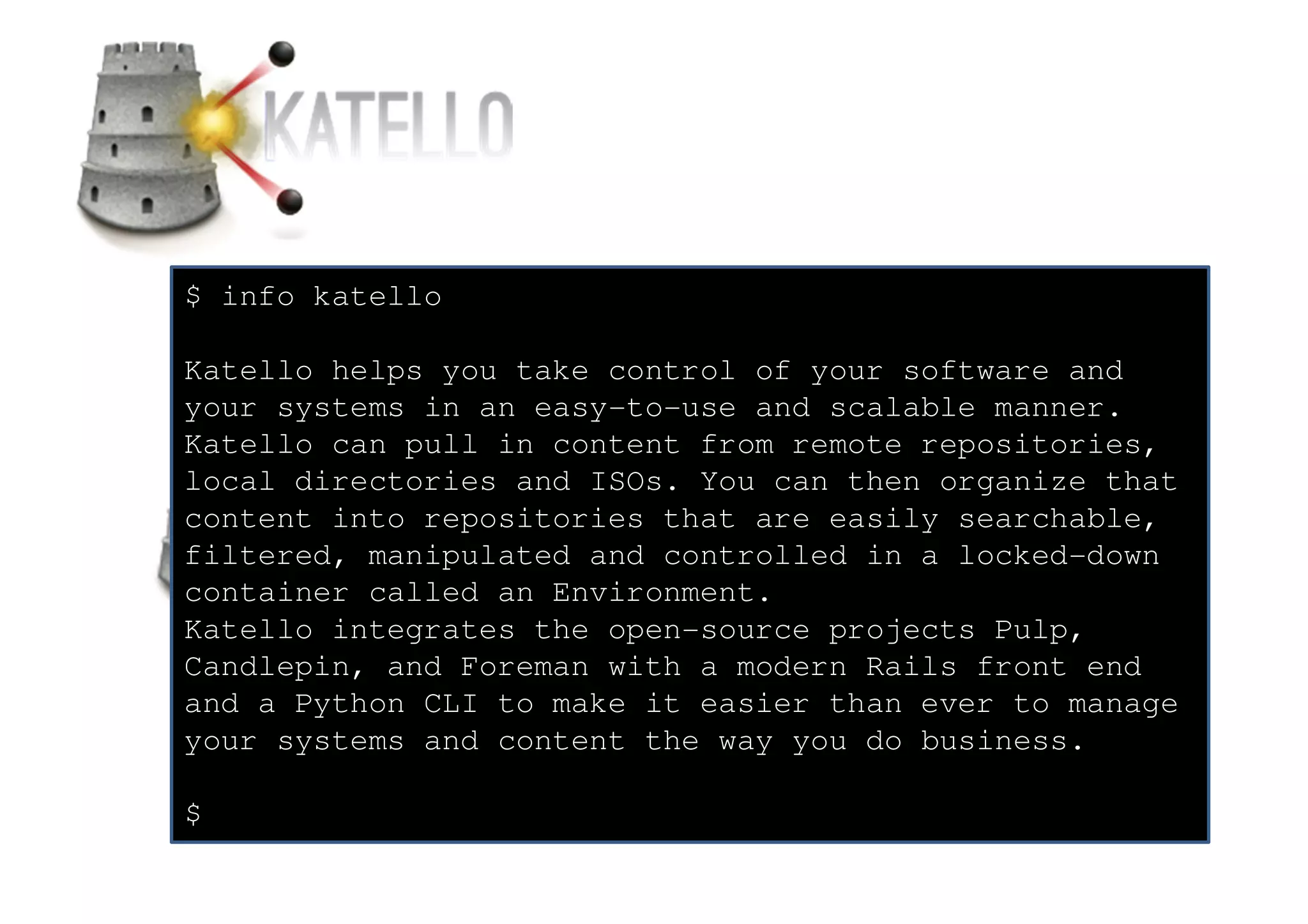

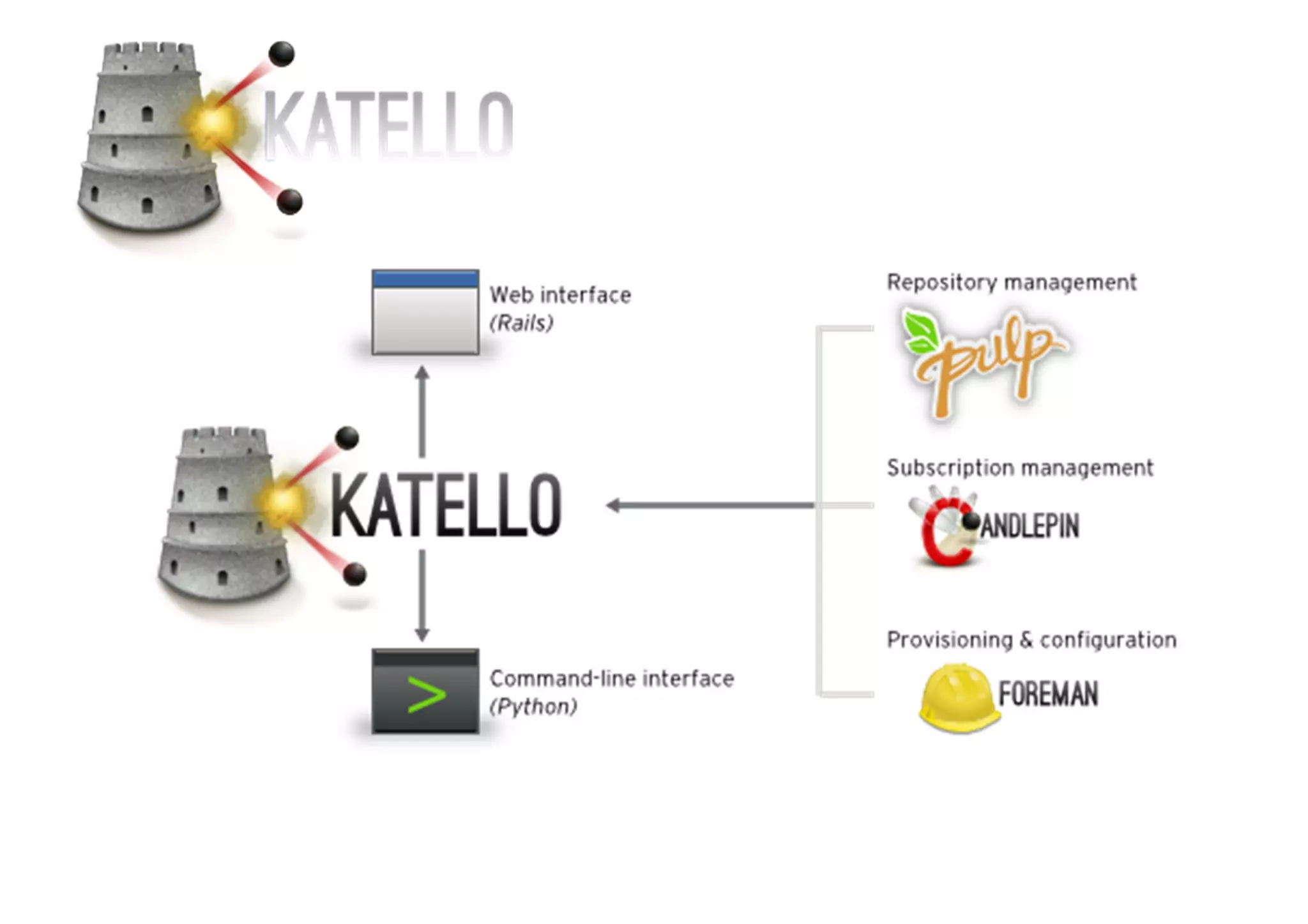

45. $ info katello
Katello helps you take control of your software and
your systems in an easy-to-use and scalable manner.
Katello can pull in content from remote repositories,
local directories and ISOs. You can then organize that
content into repositories that are easily searchable,
filtered, manipulated and controlled in a locked-down
container called an Environment.
Katello integrates the open-source projects Pulp,
Candlepin, and Foreman with a modern Rails front end
and a Python CLI to make it easier than ever to manage
your systems and content the way you do business.
$

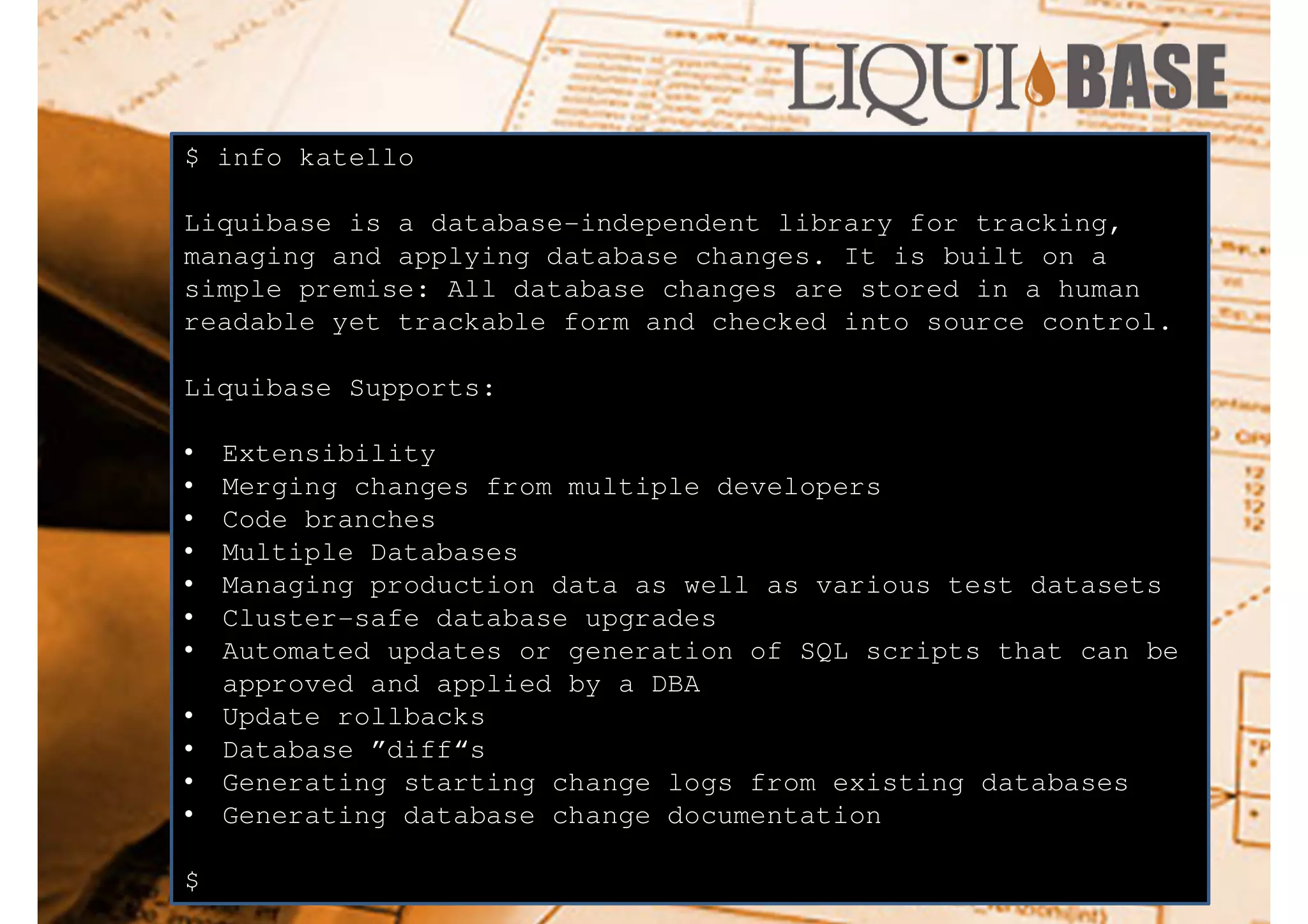

47. $ info katello
Liquibase is a database-independent library for tracking,
managing and applying database changes. It is built on a
simple premise: All database changes are stored in a human
readable yet trackable form and checked into source control.
Liquibase Supports:
• Extensibility
• Merging changes from multiple developers
• Code branches
• Multiple Databases
• Managing production data as well as various test datasets
• Cluster-safe database upgrades
• Automated updates or generation of SQL scripts that can be
approved and applied by a DBA
• Update rollbacks
• Database ”diff“s
• Generating starting change logs from existing databases
• Generating database change documentation
$

48. What can
you do to
make your
deploys go
through
quicker?

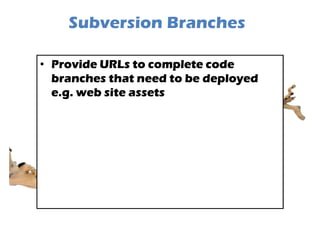

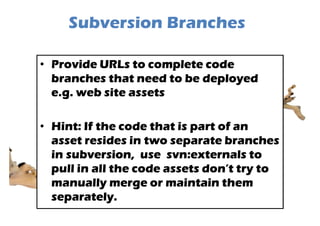

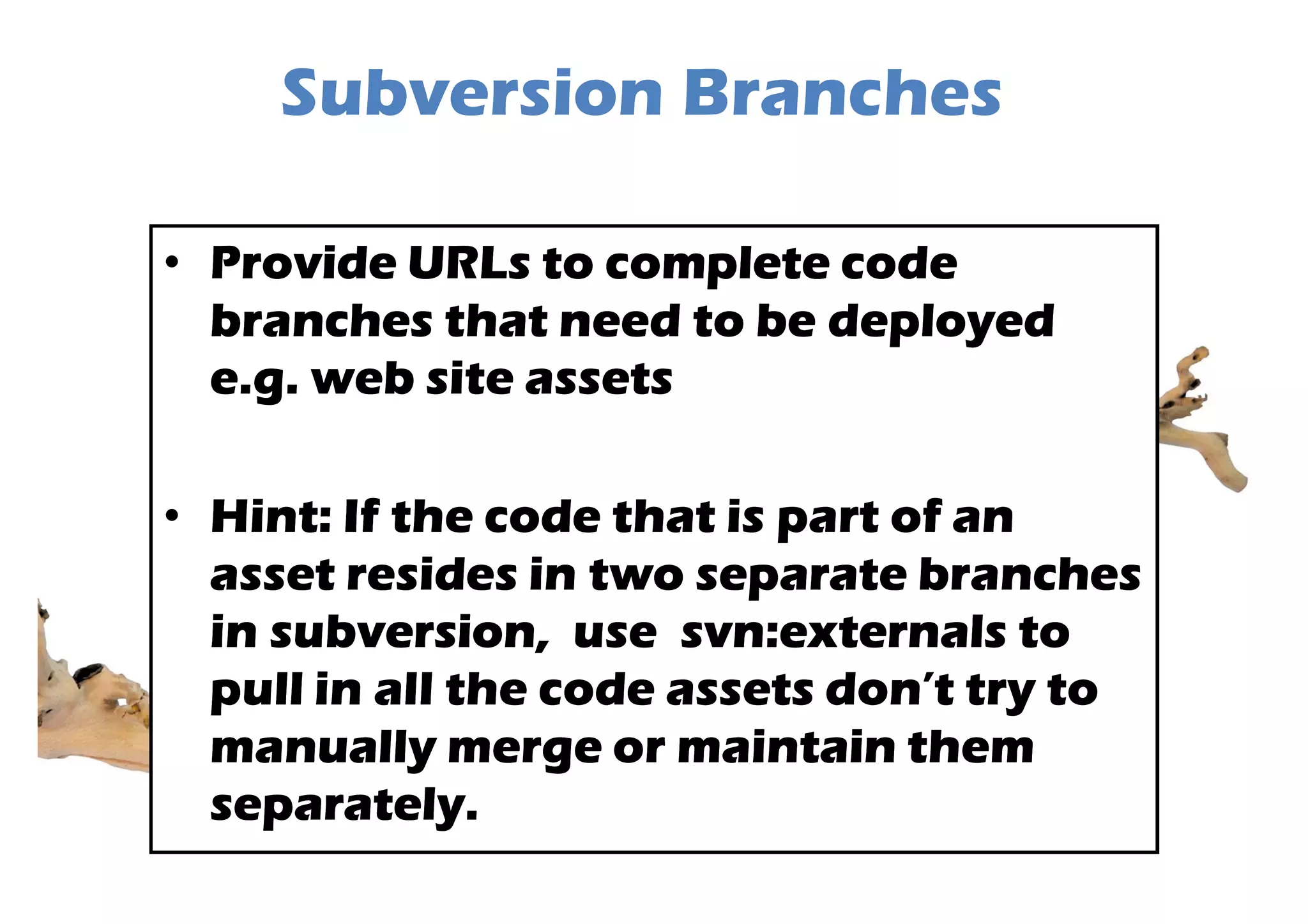

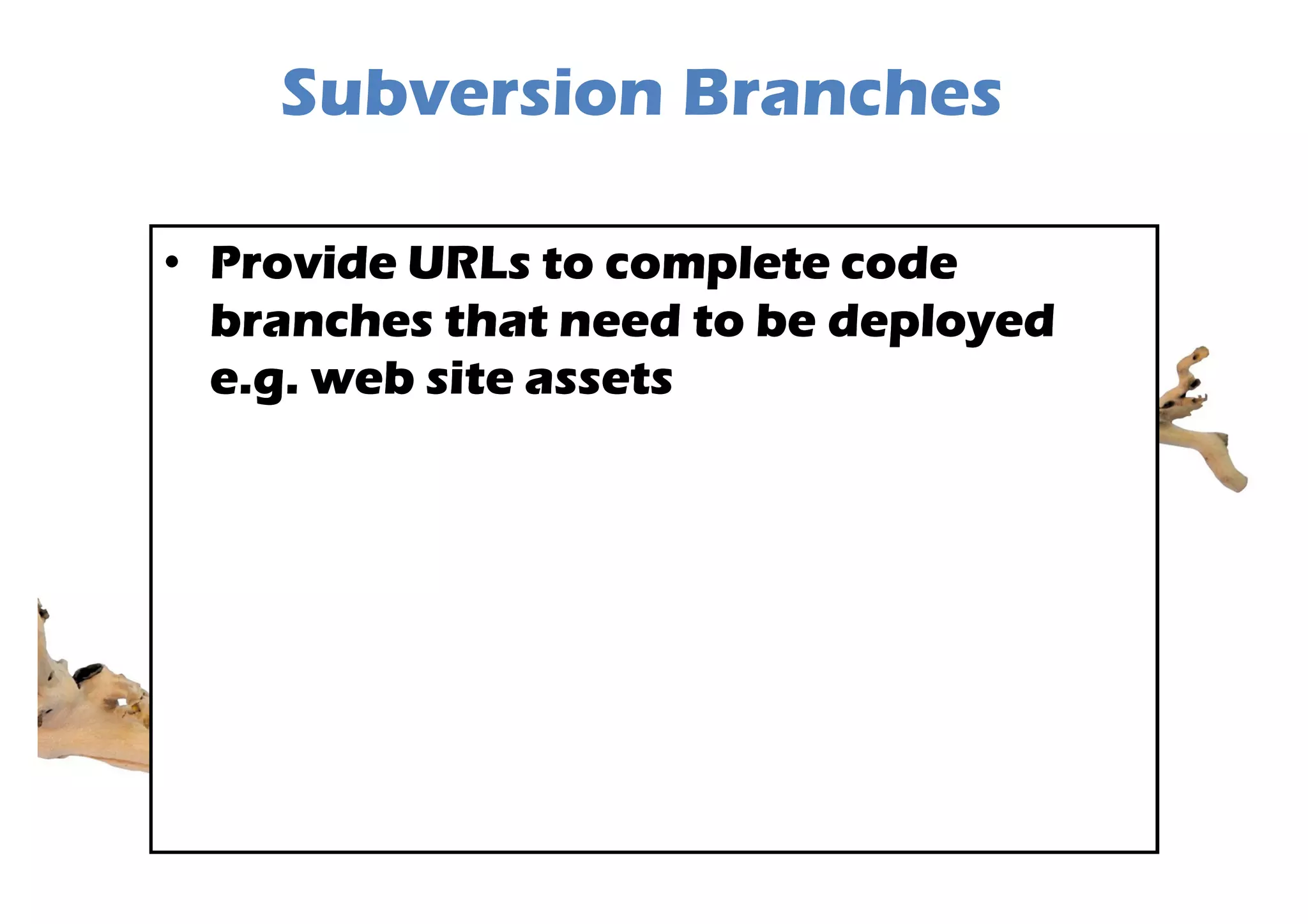

54. Subversion Branches

55. Subversion Branches
• Provide URLs to complete code
branches that need to be deployed
e.g. web site assets

56. Subversion Branches
• Provide URLs to complete code
branches that need to be deployed
e.g. web site assets
• Hint: If the code that is part of an
asset resides in two separate branches
in subversion, use svn:externals to
pull in all the code assets don’t try to
manually merge or maintain them
separately.

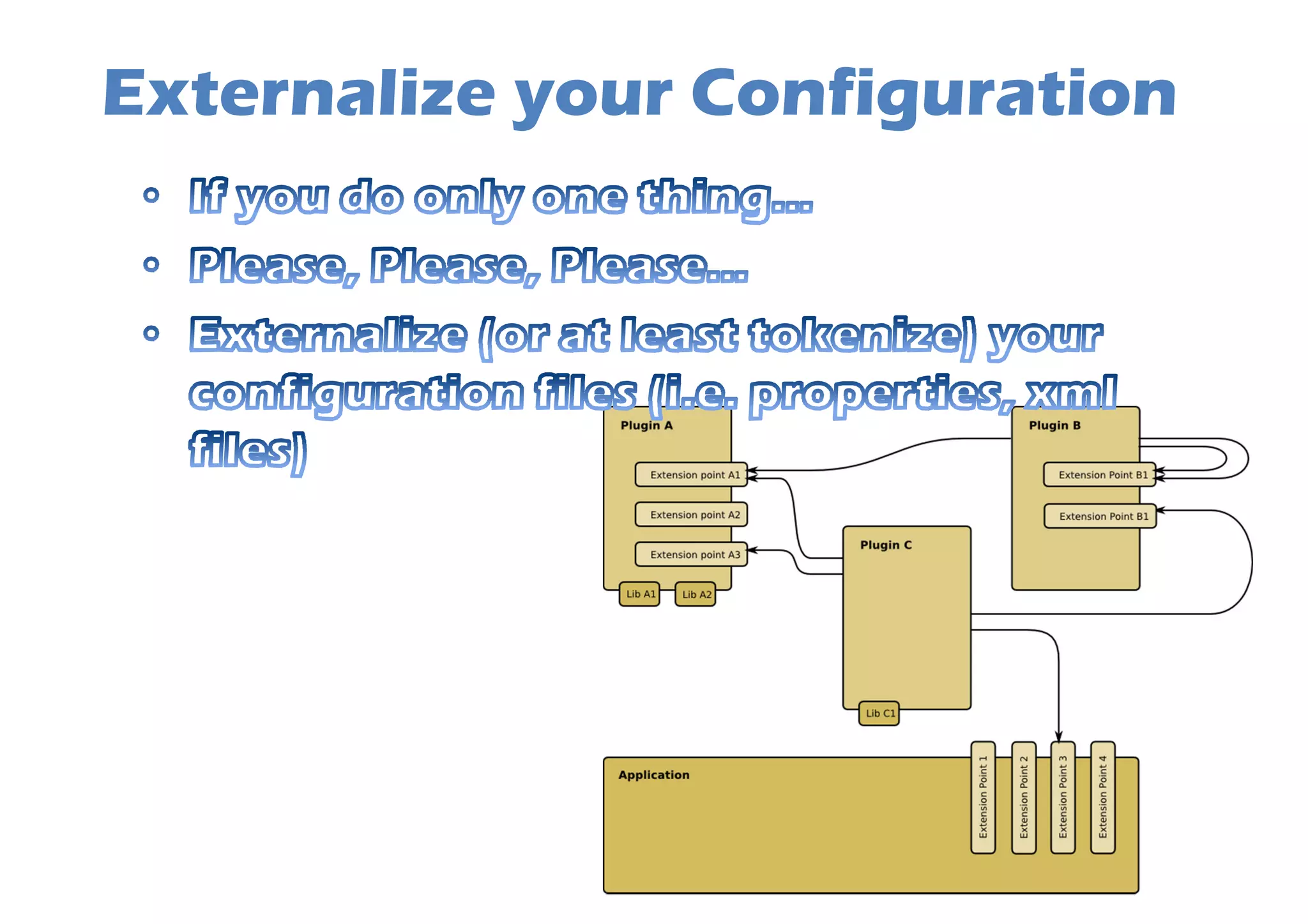

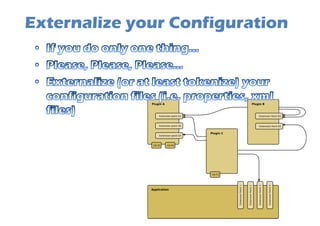

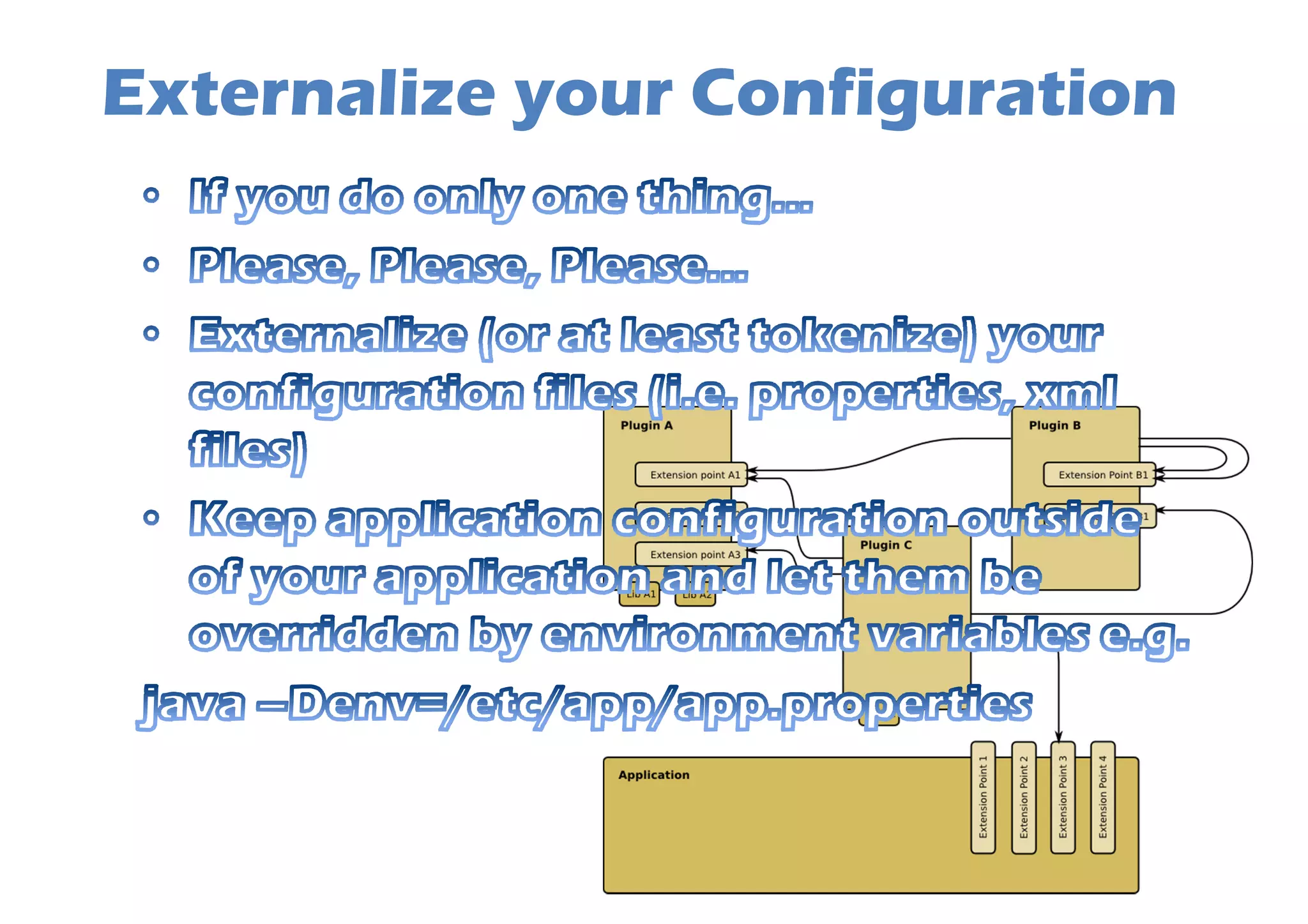

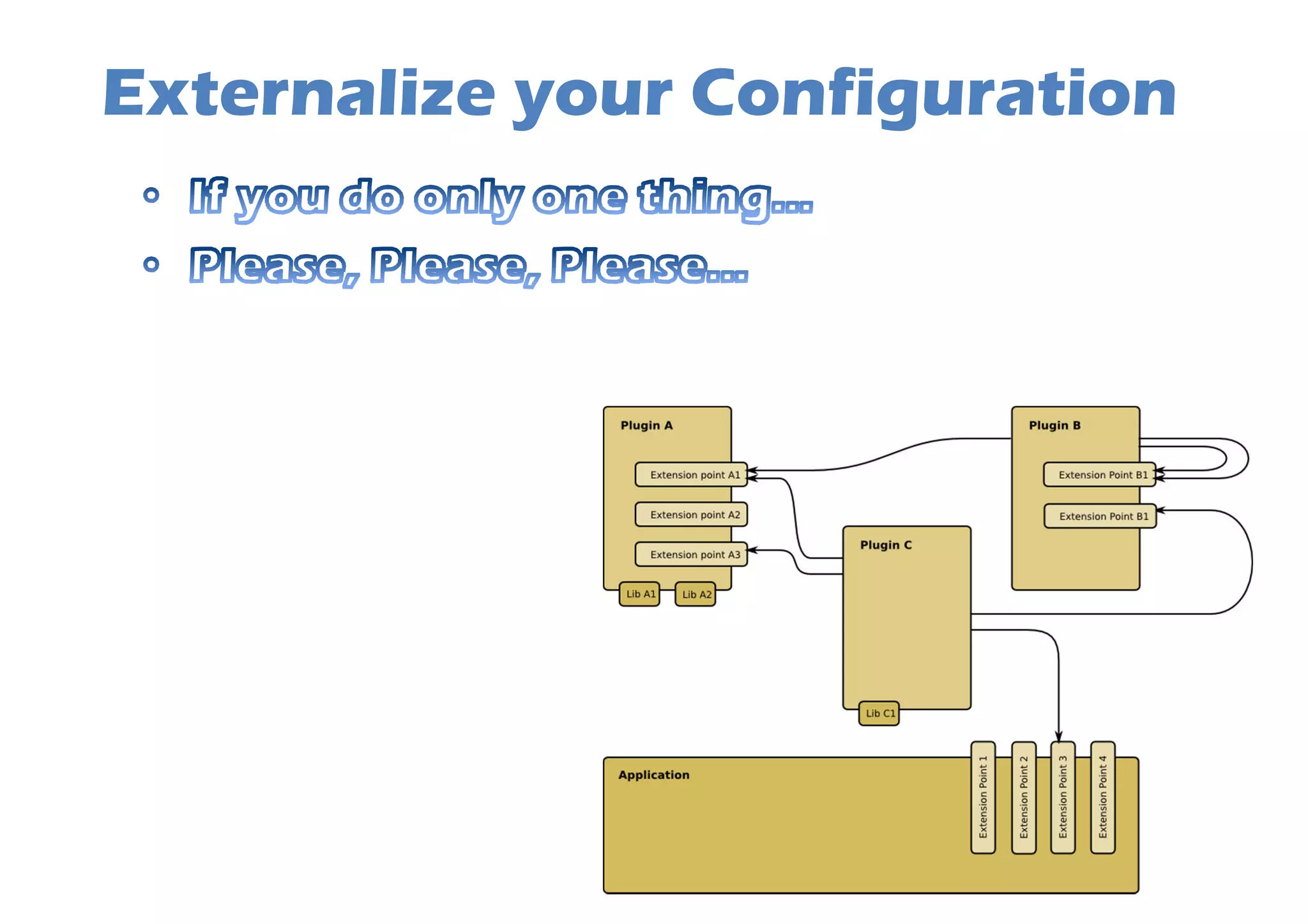

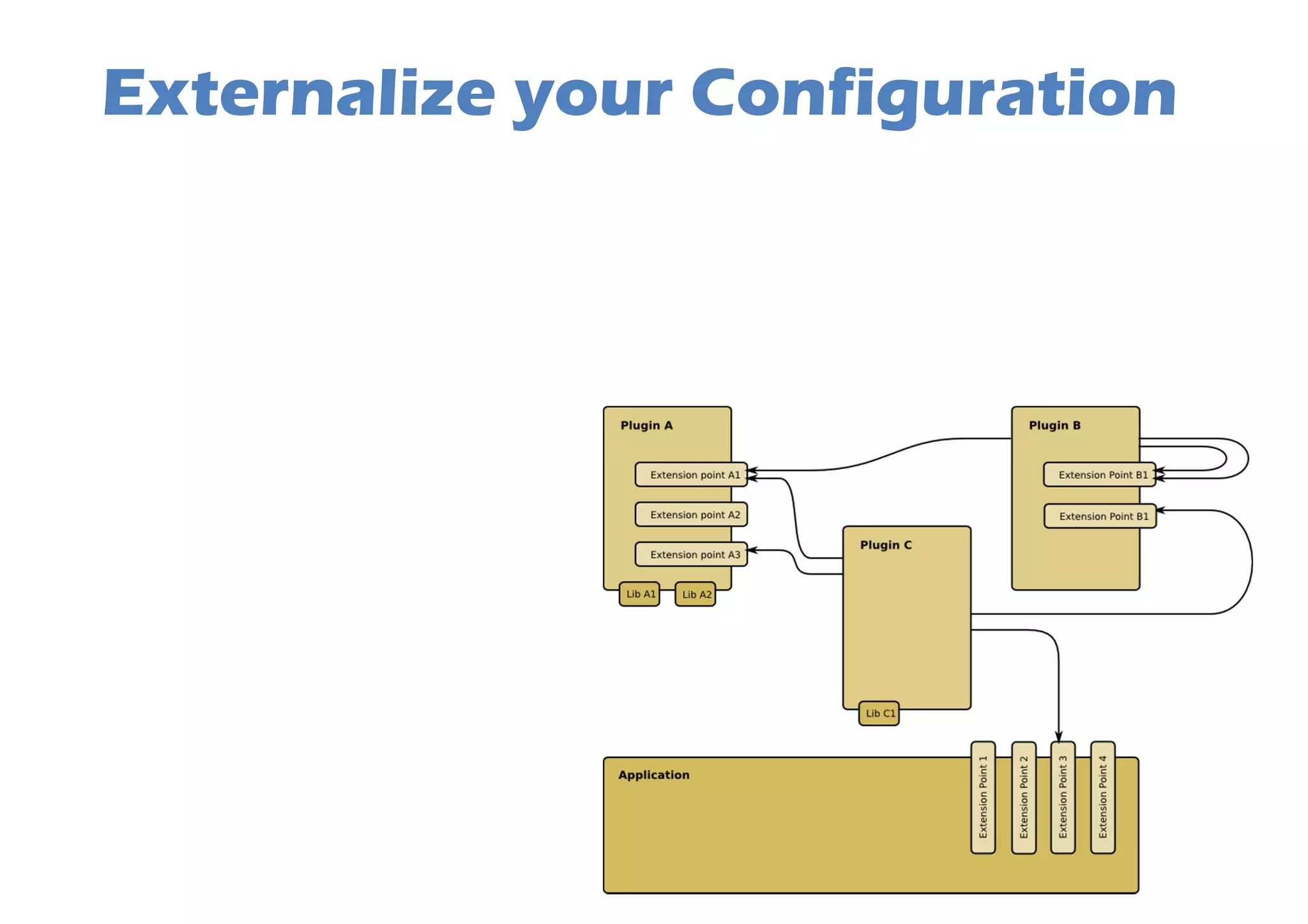

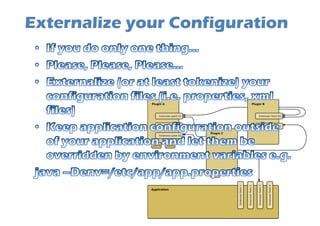

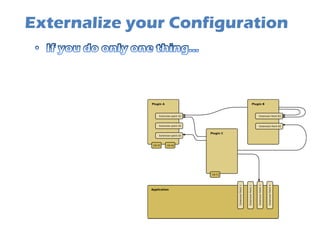

62. Externalize your Configuration

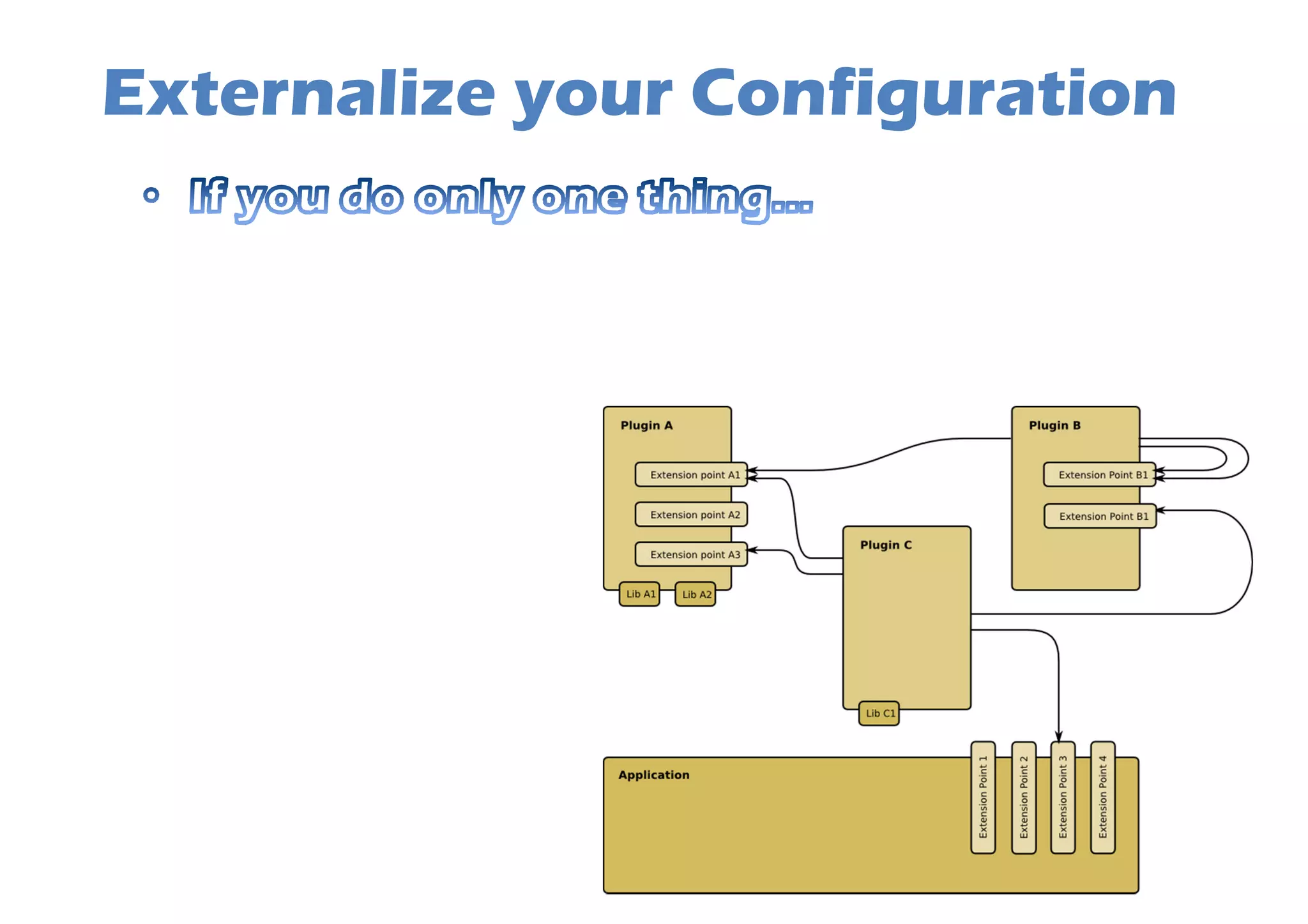

63. Externalize your Configuration

64. Externalize your Configuration

65. Externalize your Configuration

66. Externalize your Configuration

67. Questions

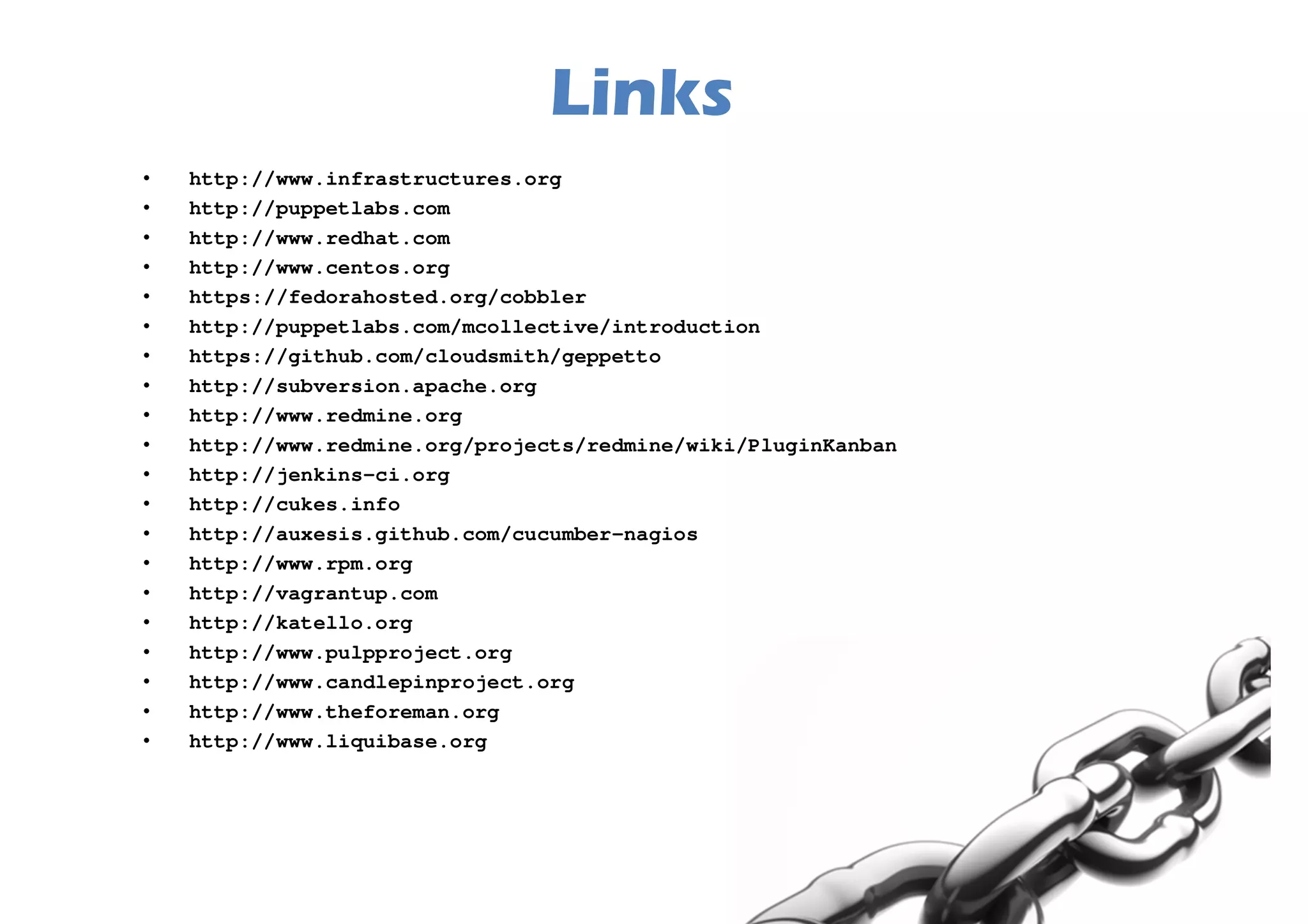

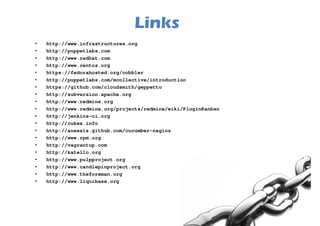

68. Links
• http://www.infrastructures.org
• http://puppetlabs.com
• http://www.redhat.com
• http://www.centos.org
• https://fedorahosted.org/cobbler
• http://puppetlabs.com/mcollective/introduction
• https://github.com/cloudsmith/geppetto
• http://subversion.apache.org
• http://www.redmine.org
• http://www.redmine.org/projects/redmine/wiki/PluginKanban
• http://jenkins-ci.org
• http://cukes.info
• http://auxesis.github.com/cucumber-nagios
• http://www.rpm.org
• http://vagrantup.com
• http://katello.org
• http://www.pulpproject.org
• http://www.candlepinproject.org
• http://www.theforeman.org
• http://www.liquibase.org
