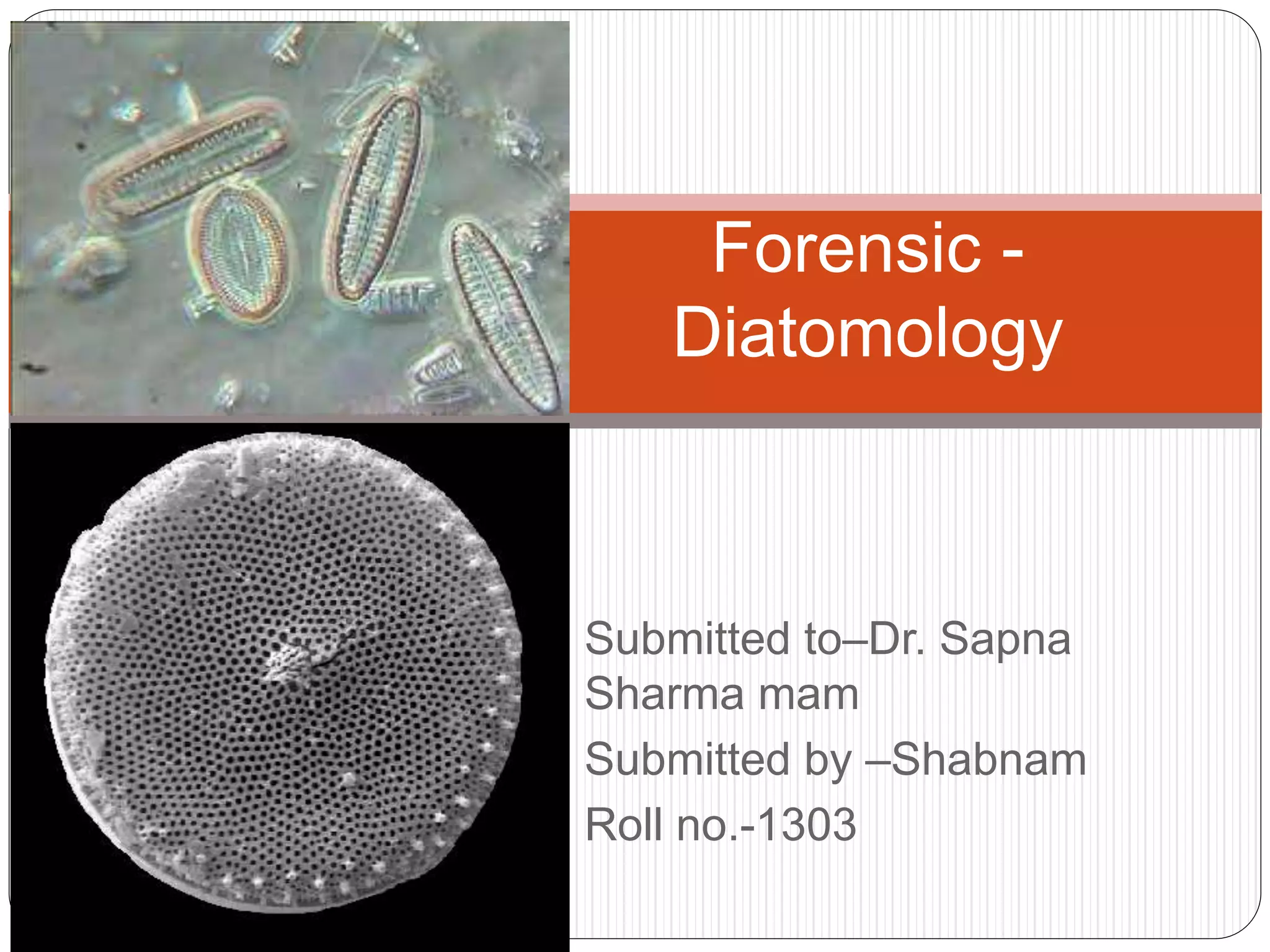

1. Diatoms are single-celled algae with cell walls made of silica. They come in many shapes and sizes and are found in both freshwater and marine environments. 2. Their cell walls are made of two parts called theca that fit together like a box and lid. Locomotion is achieved through the secretion of mucus from structures called raphe. 3. Diatoms are classified based on their cell symmetry and wall ornamentation. They are divided into two main orders - centric diatoms which are radially symmetrical and pennate diatoms which are bilaterally symmetrical.

1. Submitted to–Dr. Sapna
Sharma mam
Submitted by –Shabnam
Roll no.-1303
Forensic -
Diatomology

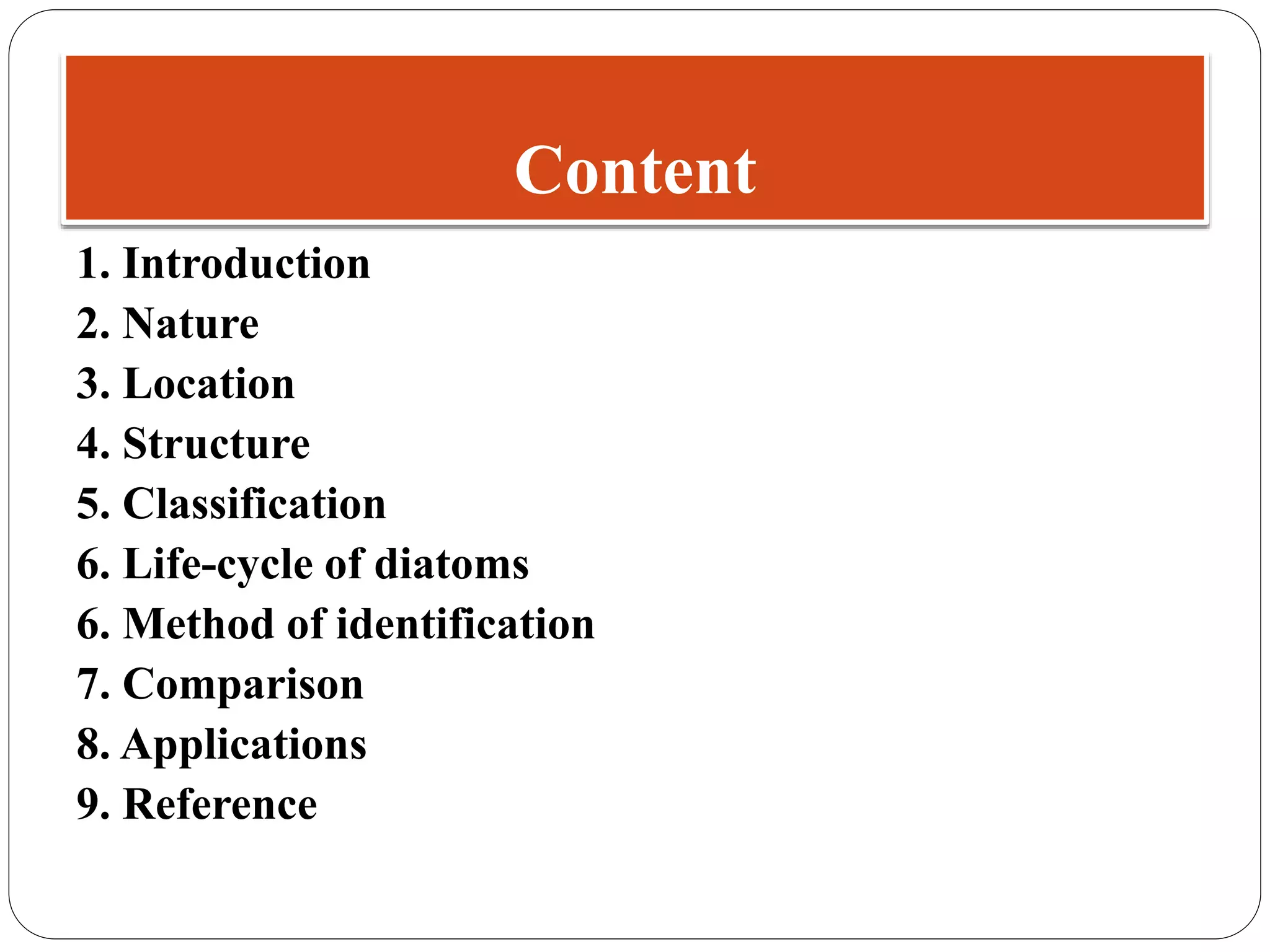

2. Content
1. Introduction
2. Nature
3. Location
4. Structure
5. Classification
6. Life-cycle of diatoms
6. Method of identification
7. Comparison
8. Applications
9. Reference

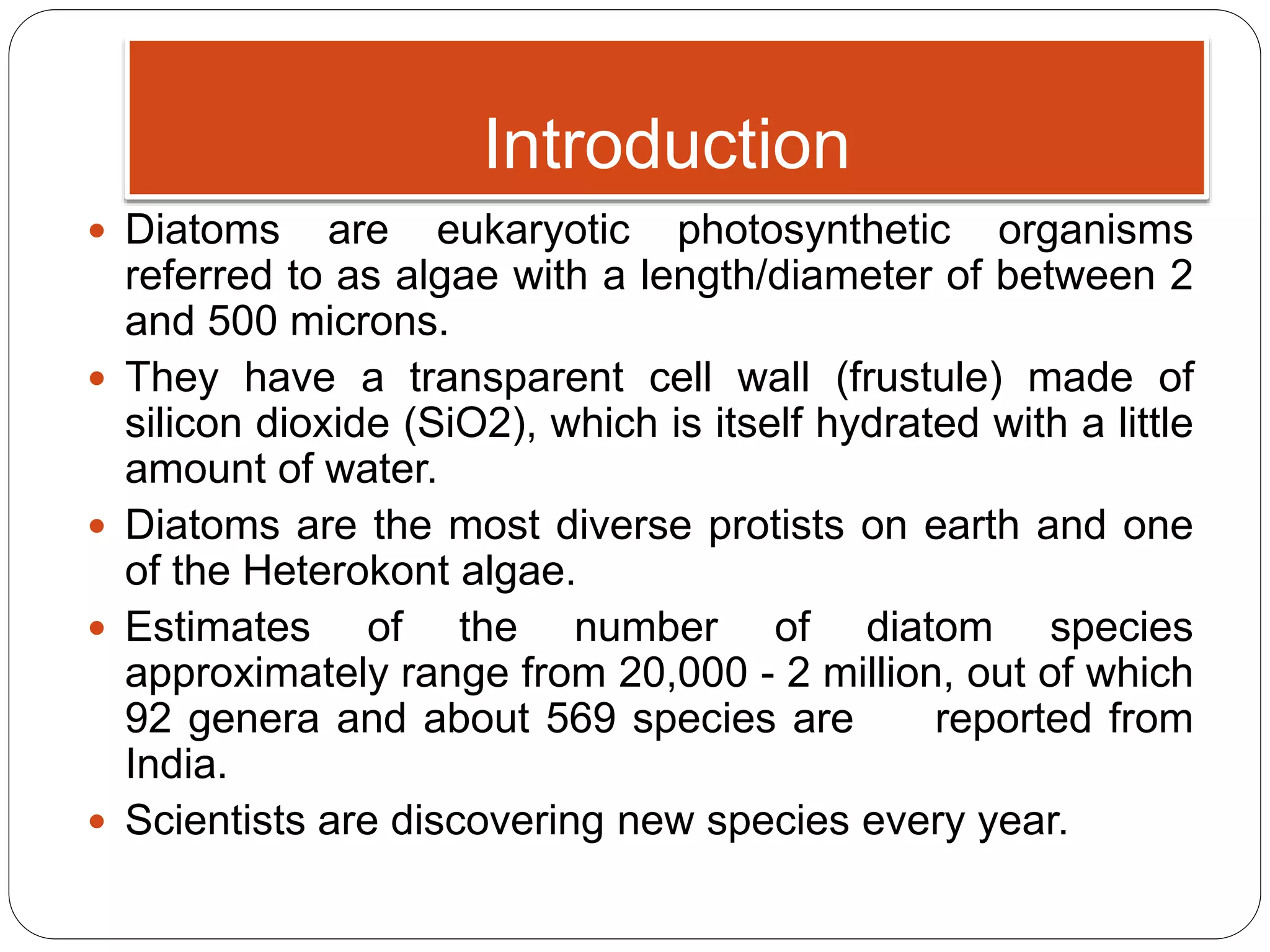

3. Introduction
 Diatoms are eukaryotic photosynthetic organisms
referred to as algae with a length/diameter of between 2
and 500 microns.
 They have a transparent cell wall (frustule) made of
silicon dioxide (SiO2), which is itself hydrated with a little
amount of water.
 Diatoms are the most diverse protists on earth and one
of the Heterokont algae.
 Estimates of the number of diatom species
approximately range from 20,000 - 2 million, out of which
92 genera and about 569 species are reported from
India.
 Scientists are discovering new species every year.

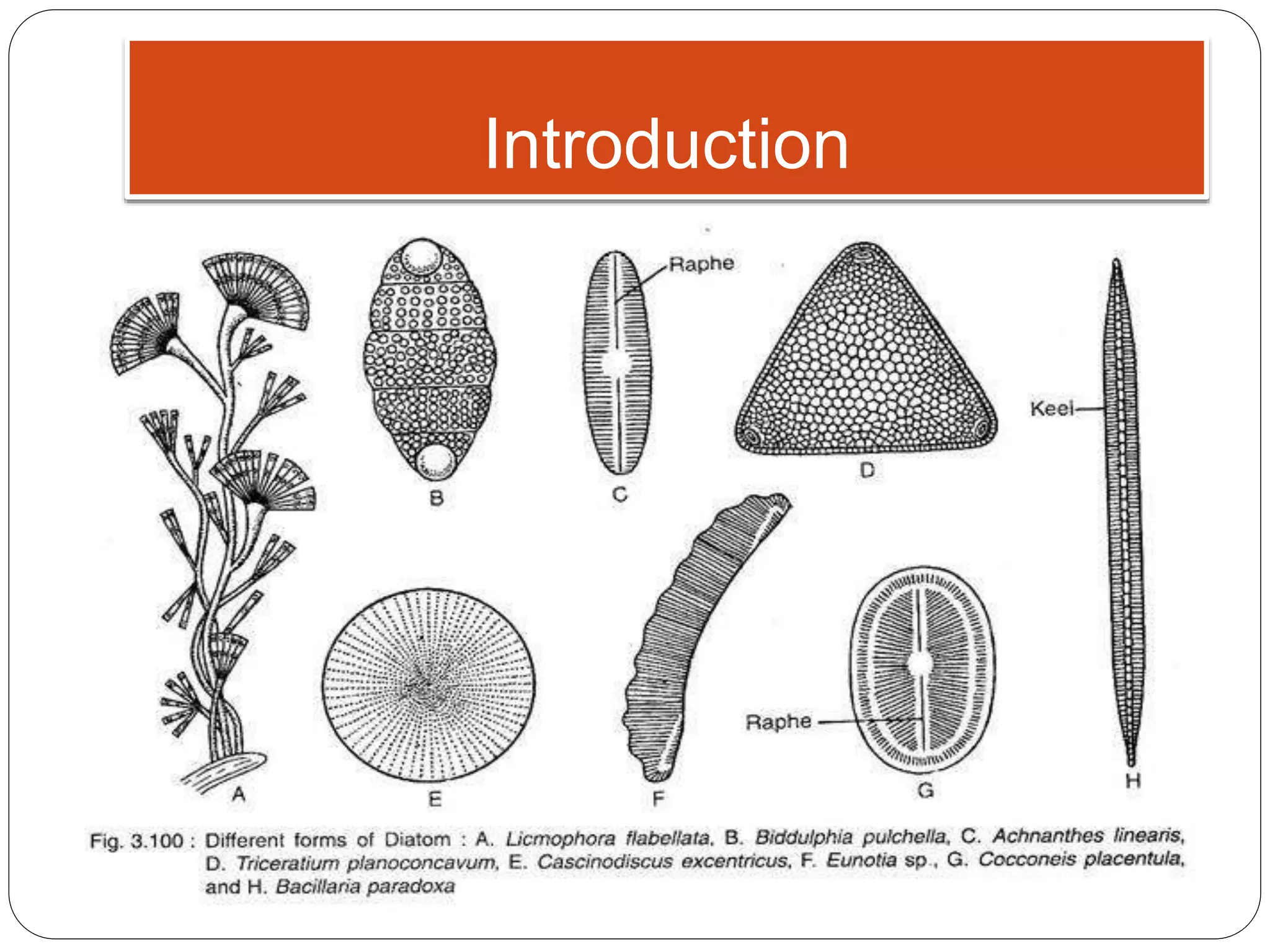

4. Introduction

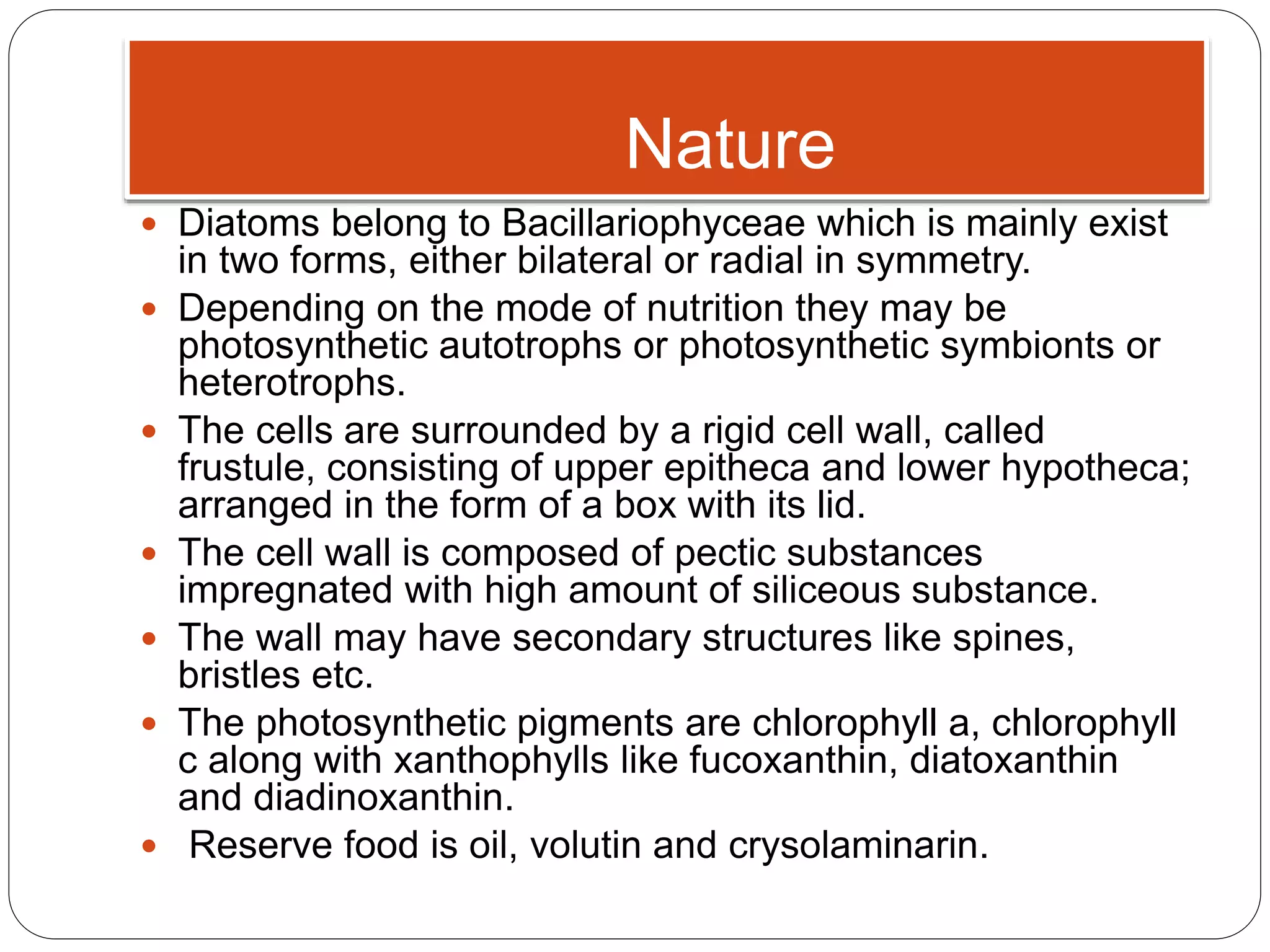

5. Nature
 Diatoms belong to Bacillariophyceae which is mainly exist
in two forms, either bilateral or radial in symmetry.
 Depending on the mode of nutrition they may be
photosynthetic autotrophs or photosynthetic symbionts or
heterotrophs.
 The cells are surrounded by a rigid cell wall, called
frustule, consisting of upper epitheca and lower hypotheca;
arranged in the form of a box with its lid.
 The cell wall is composed of pectic substances
impregnated with high amount of siliceous substance.
 The wall may have secondary structures like spines,
bristles etc.
 The photosynthetic pigments are chlorophyll a, chlorophyll
c along with xanthophylls like fucoxanthin, diatoxanthin
and diadinoxanthin.
 Reserve food is oil, volutin and crysolaminarin.

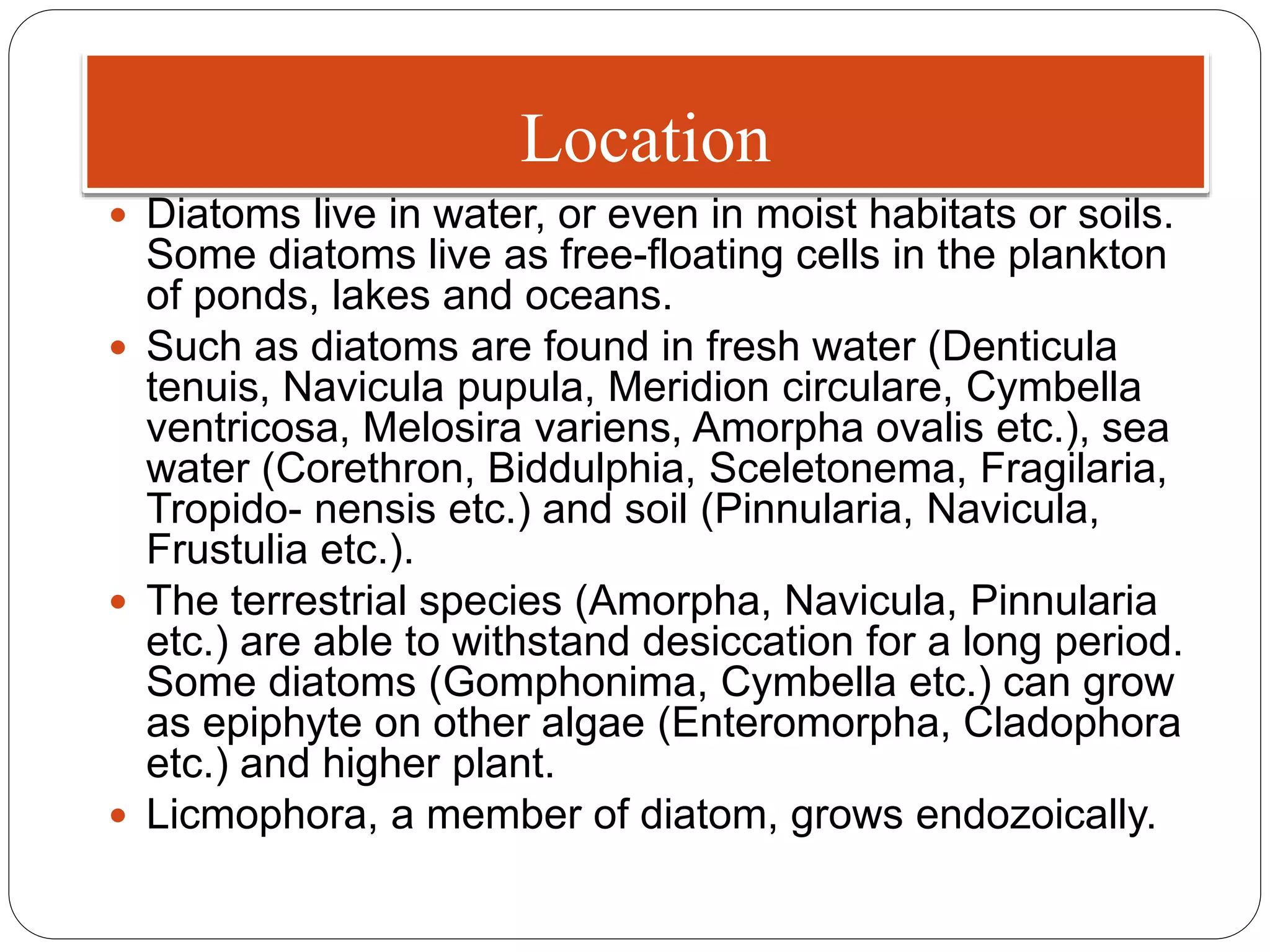

6. Location
 Diatoms live in water, or even in moist habitats or soils.
Some diatoms live as free-floating cells in the plankton
of ponds, lakes and oceans.
 Such as diatoms are found in fresh water (Denticula
tenuis, Navicula pupula, Meridion circulare, Cymbella
ventricosa, Melosira variens, Amorpha ovalis etc.), sea
water (Corethron, Biddulphia, Sceletonema, Fragilaria,
Tropido- nensis etc.) and soil (Pinnularia, Navicula,
Frustulia etc.).
 The terrestrial species (Amorpha, Navicula, Pinnularia
etc.) are able to withstand desiccation for a long period.
Some diatoms (Gomphonima, Cymbella etc.) can grow
as epiphyte on other algae (Enteromorpha, Cladophora
etc.) and higher plant.
 Licmophora, a member of diatom, grows endozoically.

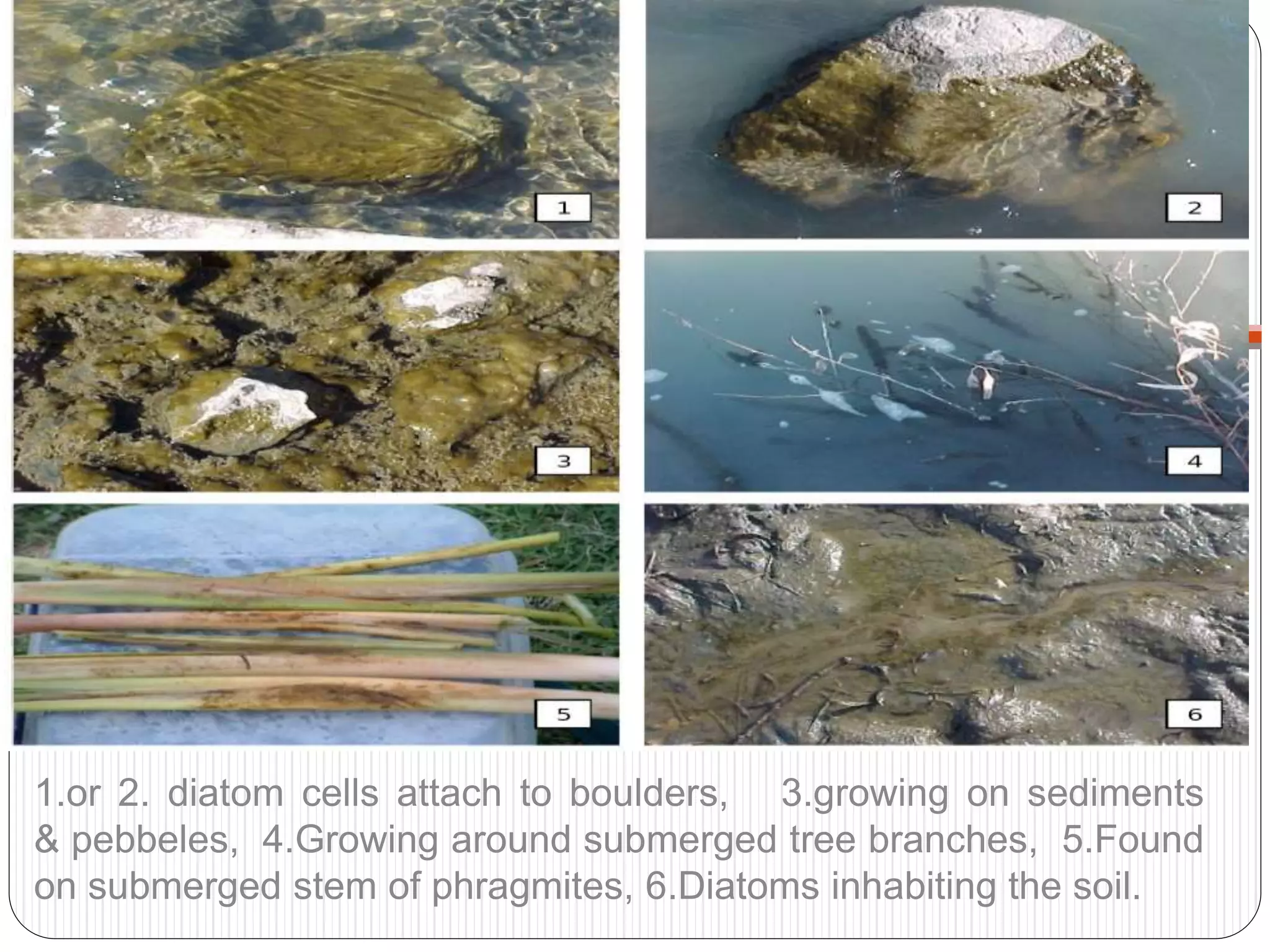

7. 1.or 2. diatom cells attach to boulders, 3.growing on sediments
& pebbeles, 4.Growing around submerged tree branches, 5.Found
on submerged stem of phragmites, 6.Diatoms inhabiting the soil.

8. Location
 As they produce long-chain fatty acids and an
important source of these energy rich molecules that
are food for the entire food web, from zooplankton to
aquatic insects to fish to whales.
 Being autotrophic they are restricted to the photic
zone (water depths down to about 200m depending
on clarity) as they trap light to make food itself by
photosynthesis process. Both benthic and planktic
forms exist.

9. Morphology
 Diatoms are commonly unicellular and free-
living but some members form colonies of
various shapes like filaments, mucilaginous
colonies etc.
 Microscopic cells are of different shapes.
They may be oval, spherical, triangular,
boat- shaped etc.
 Plant bodies are posses either bilateral
(plane of symmetry) or round (radial in
symmetry).
 The wall may have secondary structures like
spines, bristles etc.
 Raphe is an elongated fissure in a valve
which is used by diatoms for movement and
used as diatom identification on the basis of
position and number of raphe.

10. Cell structure
 The cell consists of cell wall and protoplast. The cells are covered
by a siliceous wall, the frustule.The entire content present inside
the cell wall is the protoplast. The cell membrane encloses a large
central vacuole surrounded by cytoplasm. The cytoplasm contains
single nucleus, mitochondria, golgi bodies and chloroplasts. The
chloroplasts may be of different shapes like stellate, H-shaped,
discoid etc. In some species the chloroplasts contain pyrenoids.
 The photosynthetic pigments are chlorophyll a, c1 and c2, β-
carotene, fucoxanthin, diatoxanthin and diadinoxanthin.The latter
two are present in small quantity.The golden-brown colour of
diatom cells is due to the presence of xanthophylls like
fucoxanthin, diatoxanthin and diadinoxanthin.
 The term diatomin is used for the mixture of chlorophyll and
carotenoids, particularly carotene and several brown xanthophylls
pigments). The reserve food of diatoms is chrysolaminarin and oil
droplets (they do not store in the form of starch).

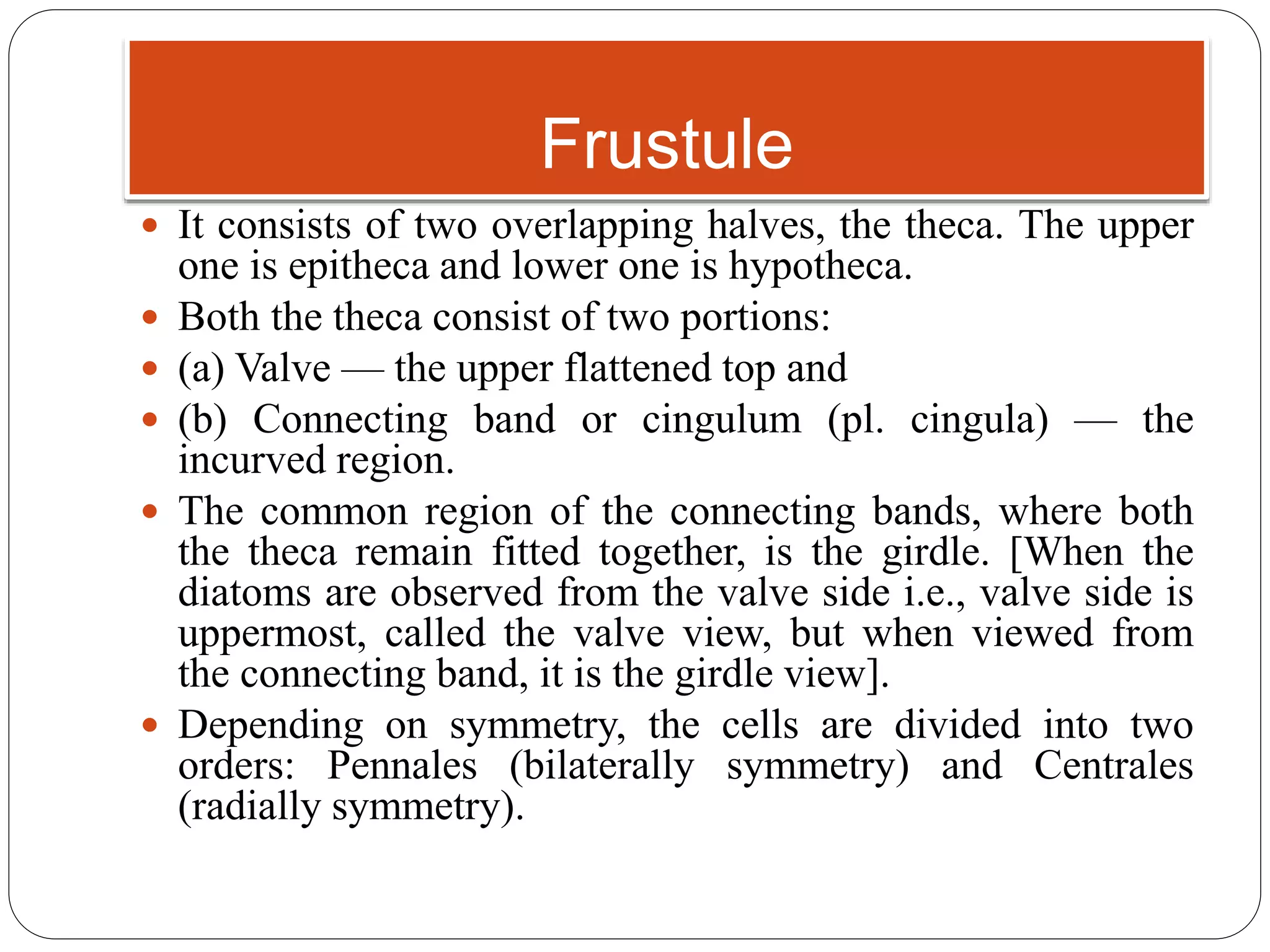

11. Frustule
 It consists of two overlapping halves, the theca. The upper
one is epitheca and lower one is hypotheca.
 Both the theca consist of two portions:
 (a) Valve — the upper flattened top and
 (b) Connecting band or cingulum (pl. cingula) — the
incurved region.
 The common region of the connecting bands, where both
the theca remain fitted together, is the girdle. [When the
diatoms are observed from the valve side i.e., valve side is
uppermost, called the valve view, but when viewed from
the connecting band, it is the girdle view].
 Depending on symmetry, the cells are divided into two
orders: Pennales (bilaterally symmetry) and Centrales
(radially symmetry).

12. CELL STRUCTURE OF DIATOMS

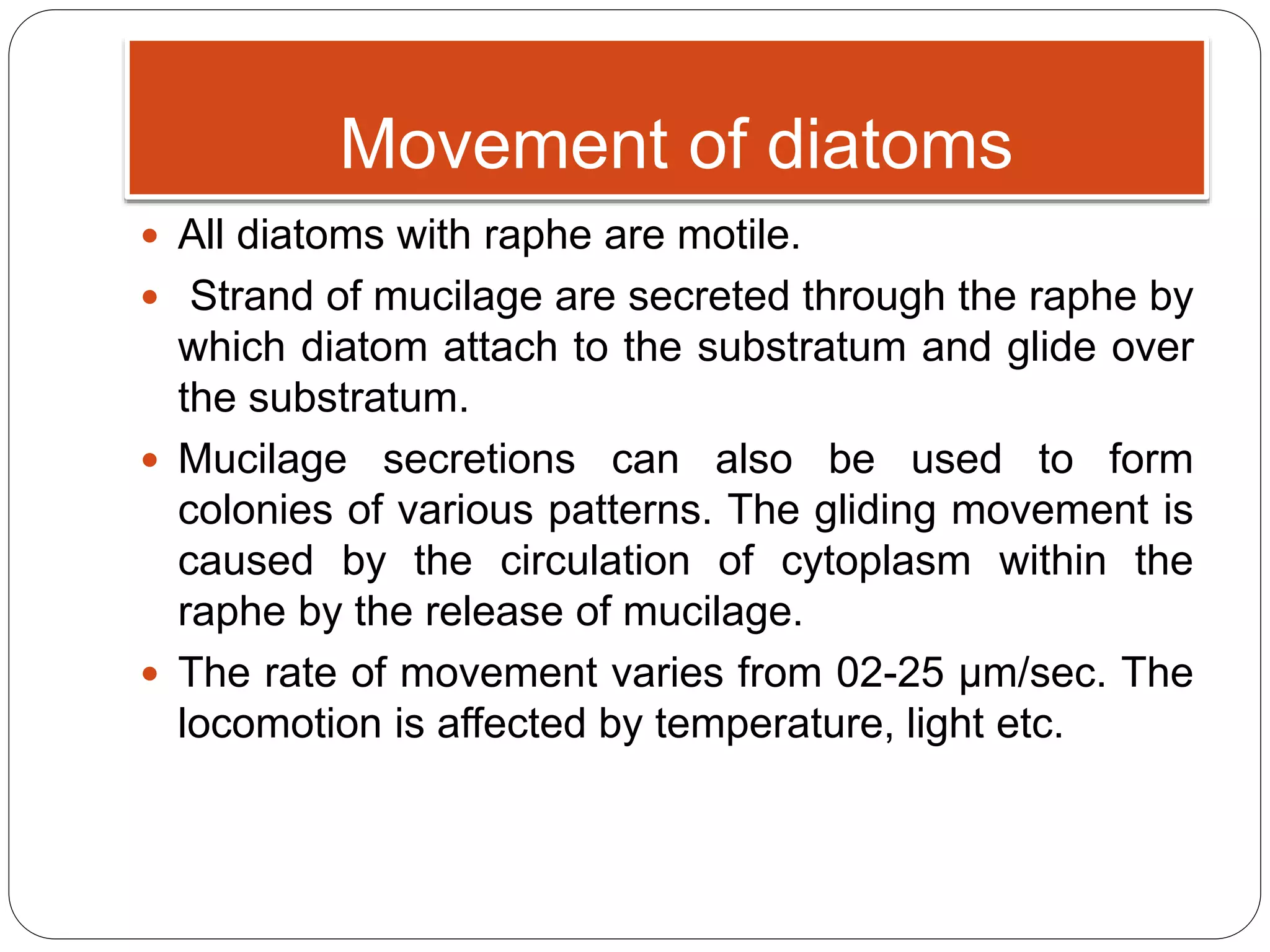

13. Movement of diatoms
 All diatoms with raphe are motile.
 Strand of mucilage are secreted through the raphe by
which diatom attach to the substratum and glide over
the substratum.
 Mucilage secretions can also be used to form
colonies of various patterns. The gliding movement is
caused by the circulation of cytoplasm within the
raphe by the release of mucilage.
 The rate of movement varies from 02-25 µm/sec. The
locomotion is affected by temperature, light etc.

14. Movement of diatoms
Locomotion by mucilage.

15. Classification
 Domain: Eukaryota
 Kingdom: Chromalveolata
 Phylum: Heterokontophyta
 Class: Bacillariophyceae
 Orders: Centrales ,Pennales

16. Classification
 The classification system developed by Simonsen
(1979) and further developed by Round et al.
(1990) is currently the most commonly accepted.
 The valve face of the diatom frustule is
ornamented with pores (areolae), processes,
spines, hyaline areas and other distinguishing
features.
 It is these skeletal features which are used to
classify and describe diatoms, which is an
advantage in terms of palaeontology since the
same features are used to define extant species
as extinct ones.

17. Classification

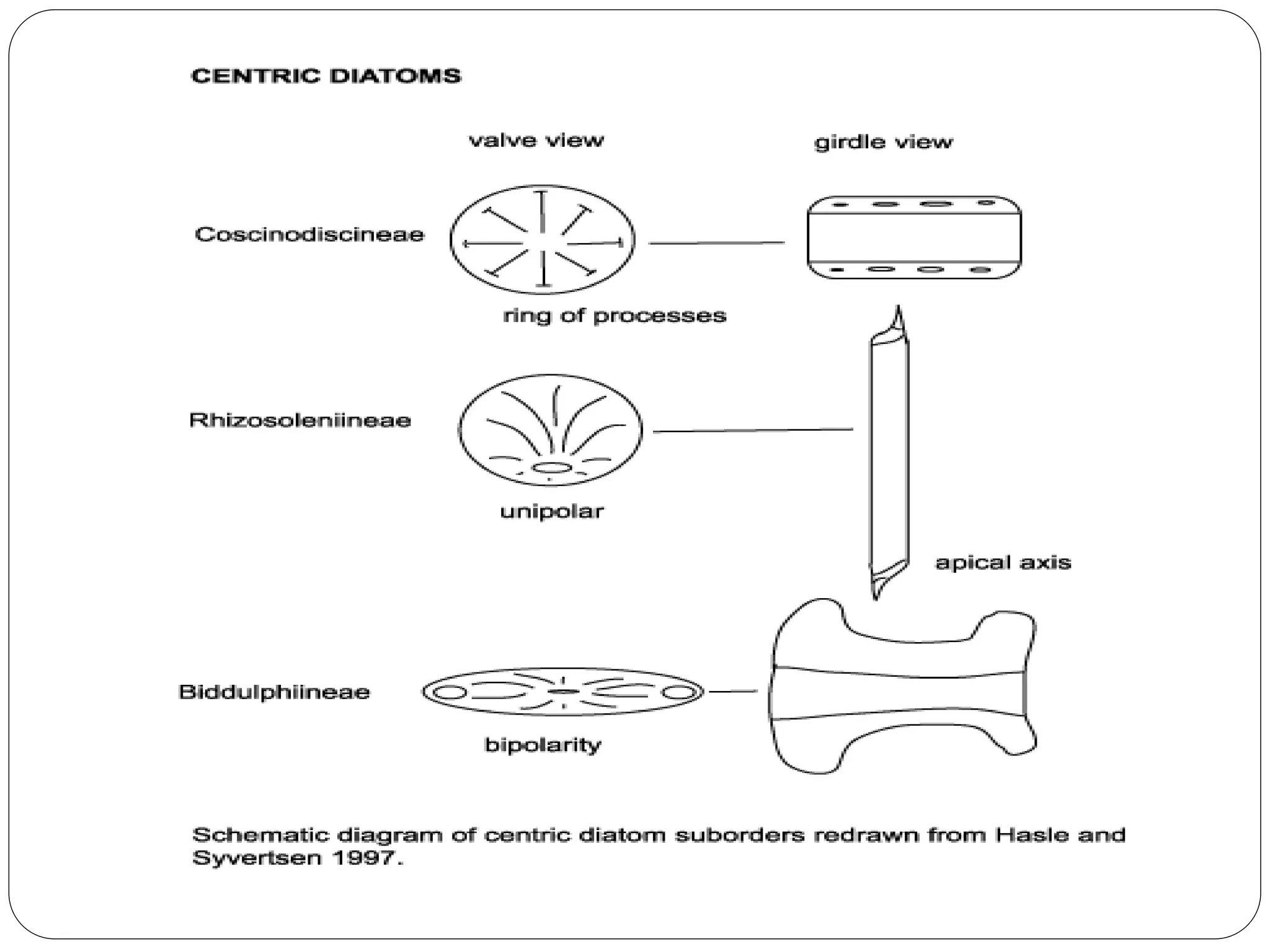

 The Centrales (now called the Biddulphiales) which have
valve striae arranged basically in relation to a point, an
annulus or a central areola and tend to appear radially
symmetrical.
 Diatoms commonly found in the marine plankton may
be divided into the centric diatoms including three sub-
orders based primarily on the shape of the cells, the
polarity and the arrangement of the processes.
 These are the Coscinodiscineae, with a marginal ring of
processes and no polarity to the symmetry, the
Rhizosoleniineae with no marginal ring of processes and
unipolar symmetry, and the Biddulphiineae with no
marginal ring of processes and bipolar symmetry.

19. Classification
 Pennales (now called Bacillariales) which have valve
striae arranged in relation to a line and tend to appear
bilaterally symmetrical.
 The pennate diatoms are divided into two sub-orders,
the Fragilariineae which do not posses a raphe
(araphid) and the Bacillariineae which posses a raphe.

20. Difference between diatoms
Pennate diatoms Centric diatoms
A. Bilateral symmetry.
B. Elongated chloroplast.
C. Raphe is present responsible
for movement.
D. Pennate striations are
present.
E. These are generally posses
boat shape.
A. Radial symmetry.
B. Discoid chloroplast, large
vacuole.
C. Raphe is absent.
D. Radiant striations are
present.
E. The shape and size is
generally varies, almost
immobile.

21. Life-cycle of diatoms

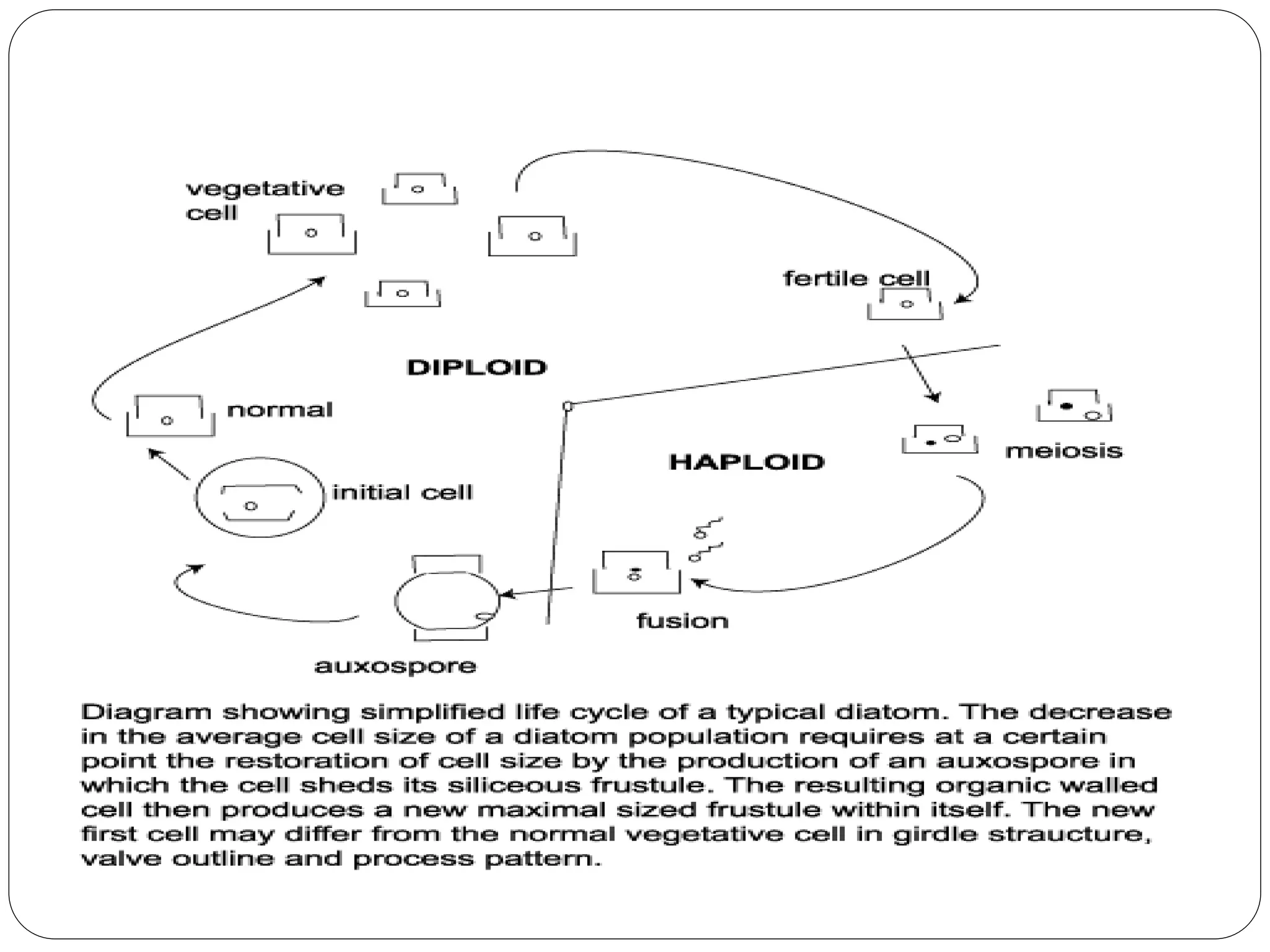

 When a cell divides each new cell takes as its
epitheca a valve of the parent frustule, and within ten
to twenty minutes builds its own hypotheca; this
process may occur between one and eight times per
day by means of vegitative reproduction and
continuous cell division some cells gradually become
reduced in size.
 During sexual reproduction auxospore is produce to
regain their normal size by the restorative process
instead of multiplication.

23. Vegetative reproduction
 Vegetative reproduction performs with the help of cell division. It takes
place usually at midnight or in the early morning.
 During cell division the protoplast of the cell enlarges slightly, thus the cell
increases in volume and slightly separates both the theca (epitheca and
hypotheca).
 Then the protoplast undergoes mitotic division and gets separated along
the longitudinal axis through the median line. Thus one half of protoplast
remains in epitheca and the other one in hypotheca. One side of the
protoplast thus remains naked. Now both the theca i.e., epitheca and
hypotheca of mother cell behave as epitheca of the daughter cells.
 Thus new silicious valves are deposited towards the naked sides of the
protoplast and always behave as hypotheca of the daughter cells.
Connecting bands are developed between the theca. Later on, the
daughter cells get separated.

24.  During cell division, both the theca i.e., epitheca and hypotheca of
the mother cell behave as epitheca of the daughter cells. So at the
side where the hypotheca behaves as epitheca, the cell becomes
reduced in size. Thus with continuous cell division some cells
gradually become reduced in size.

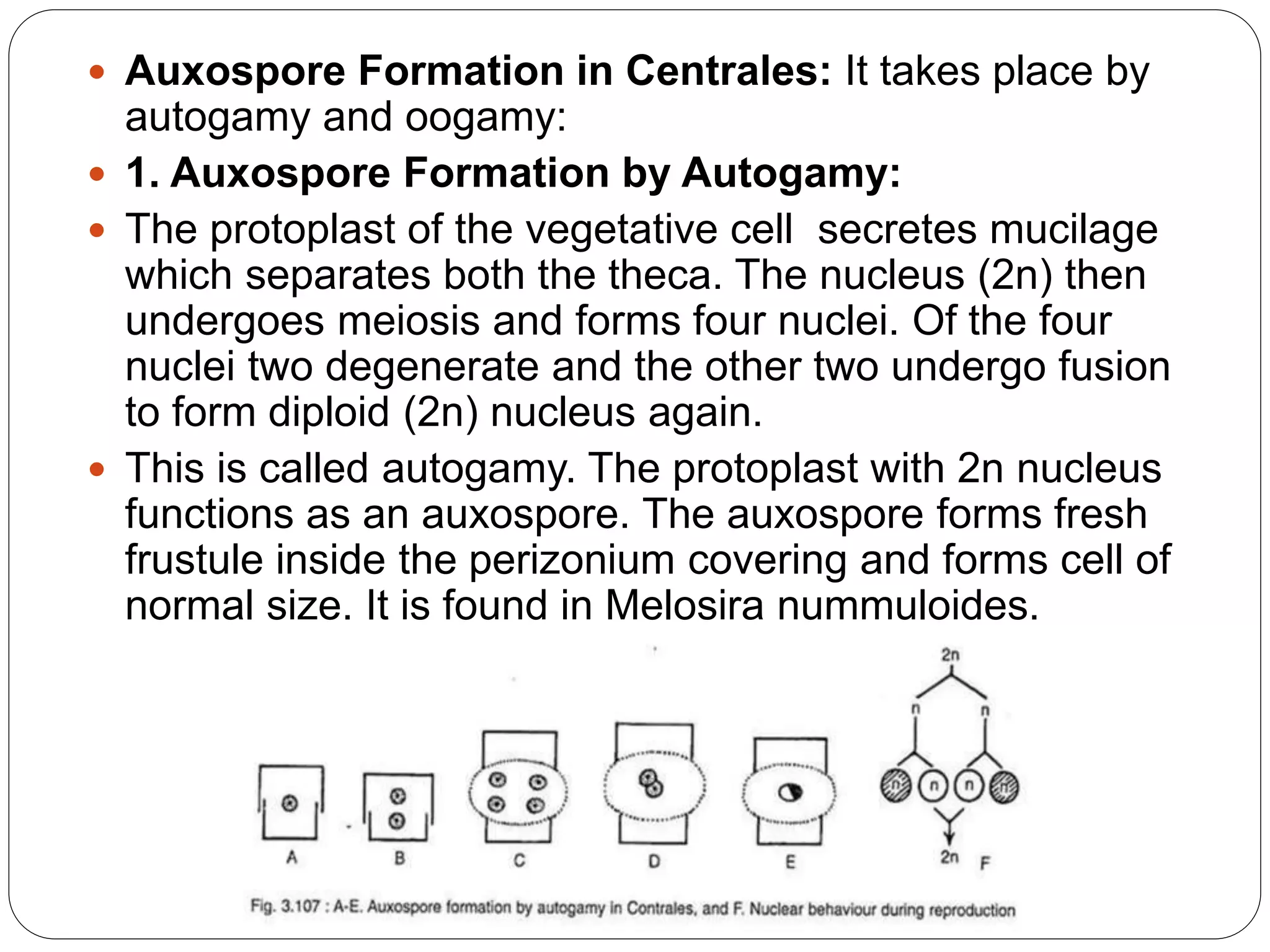

25. Sexual Reproduction
 The pattern of sexual reproduction differs in both orders — Pennales
and Centrales. During this process, auxospore is formed in both the
groups. During cell division, those cells become reduced in size, are
able to regain their normal size through the formation of auxospore, so
it is a “restorative process” rather than multiplication.
 Auxospore formation in Pennales: It takes place through gametic
union, autogamy and parthenogenesis.
 These are of the following types:
 1. Production of one auxospores by two conjugating cells- In this
process two uniting cells come very close to each other and become
covered by a mucilaginous sheath. The diploid nucleus of each cell
undergoes meiosis.
 Out of four nuclei, three degenerate and only one survives. The
surviving nucleus behaves as gamete (n). The gametes come out from
the parent frustules and unite together, to form a zygote (2n).

26.  After a short period of rest the zygote elongates considerably
and functions as an auxospore. The auxospore projects out from
the parent frustules along with mucilage and elongates in a plane
parallel to the long axis of the parent diatom.
 The auxospore is enclosed in a pectic membrane, the
perizonium. The auxospore then develops new frustule inside
the perizonium. Thus new diatom cell is formed which regains
the normal size. It is found in Cocconis placentula, Surirella
saxonica etc.

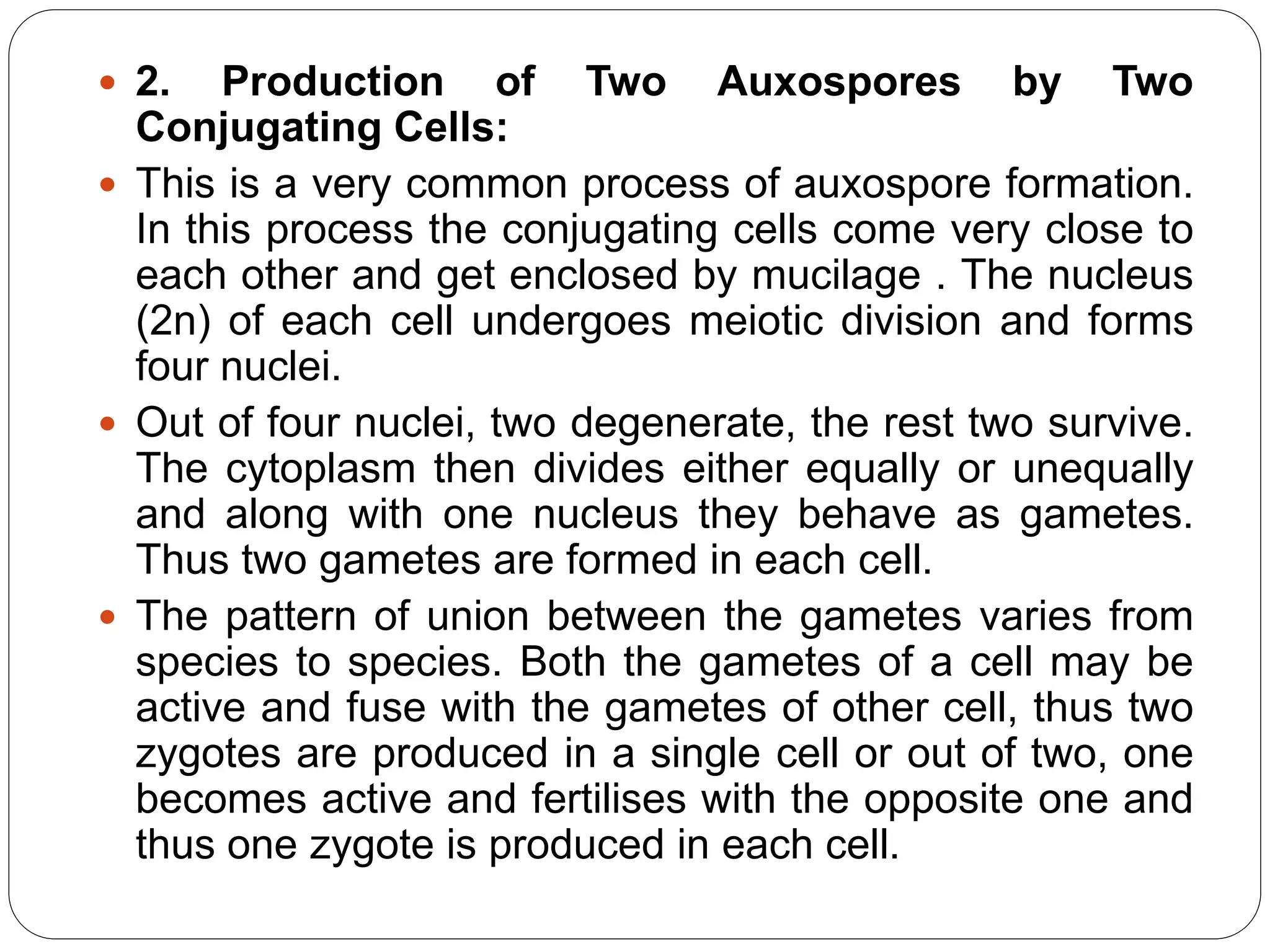

27.  2. Production of Two Auxospores by Two
Conjugating Cells:
 This is a very common process of auxospore formation.
In this process the conjugating cells come very close to
each other and get enclosed by mucilage . The nucleus
(2n) of each cell undergoes meiotic division and forms
four nuclei.
 Out of four nuclei, two degenerate, the rest two survive.
The cytoplasm then divides either equally or unequally
and along with one nucleus they behave as gametes.
Thus two gametes are formed in each cell.
 The pattern of union between the gametes varies from
species to species. Both the gametes of a cell may be
active and fuse with the gametes of other cell, thus two
zygotes are produced in a single cell or out of two, one
becomes active and fertilises with the opposite one and
thus one zygote is produced in each cell.

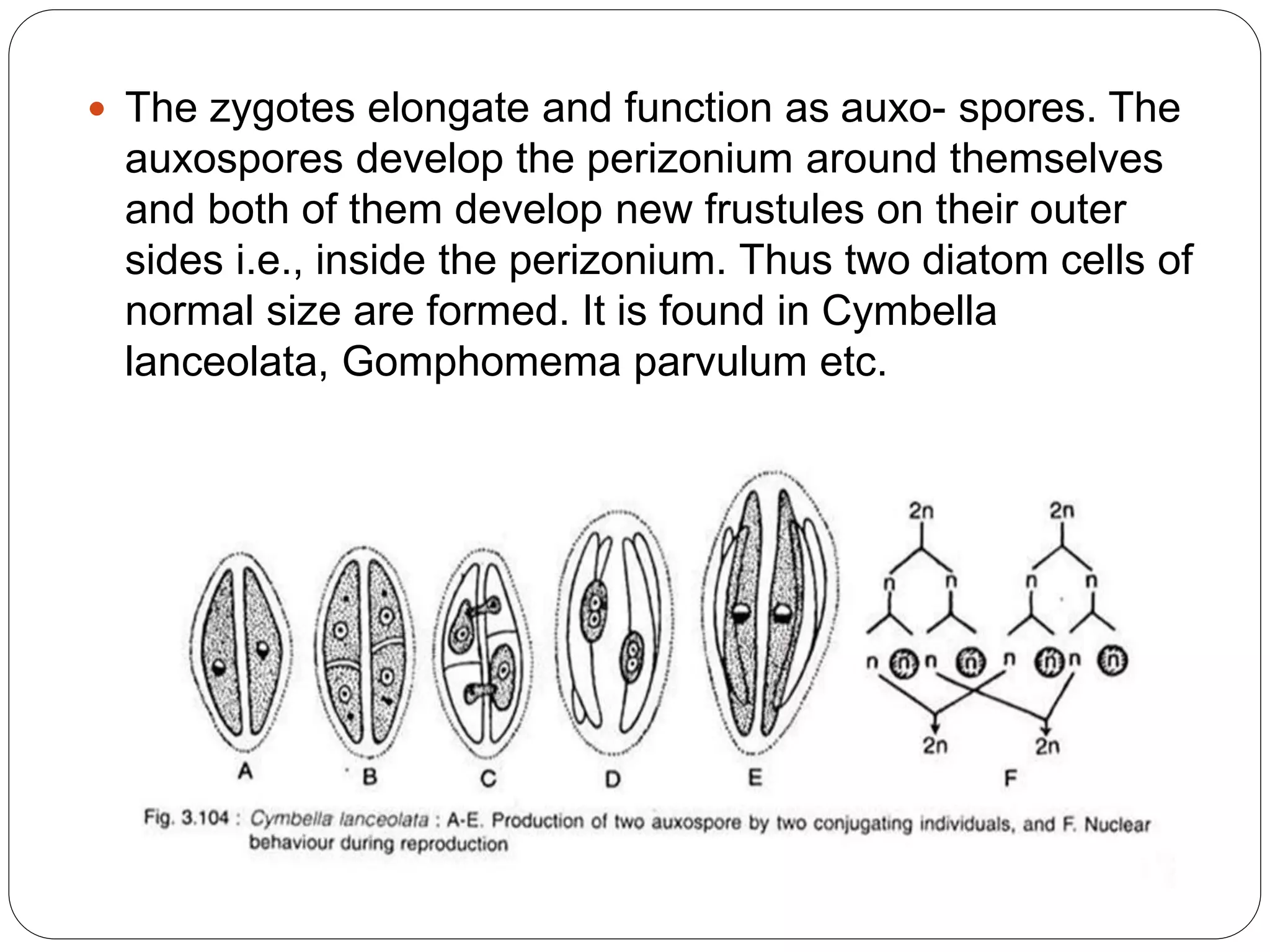

28.  The zygotes elongate and function as auxo- spores. The
auxospores develop the perizonium around themselves
and both of them develop new frustules on their outer
sides i.e., inside the perizonium. Thus two diatom cells of
normal size are formed. It is found in Cymbella
lanceolata, Gomphomema parvulum etc.

29.  3. Production of One Auxospore by One Cell:
 This process of auxospore formation is called Paedogamy
(Pedogamy). In this process the diploid nuclei of a
vegetative cell undergo meiosis and form four haploid
nuclei.
 Out of the four nuclei two partially degenerate. Each of the
rest two along with the cytoplasm and one partially
degenerated nucleus, behaves as gamete. Later on, the
union between the two sister gametes takes place and
forms the zygote.
 The zygote comes out from the parent frustule and
behaves as an auxospore. The auxospore then gets
covered by perizonium and develops wall inside the
perizonium. Thus one diatom cell of normal size is formed.

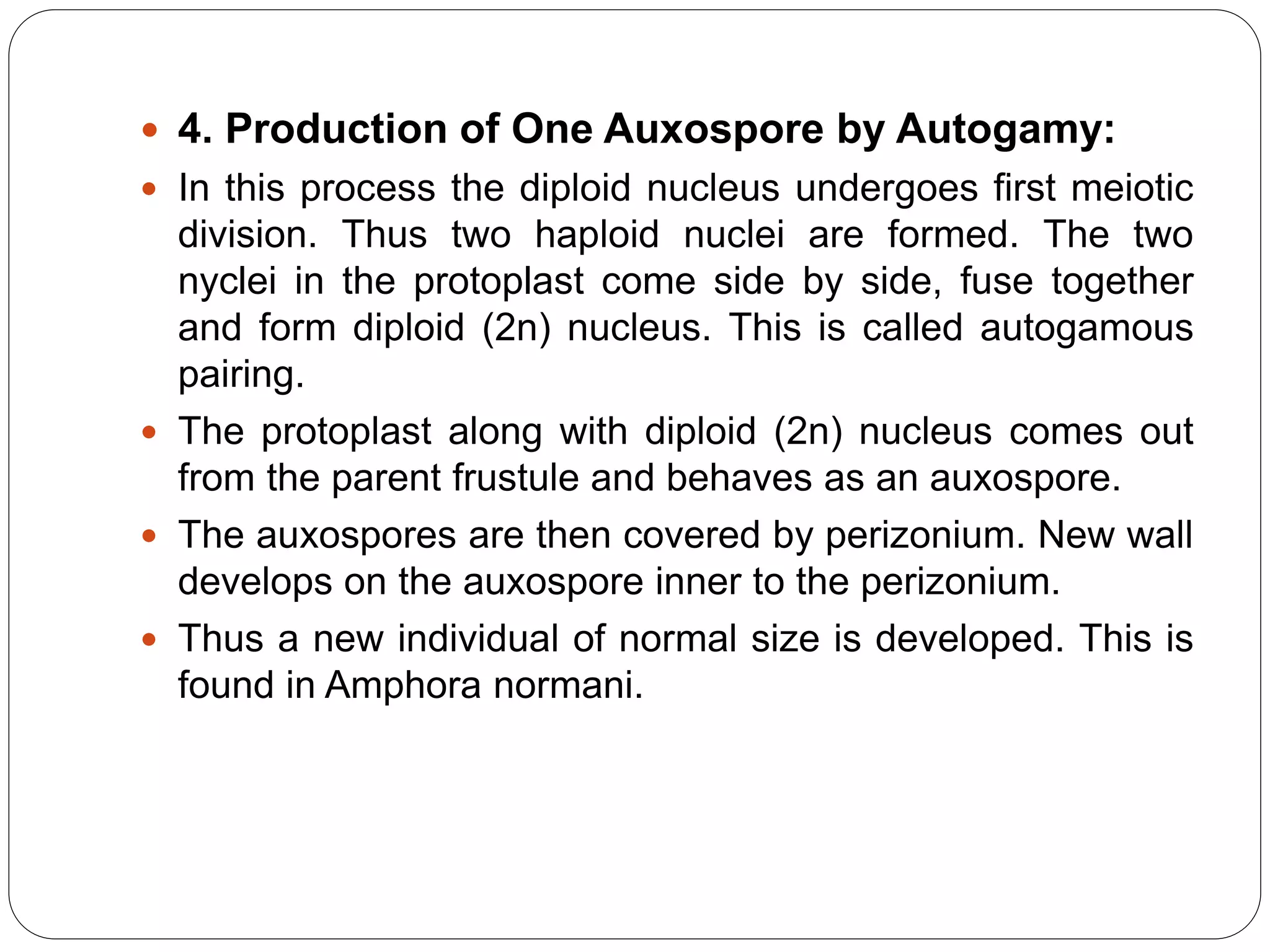

30.  4. Production of One Auxospore by Autogamy:
 In this process the diploid nucleus undergoes first meiotic
division. Thus two haploid nuclei are formed. The two
nyclei in the protoplast come side by side, fuse together
and form diploid (2n) nucleus. This is called autogamous
pairing.
 The protoplast along with diploid (2n) nucleus comes out
from the parent frustule and behaves as an auxospore.
 The auxospores are then covered by perizonium. New wall
develops on the auxospore inner to the perizonium.
 Thus a new individual of normal size is developed. This is
found in Amphora normani.

31.  5. Production of Auxospore by Partheno-
genesis:
 The diatom cells come together and are covered by a
common mucilage envelop . The diploid nucleus undergoes
two sequential mitotic divisions. Meiotic division does not
take place here. One nucleus in each mitotic division
degenerates. Thus only one diploid (2n) nucleus along with
protoplast remains, and comes out from the mother cell and
behaves as an auxospore.
 The auxospore is then covered by perizonium and secretes
new wall around itself. Thus normal size cell is formed.

32.  In this process the nucleus (2n) of female cell which behaves
as oogonium, undergoes meiosis and forms four nuclei. The
protoplast is also divided into two unequal parts, each
containing two nuclei.
 The lower half is larger and behaves as functional ovum and
the upper smaller one as non-functional ovum. The functional
ovum contains one functional nucleus and one non-functional
nucleus, which gradually degenerates at maturity.
 The male cell (2n) behaves as antheridium, also undergoes
meiosis and forms four nuclei. The protoplast also divides into
two parts. Thus two microgametes are formed. Each of which
contains two nuclei, of which one is functional and other is
non-functional. The microgametes are naked, globular and
non-flagellate.
 After coming out, the male gamete fertilizes the egg and
forms the zygote (2n). Later it functions as an auxospore and
forms new individual of normal size. It is found in
Rhabdonema adriaticum.

33.  Auxospore Formation in Centrales: It takes place by
autogamy and oogamy:
 1. Auxospore Formation by Autogamy:
 The protoplast of the vegetative cell secretes mucilage
which separates both the theca. The nucleus (2n) then
undergoes meiosis and forms four nuclei. Of the four
nuclei two degenerate and the other two undergo fusion
to form diploid (2n) nucleus again.
 This is called autogamy. The protoplast with 2n nucleus
functions as an auxospore. The auxospore forms fresh
frustule inside the perizonium covering and forms cell of
normal size. It is found in Melosira nummuloides.

34.  2. Auxospore Formation by Oogamy:
 Oogamy takes place by the fusion of egg and sperm developed
inside the oogonium and antheridium respectively.
 Oogonium:
 Single vegetative cell behaves as an oogonium. The protoplast
of oogonium undergoes meiotic division and forms four nuclei.
Of the four nuclei three degenerate and the remaining one
functions as an egg.
 Antheridium:
 The pattern of development of sperms varies in different
species. In species like Melosira varians the protoplast
undergoes meiotic division and forms four haploid nuclei.
 Each haploid nucleus with some protoplast metamorphoses into
an uniflagellate (tinsel type) sperm. In others the number of
sperms may go up to 8 or even 128.
 Fertilisation:
 After coming out of the antheridium only one sperm enters
inside the oogonium and fertilises the egg. The resultant zygote
undergoes mitotic division but one nucleus degenerates in each
division.

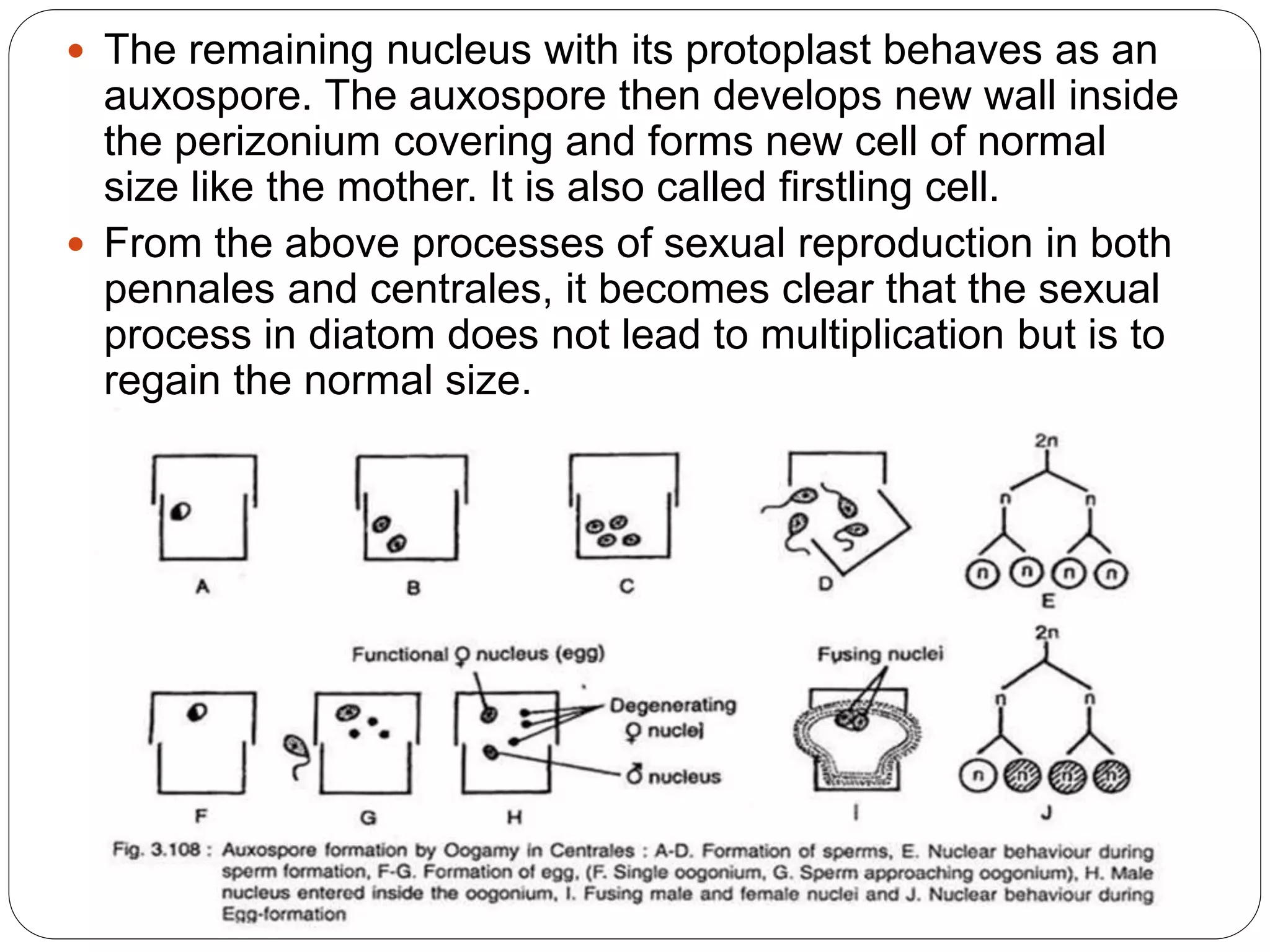

35.  The remaining nucleus with its protoplast behaves as an
auxospore. The auxospore then develops new wall inside
the perizonium covering and forms new cell of normal
size like the mother. It is also called firstling cell.
 From the above processes of sexual reproduction in both
pennales and centrales, it becomes clear that the sexual
process in diatom does not lead to multiplication but is to
regain the normal size.

36. Identification
 Diatom ornamentations is important aspect for diatom
identification.Valve surface usually covered with
striations , punctations or raphes which is also a
identification key.

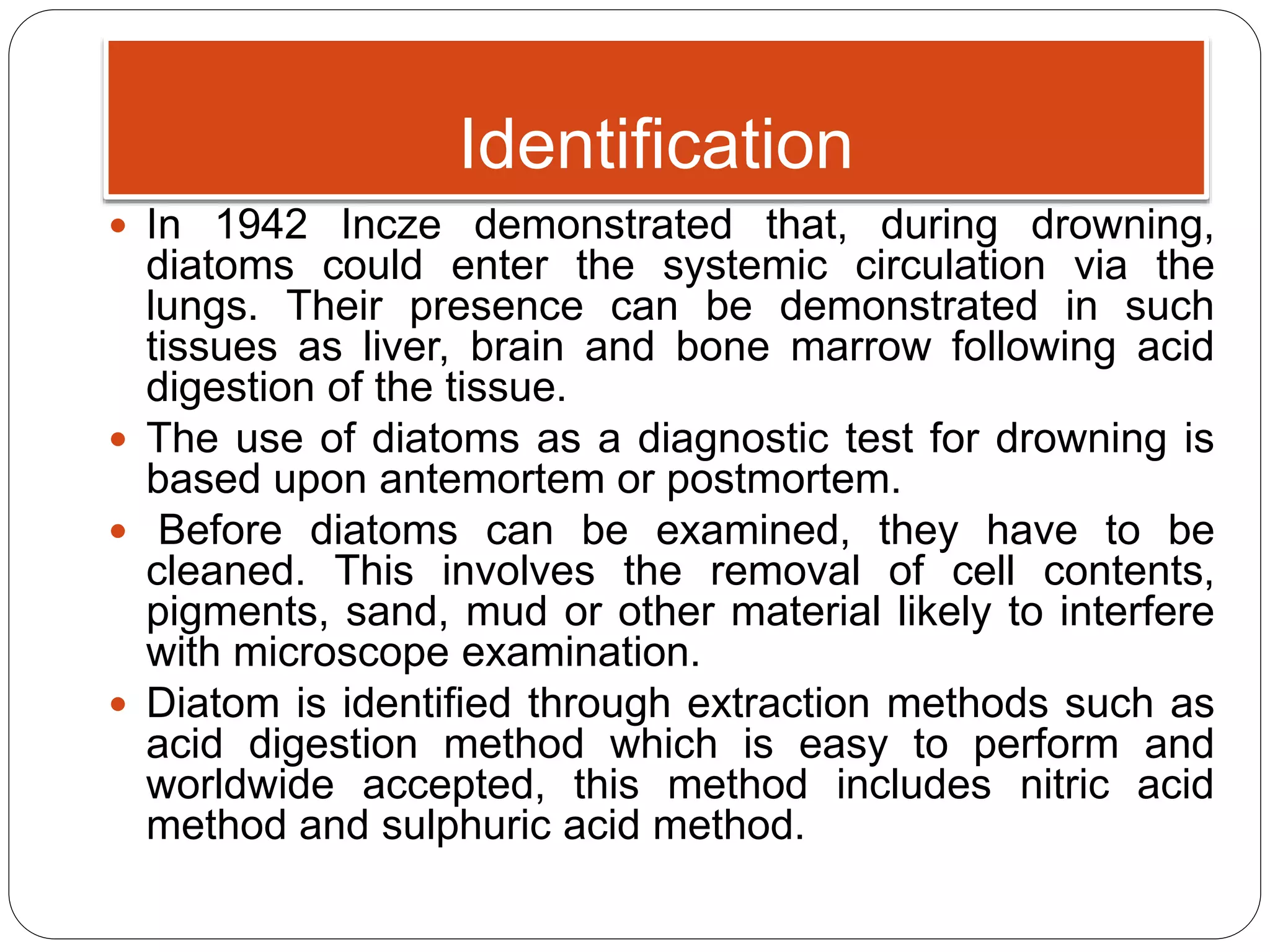

37. Identification
 In 1942 Incze demonstrated that, during drowning,
diatoms could enter the systemic circulation via the
lungs. Their presence can be demonstrated in such
tissues as liver, brain and bone marrow following acid
digestion of the tissue.
 The use of diatoms as a diagnostic test for drowning is
based upon antemortem or postmortem.
 Before diatoms can be examined, they have to be
cleaned. This involves the removal of cell contents,
pigments, sand, mud or other material likely to interfere
with microscope examination.
 Diatom is identified through extraction methods such as
acid digestion method which is easy to perform and
worldwide accepted, this method includes nitric acid
method and sulphuric acid method.

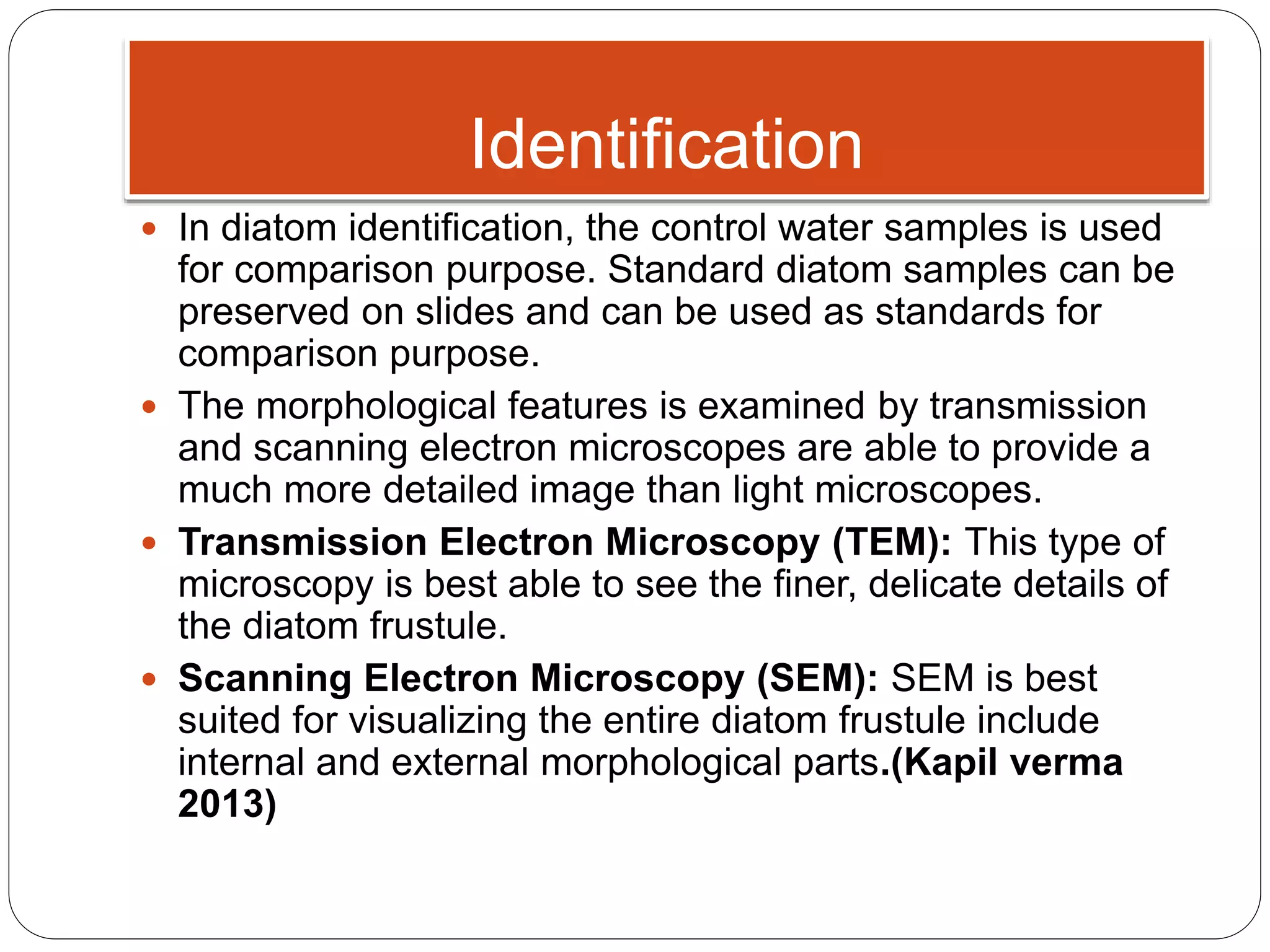

38. Identification
 In diatom identification, the control water samples is used
for comparison purpose. Standard diatom samples can be
preserved on slides and can be used as standards for
comparison purpose.
 The morphological features is examined by transmission
and scanning electron microscopes are able to provide a
much more detailed image than light microscopes.
 Transmission Electron Microscopy (TEM): This type of
microscopy is best able to see the finer, delicate details of
the diatom frustule.
 Scanning Electron Microscopy (SEM): SEM is best
suited for visualizing the entire diatom frustule include
internal and external morphological parts.(Kapil verma
2013)

39. Morphological characteristics

41. Identification based on photosynthetic
pigment
 Diatoms contain golden- brown chloroplasts, and contain
chlorophylls a and c (never chlorophyll b) which can be
recognised as a colour property.
 Serious diatomists clean the cells with acid and peroxide
so that only the frustules remain, aiding identification.
 However, many useful features can still be recognised in
living material, and images in this guide often compare
living and cleaned cells for comparison.
Achnanthes.

42. Role of diatoms in ecosystem

43. Applications
 Diatoms tell us about the health of aquatic systems-
Diatoms are particular about the quality of water in which they
live. For example, species have distinct ranges of pH and
salinity where they will grow. Diatoms also have ranges and
tolerances for other environmental variables, including nutrient
concentration, suspended sediment.
 As a result, diatoms are vital for assessment and monitoring
biotic condition of waters.
 Pest Control - Diatomaceous earth can be ground into a fine
powder that looks and feels very similar to talcum powder. This
powder can be used for pest control.
 The powder is sharp on a microscopic level due to the high
silica content. It damages the outside of an insect, and, if
ingested, ruptures the internal organs.

44. Applications
 Abrasives - Typically, diatomaceous earth is used to
polish materials that are soft or easily damaged, and is
often used to polish metal. Occasionally, it is also used in
toothpaste.
 Diatomaceous earth is a good abrasive for cleaning skin
and is sometimes used in soaps and other bath products.
 Indicator species - Some species can be used as an
indicator species. Indicator species are used by scientists
to determine if an ecosystem is thriving.
 With diatoms, a scientist takes a sample of water and
examines it under a microscope to see how many of a
certain species of diatom are present.

45. Applications
 Filtration - A very common use for diatoms is for filtration. The
fine structures of diatom shells trap foreign particles in fluids,
such as dirt, lint, hair and some other microscopic organisms,
particularly water in hot tubs and swimming pools. However, a
vast variety of fluids can be filtered with diatoms, including
different syrups, alcoholic beverages, medicines, solvents and
other chemicals.
 Testing of Microscopic Lenses - Due to the fine markings on
shell, the diatom cells are used to test microscopic lenses.
 Diatomite - After the death of diatom cells the outer coverings
i.e., the silicified walls become accumulated at the bottom of
water. The accumulation may be thicker during favourable
conditions. These deposits are called diatomaceous earth,
diatomite or keiselghur.

46. Reference
 A Methods Manual for the Collection, Preparation and Analysis of
Diatom Samples by JC Taylor*, WR Harding** and CGM Archibald***.
 www.slideshare.com
 Planktonic and periphytic diatoms as indicators of stress on great
rivers of the United States: Testing water quality and disturbance
models.Amy R. Kiretaa,∗, Euan D. Reaviea,1, Gerald V. Sgrob,2, Ted
R. Angradic,3, David W. Bolgrienc,3, Brian H. Hill c,3, Terri M. Jicha
c,3.
 Presented By: Inchara R 1st Semester Molecular Biology 30/10/2017
Guided By: Dr. N. S. Devaki Course Coordinator Dept. of molecular
Biology DIATOMS.
 Kapil Verma (2013) Role of Diatoms in the World of Forensic Science.
