1. Powerpoint Templates FISH FEED MANUFACTURING PLANT Presented by: Suan Scientific Instruments and Equipments Kolkata www.suanscientific.com Email : suanscientific_call@yahoo.co.in / saikatray159@gmail.com

2. Ingredients to be used to make low cost Fish feed D.O.B – De-oiled Rice Bran, Commercial variety Soya Flex Rice Floor D.O.G.C. – De-oiled Groundnut Cake Dry Fish Maize – Bazra Rice Starch Fish oil Vitamins Minerals Etc. www.suanscientific.com

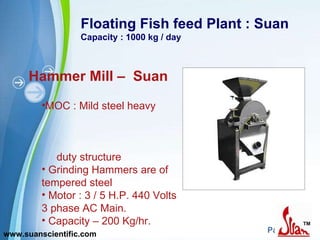

3. Floating Fish feed Plant : Suan Capacity : 1000 kg / day Hammer Mill – Suan MOC : Mild steel heavy duty structure Grinding Hammers are of tempered steel Motor : 3 / 5 H.P. 440 Volts 3 phase AC Main. Capacity – 200 Kg/hr. www.suanscientific.com

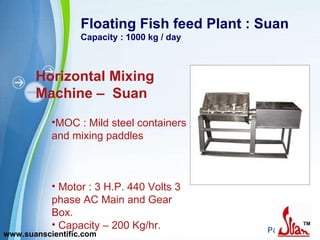

4. Floating Fish feed Plant : Suan Capacity : 1000 kg / day Horizontal Mixing Machine – Suan MOC : Mild steel containers and mixing paddles Motor : 3 H.P. 440 Volts 3 phase AC Main and Gear Box. Capacity – 200 Kg/hr. www.suanscientific.com

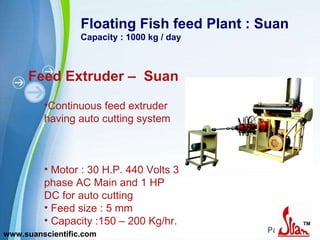

5. Floating Fish feed Plant : Suan Capacity : 1000 kg / day Feed Extruder – Suan Continuous feed extruder having auto cutting system Motor : 30 H.P. 440 Volts 3 phase AC Main and 1 HP DC for auto cutting Feed size : 5 mm Capacity :150 – 200 Kg/hr. www.suanscientific.com

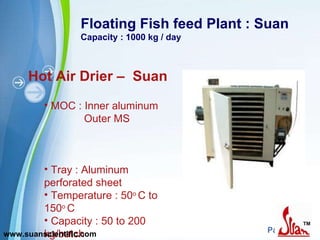

6. Floating Fish feed Plant : Suan Capacity : 1000 kg / day Hot Air Drier – Suan MOC : Inner aluminum Outer MS Tray : Aluminum perforated sheet Temperature : 50 o C to 150 o C Capacity : 50 to 200 kg/batch www.suanscientific.com

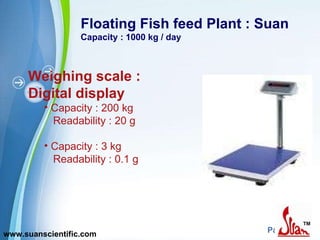

7. Floating Fish feed Plant : Suan Capacity : 1000 kg / day Weighing scale : Digital display Capacity : 200 kg Readability : 20 g Capacity : 3 kg Readability : 0.1 g www.suanscientific.com

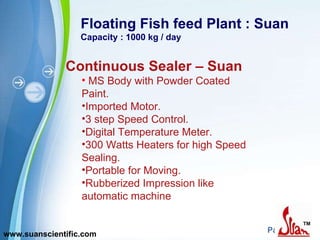

8. Floating Fish feed Plant : Suan Capacity : 1000 kg / day Continuous Sealer – Suan MS Body with Powder Coated Paint. Imported Motor. 3 step Speed Control. Digital Temperature Meter. 300 Watts Heaters for high Speed Sealing. Portable for Moving. Rubberized Impression like automatic machine www.suanscientific.com

9. Fish feed Pellet Plant : Suan Capacity : 1000 kg / day Hammer Mill – Suan MOC : Mild steel heavy duty structure Grinding Hammers are of tempered steel Motor : 3 / 5 H.P. 440 Volts 3 phase AC Main. Capacity – 200 Kg/hr. www.suanscientific.com

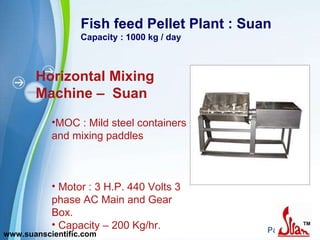

10. Fish feed Pellet Plant : Suan Capacity : 1000 kg / day Horizontal Mixing Machine – Suan MOC : Mild steel containers and mixing paddles Motor : 3 H.P. 440 Volts 3 phase AC Main and Gear Box. Capacity – 200 Kg/hr. www.suanscientific.com

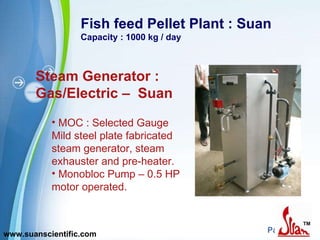

11. Fish feed Pellet Plant : Suan Capacity : 1000 kg / day Steam Generator : Gas/Electric – Suan MOC : Selected Gauge Mild steel plate fabricated steam generator, steam exhauster and pre-heater. Monobloc Pump – 0.5 HP motor operated. www.suanscientific.com

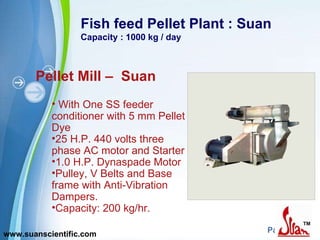

12. Fish feed Pellet Plant : Suan Capacity : 1000 kg / day Pellet Mill – Suan With One SS feeder conditioner with 5 mm Pellet Dye 25 H.P. 440 volts three phase AC motor and Starter 1.0 H.P. Dynaspade Motor Pulley, V Belts and Base frame with Anti-Vibration Dampers. Capacity: 200 kg/hr. www.suanscientific.com

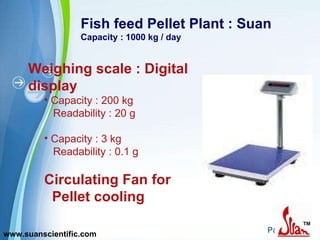

13. Fish feed Pellet Plant : Suan Capacity : 1000 kg / day Weighing scale : Digital display Capacity : 200 kg Readability : 20 g Capacity : 3 kg Readability : 0.1 g Circulating Fan for Pellet cooling www.suanscientific.com
