1. DESIGN, FABRICATION AND TESTING OF A SOLAR-BIOMASS INTEGRATED
DRYER
A PROJECT REPORT
BY
OJO, ADESHINA JONATHAN (053241)
BISIRIYU, ISAIKA OLAJIDE(053715)
OKELEYE, SAMUEL ADEOLA(053547)
SUBMITTED TO
THE DEPARTMENT OF MECHANICAL ENGINEERING
FACAULTY OF ENGINEERING AND TECHNOLOGY
LADOKE AKINTOLA UNIVERSITY OF TECHNOLOGY,
OGBOMOSO, OYO STATE.
IN PARTIAL FULFILMENT OF THE AWARD OF DEGREE OF BACHELOR OF
TECHNOLOGY,(B.TECH) IN MECHANICAL ENGINEERING
MARCH, 2011
1

2. CERTIFICATION
This is to certify that this project was carried out by:
OJO, Adeshina Jonathan (053241)
BISIRIYU, Isiaka Olajide (053715)
OKELEYE, Samuel Adeola (053547)
The project report has been read through, approved and certified having met with the
requirement for the award of Bachelor of technology (B.Tech) from the department of
Mechanical Engineering, Ladoke Akintola University of Technology, (LAUTECH) Ogbomoso.
______________________
________________________
ENGR. O.S OLAOYE
DATE
PROJECT SUPERVISOR
_____________________
_________________________
DR. A.S. ONAWUMI
DATE
HEAD OF DEPARTMENT
2

3. DEDICATION
We dedicate this project to the Almighty God, the one and only true GOD for his high
protection, guidance and provision all through our academic years. We cannot Thank you
enough but we are using this medium to say thank you Lord. ABBA FATHER, Glory be to your
name.
3

4. ACKNOWLEDGEMENT
Our sincere gratitude goes to our supervisor Engr. O.S Olaoye for his dedicated supervision to
successful completion of this project.
A special thanks to our parents for their understanding and moral supports for our
accomplishments, we will also remember our uncles, aunties and all our benefactors for their
supports.
Also, to all our lecturers in the department, thank you all, we are grateful.
4

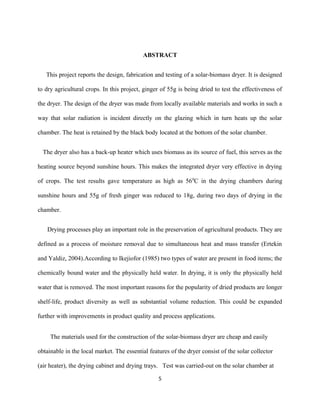

5. ABSTRACT
This project reports the design, fabrication and testing of a solar-biomass dryer. It is designed
to dry agricultural crops. In this project, ginger of 55g is being dried to test the effectiveness of
the dryer. The design of the dryer was made from locally available materials and works in such a
way that solar radiation is incident directly on the glazing which in turn heats up the solar
chamber. The heat is retained by the black body located at the bottom of the solar chamber.
The dryer also has a back-up heater which uses biomass as its source of fuel, this serves as the
heating source beyond sunshine hours. This makes the integrated dryer very effective in drying
of crops. The test results gave temperature as high as 56 0C in the drying chambers during
sunshine hours and 55g of fresh ginger was reduced to 18g, during two days of drying in the
chamber.
Drying processes play an important role in the preservation of agricultural products. They are
defined as a process of moisture removal due to simultaneous heat and mass transfer (Ertekin
and Yaldiz, 2004).According to Ikejiofor (1985) two types of water are present in food items; the
chemically bound water and the physically held water. In drying, it is only the physically held
water that is removed. The most important reasons for the popularity of dried products are longer
shelf-life, product diversity as well as substantial volume reduction. This could be expanded
further with improvements in product quality and process applications.
The materials used for the construction of the solar-biomass dryer are cheap and easily
obtainable in the local market. The essential features of the dryer consist of the solar collector
(air heater), the drying cabinet and drying trays. Test was carried-out on the solar chamber at
5

6. 12pm noon and readings of the internal temperature of the solar chamber was recorded at
different points, i.e. temperature at first tray, second tray and also that around the black body.
Moisture of 15g was removed on the first day, and moisture content removed on the second day
was 22g. The drying time was two (2) days and a drying efficiency of 82.4% was achieved when
drying 55g of wet ginger using 100g of charcoal, which have a calorific value of 29.6 MJ/Kg.
In conclusion, the need for the construction of solar-biomass dryer arose as an alternative for
ordinary sun drying techniques. The solar-biomass hybrid dryer is very efficient in operation
because most crops are being sun-dried on the ground, this is however a slow ineffective method
which takes days to achieve tangible results. We recommend that during future construction of
the dryer, rock slab should be in between the biomass chamber and the solar chamber, in order to
avoid direct heat flow from the biomass to the solar chamber, also, the efficiency of the solarbiomass integrated dryer can be improved upon by reducing the various heat losses in and
around the solar chamber.
6

7. TABLE OF CONTENT
TITLE PAGE
CERTIFICATION
II
DEDICATION
III
ACKNOWLEDGMENT
IV
ABSTRACT
V
TABLE OF CONTENTS
VII
LIST OF TABLES
IX
LIST OF FIGURES
X
CHAPTER ONE
1.0
INTRODUCTION
1
1.1
Preamble
1
1.2
Aim and Objectives
2
1.3
Justification
2
1.4
Scope of Study
3
CHAPTER TWO
2.0
LITERATURE REVIEW
4
2.1
General
4
2.1.1
The Old Traditional Way, the Open Air Drying
6
2.1.2
Fire wood / fuel Drying
6
2.1.3
Electric Drying
6
2.1.4
Photovoltaic (Pv) Power or Simple Solar Drying
6
2.2
The Solar Dryer Technology and Utilization
7
2.2.1
7
Low cost Solar Dryer
7

8. 2.2.2
Electrical Solar dryer AC powered
7
2.2.3
Solar Dryer – DC powered
8
2.3

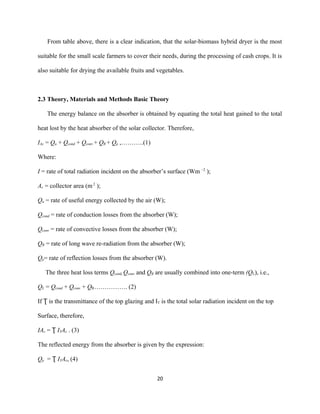

Theory, Materials and Methods Basic Theory
11
2.4
Energy Balance Equation for the Drying Process
13
CHAPTER THREE
3.0
METHODOLOGY
15
3.1

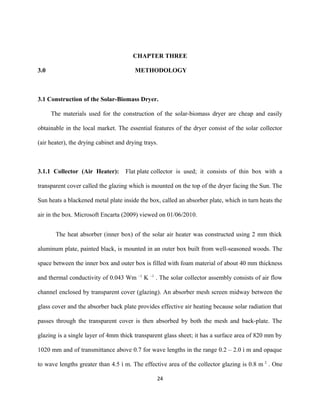

Construction of the Solar-Biomass Dryer
15
3.1.1
Collector (Air Heater)
15
3.1.2
The Drying Cabinet
16
3.1.3
Drying Tray
17
3.1.4
The orientation of the Solar Collector
18
3.1.5
Biomass Stove
18
3.2
Operation of the Dryer
20
3.3
Reason for alternating the arrangement of Trays

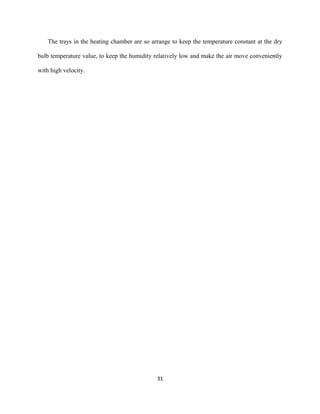

22
3.4
Effect of Increase In Trays of Dryer
24
3.5
Reason for Using A Flat Plate Collector
24
3.5.1
Advantages of Flat Plate
25
3.5.2
Principle of A Flat plate collector
25
3.6
Reason for Material Selection
26
3.6.1
Uses of Stainless Steel
26
3.6.2
Uses of Aluminum
26
3.7
Merit of Solar Biomass Integrated Dryer
27
3.8
Fuel used in Biomass Chamber
27
3.9
Design Modification and Calculation
27
3.10
Determination of Heat Required for Water Removal
31
8

9. 3.11
Determination of Drying Time
33
3.12
Determination of Dryer Capacity
35
CHAPTER FOUR
4.0
RESULT AND DISCUSSION
38
4.1
Result
38
4.1.1
Laboratory Test
38
4.1.2
Calculation to Determine Percentage Moisture
39
4.2
No Load Test of the Solar Dryer
40
4.3
Load Test of the solar dryer
41
4.4
Determination of Dryer’s efficiency
42
4.5
Discussion of Results
44
CHAPTER FIVE
5.0
CONCLUSION AND RECOMMENDATION
45
5.1
Conclusion
45
5.2
Recommendations
46

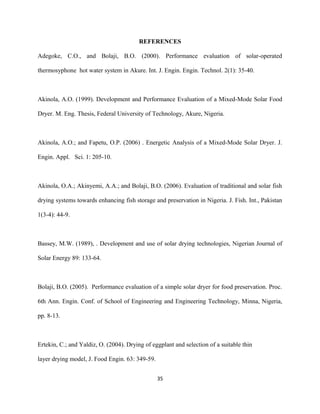

REFERENCES
APPENDIX
9

10. LIST OF TABLES
TABLE
PAGE
2.1 Advantages and Disadvantages of Different Dryers.
2
4.1 Moisture Content Analysis of Ginger.
38
4.2 Variation of Temperature with Time on the First Day.
41
4.3 Variation of Temperature with Time On The Second Day.
42
10

11. LIST OF FIGURES
FIGURE
PAGE

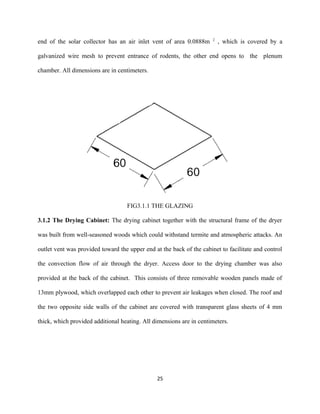

3.1 The Glazing
16

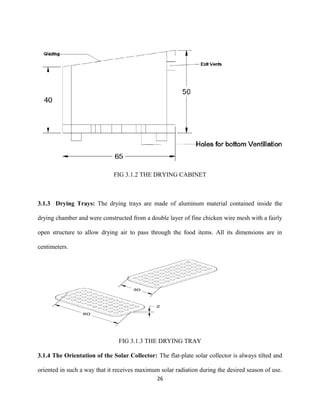

3.2 The Drying Cabinet
17
3.3 The Drying Tray
17
3.4 The Biomass Stove
19
3.5 The Drier’s Chimney.
19
3.6 The Solar Biomass Integrated Dryer
21

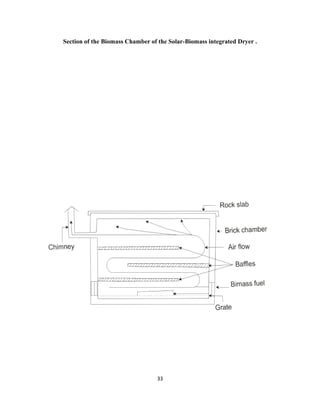

3.7 Section of the Biomass Chamber of the Solar-Biomass Integrated Drier
23
3.8 Section of the Solar Chamber of the Solar-Biomass Integrated Drier
23
11

12. CHAPTER ONE
1.0
INTRODUCTION
1.1 PREAMBLE
Drying is the removal of solvent from product; this term is used interchangeably with heating
or curing. Heating is simply raising the temperature of a product while curing is holding a
product at a given temperature for a given time to complete a reaction (Theo and holly, 1997).
The rapid rate of drying in the dryer reveals its ability to dry food items reasonably rapidly to a
safe moisture level.
Various drying techniques are employed to dry different food products. Each technique has its
own advantages and limitations. Choosing the right drying techniques is thus important in the
process of drying of these perishable products. The Brace type solar drier is one of the few
designs that have achieved some level of acceptance. One significant disadvantage of this drier is
that it is normally not used without any form of back-up heating. To reduce its dependence on
solar radiation for operation and to improve the quality of drying, a biomass stove was
incorporated with solar drier. It has extended the period of drying beyond sunshine hours, and
even at night, while drying high-value products.
1.2 AIM AND OBJECTIVES.
The principal aim of this project is to design, fabricate and test a solar-biomass integrated
dryer.
The main objectives are:
-to show the advantages of solar-biomass integrated dryer over separate individual dryer.
-to show that the solar-biomass drier is more efficient as compared to separate individual dryers.
12

13. 1.3 JUSTIFICATION
A very large proportion of food product in developing countries like Nigeria is destroyed
before they reach the market. This waste may be reduced considerably if the products are dried
before they are transported to the market.
Most crops are being sun-dried on the ground, this is however a slow ineffective method
because it takes days to achieve tangible results. Also, crops are exposed to attack by bacteria
and the like. Ordinary sun drying method was found to be very tedious, time wasting, wastage, in
terms of produce and consequently having a very low hygienic level.
The direct exposure to sunlight, or more precisely ultraviolet radiation, can greatly reduce the
level of nutrients such as vitamins in the dried product. Zingiber officinale (ginger), Solanum
lycopersium (tomatoes), Abelmoschus esculentus (okro), Zea mays(maize), which are used
extensively in Nigeria.
1.4 SCOPE OF STUDY.
The scope of this work is to fabricate and test the solar –biomass integrated dryer to dry crops
like mainly Ginger, Tomatoes, Okro and Maize, which covers all classes of food crops. This
project also evaluates the efficiency of the solar-biomass hybrid drier against ‘solar only’,
‘biomass only’ and open sun condition.
13

14. CHAPTER TWO
2.0
LITERATURE REVIEW
2.1 General.
In many parts of the world there is a growing awareness that renewable energy have an
important role to play in extending technology to the farmer in developing countries to increase
their productivity (Waewsak, et al. 2006). Solar thermal technology is a technology that is
rapidly gaining acceptance as an energy saving measure in agriculture application. It is preferred
to other alternative sources of energy such as wind and shale, because it is abundant,
inexhaustible, and non-polluting (Akinola 1999; Fapetu 2006; Akinola, et al. 2006). Solar air
heaters are simple devices to heat air by utilizing solar energy and employed in many
applications requiring low to moderate temperature below 80 o C, such as crop drying and space
heating (Kurtbas and Turgut 2006).
Drying process play an important role in the preservation of agricultural products. They are
defined as a process of moisture removal due to simultaneous heat and mass transfer (Ertekin
and Yaldiz 2004). According to Ikejiofor (1985) - two types of water are present in food items;
the chemically bound water and the physically held water. In drying, it is only the physically
held water that is removed. The most important reasons for the popularity of dried products are
longer shelf-life, product diversity as well as substantial volume reduction. This could be
expanded further with improvements in product quality and process applications. The application
of dryers in developing countries can reduce post harvest losses and significantly contribute to
the availability of food in these countries. Estimations of these losses are generally cited to be of
the order of 40% but they can, under very adverse conditions, be nearly as high as 80%. A
14

15. significant percentage of these losses are related to improper and/or untimely drying of
foodstuffs like ginger, tomatoes, okro and maize. (Bassey 1989; Togrul and Pehlivan 2004)
Traditional drying, which is frequently done on the ground in the open air, is the most
widespread method used in developing countries because it is the simplest and cheapest method
of conserving foodstuffs. Some disadvantages of open air drying are: exposure of the foodstuff to
rain and dust; uncontrolled drying; exposure to direct sunlight which is undesirable for some
foodstuffs; infestation by insects; attack by animals; etc (Madhlopa, et al. 2002).
In order to improve traditional drying, solar dryers which have the potential of substantially
reducing the above-mentioned disadvantages of open air drying; have received considerable
attention over the past 20 years (Bassey 1989). Solar dryers of the forced convection type can be
effectively used. They however need electricity, which unfortunately is non-existent in many
rural areas, to operate the fans. Even when electricity exists, the potential users of the dryers are
unable to pay for it due to their very low income. Forced convection dryers are for this reason
not going to be readily applicable on a wide scale in many developing countries. Natural
convection dryers circulate the drying air without the aid of a fan. They are therefore, the most
applicable to the rural areas in developing countries.
Solar drying may be classified into direct, indirect and mixed-modes. In direct solar dryers
the air heater contains the grains and solar energy passes through a transparent cover and is
absorbed by the grains. Essentially, the heat required for drying is provided by radiation to the
upper layers and subsequent conduction into the grain bed. In indirect dryers, solar energy is
collected in a separate solar collector (air heater) and the heated air then passes through the grain
bed, while in the mixed-mode type of dryer, the heated air from a separate solar collector is
15

16. passed through a grain bed, and at the same time, the drying cabinet absorbs solar energy directly
through the transparent walls or roof.
There are four common drying methods/techniques, which are utilized for drying agricultural
products. They are;
2.1.1 The Old Traditional Way, the Open Air Drying
This is the present drying techniques used by urban and rural farmers. It is the old fashion
drying techniques, spreading the crops on a carpet or directly on the soil in open air and exposed
to the sun for drying.
2.1.2 Firewood/Fuel Drying
This technique is using fuel source to create the required heat for drying. It is used for tobacco
drying, and is common in Uganda, and is more popular in West Nile for the tobacco business.
2.1.3 Electrical Drying
This technique is similar to fuel drying only that apart from heat from fuel, energy source is
created by electricity.
2.1.4 Photovoltaic (PV) Powered or Simple Solar Drying
The difference of this technique from the above mentioned, is that the heat is created by the
sun radiation. The heat could be circulated by a ventilator powered by PV array.
16

17. The three first mentioned techniques can be replaced by the environmental friendly drying
techniques.
2.2. The Solar Dryer Technology and Utilization
The description of the solar drying technologies will be limited to few types, which are very
common and well known.
2.2.1 Low Cost Solar Dryer
The low cost dryer has different types of its kind, example are the cabinet solar dryer, the flat
solar dryer, etc. The low cost dryer is the most suitable even for the small farmer, who have a
very limited income. It will be possible for them to cover the investment cost. This is produced
form locally available materials, and by local carpenter.
2.2.2 Electrical Solar Dryer- AC powered
This type is quite different from the low cost solar dryer, because this has bigger size and is
usually made for heavy duty operations; such as the tobacco, timber or coffee drying. This type
is supplied by fan to circulate the hot air inside the dryer. The heating energy is provided by the
sun collector placed on the roof.
During the utilization of this type in rural areas, the air circulation fan can be DC powered.
This type of dryer can also be supplied by an electrical heating element for providing the heat.
The dryer is usually equipped with steering system to control the drying temperature, which
varies according to the type of crops.
17

18. 2.2.3 Solar Dryer - DC Powered
This type is similar to the above mentioned AC powered, but a small size and developed for
drying only food crops, cash crops and fruits. The dryer consist of:
1. Sun collector panel for air heating
2. Drying chamber
3. Fan for the hot air circulation
4. Moisture and temperature sensor
5. PV- panel for powering the fan
Table 2.1 Advantages and Disadvantages of Different Dryers.
The applied drying technique
Advantages
Disadvantages
Old traditional way - Open -No investment is required
air drying
-No fuel is required
Firewood/fuel drying
-Quicker than the open air
type
18
− The product is exposed to
various risks, such as dust,
animals, ants, rain, etc..
− It takes time to dry
− It requires labour to survey
the crops
− The quality of the drying is
not good (exposed to dust)
− Requires investment in fuel
− Requires investment in
building or
dryer box
− Pollution
and
forest
degradation
− The quality of the dried
product,
can be affected with smoke
− Not easy to control the

19. drying
− Requires
labour
for
operation and maintenance
Electrical drying
-The drying is quicker than
both the above mentioned
-The drying of the crops is
well controlled
-The quality of the dried
product
is
excellent,
depending on the type of the
dryer
− The dryer is costly
− It is expensive to run and
operate the dryer
− The dryers require energy,
which is not available in rural
areas
− It is not affordable for small
farmer and even co-operatives
− The dryer has to be installed
in
building
further
investment
− The
drying
is
not
environmentally
friendly – if powered by a
generator
− Require labour for operation
and maintenance
− Requires introduction to the
Technology
Solar Drying
-Very cheap investment
-Very easy to maintain and
operate
-Does
not
require
a
specialized manpower
-Well controlled drying
-Quicker drying
-The crops are well protected
during the drying process
-does not require fuel.
-Affordable to every body
-Environmentally friendly
− Requires introduction to the
technology
- The cost of is dependent on
the loan and the various
expenses
− The dryer should be
operated properly to reach the
good quality of
the dried products
− Requires a small investment
19

20. From table above, there is a clear indication, that the solar-biomass hybrid dryer is the most
suitable for the small scale farmers to cover their needs, during the processing of cash crops. It is
also suitable for drying the available fruits and vegetables.
2.3 Theory, Materials and Methods Basic Theory
The energy balance on the absorber is obtained by equating the total heat gained to the total
heat lost by the heat absorber of the solar collector. Therefore,
IAc = Qu + Qcond + Qconv + QR + Qρ ,………..(1)
Where:
I = rate of total radiation incident on the absorber’s surface (Wm –2 );
Ac = collector area (m 2 );
Qu = rate of useful energy collected by the air (W);
Qcond = rate of conduction losses from the absorber (W);
Qconv = rate of convective losses from the absorber (W);
QR = rate of long wave re-radiation from the absorber (W);
Qρ= rate of reflection losses from the absorber (W).
The three heat loss terms Qcond, Qconv and QR are usually combined into one-term (QL), i.e.,
QL = Qcond + Qconv + QR……………. (2)
If Ʈ is the transmittance of the top glazing and IT is the total solar radiation incident on the top
Surface, therefore,
IAc = Ʈ ITAc . (3)
The reflected energy from the absorber is given by the expression:
Qρ = Ʈ ITAc, (4)
20

21. Where ρ, is the reflection coefficient of the absorber. Substitution of Eqns. (2), (3) and (4) in
Eq. (1) yields:
Ʈ I TAc = Qu + QL + ρƮ ITAc, or
Q = ƮITA(1 – ρ) – QL.
For an absorber (1 – ρ) = α and hence,
Qu = (αƮ ) ITAc – QL,………….. (5)
Where α is solar absorptance.
QL composed of different convection and radiation parts. It is presented in the following
form (Bansal et al. 1990):
QL = ULAc(Tc – Ta),…………… (6)
Where:
UL = overall heat transfer coefficient of the absorber (Wm –2 K –1 );
Tc = temperature of the collector’s absorber (K);
Ta = ambient air temperature (K).
From Eqns. (5) and (6) the useful energy gained by the collector is expressed as:
Qu = (αƮ )ITAc – ULAc(Tc – Ta)……………… (7)
Therefore, the energy per unit area (qu) of the collector is
qu = (αƮ)IT – UL(Tc – Ta)……………….. (8)
If the heated air leaving the collector is at collector temperature, the heat gained by the air Qg
is:
Qg = maCpa(Tc – Ta),…………………… (9)
Where:
ma = mass of air leaving the dryer per unit time (kgs – 1 );
21

22. Cpa = specific heat capacity of air (kJkg – 1 K – 1 ).
The collector heat removal factor, FR, is the quantity that relates the actual useful energy
gained of a collector, Eq. (7), to the useful gained by the air, Eq. (9). Therefore,
….(10)
or
Qg = AcFR[(αƮ )IT – ULAc(Tc – Ta)]……… (11)
The thermal efficiency of the collector is defined as (Itodo et al. 2002):
……..(12)
2.4 Energy Balance Equation for the Drying Process
The total energy required for drying a given quantity of food items can be estimated using the
basic energy balance equation for the evaporation of water (Youcef-Ali, et al. 2001; Bolaji
2005):
mwLv = maCp(T1 – T2),…………. (13)
where:
mw = mass of water evaporated from the food item (kg);
ma = mass of drying air (kg);
T1 and T2 = initial and final temperatures of the drying air respectively (K);
Cp = Specific heat at constant pressure
22

23. (kJkg –1 K –1 ).
The mass of water evaporated is calculated from Eq. 14:
………………(14)
where:
mi = initial mass of the food item (kg);
Me = equilibrium moisture content (% dry basis);
Mi = initial moisture content (% dry basis).
During drying, water at the surface of the substance evaporates and water in the inner part
migrates to the surface to get evaporated. The ease of this migration depends on the porosity of
the substance and the surface area available. Other factors that may enhance quick drying of food
items are: high temperature, high wind speed and low relative humidity. In drying grains for
future planting, care must be taken not to kill the embryo. Excessive heating must also be
avoided, as it spoils the texture and quality of the item.
23

24. CHAPTER THREE
3.0
METHODOLOGY
3.1 Construction of the Solar-Biomass Dryer.
The materials used for the construction of the solar-biomass dryer are cheap and easily
obtainable in the local market. The essential features of the dryer consist of the solar collector
(air heater), the drying cabinet and drying trays.
3.1.1 Collector (Air Heater):
Flat plate collector is used; it consists of thin box with a
transparent cover called the glazing which is mounted on the top of the dryer facing the Sun. The
Sun heats a blackened metal plate inside the box, called an absorber plate, which in turn heats the
air in the box. Microsoft Encarta (2009) viewed on 01/06/2010.
The heat absorber (inner box) of the solar air heater was constructed using 2 mm thick
aluminum plate, painted black, is mounted in an outer box built from well-seasoned woods. The
space between the inner box and outer box is filled with foam material of about 40 mm thickness
and thermal conductivity of 0.043 Wm
–1
K –1 . The solar collector assembly consists of air flow
channel enclosed by transparent cover (glazing). An absorber mesh screen midway between the
glass cover and the absorber back plate provides effective air heating because solar radiation that
passes through the transparent cover is then absorbed by both the mesh and back-plate. The
glazing is a single layer of 4mm thick transparent glass sheet; it has a surface area of 820 mm by
1020 mm and of transmittance above 0.7 for wave lengths in the range 0.2 – 2.0 ì m and opaque
to wave lengths greater than 4.5 ì m. The effective area of the collector glazing is 0.8 m 2 . One
24

25. end of the solar collector has an air inlet vent of area 0.0888m
2
, which is covered by a
galvanized wire mesh to prevent entrance of rodents, the other end opens to the plenum
chamber. All dimensions are in centimeters.
FIG3.1.1 THE GLAZING
3.1.2 The Drying Cabinet: The drying cabinet together with the structural frame of the dryer
was built from well-seasoned woods which could withstand termite and atmospheric attacks. An
outlet vent was provided toward the upper end at the back of the cabinet to facilitate and control
the convection flow of air through the dryer. Access door to the drying chamber was also
provided at the back of the cabinet. This consists of three removable wooden panels made of
13mm plywood, which overlapped each other to prevent air leakages when closed. The roof and
the two opposite side walls of the cabinet are covered with transparent glass sheets of 4 mm
thick, which provided additional heating. All dimensions are in centimeters.
25

26. FIG 3.1.2 THE DRYING CABINET
3.1.3 Drying Trays: The drying trays are made of aluminum material contained inside the
drying chamber and were constructed from a double layer of fine chicken wire mesh with a fairly
open structure to allow drying air to pass through the food items. All its dimensions are in
centimeters.
FIG 3.1.3 THE DRYING TRAY
3.1.4 The Orientation of the Solar Collector: The flat-plate solar collector is always tilted and
oriented in such a way that it receives maximum solar radiation during the desired season of use.
26

27. The best stationary orientation is due south in the northern hemisphere and due north in southern
hemisphere. Therefore, solar collector in this work is oriented facing south and tilted at 17.5 o to
the horizontal. This is approximately 10
o
more than the local geographical latitude, which
according to Adegoke and Bolaji (2000) is the best recommended orientation for stationary
absorber. This inclination is also to allow easy run off of water and enhance air circulation.
3.1.5 Biomass Stove.
The design of the biomass system is based on the following points:
(1) The heating is indirect, i.e. the flue gases from the chimney and the drying air could not be
mixed. This is protecting the product from contamination by smoke, soot and ash of the flue
gases.
(2) Temperature of the drying air could be controlled, by maintaining the combustion in the
stove, with the opening or closing of the primary air supply gate.
(3) Biomass burning could be carried out for extended periods of time, unattended. The biomass
stove is having a dimension of 0.65 m by 0.60 m by 0.55 m surrounded by brick walls (1.45 m
by 1.17 m by 0.9 m). A burner grate with a perforated tray is provided inside the stove. The
exhaust gases exit via a 35 mm diameter and 65 cm long chimney located at one side of the
stove. In order to lengthen the flow path of exhaust gases and maximize the transfer of heat to
the stove walls, three metal baffle plates are inserted at s distance of 0.1 m above the grate and
below the chimney in the burning chamber feeding hole having dimension of 0.018 and 0.11
meters squares, respectively.
27

28. FIG 3.1.4 THE DRIER’S CHIMNEY.
3.2 Operation of the Dryer
This solar-biomass hybrid drier is designed to use solar energy as main heat source and
biomass stove is used only when solar is not available, during early morning, late evening,
cloudy weather conditions and at night. The dryer is a passive system in the sense that it has no
moving parts. It is energized by the sun’s rays entering through the collector glazing. The
trapping of the rays is enhanced by the inside surfaces of the collector that were painted black
and the trapped energy heats the air inside the collector. The green house effect achieved within
the collector drives the air current through the drying chamber. If the vents are open, the hot air
rises and escapes through the upper vent in the drying chamber while cooler air at ambient
temperature enters through the lower vent in the collector. Therefore, an air current is
maintained, as cooler air at a has relative humidity ‘Ha’ and the out-going air at a temperature
28

29. ‘Te’, has a relative humidity ‘He’. Because Te > Ta and the dryer contains no item, Ha > He.
Thus there is tendency for the out-going hot air to pick more moisture within the dryer as a result
of the difference between Ha and He. Therefore, insulation received is principally used in
increasing the affinity of the air in the dryer to pick moisture.
During periods of low or zero solar radiation, biomass stove is used for back-up heating. The
combustion gases heat up the stove wall surface, which in turn warm the air as it moves over the
outer surface. The warm air rises up into the drying chamber, evaporating and picking up
moisture from the product as it passes through the trays, and then escapes through the top vents
as before. Temperature inside the drier is controlled by regulation of entering and burning rate of
the biomass.
FIG 3.2 THE BIOMASS STOVE (All dimensions in centimeters)
29

30. 3.3 Reasons for alternating the arrangement of trays.
During drying, it is necessary to remove free moisture from the surface and also from the
interior of the material. When hot air is blown over the grain, heat is transferred to its surface and
the latent heat of vaporization causes water to evaporate. Water vapour diffuses through a
boundary film of air. This creates a region of lower vapour pressure at the surface of the grain
and a water vapour gradient is established from the most interior part of the grain to the dry air.
The gradient provides the driving force for removal of water from the food.
Water moves to the surface by the following mechanisms:
• Liquid movement by capillary force
• Diffusion of liquids caused by difference in the concentration of solutes in different regions of
the grain
• Diffused liquids are absorbed in a layer at the surface of solid components of the grains
Drying takes place at the surface of the grain and is similar to evaporation of moisture from
free water surface. The rate of evaporation depends largely on the surroundings and only little on
the type of grain. The three characteristics of air that are necessary for successful drying in the
constant rate period are [3]:
• A moderately high dry bulb temperature
• A low relative humidity
• A high air velocity
30

31. The trays in the heating chamber are so arrange to keep the temperature constant at the dry
bulb temperature value, to keep the humidity relatively low and make the air move conveniently
with high velocity.
31

32. Solar-Biomass Integrated Dryer.
32

33. Section of the Biomass Chamber of the Solar-Biomass integrated Dryer .
33

34. Section of the Solar Chamber of the Solar-Biomass Integrated Drier
34

35. REFERENCES
Adegoke, C.O., and Bolaji, B.O. (2000). Performance evaluation of solar-operated
thermosyphone hot water system in Akure. Int. J. Engin. Engin. Technol. 2(1): 35-40.
Akinola, A.O. (1999). Development and Performance Evaluation of a Mixed-Mode Solar Food
Dryer. M. Eng. Thesis, Federal University of Technology, Akure, Nigeria.
Akinola, A.O.; and Fapetu, O.P. (2006) . Energetic Analysis of a Mixed-Mode Solar Dryer. J.
Engin. Appl. Sci. 1: 205-10.
Akinola, O.A.; Akinyemi, A.A.; and Bolaji, B.O. (2006). Evaluation of traditional and solar fish
drying systems towards enhancing fish storage and preservation in Nigeria. J. Fish. Int., Pakistan
1(3-4): 44-9.
Bassey, M.W. (1989), . Development and use of solar drying technologies, Nigerian Journal of
Solar Energy 89: 133-64.
Bolaji, B.O. (2005). Performance evaluation of a simple solar dryer for food preservation. Proc.
6th Ann. Engin. Conf. of School of Engineering and Engineering Technology, Minna, Nigeria,
pp. 8-13.
Ertekin, C.; and Yaldiz, O. (2004). Drying of eggplant and selection of a suitable thin
layer drying model, J. Food Engin. 63: 349-59.
35

36. Ikejiofor, I.D. (1985). Passive solar cabinet dryer for drying agricultural products. In: O. Awe
(Editor), African Union of Physics. Proc. Workshop Phys. Tech. Solar Energy Conversion.,
Univ. of Ibadan, Nigeria, pp. 157-65.
Itodo, I.N.; Obetta, S.E.; and Satimehin, A.A. (2002). Evaluation of a solar crop dryer for rural
applications in Nigeria. Botswana J.Technol. 11(2): 58-62.
Kurtbas, I.; and Turgut, E. (2006). Experimental investigation of solar air heater with free
and fixed fins: efficiency and energy loss.Int. J. Sci. Technol. 1(1): 75-82.
Madhlopa, A.; Jones, S.A.; and Kalenga-Saka, J.D. (2002).A solar air heater with composite
absorber systems for food
dehydration.Renewable Energy 27: 27–37.
Microsoft Encarta (2009) Viewed on 01/06/2010.
Togrul, I.T.; and Pehlivan, D. (2004). ModelingW of thin layer drying kinetics of some fruits
under open-air sun drying process. J. Food Engin. 65: 413-25.
Waewsak, J.; Chindaruksa, S.; and Punlek, C. (2006). A mathematical modeling study of hot
air drying for some agricultural products.Thammasat Int. J. Sci. Technol. 11(1): 14-20.
36

37. Youcef-Ali, S.; Messaoudi, H.; Desmons, J.Y.;Abene, A.; and Le Ray, M. (2001).
Determination of the average coefficient of internal moisture transfer during the drying of a thin
bed of potato slices. J. Food Engin.48(2): 95-101.
37
