File connector
- 1.

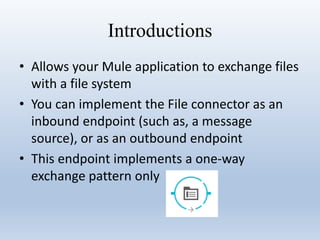

- 2. Introductions • Allows yourMule application to exchange files with a file system • You can implement the File connector as an inbound endpoint (such as, a message source), or as an outbound endpoint • This endpoint implements a one-way exchange pattern only

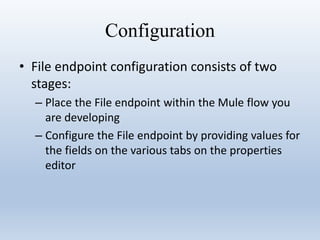

- 3. Configuration • File endpointconfiguration consists of two stages: – Place the File endpoint within the Mule flow you are developing – Configure the File endpoint by providing values for the fields on the various tabs on the properties editor
- 4.

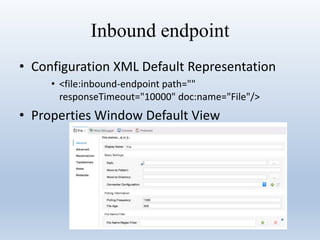

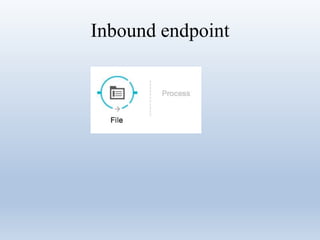

- 5. Inbound endpoint • ConfigurationXML Default Representation • <file:inbound-endpoint path="" responseTimeout="10000" doc:name="File"/> • Properties Window Default View

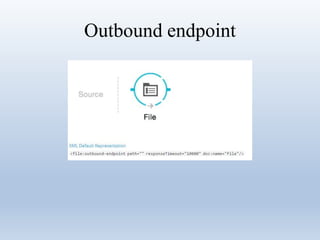

- 6.

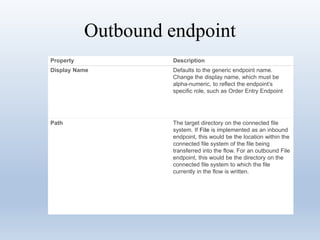

- 7. Outbound endpoint Property Description DisplayName Defaults to the generic endpoint name. Change the display name, which must be alpha-numeric, to reflect the endpoint’s specific role, such as Order Entry Endpoint Path The target directory on the connected file system. If File is implemented as an inbound endpoint, this would be the location within the connected file system of the file being transferred into the flow. For an outbound File endpoint, this would be the directory on the connected file system to which the file currently in the flow is written.

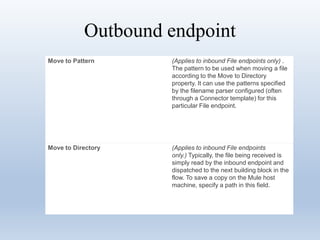

- 8. Outbound endpoint Move toPattern (Applies to inbound File endpoints only) . The pattern to be used when moving a file according to the Move to Directory property. It can use the patterns specified by the filename parser configured (often through a Connector template) for this particular File endpoint. Move to Directory (Applies to inbound File endpoints only.) Typically, the file being received is simply read by the inbound endpoint and dispatched to the next building block in the flow. To save a copy on the Mule host machine, specify a path in this field.

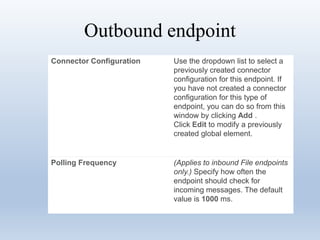

- 9. Outbound endpoint Connector ConfigurationUse the dropdown list to select a previously created connector configuration for this endpoint. If you have not created a connector configuration for this type of endpoint, you can do so from this window by clicking Add . Click Edit to modify a previously created global element. Polling Frequency (Applies to inbound File endpoints only.) Specify how often the endpoint should check for incoming messages. The default value is 1000 ms.

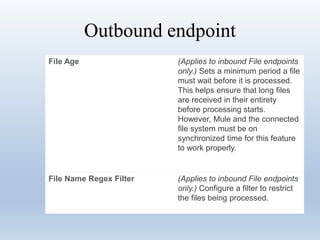

- 10. Outbound endpoint File Age(Applies to inbound File endpoints only.) Sets a minimum period a file must wait before it is processed. This helps ensure that long files are received in their entirety before processing starts. However, Mule and the connected file system must be on synchronized time for this feature to work properly. File Name Regex Filter (Applies to inbound File endpoints only.) Configure a filter to restrict the files being processed.

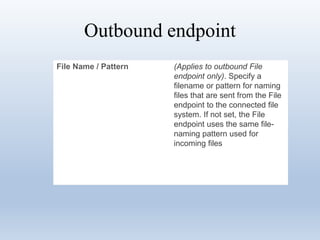

- 11. Outbound endpoint File Name/ Pattern (Applies to outbound File endpoint only). Specify a filename or pattern for naming files that are sent from the File endpoint to the connected file system. If not set, the File endpoint uses the same file- naming pattern used for incoming files
- 12.

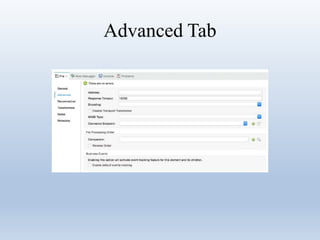

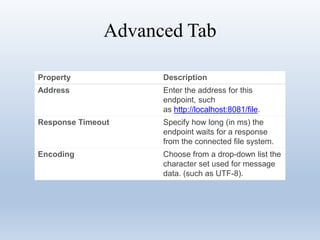

- 13. Advanced Tab Property Description AddressEnter the address for this endpoint, such as http://localhost:8081/file. Response Timeout Specify how long (in ms) the endpoint waits for a response from the connected file system. Encoding Choose from a drop-down list the character set used for message data. (such as UTF-8).

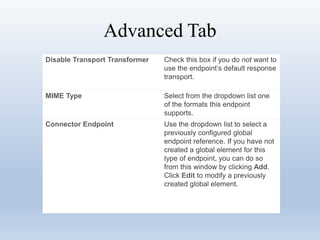

- 14. Advanced Tab Disable TransportTransformer Check this box if you do not want to use the endpoint’s default response transport. MIME Type Select from the dropdown list one of the formats this endpoint supports. Connector Endpoint Use the dropdown list to select a previously configured global endpoint reference. If you have not created a global element for this type of endpoint, you can do so from this window by clicking Add. Click Edit to modify a previously created global element.

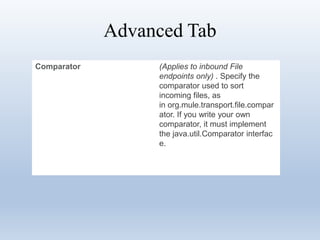

- 15. Advanced Tab Comparator (Appliesto inbound File endpoints only) . Specify the comparator used to sort incoming files, as in org.mule.transport.file.compar ator. If you write your own comparator, it must implement the java.util.Comparator interfac e.
- 16.
- 17.
- 18.

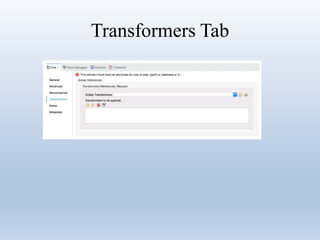

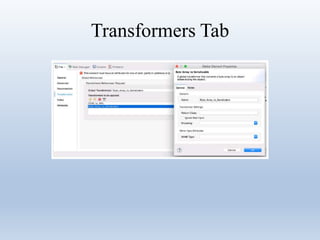

- 19. Transformers Tab Property Description TransformersReferences: Request Enter a list of synchronous transformers that are applied to the request before it is sent to the transport. Global Transformers AND Transformers to be applied Reference the global transformers you desire. Enter a list of synchronous transformers that are applied to the response before it is returned from the transport and order them for your needs.
- 20.
- 21.
