- 1. MADRID CURSO MONOGRÁFICO DE QUERATOCONO Fundación JimenezDiaz Viernes 23 de noviembre del 2018
- 2. Declaration of Conflict of Interest FerraraOphthalmics Ferrara e Hijos AJL Addition Technology
- 3. 30 Años de Queratocono TODAVERDAD PASA POR TRES ETAPAS. PRIMERO ES RIDICULIZADA. EN SEGUNDO LUGAR, SE ENCUENTRA CON UNA VIOLENTA OPOSICIÓN. Y EN TERCERO LUGAR ES ACEPTADA COMO EVIDENTE. ARTHUR SCHOPENHAUER “ ”

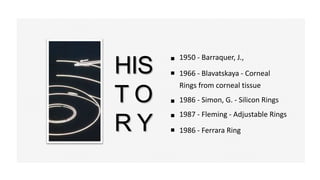

- 4. HIS T O R Y 1950- Barraquer, J., 1966 - Blavatskaya - Corneal Rings from corneal tissue 1986 - Ferrara Ring 1986 - Simon, G. - Silicon Rings 1987 - Fleming - Adjustable Rings

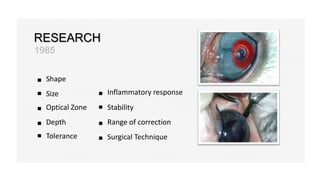

- 5. RESEARCH 1985 Shape Size Tolerance Optical Zone Depth Inflammatory response Stability Rangeof correction Surgical Technique

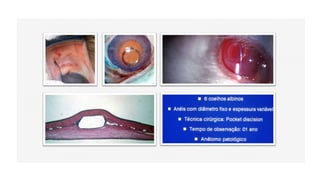

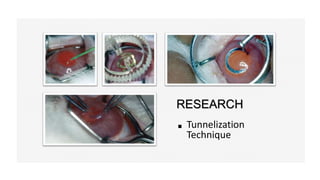

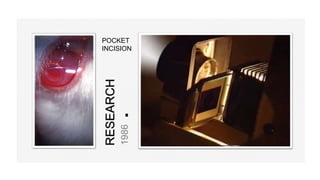

- 7.

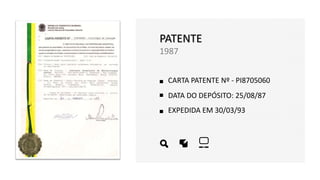

- 8. CARTA PATENTE Nº- PI8705060 DATA DO DEPÓSITO: 25/08/87 EXPEDIDA EM 30/03/93 PATENTE 1987
- 9.
- 10. MLMN 31 yo 16/09/1991 Pré-op -12.25 -2,00x 10 Pós-op -4,50 – 2,50 x 15

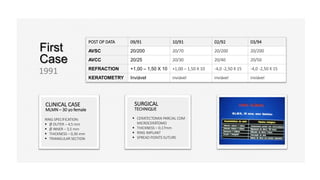

- 11. CLINICAL CASE MLMN –30 yo female SURGICAL TECHNIQUE First Case 1991 CERATECTOMIA PARCIAL COM MICROCERÁTOMO THICKNESS – 0,17mm RING IMPLANT SPREAD POINTS SUTURE RING SPECIFICATION: Ø OUTER – 4,5 mm Ø INNER – 3,5 mm THICKNESS – 0,30 mm TRIANGULAR SECTION POST OP DATA 09/91 10/91 02/92 03/94 AVSC 20/200 20/70 20/200 20/200 AVCC 20/25 20/30 20/40 20/50 REFRACTION +1,00 – 1,50 X 10 +1,00 – 1,50 X 10 -4,0 -2,50 X 15 -4,0 -2,50 X 15 KERATOMETRY Inviável inviável inviável inviável

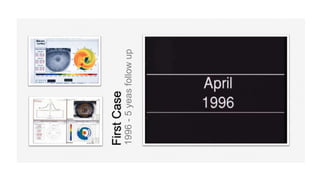

- 12.
- 13.
- 14.
- 15. PATENTE 1993 CARTA PATENTE Nº- PI 9305251-0 DATA DO DEPÓSITO: 22/12/93 EXPEDIDA EM: 08/02/2002

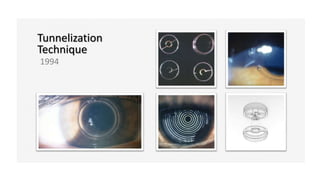

- 16.

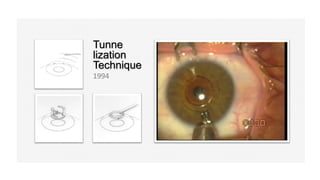

- 17.
- 18.
- 19. PATENTE USA 1998 PATENT NUMBER PI9305251-0 DATE OF PATENT AUG. 11, 1998
- 20.
- 21.
- 22.
- 23.

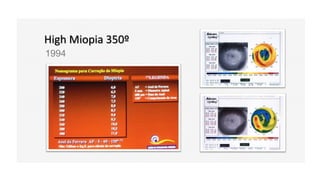

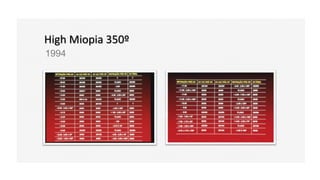

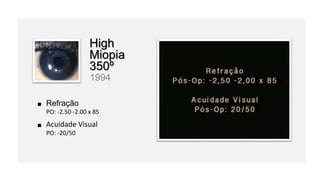

- 24. Refração PO: -2.50 -2.00x 85 Acuidade Visual PO: -20/50 High Miopia 350º 1994

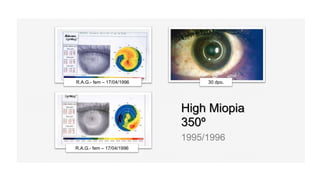

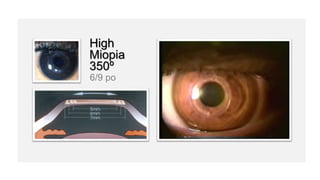

- 25. High Miopia 350º 1995/1996 R.A.G.- fem– 17/04/1996 R.A.G.- fem – 17/04/1996 30 dpo.

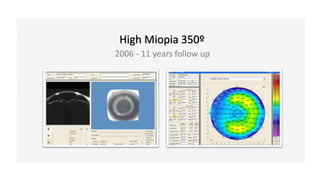

- 26. High Miopia 350º 2006- 11 years follow up
- 27.

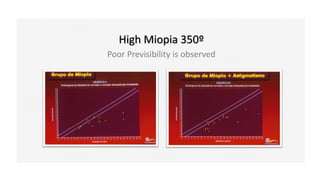

- 28. High Miopia 350º PoorPrevisibility is observed

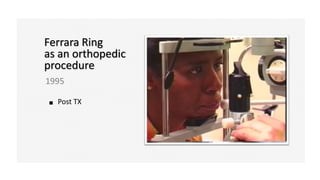

- 29. Ferrara Ring as anorthopedic procedure 1995 Post TX
- 30.
- 31. Ferrara Ring for Keratoconus 1996 Loremipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

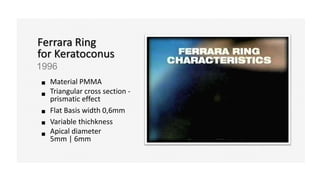

- 32. Ferrara Ring for Keratoconus 1996 MaterialPMMA Triangular cross section - prismatic effect Flat Basis width 0,6mm Variable thichkness Apical diameter 5mm | 6mm

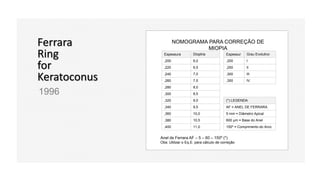

- 33. Ferrara Ring for Keratoconus 1996 NOMOGRAMA PARA CORREÇÃODE MIOPIA Espessura Dioptria ,200 6,0 ,220 6,5 ,240 7,0 ,260 7,5 ,280 8,0 ,300 8,5 ,320 9,0 ,340 9,5 ,360 10,0 ,380 10,5 ,400 11,0 Anel de Ferrara AF – 5 – 60 – 150º (*) Obs: Utilizar o Eq.E. para cálculo de correção Espessur Grau Evolutivo ,200 I ,250 II ,300 III ,350 IV (*) LEGENDA AF = ANEL DE FERRARA 5 mm = Diâmetro Apical 600 µm = Base do Anel 150º = Comprimento do Arco

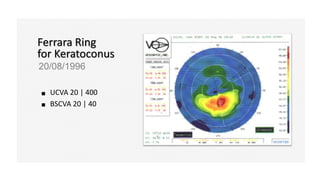

- 34. Ferrara Ring for Keratoconus 20/08/1996 UCVA20 | 400 BSCVA 20 | 40

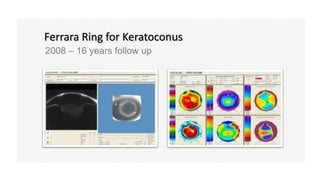

- 35. Ferrara Ring forKeratoconus 2008 – 16 years follow up

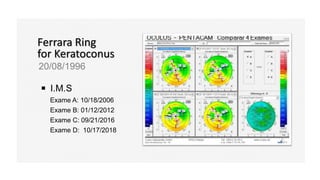

- 36. Ferrara Ring for Keratoconus 20/08/1996 ExameA: 10/18/2006 Exame B: 01/12/2012 Exame C: 09/21/2016 Exame D: 10/17/2018 I.M.S
- 37.
- 38.

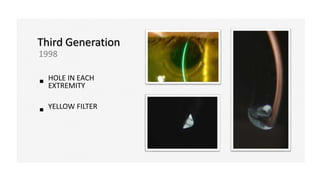

- 39. HOLE IN EACH EXTREMITY YELLOWFILTER Third Generation 1998
- 40. Third Generation IMPROVED SURFACE QUALITYAND FINISHING INCLUSION OF A HOLE IN EACH EXTREMITY DEFINITION OF A NOMOGRAM ON A STATISTICS BASIS

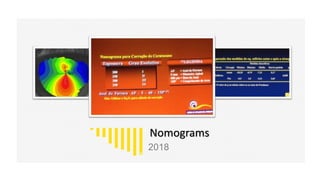

- 41.

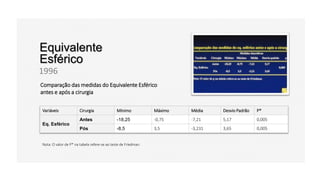

- 42. Equivalente Esférico 1996 Comparação das medidasdo Equivalente Esférico antes e após a cirurgia Variáveis Cirurgia Mínimo Máximo Média Desvio Padrão P* Eq. Esférico Antes -18,25 -0,75 -7,21 5,17 0,005 Pós -8,5 3,5 -3,231 3,65 0,005 Nota: O valor de P* na tabela refere-se ao teste de Friedman.

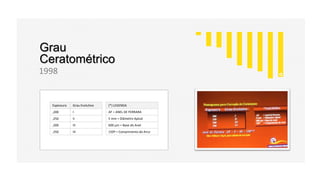

- 43. Grau Ceratométrico 1998 (*) LEGENDA AF =ANEL DE FERRARA 5 mm = Diâmetro Apical 600 µm = Base do Anel 150º = Comprimento do Arco Espessura Grau Evolutivo ,200 I ,250 II ,300 III ,350 IV

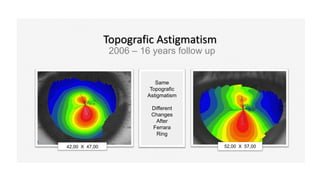

- 44. Topografic Astigmatism 2006 –16 years follow up 42,00 X 47,00 52,00 X 57,00 Same Topografic Astigmatism Different Changes After Ferrara Ring

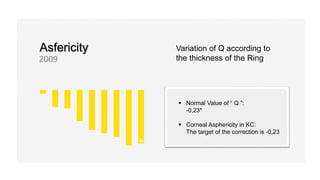

- 45. Normal Valueof “ Q ”: -0,23* Corneal Asphericity in KC: The target of the correction is -0,23 Variation of Q according to the thickness of the Ring Asfericity 2009

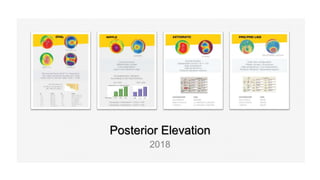

- 46.
- 47.
- 48.
- 49.
- 50.
- 52.
- 53.
- 54.
- 55.
- 56.
- 57. 1º Encontro Internacional de Anel deFerrara 2005 OURO PRETO - MG
- 61.
- 62.
- 64.
- 66. Simpósio Internacional de Anelde Ferrara Belo Horizonte - MG 2014
- 67. Pré Congresso da SociedadeBrasileira de Ceratocone Belo Horizonte - MG 2016
- 68.
- 70.
- 72.
- 75. Ferrara Ring Nomogram 6thGeneration
- 76. Señor de los Anillos FRANCISCOSÁ MENDEZ … AGORA MEU TRABALHO HUMILDE ESPERA QUE PONHAIS NELE FAVORÁVEIS OLHOS. “ ”
