Failure codes in IBM Maximo Asset Management provide a hierarchical structure to categorize the reasons assets fail and suggest potential solutions. Failure codes consist of a class, problem, cause, and remedy. They help speed up repair, improve reliability, and reduce maintenance costs by ensuring the right resources are assigned and historical data can be analyzed. Failure codes can be applied to locations, assets, and work orders in Maximo.

1. Robert Zientara
di-rz.pl
Failure Codes in IBM Maximo
Asset Management

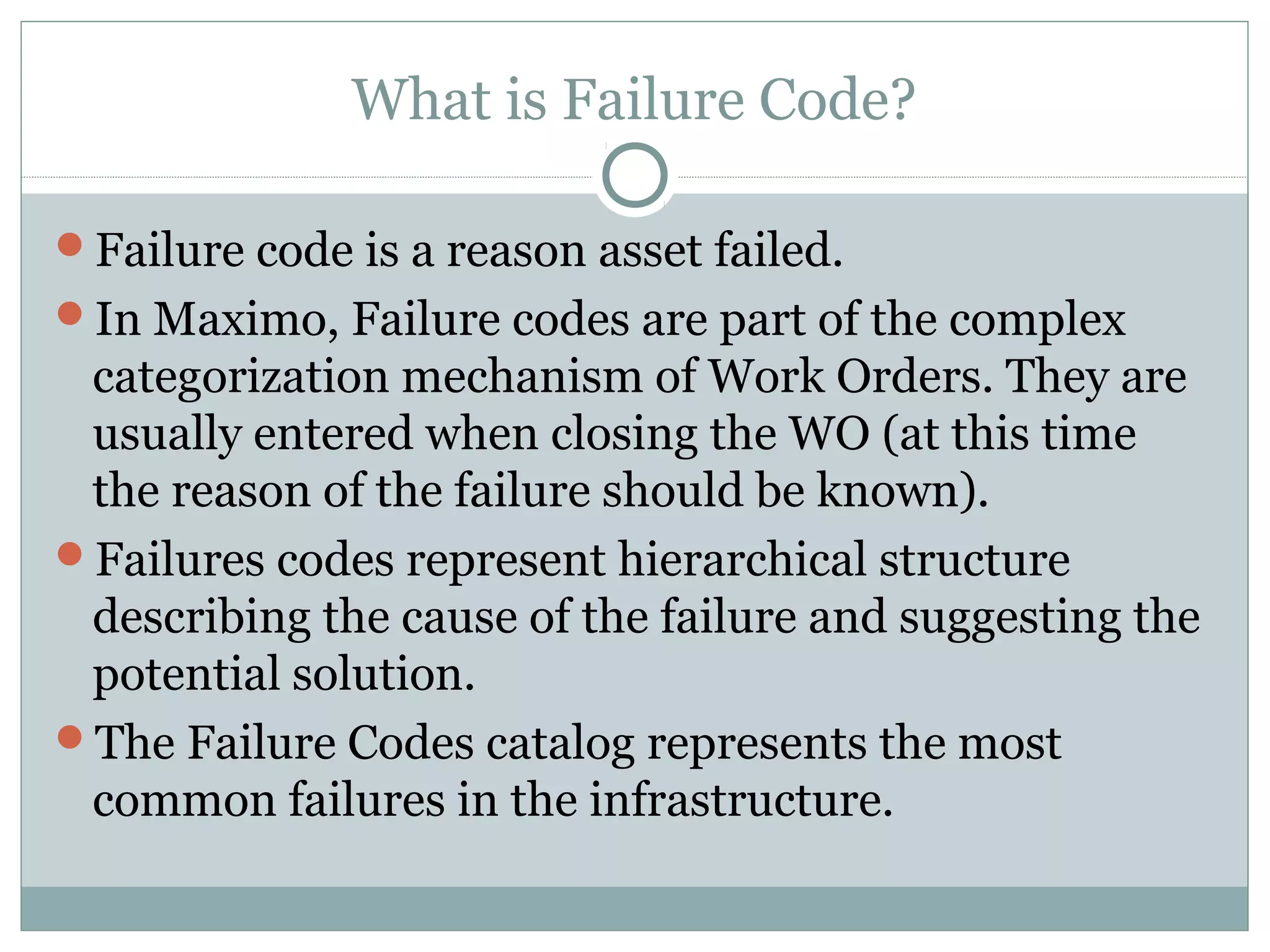

2. What is Failure Code?
Failure code is a reason asset failed.
In Maximo, Failure codes are part of the complex
categorization mechanism of Work Orders. They are
usually entered when closing the WO (at this time
the reason of the failure should be known).
Failures codes represent hierarchical structure
describing the cause of the failure and suggesting the
potential solution.
The Failure Codes catalog represents the most
common failures in the infrastructure.

3. Structure of Failure Codes
Failure Code consists of following elements:
 Class
 Problem
 Cause
• Remedy
Failure Code can be a number or alphanumeric code.
In some industries the predefined Failure Codes may
already exist e.g. VMRS for vehicle maintenance.
When designing the catalog, make sure the lists are
not too big (10-20 positions) and include “OTHER”
position for all issues not listed before.

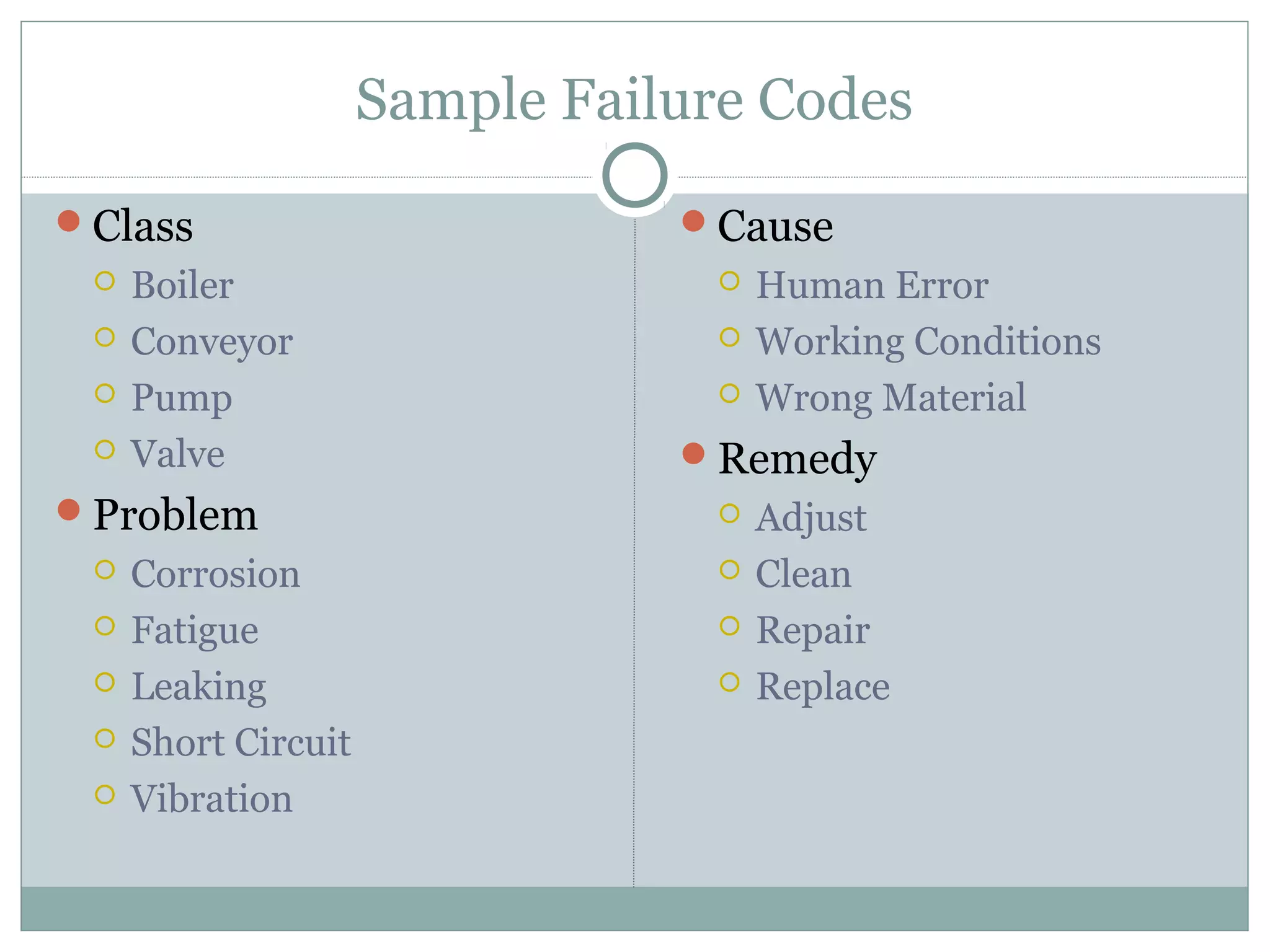

4. Sample Failure Codes
Class
 Boiler
 Conveyor
 Pump
 Valve
Problem
 Corrosion
 Fatigue
 Leaking
 Short Circuit
 Vibration
Cause
 Human Error
 Working Conditions
 Wrong Material
Remedy
 Adjust
 Clean
 Repair
 Replace

5. Benefits of using Failure Codes
Speed up the repair process
 Right resources can be assigned based on failure class
 Cause and remedy information built upon previous experience
help to fix the issue quickly
Improve the reliability of the infrastructure
 Analysis of the historical data can help in identifying and
eliminating repeatable issues
 Failure Codes help in optimization of PM schedules too
 Performance of the same machines can be compared
In the long term the above should reduce the
maintenance costs

6. Applications using Failure Codes
Locations
 You can enter the most common failure class for the location in
Failure Class field. This information will be copied over to
Work Order record.
Assets
 You can enter the most common failure class for the asset in
Failure Class field. This information will be copied over to
Work Order record.
Work Order Tracking
 The default Failure Class from asset/location data can be
replaced with the actual information. In the Work Order the
user can also add the information about the Cause and
Remedy.

7. Failure Codes Application
From Go To menu choose:
 Asset
 Failure Codes

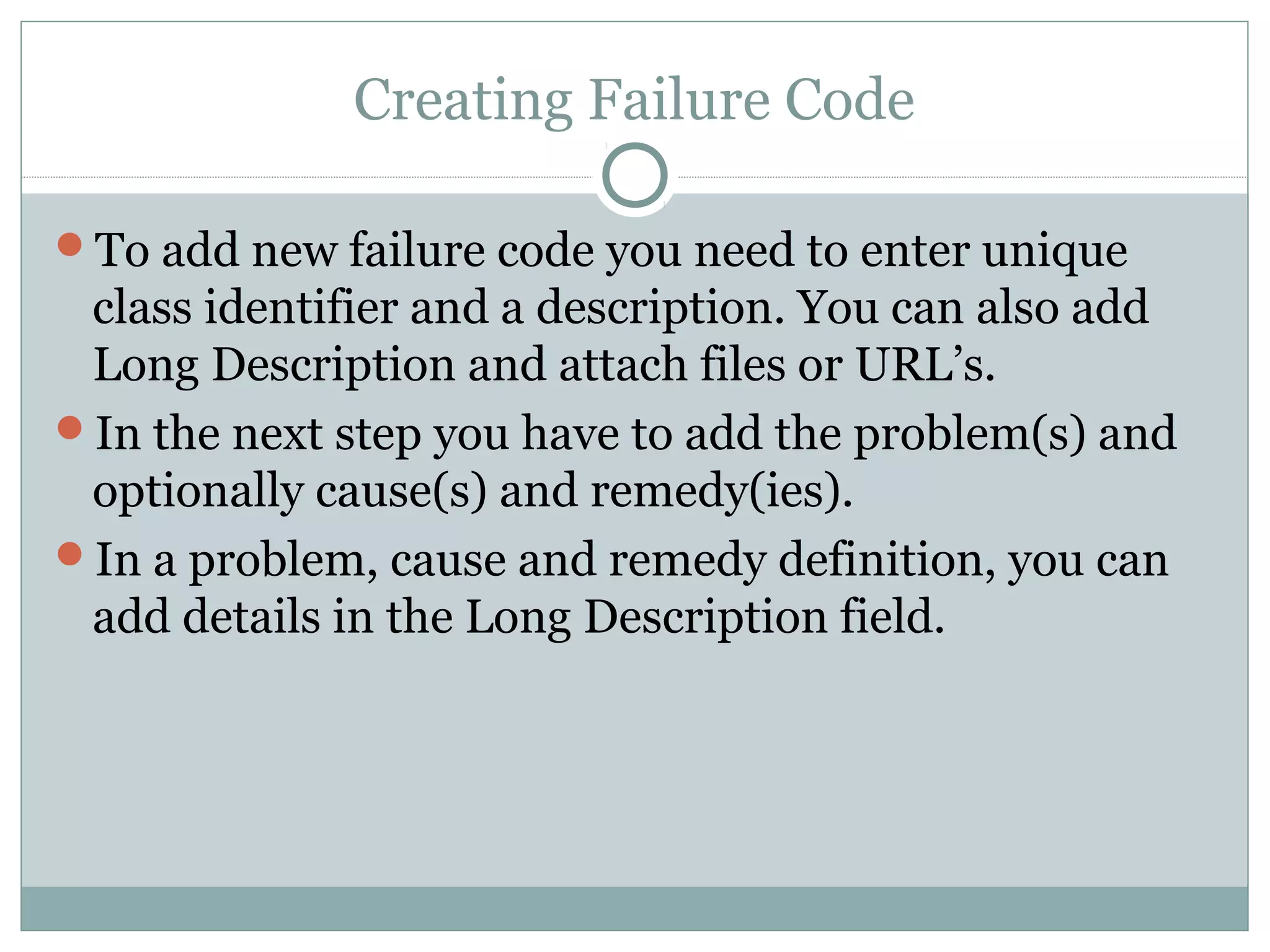

8. Creating Failure Code
To add new failure code you need to enter unique
class identifier and a description. You can also add
Long Description and attach files or URL’s.
In the next step you have to add the problem(s) and
optionally cause(s) and remedy(ies).
In a problem, cause and remedy definition, you can
add details in the Long Description field.

9. If you want to learn more about Maximo…
Please read my book:
IBM Maximo Asset Management.
The Consultant’s Guide

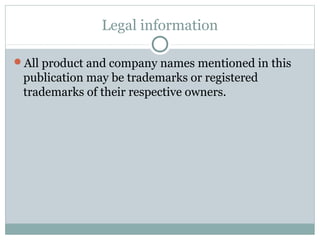

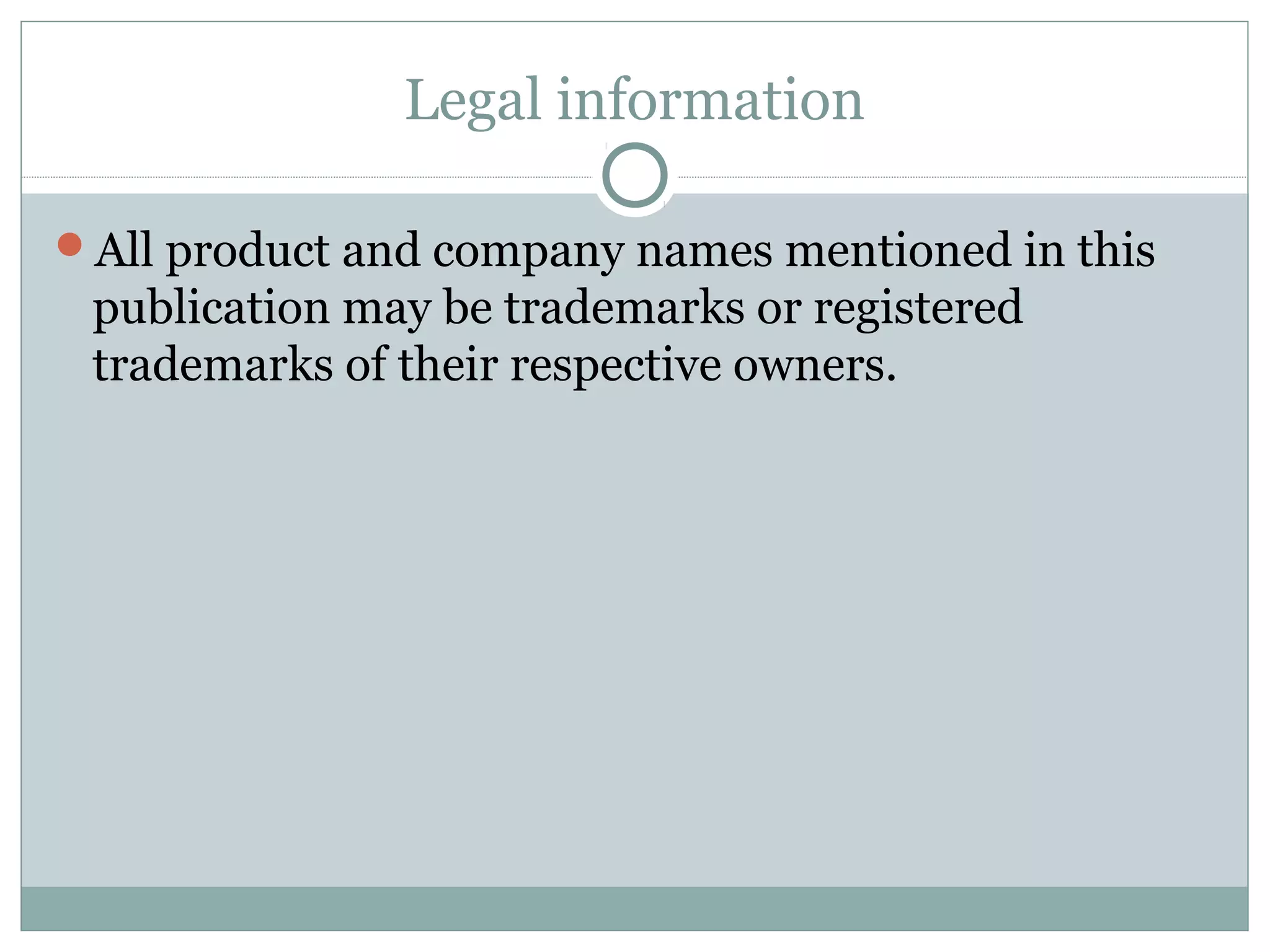

10. Legal information
