External fixators are used to immobilize fractures by inserting pins through the skin and bone that are connected by a rigid scaffolding outside the limb. There are two main types - pin fixators and ring fixators. Pin fixators are applied quickly but have limitations in controlling deformities, while ring fixators can achieve complex reconstruction but are heavier. Professor Gavril Ilizarov developed ring fixators in the 1950s which use tensioned wires between rings to stabilize fractures. Ring fixators can be used to treat limb lengthening, deformity correction, non-unions, joint contractures and more complex fractures. They work by gradually distracting the bone between rings.

1. EXTERNAL
FIXATORS

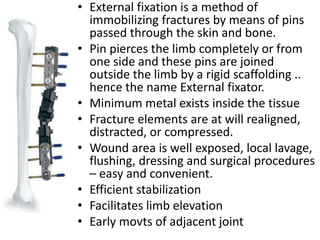

2. • External fixation is a method of
immobilizing fractures by means of pins
passed through the skin and bone.
• Pin pierces the limb completely or from
one side and these pins are joined
outside the limb by a rigid scaffolding ..
hence the name External fixator.
• Minimum metal exists inside the tissue
• Fracture elements are at will realigned,
distracted, or compressed.
• Wound area is well exposed, local lavage,
flushing, dressing and surgical procedures
– easy and convenient.
• Efficient stabilization
• Facilitates limb elevation
• Early movts of adjacent joint

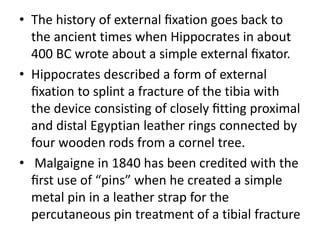

3. • The history of external fixation goes back to
the ancient times when Hippocrates in about
400 BC wrote about a simple external fixator.
• Hippocrates described a form of external
fixation to splint a fracture of the tibia with
the device consisting of closely fitting proximal
and distal Egyptian leather rings connected by
four wooden rods from a cornel tree.
• Malgaigne in 1840 has been credited with the
first use of “pins” when he created a simple
metal pin in a leather strap for the
percutaneous pin treatment of a tibial fracture

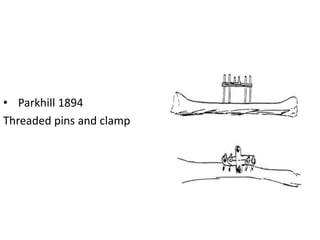

4. • Parkhill 1894
Threaded pins and clamp

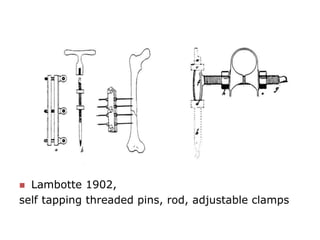

5.  Lambotte 1902,
self tapping threaded pins, rod, adjustable clamps

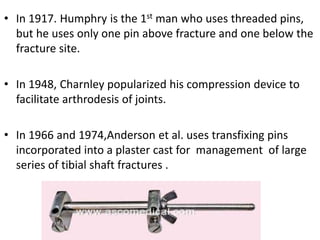

6. • In 1917. Humphry is the 1st man who uses threaded pins,
but he uses only one pin above fracture and one below the
fracture site.
• In 1948, Charnley popularized his compression device to
facilitate arthrodesis of joints.
• In 1966 and 1974,Anderson et al. uses transfixing pins
incorporated into a plaster cast for management of large
series of tibial shaft fractures .

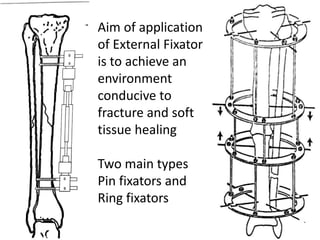

7. Aim of application
of External Fixator
is to achieve an
environment
conducive to
fracture and soft
tissue healing
Two main types
Pin fixators and
Ring fixators

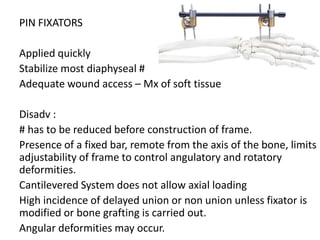

8. PIN FIXATORS
Applied quickly
Stabilize most diaphyseal #
Adequate wound access – Mx of soft tissue
Disadv :
# has to be reduced before construction of frame.
Presence of a fixed bar, remote from the axis of the bone, limits
adjustability of frame to control angulatory and rotatory
deformities.
Cantilevered System does not allow axial loading
High incidence of delayed union or non union unless fixator is
modified or bone grafting is carried out.
Angular deformities may occur.

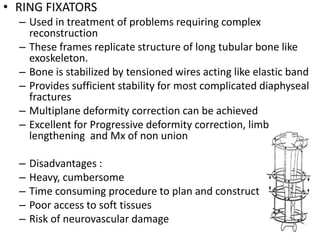

9. • RING FIXATORS
– Used in treatment of problems requiring complex
reconstruction
– These frames replicate structure of long tubular bone like
exoskeleton.
– Bone is stabilized by tensioned wires acting like elastic band
– Provides sufficient stability for most complicated diaphyseal
fractures
– Multiplane deformity correction can be achieved
– Excellent for Progressive deformity correction, limb
lengthening and Mx of non union
– Disadvantages :
– Heavy, cumbersome
– Time consuming procedure to plan and construct
– Poor access to soft tissues
– Risk of neurovascular damage

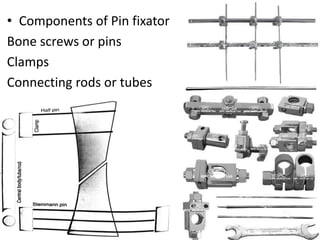

10. • Components of Pin fixator
Bone screws or pins
Clamps
Connecting rods or tubes

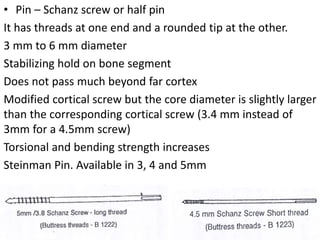

11. • Pin – Schanz screw or half pin
It has threads at one end and a rounded tip at the other.
3 mm to 6 mm diameter
Stabilizing hold on bone segment
Does not pass much beyond far cortex
Modified cortical screw but the core diameter is slightly larger
than the corresponding cortical screw (3.4 mm instead of
3mm for a 4.5mm screw)
Torsional and bending strength increases
Steinman Pin. Available in 3, 4 and 5mm

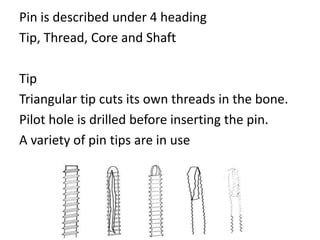

12. Pin is described under 4 heading
Tip, Thread, Core and Shaft
Tip
Triangular tip cuts its own threads in the bone.
Pilot hole is drilled before inserting the pin.
A variety of pin tips are in use

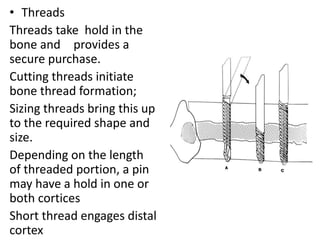

13. • Threads
Threads take hold in the
bone and provides a
secure purchase.
Cutting threads initiate
bone thread formation;
Sizing threads bring this up
to the required shape and
size.
Depending on the length
of threaded portion, a pin
may have a hold in one or
both cortices
Short thread engages distal
cortex

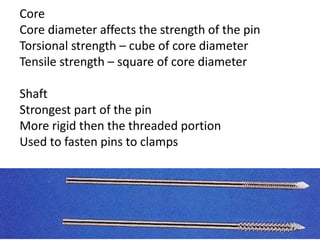

14. Core
Core diameter affects the strength of the pin
Torsional strength – cube of core diameter
Tensile strength – square of core diameter
Shaft
Strongest part of the pin
More rigid then the threaded portion
Used to fasten pins to clamps

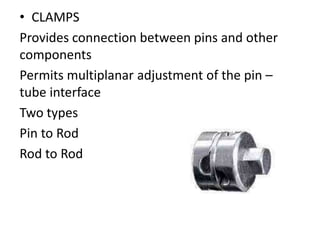

15. • CLAMPS
Provides connection between pins and other
components
Permits multiplanar adjustment of the pin –
tube interface
Two types
Pin to Rod
Rod to Rod

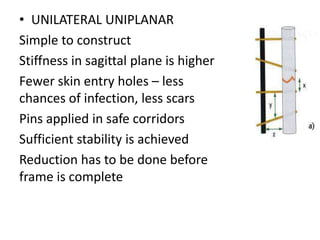

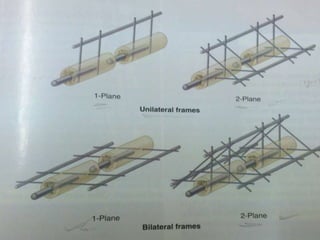

17. • UNILATERAL UNIPLANAR
Simple to construct
Stiffness in sagittal plane is higher
Fewer skin entry holes – less
chances of infection, less scars
Pins applied in safe corridors
Sufficient stability is achieved
Reduction has to be done before
frame is complete

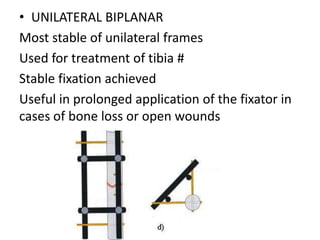

18. • UNILATERAL BIPLANAR
Most stable of unilateral frames
Used for treatment of tibia #
Stable fixation achieved
Useful in prolonged application of the fixator in
cases of bone loss or open wounds

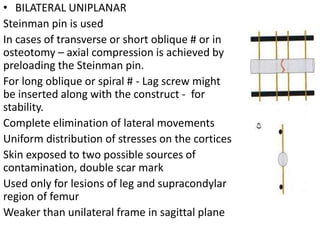

19. • BILATERAL UNIPLANAR
Steinman pin is used
In cases of transverse or short oblique # or in
osteotomy – axial compression is achieved by
preloading the Steinman pin.
For long oblique or spiral # - Lag screw might
be inserted along with the construct - for
stability.
Complete elimination of lateral movements
Uniform distribution of stresses on the cortices
Skin exposed to two possible sources of
contamination, double scar mark
Used only for lesions of leg and supracondylar
region of femur
Weaker than unilateral frame in sagittal plane

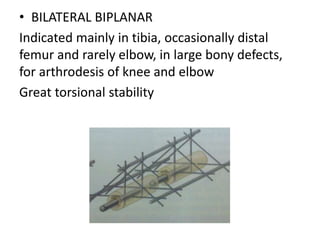

20. • BILATERAL BIPLANAR
Indicated mainly in tibia, occasionally distal
femur and rarely elbow, in large bony defects,
for arthrodesis of knee and elbow
Great torsional stability

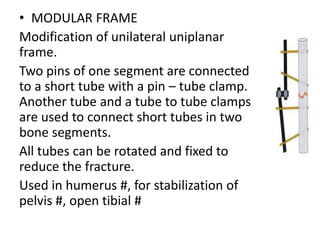

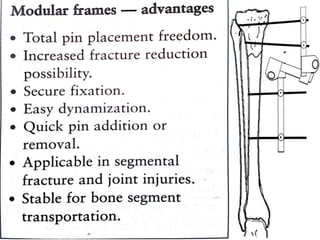

21. • MODULAR FRAME
Modification of unilateral uniplanar
frame.
Two pins of one segment are connected
to a short tube with a pin – tube clamp.
Another tube and a tube to tube clamps
are used to connect short tubes in two
bone segments.
All tubes can be rotated and fixed to
reduce the fracture.
Used in humerus #, for stabilization of
pelvis #, open tibial #

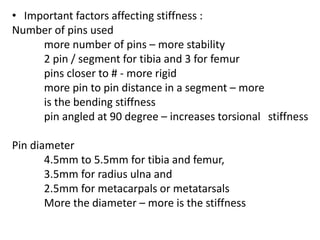

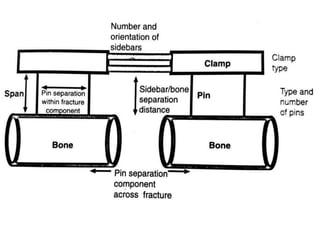

23. • Important factors affecting stiffness :
Number of pins used
more number of pins – more stability
2 pin / segment for tibia and 3 for femur
pins closer to # - more rigid
more pin to pin distance in a segment – more
is the bending stiffness
pin angled at 90 degree – increases torsional stiffness
Pin diameter
4.5mm to 5.5mm for tibia and femur,
3.5mm for radius ulna and
2.5mm for metacarpals or metatarsals
More the diameter – more is the stiffness

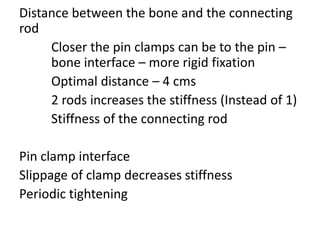

24. Distance between the bone and the connecting
rod
Closer the pin clamps can be to the pin –
bone interface – more rigid fixation
Optimal distance – 4 cms
2 rods increases the stiffness (Instead of 1)
Stiffness of the connecting rod
Pin clamp interface
Slippage of clamp decreases stiffness
Periodic tightening

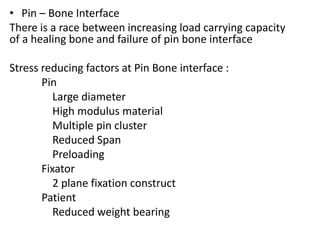

26. • Pin – Bone Interface
There is a race between increasing load carrying capacity
of a healing bone and failure of pin bone interface
Stress reducing factors at Pin Bone interface :
Pin
Large diameter
High modulus material
Multiple pin cluster
Reduced Span
Preloading
Fixator
2 plane fixation construct
Patient
Reduced weight bearing

27. • Preloading :
Preload is a static force of sufficient magnitude applied to
an implant to overcome all dynamic and muscular
contracture forces and to maintain uninterrupted pin
bone contact.
Lack of tension – leads to micro motion – leads to pin
loosening-
Osteoclast initiate bone resorption at periosteal and
endosteal surfaces
Radial preloading – best method of preloading, achieved
by inserting a pin which is larger in diameter than the pre-
drilled hole – a designed misfit
Optimal misfit is 0.1 mm. Not more than 0.3mm

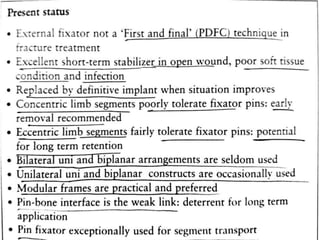

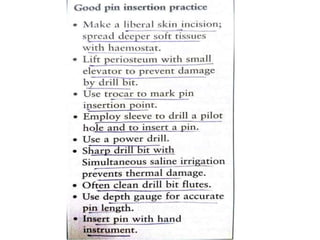

30. PROF. GABRIEL ABRAMOVITCH ILIZAROV
(1921-1992)

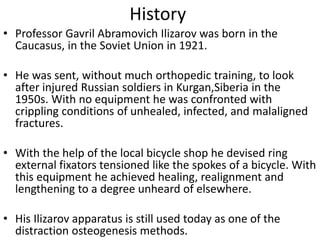

31. History
• Professor Gavril Abramovich Ilizarov was born in the
Caucasus, in the Soviet Union in 1921.
• He was sent, without much orthopedic training, to look
after injured Russian soldiers in Kurgan,Siberia in the
1950s. With no equipment he was confronted with
crippling conditions of unhealed, infected, and malaligned
fractures.
• With the help of the local bicycle shop he devised ring
external fixators tensioned like the spokes of a bicycle. With
this equipment he achieved healing, realignment and
lengthening to a degree unheard of elsewhere.
• His Ilizarov apparatus is still used today as one of the
distraction osteogenesis methods.

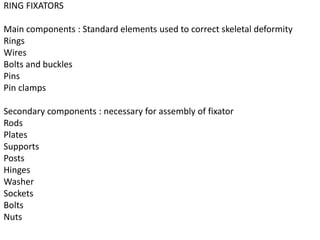

32. RING FIXATORS
Main components : Standard elements used to correct skeletal deformity
Rings
Wires
Bolts and buckles
Pins
Pin clamps
Secondary components : necessary for assembly of fixator
Rods
Plates
Supports
Posts
Hinges
Washer
Sockets
Bolts
Nuts

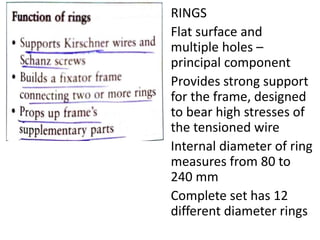

33. RINGS
Flat surface and
multiple holes –
principal component
Provides strong support
for the frame, designed
to bear high stresses of
the tensioned wire
Internal diameter of ring
measures from 80 to
240 mm
Complete set has 12
different diameter rings

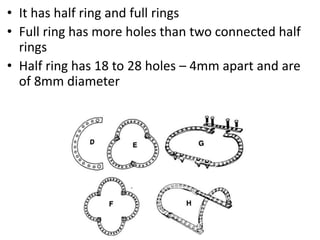

34. • It has half ring and full rings
• Full ring has more holes than two connected half
rings
• Half ring has 18 to 28 holes – 4mm apart and are
of 8mm diameter

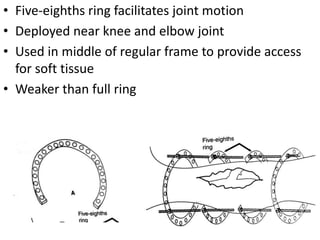

35. • Five-eighths ring facilitates joint motion
• Deployed near knee and elbow joint
• Used in middle of regular frame to provide access
for soft tissue
• Weaker than full ring

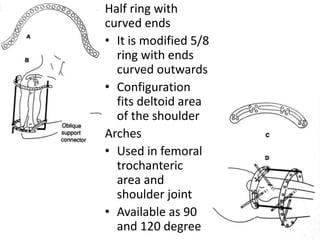

36. Half ring with
curved ends
• It is modified 5/8
ring with ends
curved outwards
• Configuration
fits deltoid area
of the shoulder
Arches
• Used in femoral
trochanteric
area and
shoulder joint
• Available as 90
and 120 degree

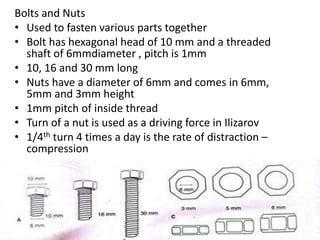

37. Bolts and Nuts
• Used to fasten various parts together
• Bolt has hexagonal head of 10 mm and a threaded
shaft of 6mmdiameter , pitch is 1mm
• 10, 16 and 30 mm long
• Nuts have a diameter of 6mm and comes in 6mm,
5mm and 3mm height
• 1mm pitch of inside thread
• Turn of a nut is used as a driving force in Ilizarov
• 1/4th turn 4 times a day is the rate of distraction –
compression

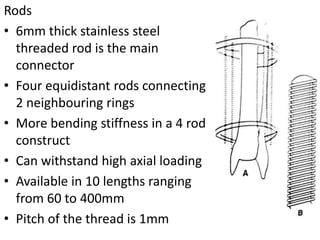

38. Rods
• 6mm thick stainless steel
threaded rod is the main
connector
• Four equidistant rods connecting
2 neighbouring rings
• More bending stiffness in a 4 rod
construct
• Can withstand high axial loading
• Available in 10 lengths ranging
from 60 to 400mm
• Pitch of the thread is 1mm

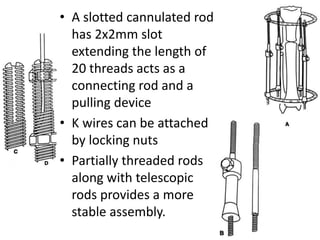

39. • A slotted cannulated rod
has 2x2mm slot
extending the length of
20 threads acts as a
connecting rod and a
pulling device
• K wires can be attached
by locking nuts
• Partially threaded rods
along with telescopic
rods provides a more
stable assembly.

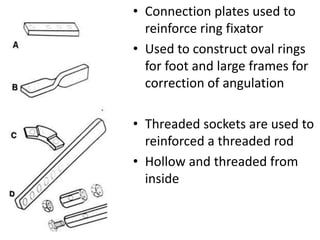

40. • Connection plates used to
reinforce ring fixator
• Used to construct oval rings
for foot and large frames for
correction of angulation
• Threaded sockets are used to
reinforced a threaded rod
• Hollow and threaded from
inside

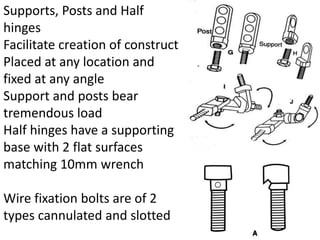

41. Supports, Posts and Half
hinges
Facilitate creation of construct
Placed at any location and
fixed at any angle
Support and posts bear
tremendous load
Half hinges have a supporting
base with 2 flat surfaces
matching 10mm wrench
Wire fixation bolts are of 2
types cannulated and slotted

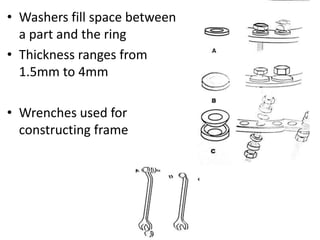

42. • Washers fill space between
a part and the ring
• Thickness ranges from
1.5mm to 4mm
• Wrenches used for
constructing frame

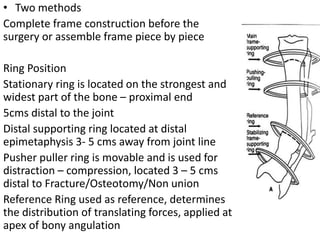

43. • Two methods
Complete frame construction before the
surgery or assemble frame piece by piece
Ring Position
Stationary ring is located on the strongest and
widest part of the bone – proximal end
5cms distal to the joint
Distal supporting ring located at distal
epimetaphysis 3- 5 cms away from joint line
Pusher puller ring is movable and is used for
distraction – compression, located 3 – 5 cms
distal to Fracture/Osteotomy/Non union
Reference Ring used as reference, determines
the distribution of translating forces, applied at
apex of bony angulation

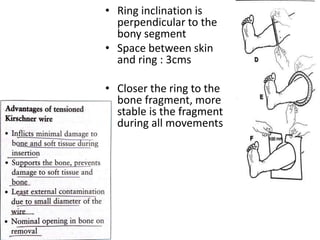

44. • Ring inclination is
perpendicular to the
bony segment
• Space between skin
and ring : 3cms
• Closer the ring to the
bone fragment, more
stable is the fragment
during all movements

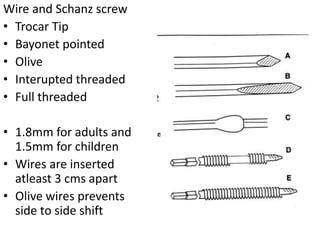

45. Wire and Schanz screw
• Trocar Tip
• Bayonet pointed
• Olive
• Interupted threaded
• Full threaded
• 1.8mm for adults and
1.5mm for children
• Wires are inserted
atleast 3 cms apart
• Olive wires prevents
side to side shift

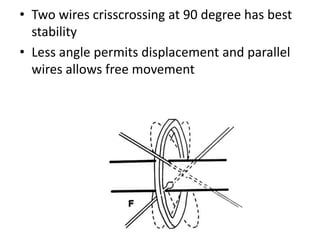

46. • Two wires crisscrossing at 90 degree has best
stability
• Less angle permits displacement and parallel
wires allows free movement

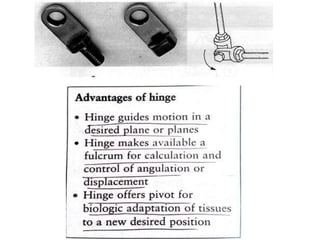

48. Indications…
• Limb lengthening
• Deformity Correction.
• Infected Non-unions.
• Congenital Pseudarthrosis.
• Treatment of Joint Contractures e.g. resistant
congenital talipes euino varus, post burns
contractures, post-traumatic stiffness
• Fixation of complex fractures
• Bone transport & Osteomyelitis (treatment of
missing bone in the limb, due to various causes)
• Arthrodesis (fusion or joining of two bones across a
joint)

49. THANK YOU
