The document discusses external ballistics and the factors that affect the trajectory of a bullet. It defines external ballistics as dealing with the motion of a projectile from the muzzle of a weapon to the target. The main factors that influence a bullet's flight are gravity, which pulls it downward, and air resistance, which reduces its velocity. In a vacuum with no air resistance or gravity, a bullet would travel in a straight line at a constant velocity. However, in reality bullets follow a parabolic trajectory due to these forces. The document also discusses other factors like velocity, spin, angle of fire, yaw, drift, and temperature that can impact a bullet's trajectory.

1. EXTERNAL
BALLISTICS

2. Submitted to- Ketan Sir Submitted By- Khirad Sayyed

3. EXTERNAL BALLISTICS
External ballistics deals with motion of projectile or bullet
from the muzzle end of the weapon, to the target or till it
drops down under the influence of gravity’
The trajectories of projectiles are parabolic in form, but
would differ in curvatures and length.

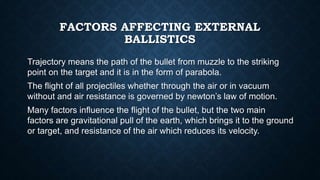

4. FACTORS AFFECTING EXTERNAL
BALLISTICS
Trajectory means the path of the bullet from muzzle to the striking
point on the target and it is in the form of parabola.
The flight of all projectiles whether through the air or in vacuum
without and air resistance is governed by newton’s law of motion.
Many factors influence the flight of the bullet, but the two main
factors are gravitational pull of the earth, which brings it to the ground
or target, and resistance of the air which reduces its velocity.

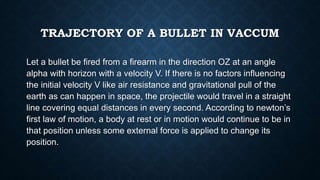

5. TRAJECTORY OF A BULLET IN VACCUM
Let a bullet be fired from a firearm in the direction OZ at an angle
alpha with horizon with a velocity V. If there is no factors influencing
the initial velocity V like air resistance and gravitational pull of the
earth as can happen in space, the projectile would travel in a straight
line covering equal distances in every second. According to newton’s
first law of motion, a body at rest or in motion would continue to be in
that position unless some external force is applied to change its
position.

6. Air resistance will decrease the velocity of bullet and gravitational force will
pull down the bullet. Therefore, bullet will achieve parabolic path.
The positions of the bullet are different in case of vacuum firing. When the
external factors such as air resistance and gravitational force takes place,
it will change the positions of the bullet and path of the bullet. As air offer
resistance to the bullet and decreases the velocity and hence the distance
travelled would be lesser, giving rise to new positions. Gravitational pull will
bring the bullet downwards whose trajectory forms a parabola’

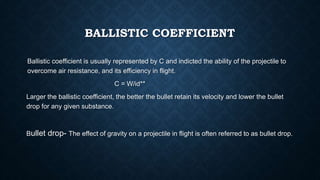

8. BALLISTIC COEFFICIENT
Ballistic coefficient is usually represented by C and indicted the ability of the projectile to
overcome air resistance, and its efficiency in flight.
C = W/id**
Larger the ballistic coefficient, the better the bullet retain its velocity and lower the bullet
drop for any given substance.
Bullet drop- The effect of gravity on a projectile in flight is often referred to as bullet drop.

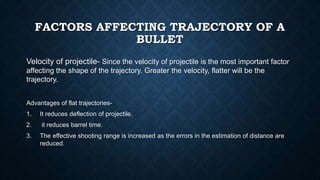

9. FACTORS AFFECTING TRAJECTORY OF A
BULLET
Velocity of projectile- Since the velocity of projectile is the most important factor
affecting the shape of the trajectory. Greater the velocity, flatter will be the
trajectory.
Advantages of flat trajectories-
1. It reduces deflection of projectile.
2. it reduces barrel time.
3. The effective shooting range is increased as the errors in the estimation of distance are
reduced.

10. Spin of bullet- Revolving of bullet around its longitudinal axis or gyration.
Bullet spin reduces air resistance which results in reduction in loss of
velocity.
Speed of spin and twist motion- The degree of the turning of bullet is
called twist.
The length in which projectile completed its one turn is called as twist. And
the twist is depend on the diameter, length, and density of projectile.

11. Angle of fire- The angle at which barrel axis lines with the base line.
Generally it is low. The angle of elevation at which maximum range is attain
is called critical angle.
Yaw and stability- Yawning of bullet is the deviation of bullet in its
longitudinal axis from the straight line of flight.
Drift- It is caused by action of wind on the bullet.

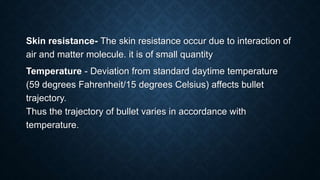

12. Skin resistance- The skin resistance occur due to interaction of
air and matter molecule. it is of small quantity
Temperature - Deviation from standard daytime temperature
(59 degrees Fahrenheit/15 degrees Celsius) affects bullet
trajectory.
Thus the trajectory of bullet varies in accordance with
temperature.

13. Thank You
