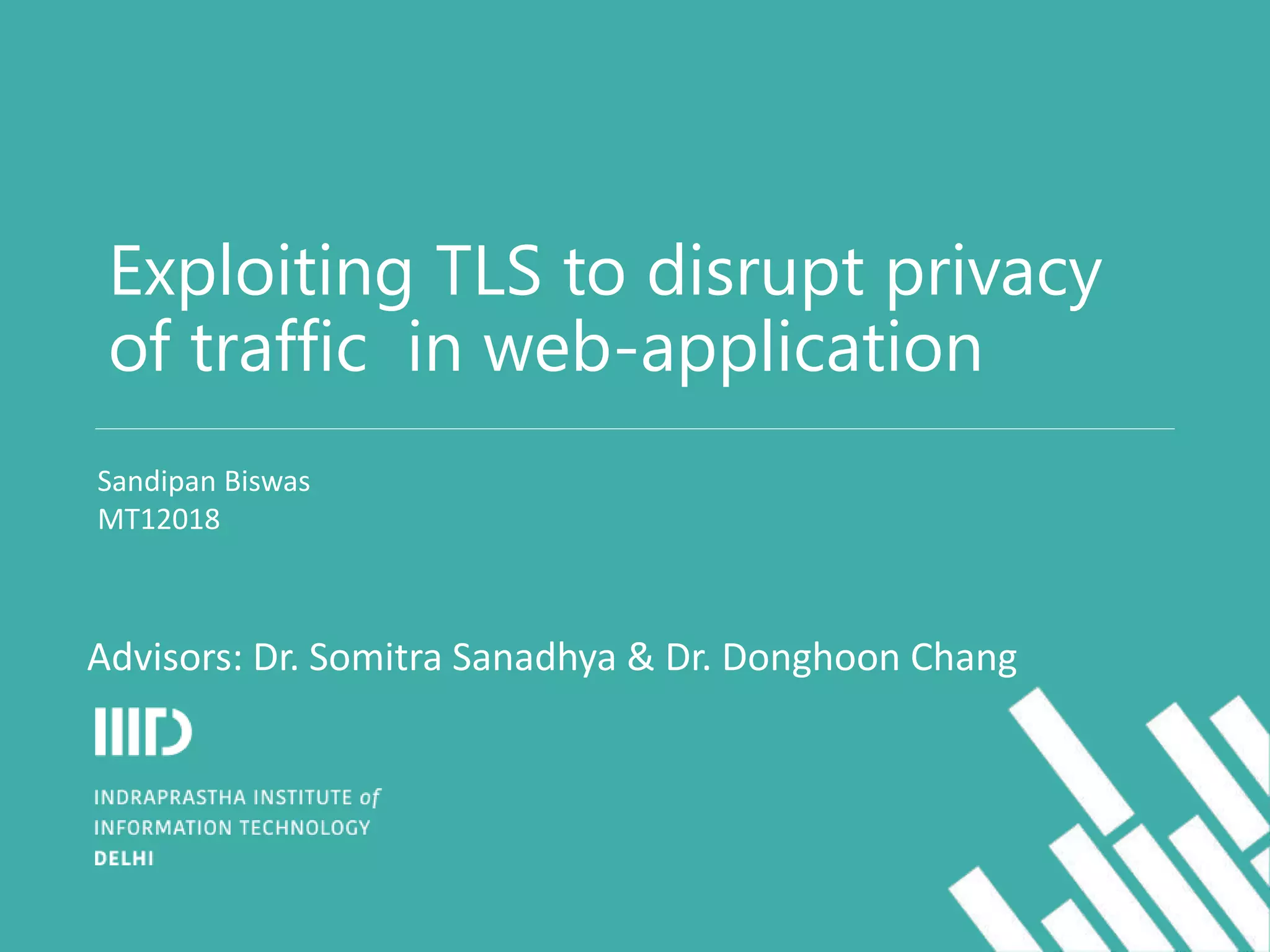

1. Exploiting TLS to disrupt privacy
of traffic in web-application
Sandipan Biswas
MT12018
Advisors: Dr. Somitra Sanadhya & Dr. Donghoon Chang

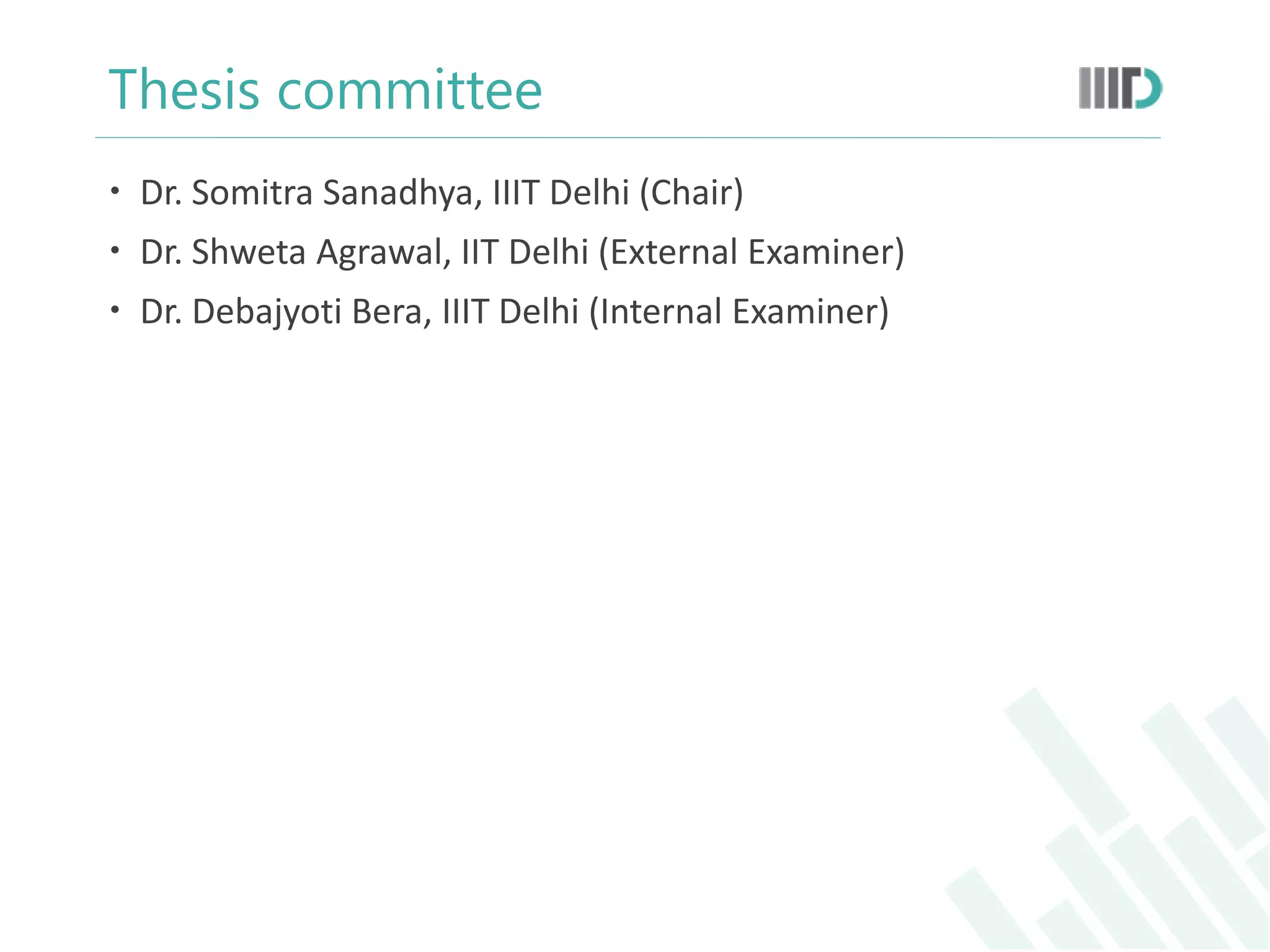

2. Thesis committee
 Dr. Somitra Sanadhya, IIIT Delhi (Chair)
 Dr. Shweta Agrawal, IIT Delhi (External Examiner)
 Dr. Debajyoti Bera, IIIT Delhi (Internal Examiner)

3. Agenda
• Motivation
• Previous Work
• Chen et. al. mitigation
• Liu et. al. mitigation
• Example of k-indistinguishability
• Our Contribution
• Effect of padding in TLS on k-indistinguishability
• Effect of padding in WPA2 on k-indistinguishability
• Further Work
• Mitigation
• Conclusion
• References

4. 4
Web-based Application
Internet
Client Server
•Advantages:
•Less client-side resources
•Easier to deliver and maintain
•Characteristics:
•Low entropy inputs
•Rich & diverse resource objects
•Stateful communications
Encrypted Traffic

5. Side channel attacks
• Side channel attacks on web-application’s have
been studied based on observable attributes of
traffic
 Attributes include packet sizes , timing of packets
etc.
 Encryption is there to maintain confidentiality but
sizes of packets are still visible by eavesdropper
 To hide sizes padding is an option!
 But how should it be done?

6. 6
Example (cont.) – Search Engine
•S value for each character entered as:
a b c d e f g
509 504 502 516 499 504 502
h i j k l m n
509 492 517 499 501 503 488
o p q r s t
509 525 494 498 488 494
u v w x y z
503 522 516 491 502 501
• First keystroke: •Second keystroke:
First
Keystroke
Second Keystroke
a b c d
a 509 487 493 501 497
b 504 516 488 482 481
c 502 501 488 473 477
d 516 543 478 509 499
Unique s value 12 out of 1616 out of 16
In reality, it may take
more than two
keystrokes to
uniquely identify an
input string.
Leak out users’ private information:
the input string

7. Two Conflicting Goals
7
• To prevent such side-channel attack, we face two
seemingly conflicting goals,
•Privacy protection:
Remove the difference of packet sizes
• Cost:
Minimize the cost or overhead (padding, processing…)
•Trade-off:
Between two objectives

8. Chen et. al. (IEEE S&P 2010)
 Authors tried mitigation with padding approaches
 random padding : pad x bytes, and x  [0, )
 round padding : pad to the next multiple of 
 Inferred that such application-agnostic approach is
not feasible

9. Liu. et. al. (PETS 2012)
 Introduced K-indistinguishability
 Grouped packets in size of atleast k
 Reduced padding cost while achieving privacy
 All packets corresponding to same group have same
size
 Formal model for quantifying the amount of privacy
protection provided by traffic padding solutions.

10. Padding Options
10
473 477 478 (c) c
477 477 478 (c) d
478 499 478 (d) b
499 499 509 (d) d
501 509 509 (c) a
509 509 509 (d) c
S Value Padding (Prefix) char
Option 1 Option 2
PPTP:
Padding group

11. 11
PPTP Components - Interaction
Internet
• Interaction:
• action a:
• Atomic user input that triggers traffic
• A keystroke, a mouse click ..
• action-sequence a:
• A sequence of actions with known relationship
• Consecutive keystrokes, a serial of mouse clicks
•action-set Ai:
•A collection of all ith action in a set of action-
sequence
User Input Observed Directional Packet Sizes
a: 801→, ←54, ←509, 60→
00: 812→, ←54, ←505, 60→,
813→, ←54, ←507, 60→
•Example 1:
•Three actions:
•a1 = input ‘a’
•a2 = input first ‘0‘
•a3 = input second ‘0’
• Two action-sequences:
• a1 = (a)
• a2 = (0,0)
• Two action-sets:
•A1 = {a,0} (0 as first keystroke)
•A2 = {0} (0 as second keystroke)
Ref: Liu. et. al. slides

12. 12
PPTP Components - Observation
Internet
User Input Observed Directional Packet Sizes
a: 801→, ←54, ←509, 60→
00: 812→, ←54, ←505, 60→,
813→, ←54, ←507, 60→
•Example 2:
• Three flow-vectors:
•v1 = (509)
•v2 = (505)
•v3 = (507)
•Two vector-sequences:
•v1 = (v1)
•v2 = (v2, v3)
•Two vector-sets:
• V1 = {(509),(505)}
•V2 = {(507)}
•Observation:
• flow-vector v:
•A sequence of flows (flow: a directional packet
size)
•Correspond to an action
•vector-sequence v:
• A sequence of flow-vectors
•Correspond to an equal-length action-sequence
•vector-set Vi:
•A collection of all ith flow-vectors in a set of vector-
sequence
•Correspond to an action-set
Ref: Liu. et. al. slides

13. 13
Privacy and Cost
Flow-Vector v (Flow s) Action a
s1 a1
s2 a2
… …
sn an
Quasi-ID Sensitive Attribute
•k-indistinguishability: Given a vector-action set VA
•Padding group :
any S⊆VA satisfying all the pairs in S have identical flow-vectors and no S’ ⊃S can satisfy this property
•We say VA satisfies k-indistinguishability (k is an integer) if the cardinality of every padding
group is no less than k
•SVSD case (Single-Vector Single-Dimension):
•Every action-sequence and flow-vector are of length one.
•Assume: all actions are independent and each action
triggers only a single packet used to identify the action.
• Goal of privacy protection:
•Upon observing any flow-vector in the traffic, the
eavesdropper cannot determine which action in the table
(vector-action set) has triggered this flow-vector.
Ref: Liu. et. al. slides

14. 14
Ceiling Padding (cont.)
•Generalization.
• Grouping and breaking:
• Unique aspect:
•Padding can only increase packet size but cannot decrease it or replace it with a
range of values.
•Dominant-vector:
•Given a vector-set V, the dominant-vector is the flow-vector in which every
flow is no smaller than the corresponding flow of any vector in V .
•Ceiling padding:
•Given a vector-set V, a ceiling-padded group in V is a padding group which
each flow-vector is padded to the dominant-vector.
•V is ceiling-padded if all the padding groups are ceiling padded.
Ceiling Padding:
Partition a vector-action
set into padding groups,
and then pad the flow-
vectors to the dominant
value to render them
indistinguishable.
Ref: Liu. et. al. slides

15. Example on k-indistinguishability
 Assume 4 action sequence
 a1={a,b} , a2={b,c} , a3={c,a} , a4={a,d }
 Note that: a1 and a4 have same prefix for second keystroke . Prefix is
“a”.
 Corresponding vector sequences are :
 v1 = {509, 487} , v2= {504, 482} , v3={502, 501} , v4={509, 497}
 Vector-set can be formed as V1 = {509,504, 502 509} , V2 = {487,
482, 501, 497}.
 Similarly Action-Set : A1 = {a, b, c, a} ,A2 = { b, c , a, d}.
 Vector-Action Set : VA1 = {V1, A1}, VA2 = {V2,A2},
 VA1 = {(a ,509),(b, 504) (c, 502), (a, 509)}
 VA2 = {(b, 487), (c, 482), (a, 501), (d , 497)}

16. Example Continued
Action Original
Packet Size
a 509
b 511
c 508
Action Original Packet
Size
Prefix
b 487 a
c 482 b
a 501 c
d 497 a
After grouping , Simple SVSD on 1st table : SVA1 = {(c, 508), (b, 511), (a, 509)}, PVA1
={(c,511), (b, 511), (a,511)}[Padding].
After SVMD and padding: SVA2 = {(c, 482),(b, 487), (d,497),(a, 501)},
PVA2 = {(c,501), (a, 501), (b, 501)(d, 501)}
Note: Partition of a Vector Action set should be done such that their prefix is in same
padding group in previous Vector Action set
For same input string two flows corresponding to {a , b} and {a, d } is
{511, 501},{511,501} respectively.
Thus it maintains 3-indistingishability.

17. Our Objective
 To break k-indistinguishability of traffic
 Our objective is to infer the input which caused
the given packet size
 Note the packet’s contents are encrypted using
standard TLS1.2

18. Our Assumptions
 We assume k-indistinguishibility is already
implemented at server
 All possible vector action sets possible are fed to
padding algorithms by Liu. et. al(PETS ‘12).
 Attacker is somehow aware of packet sizes before
padding
 We have also assumed that Bit-padding(10*) is
used
 Padding is done after MAC is generated(This is
valid since in TLS such model is followed)
 We assume either counter mode and CBC mode is
used for encryption.

19. Revisiting TLS Record Protocol
We consider Bit-Padding as an option
in Step 5
Plaintext Size MAC Padding
PAD

20. Earlier attacks on TLS MEE construction
 Padding oracle attack by Vaudenay et. al.
(Eurocrypt’02)
 Password Interception in a SSL/TLS Channel by Canvel
et. al.(Crypto ‘03)
 Tag size does matter: Attacks and proofs for the TLS
record protocol by Paterson et. al.(ASIACRYPT’11)
 Plaintext-recovery attacks against Datagram TLS by
AlFardan et. al. (NDSS ‘12)
 Lucky13:Related Chosen ciphertext attack on TLS by
 AlFardan et. al.(IEEE S&P ‘13)

21. Our contribution
 In our work we analyze the security and privacy
aspects of
 Encryption modes
 Padding scheme
 Order of padding in TLS and WPA2
 We propose a truncation based chosen ciphertext
attack on TLS1.2
 We exploit MAC-PAD-Encrypt construction in TLS
record protocol
 We also explore similar construction in CCMP
protocol in WPA2 as well as in TLS1.2

22. When CTR mode is used in TLS
 Let’s take an example of 3-indistinguishability
 Possible packets are grouped in a group of 3
 Now if padding is applied to make packets
indistinguishable , all packets size will be same
 Attacker’s objective is to distinguish between {a,b,c}
based on packet size of the response from server
 We consider Bit-padding scheme of the form 10*

23. After Padding
•We assume MAC tag generated is of 32 byte
•Padding is done using Bit-padding
Plaintext size + MAC

24. After Encryption..
 After encryption, packets are sent from client to
server
 Attacker can sniff packets.
 Attacker can also modify ciphertexts and send it to
server
 Server responds to client based on ciphertext
received
 If ciphertext is wrongly padded or MAC verification
fails etc. server responds with error message

25. How to distinguish packets?
• We propose a bit truncation based chosen
ciphertext attack
• Attacker chooses packet having maximum padding
in group having padding size let’s say d
• Attacker can truncate d-1 bits from each packet
such that server generates error message for
intended packet and none for others
• Based on error message sent back to client
attacker can guess which input correspond to this
particular packet

26. Effects of truncation on ciphertext
 Let’s say for any i’th packet having size si in group attacker does
truncation. Also assume s is maximum size of packet in group
 Attacker truncates d-1 bits from each of packets in the group
d
 If (s-si-1)  (d-1) i.e message has more padding than truncated bits.
Hence padding part will contain at least 1 in its starting position.MAC
will be valid after padding removal
 If (s-si-1) < (d-1) i.e message has less padding than truncated bits and
hence padding will be assumed from MAC part . This will generate
invalid MAC error.
 Attacker can infer from this error that the packet generating no error is
the intended one.

27. Attack on example..
 For our example first we can try to identify c.
 To identify c truncate 3 bits from all packets
including packet corresponding to c
 Post truncation padding part of c is left with 1 in
LSB
 Hence during padding removal MAC portion is not
corrupted leading to no error
 However for other packets part of MAC is being
stripped off while padding removal leading to
invalid MAC error

28. When user keystroke is “a”
509+32(MAC)
Truncate Last
3 bits
3(PAD)
Invalid
Decryption
A’(Corrupted) MAC
Wrong
padding
MAC
verification
According to Bit-padding , pad is
stripped starting from LSB until “1”
encountered

29. When user keystroke is “b”
511+32(MAC)
Truncate Last
3 bits
1(PAD)
Invalid
Decryption
B’(Corrupted) MAC
Wrong
padding
MAC
verification
508+32(MAC) 1(PAD)2 bit

30. When user keystroke is “c”
508+32(MAC)
Truncate Last
3 bits
1
Valid
Decryption
C(Non
Corrupted)
MAC
Right
padding
MAC
verification
000

31. In case of CBC mode
 Unlike CTR mode in case of CBC mode we cannot
do bit based truncation, rather we employ block
based truncation techniques to identify inputs
 Attacker can truncate block wise from all packets
in such a way that they can distinguish between
packets based on error generated at server
 For a group of packets having size S={257,101,129}

32. During decryption in CBC mode

33. In case of WPA2
 WPA2 is standard in wireless networks(IEEE 802.11i)
 It provides confidentiality , Integrity of packets
 Uses AES-CCMP : Counter Mode + CBC-MAC
 Underlying block cipher is AES
 An authenticated encryption scheme
 AES-CCM is also recommended cipher-suite in TLS

34. CCMP protocol in WPA2
MSDU
MPDU MPDU MPDU
Fragmentation
CCMP processing
Encrypted MPDU
Priority Queue
Transmission
MSDU: MAC Service Data Unit
MPDU:MAC Protocol Data Unit

35. CCMP with padding
MAC Header Plaintext Data
MAC Header CCMP Header Plaintext Data
Authenticated Data
MAC Header CCMP Header Plaintext Data1st Block PAD PAD
MICMAC Header CCMP Header Plaintext Data
MICMAC Header CCMP Header Encrypted Data
CBC-MAC
PAD
PAD
Encryption in Counter mode

36. Problems in CCMP
 Since counter mode is used no assumption of
padding is done
 If padding is done after Message Integrity Code
generation, it can lead to similar privacy breach
 Attacker can carry out similar chosen ciphertext
attack on CCMP too

37. Mitigations
 If padding was done before MAC is calculated then
it would not have been possible to carry such
attack
 PAD-MAC-Encrypt is a better option
 Always use authenticated padding
 Even if authenticated padding is not used , add a
field for PAD length in header and authenticate
along with others. This will prevent unauthorized
modification of messages and pad.

38. Further work
 Yet to implement proposed attacks
 Need to find other modes of operation vulnerable
to this attack
 Other possible vulnerable modes could be AES-
GCM used in TLS , SSH etc.
 Need to explore other padding schemes apart
from Bit-padding

39. Conclusions
 Traffic indistinguishability is a hard problem
 Indifference to underlying
 Padding schemes
 Encryption modes
 MAC calculation procedure can cause such privacy
preserving schemes to break.
 Schemes to make traffic anonymous not only has
to be application agnostic and efficient , also care
needs to be taken how the scheme affects the
underlying cryptographic operation

40. References
 Chen, S., Wang, R., Wang, X., and Zhang, K. Side-
channel leaks in web applications :A reality today,
a challenge tomorrow. In IEEE Symposium on
Security and Privacy (2010)
 Liu, W. M., Wang, L., Ren, K., Cheng, P., and
Debbabi, M. k-indistinguishable traffic padding in
web applications. In Privacy Enhancing
Technologies (2012)
 T. Dierks, E. R. The Transport Layer Security(TLS)
Protocol. http://www.rfc-editor.org/rfc/rfc5246.Txt
,2008.

41. Thank You!
