1. Software quality assurance days
25th International Conference on software
quality issues
sqadays.com
St. Petersburg, May 31 – June 1, 2019
Expanding the idea of static analysis from code check
to other development processes

2. About the speaker
• Maxim Stefanov (stefanov@viva64.com)
• C++/Java developer in PVS-Studio
• Activity:
• Participation in the development of the C++
analyzer core
• Participation in the development of the Java
analyzer

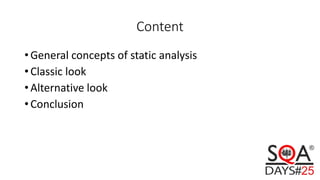

3. Content
• General concepts of static analysis
• Classic look
• Alternative look
• Conclusion

4. Static analysis is...

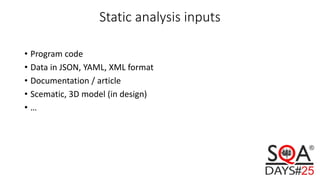

5. Static analysis inputs
• Program code
• Data in JSON, YAML, XML format
• Documentation / article
• Scematic, 3D model (in design)
• …

6. Classic look: code base analysis

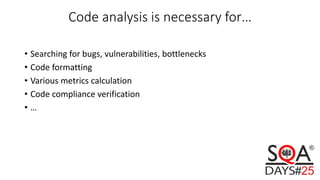

7. Code analysis is necessary for…
• Searching for bugs, vulnerabilities, bottlenecks
• Code formatting
• Various metrics calculation
• Code compliance verification
• …

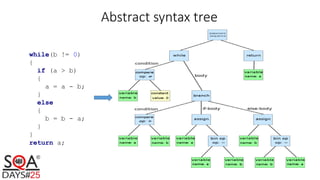

8. Abstract syntax tree
while(b != 0)
{
if (a > b)
{
a = a - b;
}
else
{
b = b - a;
}
}
return a;

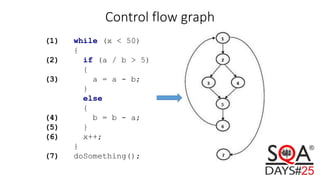

9. Control flow graph
(1) while (x < 50)
{
(2) if (a / b > 5)
{
(3) a = a - b;
}
else
{
(4) b = b - a;
(5) }
(6) x++;
}
(7) doSomething();

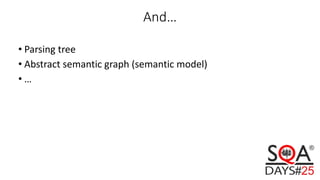

10. And…
• Parsing tree
• Abstract semantic graph (semantic model)
• …

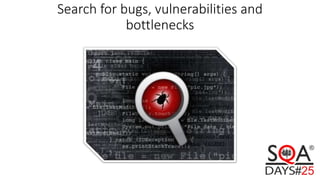

11. Search for bugs, vulnerabilities and
bottlenecks

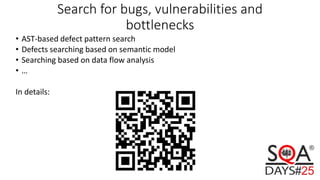

12. Search for bugs, vulnerabilities and
bottlenecks
• AST-based defect pattern search
• Defects searching based on semantic model
• Searching based on data flow analysis
• …
In details:

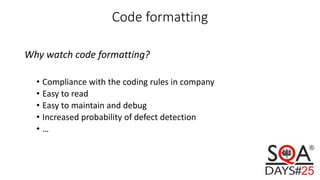

13. Code formatting
Why watch code formatting?
• Compliance with the coding rules in company
• Easy to read
• Easy to maintain and debug
• Increased probability of defect detection
• …

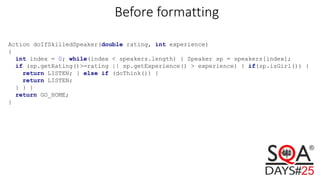

14. Before formatting
Action doIfSkilledSpeaker(double rating, int experience)
{
int index = 0; while(index < speakers.length) { Speaker sp = speakers[index];
if (sp.getRating()>=rating || sp.getExperience() > experience) { if(sp.isGirl()) {
return LISTEN; } else if (doThink()) {
return LISTEN;
} } }
return GO_HOME;
}

15. Before formatting
Action doIfSkilledSpeaker(double rating, int experience)
{
int index = 0; while(index < speakers.length) { Speaker sp = speakers[index];
if (sp.getRating()>=rating || sp.getExperience() > experience) { if(sp.isGirl()) {
return LISTEN; } else if (doThink()) {
return LISTEN;
} } }
return GO_HOME;
}

16. Action getNextInterestingSpeaker(double rating, int experience)
{
int index = 0;
while(index < speakers.length)
{
Speaker sp = speakers[index++];
if (sp.getRating() >= rating || sp.getExperience() > experience)
{
if (sp.isGirl())
{
return LISTEN;
}
else if (doThink())
{
return LISTEN;
}
}
}
return GO_HOME;
}

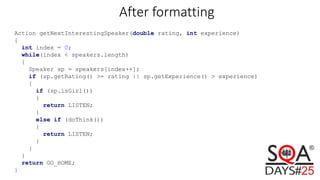

After formatting

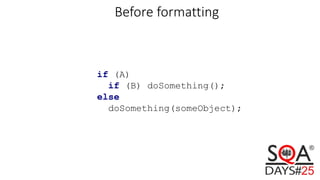

17. Before formatting
if (A)
if (B) doSomething();
else
doSomething(someObject);

18. if (A)
{
if (B)
{
doSomething();
}
else
{
doSomething(someObj);
}
}

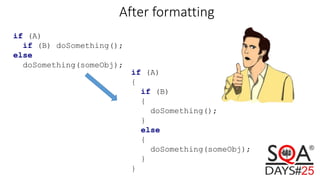

After formatting
if (A)
if (B) doSomething();
else
doSomething(someObj);

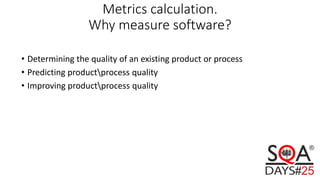

19. Metrics calculation.
Why measure software?
• Determining the quality of an existing product or process
• Predicting productprocess quality
• Improving productprocess quality

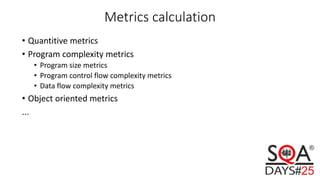

20. Metrics calculation
• Quantitive metrics
• Program complexity metrics
• Program size metrics
• Program control flow complexity metrics
• Data flow complexity metrics
• Object oriented metrics
...

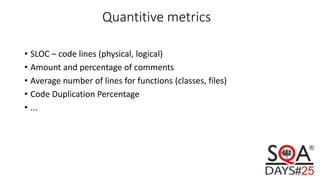

21. Quantitive metrics
• SLOC – code lines (physical, logical)
• Amount and percentage of comments
• Average number of lines for functions (classes, files)
• Code Duplication Percentage
• ...

22. Quantitive metrics:

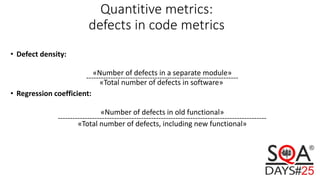

defects in code metrics
• Defect density:
«Number of defects in a separate module»
--------------------------------------------------------------
«Total number of defects in software»
• Regression coefficient:
«Number of defects in old functional»
-------------------------------------------------------------------------------------
«Total number of defects, including new functional»

23. McCabe Metrics:

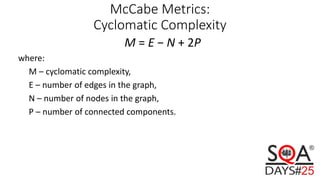

Cyclomatic Complexity
M = E − N + 2P
where:
M – cyclomatic complexity,
E – number of edges in the graph,
N – number of nodes in the graph,
P – number of connected components.

24. Cyclomatic complexity
Some language constructions in a graph representation

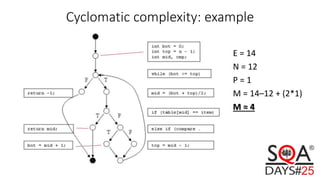

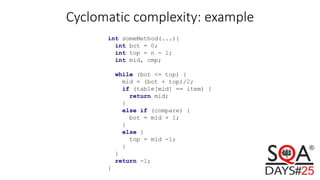

25. Cyclomatic complexity: example
int someMethod(...){
int bot = 0;
int top = n - 1;
int mid, cmp;
while (bot <= top) {
mid = (bot + top)/2;
if (table[mid] == item) {
return mid;
}
else if (compare) {
bot = mid + 1;
}
else {
top = mid -1;
}
}
return -1;
}

26. Cyclomatic complexity: example
E = 14
N = 12
P = 1
M = 14–12 + (2*1)
M = 4

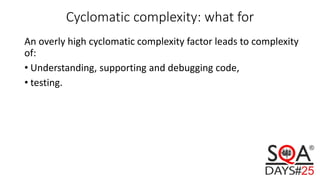

27. Cyclomatic complexity: what for
An overly high cyclomatic complexity factor leads to complexity
of:
• Understanding, supporting and debugging code,
• testing.

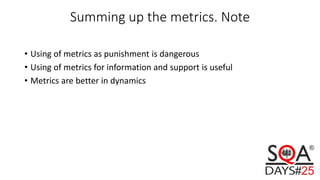

28. Summing up the metrics. Note
• Using of metrics as punishment is dangerous
• Using of metrics for information and support is useful
• Metrics are better in dynamics

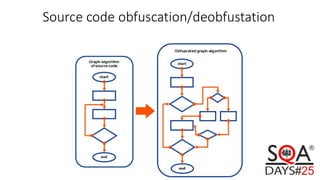

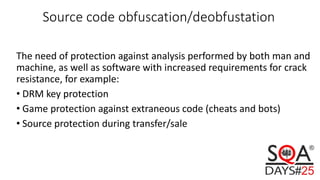

29. Source code obfuscation/deobfustation
The need of protection against analysis performed by both man and
machine, as well as software with increased requirements for crack
resistance, for example:
• DRM key protection
• Game protection against extraneous code (cheats and bots)
• Source protection during transfer/sale

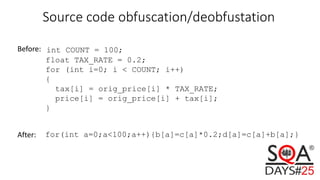

30. Source code obfuscation/deobfustation
int COUNT = 100;
float TAX_RATE = 0.2;
for (int i=0; i < COUNT; i++)
{
tax[i] = orig_price[i] * TAX_RATE;
price[i] = orig_price[i] + tax[i];
}
Before:
After: for(int a=0;a<100;a++){b[a]=c[a]*0.2;d[a]=c[a]+b[a];}

31. Source code obfuscation/deobfustation

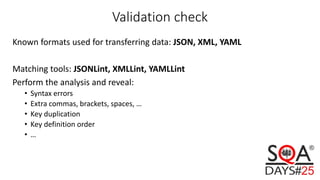

32. Validation check
Known formats used for transferring data: JSON, XML, YAML
Matching tools: JSONLint, XMLLint, YAMLLint
Perform the analysis and reveal:
• Syntax errors
• Extra commas, brackets, spaces, …
• Key duplication
• Key definition order
• …

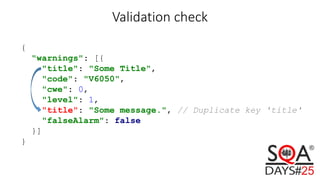

33. Validation check
{
"warnings": [{
"title": "Some Title",
"code": "V6050",
"cwe": 0,
"level": 1,
"title": "Some message.", // Duplicate key 'title'
"falseAlarm": false
}]
}

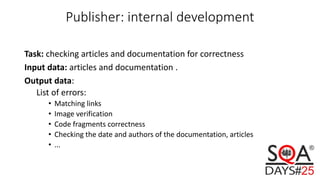

34. Publisher: internal development
Task: checking articles and documentation for correctness
Input data: articles and documentation .
Output data:
List of errors:
• Matching links
• Image verification
• Code fragments correctness
• Checking the date and authors of the documentation, articles
• ...

35. Example:

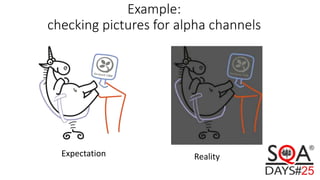

checking pictures for alpha channels
Expectation Reality

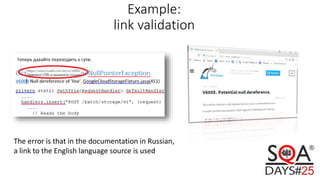

36. Example:
link validation
The error is that in the documentation in Russian,
a link to the English language source is used

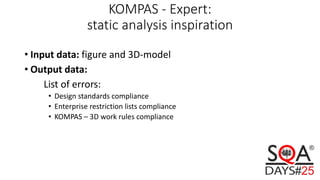

37. KOMPAS - Expert:
static analysis inspiration
• Input data: figure and 3D-model
• Output data:
List of errors:
• Design standards compliance
• Enterprise restriction lists compliance
• KOMPAS – 3D work rules compliance

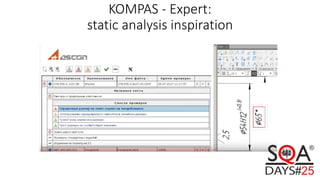

38. KOMPAS - Expert:
static analysis inspiration

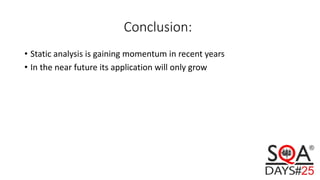

39. Conclusion:
• Static analysis is gaining momentum in recent years
• In the near future its application will only grow
