2. Overview
 Introduction
 Code Review
 Software Documentation
 Testing
 Test Documentation
(As per GTU Curriculum – Diploma in Computer/IT Engineering)
Based on Books:
1. Fundamentals of Software Engineering – by Rajib Mall
2. Software Engineering: A Practitioner’s Approach – by Roger Pressman
2

3. Introduction: Coding
 When?
 After:
 Design phase is complete, and
 Design docs are successfully reviewed
 Objective
 Design of System  Code in high-level lang
 Unit test this code
 Coding Standards
 Coding Guidelines
3

4. Code Review
 When?
 After: Module successfully compiles
 All the syntax errors have been eliminated
 Code review v/s Testing
 CR: Cost-effective strategy for error elimination
 CR: Direct detects errors
 T: Detects failures only: diff i/p, circumstances
 Testing: Requires efforts: Debugging – locate
errors; Error Correction – fix the bug
 CR: Two Types
 Code Walkthrough, Code Inspection
4

5. Code Walkthrough
 Informal code analysis technique
 When to review?
 After: Module is Coded, Compiled, and Syntax Errors
are eliminated
 How?
 Few members of dev team are assigned this task
 Each member selects some test cases
 Simulate execution of code by hand
 (Trace execution through different Statements and
Instructions of the code)
 Note down findings; Discuss with coder in WT meeting
5

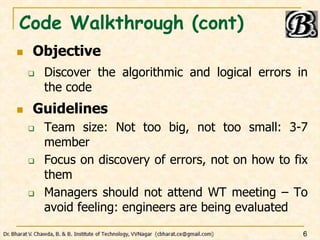

6. Code Walkthrough (cont)
 Objective
 Discover the algorithmic and logical errors in
the code
 Guidelines
 Team size: Not too big, not too small: 3-7
member
 Focus on discovery of errors, not on how to fix
them
 Managers should not attend WT meeting – To
avoid feeling: engineers are being evaluated
6

7. Code Inspection
 Code is examined for the presence of some
common/classical programming
errors
 Use of uninitialized variables
 Incompatible assignments
 Non terminating loops; Jumps into loops;
Improper modification of loop variables
 Mismatch in arguments in procedure (fun) calls
 Array indices out of bounds
 Improper storage allocation and de-allocation
 Use of incorrect logical operators; Precedence
 Comparison of equality of floating point values 7

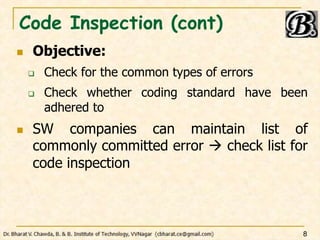

8. Code Inspection (cont)
 Objective:
 Check for the common types of errors
 Check whether coding standard have been
adhered to
 SW companies can maintain list of
commonly committed error  check list for
code inspection
8

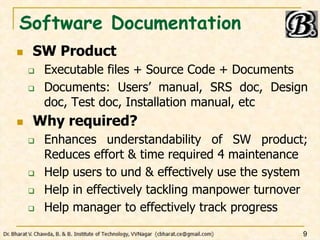

9. Software Documentation
 SW Product
 Executable files + Source Code + Documents
 Documents: Users’ manual, SRS doc, Design
doc, Test doc, Installation manual, etc
 Why required?
 Enhances understandability of SW product;
Reduces effort & time required 4 maintenance
 Help users to und & effectively use the system
 Help in effectively tackling manpower turnover
 Help manager to effectively track progress
9

10. SW: Internal Documentation
 Code comprehension features: provided in
the source code itself
 Comments embedded in the source code
 Use of meaningful variable names
 Module and function headers
 Code indentation
 Code structuring (modules + functions)
 Use of constant identifiers
 Use of enumerated types
 Use of user-defined data types
10

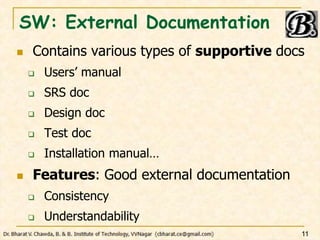

11. SW: External Documentation
 Contains various types of supportive docs
 Users’ manual
 SRS doc
 Design doc
 Test doc
 Installation manual…
 Features: Good external documentation
 Consistency
 Understandability
11

12. Gunning’s Fog Index
 Metric to measure the readability of a document
 Fog(D) = [0.4 * words/sentences] +
[% of words having >=3 syllables]
 Example: “The Gunning’s fog index is based on
the premise that use of short sentences and
simple words makes a document easy to
understand”
 Fog(D) = [0.4 * 23 / 1] + [4 / 23 * 100]
= 26
 Indicates the no. of years of formal education
required to comfortably understand document
12

13. Testing: Introduction
 Testing:
 Aim: Identify all defects in a program
 Error / Defect / Bug / Fault:
 Mistake committed by development team
during any of the development phases.
 Failure:
 Manifestation of an error
 Symptom of an error
 Test case: Triplet [I, S, O]: I/P, State, O/P
 Test suite: Set of all test cases…
13

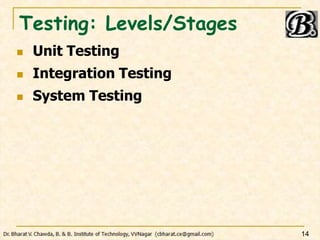

14. Testing: Levels/Stages
 Unit Testing
 Integration Testing
 System Testing
14

15. Unit Testing
 When?
 After: Module has been coded and reviewed
 How?
 Design test cases
 Develop Environment
 Do testing
 Environment
 Driver + Module + Stub
(Stub: Dummy procedures with simplified behavior)
(Driver: Non-local data str + Code to call fun of module)
15
Driver
Stub
Module under Test
Global
Data

16. Black Box Testing
16
int find_max(int x, int y)
{
int max;
if (x>y)
max = x;
else
max = y;
return max;
}
x
y
max
find_max

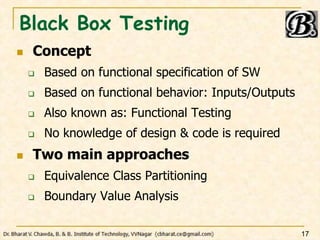

17. Black Box Testing
 Concept
 Based on functional specification of SW
 Based on functional behavior: Inputs/Outputs
 Also known as: Functional Testing
 No knowledge of design & code is required
 Two main approaches
 Equivalence Class Partitioning
 Boundary Value Analysis
17

18. Black Box Testing: Example
 SW: Computes square root of integer
values in the range of 0 and 5000.
 Test Cases: Equivalence Class Partitioning
 {-5, 500, 6000}
 Test Cases: Boundary Value Analysis
 {-1, 0, 5000, 5001}
18

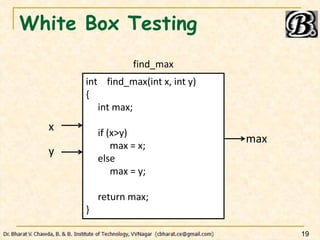

19. White Box Testing
19
int find_max(int x, int y)
{
int max;
if (x>y)
max = x;
else
max = y;
return max;
}
x
y
max
find_max

20. White Box Testing
 Concept
 Based on analysis of code
 Based on structure of the implementation
 Also known as: Structural Testing
 Knowledge of design & code is required
 Two Types
 Fault based: Targets: detect certain types of F
 Coverage based: Targets: execute (cover)
certain elements of a program
20

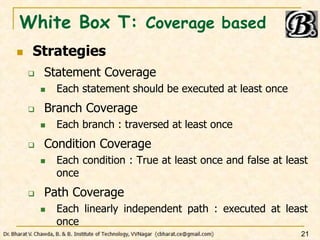

21. White Box T: Coverage based
 Strategies
 Statement Coverage
 Each statement should be executed at least once
 Branch Coverage
 Each branch : traversed at least once
 Condition Coverage
 Each condition : True at least once and false at least
once
 Path Coverage
 Each linearly independent path : executed at least
once
21

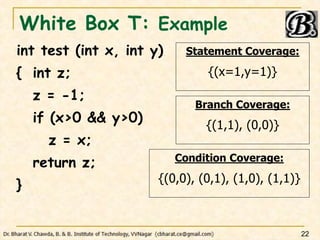

22. White Box T: Example
int test (int x, int y)
{ int z;
z = -1;
if (x>0 && y>0)
z = x;
return z;
}
22
Statement Coverage:
{(x=1,y=1)}
Branch Coverage:
{(1,1), (0,0)}
Condition Coverage:
{(0,0), (0,1), (1,0), (1,1)}

23. White Box T: Path Coverage
 Concept
 All linearly independent paths in the program
are executed at least once
 CFG: Control Flow Graph
 Directed graph – consisting of a set of Nodes
(N) and Edges (E) where
 Nodes (N): corresponds to a unique program
statement
 Edges (E): Transfer of control From one node
to another node
23

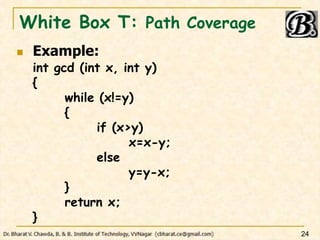

24. White Box T: Path Coverage
 Example:
int gcd (int x, int y)
{
while (x!=y)
{
if (x>y)
x=x-y;
else
y=y-x;
}
return x;
}
24

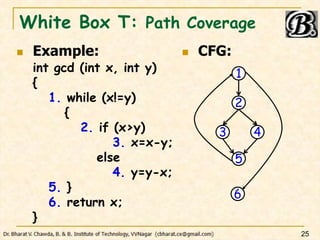

25. White Box T: Path Coverage
 Example:
int gcd (int x, int y)
{
1. while (x!=y)
{
2. if (x>y)
3. x=x-y;
else
4. y=y-x;
5. }
6. return x;
}
25
1
2
3 4
5
6
 CFG:

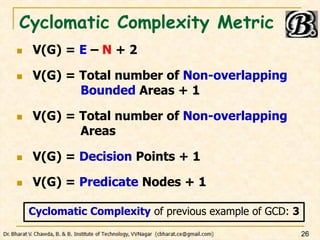

26. Cyclomatic Complexity Metric
 V(G) = E – N + 2
 V(G) = Total number of Non-overlapping
Bounded Areas + 1
 V(G) = Total number of Non-overlapping
Areas
 V(G) = Decision Points + 1
 V(G) = Predicate Nodes + 1
26
Cyclomatic Complexity of previous example of GCD: 3

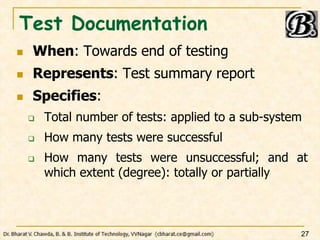

27. Test Documentation
 When: Towards end of testing
 Represents: Test summary report
 Specifies:
 Total number of tests: applied to a sub-system
 How many tests were successful
 How many tests were unsuccessful; and at
which extent (degree): totally or partially
27
