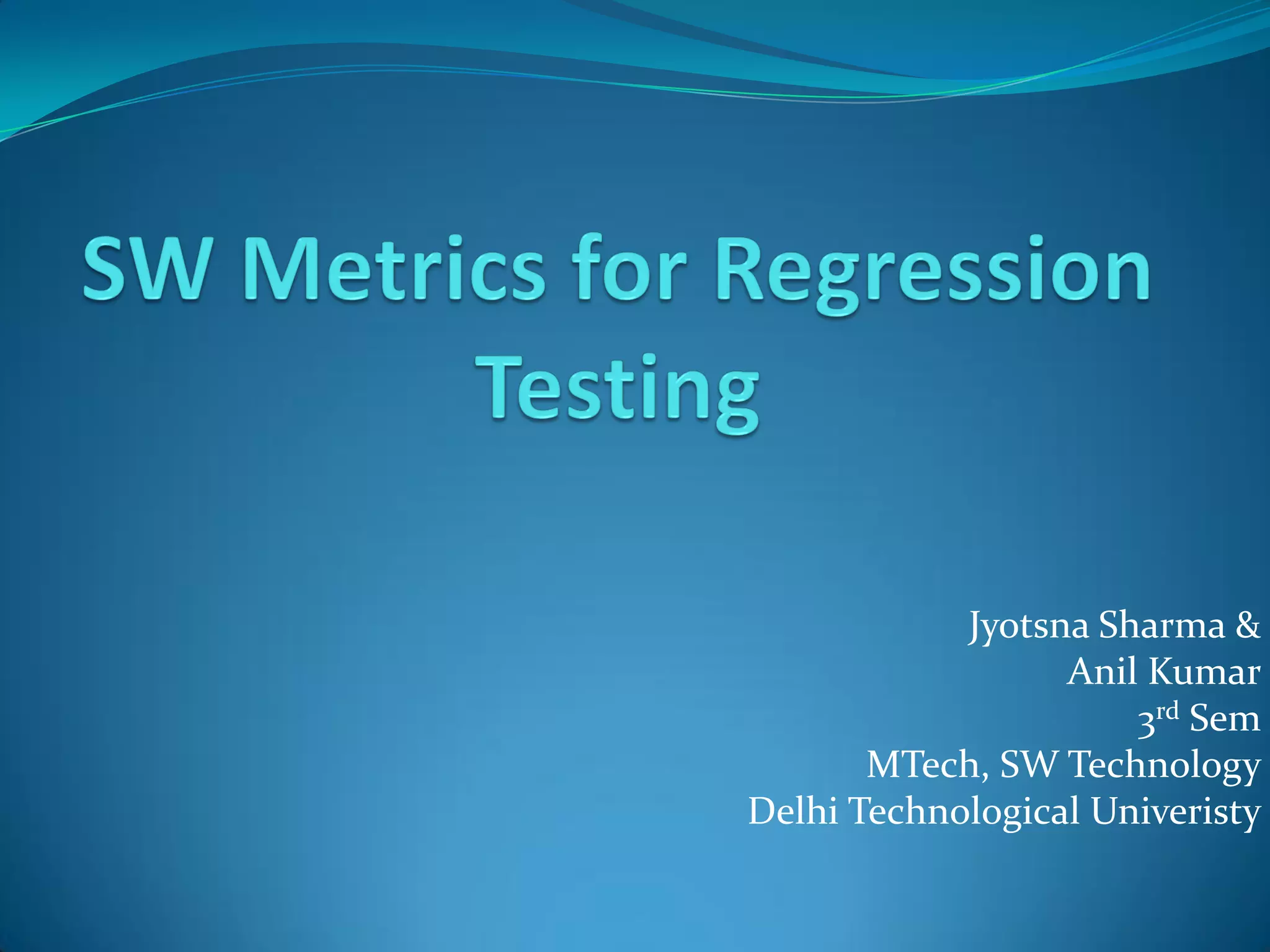

1. Jyotsna Sharma &
Anil Kumar
3rd Sem
MTech, SW Technology
Delhi Technological Univeristy

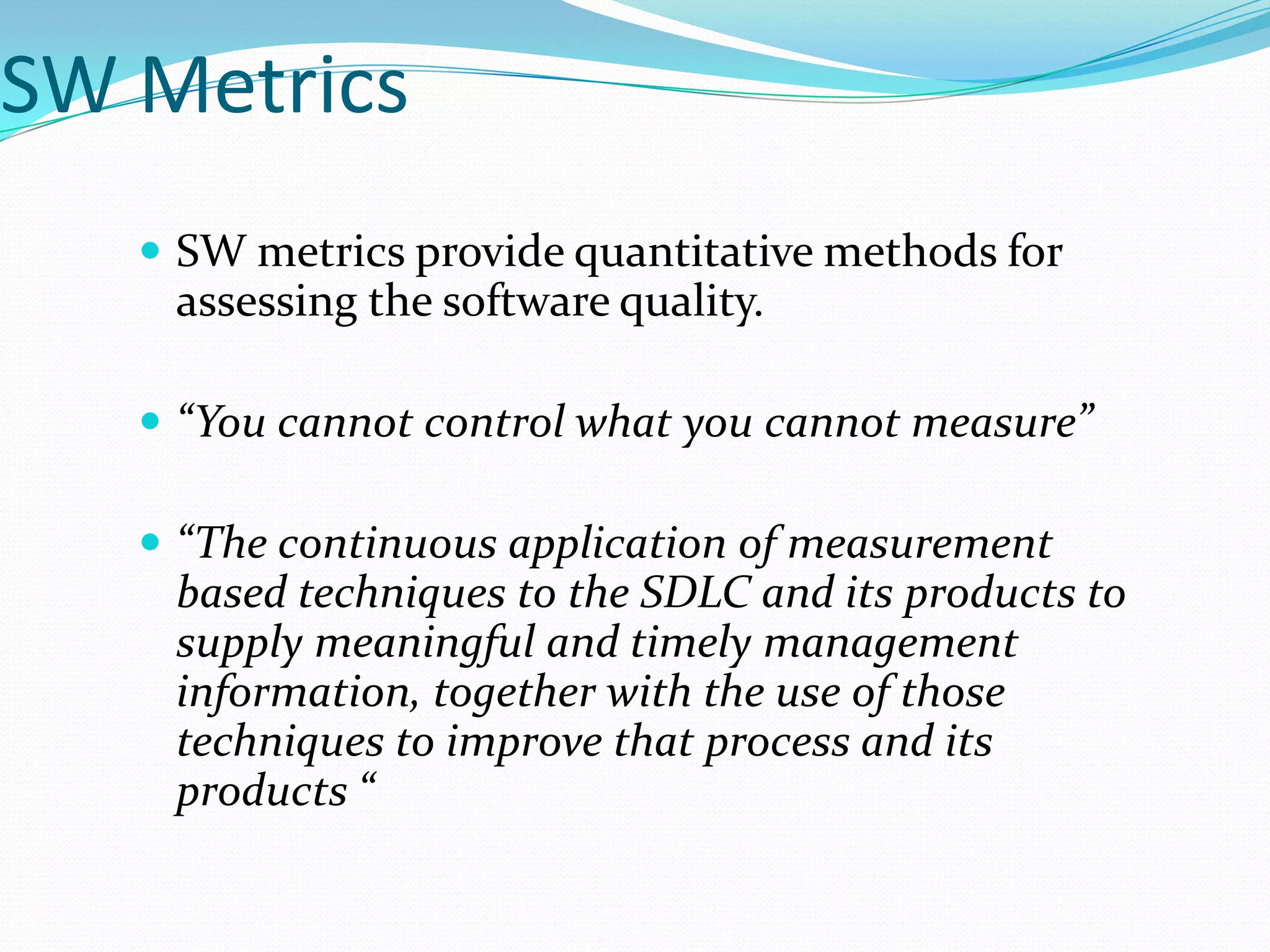

2. SW Metrics
 SW metrics provide quantitative methods for
assessing the software quality.
 “You cannot control what you cannot measure”
 “The continuous application of measurement
based techniques to the SDLC and its products to
supply meaningful and timely management
information, together with the use of those
techniques to improve that process and its
products “

3.  Measured through SW Metrics techniques
 If measured, its likely to reduce
 Time Spent
 Cost
in Testing Phase.
 Improves Quality of the Software
 Types - Size, Control Flow and Data Metrics
 SW Maintenance requires SW complexity measurement to
identify degrees to which characteristics that hamper SW
Maintenance are present.
SW Complexity

4.  Regression testing is done after modification is
made in the implemented program.
 Existing test suites are re-run on modified
program to identify if new modification has
effected existing functionality.
 Writing new test cases to ensure adequate
coverage.
Regression Testing

5. T
T’
T’’
P
Selective Retest,
Coverage
Identification,
Test Suite
Execution.
Test Suite
Identification
P’
P’
P – Any Program P
P’ – Modified Program
T – Test Suite Test Cases
T’,T” – Subset of T or new Test Cases
Regression Testing

6.  Structural testing criteria depends on internal
structure of the program implementation to derive
testing criteria.
 Require all possible execution paths identification
to develop test cases.
 Tester determines Test Coverage.
 Change in Implementation leads to change in test
cases.
Program Characteristics

7. • Requires the execution of components
(blocks) of the program under test in
condition of subsequent elements of CFG
• Nodes, Edges and Paths
Control Flow
Graph[CFG]
• Requires execution of all independent paths
of the program
MaCabe’s
Complexity
Concept
• Both Data Flow and Control Flow
information are used to perform testing
Data Flow
Program Characteristics

8. Complexity is measure of Code Quality
Requires model to convert internal quality
attributes to code reliability
High degree of complexity is bad and vice versa
Various internal code attributes are used to
indirectly assess code quality
Enables tester to count acyclic execution paths
through fragment(function, subroutine, object,
class)
LOC, NPATH, McCabe’s Cyclomatic Complexity
number, Data Quality, Halstead SW Science
SW Complexity ( Re-visited)

9. Static Metrics
• Obtainable at early
Phases of SDLC
• Does not deal with OO
features and real time
systems
• Easy to gather
• Estimate amount of
effort to develop and
maintain code
Dynamic Metrics
• Late stage of SW
development
• Supports all OO
features and real time
systems
• Capture dynamic
behavior of the system
• Hard to obtain and
obtained from traces
of the code
SW Complexity metrics Classification

10.  Measures acyclic execution path
 NPATH complexities(NC) is measures as follows:
 NPATH = Πi
n NP(statementi)
 NP(if) = NP(expr) + NP(if-range) + 1
 NP(if-else) = NP(expr) + NP(if-range) + NP(else-range)
 NP(while) = NP(expr) + NP(while-range) + 1
 NP(do-while) = NP(expr) + NP(do-range) + 1
 NP(for) = NP(for-range) + NP(expr1) + NP(expr2) + NP(expr3) + 1
 NP(?) = NP(expr1) + NP(expr2) + NPexpr(3) + 2
 NP(repeat) = NP(repeat-range) + 1
 NP(switch) = NP(expr) + Σi
n NP(case-range) + NP(default-range)
 NP(function call) = 1
 NP(sequential) = 1
 NP(return) = 1
 NP(continue) = 1
 NP(break) = 1
 NP(goto label) = 1
 NP(expressions) = Number of && and || operators in Expression
Control Flow Graph : NPATH

11.  A path is feasible if there is input datum to these
paths.
 Predicate is considered as simple Boolean form in
condition.
 Path containing lower number of Predicates than it
has higher probability of being feasible.
 If A1 are paths through a code module, suppose that
A1 consists of Pred1 > 0 predicates and A2 consists of
Pred2 > Pred1, then A1 is likely to be more feasible.
Feasibility & Predicates

12.  Halstead Method measures number of operators and the number of
operands and their respective occurrence in the program.
 n1 = number of Unique Operators
 n2 = number of Unique Operands
 N1 = total number of Operators
 N2 = total number of Operands
 Length (N) =N1+N2
 Vocabulary (n) =n1+n2
 Volume of a Program (V) =N*log2n
 Potential Volume (V*) = (2+n2) log2 (2+n2)
 Program Level (L) =L=V*/V
 Program Difficulty (D) =1/L
 Estimated Program Length (N) =n1log2n1+n2log2n2
 Estimated Program Level (L) =2n2/ (n1N2)
 Estimated Difficulty (D) =1/L=n1N2/2n2
 Effort (E) =V/L=V*D= (n1 x N2) / 2n2
Halstead Metrics

13. #include<stdio.h>
void main()
1{
1 int a,b,c,n;
1 scanf(“%d %d”, & a,&b);
2 if (a < b)
2 {
3 c = a;
3 }
4 if(c= =b)
4 {
5 c= a+1;
5 }
5 else
5 {
6 c=b;
7 if (c==b)
7 {
8 c=b+1;
8 }
8 }
9 n = c;
10 while ( n < 8 )
10 {
11 if ( b > c )
11 {
12 c = 2;
12 }
12 else
12 {
13 n = n + c +7;
14 }
14 n = n + 1;
14 }
15 printf(“%d%d%d”,a,b, n);
15}
#include< stdio.h>
void main()
1{
1 int a,b,c,n;
1 scanf (“%d%d”, &a,&b);
2 if ( a < b)
2 {
3 c = a;
3 }
4 if(c= =b)
4 {
5 c= =a+1;
5 }
5 else
5 {
6 c= a - 1;
6 }
6 else
6 {
7 c=b;
8 if (c= = b)
8 {
9 c = b + 1;
9 }
9 else
9 {
10 c = b – 1;
10 }
11 n = c;
12 while (n<=8)
12 {
13 if (b>c)
13 {
14 c = 2;
14 }
14 else
14 {
15 n = n+c+7;
15 }
16 n = n+1;
16 }
17 printf(“%d%d%d”,a,b, n);
Example

14. CGF of P and P’

15. Path # Path Contents LOC NC Pred.
Halstead Metrics
D E
P1
{1,2,3,4,5,9,10,11,1
2,14,10,15}
30 12 4 31 10726
P2
{1,2,3,5,9,11,13,14,
10,15}
27 12 4 35 12810
P3
{1,2,4,9,10,11,12,1
4,10,15}
25 6 4 29 9309
P4 {1,2,4,5,9,10,15} 19 8 3 27 7118
P5 {1,2,3,4,9,10,15} 14 4 3 23 4692
P6
{1,2,6,7,8,9,10,11,1
2,14,10,15}
27 6 5 33 11781
P7 {1,2,6,7,8,9,10,15} 24 3 5 31 11470
P8 {1,2,6,7,9,10,15} 16 4 3 24 5904
P9 {1,2,6,7,9,10,15} 13 2 3 23 4508
SW Metrics Complexity – Computed
Weights for Pragram ‘P’

16.  All the complexity weights for all paths of old and new version
of Program P and P’ are evaluated
 Number of Predicates in each path help tester to identify
feasible and infeasible paths and subsequently ease of test data
generation.
 P4, P 5, P9 have higher number of probability of being feasible
among all paths in Table 1 and P5,P6 and P12 in Table 2.
 With above analysis between P and P’ change of code
performance is identified and tester can use this approach to
execute test case.
 SW Quality and productivity can be improved.
Conclusion

17.  Static and dynamic software metrics complexity analysis in regression
testing
Debbarma, M.K. ; Kar, N. ; Saha, A. Computer Communication and Informatics
(ICCCI), 2012 International Conference on
Digital Object Identifier: 10.1109/ICCCI.2012.6158825
Publication Year: 2012 , Page(s): 1 - 6
 Metric Attitude
Risi, M. ; Scanniello, G. ; Tortora, G. Software Maintenance and Reengineering
(CSMR), 2013 17th European Conference on
Digital Object Identifier: 10.1109/CSMR.2013.59
Publication Year: 2013 , Page(s): 405 - 408
