1. Evaluating Anti-Spam
Filtering Solutions
Michael Lamont
Senior Software Engineer
Process Software

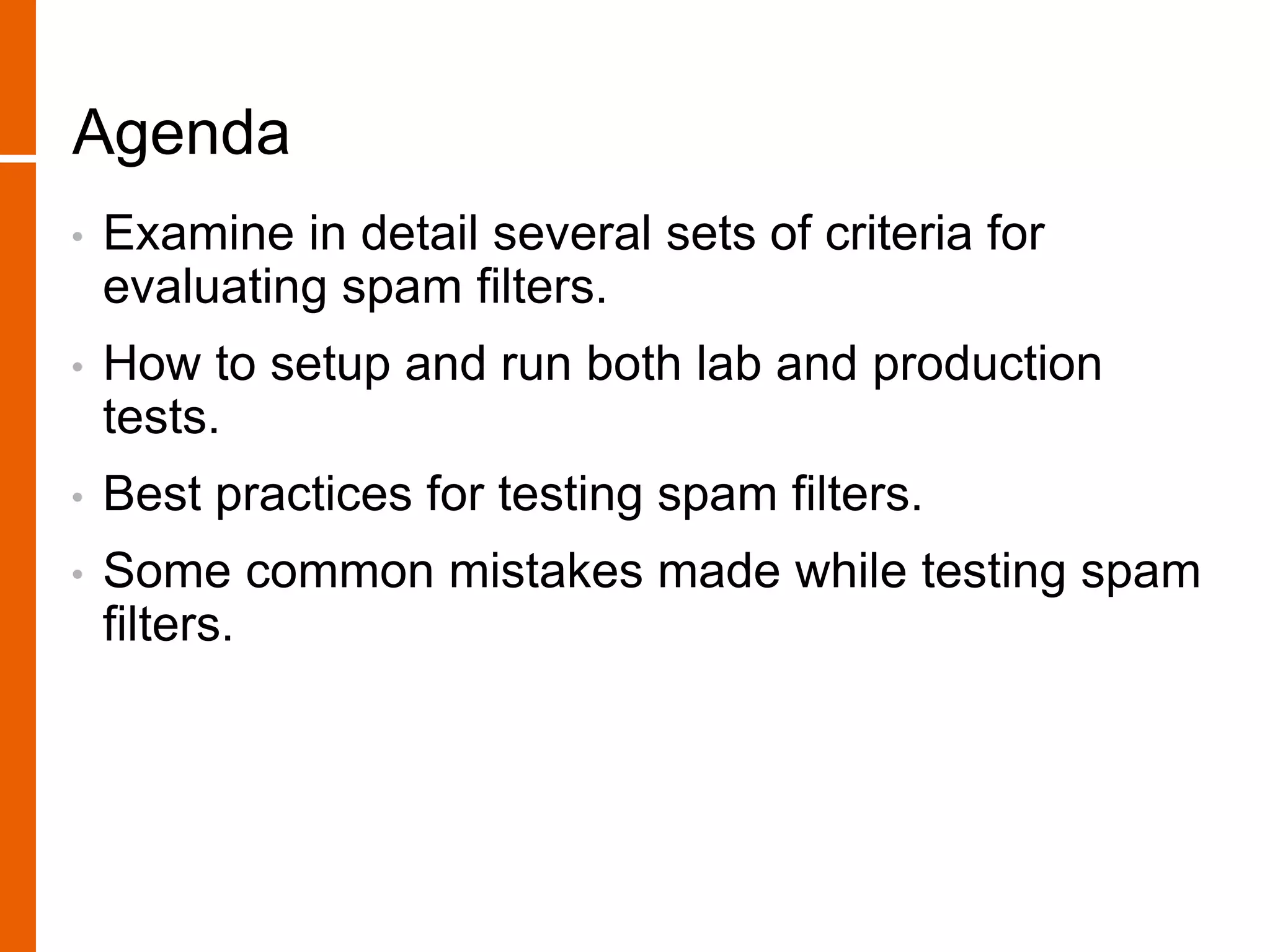

2. Agenda
• Examine in detail several sets of criteria for
evaluating spam filters.
• How to setup and run both lab and production
tests.
• Best practices for testing spam filters.
• Some common mistakes made while testing spam
filters.

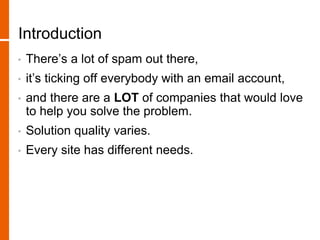

3. Introduction
• There’s a lot of spam out there,
• it’s ticking off everybody with an email account,
• and there are a LOT of companies that would love
to help you solve the problem.
• Solution quality varies.
• Every site has different needs.

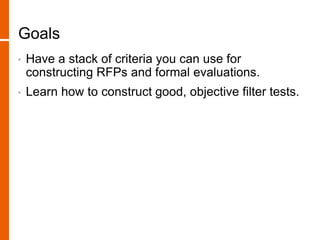

4. Goals
• Have a stack of criteria you can use for
constructing RFPs and formal evaluations.
• Learn how to construct good, objective filter tests.

5. Why Evaluate?
• Spam has gotten so bad, that life is tough without
some kind of filter.
• You (or your users) may be unhappy with your
current solution.
• Even if you’re happy, there might be something
better out there.

6. Different Solution Classes
• Integrated
− Works with your existing MTA
− Usually installed on same system as MTA
• Proxy
− Separate system running the filter sits in front of MTA
− Intercepts and filters mail before it reaches the MTA
• Appliance
− Works like a proxy, but more plug’n’play
• Service
− All mail routes through vendor’s systems at a data center
to be filtered

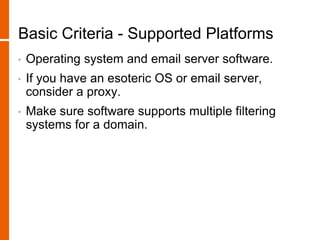

7. Basic Criteria - Supported Platforms
• Operating system and email server software.
• If you have an esoteric OS or email server,
consider a proxy.
• Make sure software supports multiple filtering
systems for a domain.

8. Basic Criteria - User Authentication
• User interfaces for personalized settings,
quarantined messages, etc need to be able to
authenticate users.
• Lots of solutions require LDAP for user
functionality.
• Ability to authenticate multiple ways against
multiple sources.

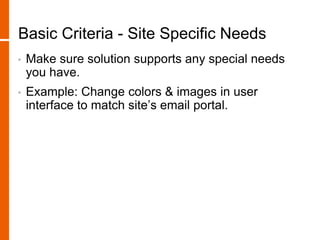

9. Basic Criteria - Site Specific Needs
• Make sure solution supports any special needs
you have.
• Example: Change colors & images in user
interface to match site’s email portal.

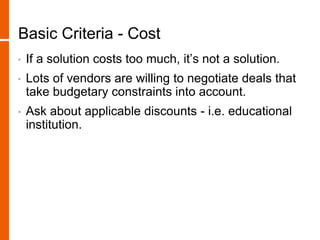

10. Basic Criteria - Cost
• If a solution costs too much, it’s not a solution.
• Lots of vendors are willing to negotiate deals that
take budgetary constraints into account.
• Ask about applicable discounts - i.e. educational
institution.

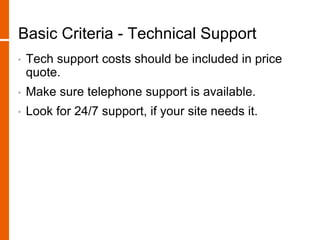

11. Basic Criteria - Technical Support
• Tech support costs should be included in price
quote.
• Make sure telephone support is available.
• Look for 24/7 support, if your site needs it.

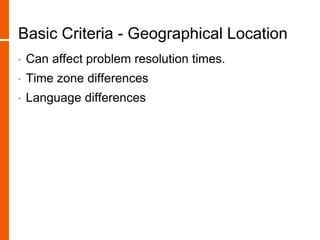

12. Basic Criteria - Geographical Location
• Can affect problem resolution times.
• Time zone differences
• Language differences

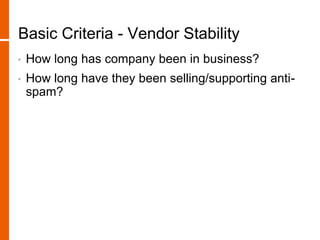

13. Basic Criteria - Vendor Stability
• How long has company been in business?
• How long have they been selling/supporting anti-
spam?

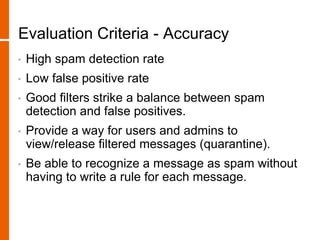

14. Evaluation Criteria - Accuracy
• High spam detection rate
• Low false positive rate
• Good filters strike a balance between spam
detection and false positives.
• Provide a way for users and admins to
view/release filtered messages (quarantine).
• Be able to recognize a message as spam without
having to write a rule for each message.

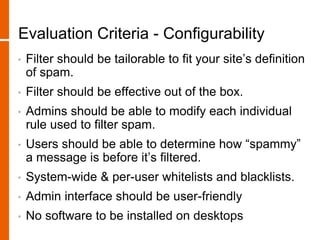

15. Evaluation Criteria - Configurability
• Filter should be tailorable to fit your site’s definition
of spam.
• Filter should be effective out of the box.
• Admins should be able to modify each individual
rule used to filter spam.
• Users should be able to determine how “spammy”
a message is before it’s filtered.
• System-wide & per-user whitelists and blacklists.
• Admin interface should be user-friendly
• No software to be installed on desktops

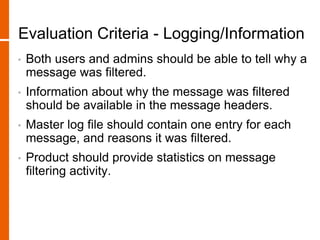

16. Evaluation Criteria - Logging/Information
• Both users and admins should be able to tell why a
message was filtered.
• Information about why the message was filtered
should be available in the message headers.
• Master log file should contain one entry for each
message, and reasons it was filtered.
• Product should provide statistics on message
filtering activity.

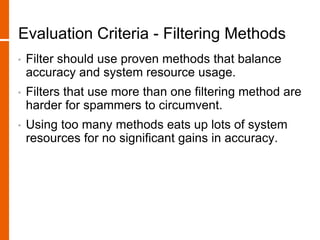

17. Evaluation Criteria - Filtering Methods
• Filter should use proven methods that balance
accuracy and system resource usage.
• Filters that use more than one filtering method are
harder for spammers to circumvent.
• Using too many methods eats up lots of system
resources for no significant gains in accuracy.

18. Evaluation Criteria - Performance
• Email is a “highly visible application”
• If messages are delayed by spam filter, users will
let you know.
• Email volume is constantly increasing, so filter
should be scaleable.

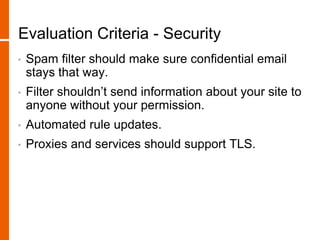

19. Evaluation Criteria - Security
• Spam filter should make sure confidential email
stays that way.
• Filter shouldn’t send information about your site to
anyone without your permission.
• Automated rule updates.
• Proxies and services should support TLS.

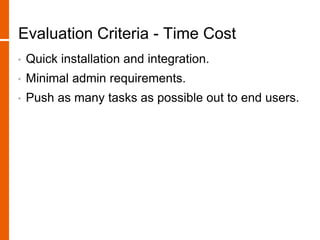

20. Evaluation Criteria - Time Cost
• Quick installation and integration.
• Minimal admin requirements.
• Push as many tasks as possible out to end users.

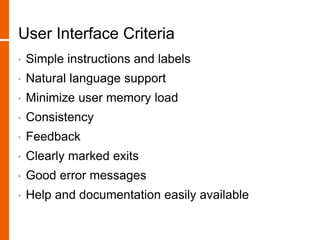

21. User Interface Criteria
• Simple instructions and labels
• Natural language support
• Minimize user memory load
• Consistency
• Feedback
• Clearly marked exits
• Good error messages
• Help and documentation easily available

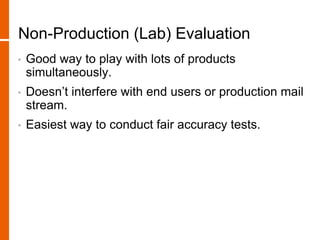

22. Non-Production (Lab) Evaluation
• Good way to play with lots of products
simultaneously.
• Doesn’t interfere with end users or production mail
stream.
• Easiest way to conduct fair accuracy tests.

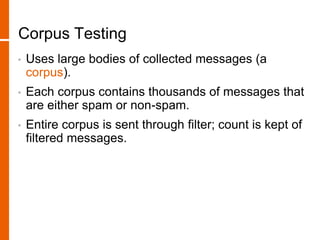

23. Corpus Testing
• Uses large bodies of collected messages (a
corpus).
• Each corpus contains thousands of messages that
are either spam or non-spam.
• Entire corpus is sent through filter; count is kept of
filtered messages.

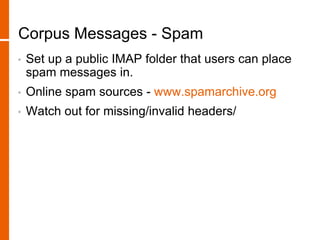

24. Corpus Messages - Spam
• Set up a public IMAP folder that users can place
spam messages in.
• Online spam sources - www.spamarchive.org
• Watch out for missing/invalid headers/

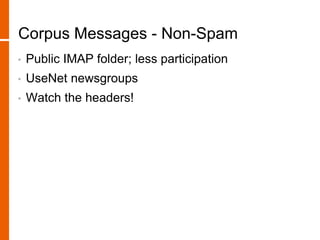

25. Corpus Messages - Non-Spam
• Public IMAP folder; less participation
• UseNet newsgroups
• Watch the headers!

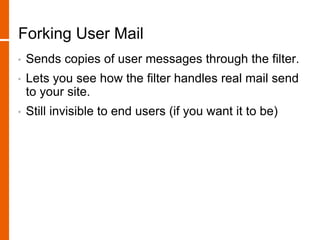

26. Forking User Mail
• Sends copies of user messages through the filter.
• Lets you see how the filter handles real mail send
to your site.
• Still invisible to end users (if you want it to be)

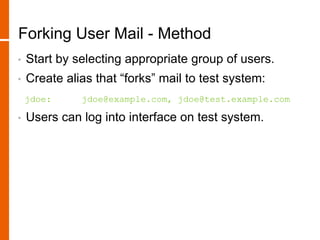

27. Forking User Mail - Method
• Start by selecting appropriate group of users.
• Create alias that “forks” mail to test system:
jdoe: jdoe@example.com, jdoe@test.example.com
• Users can log into interface on test system.

28. Production Evaluation
• Uses filtering system on your production mail
stream.
• Opt-in/opt-out feature lets you select small test
groups.
• Good idea to start with least intrusive features, and
work up to full functionality.
• Some filters can be set to scan messages and log
results w/o altering the message.

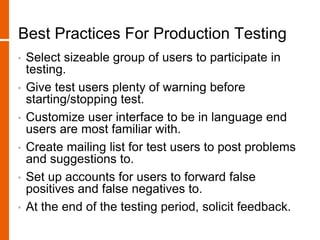

29. Best Practices For Production Testing
• Select sizeable group of users to participate in
testing.
• Give test users plenty of warning before
starting/stopping test.
• Customize user interface to be in language end
users are most familiar with.
• Create mailing list for test users to post problems
and suggestions to.
• Set up accounts for users to forward false
positives and false negatives to.
• At the end of the testing period, solicit feedback.

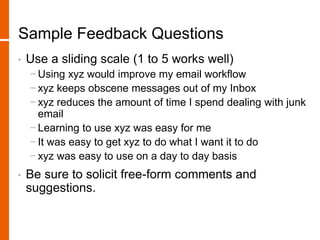

30. Sample Feedback Questions
• Use a sliding scale (1 to 5 works well)
− Using xyz would improve my email workflow
− xyz keeps obscene messages out of my Inbox
− xyz reduces the amount of time I spend dealing with junk
email
− Learning to use xyz was easy for me
− It was easy to get xyz to do what I want it to do
− xyz was easy to use on a day to day basis
• Be sure to solicit free-form comments and
suggestions.

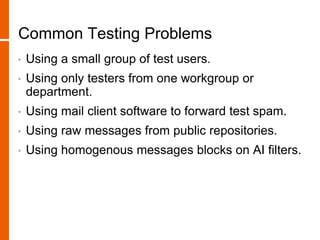

31. Common Testing Problems
• Using a small group of test users.
• Using only testers from one workgroup or
department.
• Using mail client software to forward test spam.
• Using raw messages from public repositories.
• Using homogenous messages blocks on AI filters.

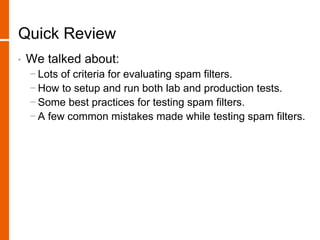

32. Quick Review
• We talked about:
− Lots of criteria for evaluating spam filters.
− How to setup and run both lab and production tests.
− Some best practices for testing spam filters.
− A few common mistakes made while testing spam filters.
