1. ImplementationModel

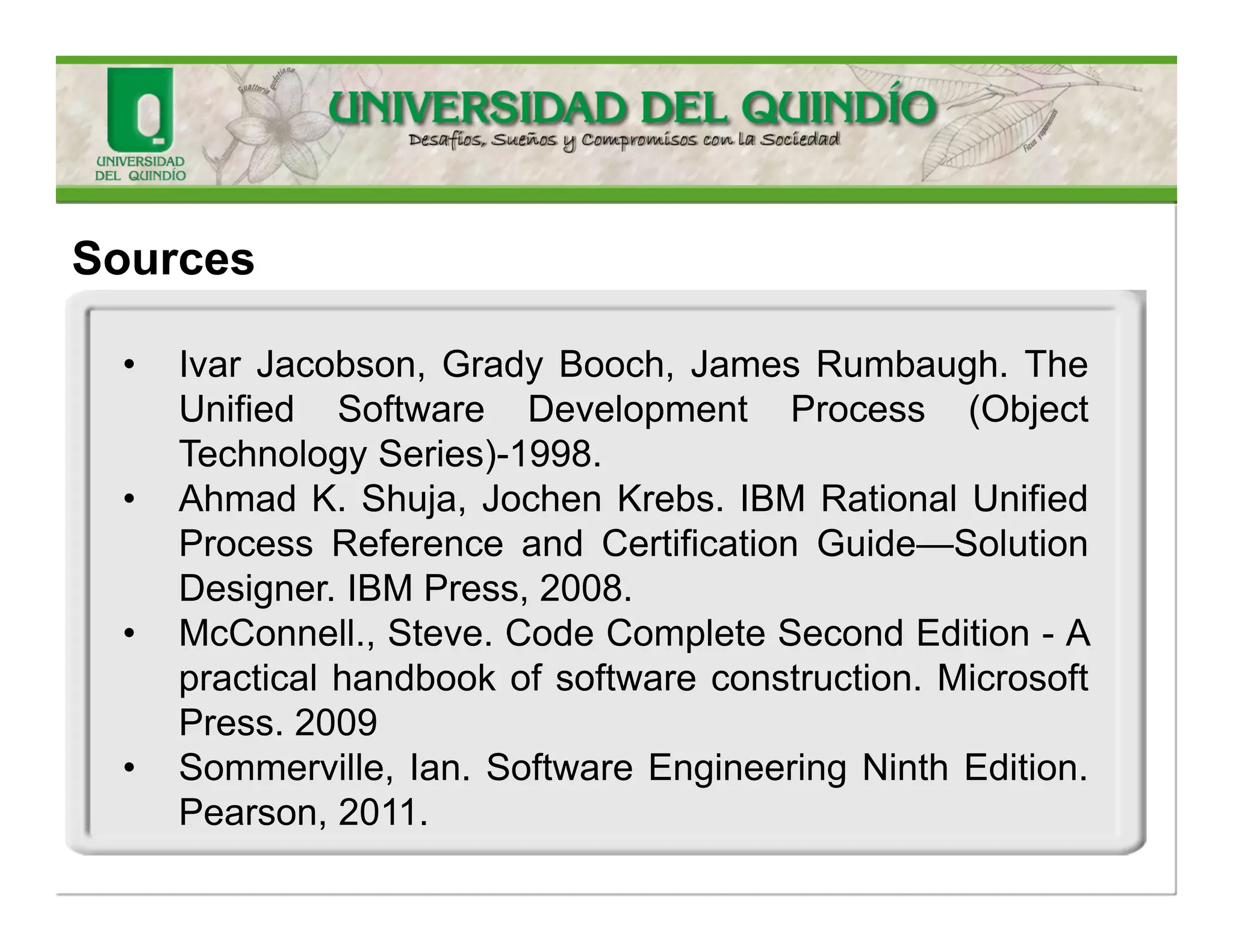

2. Sources
•IvarJacobson,GradyBooch,JamesRumbaugh.TheUnifiedSoftwareDevelopmentProcess(ObjectTechnologySeries)-1998.
•AhmadK.Shuja,JochenKrebs.IBMRationalUnifiedProcessReferenceandCertificationGuide—SolutionDesigner.IBMPress,2008.
•McConnell.,Steve.CodeCompleteSecondEdition-Apracticalhandbookofsoftwareconstruction.MicrosoftPress.2009
•Sommerville,Ian.SoftwareEngineeringNinthEdition. Pearson,2011.

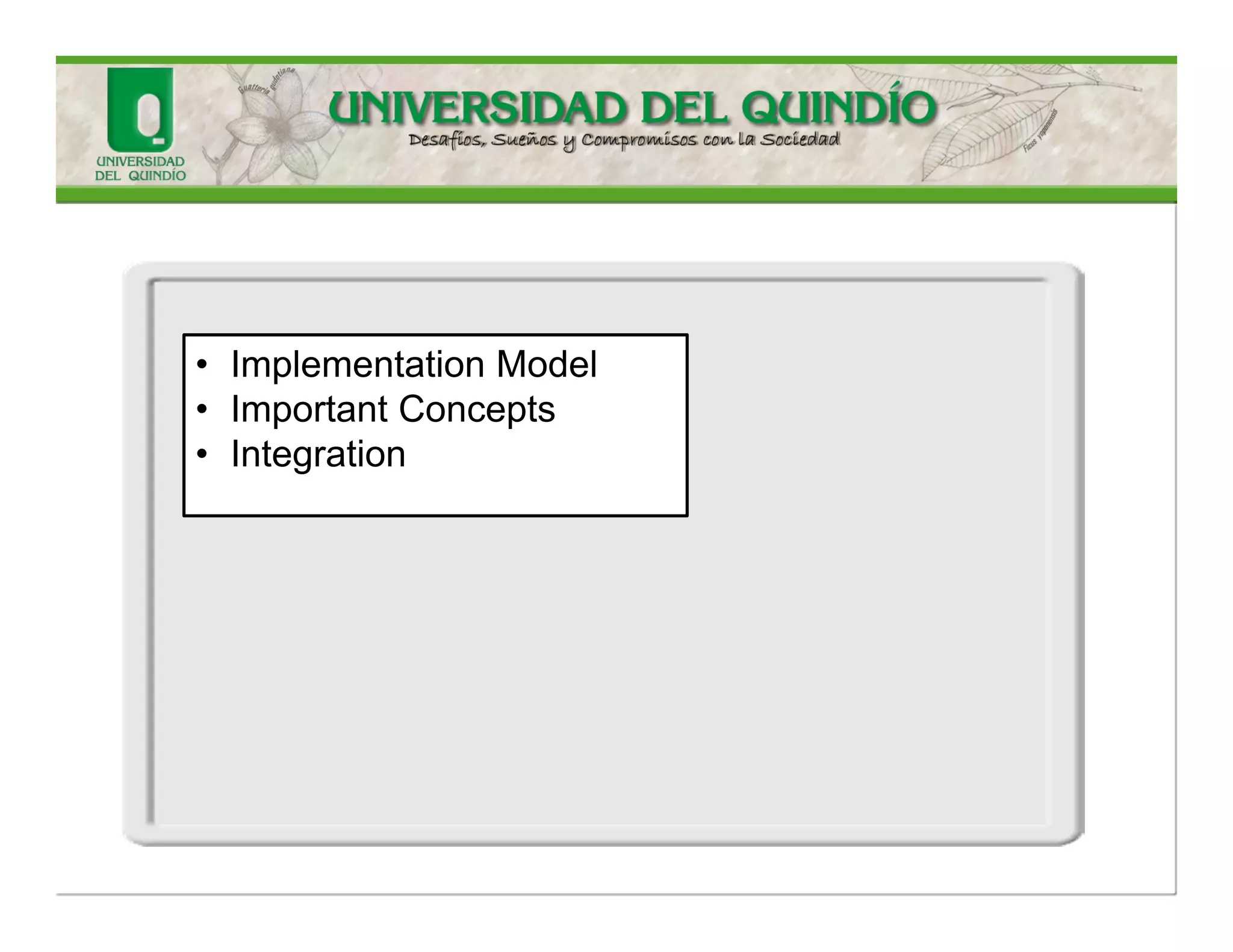

3. •ImplementationModel
•ImportantConcepts
•Integration

4. Before..
Cartoon: NP
Designersand developersdon'treallyspeakthesamelanguage.
(From: http://chetchat.blogspot.fr/2014/08/cartoon-np.html)

5. Somewordsenvolved
•Implementation
•Construction?
•Coding?

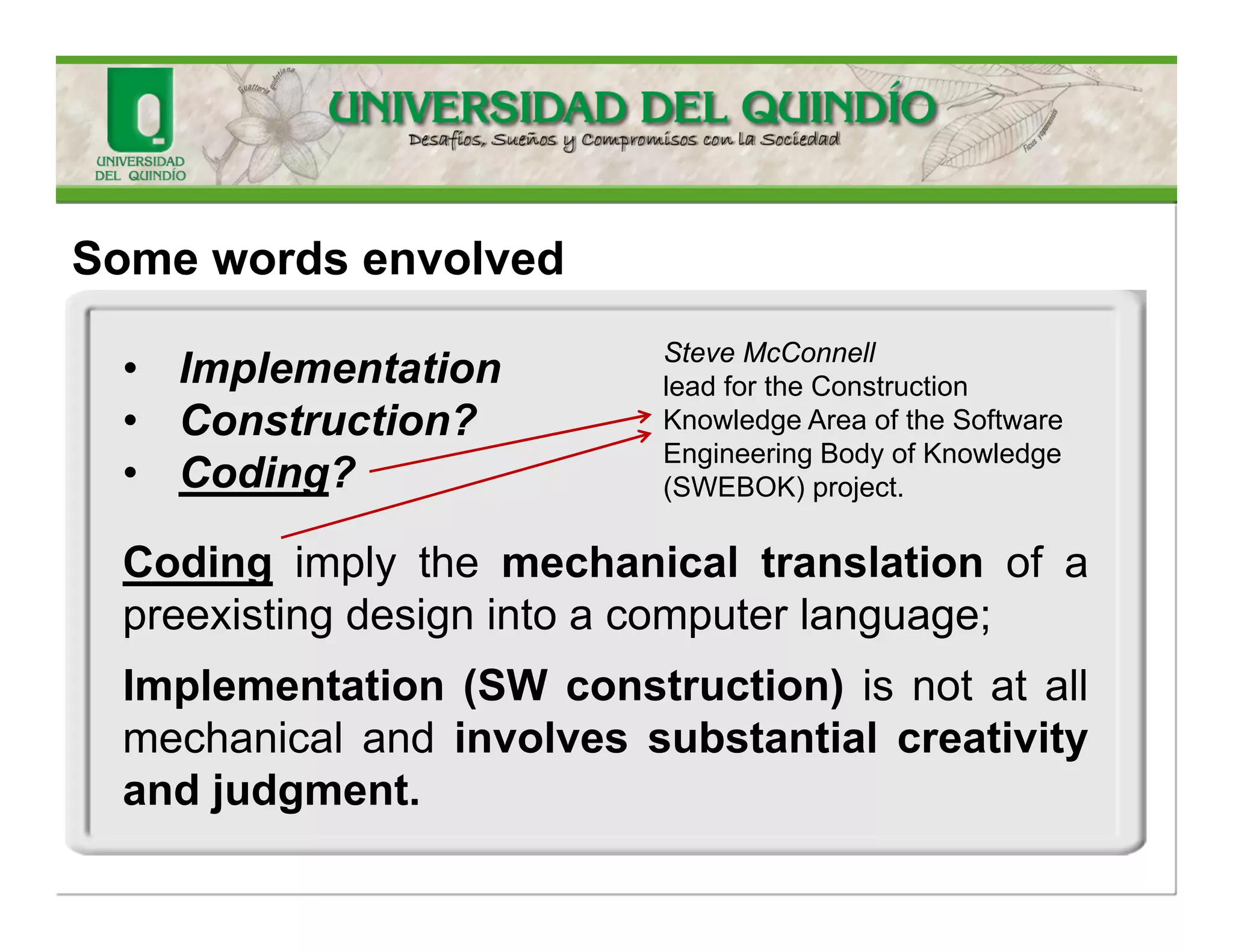

Codingimplythemechanicaltranslationofapreexistingdesignintoacomputerlanguage;
Implementation(SWconstruction)isnotatallmechanicalandinvolvessubstantialcreativityandjudgment.
Steve McConnell
lead for the Construction Knowledge Area of the Software Engineering Body of Knowledge (SWEBOK) project.

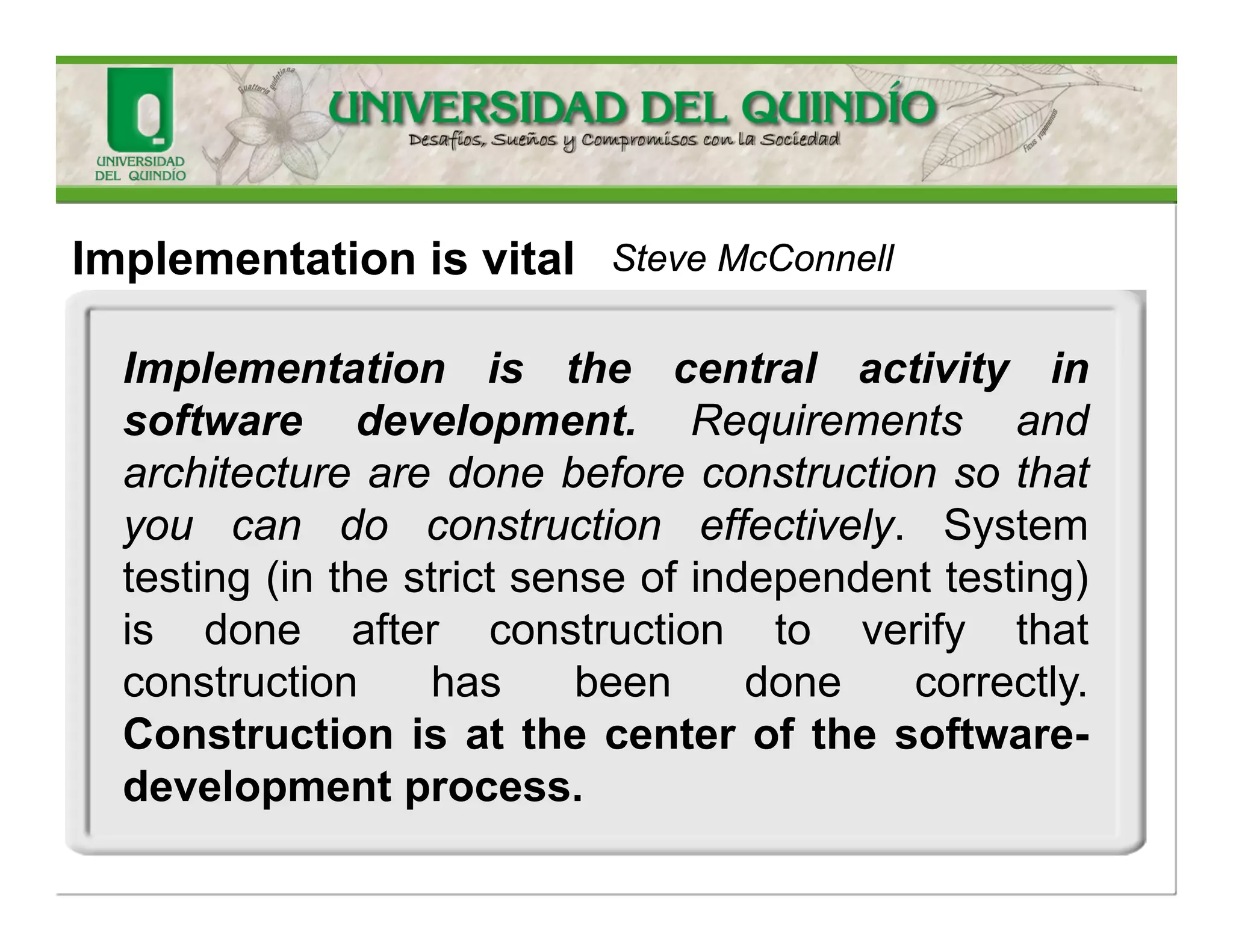

6. Implementationisvital
Implementationisthecentralactivityinsoftwaredevelopment.Requirementsandarchitecturearedonebeforeconstructionsothatyoucandoconstructioneffectively.Systemtesting(inthestrictsenseofindependenttesting) isdoneafterconstructiontoverifythatconstructionhasbeendonecorrectly. Constructionisatthecenterofthesoftware- developmentprocess.
Steve McConnell

7. Implementationisvital

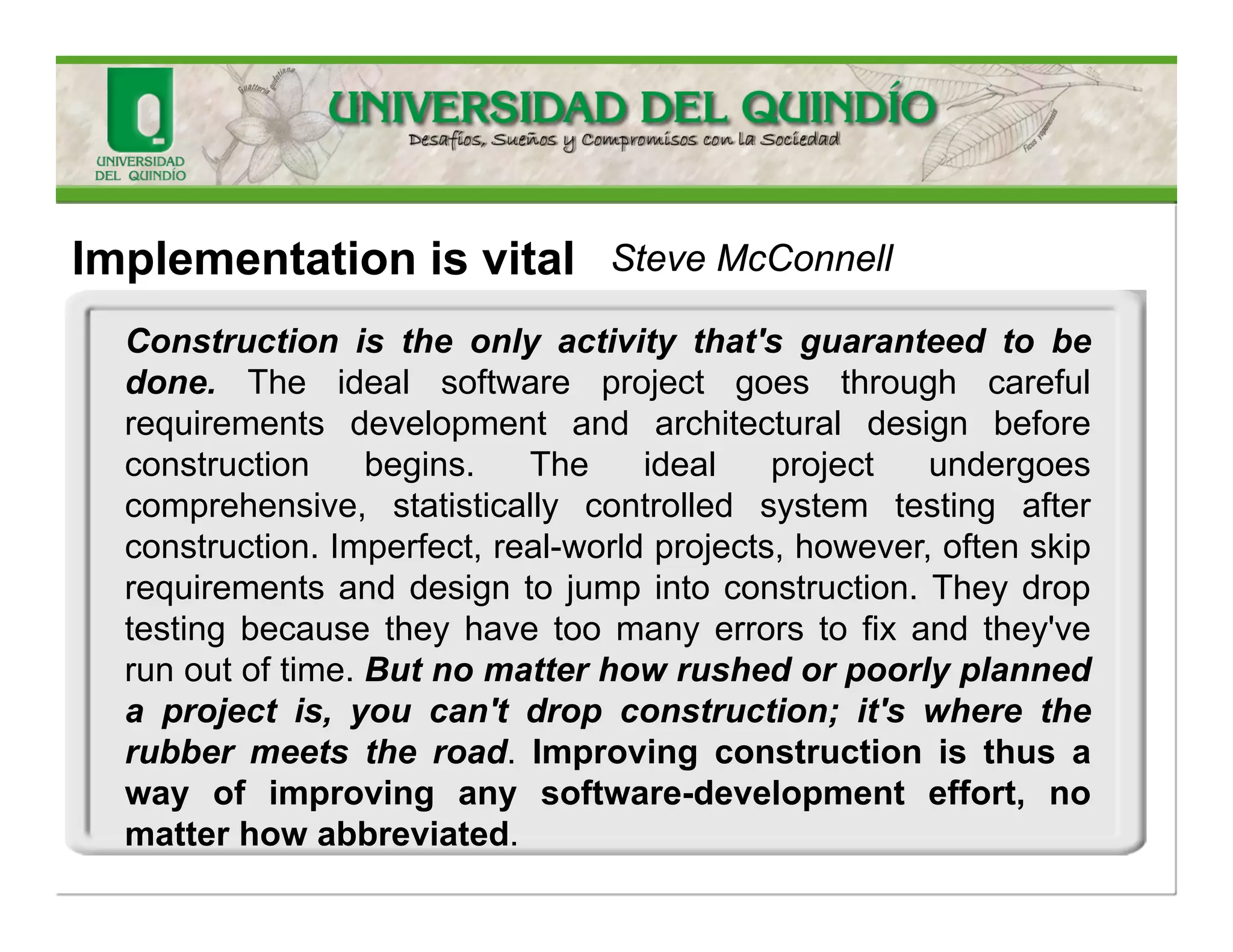

Constructionistheonlyactivitythat'sguaranteedtobedone.Theidealsoftwareprojectgoesthroughcarefulrequirementsdevelopmentandarchitecturaldesignbeforeconstructionbegins.Theidealprojectundergoescomprehensive,statisticallycontrolledsystemtestingafterconstruction.Imperfect,real-worldprojects,however,oftenskiprequirementsanddesigntojumpintoconstruction.Theydroptestingbecausetheyhavetoomanyerrorstofixandthey'verunoutoftime.Butnomatterhowrushedorpoorlyplannedaprojectis,youcan'tdropconstruction;it'swheretherubbermeetstheroad.Improvingconstructionisthusawayofimprovinganysoftware-developmenteffort,nomatterhowabbreviated.
Steve McConnell

8. ImplementationModel

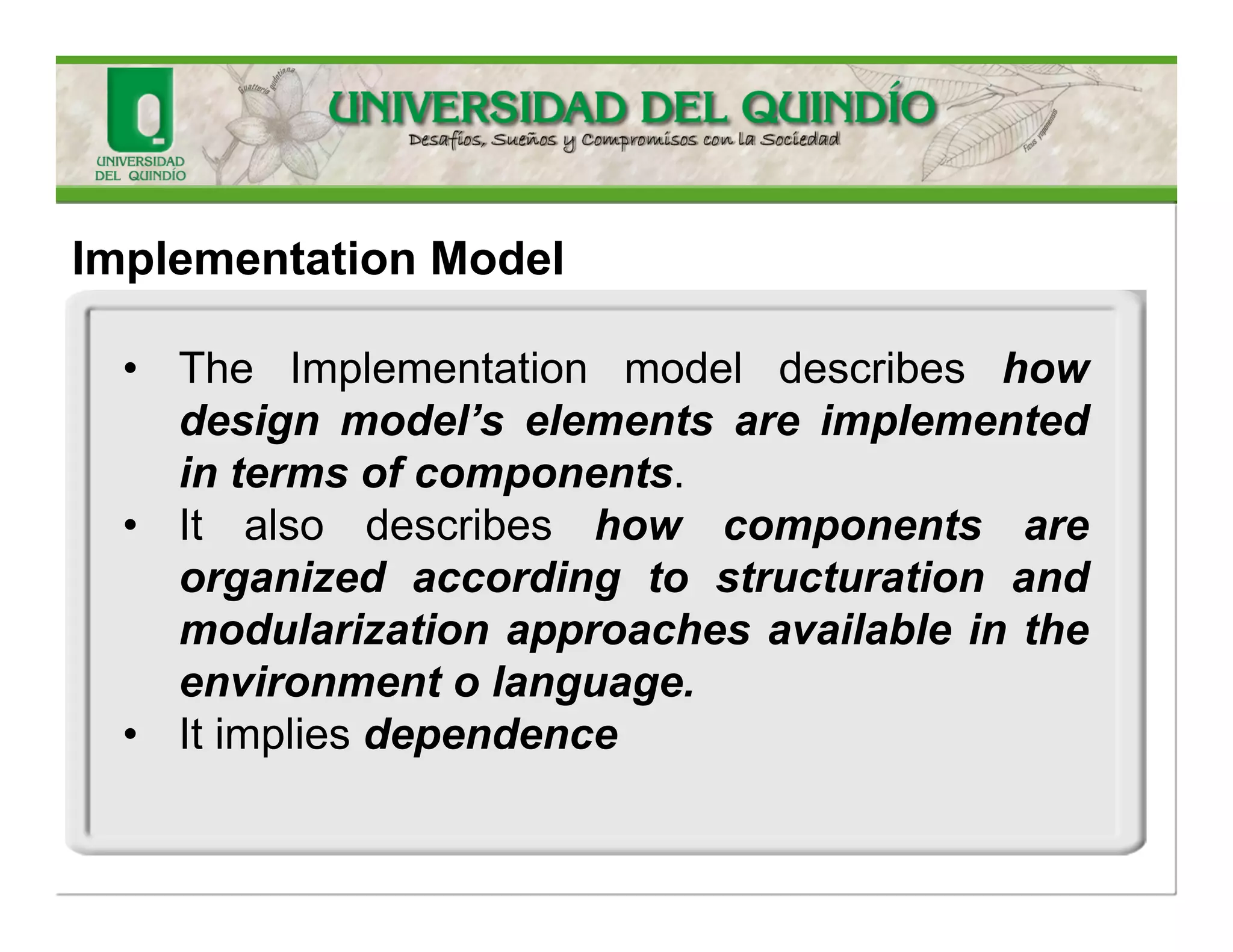

•TheImplementationmodeldescribeshowdesignmodel’selementsareimplementedintermsofcomponents.
•Italsodescribeshowcomponentsareorganizedaccordingtostructurationandmodularizationapproachesavailableintheenvironmentolanguage.
•Itimpliesdependence

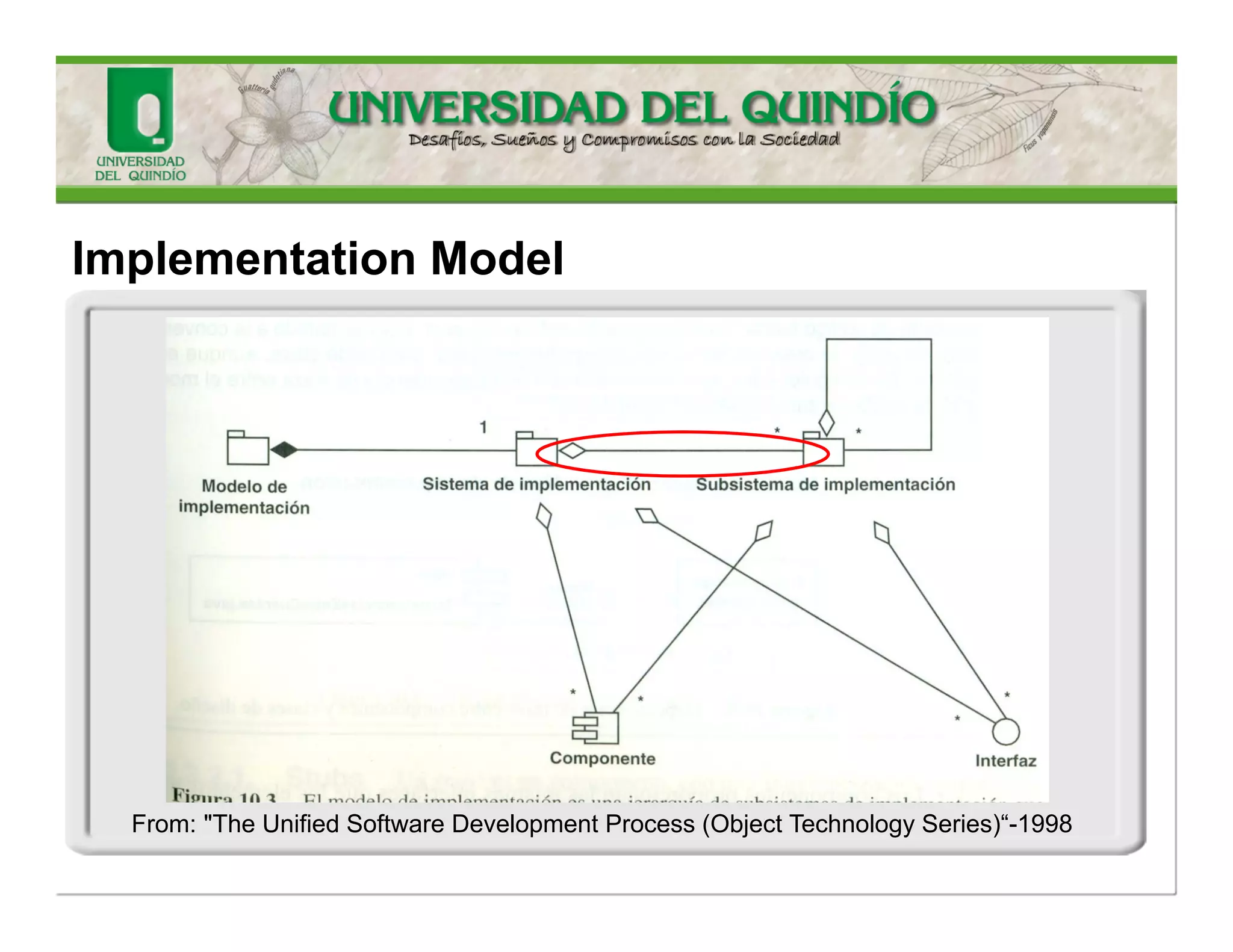

9. ImplementationModel
From: "The Unified Software Development Process (Object Technology Series)“-1998

10. More in deep…

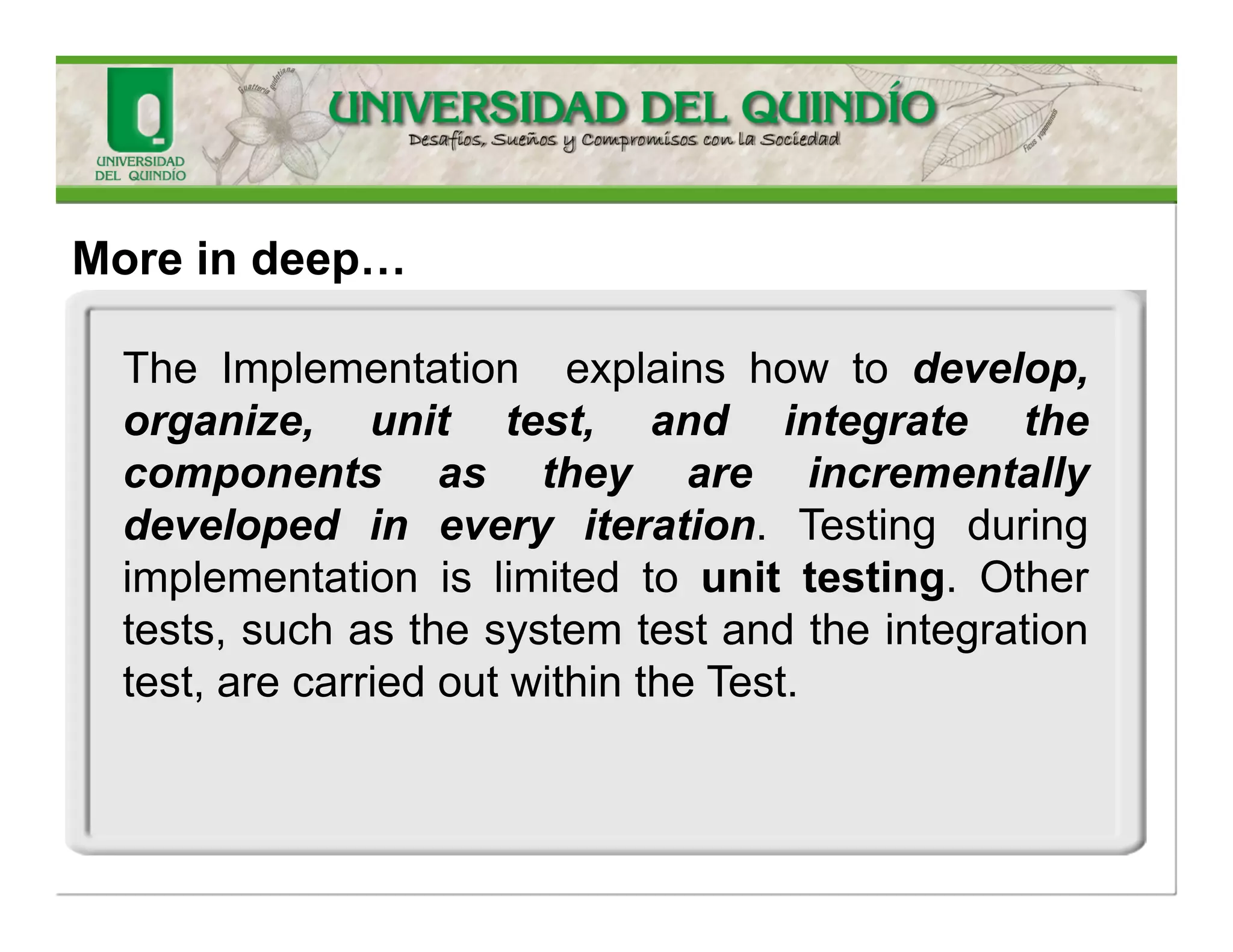

TheImplementationexplainshowtodevelop, organize,unittest,andintegratethecomponentsastheyareincrementallydevelopedineveryiteration.Testingduringimplementationislimitedtounittesting.Othertests,suchasthesystemtestandtheintegrationtest,arecarriedoutwithintheTest.

11. More in deep…
Sommervilleintroducessomeaspectsofimplementationthatareparticularlyimportanttosoftwareengineeringthatareoftennotcoveredinprogrammingtexts
1.Reuse.Mostmodernsoftwareisconstructedbyreusingexistingcomponentsorsystems.Whenyouaredevelopingsoftware,youshouldmakeasmuchuseaspossibleofexistingcode.
2.Configurationmanagement.Duringthedevelopmentprocess,manydifferentversionsofeachsoftwarecomponentarecreated.Ifyoudon’tkeeptrackoftheseversionsinaconfigurationmanagementsystem,youareliabletoincludethewrongversionsofthesecomponentsinyoursystem.
3.Host-targetdevelopment.Productionsoftwaredoesnotusuallyexecuteonthesamecomputerasthesoftwaredevelopmentenvironment.Rather,youdevelopitononecomputer(thehostsystem)andexecuteitonaseparatecomputer(thetargetsystem).Thehostandtargetsystemsaresometimesofthesametypebut,oftentheyarecompletelydifferent.

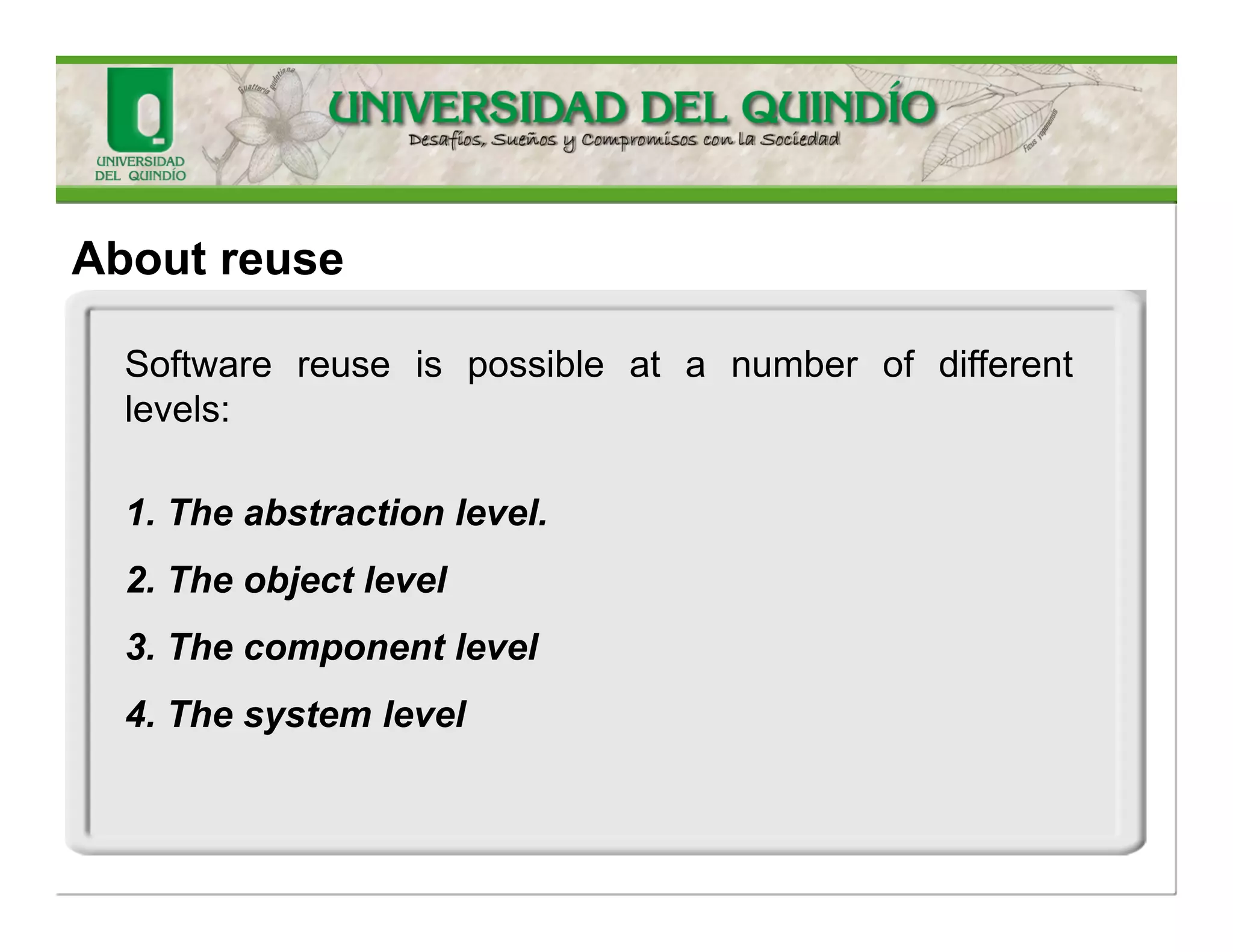

12. Aboutreuse

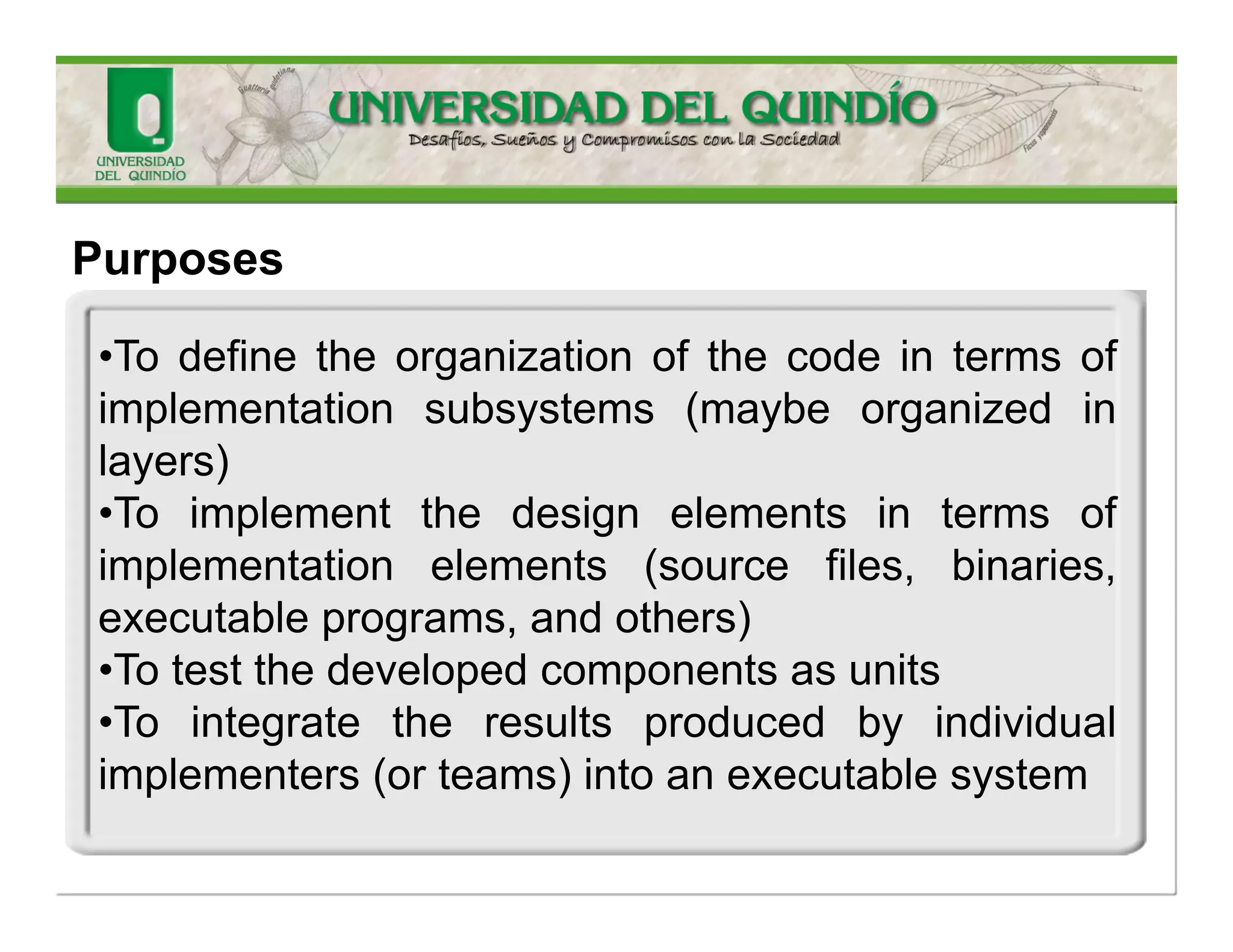

Softwarereuseispossibleatanumberofdifferentlevels:
1. The abstraction level.
2. The object level
3. The component level
4. The system level

13. •Todefinetheorganizationofthecodeintermsofimplementationsubsystems(maybeorganizedinlayers)
•Toimplementthedesignelementsintermsofimplementationelements(sourcefiles,binaries, executableprograms,andothers)
•Totestthedevelopedcomponentsasunits
•Tointegratetheresultsproducedbyindividualimplementers(orteams)intoanexecutablesystem
Purposes

14. •Verifyingthatthegroundworkhasbeenlaidsothatconstructioncanproceedsuccessfully

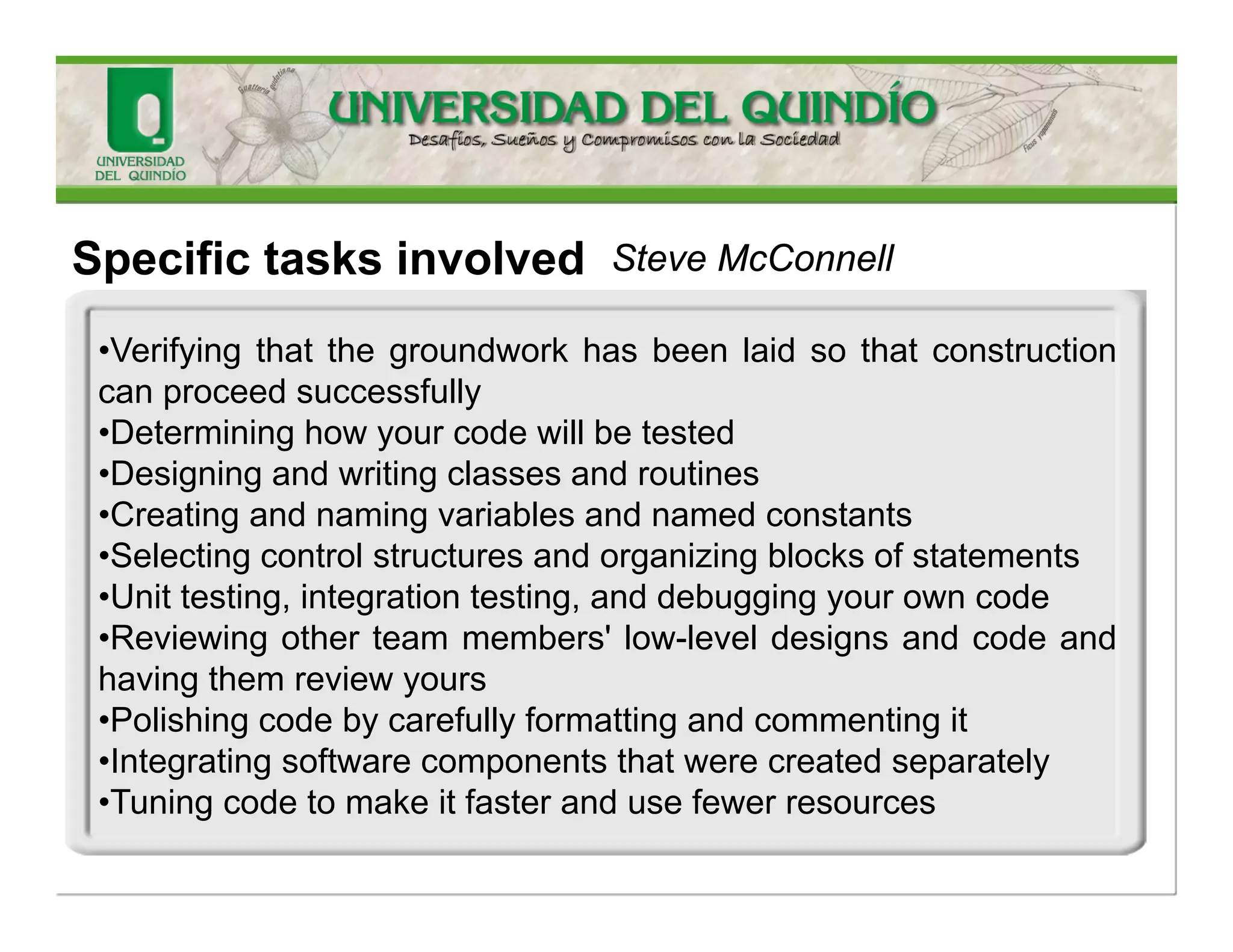

•Determininghowyourcodewillbetested
•Designingandwritingclassesandroutines
•Creatingandnamingvariablesandnamedconstants
•Selectingcontrolstructuresandorganizingblocksofstatements
•Unittesting,integrationtesting,anddebuggingyourowncode
•Reviewingotherteammembers'low-leveldesignsandcodeandhavingthemreviewyours
•Polishingcodebycarefullyformattingandcommentingit
•Integratingsoftwarecomponentsthatwerecreatedseparately
•Tuningcodetomakeitfasterandusefewerresources
Specifictasksinvolved
Steve McConnell

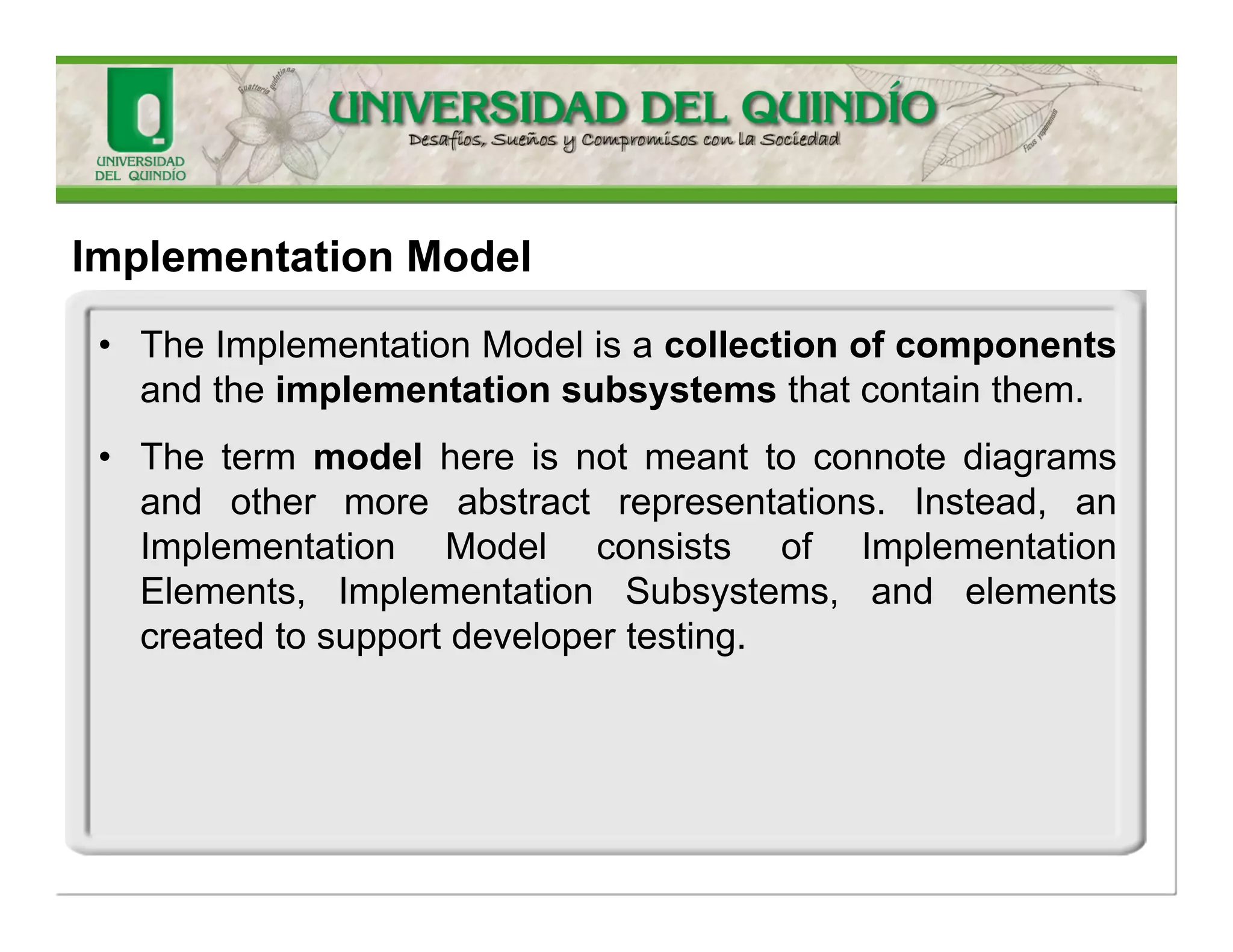

15. •TheImplementationModelisacollectionofcomponentsandtheimplementationsubsystemsthatcontainthem.
•Thetermmodelhereisnotmeanttoconnotediagramsandothermoreabstractrepresentations.Instead,anImplementationModelconsistsofImplementationElements,ImplementationSubsystems,andelementscreatedtosupportdevelopertesting.
ImplementationModel

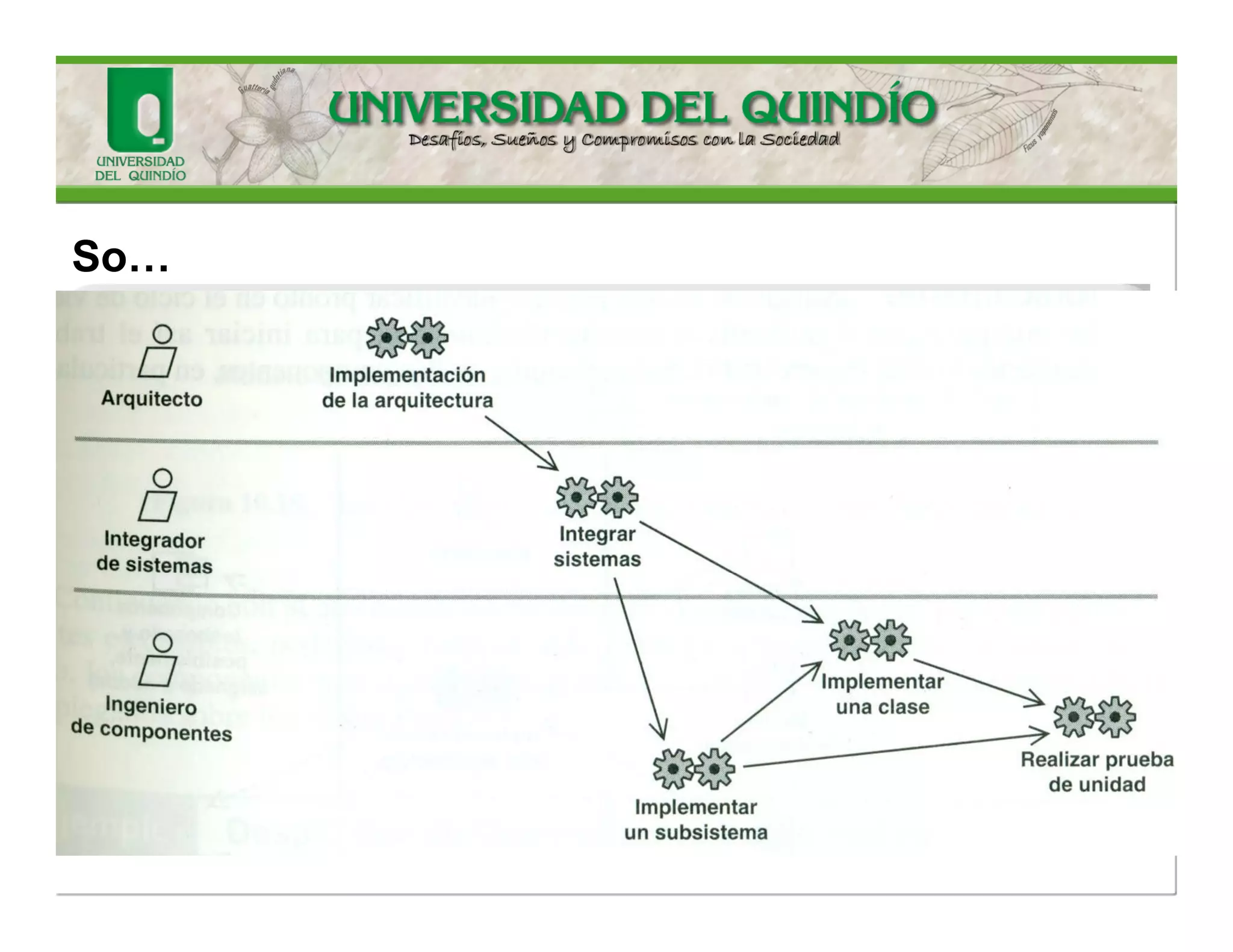

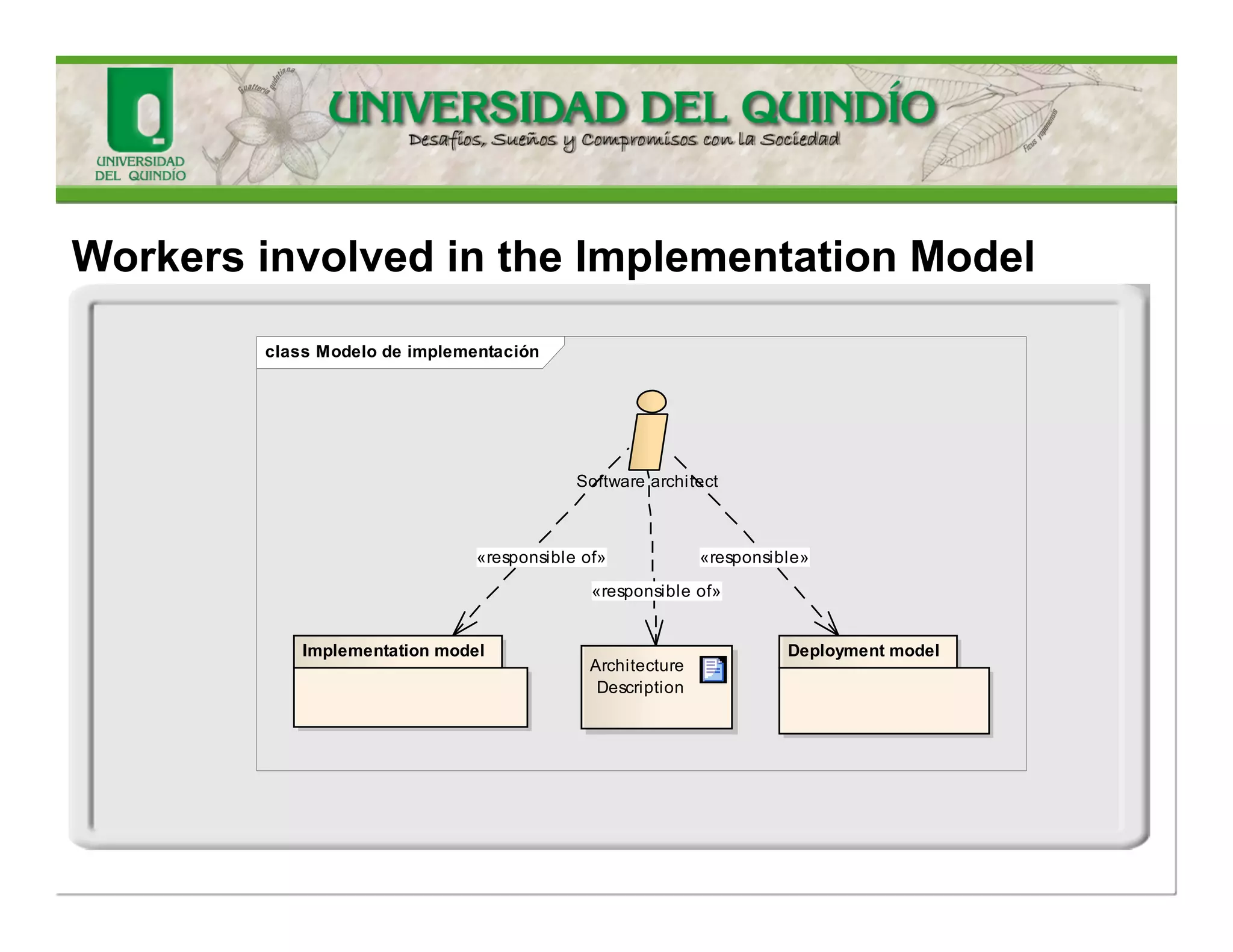

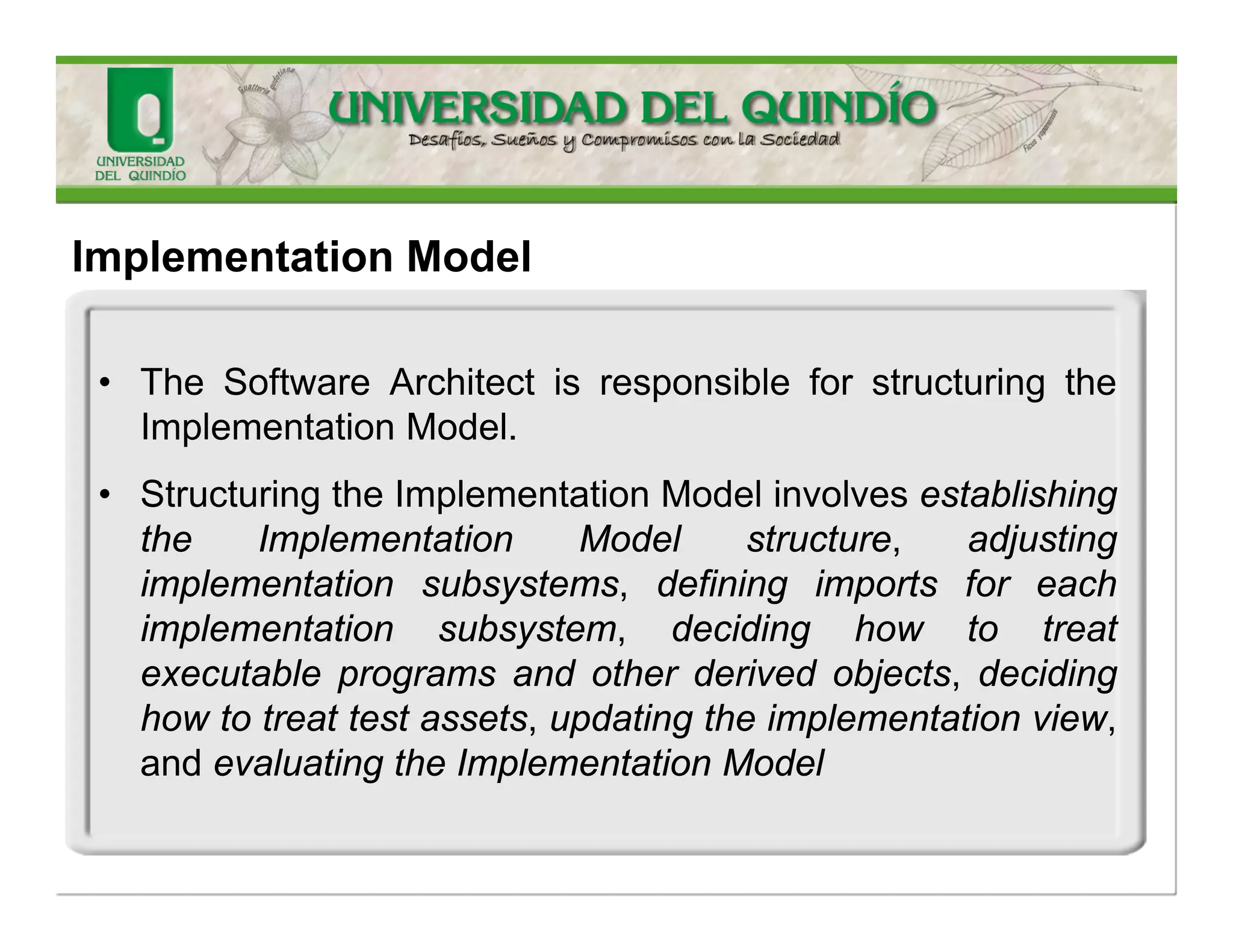

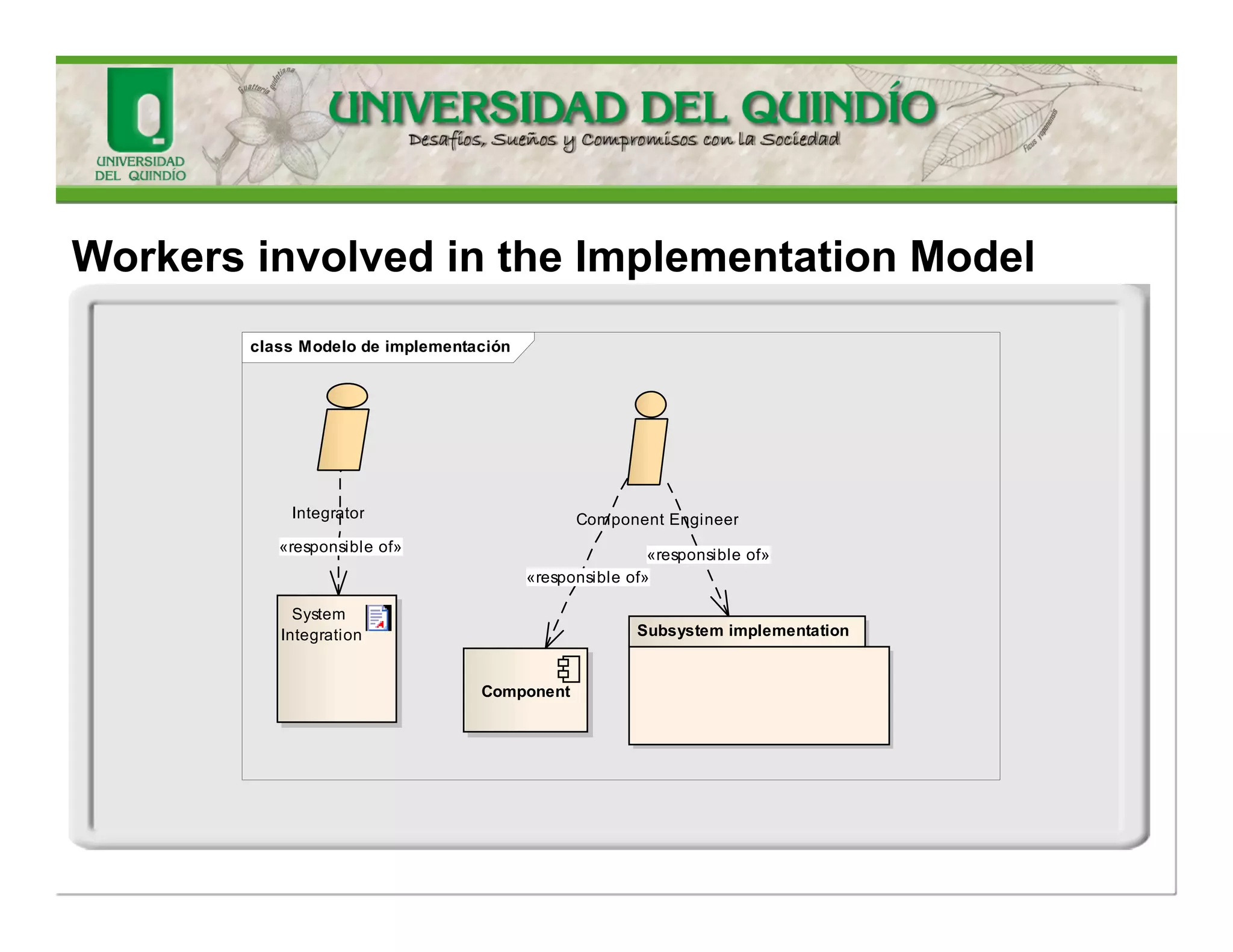

16. Workersinvolvedin theImplementationModel

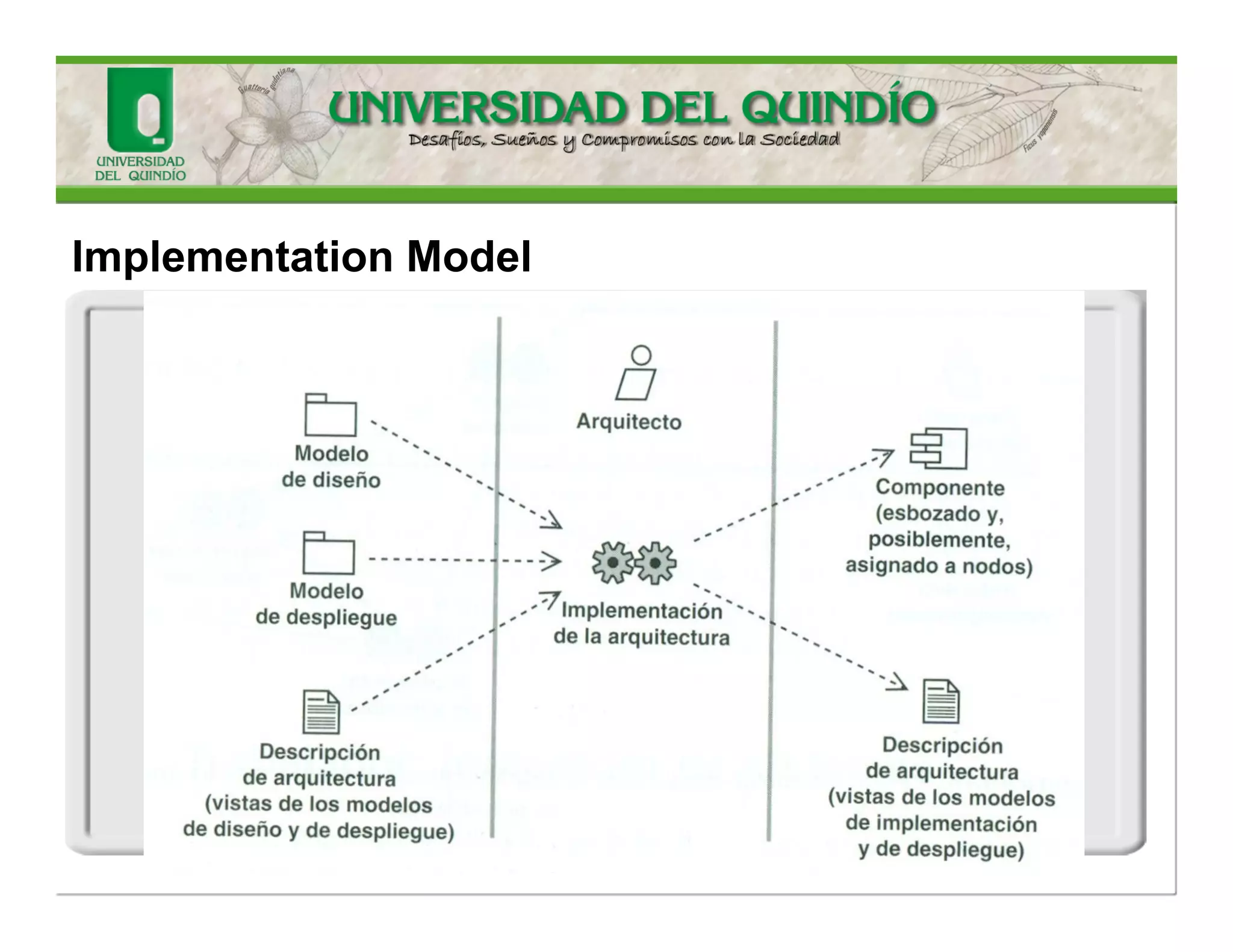

17. •TheSoftwareArchitectisresponsibleforstructuringtheImplementationModel.
•StructuringtheImplementationModelinvolvesestablishingtheImplementationModelstructure,adjustingimplementationsubsystems,definingimportsforeachimplementationsubsystem,decidinghowtotreatexecutableprogramsandotherderivedobjects,decidinghowtotreattestassets,updatingtheimplementationview, andevaluatingtheImplementationModel
ImplementationModel

18. ImplementationModel

19. Workersinvolvedin theImplementationModel

20. So…

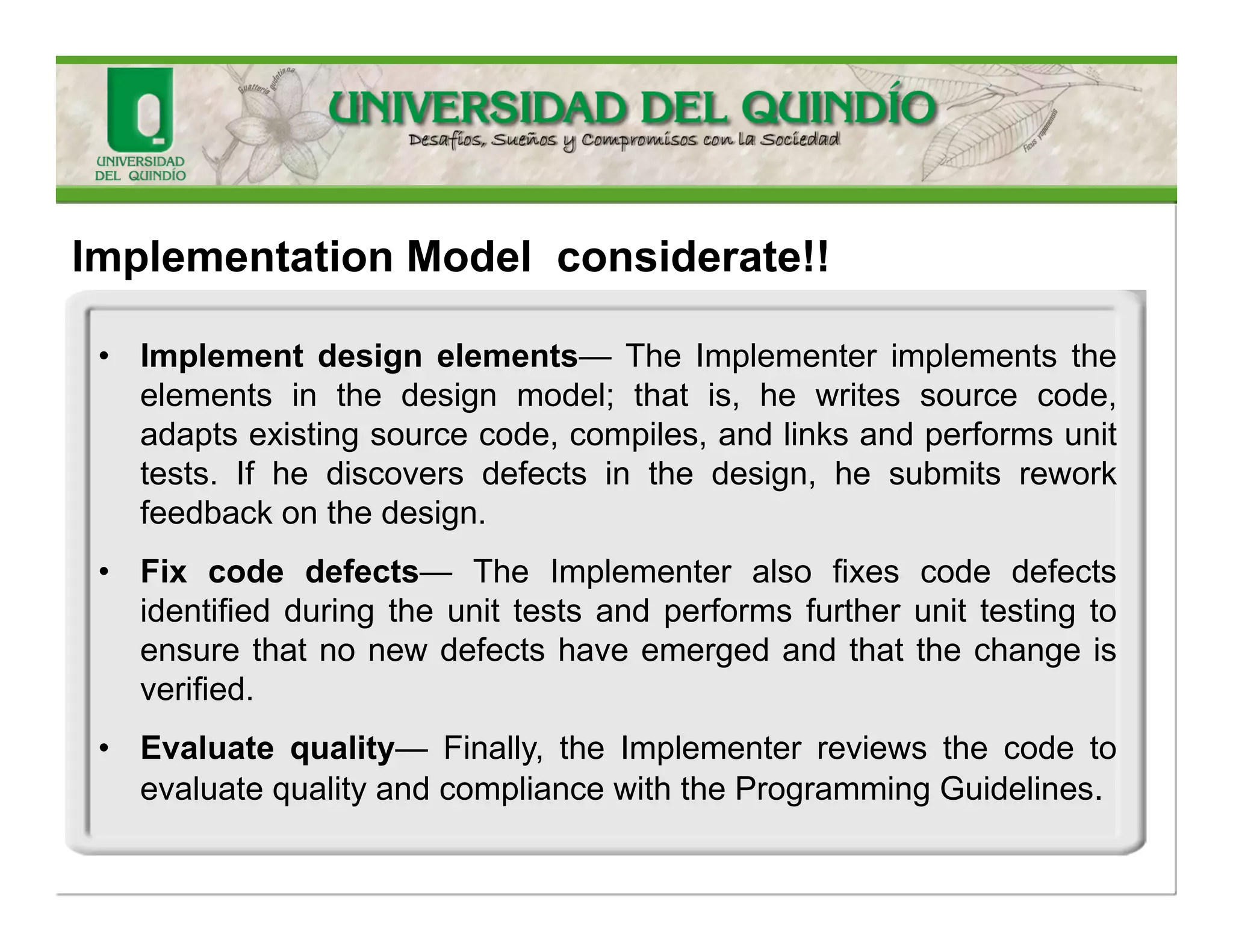

21. •Implementdesignelements—TheImplementerimplementstheelementsinthedesignmodel;thatis,hewritessourcecode, adaptsexistingsourcecode,compiles,andlinksandperformsunittests.Ifhediscoversdefectsinthedesign,hesubmitsreworkfeedbackonthedesign.
•Fixcodedefects—TheImplementeralsofixescodedefectsidentifiedduringtheunittestsandperformsfurtherunittestingtoensurethatnonewdefectshaveemergedandthatthechangeisverified.
•Evaluatequality—Finally,theImplementerreviewsthecodetoevaluatequalityandcompliancewiththeProgrammingGuidelines.
ImplementationModelconsiderate!!

22. TheImplementerisresponsibleforthefollowing:

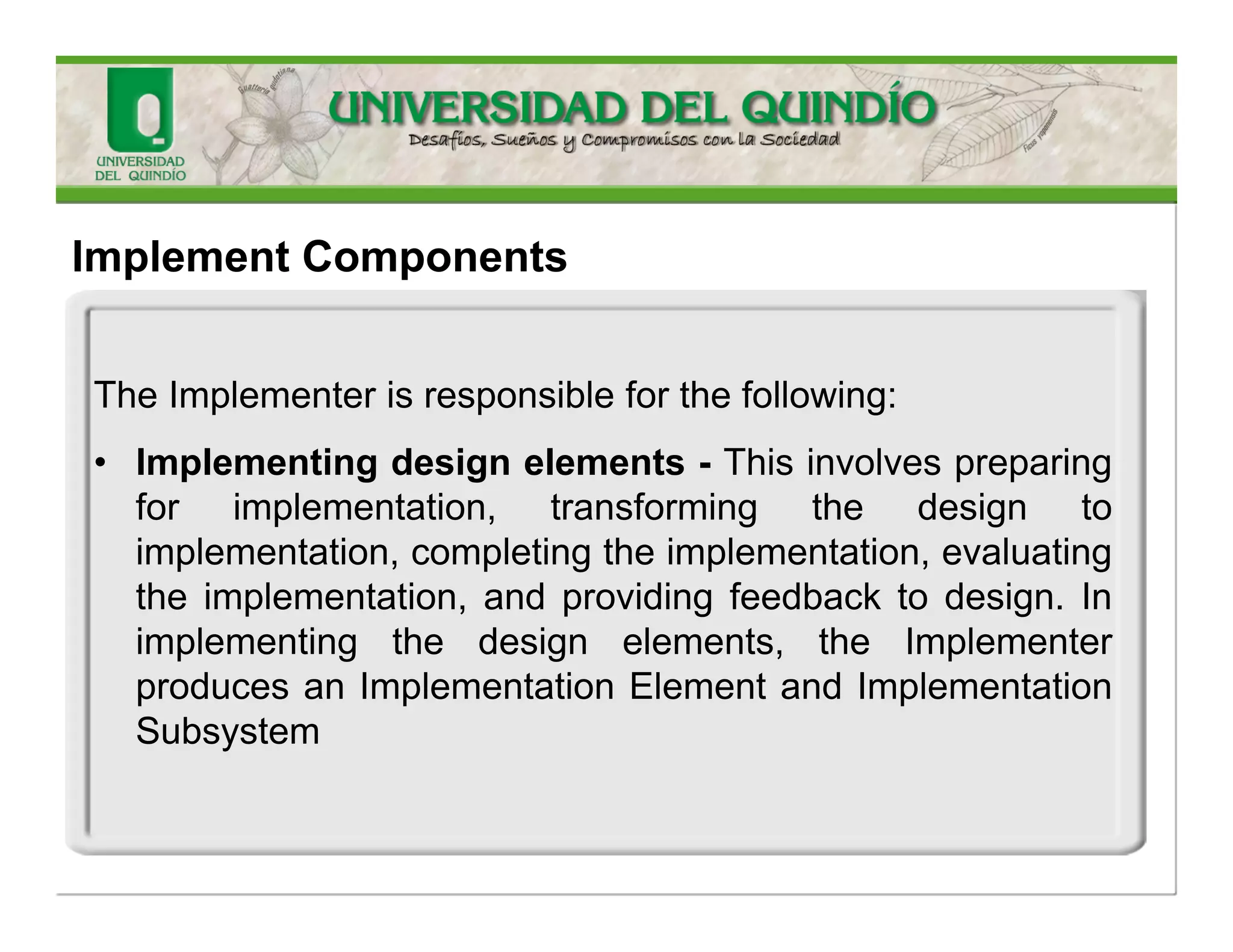

•Implementingdesignelements-Thisinvolvespreparingforimplementation,transformingthedesigntoimplementation,completingtheimplementation,evaluatingtheimplementation,andprovidingfeedbacktodesign.Inimplementingthedesignelements,theImplementerproducesanImplementationElementandImplementationSubsystem
ImplementComponents

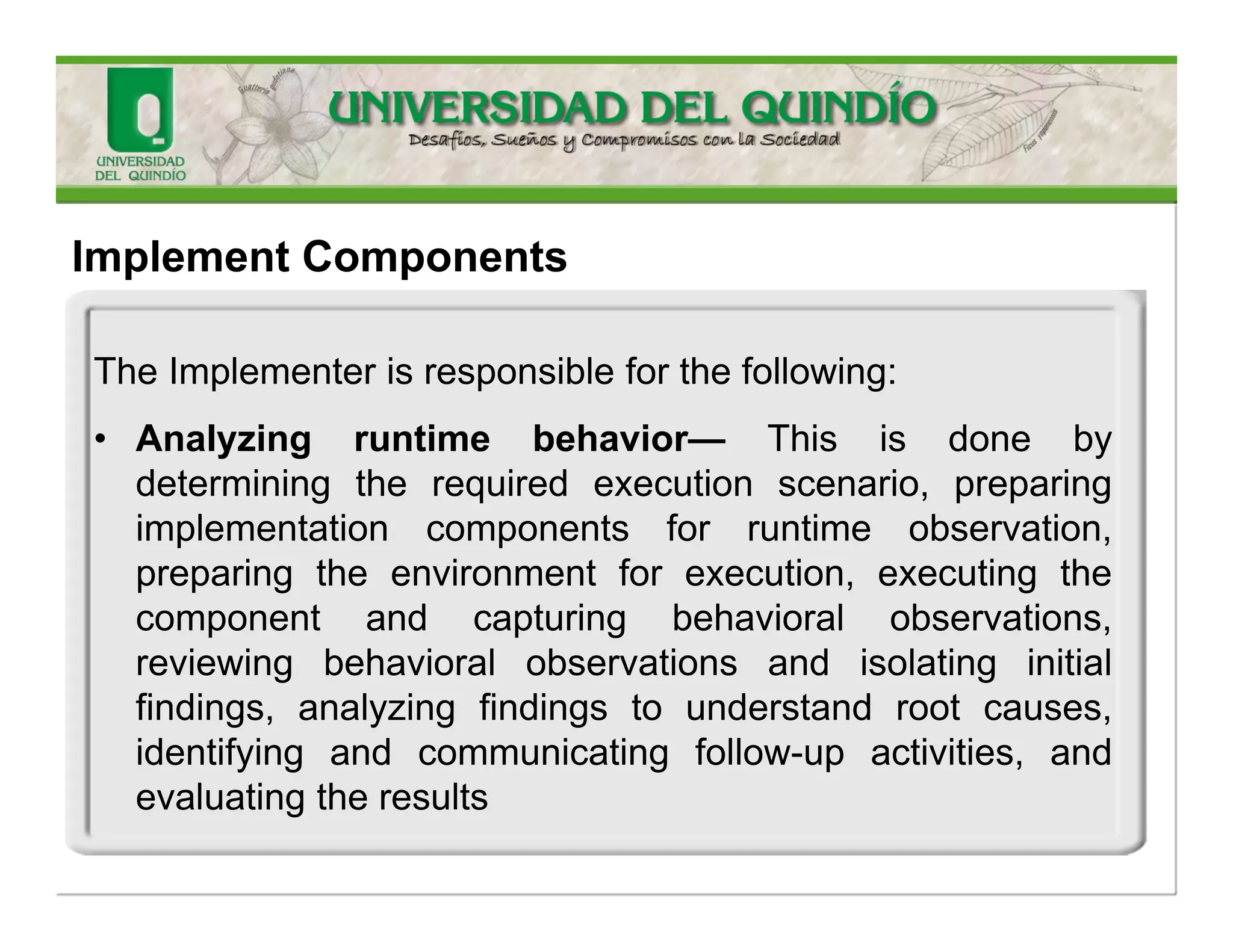

23. TheImplementerisresponsibleforthefollowing:
•Analyzingruntimebehavior—Thisisdonebydeterminingtherequiredexecutionscenario,preparingimplementationcomponentsforruntimeobservation, preparingtheenvironmentforexecution,executingthecomponentandcapturingbehavioralobservations, reviewingbehavioralobservationsandisolatinginitialfindings,analyzingfindingstounderstandrootcauses, identifyingandcommunicatingfollow-upactivities,andevaluatingtheresults
ImplementComponents

24. TheImplementerisresponsibleforthefollowing:

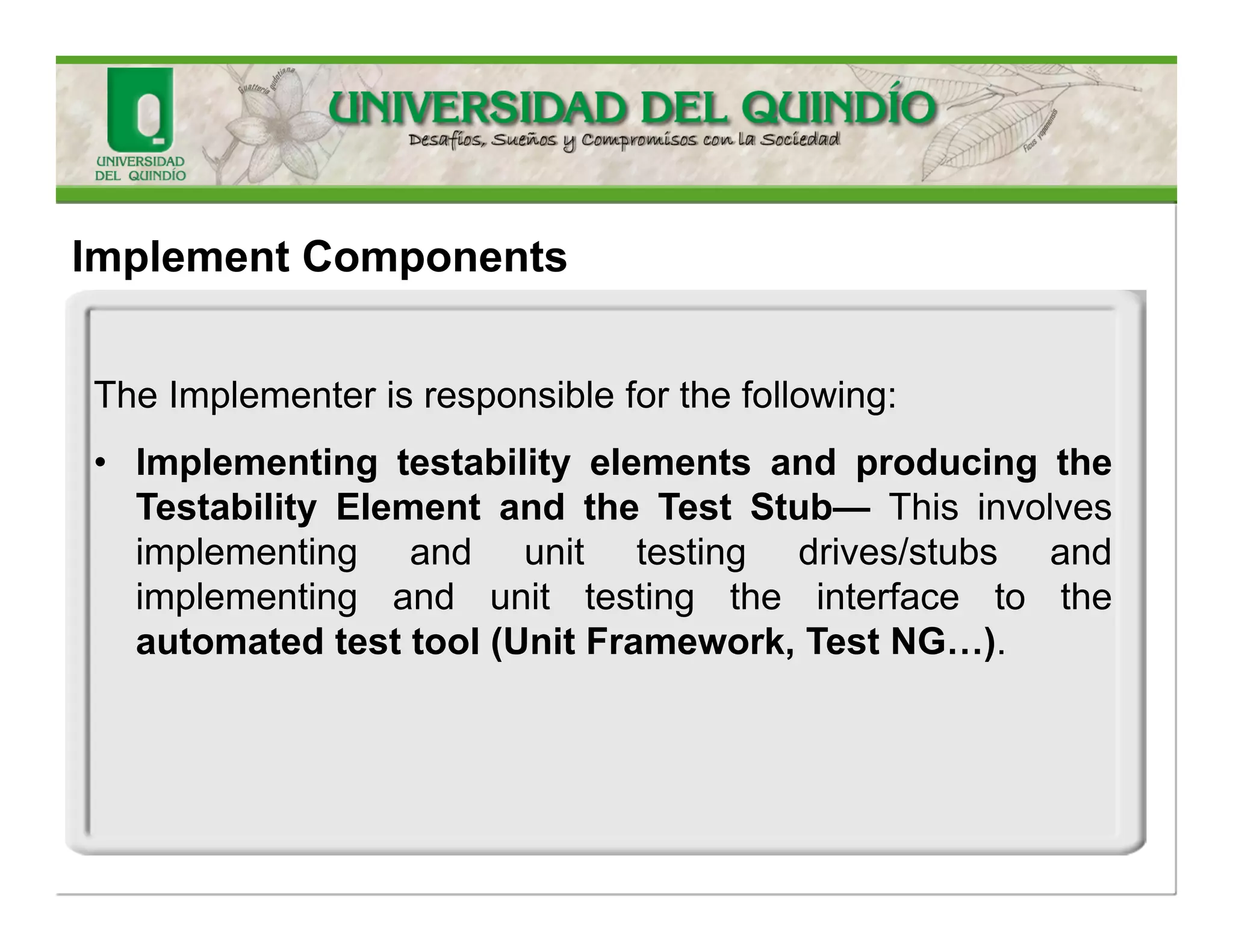

•ImplementingtestabilityelementsandproducingtheTestabilityElementandtheTestStub—Thisinvolvesimplementingandunittestingdrives/stubsandimplementingandunittestingtheinterfacetotheautomatedtesttool(UnitFramework,TestNG…).
ImplementComponents

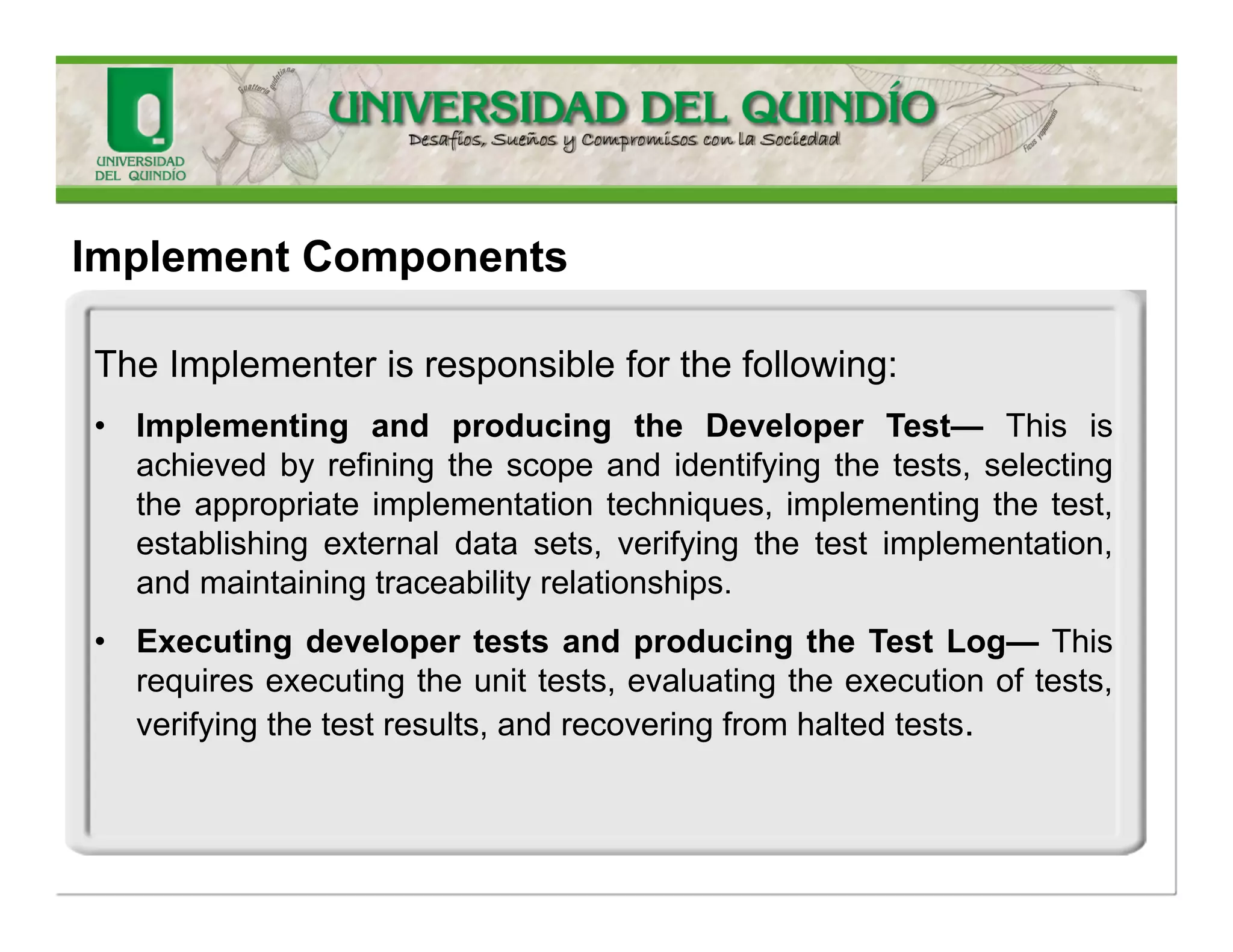

25. TheImplementerisresponsibleforthefollowing:
•ImplementingandproducingtheDeveloperTest—Thisisachievedbyrefiningthescopeandidentifyingthetests,selectingtheappropriateimplementationtechniques,implementingthetest, establishingexternaldatasets,verifyingthetestimplementation, andmaintainingtraceabilityrelationships.
•ExecutingdevelopertestsandproducingtheTestLog—Thisrequiresexecutingtheunittests,evaluatingtheexecutionoftests, verifyingthetestresults,andrecoveringfromhaltedtests.
ImplementComponents

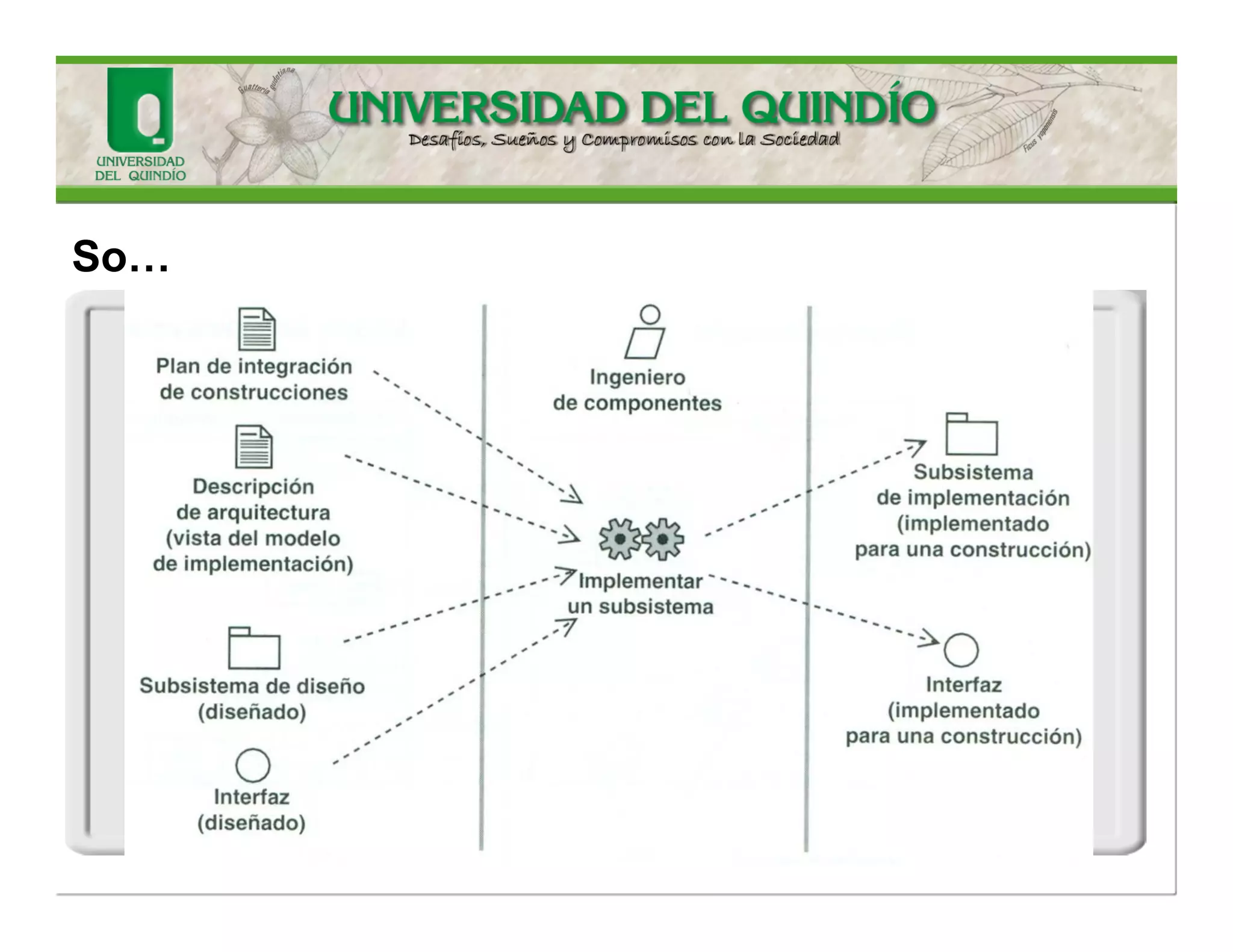

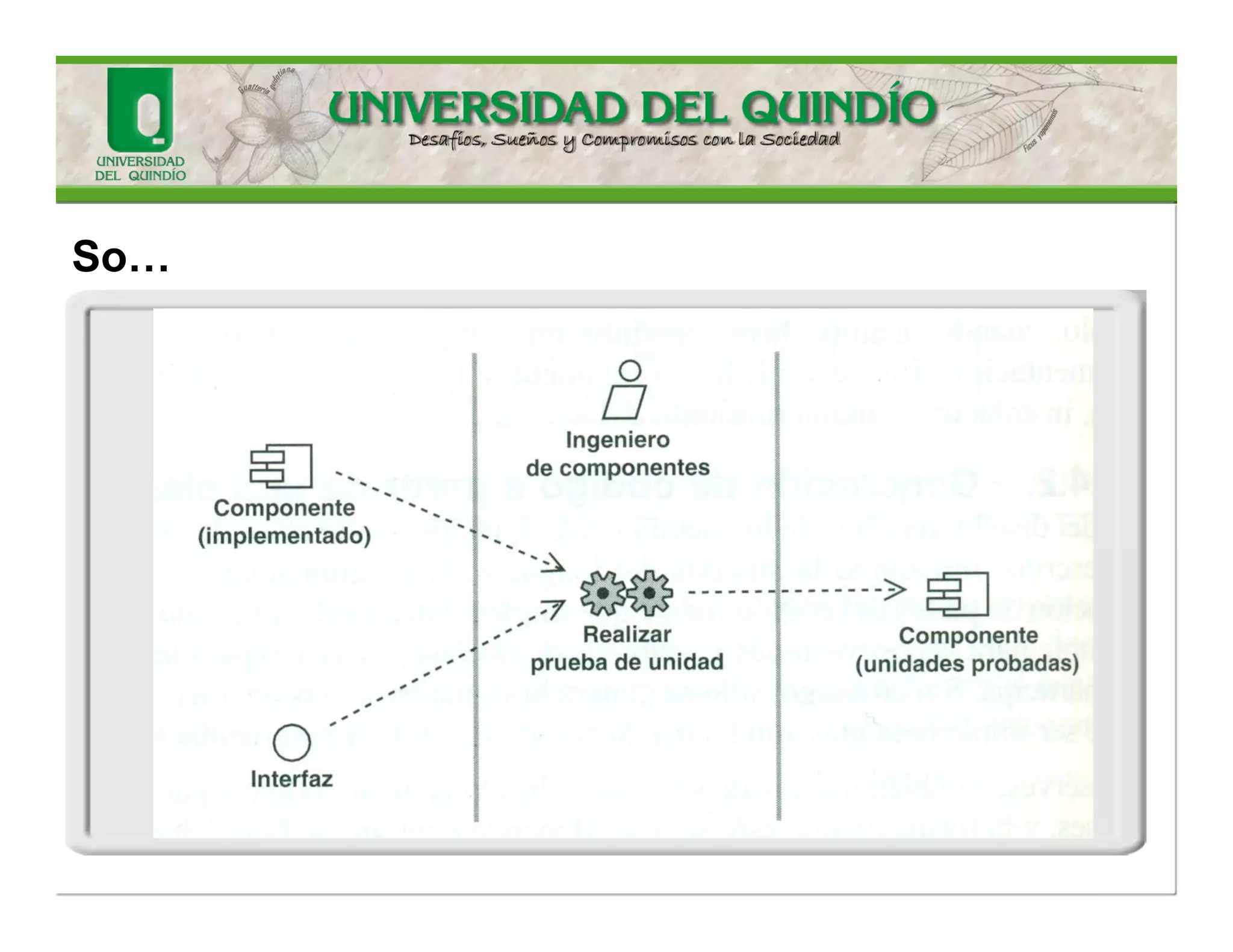

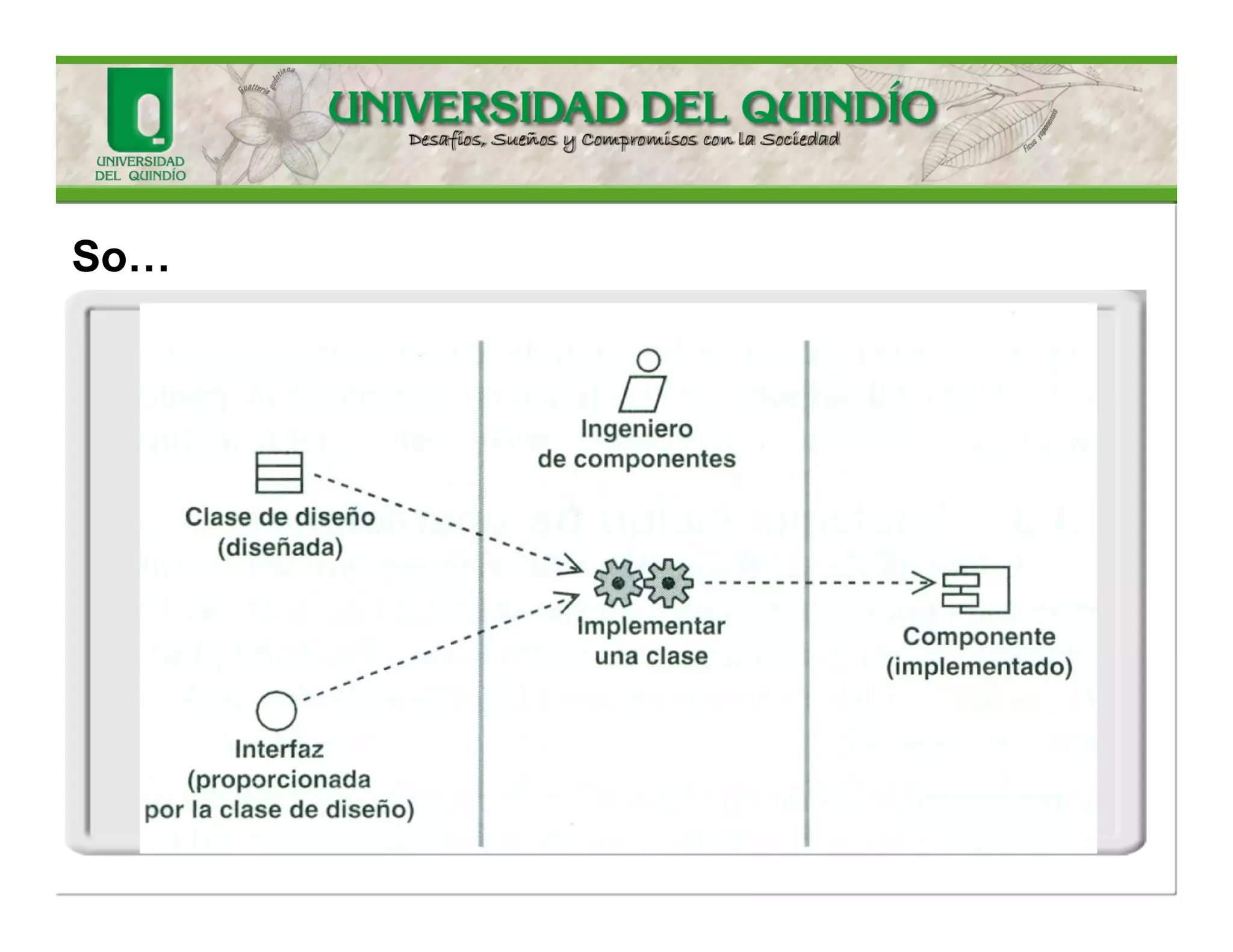

26. So…

27. So…

28. So…

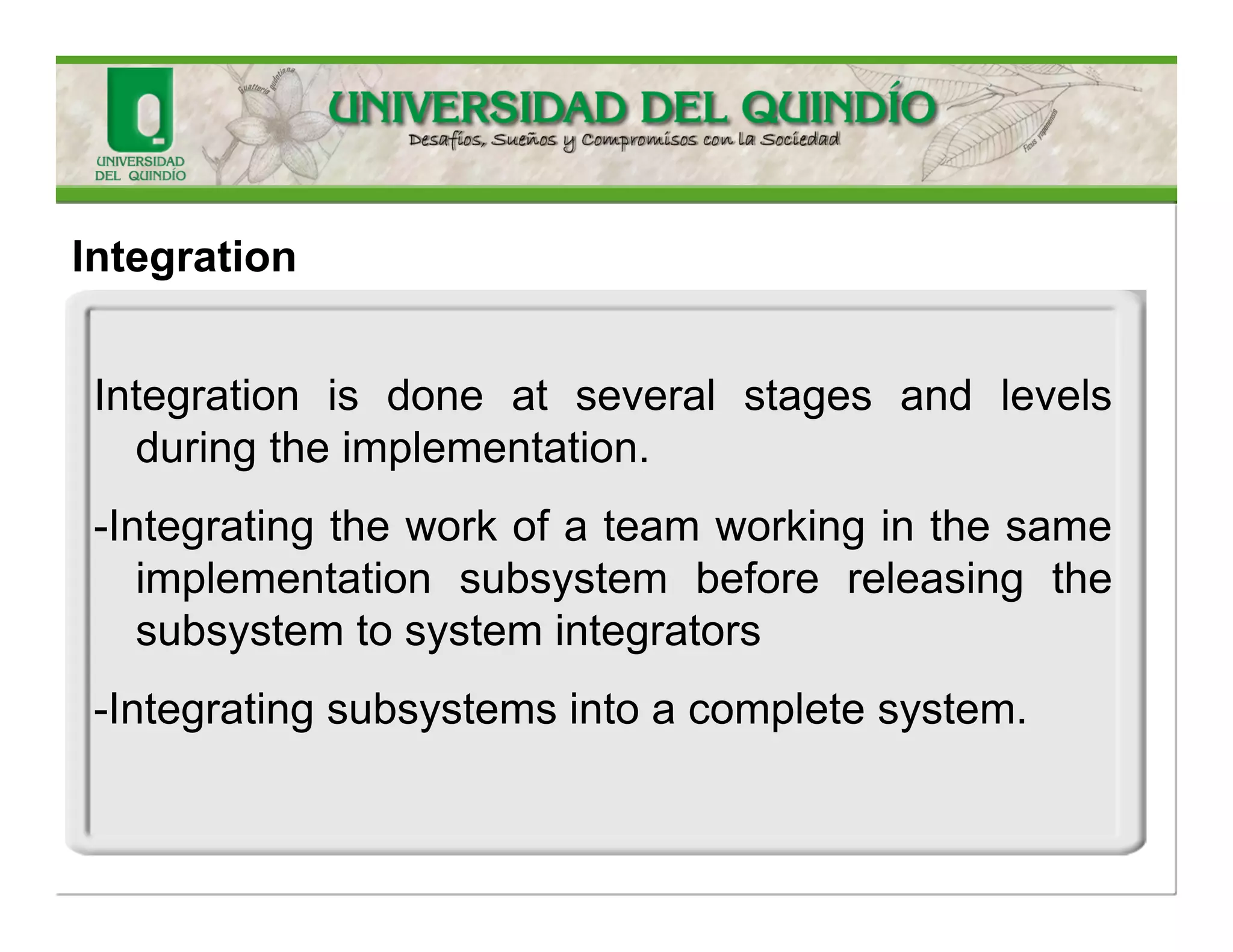

29. Integration

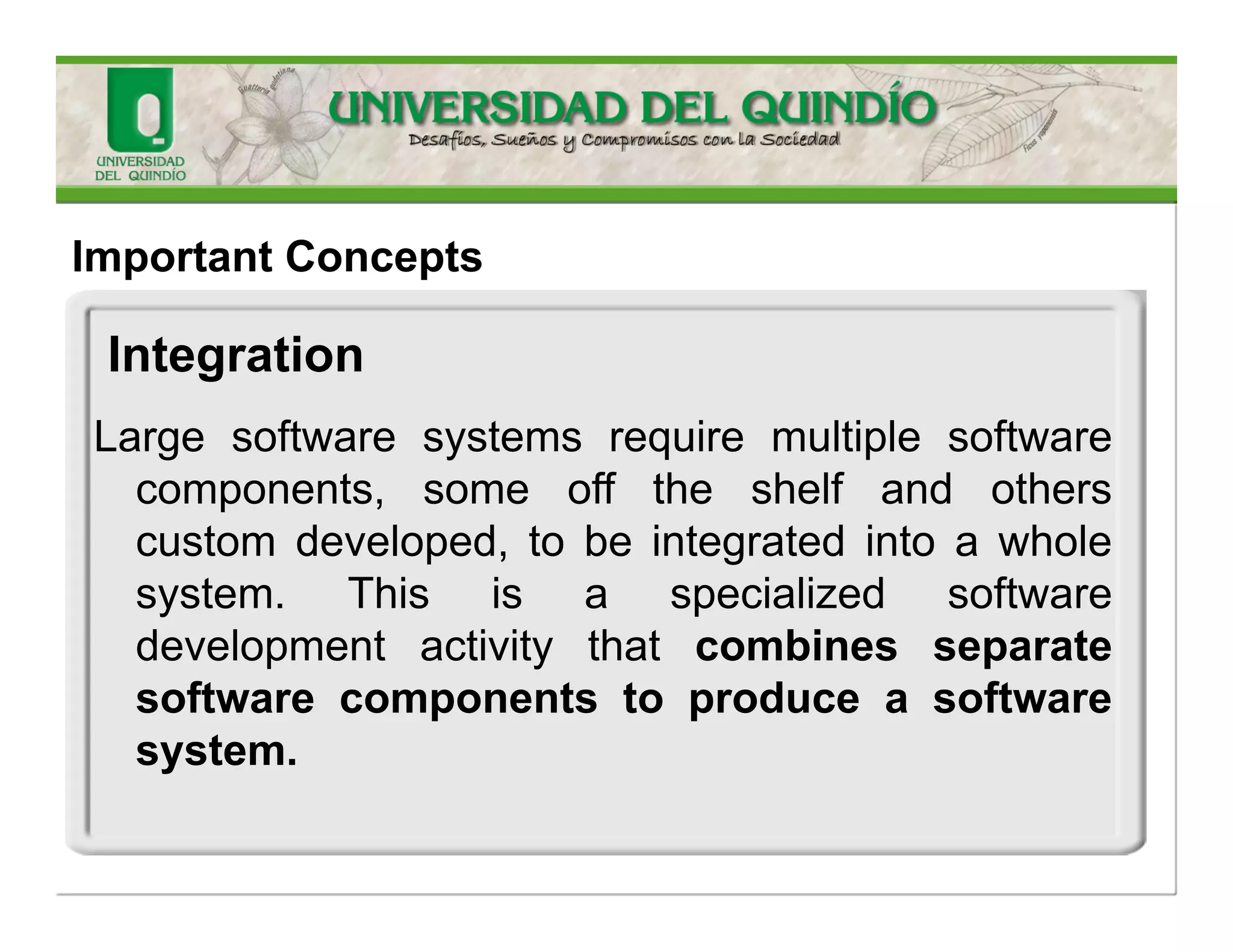

Largesoftwaresystemsrequiremultiplesoftwarecomponents,someofftheshelfandotherscustomdeveloped,tobeintegratedintoawholesystem.Thisisaspecializedsoftwaredevelopmentactivitythatcombinesseparatesoftwarecomponentstoproduceasoftwaresystem.
ImportantConcepts

30. Integrationisdoneatseveralstagesandlevelsduringtheimplementation.
-Integratingtheworkofateamworkinginthesameimplementationsubsystembeforereleasingthesubsystemtosystemintegrators
-Integratingsubsystemsintoacompletesystem.
Integration

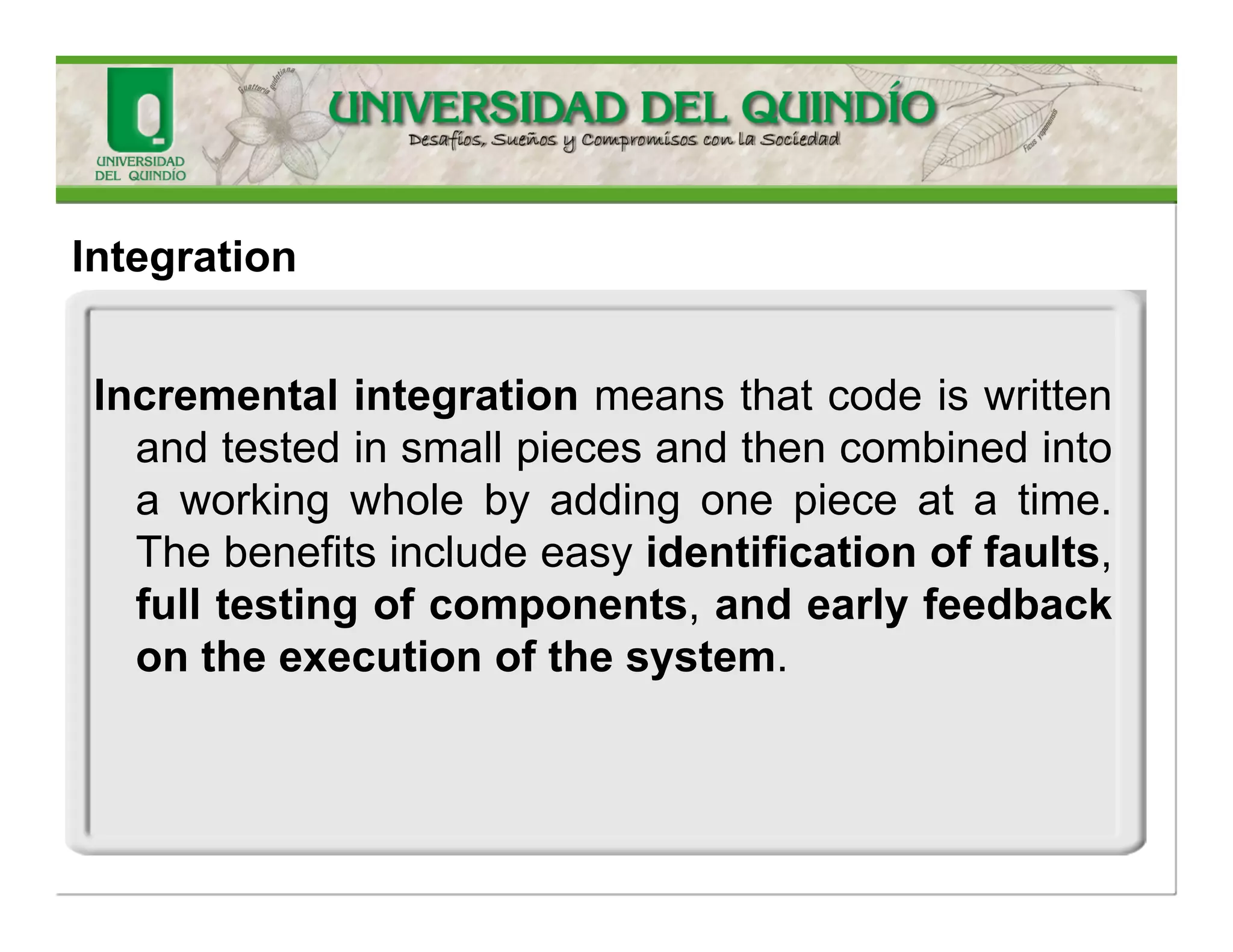

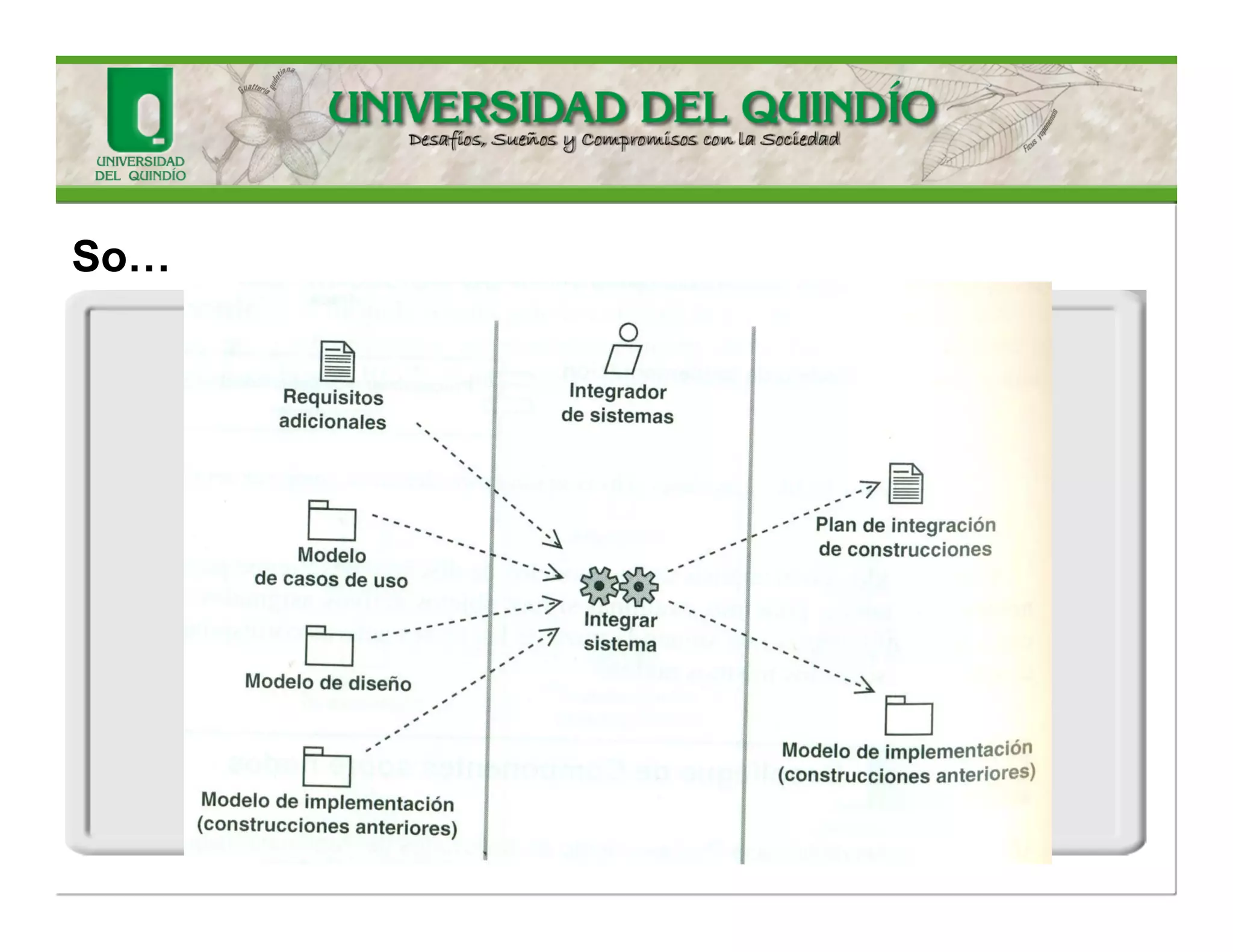

31. Incrementalintegrationmeansthatcodeiswrittenandtestedinsmallpiecesandthencombinedintoaworkingwholebyaddingonepieceatatime. Thebenefitsincludeeasyidentificationoffaults, fulltestingofcomponents,andearlyfeedbackontheexecutionofthesystem.
Integration

32. So…

33. ImportantConcepts

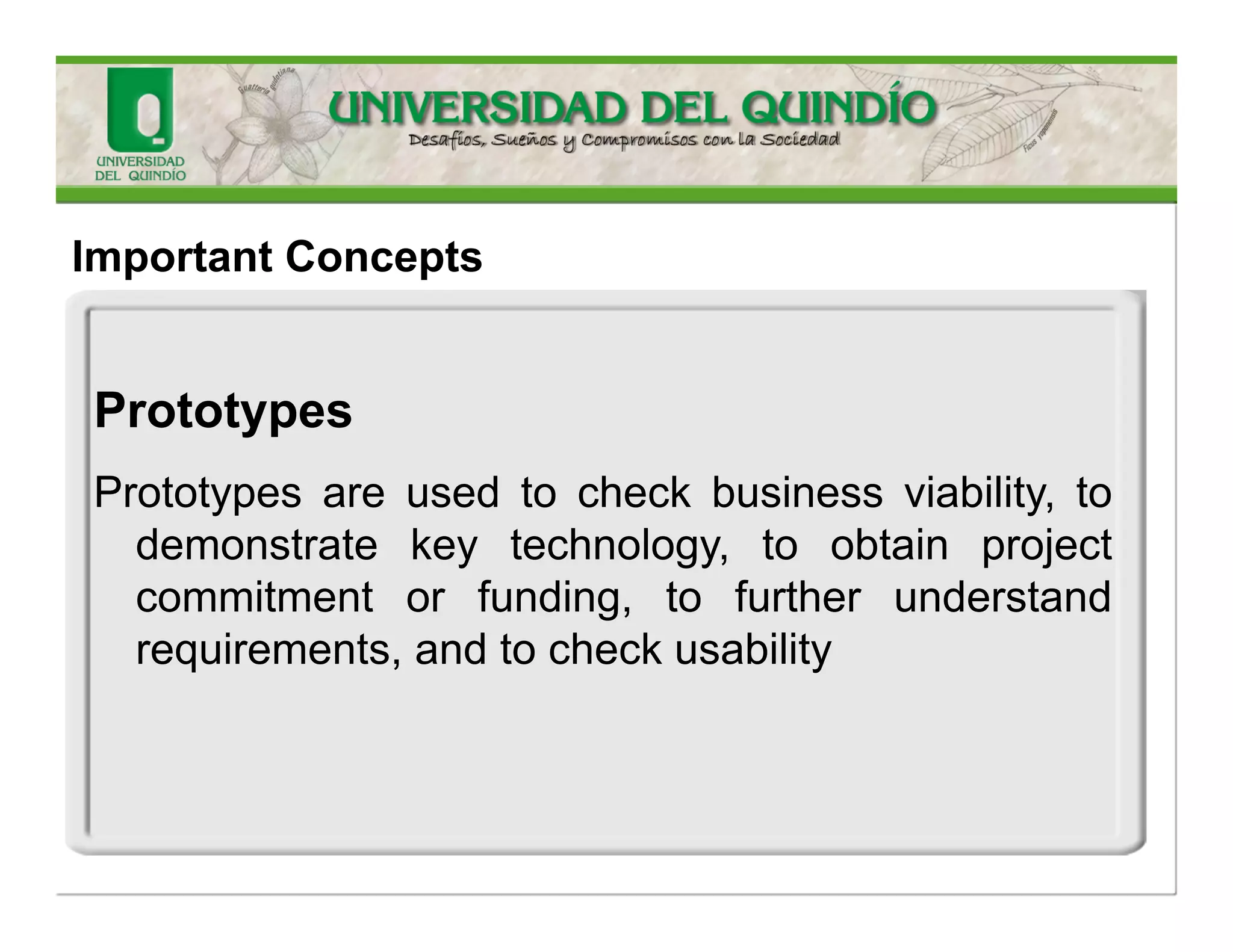

Prototypes
Prototypesareusedtocheckbusinessviability,todemonstratekeytechnology,toobtainprojectcommitmentorfunding,tofurtherunderstandrequirements,andtocheckusability

34. ImportantConcepts

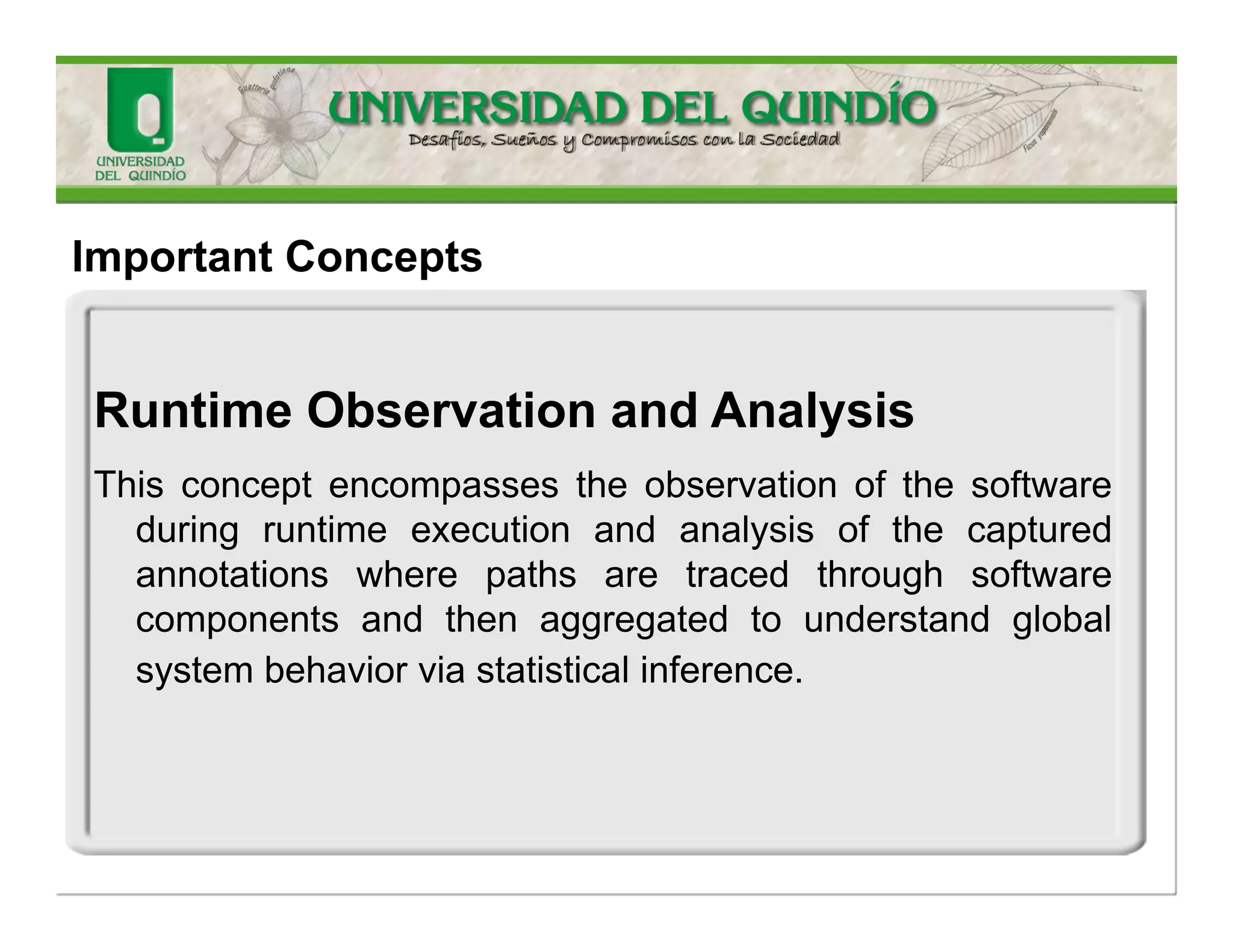

RuntimeObservationand Analysis
Thisconceptencompassestheobservationofthesoftwareduringruntimeexecutionandanalysisofthecapturedannotationswherepathsaretracedthroughsoftwarecomponentsandthenaggregatedtounderstandglobalsystembehaviorviastatisticalinference.

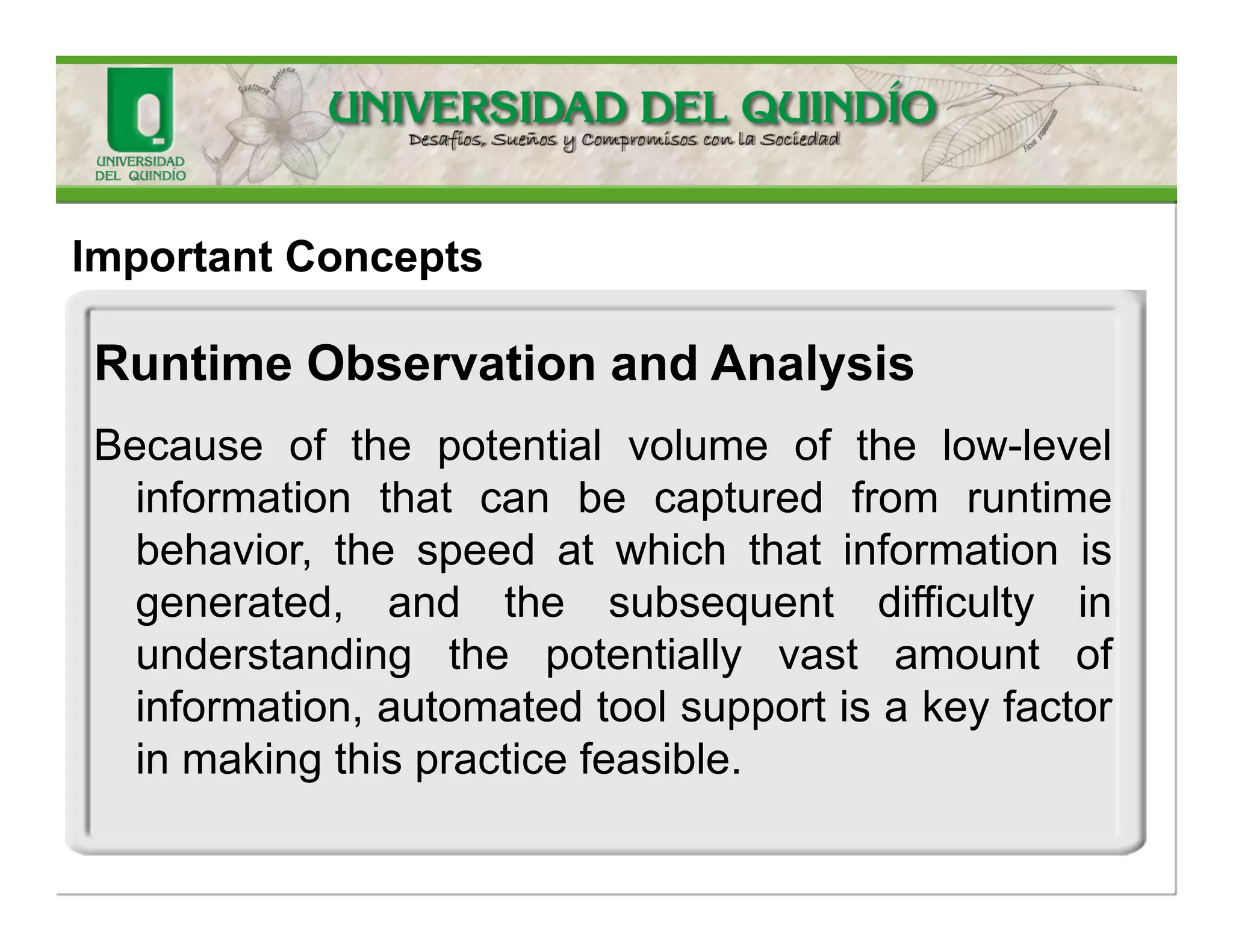

35. ImportantConcepts
RuntimeObservationand Analysis
Becauseofthepotentialvolumeofthelow-levelinformationthatcanbecapturedfromruntimebehavior,thespeedatwhichthatinformationisgenerated,andthesubsequentdifficultyinunderstandingthepotentiallyvastamountofinformation,automatedtoolsupportisakeyfactorinmakingthispracticefeasible.

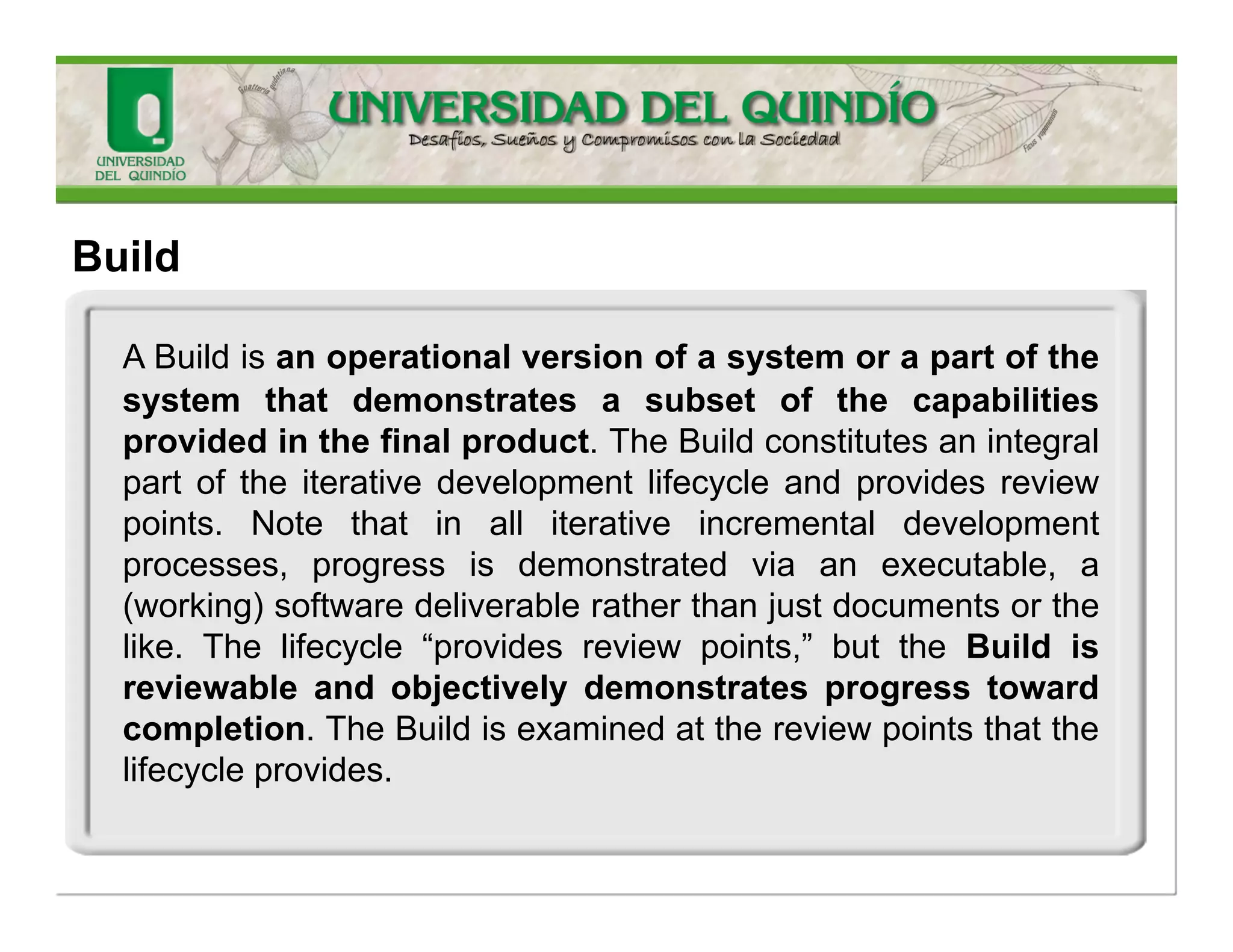

36. ABuildisanoperationalversionofasystemorapartofthesystemthatdemonstratesasubsetofthecapabilitiesprovidedinthefinalproduct.TheBuildconstitutesanintegralpartoftheiterativedevelopmentlifecycleandprovidesreviewpoints.Notethatinalliterativeincrementaldevelopmentprocesses,progressisdemonstratedviaanexecutable,a(working)softwaredeliverableratherthanjustdocumentsorthelike.Thelifecycle“providesreviewpoints,”buttheBuildisreviewableandobjectivelydemonstratesprogresstowardcompletion.TheBuildisexaminedatthereviewpointsthatthelifecycleprovides.
Build

37. Build

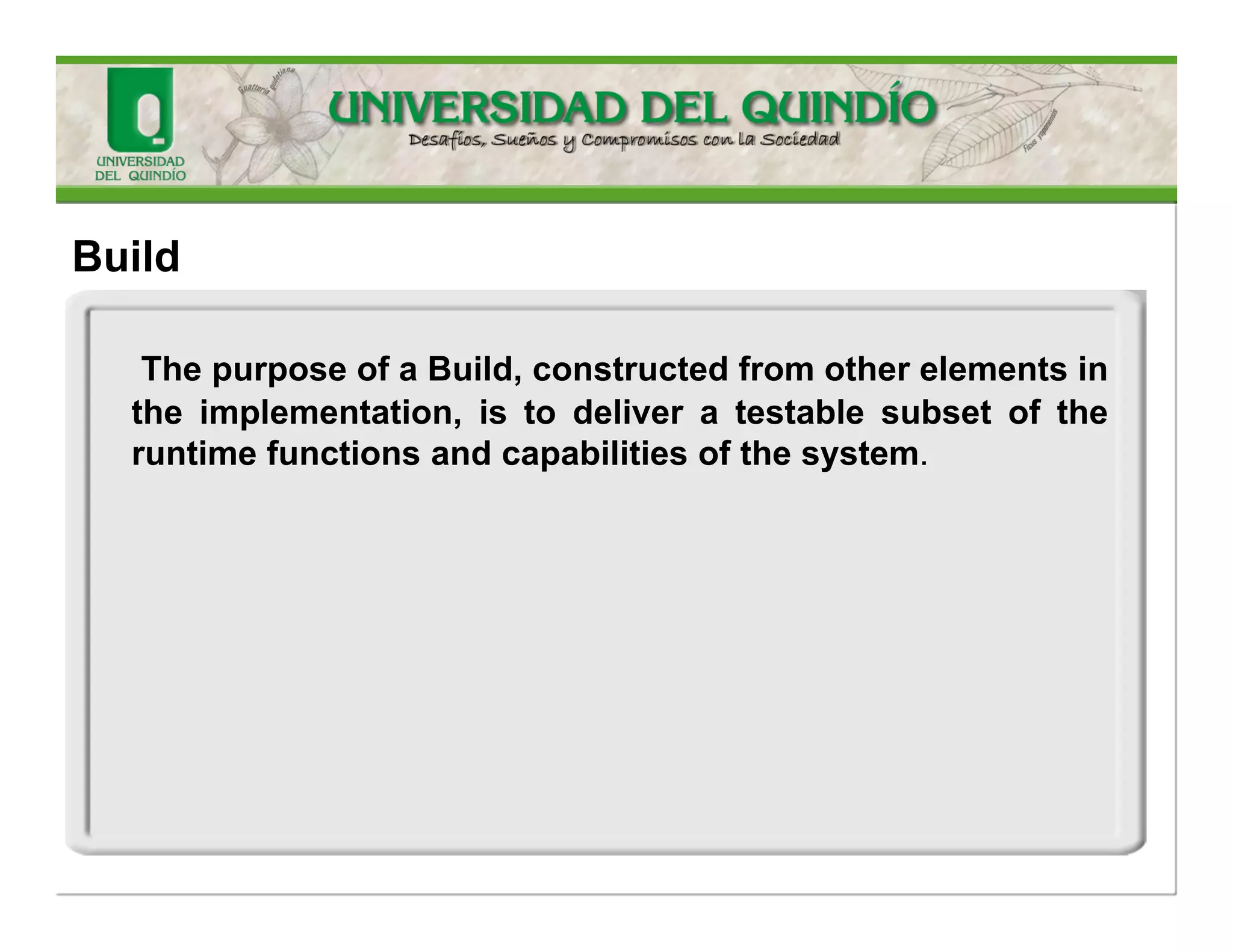

ThepurposeofaBuild,constructedfromotherelementsintheimplementation,istodeliveratestablesubsetoftheruntimefunctionsandcapabilitiesofthesystem.

38. IntegrationBuildPlan

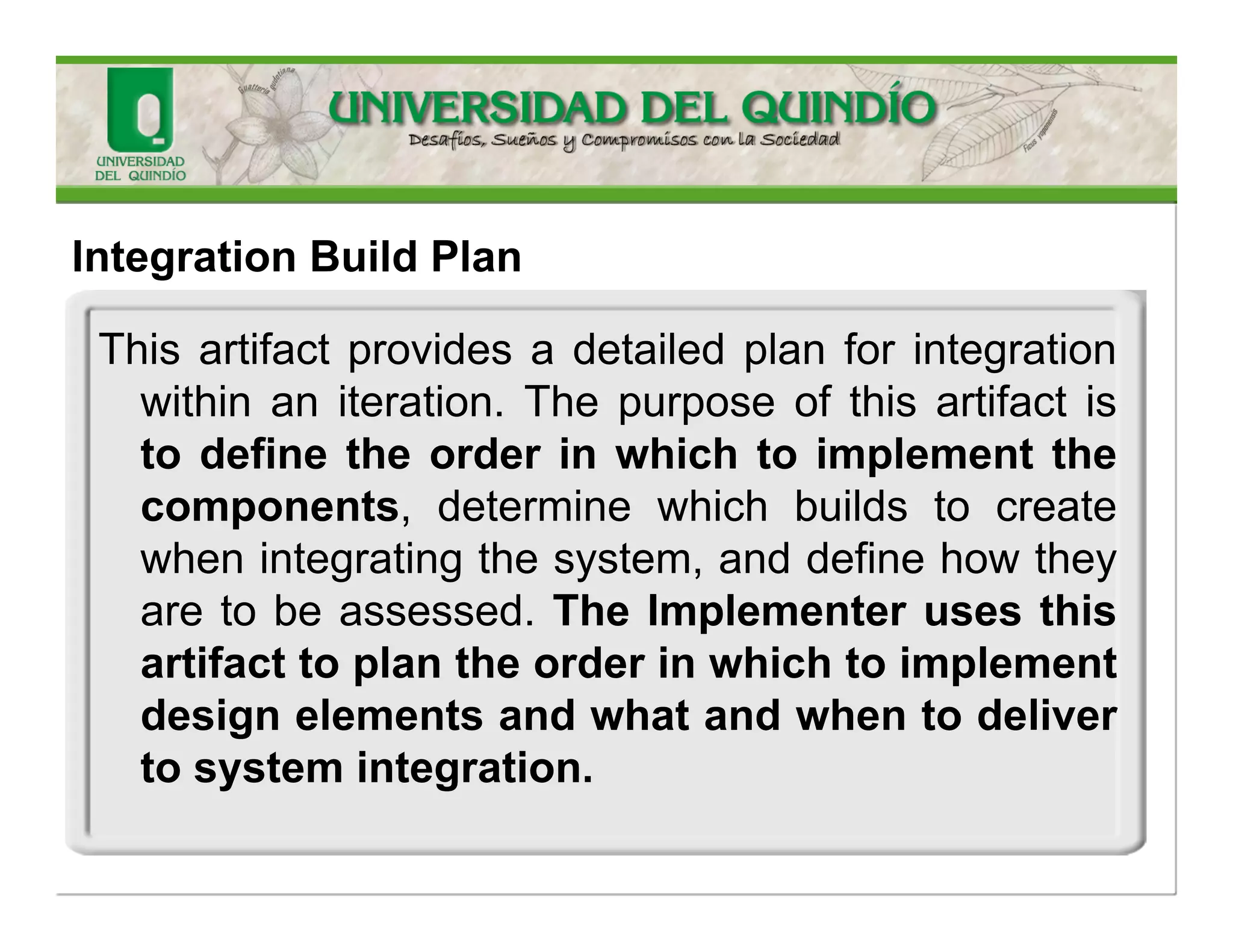

Thisartifactprovidesadetailedplanforintegrationwithinaniteration.Thepurposeofthisartifactistodefinetheorderinwhichtoimplementthecomponents,determinewhichbuildstocreatewhenintegratingthesystem,anddefinehowtheyaretobeassessed.TheImplementerusesthisartifacttoplantheorderinwhichtoimplementdesignelementsandwhatandwhentodelivertosystemintegration.

39. IntegrationBuildPlan
-Integratorleadstheplanningandexecutionofimplementationelementintegrationtoproducebuilds.
-TheIntegratorusestheintegrationbuildplanasaplanningtool

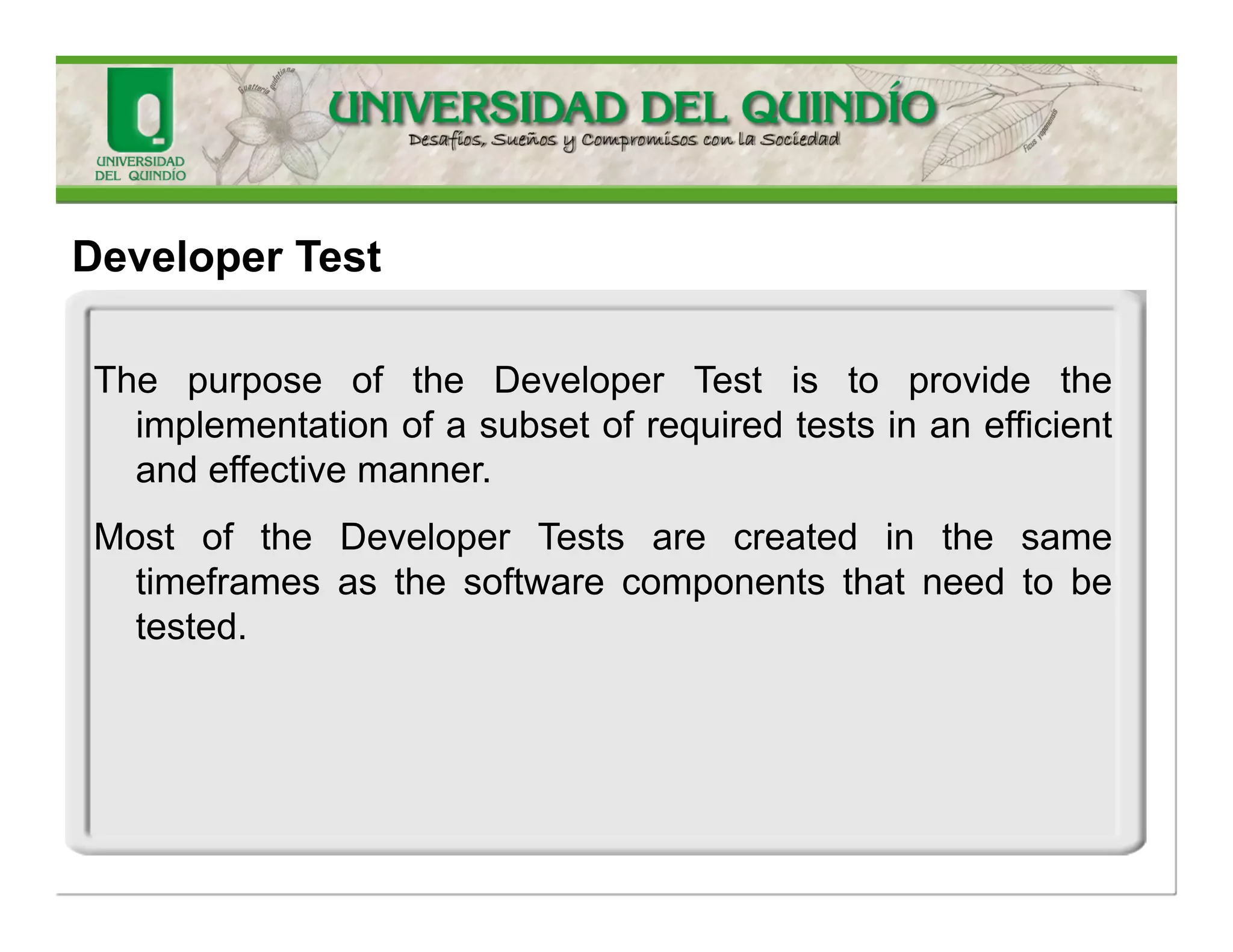

40. DeveloperTest
ThepurposeoftheDeveloperTestistoprovidetheimplementationofasubsetofrequiredtestsinanefficientandeffectivemanner.
MostoftheDeveloperTestsarecreatedinthesametimeframesasthesoftwarecomponentsthatneedtobetested.

41. Component-UML

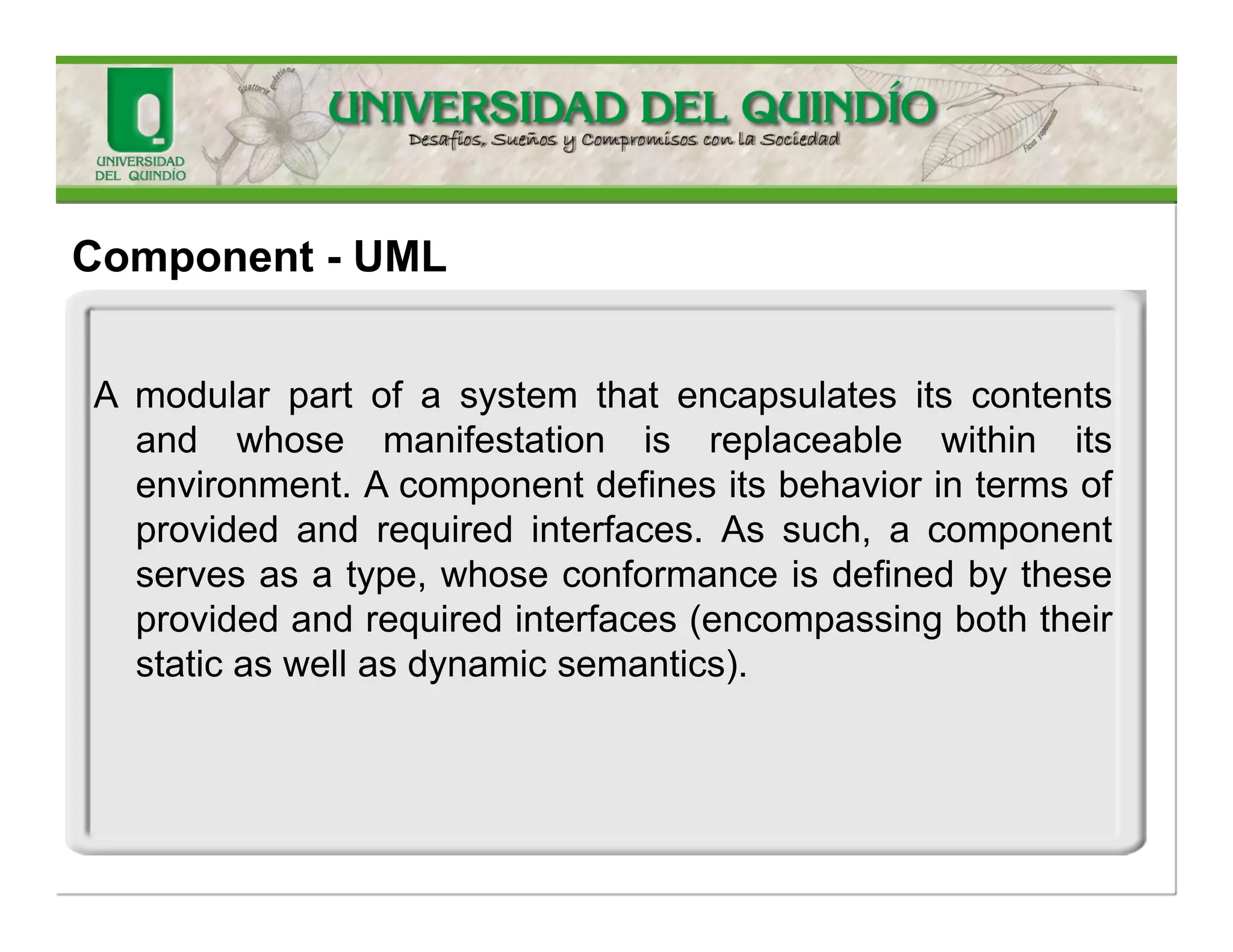

Amodularpartofasystemthatencapsulatesitscontentsandwhosemanifestationisreplaceablewithinitsenvironment.Acomponentdefinesitsbehaviorintermsofprovidedandrequiredinterfaces.Assuch,acomponentservesasatype,whoseconformanceisdefinedbytheseprovidedandrequiredinterfaces(encompassingboththeirstaticaswellasdynamicsemantics).

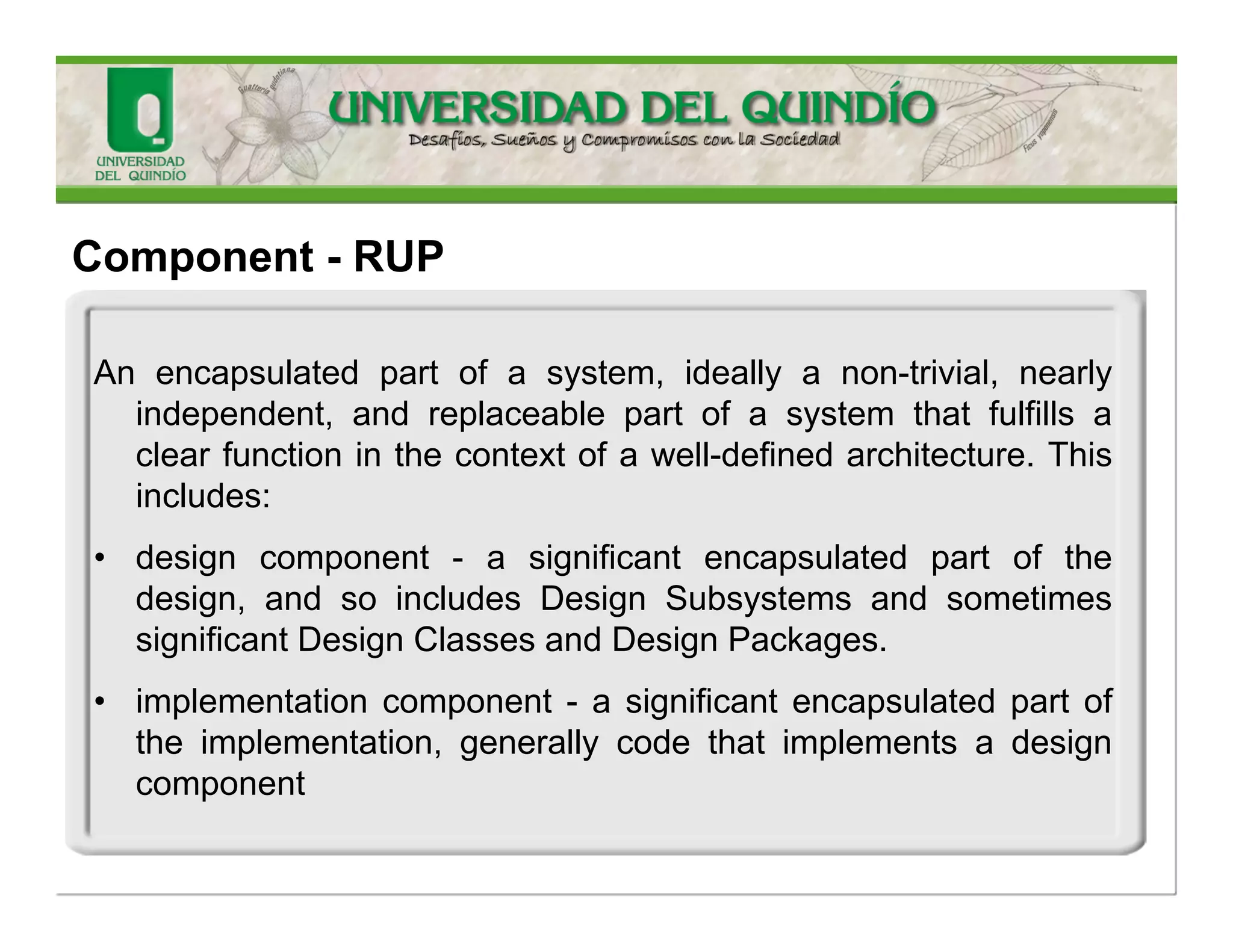

42. Anencapsulatedpartofasystem,ideallyanon-trivial,nearlyindependent,andreplaceablepartofasystemthatfulfillsaclearfunctioninthecontextofawell-definedarchitecture.Thisincludes:
•designcomponent-asignificantencapsulatedpartofthedesign,andsoincludesDesignSubsystemsandsometimessignificantDesignClassesandDesignPackages.
•implementationcomponent-asignificantencapsulatedpartoftheimplementation,generallycodethatimplementsadesigncomponent
Component-RUP

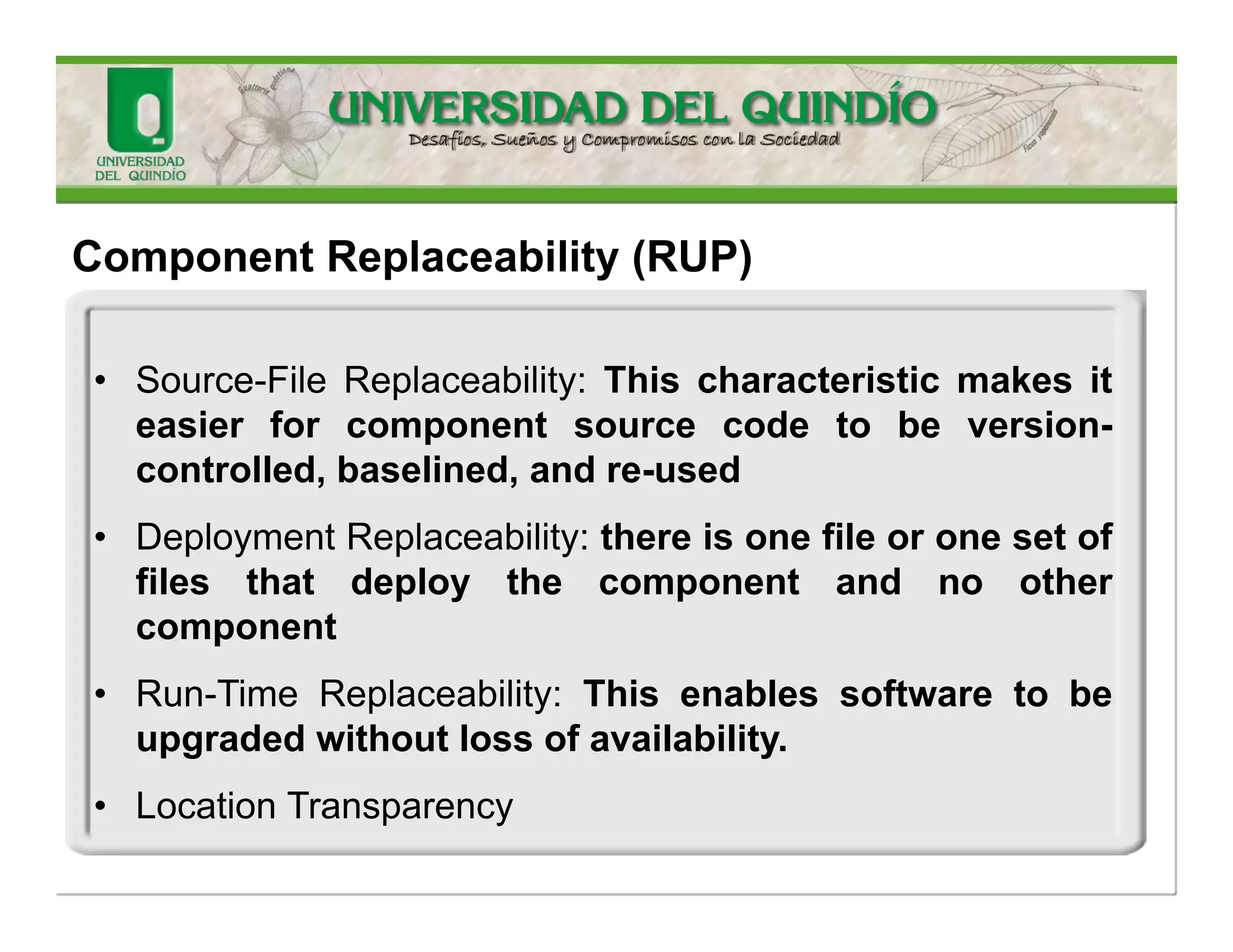

43. ComponentReplaceability(RUP)
•Source-FileReplaceability:Thischaracteristicmakesiteasierforcomponentsourcecodetobeversion- controlled,baselined,andre-used
•DeploymentReplaceability:thereisonefileoronesetoffilesthatdeploythecomponentandnoothercomponent
•Run-TimeReplaceability:Thisenablessoftwaretobeupgradedwithoutlossofavailability.
•LocationTransparency

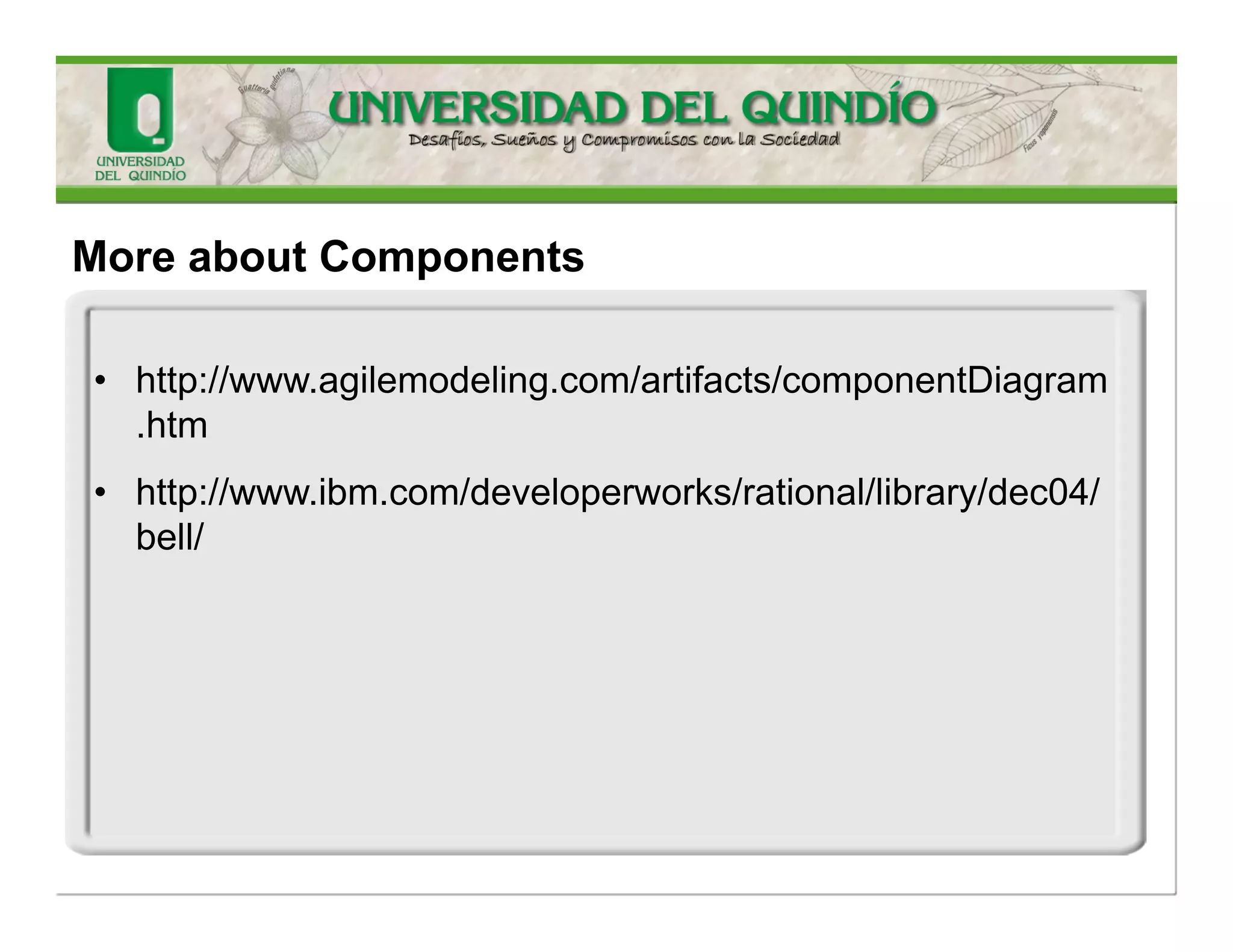

44. More aboutComponents
•http://www.agilemodeling.com/artifacts/componentDiagram.htm
•http://www.ibm.com/developerworks/rational/library/dec04/ bell/

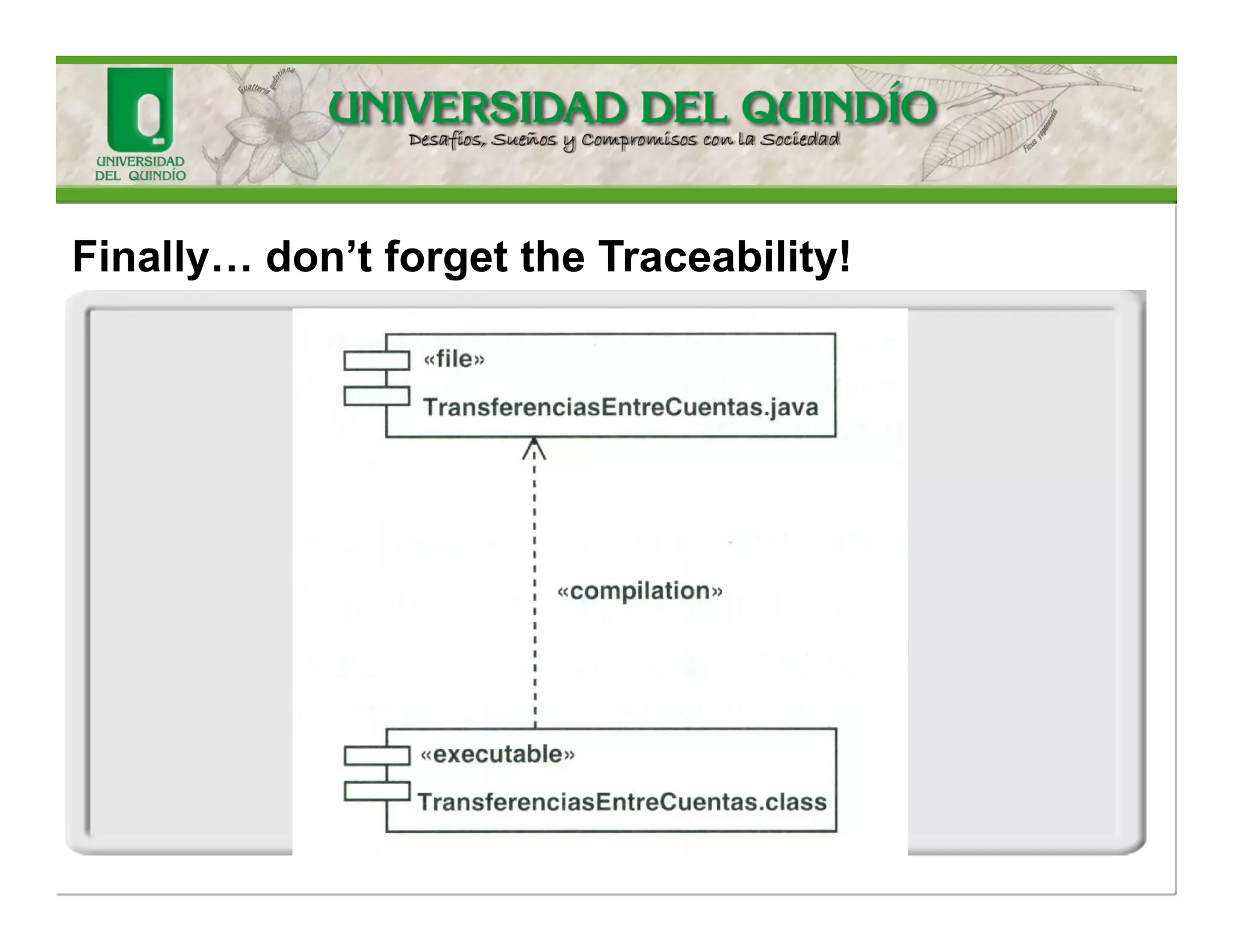

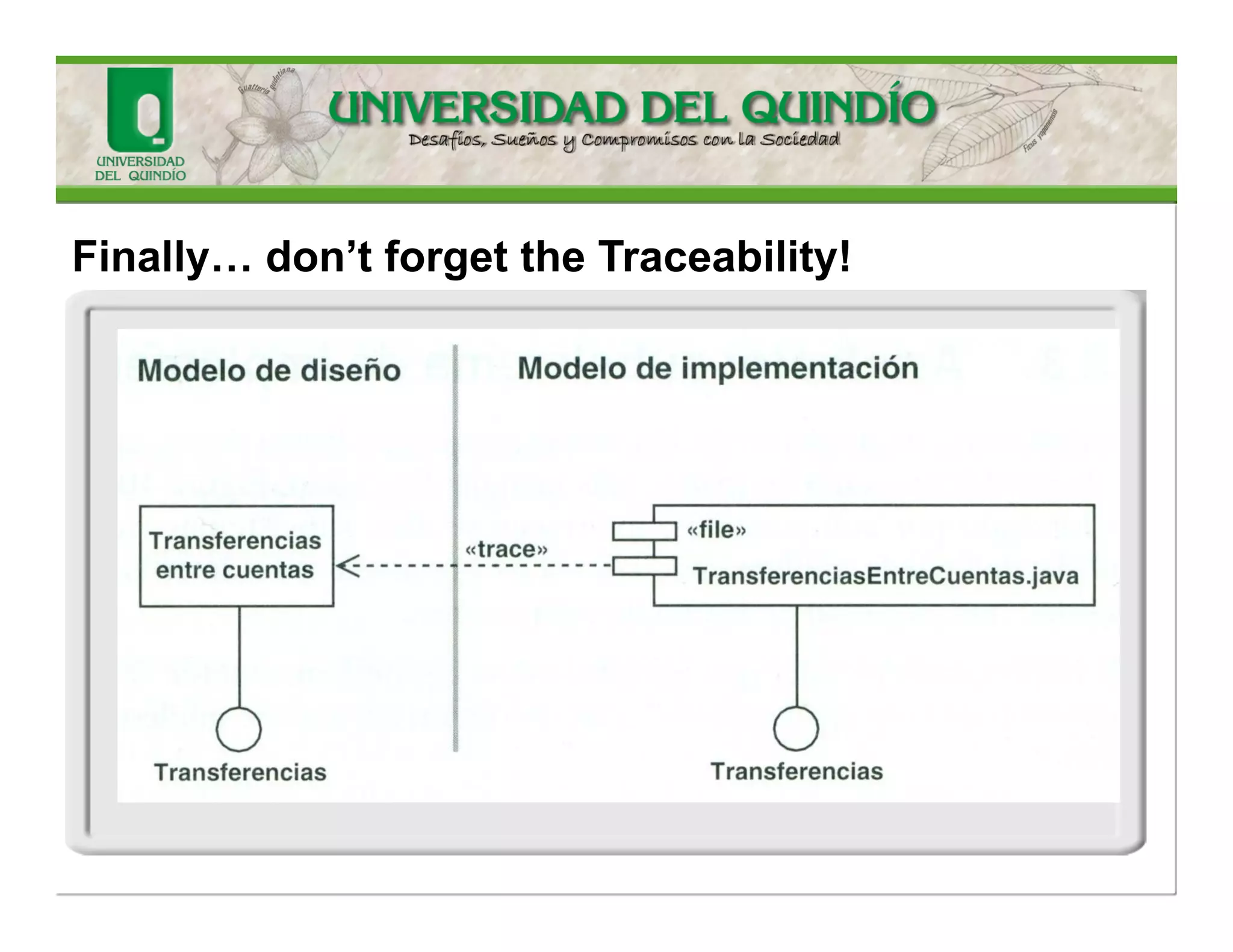

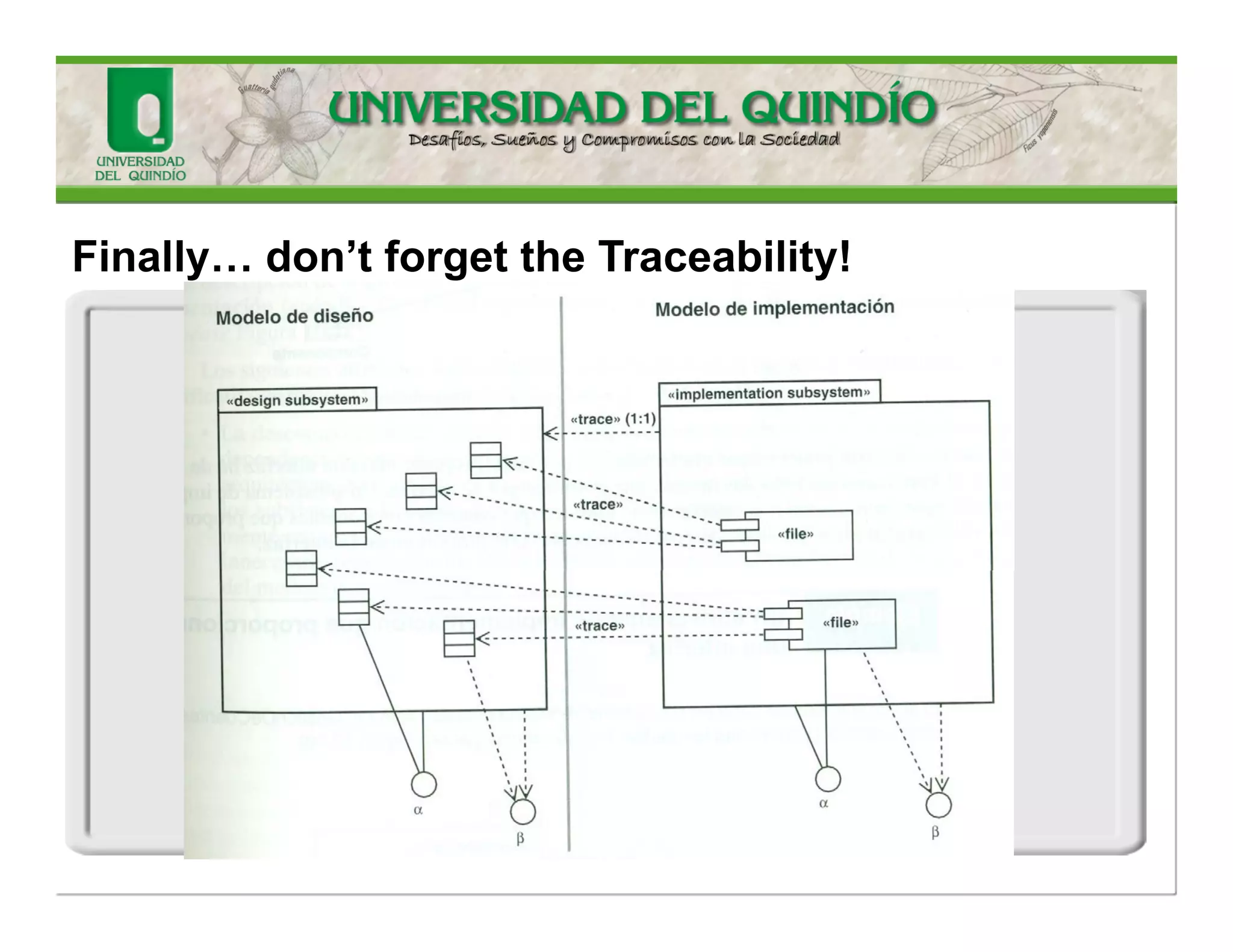

45. Finally… don’tforgettheTraceability!

46. Finally… don’tforgettheTraceability!

47. Finally… don’tforgettheTraceability!

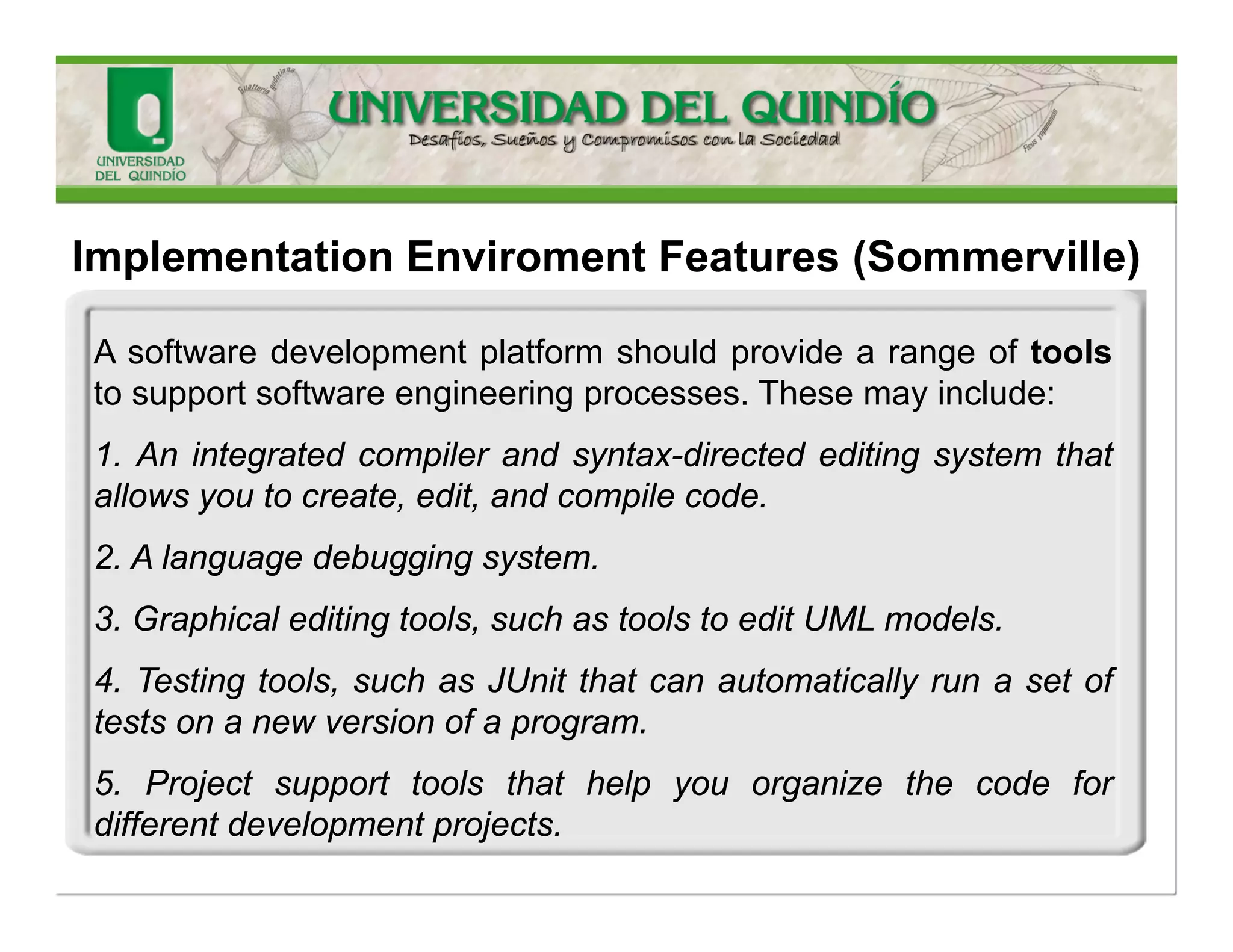

48. ImplementationEnviromentFeatures(Sommerville)
Asoftwaredevelopmentplatformshouldprovidearangeoftoolstosupportsoftwareengineeringprocesses.Thesemayinclude:
1.Anintegratedcompilerandsyntax-directededitingsystemthatallowsyoutocreate,edit,andcompilecode.
2.Alanguagedebuggingsystem.
3.Graphicaleditingtools,suchastoolstoeditUMLmodels.
4.Testingtools,suchasJUnitthatcanautomaticallyrunasetoftestsonanewversionofaprogram.
5.Projectsupporttoolsthathelpyouorganizethecodefordifferentdevelopmentprojects.

49. Be careful

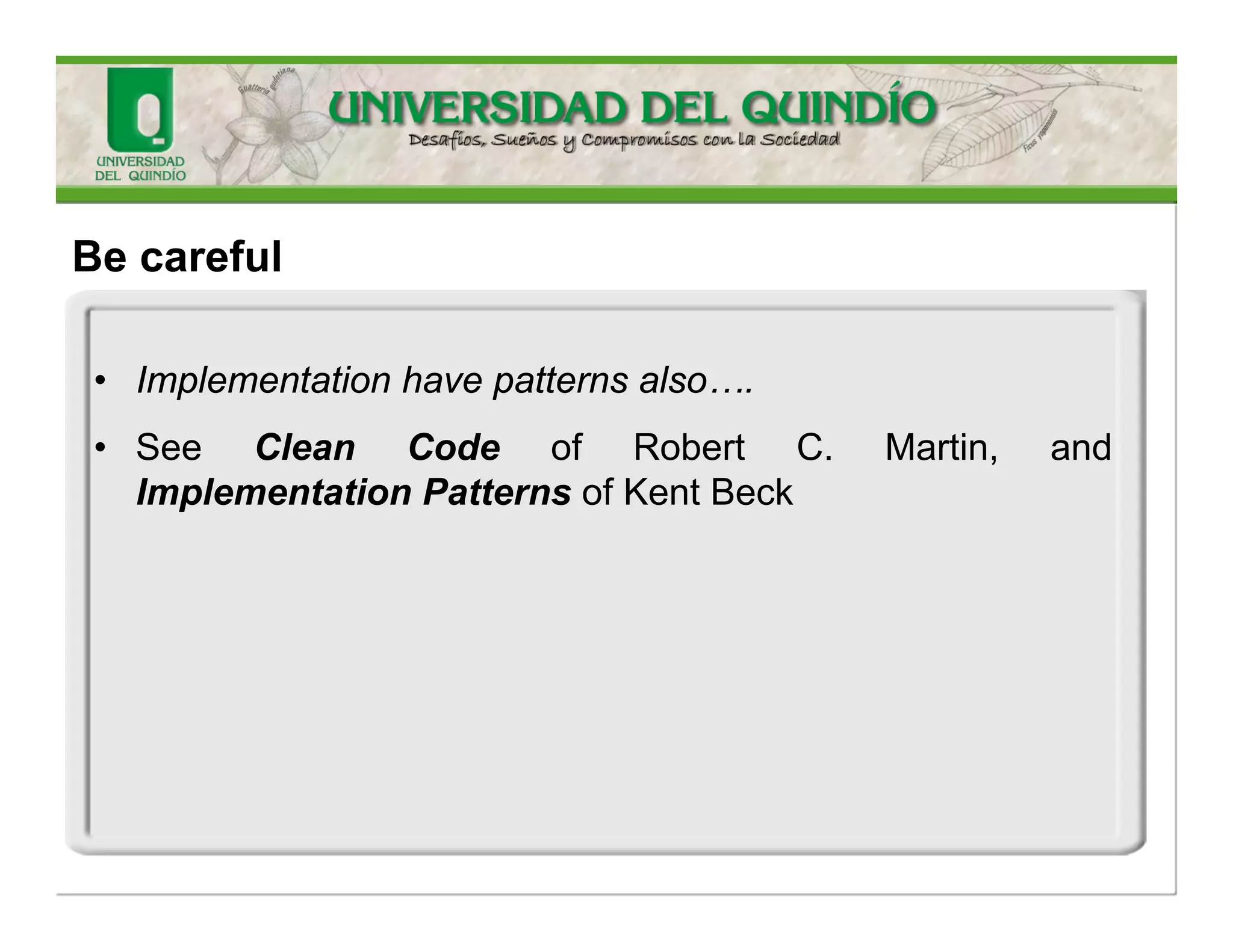

•Implementationhavepatternsalso….
•SeeCleanCodeofRobertC.Martin,andImplementationPatternsofKentBeck

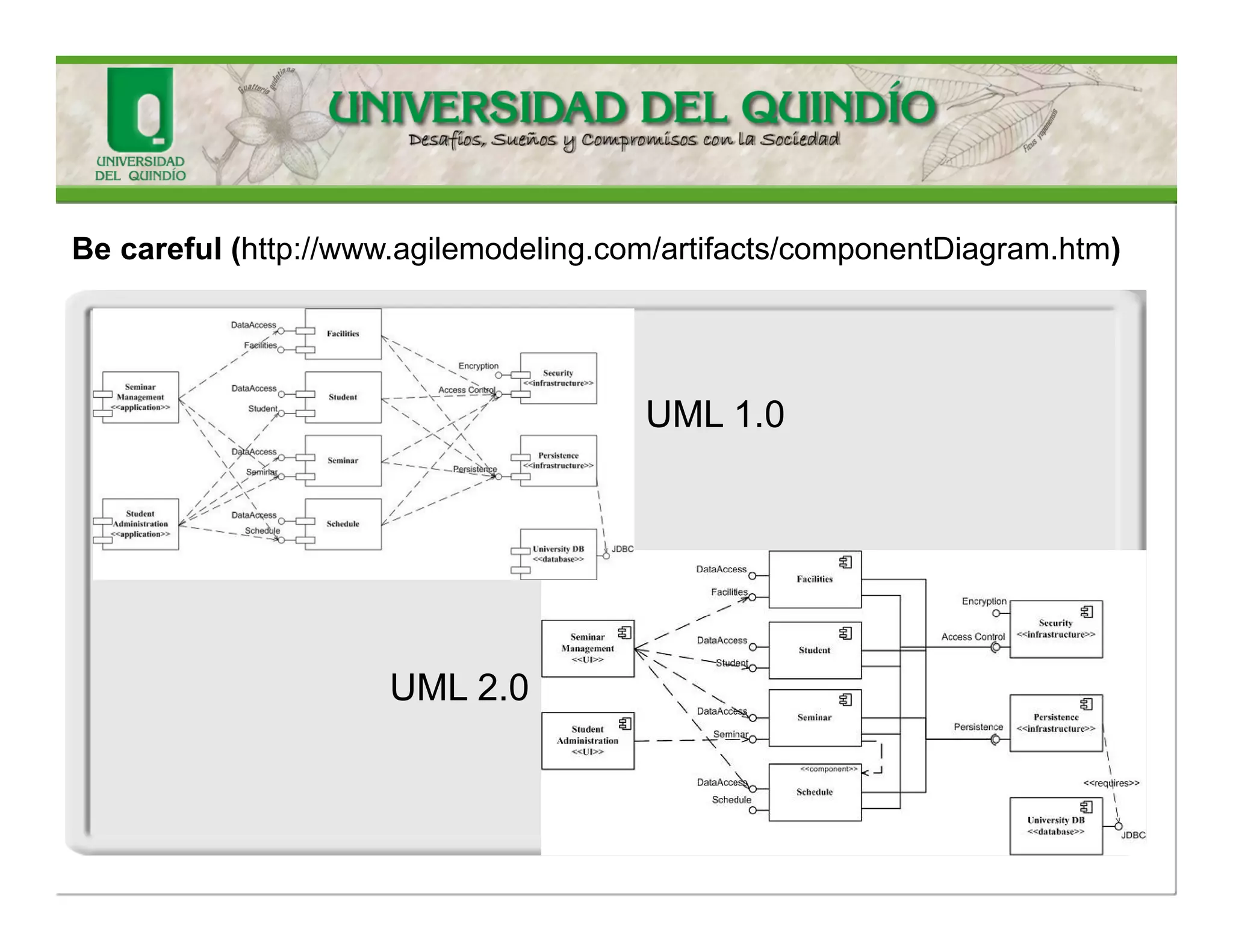

50. Be careful(http://www.agilemodeling.com/artifacts/componentDiagram.htm)
UML1.0
UML2.0

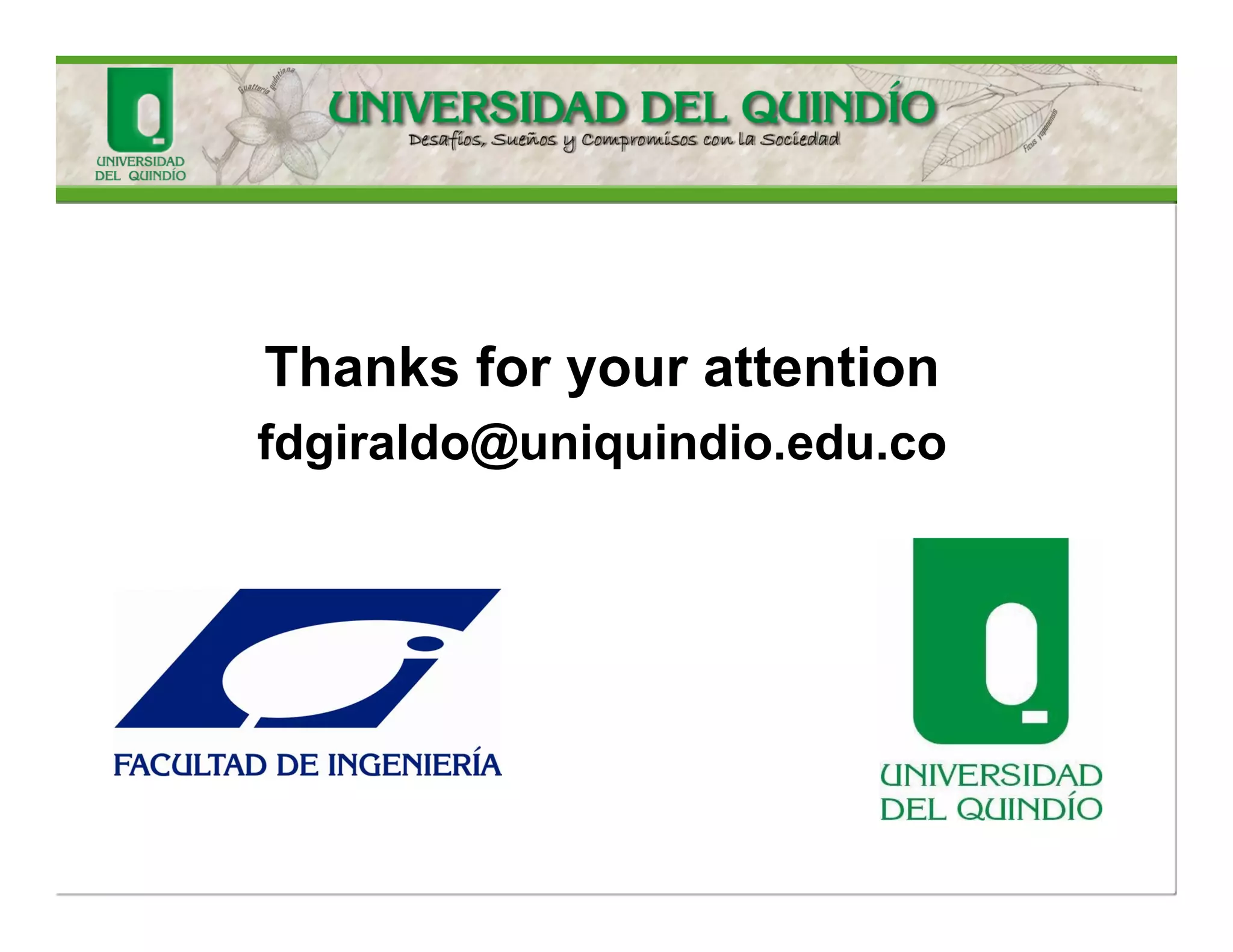

51. Thanks for your attention
