Presentation at 10th International Workshop on Simulation and Statistics. A novel method for the estimation of the underlying signal of multiple ranked lists.

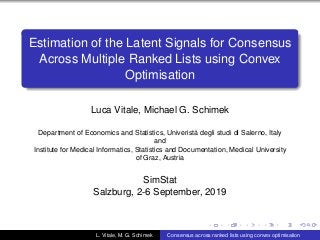

1. Estimation of the Latent Signals for Consensus
Across Multiple Ranked Lists using Convex
Optimisation
Luca Vitale, Michael G. Schimek
Department of Economics and Statistics, Univerist`a degli studi di Salerno, Italy
and
Institute for Medical Informatics, Statistics and Documentation, Medical University
of Graz, Austria
SimStat
Salzburg, 2-6 September, 2019
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

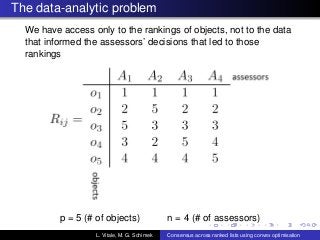

2. The data-analytic problem
We have access only to the rankings of objects, not to the data
that informed the assessors’ decisions that led to those
rankings
p = 5 (# of objects) n = 4 (# of assessors)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

3. What do we aim at?
Let us have a set of p distinct objects
Let us assume n independent assessments assigning
rank positions to the same set of objects
These objects are ranked between 1 and p, without ties
Our aim is estimation of those signal parameters
which determine the realized rank assignments
Practical Problem: Probabilistic models, especially of
Bayesian type, require computationally highly demanding
stochastic optimisation techniques
Consequence: Only rather small sets of objects can be
handled and the majority of models does not allow to solve
p n-problems
Please note: rank aggregation is a different task under the
assumption that the observed rankings are ’correct’
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

4. Necessary assumptions for the proposed method
overcoming current limitations
We assume
Xij = θtrue
i + Zij,
where the real-valued parameters θtrue
i are to be
estimated, and the Zij’s are arbitrary random variables (the
object-specific noise of each assessor)
The parameters θtrue
i represent the (normalised) ‘true’
consensus signals underlying the assessments
Random variables X1j, . . . , Xpj are observed by the jth
assessor
These random variables are ordered Xπ1,j > . . . > Xπp,j
and define the ranked list produced by the j-th assessor
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

5. Proposed method for signal estimation
The goal of consensus across the assessors (rankers) is
achieved by the reduction of the global rank order
induced noise Z
The minimum noise result is used for indirect inference to
estimate the unobserved signals θi informing the
consensus ranks
The solution is obtained by convex optimisation
techniques
Two types of penalisation are applied: linear and
quadratic, where b denotes the penalty parameter
We consider two different approaches for handling the
necessary constraints: a full method and a reduced
method, the latter for higher computational efficiency
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

6. Convex optimisation
min
x
cT x
s.t. Ax ≤ b
x ≥ 0
(1)
Where:
c is a real t-dimensional vector, where t equals the number
of variables
A is a m × t dimensional real matrix, where m is the
number of constraints
b is a m-dimensional real vector and represents the
penalisation for each constraint
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

7. Software used for convex optimisation
Gurobi1 is powerful mathematical programming solver available
for Linear Programming (LP) and Quadratic Programming (QP)
problems
In order to solve the optimisation problem, the simplex method
is used.
1
Gurobi Optimizer Reference Manual
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

8. Full method - example for construction of constraints
Constraints for one item swap:
assessor 1
θ3 + z(3,1) − θ2 − z(2,1) ≥ b
θ3 + z(3,1) − θ1 − z(1,1) ≥ b
θ2 + z(2,1) − θ1 − z(1,1) ≥ b
assessor 2
θ3 + z(3,2) − θ1 − z(1,2) ≥ b
θ3 + z(3,2) − θ2 − z(2,2) ≥ b
θ1 + z(1,2) − θ2 − z(1,2) ≥ b
# of variables: n × p + p # of constraints: n × (p−1)p
2
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

9. Full method - example for construction of constraints
Constraints for one item swap:
assessor 1
θ3 + z(3,1) − θ2 − z(2,1) ≥ b
θ3 + z(3,1) − θ1 − z(1,1) ≥ b
θ2 + z(2,1) − θ1 − z(1,1) ≥ b
assessor 2
θ3 + z(3,2) − θ1 − z(1,2) ≥ b
θ3 + z(3,2) − θ2 − z(2,2) ≥ b
θ1 + z(1,2) − θ2 − z(1,2) ≥ b
# of variables: n × p + p # of constraints: n × (p−1)p
2
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

10. Full method - example for construction of constraints
Constraints for one item swap:
assessor 1
θ3 + z(3,1) − θ2 − z(2,1) ≥ b
θ3 + z(3,1) − θ1 − z(1,1) ≥ b
θ2 + z(2,1) − θ1 − z(1,1) ≥ b
assessor 2
θ3 + z(3,2) − θ1 − z(1,2) ≥ b
θ3 + z(3,2) − θ2 − z(2,2) ≥ b
θ1 + z(1,2) − θ2 − z(1,2) ≥ b
# of variables: n × p + p # of constraints: n × (p−1)p
2
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

11. Full method - example for construction of constraints
Constraints for one item swap:
assessor 1
θ3 + z(3,1) − θ2 − z(2,1) ≥ b
θ3 + z(3,1) − θ1 − z(1,1) ≥ b
θ2 + z(2,1) − θ1 − z(1,1) ≥ b
assessor 2
θ3 + z(3,2) − θ1 − z(1,2) ≥ b
θ3 + z(3,2) − θ2 − z(2,2) ≥ b
θ1 + z(1,2) − θ2 − z(1,2) ≥ b
# of variables: n × p + p # of constraints: n × (p−1)p
2
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

12. Full method - example for construction of constraints
Constraints for one item swap:
assessor 1
θ3 + z(3,1) − θ2 − z(2,1) ≥ b
θ3 + z(3,1) − θ1 − z(1,1) ≥ b
θ2 + z(2,1) − θ1 − z(1,1) ≥ b
assessor 2
θ3 + z(3,2) − θ1 − z(1,2) ≥ b
θ3 + z(3,2) − θ2 − z(2,2) ≥ b
θ1 + z(1,2) − θ2 − z(1,2) ≥ b
# of variables: n × p + p # of constraints: n × (p−1)p
2
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

13. Full method - example for construction of constraints
Constraints for one item swap:
assessor 1
θ3 + z(3,1) − θ2 − z(2,1) ≥ b
θ3 + z(3,1) − θ1 − z(1,1) ≥ b
θ2 + z(2,1) − θ1 − z(1,1) ≥ b
assessor 2
θ3 + z(3,2) − θ1 − z(1,2) ≥ b
θ3 + z(3,2) − θ2 − z(2,2) ≥ b
θ1 + z(1,2) − θ2 − z(1,2) ≥ b
# of variables: n × p + p # of constraints: n × (p−1)p
2
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

14. Full method - example for construction of constraints
Constraints for one item swap:
assessor 1
θ3 + z(3,1) − θ2 − z(2,1) ≥ b
θ3 + z(3,1) − θ1 − z(1,1) ≥ b
θ2 + z(2,1) − θ1 − z(1,1) ≥ b
assessor 2
θ3 + z(3,2) − θ1 − z(1,2) ≥ b
θ3 + z(3,2) − θ2 − z(2,2) ≥ b
θ1 + z(1,2) − θ2 − z(1,2) ≥ b
# of variables: n × p + p # of constraints: n × (p−1)p
2
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

15. Full method - example for construction of constraints
Constraints for one item swap:
assessor 1
θ3 + z(3,1) − θ2 − z(2,1) ≥ b
θ3 + z(3,1) − θ1 − z(1,1) ≥ b
θ2 + z(2,1) − θ1 − z(1,1) ≥ b
assessor 2
θ3 + z(3,2) − θ1 − z(1,2) ≥ b
θ3 + z(3,2) − θ2 − z(2,2) ≥ b
θ1 + z(1,2) − θ2 − z(1,2) ≥ b
# of variables: n × p + p # of constraints: n × (p−1)p
2
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

16. Full method - example for construction of constraints
Constraints for one item swap:
assessor 1
θ3 + z(3,1) − θ2 − z(2,1) ≥ b
θ3 + z(3,1) − θ1 − z(1,1) ≥ b
θ2 + z(2,1) − θ1 − z(1,1) ≥ b
assessor 2
θ3 + z(3,2) − θ1 − z(1,2) ≥ b
θ3 + z(3,2) − θ2 − z(2,2) ≥ b
θ1 + z(1,2) − θ2 − z(1,2) ≥ b
# of variables: n × p + p # of constraints: n × (p−1)p
2
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

17. Full method - example for construction of constraints
Constraints for one item swap:
assessor 1
θ3 + z(3,1) − θ2 − z(2,1) ≥ b
θ3 + z(3,1) − θ1 − z(1,1) ≥ b
θ2 + z(2,1) − θ1 − z(1,1) ≥ b
assessor 2
θ3 + z(3,2) − θ1 − z(1,2) ≥ b
θ3 + z(3,2) − θ2 − z(2,2) ≥ b
θ1 + z(1,2) − θ2 − z(1,2) ≥ b
# of variables: n × p + p # of constraints: n × (p−1)p
2
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

18. Full method - example for construction of constraints
Constraints for one item swap:
assessor 1
θ3 + z(3,1) − θ2 − z(2,1) ≥ b
θ3 + z(3,1) − θ1 − z(1,1) ≥ b
θ2 + z(2,1) − θ1 − z(1,1) ≥ b
assessor 2
θ3 + z(3,2) − θ1 − z(1,2) ≥ b
θ3 + z(3,2) − θ2 − z(2,2) ≥ b
θ1 + z(1,2) − θ2 − z(1,2) ≥ b
# of variables: n × p + p # of constraints: n × (p−1)p
2
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

19. The objective function
We consider two kinds of minimisation:
Linear optimisation (LP) based on the sum of the support
variables z(i,j)
p
i=1
n
j=1
z(i,j)
Quadratic optimisation (QP) based on the sum of the
squared support variables z(i,j)
p
i=1
n
j=1
z(i,j)
2
The minimisation of the objective function permits an
automatic adaptation of the individual signals θ towards
their consensus signal ˆθ that represents the observed
individual rankings in an optimal way
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

20. Full method - general formulation (linear case)
minimize
x
p
i=1
n
j=1
z(i,j)
subject to θπ(1,j) + z(π(1,j),j) − θπ(2,j) − z(π(2,j),j) ≥ b
θπ(1,j) + z(π(1,j),j) − θπ(3,j) − z(π(3,j),j) ≥ b
...
θπ(1,j) + z(π(1,j),j) − θπ(p,j) − z(π(p,j),j) ≥ b
− − − −−
θπ(2,j) + z(π(2,j),j) − θπ(3,j) − z(π(3,j),j) ≥ b
θπ(2,j) + z(π(2,j),j) − θπ(4,j) − z(π(4,j),j) ≥ b
...
θπ(2,j) + z(π(2,j),1) − θπ(p,j) − z(π(p,j),j) ≥ b
− − − − − − − − − − − − − − − −−
...
− − − − − − − − − − − − − − − −−
θi ≥ 0 i = 1, . . . , p
z(i,j) ≥ 0 i = 1, . . . , p, j = 1, . . . , n
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

21. Reduced method - example for construction of
constraints
Constraints for one item swap:
assessor 1
θ3 + z(1,1) − θ2 ≥ b
θ2 + z(2,1) − θ1 ≥ b
assessor 2
θ3 + z(1,2) − θ1 ≥ b
θ1 + z(2,2) − θ2 ≥ b
# of variables: n × (p − 1) + p # of constraints: n × (p − 1)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

22. Reduced method - example for construction of
constraints
Constraints for one item swap:
assessor 1
θ3 + z(1,1) − θ2 ≥ b
θ2 + z(2,1) − θ1 ≥ b
assessor 2
θ3 + z(1,2) − θ1 ≥ b
θ1 + z(2,2) − θ2 ≥ b
# of variables: n × (p − 1) + p # of constraints: n × (p − 1)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

23. Reduced method - example for construction of
constraints
Constraints for one item swap:
assessor 1
θ3 + z(1,1) − θ2 ≥ b
θ2 + z(2,1) − θ1 ≥ b
assessor 2
θ3 + z(1,2) − θ1 ≥ b
θ1 + z(2,2) − θ2 ≥ b
# of variables: n × (p − 1) + p # of constraints: n × (p − 1)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

24. Reduced method - example for construction of
constraints
Constraints for one item swap:
assessor 1
θ3 + z(1,1) − θ2 ≥ b
θ2 + z(2,1) − θ1 ≥ b
assessor 2
θ3 + z(1,2) − θ1 ≥ b
θ1 + z(2,2) − θ2 ≥ b
# of variables: n × (p − 1) + p # of constraints: n × (p − 1)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

25. Reduced method - example for construction of
constraints
Constraints for one item swap:
assessor 1
θ3 + z(1,1) − θ2 ≥ b
θ2 + z(2,1) − θ1 ≥ b
assessor 2
θ3 + z(1,2) − θ1 ≥ b
θ1 + z(2,2) − θ2 ≥ b
# of variables: n × (p − 1) + p # of constraints: n × (p − 1)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

26. Reduced method - example for construction of
constraints
Constraints for one item swap:
assessor 1
θ3 + z(1,1) − θ2 ≥ b
θ2 + z(2,1) − θ1 ≥ b
assessor 2
θ3 + z(1,2) − θ1 ≥ b
θ1 + z(2,2) − θ2 ≥ b
# of variables: n × (p − 1) + p # of constraints: n × (p − 1)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

27. Reduced method - example for construction of
constraints
Constraints for one item swap:
assessor 1
θ3 + z(1,1) − θ2 ≥ b
θ2 + z(2,1) − θ1 ≥ b
assessor 2
θ3 + z(1,2) − θ1 ≥ b
θ1 + z(2,2) − θ2 ≥ b
# of variables: n × (p − 1) + p # of constraints: n × (p − 1)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

28. Reduced method - example for construction of
constraints
Constraints for one item swap:
assessor 1
θ3 + z(1,1) − θ2 ≥ b
θ2 + z(2,1) − θ1 ≥ b
assessor 2
θ3 + z(1,2) − θ1 ≥ b
θ1 + z(2,2) − θ2 ≥ b
# of variables: n × (p − 1) + p # of constraints: n × (p − 1)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

29. Reduced method - example for construction of
constraints
Constraints for one item swap:
assessor 1
θ3 + z(1,1) − θ2 ≥ b
θ2 + z(2,1) − θ1 ≥ b
assessor 2
θ3 + z(1,2) − θ1 ≥ b
θ1 + z(2,2) − θ2 ≥ b
# of variables: n × (p − 1) + p # of constraints: n × (p − 1)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

30. Reduced method - general formulation (linear case)
minimize
x
p−1
i=1
n
j=1
z(i,j)
subject to θπ(1,j) + z(1,j) − θπ(2,j) ≥ b
θπ(2,j) + z(2,j) − θπ(3,j) ≥ b
...
θπ(p−1,j) + z(p−1,j) − θπ(p,j) ≥ b
− − − − − − − − − − − − − −
θi ≥ 0 i = 1, . . . , p
z(i,j) ≥ 0 i = 1, . . . , p − 1, j = 1, . . . , n
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

31. Full versus reduced method - linear versus quadratic
optimisation
Number of variables full is n × p + p compared to
n × (p − 1) + p reduced
Number of constraints full is n × (p−1)p
2 compared to
n × (p − 1) reduced
As a consequence, the reduced method offers a
substantial gain in numerical efficiency, especially for a
large or huge number of objects p
Linear optimisation estimates only a discrete
approximation to the real-valued signals ⇒ an additional
bootstrap step is needed
Quadratic optimisation estimates the real-valued
signals directly ⇒ no additional computational step is
needed (unless standard errors are required)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

32. Estimation of ˆθ and its standard error se(ˆθ) via
bootstrap
Let us select B independent bootstrap samples from the
columns of the input ranking matrix with replacement
For these bootstrap replicates we estimate the
corresponding parameters ˆθ∗(b)
Then we can estimate the standard error se(ˆθ) by the
standard deviation of the B replications
seB = {
B
b=1
[ˆθ∗
(b) − ¯θ∗
]2
/(B − 1)}1/2
,
where
¯θ∗
=
B
b=1
ˆθ∗
(b)/B
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

33. The algorithmic workflow
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

34. Simulation study
simulate for p object values from θ ∼ N(0, 1);
simulate n different sigma values for each assessor from
σ ∼| N(0, 0.42) |;
For each assessor j:
simulate p noises using Zj ∼ N(0, σ2
j )
Xi,j = θi + Zi,j
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

35. Simulation results
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

36. Computer used
4 core windows7, 64 bit Intel Core i5-3470 CPU@3.2GHz
16 GB RAM 2133 MHz
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

37. Evaluation of full and reduced method, linear and
quadratic, with B = 500 bootstrap replications
q
q
qqqq
qq
q
q
q
q
qqq
q
q
q
q
qq
qqq
qq
q
qq
q
q
q
q
q
q
q
q
q
q
qq
q
q
q
q
q
q
qq
q
qqqq
q
q
qq
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
qqq
q
qq
q
qq
q
q
q
q
qq
q
qq
q
qqqqqqq
q
q
q
qqq
q
qq
qqq
q
q
q
q
q
q
q
q
qq
q
q
q
q
q
q
q
qq
q
q
q
q
q
qq
q
qq
q
q
q
qq
qq
q
q
qq
qq
qqq
q
q
qqq
qq
q
q
q
q
q
qq
q
q
q
q
qq
q
q
q
qq
q
q
q
q
q
q
qqqq
qq
q
q
q
q
q
q
q
qqqq
q
q
q
qq
q
q
q
q
q
q
qq
q
q
q
qqq
q
q
P = 20
N = 20
P = 20
N = 100
P = 100
N = 20
Pearson
Kendall
Spearm
an
Pearson
Kendall
Spearm
an
Pearson
Kendall
Spearm
an
0.4
0.6
0.8
1.0
Metrics
value
Method
FullLinear
FullQuadratic
ReducedLinear
ReducedQuadratic
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

38. Execution time of all methods
00:00:00
01:00:00
02:00:00
03:00:00
20.20 100.20 20.100
P,N
time
Method
FullLinear
FullQuadratic
ReducedLinear
ReducedQuadratic
Mean time with 500 bootstrap (200 MC)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

39. Evaluation of reduced method, linear and quadratic,
with B = 500 bootstrap replications, for n p data
q
qq
q
qq
qq
q
q
q
q
q
q
q
q
q
q
q
qq
q
q
q
q
q
q
qqq
q
q
q
qq
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
qq
q
q
qq
q
q
q
q
q
q
q
q
q
q
qq
q
qq
q
qq
q
q
q
q
q
q
q
q
q
qq
qq
q
q
q
q
q
q
q
qq
q
q
q
q
q
q
q
qqq
q
q
q
q
q
q
q
q
q
qqq
q
qq
q
q
qqq
qqq
q
q
qqq
q
q
qq
qq
qq
qq
q
q
q
qq
qq
q
q
q
q
q
q
q
q
q
q
q
q
qq
qq
qq
qq
qqqq
q
q
q
q
qq
qq
qqqqq
qqqq
q
qq
q
q
qq
q
qq
qq
qq
q
q
q
qqqq
qq
qqqqqq
qq
q
q
q
qq
q
qq
q
q
q
q
qq
q
q
q
q
q
qqq
qqq
q
qqq
q
q
q
q
q
q
q
q
q
q
qq
q
qqq
qq
q
q
qq
q
qqqq
q
q
q
qqqq
q
q
qq
q
q
q
q
q
q
qqq
q
q
q
q
q
qq
q
q
q
qqqq
q
qq
q
q
qqq
q
q
q
q
q
q
qq
qq
q
q
q
q
q
q
q
q
qq
q
qq
qq
q
qqqqq
q
q
qq
qqqqqqqqqq
q
qq
q
qq
q
q
q
qq
q
qqqq
q
qq
qq
q
q
q
q
qqq
q
q
q
qq
q
qq
q
q
q
qq
qq
q
q
qq
qq
q
q
q
q
q
q
q
q
q
q
q
qq
qqq
q
qqqqqqq
q
q
q
qqqqqqqqqq
q
qqq
q
qqq
q
q
q
qqq
qqqqqq
q
q
qqq
qq
q
qq
q
qq
q
q
qq
qq
qqqqqqqq
q
q
qq
q
q
q
q
qq
q
qq
q
q
q
qq
q
q
q
q
q
qqq
q
q
q
qqq
q
q
q
q
q
q
qq
q
q
q
q
q
qq
q
q
q
q
qqq
q
q
q
q
qq
q
q
q
q
q
q
q
q
q
qqq
qq
qqqqq
qqqq
q
qq
qqqq
q
qq
qq
q
qq
q
qq
q
qq
q
q
qq
q
qqq
qqq
q
q
qq
qqqq
qqqqqqqqq
qq
qqq
q
qq
qqqqqq
q
q
qq
qqqqqq
q
qq
q
q
q
qqq
q
q
q
qqqq
q
q
qq
q
qqqqqqq
q
qqq
q
qq
qqqqqqqqqqqqqqqqq
q
q
qqqqqqqqqq
q
qqq
qqqqqqqqqq
qqqqqqqqq
qq
qqqqqqqqqqqqqqq
q
q
q
q
q
qqq
q
q
qq
qq
q
q
q
q
qq
q
q
qqq
q
qq
qqq
q
q
q
q
q
q
q
q
q
q
qqq
q
q
q
q
q
qq
q
q
qq
qq
q
q
qq
q
q
qqq
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
qq
q
qqqqqq
q
q
qq
q
q
q
qqqqq
q
q
qqqqqqq
q
q
q
qqqqq
q
q
qqqqq
qqqq
qq
q
q
qq
q
qq
q
q
q
qqq
qqqq
qqq
q
q
qqqq qqqqqqqqqqqqq
q
q
q
q
q
qqqq
qq
qqqqq
qqqqqqqqqqqqqqqqqqqqqqq
qqqqqqqqqqqqqqqqqqqqq
P = 20
N = 20
P = 20
N = 100
P = 20
N = 500
P = 20
N = 1000
Pearson
Kendall
Spearm
an
Pearson
Kendall
Spearm
an
Pearson
Kendall
Spearm
an
Pearson
Kendall
Spearm
an
0.4
0.6
0.8
1.0
Metrics
value
Method
ReducedLinear
ReducedQuadratic
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

40. Evaluation of reduced method, linear and quadratic,
with B = 500 bootstrap replications, for n p data
q
qq
q
qq
qq
q
q
q
q
q
q
q
q
q
q
q
qq
q
q
q
q
q
q
qqq
q
q
q
qq
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
qq
q
q
qq
q
q
q
q
q
q
q
q
q
q
qq
q
qq
q
qq
q
q
q
q
q
q
q
q
q
qq
qq
q
q
q
q
q
q
q
qq
q
q
q
q
q
q
q
qqq
q
q
q
q
q
q
q
q
q
qqq
q
qq
q
q
qqq
qqq
q
q
qqq
q
q
qq
qq
qq
qq
q
q
q
qq
qq
q
q
q
q
q
q
q
q
q
q
q
q
qq
qq
qq
qq
qqqq
q
q
q
q
qq
qq
qqqqq
qqqq
q
qq
q
q
qq
q
qq
qq
qq
q
q
q
qqqq
qq
qqqqqq
qq
q
q
q
qq
q
qq
q
q
q
q
qq
q
q
q
q
q
qqq
qqq
q
qqq
q
q
q
q
qqq
qqqqqqq
qq
q
qqq
qq
q
q
q
q
qqqq
q
q
q
q
qq
qqq
qq
q
q
q
q
q
q
qqq
q
q
q
qq
q
q
q
q
qq
q
q
qqqqq
q
q
q
q
q
q
q
qqq
q
qq
qq
q
q
qq
qq
q
q
qqq
q
qqqqq
q
q
q
q
q
q
q
q
q
q
q
qqqqqqqq
q
qqq
q
qqq
q
q
q
qq
qq
q
qqq
qq
qq
qq
q
qq
q
q
q
qqqq
q
q
q
q
q
qqqqqqqqqqqqqqqqqqqqqqqqqqqqqqq
q
qqqqqq
qq
qqq
q
q
qqqqq
q
qq
q
q
qq
q
q
q
q
q
q
q
qqq
q
qq
qqqq
q
q
qq
qqqqq
q
q
qq
q
q
q
q
q
q
q
q
q
qq
q
qq
q
q
qqqqqq
q
qqqqqqq
P = 20
N = 20
P = 100
N = 20
P = 500
N = 20
P = 1000
N = 20
Pearson
Kendall
Spearm
an
Pearson
Kendall
Spearm
an
Pearson
Kendall
Spearm
an
Pearson
Kendall
Spearm
an
0.4
0.6
0.8
1.0
Metrics
value
Method
ReducedLinear
ReducedQuadratic
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

41. Signal estimation of reduced linear and reduced
quadratic method for p=20 and n=20 data
−2
−1
0
1
2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Objects
Signalvalue
Type
theta.true
signal.estimate
Reduced Quadratic
−2
−1
0
1
2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Objects
Signalvalue
Type
theta.true
signal.estimate
Reduced Linear
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

42. Signal estimation of full linear and full quadratic
method for p=20 and n=20 data
−2
−1
0
1
2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Objects
Signalvalue
Type
theta.true
signal.estimate
Full Quadratic
−2
−1
0
1
2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Objects
Signalvalue
Type
theta.true
signal.estimate
Full Linear
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

43. Execution time for various combinations of n and p
00:00:00
00:10:00
00:20:00
00:30:00
00:40:00
00:50:00
20.20 100.20 500.20 1000.20 20.100 20.500 20.1000
(N,P)
time
Method
ReducedLinear
ReducedQuadratic
Mean time with 500 bootstrap (1000 MC)
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

44. Execution time increasing p and n = 20
00:00:00
02:00:00
04:00:00
06:00:00
100 150 225 338 507 760 1140 1710 2565 3848 5772 8658 12987 19480 29220 43830 65745 98618 147927221890332835499252
p
time
method
reducedQuadratic
reducedLinear
Time execution for one estimation, n=20 and p increasing
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

45. Summary and conclusions
A convex optimisation approach for estimation of the
consensus signals underlying ranked lists was proposed
It is computationally more efficient than any stochastic
optimisation approach, e.g. McMC
The quality of estimation is very promising, even for n p
The reduced method is substantially faster and can handle
large or even huge data
Linear
Pros
faster execution
Cons
discrete approximate
estimates
need of bootstrap step
Quadratic
Pros
real-valued precise
estimates
no need of bootstrap step
Cons
slower execution
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation

46. Further work
Development of an R package for CRAN
Implementation of other Bootstrap concepts and
comparison with the current one
Generalisation of the method for missing ranks and tied
ranks
Detection of irregular assessments
L. Vitale, M. G. Schimek Consensus across ranked lists using convex optimisation
